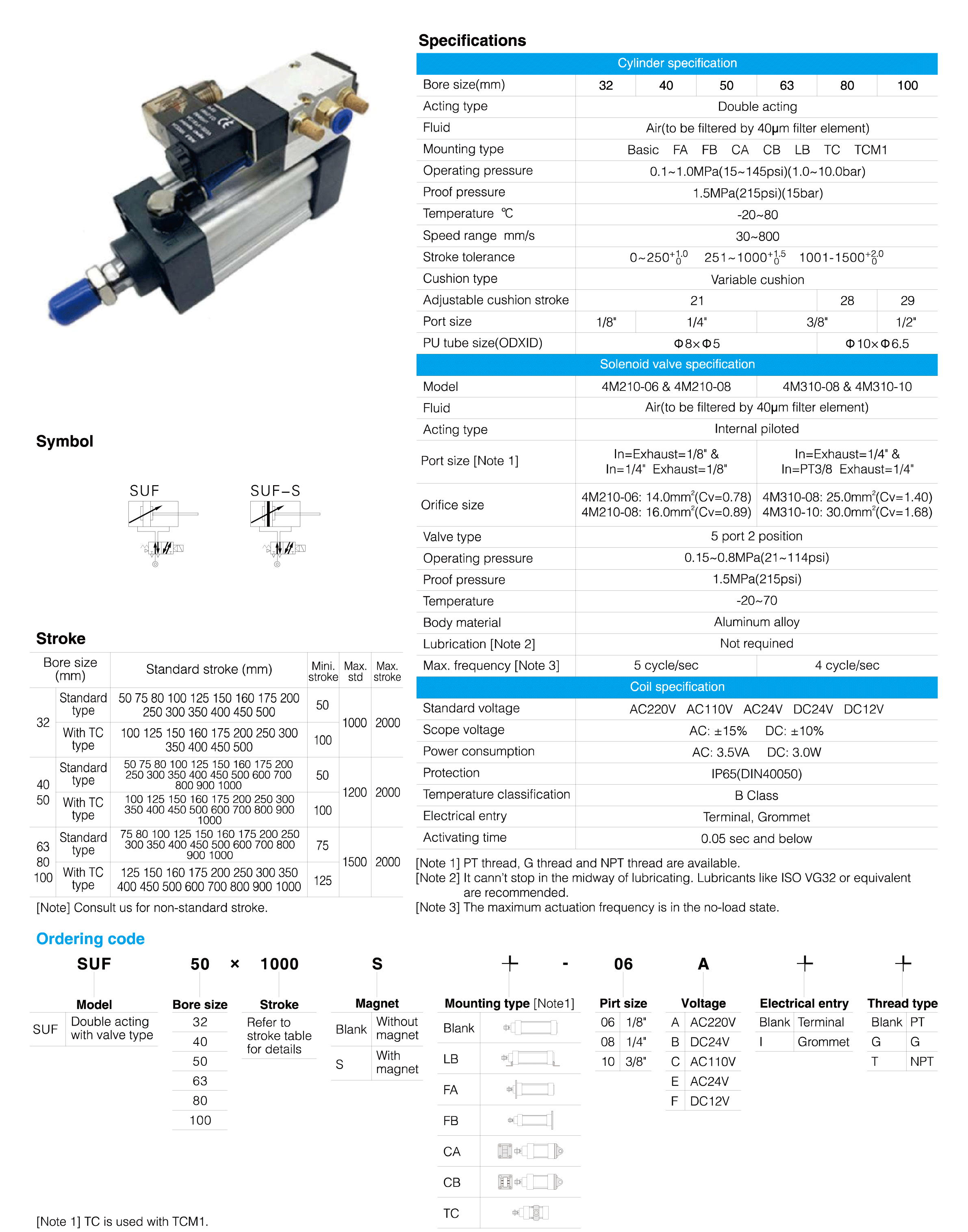

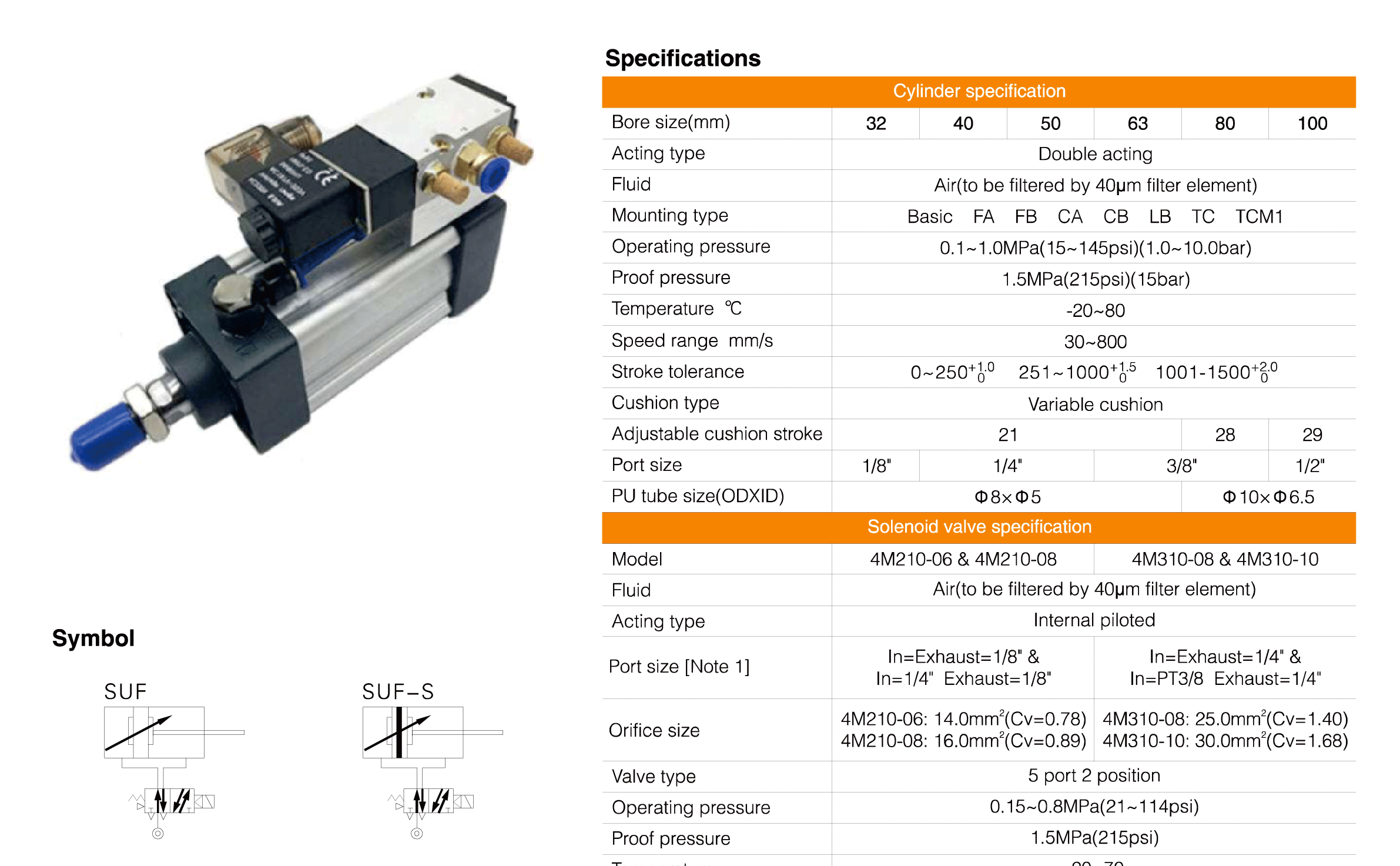

The SUF Series Standard Cylinder (Profile / With Valve Type) integrates a profile pneumatic cylinder and directional control valve into one compact assembly. This design minimizes external piping and separate valve installations, helping reduce machine size and simplify pneumatic system layouts.
Featuring a corrosion-resistant profile barrel and built-in valve control, the SUF Series is ideal for decentralized automation systems where installation efficiency, maintenance convenience, and space optimization are important. Compatible mounting accessories and integrated valve configurations make the cylinder easy to incorporate into a wide range of industrial equipment.
The SUF Series is designed to combine pneumatic actuation and directional valve control into a single integrated solution. By incorporating the control valve directly onto the profile cylinder body, the system reduces external pneumatic components while providing a cleaner and more efficient machine layout.
The tie-rod free profile construction further enhances the compact design, making the cylinder particularly suitable for distributed automation equipment and installations where available space is limited.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Integrated profile cylinder and valve assembly
● Independent cylinder control without external directional valves
● Compact tie-rod free structure
● Reduced pneumatic tubing and electrical wiring
● Space-saving installation design
● Suitable for decentralized automation systems

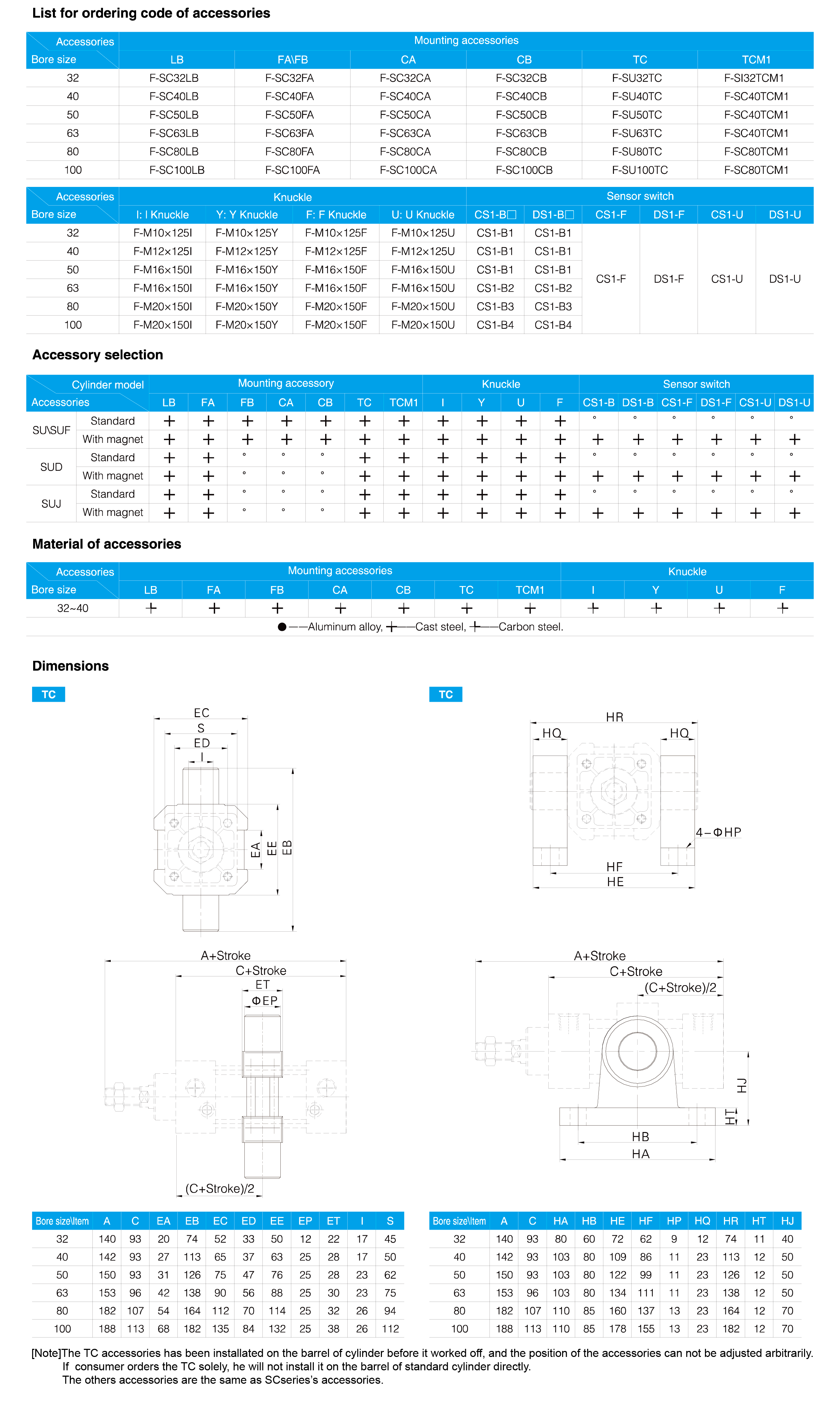

● Multiple mounting accessories available
● Optimized valve matching for different bore sizes
● Simplified maintenance and system expansion
● Compatible with various industrial automation applications
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

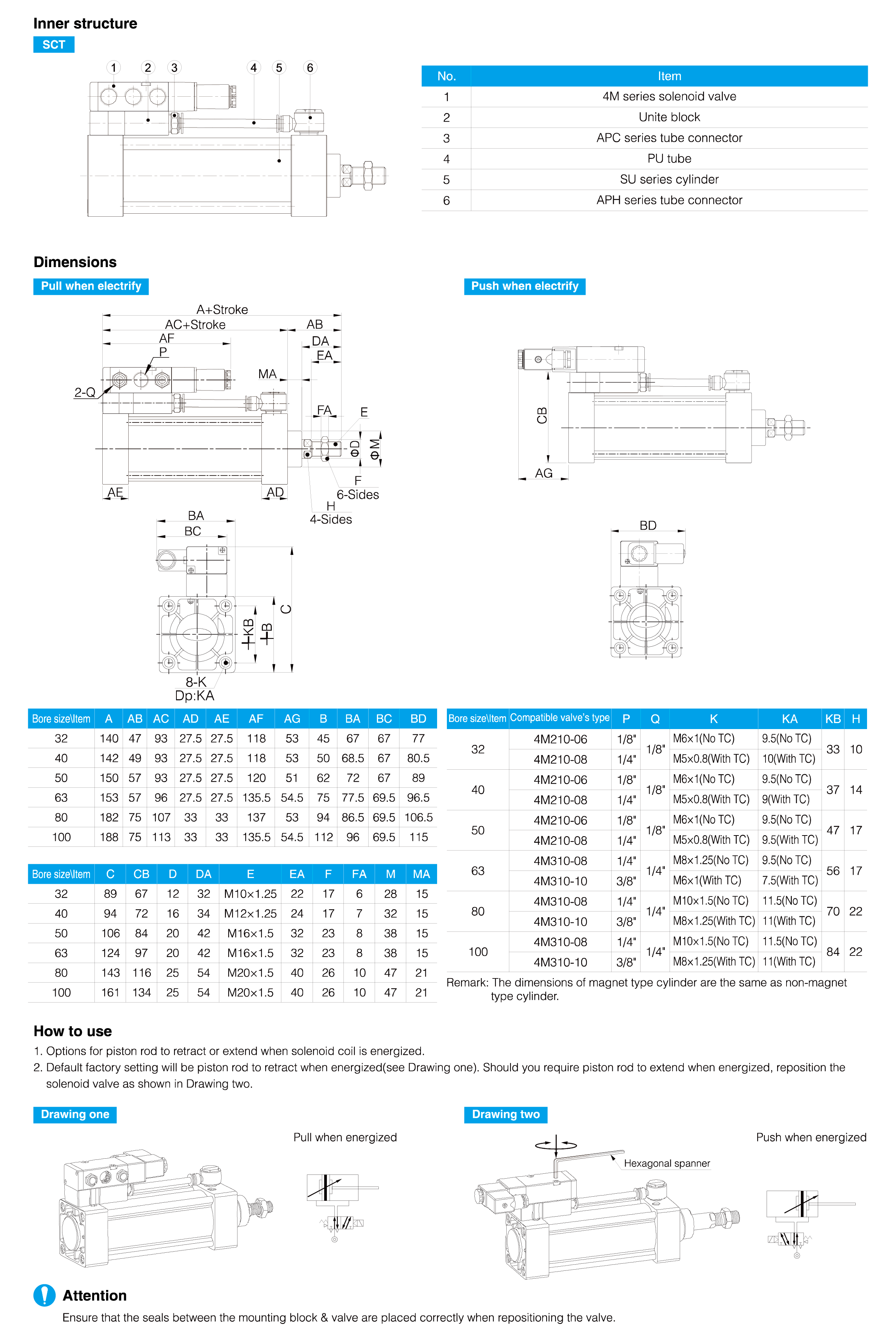

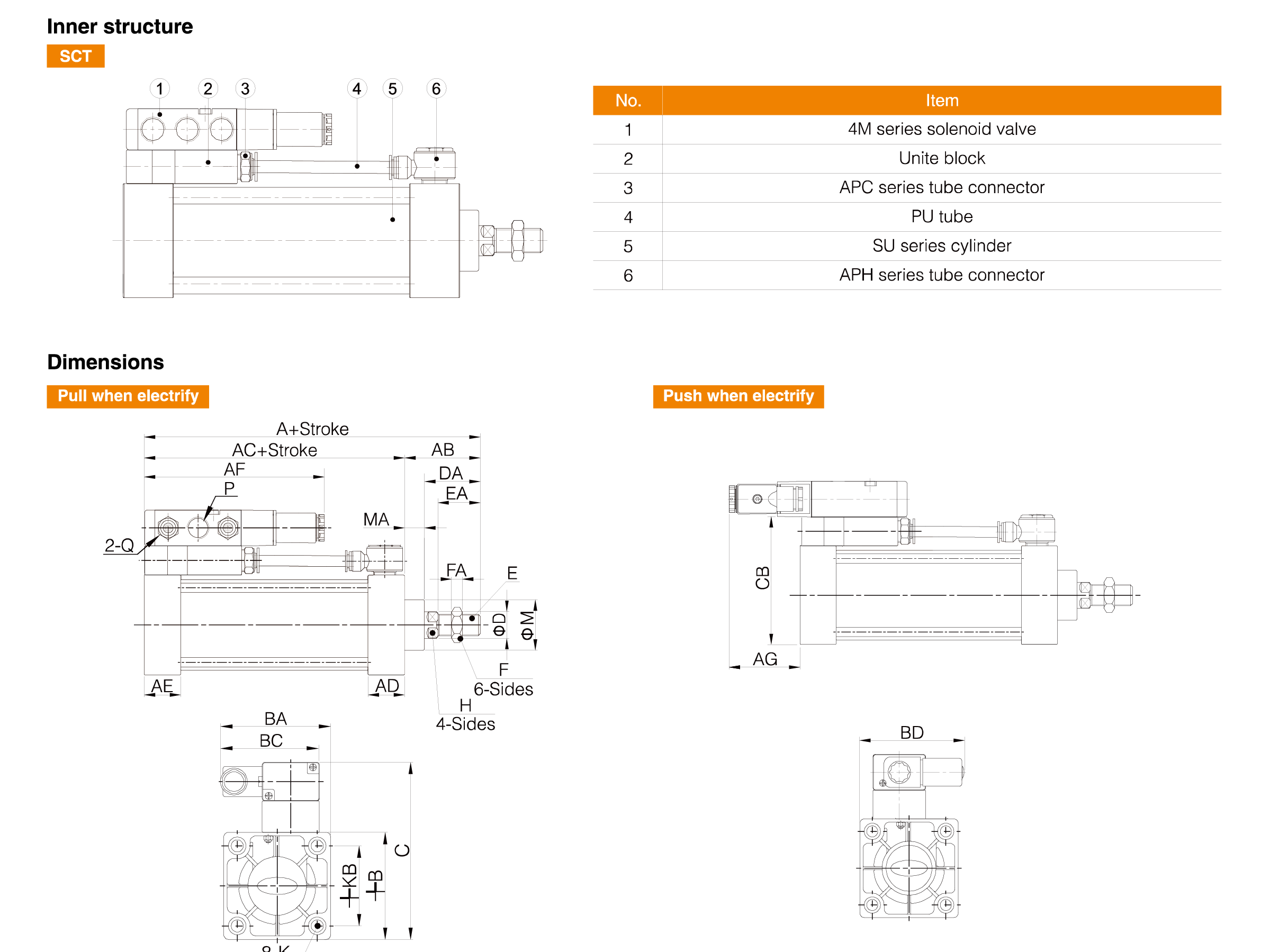

The SUF Series eliminates the traditional arrangement of separate cylinders and valve stations by integrating both functions into one actuator package.
Each cylinder operates independently without requiring additional external solenoid valves, reducing the number of fittings, connectors, and air lines throughout the pneumatic circuit. This integrated architecture simplifies equipment design while improving overall system organization.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

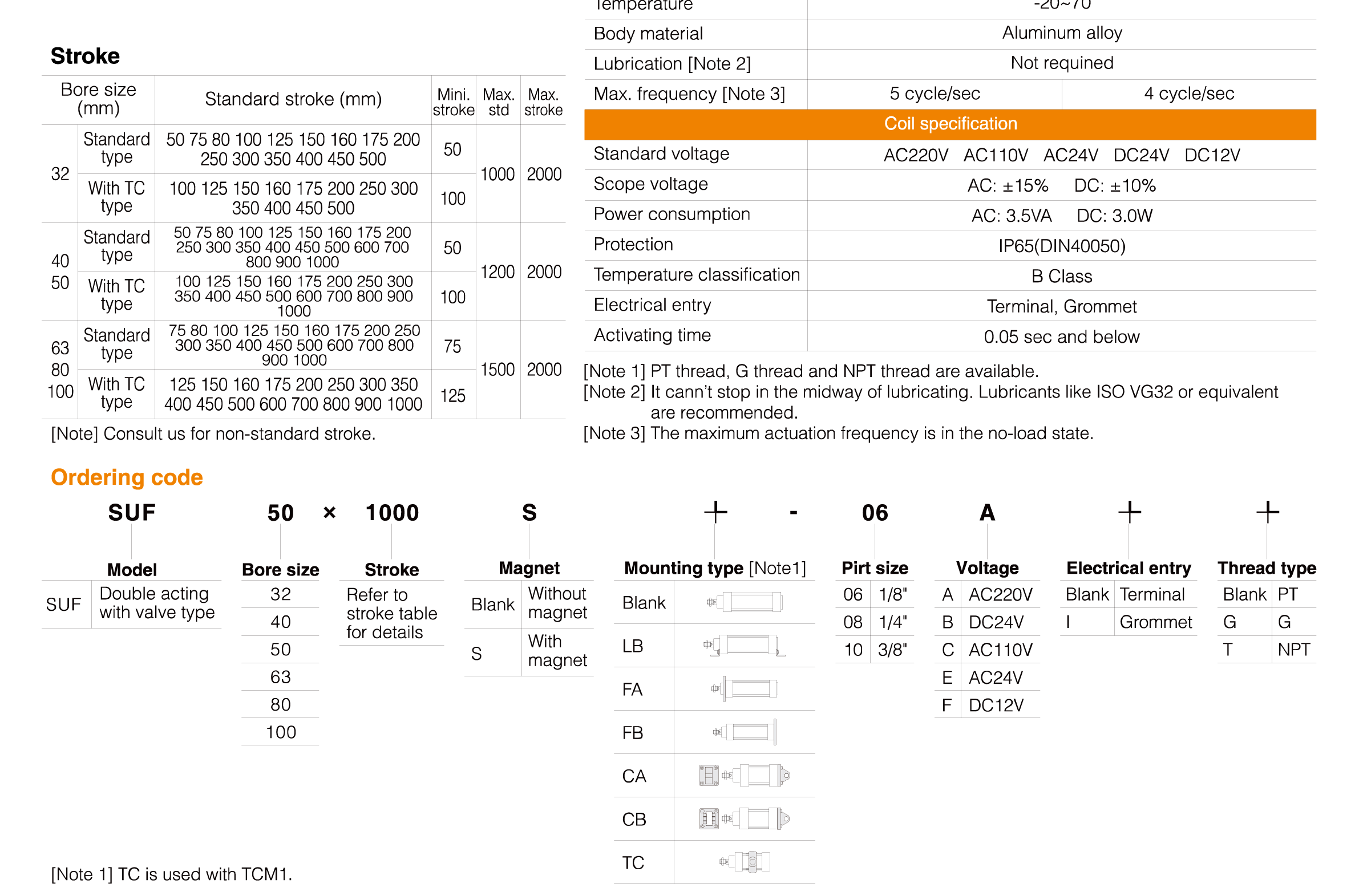

| Cylinder Bore Size | Valve Model |
| 32 mm | 4M210 |
| 40 mm | 4M210 |
| 50 mm | 4M210 |
| 63 mm | 4M310 |
| 80 mm | 4M310 |
| 100 mm | 4M310 |
The valve selection is optimized to provide stable airflow characteristics and responsive cylinder operation across different cylinder sizes.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
Modern manufacturing systems increasingly utilize decentralized pneumatic control to improve flexibility and reduce installation complexity.
The SUF Series supports this approach by allowing valve control directly at the actuator location. Instead of routing long air lines from centralized valve manifolds, machine builders can distribute actuators throughout the equipment while maintaining efficient pneumatic control.
This design helps:
● Shorten pneumatic circuits.
● Reduce pressure losses.
● Simplify machine assembly.
● Improve maintenance accessibility.
● Facilitate future equipment expansion.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The tie-rod free aluminum profile barrel provides both functional and aesthetic benefits.
Its integrated structure offers excellent corrosion resistance while maintaining mechanical rigidity. The smooth external surface is easier to clean and maintain than conventional tie-rod cylinders, making it suitable for modern industrial environments.
The profile construction also contributes to a more compact overall actuator package, particularly beneficial for equipment with restricted installation space.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

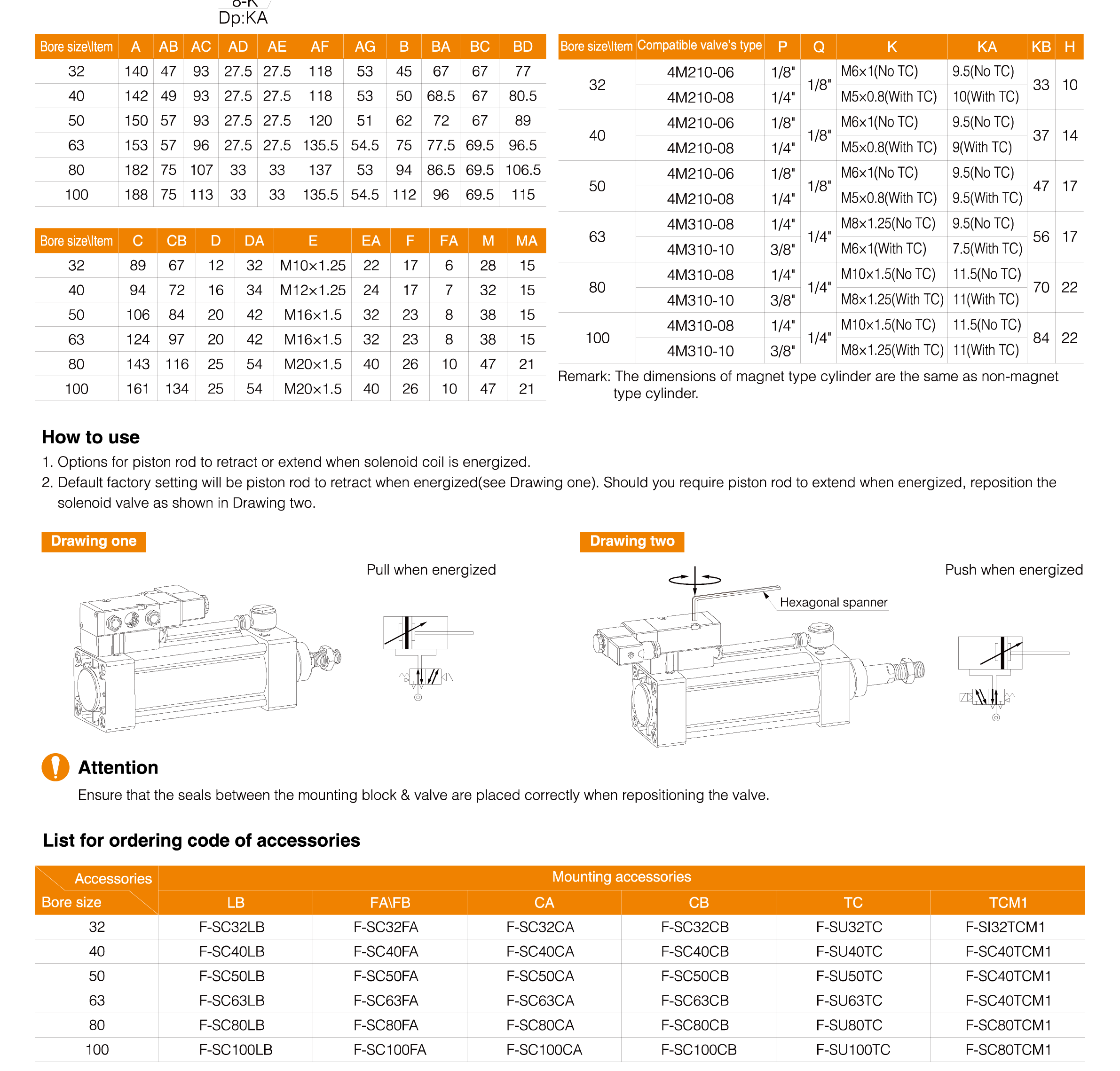

The SUF Series is engineered to reduce installation time by minimizing external pneumatic and electrical connections.

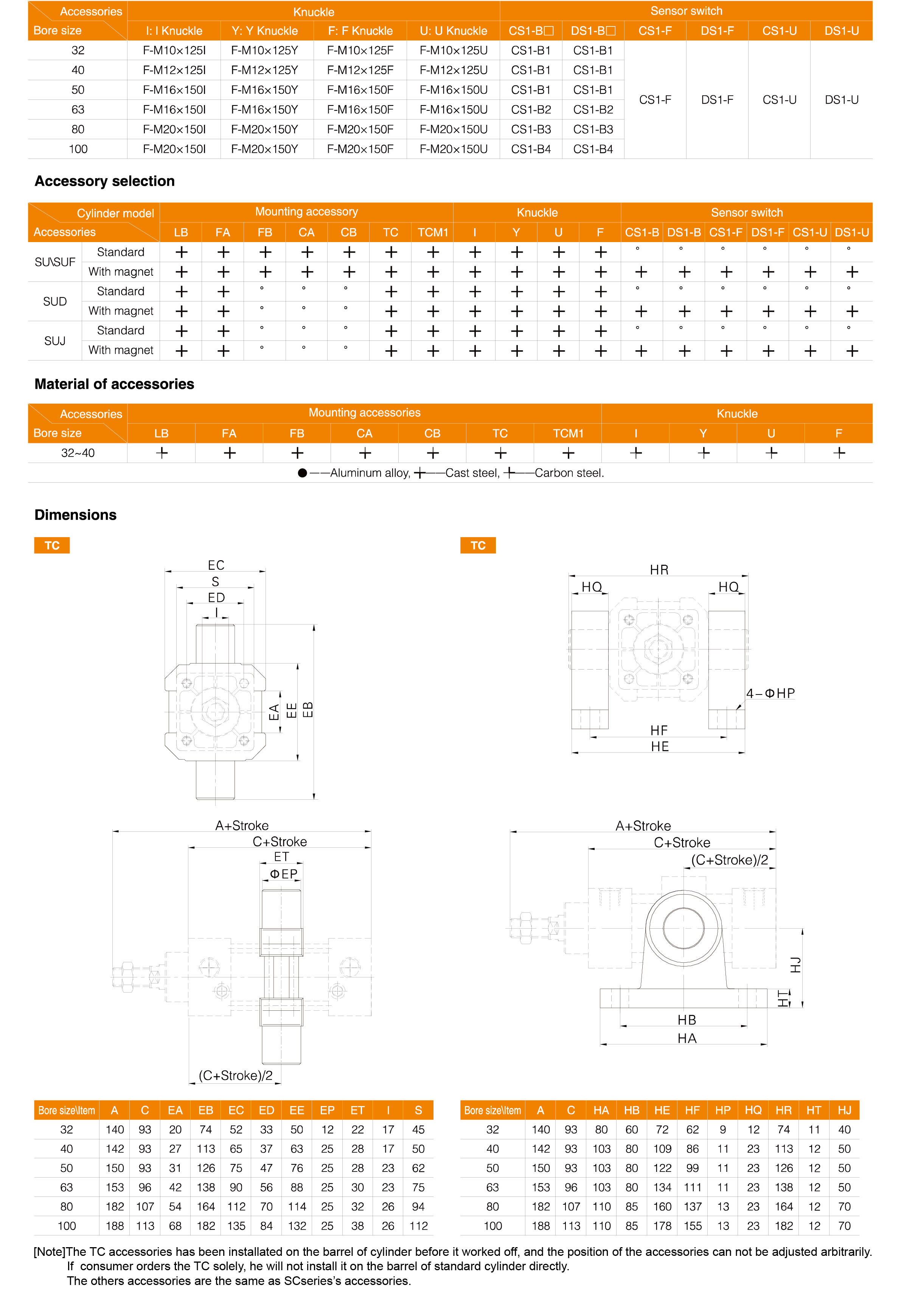

Various mounting accessories are available to accommodate different machine configurations, allowing easy integration into both new equipment and retrofit projects. Fewer external components also simplify maintenance procedures and reduce potential leakage points within the pneumatic system.
The modular design helps lower assembly costs while improving long-term serviceability.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The SUF Series Profile Cylinder with Built-In Valve is widely used in:
● Automated assembly systems
● Packaging and labeling machinery
● Conveyor automation
● Material transfer equipment
● Electronics manufacturing
● Textile machinery
● OEM automation equipment
● Distributed pneumatic control systems
By integrating profile cylinder technology with built-in valve control, the SUF Series provides a compact, efficient, and practical solution for modern industrial automation where simplified installation and decentralized control are key design priorities.
