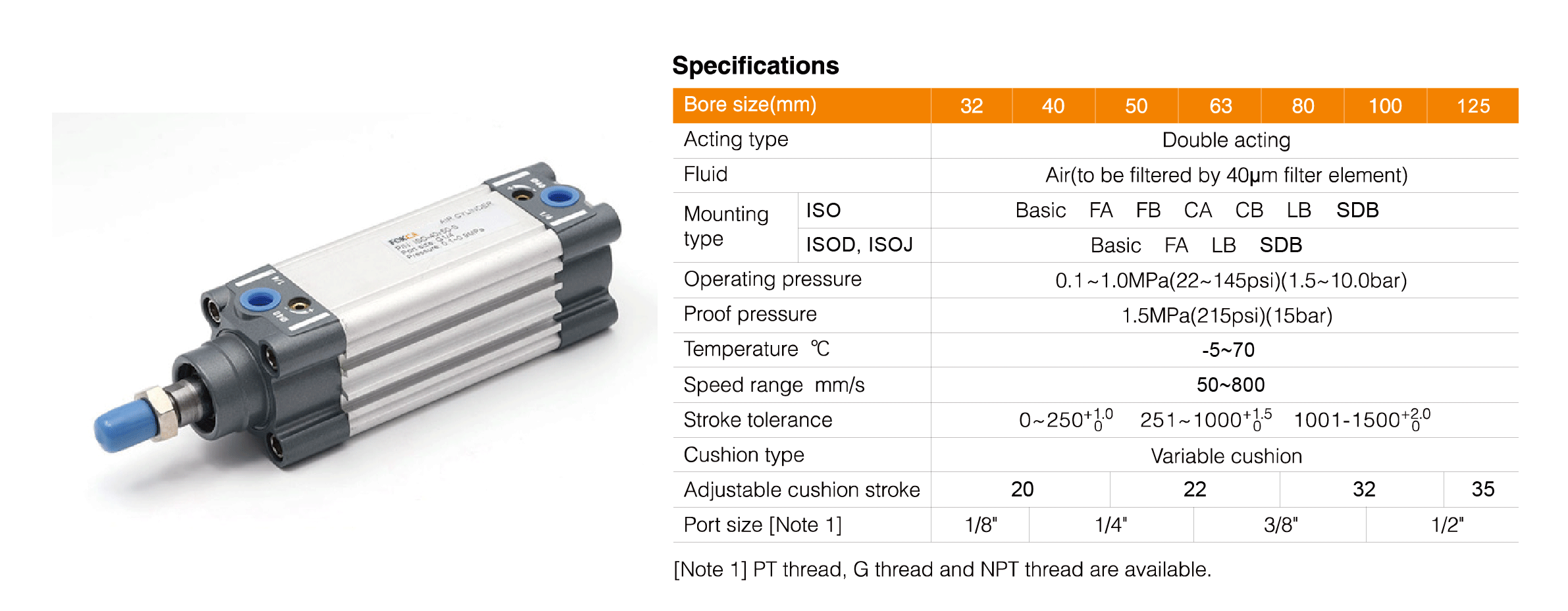

The ISO Series Standard Tie Rod Cylinder is manufactured in accordance with ISO 15552 standards, ensuring excellent interchangeability and reliable performance across a wide range of industrial automation systems.
Its robust tie-rod construction, advanced piston sealing, and adjustable cushioning provide smooth operation, long service life, and dependable linear motion. Available with multiple mounting accessories, the cylinder offers a flexible solution for OEM equipment and pneumatic machinery.
The ISO Series Standard Tie Rod Cylinder is designed to deliver dependable pneumatic actuation for industrial automation equipment requiring standardized dimensions and consistent performance. Manufactured to ISO 15552 specifications, it offers excellent compatibility with internationally recognized mounting standards, making replacement and equipment integration straightforward. The rugged tie-rod construction securely connects the cylinder barrel with the front and rear covers, providing outstanding structural strength and long-term operational reliability.

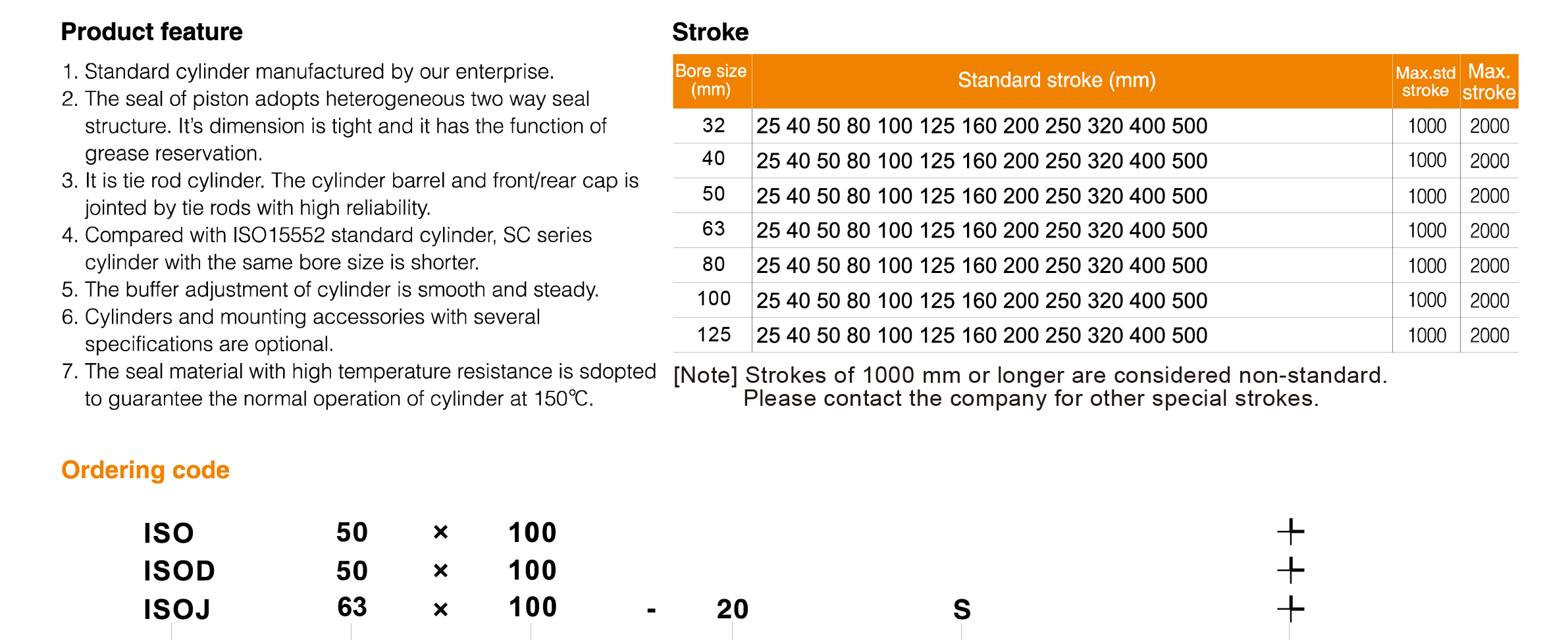

To improve sealing performance, the piston incorporates a heterogeneous bidirectional seal structure that provides effective leakage prevention while retaining lubrication inside the cylinder. This design reduces internal wear and contributes to a longer service life, even under frequent operating cycles. Compared with conventional ISO 15552 cylinders of the same bore size, the optimized cylinder body offers a more compact overall length, helping machine builders save valuable installation space.
● Manufactured according to ISO 15552 standards
● High-strength tie-rod construction for reliable performance
● Advanced bidirectional piston sealing with grease retention
● Compact body compared with conventional ISO cylinders
● Smooth and adjustable pneumatic cushioning
● Wide range of mounting accessories available
● High-temperature seal option for operation up to 150°C
● Stable and durable performance in continuous operation
● Easy maintenance and component replacement
● Suitable for OEM and industrial automation equipment
● Reliable Design for Industrial Automation
The adjustable cushioning mechanism effectively slows the piston before reaching the end of its stroke, reducing vibration, impact, and mechanical wear. For demanding applications, high-temperature sealing materials are available, allowing reliable operation in environments up to 150°C without compromising sealing performance. These features make the cylinder suitable for both standard factory automation and specialized industrial processes.
● Industrial automation machinery
● Packaging and conveying systems
● Assembly production lines
● Material handling equipment
● Textile machinery
● Woodworking equipment
● Food processing machinery
● Printing and packaging equipment
● General pneumatic control systems
● OEM automation equipment
The ISO Series Standard Tie Rod Cylinder combines standardized dimensions, durable construction, efficient sealing technology, and flexible mounting options to provide a reliable pneumatic solution for a broad range of industrial automation applications.
