Hydraulic Quick Couplings for High-Pressure Fluid Systems

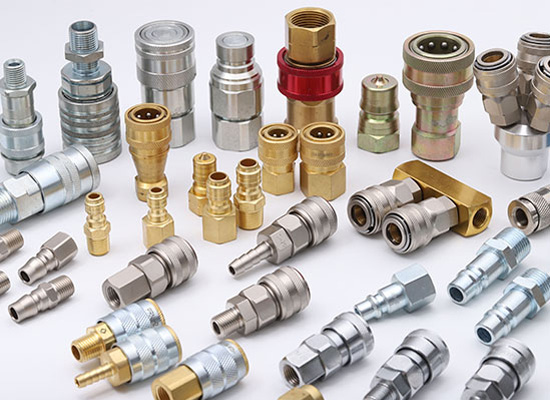

Hydraulic quick couplings provide a practical way to connect and disconnect fluid lines without repeatedly removing threaded or flanged connections. Commonly used in hydraulic machinery and mobile equipment, these connectors help simplify hose replacement, equipment changes, and routine servicing. Depending on their design, they can also help control fluid loss when a line is disconnected.

A hydraulic quick coupling generally consists of a male plug and a female socket. The connection mechanism, internal valve structure, sealing arrangement, and rated pressure determine how the coupling performs in service. Choosing the correct design is essential for maintaining a secure connection under operating pressure and supporting consistent fluid transfer.

Double Shut-Off and Straight-Through Coupling Designs

Hydraulic quick couplings are available in different internal configurations to meet varying flow and connection requirements.

● Double shut-off couplings incorporate shut-off valves in both halves of the connection. When disconnected, the valves close to limit fluid loss from the connected lines. This design is useful when reducing oil spillage and limiting contamination during equipment changes is important.

● Straight-through couplings provide a more open flow path without the same shut-off arrangement. Their design can help reduce flow restrictions, making them suitable for applications where maintaining fluid flow is a priority. Because they may not automatically stop fluid from escaping when disconnected, system requirements must be considered carefully.

The appropriate design depends on the need for fluid retention, allowable pressure drop, required flow rate, and operating procedures.

Hydraulic Quick Coupling Standards and Product Series

Different hydraulic systems use different coupling profiles and dimensions. FOKCA's product range includes several common series for industrial and mobile hydraulic applications:

● ISO 7241-1A Series: For systems using compatible Series A coupling profiles.

● ISO 7241-1B Series: For applications designed around Series B profiles.

● ISO 5675 Series: Commonly used in agricultural hydraulic equipment.

● ISO 16028 Series: Flat-face couplings designed for compatible systems where reducing fluid spillage and contamination during connection and disconnection is important.

● Thread Connected Series: For applications requiring threaded connection arrangements.

● Non-Valve Series: For systems that require a coupling without an integrated shut-off valve.

● High-Pressure Series: For applications requiring couplings rated for higher operating pressures.

Profile, dimensions, and pressure ratings should be verified before replacing an existing coupling. Similar-looking products are not necessarily interchangeable, even when they serve comparable functions.

Materials for Different Operating Conditions

Hydraulic quick couplings may be manufactured from carbon steel, stainless steel, or brass, depending on the product series and application requirements. Carbon steel is commonly selected for general hydraulic service where strength and durability are important. Stainless steel may be preferred in corrosive or moisture-exposed environments, while brass can suit certain fluid connection applications.

Material selection should account for the working fluid, operating pressure, temperature, external exposure, and required service life. Seal materials also need to be compatible with the hydraulic oil or other medium. Always check the manufacturer's specifications for pressure limits, temperature ranges, and material compatibility.

Applications and Hydraulic Coupling Selection

Hydraulic quick couplings are used in construction machinery, agricultural equipment, industrial production systems, maintenance equipment, and other applications that require regular connection and disconnection of fluid lines. Depending on the specific product rating, compatible couplings may also be used in selected water, air, or other fluid-transfer systems.

When selecting a hydraulic quick coupling, confirm the connection standard, thread size, maximum working pressure, required flow rate, fluid type, and operating temperature. Consider whether the application needs double shut-off valves, a straight-through flow path, or a flat-face design. The coupling must be rated for the actual system conditions, including pressure surges where applicable.

By matching the coupling structure and materials to the application, equipment designers and maintenance teams can establish suitable fluid connections, simplify servicing, and reduce avoidable leakage and downtime.
