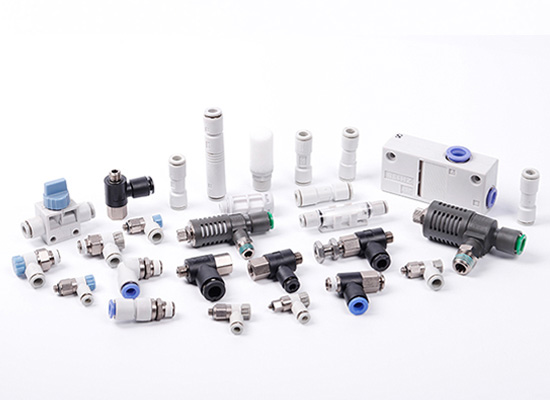

SMC One Touch Fittings

SMC One Touch Fittings for Pneumatic Tube Connections

SMC One Touch Fittings are designed to connect pneumatic tubing to valves, cylinders, and other air-driven components. Their push-in mechanism allows tubing to be inserted directly into the fitting, simplifying installation and reducing the need for tools during routine assembly. To disconnect the tube, users can press the release ring, making maintenance and component replacement more convenient.

For pneumatic systems with multiple connection points, these fittings help streamline pipe routing and reduce assembly time. Correct tube insertion and suitable fitting selection are essential for maintaining a secure connection and dependable airflow.

Sealing Performance and Material Options

A well-designed one-touch fitting uses an internal gripping mechanism and sealing elements to hold the tube in place and limit compressed-air leakage. The fitting body may be made from engineering plastic or metal, depending on the product design and operating requirements.

Plastic fittings are useful where low weight and compact installation are priorities. Metal fittings may be preferred when the application calls for a more robust body or specific environmental resistance. Material, seal compatibility, working pressure, and temperature limits should be checked against the specifications of the selected model.

Applications and Fitting Selection

SMC One Touch Fittings are commonly used in industrial automation, packaging machinery, automotive assembly, electronic equipment, and general pneumatic control systems. Suitable configurations can help connect tubing to threaded ports, branch air lines, or join tubes within compact equipment layouts.

When choosing a fitting, confirm the tubing's outside diameter, thread type and size, connection configuration, and compatibility with the working pressure and medium. Metric and inch tubing options may be available, depending on the series. The fitting must match both the tube material and the equipment port to help prevent loose connections and leakage.

FOKCA offers pneumatic fitting options for equipment builders, distributors, and maintenance teams seeking practical solutions for air-line installation. Always consult the relevant product specifications to confirm dimensions, materials, and operating limits before ordering.
