Valve Terminals - Pneumatic Valve Manifolds for Integrated Control

Valve terminals (also known as pneumatic valve manifolds or valve islands) integrate multiple solenoid valves on a shared pneumatic and electrical platform.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

What is a Valve Terminal?

Valve terminals (also known as pneumatic valve manifolds or valve islands) integrate multiple solenoid valves onto a common base that shares air supply and electrical connections. This modular design saves space, reduces wiring, and simplifies installation in complex automation systems.

Note for visitors: This page is for industrial pneumatic valve terminals used in factory automation and process control. If you are looking for PEX plumbing manifolds, irrigation valve manifolds, or automotive intake manifolds, please contact the respective suppliers.

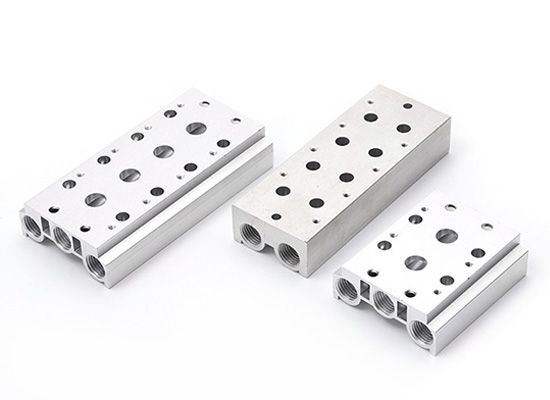

valve terminals.jpg

Why Use Valve Terminals?

Traditional pneumatic systems require individual tubing and wiring for each solenoid valve. Valve terminals solve this by:

● Shared air supply - One common inlet feeds all valves

● Centralized electrical connection - Single multi-pin connector or fieldbus interface

● Reduced installation time - No individual wiring and tubing for each valve

● Compact footprint - Up to 50% space savings

● Diagnostics - Integrated status LEDs and bus communication

Types of Valve Terminals

Our Valve Terminal Range:

Type	Features	Communication
Modular Valve Terminals	Expandable, customizable	IO-Link, ProfiNet, EtherNet/IP
Compact Valve Terminals	Fixed size, low cost	Multi-pin, IO-Link
Standard Valve Manifolds	Integrated base, ready to use	Parallel wiring

Technical Specifications:

● Valve width: 10mm, 14mm, 18mm

● Number of valves: 2 to 32 positions

● Pressure range: -0.9 to 10 bar

● Communication protocols: IO-Link, ProfiNet, EtherNet/IP, CC-Link, Modbus TCP

● Electrical connection: M12, DB15, D-Sub, screw terminal

Applications

Common Applications for Valve Terminals:

Industry	Application
Packaging machinery	Multi-axis pick-and-place
Assembly lines	Sequential cylinder control
Automotive manufacturing	Body welding, component assembly
Food and beverage	Filling and capping machines
Electronics assembly	Precision component handling

How to Choose the Right Valve Terminal

Requirement	Recommendation
Small number of valves (2–8)	Compact valve terminal
Large system, future expansion	Modular valve terminal
Need PLC integration	Fieldbus model (ProfiNet / EtherNet/IP)
Simple on/off control	Parallel wiring model
Remote diagnostics required	IO-Link model

FAQs

Q1: Are these the same as PEX plumbing manifolds or sprinkler valve manifolds?

A1: No. Our valve terminals are industrial pneumatic valve manifolds for factory automation, not plumbing, irrigation, or automotive manifolds.

Q2: What is a valve terminal?

A2: A valve terminal (also called a valve manifold or valve island) is an assembly of multiple pneumatic solenoid valves on a common base that shares air supply and electrical connections.

Q3: What communication protocols do your valve terminals support?

A3: We support IO-Link, ProfiNet, EtherNet/IP, CC-Link, Modbus TCP, and standard parallel wiring.

Q4: How many valves can be mounted on one valve terminal?

A4: From 2 to 32 valves depending on the model and valve width.

Q5: Can valve terminals be expanded later?

A5: Yes, modular valve terminals allow easy expansion by adding additional valve sections or using a larger size.
