The SC Series Standard Tie-Rod Cylinder is a reliable and cost-effective pneumatic cylinder designed for industrial automation applications. Featuring a robust tie-rod structure, this double acting cylinder delivers stable linear motion, excellent durability, and long service life. Compared with standard ISO pneumatic cylinders of the same bore size, the SC Series offers a more compact overall length, making it ideal for machinery with limited installation space.
Equipped with a high-performance piston sealing system and adjustable air cushioning, the SC pneumatic cylinder ensures smooth operation, reduced impact, and improved efficiency. Available in multiple bore sizes and mounting configurations, this industrial air cylinder is widely used in packaging equipment, assembly lines, material handling systems, textile machinery, and general automation applications.
The SC Series Standard Tie-Rod Pneumatic Cylinder is designed for reliable linear motion control in a wide range of industrial automation applications. Its robust tie-rod construction provides excellent strength and stability, while the compact design helps reduce installation space compared with conventional cylinders of similar bore sizes.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Standard tie-rod cylinder design for industrial automation systems
● Double-acting operation for stable bidirectional movement
● Compact overall dimensions compared with similar standard cylinders
● Smooth and adjustable air cushioning for reduced impact
● Reliable sealing performance with low friction operation
● Multiple mounting configurations available
● Suitable for automated machinery, packaging equipment, assembly lines, and material handling systems
● Optional magnetic piston for auto switch installation
● Available with PT, G, or NPT thread standards
● Optional high-temperature sealing materials for demanding environments
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

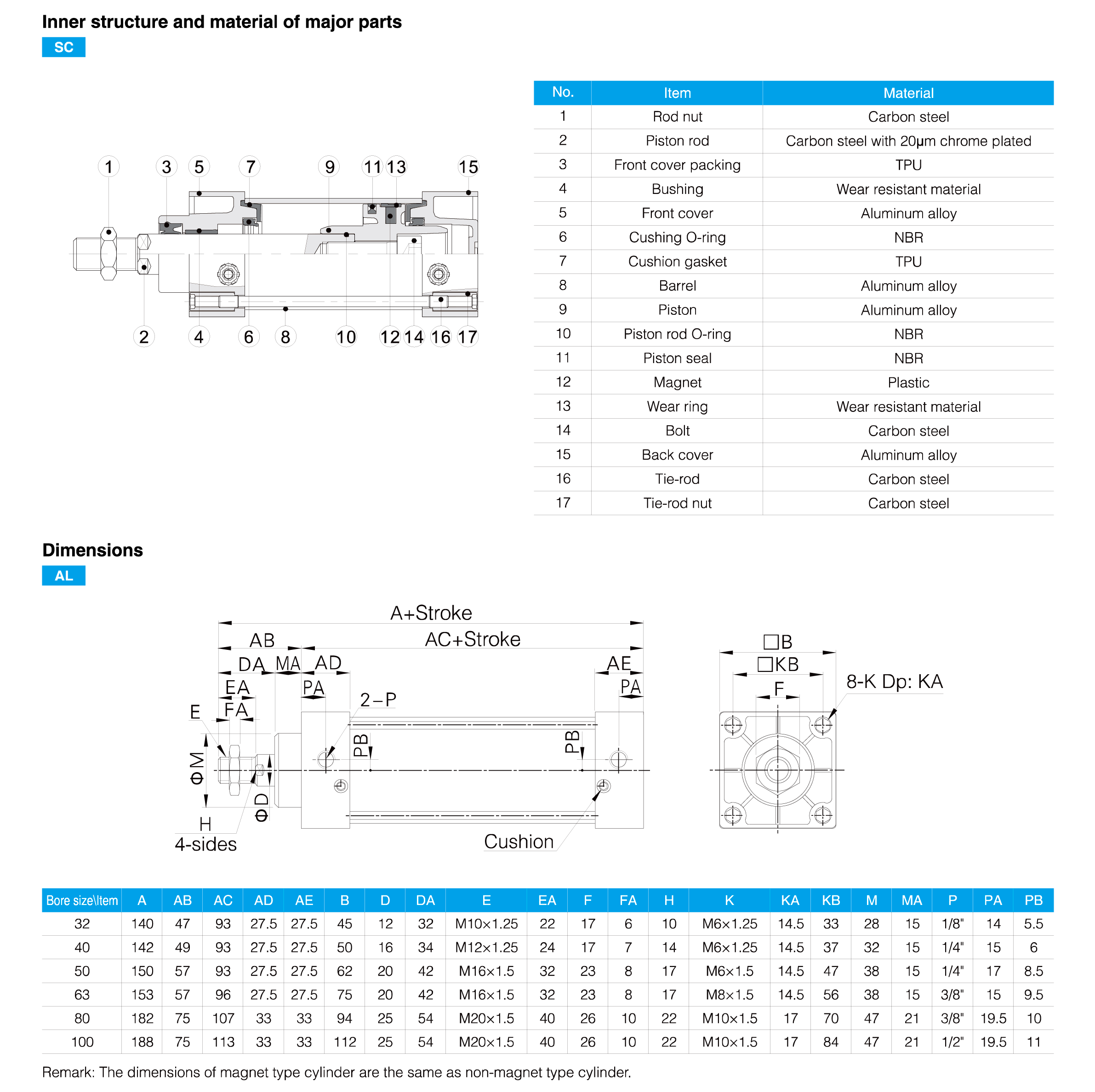

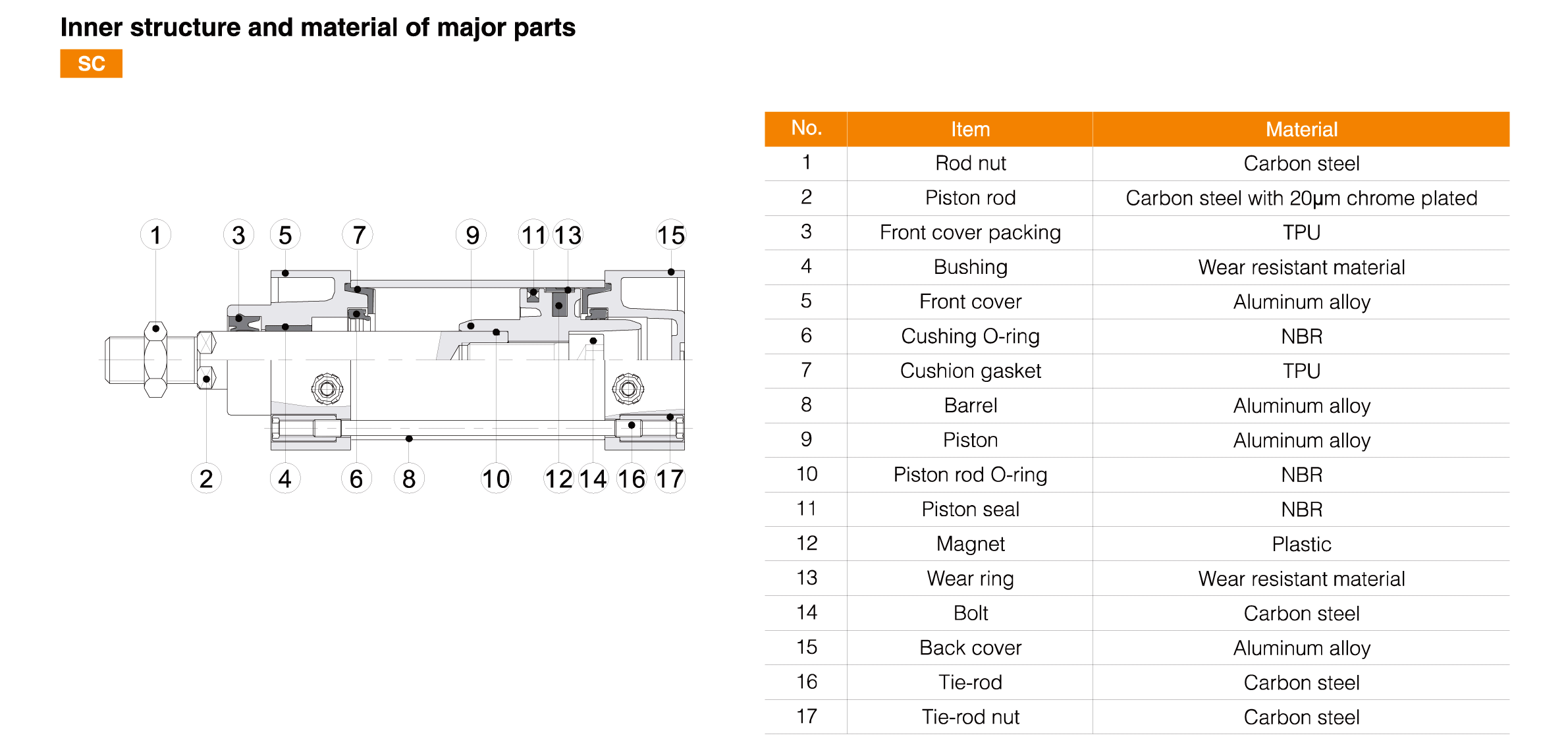

The piston adopts a heterogeneous two-way sealing structure that improves sealing efficiency while reducing internal leakage. The seal design also retains lubrication grease effectively, helping minimize friction and wear during continuous operation.
Compared with conventional sealing structures, this design contributes to smoother movement, longer service life, and more consistent output performance throughout the cylinder's operating cycle.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The SC Series features an adjustable air cushioning system that helps absorb kinetic energy at the end of each stroke. This cushioning mechanism reduces vibration, impact loads, and mechanical stress on connected equipment.
By allowing users to fine-tune the cushioning effect according to load and speed requirements, the cylinder can achieve smoother operation and improved equipment durability.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

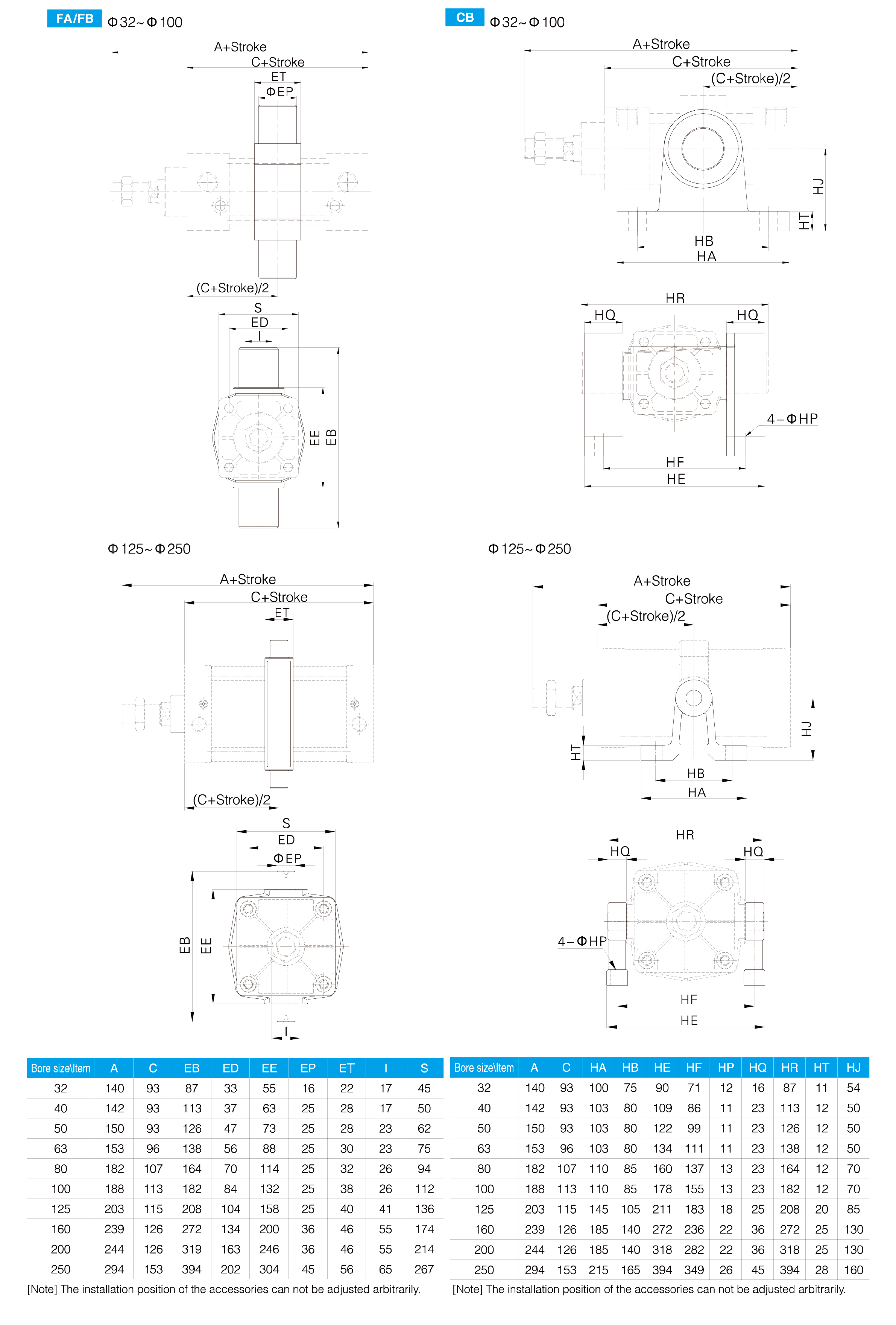

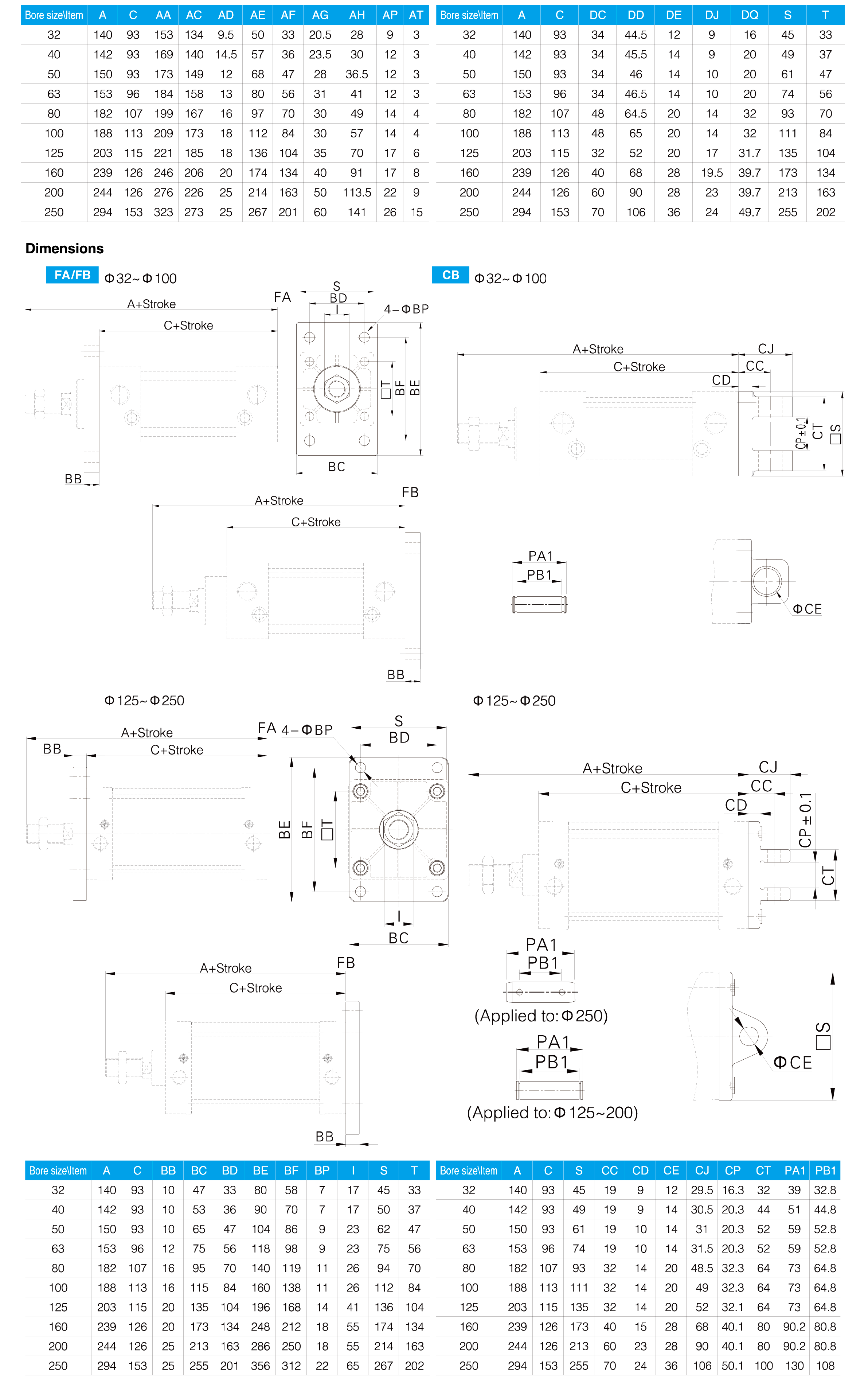

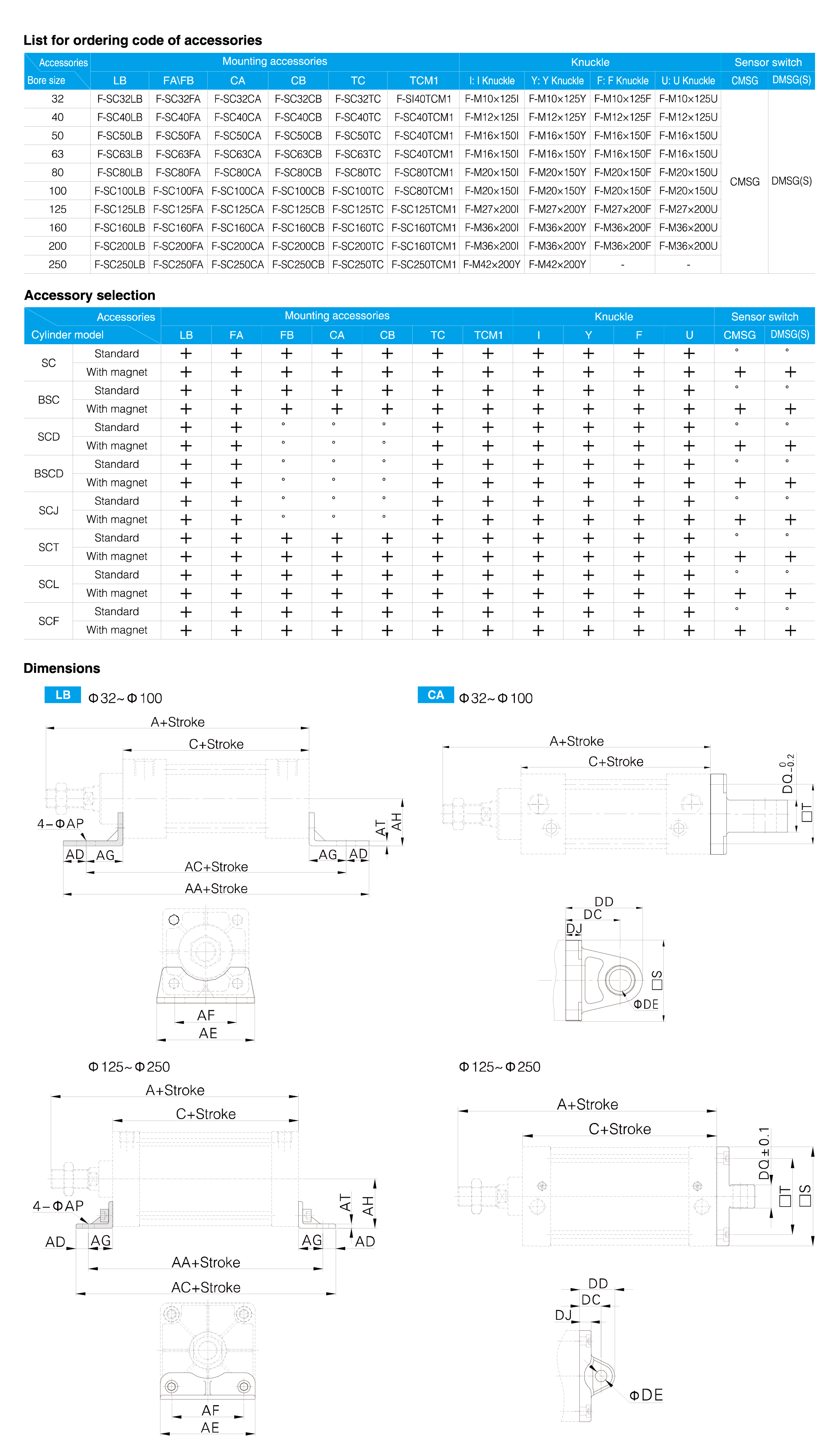

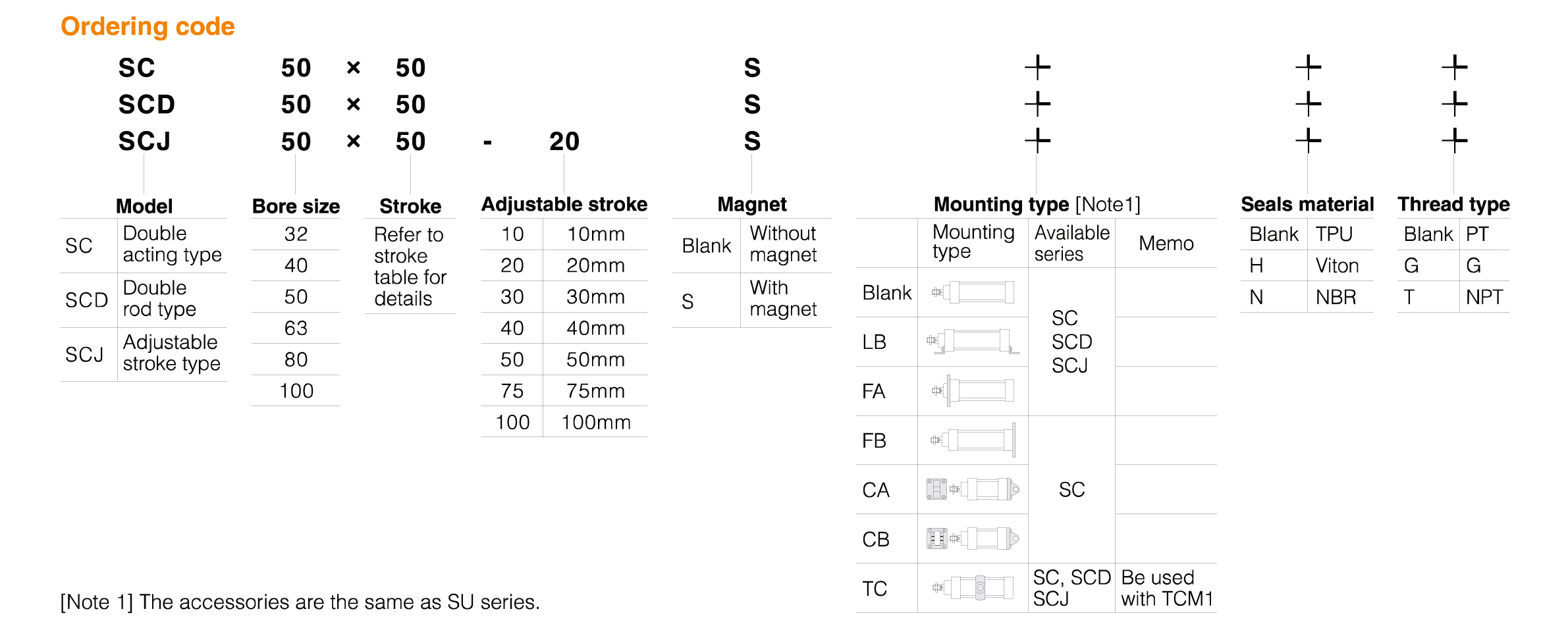

To accommodate different machine layouts and installation requirements, the SC Series supports a variety of mounting methods and accessories.

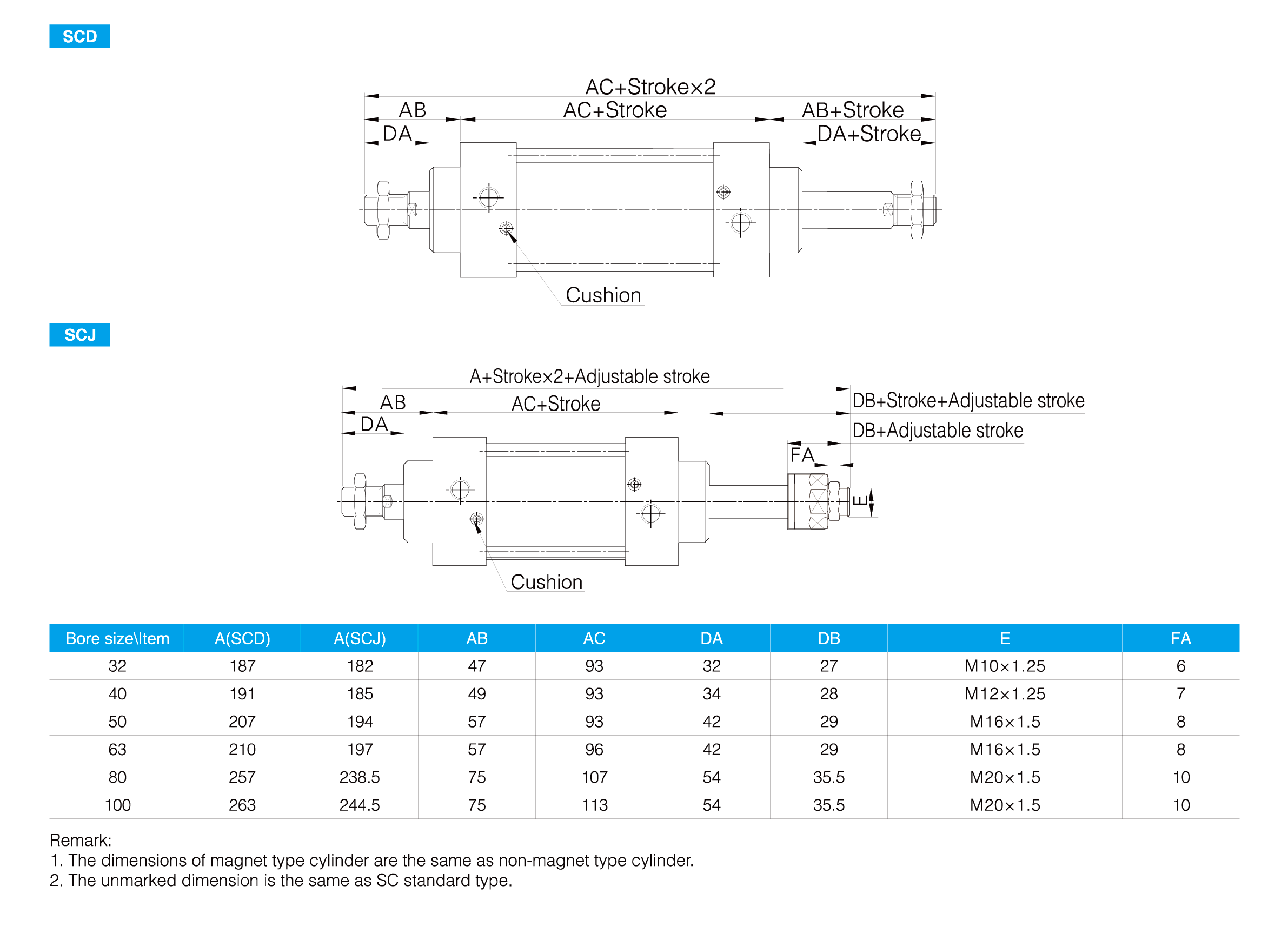

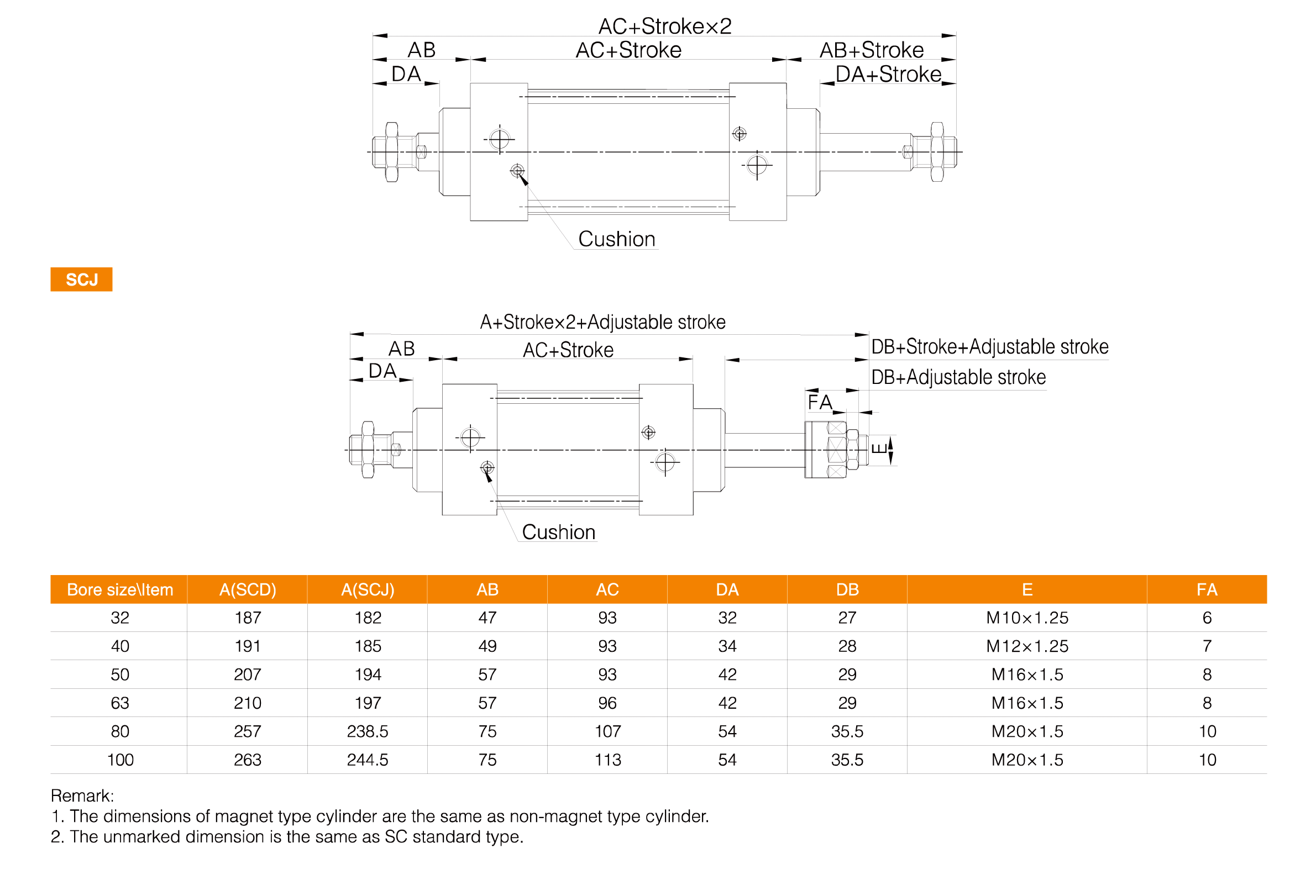

| Series | Mounting Options |
| SC | Basic, FA, FB, CA, CB, LB, BTC, TCM1 |
| SCD / SCJ | Basic, FA, LB, TC, TCM1 |

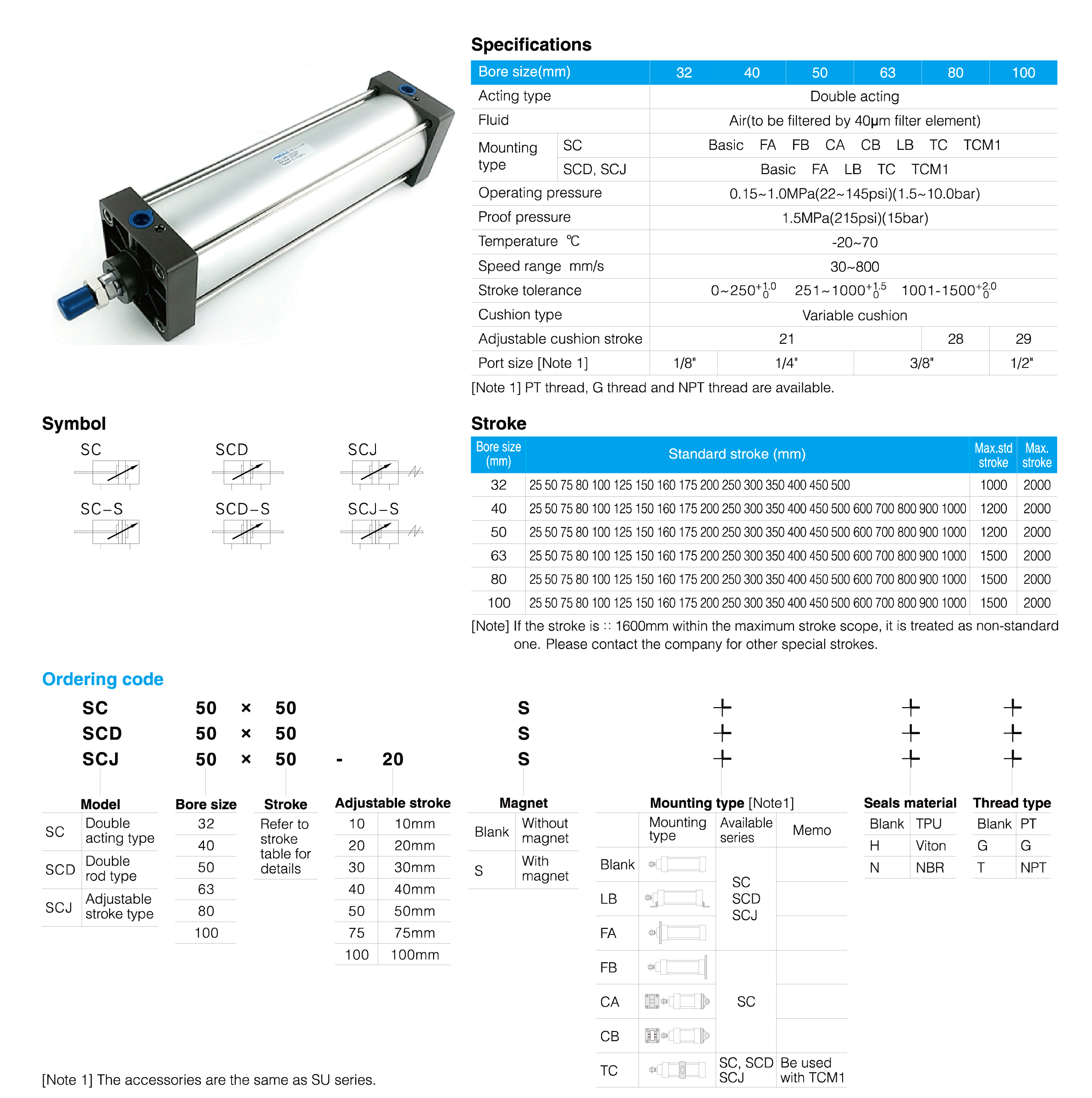

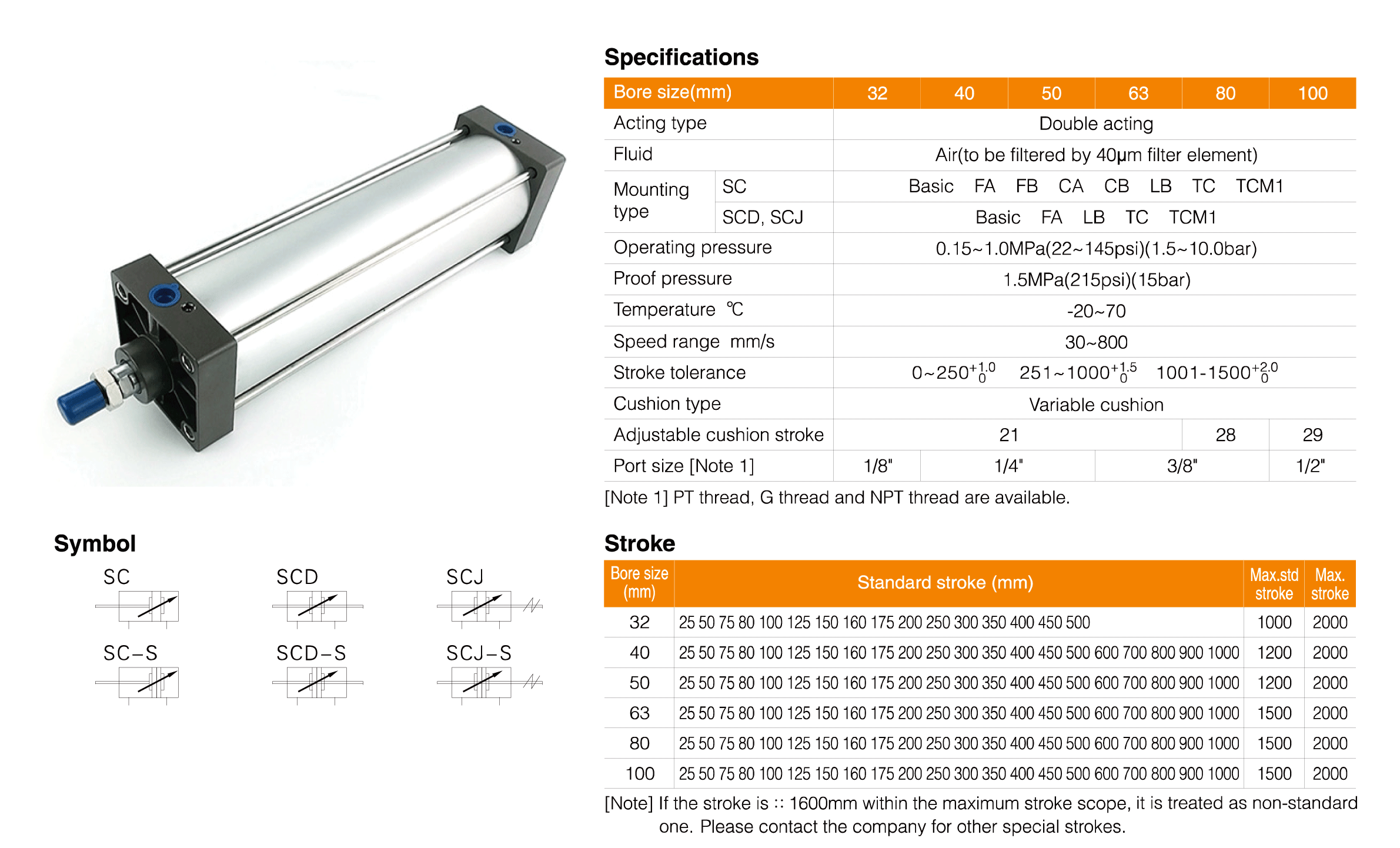

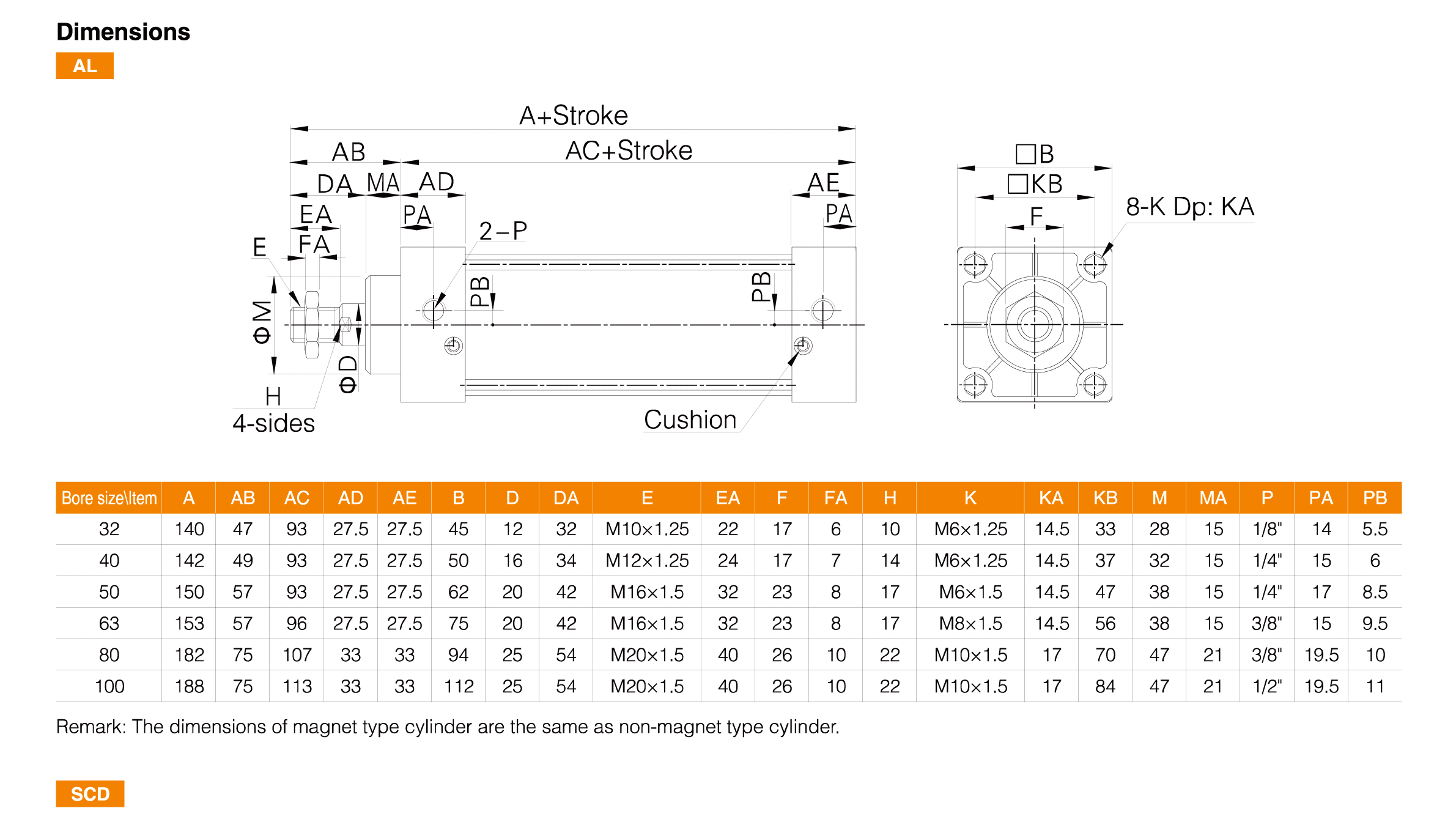

| Bore Size (mm) | Port Size |
| 32 | 1/8" |
| 40 | 1/4" |
| 50 | 1/4" |
| 63 | 3/8" |
| 80 | 3/8" |
| 100 | 1/2" |
Multiple bore sizes allow engineers to select the most suitable cylinder according to thrust requirements, available installation space, and system pressure conditions.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The SC Series Standard Cylinder is widely used in:
● Packaging machinery
● Automated assembly lines
● Material handling systems
● Textile machinery
● Food and beverage equipment
● Printing machinery
● Electronic manufacturing equipment
● General industrial automation systems
Its combination of compact dimensions, reliable operation, and flexible installation options makes it a practical choice for a broad range of pneumatic motion control applications.
