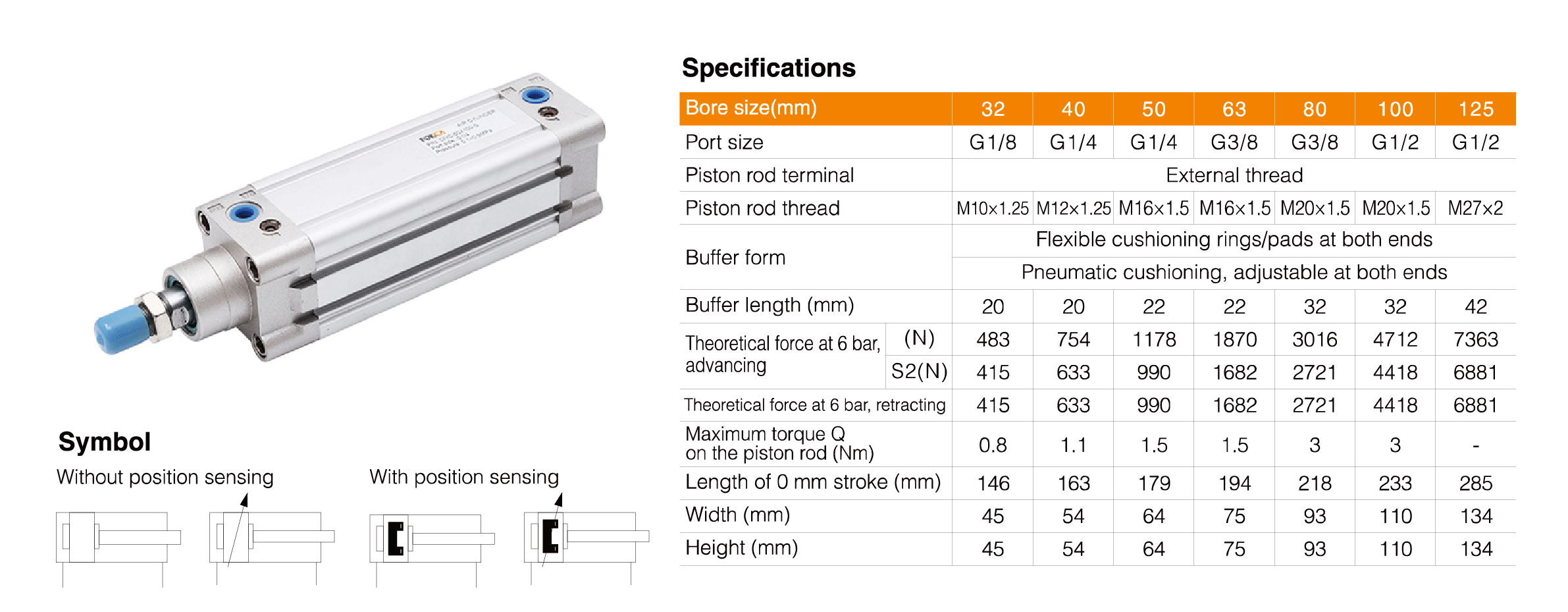

DNC Series Standard Cylinder

DNC Series Standard Cylinder

The DNC Series Standard Cylinder is an ISO 15552 profile pneumatic cylinder designed for industrial automation applications requiring reliable linear motion, long stroke capability, and flexible integration. Its robust aluminum profile body provides excellent mechanical strength while maintaining a compact appearance and good corrosion resistance.

Designed as a modular platform, the DNC Series supports a variety of derivative products and customized solutions, making it suitable for both standard machinery and specialized industrial equipment.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Main Features

● ISO 15552 standard dimensions

● Stroke lengths up to 2000 mm

● Three-sided grooves for proximity switches

● Modular design for customized applications

● Multiple derivative models available

● Spare parts and maintenance support

● Optional ATEX versions for hazardous environments

● Easy integration into industrial automation systems

● Long Stroke and Flexible Design

The DNC Series offers stroke lengths up to 2000 mm, making it suitable for applications that require extended linear travel without additional mechanical transmission components.

Its modular design allows different stroke lengths and derivative configurations to meet various machine requirements. Common models include DNC-80, DNC-100, and DNC-125, with customized versions available for special applications.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Integrated Sensor Installation

The cylinder profile features grooves on three sides for proximity switch installation. This design allows flexible sensor positioning while protecting the switches from external damage.

Integrated sensor mounting simplifies installation, reduces accessory requirements, and improves overall machine appearance.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Customization and Service Support

The DNC Series is developed as a flexible cylinder platform for industrial automation. Various derivative products and optional configurations can be supplied according to application requirements.

To support long-term operation, spare parts and maintenance services are available, helping reduce downtime and simplify equipment servicing.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Optional ATEX Configuration

For applications involving potentially explosive atmospheres, selected DNC Series cylinders can be supplied in versions conforming to ATEX requirements.

These configurations are suitable for industries such as chemical processing, pharmaceutical manufacturing, grain handling, and other environments where explosion protection is required.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Application Areas

The DNC Series Standard Cylinder is widely used in:

● Automated production lines

● Material handling systems

● Packaging machinery

● Conveyor equipment

● Industrial assembly

● Food and beverage processing

● Chemical and pharmaceutical industries

● OEM automation equipment

Combining ISO 15552 compatibility, long stroke capability, integrated sensor grooves, and flexible customization options, the DNC Series provides a practical pneumatic solution for a wide range of industrial automation applications.
