The CA2 Series Standard Cylinder is designed to provide reliable pneumatic actuation with improved performance over conventional standard cylinders. Featuring a lighter construction, enhanced cushioning system, and optimized piston rod stability, the cylinder helps improve machine efficiency while reducing operating loads.
Compatible with CA1 installation dimensions, the CA2 Series simplifies equipment upgrades without requiring significant design modifications. Multiple thread standards and mounting options make the cylinder suitable for a wide range of industrial automation applications.
The CA2 Series Standard Cylinder is developed for industrial automation systems requiring stable linear motion, long service life, and improved operating performance. Compared with the previous CA1 Series, the CA2 offers a lighter structure, upgraded cushioning technology, and better piston rod stability while maintaining the same installation dimensions.
Its optimized design helps reduce machine vibration and impact, making the cylinder suitable for continuous operation in demanding production environments.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Lightweight construction with reduced overall mass
● Improved cushioning performance
● Stable piston rod movement
● Enhanced impact absorption capability
● Compatible with CA1 installation dimensions
● Easy cushion adjustment
● Multiple mounting accessories available
● Rc, NPT, and G thread options
● Reliable double-acting operation
● Suitable for industrial automation systems
● Lightweight and Optimized Structure
The CA2 Series features an improved structural design that reduces overall weight by approximately 5–15% compared with the CA1 Series.
The lighter construction helps lower moving mass and machine loads while maintaining reliable mechanical strength. Since the installation dimensions remain compatible with CA1 cylinders, equipment upgrades can often be completed without redesigning existing machinery.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The cushioning system has been optimized to improve motion control during cylinder operation. Rapid piston rod extension is effectively minimized, resulting in smoother movement and reduced mechanical shock.
Compared with the CA1 Series:
● Cushion energy absorption can increase by up to 30%.
● Cushion seal life can be extended by approximately five times.
● Cushion adjustment is easier and more convenient.
The buffer adjustment mechanism is designed for simple operation, and the adjustment valve does not protrude from the cylinder end cover, helping protect it from accidental damage.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CA2 Series incorporates structural improvements that reduce piston rod deflection during operation.
Compared with the CA1 Series, downward piston rod bending can be reduced by approximately 5–10%, contributing to smoother linear motion and improved positioning accuracy under normal operating conditions.
This enhanced stability helps reduce component wear and supports long-term equipment reliability.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

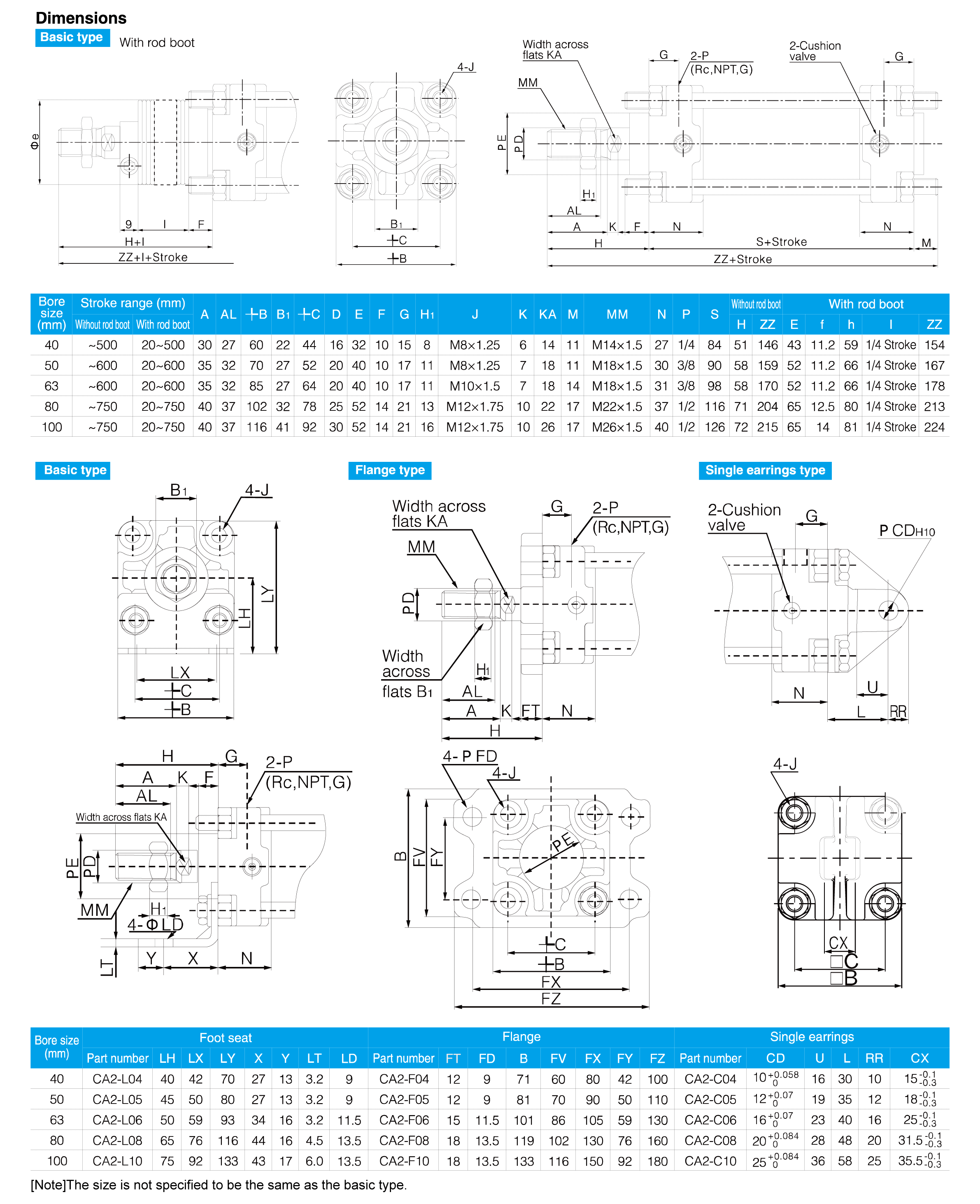

The CA2 Series maintains the same installation dimensions as the CA1 Series, simplifying replacement and equipment upgrades.

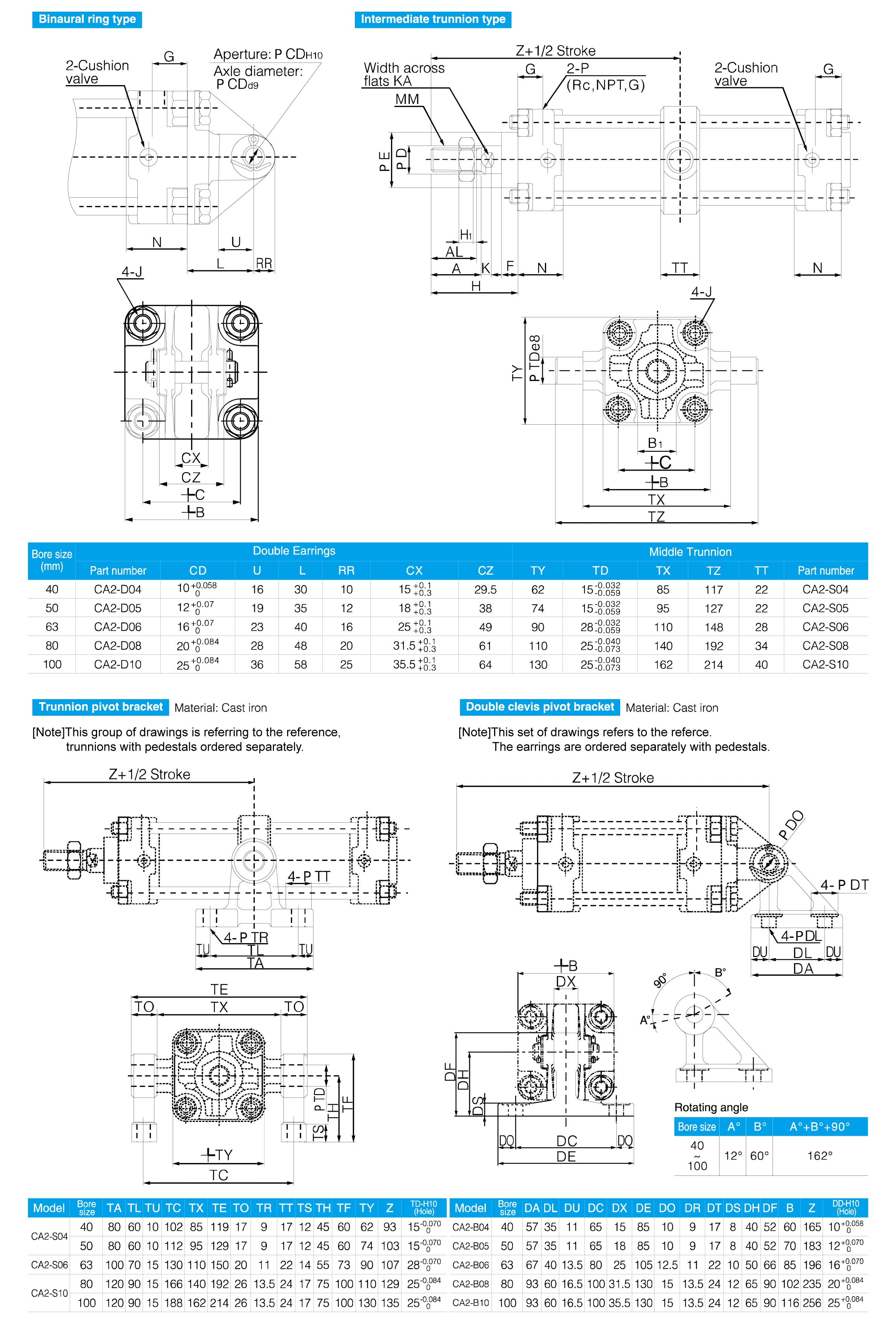

A variety of mounting accessories are available to accommodate different machine configurations. To meet global application requirements, the cylinder can be supplied with Rc, NPT, or G thread connections.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CA2 Series Standard Cylinder is widely used in:
● Automated production equipment
● Packaging machinery
● Conveyor systems
● Material handling equipment
● Assembly lines
● Machine tools
● OEM automation machinery
● General industrial applications
Combining lightweight construction, improved cushioning technology, enhanced piston rod stability, and CA1 compatibility, the CA2 Series Standard Cylinder provides a practical and efficient solution for modern pneumatic automation systems.
