The CP95 Series Square Cylinder Block Cylinder is designed to provide compact and reliable pneumatic actuation for industrial automation systems. Its square body construction offers excellent installation flexibility while maintaining stable linear motion and high structural rigidity.
Available with optional built-in magnetic rings and magnetic switches, the CP95 Series supports accurate position sensing and simplified machine control. Combined with bilateral air cushioning and multiple mounting configurations, the cylinder provides an efficient solution for a wide range of automation applications.
The CP95 Series Square Cylinder Block Cylinder combines a compact square body with reliable pneumatic performance, making it suitable for modern industrial automation equipment. Its streamlined structure provides excellent installation flexibility while maintaining stable operation and long service life.
Designed for general-purpose pneumatic applications, the cylinder supports optional magnetic sensing, multiple mounting styles, and various piston rod configurations to accommodate different machine requirements.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Compact square body design
● Single rod double-acting operation
● Optional built-in magnetic ring
● Compatible with magnetic switches
● Bilateral air cushioning
● Non-lubricated operation
● Multiple mounting configurations
● Various piston rod options
● Smooth and reliable performance
● Suitable for industrial automation
● Compact Square Body Design
The CP95 Series adopts a square block structure that provides excellent rigidity while making installation more convenient. Compared with conventional round body cylinders, the square profile simplifies mounting and positioning in compact machine layouts.
The robust construction helps maintain stable operation during continuous production cycles and supports a wide variety of industrial applications.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The cylinder can be supplied with or without a built-in magnetic ring to meet different automation requirements.
Magnetic switch options allow convenient cylinder position detection, improving machine control and monitoring. Various mounting methods and piston rod configurations are available, enabling the cylinder to adapt to different installation environments and equipment designs.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CP95 Series operates with filtered compressed air and features a maintenance-friendly non-lubricated design.

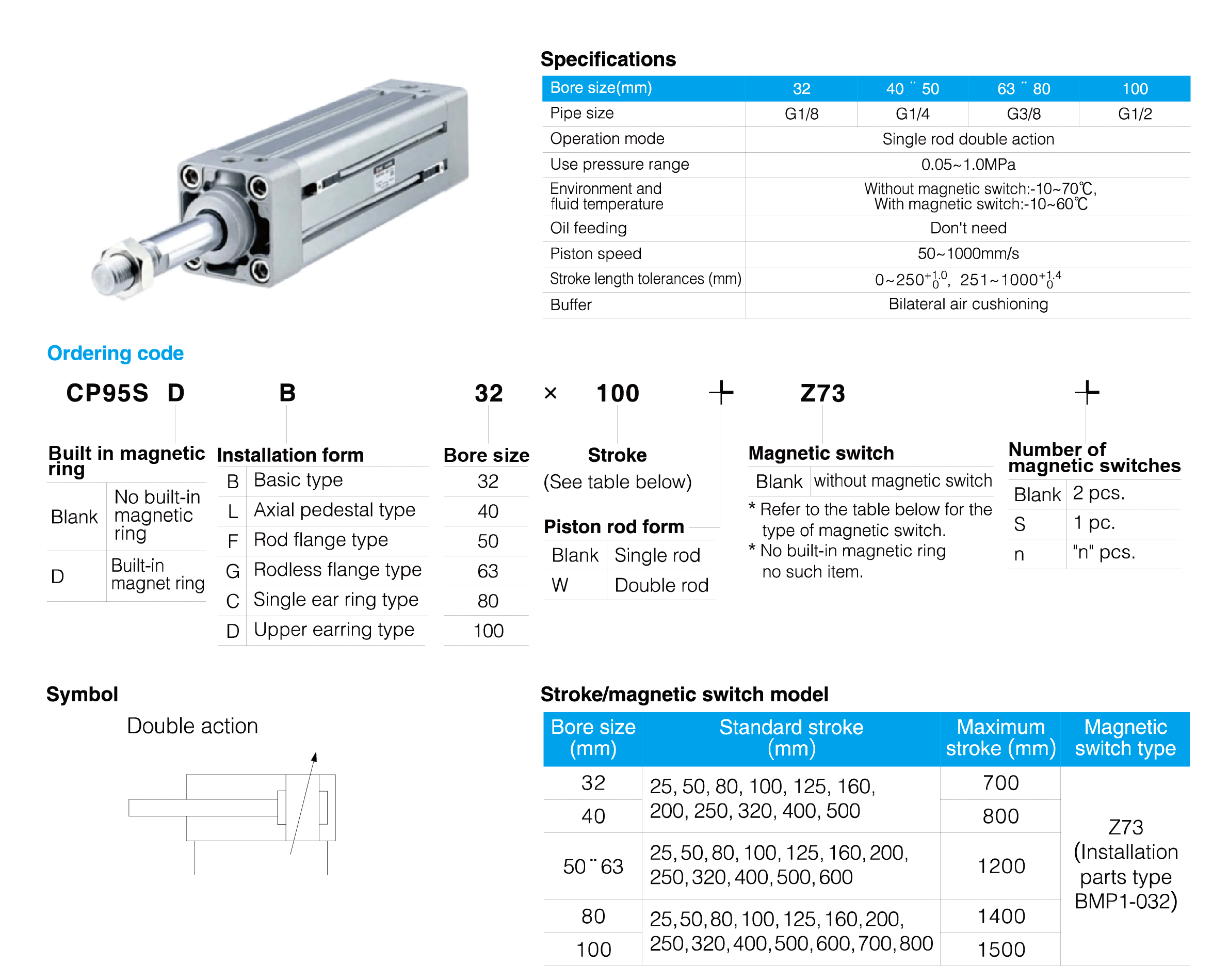

| Parameter | Value |
| Bore Size | 32–100 mm |
| Operating Pressure | 0.05–1.0 MPa |
| Piston Speed | 50–1000 mm/s |
| Cushion Type | Bilateral air cushioning |
| Port Thread | G1/8 – G1/2 |
| Working Medium | Compressed air |
| Lubrication | Not required |
The bilateral air cushioning system helps reduce impact forces at both ends of the stroke, contributing to smoother operation and longer equipment life.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CP95 Series offers multiple mounting styles and optional magnetic switch configurations, making it suitable for various industrial automation systems.
Typical applications include:
● Packaging machinery
● Assembly equipment
● Material handling systems
● Conveyor automation
● Electronics manufacturing
● Textile machinery
● Food processing equipment
● OEM machinery
● General industrial automation
Combining a compact square body, optional magnetic sensing, bilateral air cushioning, and flexible configuration options, the CP95 Series Square Cylinder Block Cylinder provides a practical and efficient solution for modern pneumatic motion control.
