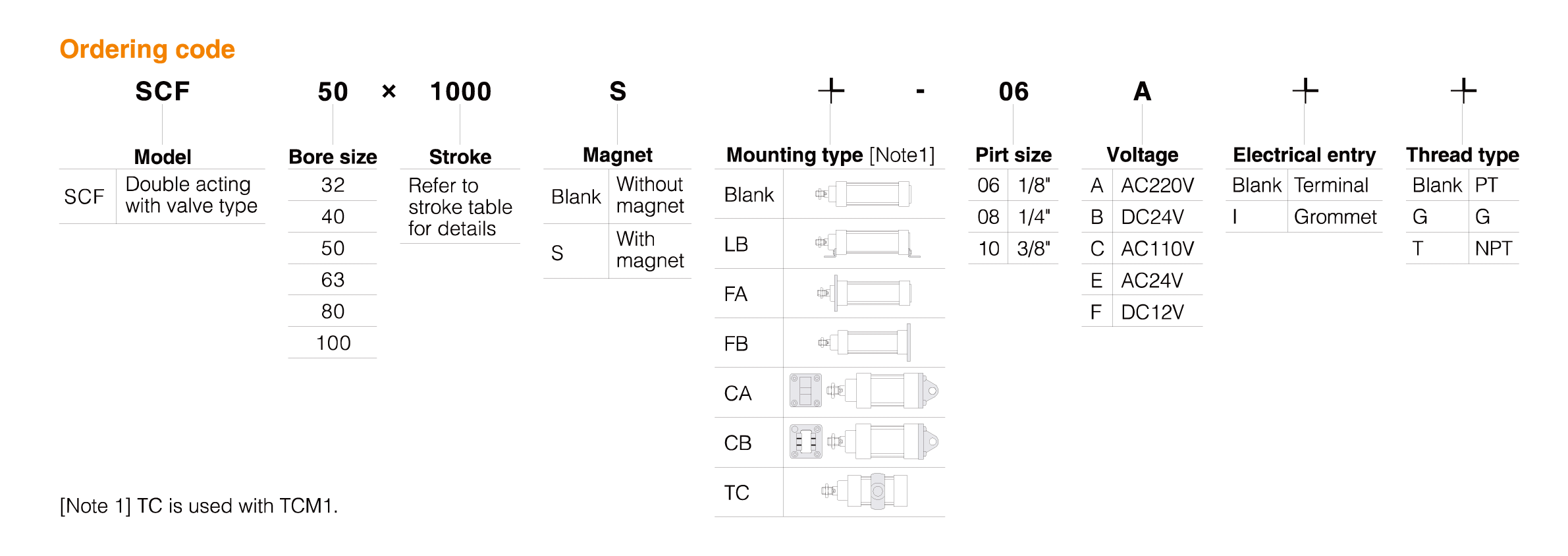

The SCF Series Standard Cylinder (Tie-Rod / With Valve Type) combines a pneumatic cylinder and directional control valve into a single compact assembly. By integrating valve control directly onto the cylinder body, the SCF Series eliminates the need for separate external solenoid valves, reducing pneumatic piping, wiring requirements, and installation complexity.
This integrated design is particularly suitable for decentralized automation systems, distributed machinery layouts, and applications where space optimization is important. Available with multiple mounting options and compatible accessories, the SCF Series offers a practical solution for improving installation efficiency while maintaining reliable pneumatic performance.

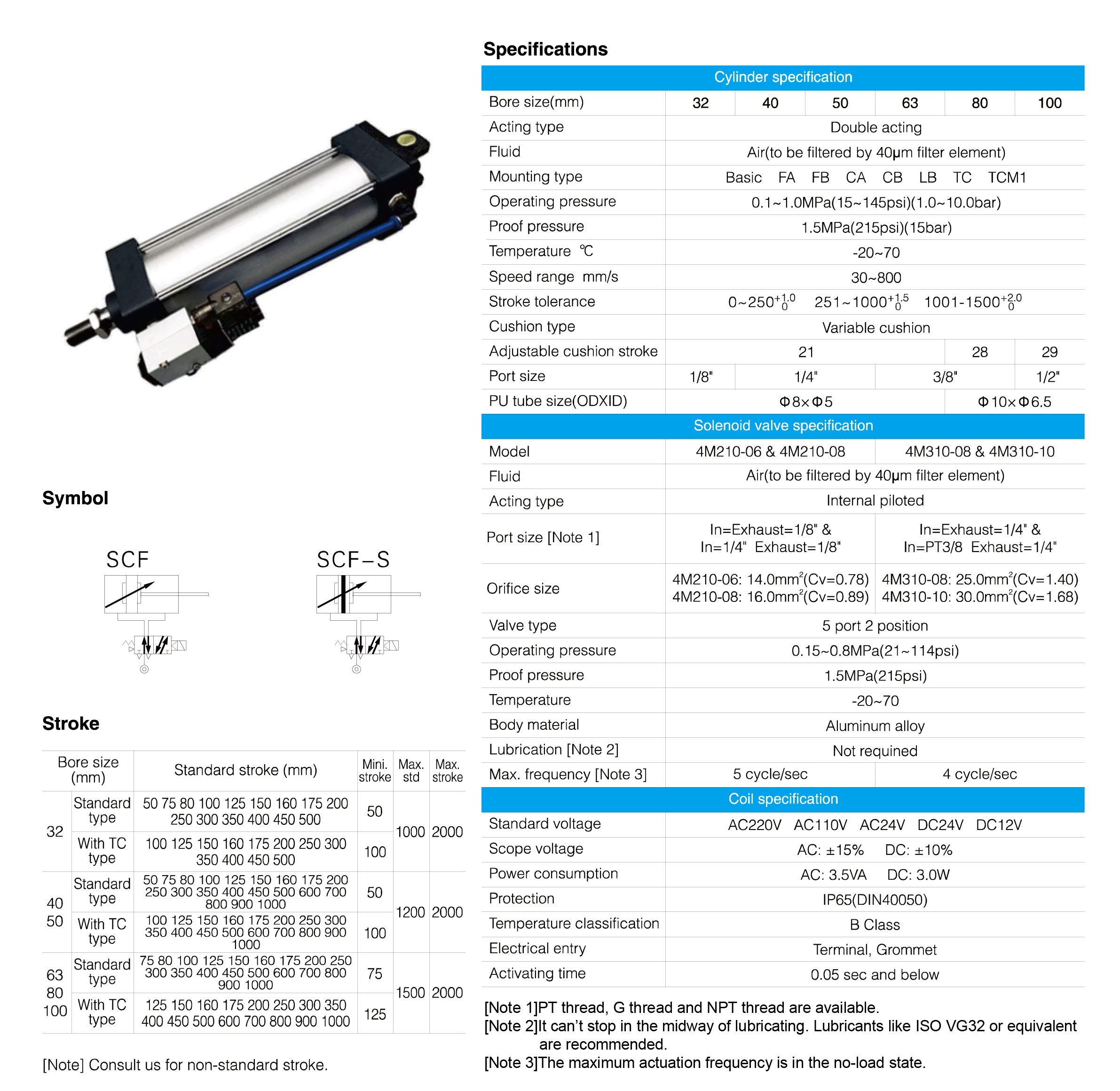

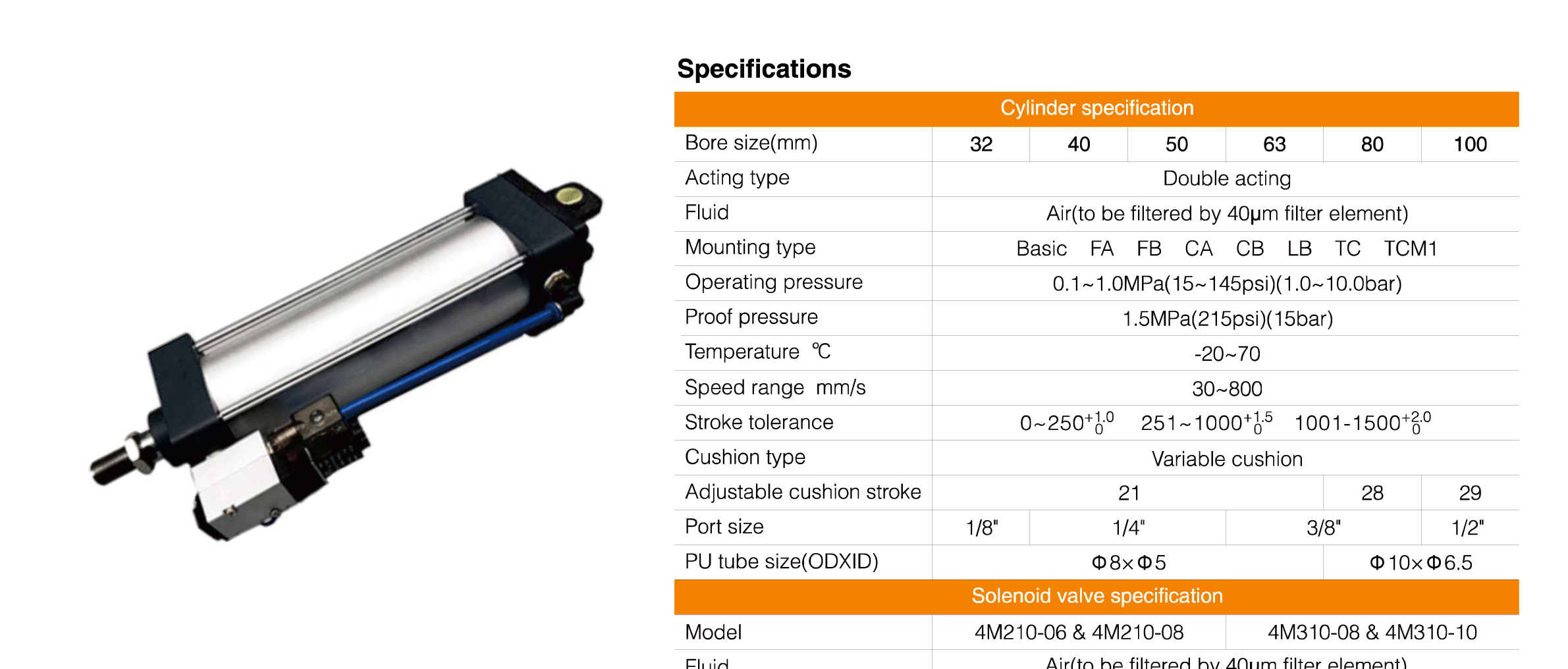

The SCF Series is an integrated pneumatic actuator designed to simplify automation system architecture by combining cylinder actuation and valve control into one unit. This design reduces the number of external components required in a pneumatic system while improving installation efficiency and overall equipment compactness.
Unlike conventional cylinder installations that require separate directional control valves, tubing, and additional fittings, the SCF Series provides a more streamlined solution that helps reduce assembly time and maintenance requirements.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Integrated cylinder and valve design
● Eliminates the need for external directional valves
● Reduced pneumatic tubing and wiring
● Compact installation footprint
● Faster system assembly and commissioning
● Suitable for distributed automation systems
● Multiple mounting accessories available
● Reliable tie-rod cylinder construction
● Simplified maintenance and troubleshooting
● Ideal for machine builders seeking space-saving solutions
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

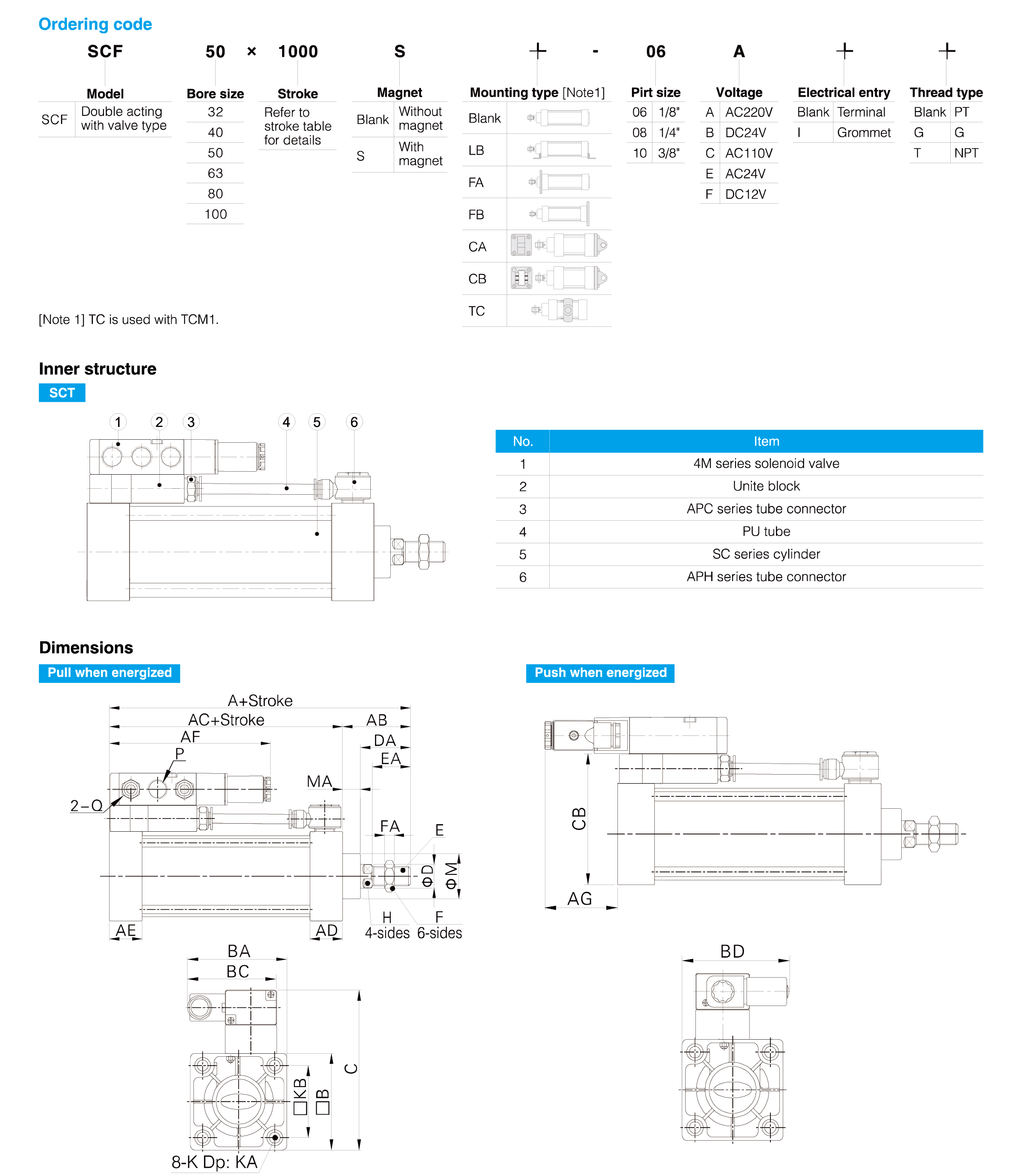

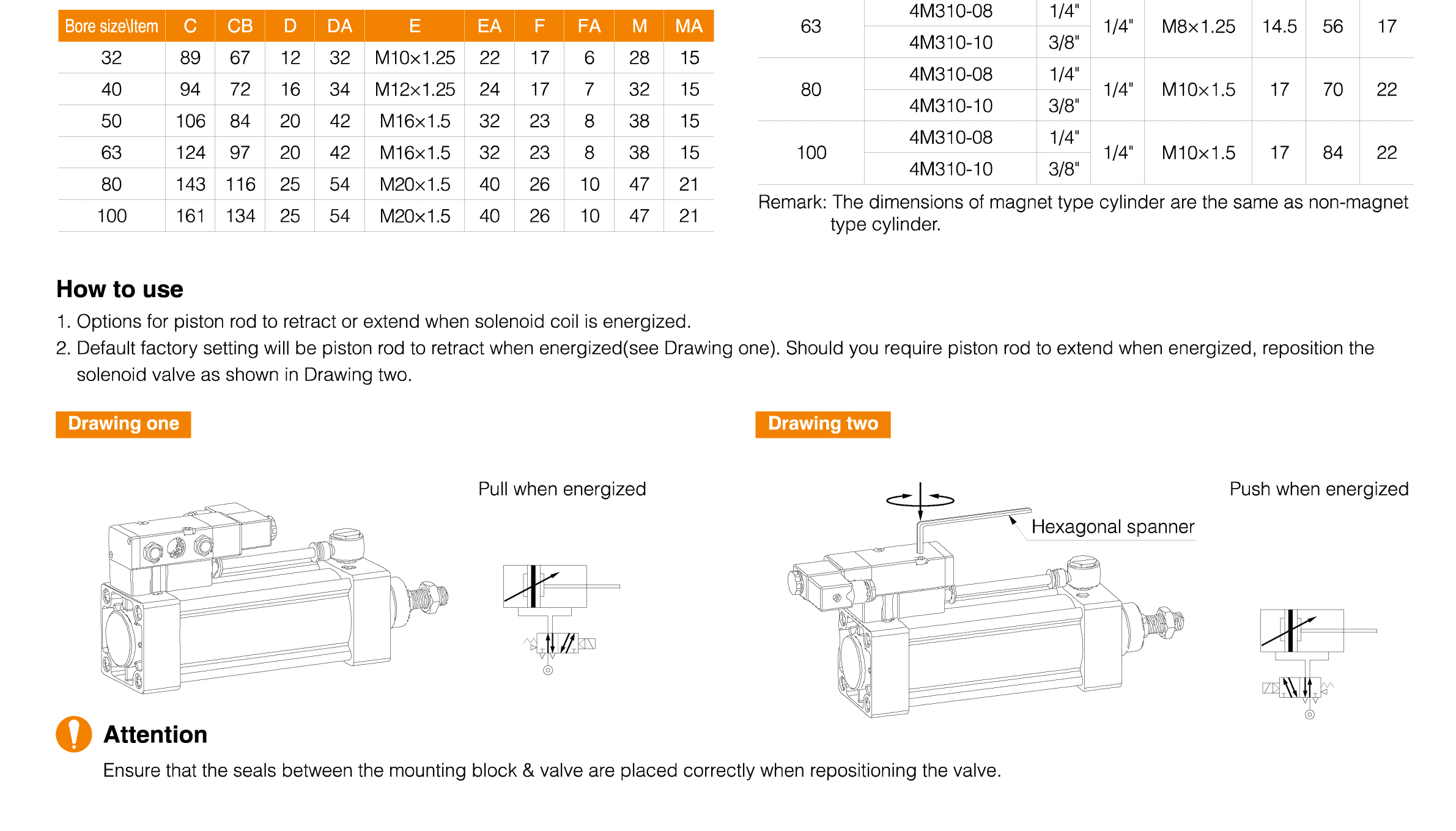

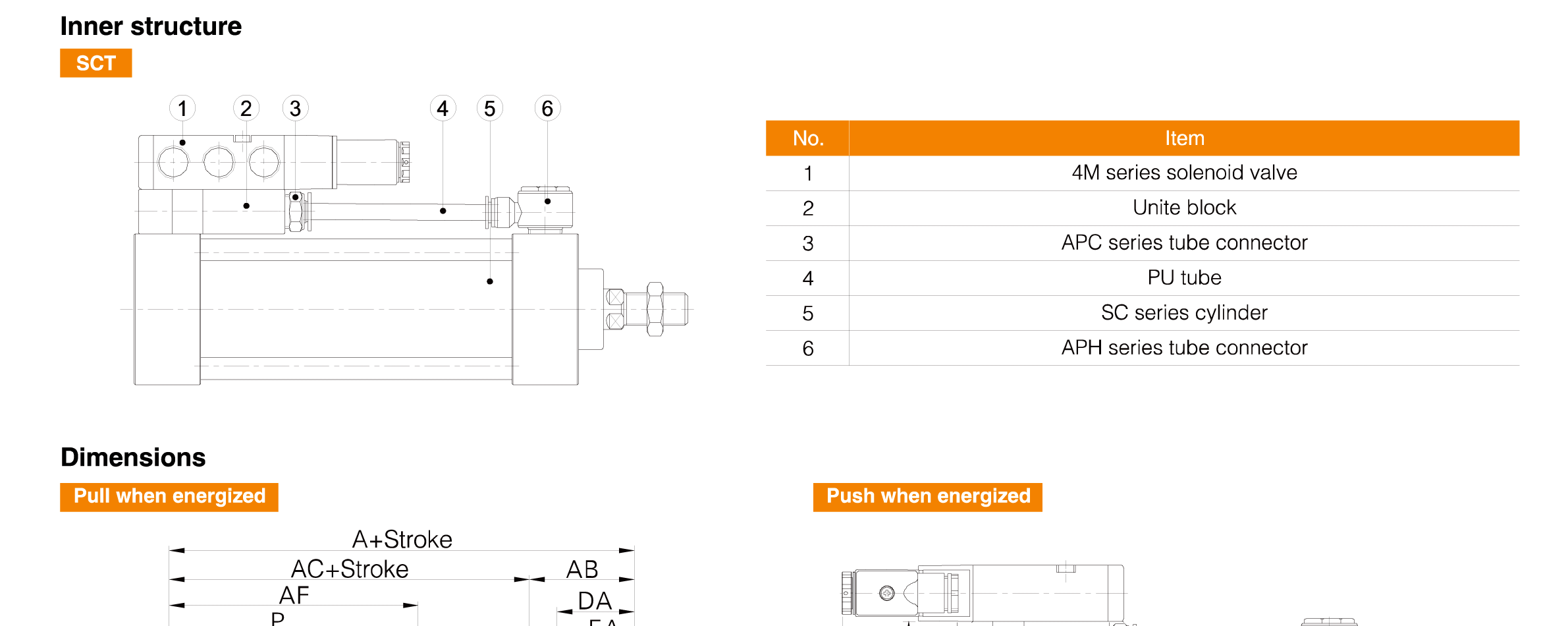

The SCF Series incorporates a directional control valve directly into the cylinder assembly, allowing independent operation without requiring additional external solenoid valves.

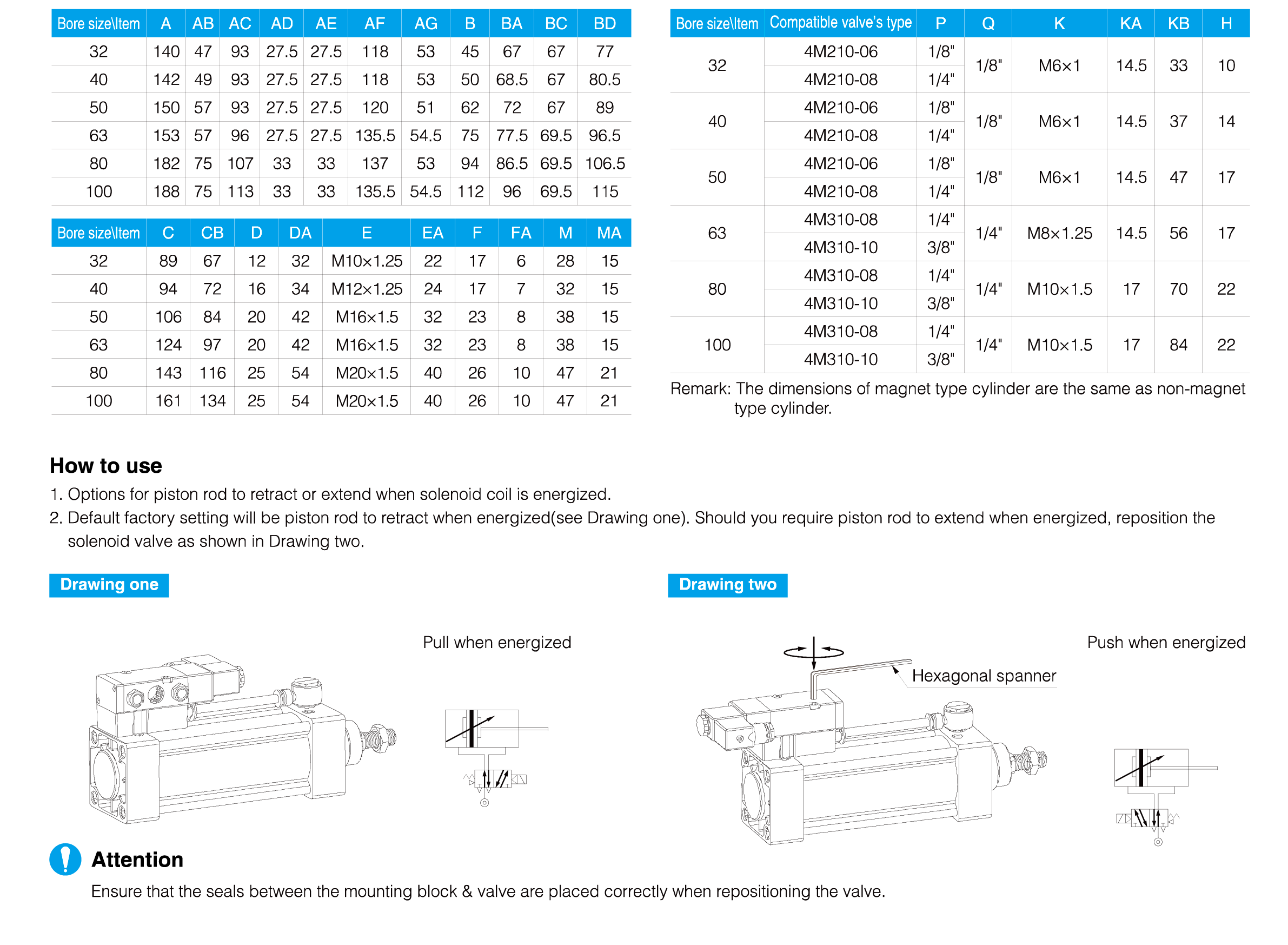

For different cylinder sizes, optimized valve configurations are provided:

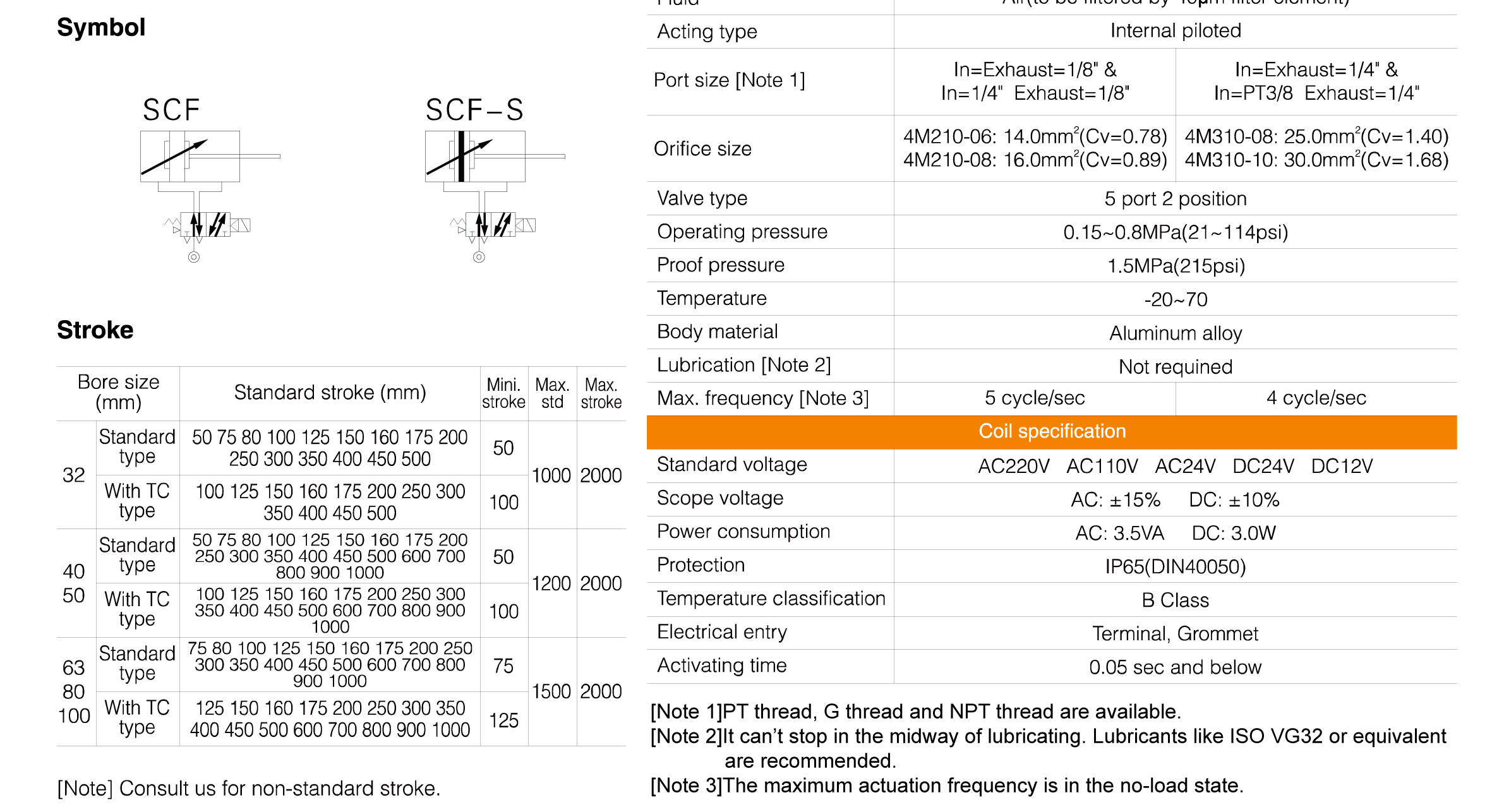

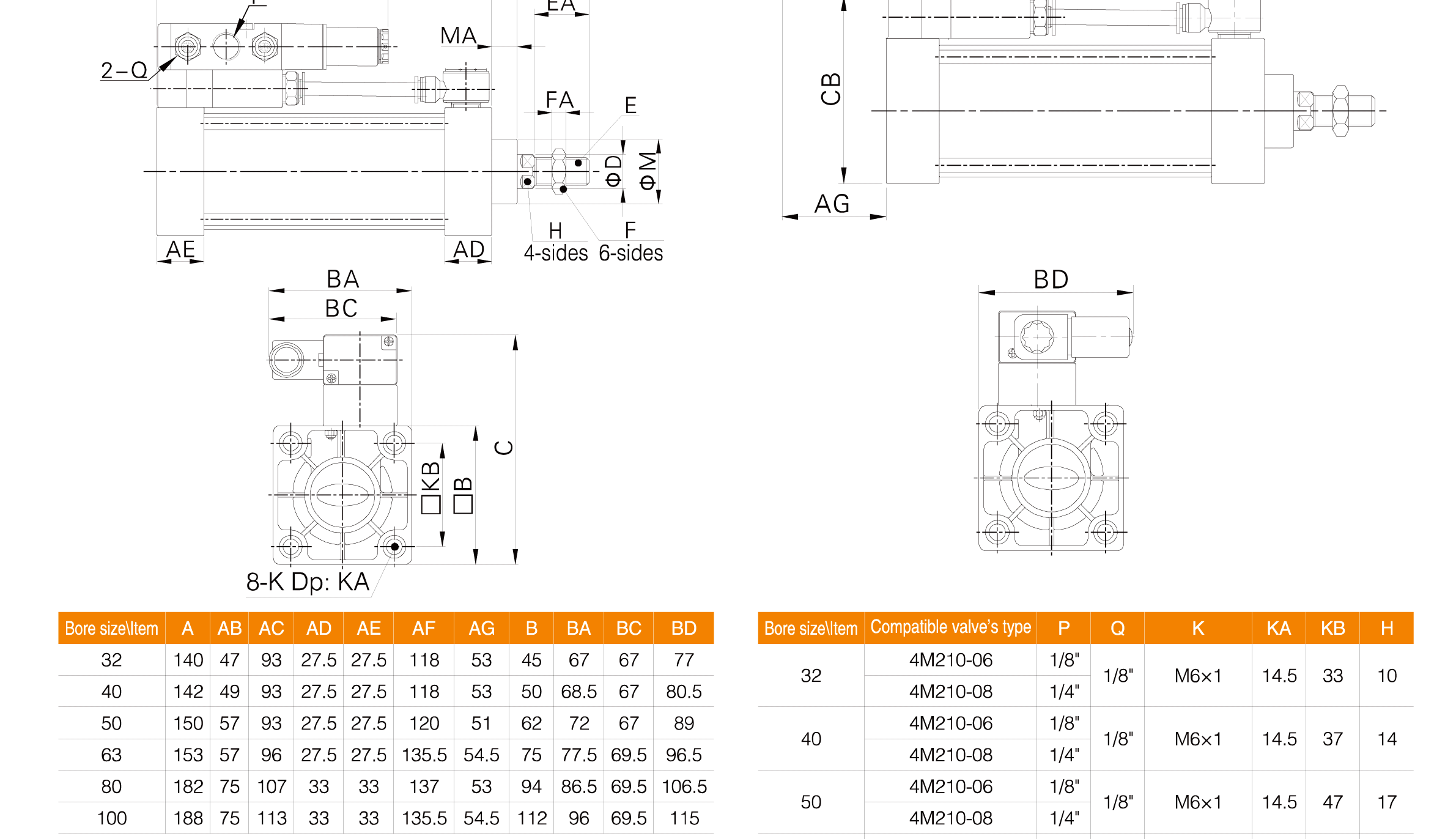

| Cylinder Bore Size | Integrated Valve Model |
| 32 mm | 4M210 |
| 40 mm | 4M210 |
| 50 mm | 4M210 |
| 63 mm | 4M310 |
| 80 mm | 4M310 |
| 100 mm | 4M310 |
This matching configuration helps ensure stable airflow performance and responsive cylinder operation across different bore sizes.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
Traditional pneumatic systems often require separate installation of cylinders, directional valves, fittings, and connecting tubing. The SCF Series simplifies this arrangement by integrating the control valve into the actuator itself.
The result is:
● Fewer pneumatic connections
● Reduced leakage points
● Simplified circuit layout
● Easier machine assembly
● Lower installation costs
This makes the cylinder particularly attractive for OEM equipment manufacturers and automation integrators.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
In large automation systems, decentralized installation is becoming increasingly common. By mounting the valve directly on the cylinder, the SCF Series minimizes the need for centralized valve manifolds and long pneumatic tubing runs.
The compact structure helps free up cabinet space while reducing overall machine footprint. For applications with limited installation space, this integrated approach can significantly simplify equipment design.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
With fewer external components and shorter pneumatic connections, troubleshooting and maintenance become more straightforward. Maintenance personnel can quickly identify and service individual actuator stations without tracing extensive tubing networks back to centralized valve assemblies.
The integrated design also reduces the number of fittings and connection points that may require periodic inspection.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

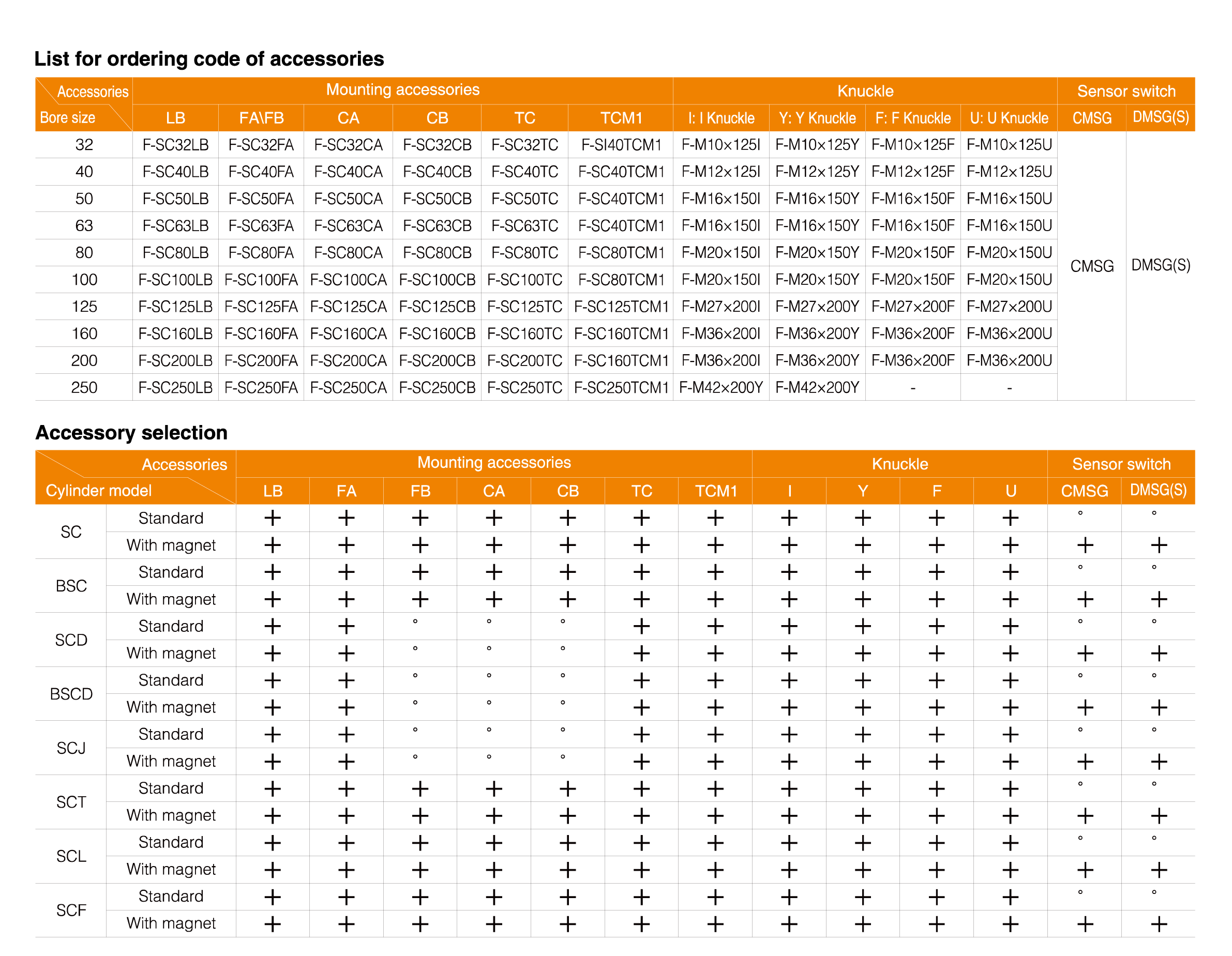

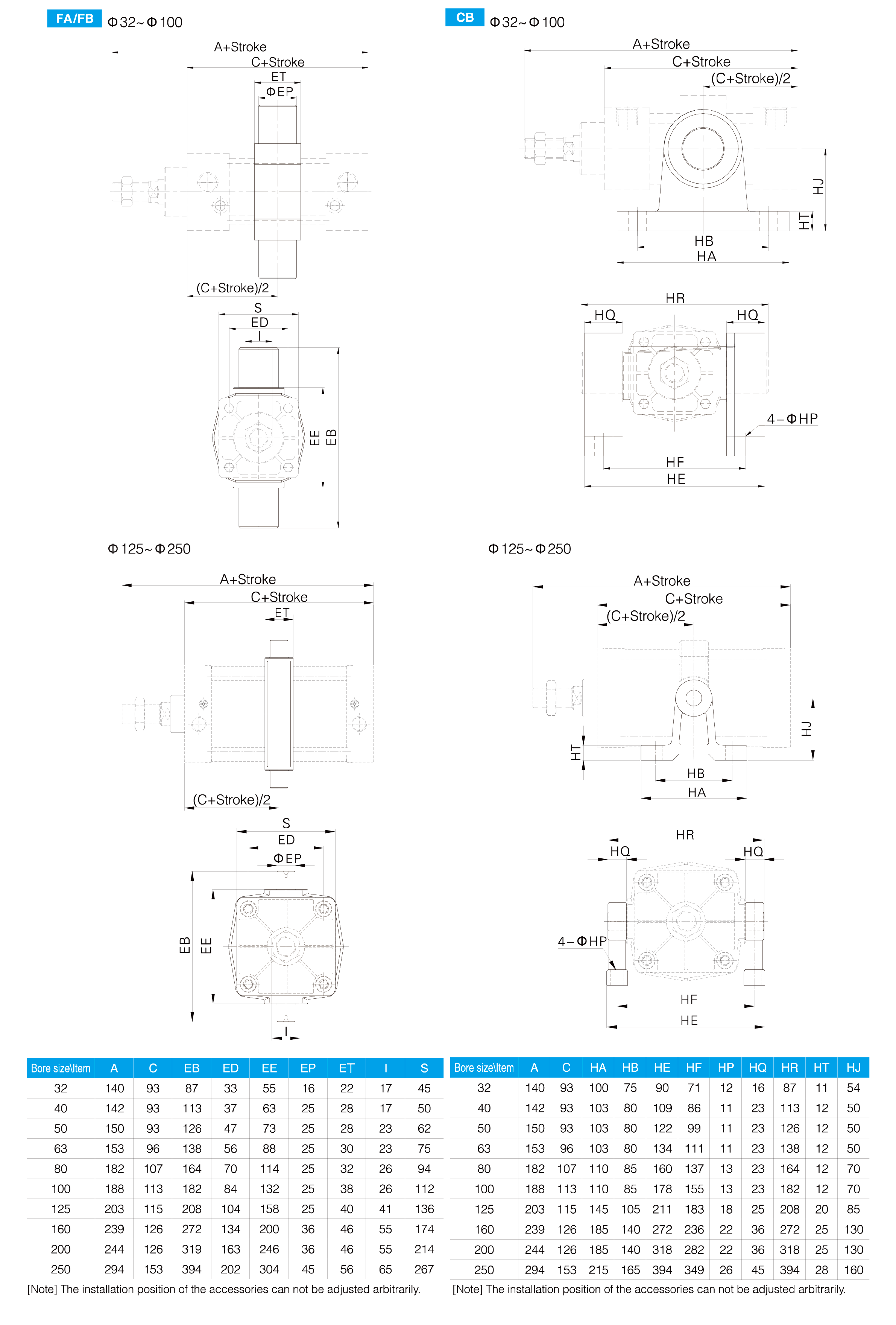

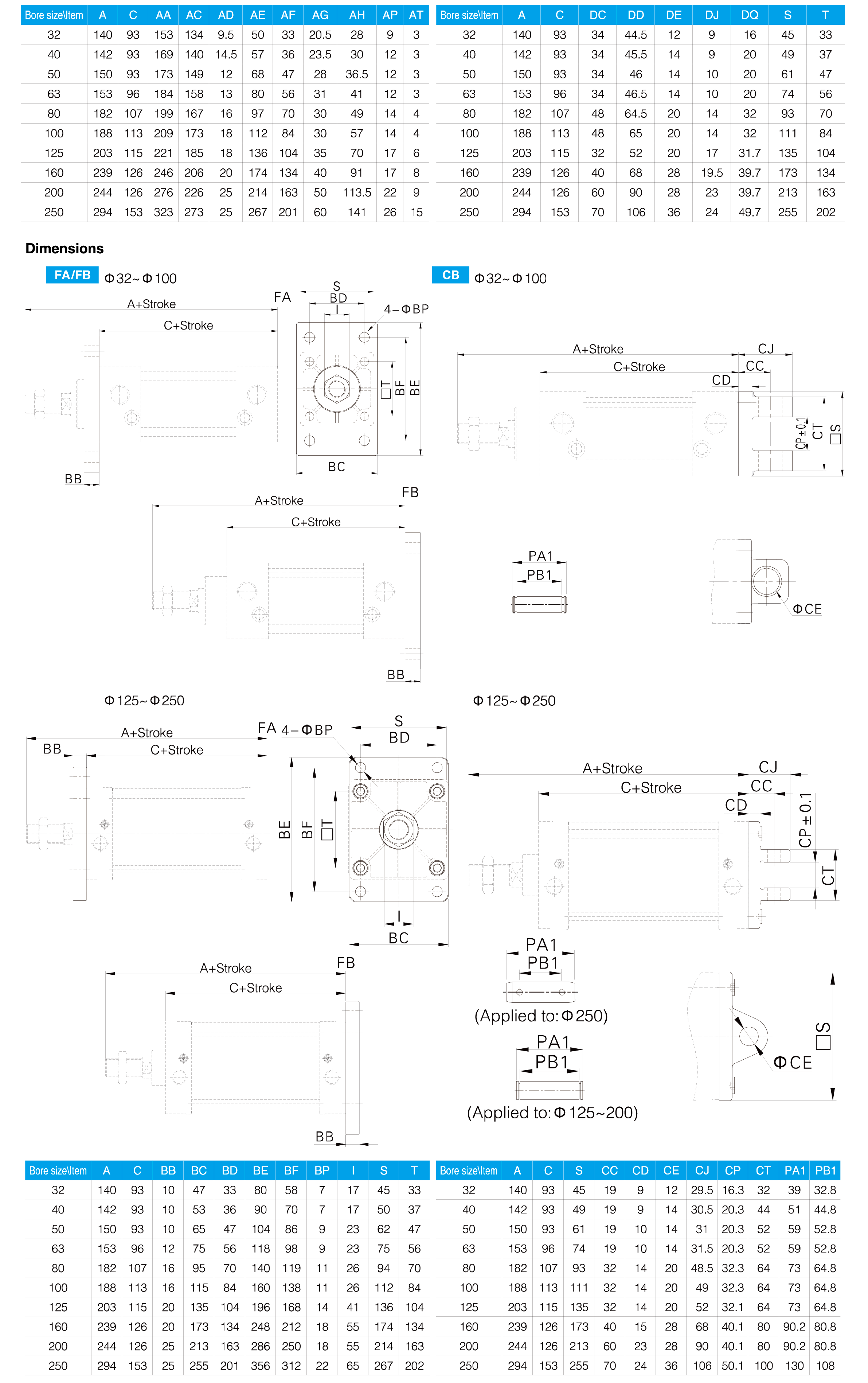

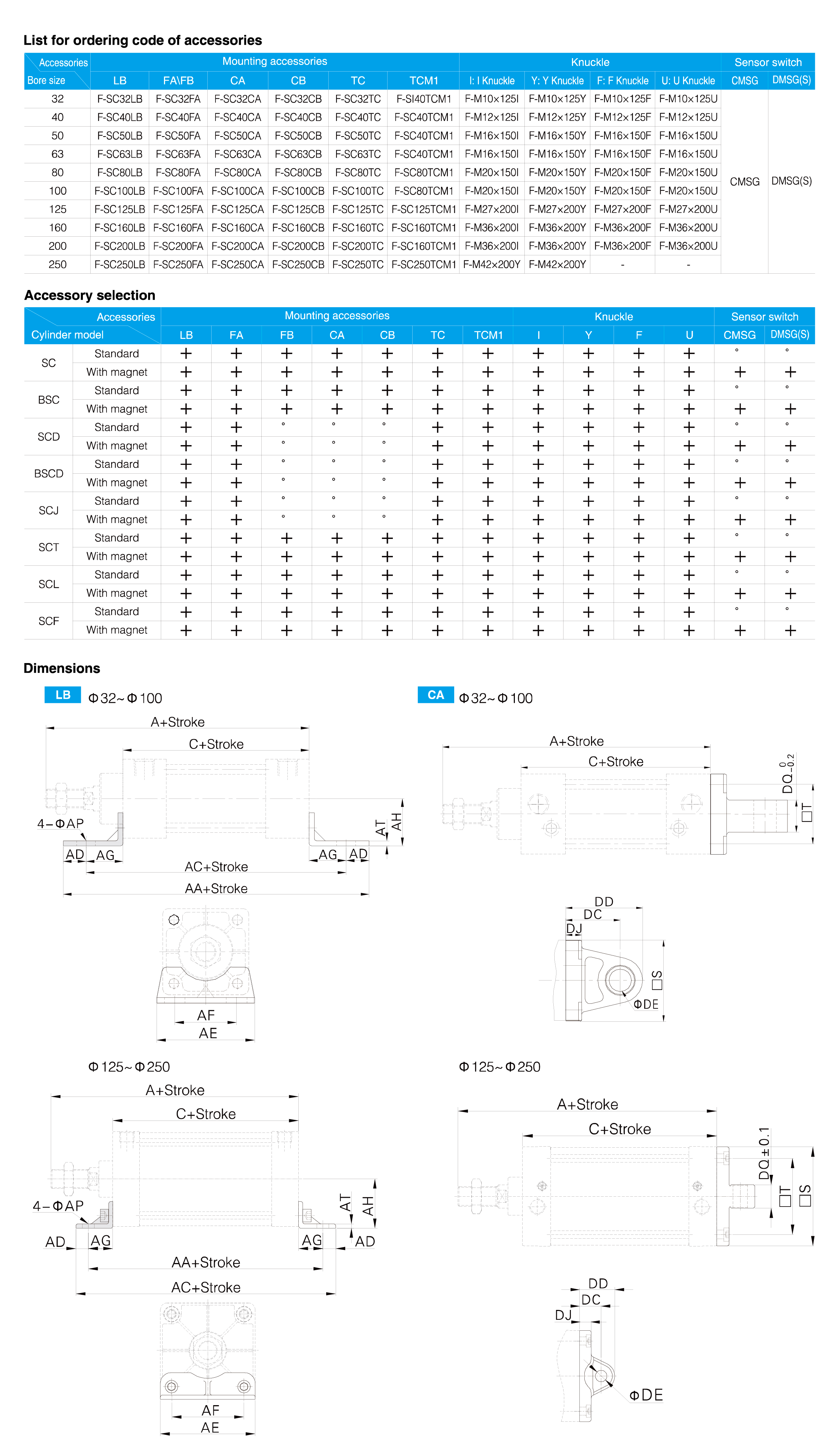

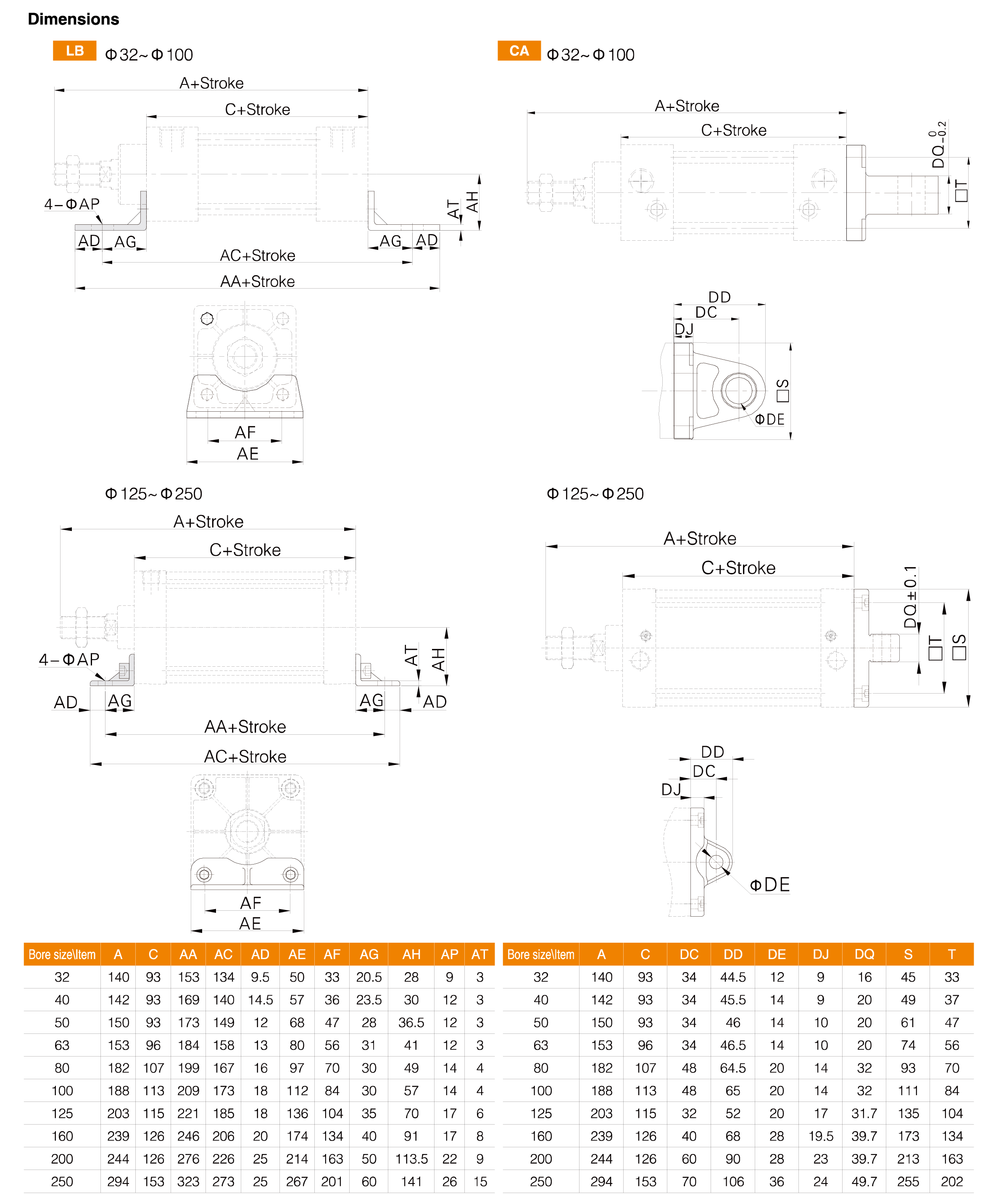

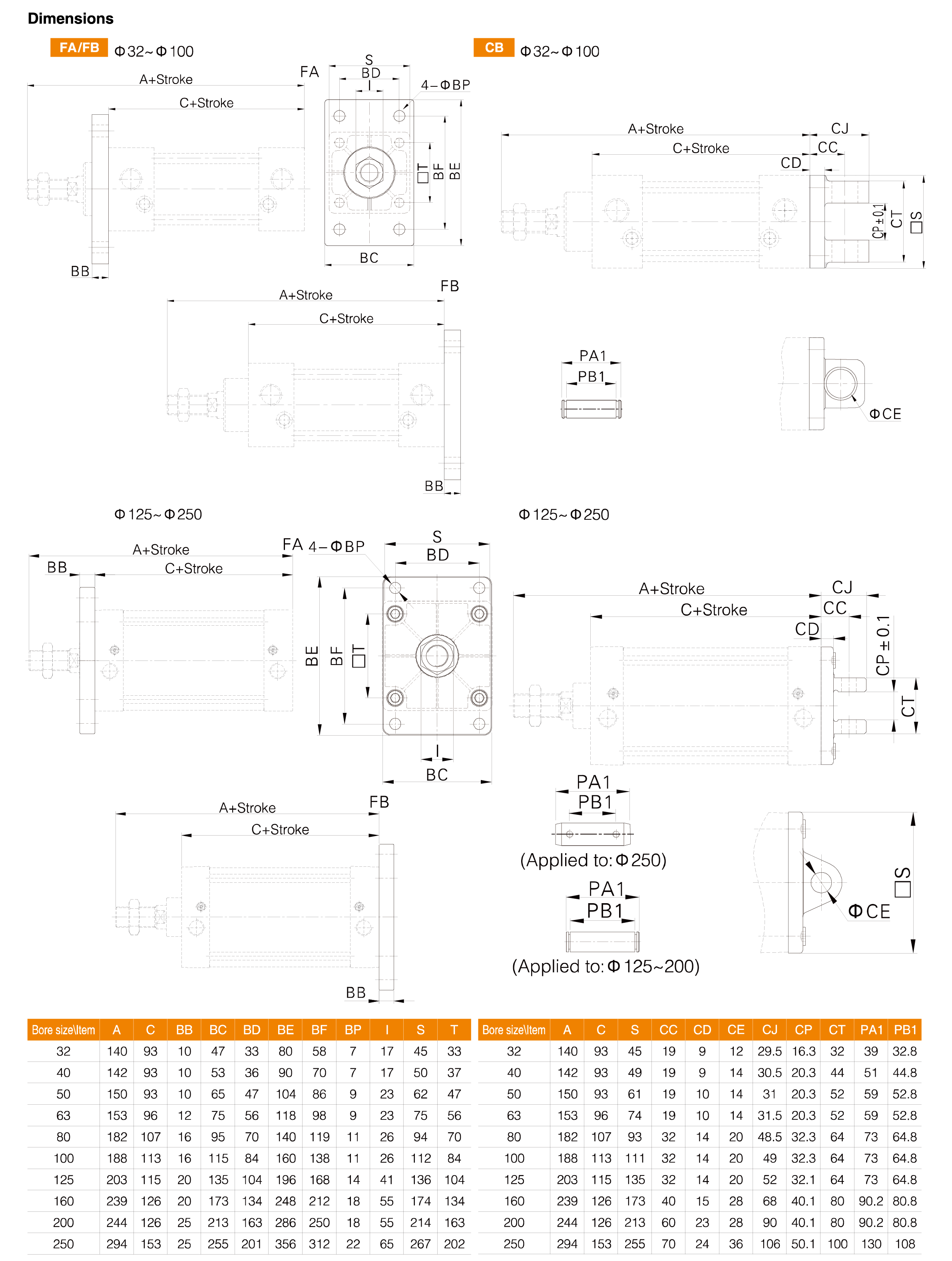

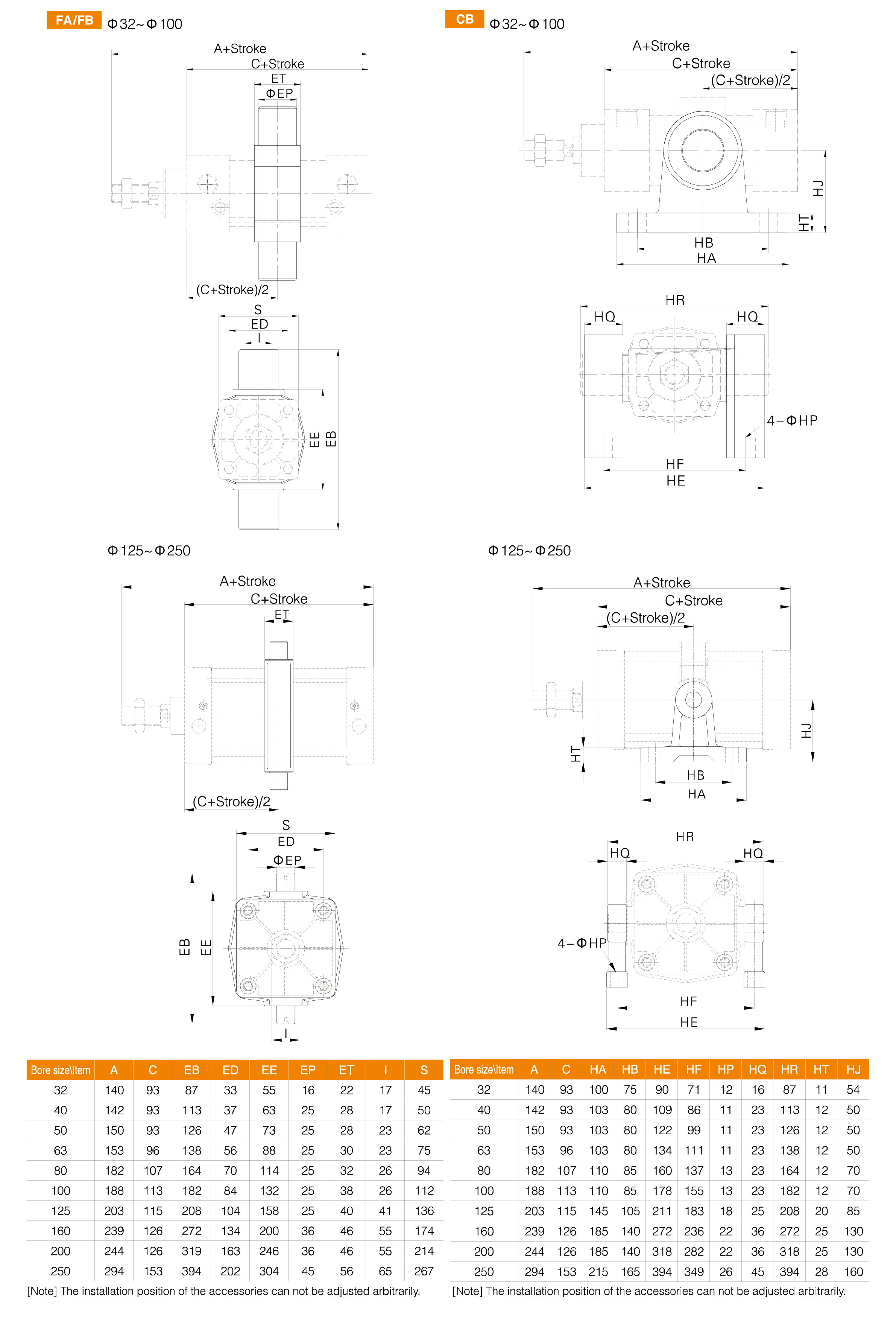

The SCF Series supports a variety of installation methods to accommodate different machine structures and operating requirements. A complete range of mounting accessories is available, allowing easy integration into both new equipment and retrofit projects.
The robust tie-rod cylinder construction ensures reliable operation while maintaining excellent structural stability during continuous industrial use.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The SCF Series Cylinder with Built-In Valve is widely used in:
● Automated assembly equipment
● Packaging machinery
● Conveyor systems
● Material handling equipment
● Sorting and transfer stations
● Distributed automation systems
● OEM machinery
● Factory automation applications
By combining pneumatic actuation and directional control into a single compact unit, the SCF Series provides a practical solution for reducing system complexity, saving installation space, and improving overall machine efficiency.
