The MB Series Standard Cylinder is a round body pneumatic cylinder designed for stable linear motion and reliable industrial operation. Its compact construction, optional built-in magnetic ring, and maintenance-friendly non-lubricated design make it suitable for a wide range of automation equipment.
Available in multiple bore sizes and stroke lengths, the MB Series supports magnetic switch installation for position sensing and offers both air cushioning and rubber bumper options. Flexible ordering configurations and mounting styles allow easy integration into various pneumatic systems.
The MB Series Standard Cylinder is designed to provide dependable pneumatic actuation for industrial automation and general machinery. Featuring a compact round body structure, the cylinder combines reliable performance with simple installation and flexible configuration options.
Its optional magnetic piston allows easy integration with auto switches for position detection, while the non-lubricated design reduces maintenance requirements and simplifies daily operation.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Compact round body cylinder
● Double-acting single rod design
● Optional built-in magnetic ring
● Compatible with auto switches
● Non-lubricated operation
● Air cushion or rubber bumper available
● Wide range of bore sizes and strokes
● Multiple mounting options
● Reliable pneumatic performance
● Easy ordering and configuration
● Compact and Reliable Construction
The MB Series adopts a round body cylinder design that offers a balance between mechanical strength and installation flexibility. The compact structure allows easy integration into automated equipment while maintaining stable operation under continuous working conditions.
Double-acting operation provides reliable bidirectional motion for various industrial applications.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The cylinder can be supplied with or without a built-in magnetic ring.
For applications requiring position monitoring, the magnetic piston supports auto switch installation, enabling simple and accurate cylinder position detection without additional external sensing devices.
Typical ordering options include:
| Option | Description |
| Blank | Without magnetic ring |
| D | Built-in magnetic ring |
Auto switches and mounting brackets can also be selected according to application requirements.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The MB Series operates with filtered compressed air and is designed for non-lubricated service, reducing maintenance requirements and simplifying pneumatic system design.

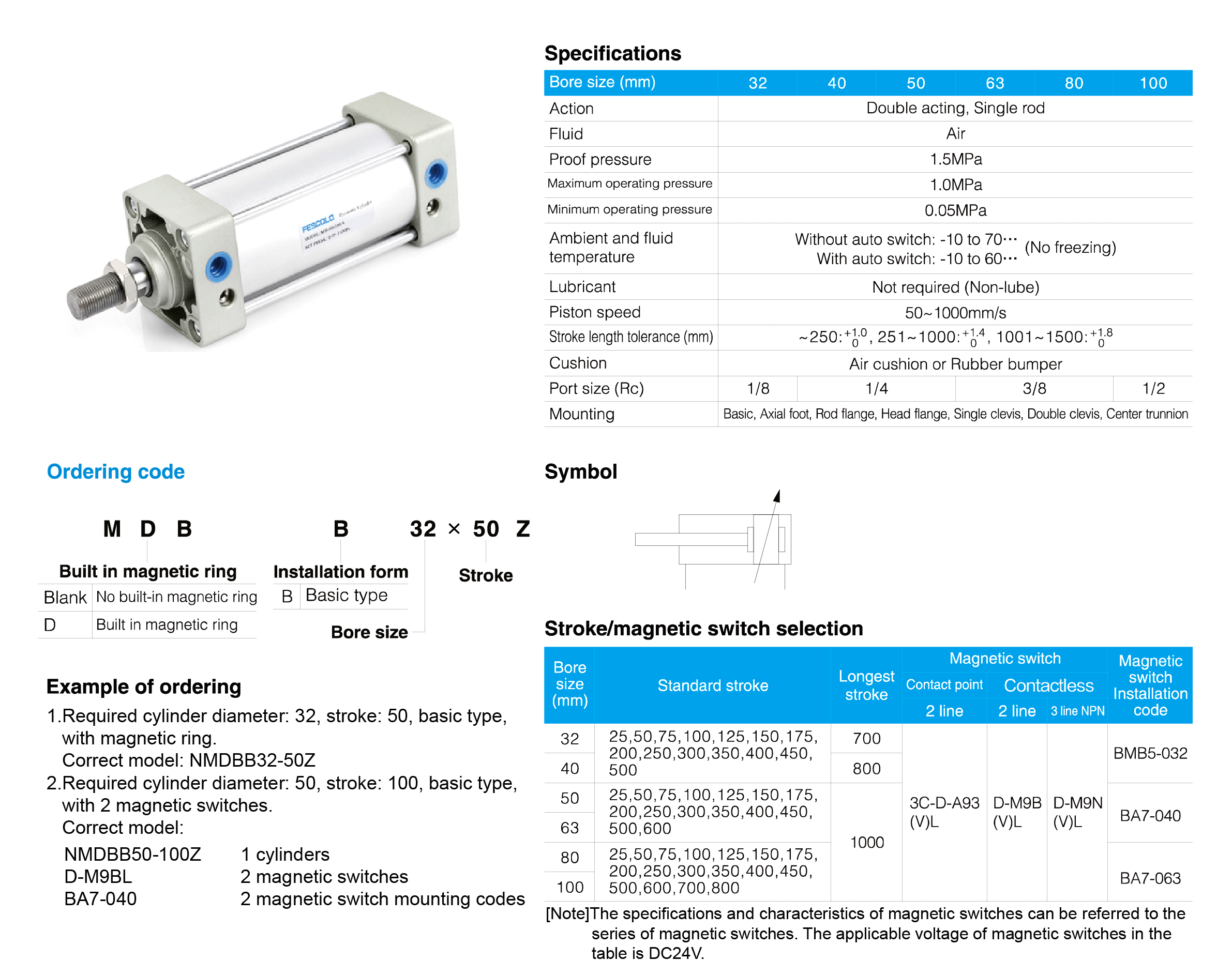

| Parameter | Value |
| Bore Size | 32–100 mm |
| Operating Pressure | 0.05–1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Piston Speed | 50–1000 mm/s |
| Cushion Type | Air cushion or rubber bumper |
| Port Thread | Rc 1/8" to 1/2" |
| Working Medium | Compressed air |
The cylinder operates reliably across a wide range of industrial applications while requiring minimal routine maintenance.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

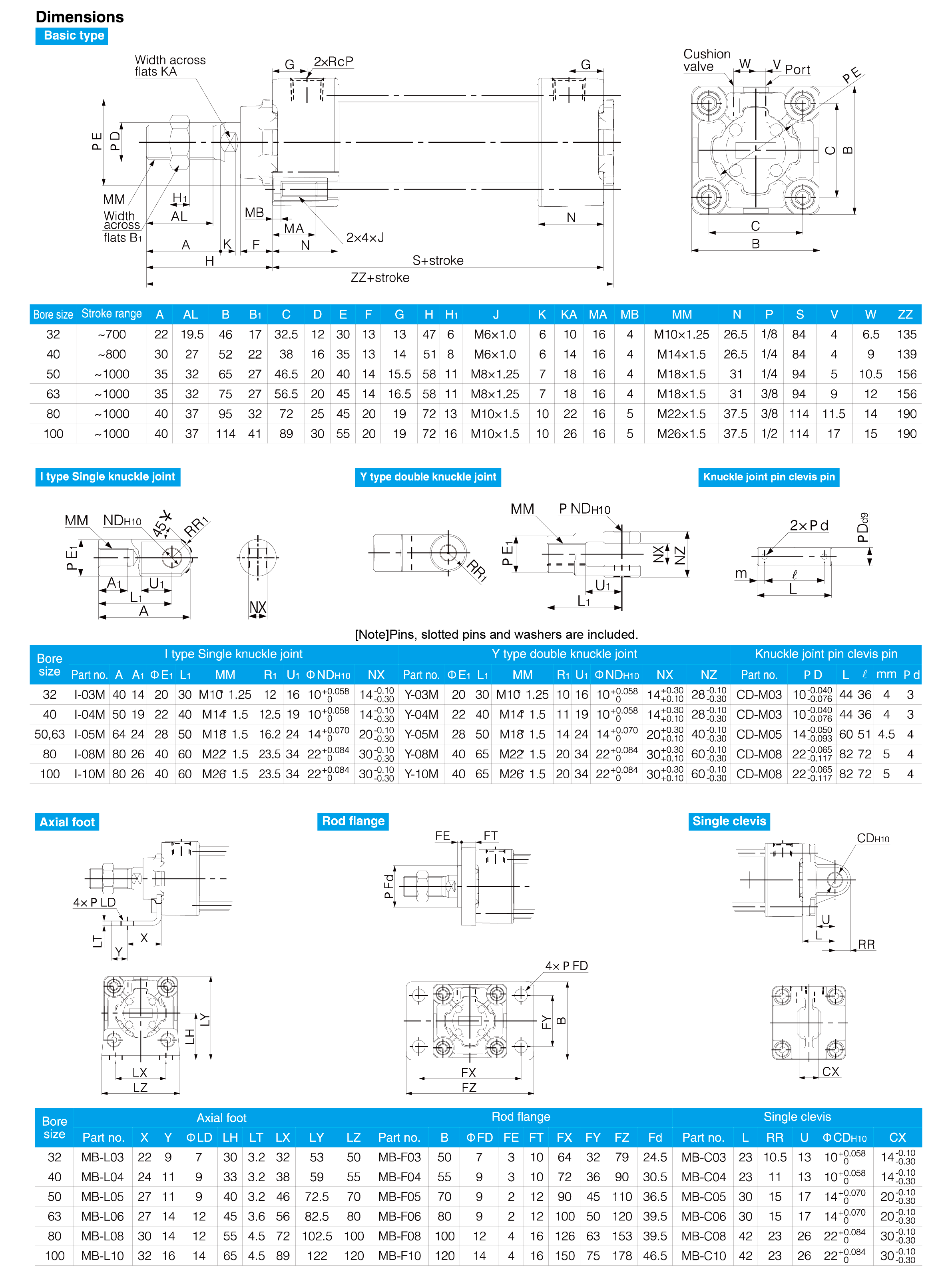

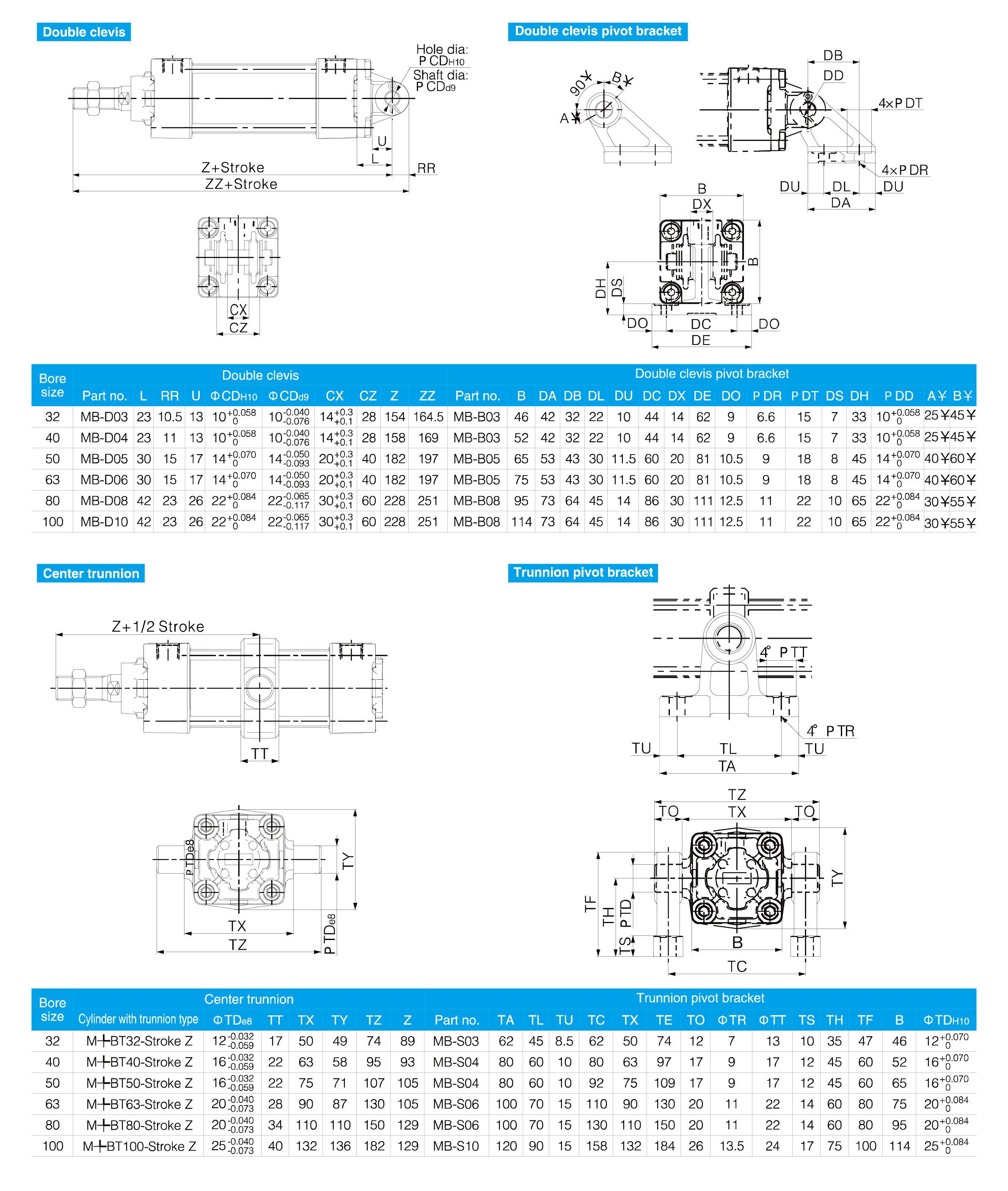

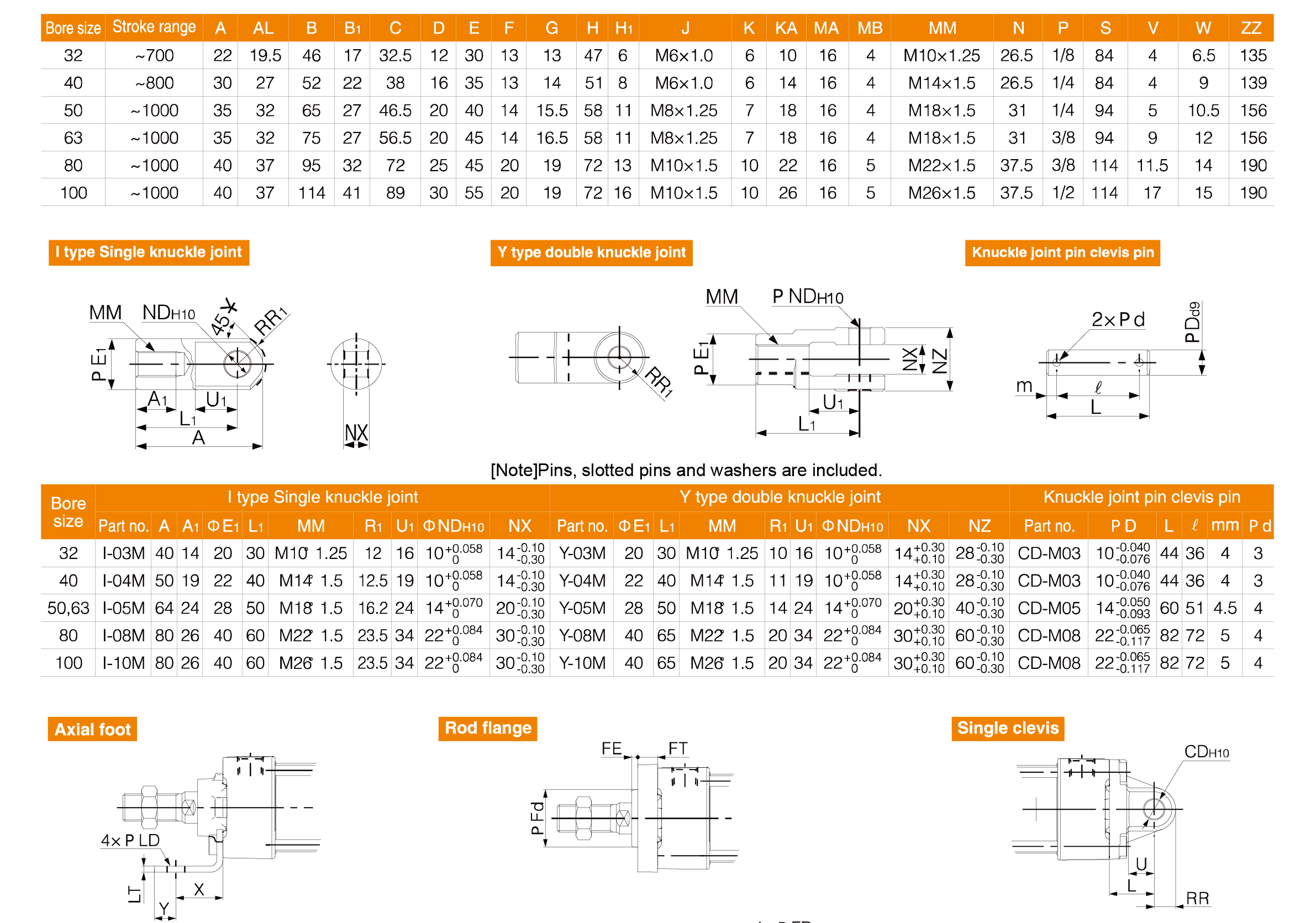

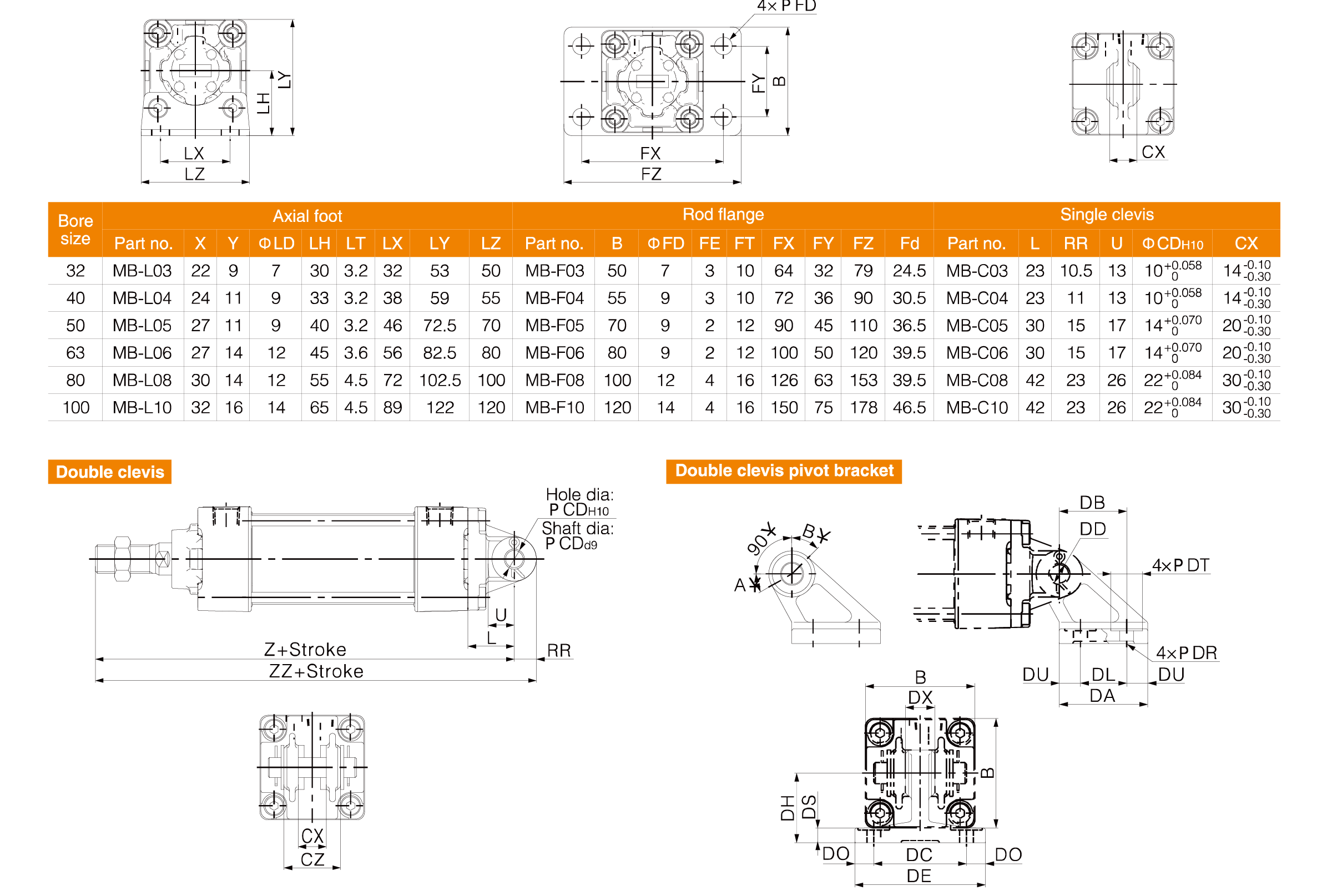

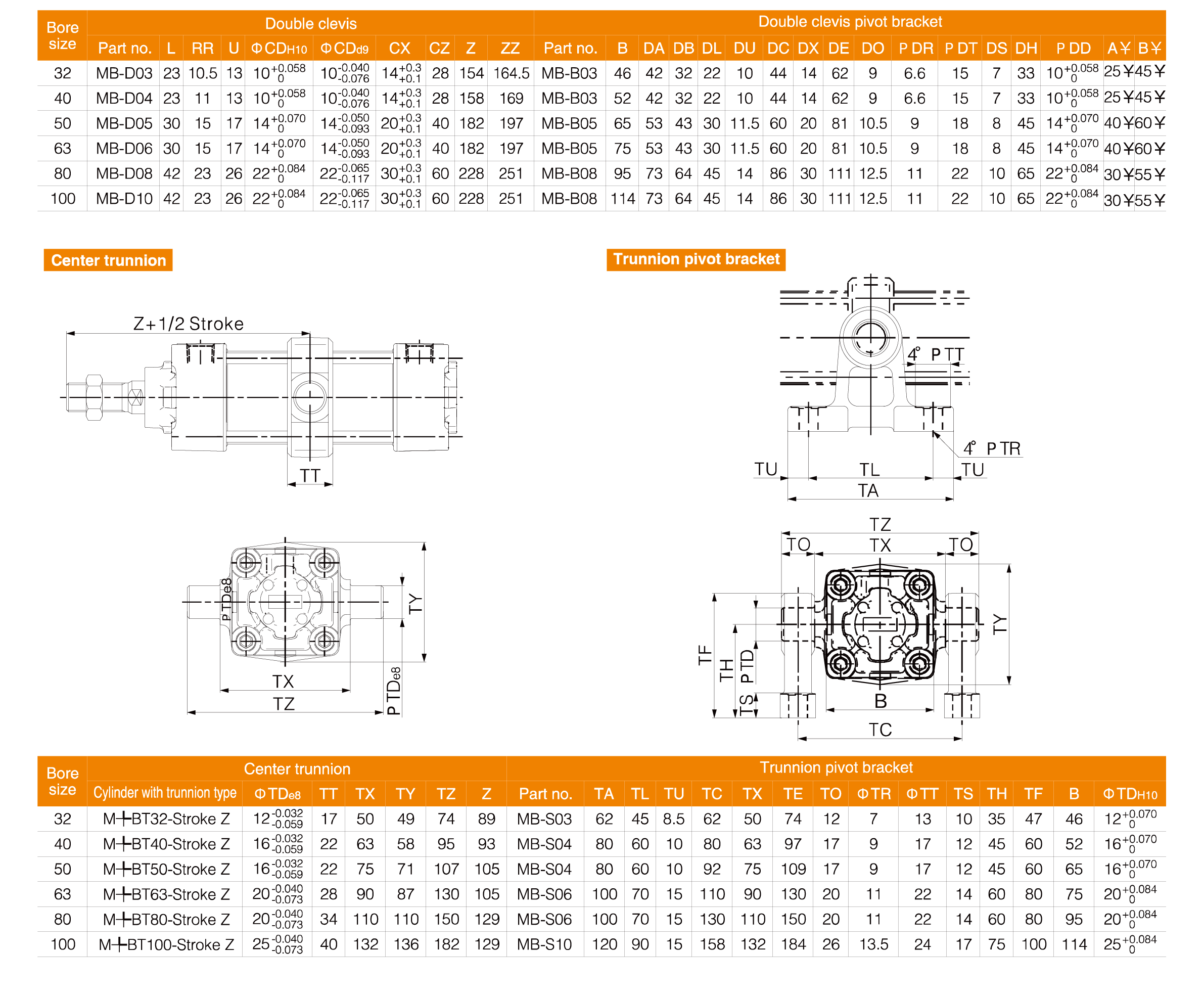

The MB Series offers various bore sizes, stroke lengths, and mounting options to meet different machine requirements.

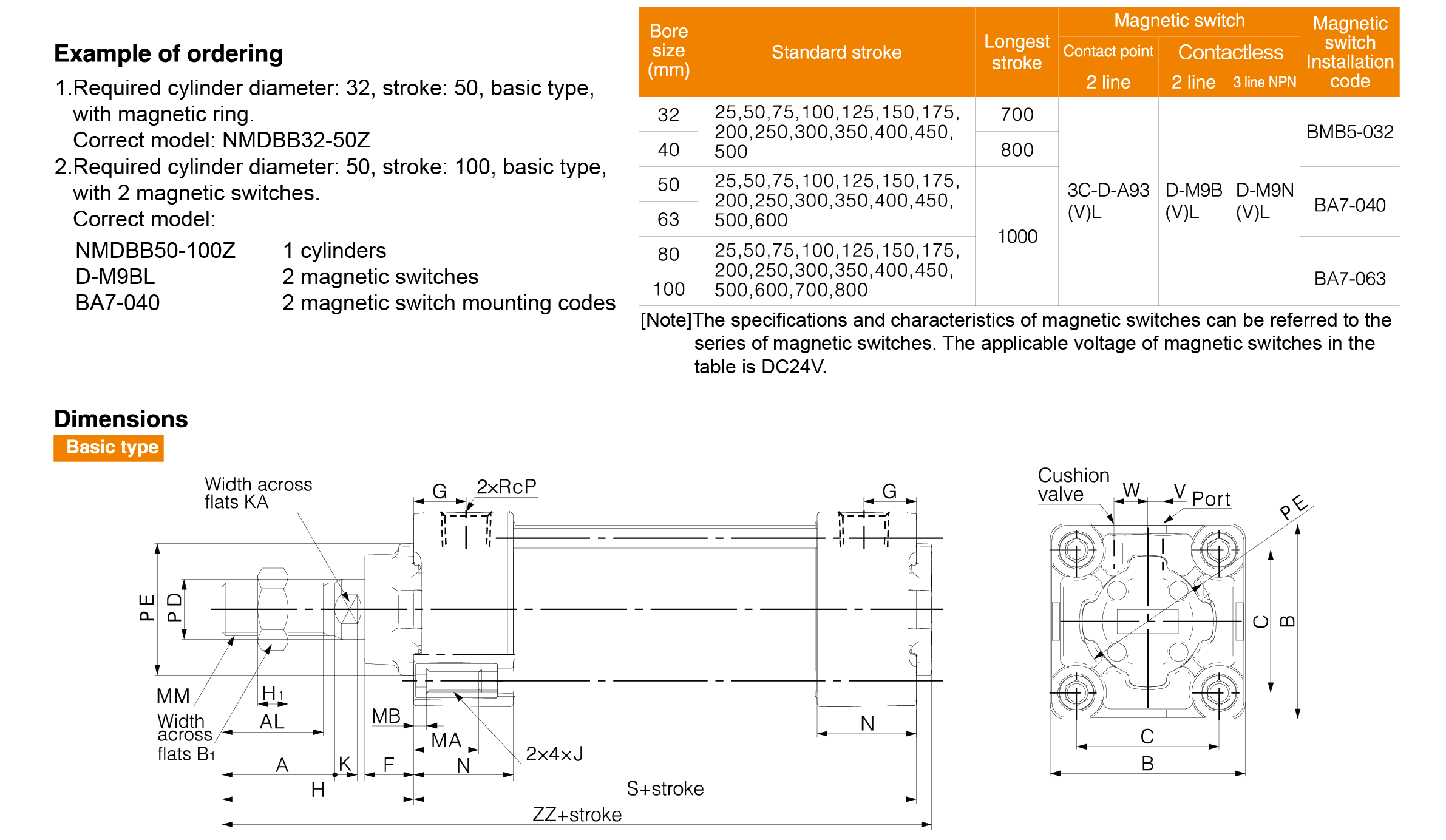

The ordering system allows customers to specify:
● Bore size
● Stroke length
● Basic mounting type
● Magnetic piston option
● Auto switch quantity
● Switch mounting accessories
This flexible configuration simplifies product selection and supports customized automation solutions.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The MB Series Standard Cylinder is widely used in:
● Packaging machinery
● Conveyor systems
● Assembly equipment
● Material handling
● Textile machinery
● Printing equipment
● Food processing machinery
● OEM automation equipment
● General industrial automation
Combining a compact round body design, optional magnetic sensing, non-lubricated operation, and flexible configuration options, the MB Series Standard Cylinder provides a practical and economical solution for a wide range of pneumatic motion control applications.
