PW & PWJ Series Pneumatic Push-in Y Fittings

Y-Shaped Connections for Flexible Pneumatic Routing

The PW and PWJ Series push-in Y fittings provide a compact way to branch pneumatic tubing while keeping the air circuit organized. Their quick-connect structure supports efficient installation and flexible tube routing, making them suitable for automation equipment and pneumatic piping where space is limited.

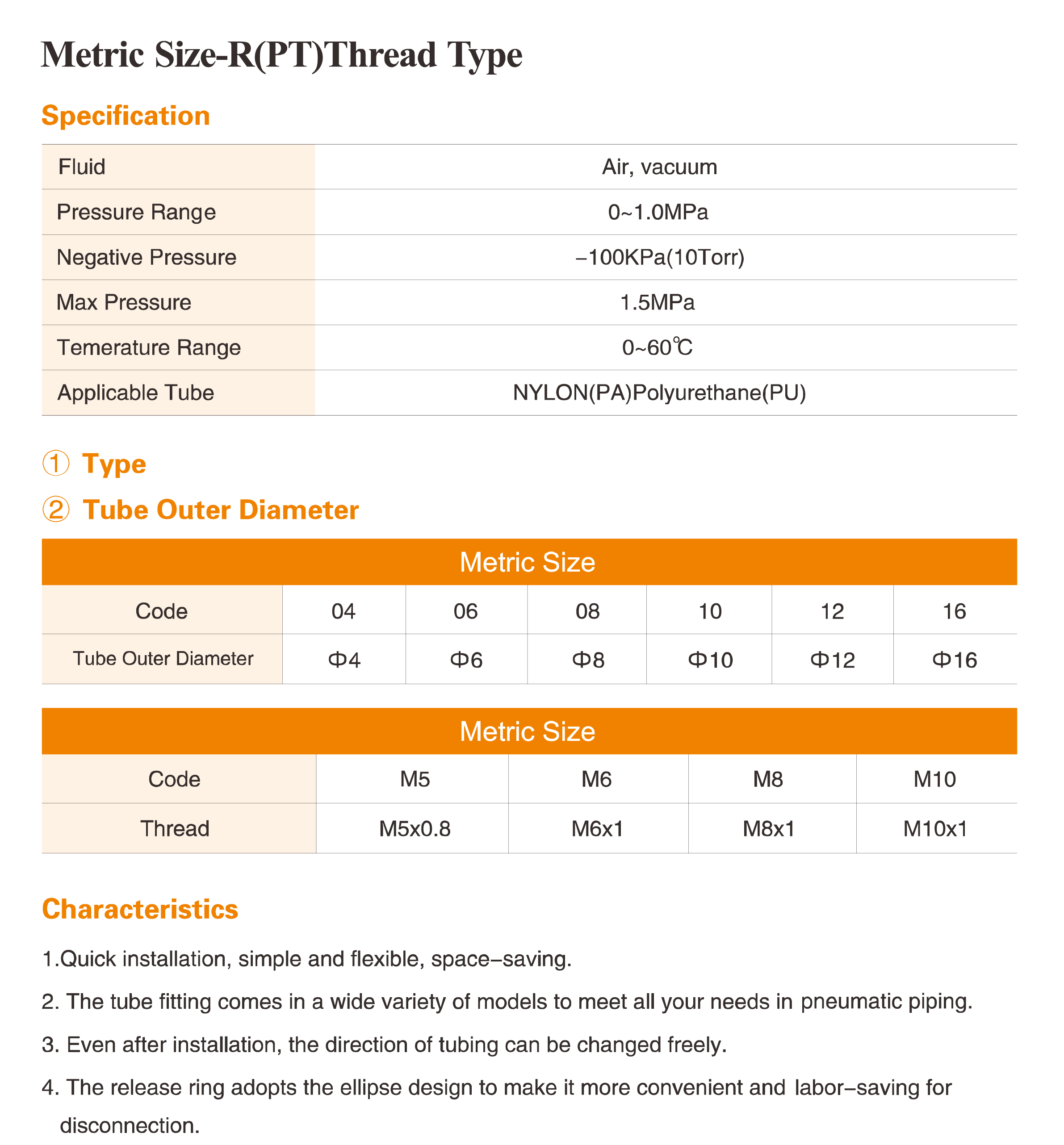

Features That Simplify Tube Assembly

Both pneumatic push-in Y fittings share practical features for everyday installation:

● Quick push-in connection with a space-saving design

● Tube direction can be adjusted after installation

● Ellipse-shaped release ring for easier disconnection

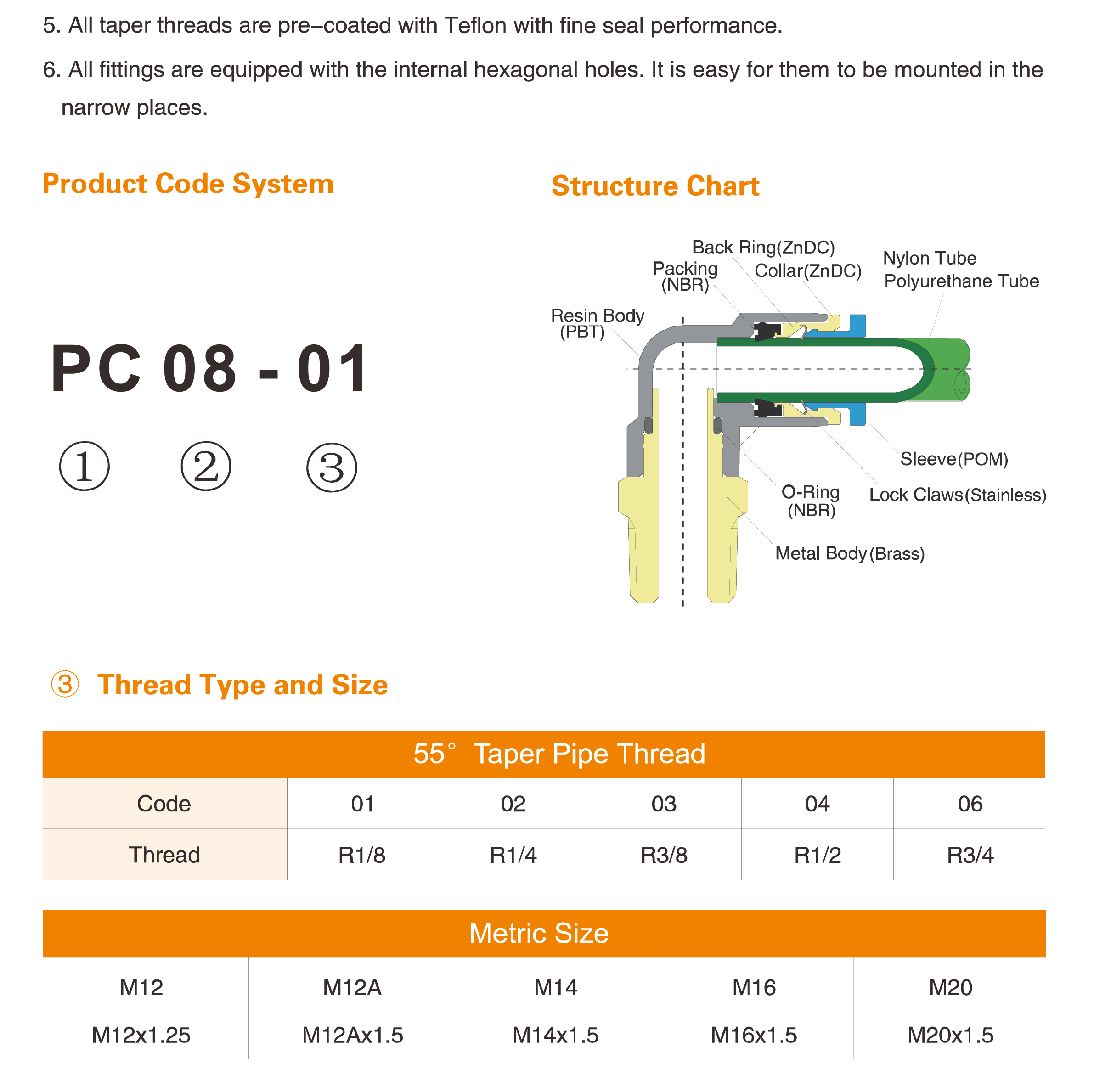

● Taper threads are pre-coated with Teflon for reliable sealing

● Internal hexagonal holes support mounting in narrow spaces

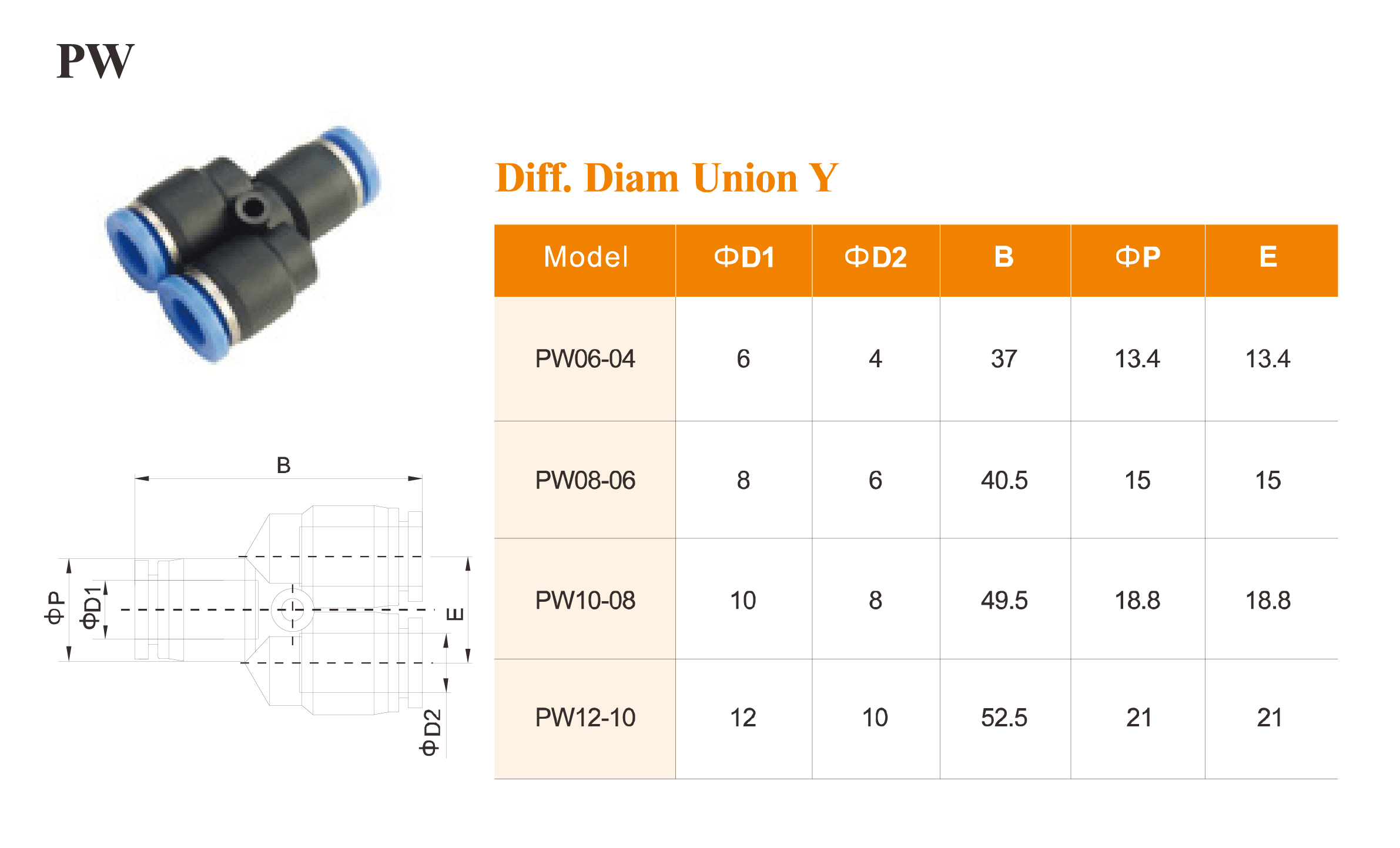

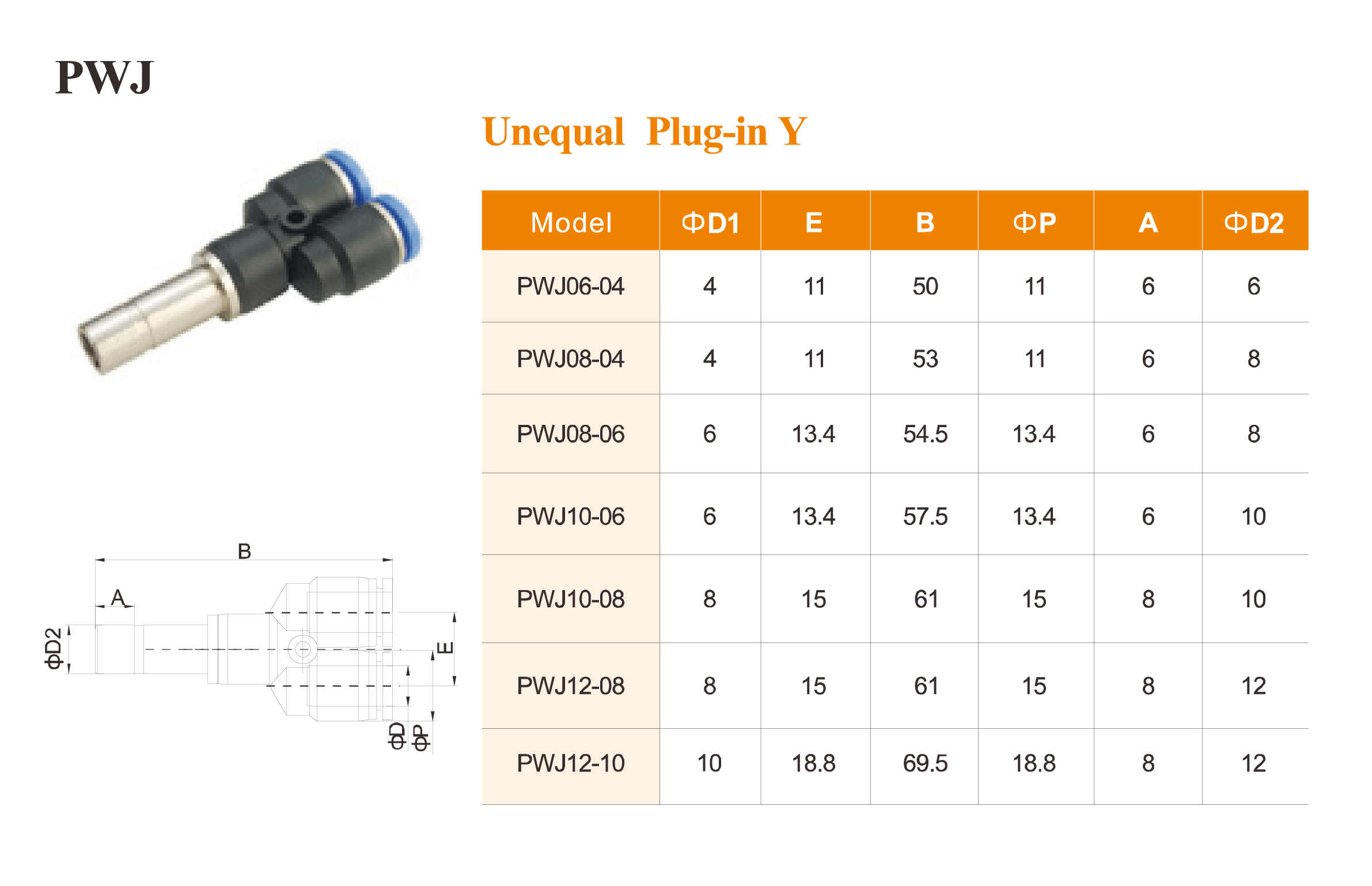

The PW Series uses a Diff. Diam Union Y configuration, while the PWJ Series adopts an Unequal Plug-in Y design for different tube connection arrangements.

Applications and Installation

These push-in Y fittings are suitable for pneumatic automation, machinery, control systems, and compact air circuits requiring branched tube connections.

Installation: Insert the pneumatic tube directly into the fitting until fully seated. After installation, adjust the tube direction as required. To disconnect, press the release ring and pull the tube out.
