PJ & PP Series Pneumatic Push-in Reducer and Plug Fittings

Practical Solutions for Tube Size and Port Changes

The PJ and PP Series push-in fittings address two common requirements in pneumatic piping: adapting a connection and closing an unused port. Their compact designs help keep air circuits neat while reducing unnecessary installation space.

Built for Simple Pneumatic Maintenance

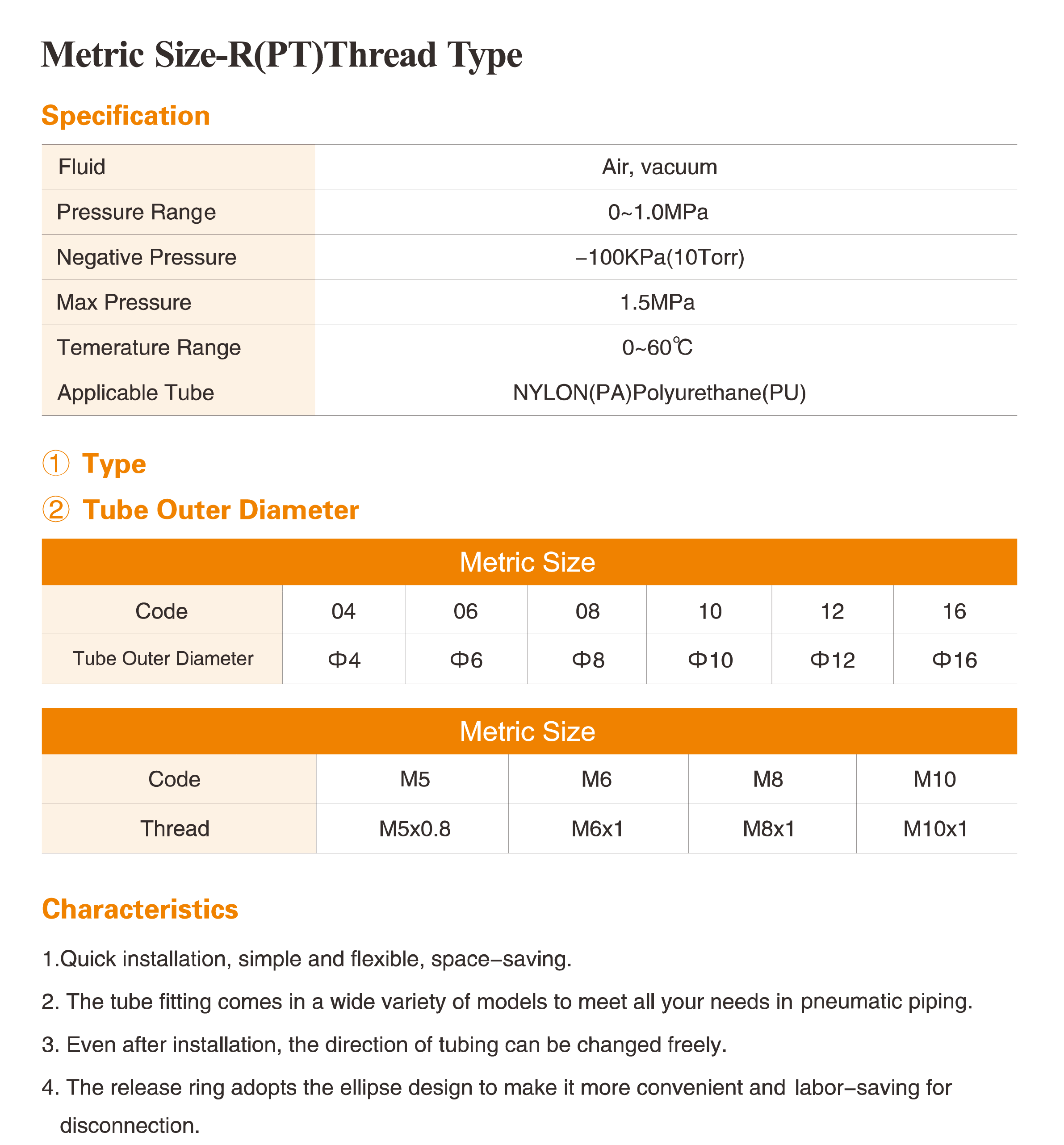

Both pneumatic push-in fittings use a practical connection design for repeated assembly work:

● Quick installation with a flexible, space-saving structure

● Tube direction can be adjusted after installation

● Ellipse-shaped release ring for convenient tube removal

● Teflon-coated taper threads for effective sealing

● Internal hexagonal holes for mounting in restricted spaces

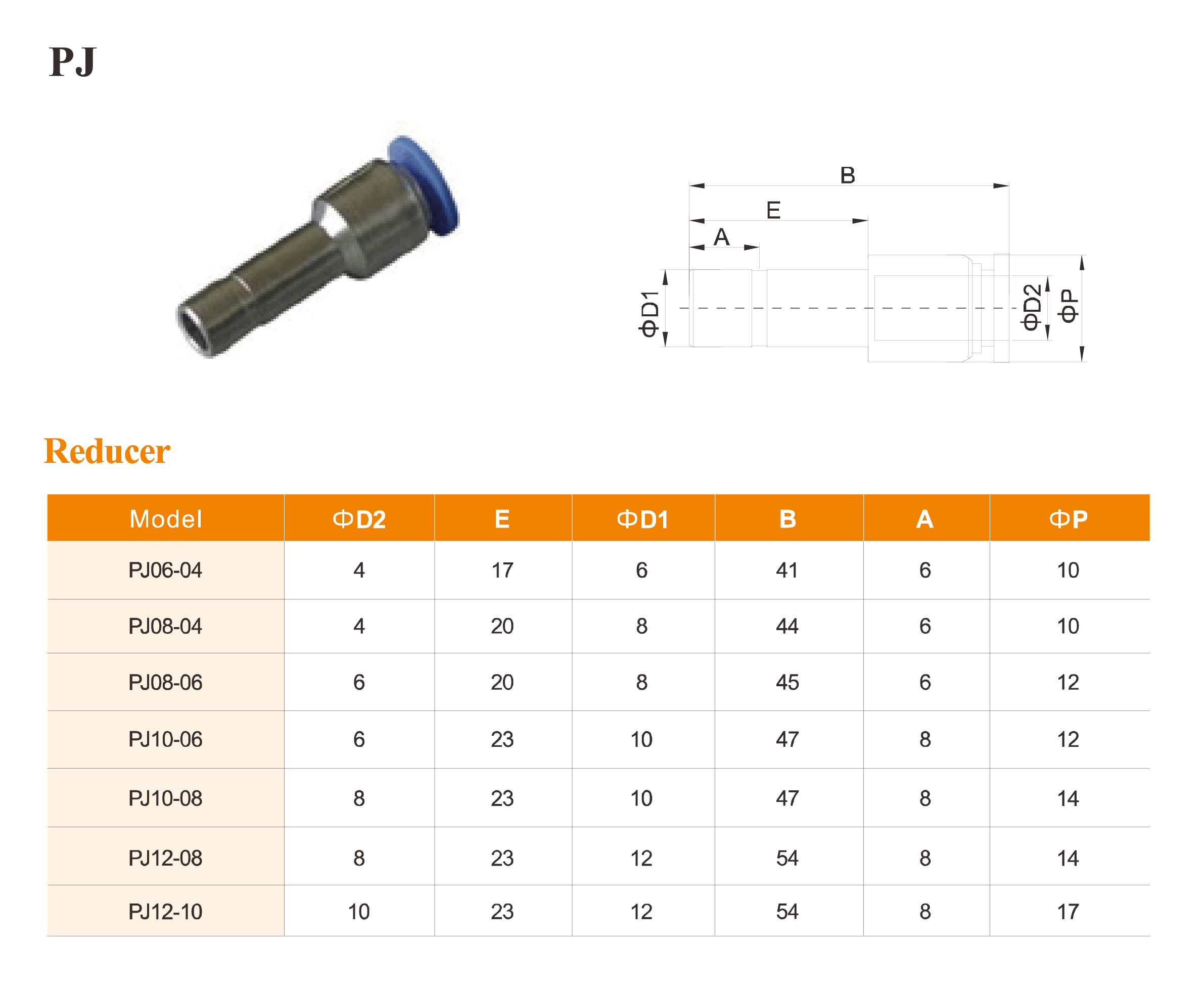

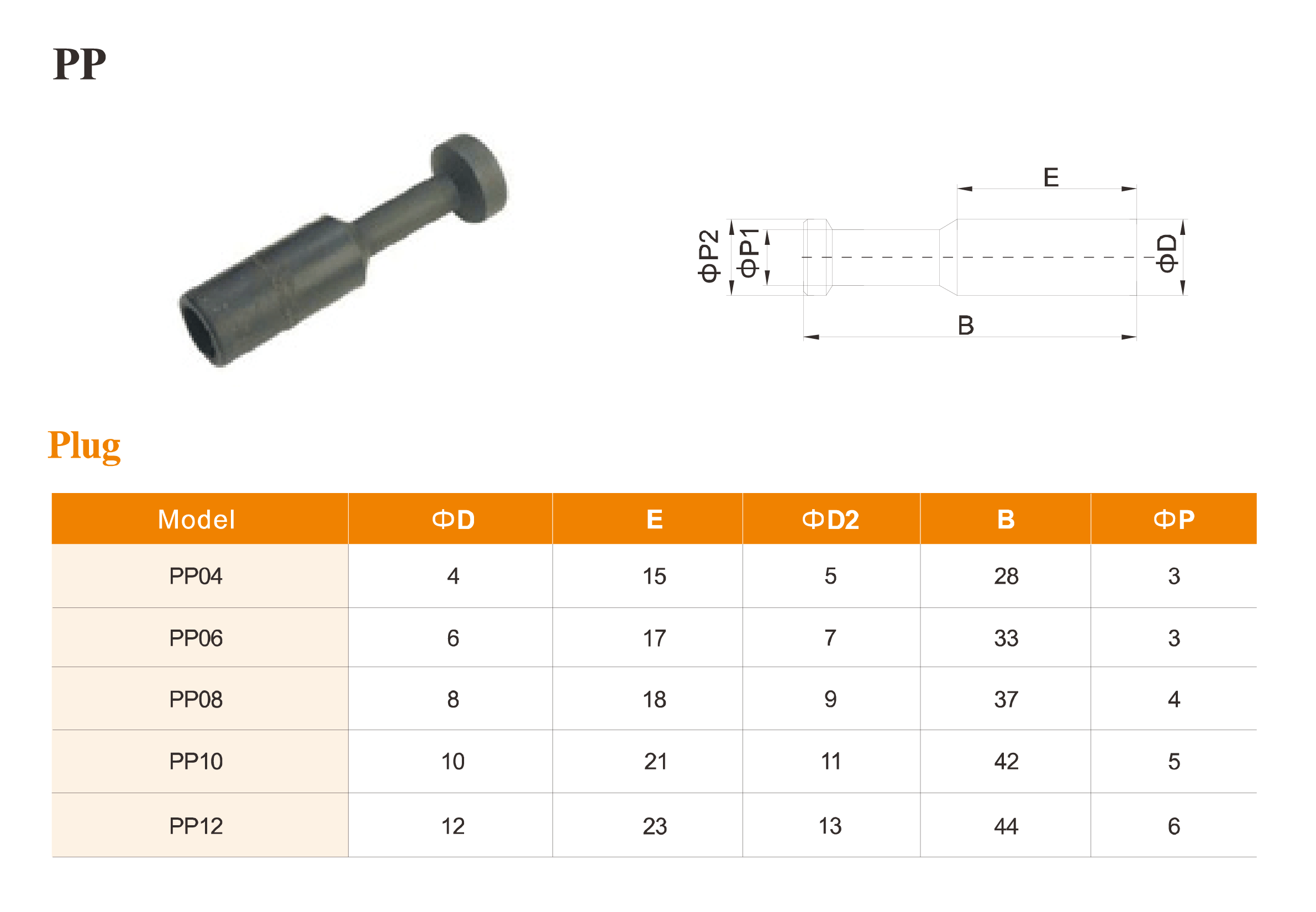

The PJ Series Reducer is used where a pneumatic tube connection needs to transition between different sizes. The PP Series Plug provides a straightforward way to close an unused connection point.

Applications and Installation

These push-in reducer and plug fittings are suitable for pneumatic automation, machinery, air distribution systems, control equipment, and maintenance work where tube configurations may need to be modified.

Installation: For the PJ Reducer, insert the compatible tubes fully into the connection ports. For the PP Plug, insert it into the designated push-in port to close the connection. Press the release ring when removal is required.
