PL, PLF, PLJ, PLL & PLM Series Push-in Elbow Fittings

Efficient Direction Changes in Pneumatic Lines

The PL family of push-in fittings is built for pneumatic layouts where tubing must turn within a limited space. The elbow construction helps route tubing neatly while allowing the tube direction to be adjusted after installation. Quick connection and compact dimensions make these fittings suitable for machinery with dense pneumatic piping.

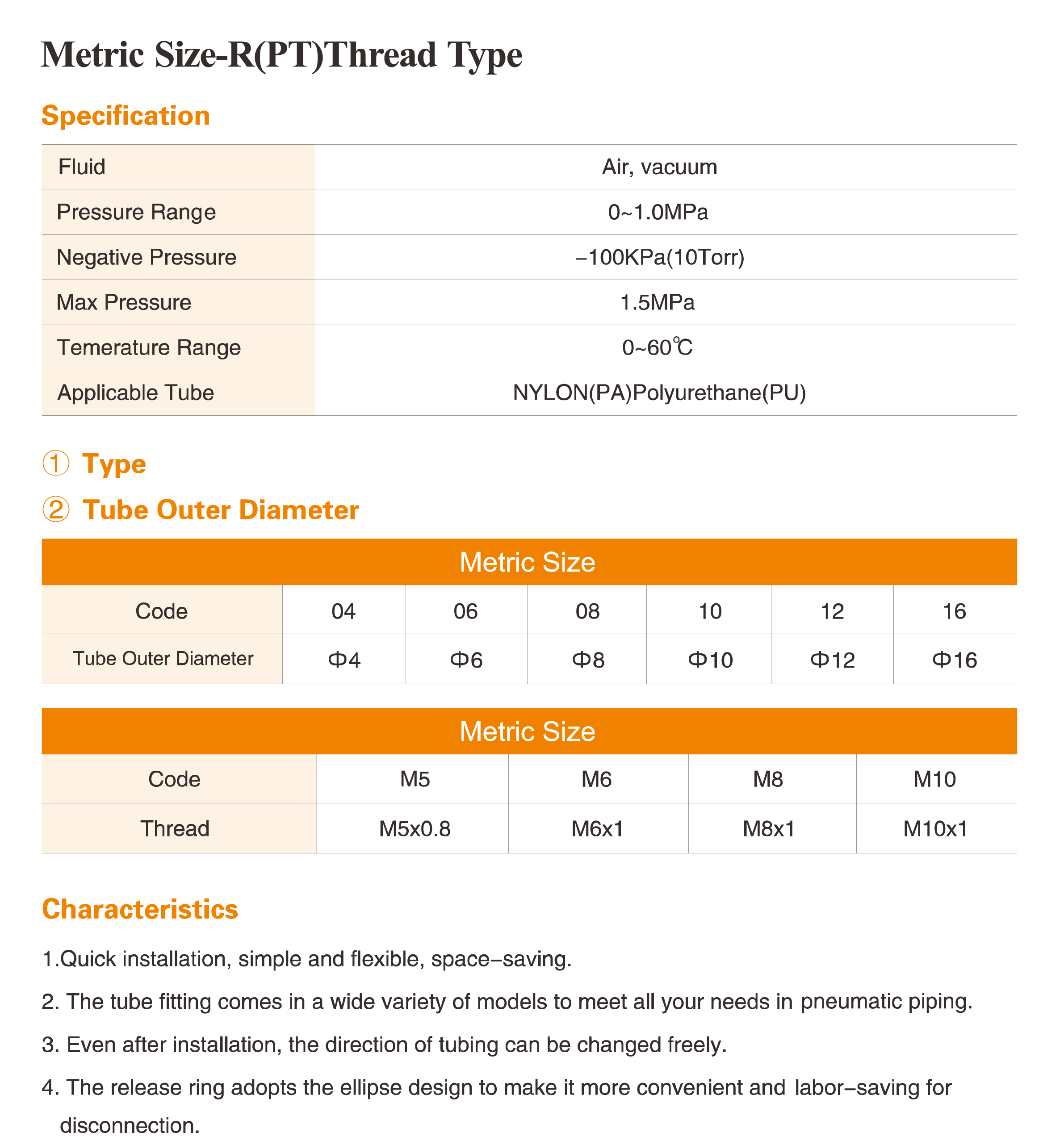

Shared Design for Faster Assembly

All five series feature the same practical connection design:

● Quick, flexible installation with reduced space requirements

● Tube direction can be adjusted after installation

● Ellipse-shaped release ring for easier disconnection

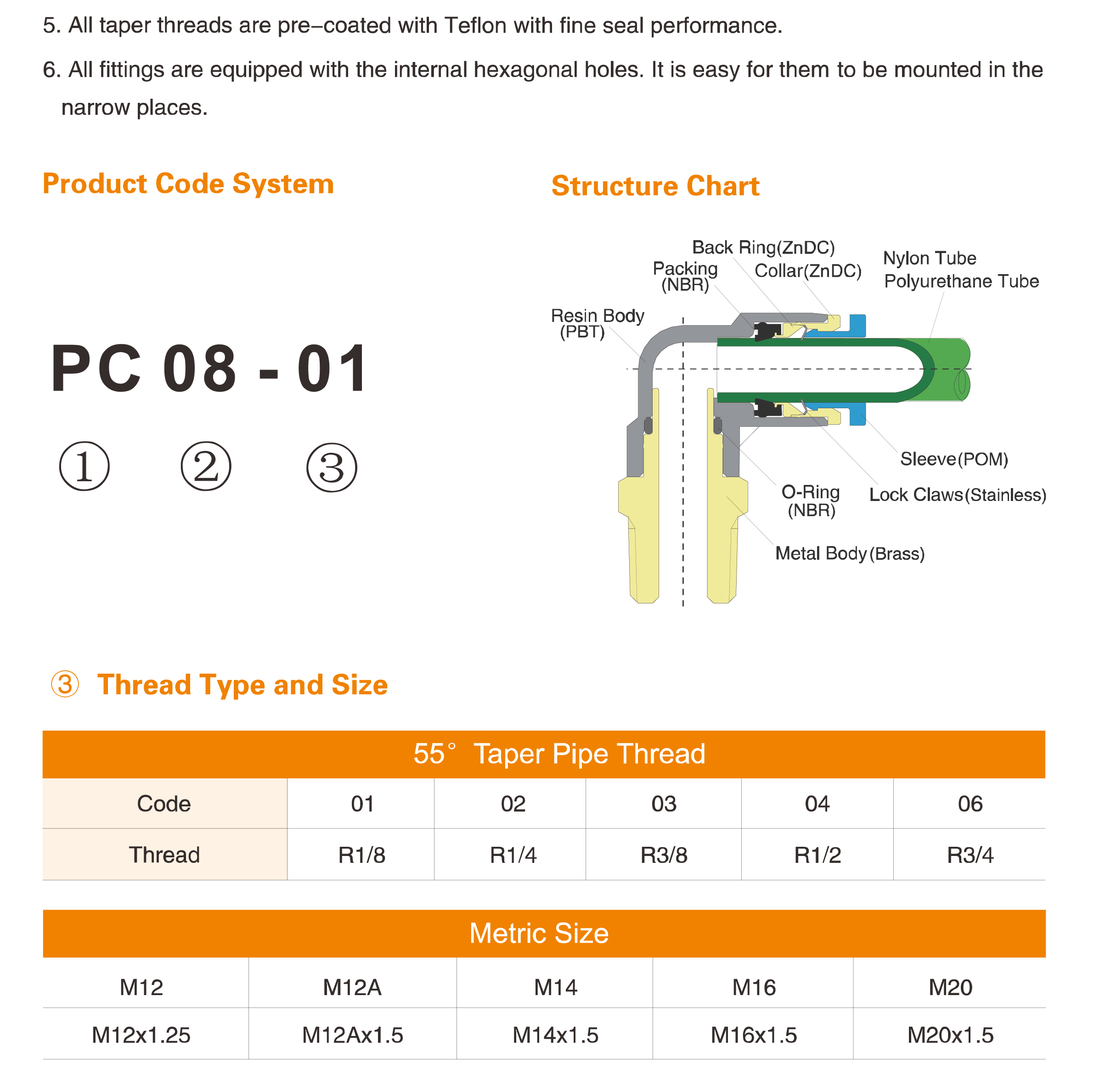

● Taper threads are pre-coated with Teflon for sealing performance

● Internal hexagonal holes for installation in narrow locations

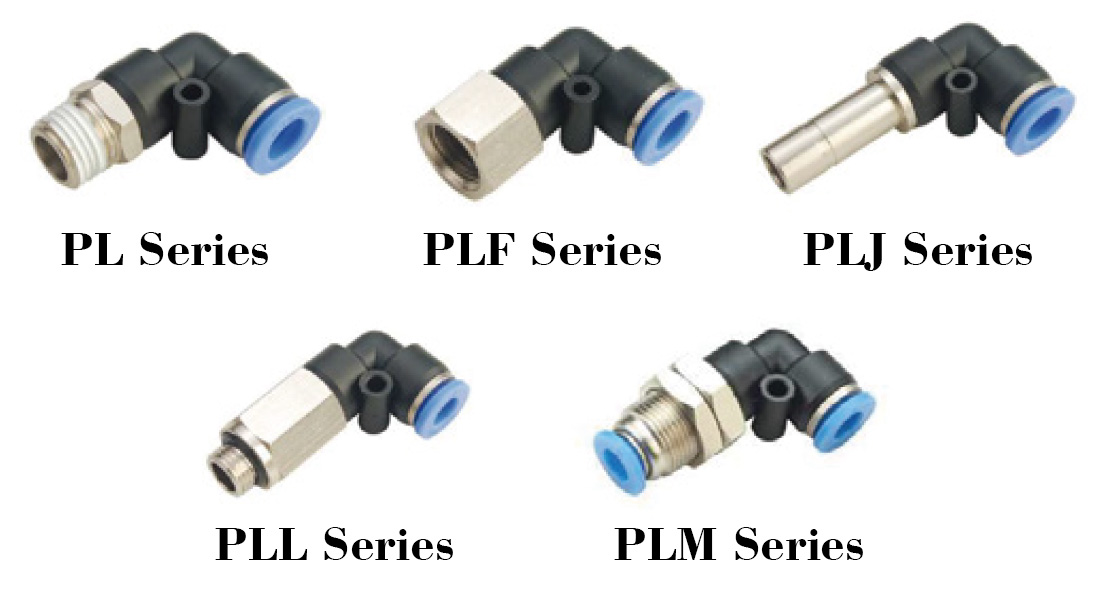

Five Elbow Configurations

Different pneumatic push-in fittings accommodate different connection layouts:

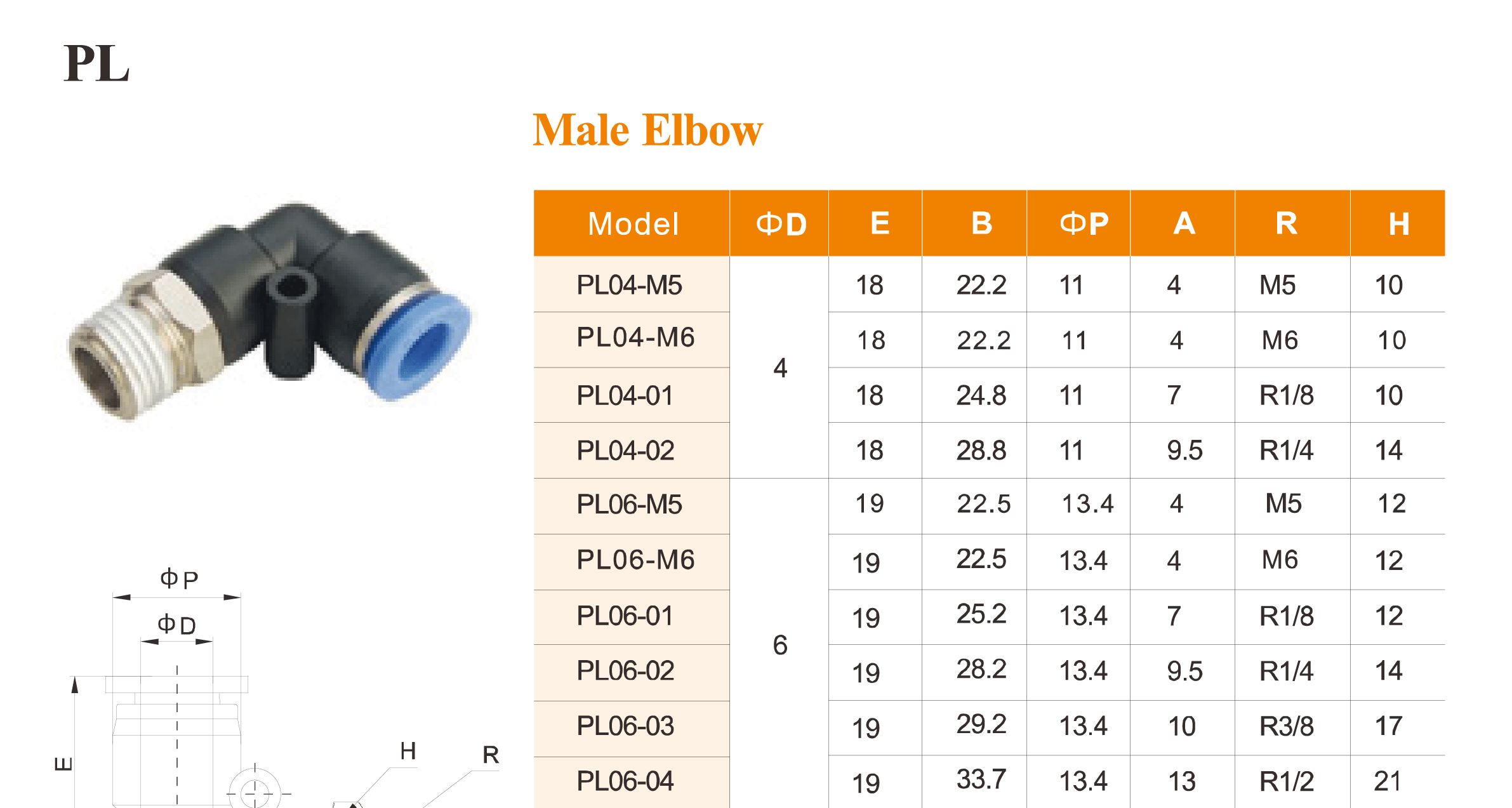

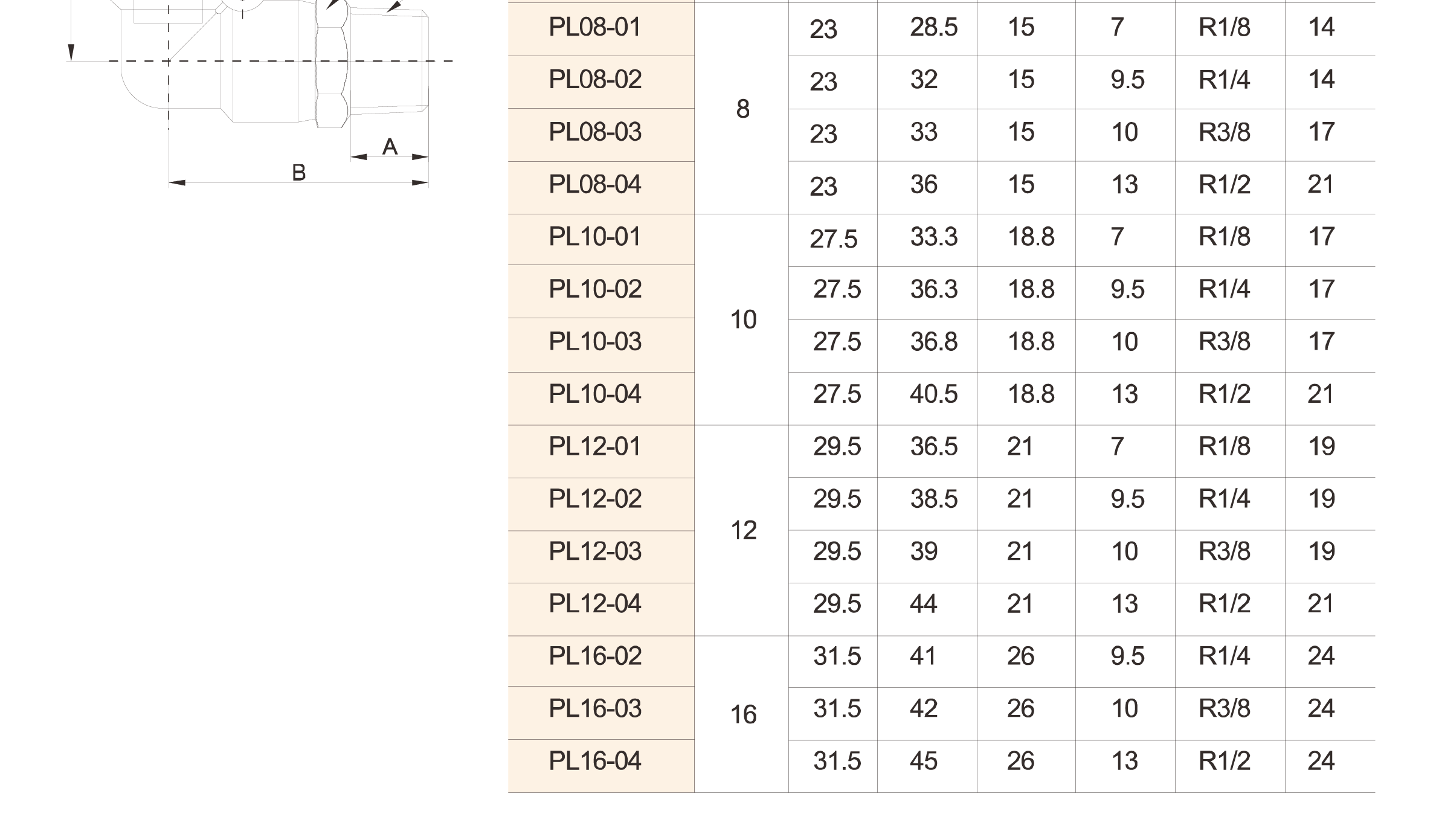

● PL Series – Male Elbow: for tubing connected to male-threaded equipment ports.

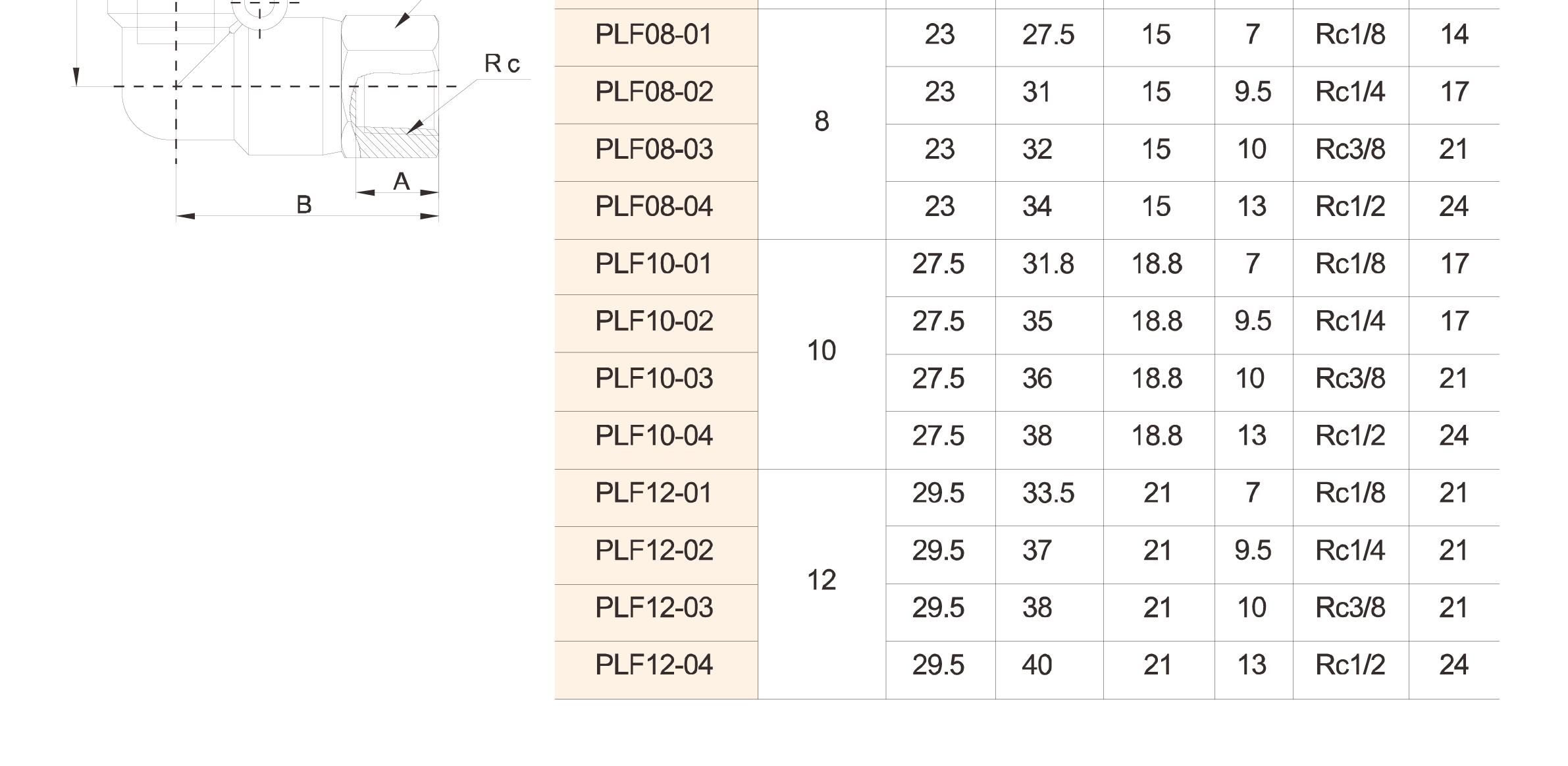

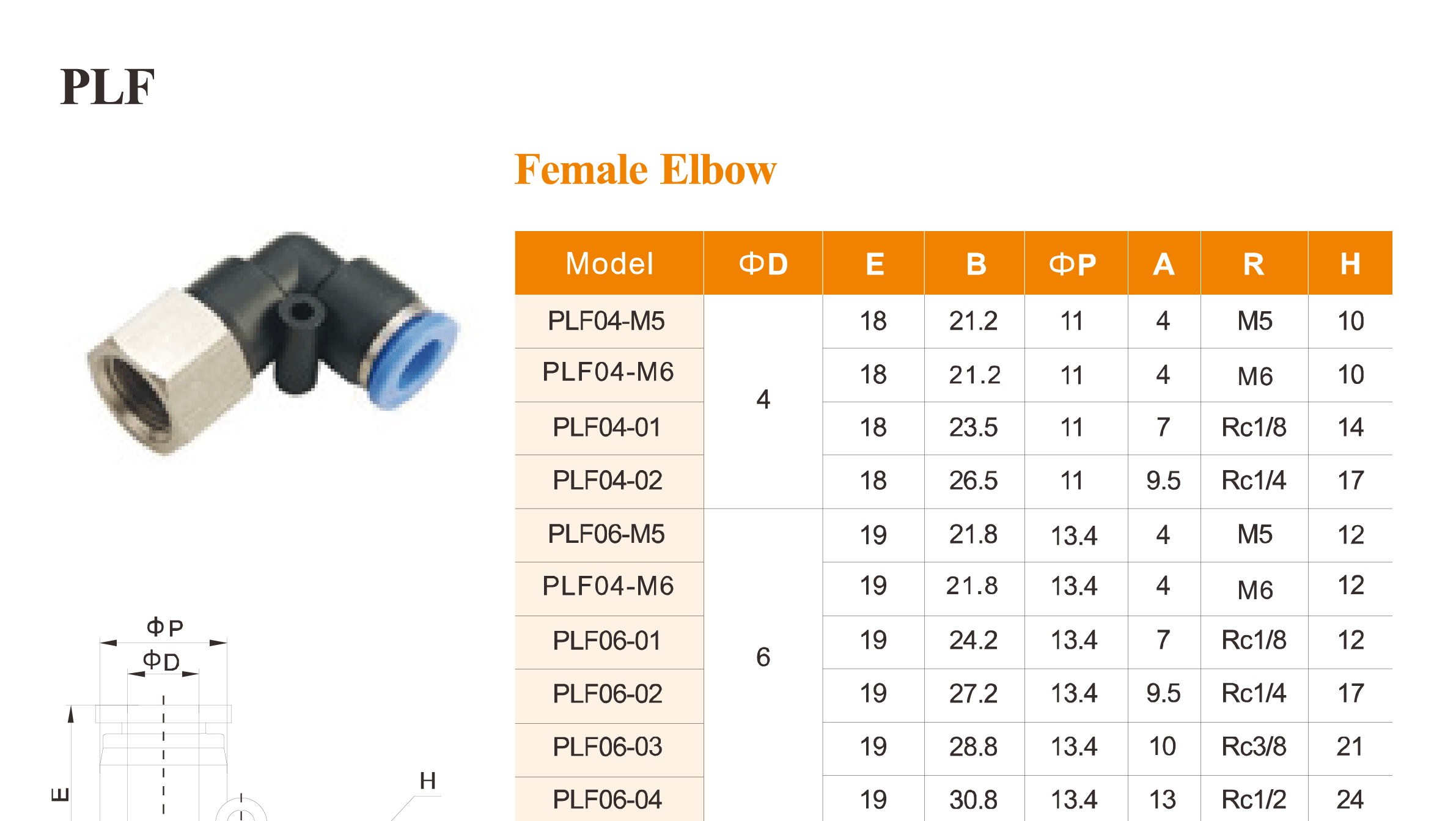

● PLF Series – Female Elbow: provides a female-threaded connection.

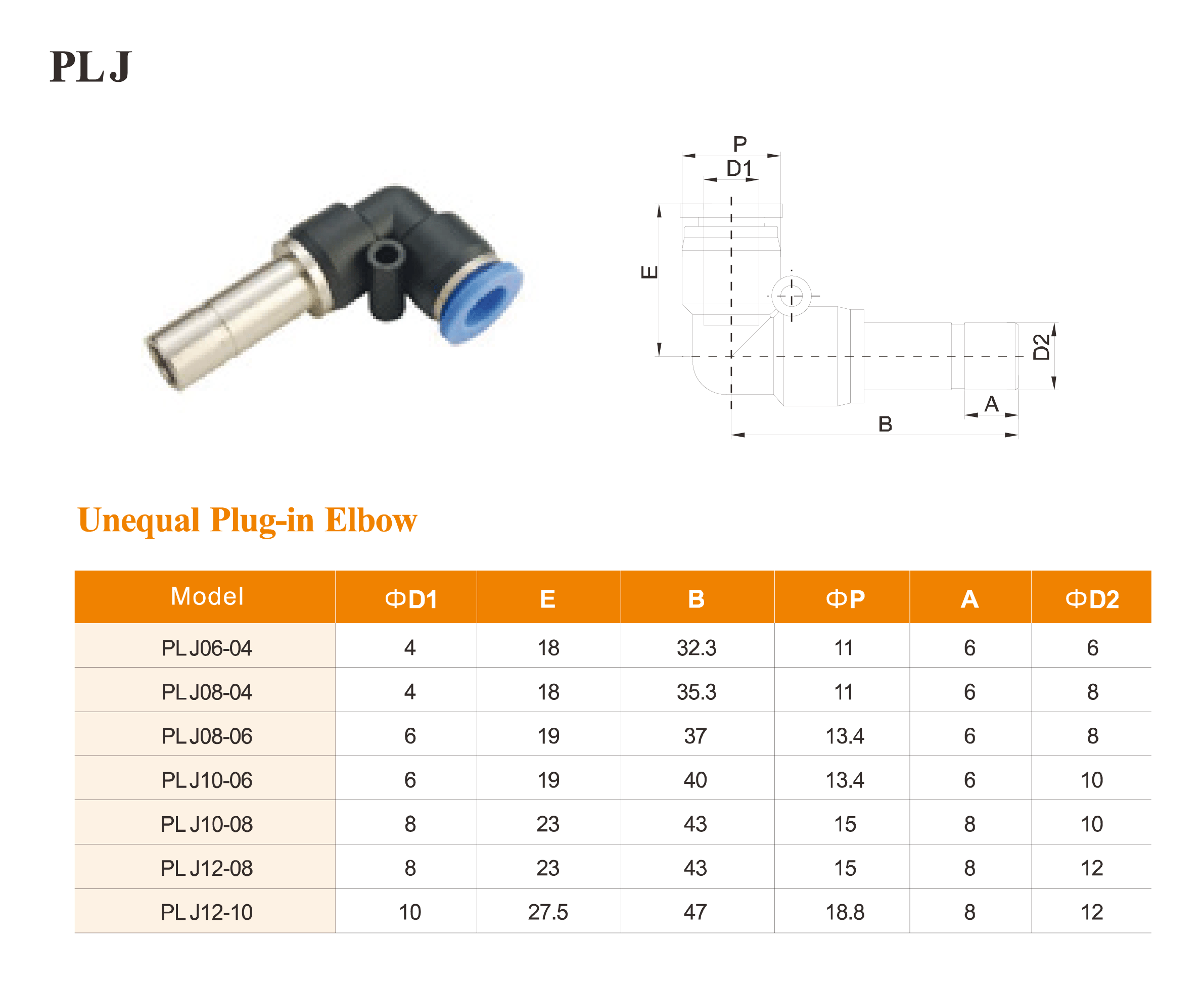

● PLJ Series – Unequal Plug-in Elbow: connects tubing with an unequal elbow configuration.

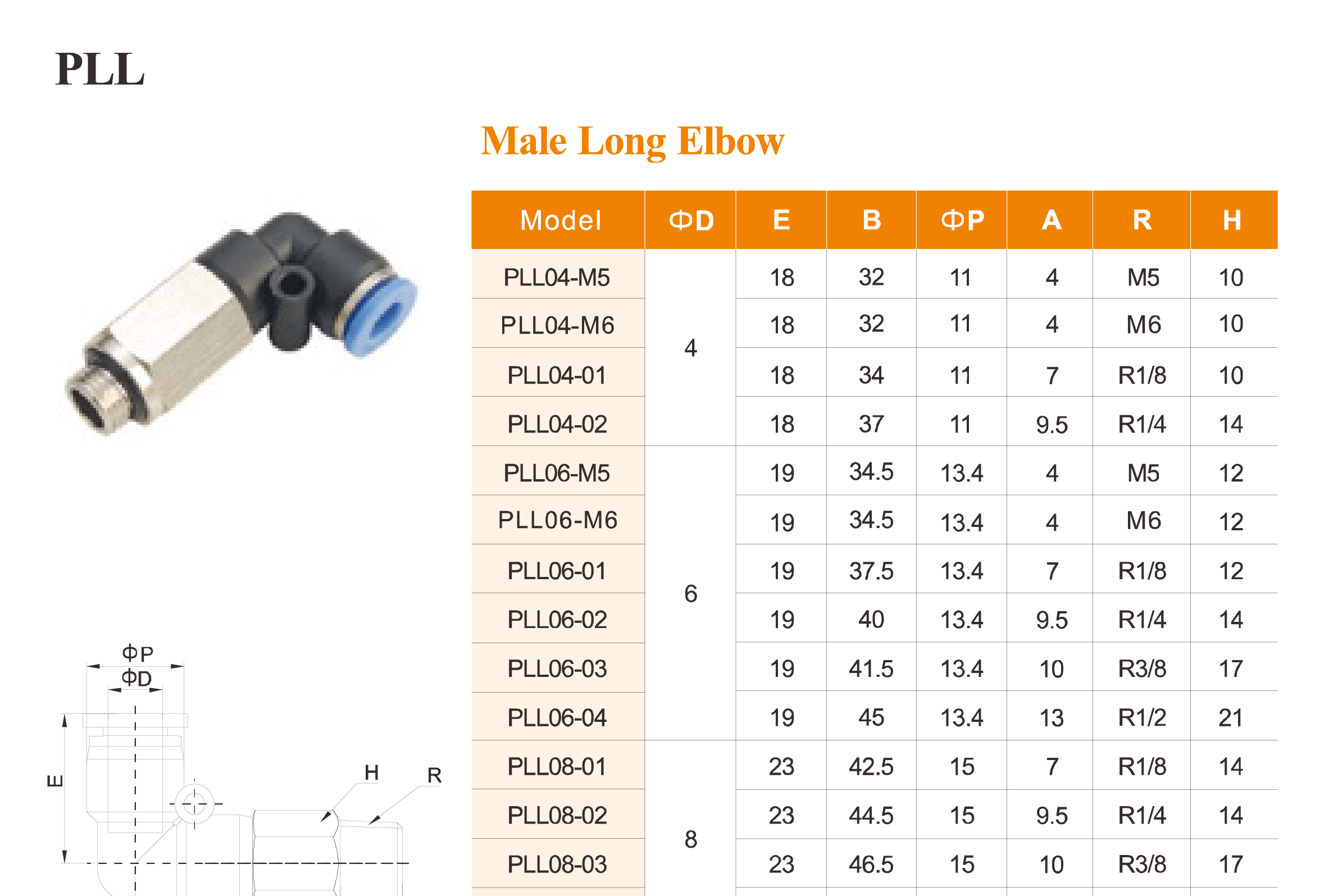

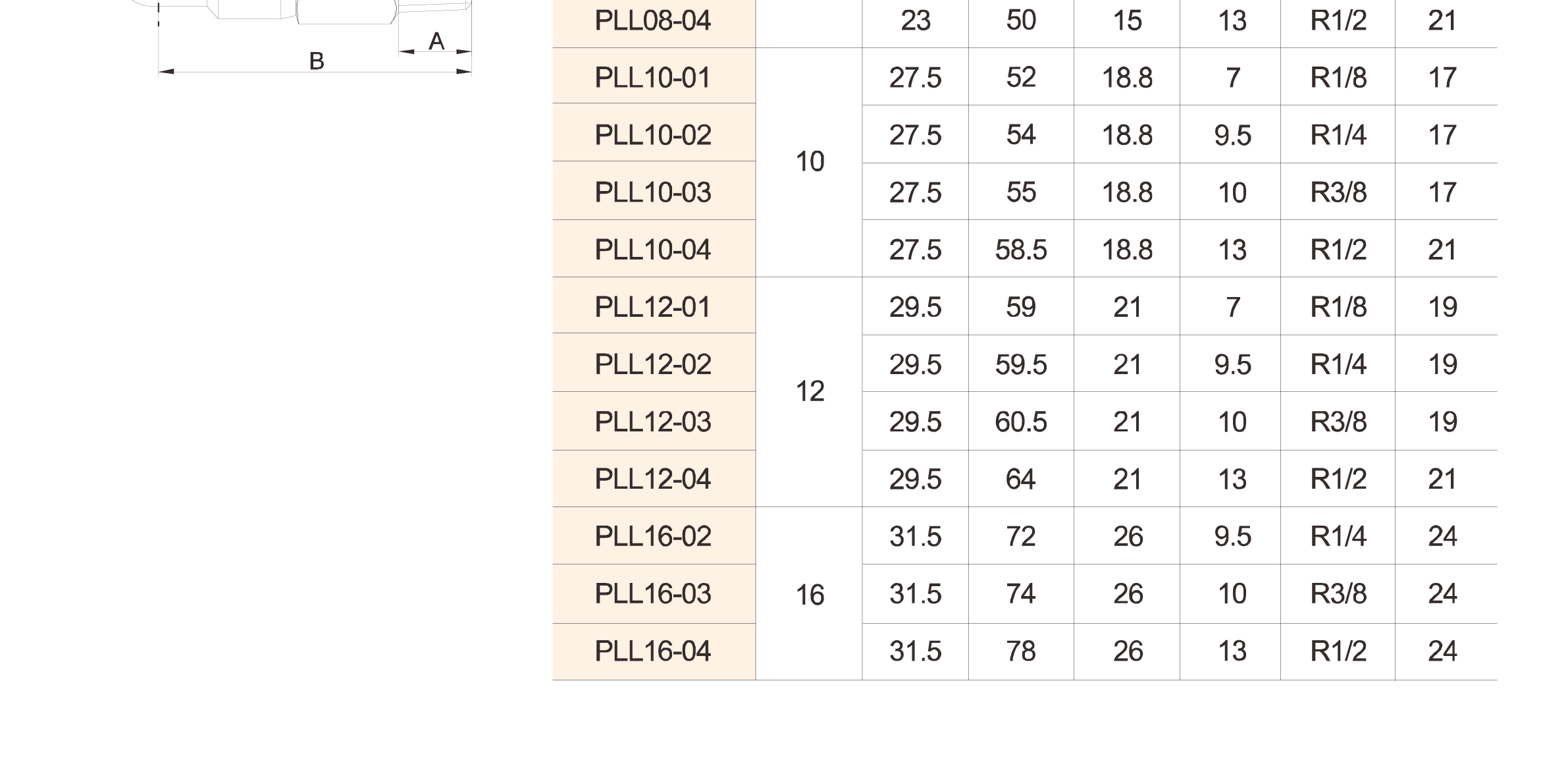

● PLL Series – Male Long Elbow: extended elbow design for applications requiring additional reach.

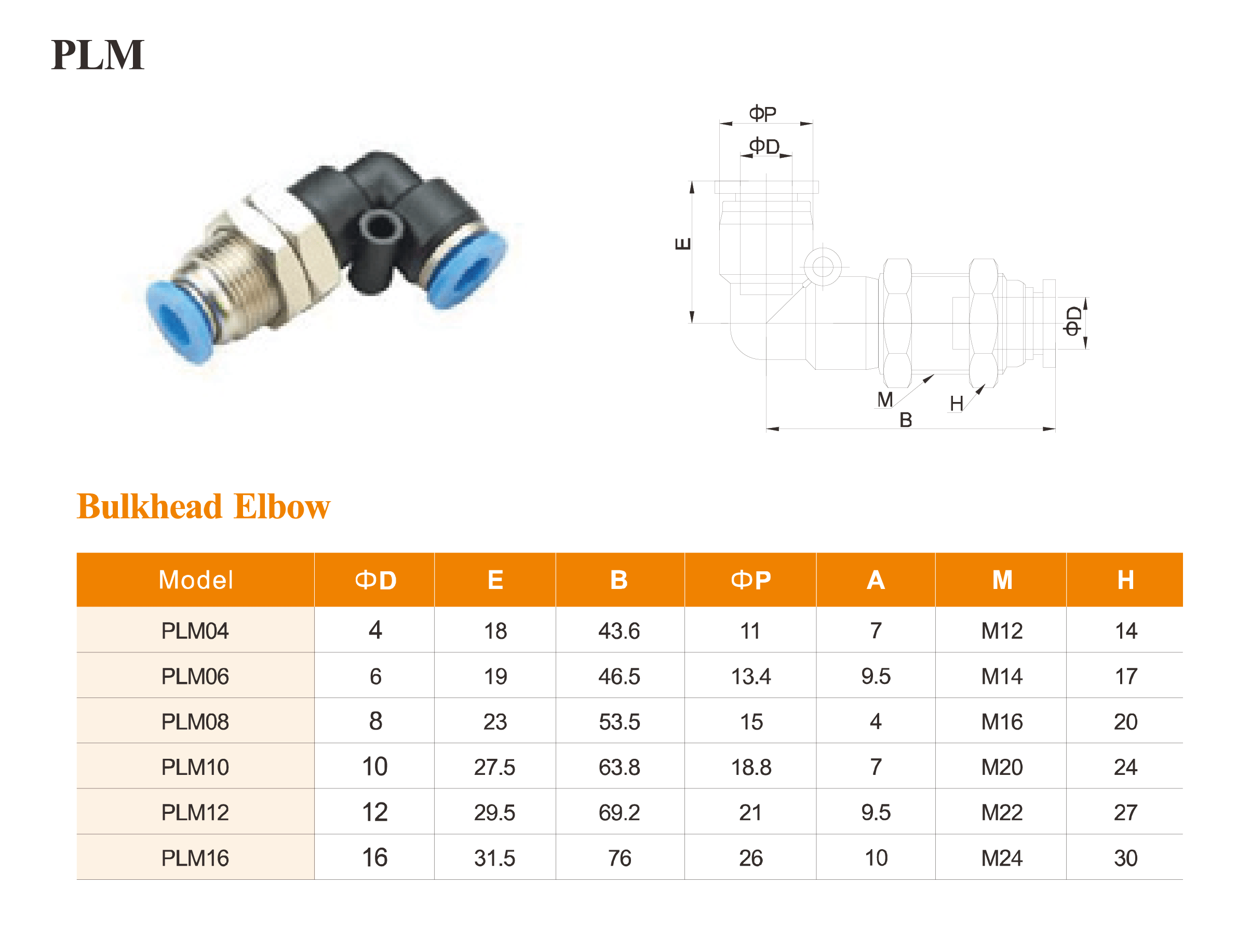

● PLM Series – Bulkhead Elbow: suitable for routing tubing through a panel or partition.

Applications and Installation

These fittings are suitable for pneumatic automation, packaging machinery, assembly equipment, control systems, and other compressed-air applications where directional tubing routing is required.

For installation, cut the tube cleanly, push it fully into the fitting, and confirm the connection. Use the internal hexagonal hole when tightening in confined spaces. The release ring allows convenient tube removal during maintenance, providing a practical connection solution for frequently serviced pneumatic systems.
