The PC, PCF, and POC Series are compact push-in fittings designed for efficient pneumatic piping connections where installation space and assembly time matter. Their practical straight configurations provide reliable connections while keeping pipe layouts neat and flexible.
The range includes Male Straight, Female Straight, and Hex.Holed Straight designs to accommodate different equipment connection requirements. With pre-coated taper threads, convenient release rings, and internal hexagonal holes, these pneumatic push-in fittings support quick installation, easy adjustment, and maintenance in automated machinery and pneumatic systems.
The PC, PCF, and POC Series push-in fittings are developed for pneumatic systems that require quick assembly without taking up unnecessary installation space. Their straight designs help simplify tubing layouts, while the tubing direction can still be adjusted after installation when required. This makes them practical for automation equipment, control cabinets, and compact pneumatic assemblies.
The main construction features are shared across the range:
● Quick push-in installation with a simple, space-saving design
● Flexible tube positioning after installation
● Ellipse-shaped release ring for easier tube disconnection
● Taper threads pre-coated with Teflon for reliable sealing
● Internal hexagonal holes for easier mounting in confined spaces

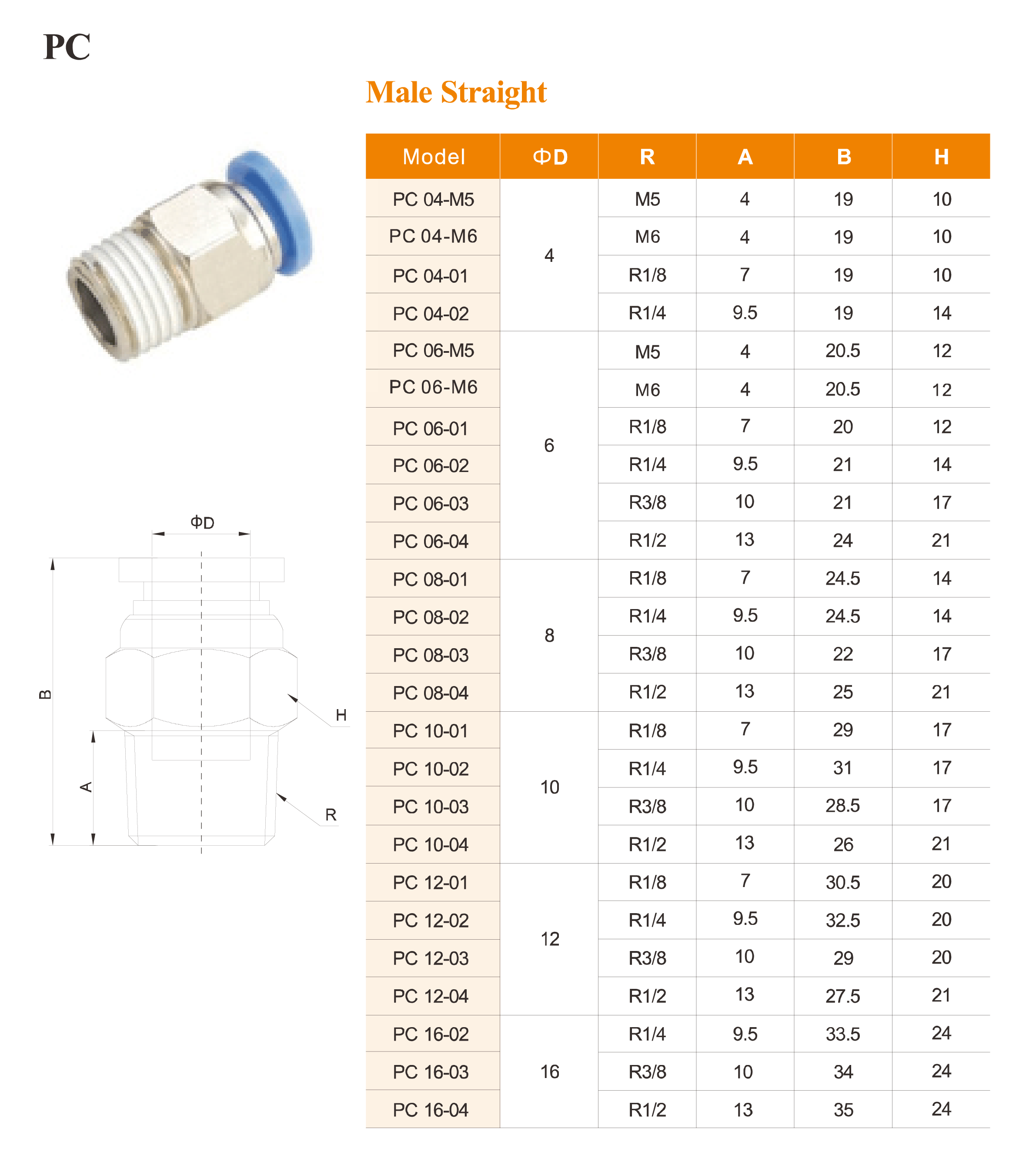

● PC Series – Male Straight: designed for direct connection between pneumatic tubing and equipment with a male threaded interface.

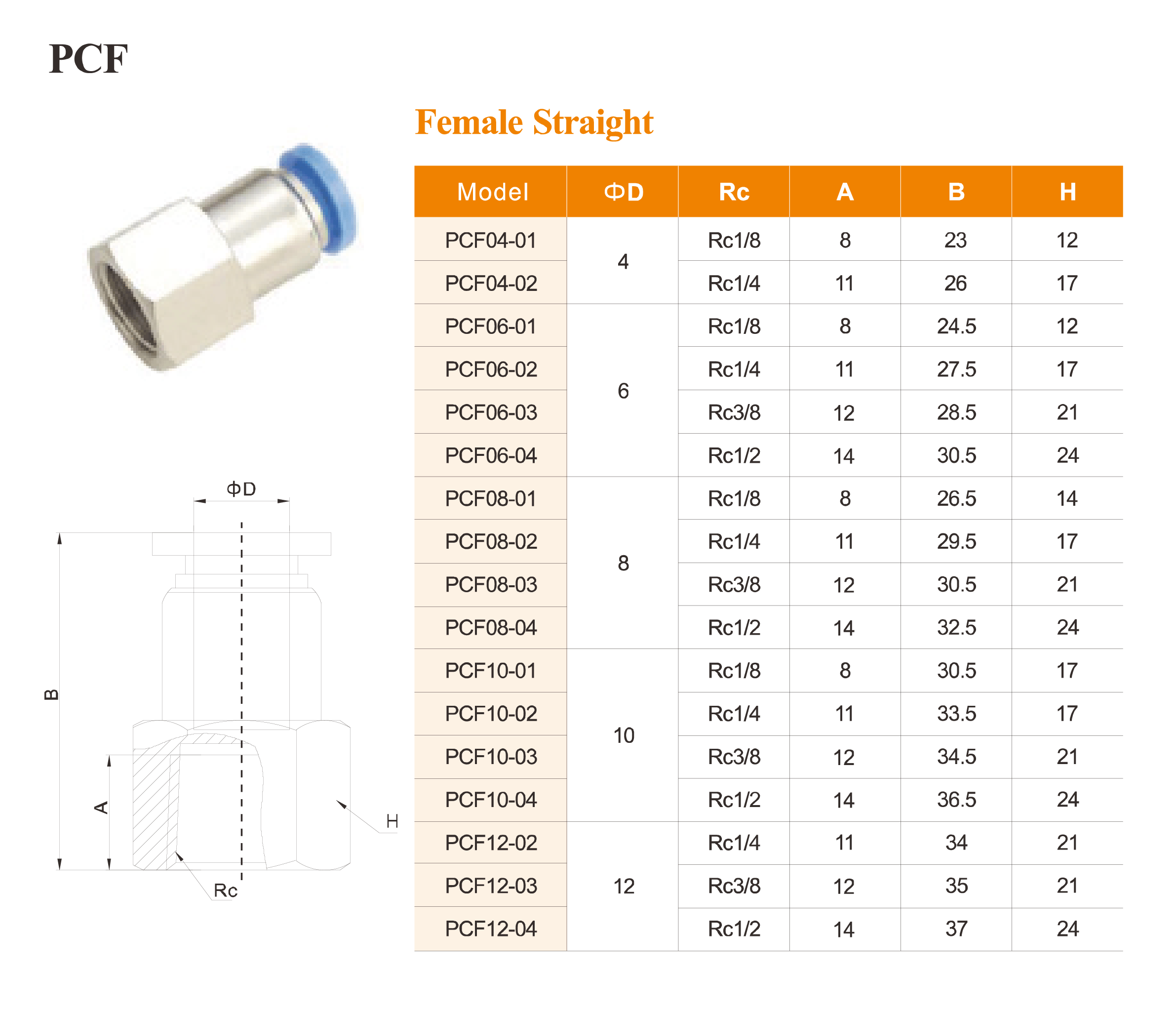

● PCF Series – Female Straight: provides a female threaded connection where the mating component requires an internal thread.

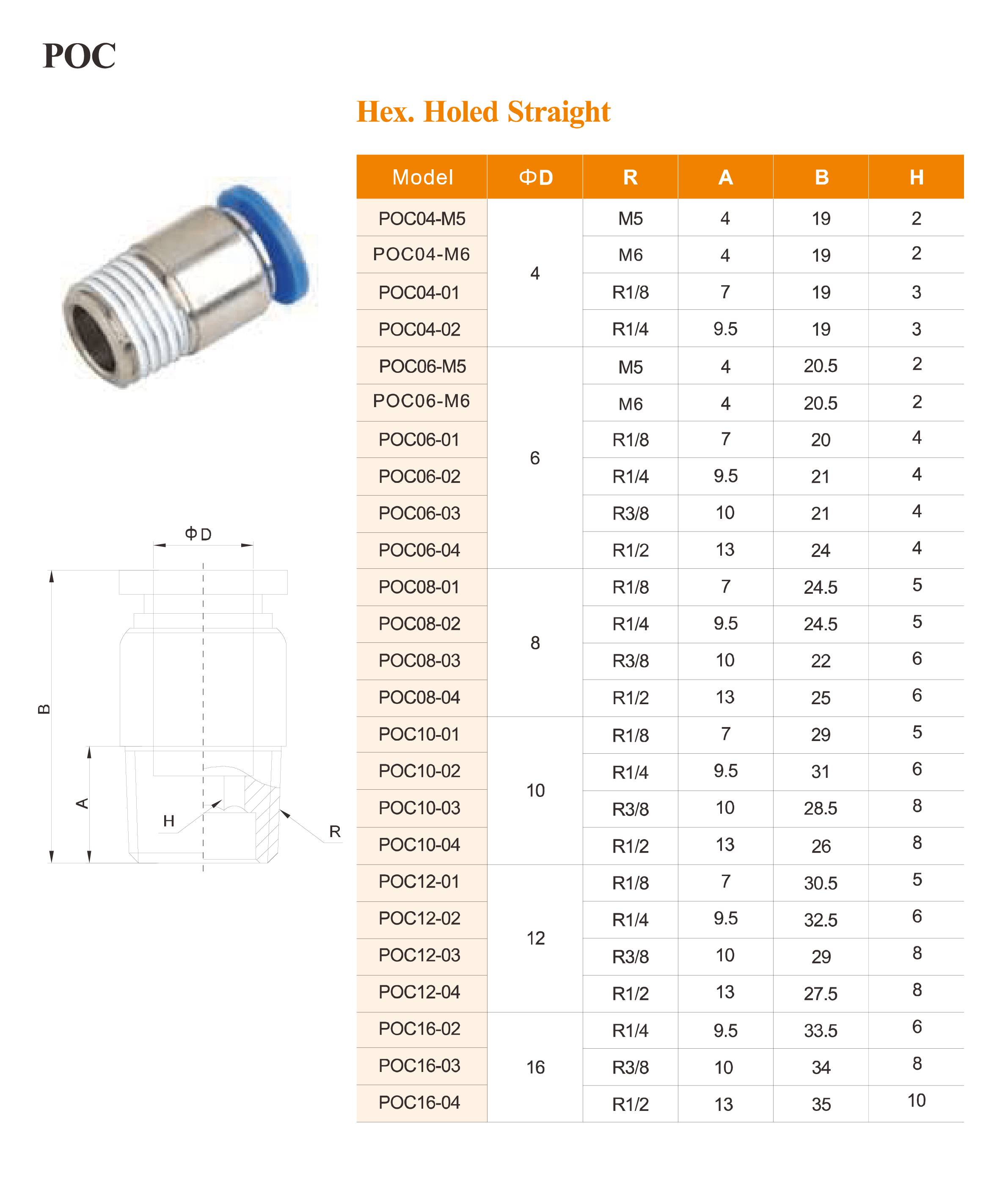

● POC Series – Hex.Holed Straight: incorporates a hexagonal-hole structure to facilitate tool-assisted installation, particularly where access is restricted.
These pneumatic push-in fittings can be used in factory automation, pneumatic control systems, assembly machinery, packaging equipment, and general compressed-air piping. The compact construction is especially useful when fittings must be installed close to machine panels or other components.
Installation is straightforward: cut the pneumatic tube cleanly, insert it fully into the fitting, and check that the connection is secure. For threaded installation, use the integrated internal hexagonal hole where appropriate to position and tighten the fitting in a limited-access area. The release ring allows the tube to be removed efficiently during maintenance, helping keep servicing time short.
