PB & PBF Series Pneumatic Push-in Tee Fittings

Practical Branching for Pneumatic Tubing

The PB and PBF Series push-in fittings provide a convenient way to divide or redirect pneumatic tubing within a compact air circuit. Their tee-shaped structure supports organized branch connections, while the tube can be repositioned after installation to simplify routing around machine components.

Connection Features Built for Easy Handling

Both series share a practical design focused on quick assembly and maintenance:

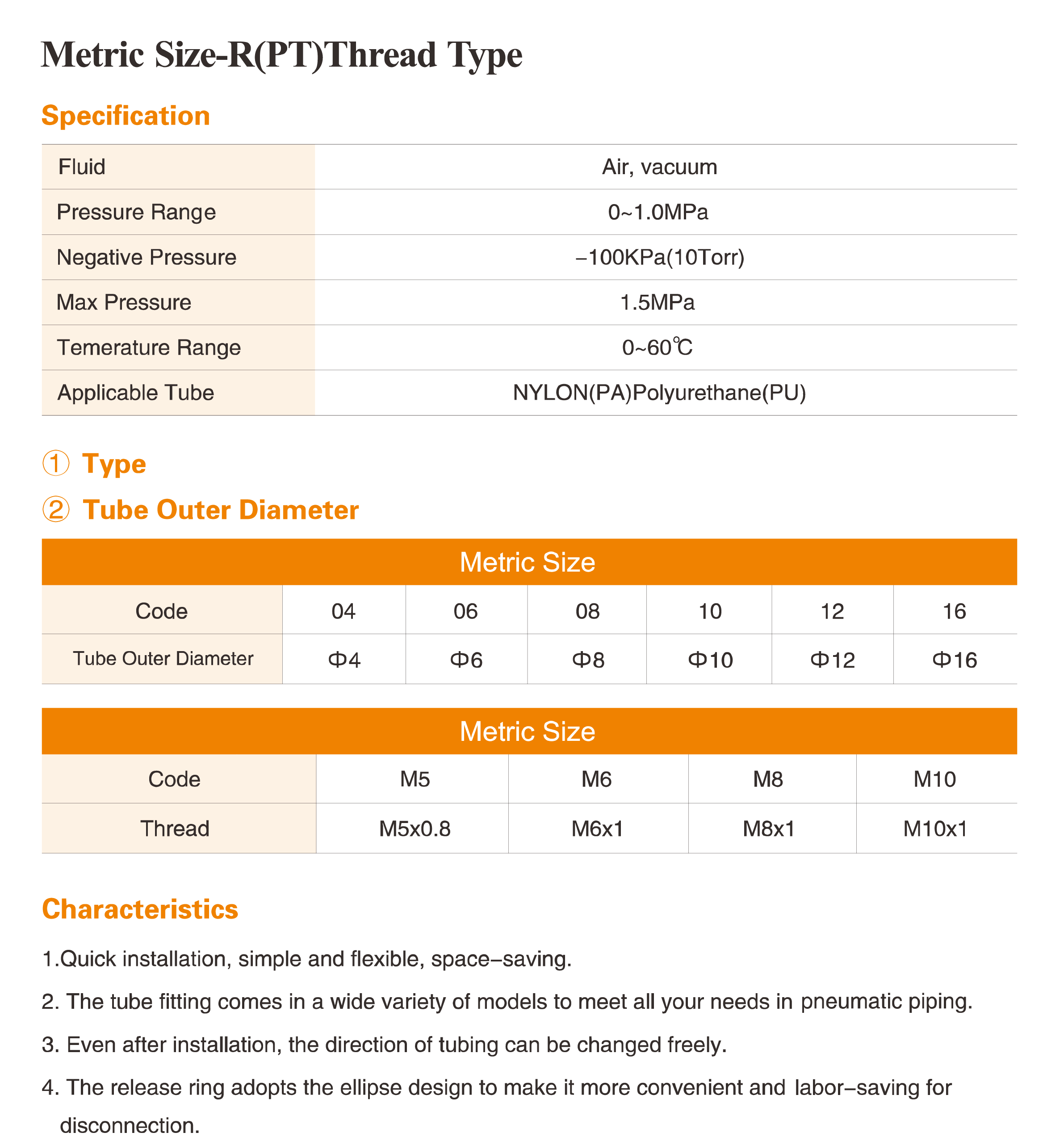

● Push-in connection for fast, simple installation

● Space-saving construction for compact pneumatic layouts

● Flexible tube direction adjustment after installation

● Ellipse-shaped release ring for easier tube disconnection

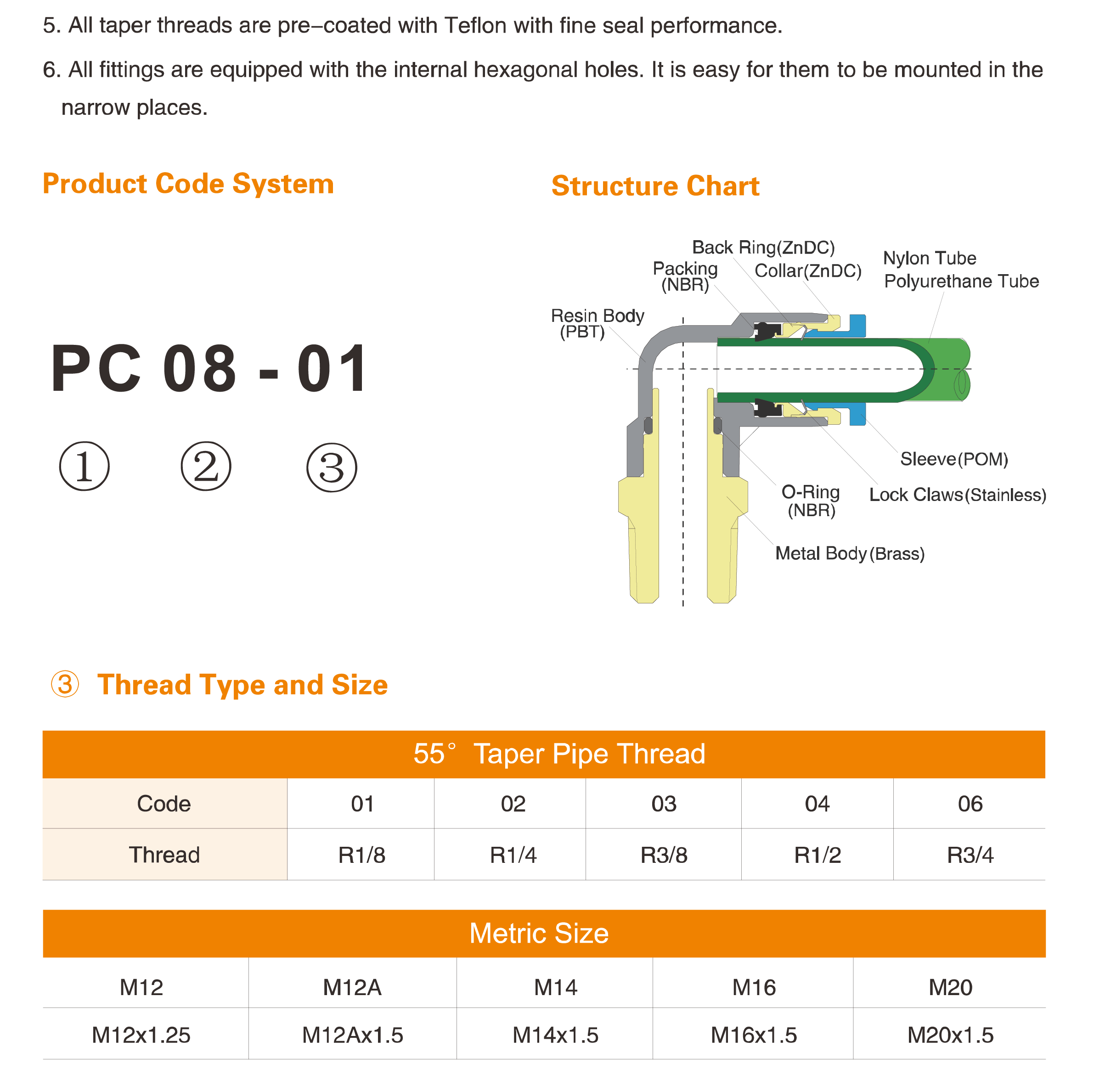

● Taper threads pre-coated with Teflon for reliable sealing

● Internal hexagonal holes for mounting in narrow spaces

PB and PBF Series Options

The two pneumatic tee fittings provide different threaded connection arrangements:

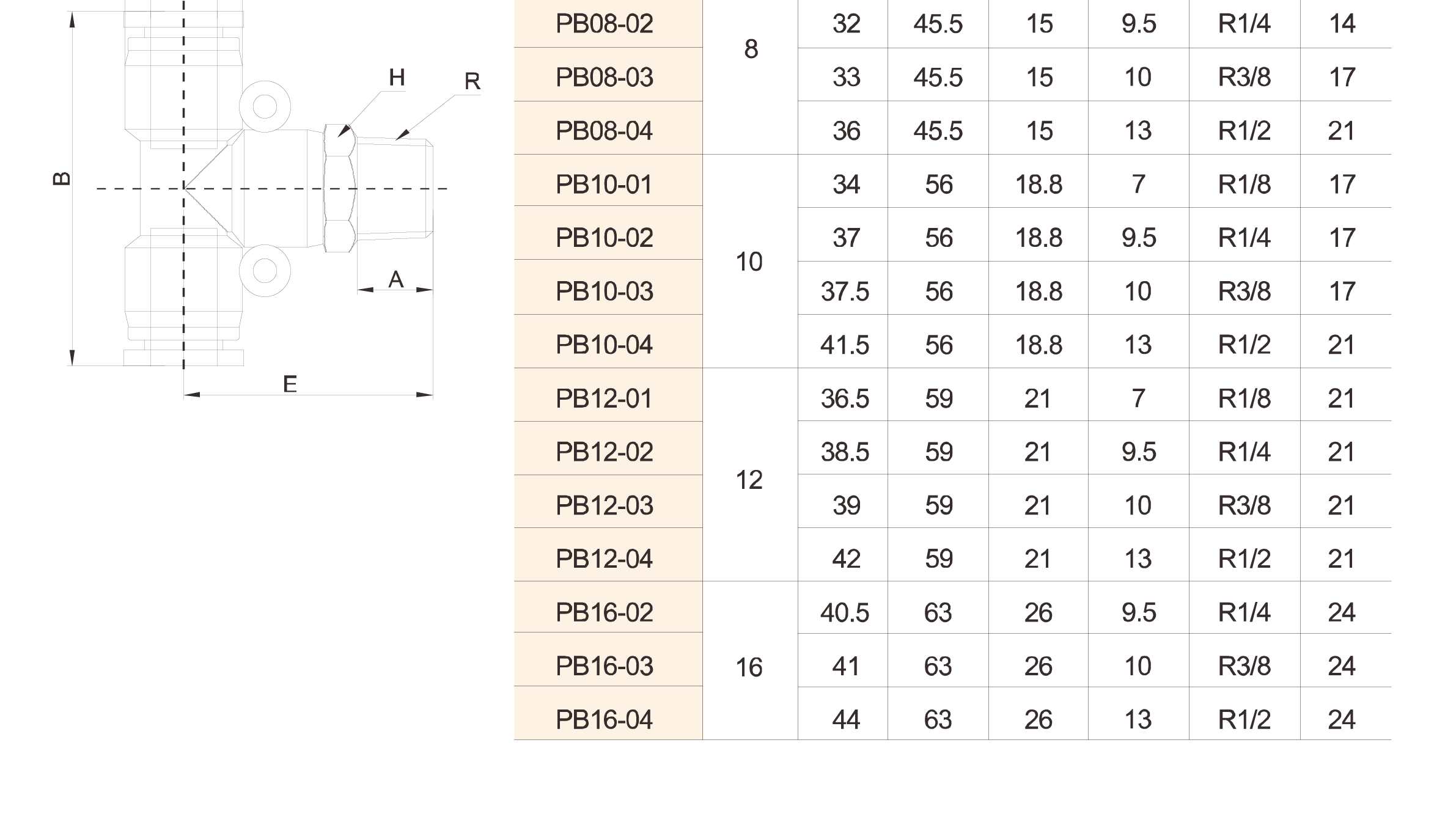

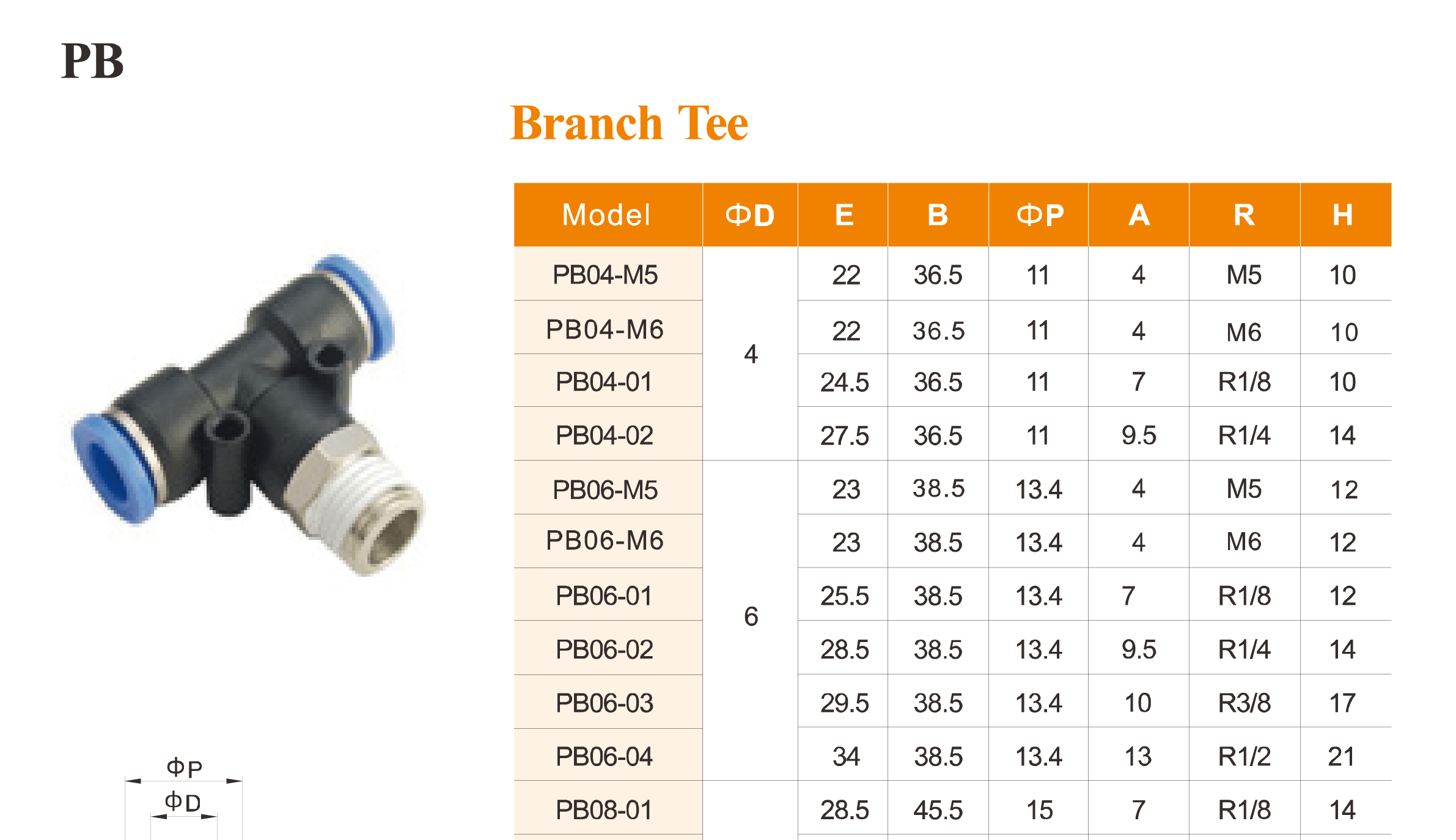

● PB Series – Branch Tee: designed for branching pneumatic tubing into a tee configuration.

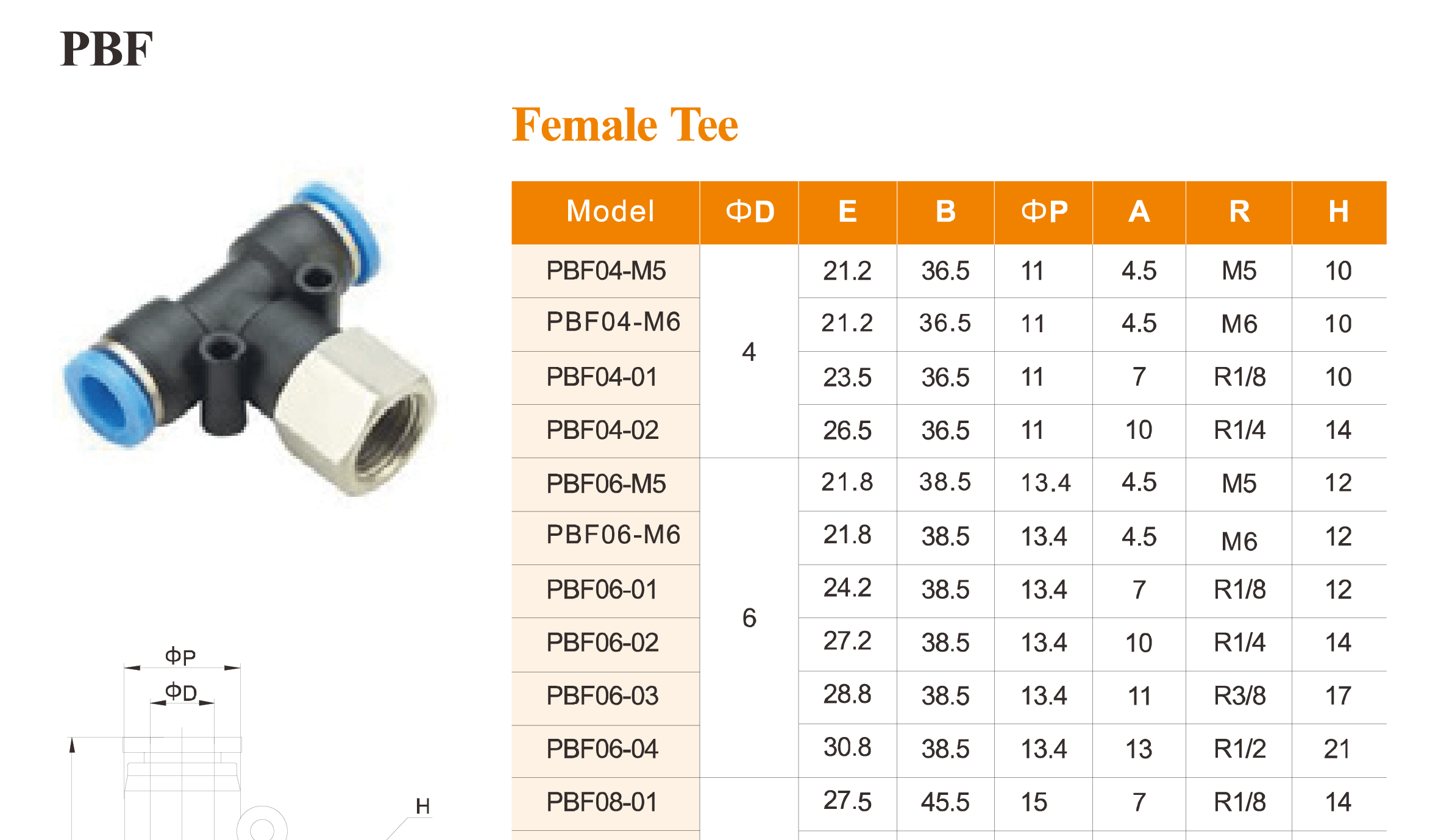

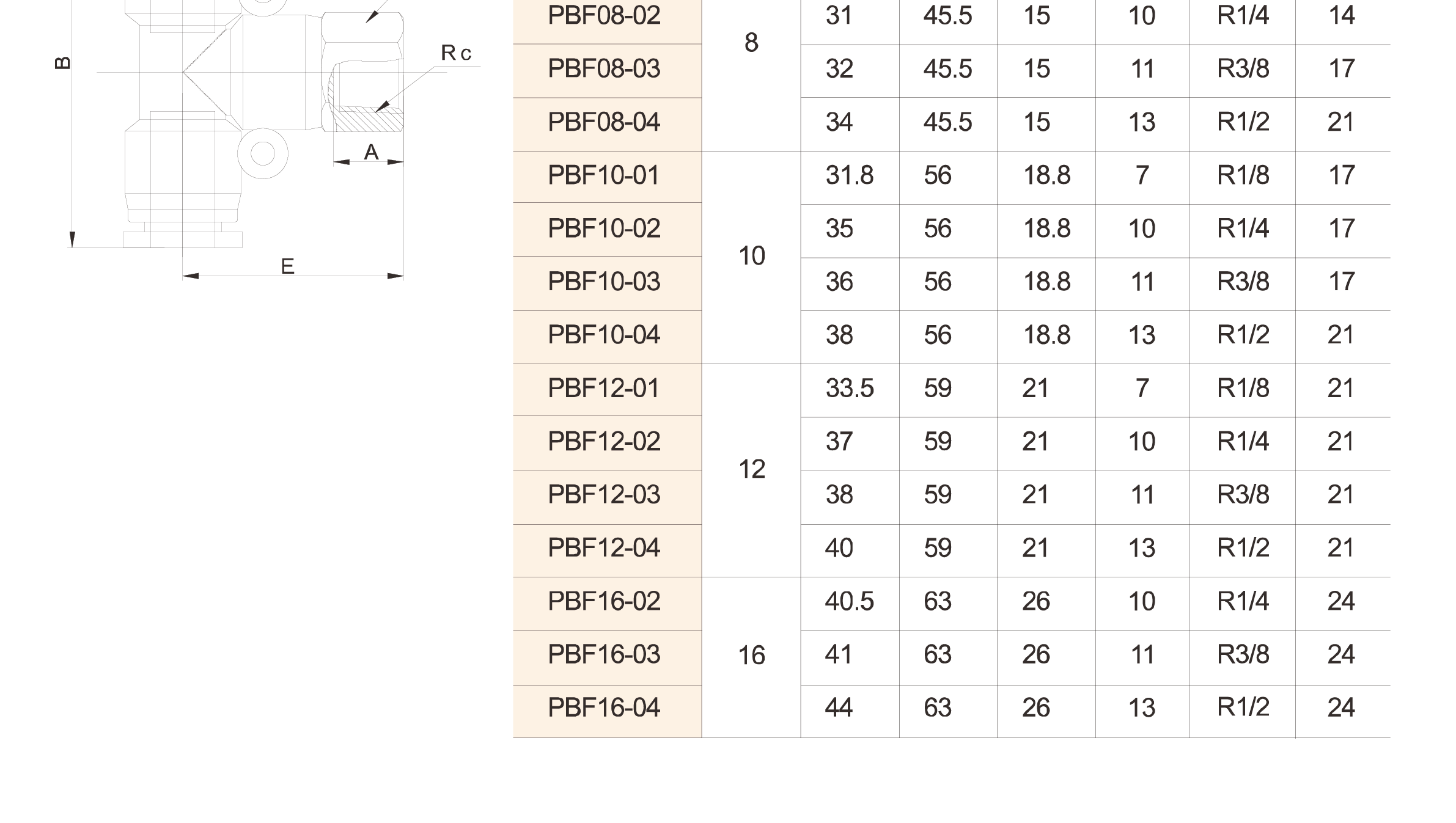

● PBF Series – Female Tee: provides a female-threaded connection for equipment or components requiring an internal thread.

Applications and Installation

These fittings are suitable for pneumatic automation, packaging machinery, assembly lines, air distribution circuits, and equipment requiring multiple tubing branches.

For installation, cut the tube squarely and insert it fully into the fitting. Check the tube connection before operation, and use the internal hexagonal hole when tightening in restricted spaces. The release ring also allows quick tube removal when maintenance or circuit changes are required.
