PH & PHF Series Pneumatic Push-in Tee Fittings

The PH and PHF Series push-in fittings are designed for compact pneumatic connections where tubing needs flexible positioning in limited installation spaces. Their banjo-style construction helps create clean and practical air-line layouts.

The range includes Single Banjo and Connector Banjo configurations. With quick tube installation, an ellipse-shaped release ring, pre-coated Teflon taper threads, and internal hexagonal holes, these pneumatic push-in fittings support efficient assembly and convenient maintenance in automation and pneumatic equipment.

Flexible Tube Routing Around Tight Spaces

The PH and PHF Series push-in fittings use a banjo-style connection to help route pneumatic tubing where conventional straight fittings may require more installation space. Their compact configuration supports flexible positioning and cleaner tube arrangements around machine components.

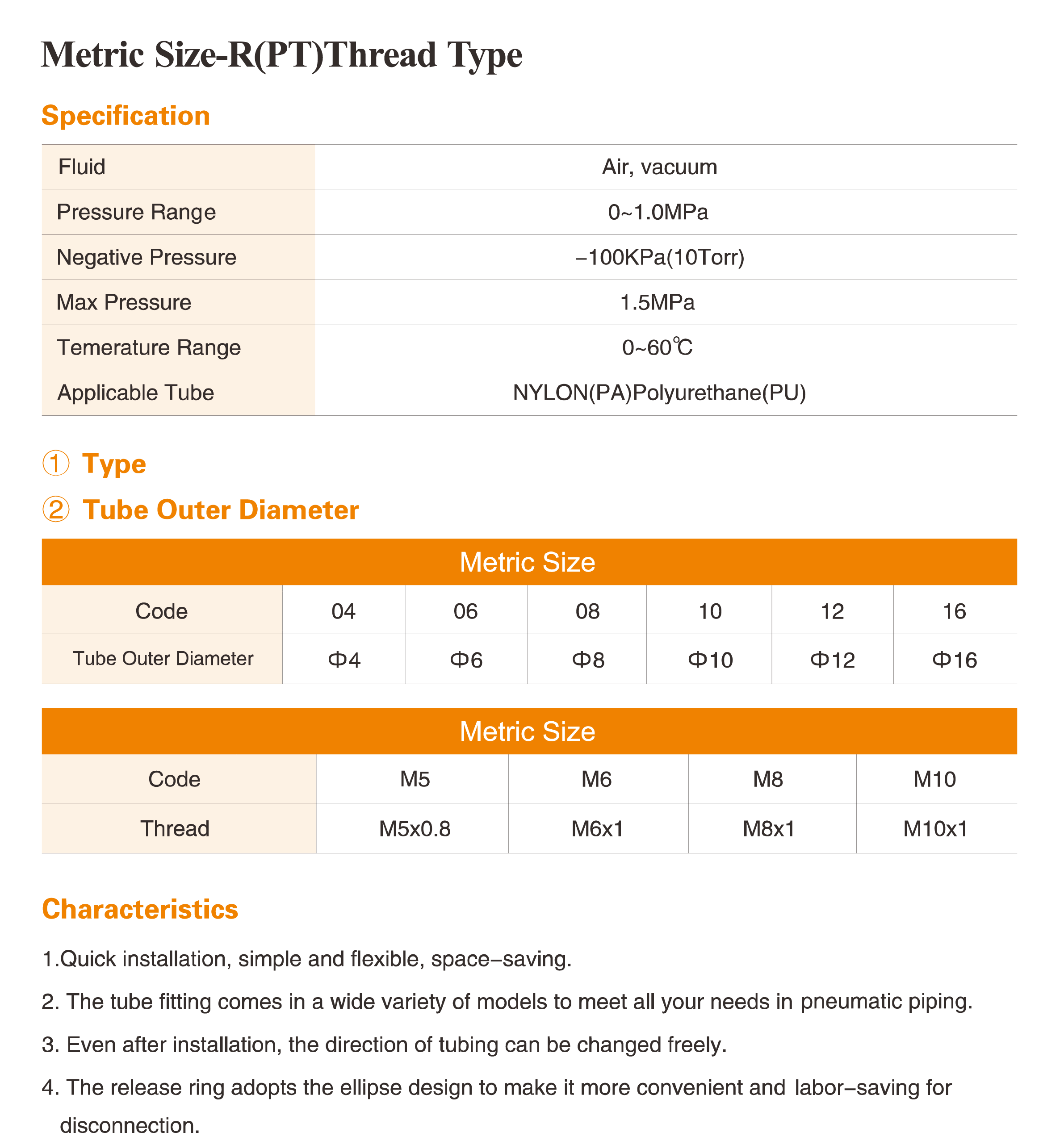

Practical Features for Pneumatic Assembly

The two series share several features designed for convenient installation and servicing:

● Quick and simple push-in tube connection

● Space-saving construction for compact pneumatic layouts

● Tube direction can be adjusted after installation

● Ellipse-shaped release ring for easier disconnection

● Taper threads pre-coated with Teflon for reliable sealing

● Internal hexagonal holes for installation in confined locations

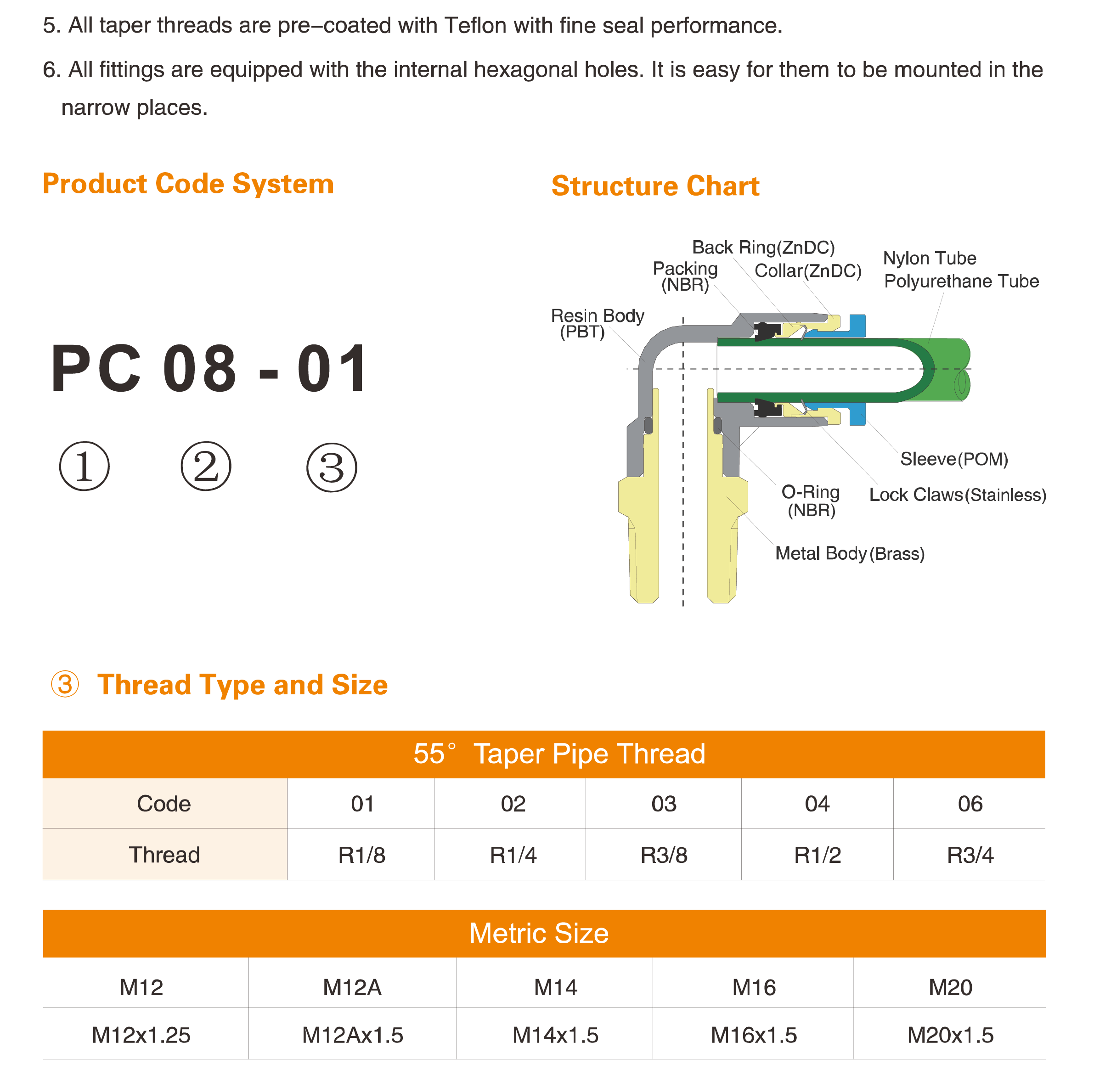

Two Banjo Connection Options

Different pneumatic banjo fittings are available for different connection arrangements:

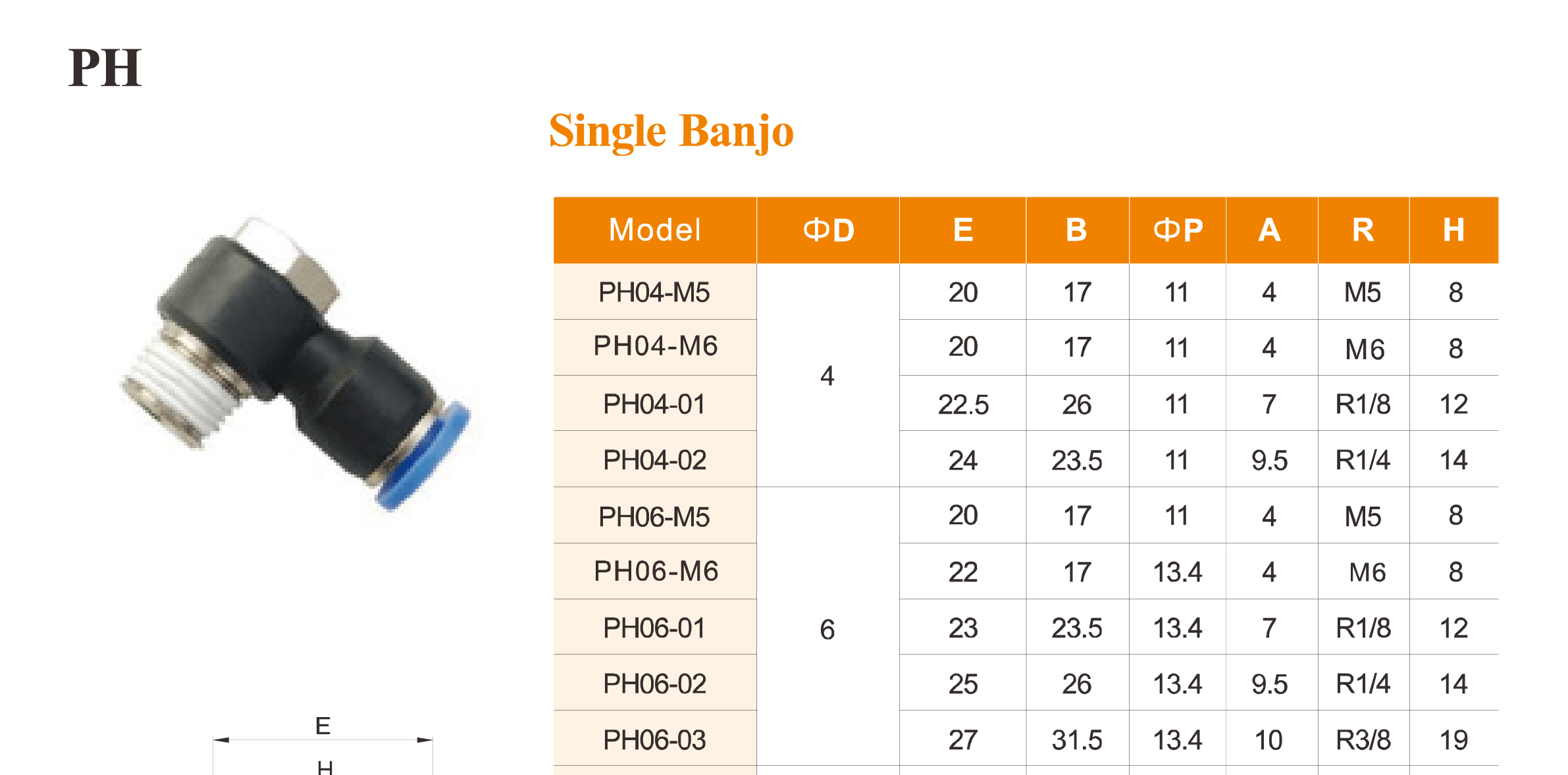

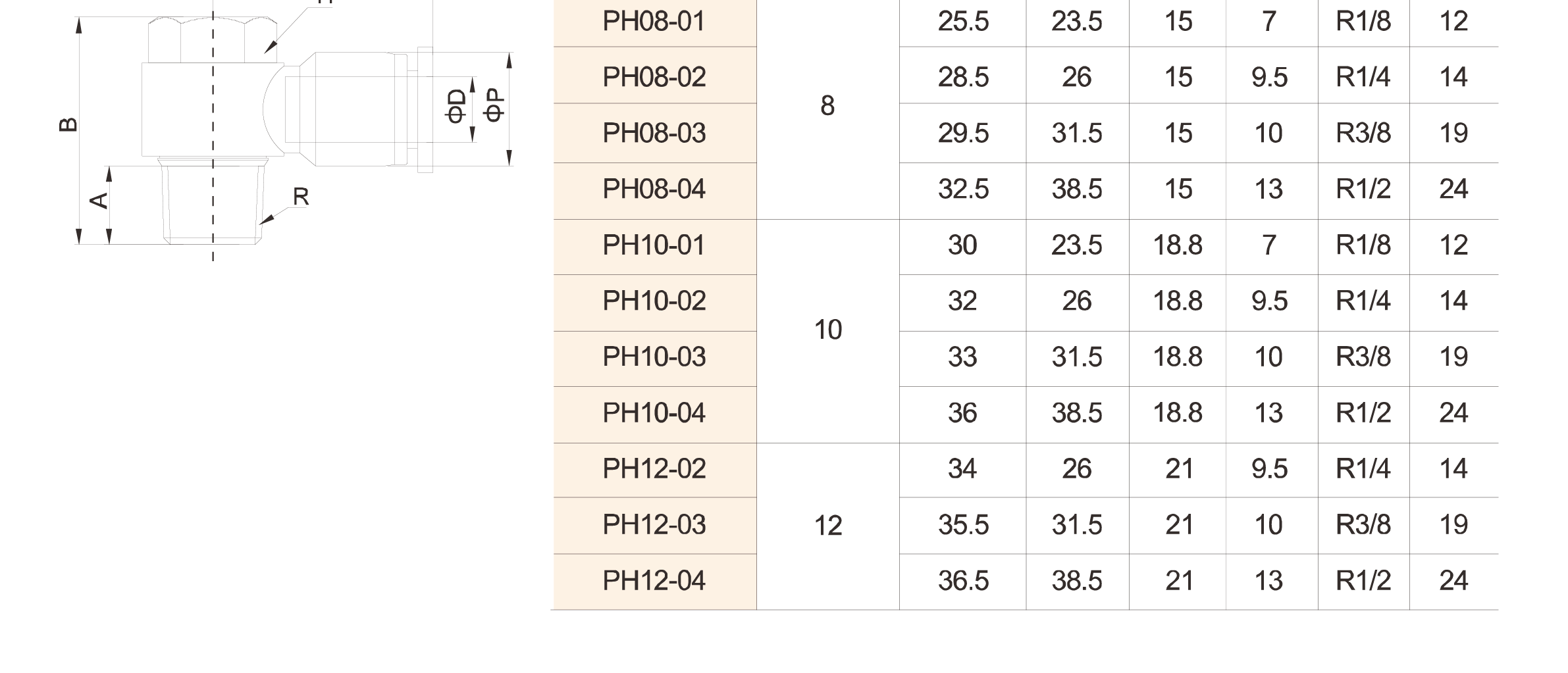

● PH Series – Single Banjo: provides a compact single-banjo configuration for directing one pneumatic tube around the connection point.

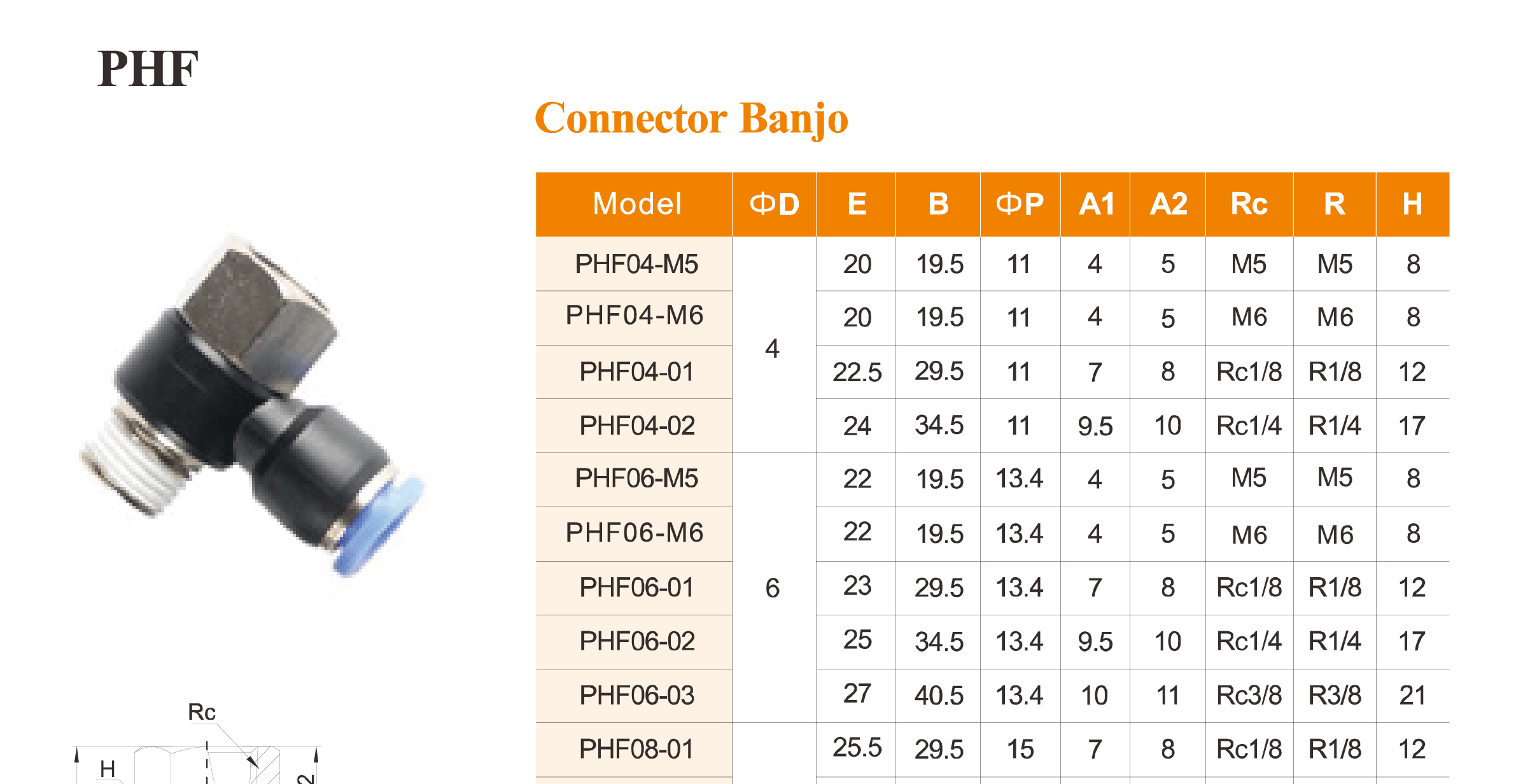

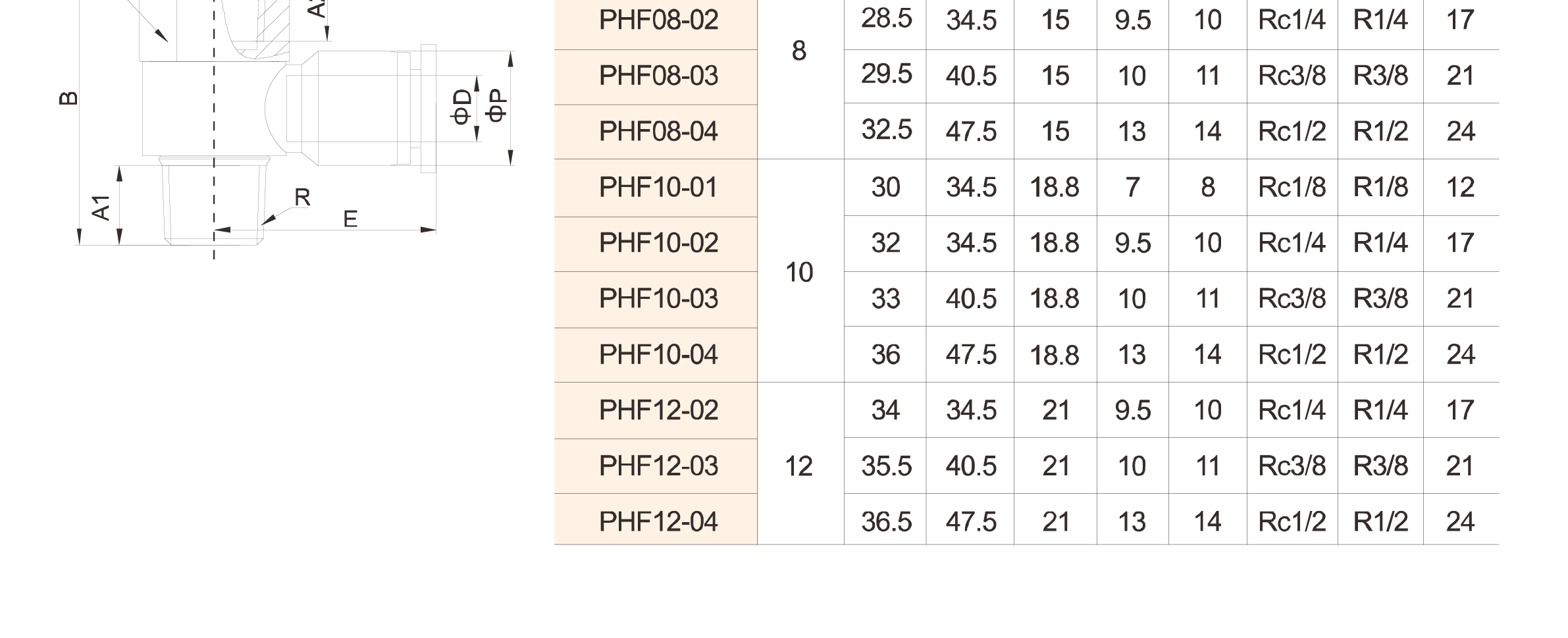

● PHF Series – Connector Banjo: provides a connector-style banjo configuration for integrating tubing with the corresponding pneumatic connection.

Applications and Installation

These fittings are suitable for automation machinery, pneumatic control systems, packaging equipment, assembly machines, and other compressed-air circuits where tubing needs to be routed efficiently around components.

For installation, insert the prepared pneumatic tube fully into the fitting and verify that it is securely retained. The internal hexagonal hole can assist with tightening in restricted areas, while the release ring allows convenient tube removal during maintenance.
