PD & PX Series Pneumatic Push-in Run Fittings

Streamlined Branching for Pneumatic Tube Layouts

The PD and PX Series push-in fittings are designed for branching pneumatic tubing without adding unnecessary bulk to the air circuit. Their compact structures help maintain an organized layout while allowing tube direction to be adjusted after installation.

Practical Features for Efficient Connections

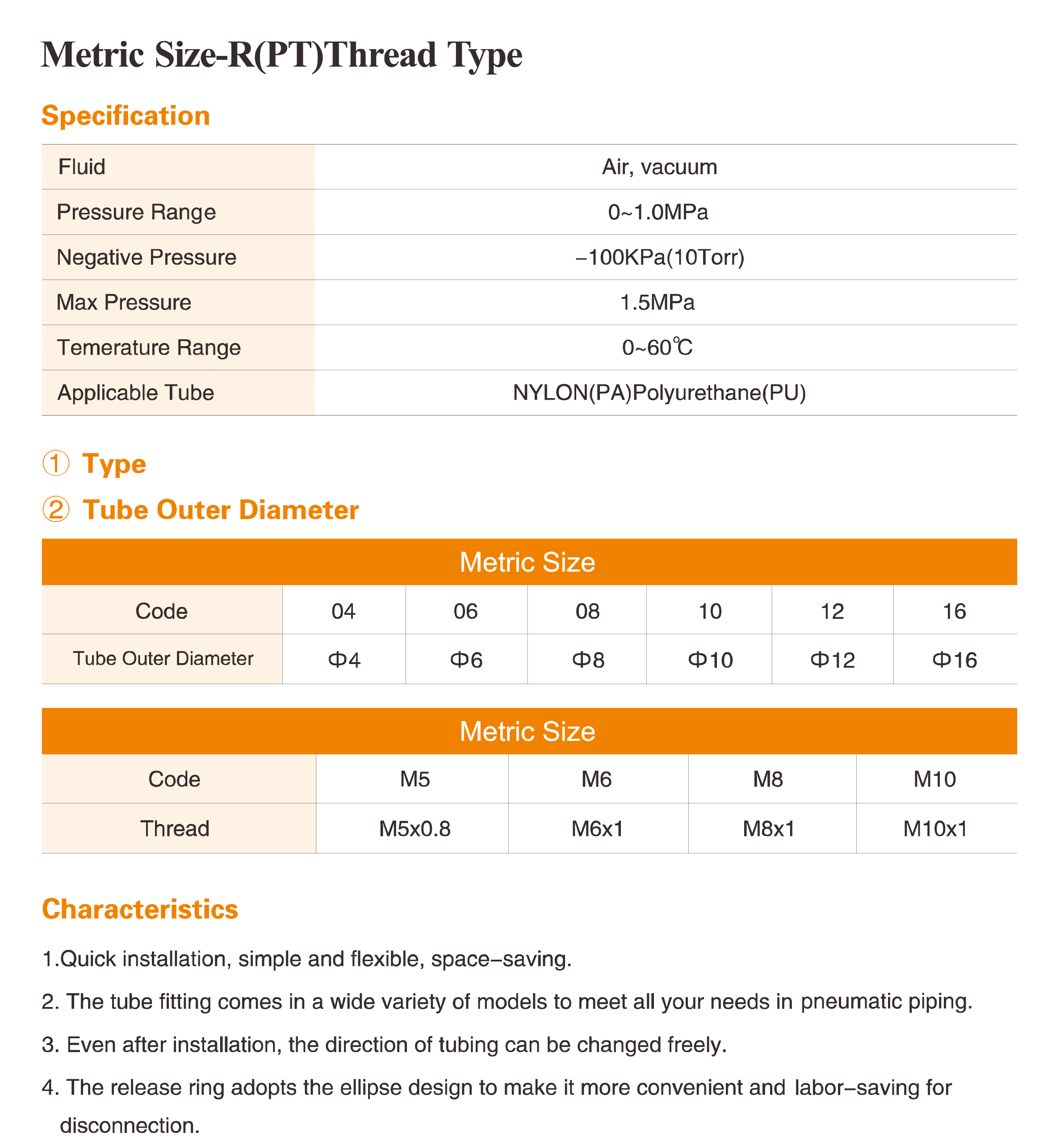

These pneumatic push-in fittings incorporate features that simplify both assembly and servicing:

● Quick installation with a compact, space-saving structure

● Adjustable tube direction after connection

● Ellipse-shaped release ring for easier disconnection

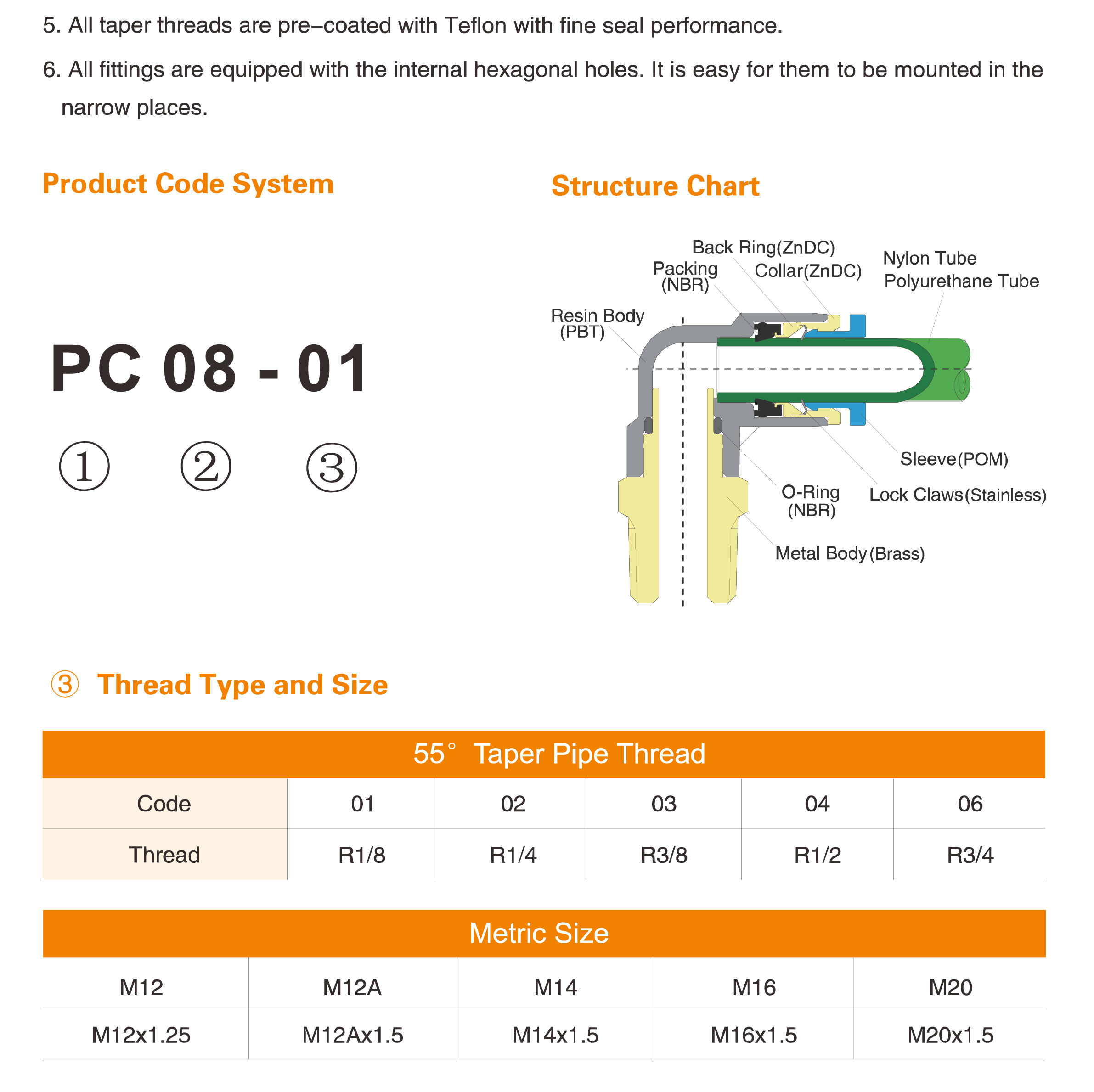

● Pre-coated Teflon taper threads for effective sealing

● Internal hexagonal holes for installation in confined spaces

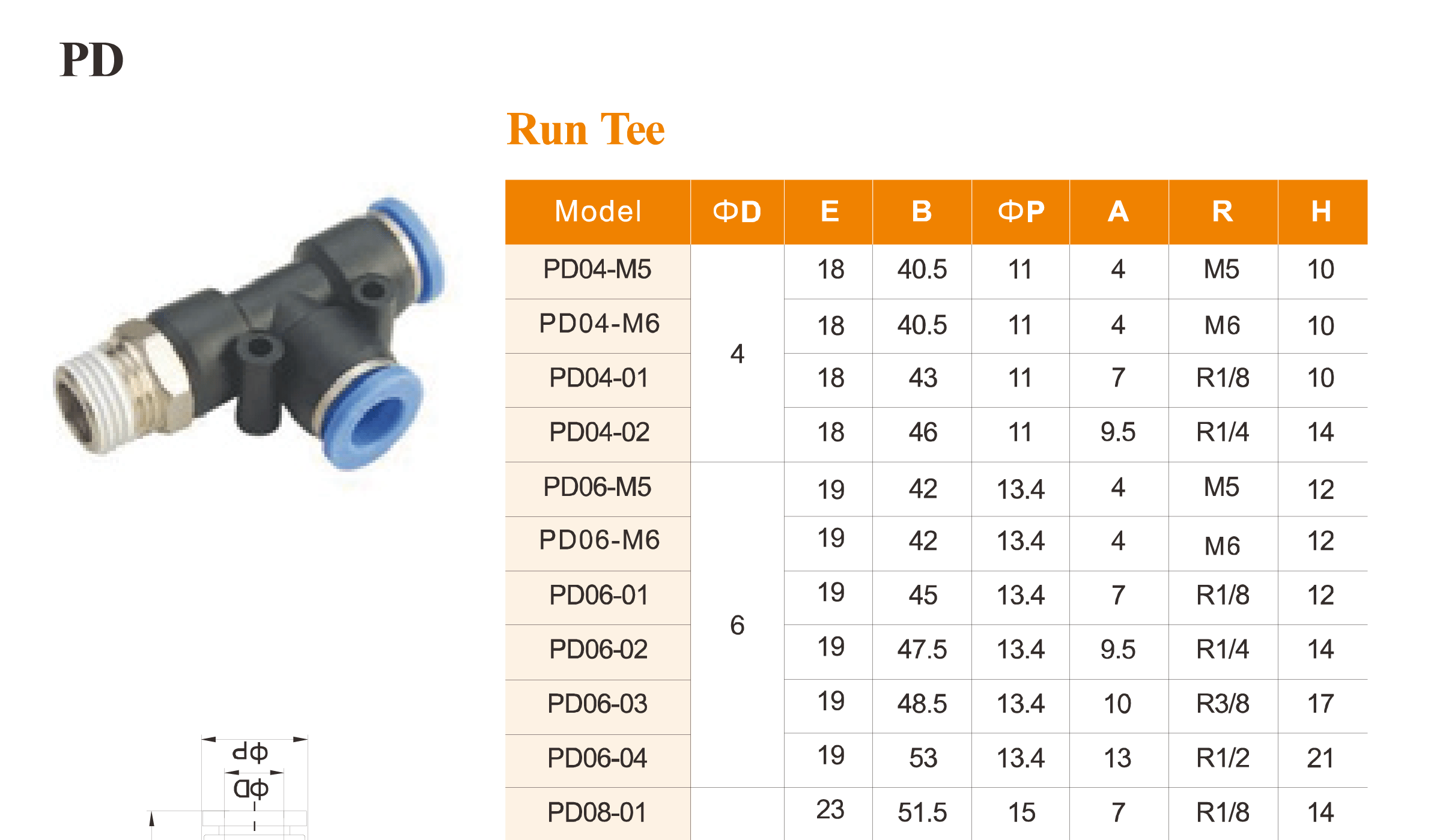

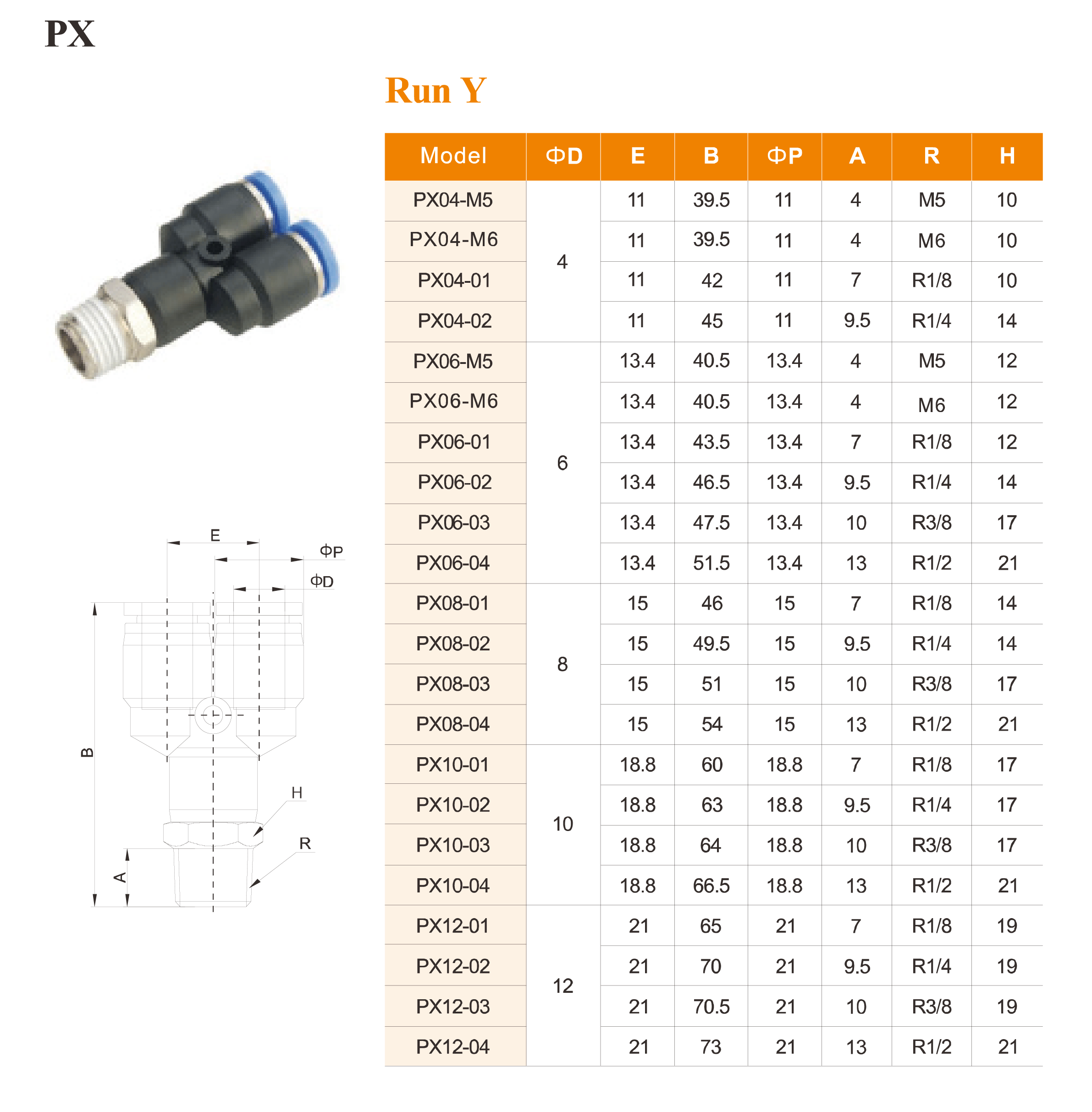

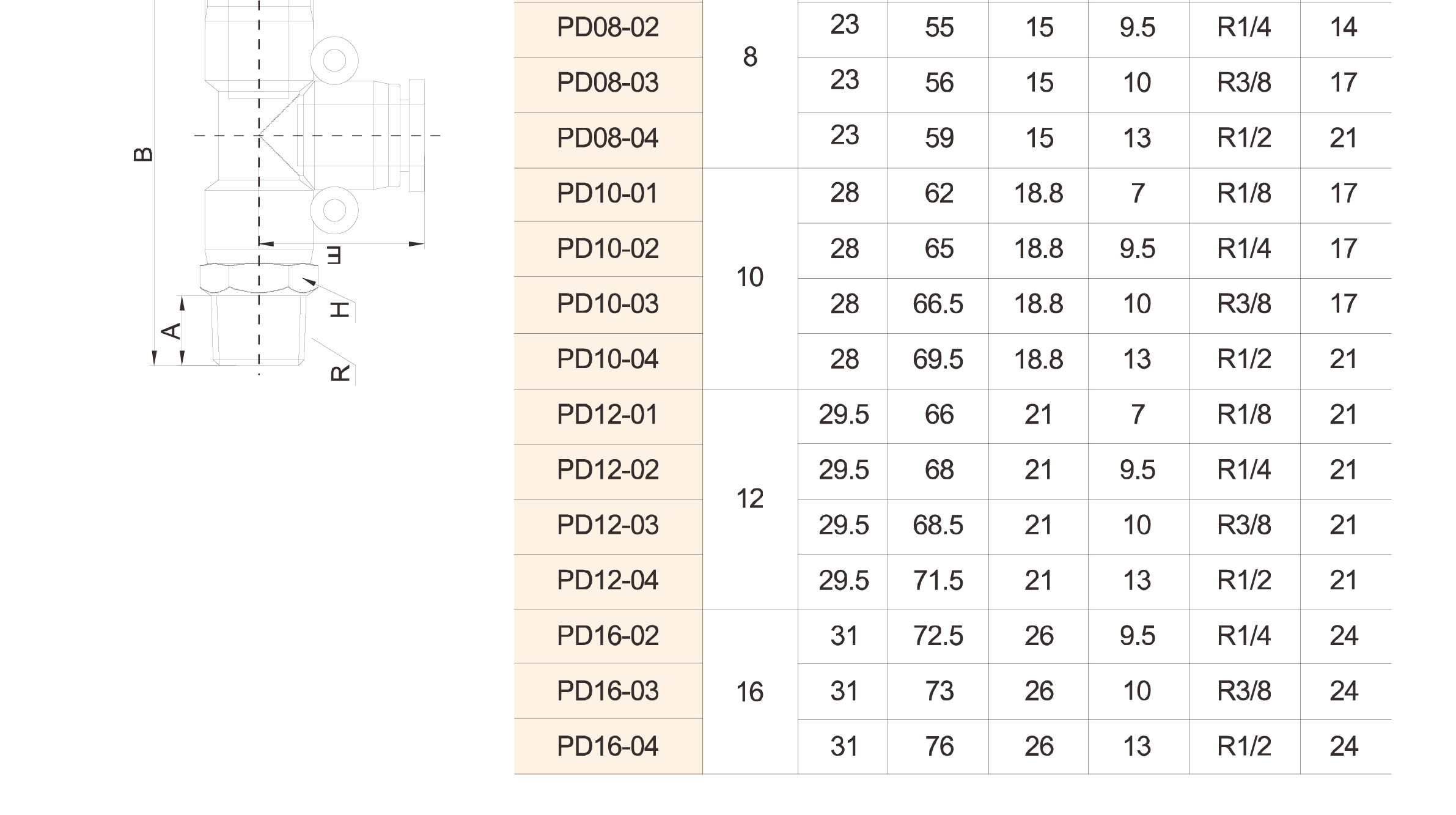

The PD Series Run Tee provides a three-way tee connection, while the PX Series Run Y creates a Y-shaped branch for layouts requiring a different tube routing angle.

Applications and Installation

PD and PX Series fittings are suitable for automation equipment, pneumatic machinery, control systems, and compressed-air distribution circuits where branched tubing must remain compact and accessible.

Installation: Insert the tube directly into the push-in port until securely seated. Adjust the tube direction to suit the piping layout. To disconnect, press the release ring and pull the tube out smoothly.
