BWU, BWD & BWUS Series High Pressure Cooling System Push-in Fittings

High Pressure Cooling Connections in a Straight Layout

The BWU, BWD and BWUS Series are developed for applications that require a dependable straight connection between tubing and equipment ports. As cooling system fittings, they provide a practical way to organize tubing routes while maintaining a compact installation footprint. The push-in connection structure also helps simplify assembly and routine replacement compared with more complicated tubing connection methods.

All three series are available in a High Pressure Straight configuration, making them suitable for systems where tubing needs to pass directly between connection points without additional bends or branches.

Construction and Performance Features

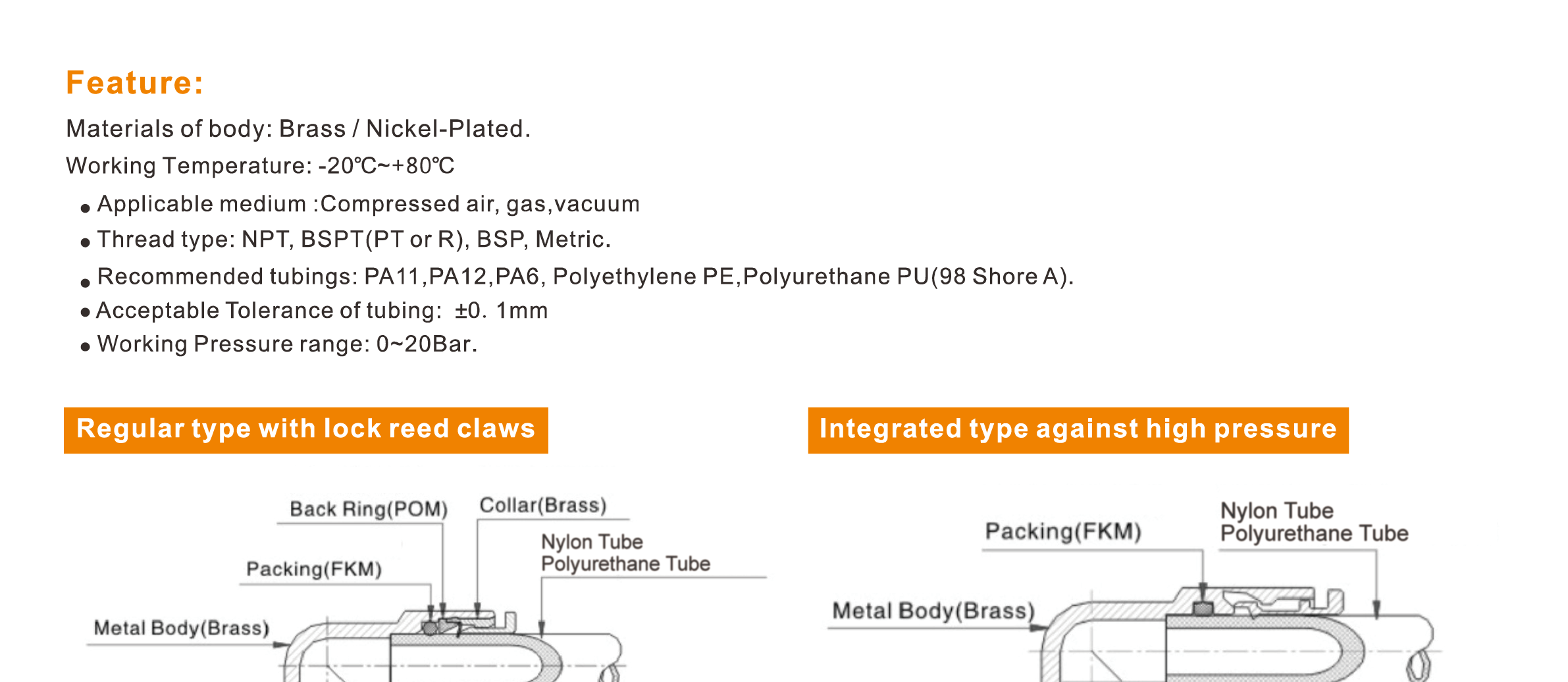

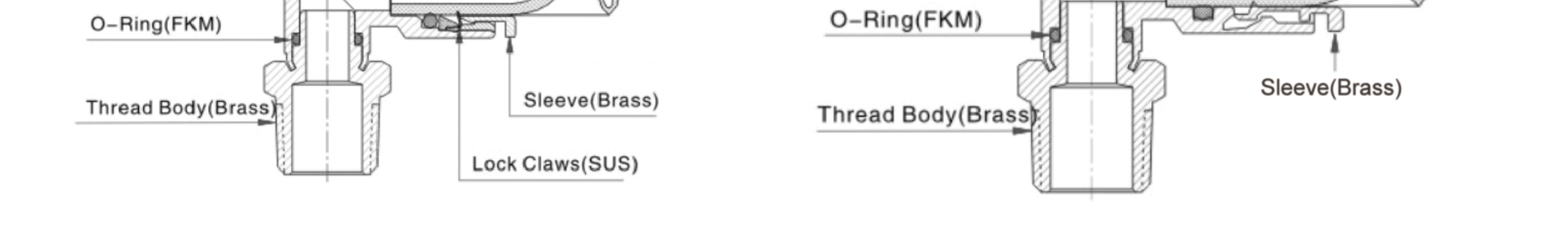

The fittings use a brass or nickel-plated brass body, combining structural strength with improved surface protection. They are designed for compressed air, gas and vacuum service and operate within a temperature range of -20°C to +80°C.

Common specifications include:

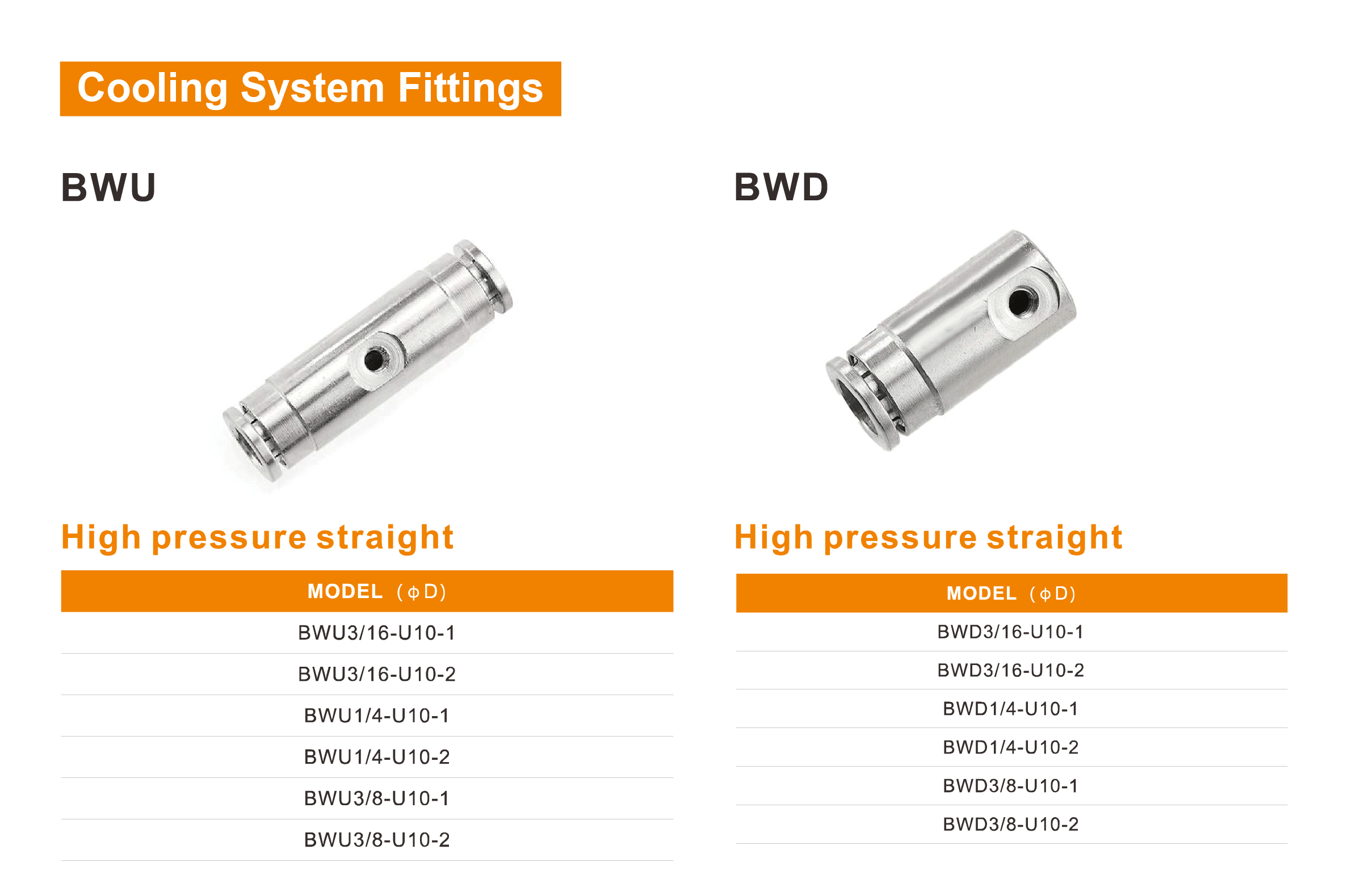

● BWU Series: High Pressure Straight design for direct tubing connections.

● BWD Series: High Pressure Straight configuration for compact system layouts.

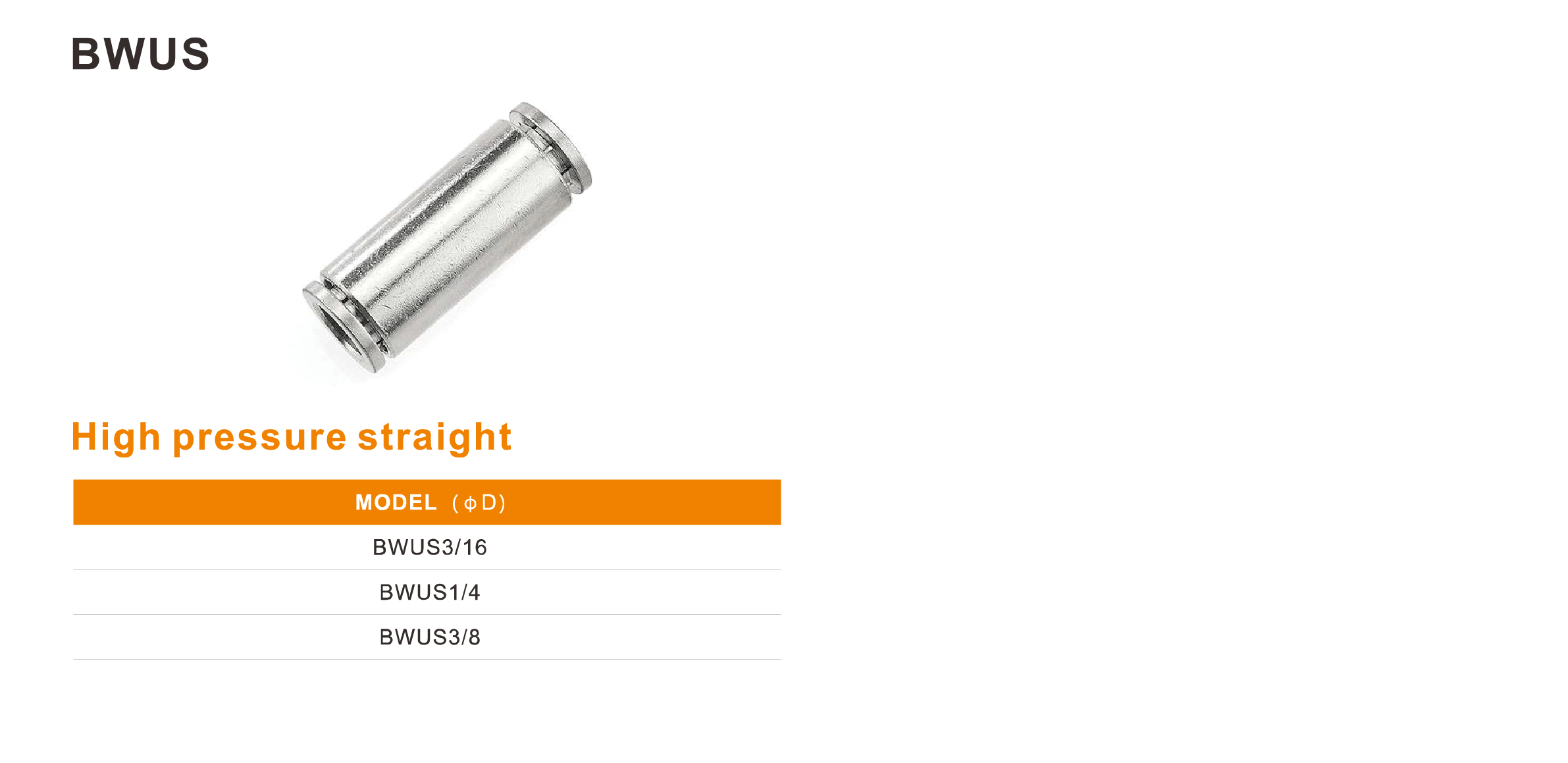

● BWUS Series: High Pressure Straight design for reliable high-pressure tubing connections.

● Working pressure: 0–20 bar

● Thread options: NPT, BSPT (PT/R), BSP and Metric

● Compatible tubing: PA11, PA12, PA6, PE and PU (98 Shore A)

● Recommended tubing tolerance: ±0.1 mm

These specifications allow the three series to cover different connection requirements while maintaining a consistent fitting platform.

Where Cooling System Fittings Fit Best

These high pressure fittings can be used in cooling equipment, industrial automation, pneumatic machinery, air circuits and equipment requiring organized tubing connections. Their straight form is especially useful when the tubing route is already aligned with the threaded port.

For compact machinery, the BWU Series can provide a straightforward connection solution. The BWD and BWUS Series can be selected according to the equipment structure, tubing arrangement and fitting configuration required by the specific installation.

Push-in Installation for Faster Assembly

Installation requires the tubing to be cut cleanly and inserted fully into the fitting's push-in port. The threaded end should be matched with the equipment port before tightening to establish a secure connection.

Recommended installation practices include:

● Select the correct tubing outside diameter.

● Keep the tube end clean and square after cutting.

● Insert the tube fully into the fitting.

● Avoid excessive side loads or sharp bending near the connection.

● Verify pressure and temperature conditions before operation.

With a durable brass or nickel-plated body and multiple thread standards, the BWU, BWD and BWUS Series provide a practical range of straight connection options for cooling and industrial tubing systems.
