BPH & BPH-G Series Full Brass Nickel Plated Push-in Fittings

Brass Banjo Elbow Fittings for Compact Pneumatic Routing

Unlike a standard straight connector, a banjo elbow fitting allows pneumatic tubing to change direction immediately at the connection point. This can help reduce unnecessary tube bending and create a cleaner layout around valves, cylinders, manifolds and other pneumatic components.

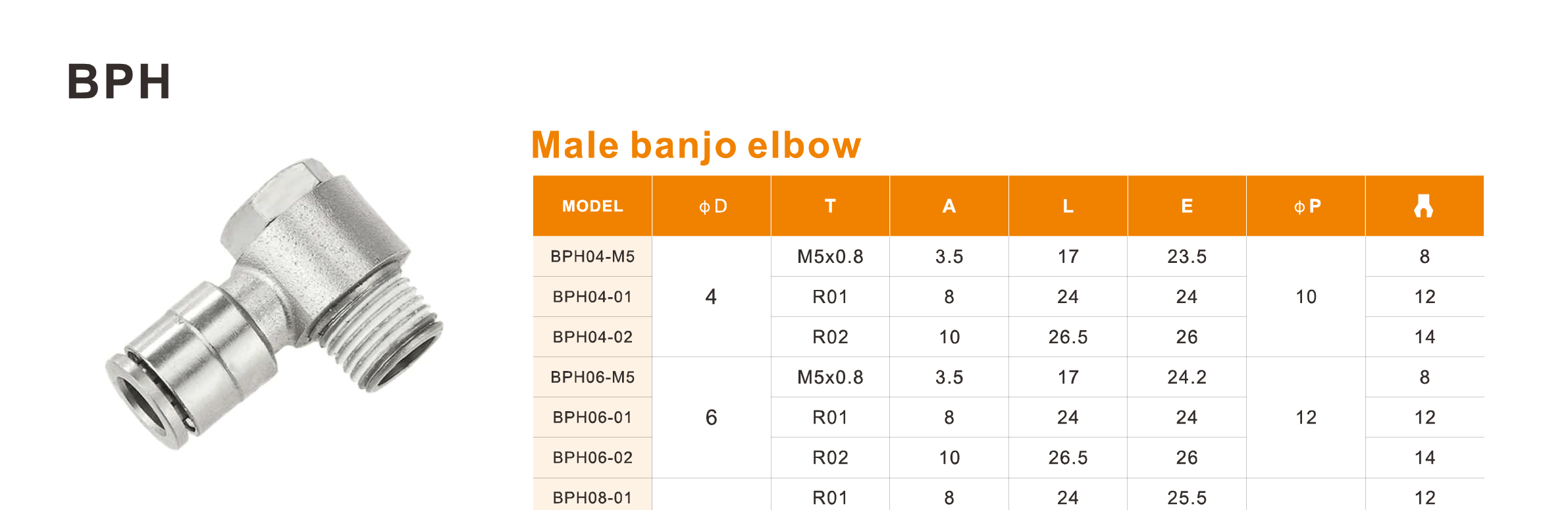

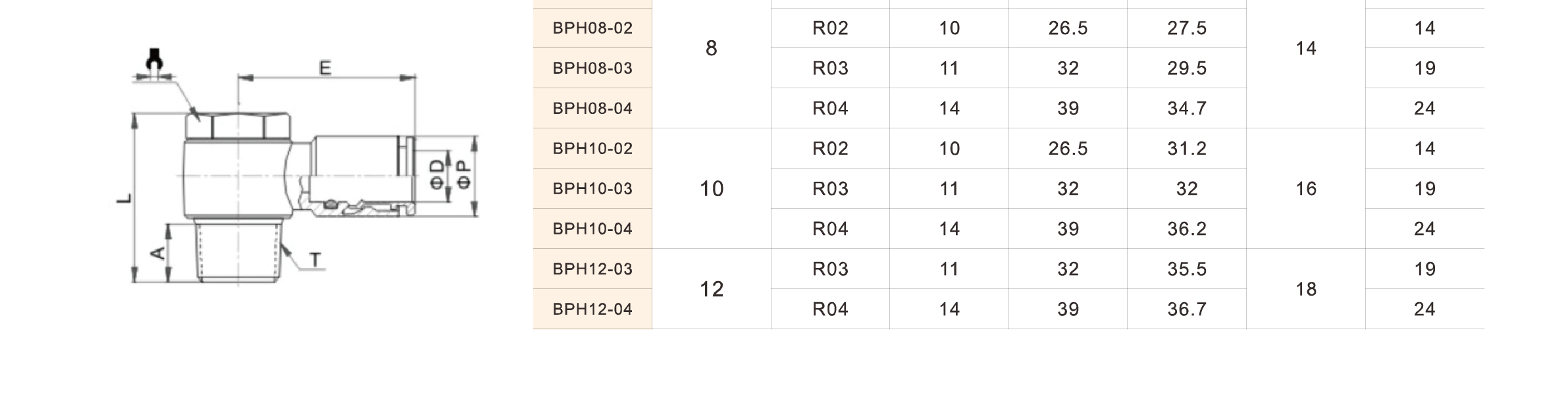

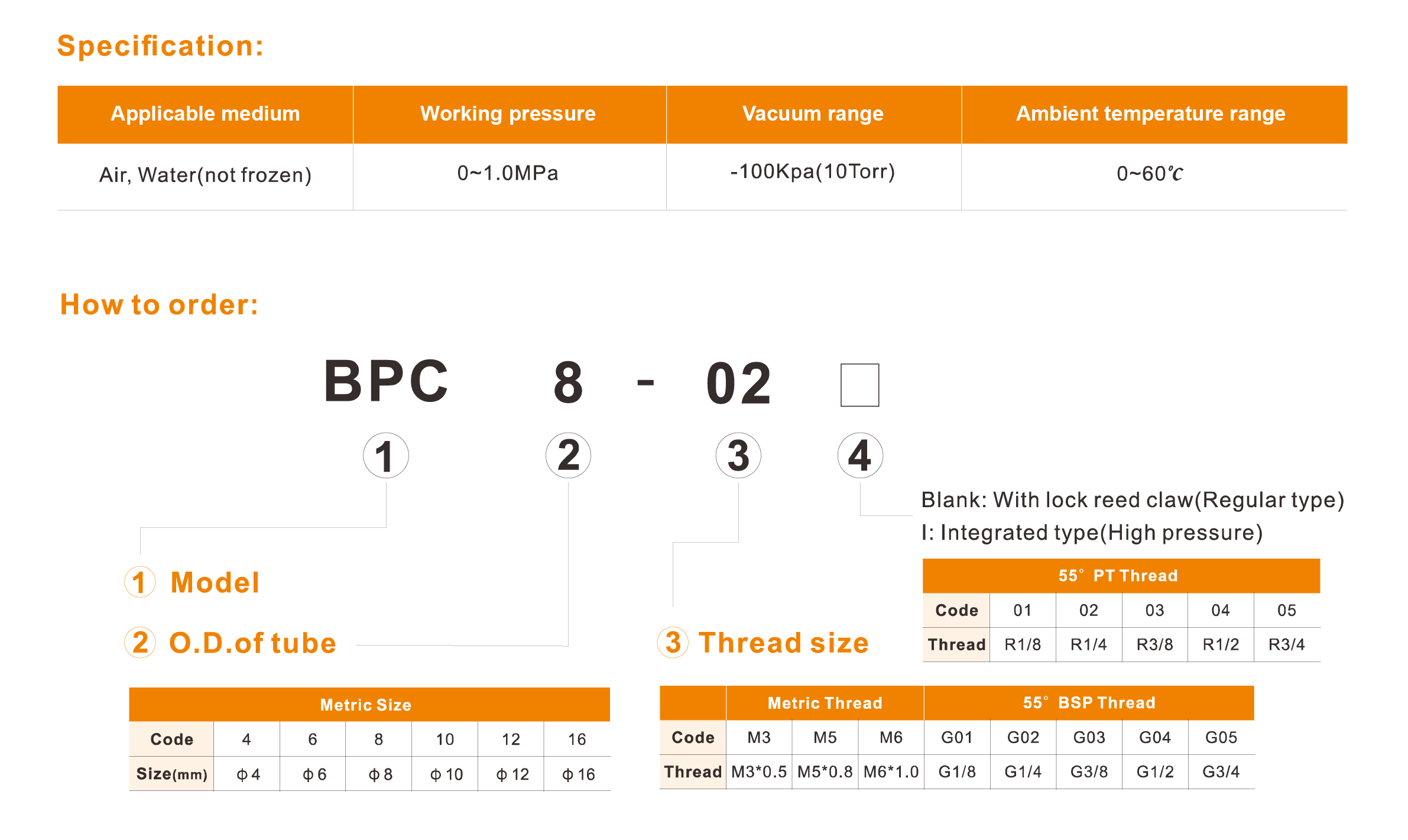

BPH Series – Male Banjo Elbow

The BPH Series provides a male threaded banjo elbow connection for routing pneumatic tubing at an angle from the equipment port. It is suitable for compact installations where a direct straight connection may occupy too much space.

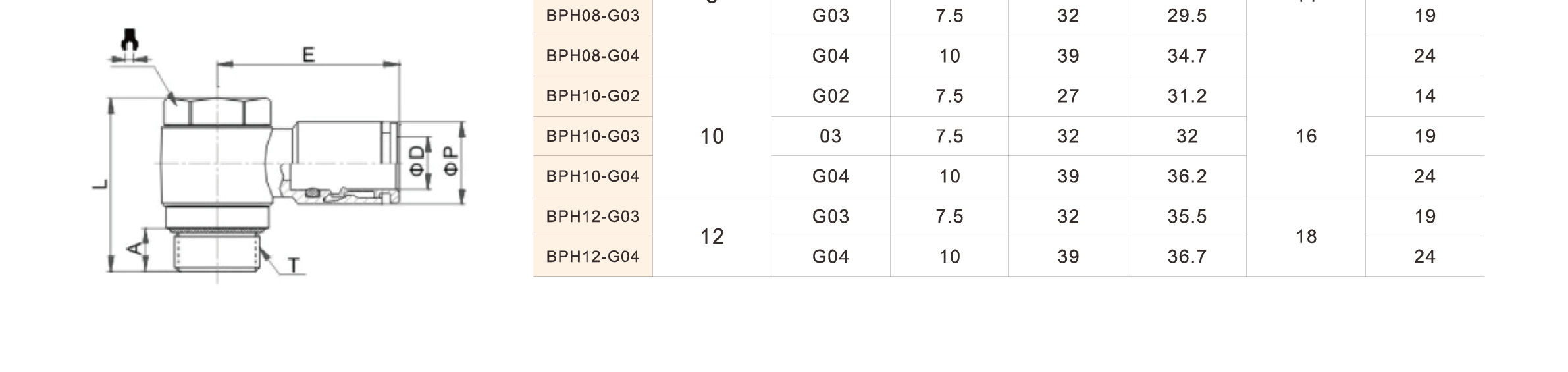

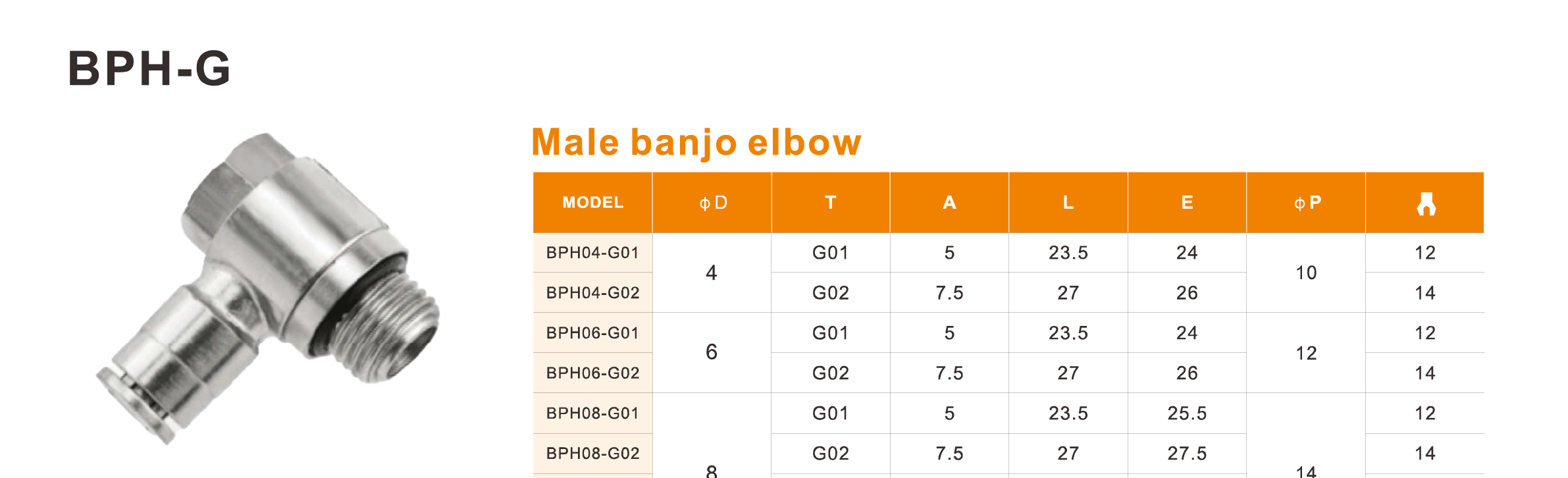

BPH-G Series – Male Banjo Elbow

The BPH-G Series offers the same basic male banjo elbow connection concept for pneumatic tubing systems. It provides an additional series option for applications requiring the corresponding fitting configuration.

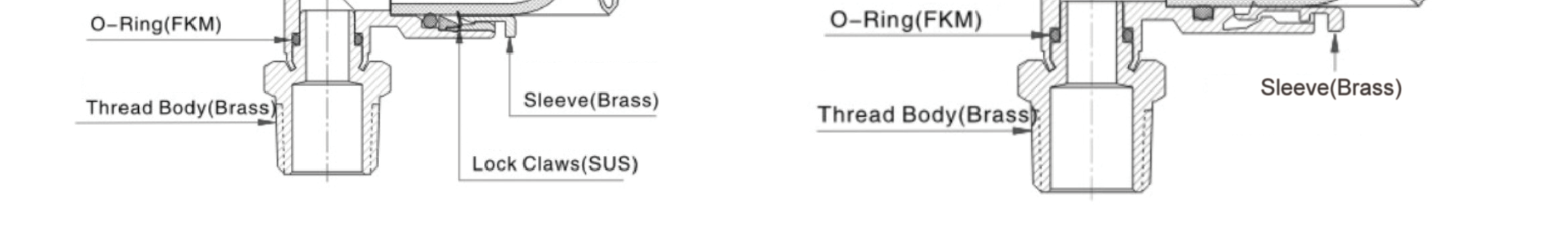

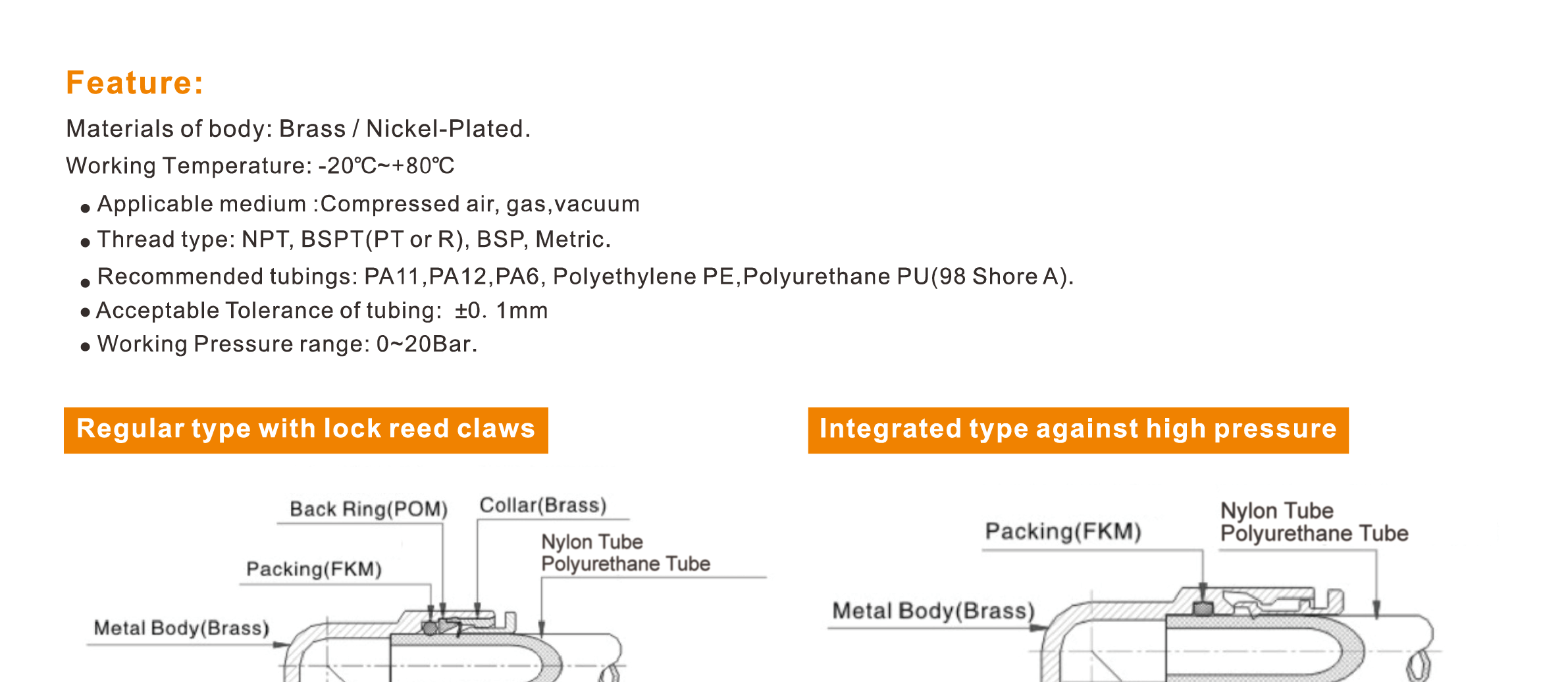

Features of Nickel Plated Brass Banjo Fittings

The BPH and BPH-G Series combine a durable brass body with a convenient push-in tube connection for industrial pneumatic applications.

● Brass body with nickel-plated surface

● Suitable for compressed air, gas and vacuum

● Working temperature range: -20°C to +80°C

● Working pressure range: 0–20 Bar

● Available thread types: NPT, BSPT (PT/R), BSP and Metric

● Compatible with PA11, PA12, PA6, PE and PU tubing (98 Shore A)

● Recommended tubing dimensional tolerance: ±0.1 mm

● Compact male banjo elbow structure for directional tube routing

Applications and Installation

These brass banjo elbow fittings are suitable for industrial automation, pneumatic cylinders, solenoid valves, air control equipment, assembly machinery and general compressed air systems where tubing direction needs to be managed within limited space.

For installation:

● Select the correct thread and tubing size.

● Cut the pneumatic tube cleanly and squarely.

● Install the threaded fitting into the corresponding equipment port.

● Push the tube fully into the push-in connection.

● Avoid excessive bending or pulling force near the fitting.

With their compact elbow configuration and nickel-plated brass construction, the BPH and BPH-G Series provide a practical solution for pneumatic systems that require reliable connections and more efficient tubing routing.
