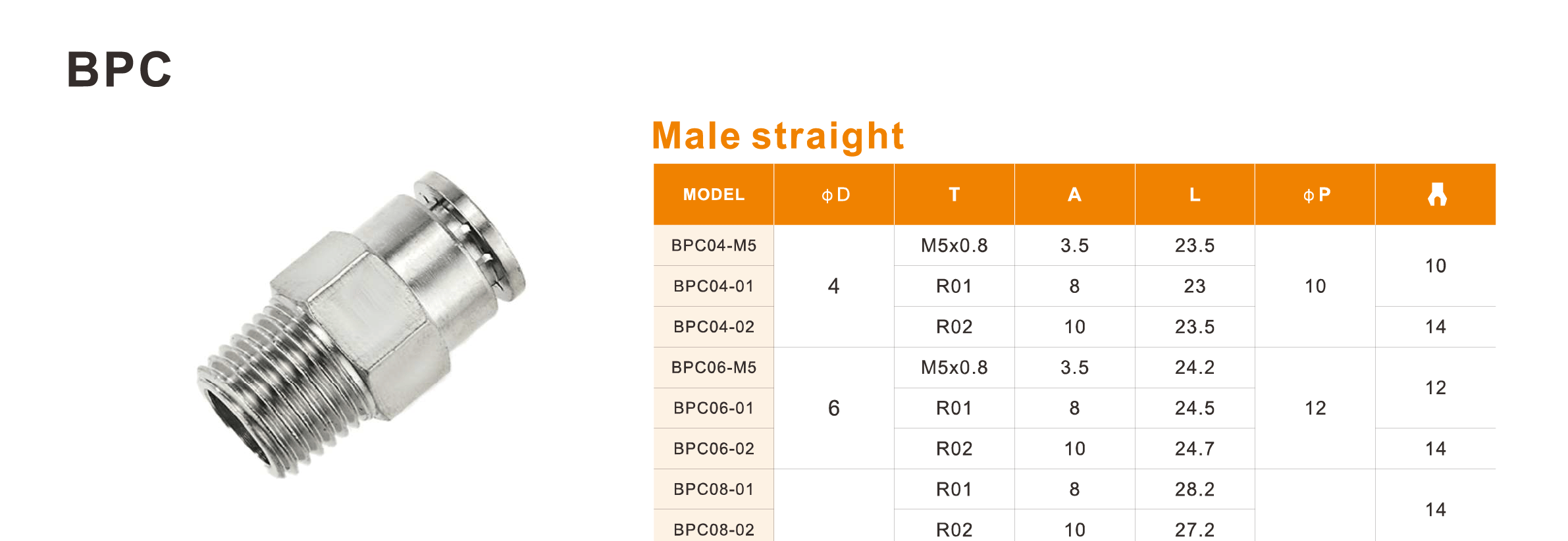

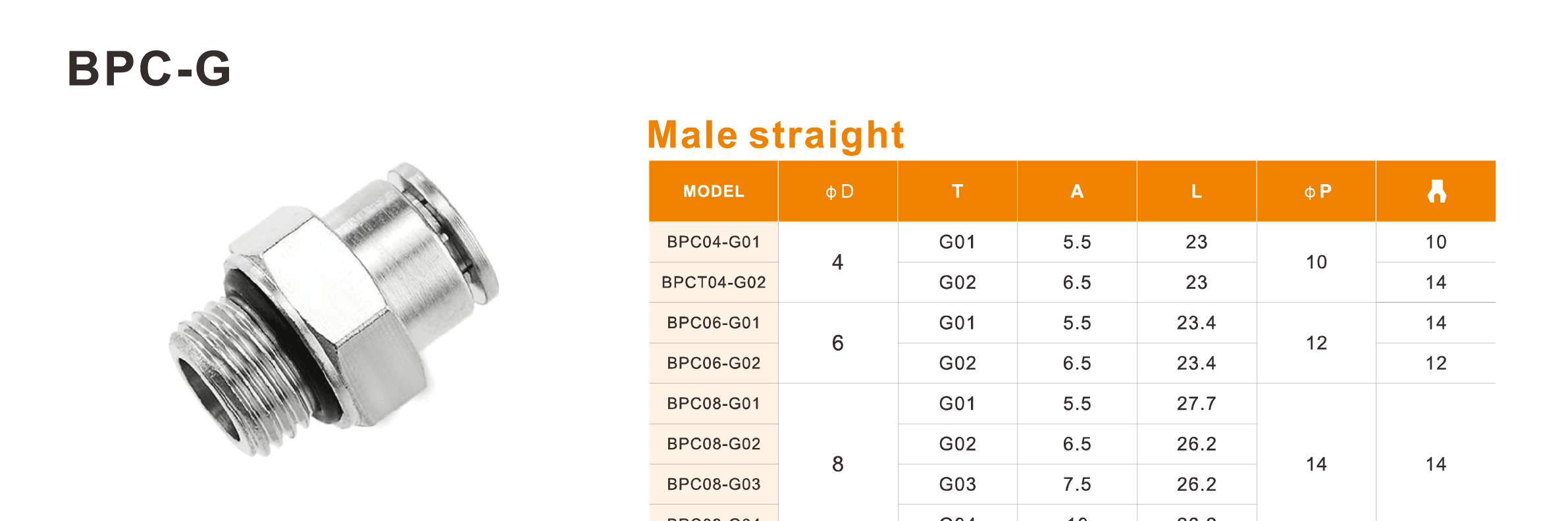

Full Brass Nickel-Plated Push-in Fittings BPC Series & BPC-G Series

Brass Nickel-Plated Push-in Fittings for Pneumatic Systems

The BPC Series and BPC-G Series are male straight brass nickel-plated push-in fittings designed to connect pneumatic tubing directly to threaded ports. Combining a full brass body with a nickel-plated surface, these pneumatic fittings provide dependable mechanical strength and improved resistance to everyday industrial operating conditions.

Both series are suitable for compressed air, gas and vacuum applications. The straight configuration provides a compact connection solution where tubing needs to run directly from a threaded component, such as a valve, cylinder, manifold or other pneumatic equipment.

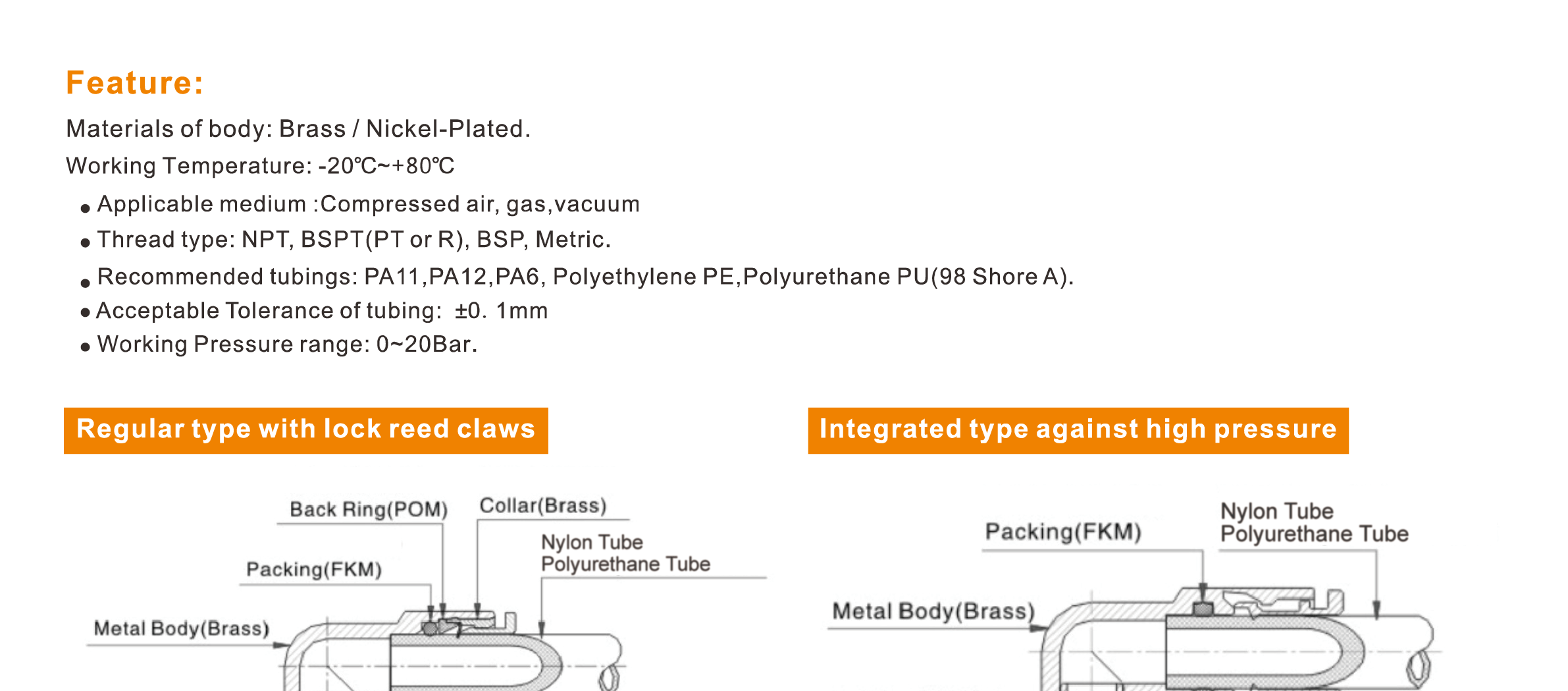

Male Straight Push-in Fitting Features

The brass push-in fittings are designed for practical installation and stable tubing connections. Key features include:

● Full brass body with nickel-plated surface

● Working temperature range from -20°C to +80°C

● Suitable for compressed air, gas and vacuum

● Working pressure range of 0–20 Bar

● Available thread types including NPT, BSPT (PT or R), BSP and Metric

● Recommended for PA11, PA12, PA6, PE and PU tubing

● Suitable tubing tolerance of ±0.1 mm

The BPC Series and BPC-G Series provide a straightforward male straight connection option for systems requiring durable metal pneumatic push-in fittings.

Applications for Brass Push-in Fittings

These nickel-plated pneumatic fittings can be used in industrial automation equipment, pneumatic control systems, machinery, packaging equipment, assembly lines and other applications involving compressed air or vacuum tubing. Their compatibility with several common pneumatic tubing materials makes them suitable for a wide range of connection requirements.

They are particularly useful where a direct tube-to-threaded-port connection is required without adding unnecessary bends or additional adapters.

Installation of Male Straight Pneumatic Fittings

Installation is simple and efficient. First, connect the threaded end to the corresponding equipment port using the correct thread specification. Then ensure the pneumatic tube is cut cleanly and squarely before pushing it fully into the fitting.

For reliable operation:

● Use tubing with the correct outside diameter and tolerance.

● Ensure the tube end is clean and free from damage.

● Select the correct thread type for the equipment port.

● Check the connection after installation before operating the pneumatic system.

With their brass construction, nickel-plated finish and broad tubing compatibility, the BPC Series and BPC-G Series provide a practical solution for secure and efficient pneumatic tube connections.
