Full Brass Nickel-Plated Push-in Fittings BPL Series & BPL-G Series

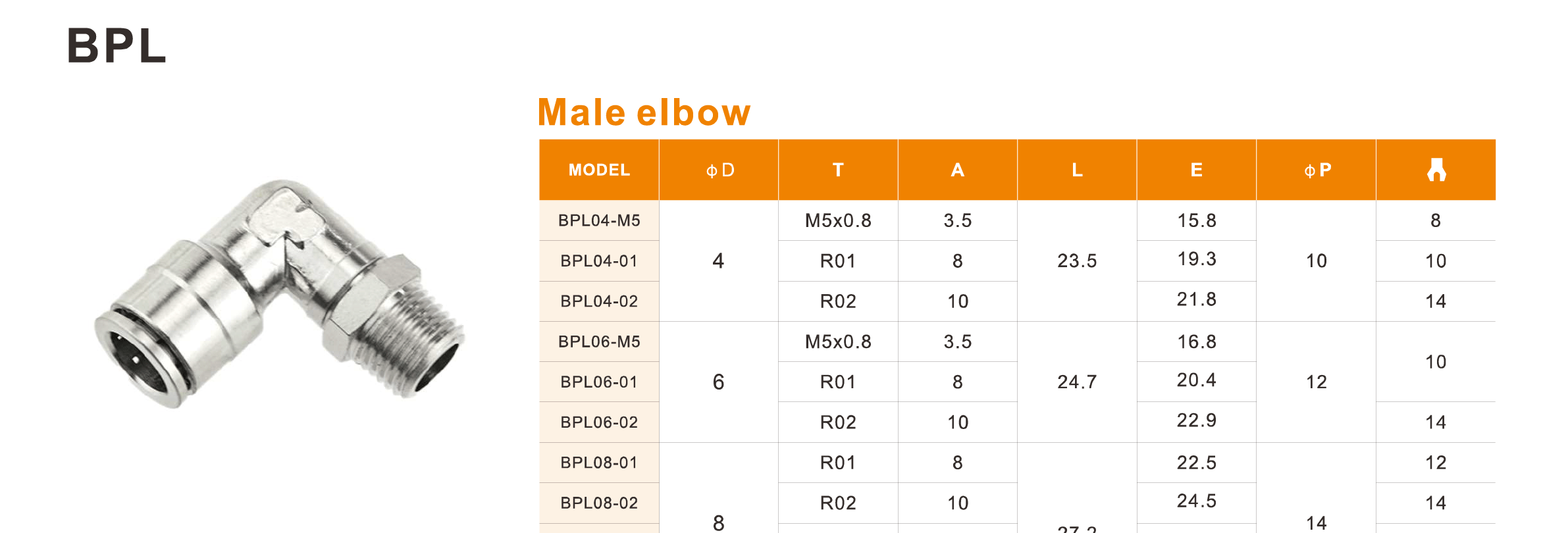

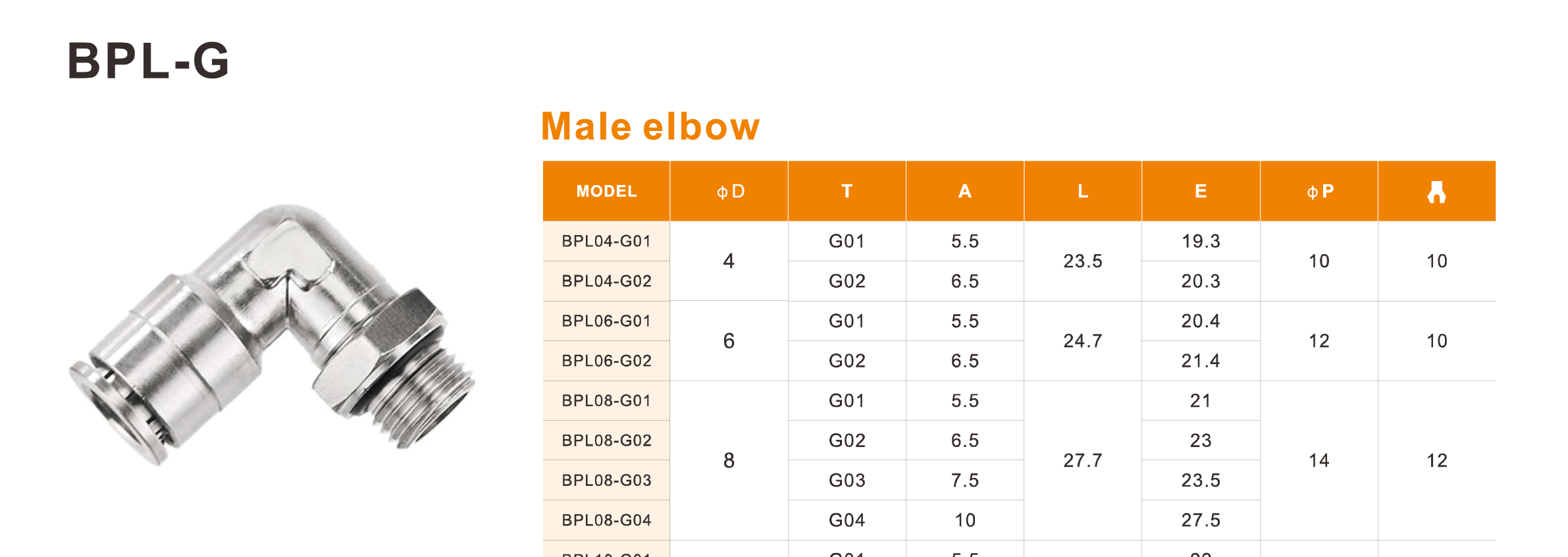

Brass Nickel-Plated Male Elbow Push-in Fittings

The BPL Series and BPL-G Series are male elbow push-in fittings designed to connect pneumatic tubing to threaded ports while changing the direction of the tube. The elbow structure helps reduce installation space and allows pneumatic lines to be routed more efficiently around equipment, frames and other components.

Manufactured with a full brass body and nickel-plated surface, these brass push-in fittings provide a durable connection solution for industrial pneumatic systems. Both series are suitable for compressed air, gas and vacuum applications.

Male Elbow Push-in Fitting Features

The nickel-plated pneumatic fittings are designed for reliable performance across a range of industrial operating conditions.

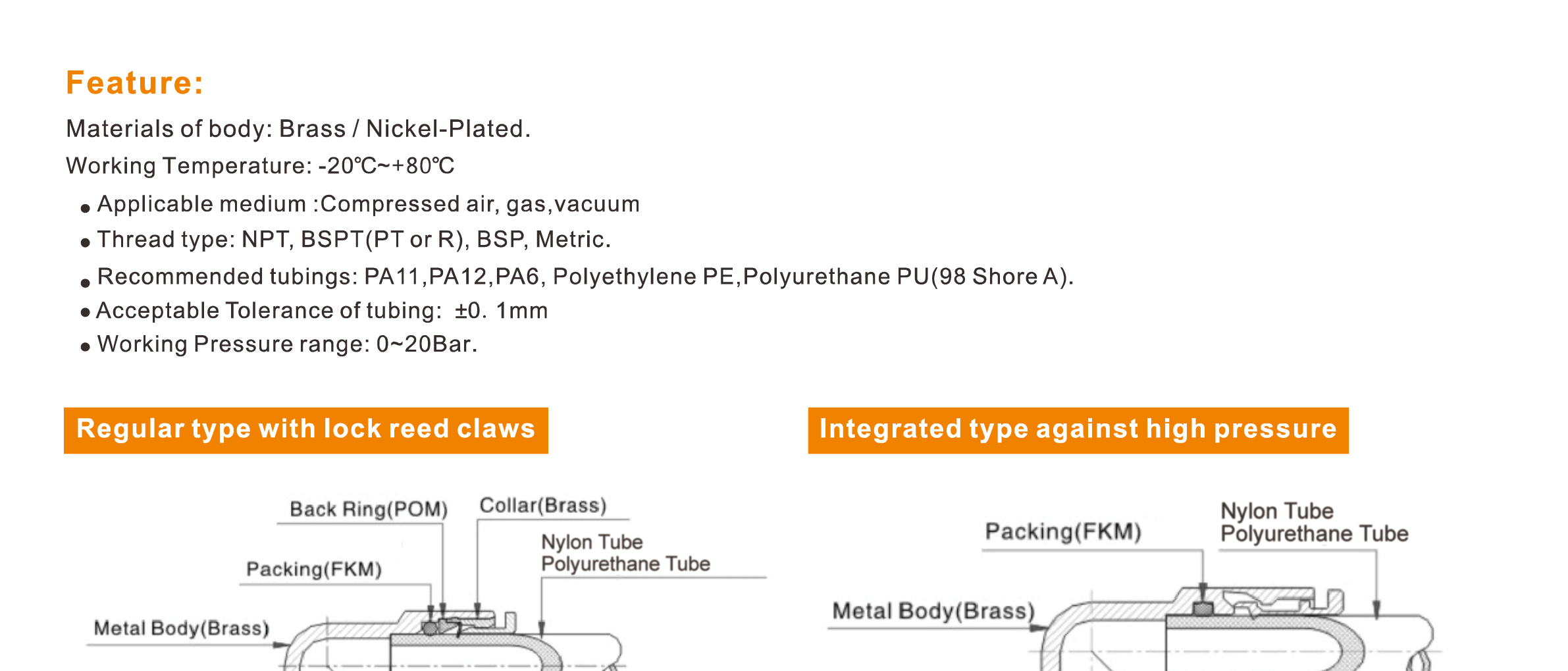

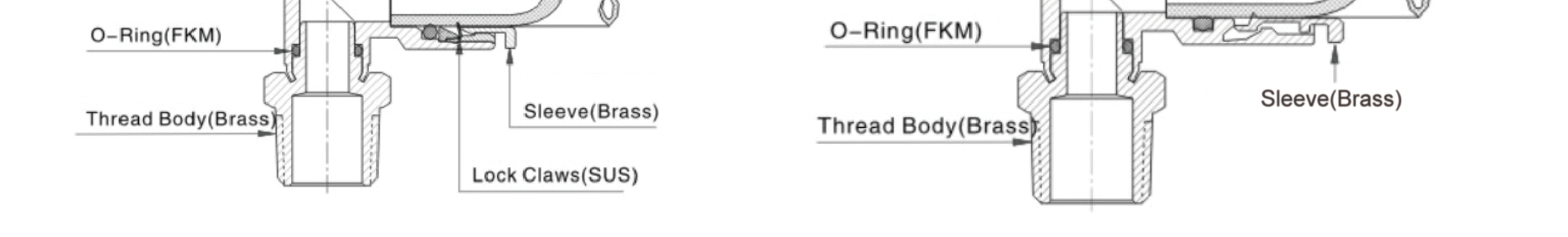

Body material: Brass with nickel-plated surface

Working temperature: -20°C to +80°C

Working pressure: 0–20 Bar

Applicable media: Compressed air, gas and vacuum

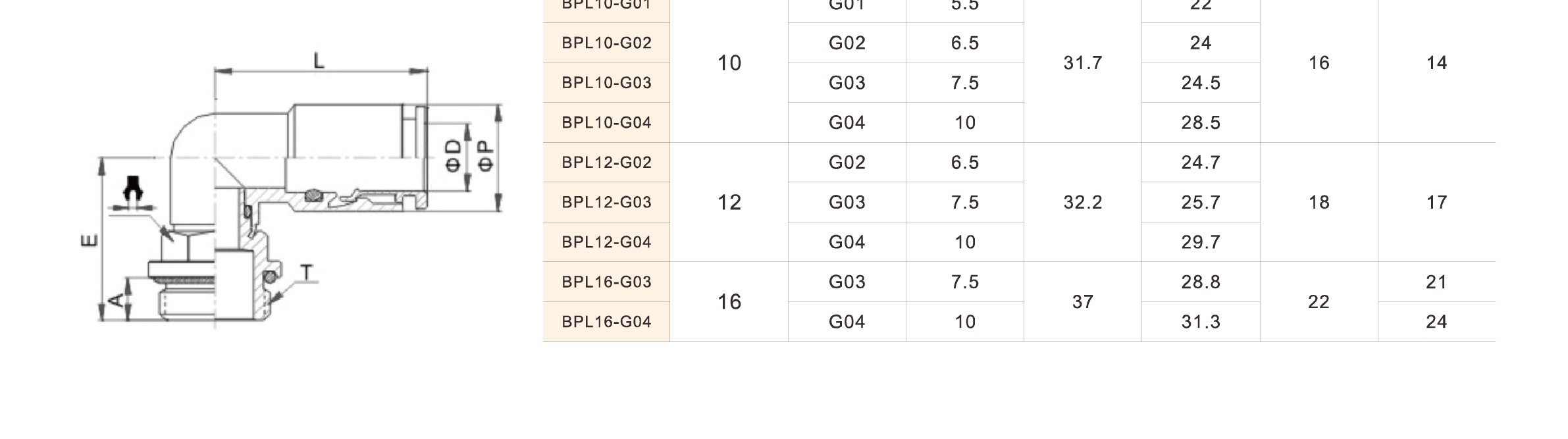

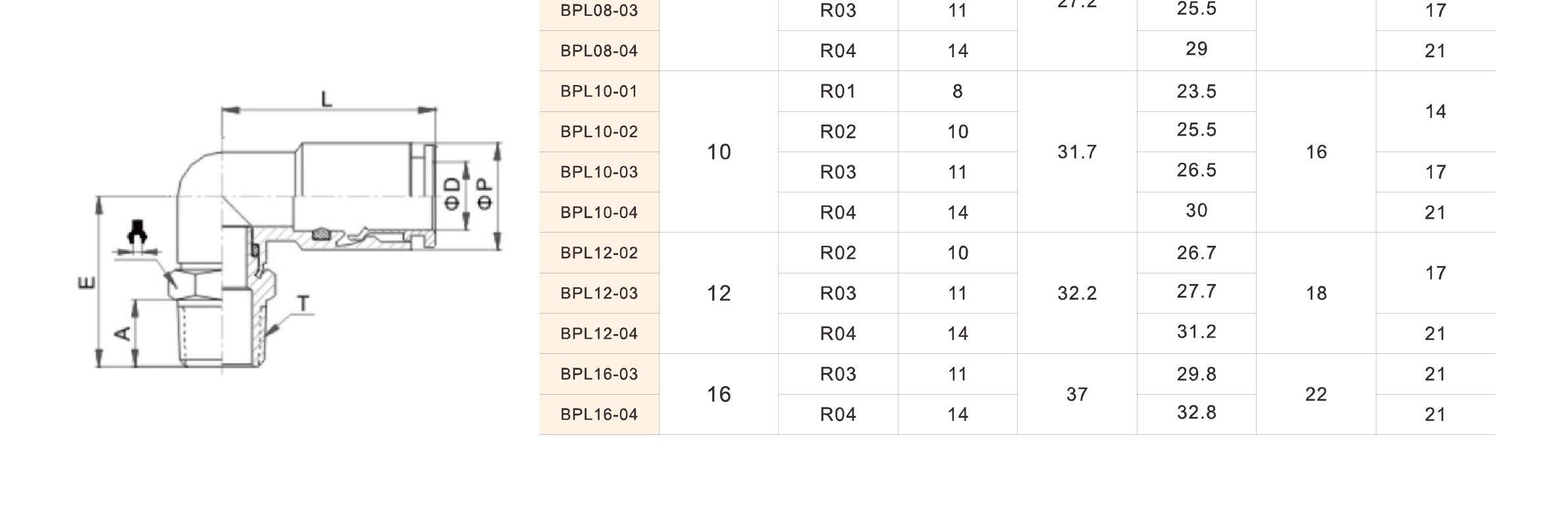

Thread options: NPT, BSPT (PT or R), BSP and Metric

Recommended tubing: PA11, PA12, PA6, PE and PU tubing (98 Shore A)

Acceptable tubing tolerance: ±0.1 mm

The BPL Series and BPL-G Series provide practical male elbow connections for pneumatic systems requiring compact tube routing and dependable threaded connections.

Applications and Installation of Brass Pneumatic Elbow Fittings

These male elbow pneumatic fittings are suitable for automation equipment, pneumatic machinery, packaging systems, assembly equipment, air control circuits and vacuum systems. Their compact elbow design is particularly useful where straight tubing connections are difficult due to limited installation space.

For installation, connect the threaded end to the corresponding port and ensure the tube is cut cleanly and squarely. Push the tubing fully into the fitting until it reaches the proper position. Using the correct tube diameter, tolerance and thread specification helps maintain a stable and reliable connection.

With durable brass construction and flexible application compatibility, the BPL and BPL-G Series offer an efficient solution for organizing pneumatic tubing in compact industrial systems.
