BPB Series & BPB-G Series Full Brass Nickel-Plated Push-in Fittings

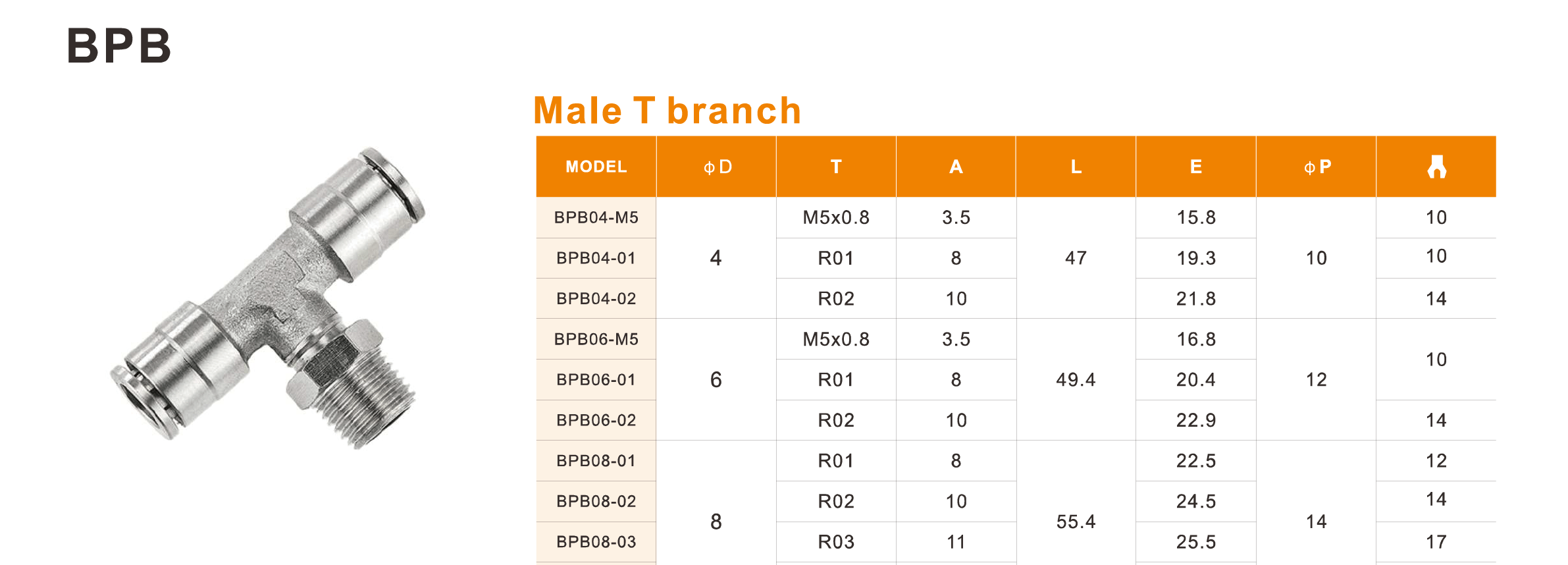

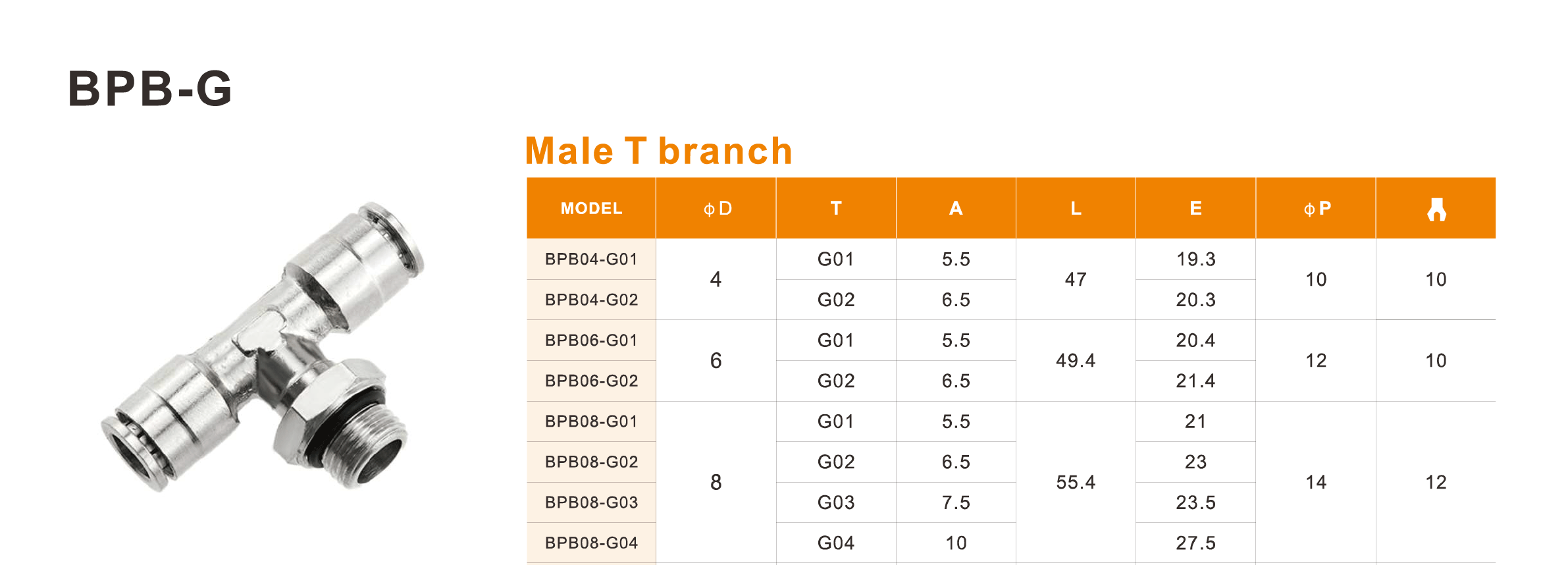

Brass Nickel-Plated Male Tee Push-in Fittings

The BPB Series and BPB-G Series are male tee push-in fittings designed for pneumatic systems that require a direct connection to a threaded port while creating two tubing branches. Their compact tee structure helps distribute compressed air efficiently and reduces the need for additional connectors, making pneumatic line layouts cleaner and easier to organize.

Manufactured with a full brass body and nickel-plated surface, these brass pneumatic tee fittings provide a durable solution for industrial air, gas and vacuum applications. The BPB and BPB-G Series share the same basic male tee configuration and can be selected according to specific system and installation requirements.

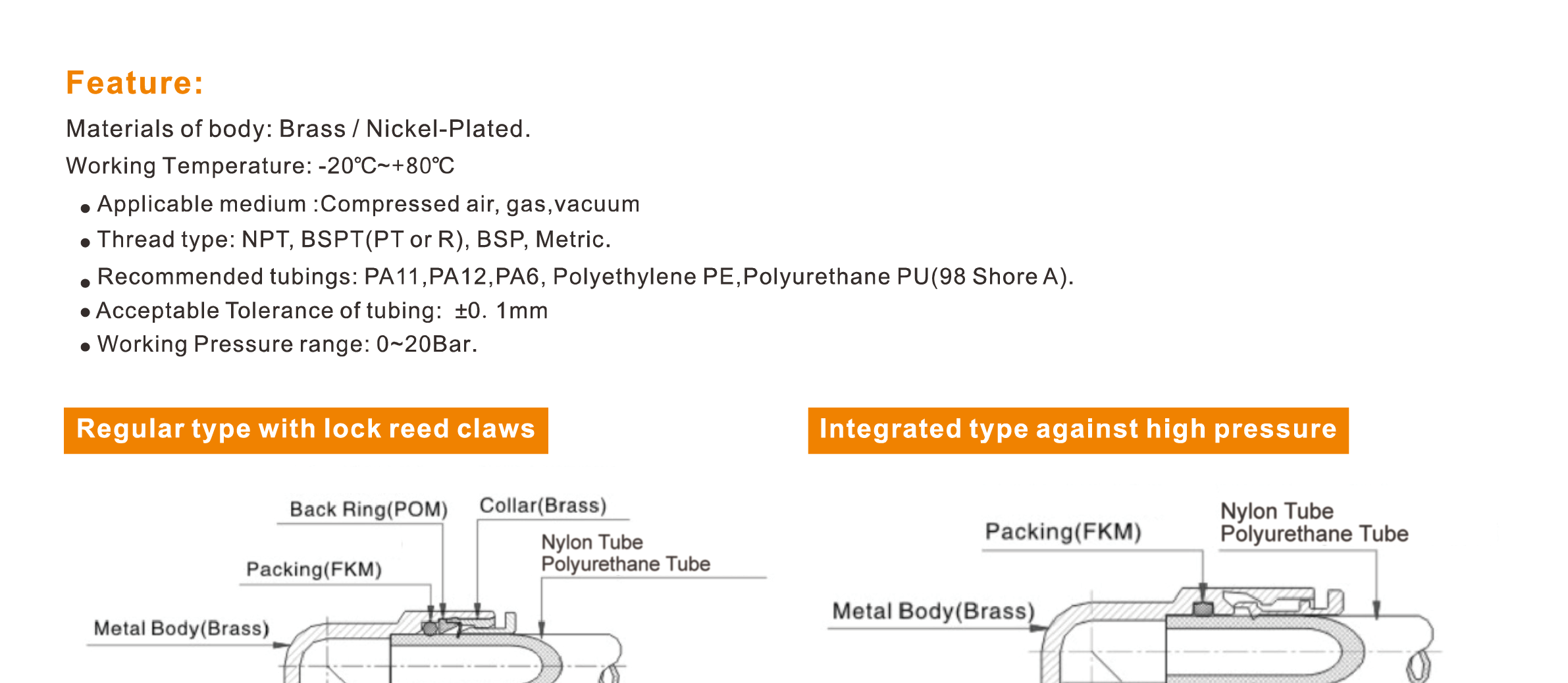

Key Features of Brass Pneumatic Tee Fittings

These nickel-plated push-in fittings combine convenient tube installation with dependable operating performance:

● Body material: Brass with nickel-plated surface

● Working temperature: -20°C to +80°C

● Working pressure range: 0–20 Bar

● Applicable media: Compressed air, gas and vacuum

● Thread types: NPT, BSPT (PT or R), BSP and Metric

● Recommended tubing: PA11, PA12, PA6, PE and PU tubing (98 Shore A)

● Acceptable tubing tolerance: ±0.1 mm

The male tee pneumatic fitting design provides a practical option for branching tubing while maintaining a compact connection between the pneumatic line and equipment port.

Applications and Installation

The BPB Series and BPB-G Series are suitable for industrial automation, pneumatic control equipment, packaging machinery, assembly systems, air distribution lines and vacuum applications. They are particularly useful where one threaded connection needs to supply two pneumatic tubing routes.

During installation, connect the threaded male end to the matching equipment port and ensure the selected thread type is compatible. Cut each tube end cleanly and squarely, then push the tubing fully into the fitting ports. Using tubing within the recommended diameter tolerance helps maintain a secure connection.

With durable brass construction, flexible thread options and an efficient tee branch design, the BPB and BPB-G Series provide a practical solution for organizing and distributing pneumatic lines in industrial systems.
