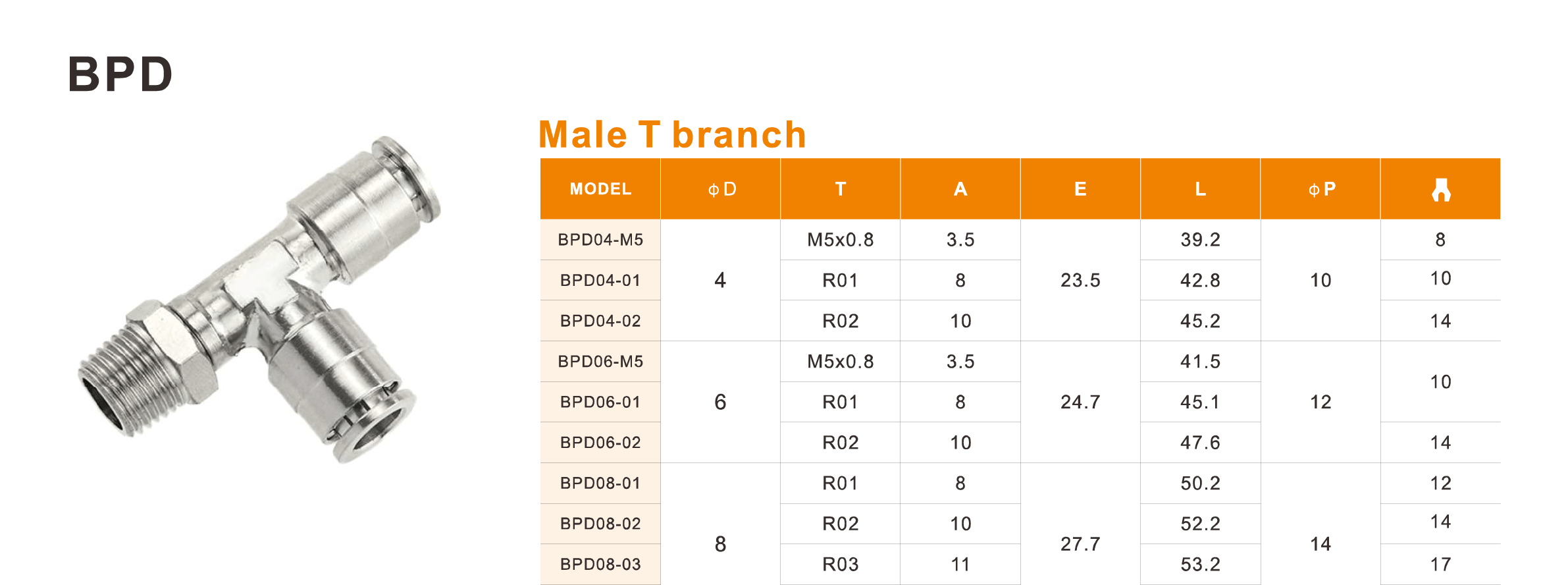

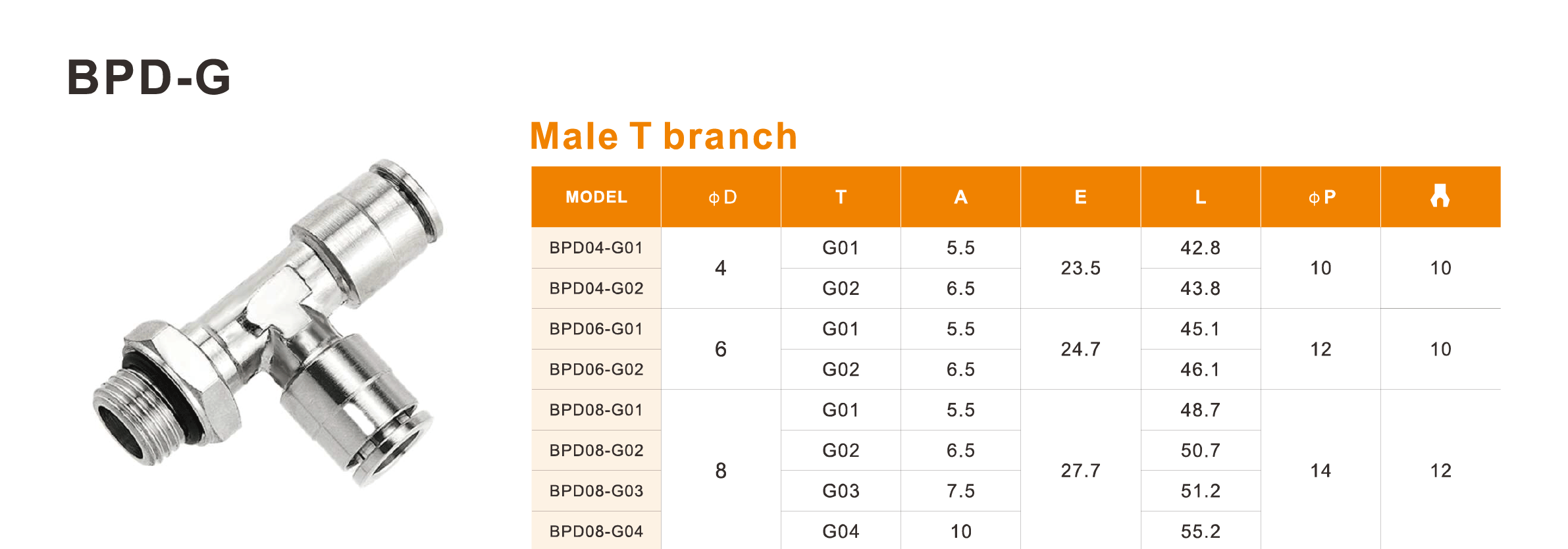

BPD Series & BPD-G Series Full Brass Nickel-Plated Push-in Fittings

Brass Male Tee Push-in Fittings for Pneumatic Line Distribution

The BPD Series and BPD-G Series are male tee push-in fittings designed to divide or connect pneumatic tubing through a threaded equipment port. The tee-shaped structure provides two tube connection paths while the male threaded section connects directly to pneumatic components, helping reduce the number of separate adapters required in the system.

These brass male tee push-in fittings are manufactured with a full brass body and nickel-plated surface, making them suitable for applications where a durable metal fitting is preferred. The compact design also helps organize multiple pneumatic lines within limited installation space.

Reliable Nickel-Plated Brass Pneumatic Fitting Performance

Both the BPD Series and BPD-G Series share reliable operating characteristics for pneumatic, gas and vacuum applications.

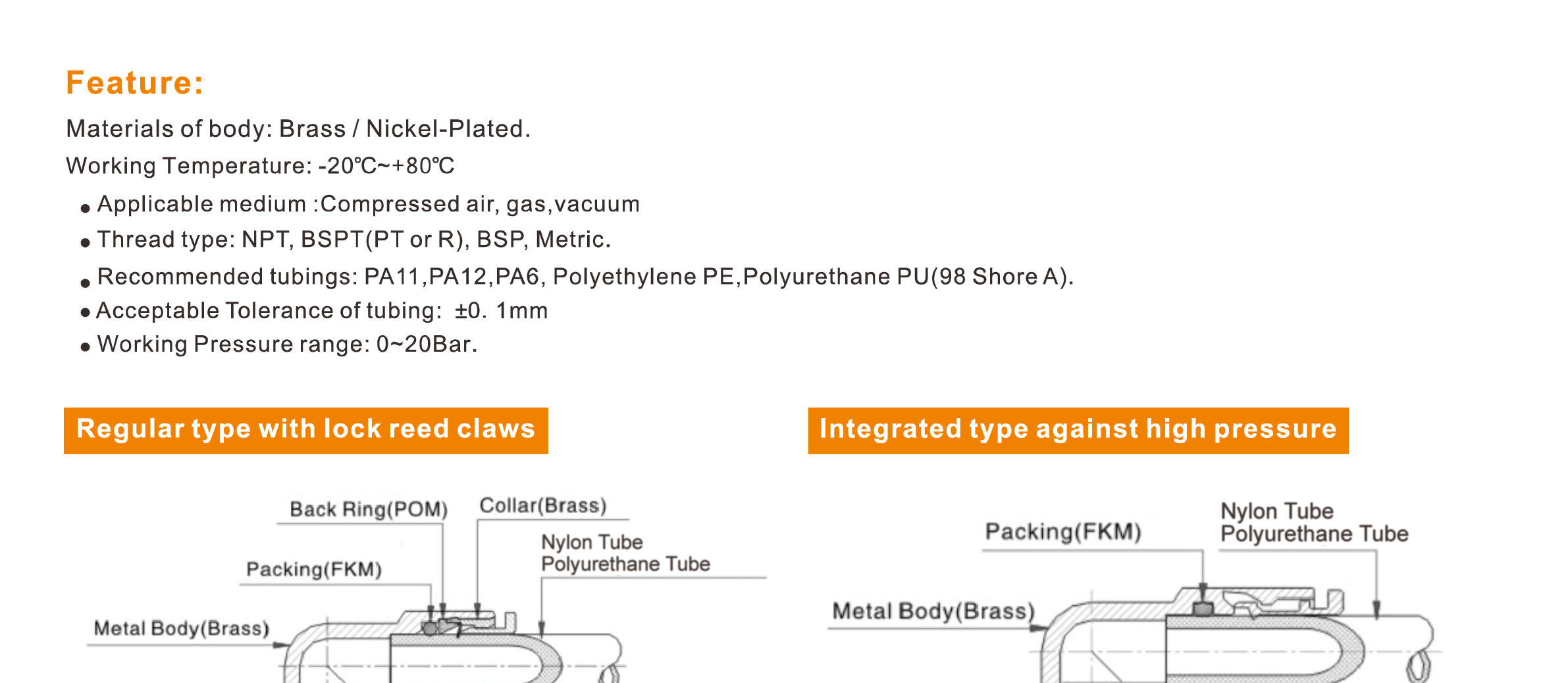

Key specifications include:

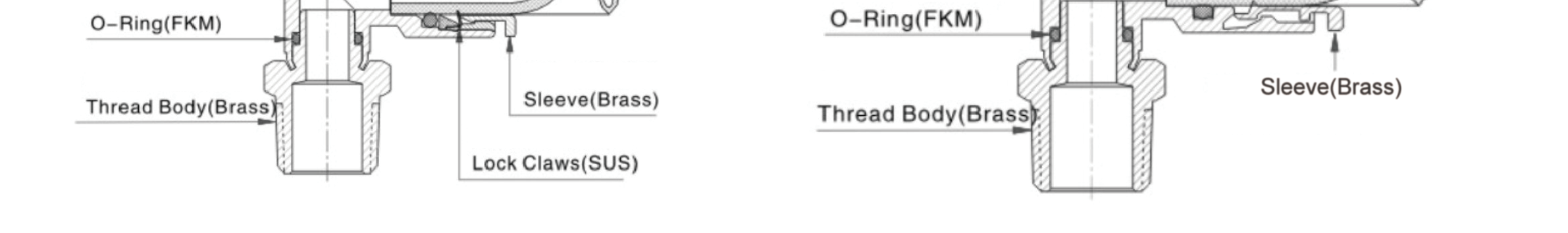

● Body material: Brass with nickel-plated surface

● Working temperature: -20°C to +80°C

● Working pressure: 0–20 Bar

● Applicable media: Compressed air, gas and vacuum

● Available threads: NPT, BSPT (PT or R), BSP and Metric

● Compatible tubing: PA11, PA12, PA6, PE and PU tubing (98 Shore A)

● Acceptable tube tolerance: ±0.1 mm

The brass pneumatic tee connector provides a practical solution for distributing air lines while maintaining a compact and durable connection structure.

Applications and Installation of Male Tee Fittings

These pneumatic tube branch fittings can be used in industrial automation systems, pneumatic control panels, machinery, production equipment, packaging lines and compressed air distribution circuits. They are especially suitable where two pneumatic tubes need to be routed from one threaded connection point.

For installation:

● Select the correct thread type for the equipment port.

● Connect the male threaded section securely to the port.

● Cut the pneumatic tubing cleanly and squarely.

● Push each tube fully into the corresponding push-in connection.

● Check the tubing diameter and tolerance before system operation.

With their durable brass construction, nickel-plated finish and efficient tee branch configuration, the BPD Series and BPD-G Series provide a dependable connection solution for compact pneumatic distribution systems.
