BSC & BSC-G Series Full Brass Nickel Plated Push-in Fittings

Pneumatic Speed Control for More Controlled Motion

In pneumatic automation, cylinder speed is directly influenced by the air flow entering or exhausting from the actuator. A pneumatic speed control valve allows operators to adjust this flow and achieve smoother, more suitable motion according to the requirements of the application.

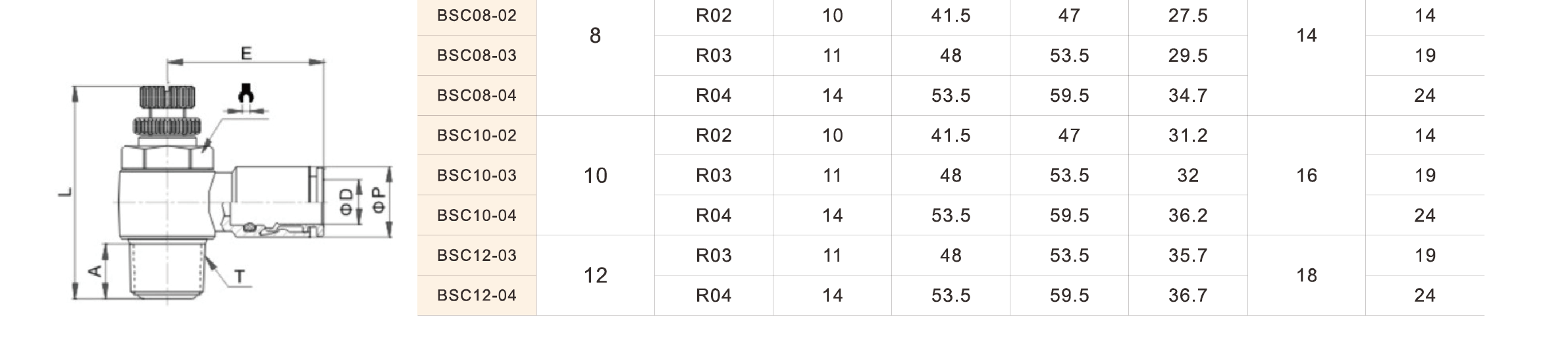

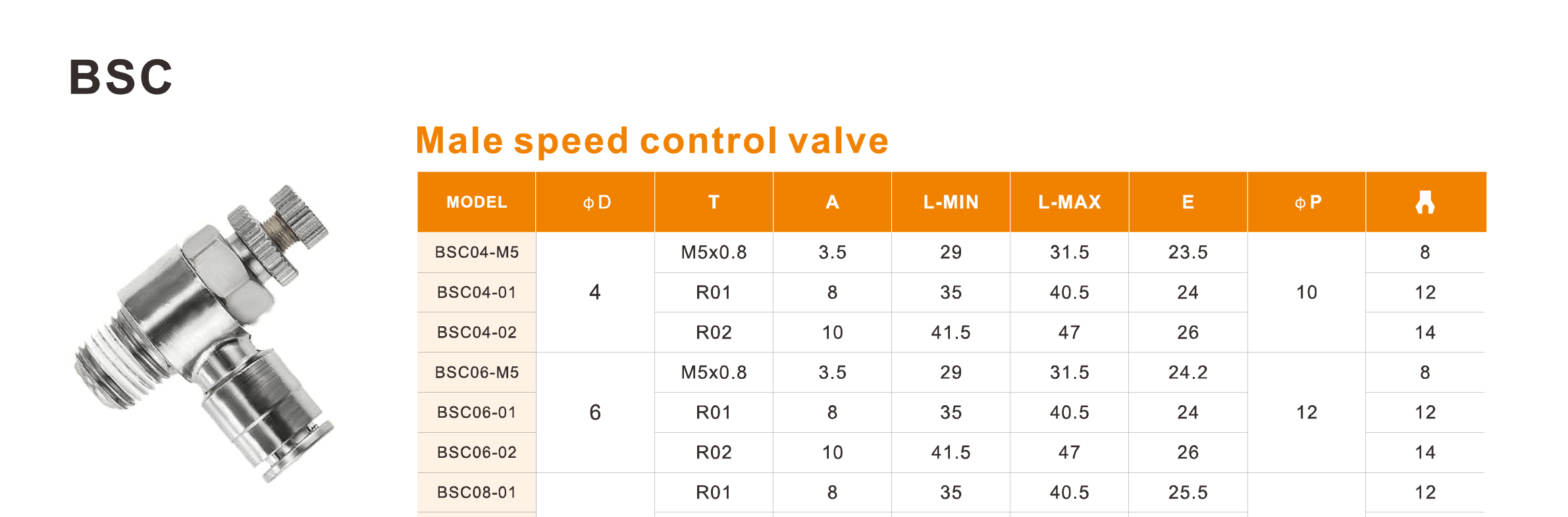

BSC Series – Male Speed Control Valve

The BSC Series provides a male threaded connection combined with an adjustable flow control function, making it suitable for installation directly on pneumatic equipment or system ports.

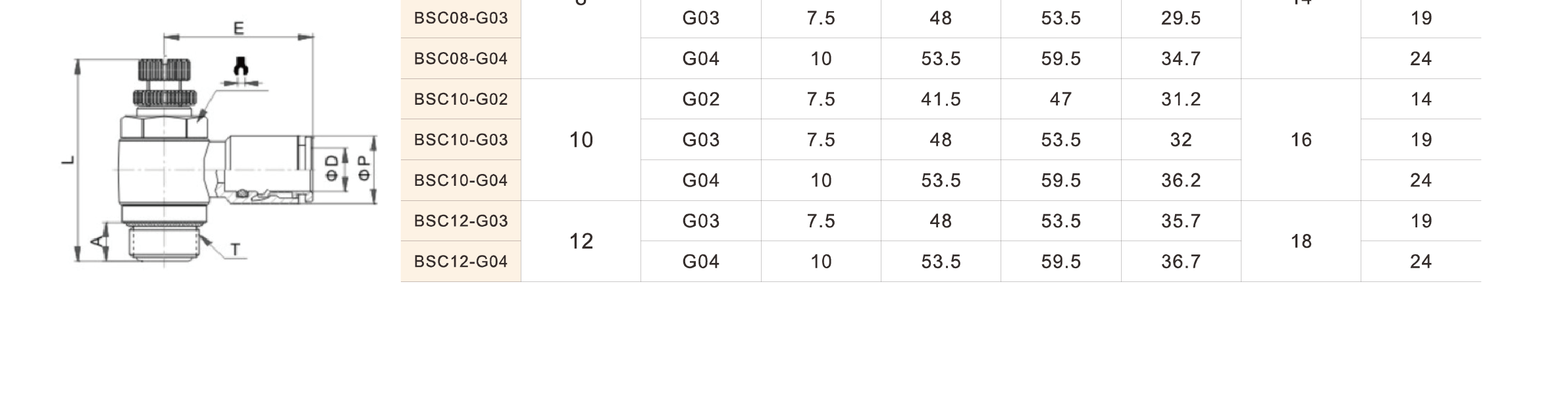

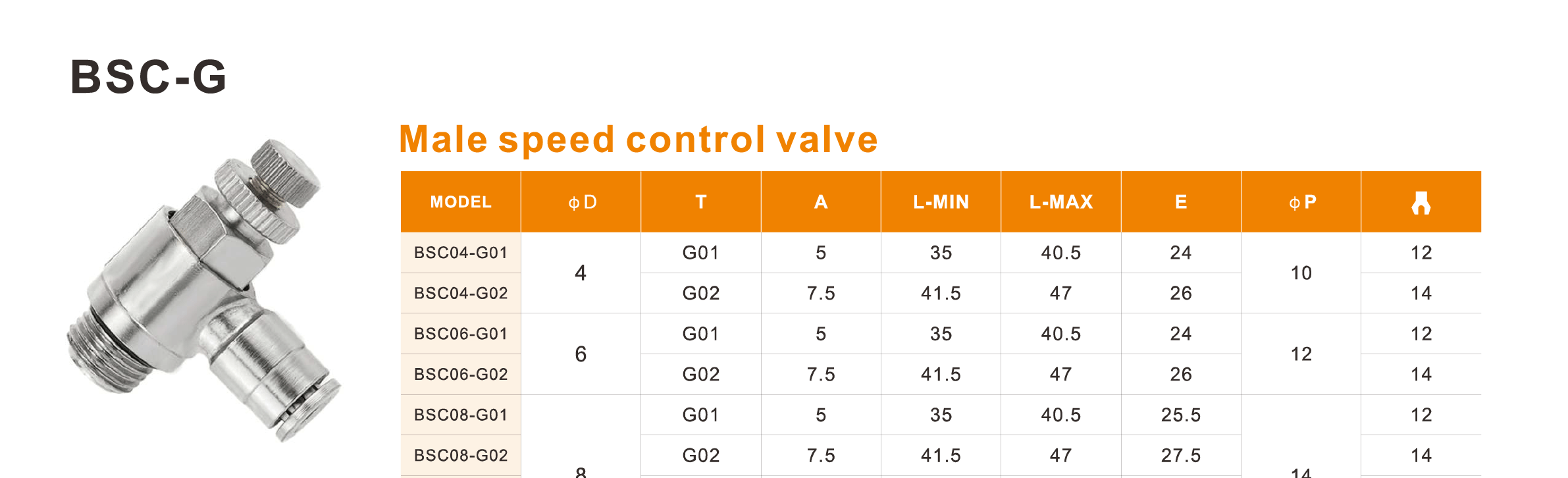

BSC-G Series – Male Speed Control Valve

The BSC-G Series provides the corresponding male speed control configuration for pneumatic systems requiring controlled air flow and adjustable actuator movement.

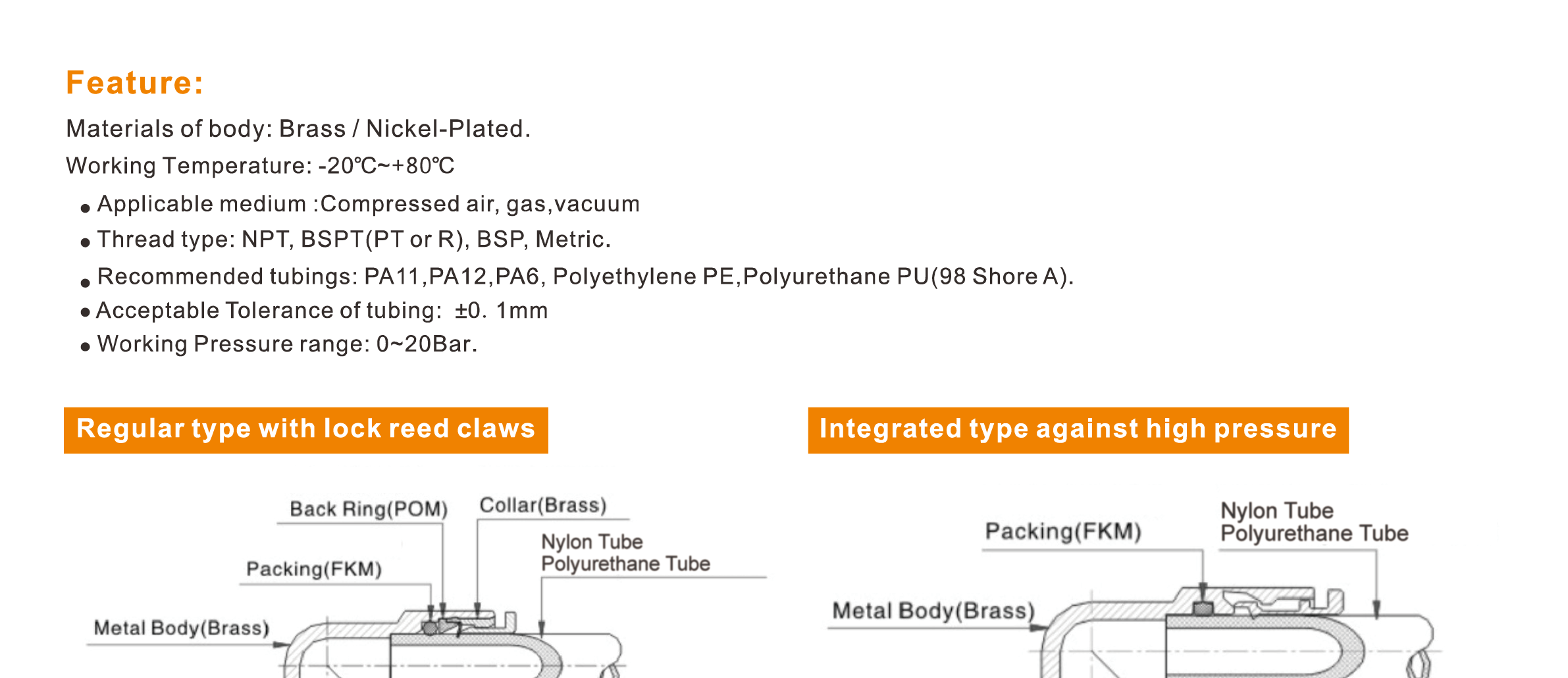

Features of Brass Pneumatic Speed Control Valves

The BSC and BSC-G Series are designed for practical installation and stable pneumatic system operation.

● Brass body with nickel-plated surface

● Suitable for compressed air, gas and vacuum

● Working temperature range: -20°C to +80°C

● Working pressure range: 0–20 Bar

● Available thread types: NPT, BSPT (PT/R), BSP and Metric

● Compatible with PA11, PA12, PA6, PE and PU tubing (98 Shore A)

● Recommended tubing dimensional tolerance: ±0.1 mm

● Adjustable design for regulating pneumatic air flow

Applications and Installation

These pneumatic speed control valves are suitable for pneumatic cylinders, automation equipment, packaging machinery, assembly systems and other compressed air applications where actuator speed requires adjustment.

For installation:

● Select the correct thread and tubing size.

● Install the male thread into the corresponding equipment port.

● Cut the pneumatic tube cleanly and insert it fully into the push-in connection.

● Adjust the flow gradually until the required operating speed is achieved.

● Avoid excessive bending or pulling force on the connected tubing.

With adjustable air flow control and durable nickel-plated brass construction, the BSC and BSC-G Series provide a practical solution for improving pneumatic motion control and adapting cylinder speed to different operating requirements.
