BPX, BP2H, BPEL and BPK Series Full Brass Nickel Plated Push-in Fittings

Flexible Brass Push-in Fittings for Pneumatic Branching

The BPX Series, BP2H Series, BPEL Series and BPK Series provide multiple connection options for pneumatic systems where one air line needs to be divided, redirected or distributed to several components. These full brass nickel plated push-in fittings combine durable metal construction with a convenient push-to-connect design, helping simplify tubing layouts while maintaining reliable connections.

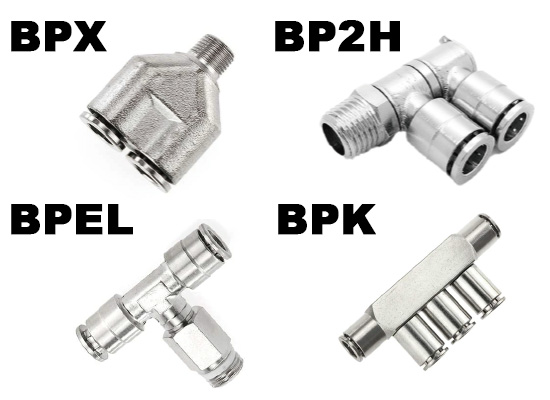

The series includes four different configurations for specific installation requirements:

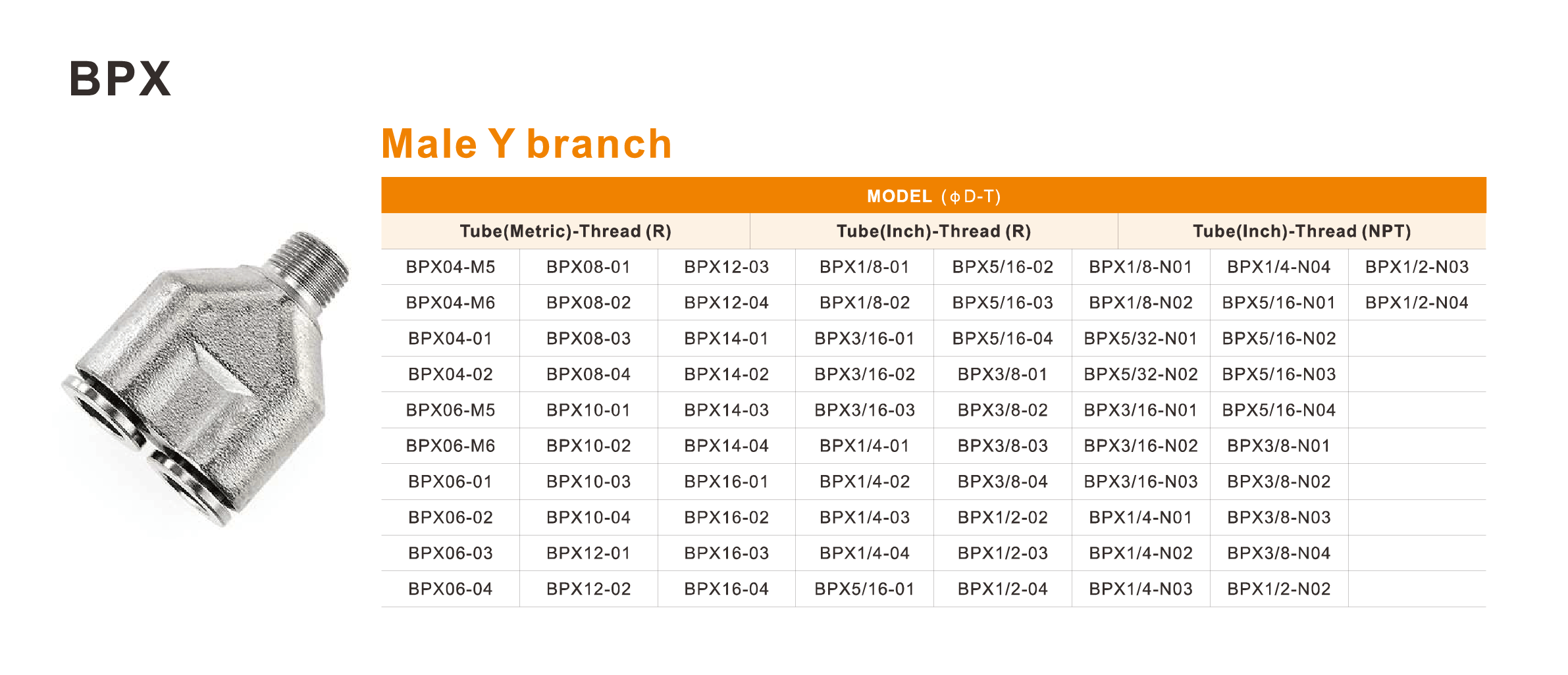

● BPX Series – Male Y Branch: Designed to divide one connection into two directional tubing paths with a compact Y-shaped structure.

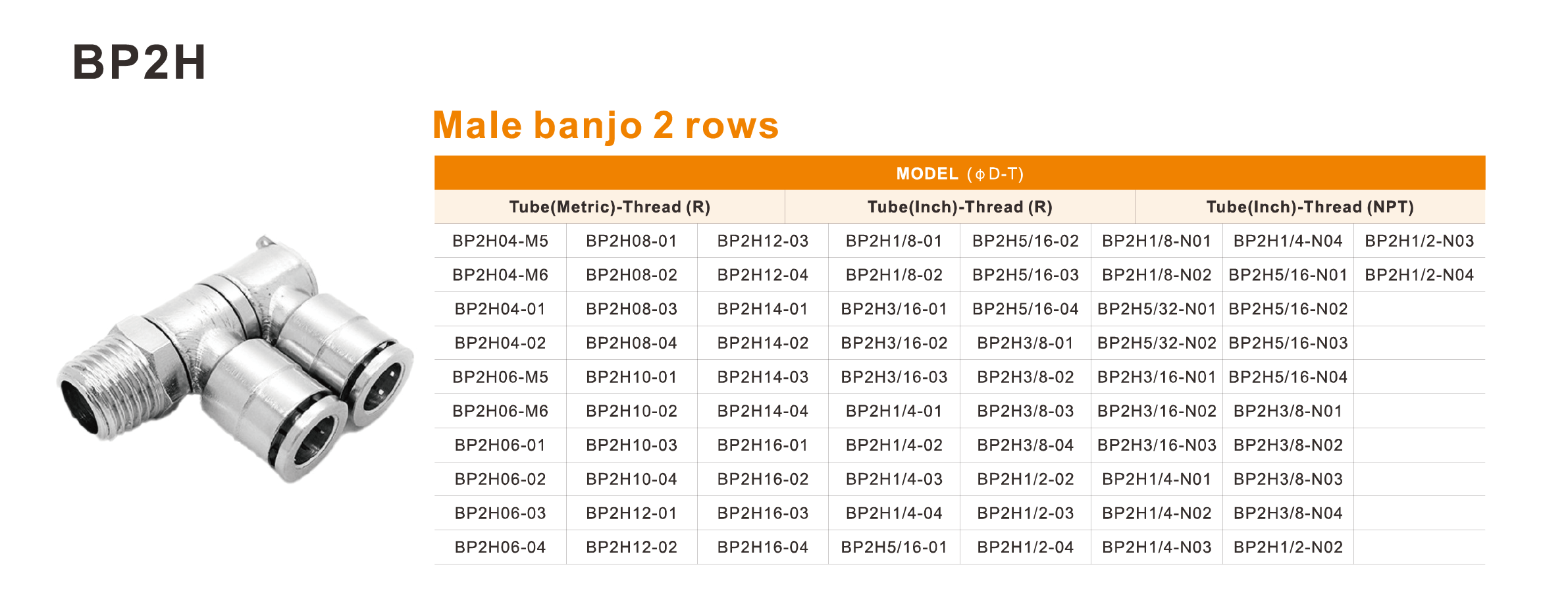

● BP2H Series – Male Banjo 2 Rows: Provides a double-row banjo-style connection solution for applications requiring multiple tubing connections around a threaded port.

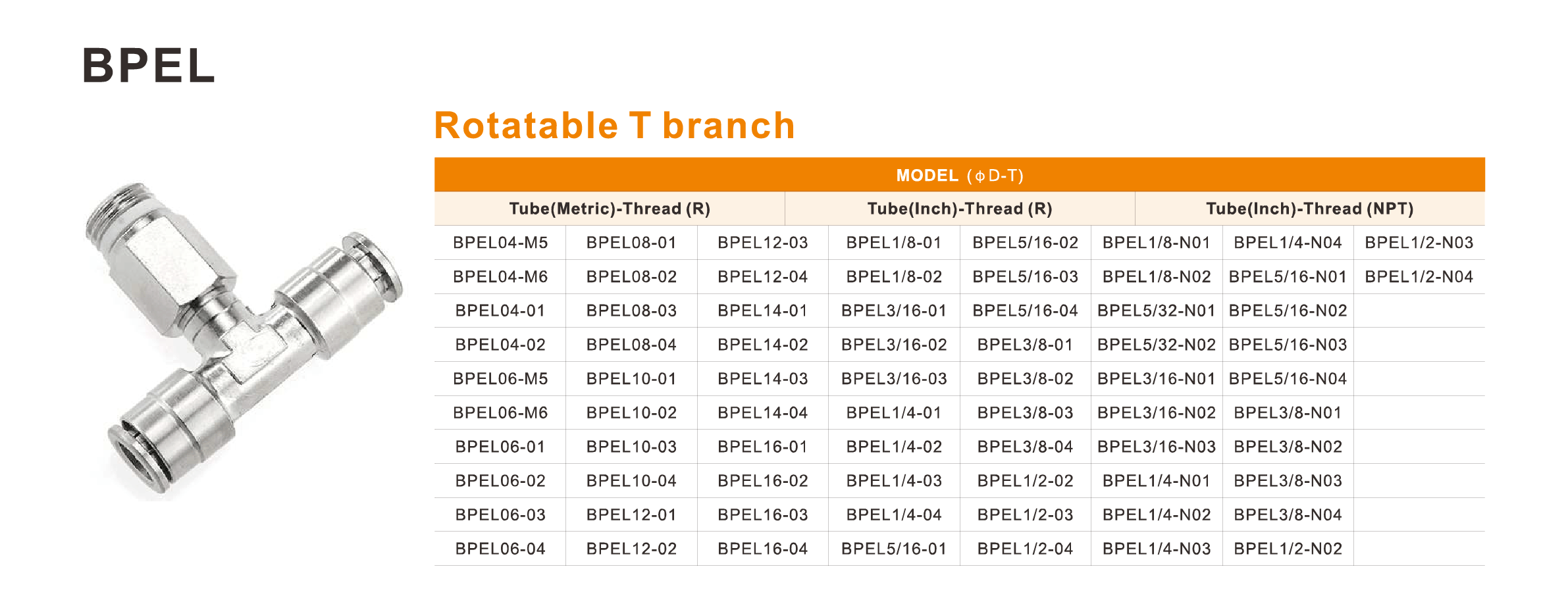

● BPEL Series – Rotatable T Branch: Allows tubing branches to be positioned more flexibly during installation, making it suitable for systems with limited routing space.

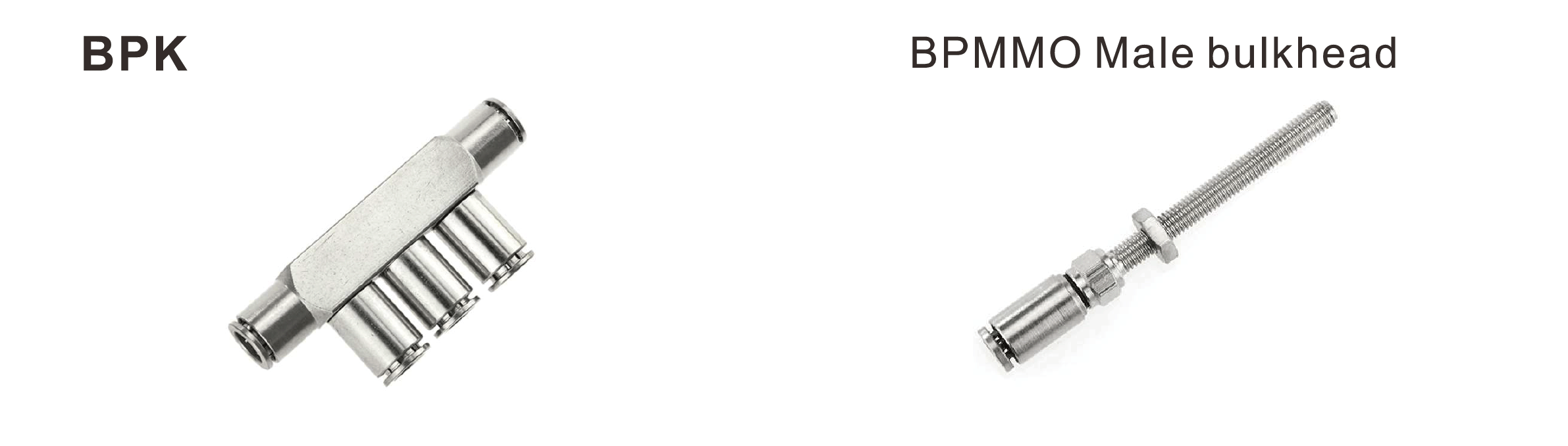

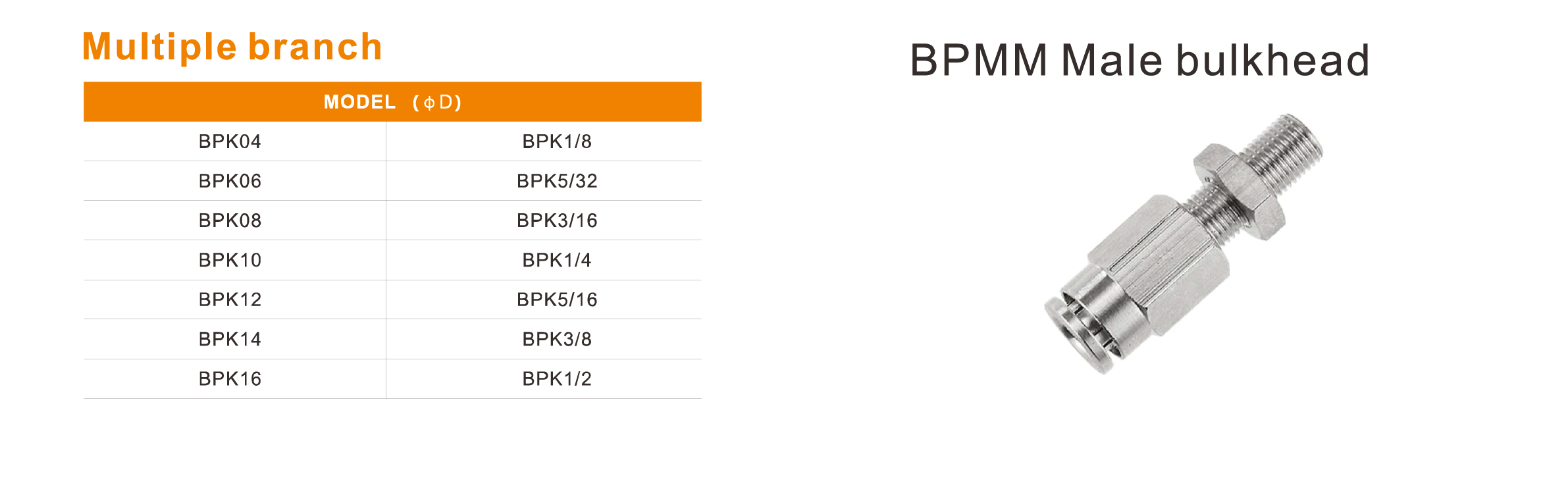

● BPK Series – Multiple Branch: Designed for pneumatic systems requiring several tubing outlets from a single connection point.

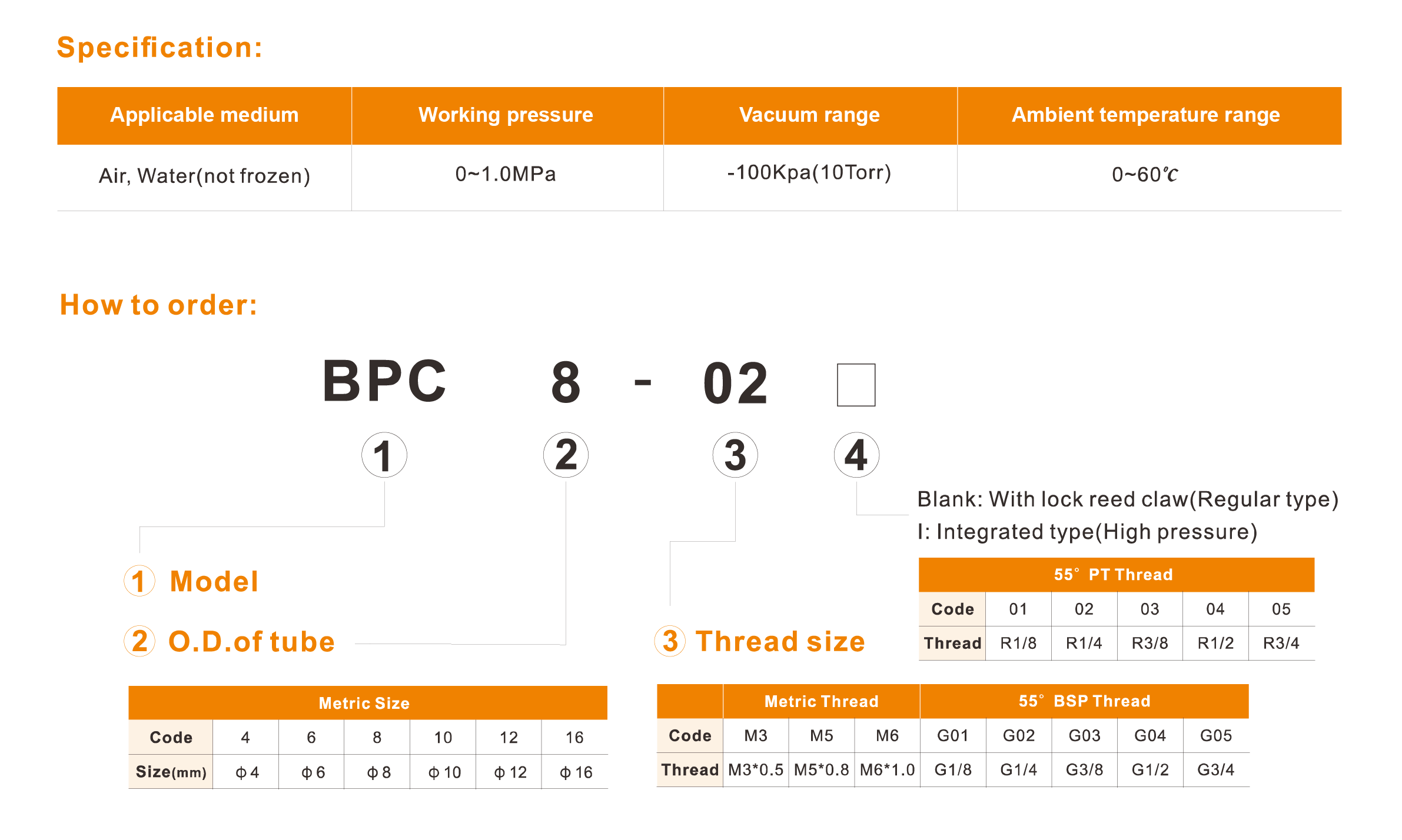

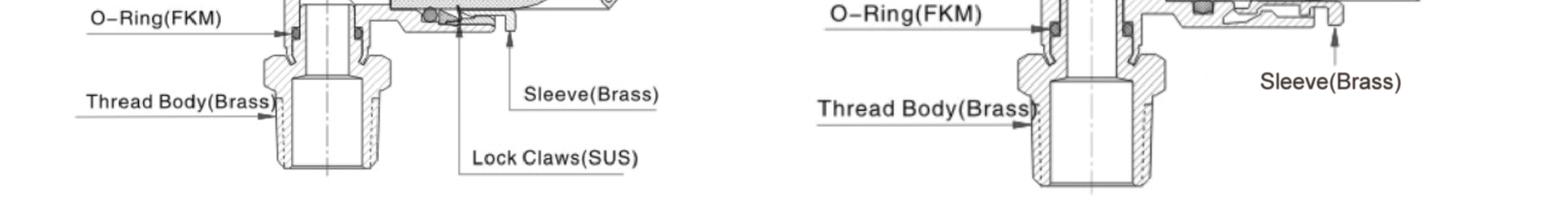

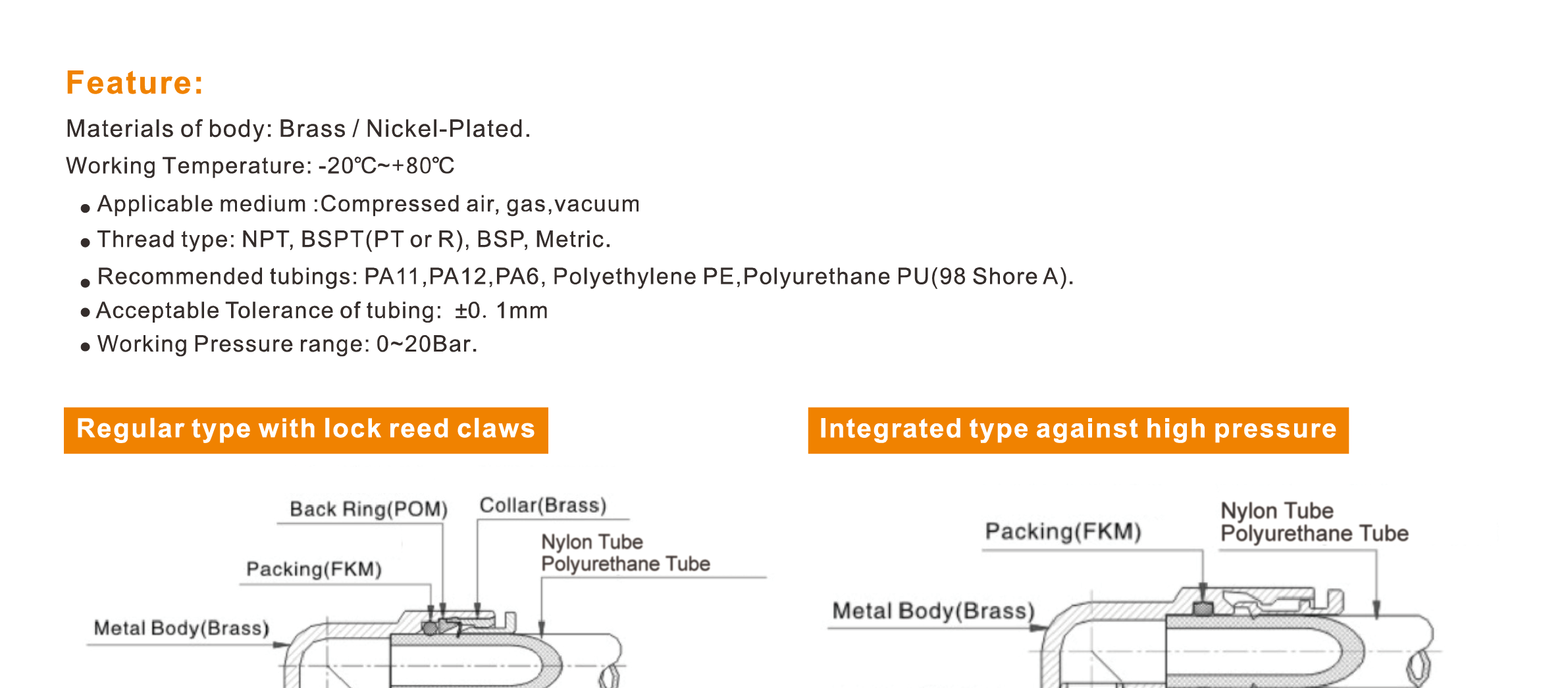

Reliable Construction of Nickel Plated Pneumatic Fittings

These brass push-in fittings feature a brass body with a nickel-plated surface for dependable mechanical strength and improved corrosion resistance. They are designed for compressed air, gas and vacuum applications with a working pressure range of 0–20 bar and a working temperature range of -20°C to +80°C.

Key compatibility features include:

● Suitable for PA11, PA12, PA6, PE and PU tubing (98 Shore A)

● Acceptable tubing tolerance of ±0.1 mm

● Available thread options including NPT, BSPT (PT/R), BSP and Metric

● Suitable for pneumatic systems using air, gas or vacuum

● Durable full brass construction with nickel plating

Where Pneumatic Branch Fittings Are Used

These pneumatic branch fittings are suitable for automation equipment, assembly machinery, packaging systems, pneumatic control cabinets and other applications where compressed air must be distributed to multiple actuators or components.

The BPX and BPEL Series are useful for creating compact branch connections, while the BP2H Series supports installations requiring multiple connections around a threaded port. For more complex tubing distribution, the BPK Series provides a practical multiple-branch connection solution.

Simple Push-to-Connect Installation

Installation is designed to be quick and straightforward. Insert the correctly sized pneumatic tube fully into the fitting until it reaches the internal connection position. For threaded models, select the appropriate thread standard and tighten the fitting securely into the equipment port.

For reliable performance:

● Use clean tubing with a square-cut end

● Confirm tubing OD is within the recommended tolerance

● Avoid excessive bending force on the fitting

● Select the appropriate branch structure according to tubing layout

With multiple branch configurations and durable nickel plated brass construction, the BPX, BP2H, BPEL and BPK Series provide flexible connection options for building organized, efficient and reliable pneumatic tubing systems.
