The RQ Series Compact Cylinder (With Air Cushion) is designed for applications requiring compact installation and enhanced cushioning performance. Its innovative air cushion mechanism improves shock absorption while adding only a few millimeters to the overall cylinder length.
Compared with conventional compact cylinders such as CQ2 and CQS, the RQ Series offers approximately twice the cushioning capacity and improved repeat positioning accuracy, making it suitable for high-speed and precision automation equipment.
The RQ Series Compact Cylinder is an advanced compact pneumatic actuator featuring an integrated air cushioning system. Designed for modern automation equipment, it combines space-saving dimensions with enhanced motion control, providing smoother operation and reduced mechanical impact.
A newly developed cushion mechanism eliminates the need for a traditional cushion sleeve, allowing the cylinder to maintain a compact profile while significantly improving cushioning performance.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Compact cylinder with integrated air cushioning
● Innovative cushion sleeve-free design
● Double cushioning capacity compared with conventional compact cylinders
● Improved repeat positioning accuracy
● Single rod double-acting operation
● Compact installation dimensions
● Multiple mounting methods available
● Internal threaded piston rod
● Stable pneumatic performance
● Suitable for precision automation
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The RQ Series incorporates a newly developed air cushion mechanism that improves energy absorption without substantially increasing cylinder size.
Compared with conventional compact cylinders such as CQ2 and CQS:
● Overall cylinder length increases by only a few millimeters.
● Cushioning capacity is approximately doubled.
● Repeat positioning accuracy is improved.
● Mechanical impact and vibration are reduced.
● Equipment service life can be extended.
This advanced cushioning design makes the RQ Series particularly suitable for high-speed automation applications.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The RQ Series is engineered for stable operation using filtered compressed air.

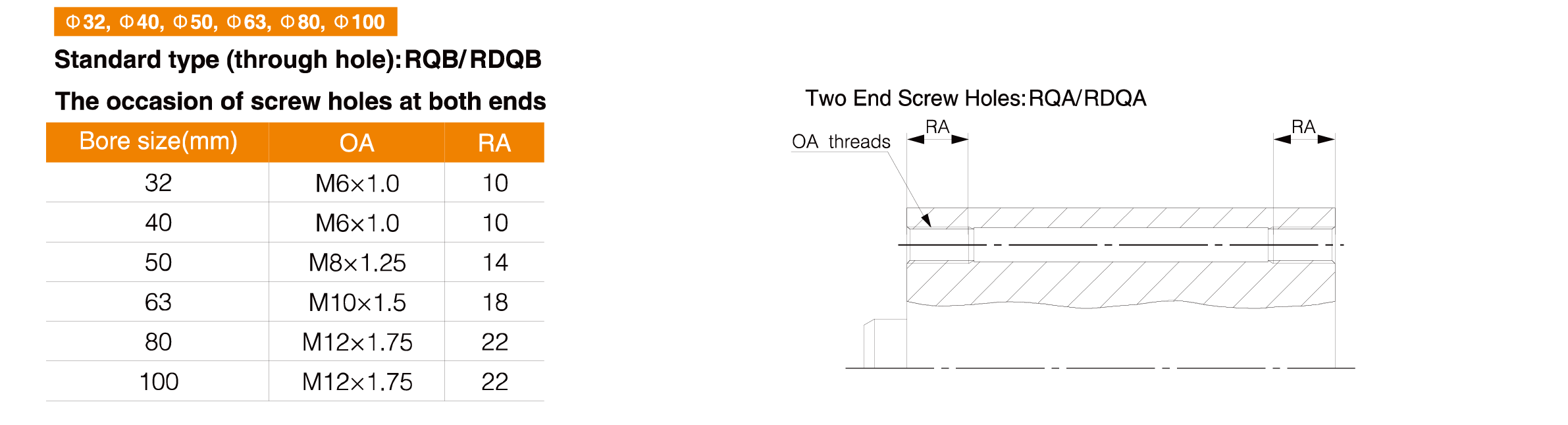

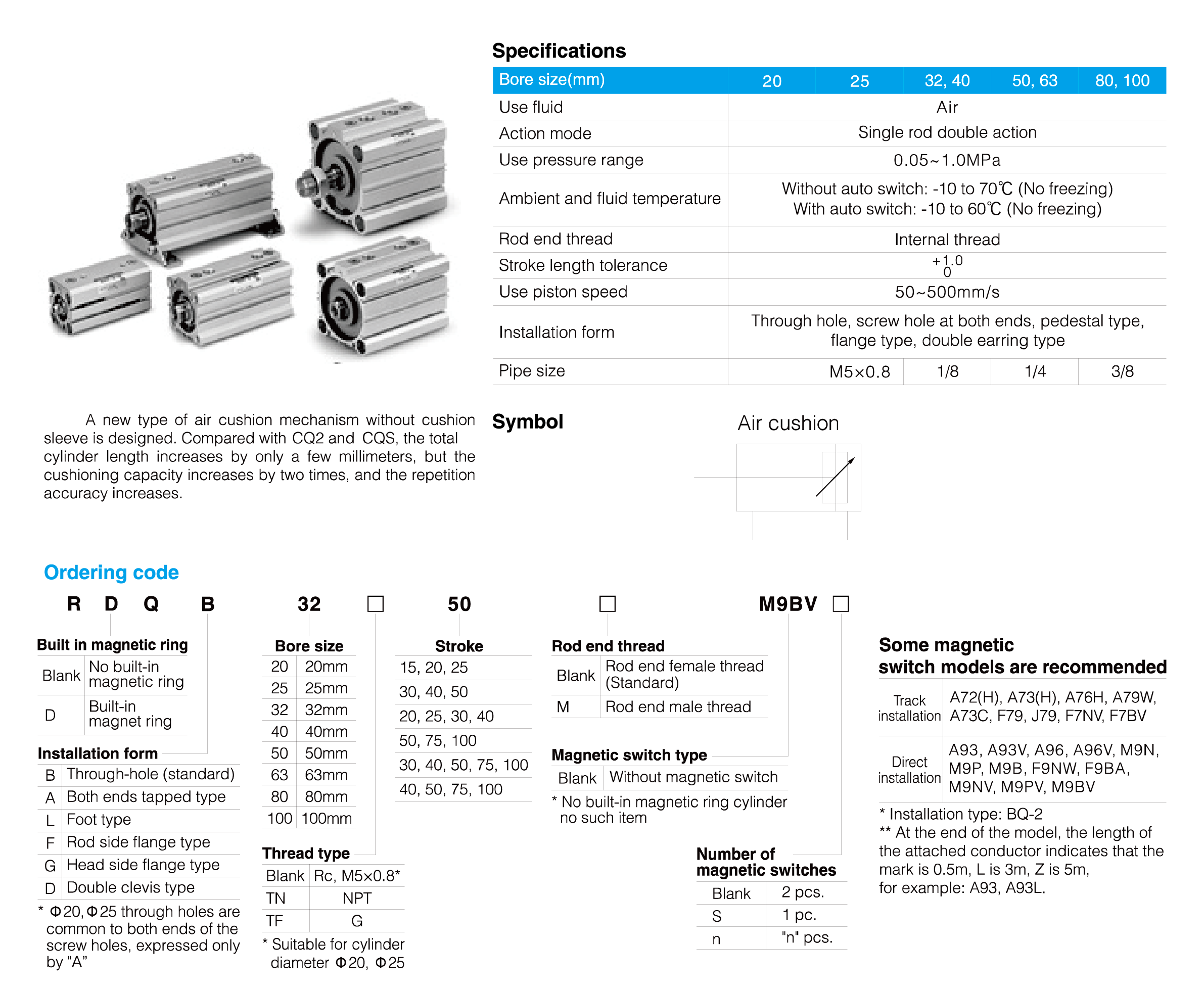

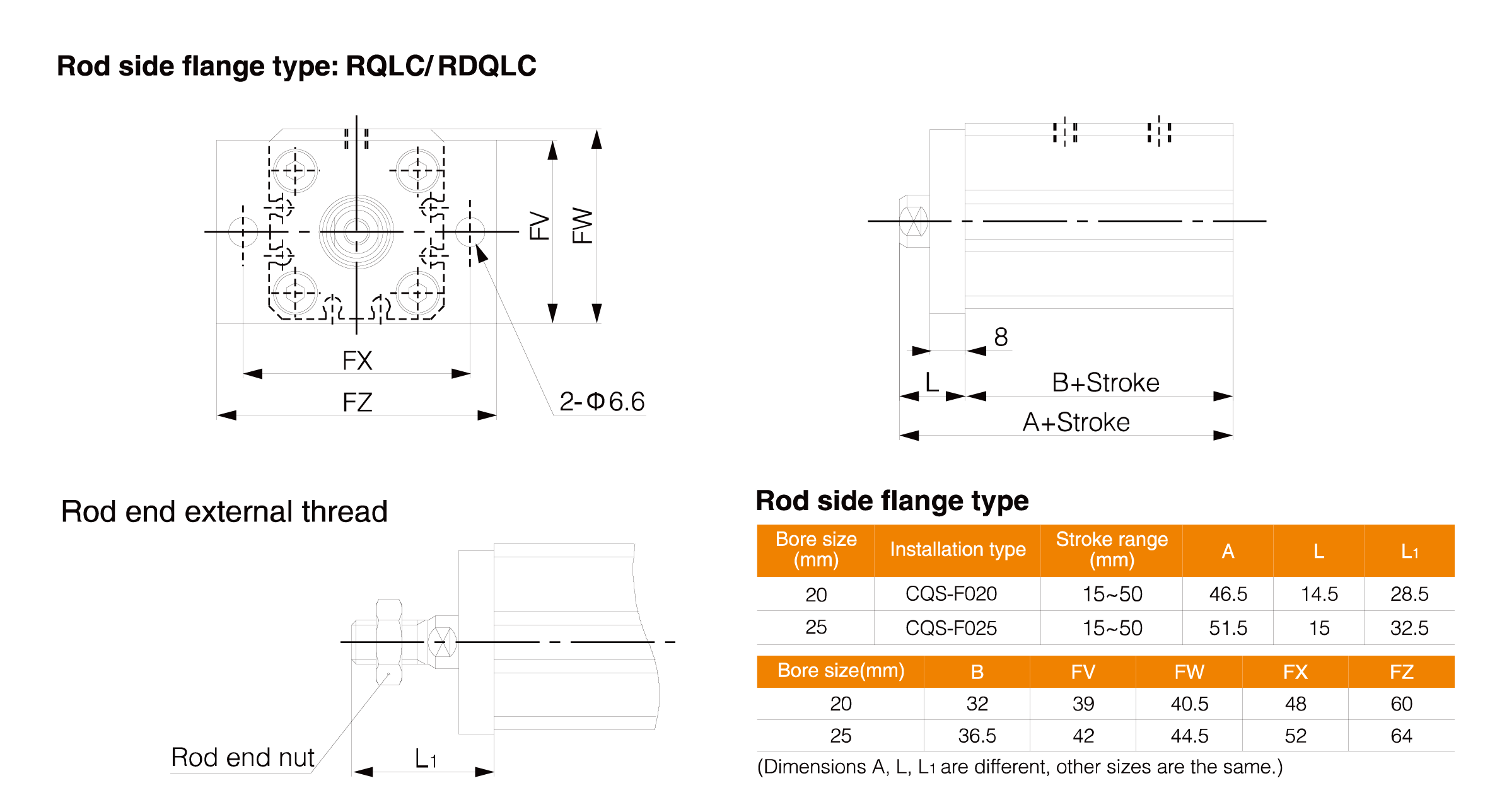

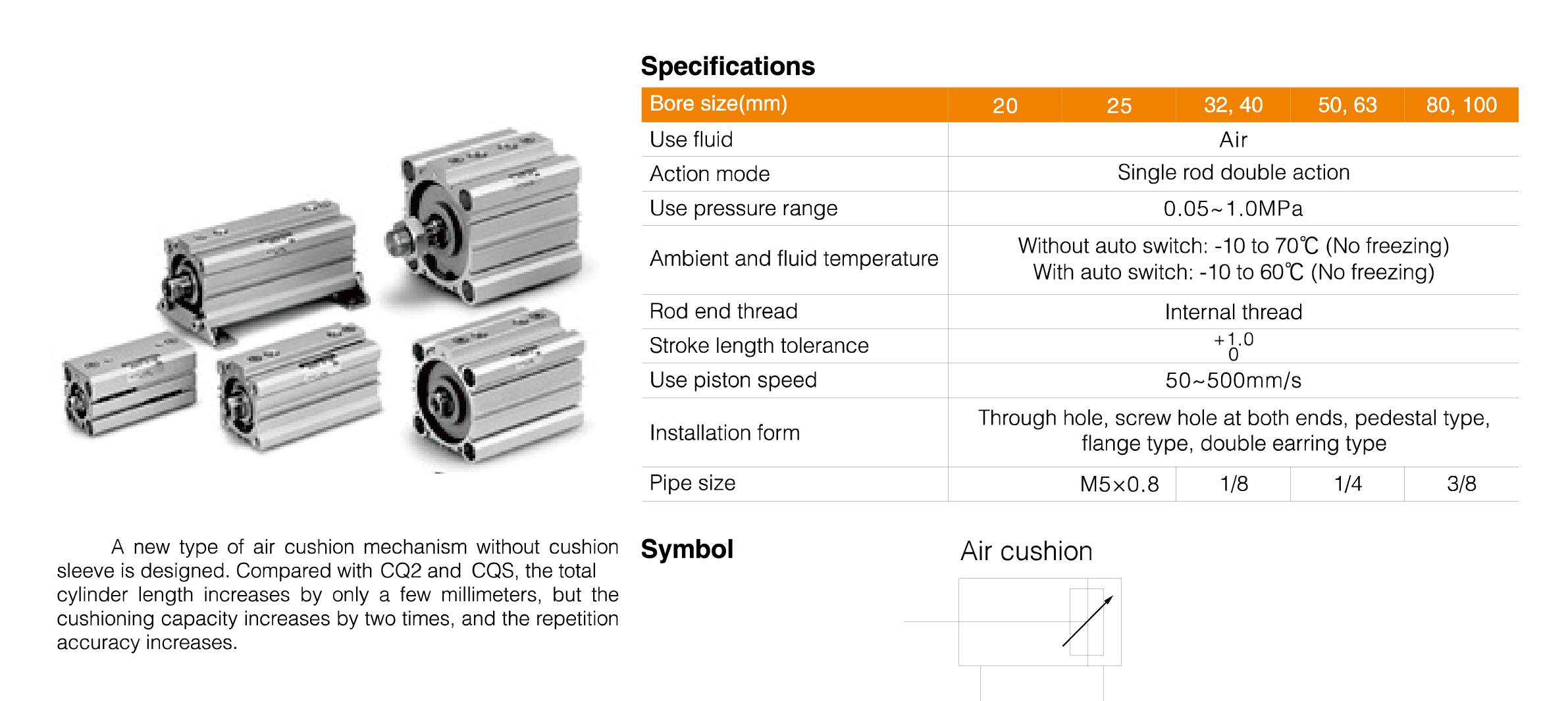

| Parameter | Specification |
| Bore Size | 20–100 mm |
| Working Medium | Compressed Air |
| Action Type | Single Rod Double Acting |
| Operating Pressure | 0.05–1.0 MPa |
| Piston Speed | 50–500 mm/s |
| Rod Thread | Internal Thread |
| Stroke Tolerance | ±1.0 mm |
| Temperature Range | -10°C to 70°C |
| Auto Switch Version | -10°C to 60°C |
The cylinder provides smooth linear motion while maintaining high reliability in continuous industrial operation.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

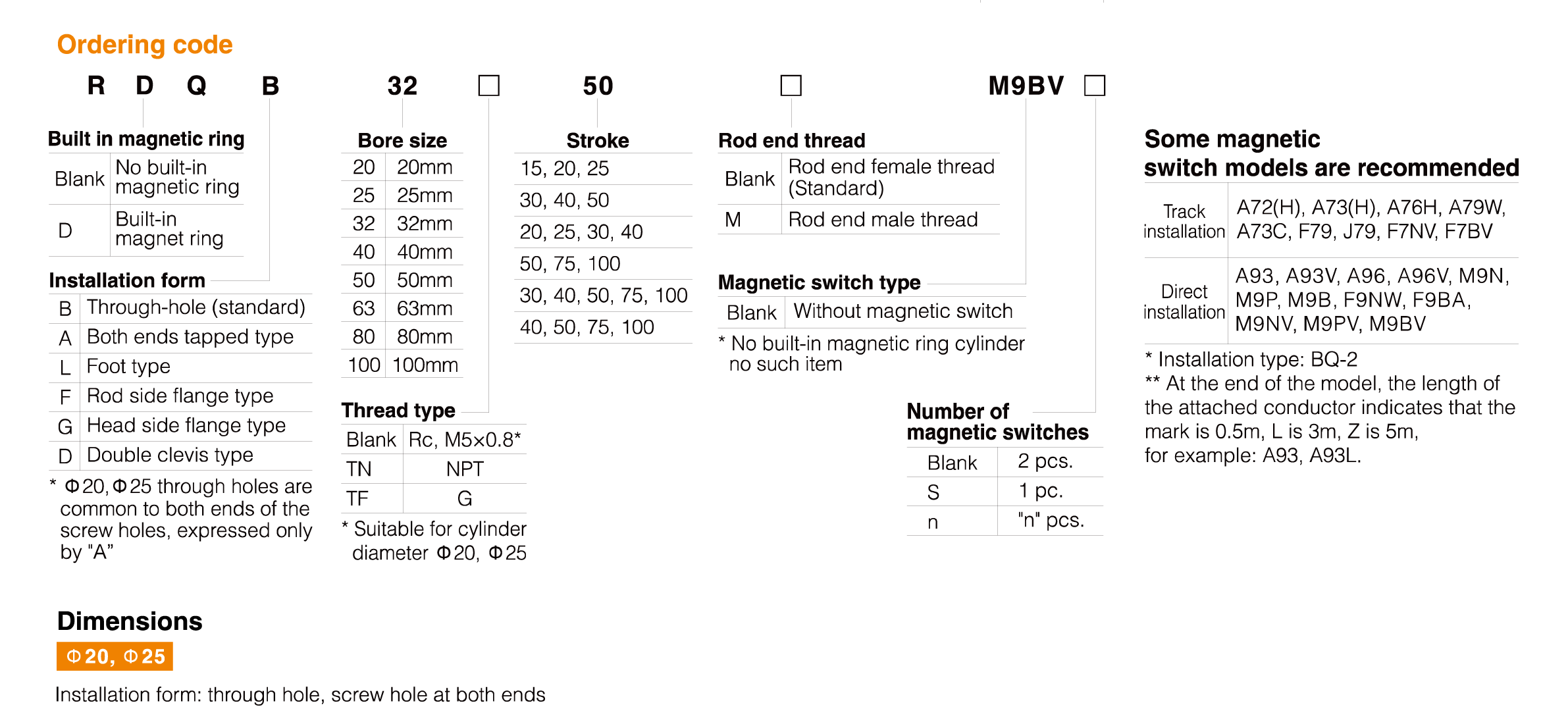

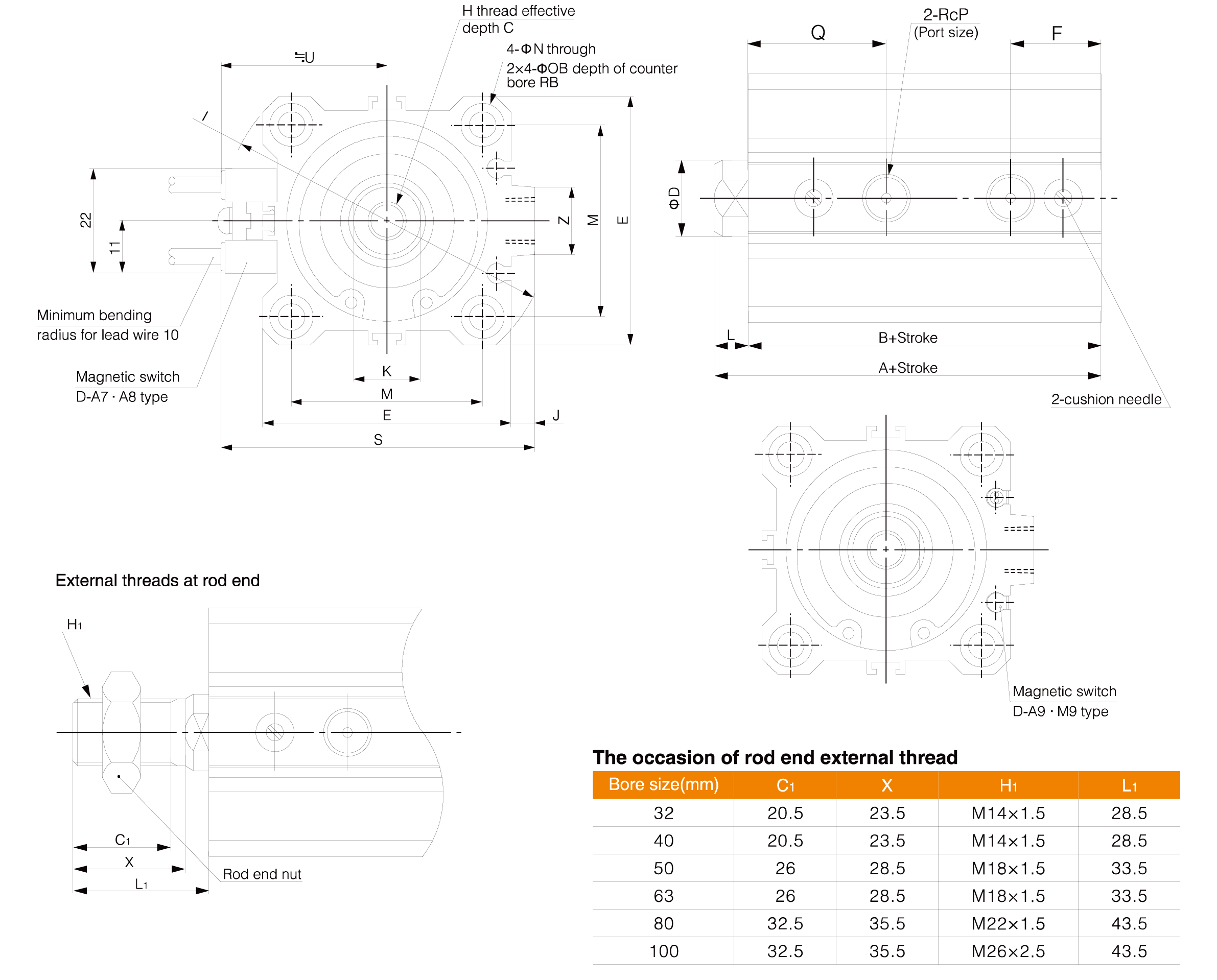

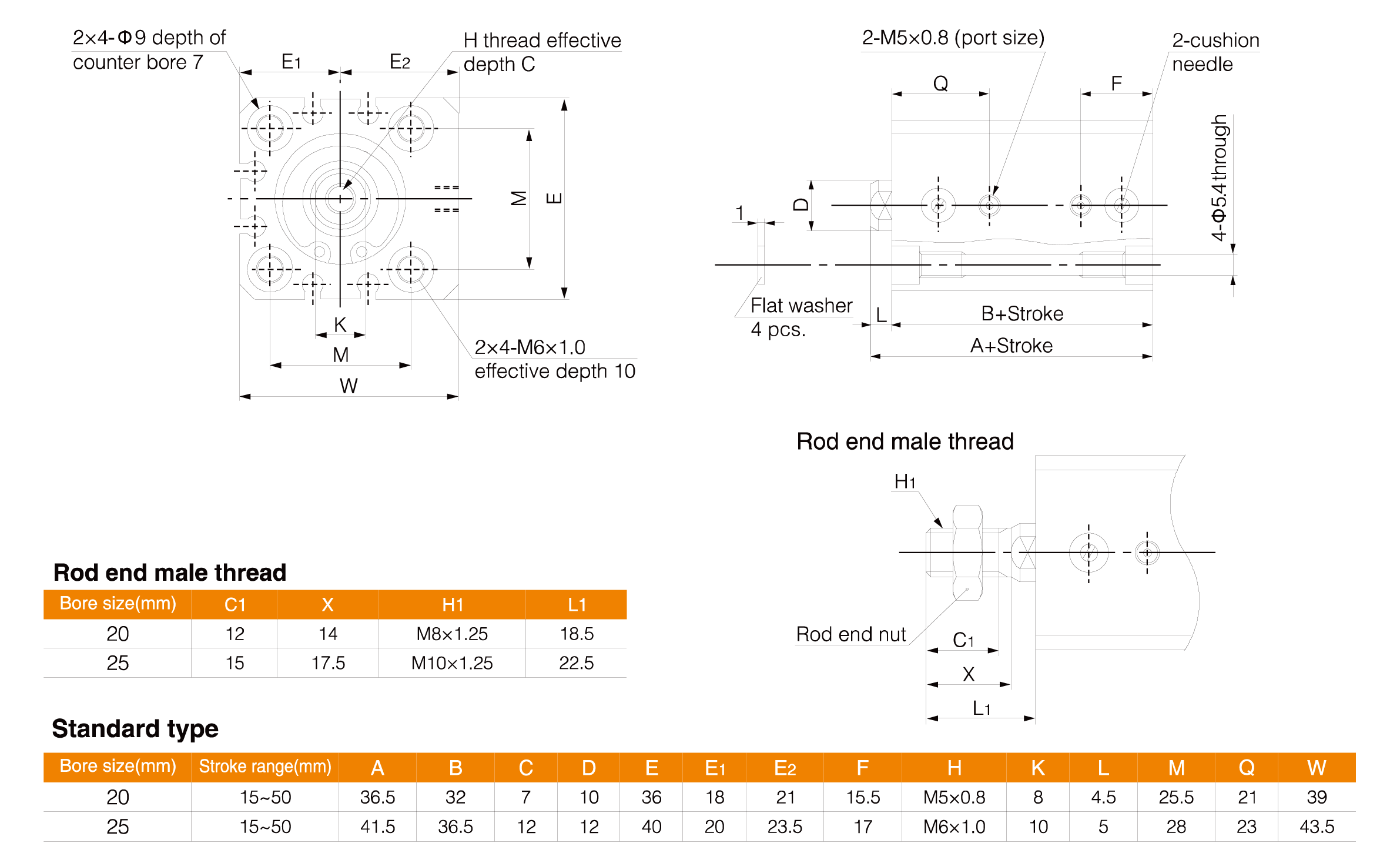

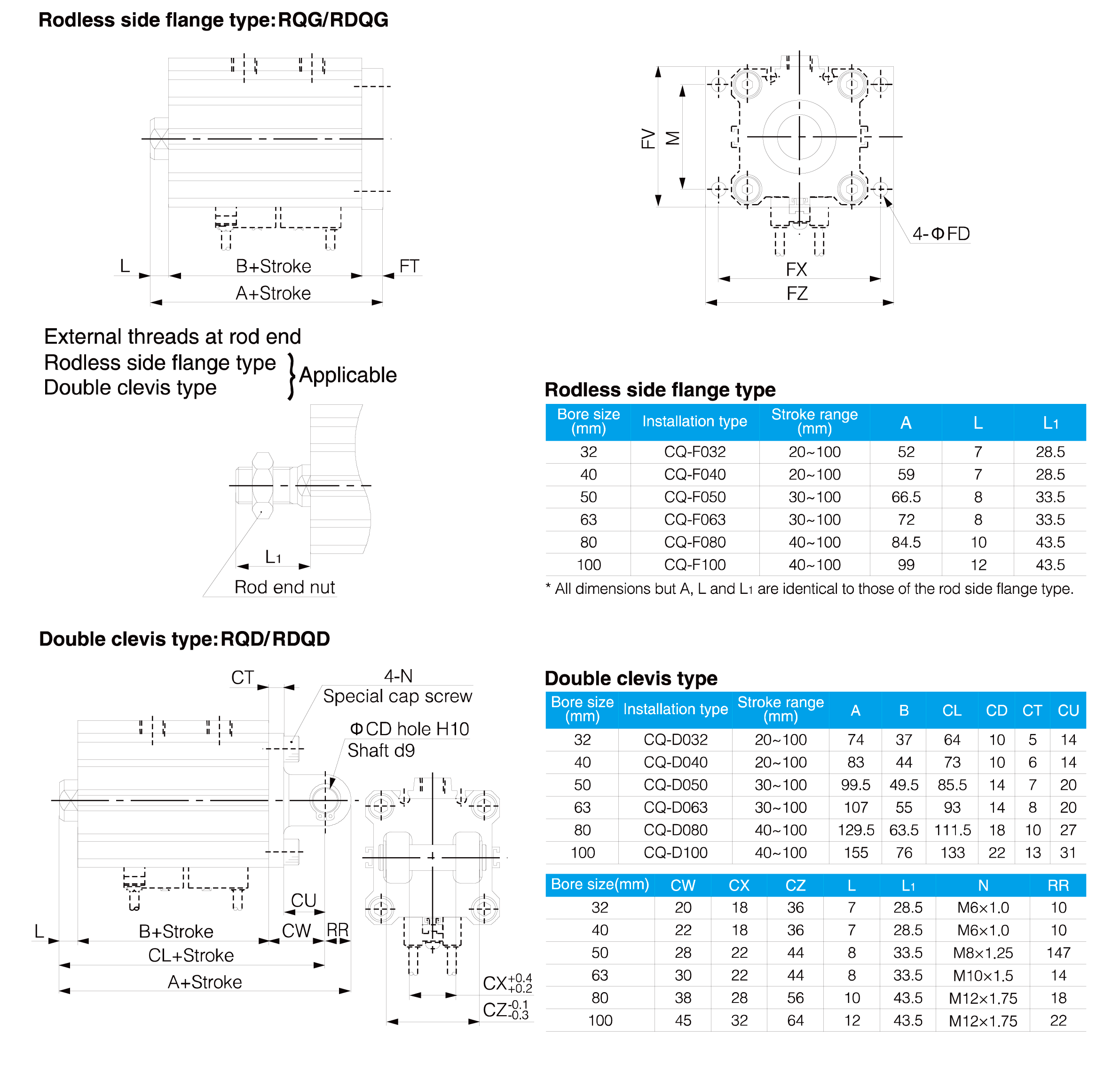

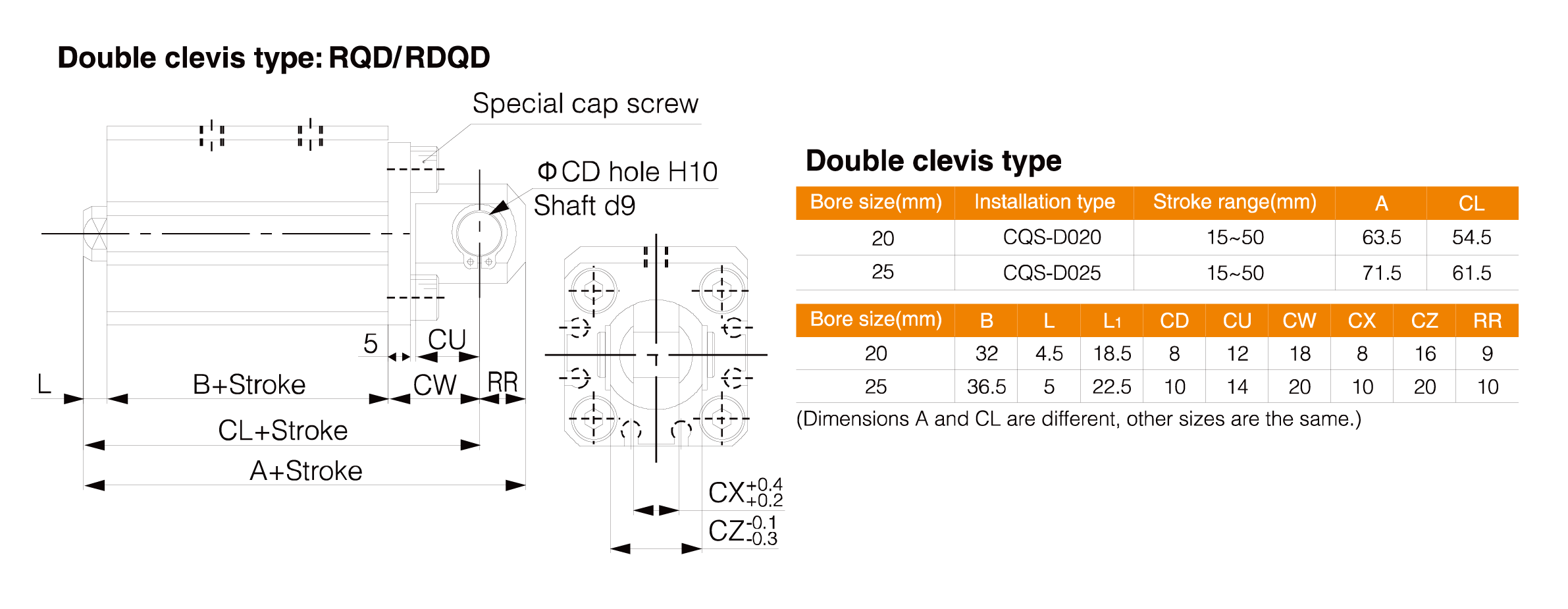

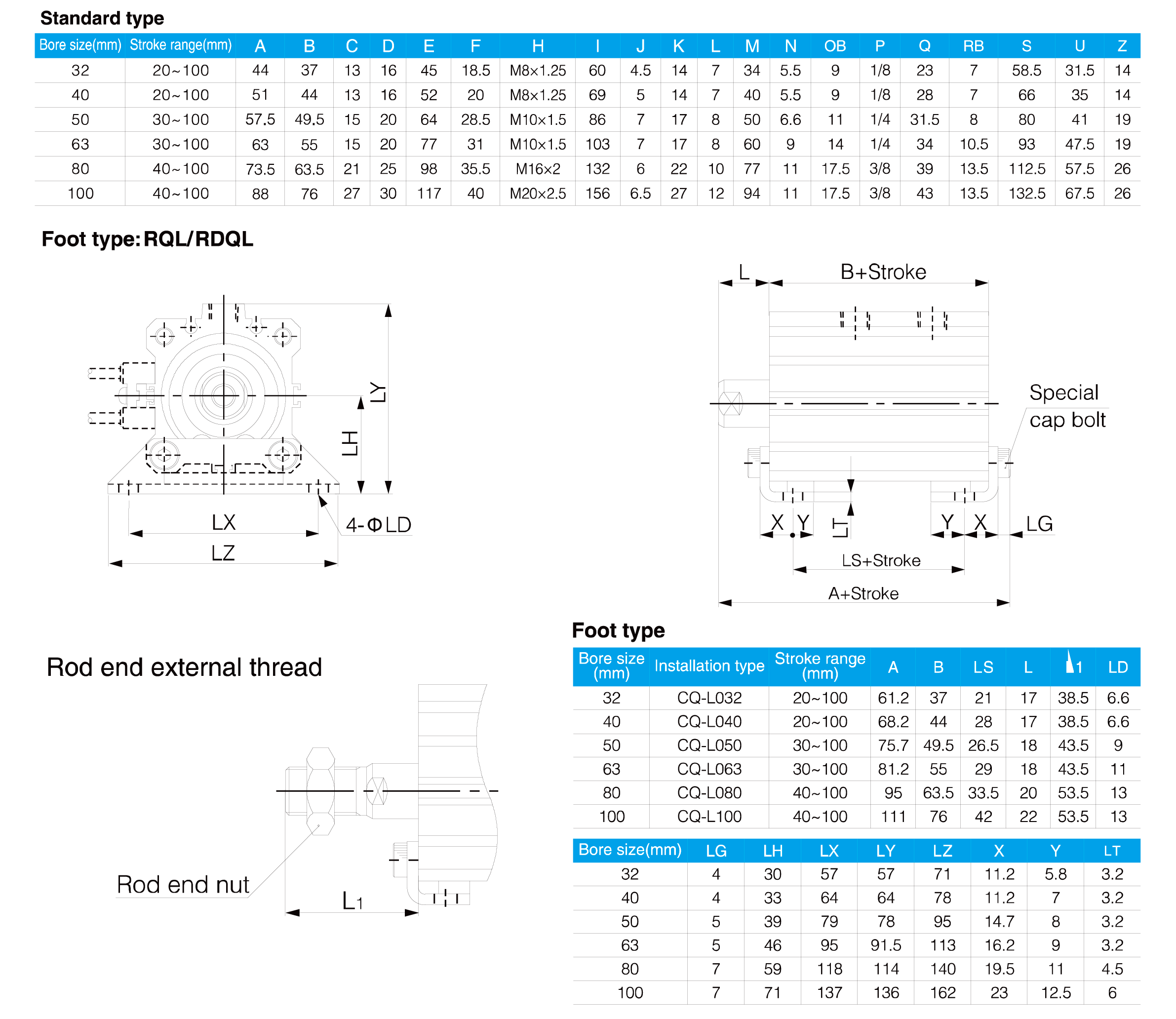

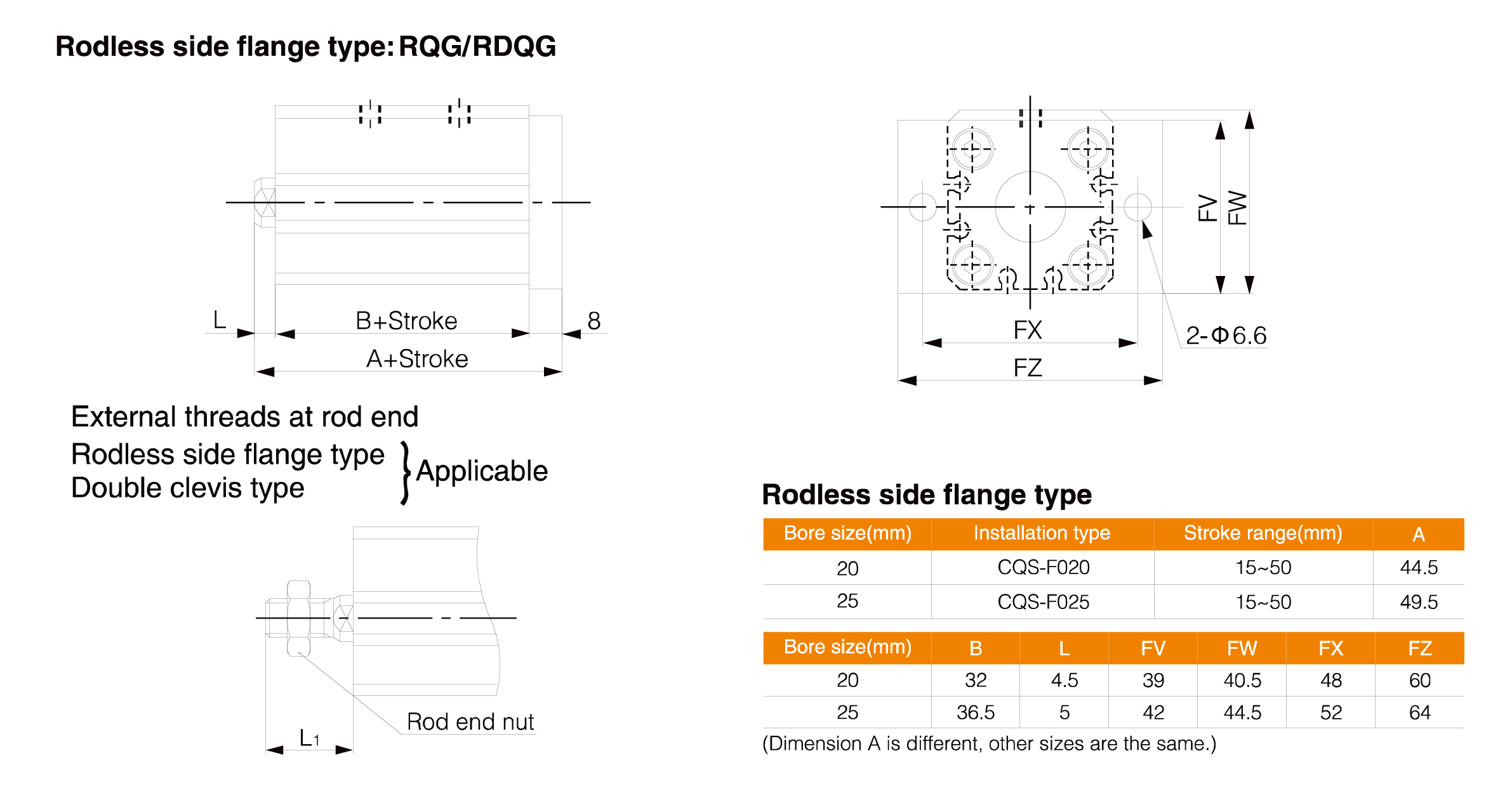

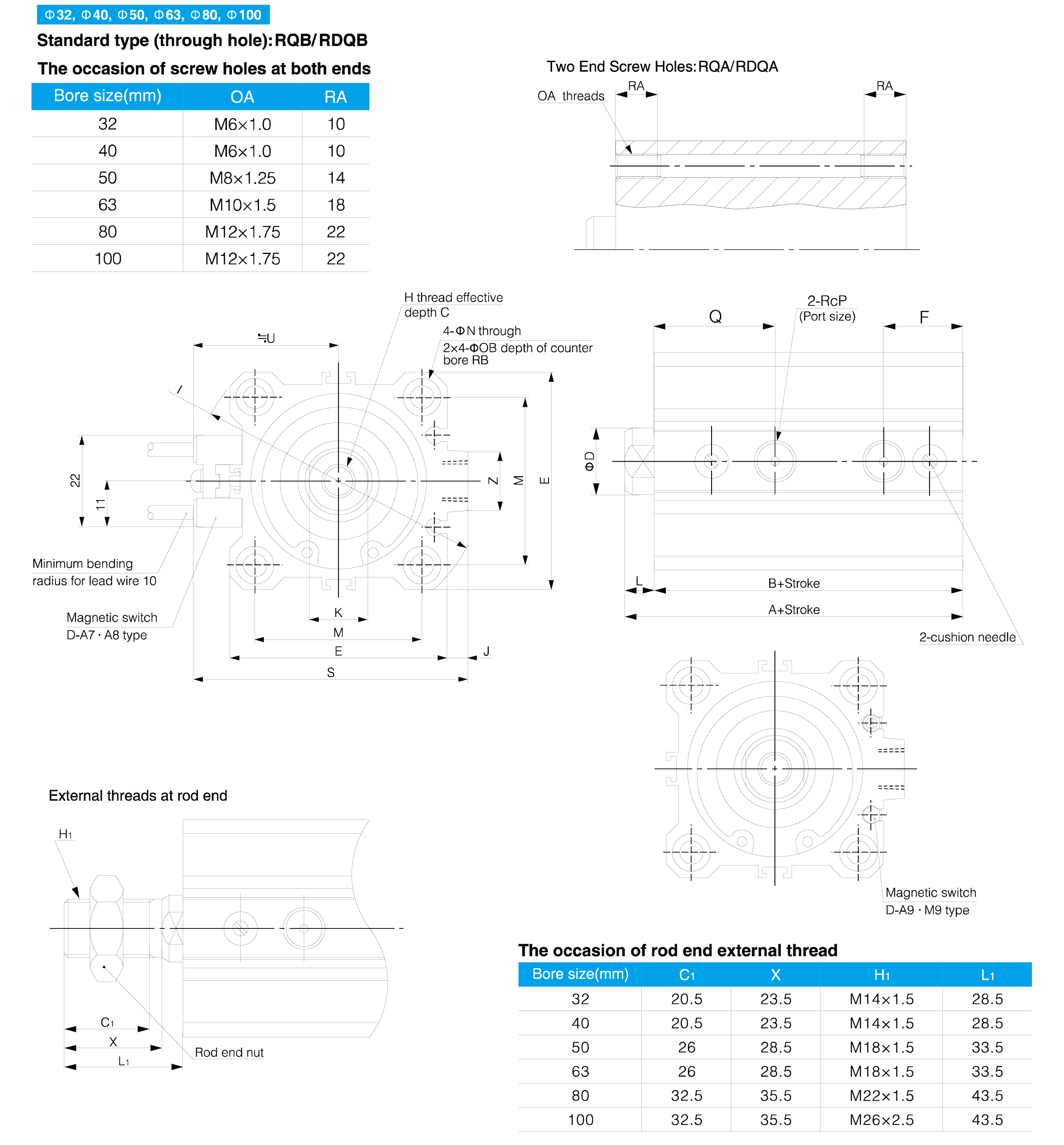

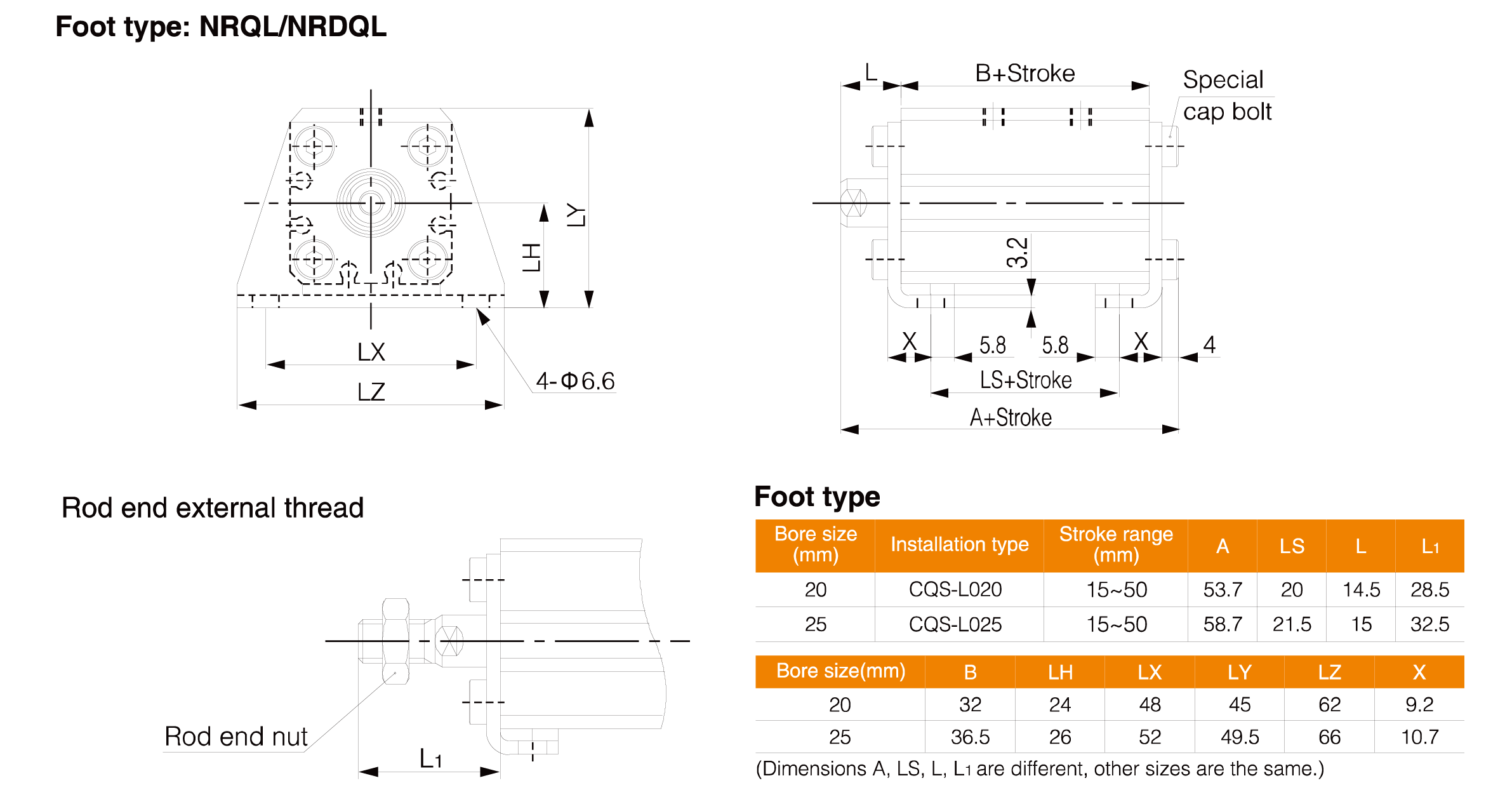

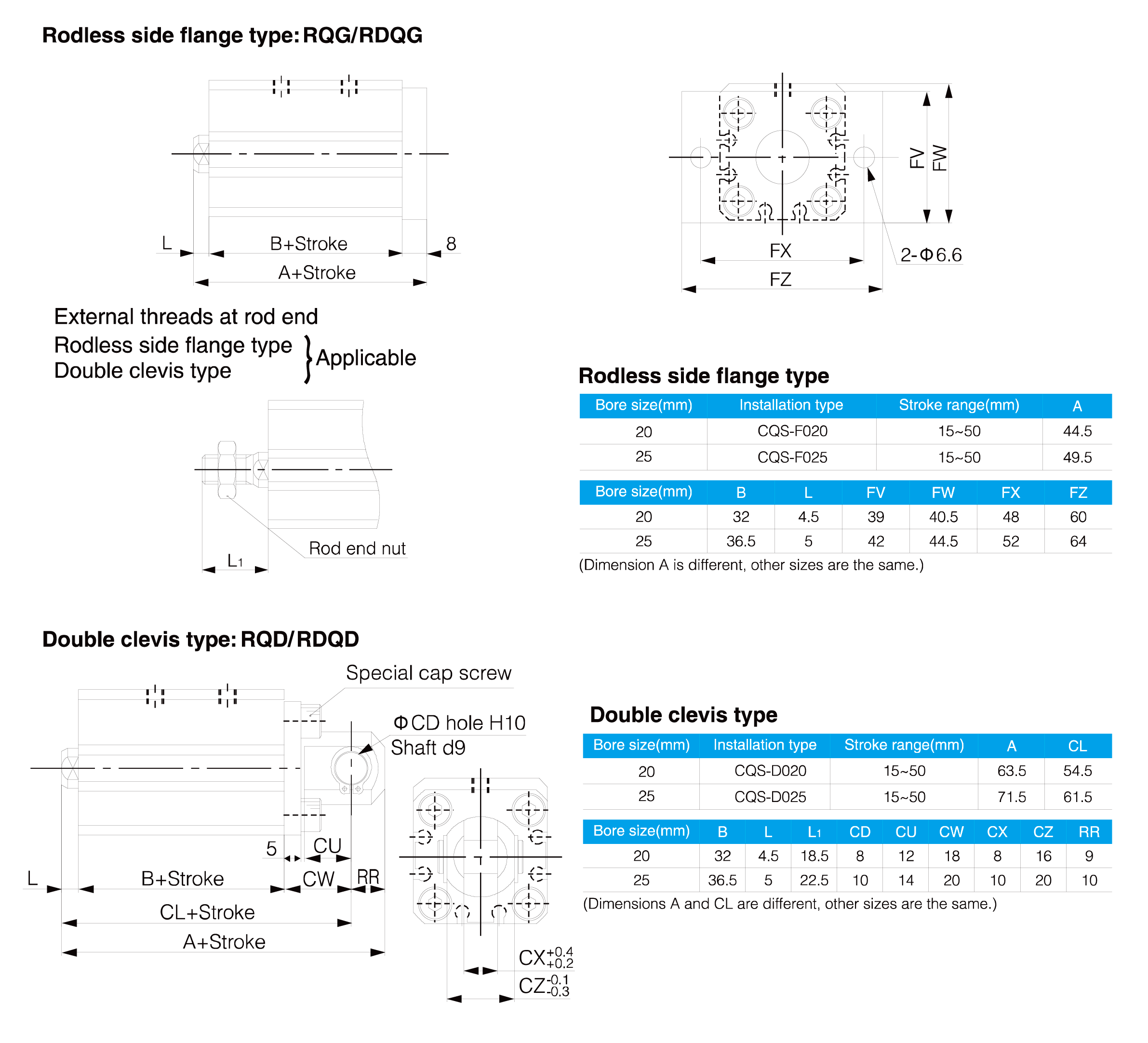

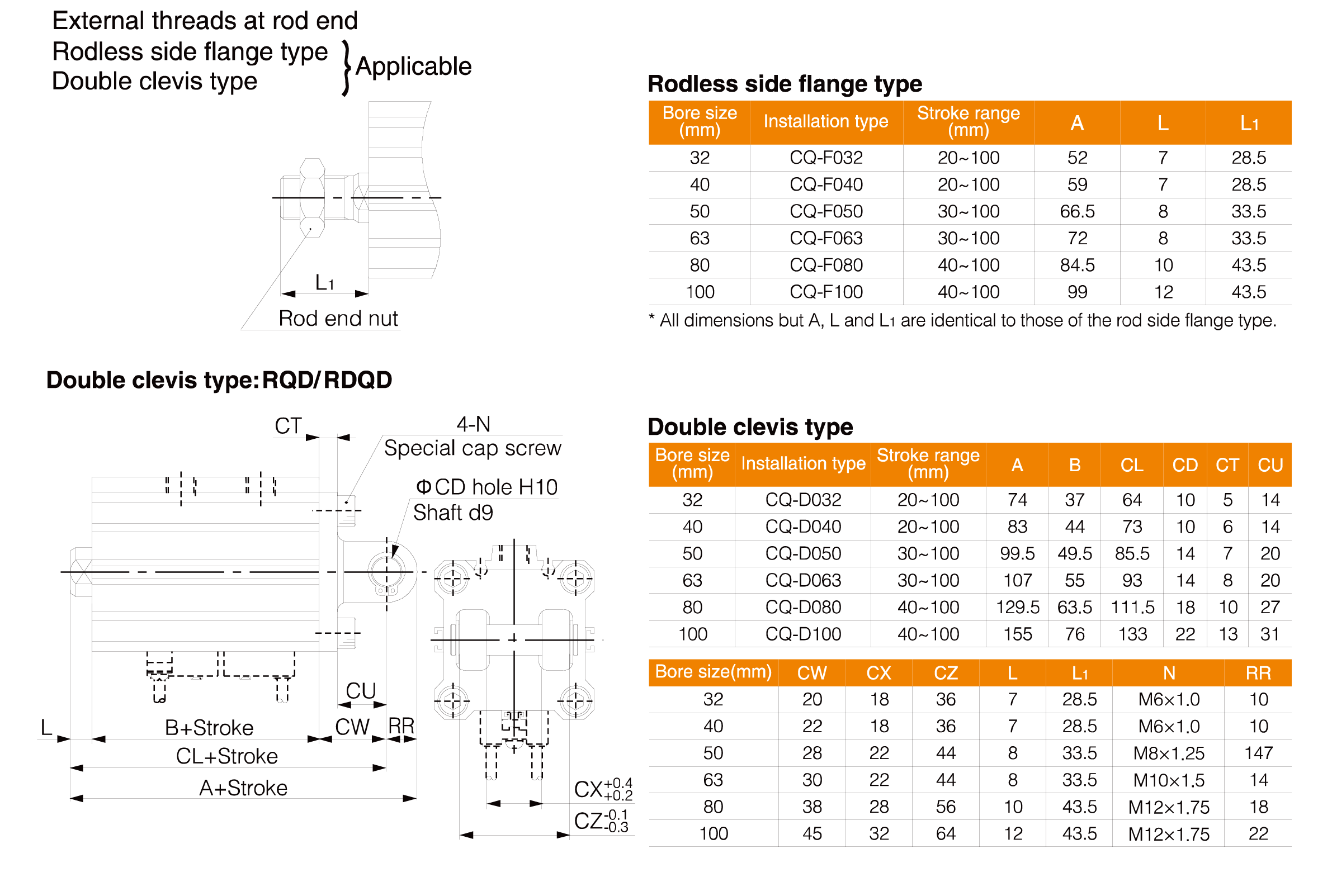

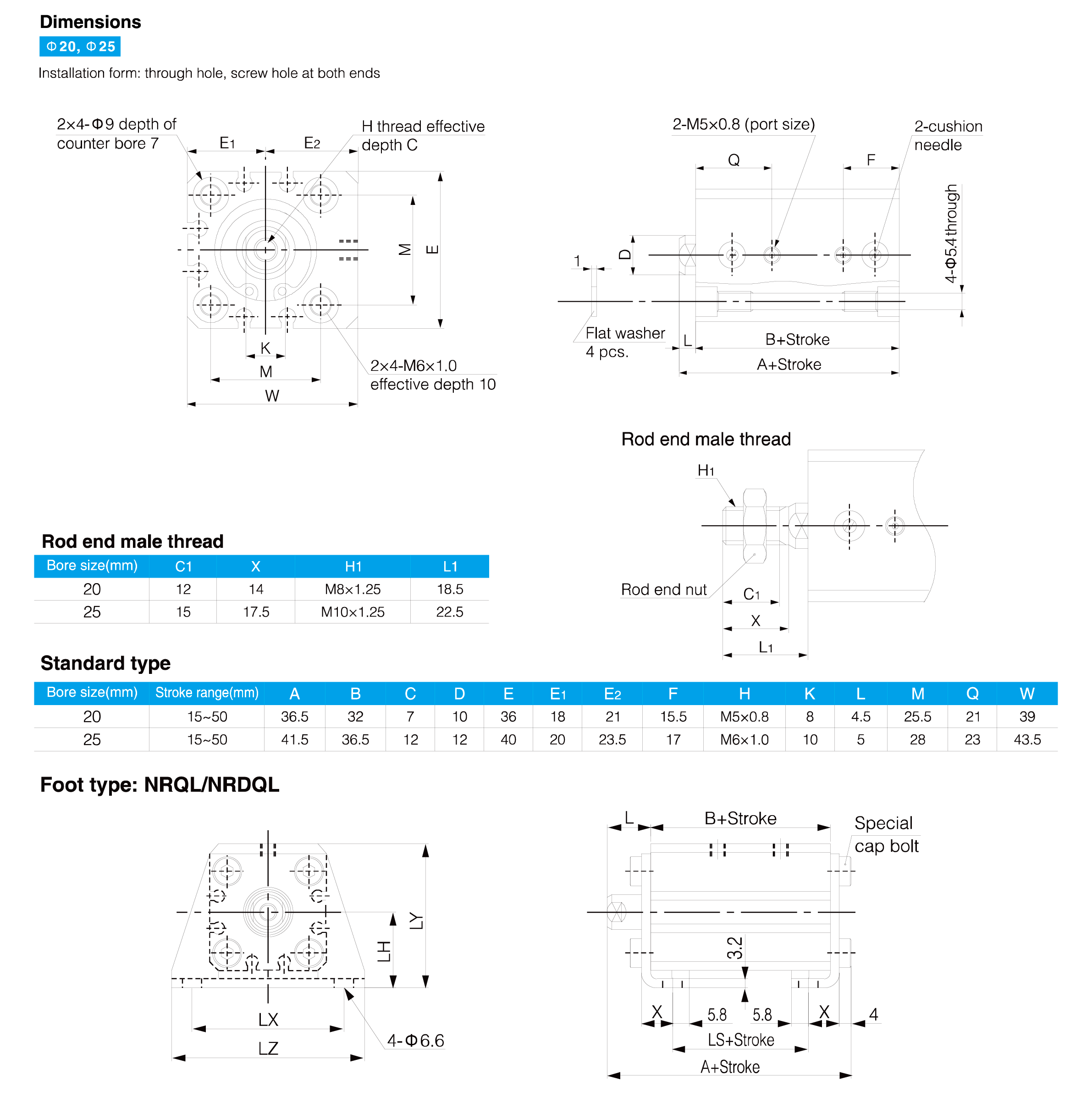

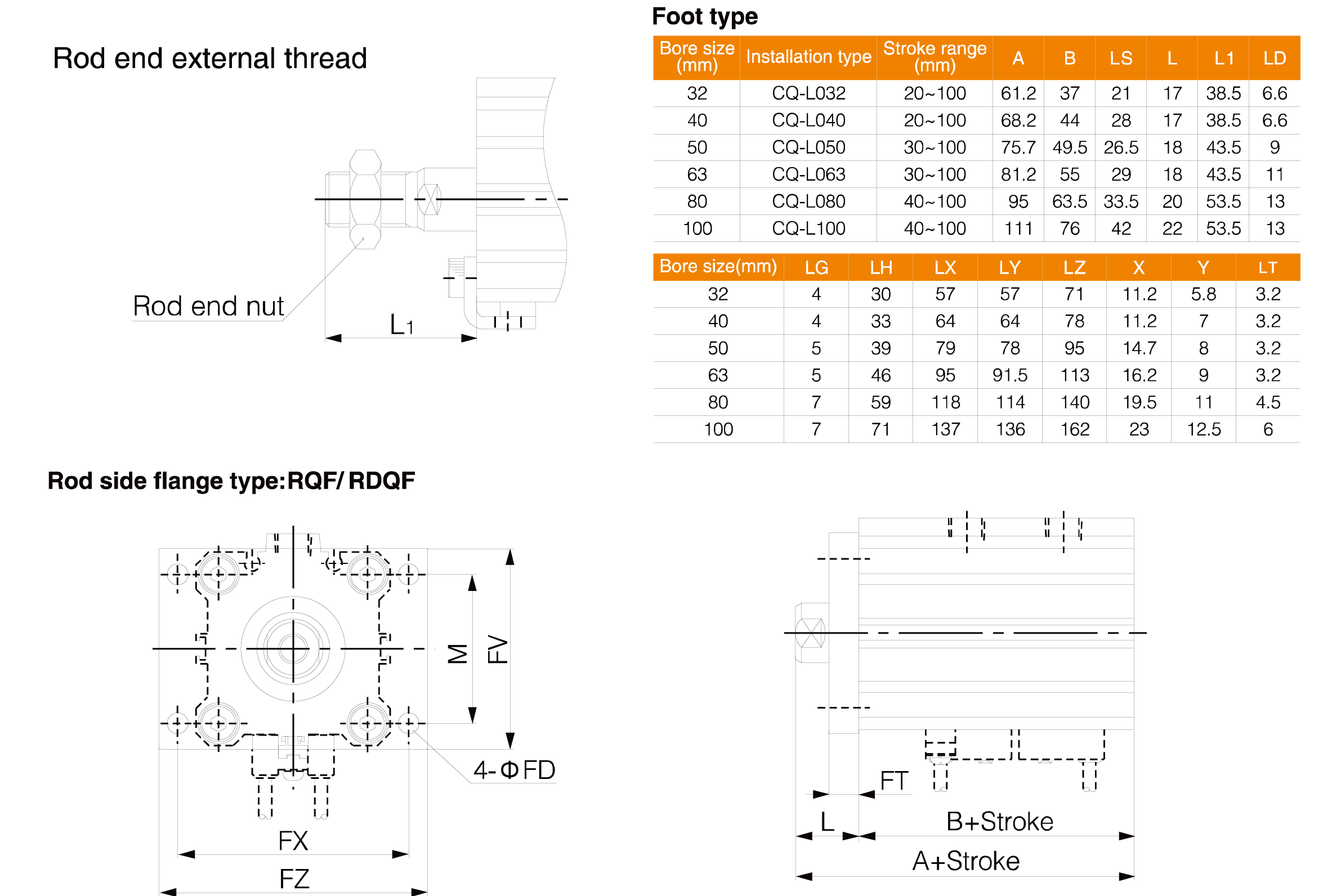

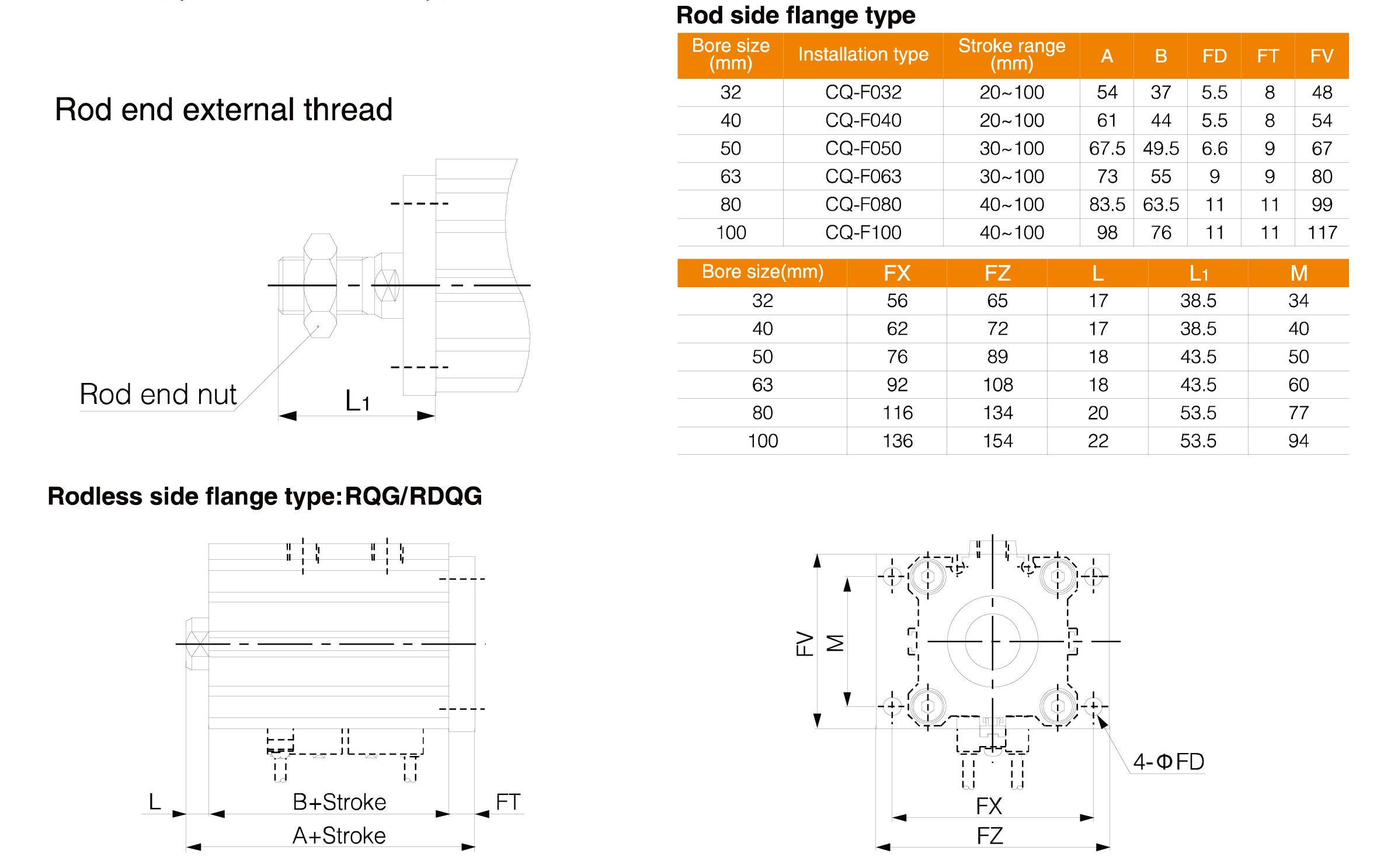

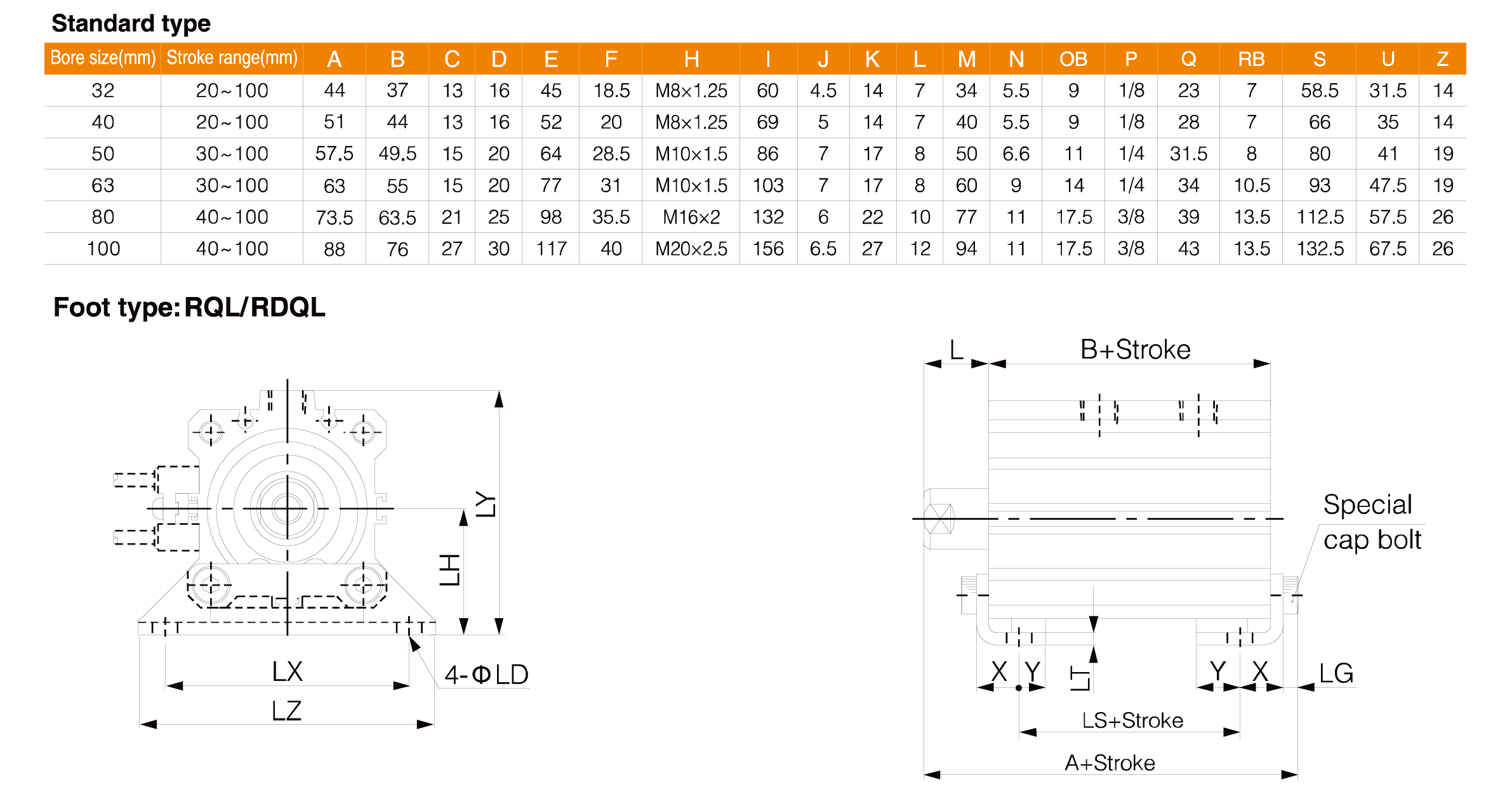

The RQ Series supports multiple mounting configurations to accommodate different equipment designs.
● Through-hole mounting
● Threaded end mounting
● Pedestal mounting
● Flange mounting
● Double clevis mounting
These options simplify machine integration and improve installation flexibility across various automation systems.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The RQ Series Compact Cylinder (With Air Cushion) is widely used in:
● High-speed packaging machinery
● Automated assembly equipment
● Pick-and-place systems
● Electronics manufacturing
● Conveyor automation
● Material handling systems
● Precision positioning equipment
● Semiconductor machinery
● Medical devices
● General industrial automation
The advanced air cushioning mechanism helps reduce impact and improve positioning consistency, making the cylinder particularly suitable for precision automation tasks.
Combining compact dimensions, innovative cushioning technology, and flexible installation options, the RQ Series Compact Cylinder provides a reliable solution for industrial applications requiring smooth, accurate, and repeatable pneumatic motion.
