The CQM Series Compact Cylinder (Guide Rod Type) is designed for precision linear motion applications requiring anti-rotation performance and enhanced guiding accuracy. Its integrated guide rod structure minimizes rotational movement while maintaining a compact installation footprint.
Featuring double-acting operation, rubber cushioning, and installation compatibility with CQS and CQ2 series cylinders, the CQM Series provides a reliable solution for pick-and-place systems, precision assembly equipment, and automated handling applications.
The CQM Series Compact Cylinder (Guide Rod Type) combines a compact pneumatic actuator with integrated guide rods to provide stable linear motion and excellent anti-rotation performance. The guided structure helps prevent unwanted piston rod rotation while improving positioning accuracy during operation.
Designed for precision automation equipment, the CQM Series offers compact installation dimensions and can interchange with CQS and CQ2 mounting layouts, simplifying machine upgrades and system integration.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Integrated guide rod structure
● High anti-rotation accuracy
● Double-acting single rod design
● Compact installation dimensions
● Rubber bumpers on both ends
● Smooth and stable linear motion
● Compatible with CQS and CQ2 mounting dimensions
● Optional magnetic switch compatibility
● Maintenance-friendly operation
● Suitable for precision automation
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
Unlike conventional compact cylinders, the CQM Series incorporates guide rods that provide additional support for the moving assembly.
This guided structure offers several advantages:
● Improved movement stability
● Reduced rotational movement
● Better positioning accuracy
● Enhanced load guidance
● Increased operational reliability
The anti-rotation accuracy is maintained within 0.2°, making the cylinder suitable for precision handling and assembly tasks.
Note: The CQM Series is designed for guided motion and should not be used as a mechanical stopper.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CQM Series uses filtered compressed air and is designed for long-term industrial operation.

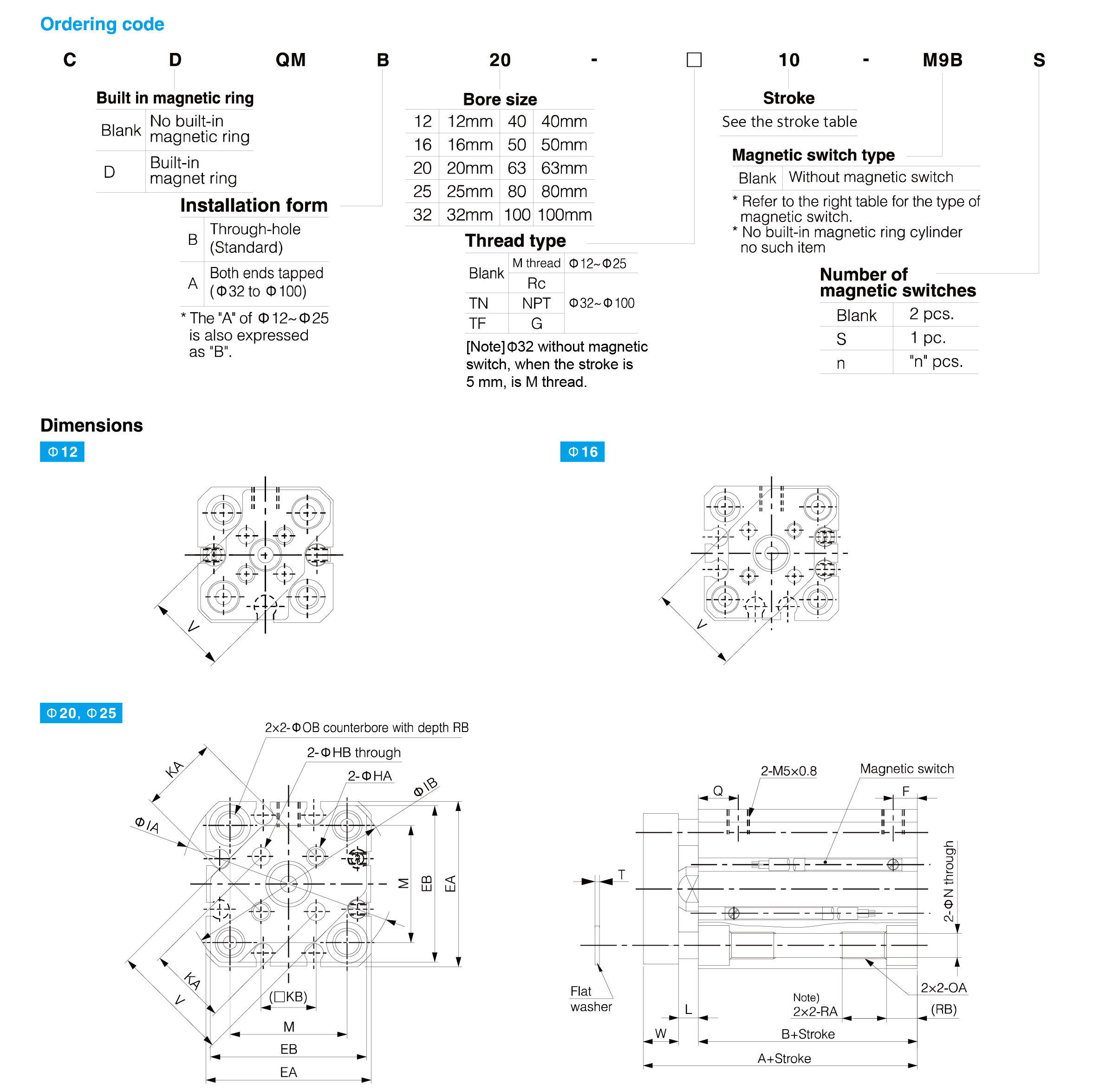

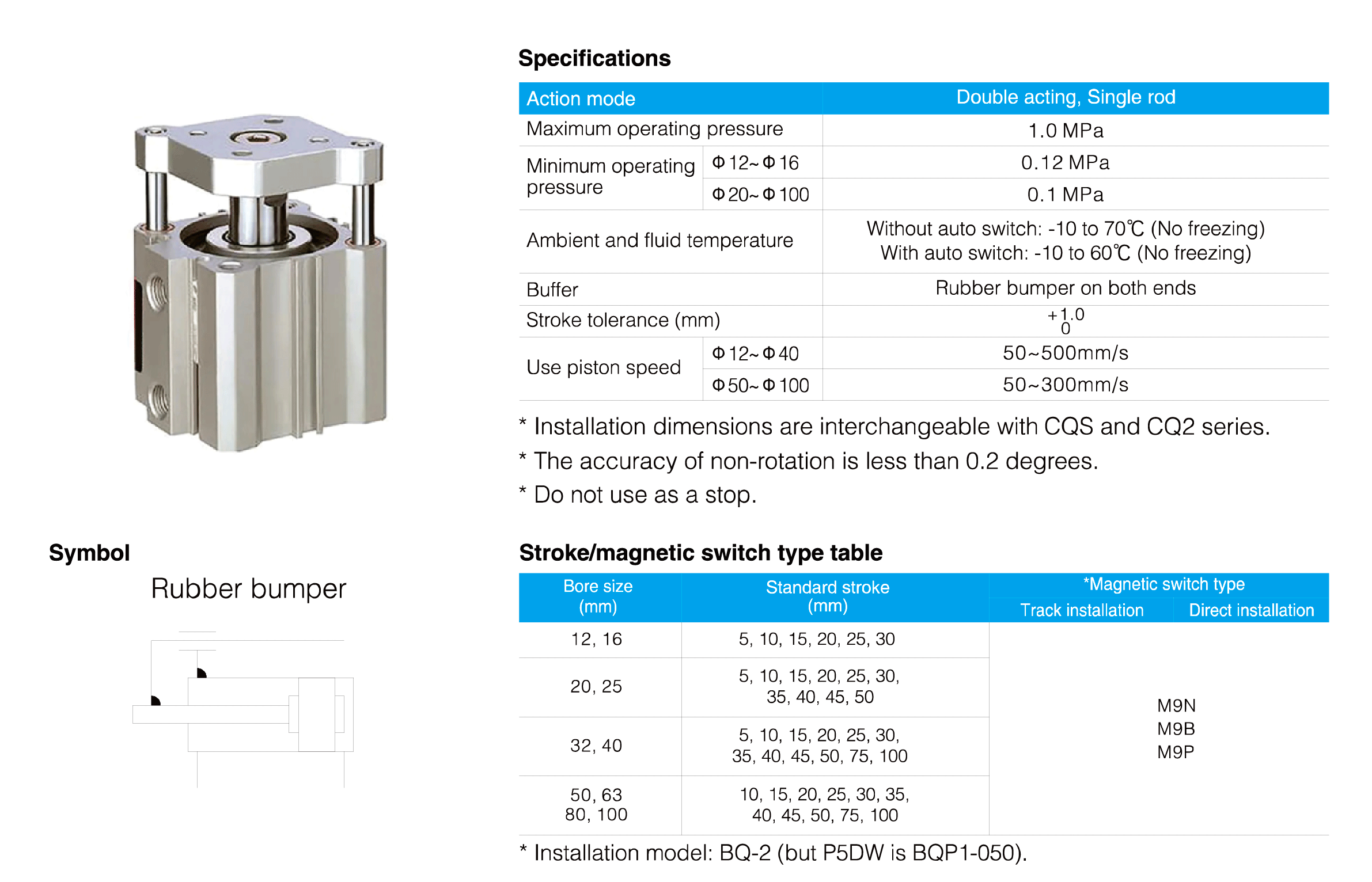

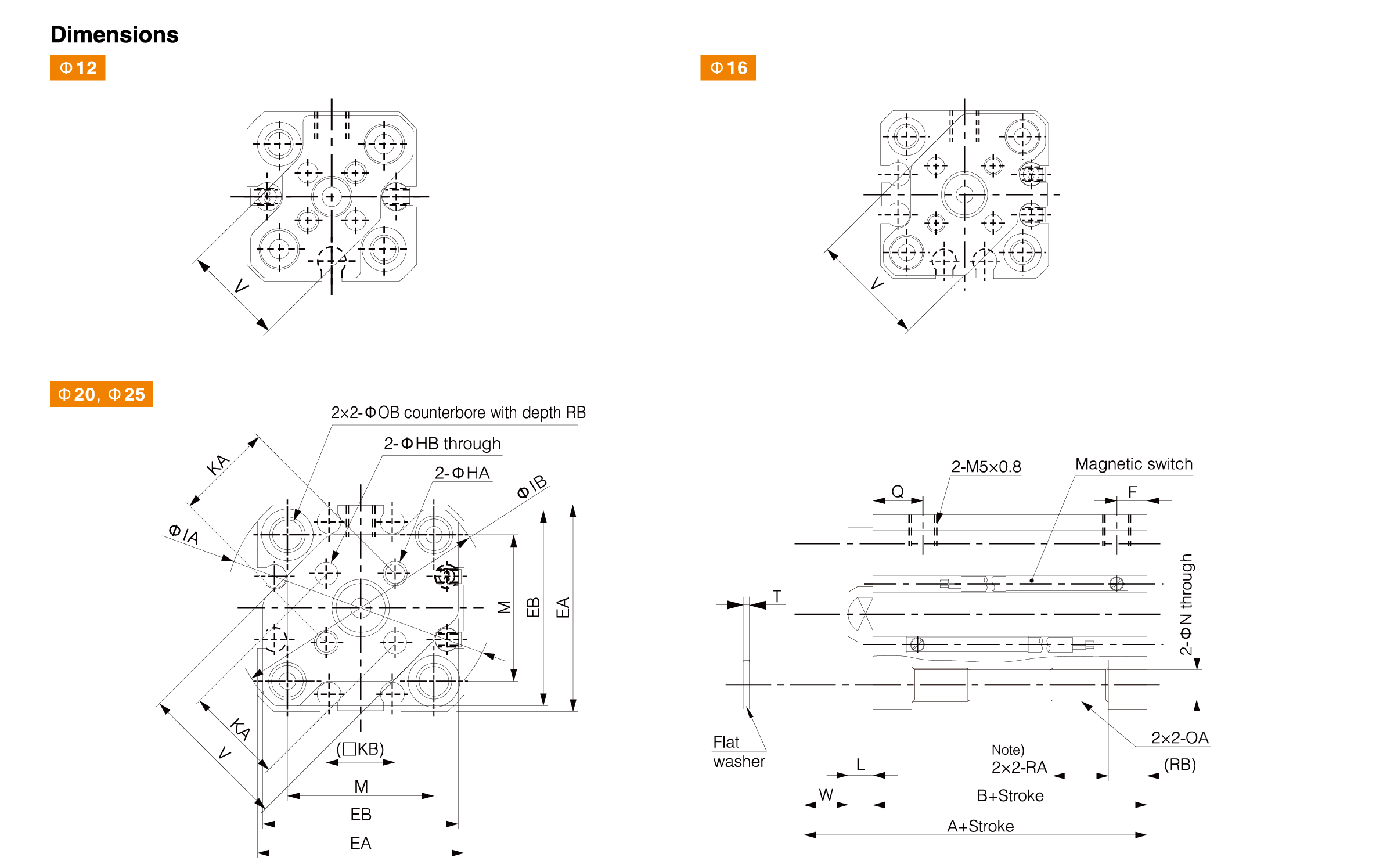

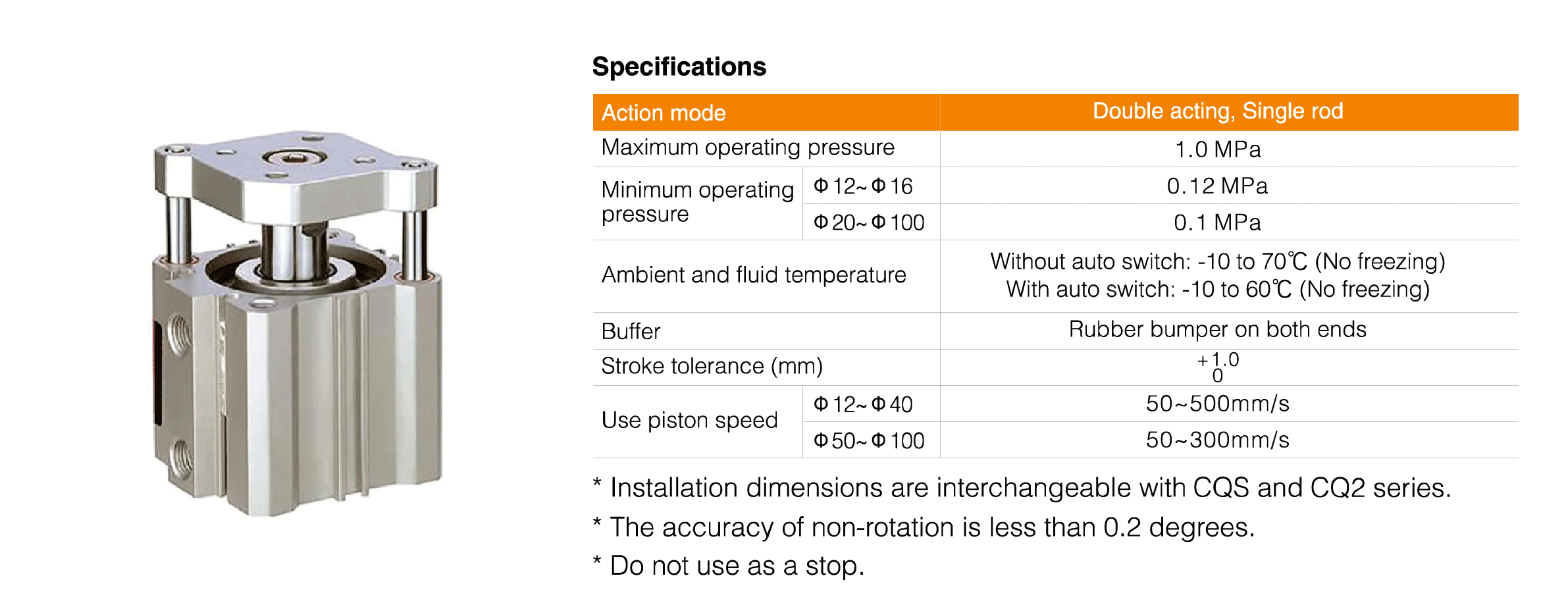

| Parameter | Specification |
| Action Type | Double Acting, Single Rod |
| Maximum Pressure | 1.0 MPa |
| Minimum Pressure | 0.10–0.12 MPa |
| Piston Speed | 50–500 mm/s (Ø12–40) |
| 50–300 mm/s (Ø50–100) | |
| Cushion | Rubber bumpers on both ends |
| Working Temperature | -10°C to 70°C |
| Auto Switch Temperature | -10°C to 60°C |
| Stroke Tolerance | ±1.0 mm |

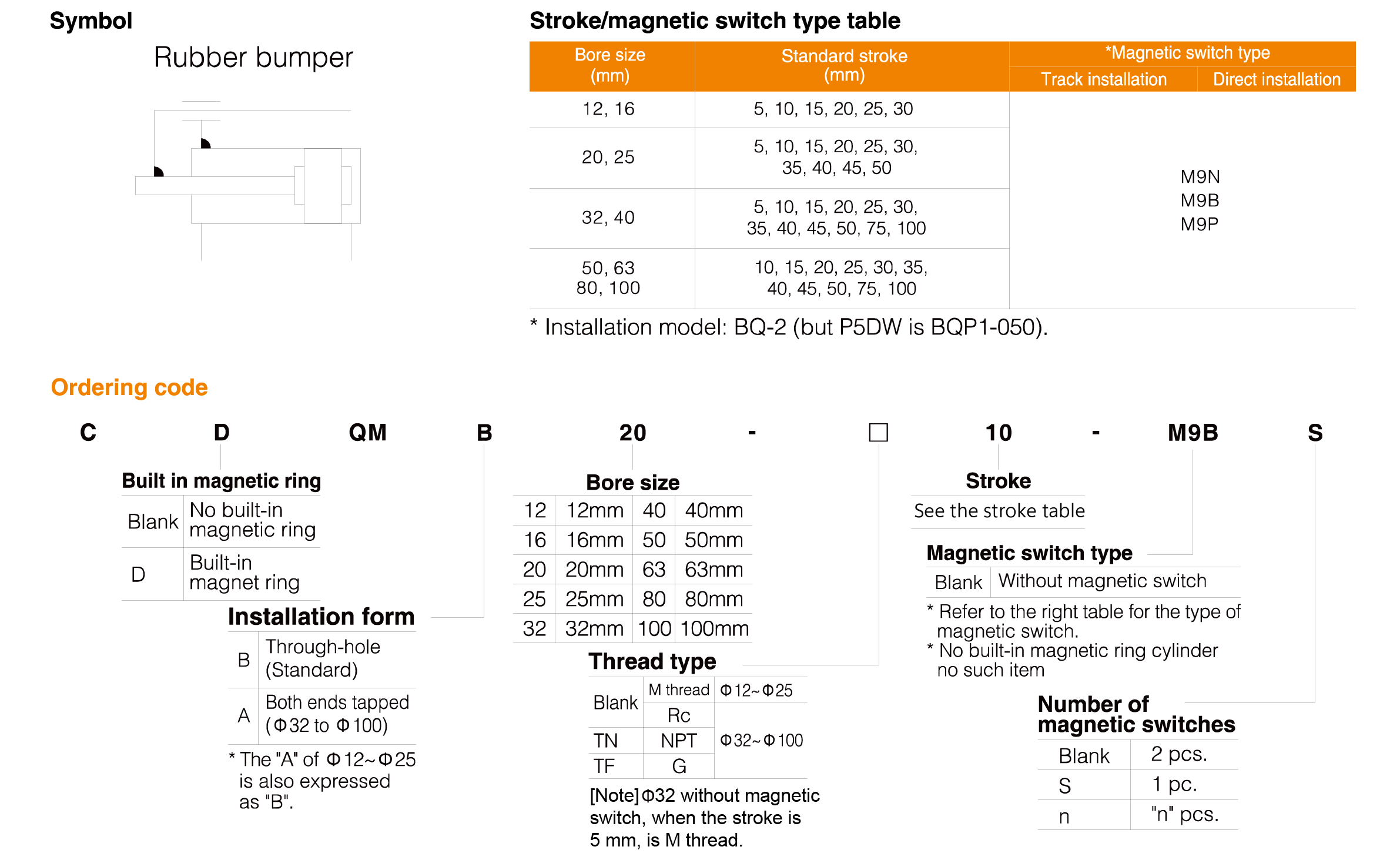

Rubber bumpers at both ends help reduce impact and improve operating smoothness during repeated cycling.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

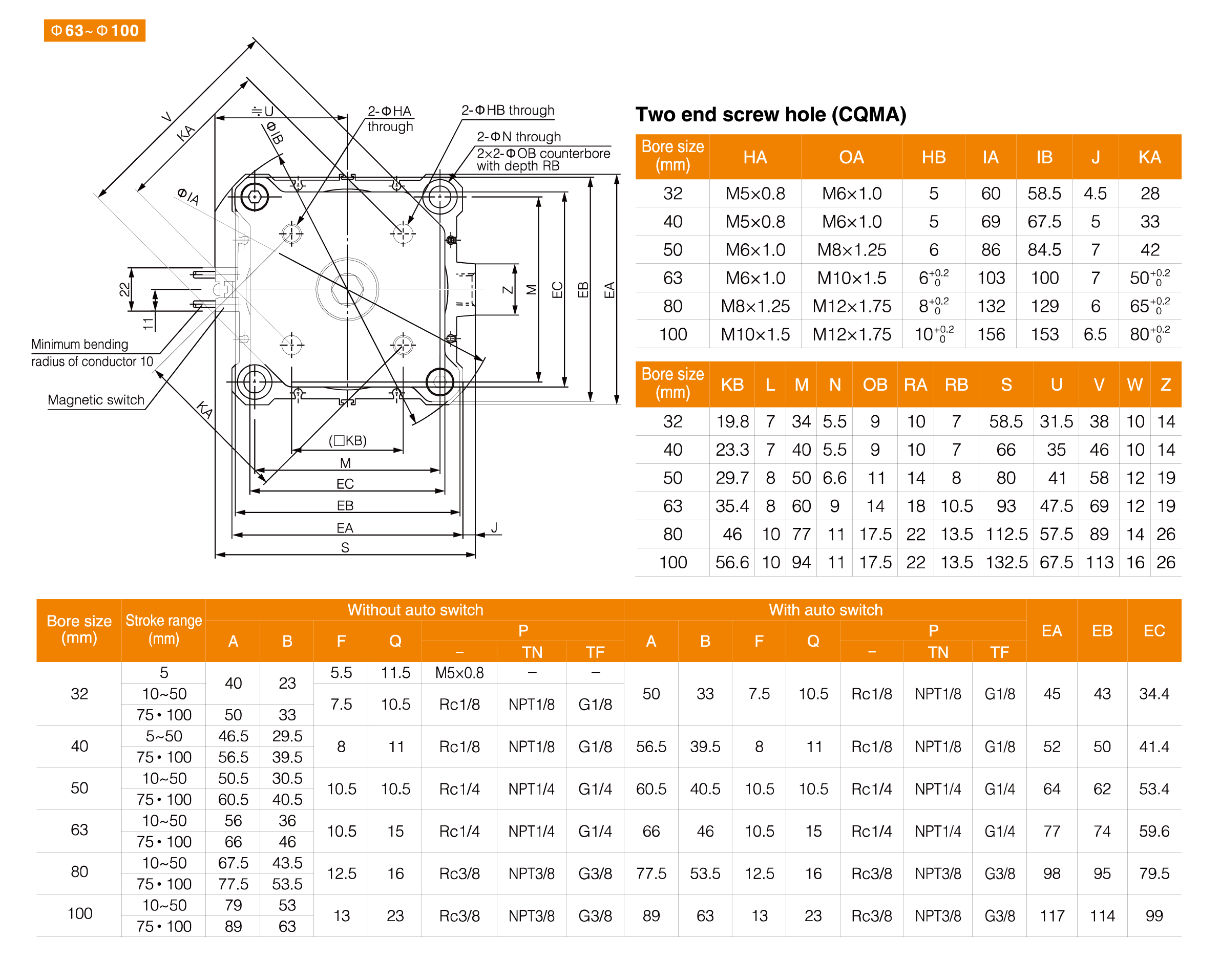

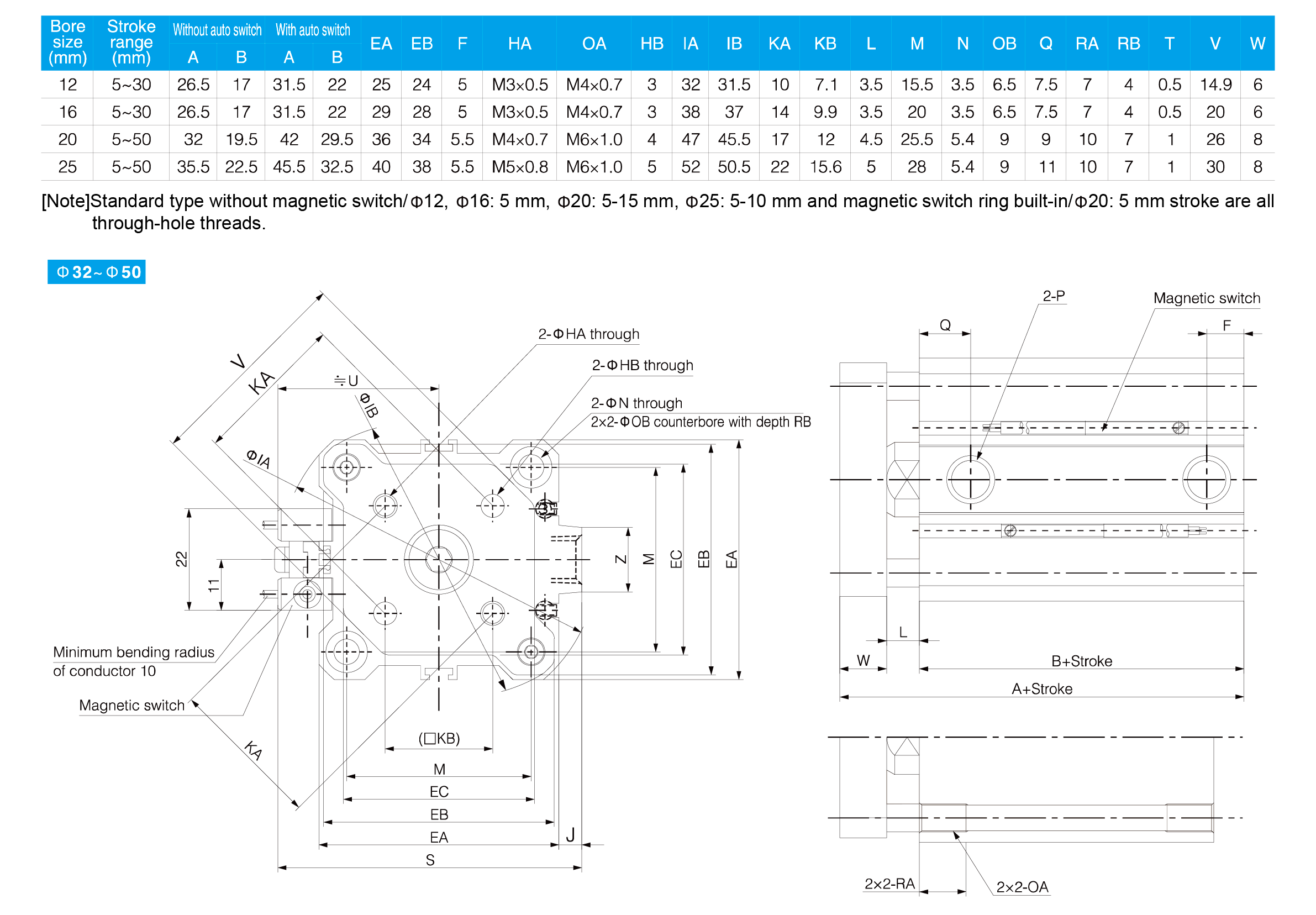

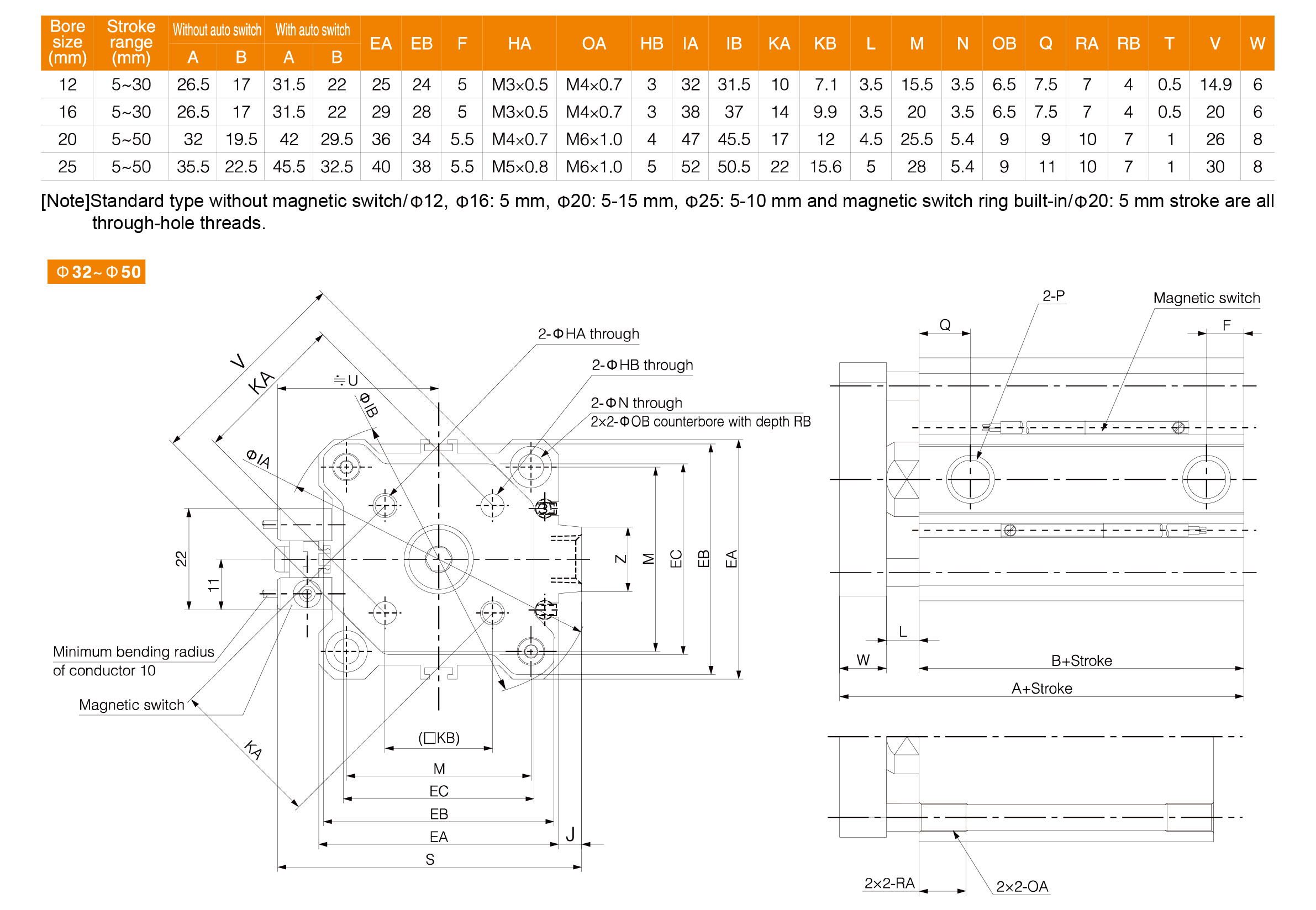

One of the major advantages of the CQM Series is its installation compatibility.
The mounting dimensions are interchangeable with:
● CQS Series Compact Cylinders
● CQ2 Series Compact Cylinders
This compatibility allows machine builders to upgrade from standard compact cylinders to guided cylinders without major equipment modifications.
The compact structure also helps reduce installation space while maintaining precise linear guidance.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The integrated guide rod mechanism improves load stability and makes the CQM Series suitable for applications requiring accurate linear movement and controlled orientation.
Typical uses include:
● Precision positioning
● Pick-and-place equipment
● Electronics assembly
● Small handling devices
● Component transfer systems
● Packaging machinery
● Semiconductor equipment
● Laboratory automation
● Medical machinery
● General industrial automation
The guide rod design provides stable movement while helping maintain consistent positioning accuracy throughout the operating cycle.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CQM Series Compact Cylinder (Guide Rod Type) is ideal for automation systems that require compact dimensions, guided linear motion, and reliable anti-rotation performance.
Combining integrated guide rods, compact installation, high positioning accuracy, and compatibility with CQS and CQ2 mounting standards, the CQM Series offers an efficient pneumatic solution for precision industrial automation.
