The CQ2 Series Compact Cylinder is designed for industrial automation applications where installation space is limited but reliable pneumatic performance is essential. Its compact body reduces overall machine size while maintaining stable linear motion and flexible installation options.
Available in both double-acting and single-acting versions, the CQ2 Series supports optional magnetic switches and multiple mounting methods, making it suitable for a wide variety of automation and handling applications.
The CQ2 Series Compact Cylinder is engineered to provide efficient pneumatic actuation in applications with limited installation space. Its low-profile body design allows equipment manufacturers to reduce machine dimensions without sacrificing performance or reliability.
With multiple bore sizes, flexible rod configurations, and optional magnetic switch compatibility, the CQ2 Series is widely used in compact automation systems requiring accurate and dependable linear motion.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Compact and space-saving design
● Double-acting and single-acting versions available
● Optional magnetic switch compatibility
● Internal rod thread as standard
● External rod thread available
● Maintenance-free non-lubricated operation
● Flexible mounting methods
● Stable pneumatic performance
● Wide range of bore sizes
● Suitable for industrial automation
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CQ2 Series is specifically designed for applications where machine space is restricted. Its compact body minimizes installation dimensions while maintaining sufficient output force for various automation tasks.
The reduced overall size allows easier equipment layout and supports modern machine designs that prioritize compactness and efficiency.
Multiple bore sizes from 12 mm to 100 mm provide flexibility for different load requirements.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

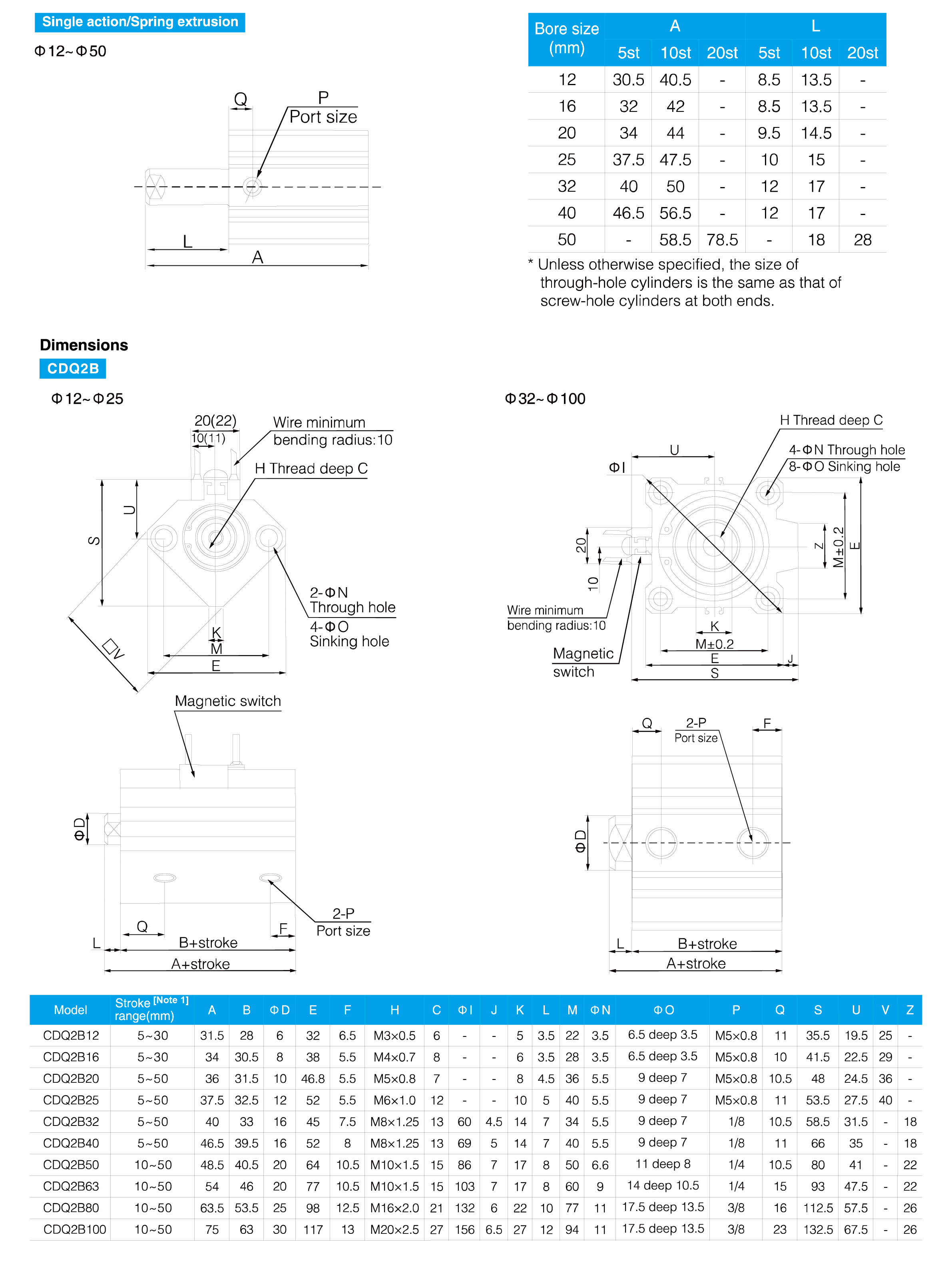

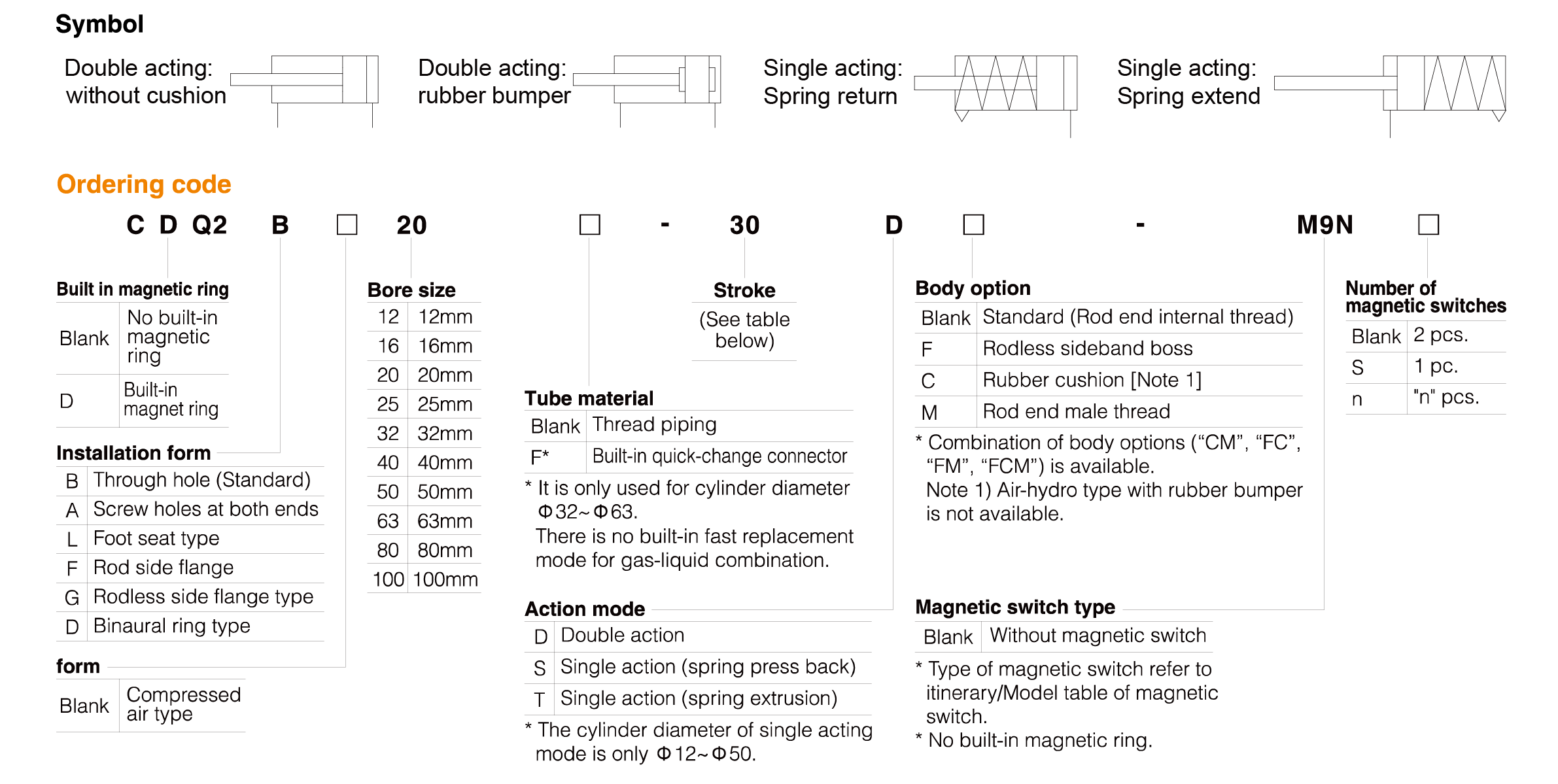

The CQ2 Series offers both double-acting and single-acting operation to meet different application needs.
Available options include:
● Double-acting
● Single-acting spring return
● Single-acting spring extend

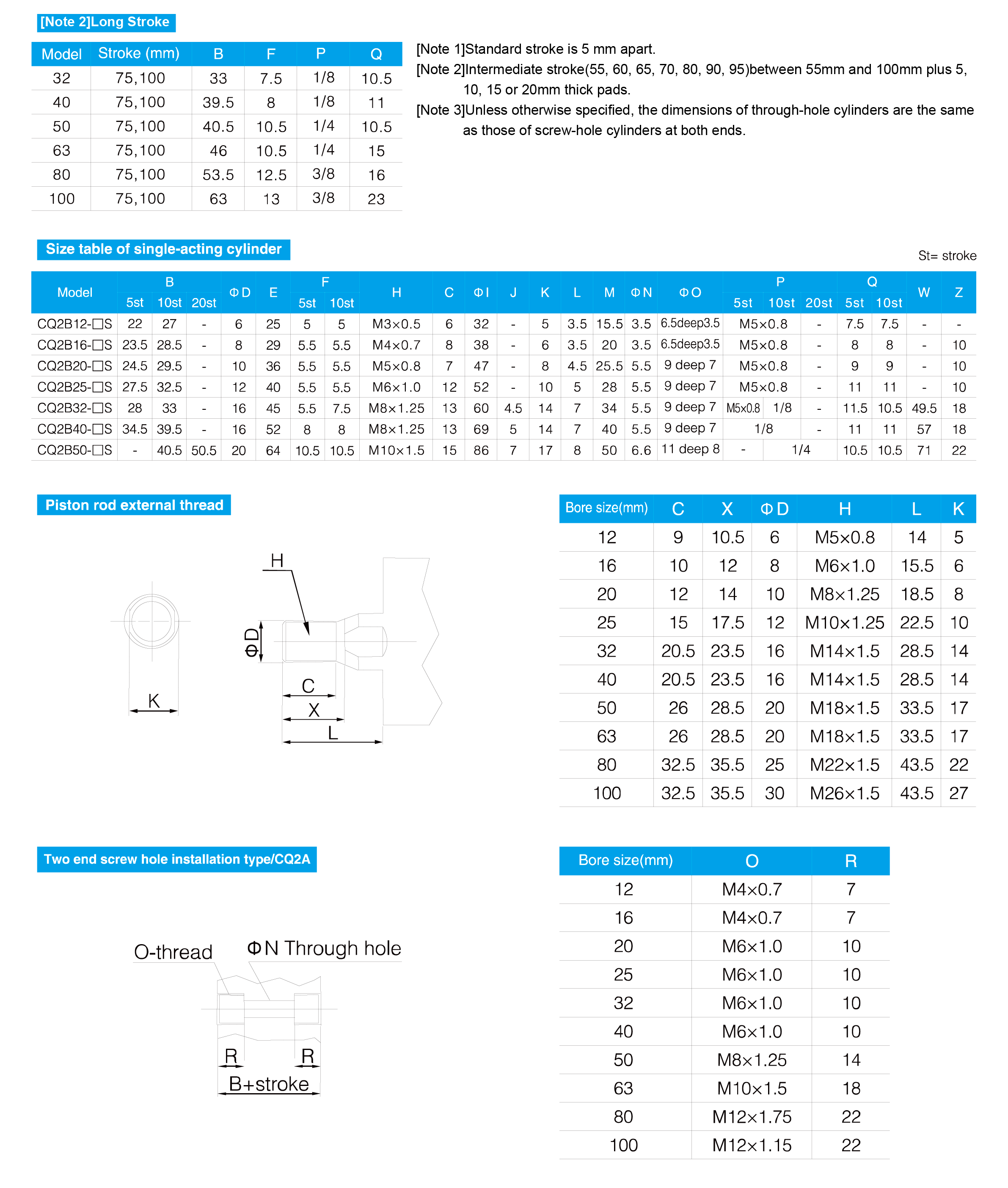

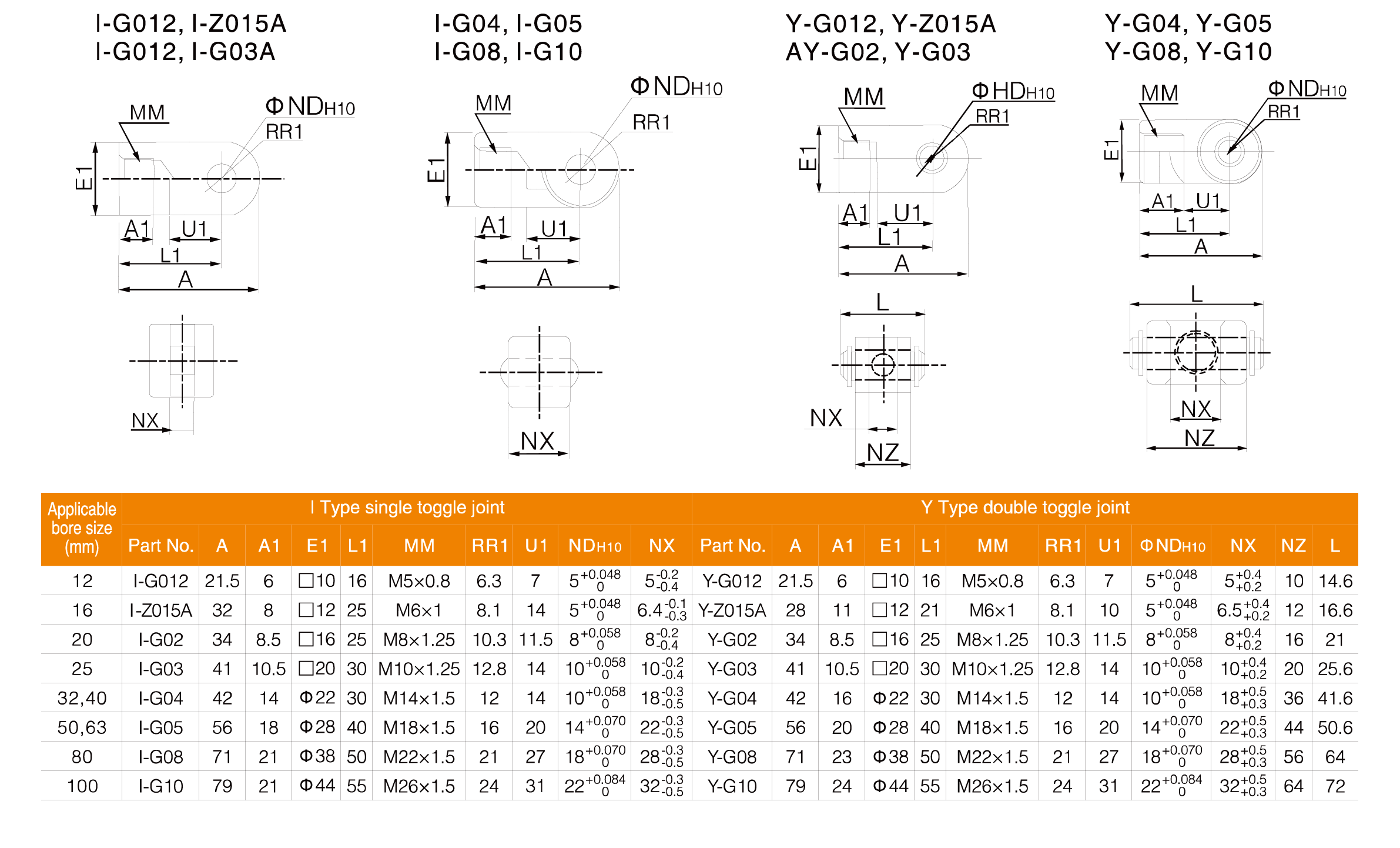

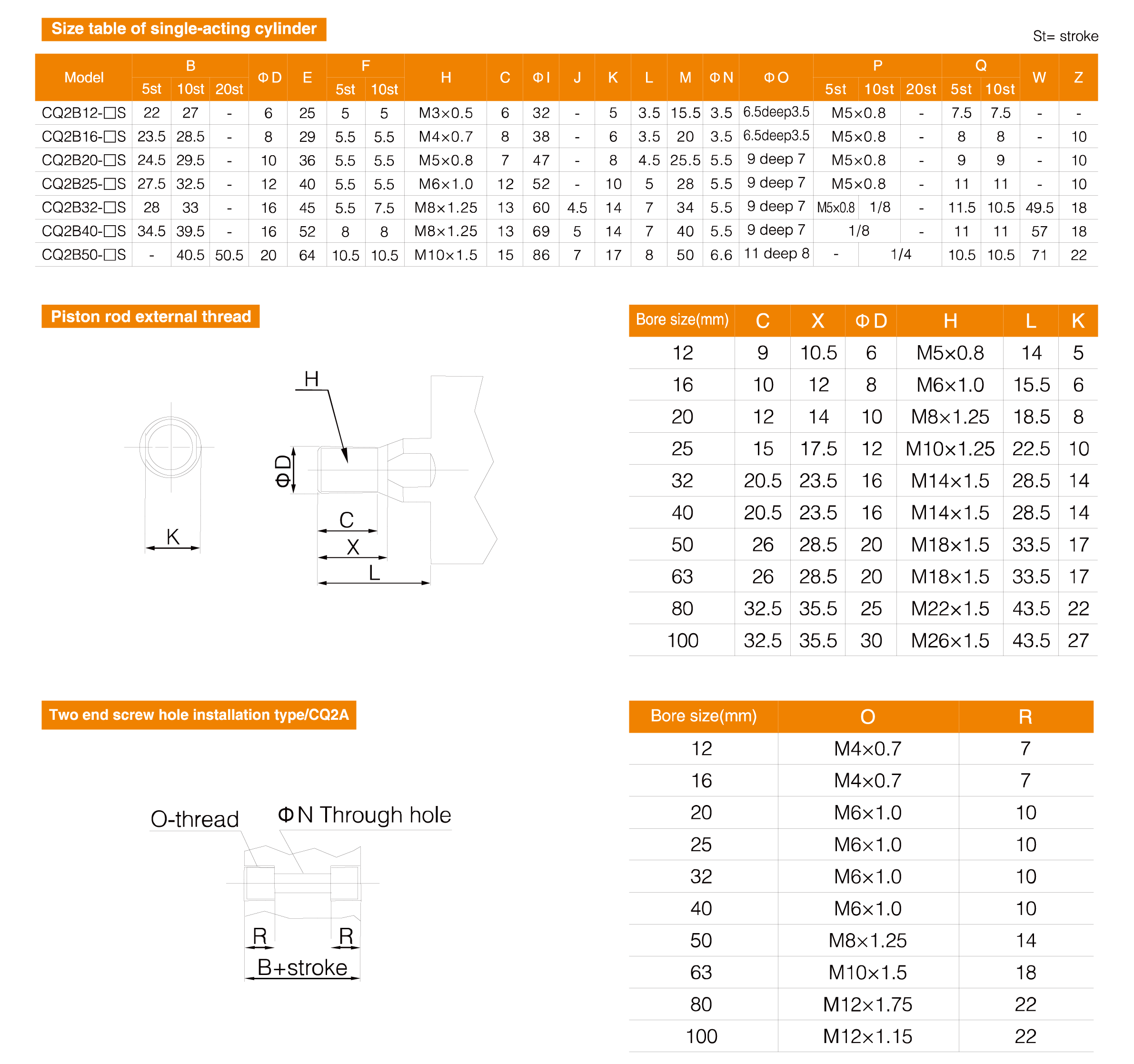

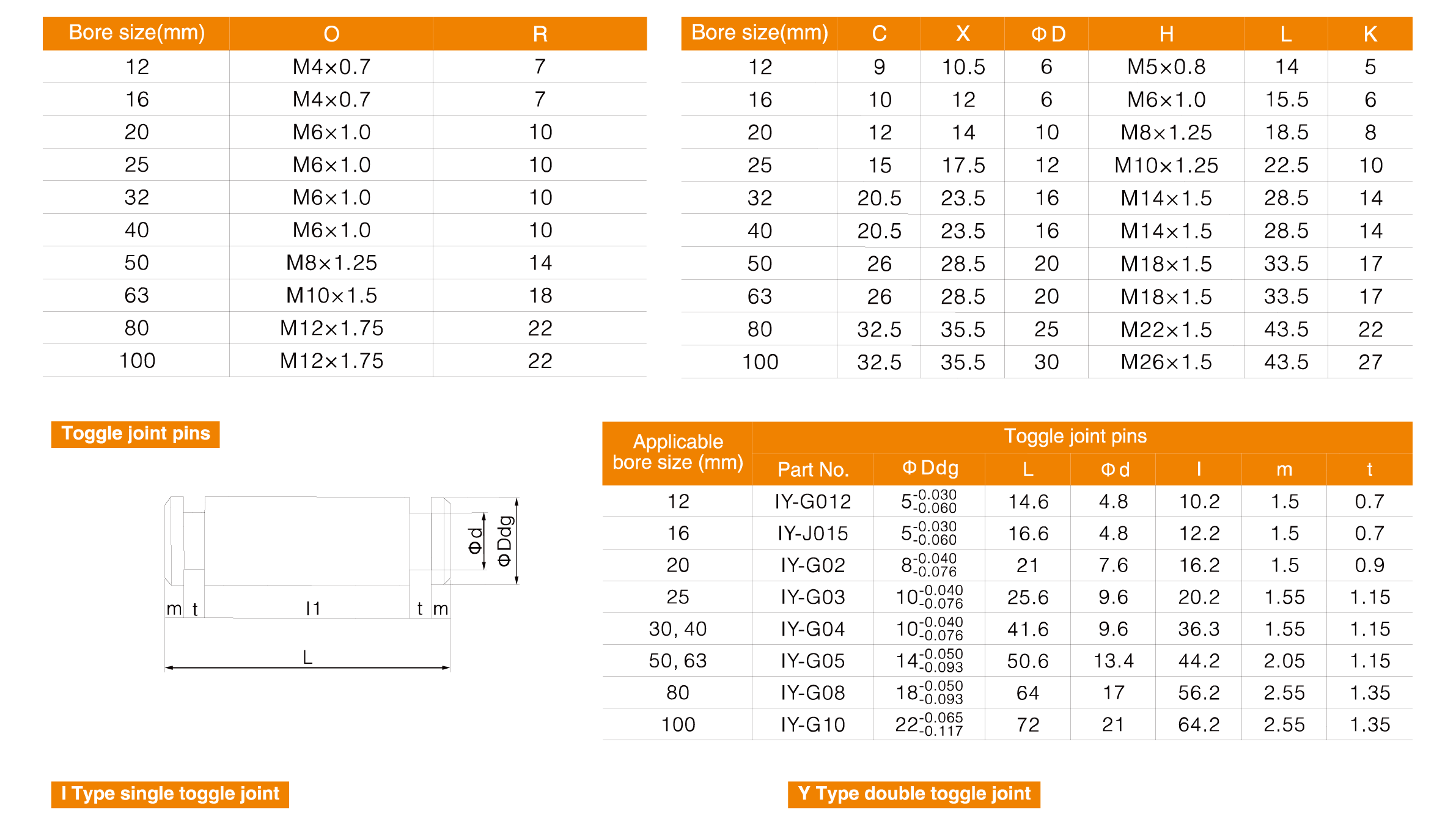

Standard internal piston rod threads simplify component installation, while optional external threads provide additional design flexibility.

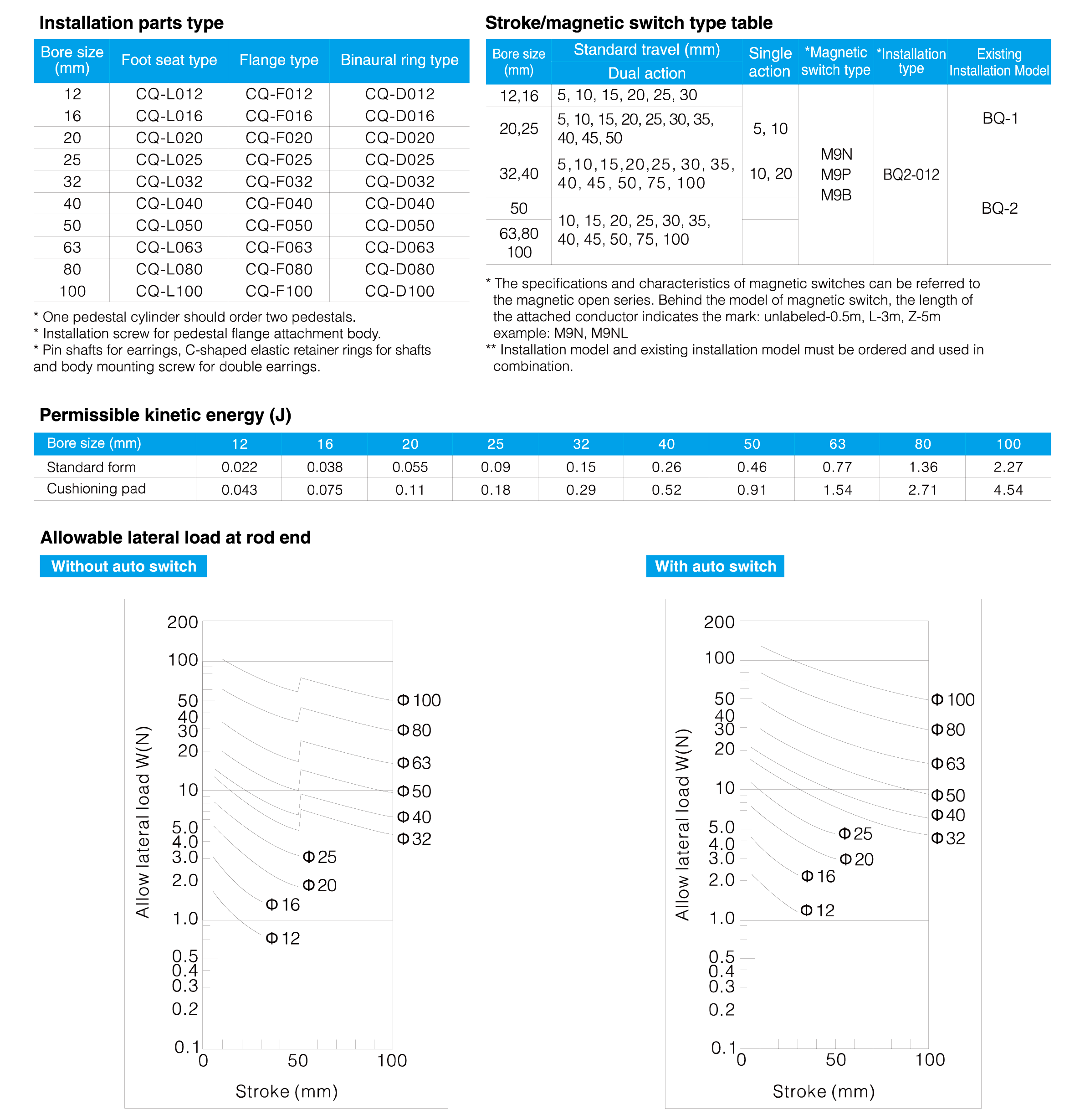

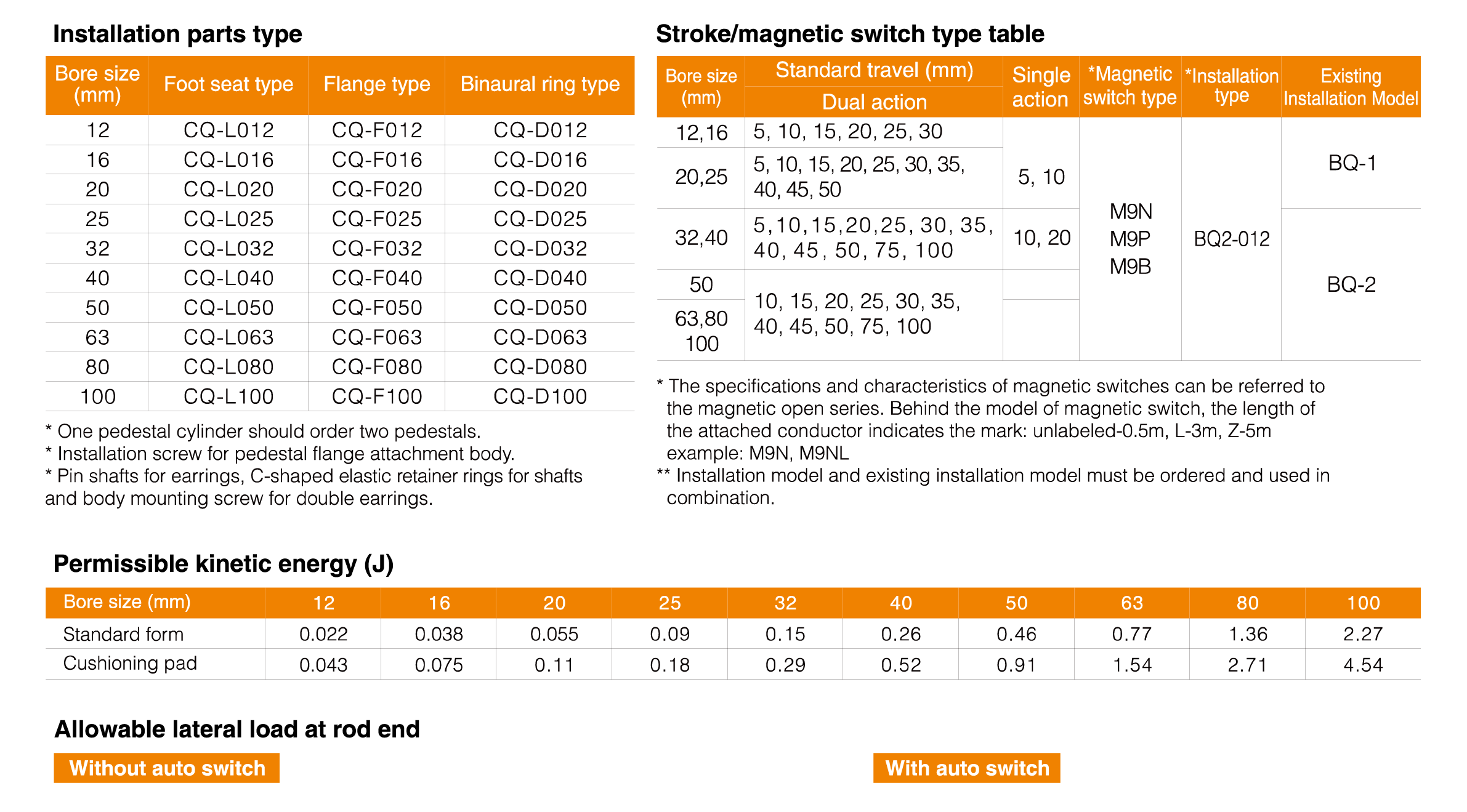

The cylinder can also be equipped with magnetic switches for convenient position detection and automated control.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
Designed for long-term industrial operation, the CQ2 Series uses filtered compressed air and features a non-lubricated design that reduces maintenance requirements.

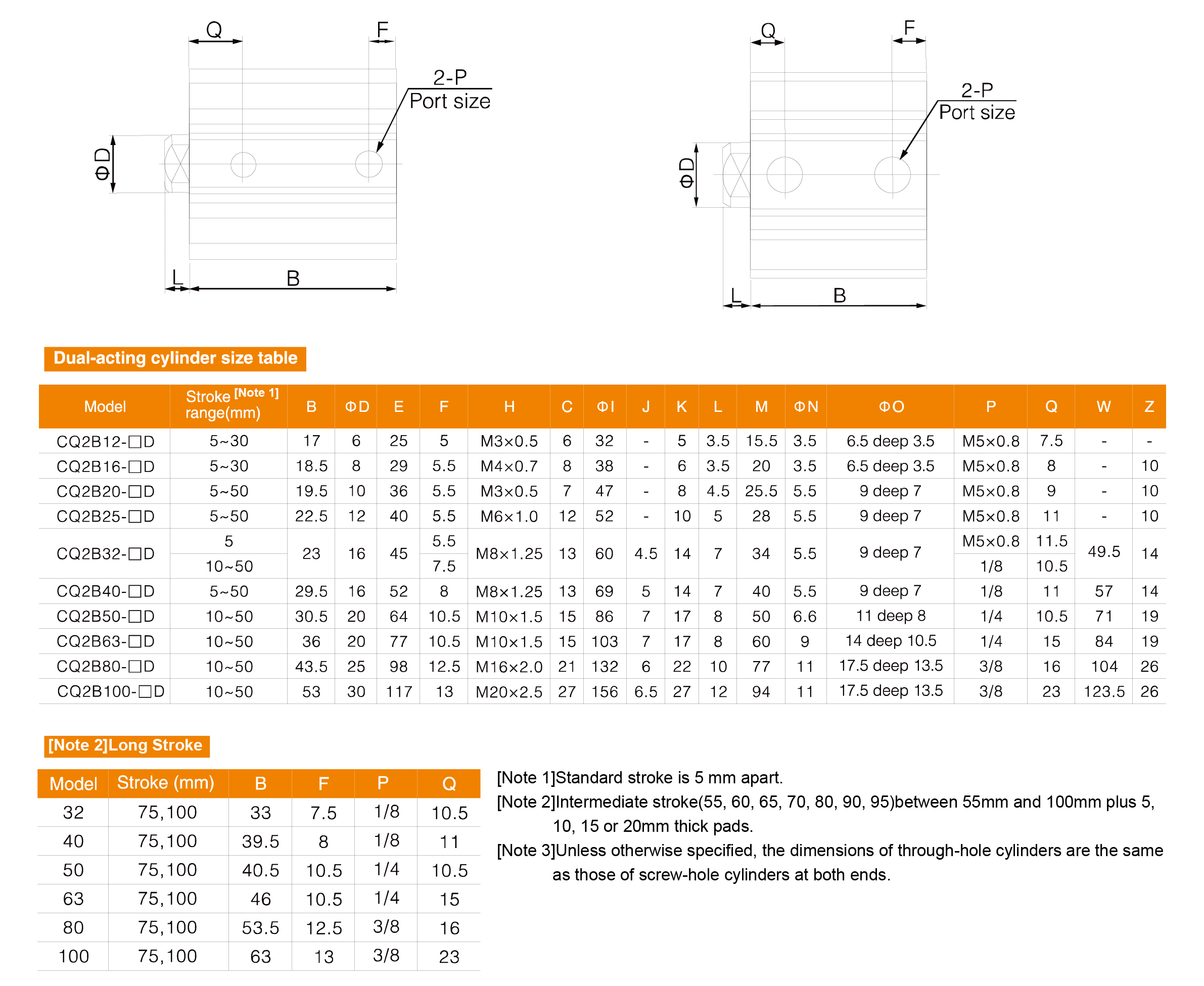

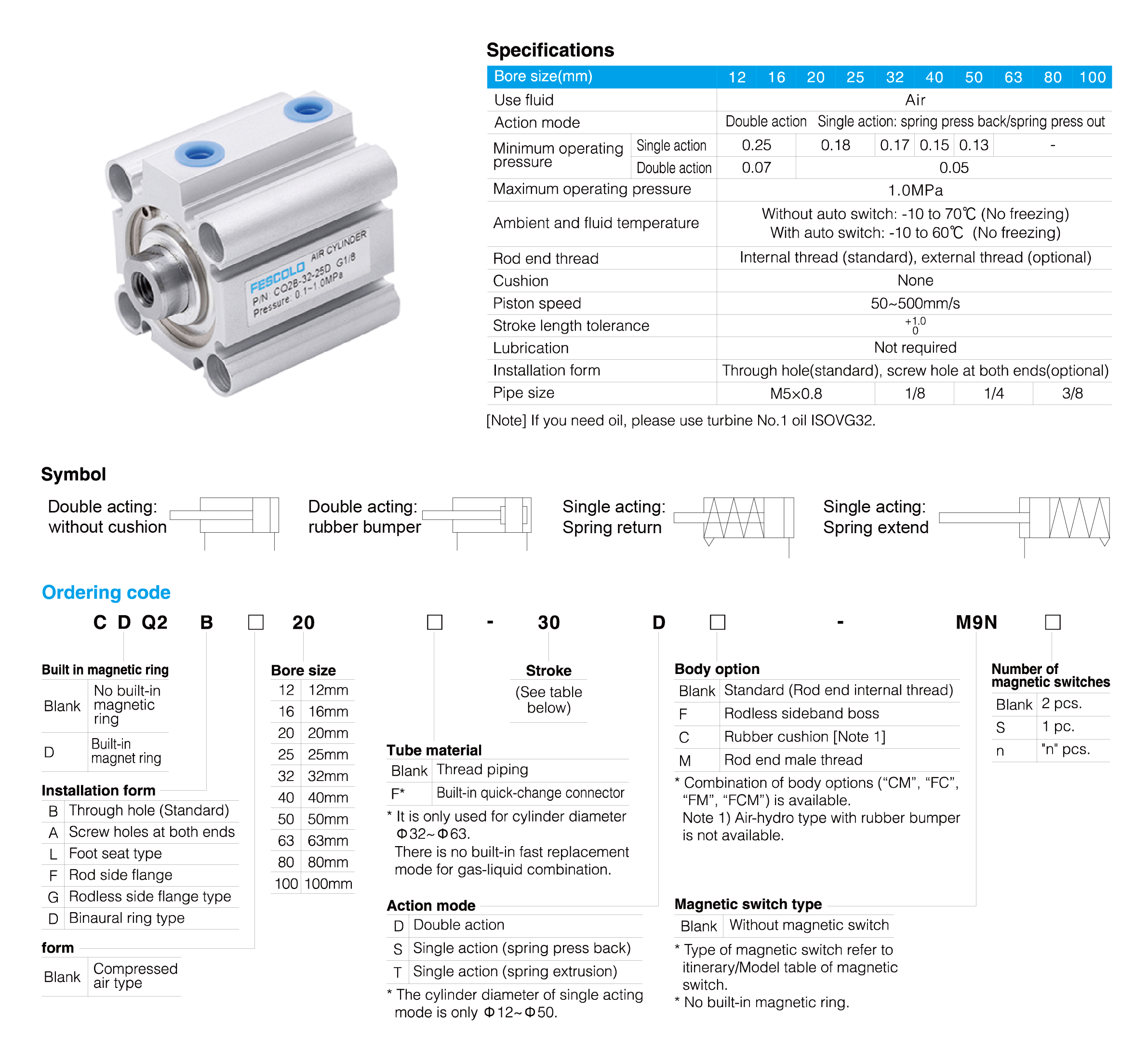

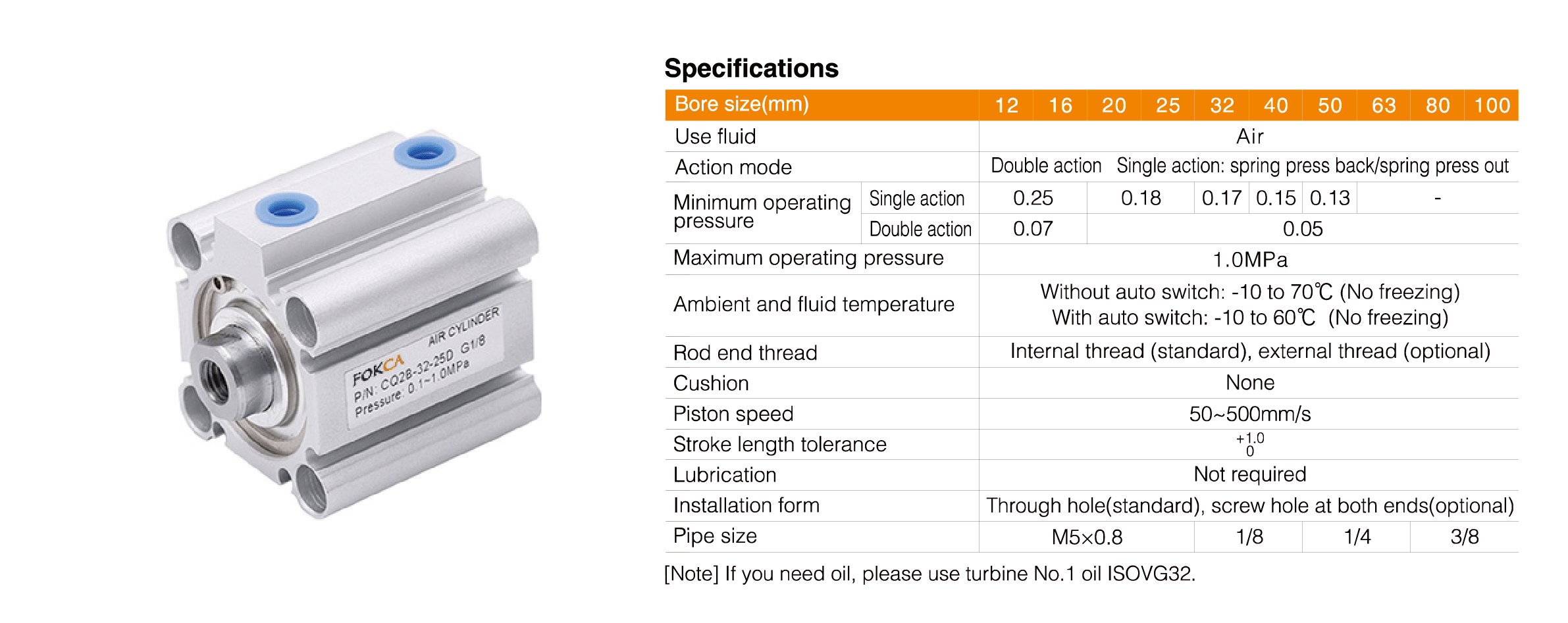

| Parameter | Value |
| Bore Size | 12–100 mm |
| Operating Pressure | 0.05–1.0 MPa |
| Action Type | Double acting / Single acting |
| Piston Speed | 50–500 mm/s |
| Cushion | None |
| Working Medium | Compressed air |
| Lubrication | Not required |
| Rod Thread | Internal standard, external optional |
The cylinder provides smooth and stable operation while supporting a wide range of industrial automation applications.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

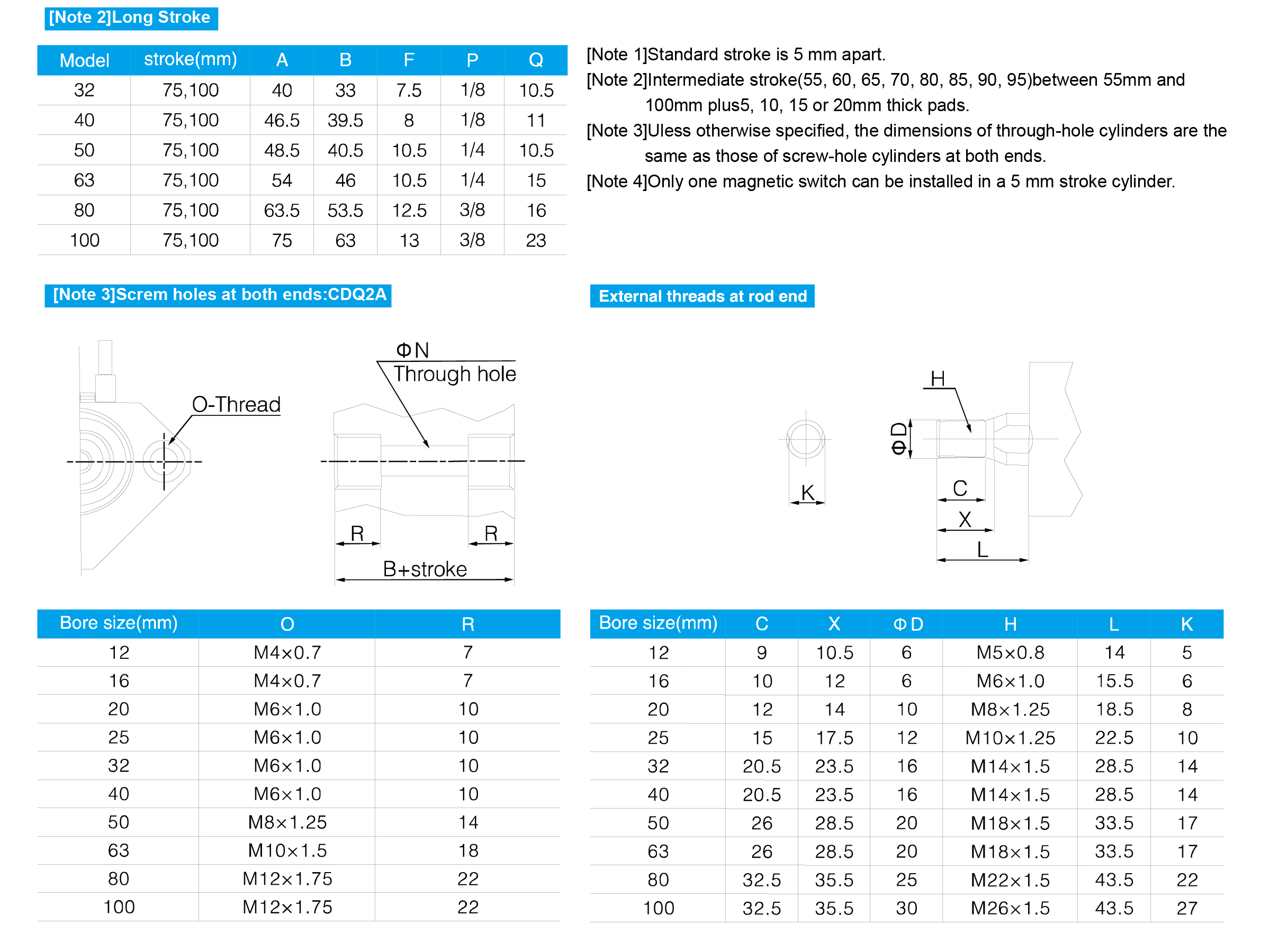

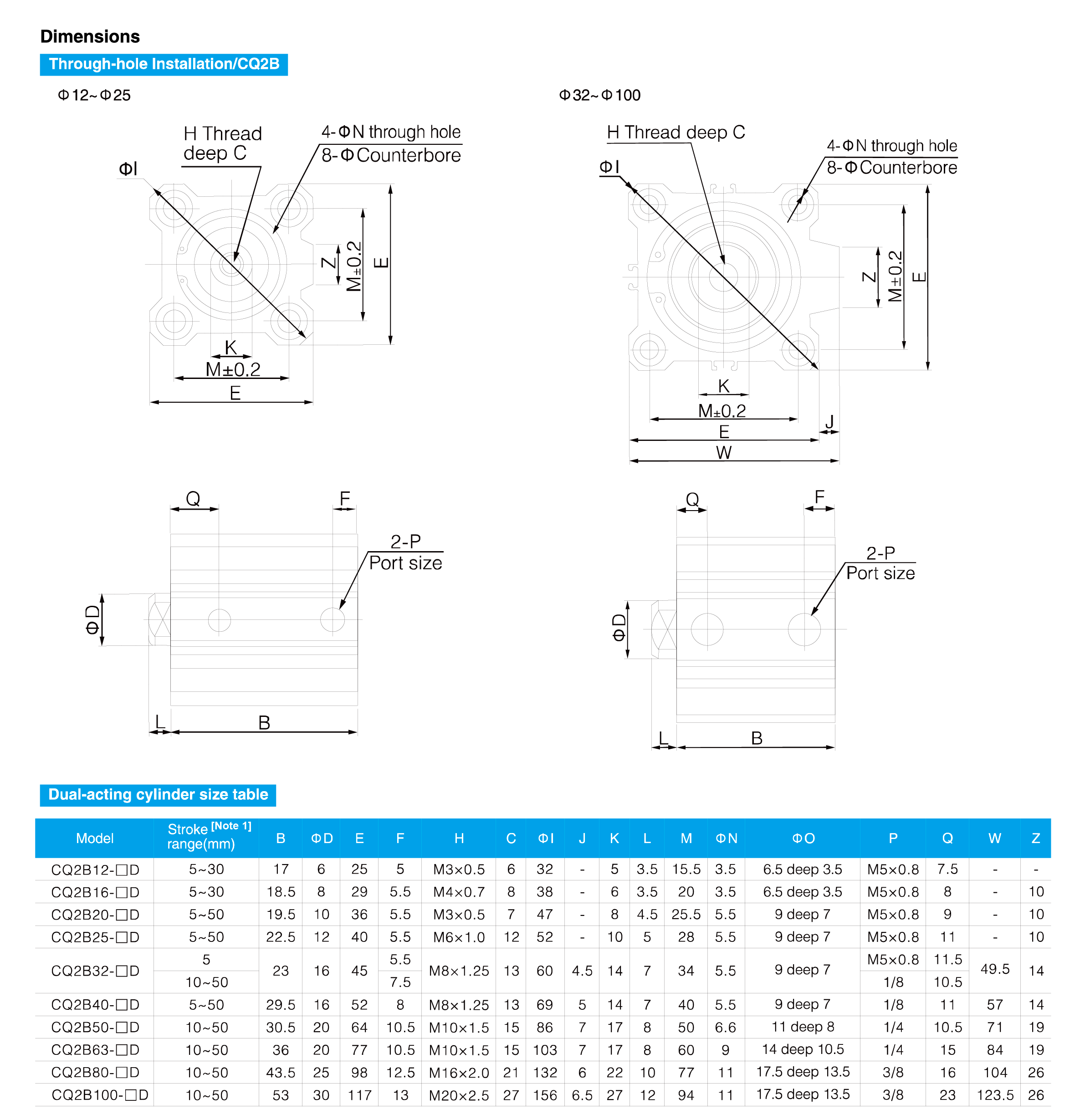

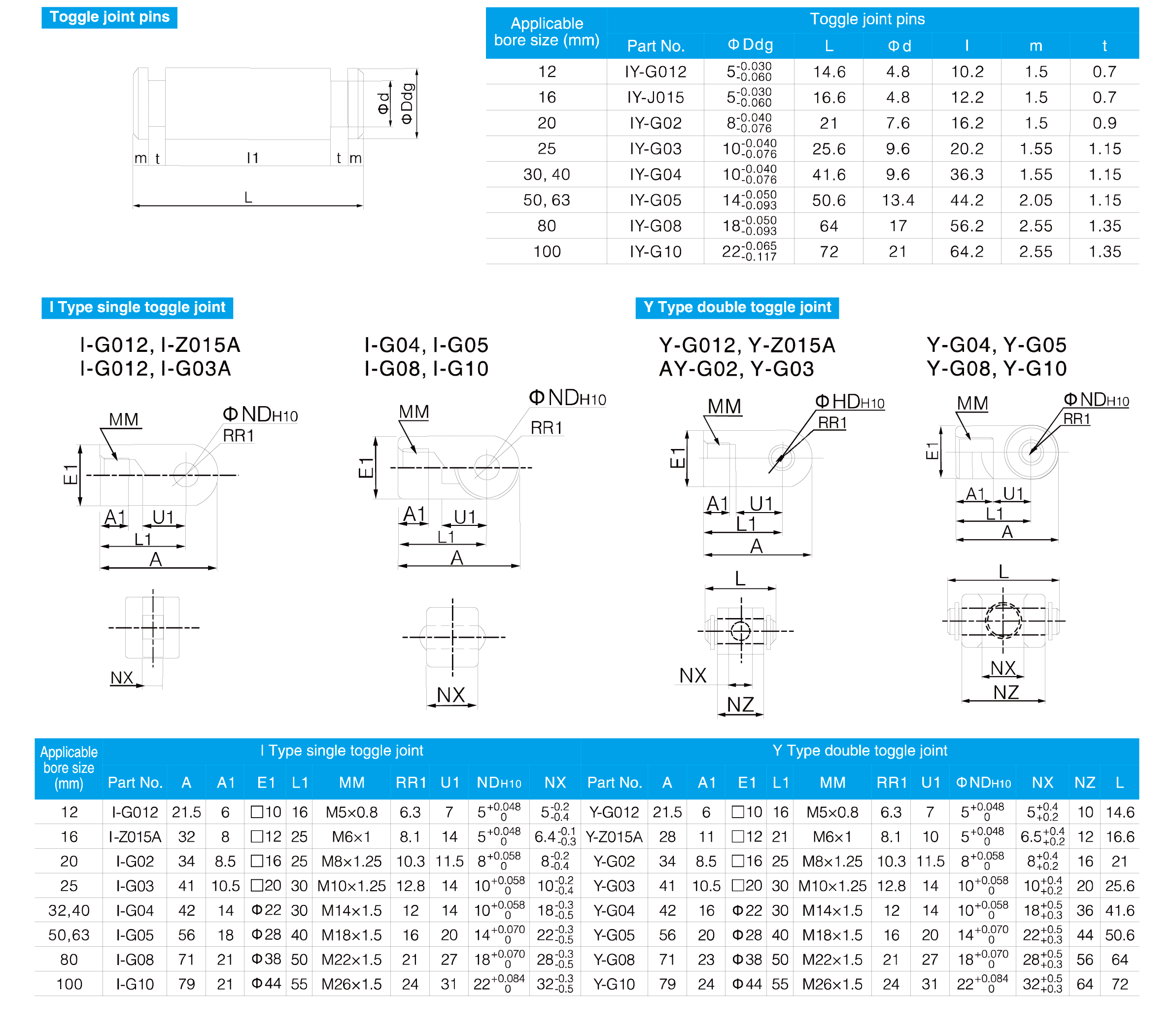

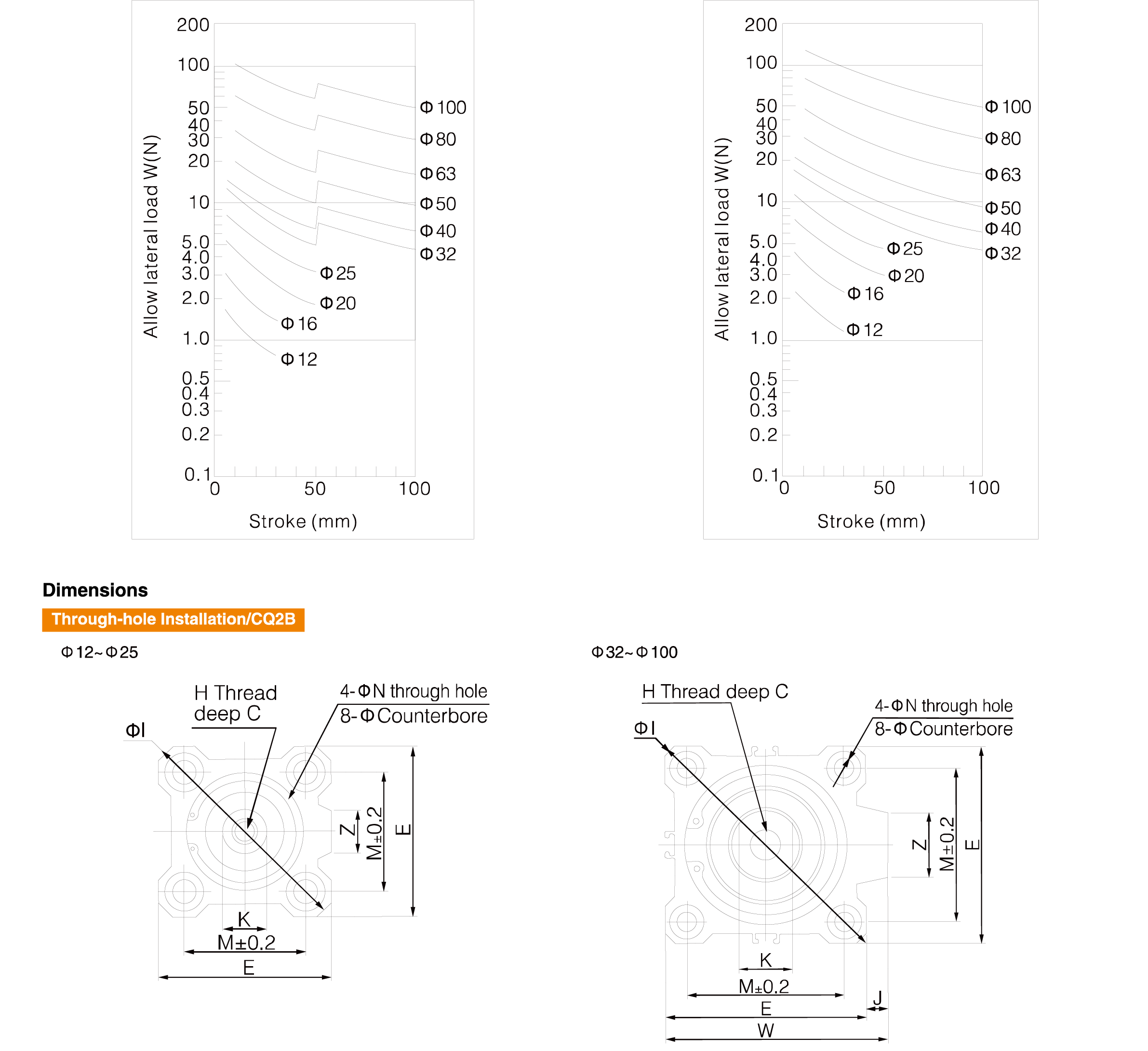

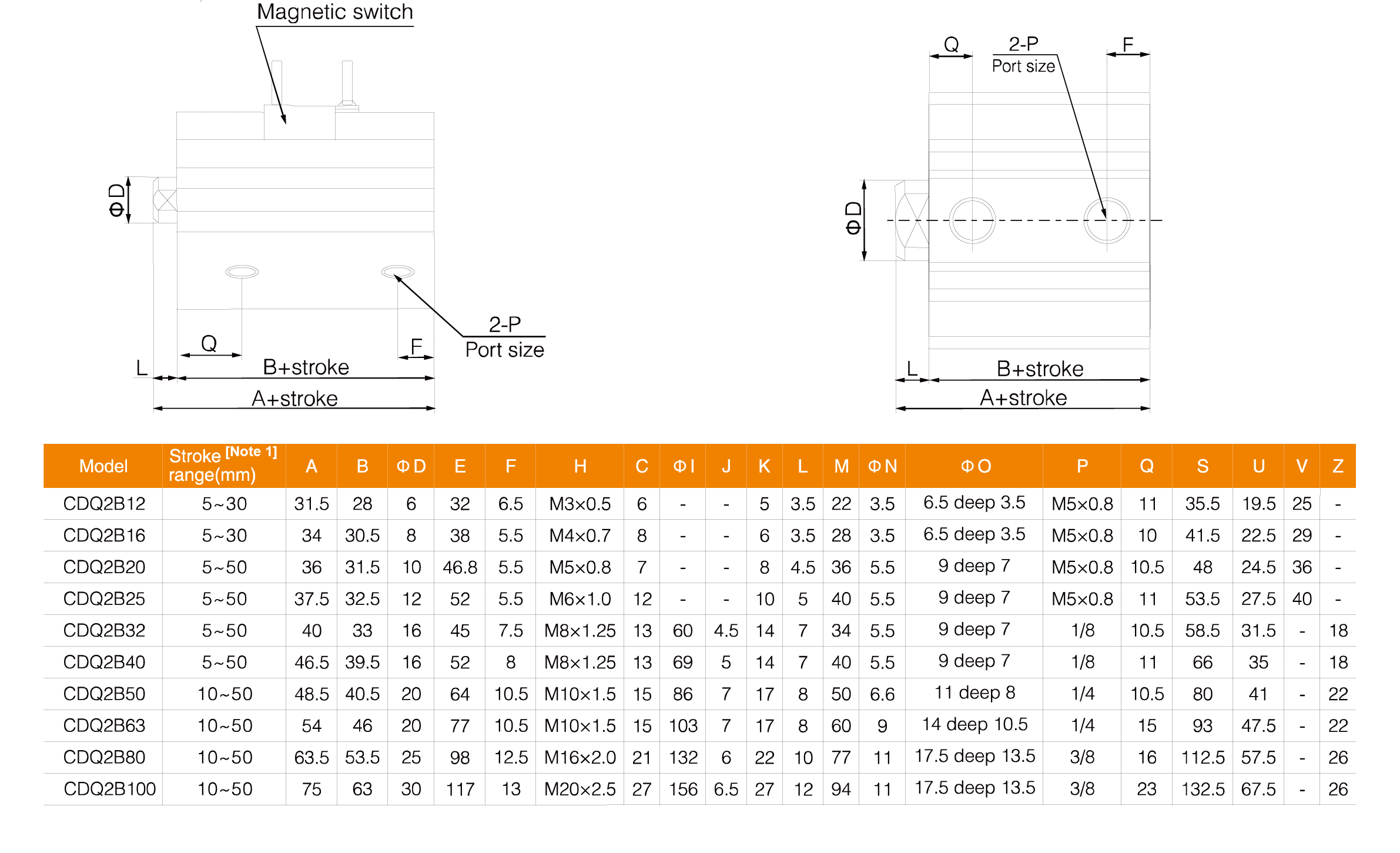

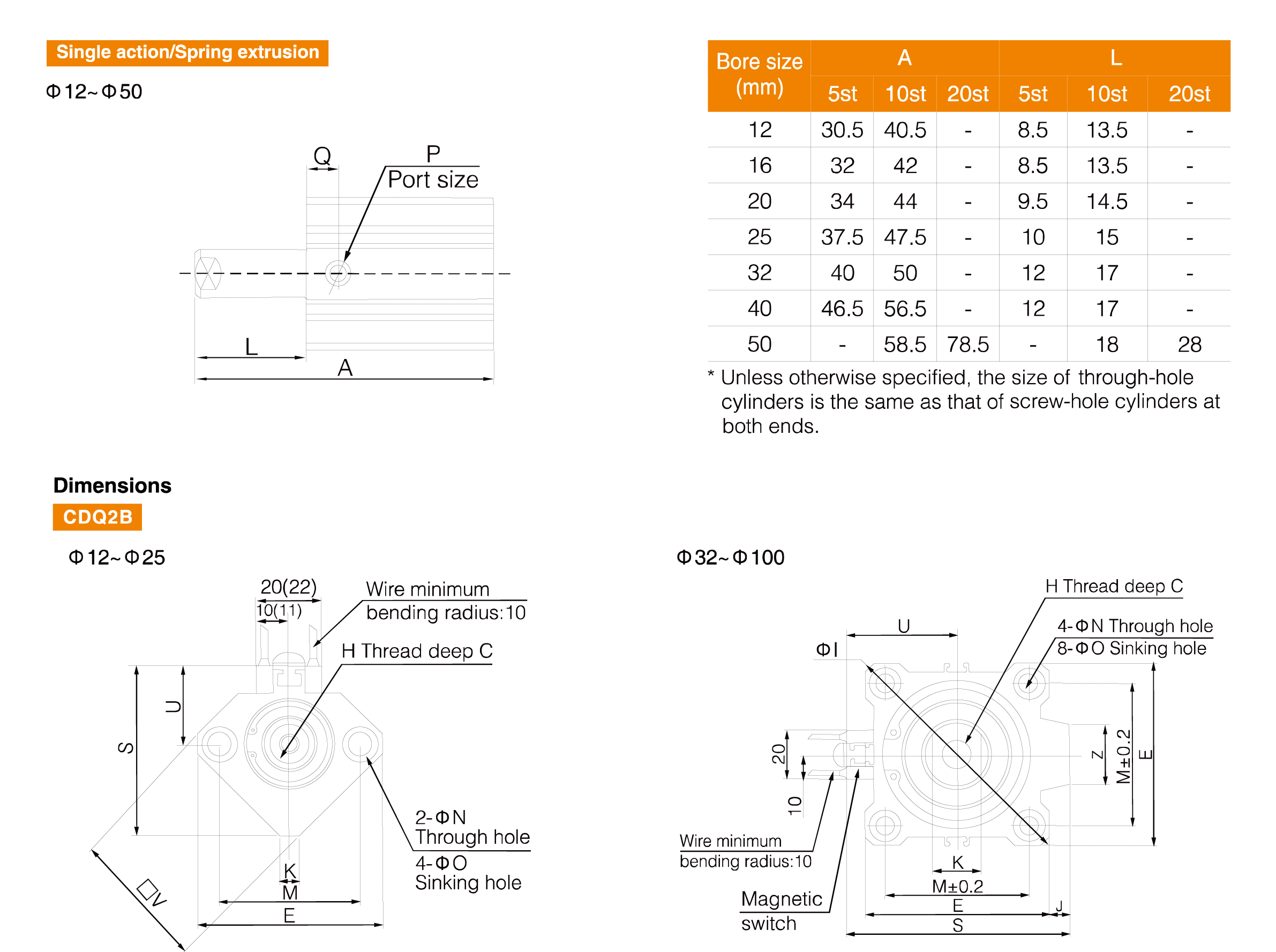

The CQ2 Series supports various installation methods to simplify equipment integration.

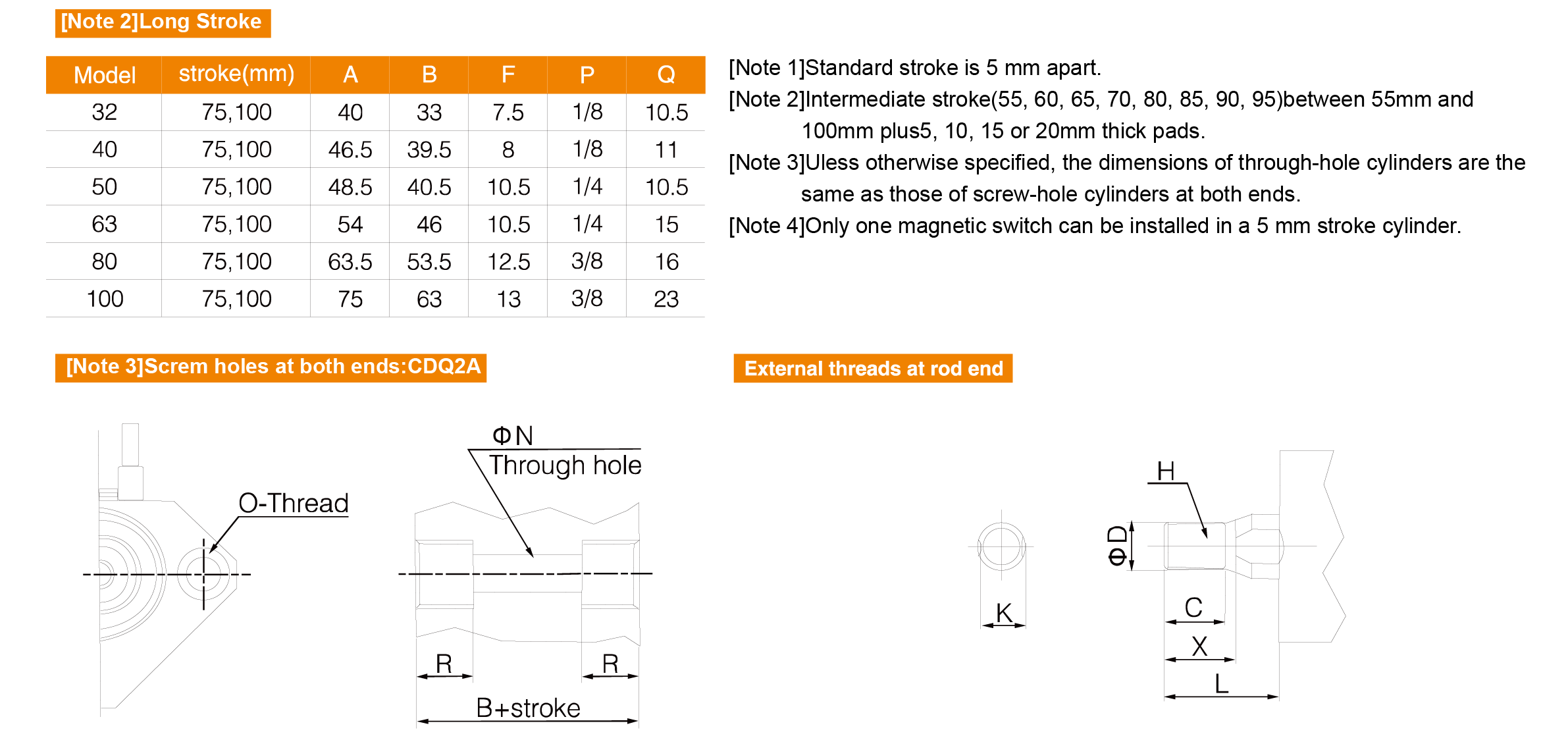

Standard through-hole mounting is available, while optional threaded mounting holes at both ends provide additional installation flexibility.
Its compact dimensions and simple structure help reduce machine complexity and facilitate maintenance throughout the equipment lifecycle.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CQ2 Series Compact Cylinder is widely used in:
● Packaging machinery
● Electronics assembly
● Semiconductor equipment
● Pick-and-place systems
● Conveyor automation
● Medical equipment
● Food processing machinery
● Small handling devices
● OEM automation equipment
● General industrial automation
Combining a compact structure, flexible operating modes, optional magnetic sensing, and maintenance-friendly design, the CQ2 Series Compact Cylinder provides an efficient pneumatic solution for space-constrained automation applications.
