The CQ2 Series Compact Cylinder (Large Bore) is designed for applications requiring higher output force while maintaining a compact installation footprint. Available in bore sizes from 125 mm to 200 mm, the cylinder delivers stable pneumatic performance without the space requirements of traditional large cylinders.
Featuring double-acting operation, optional magnetic sensing, and flexible mounting methods, the CQ2 Large Bore Series is ideal for heavy-duty automation, material handling, and industrial machinery where compactness and high thrust are equally important.
The CQ2 Series Compact Cylinder (Large Bore) extends the advantages of the standard CQ2 compact cylinder into higher load applications. By combining a low-profile body with large bore sizes, it provides substantial output force while minimizing installation space.
Designed for industrial automation and heavy-duty machinery, the cylinder offers reliable pneumatic performance, simple installation, and flexible integration into modern production systems.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Compact large-bore cylinder design
● Double-acting pneumatic operation
● Bore sizes from 125 mm to 200 mm
● High output force in limited space
● Optional magnetic piston compatibility
● Internal rod thread as standard
● External rod thread available
● Maintenance-friendly non-lubricated design
● Flexible mounting methods
● Suitable for heavy-duty automation
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
Unlike conventional large pneumatic cylinders, the CQ2 Large Bore Series provides high thrust while maintaining a compact body profile.

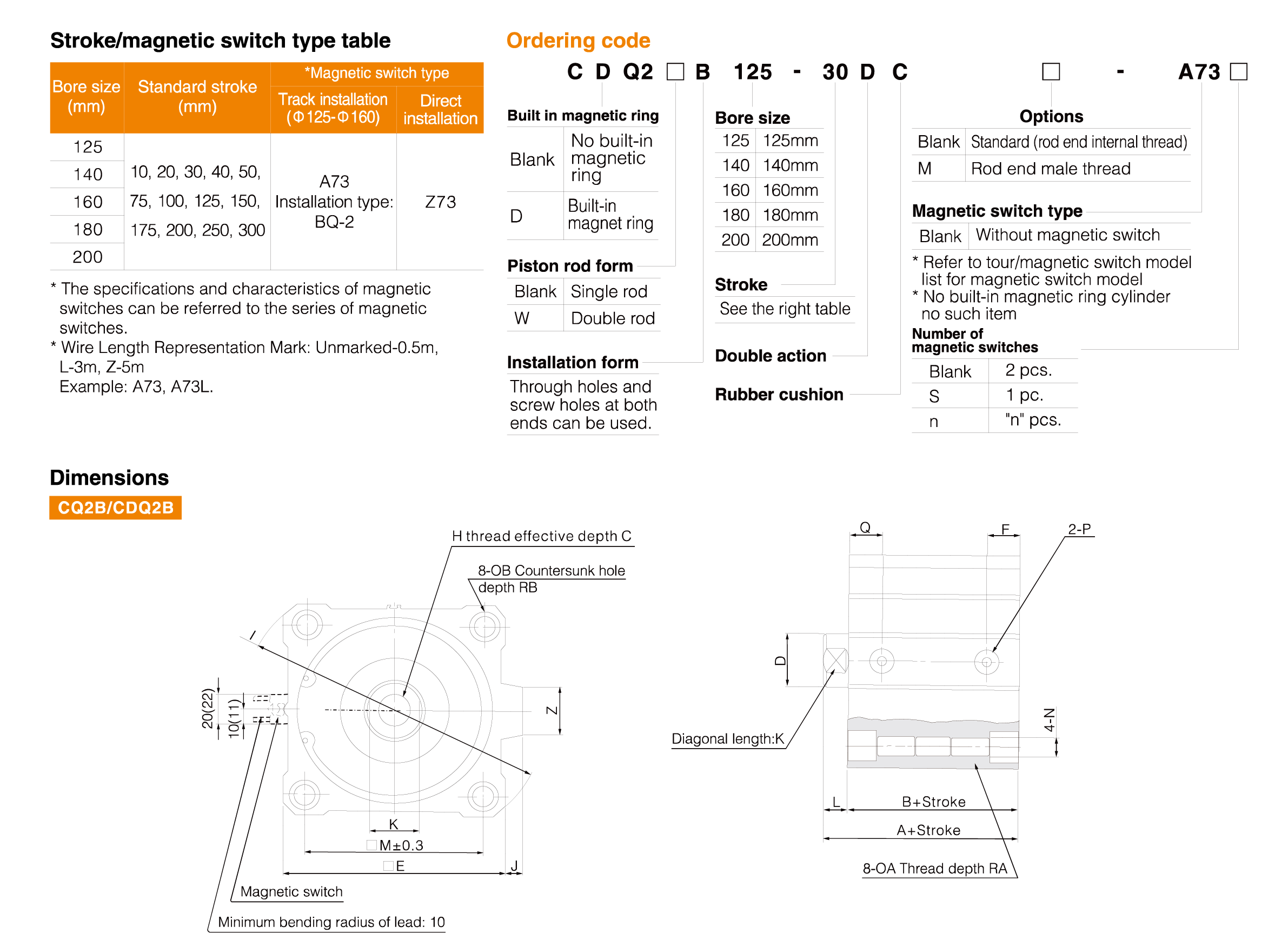

Available bore sizes include:
● 125 mm
● 140 mm
● 160 mm
● 180 mm
● 200 mm
This combination of compact dimensions and large output force allows machine designers to reduce equipment size without compromising performance.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CQ2 Large Bore Series is designed for reliable industrial operation using filtered compressed air.

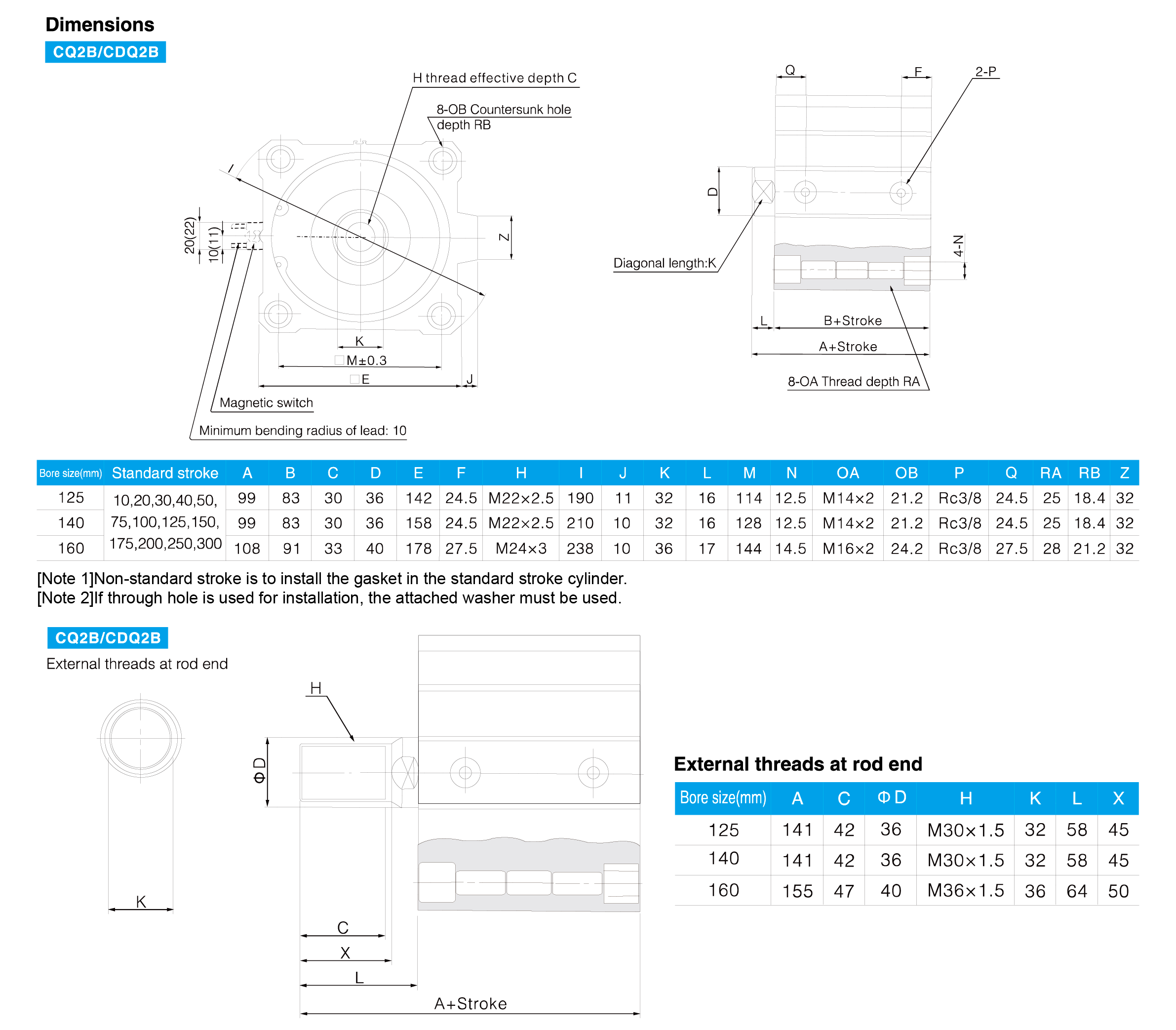

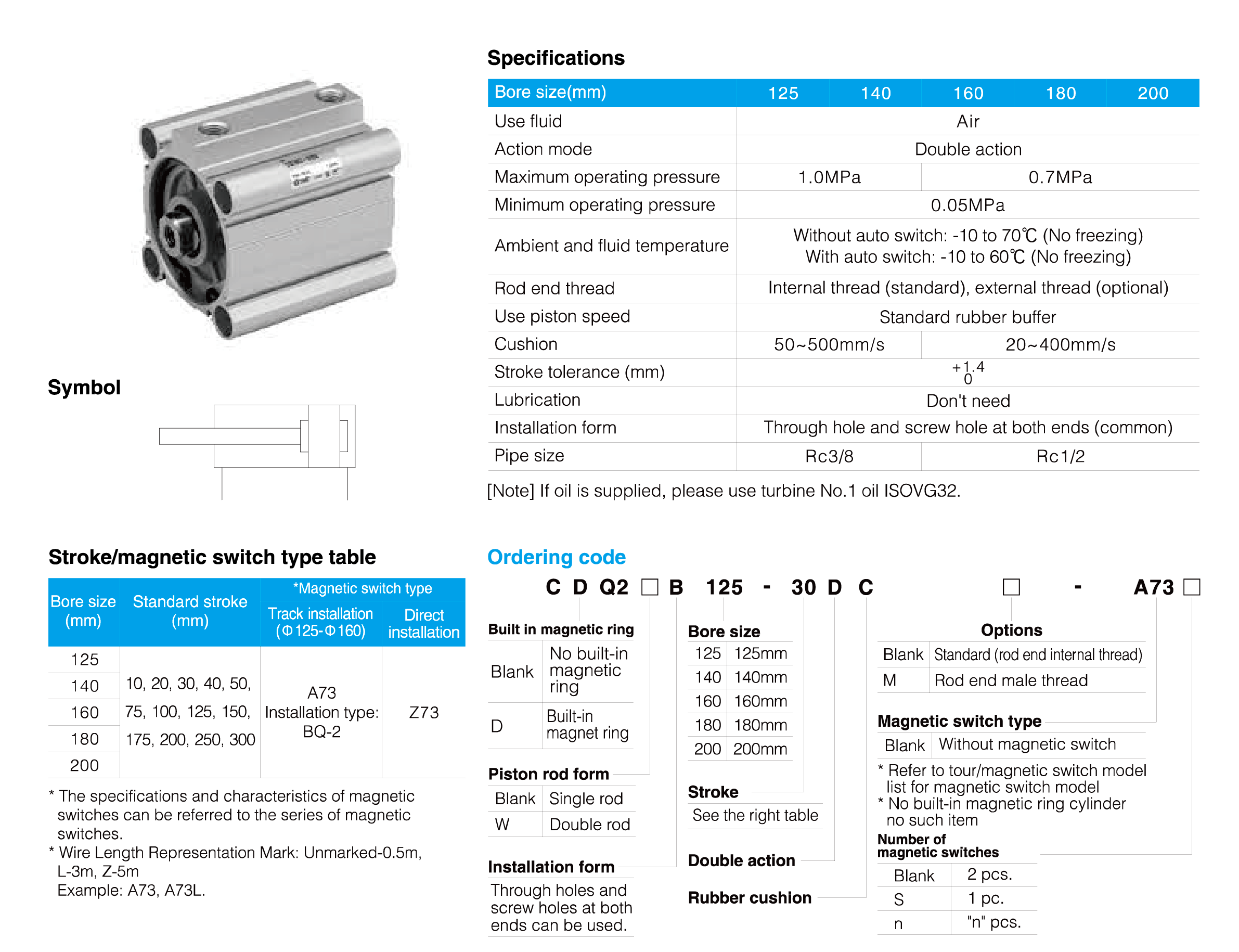

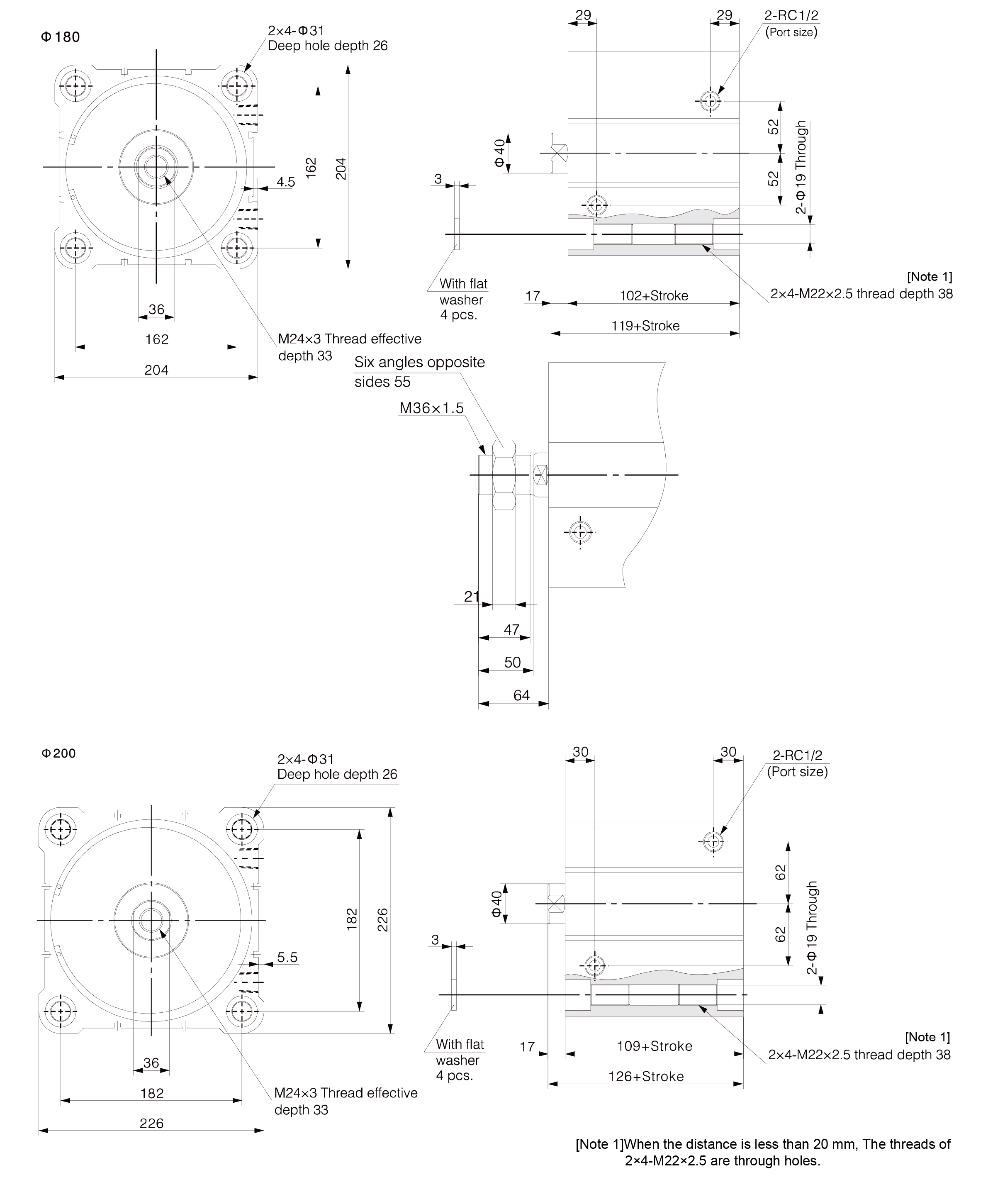

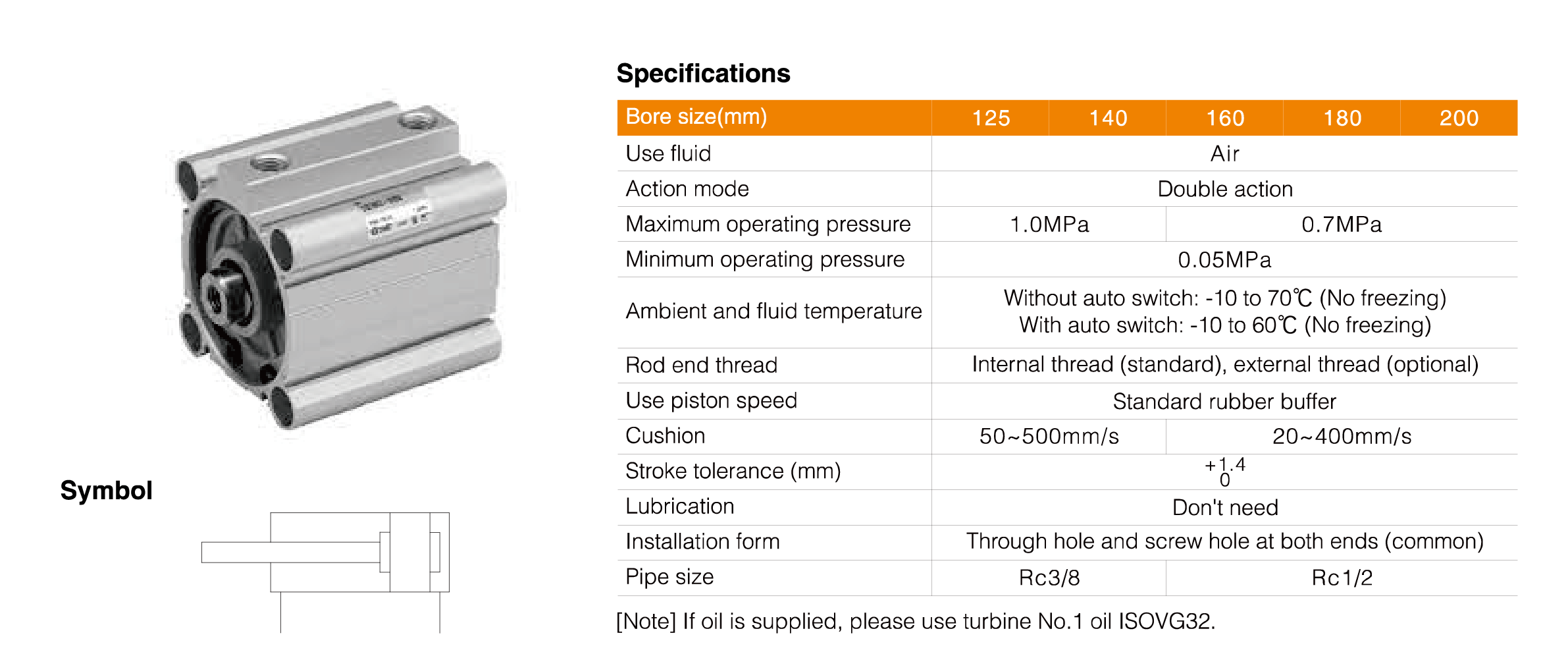

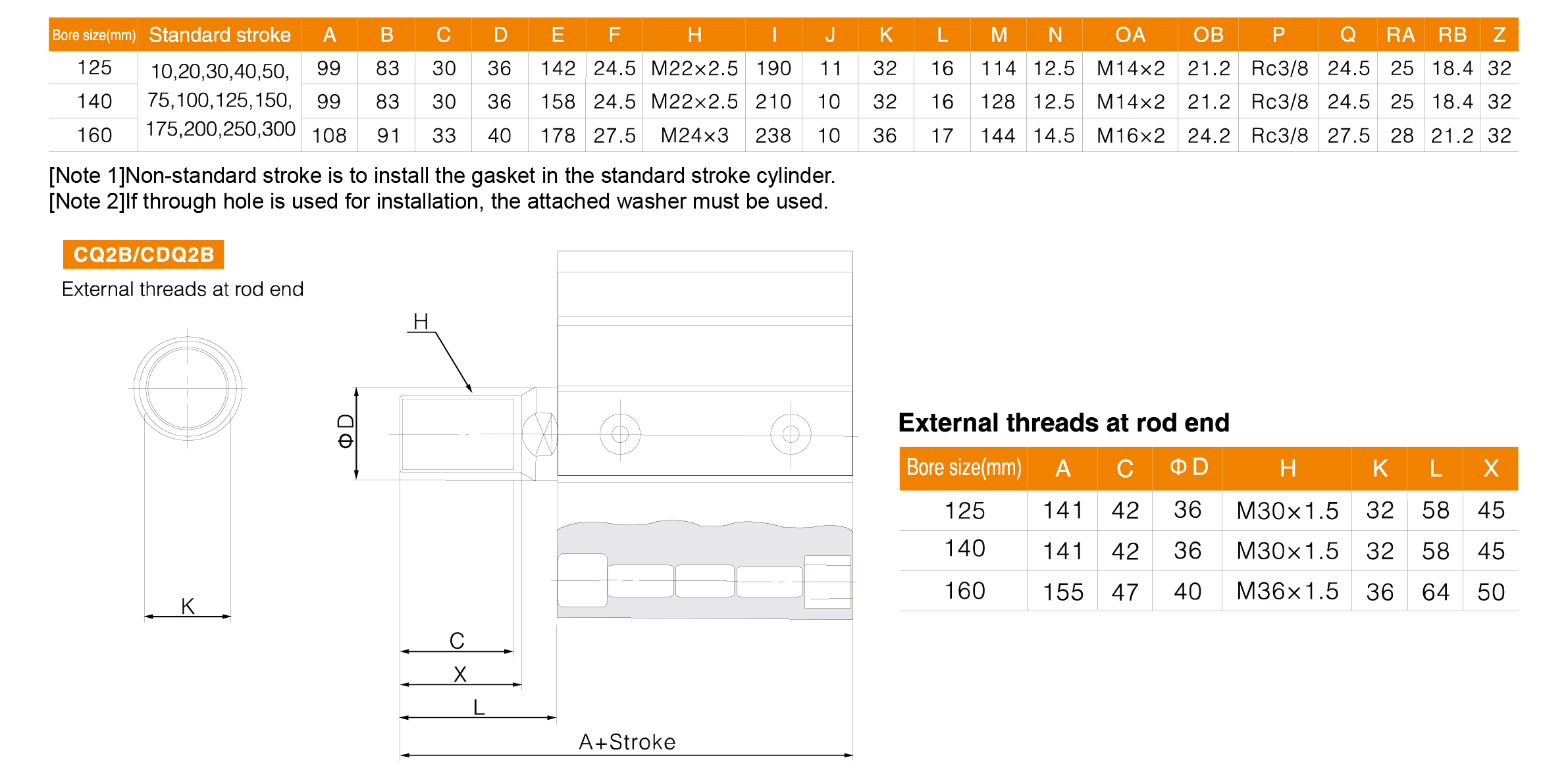

| Parameter | Specification |
| Bore Size | 125–200 mm |
| Working Medium | Compressed Air |
| Action Type | Double Acting |
| Maximum Pressure | 1.0 MPa (125–160 mm), 0.7 MPa (180–200 mm) |
| Minimum Pressure | 0.05 MPa |
| Piston Speed | 50–500 mm/s |
| Rubber Buffer Speed | 20–400 mm/s |
| Cushion | Standard Rubber Buffer |
| Lubrication | Not Required |
| Rod End Thread | Internal Standard, External Optional |
Note: ISO VG32 turbine oil is recommended if lubrication is required.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

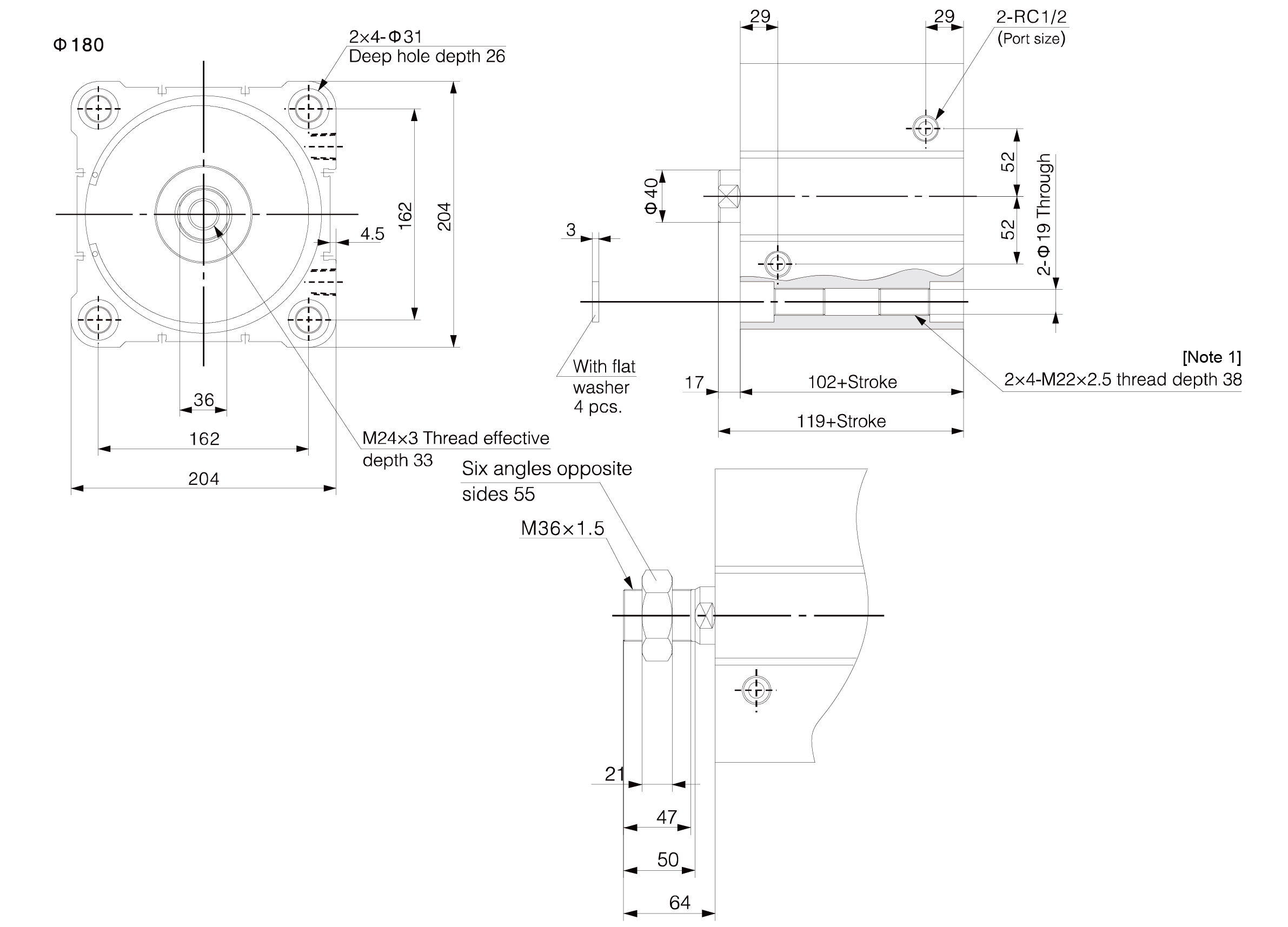

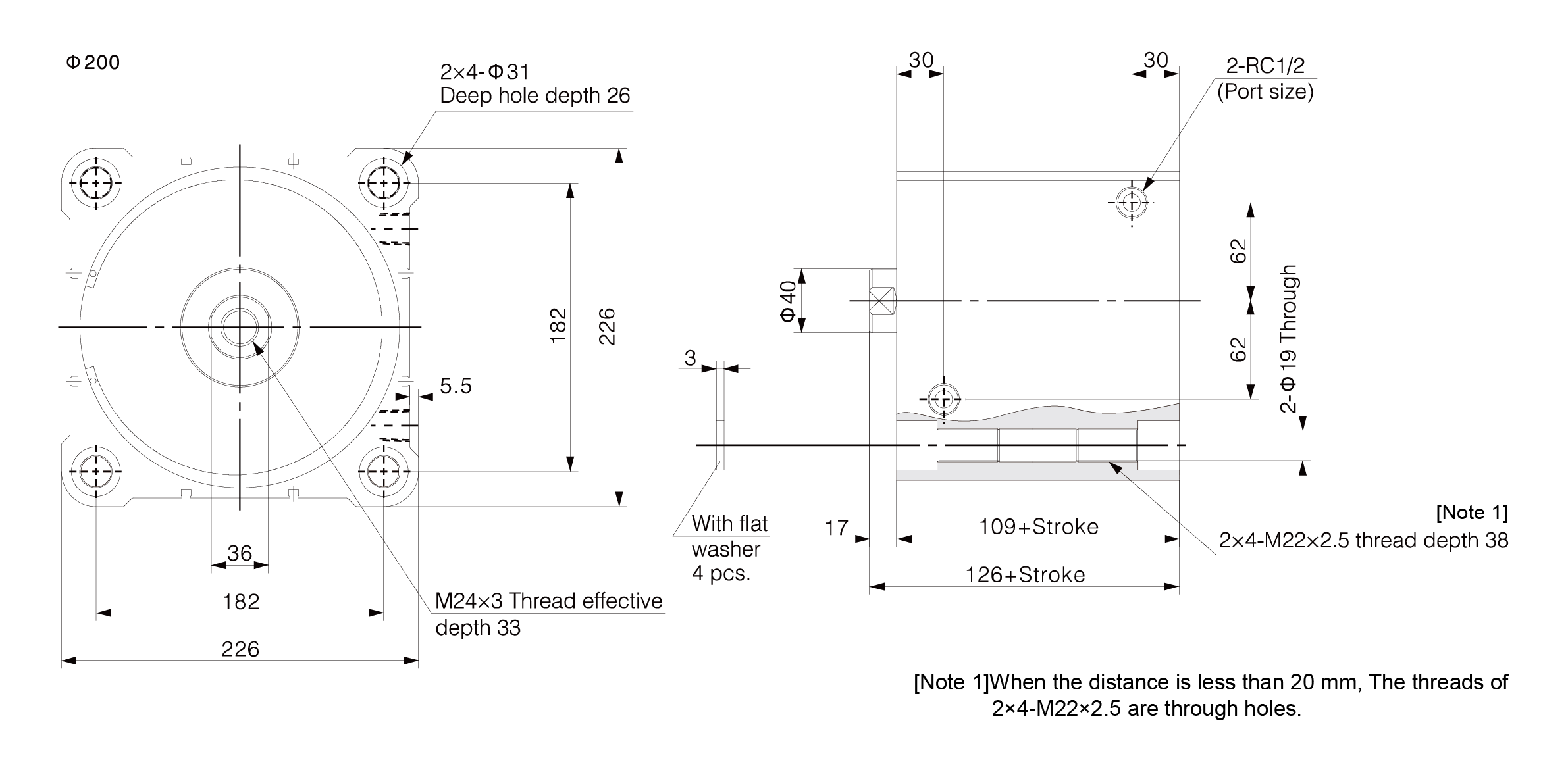

The CQ2 Large Bore Series is designed for easy integration into industrial equipment.
| Mounting Type | Description |
| Through-Hole Mounting | Standard |
| Threaded End Mounting | Standard |
This flexibility simplifies machine design and allows the cylinder to fit various equipment layouts.
The optional magnetic piston also supports auto switch installation for position monitoring and automated control.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The combination of large bore sizes and compact construction makes the CQ2 Large Bore Series suitable for applications requiring substantial thrust in confined spaces.
Its robust design supports:
● Stable reciprocating motion
● Reliable continuous operation
● Reduced equipment footprint
● Simplified maintenance
● Efficient automation integration
The maintenance-free non-lubricated design further reduces operating costs while improving system reliability.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CQ2 Series Compact Cylinder (Large Bore) is widely used in:
● Heavy-duty packaging machinery
● Material handling equipment
● Automated lifting systems
● Conveyor automation
● Assembly lines
● Industrial presses
● Pallet handling equipment
● Manufacturing automation
● OEM machinery
● General heavy-load pneumatic applications
Combining compact dimensions, large bore capacity, flexible installation, and dependable pneumatic performance, the CQ2 Series Compact Cylinder (Large Bore) provides an efficient solution for industrial applications requiring high output force within limited installation space.
