The CQ2 Series Compact Cylinder (Long Stroke) is designed for applications requiring extended linear travel without increasing installation space. Combining the compact structure of the CQ2 family with longer stroke capabilities, the cylinder provides reliable pneumatic motion and efficient machine integration.
Featuring double-acting operation, optional magnetic sensing, and maintenance-free performance, the CQ2 Long Stroke Series is suitable for material handling, automated assembly, packaging machinery, and other industrial applications requiring compact long-travel actuation.
The CQ2 Series Compact Cylinder (Long Stroke) is developed to provide longer linear movement while preserving the space-saving advantages of a compact pneumatic cylinder. It offers an ideal solution for equipment that requires extended travel but has limited installation room.
Its optimized structure, stable operation, and flexible mounting options make the cylinder suitable for a wide range of industrial automation and precision handling systems.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Compact body with extended stroke capability
● Double-acting pneumatic operation
● Long travel in limited installation space
● Standard rubber buffering
● Optional magnetic piston for position sensing
● Internal thread piston rod as standard
● Optional external thread configuration
● Maintenance-free operation
● Reliable and smooth linear motion
● Suitable for industrial automation
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CQ2 Long Stroke Series retains the compact dimensions of the standard CQ2 cylinder while providing increased stroke lengths for applications requiring greater travel distance.
This design helps engineers optimize machine layouts by reducing the need for larger conventional cylinders, improving equipment efficiency without increasing overall machine size.
The cylinder is particularly suitable for compact automation equipment where both installation space and stroke length are critical considerations.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
Designed for continuous industrial operation, the CQ2 Long Stroke Series delivers smooth and reliable motion using filtered compressed air.

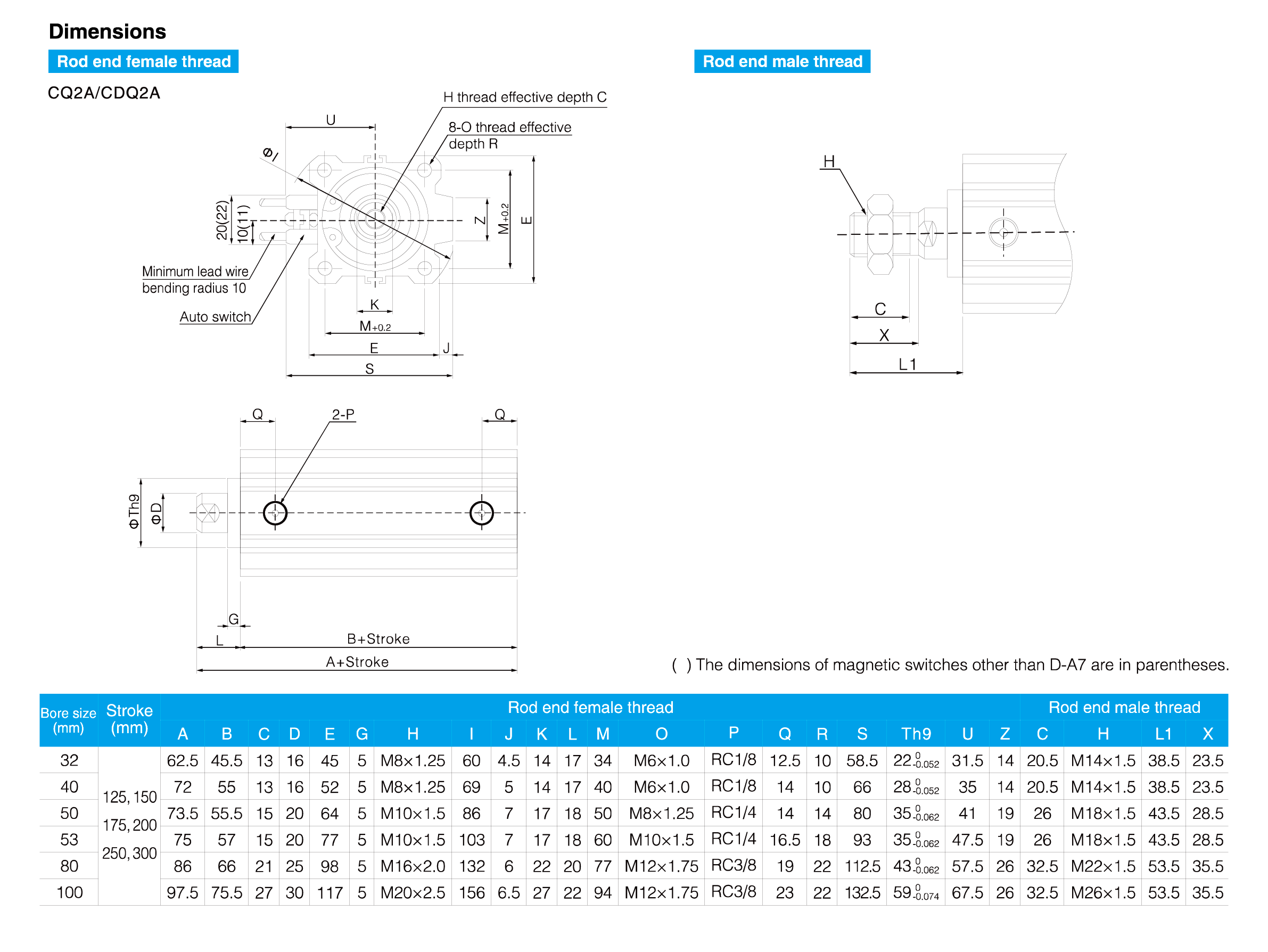

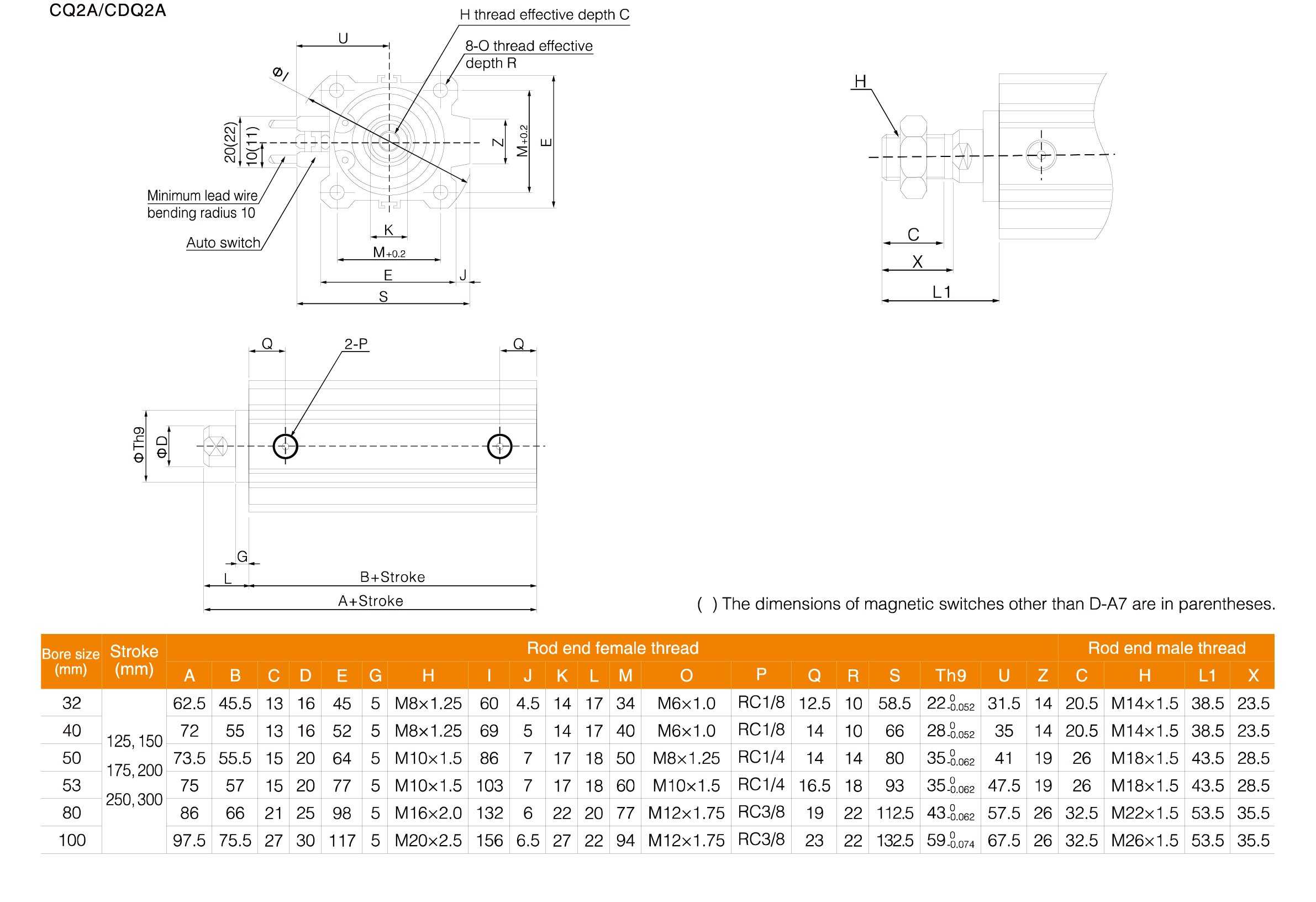

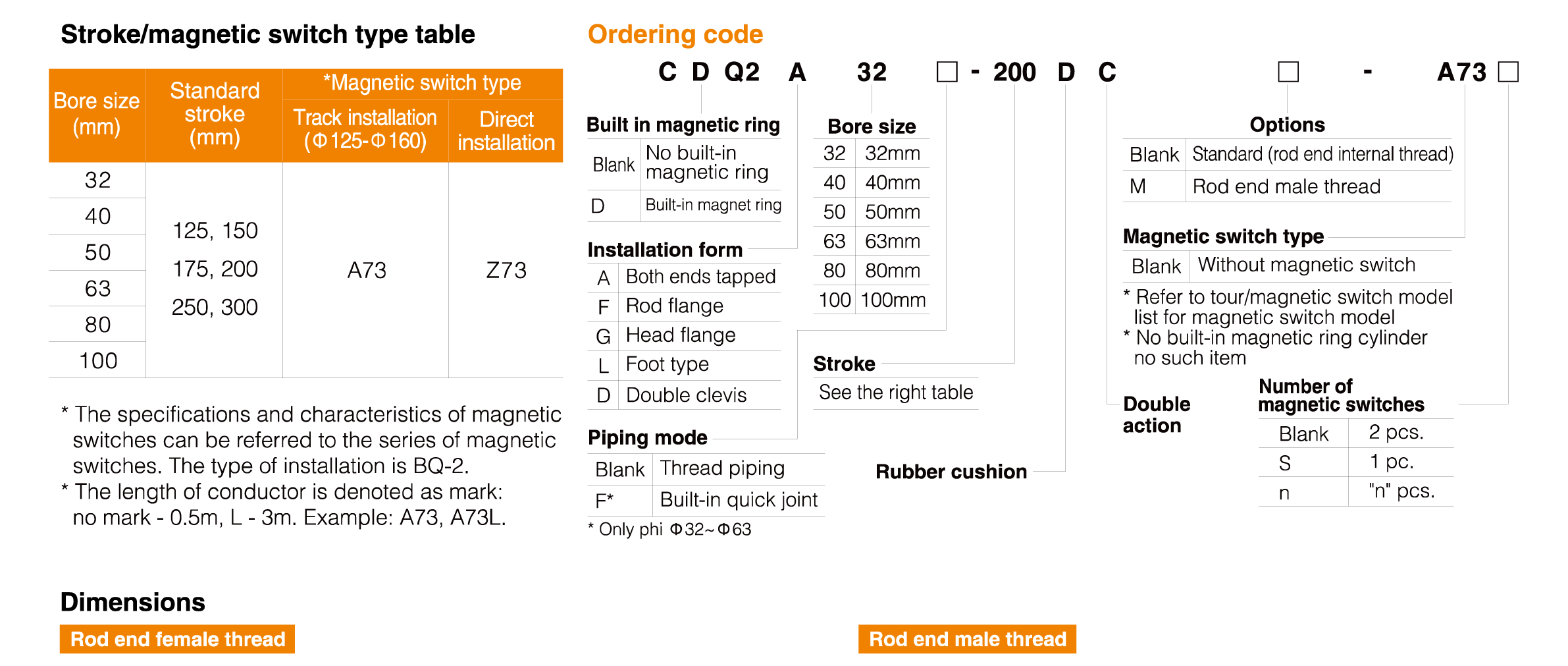

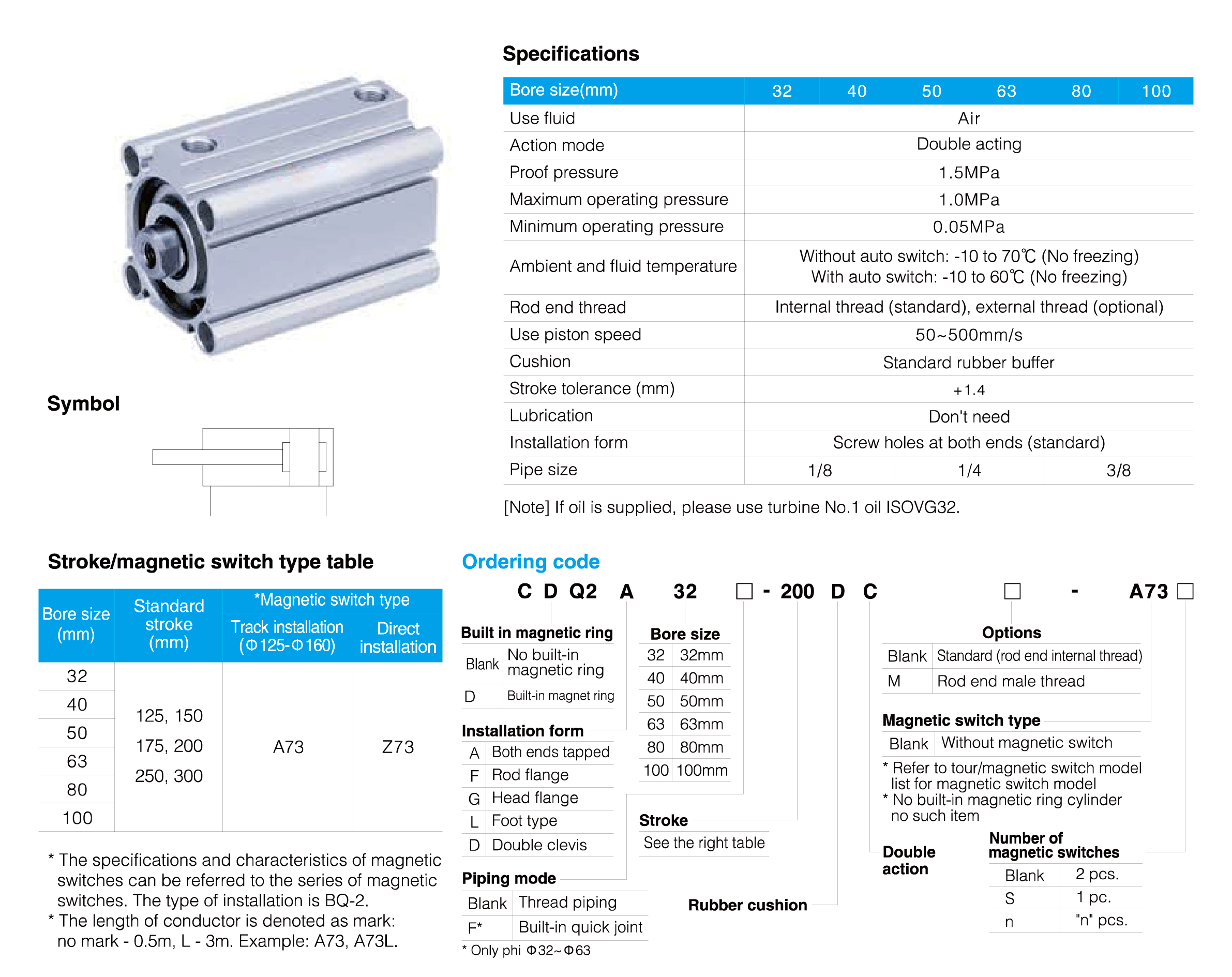

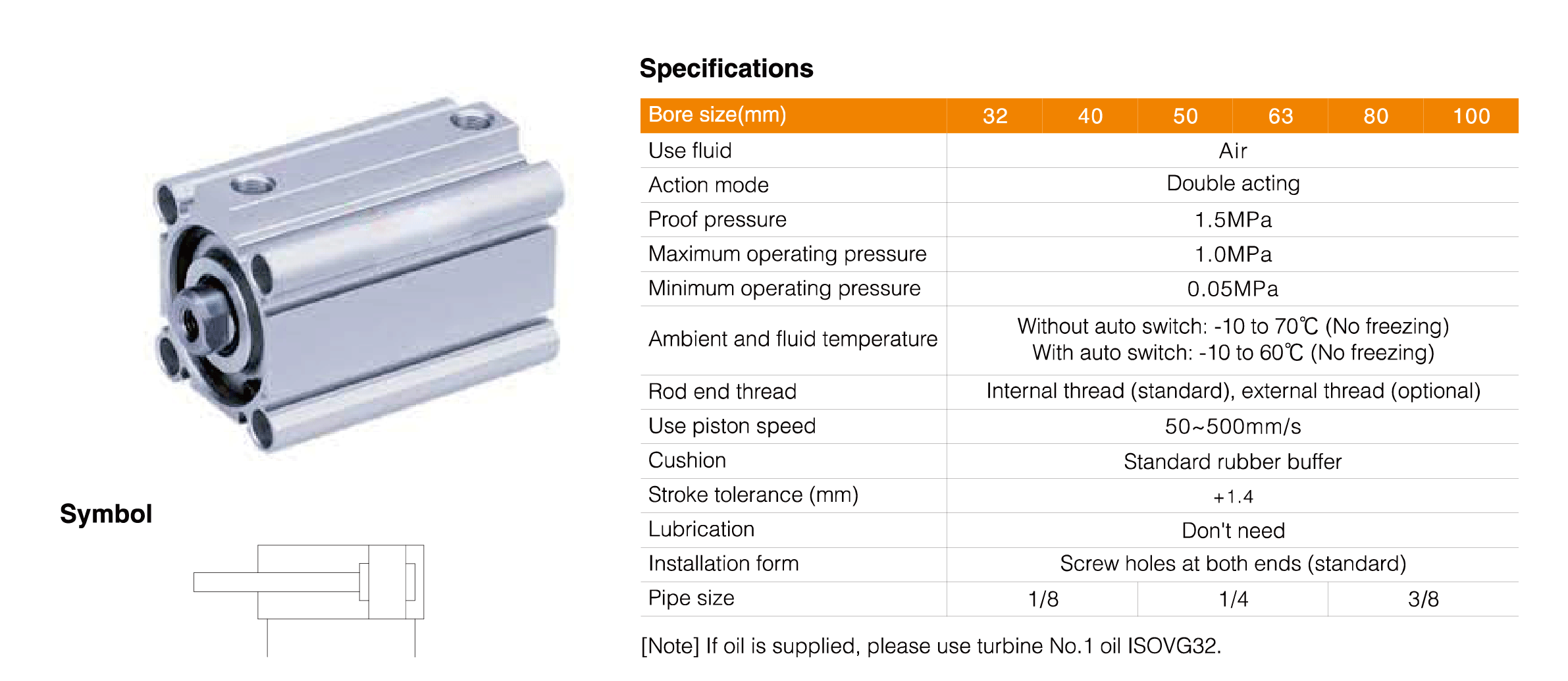

| Parameter | Specification |
| Bore Size | 32–100 mm |
| Working Medium | Compressed Air |
| Action Type | Double Acting |
| Proof Pressure | 1.5 MPa |
| Maximum Operating Pressure | 1.0 MPa |
| Minimum Operating Pressure | 0.05 MPa |
| Piston Speed | 50–500 mm/s |
| Cushion | Standard Rubber Buffer |
| Rod End Thread | Internal Standard, External Optional |
| Lubrication | Not Required |
Note: ISO VG32 turbine oil is recommended if lubrication is required.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CQ2 Long Stroke Series features standard threaded mounting holes at both ends for convenient installation and machine integration.
Standard rubber buffering reduces impact forces at the end of each stroke, contributing to:
● Smooth operation
● Lower vibration
● Reduced mechanical wear
● Improved equipment protection
● Longer service life
Optional magnetic pistons can be combined with auto switches for accurate position detection and automated control.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CQ2 Series Compact Cylinder (Long Stroke) is widely used in:
● Packaging machinery
● Material handling systems
● Conveyor automation
● Pick-and-place equipment
● Assembly lines
● Electronics manufacturing
● Medical equipment
● Textile machinery
● OEM automation equipment
● General industrial automation
Combining compact dimensions, extended stroke capability, flexible installation, and dependable pneumatic performance, the CQ2 Series Compact Cylinder (Long Stroke) provides an efficient solution for automation applications requiring long linear travel within limited installation space.
