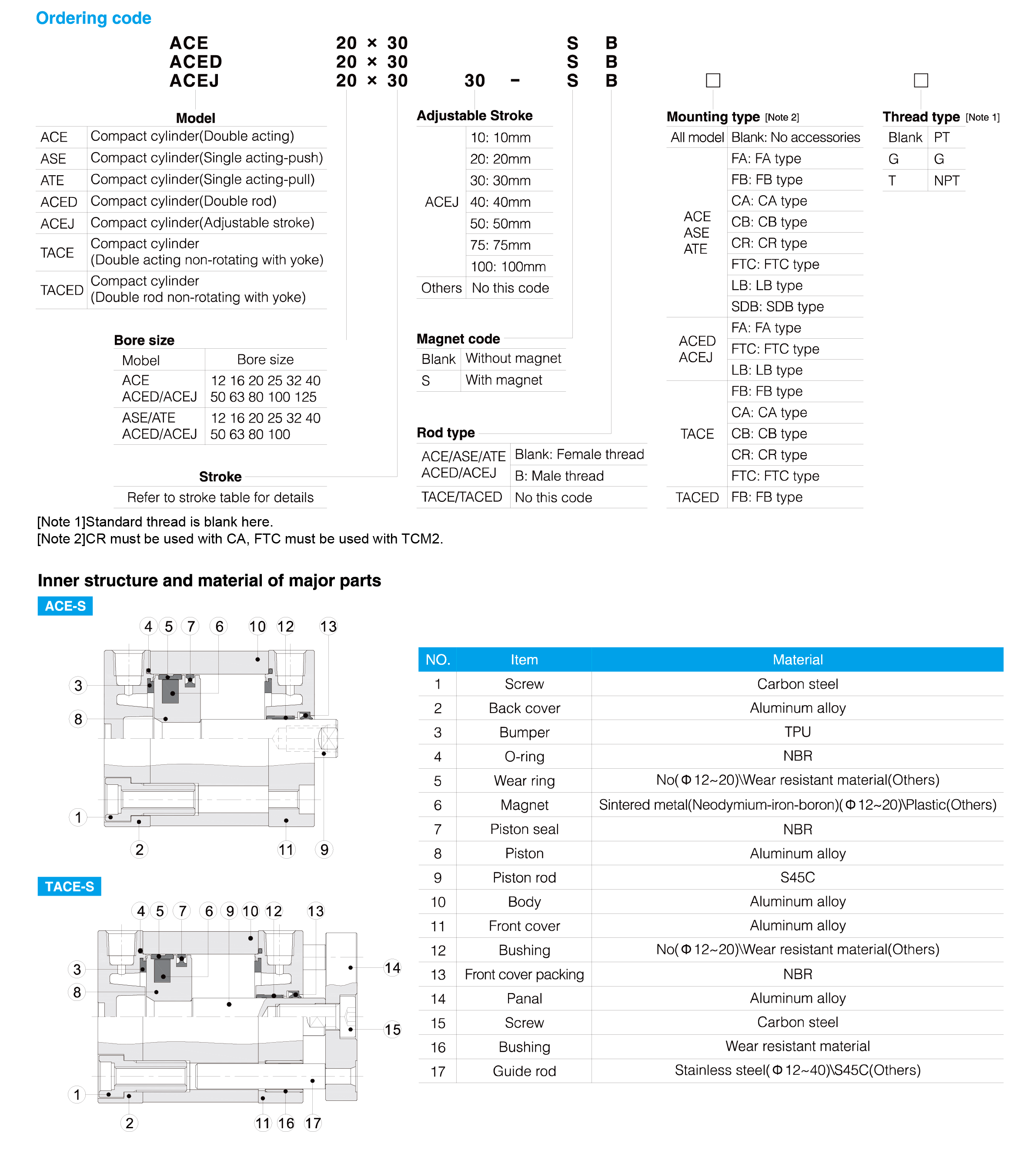

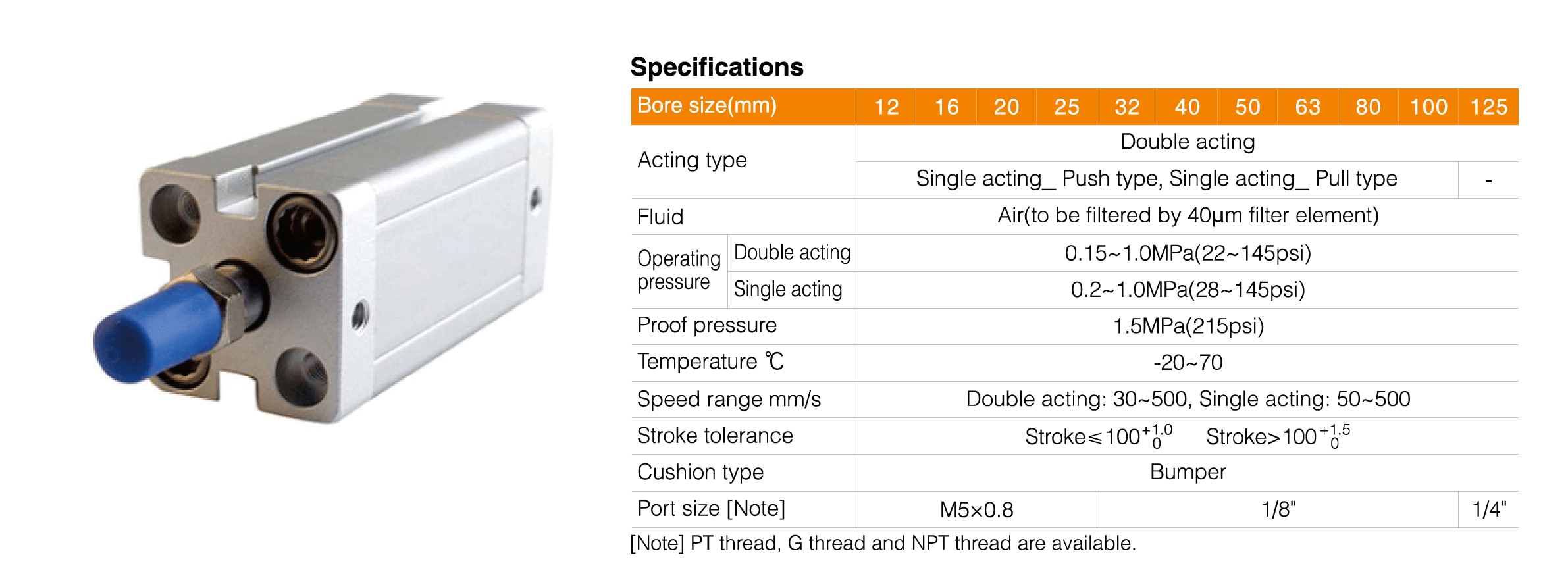

The ACE (AND) Series Compact Cylinder is an ISO 21287 pneumatic actuator designed for applications requiring compact dimensions and reliable linear motion. Its optimized structure can reduce installation space by up to 50% compared with ISO 15552 standard cylinders while maintaining excellent strength and durability.
Featuring a hard anodized aluminum barrel, integrated magnetic switch grooves, and high-performance piston seals, the ACE (AND) Series provides stable operation and easy system integration for packaging machinery, assembly equipment, and industrial automation.
The ACE (AND) Series Compact Cylinder is designed according to ISO 21287 standards, providing a compact pneumatic solution for modern automation equipment. Its short body design helps reduce machine size while maintaining reliable thrust and stable linear motion.
Compared with conventional ISO 15552 cylinders, the compact structure can save up to 50% of installation space, making it ideal for equipment where layout efficiency is critical.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● ISO 21287 standard dimensions
● Compact structure saves installation space
● High-strength threaded body construction
● Hard anodized aluminum barrel
● Advanced two-way piston sealing
● Integrated magnetic switch slots
● Built-in bumper for impact absorption
● Excellent wear and corrosion resistance
● Multiple mounting accessories available
● Easy maintenance and installation
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

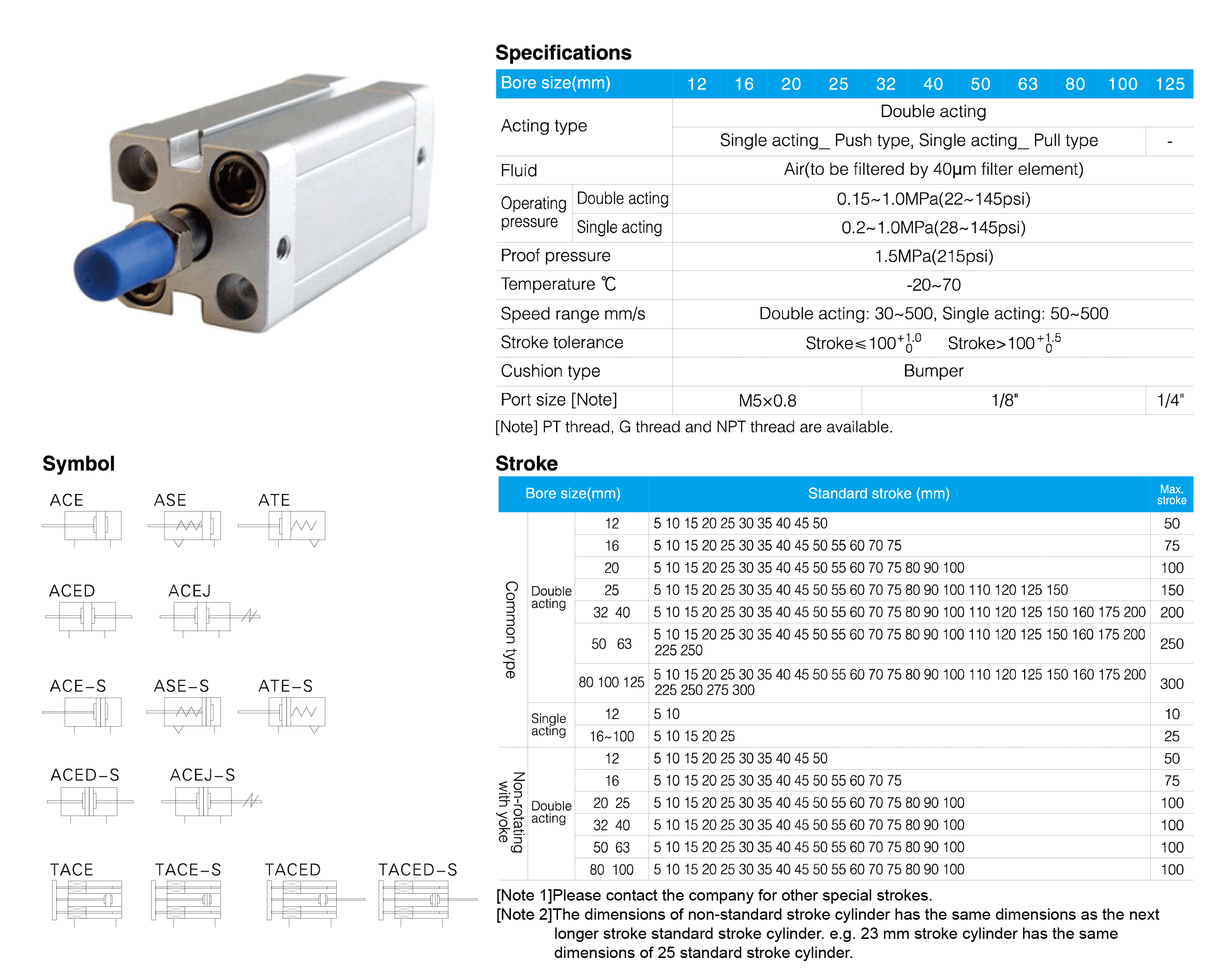

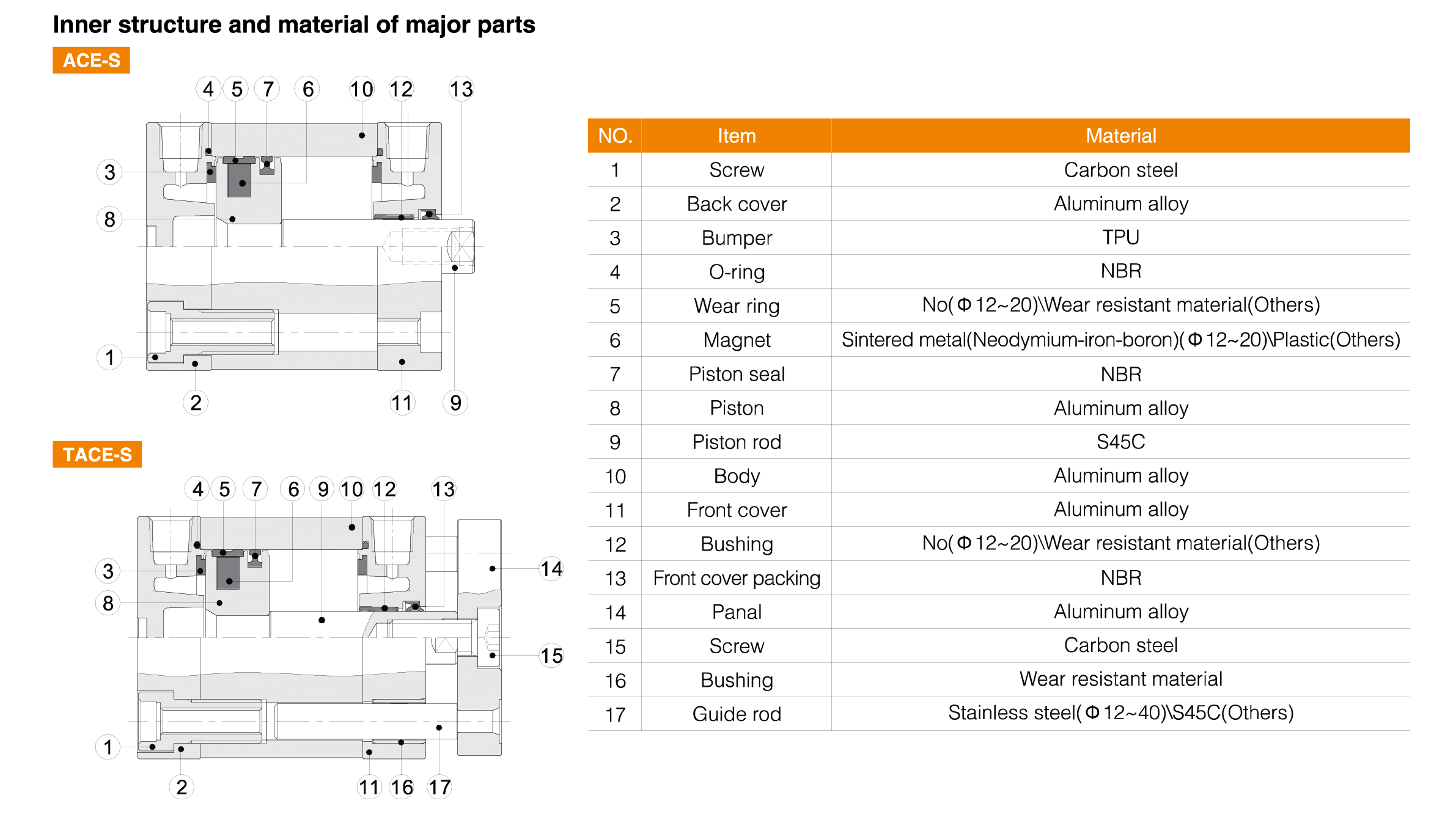

The cylinder body is connected to the front and rear covers through a threaded structure, providing high mechanical strength and convenient maintenance. The compact design allows engineers to optimize machine layouts without compromising performance.
The inner barrel surface is precision rolled and hard anodized, delivering excellent abrasion resistance, corrosion protection, and long service life under continuous operation.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The piston adopts a heterogeneous two-way sealing structure with oil retention capability, reducing friction while improving sealing efficiency and component longevity.
Magnetic switch grooves are integrated around the cylinder body, allowing proximity sensors to be installed quickly for accurate position monitoring and automated control.
An integrated bumper effectively absorbs excess kinetic energy, reducing impact loads and improving operating smoothness.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

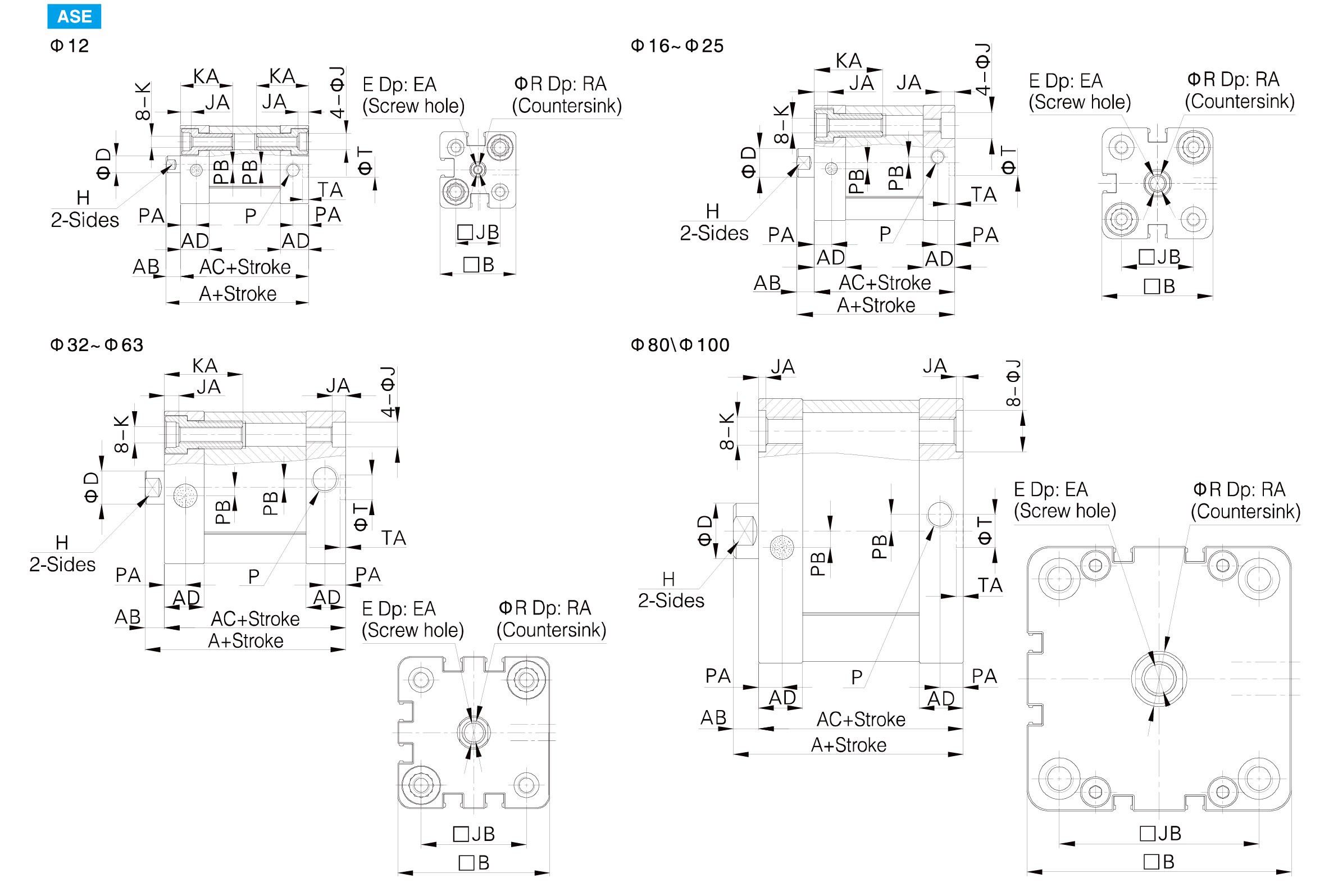

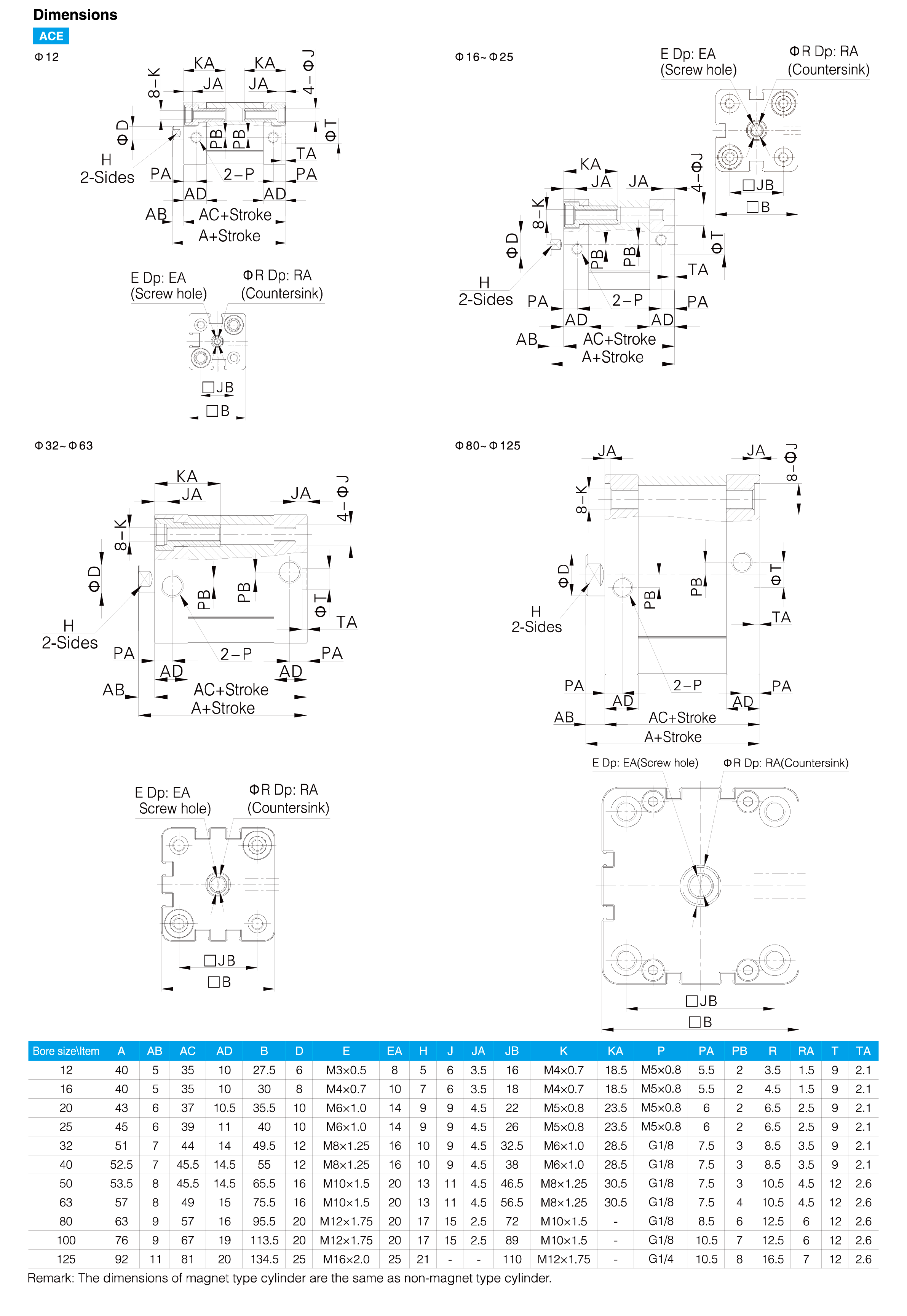

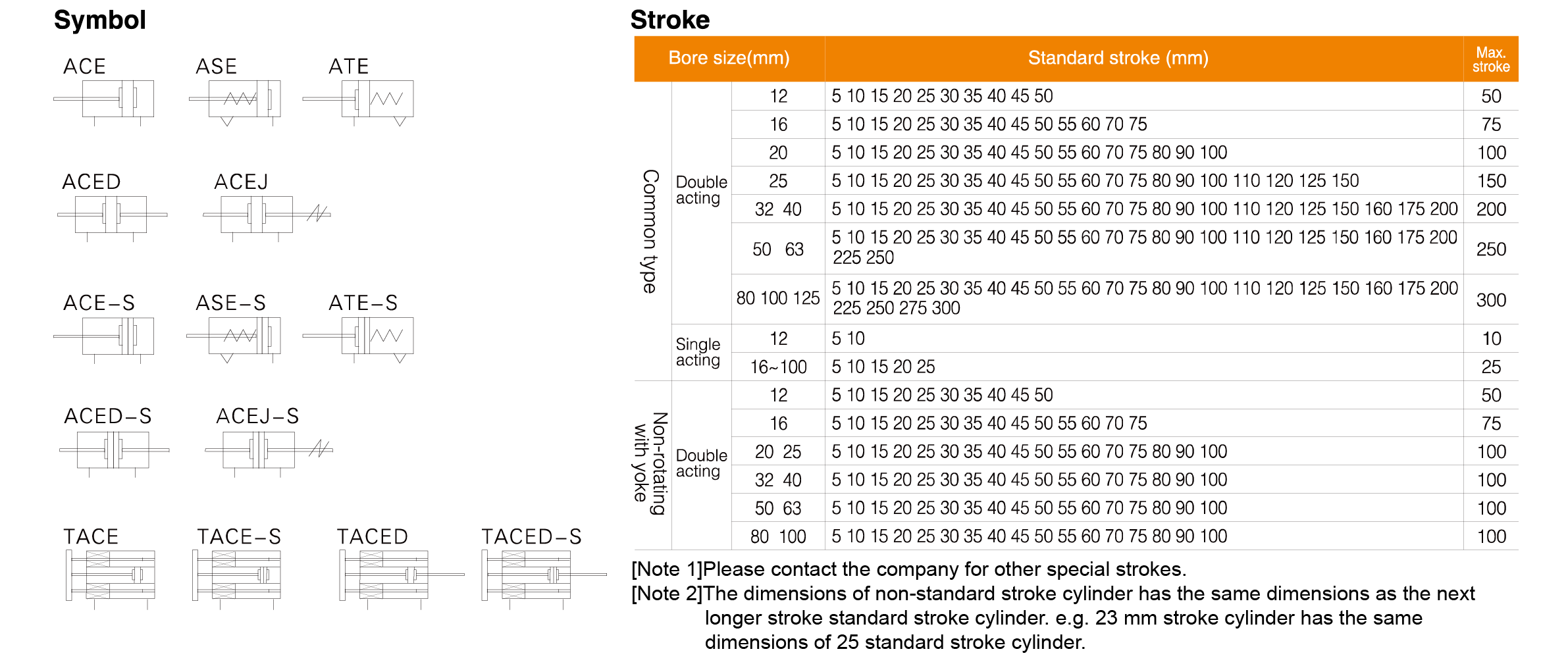

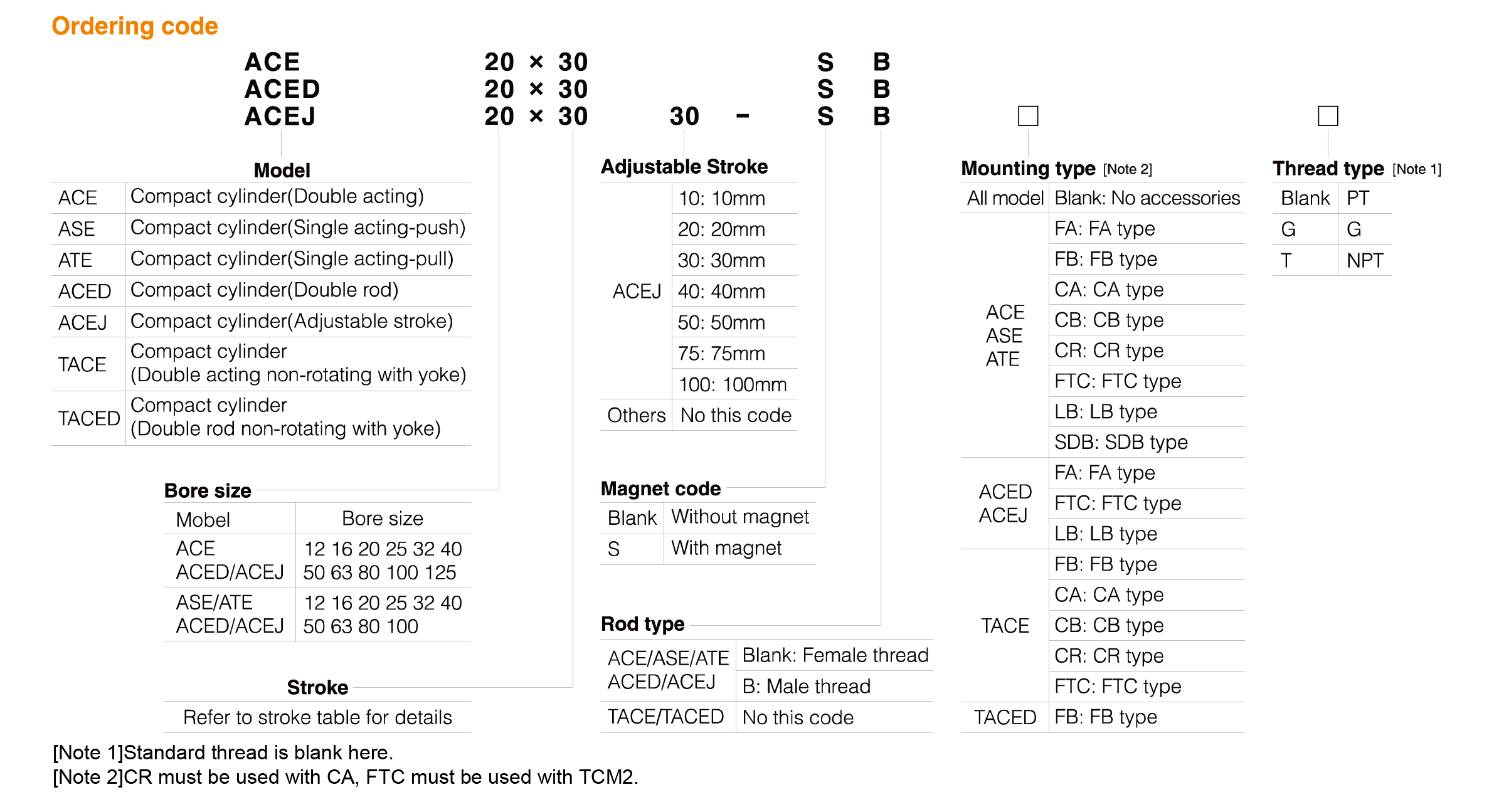

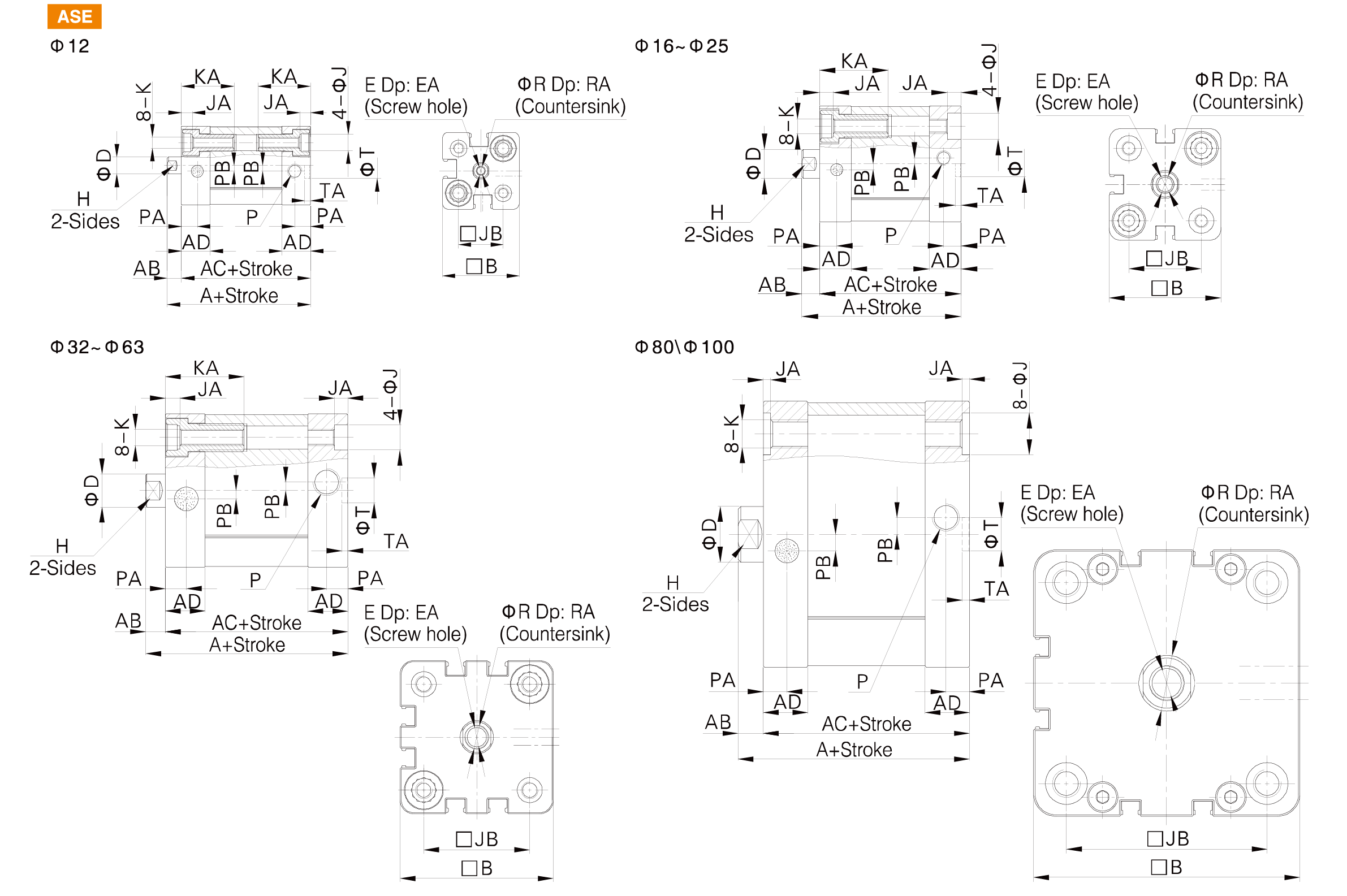

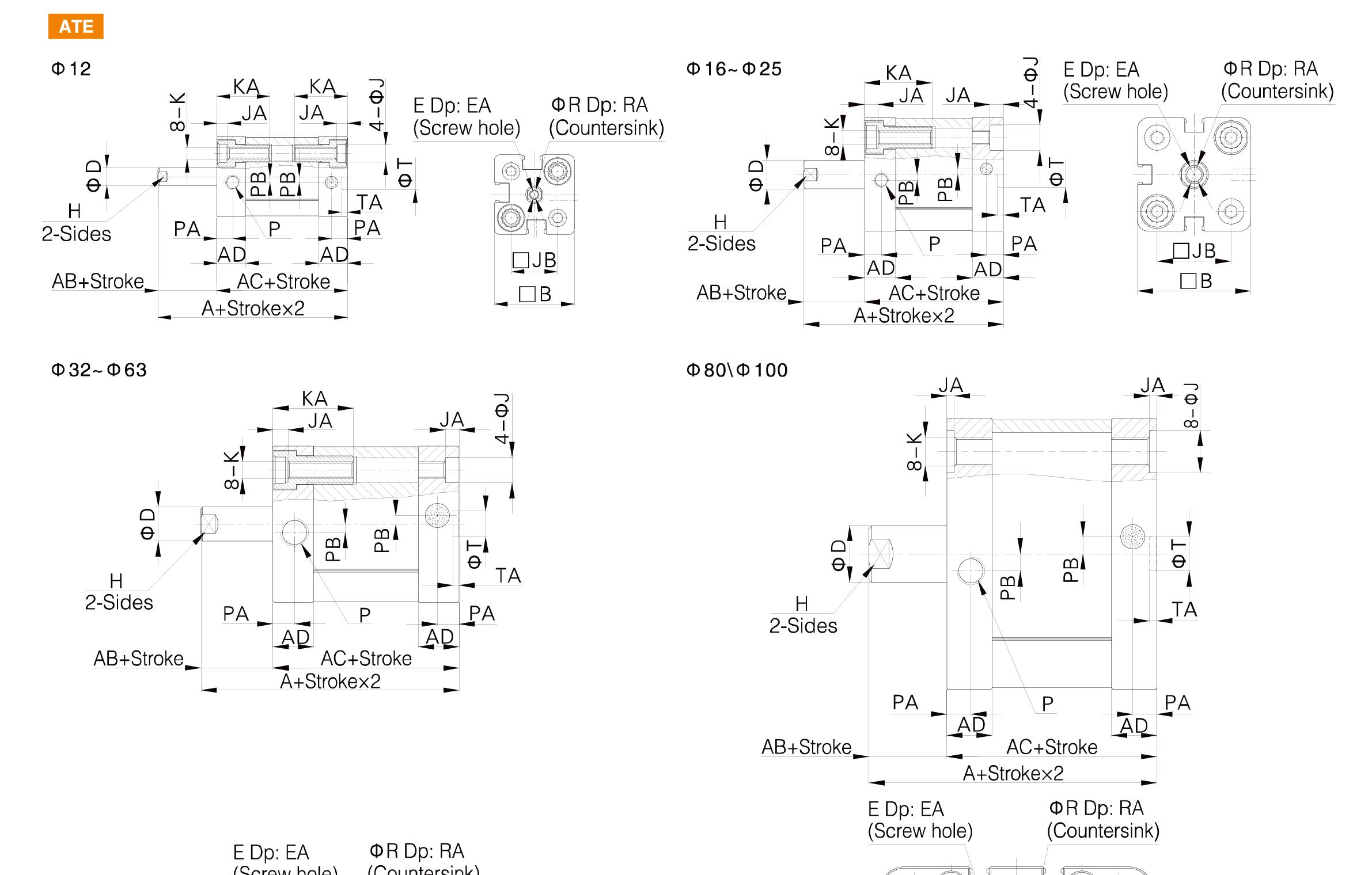

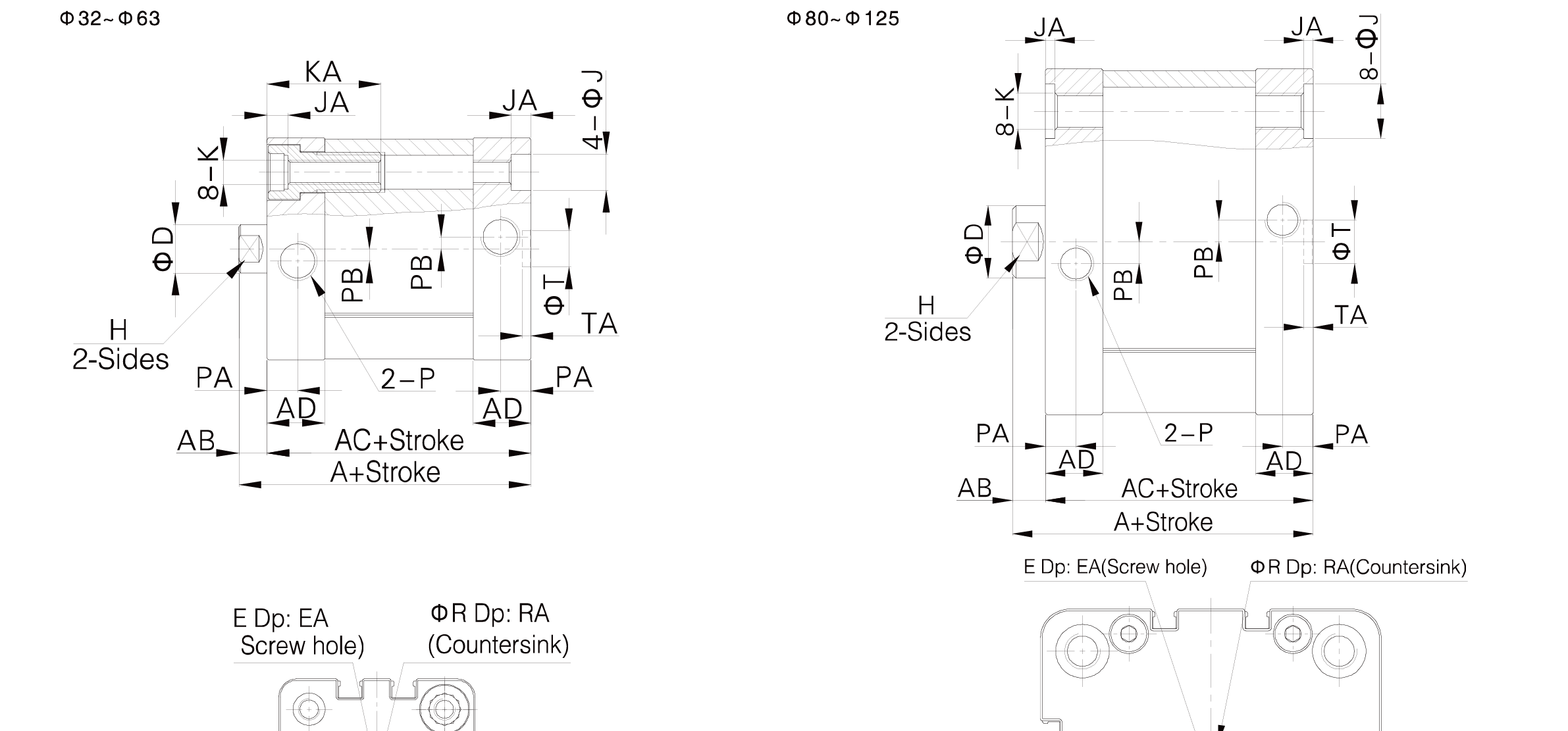

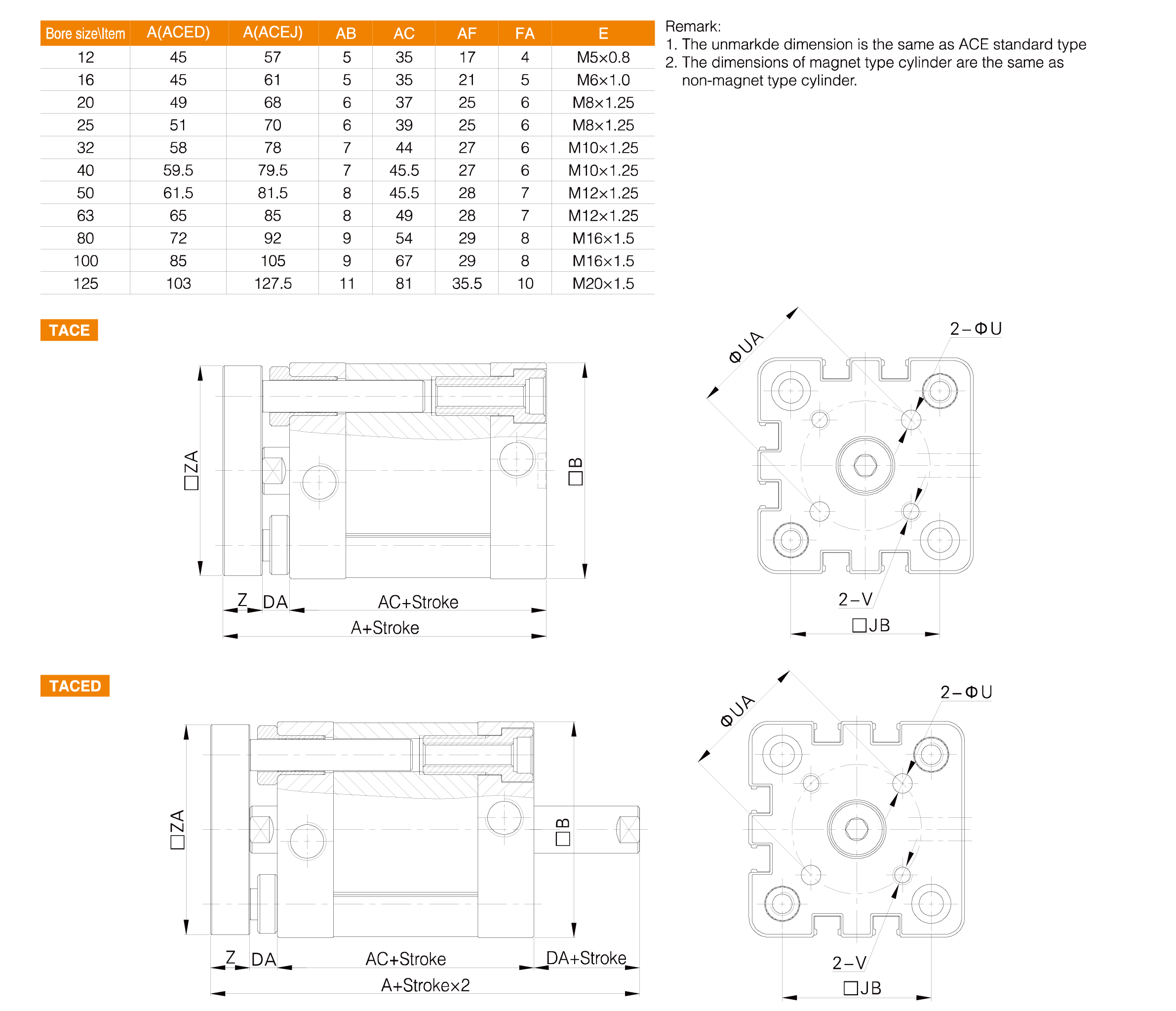

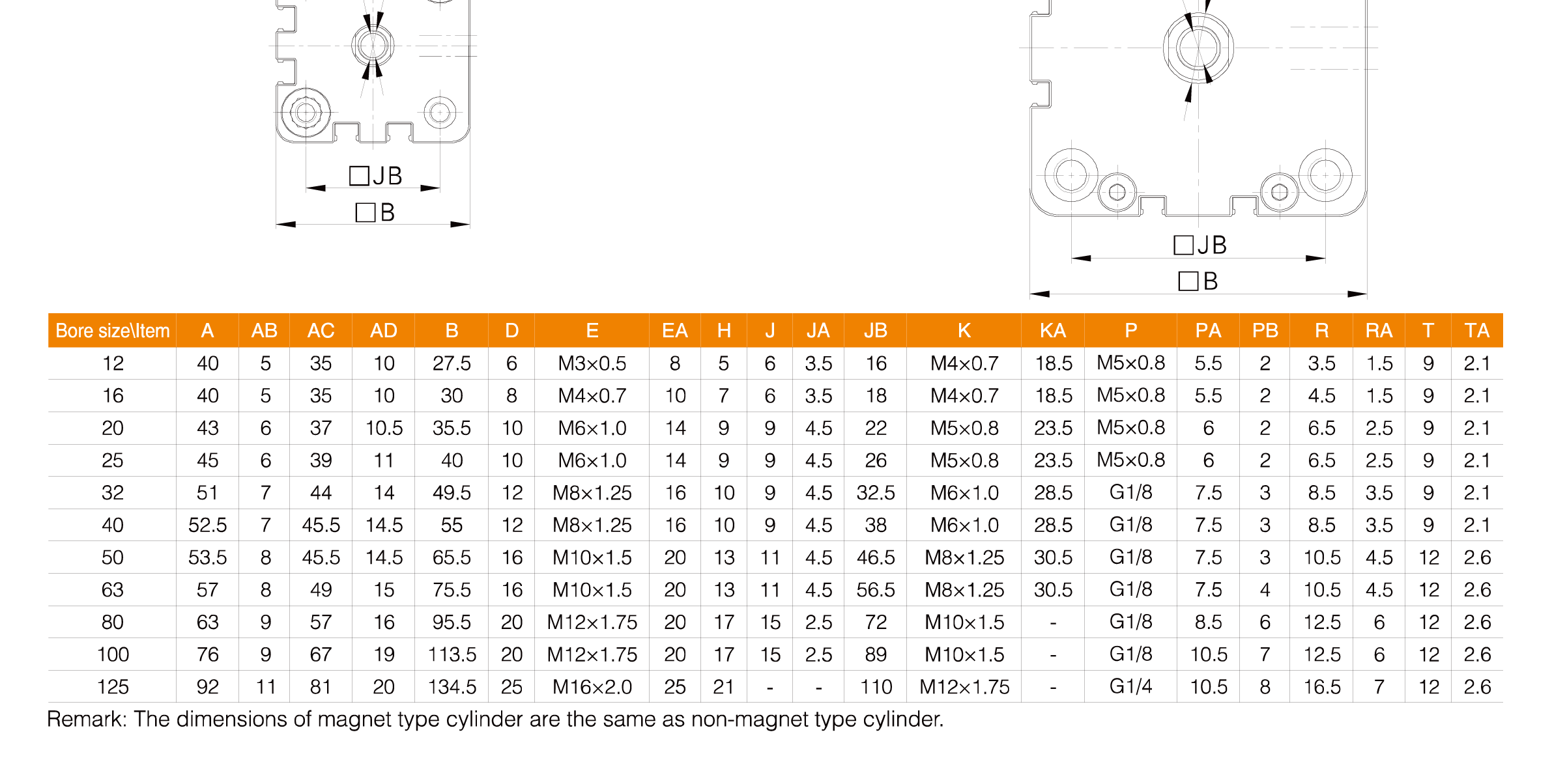

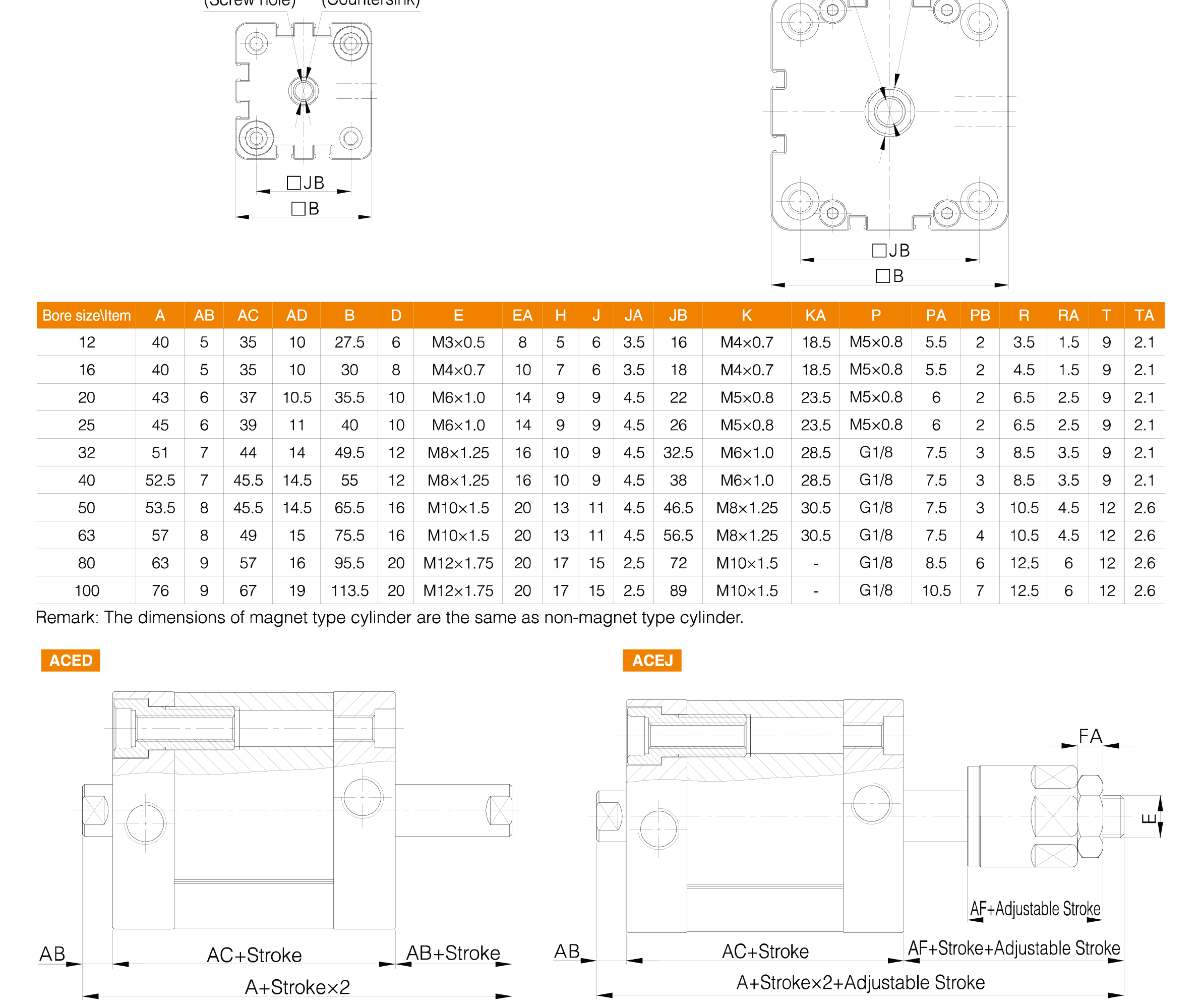

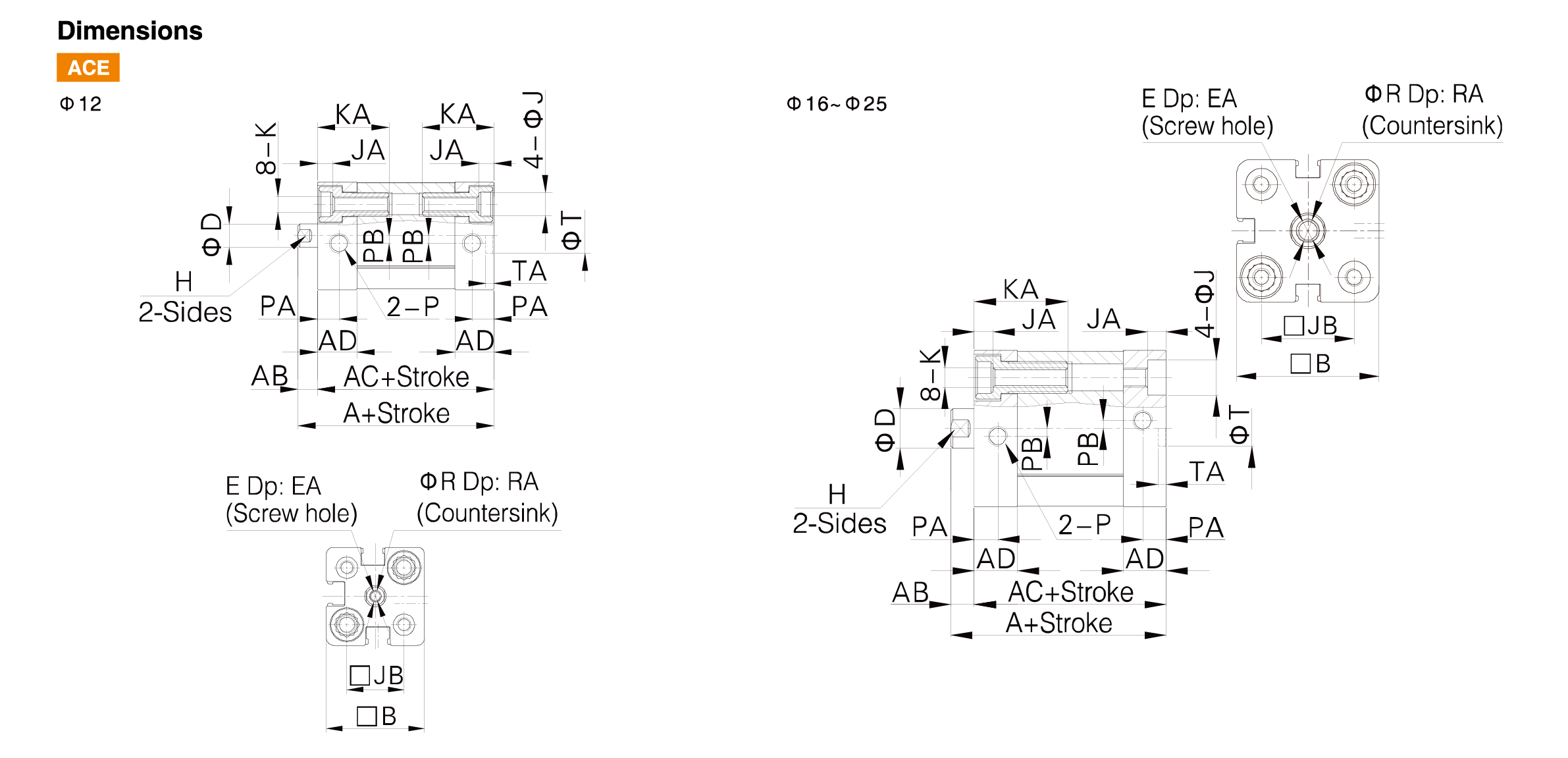

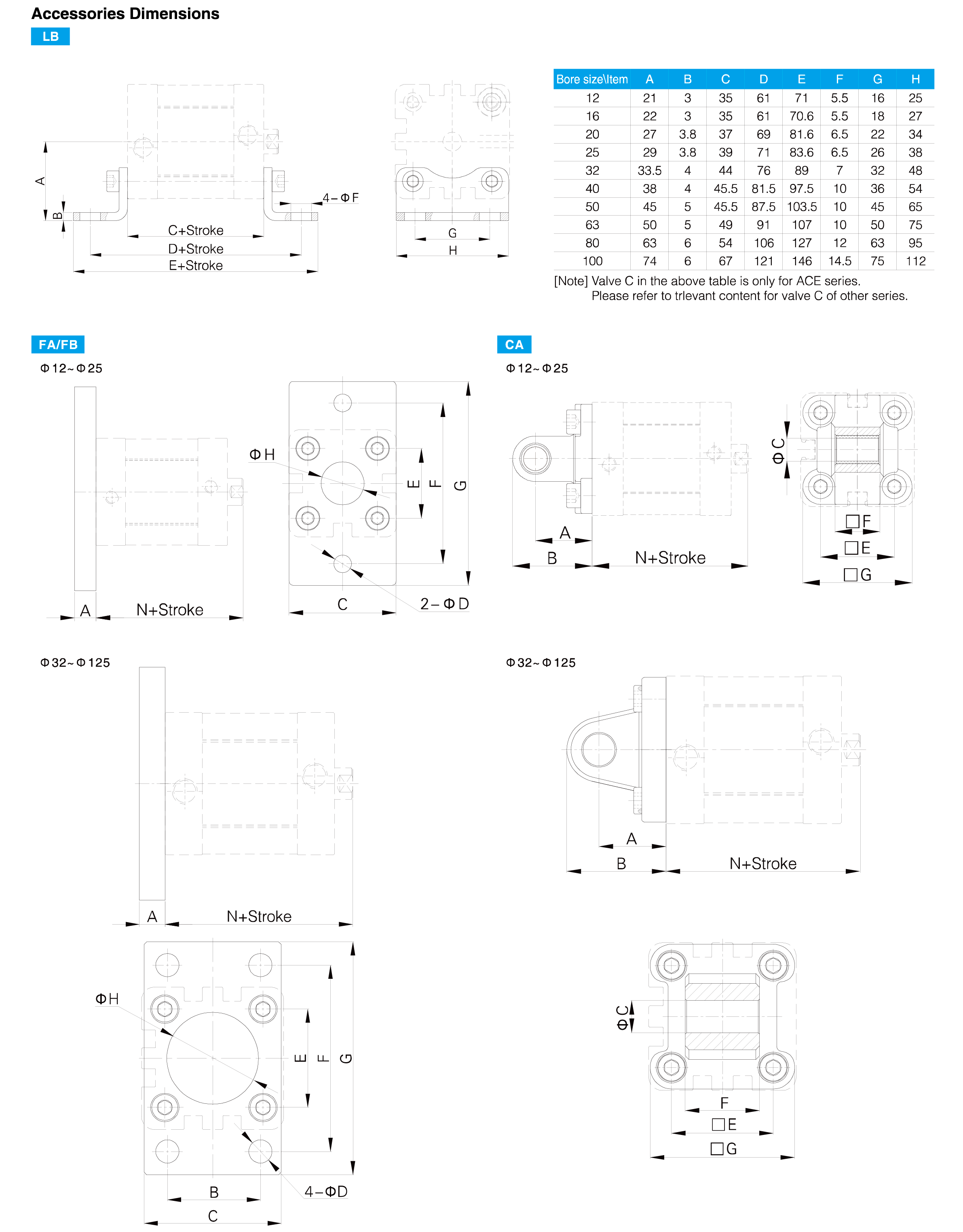

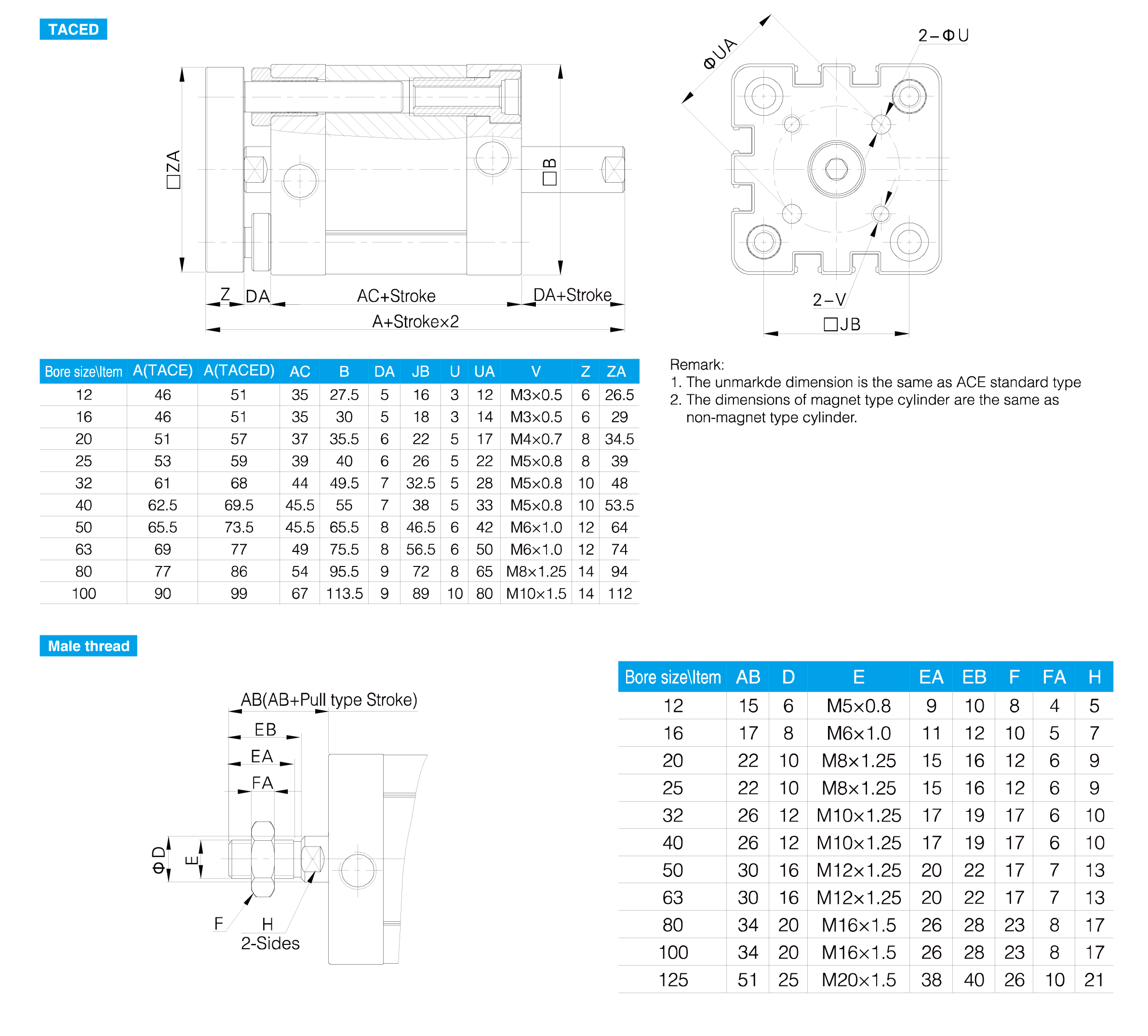

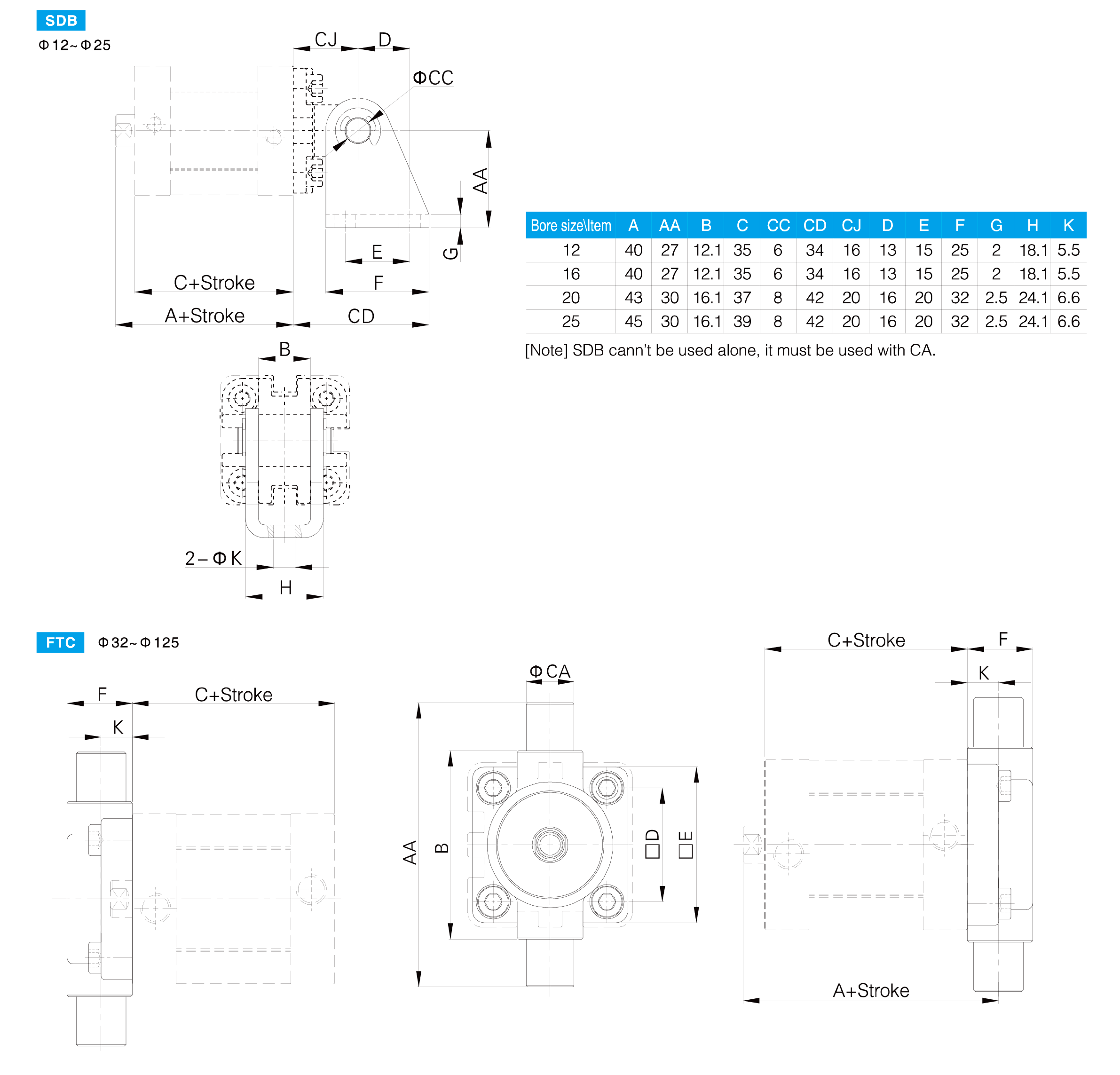

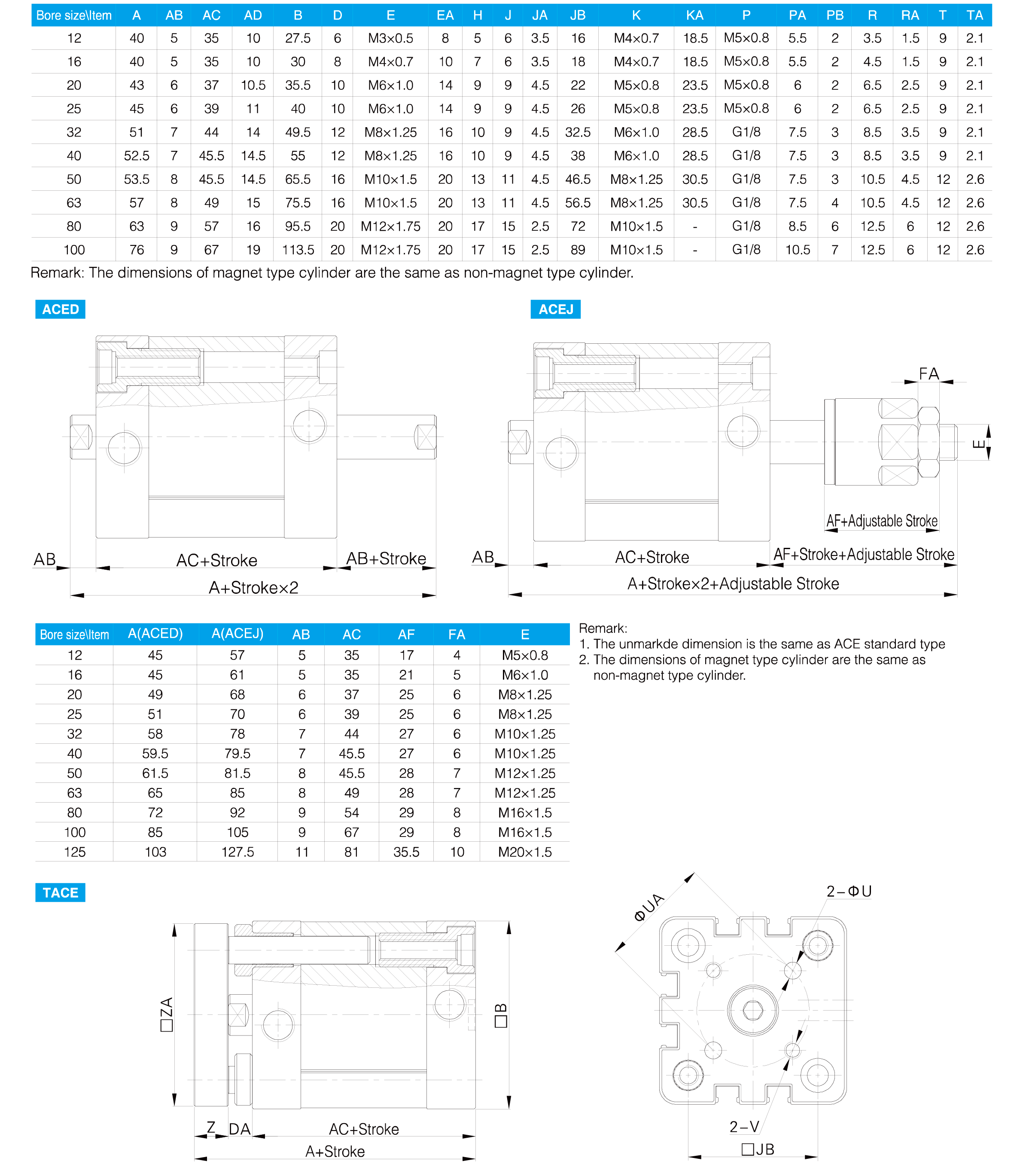

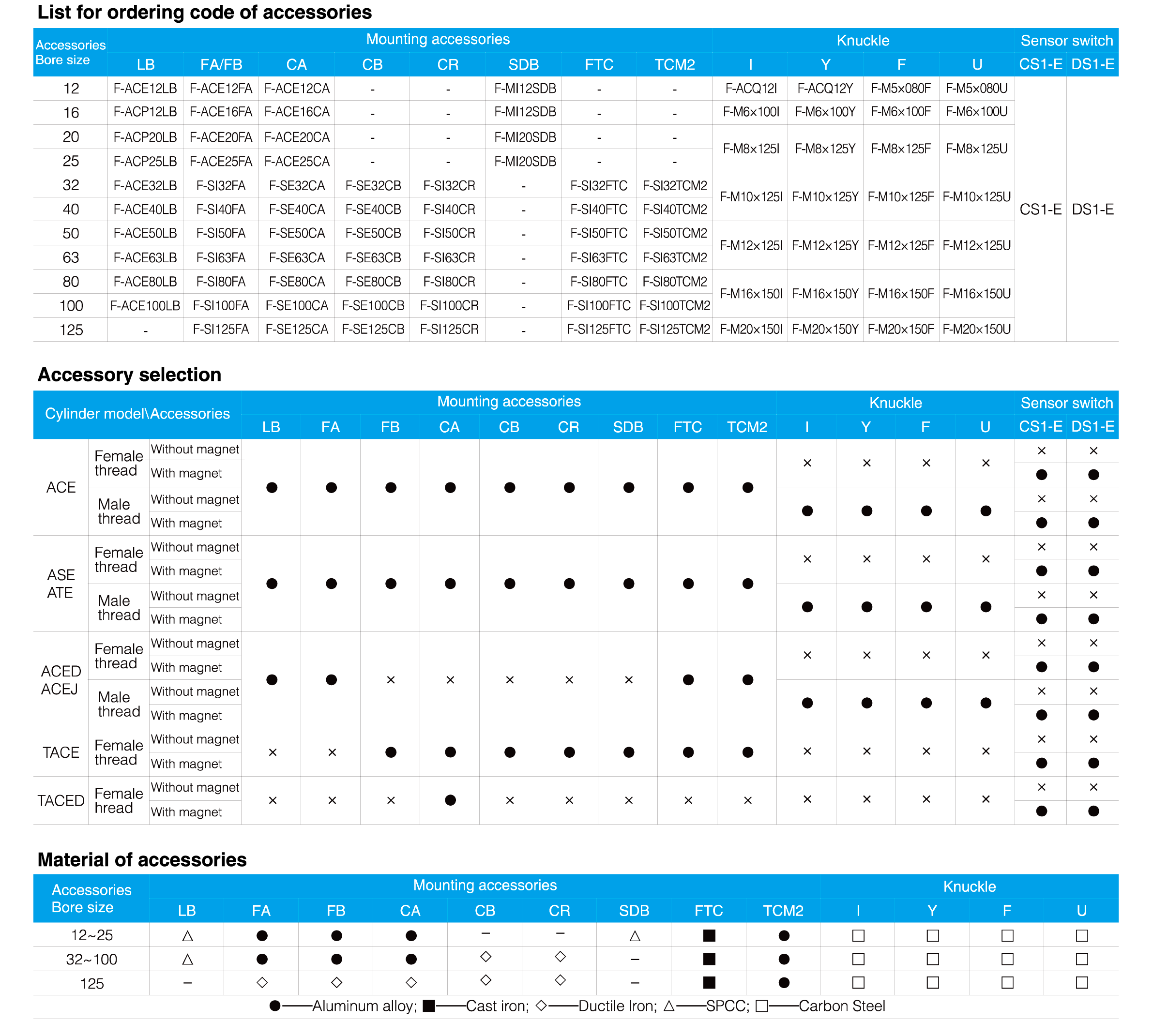

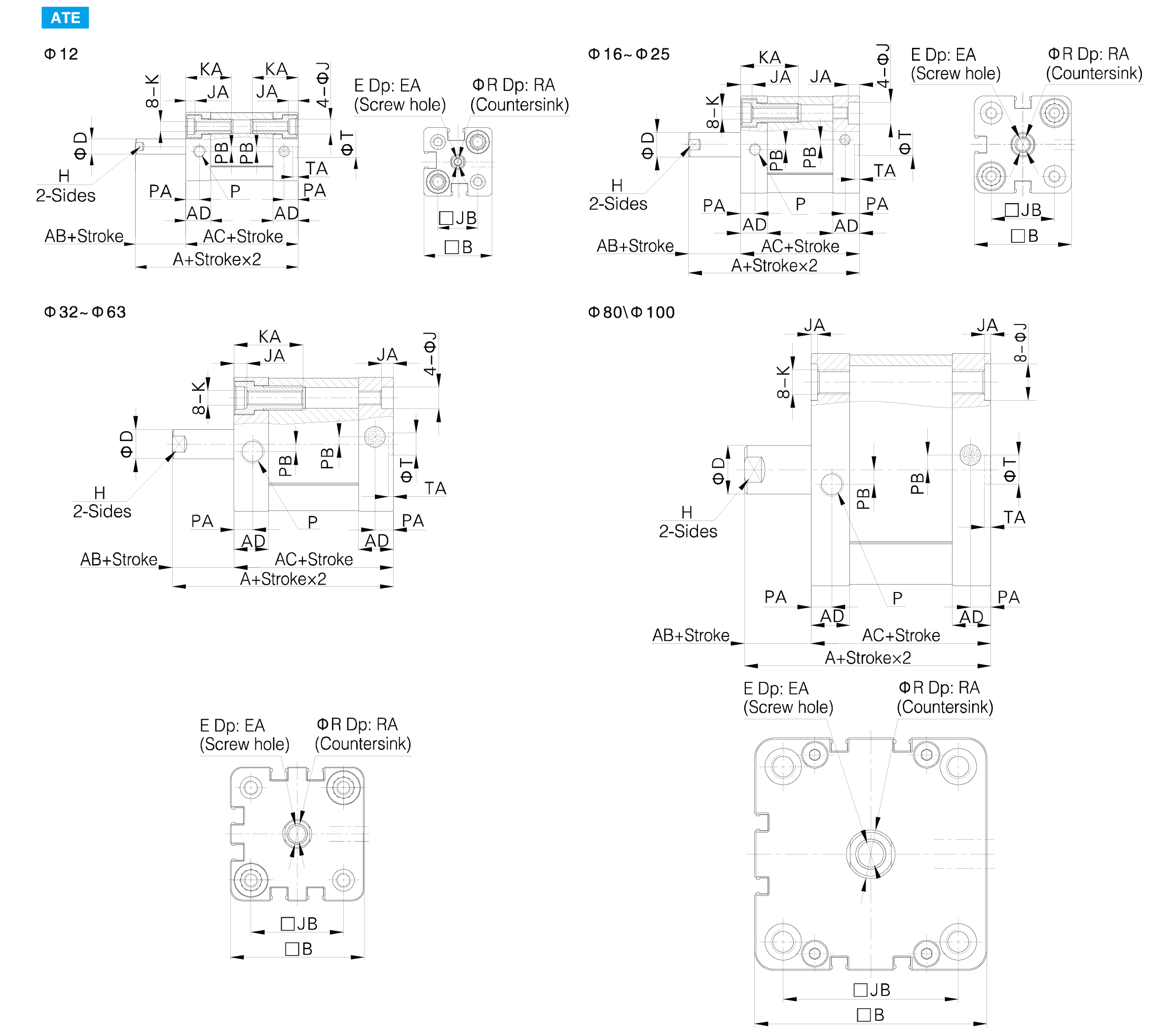

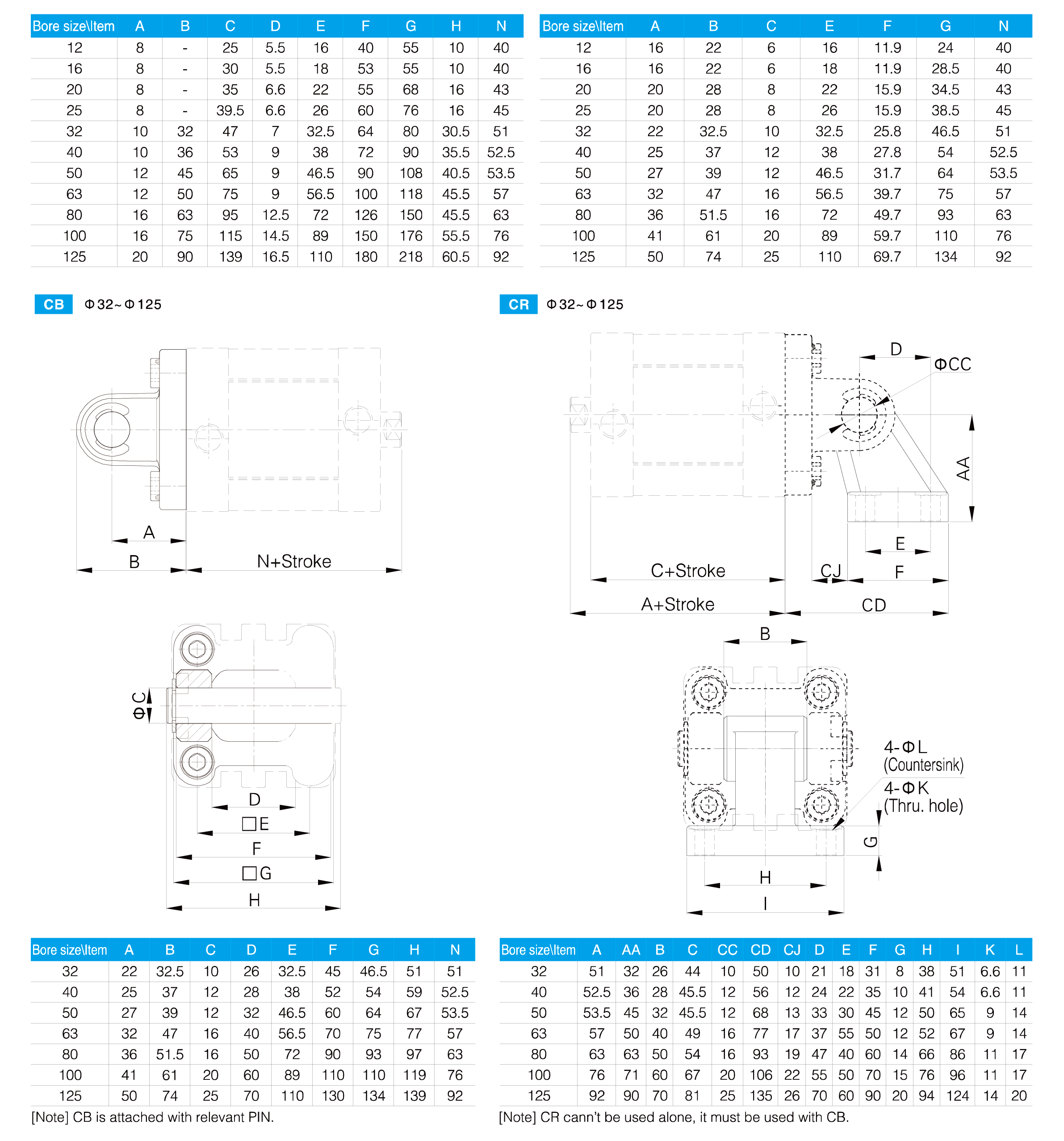

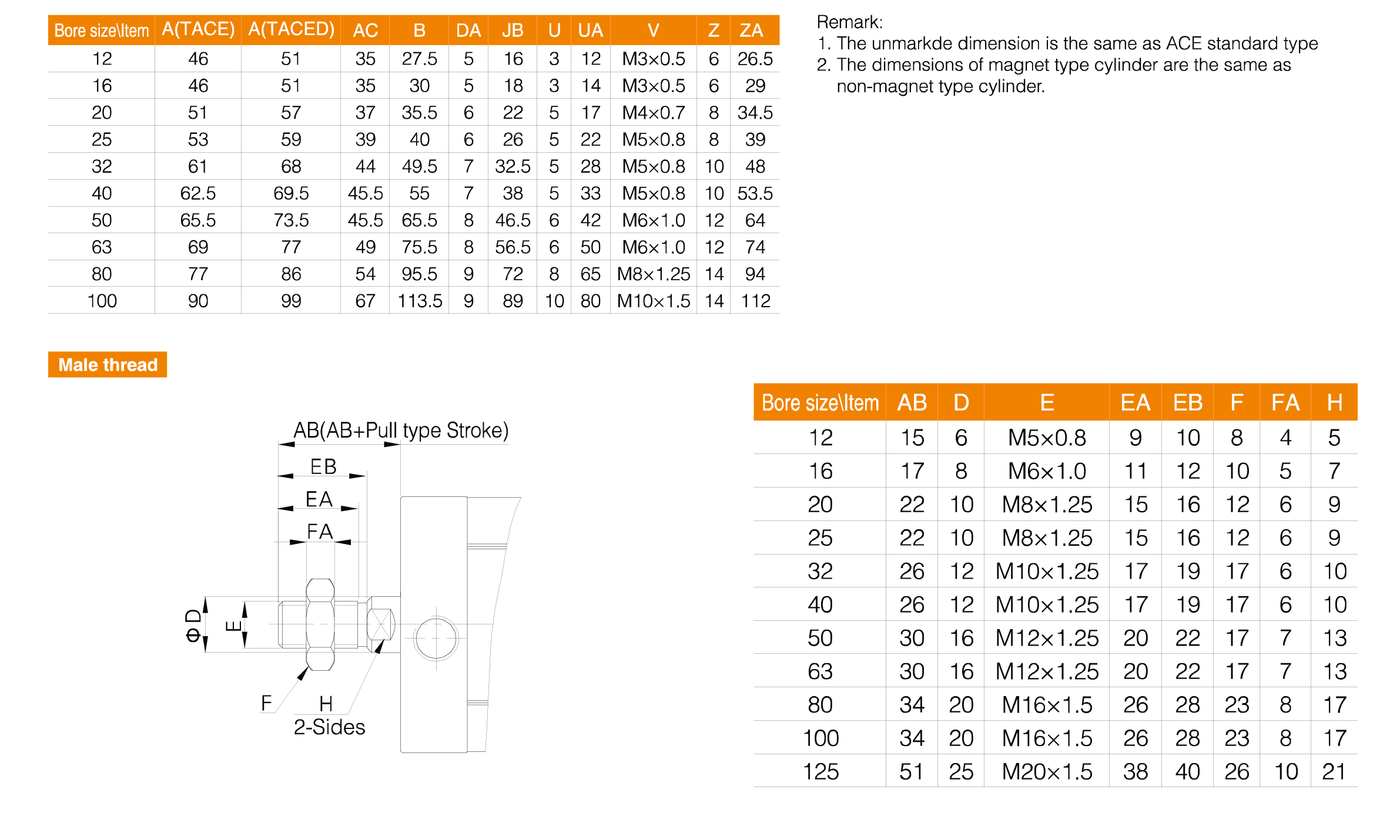

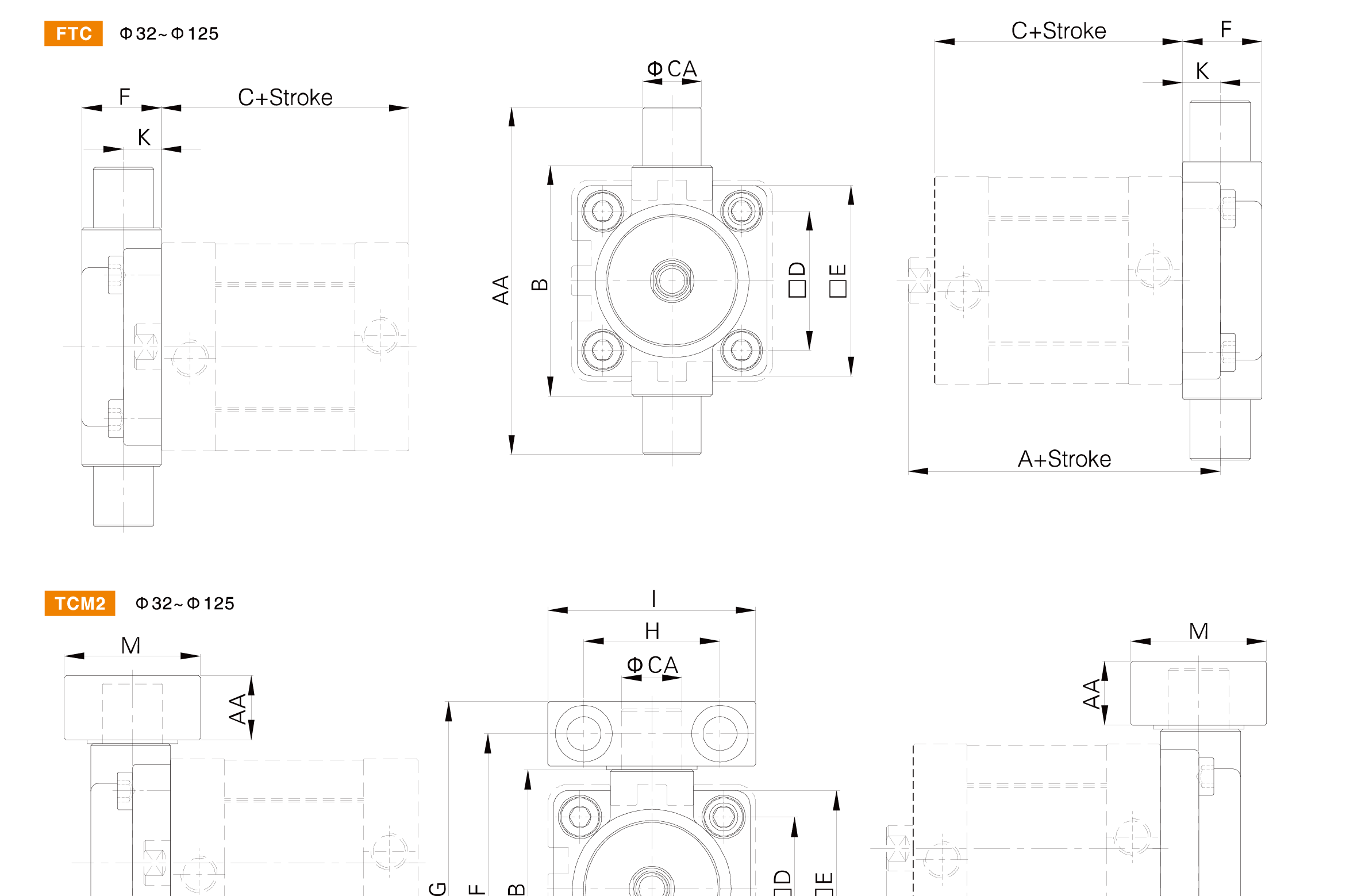

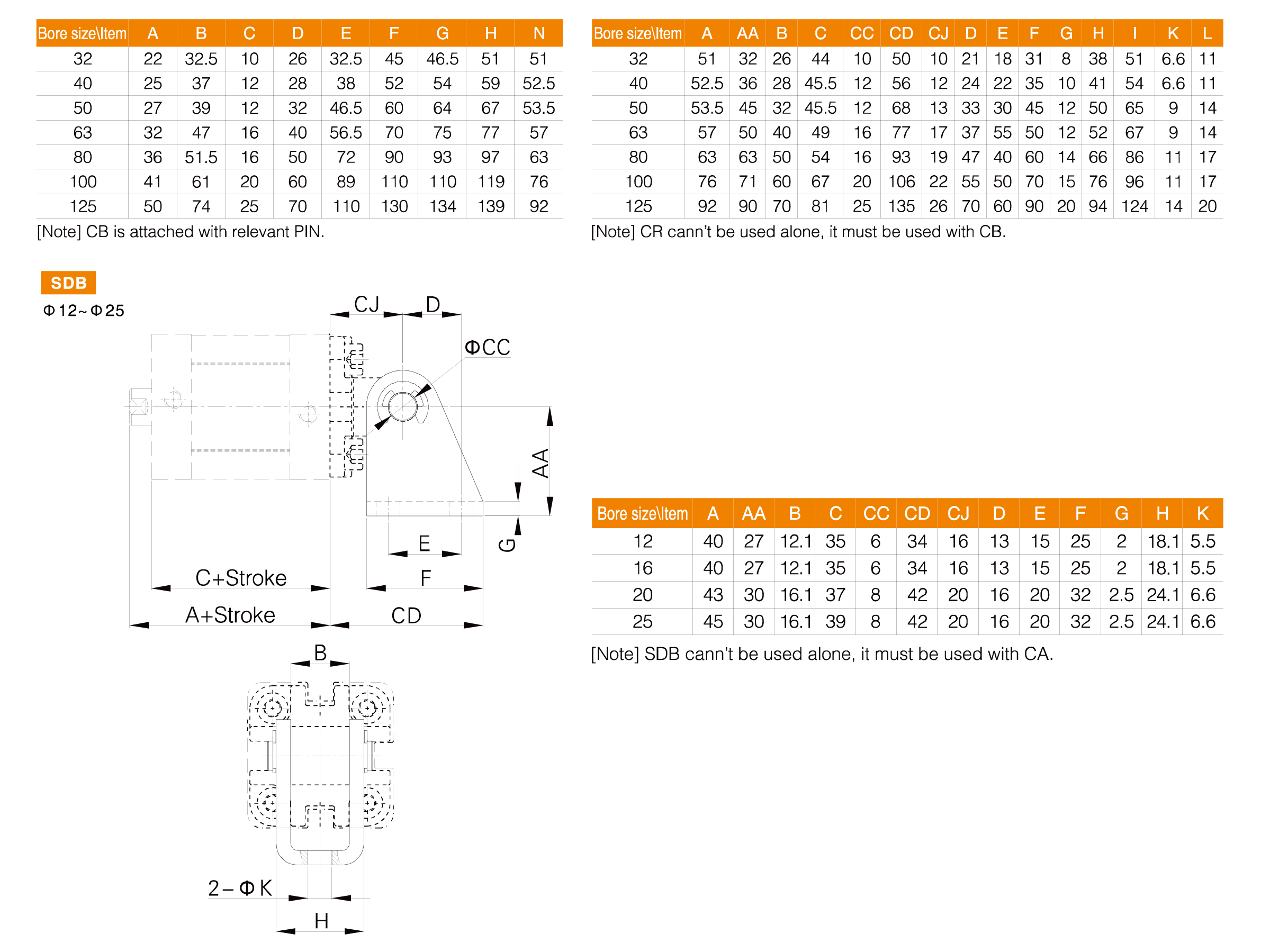

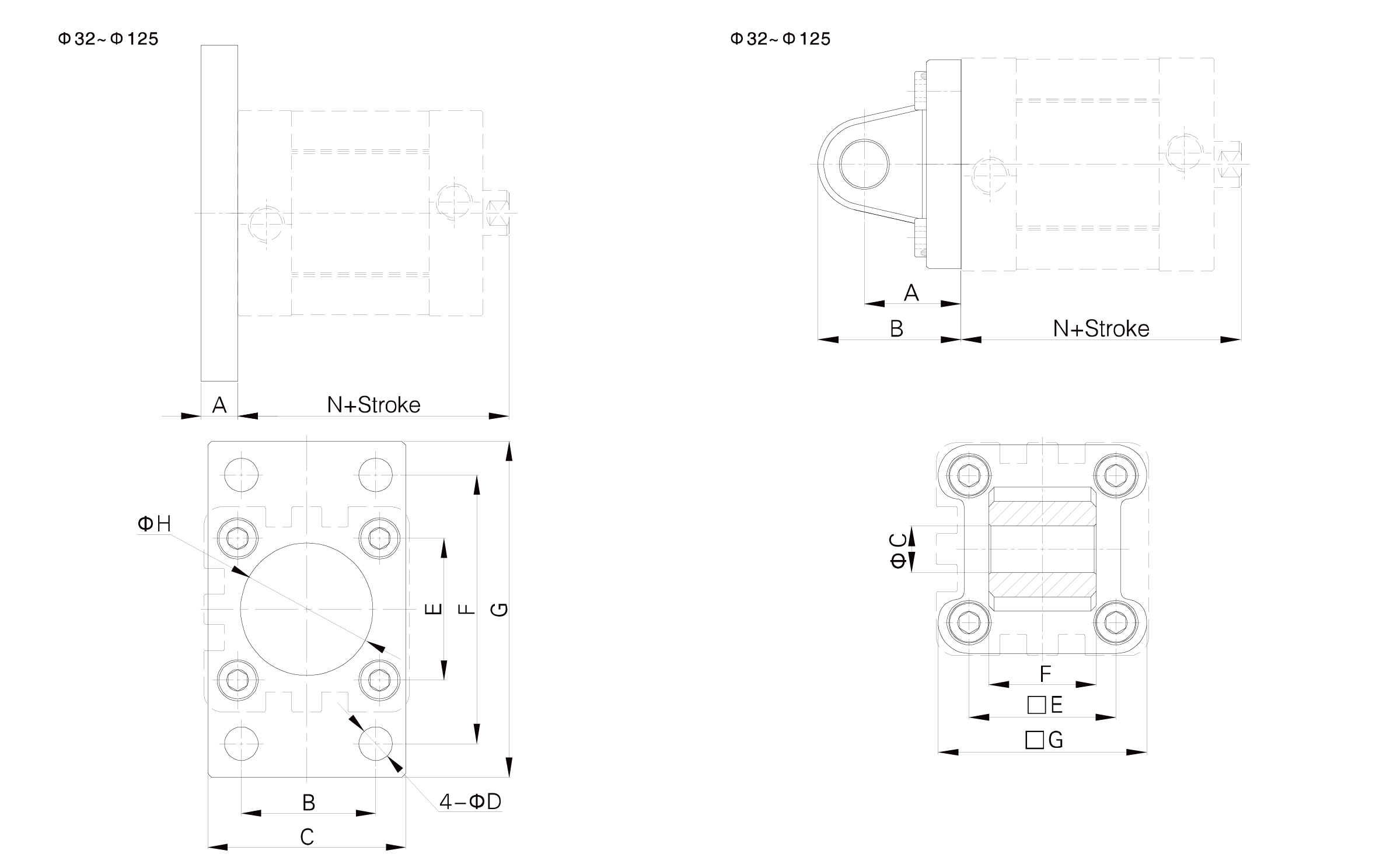

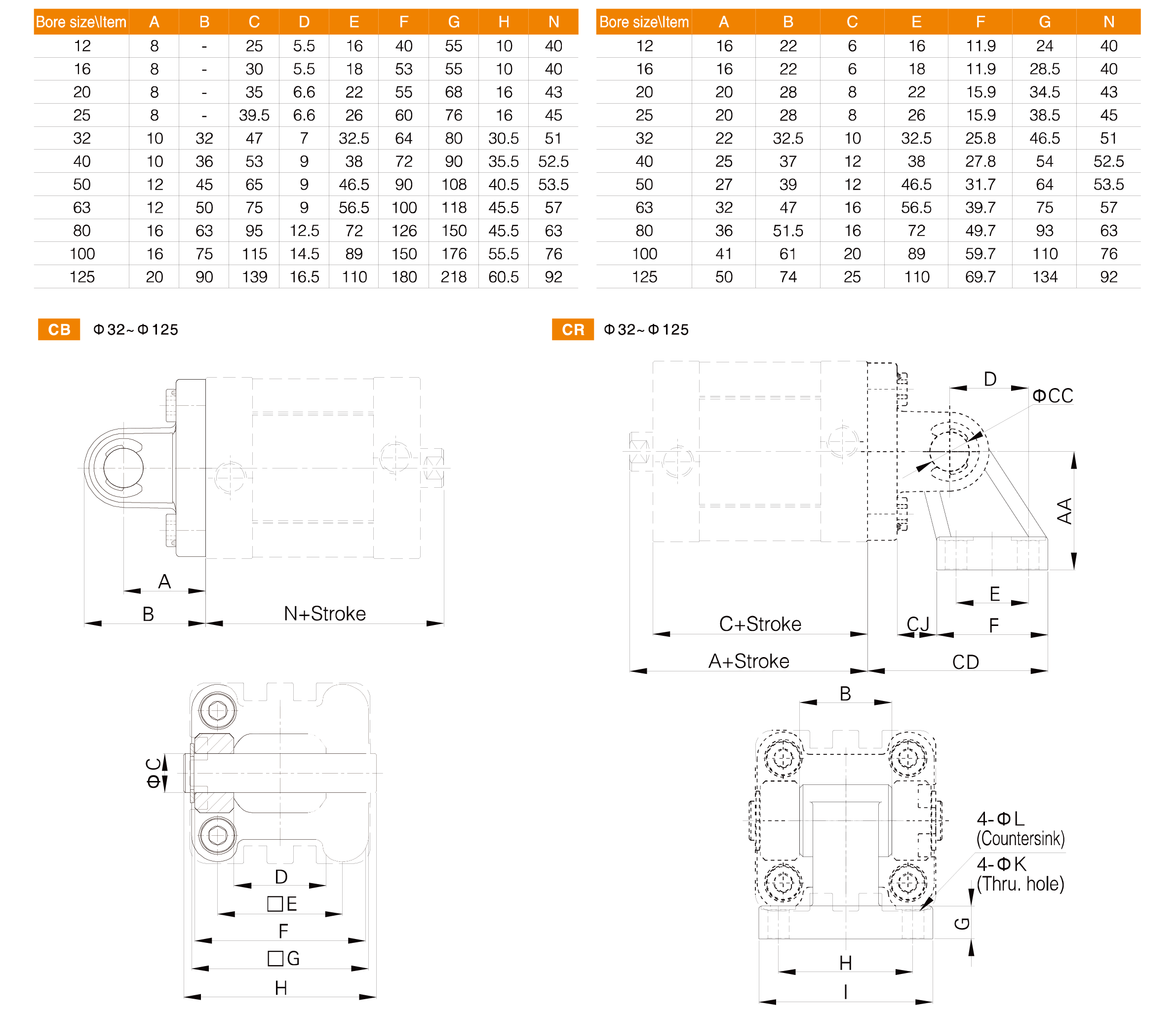

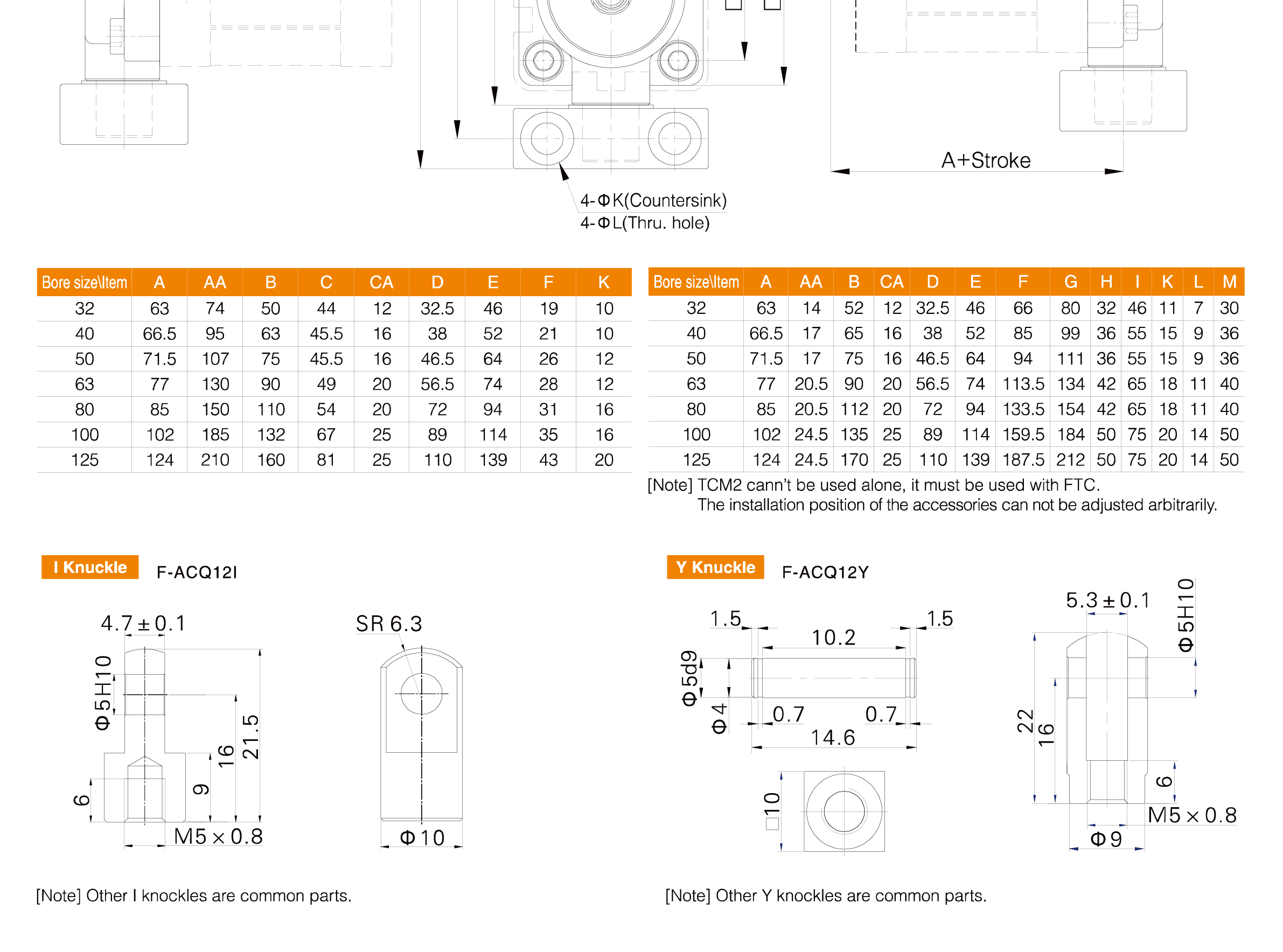

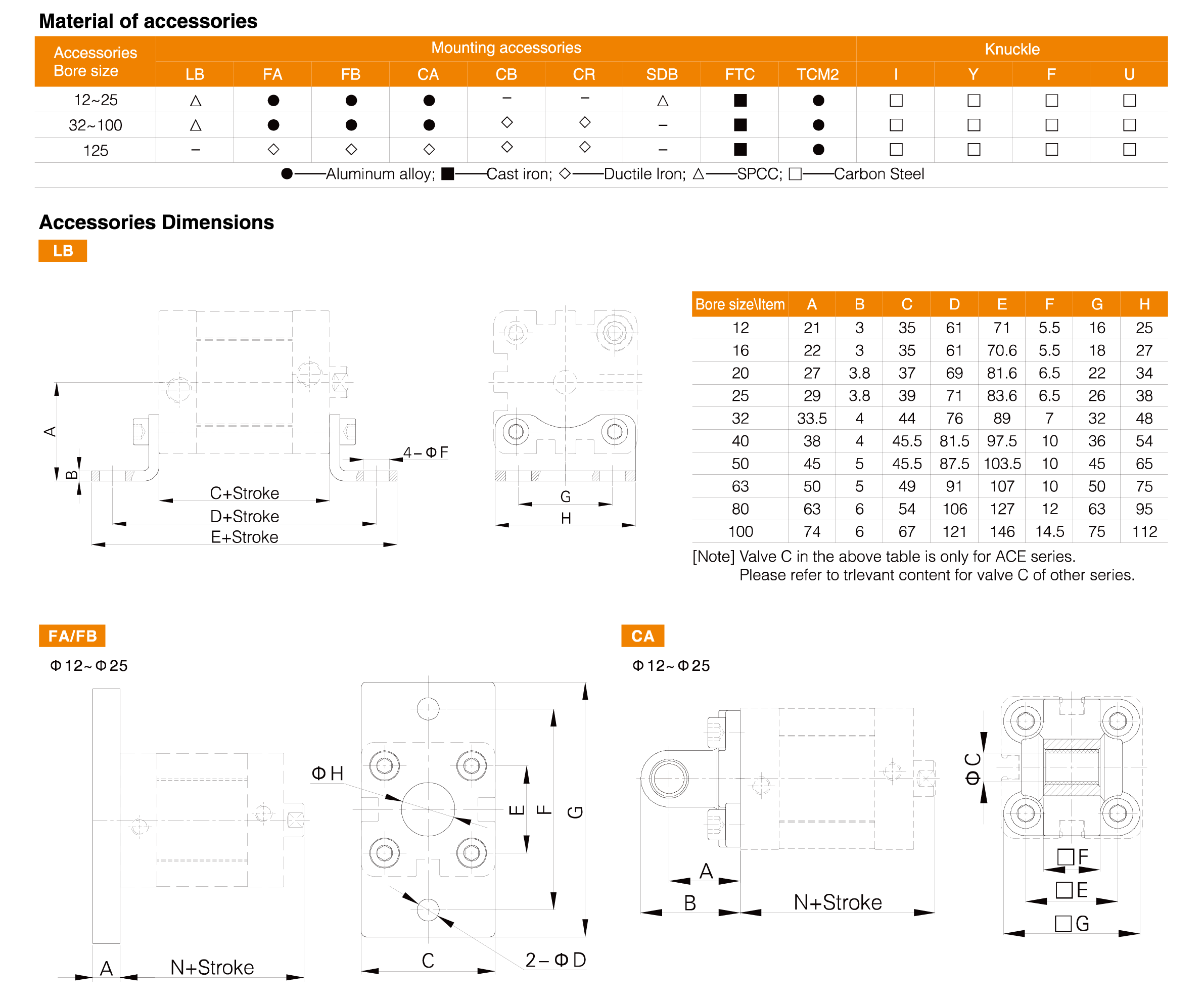

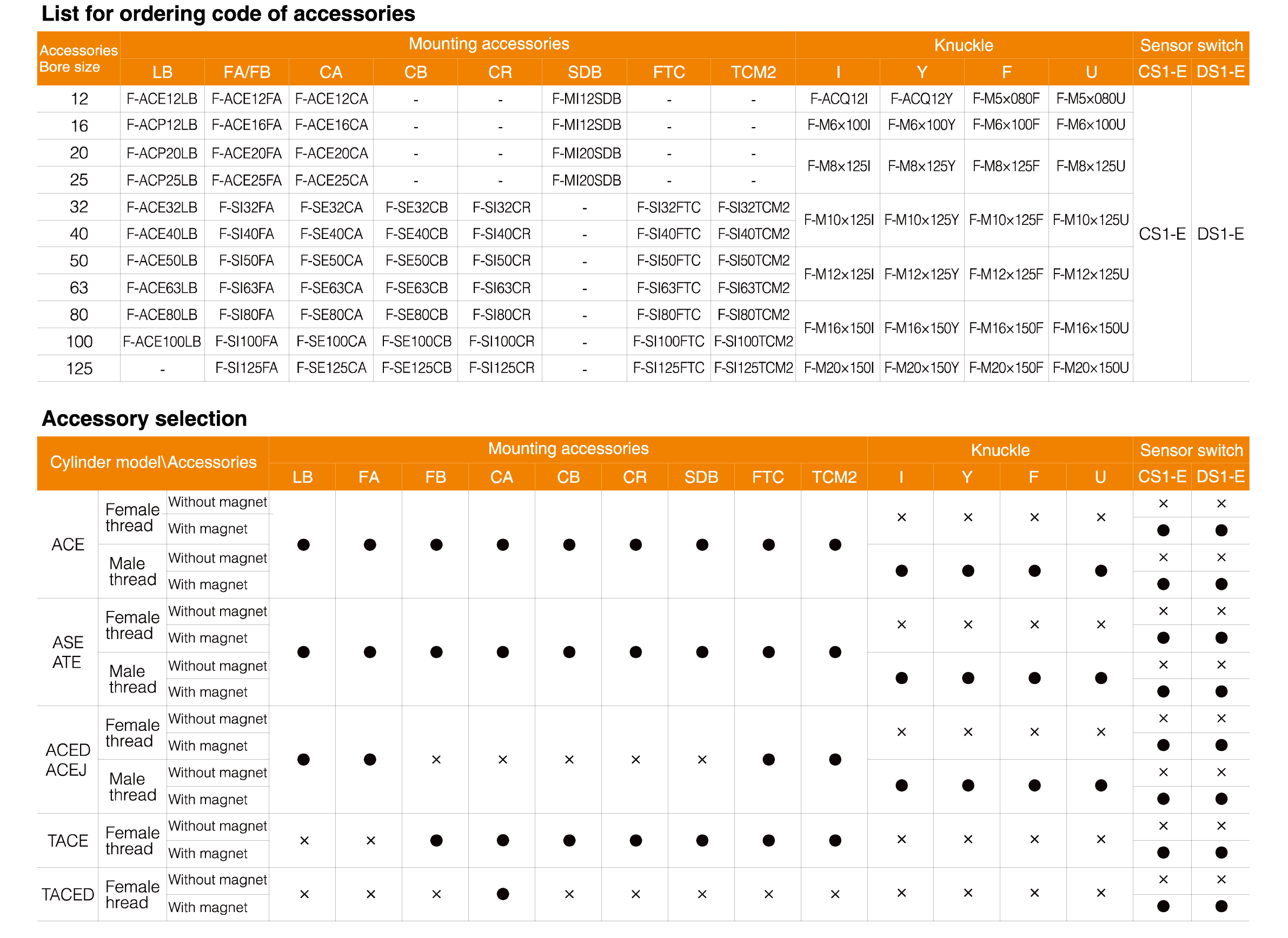

Various mounting accessories are available to simplify machine integration and accommodate different equipment configurations. The compact body and standardized dimensions make the cylinder suitable for OEM equipment and automation upgrades.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The ACE (AND) Series Compact Cylinder is widely used in:
● Packaging machinery
● Electronics assembly
● Conveyor automation
● Material handling equipment
● Pick-and-place systems
● Textile machinery
● Medical devices
● Food processing equipment
● Automated production lines
● General industrial automation
Combining ISO 21287 compliance, compact dimensions, durable construction, integrated sensor capability, and reliable pneumatic performance, the ACE (AND) Series Compact Cylinder provides an efficient solution for modern industrial automation applications.
