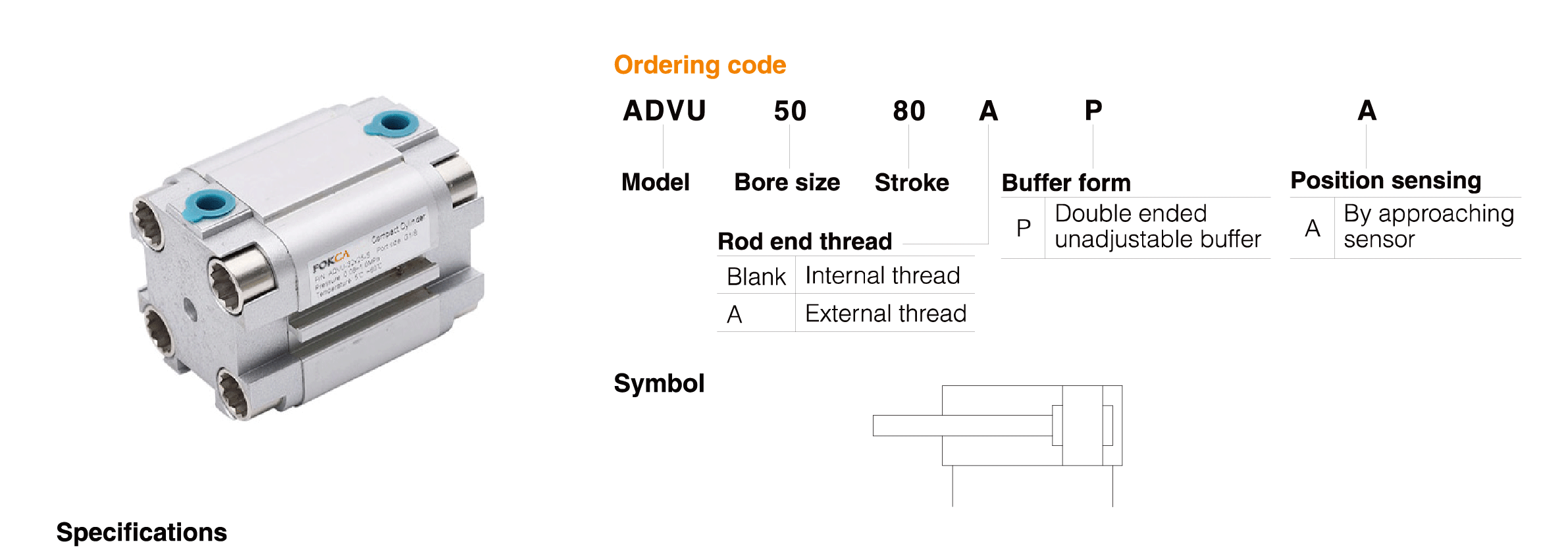

The ADVU Series Compact Cylinder is a compact pneumatic actuator designed for automation equipment with limited installation space. Its ISO-style structure provides reliable linear motion while supporting flexible mounting and easy system integration.
Available in bore sizes from 12 mm to 125 mm, the cylinder features double-acting operation, optional internal or external rod threads, and proximity sensor compatibility for accurate position detection. Dual-end buffering helps reduce impact and improve operating stability.
With its compact design, versatile configurations, and dependable pneumatic performance, the ADVU Series Compact Cylinder is widely used in packaging machinery, material handling systems, electronics assembly, and general industrial automation.
The ADVU Series Compact Cylinder is designed to provide efficient pneumatic motion in applications where installation space is limited. Its compact body, flexible mounting options, and integrated position sensing capability make it an ideal choice for modern automation equipment.
Built for reliable industrial performance, the ADVU Series combines a robust double-acting design with multiple thread configurations and convenient sensor installation, helping improve machine efficiency and simplify system integration.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Compact ISO-style cylinder design
● Double-acting pneumatic operation
● Internal or external piston rod thread options
● Dual-end non-adjustable buffering
● Compatible with proximity sensors
● Flexible installation methods
● Wide range of bore sizes
● Reliable and maintenance-friendly construction
● Suitable for automated production systems
● Optional double-ended piston rod configuration
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The ADVU Series offers a versatile design that can be configured to meet different application requirements. Internal and external piston rod threads are available, while optional double-ended rod versions provide additional installation flexibility.
Integrated proximity sensor compatibility allows convenient position detection for automated control systems.

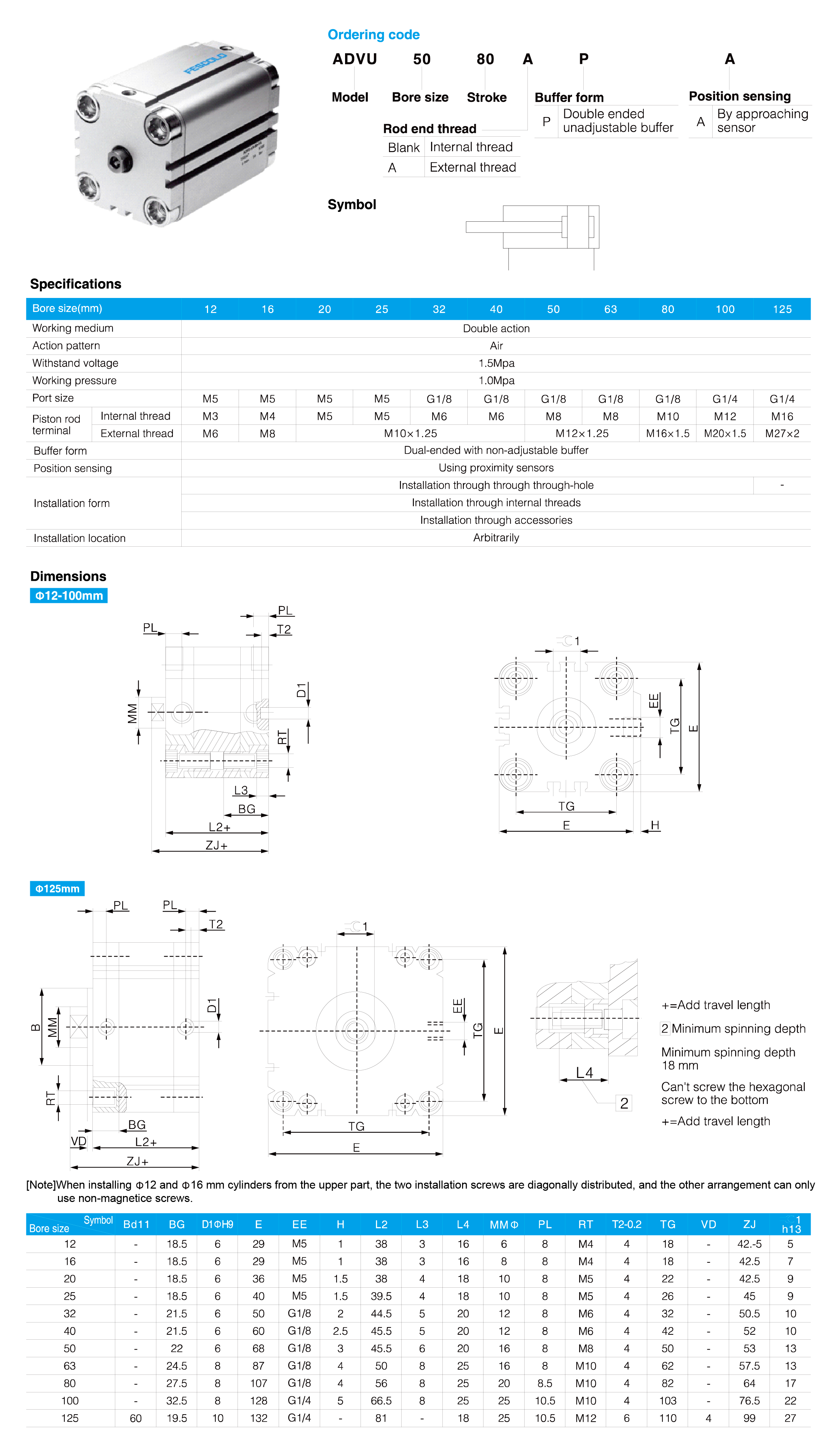

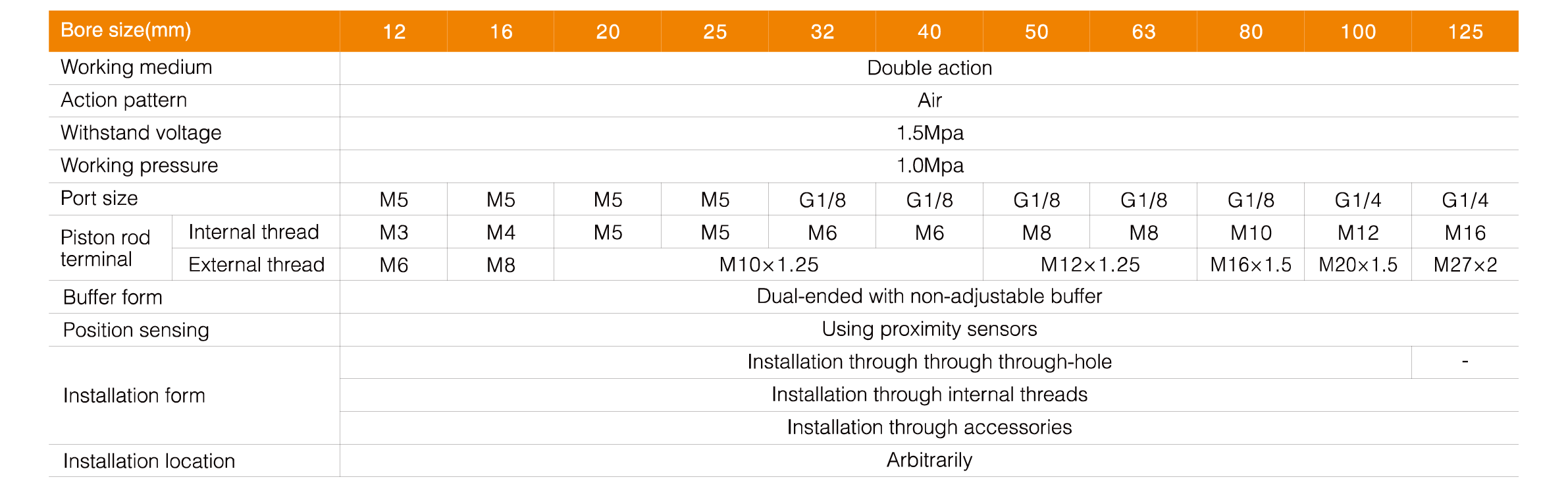

| Parameter | Specification |
| Bore Size | 12–125 mm |
| Action Type | Double Acting |
| Working Medium | Compressed Air |
| Working Pressure | 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Buffer Type | Dual-end Non-adjustable Buffer |
| Position Sensing | Proximity Sensors |
| Rod End | Internal or External Thread |
| Installation | Through-hole, Internal Thread, Accessories |
The cylinder can be installed in various orientations, offering greater design freedom for equipment manufacturers.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The ADVU Series Compact Cylinder is suitable for:
● Packaging machinery
● Electronics assembly
● Material handling equipment
● Conveyor systems
● Pick-and-place automation
● Textile machinery
● Medical equipment
● Food processing machinery
● OEM automation systems
● General industrial automation
With its compact ISO design, sensor-ready construction, flexible mounting options, and dependable pneumatic performance, the ADVU Series Compact Cylinder provides an efficient solution for modern automation applications requiring space-saving linear motion.
