MI Series Stainless Steel Mini Cylinder

MI Series Stainless Steel Mini Cylinder

Built to ISO 6432 standards, the MI Series Stainless Steel Mini Cylinder is engineered for compact pneumatic applications where reliability and installation flexibility are equally important. Its streamlined round-body design occupies minimal space while providing dependable linear motion for automated equipment.

The combination of stainless steel components and reinforced construction allows the cylinder to perform consistently in environments exposed to humidity, dust, and light corrosive media.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Main Features

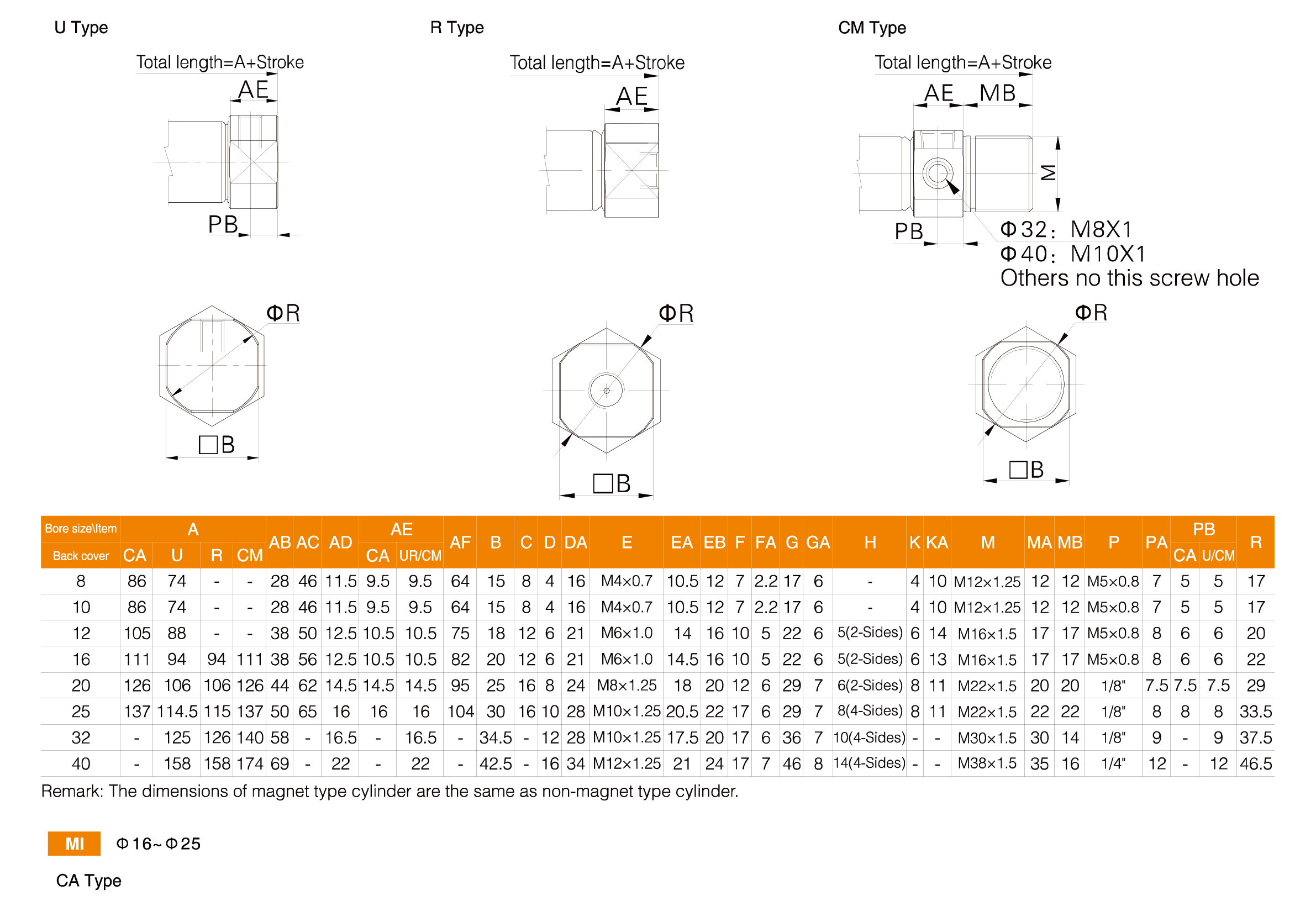

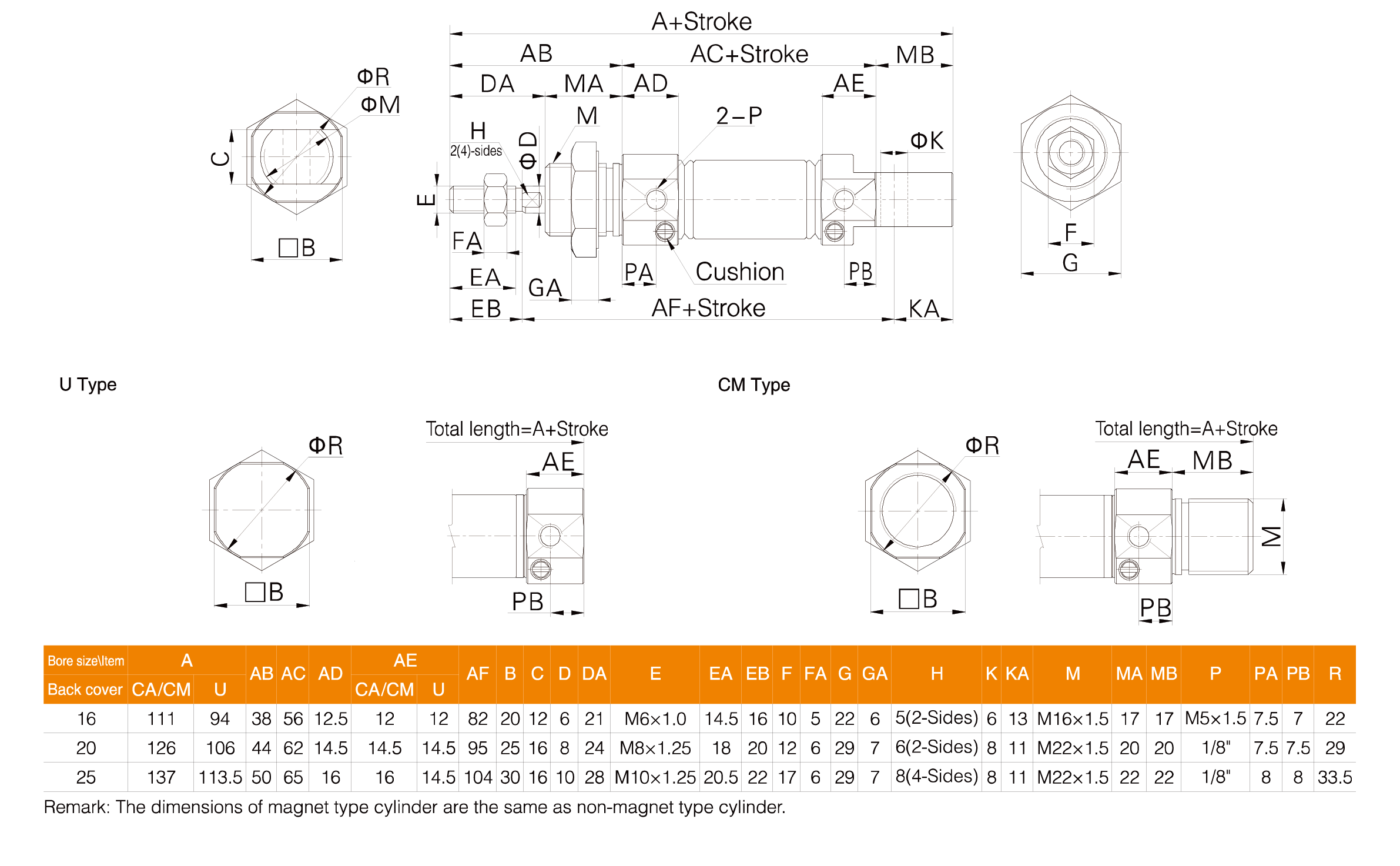

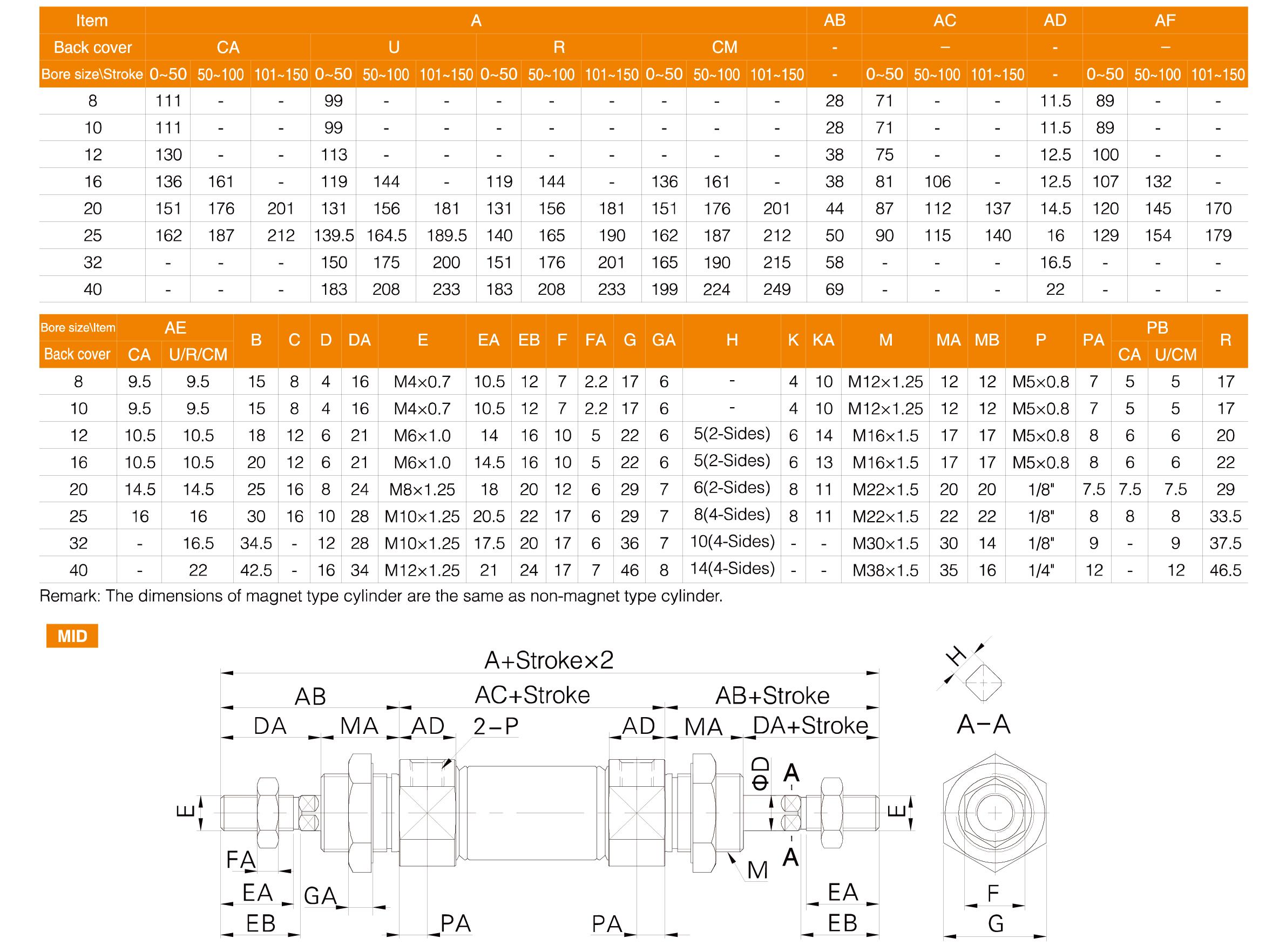

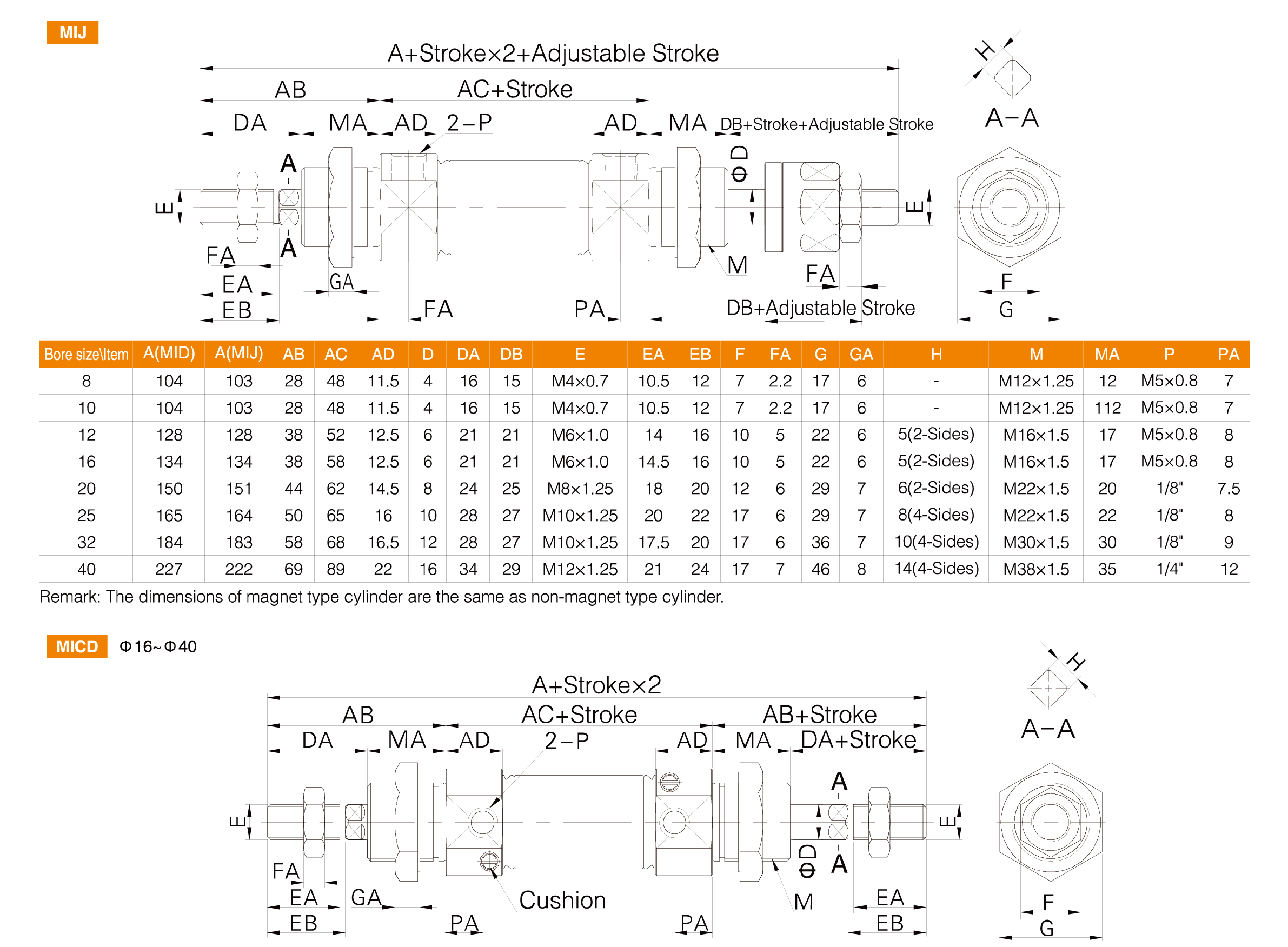

● ISO 6432 standard dimensions (Ø8–Ø25)

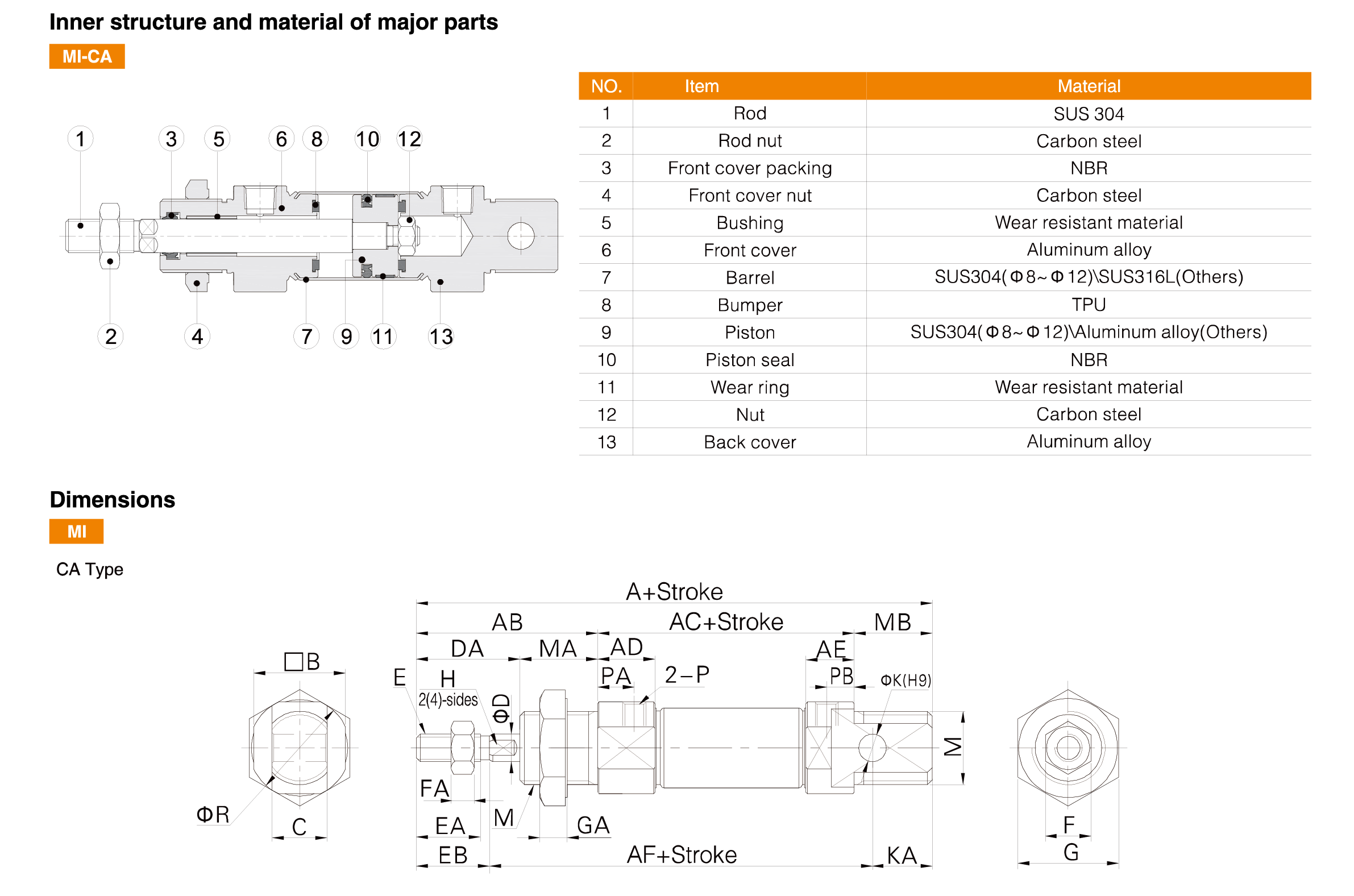

● Stainless steel barrel and piston rod

● Fixed cushioning at both ends

● Riveted body construction

● Compact round profile

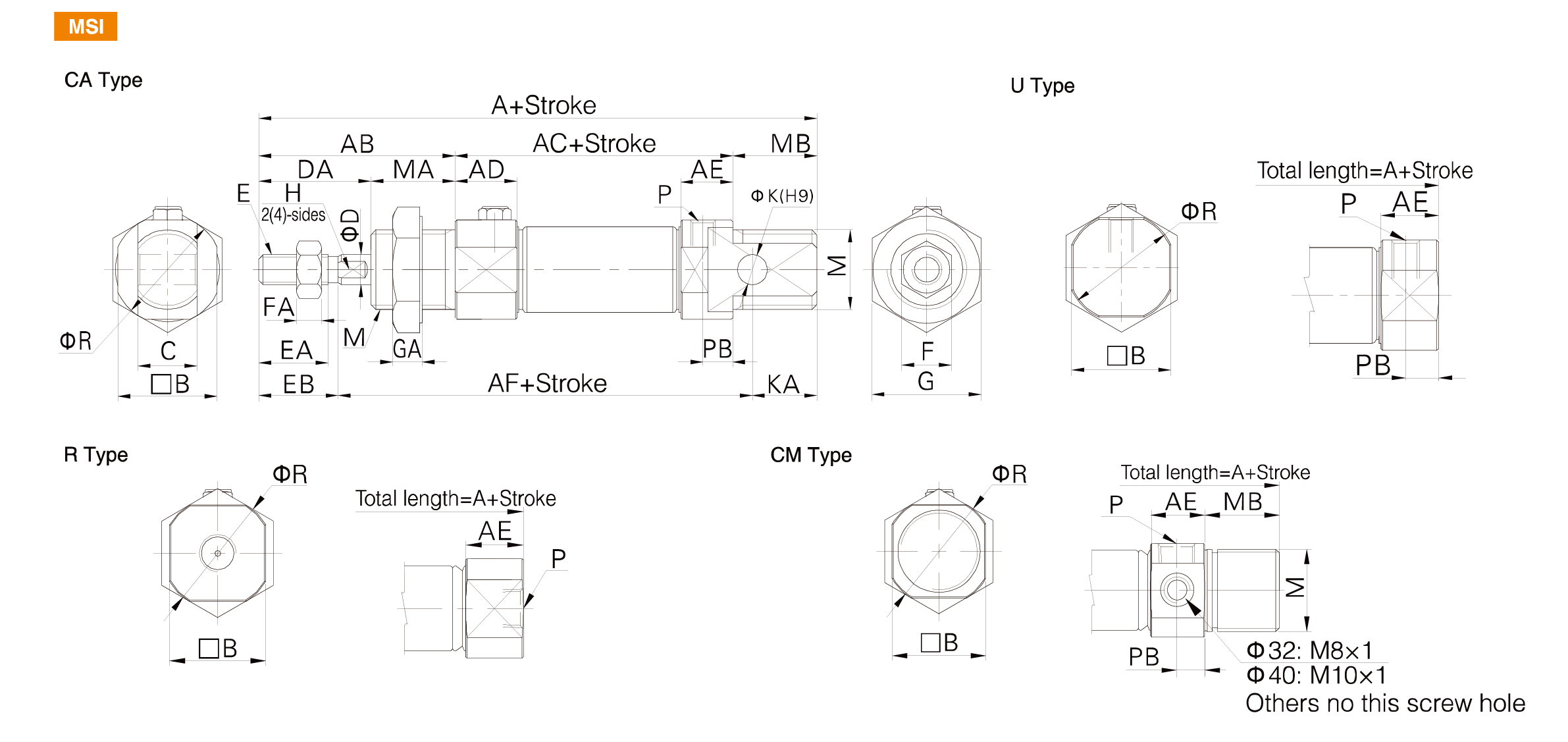

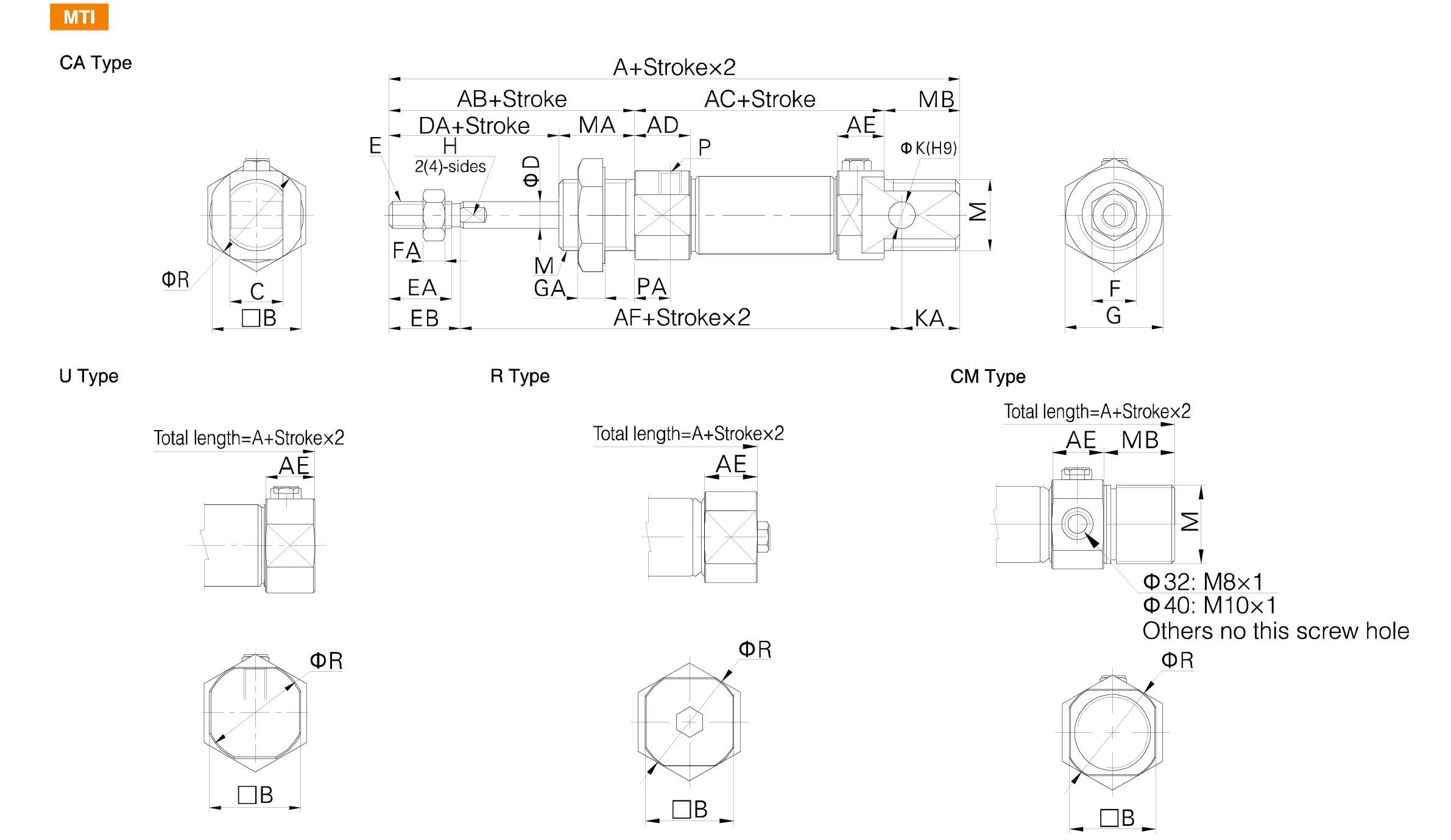

● Multiple rear cover configurations

● Corrosion-resistant materials

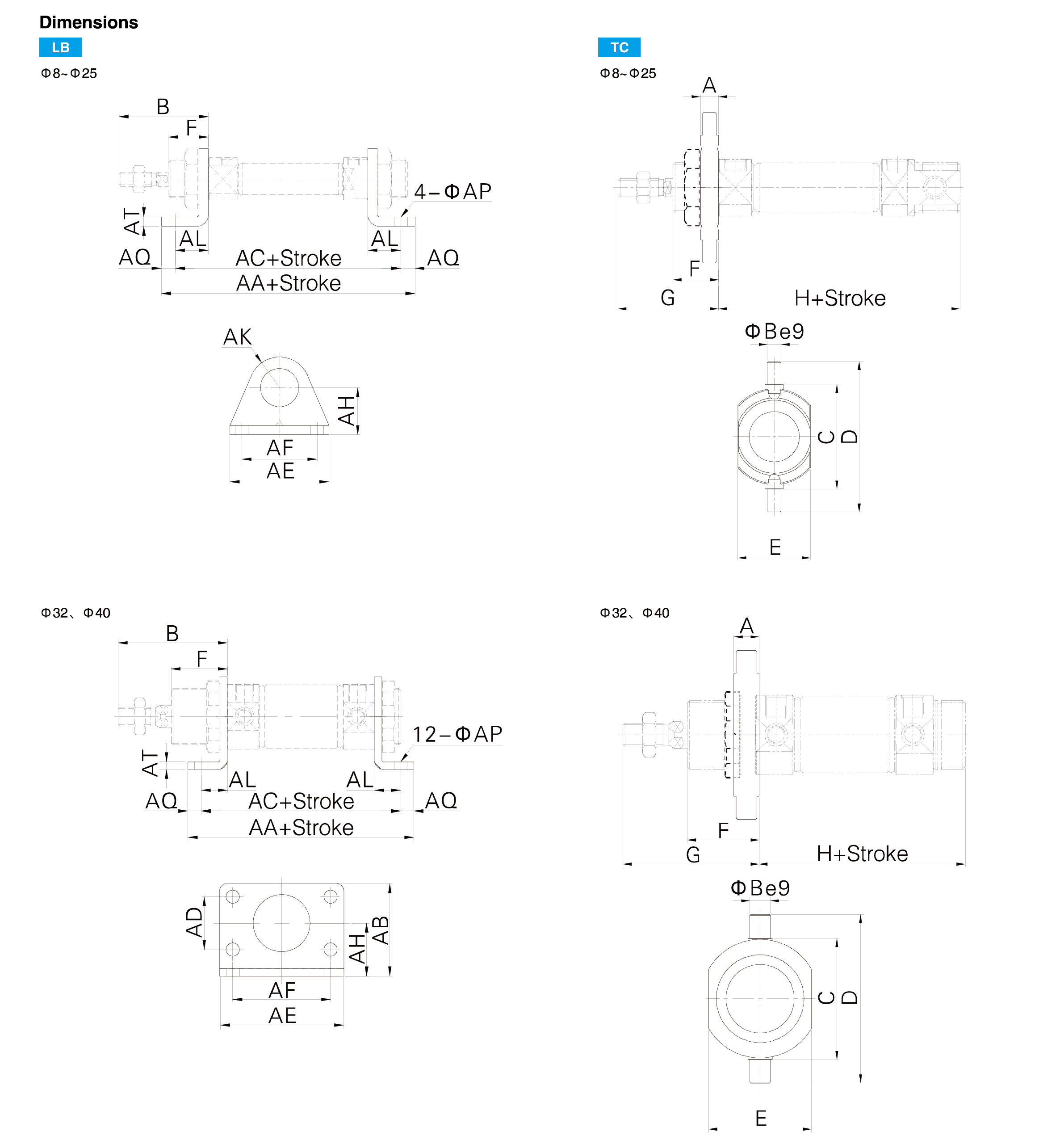

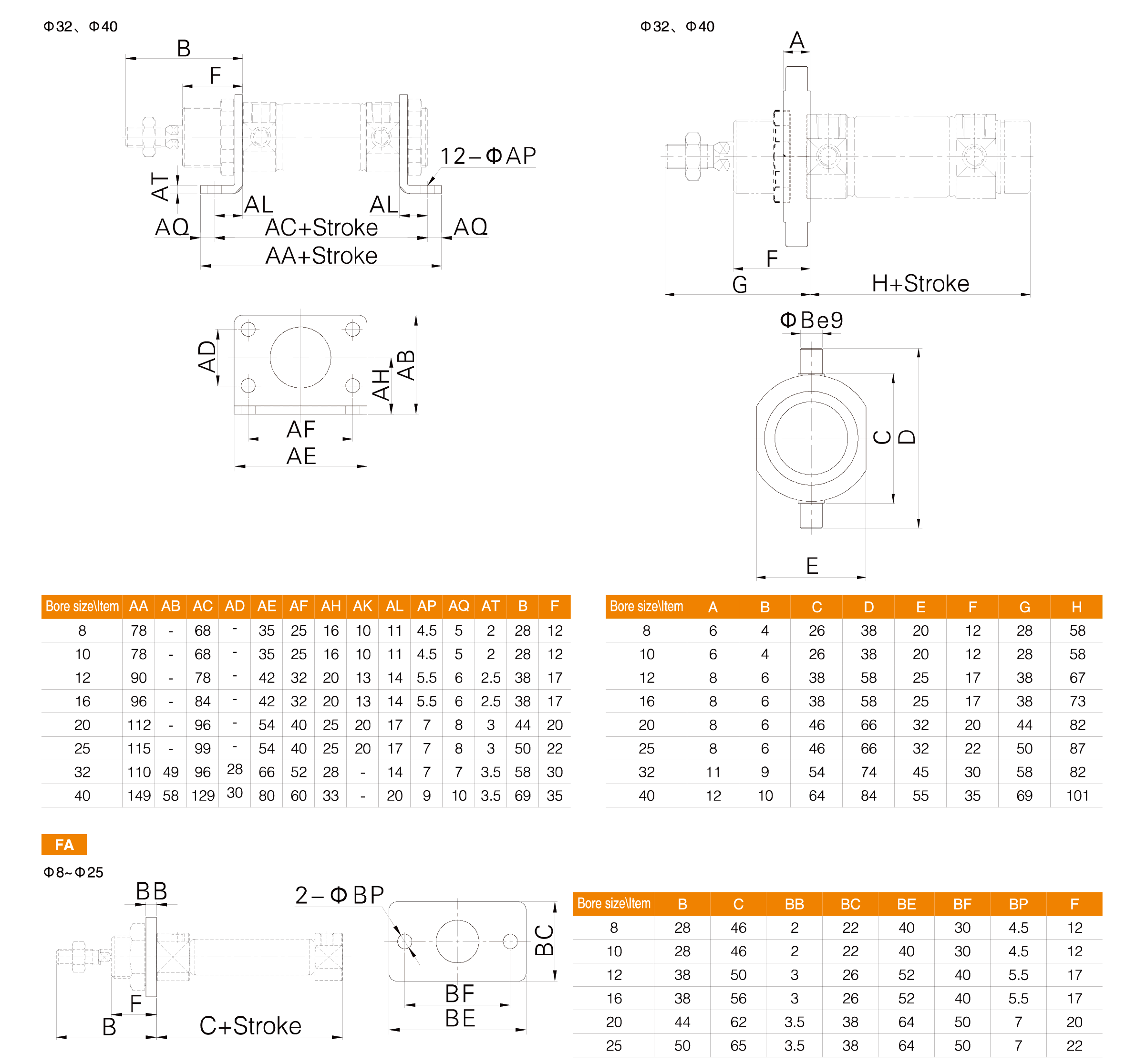

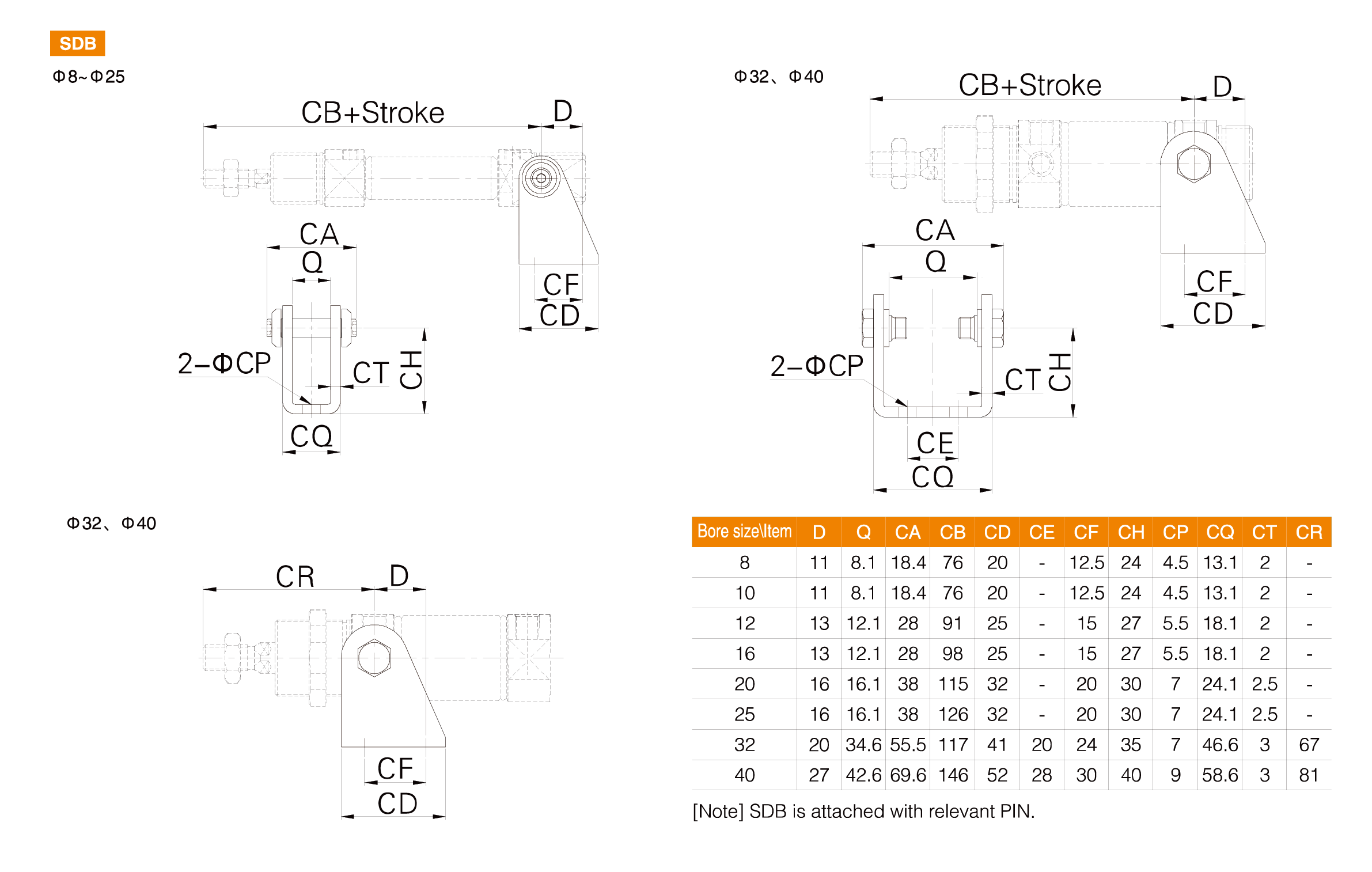

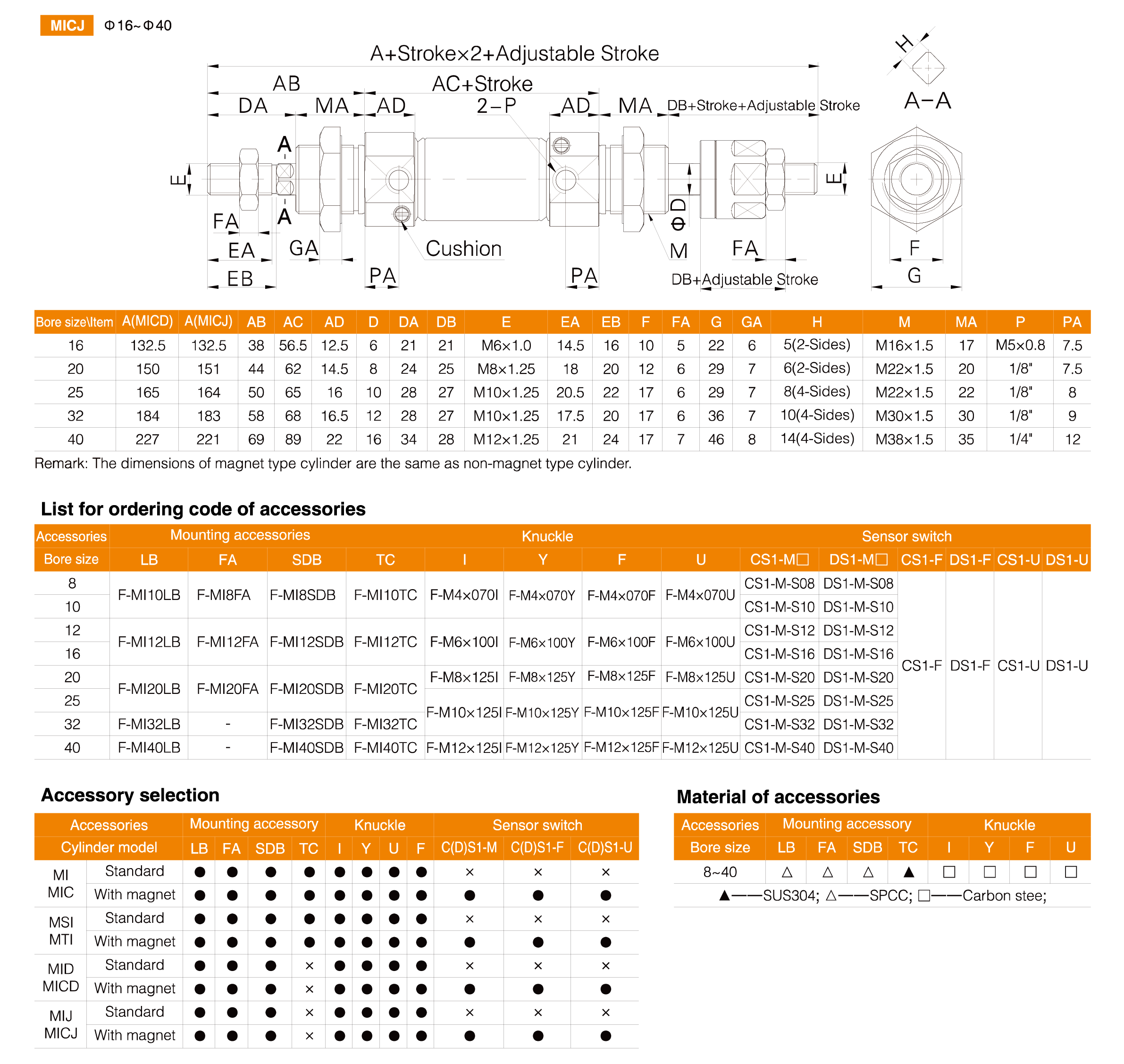

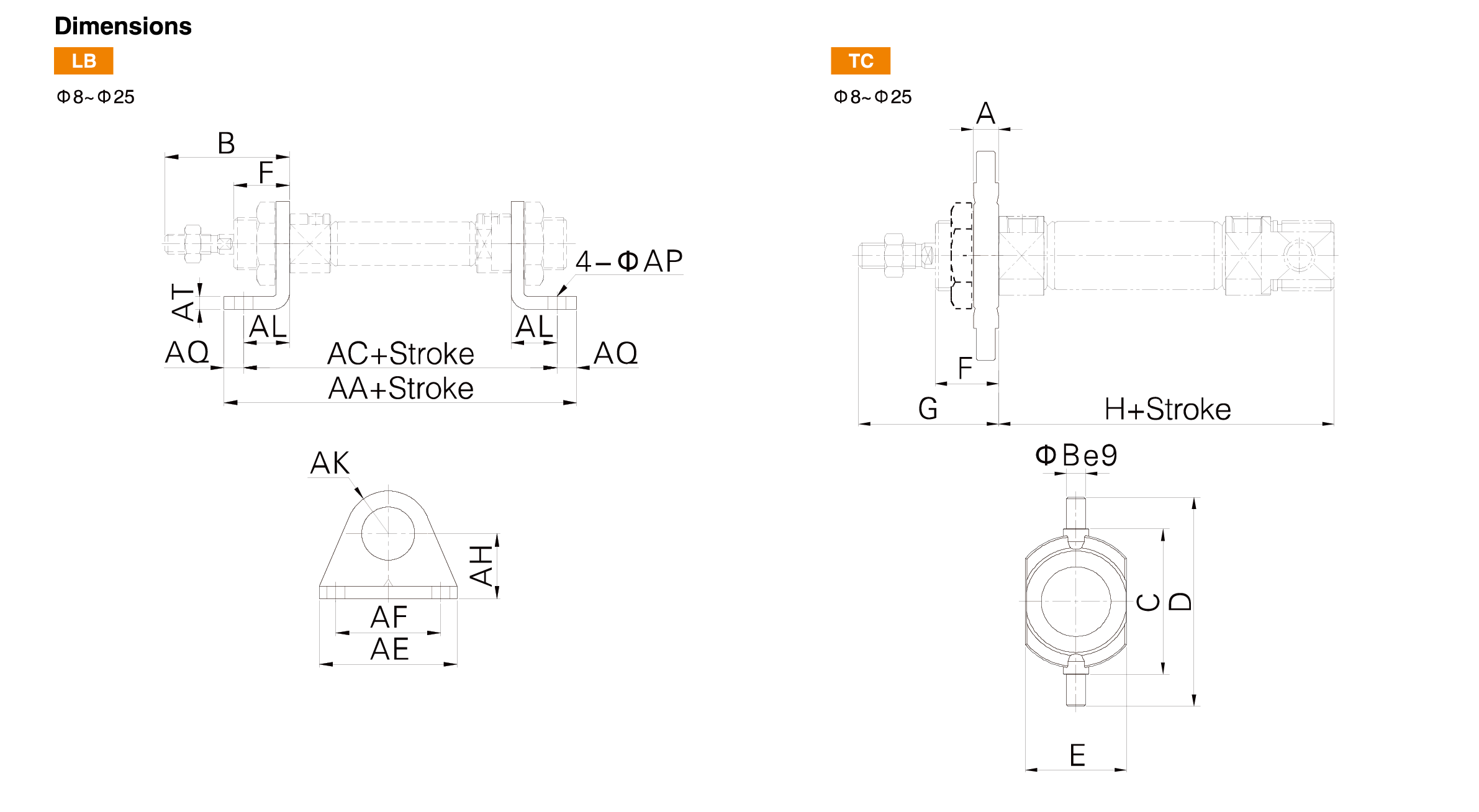

● Flexible mounting accessories

● Stable and reliable operation

● Easy machine integration

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Engineered for Long-Term Reliability

Unlike conventional mini cylinders, the MI Series utilizes a riveted rolling assembly that permanently secures the front cover, rear cover, and cylinder tube into a robust unit. This construction minimizes loosening during repeated cycling and helps maintain long-term operational stability.

Fixed bumpers integrated into both end covers reduce impact forces during piston reversal, contributing to smoother operation and reduced component wear.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Corrosion-Resistant Materials

The piston rod and cylinder body are manufactured from stainless steel, providing enhanced protection against corrosion and environmental contamination. This material selection allows the cylinder to operate reliably in a wide variety of industrial conditions, including food processing equipment, packaging lines, and humid factory environments.

The compact round-body design also simplifies cleaning and routine maintenance.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Installation Flexibility

Several rear cover styles and mounting accessories are available to suit different machine layouts. Standardized ISO 6432 dimensions allow convenient replacement and compatibility with existing pneumatic systems, reducing engineering and maintenance costs.

The modular installation concept helps equipment builders achieve greater design flexibility.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Application

The MI Series Stainless Steel Mini Cylinder is suitable for:

● Packaging machinery

● Food processing equipment

● Conveyor systems

● Textile machinery

● Electronics assembly

● Medical devices

● Printing equipment

● Material handling systems

● OEM automation equipment

● General industrial automation

Designed around ISO 6432 standards, the MI Series combines corrosion-resistant materials, compact dimensions, reliable cushioning, and versatile installation options to deliver efficient pneumatic motion for a broad range of industrial applications.
