The CG1 Series Light Cylinder is a lightweight pneumatic actuator designed for efficient linear motion in industrial automation equipment. Featuring a double-acting structure, long stroke capability, and optional air cushioning, it provides smooth operation and reliable performance across a wide range of applications.
With non-lubricated operation, flexible bore sizes, and stable motion control, the CG1 Series is an ideal solution for conveying, packaging, assembly, and general automation systems where lightweight construction and durability are essential.
The CG1 Series Light Cylinder is engineered to provide dependable pneumatic actuation while reducing overall equipment weight. Designed for modern automation systems, it combines smooth linear movement, high operating speed, and flexible installation options, making it suitable for both compact machinery and long-stroke applications.
Its lightweight structure helps optimize machine design without compromising performance or reliability.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Lightweight cylinder construction
● Double-acting operation
● Long stroke capability
● Optional air cushion or rubber bumper
● High operating speed up to 1000 mm/s
● Wide bore size range from Ø20 to Ø100 mm
● Maintenance-friendly non-lube design
● Stable and accurate linear motion
● Multiple port size options
● Suitable for continuous industrial operation
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CG1 Series supports a wide range of stroke lengths while maintaining smooth and stable movement. Its efficient piston design minimizes friction and helps ensure consistent performance during repetitive cycles.
For applications involving higher loads or longer travel distances, optional air cushioning can effectively reduce end-of-stroke impact and improve overall service life.

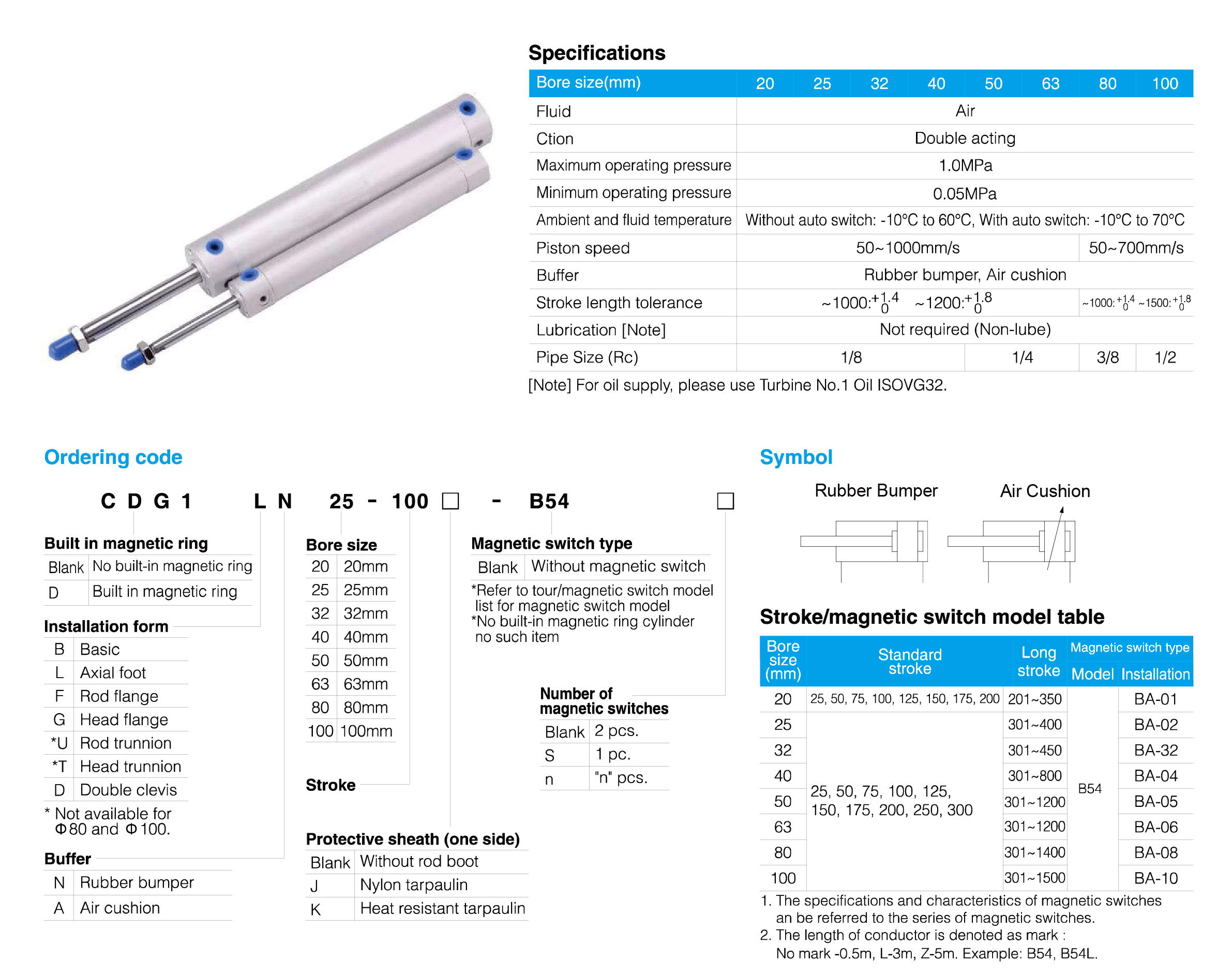

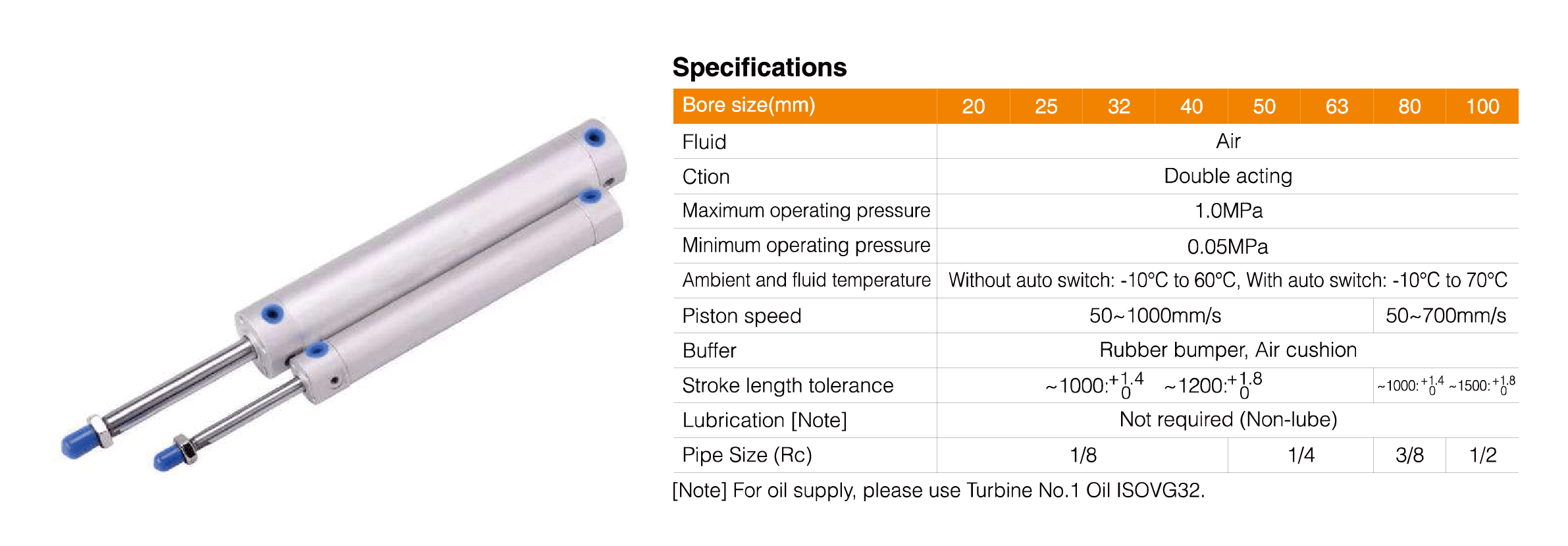

| Parameter | Specification |
| Bore Size | 20–100 mm |
| Action Type | Double Acting |
| Working Medium | Air |
| Operating Pressure | 0.05–1.0 MPa |
| Piston Speed | 50–1000 mm/s |
| Cushion Type | Rubber Bumper / Air Cushion |
| Lubrication | Non-Lube |
| Port Size | Rc1/8 – Rc1/2 |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CG1 Series operates without mandatory lubrication under normal working conditions, reducing maintenance requirements and simplifying system operation.
Its lightweight body contributes to improved machine efficiency while maintaining the strength needed for everyday industrial applications.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CG1 Series Light Cylinder is widely used in:
● Packaging machinery
● Conveyor systems
● Material handling equipment
● Assembly lines
● Textile machinery
● Printing equipment
● Sorting systems
● Automated production lines
● OEM machinery
● General industrial automation
Combining lightweight construction, long stroke capability, high-speed operation, and reliable pneumatic performance, the CG1 Series Light Cylinder provides an economical and efficient solution for a broad range of automation applications.
