The DSNU Series Stainless Steel Mini Cylinder is a precision pneumatic actuator designed for compact automation systems and standardized industrial applications. Manufactured with a corrosion-resistant stainless steel body and ISO 6432 dimensions, it offers reliable linear motion while simplifying equipment integration and maintenance.
Available with optional air cushioning and built-in magnetic sensing, the DSNU Series provides smoother operation, improved positioning, and flexible installation options. Its compact design and dependable performance make it an ideal solution for packaging, assembly, conveying, and automated production equipment.
Designed for precision and versatility, the DSNU Series Stainless Steel Mini Cylinder combines compact dimensions with reliable pneumatic performance. Its standardized design allows easy integration into automation equipment, while the stainless steel construction improves durability in demanding industrial environments.
Optional magnetic sensing and cushioning configurations enable the cylinder to meet a wide variety of motion control requirements.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● ISO 6432 style compact design
● Stainless steel cylinder construction
● Double-acting operation
● Optional built-in magnetic ring
● Standard rubber buffer or optional air cushion
● Track or girdle magnetic switch installation
● Low friction and smooth movement
● Maintenance-free operation without lubrication
● Wide range of bore sizes and strokes
● Flexible mounting configurations
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

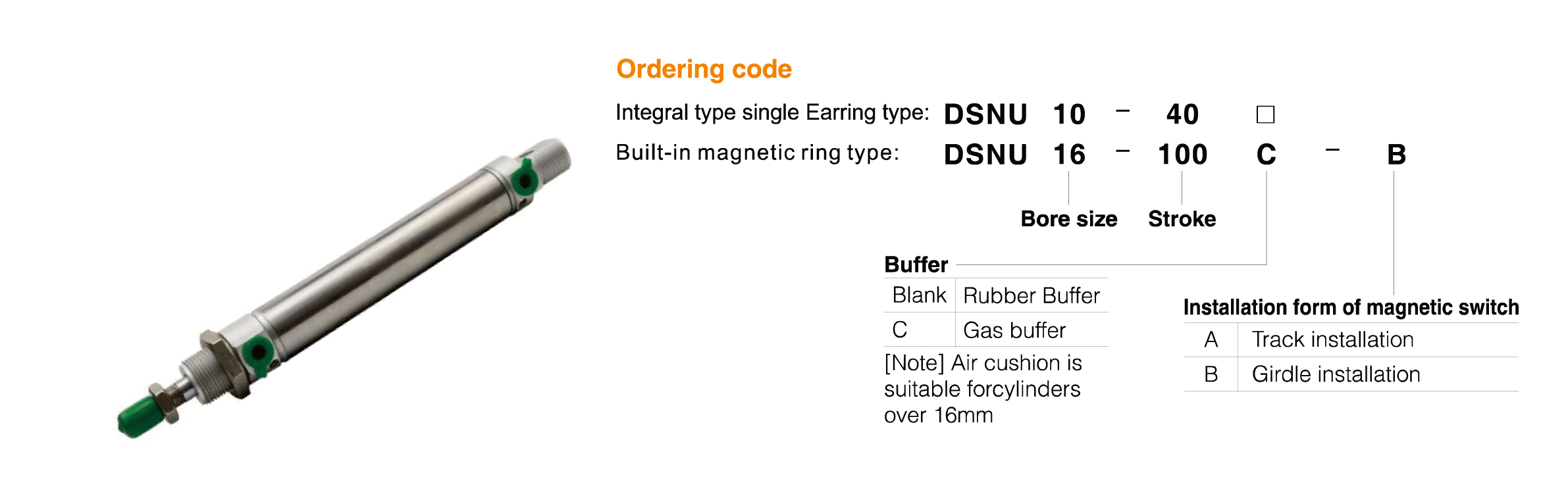

The DSNU Series offers multiple configuration options to match different machine designs. Cylinders can be supplied with built-in magnetic pistons for position detection and support both track-mounted and girdle-mounted sensor installation.
For bore sizes above 16 mm, optional air cushioning helps reduce impact energy and improve operating smoothness, while standard rubber buffering provides dependable end-of-stroke protection.

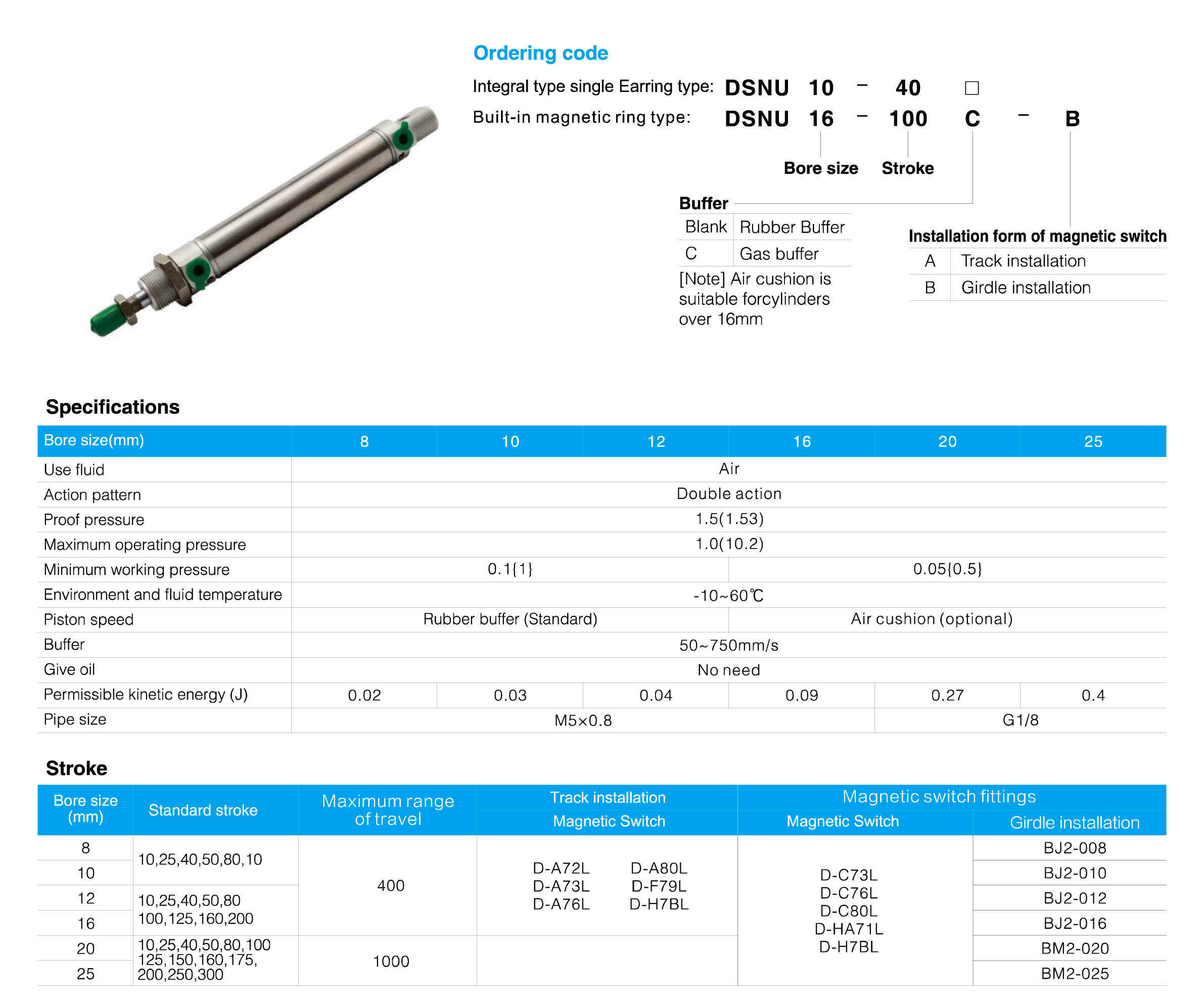

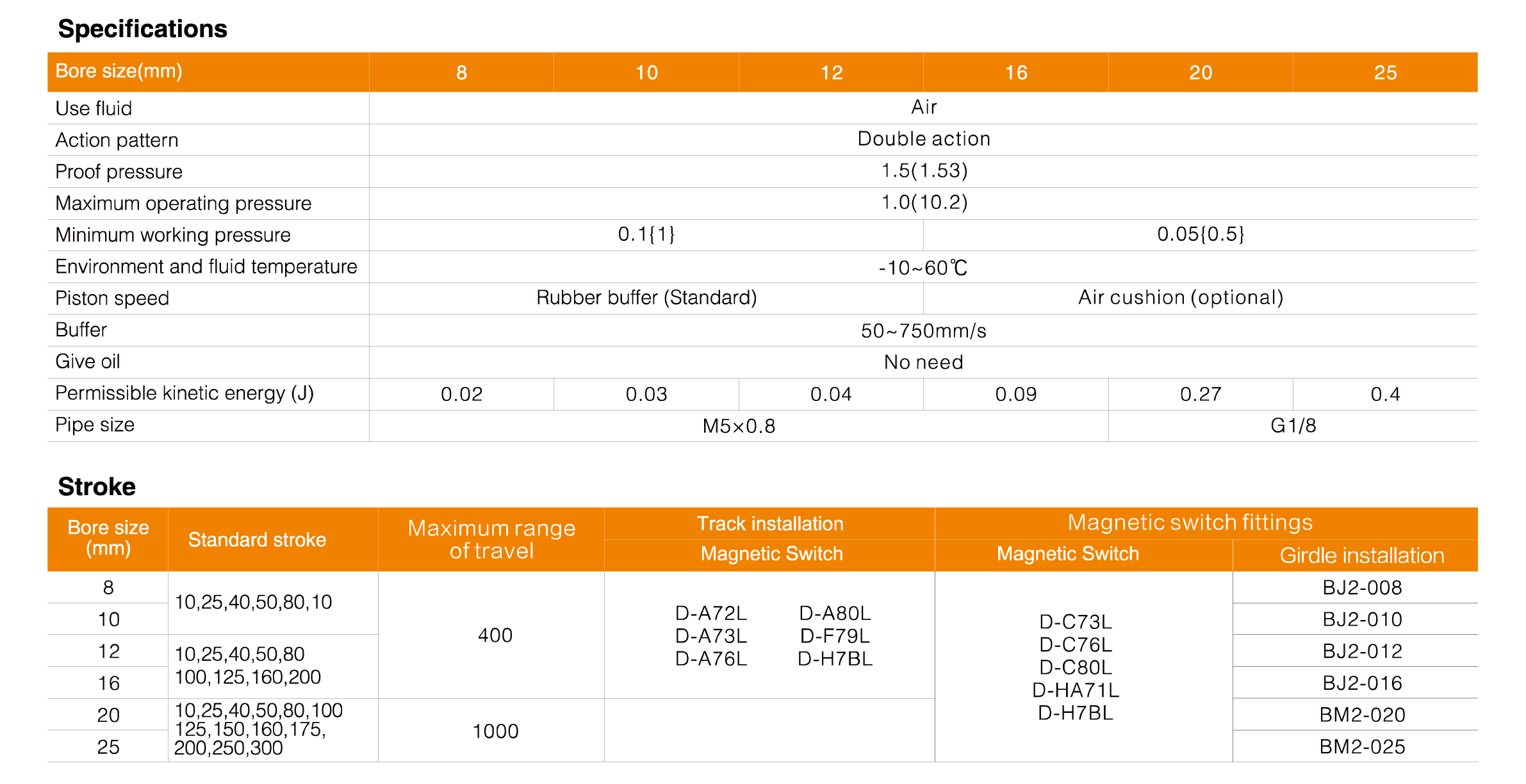

| Parameter | Specification |
| Bore Size | 8–25 mm |
| Action Pattern | Double Acting |
| Working Medium | Air |
| Working Pressure | Up to 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Piston Speed | 50–750 mm/s |
| Buffer | Rubber (Standard), Air Cushion (Optional) |
| Lubrication | Not Required |
| Port Size | M5×0.8, G1/8 |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The compact cylinder body allows installation in equipment where space is limited, while the stainless steel construction provides resistance to corrosion and daily industrial wear.
Maintenance-free operation without additional lubrication reduces service requirements and helps improve equipment uptime.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The DSNU Series Stainless Steel Mini Cylinder is widely used in:
● Packaging machinery
● Electronics assembly
● Conveyor systems
● Pick-and-place equipment
● Food processing machinery
● Textile equipment
● Medical devices
● Automated production lines
● OEM machinery
● General industrial automation
Combining standardized dimensions, optional cushioning, magnetic sensing capability, and durable stainless steel construction, the DSNU Series Stainless Steel Mini Cylinder offers an efficient pneumatic solution for compact and precise automation systems.
