The CJP Series Pin Cylinder (Double Acting) is a compact pneumatic actuator designed for precise positioning, indexing, and workpiece locating applications. Its double-acting structure provides controlled extension and retraction, offering greater positioning accuracy and operational flexibility than spring-return designs.
With optional built-in magnetic sensing, multiple mounting configurations, and a space-saving body design, the CJP Series is ideal for automated machinery, assembly equipment, and precision motion control systems.
The CJP Series Double Acting Pin Cylinder is engineered for applications requiring accurate and repeatable positioning in compact automation systems. By utilizing air pressure for both extension and retraction, it provides stable bidirectional control and improved operational consistency.
Its miniature footprint makes it particularly suitable for equipment where installation space is limited while maintaining reliable performance in high-cycle industrial environments.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Double acting, single rod design
● Compact positioning cylinder structure
● Bore sizes available in Ø6, Ø10, and Ø15 mm
● Optional built-in magnetic ring
● Compatible with magnetic switch monitoring
● Multiple mounting styles available
● Rubber bumper cushioning
● Stable operating speed from 50–500 mm/s
● Maintenance-free non-lubricated operation
● Suitable for precision positioning applications
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

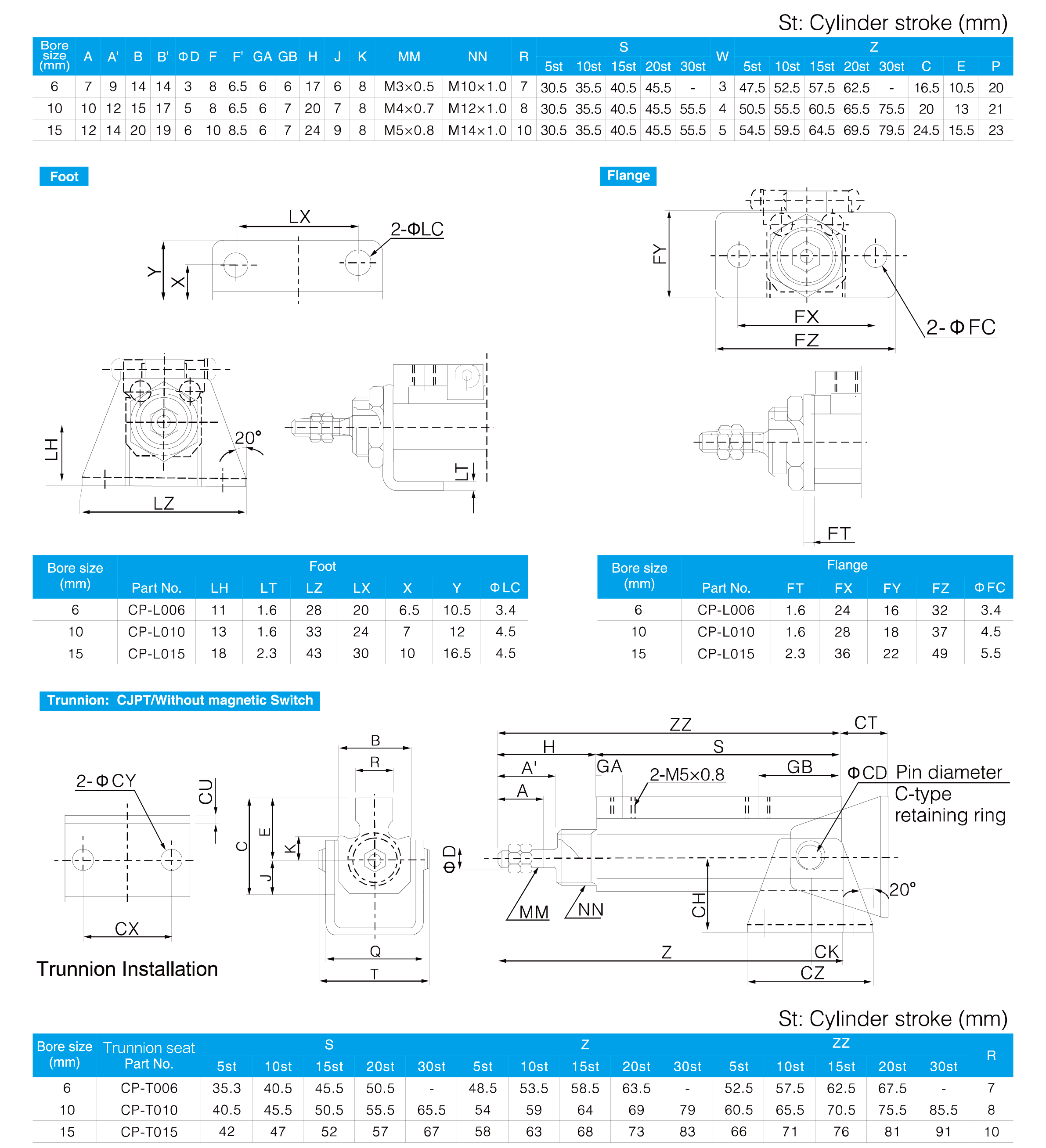

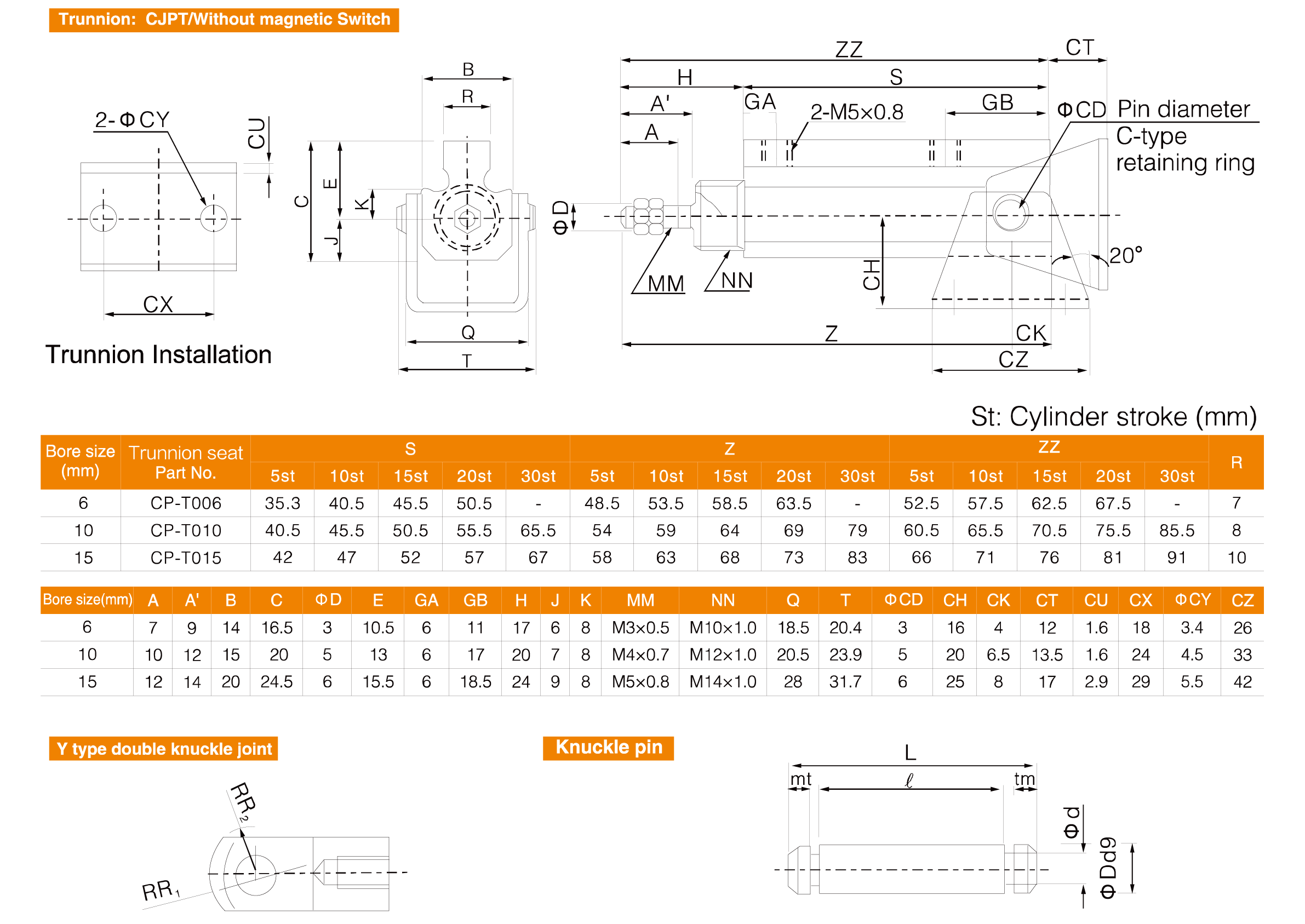

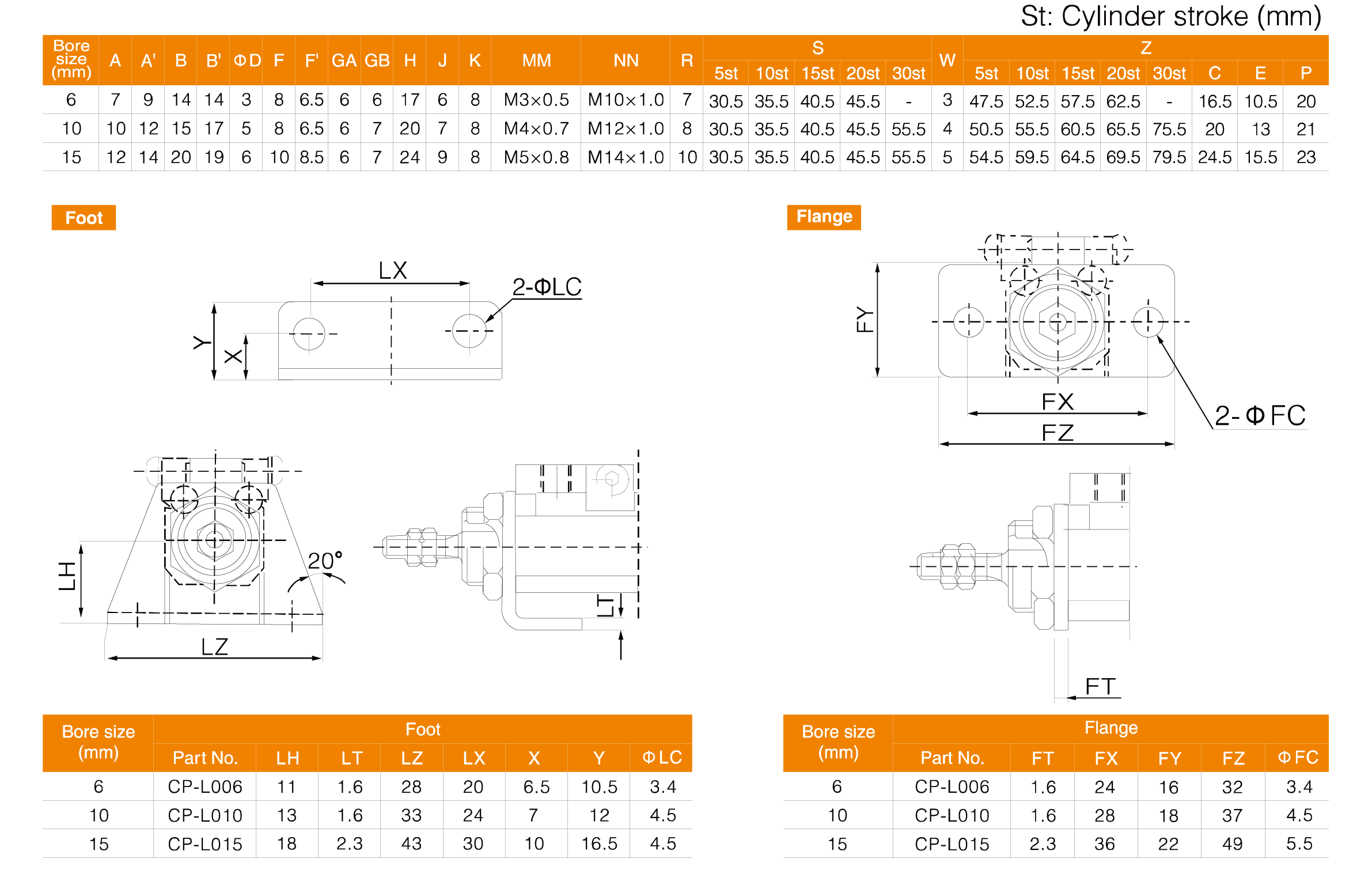

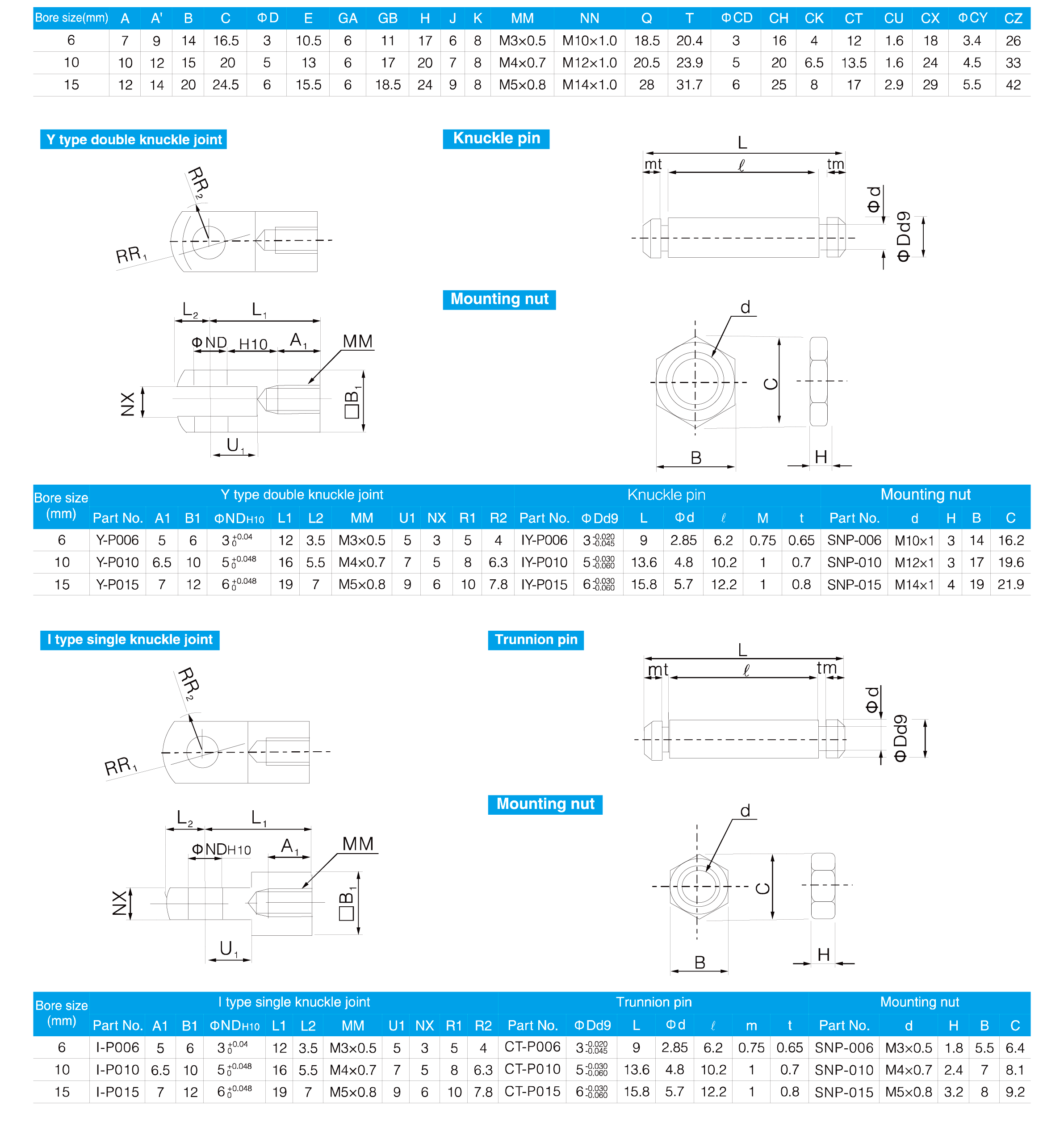

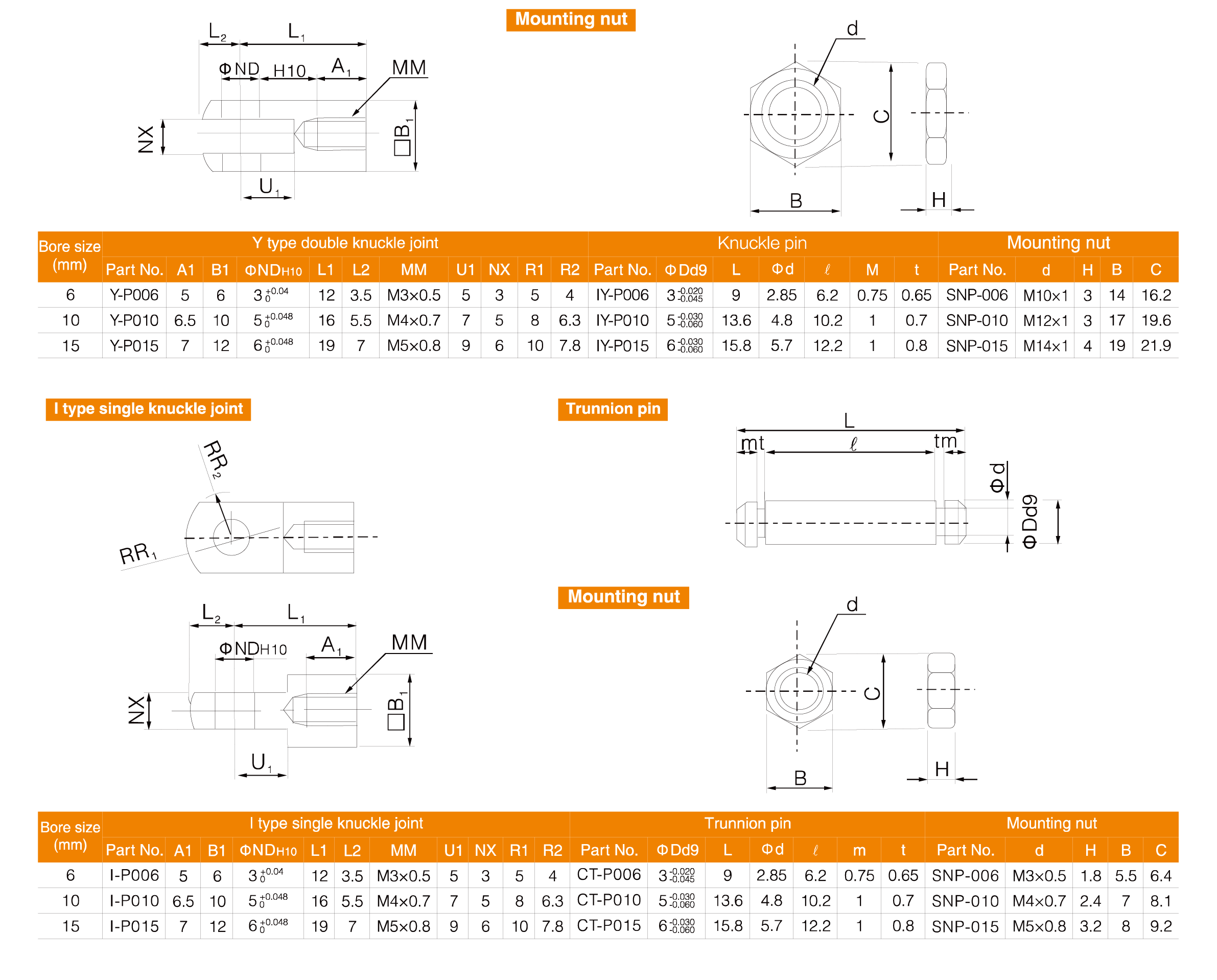

The CJP Series supports various mounting configurations including basic, flange, foot, clevis, and trunnion types, allowing easy integration into different machine structures.
Optional magnetic pistons enable cylinder position detection through magnetic switches, helping improve automation control and monitoring capabilities.

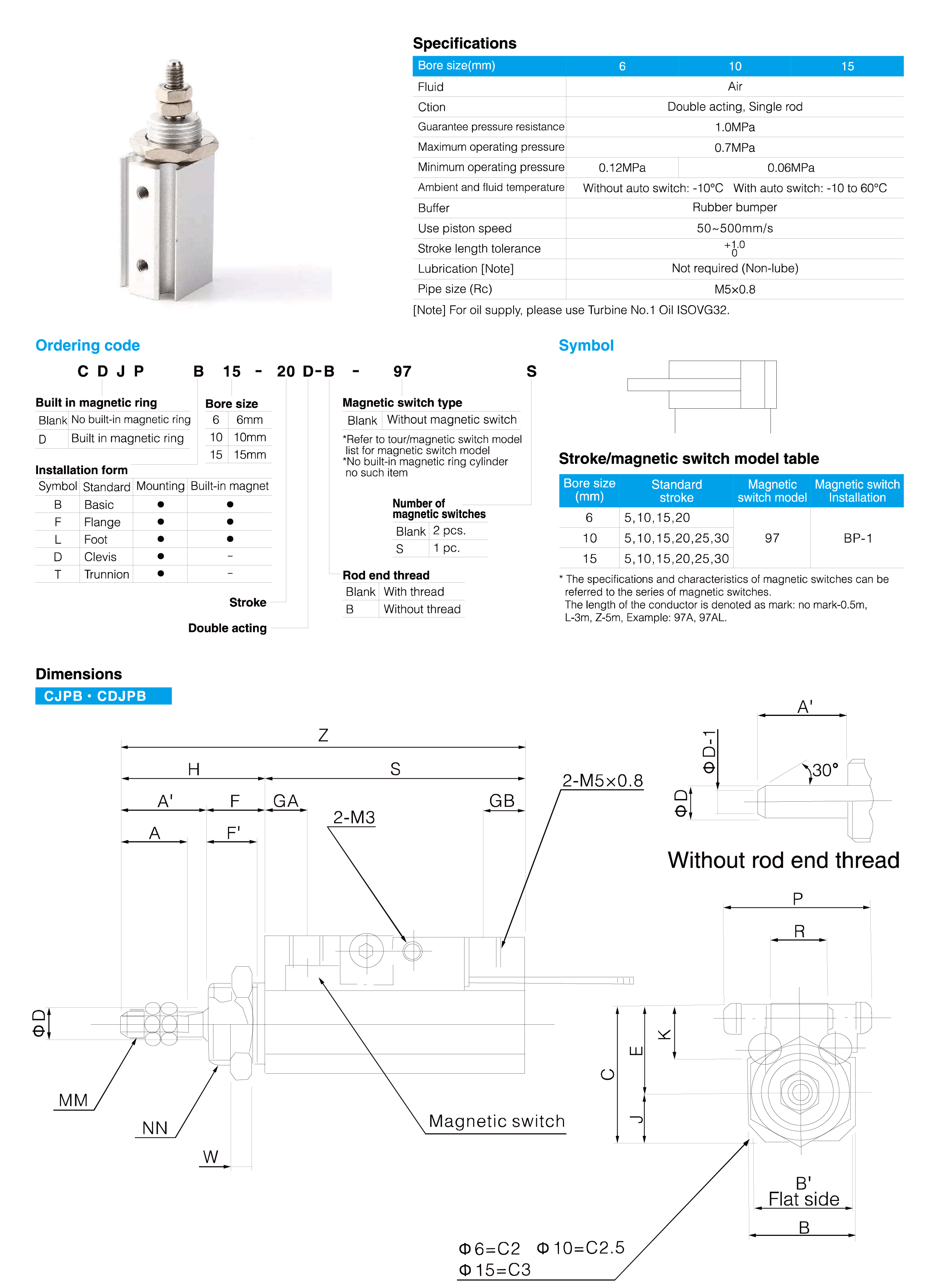

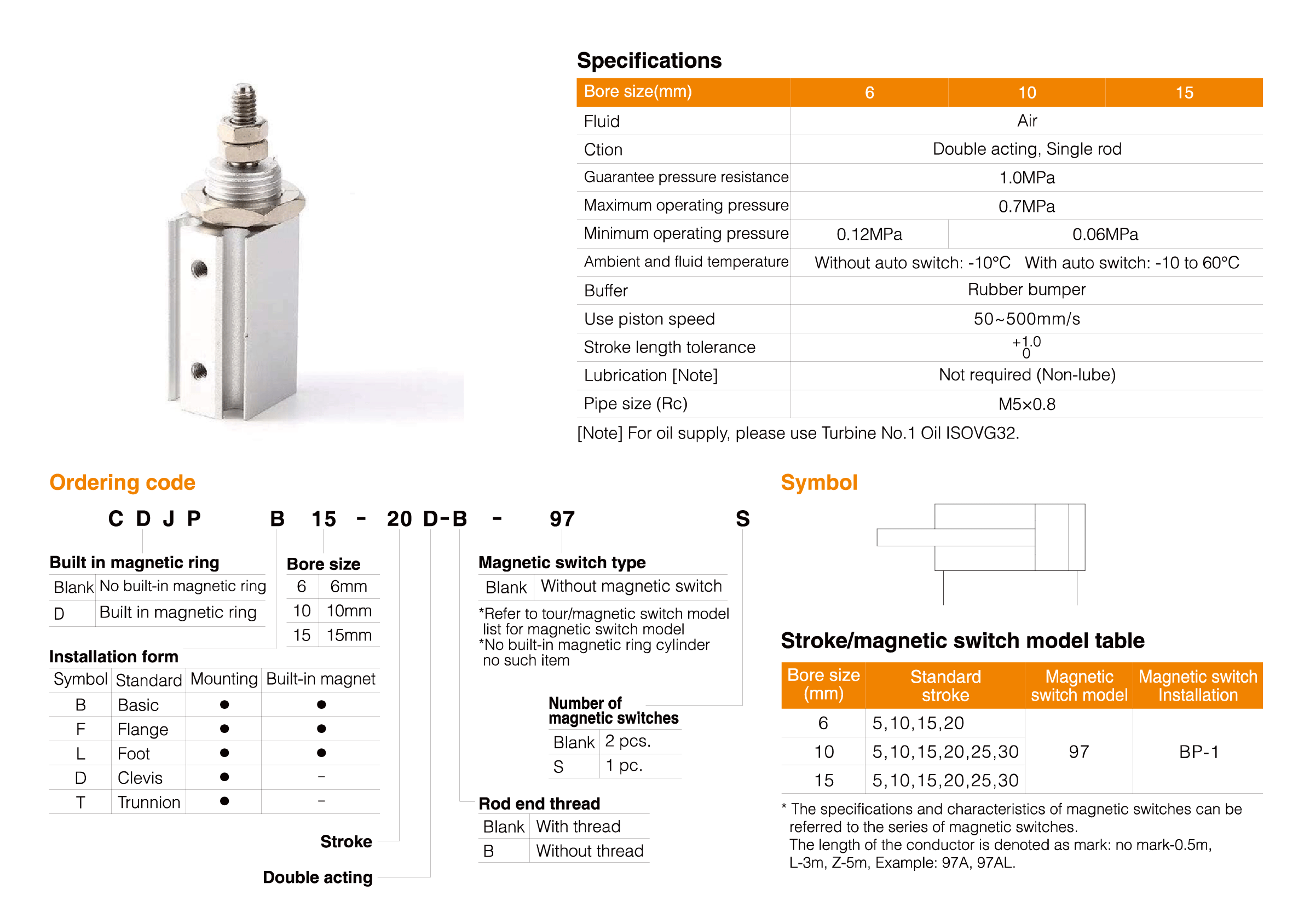

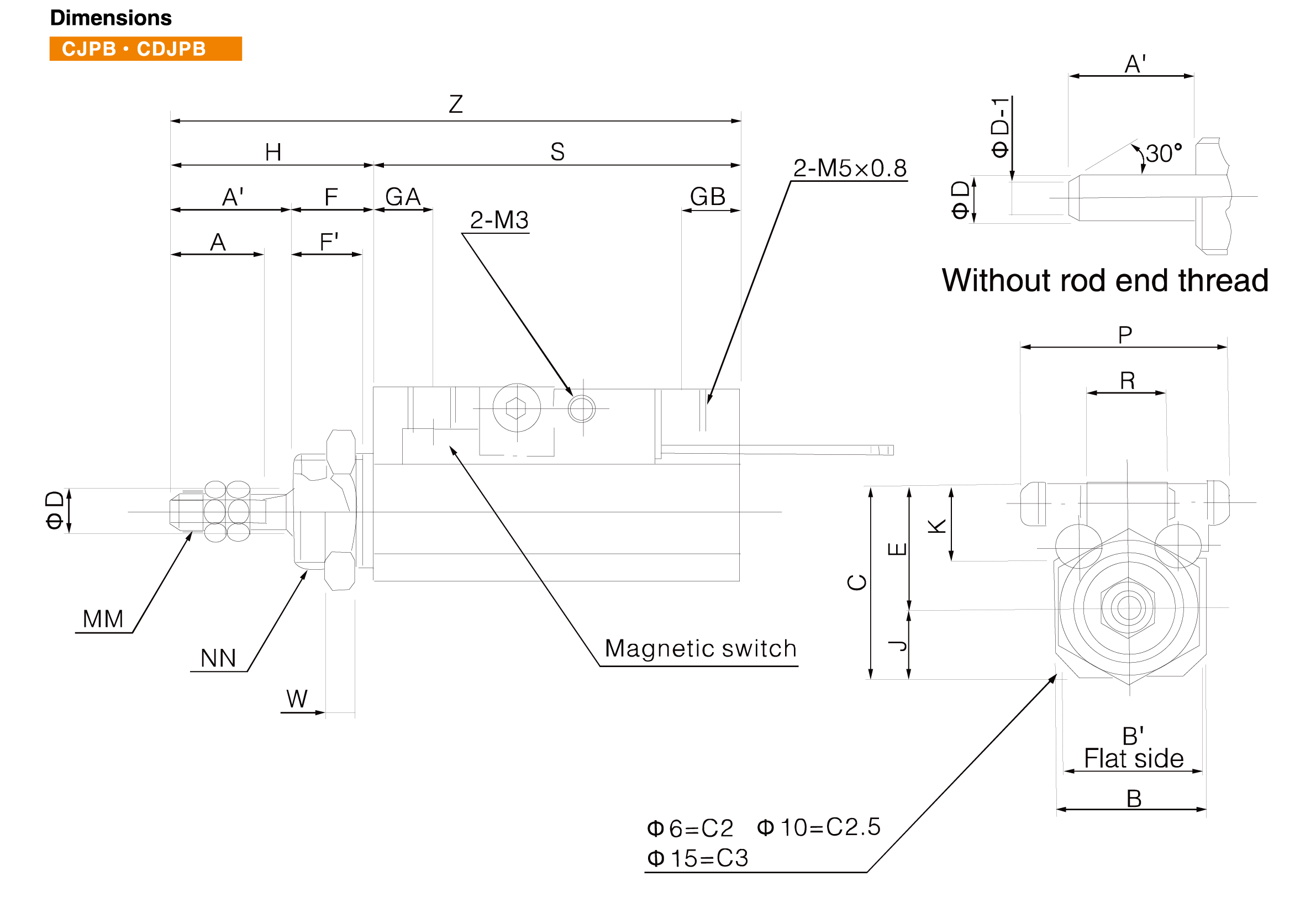

| Parameter | Specification |
| Bore Size | 6, 10, 15 mm |
| Action Type | Double Acting, Single Rod |
| Working Medium | Air |
| Operating Pressure | 0.06–0.7 MPa |
| Proof Pressure | 1.0 MPa |
| Piston Speed | 50–500 mm/s |
| Cushion Type | Rubber Bumper |
| Lubrication | Non-Lube |
| Port Size | M5 × 0.8 |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
Unlike single acting pin cylinders, the double acting configuration provides active control in both directions, improving positioning accuracy and cycle consistency. The compact internal structure ensures smooth operation while maintaining low air consumption.
Its non-lube design further reduces maintenance requirements and contributes to long-term operational reliability.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CJP Series Pin Cylinder (Double Acting) is widely used in:
● Positioning and locating fixtures
● Indexing mechanisms
● Assembly automation equipment
● Conveyor stop systems
● Electronics manufacturing machinery
● Packaging equipment
● Testing and inspection devices
● Material handling systems
● Precision automation equipment
● OEM industrial machinery
Combining compact dimensions, bidirectional pneumatic control, optional magnetic sensing, and flexible mounting options, the CJP Series Double Acting Pin Cylinder provides an efficient solution for modern positioning and automation applications.
