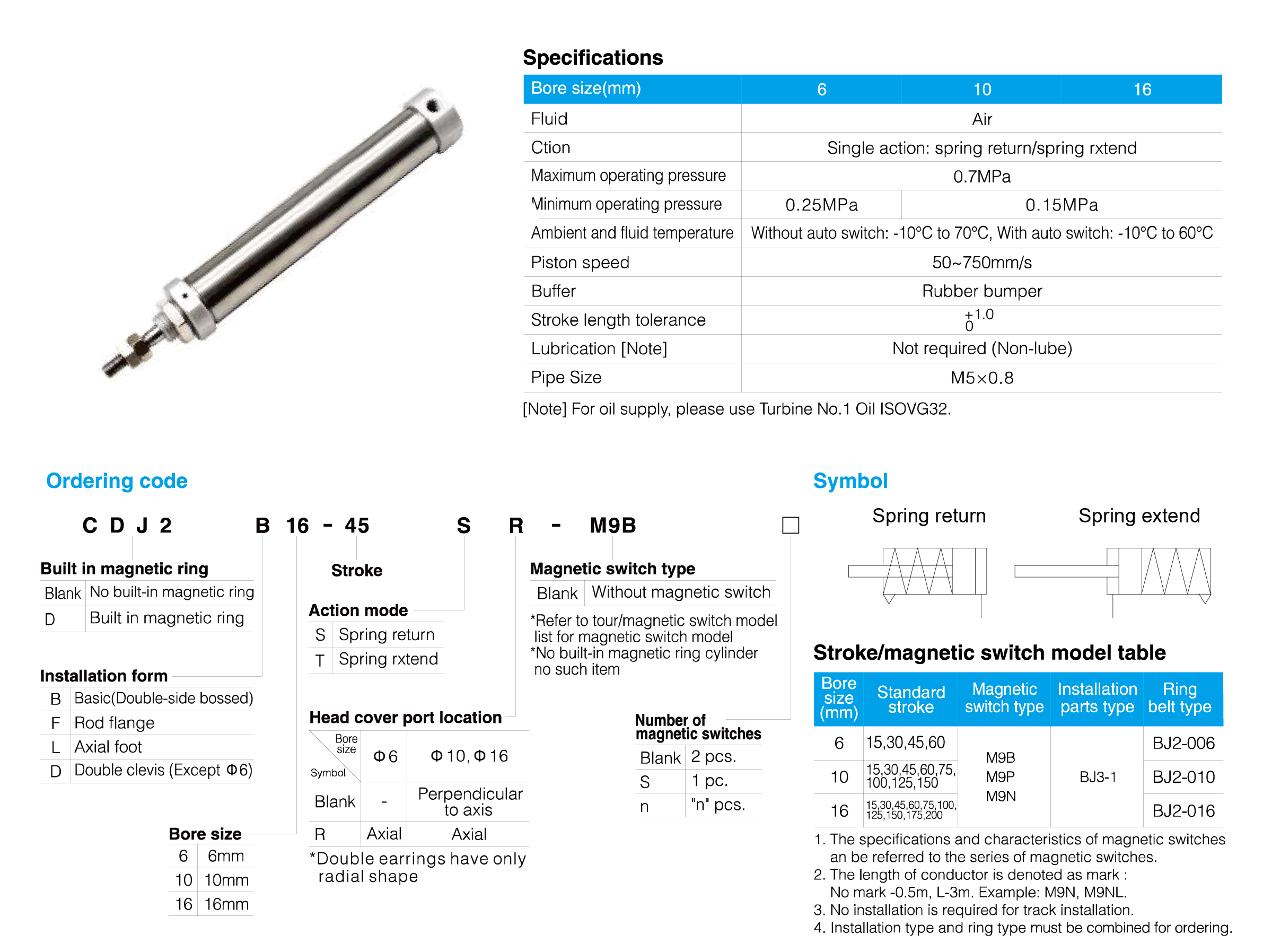

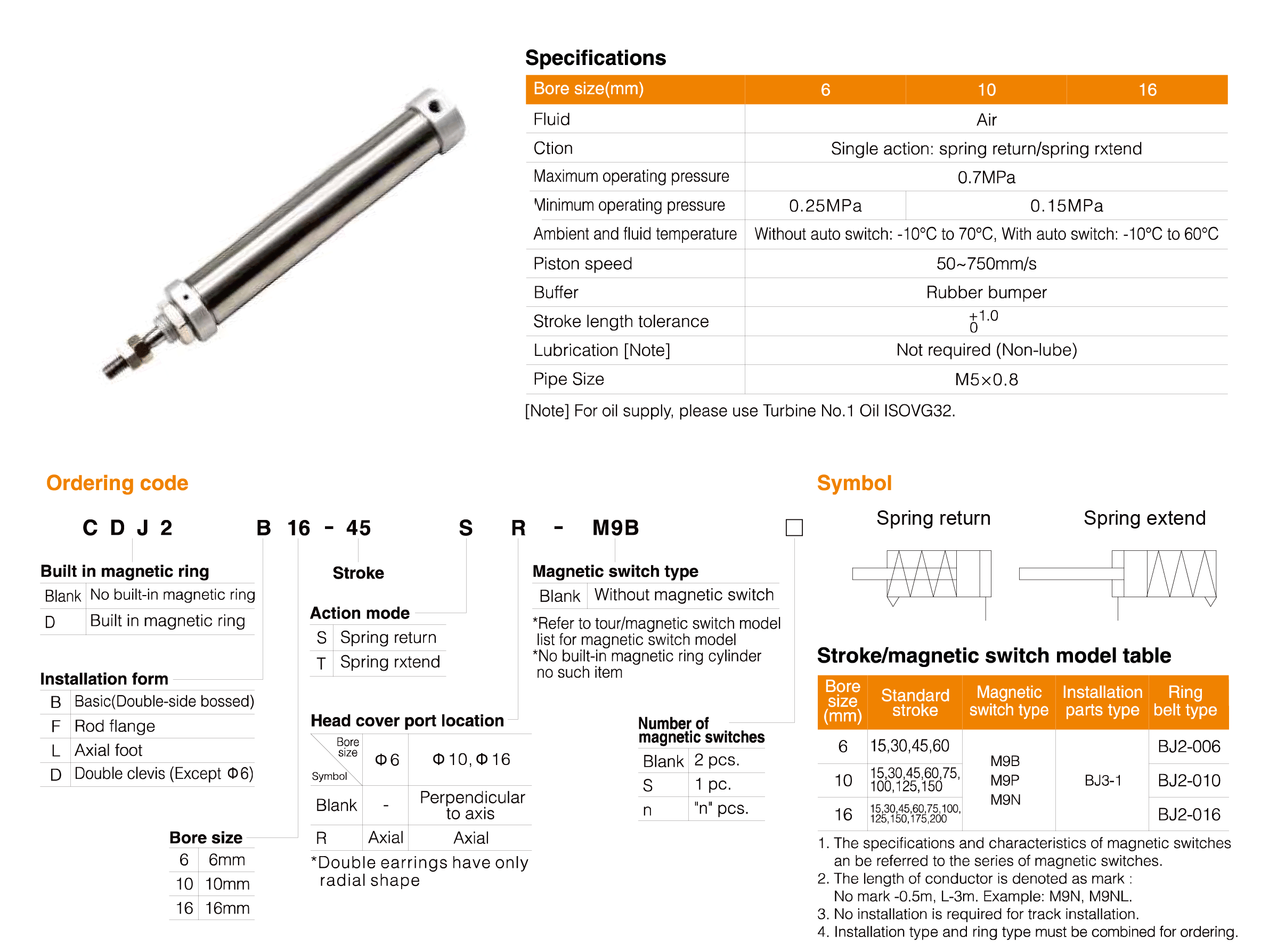

The CJ2 Series Stainless Steel Mini Cylinder (Single Acting) is a micro pneumatic actuator designed for ultra-compact automation systems requiring spring-driven motion. With bore sizes starting from 6 mm, it delivers reliable performance in extremely limited installation spaces while maintaining stainless steel durability and corrosion resistance.
Its single acting structure supports spring return or spring extend operation, making it suitable for simplified motion control applications where air consumption needs to be minimized.
The CJ2 Single Acting Series is a micro-scale pneumatic cylinder designed for precision automation tasks requiring compact structure and simple control logic. It uses spring force for return or extension, reducing air consumption and simplifying system design.
Its stainless steel body ensures durability and stable performance in compact devices and high-frequency operation environments.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Ultra-compact stainless steel body design
● Single acting (spring return / spring extend)
● Bore sizes: Ø6, Ø10, Ø16
● Non-lube operation for low maintenance
● Rubber bumper for end cushioning
● Compact M5×0.8 port connection
● Stable piston speed (50–750 mm/s)
● Corrosion-resistant construction
● Lightweight micro actuator design
● Suitable for space-limited equipment
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CJ2 Single Acting design reduces system complexity by using an internal spring mechanism for motion return or extension. This minimizes air consumption while maintaining reliable and predictable movement.
The stainless steel construction ensures long-term durability, even in environments requiring high precision and frequent cycling.
Rubber bumpers at stroke ends provide basic impact protection, helping extend service life and improve operational stability.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CJ2 Series is designed for non-lubricated operation, eliminating the need for external oil supply under normal working conditions. This reduces maintenance workload and improves system efficiency in compact automation setups.
Its stable sealing structure ensures smooth movement even under high-frequency operation.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CJ2 Series Stainless Steel Mini Cylinder (Single Acting) is widely used in:
● Micro automation equipment
● Electronics assembly systems
● Small robotic devices
● Precision testing machines
● Medical and laboratory equipment
● Packaging machinery
● Semiconductor handling systems
● Light industrial automation
● OEM compact devices
● Fine positioning systems
Combining ultra-compact design, stainless steel construction, and spring-driven motion, the CJ2 Single Acting Series provides a reliable micro pneumatic solution for modern precision automation systems.
