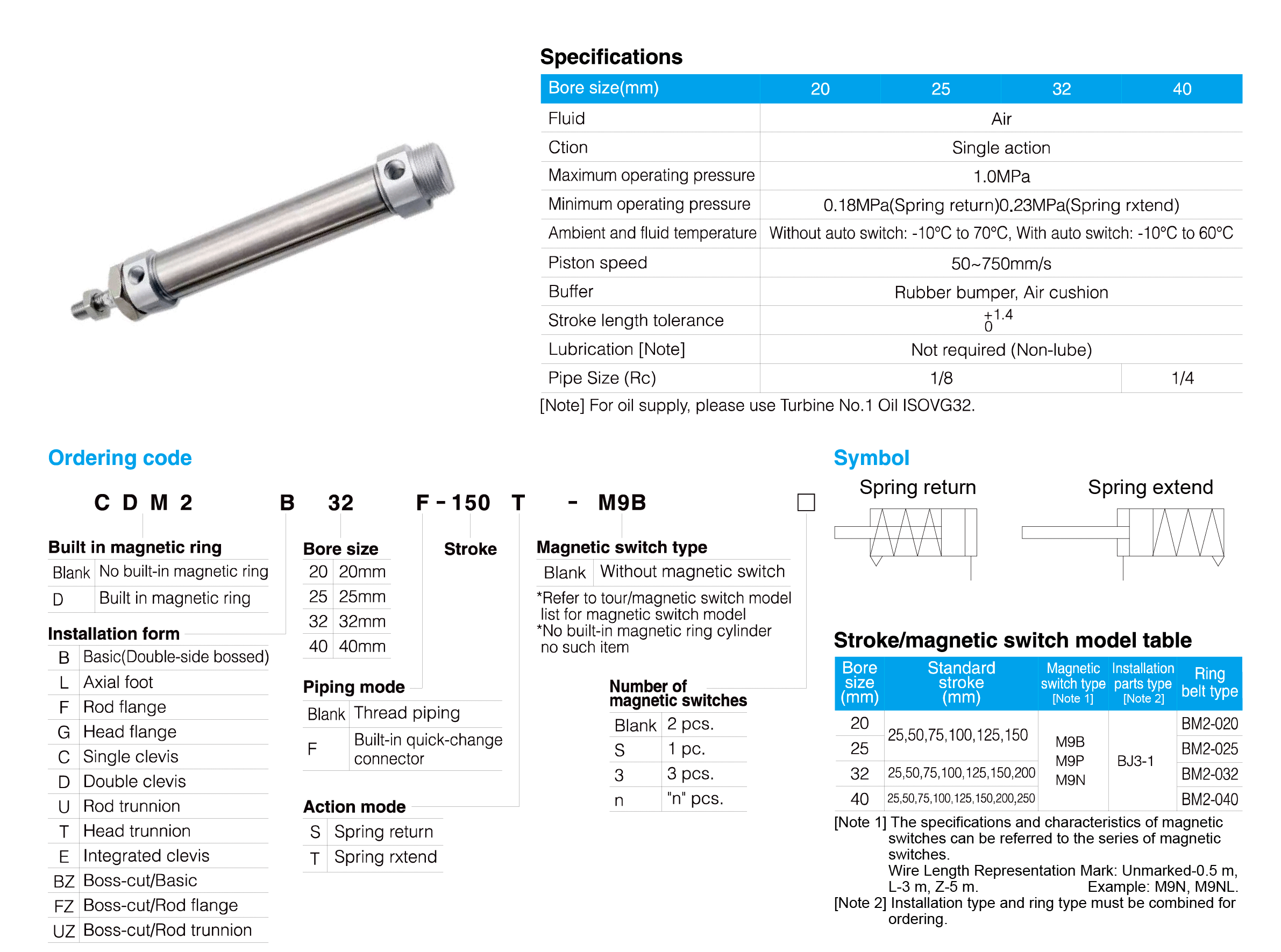

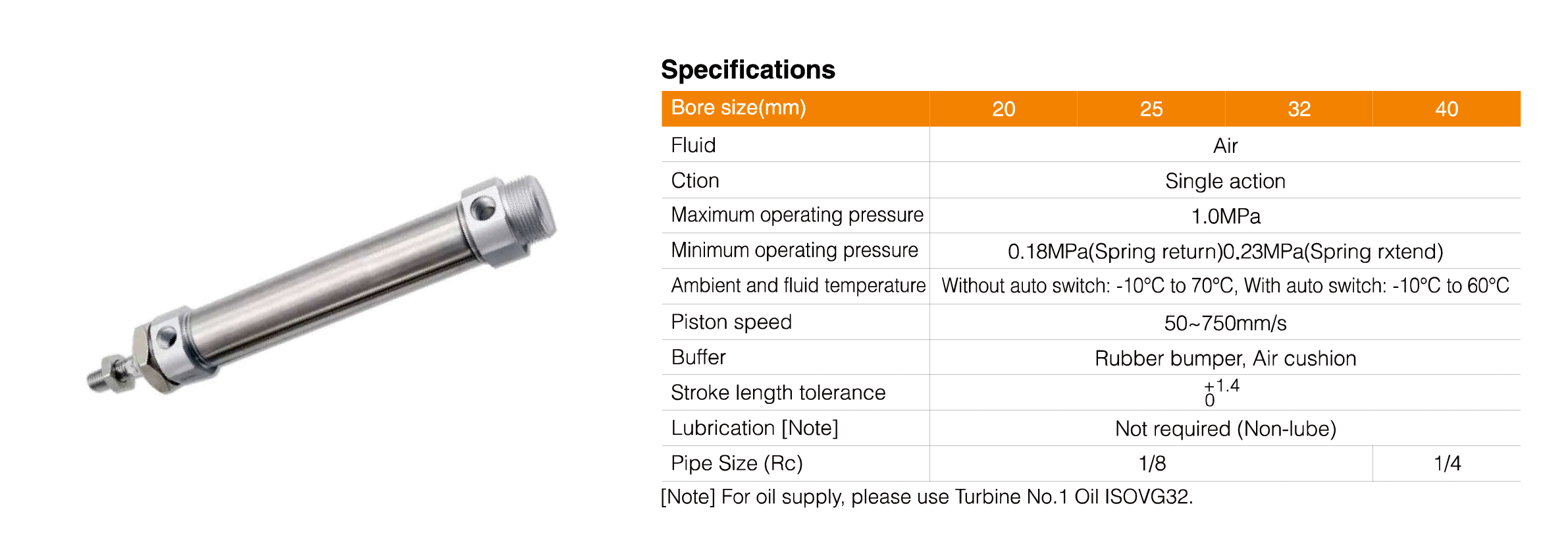

CM2 Series Stainless Steel Mini Cylinder(Single Acting)

CM2 Series Stainless Steel Mini Cylinder (Single Acting)

The CM2 Single Acting Series is a compact stainless steel pneumatic cylinder designed for applications where simple motion control and space efficiency are required. Using spring force for return or extension, it reduces air consumption while maintaining stable and predictable performance.

Its compact round-body structure allows easy installation in automated equipment, especially where control simplicity is prioritized.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Main Features

● Stainless steel compact cylinder body

● Single acting design (spring return / spring extend)

● Optional air cushion or rubber bumper

● Non-lube operation for low maintenance

● Stable piston speed (50–750 mm/s)

● Corrosion-resistant structure

● Compact installation size

● Flexible port size options (Rc 1/8, Rc 1/4)

● Suitable for light-duty automation

● Reliable and energy-efficient operation

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Simple Structure, Stable Performance

The single acting design uses a built-in spring mechanism to achieve return or extension motion, reducing the need for continuous air supply. This makes the CM2 Series ideal for energy-saving systems and applications requiring simplified pneumatic control.

The stainless steel construction provides strong resistance to corrosion and wear, ensuring consistent performance even in humid or industrial environments.

Optional cushioning structures, including rubber bumper or air cushion configurations, help reduce impact at stroke ends and improve overall durability.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Low Maintenance and Efficient Operation

Designed as a non-lubricated cylinder, the CM2 Single Acting Series operates without additional oil supply under normal conditions. This reduces maintenance requirements and improves long-term system efficiency.

Its stable sealing and compact structure ensure reliable motion performance in repetitive automation cycles.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Application

The CM2 Series Stainless Steel Mini Cylinder (Single Acting) is widely used in:

● Packaging machinery

● Light automation equipment

● Sorting systems

● Conveyor stop mechanisms

● Textile machinery

● Food processing equipment

● Assembly fixtures

● Material positioning systems

● OEM automation devices

● General industrial pneumatic applications

Combining stainless steel durability, spring-driven motion, compact design, and low maintenance requirements, the CM2 Single Acting Series provides a simple and efficient pneumatic solution for modern automation systems.
