TN Series Dual Rod Cylinder

TN Series Dual Rod Cylinder

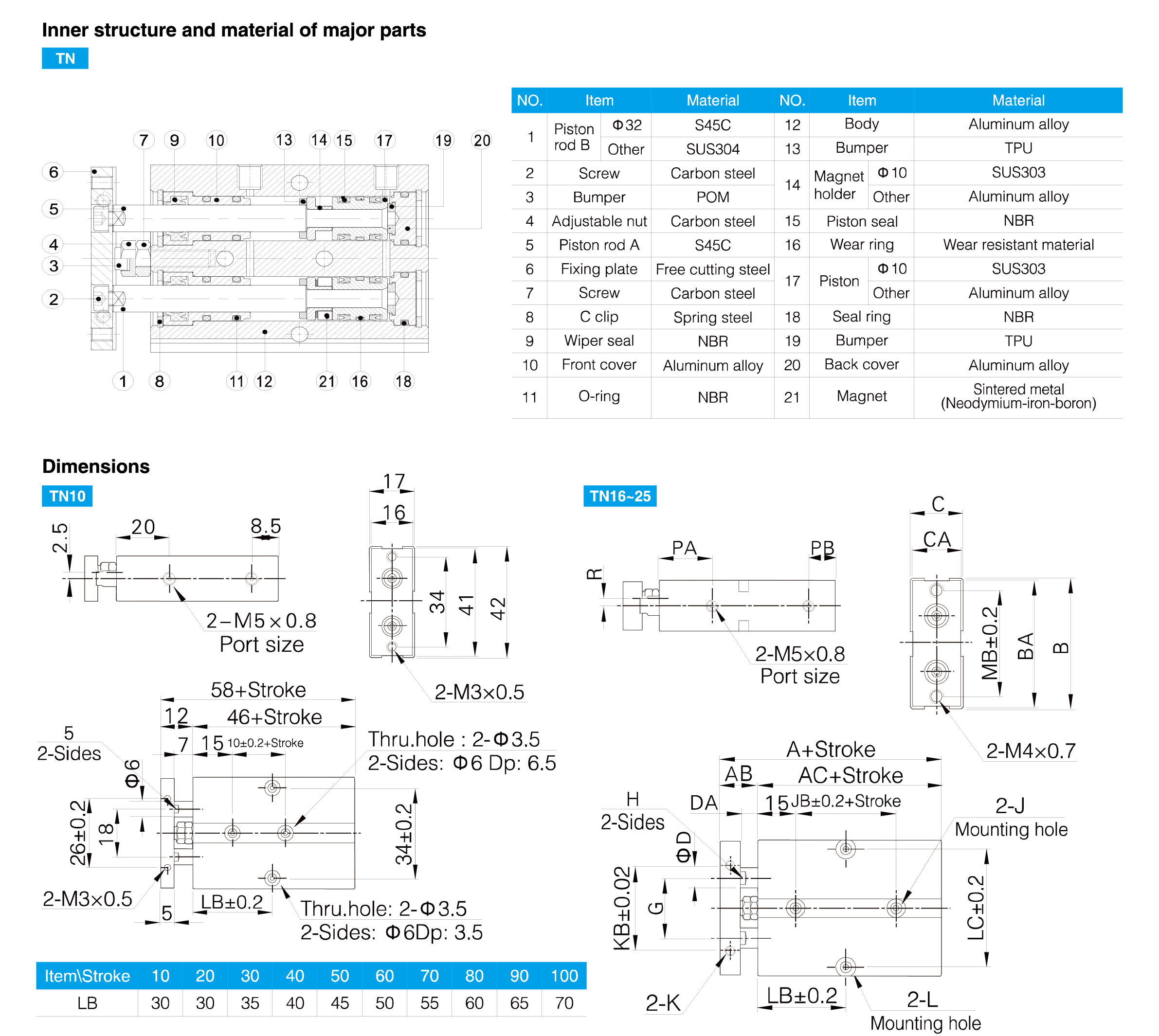

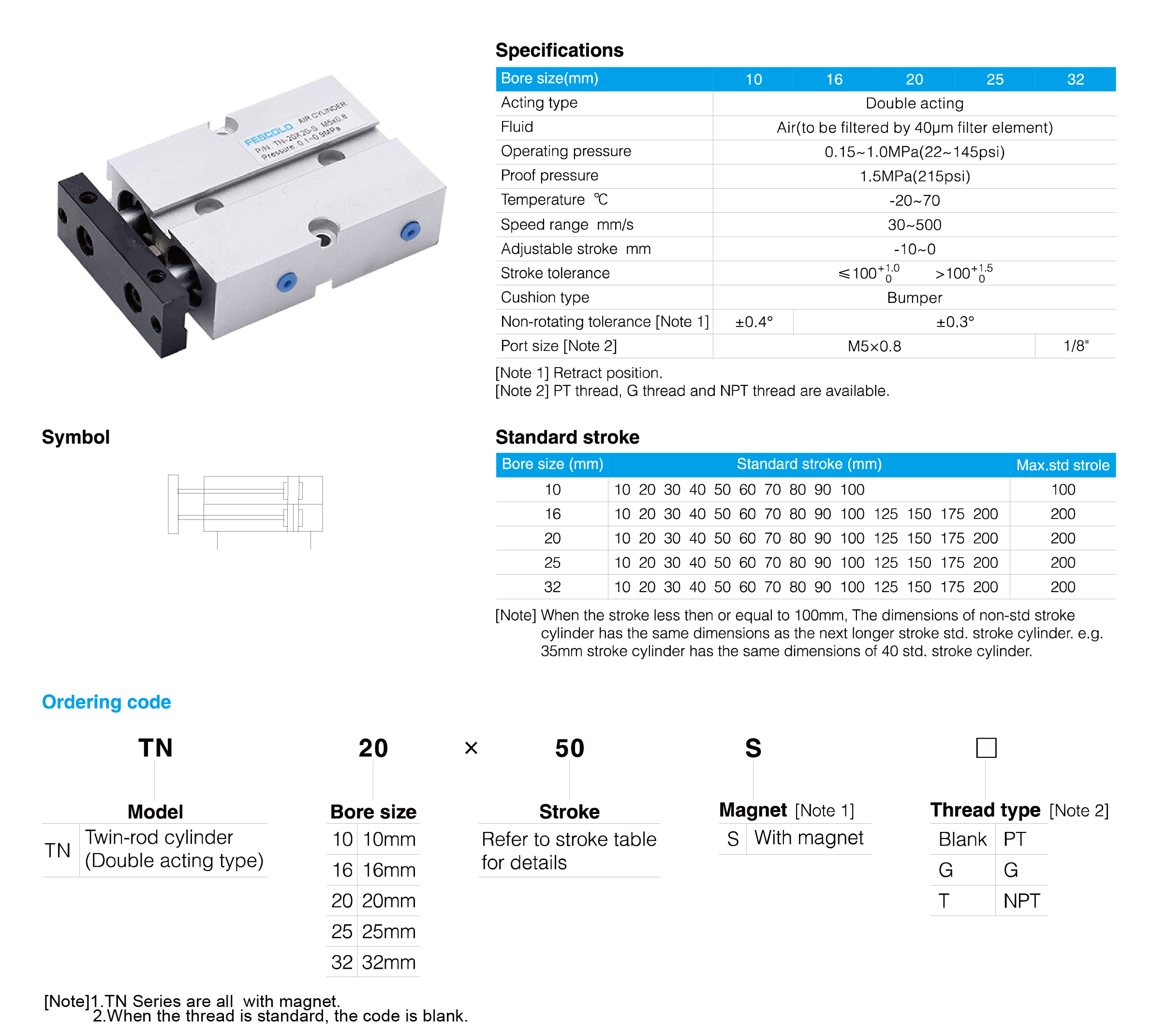

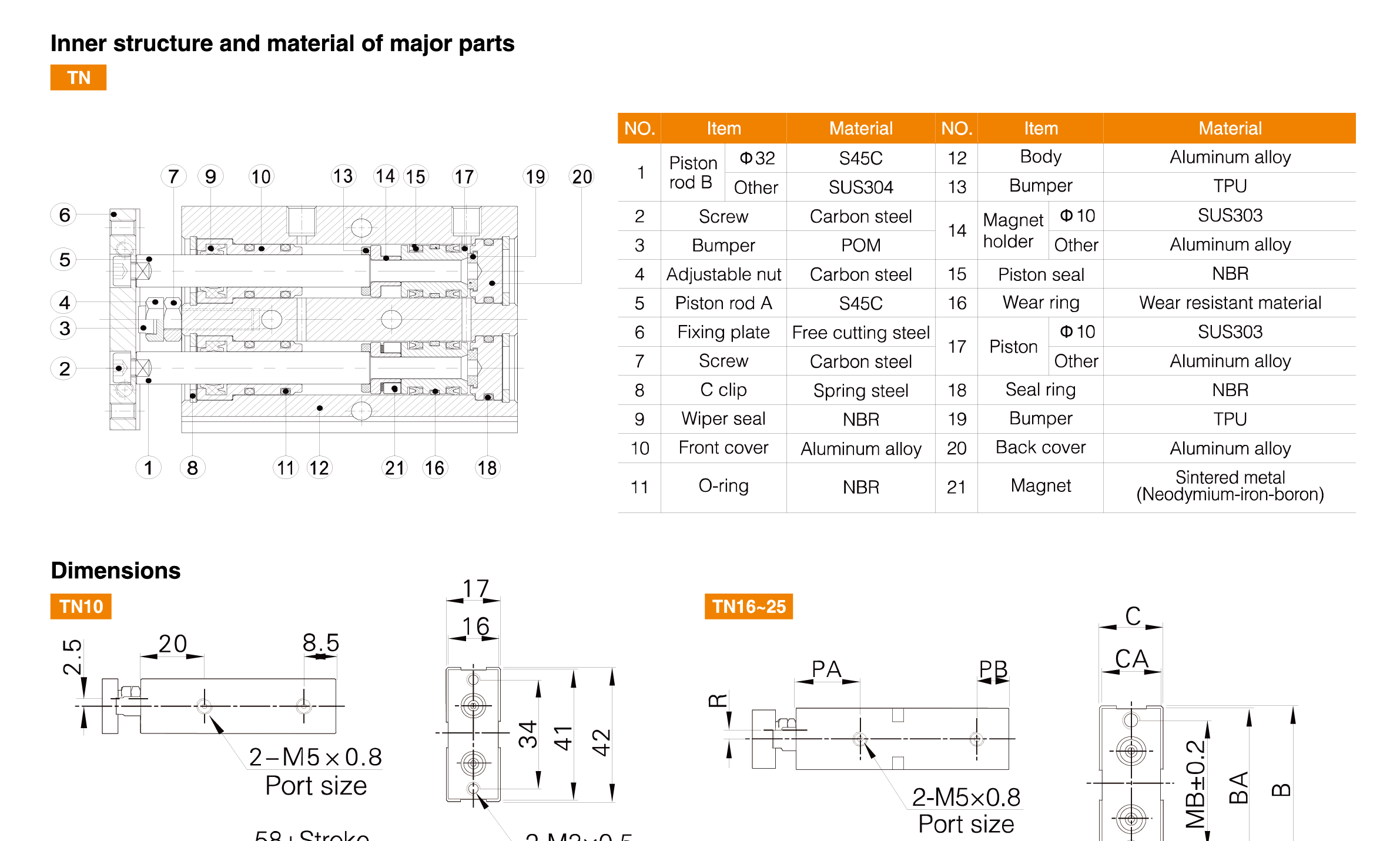

The TN Series Dual Rod Cylinder is developed for precision linear motion applications that demand compact installation and enhanced guiding performance. Its integrated dual rod structure improves rigidity and effectively withstands bending and twisting moments, ensuring smooth and accurate operation throughout the stroke.

The cylinder adopts a space-saving embedded mounting design, making it particularly suitable for modern automation equipment with limited installation space.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

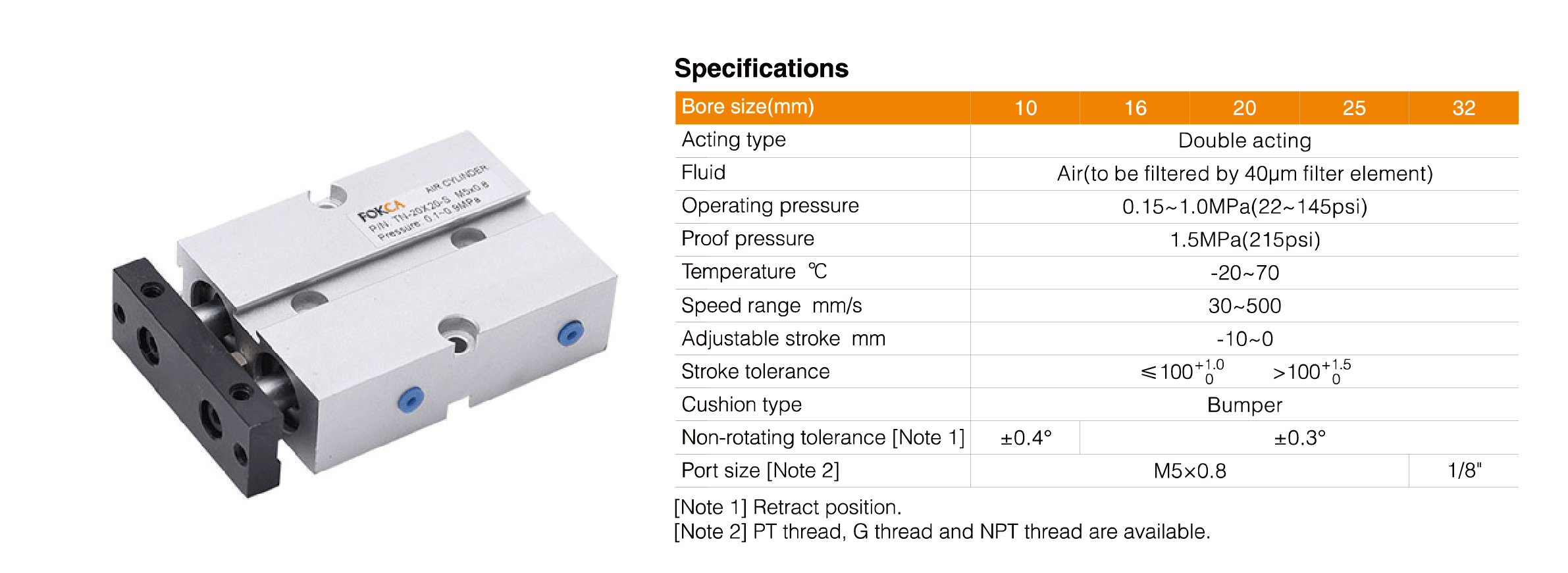

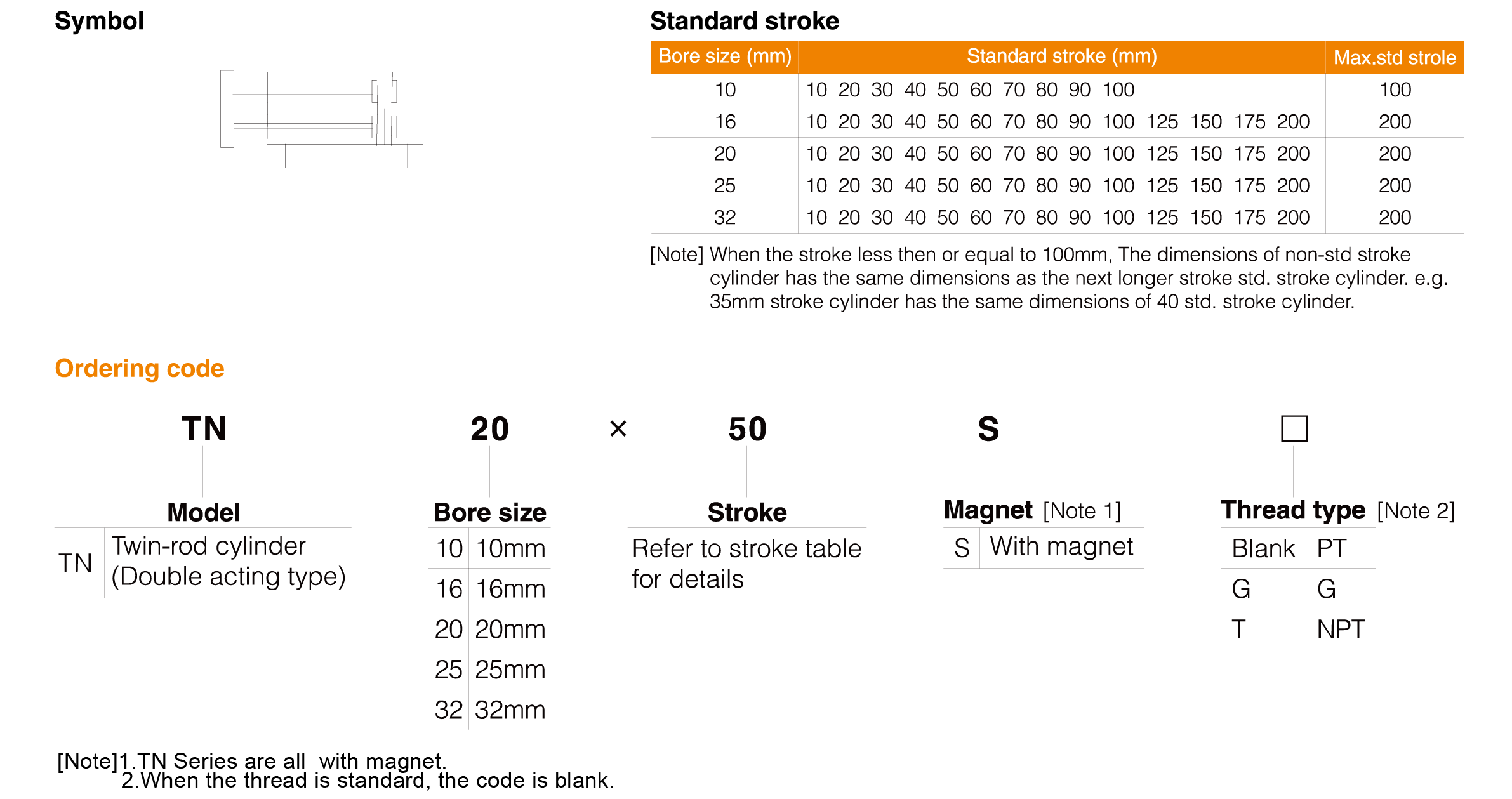

Main Features

● Compact embedded installation structure

● Dual rod guided design for improved stability

● Excellent resistance to bending and twisting moments

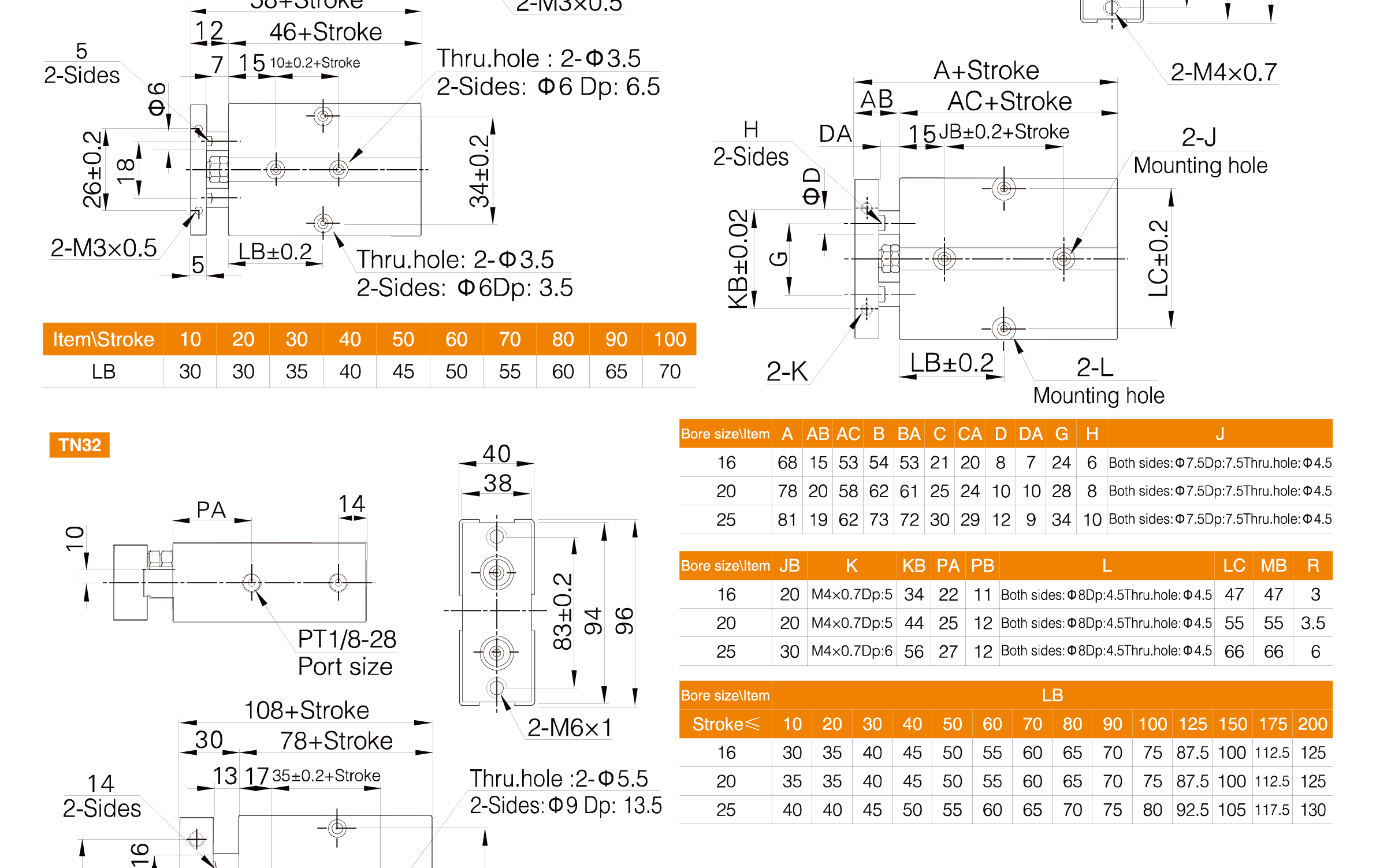

● Mounting holes on three sides for flexible installation

● Adjustable front bumper for stroke fine-tuning

● Reduced impact at end-of-stroke positions

● Standard built-in magnetic piston

● Compatible with magnetic sensor switches

● High positioning accuracy

● Suitable for high-cycle automation systems

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

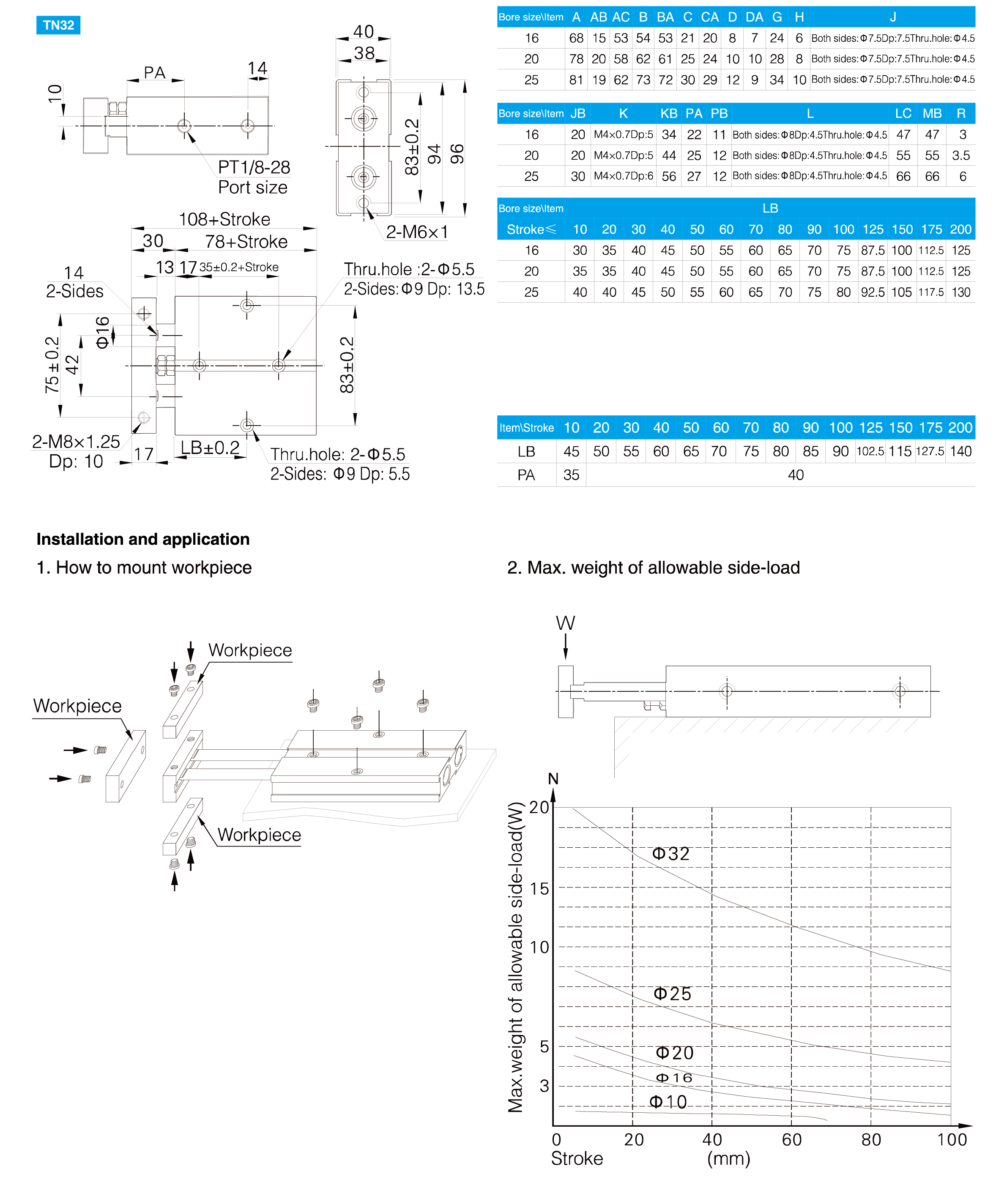

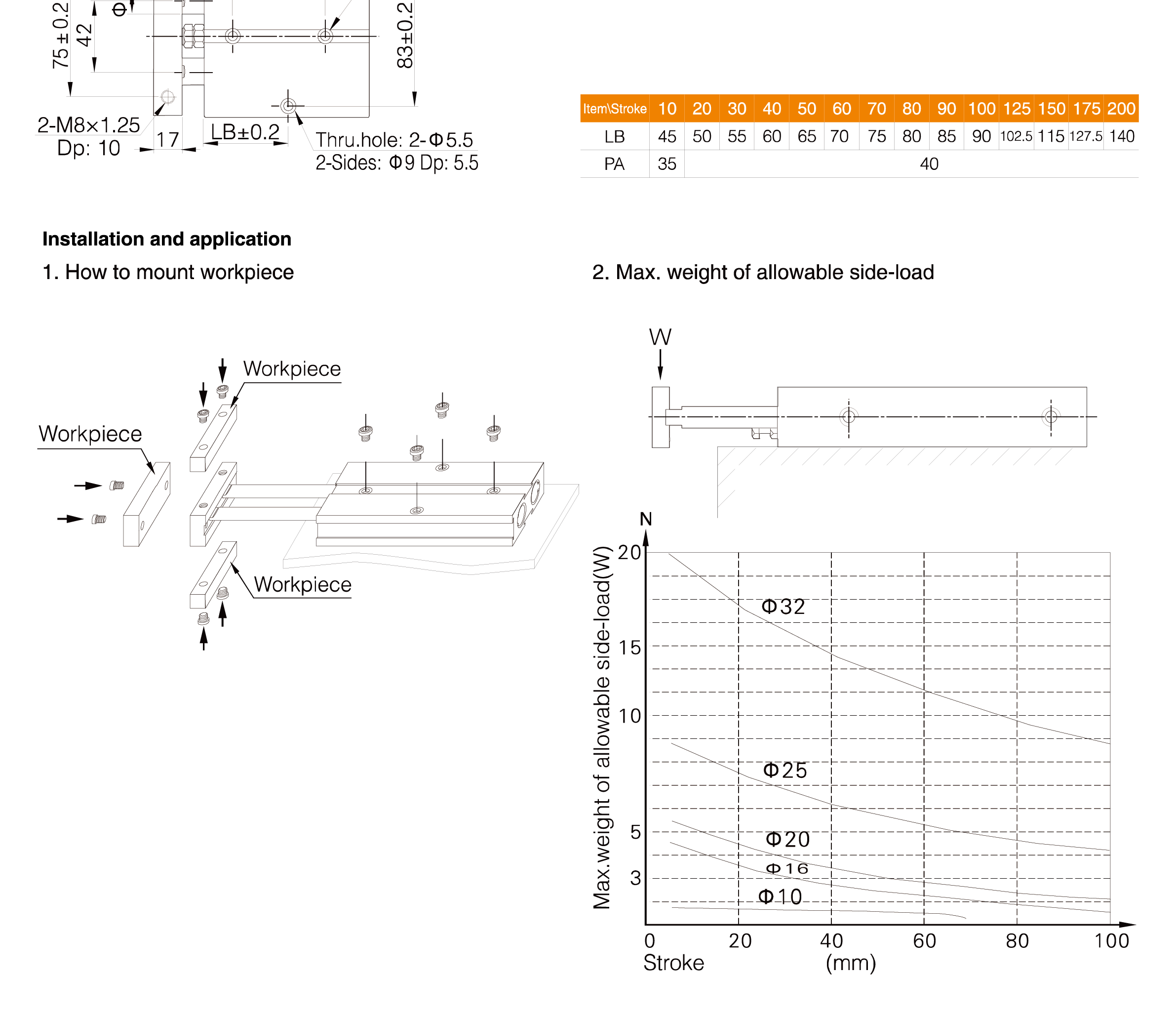

Flexible Installation and Stable Guidance

The TN Series provides multiple mounting options through side mounting holes, allowing engineers to integrate the cylinder easily into different machine layouts. The dual guide rods effectively prevent rotation and improve load-bearing capability, making the cylinder suitable for applications involving offset loads or precision movement requirements.

The adjustable bumper located at the front of the cylinder allows minor stroke adjustment while reducing impact forces during operation, contributing to smoother motion and longer service life.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Application

The TN Series Dual Rod Cylinder is widely used in:

● Pick-and-place equipment

● Assembly automation systems

● Precision positioning devices

● Clamping and transfer mechanisms

● Electronics manufacturing machinery

● Packaging equipment

● Testing and inspection systems

● Conveyor automation

● Robotic auxiliary devices

● OEM industrial equipment

Combining compact installation, guided motion control, built-in magnetic sensing, and strong resistance to side loads, the TN Series Dual Rod Cylinder provides a reliable solution for precision automation and industrial motion control applications.
