The CXSM Series Dual Rod Cylinder (Basic Type) is a compact guided pneumatic actuator designed for applications requiring high positioning accuracy and superior load stability. Its dual-cylinder structure generates double output force while maintaining excellent anti-rotation performance.
Featuring strong resistance to side loads, adjustable retraction stroke, and optional slide bearing or ball bushing guidance, the CXSM Series is widely used in automation equipment, precision transfer systems, and assembly machinery where stable guided motion is essential.
The CXSM Series Dual Rod Cylinder is designed to deliver precise linear movement in compact automation systems. Unlike conventional cylinders, it utilizes a thin double-cylinder structure that produces greater output force while maintaining a small installation footprint.
The integrated dual guide rods provide excellent rigidity and positioning accuracy, making the cylinder suitable for applications involving side loads, offset forces, and repetitive motion control.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Compact double-cylinder construction
● Double output force compared with single-cylinder designs
● High non-rotation accuracy up to ±0.1°
● Excellent resistance to side loads and bending moments
● Double-acting operation
● Adjustable retraction stroke (0–5 mm)
● Available with slide bearing or ball bushing guide system
● Maintenance-friendly non-lube design
● Compact installation dimensions
● Stable and repeatable positioning performance
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The dual rod guiding mechanism effectively prevents piston rod rotation and improves overall movement stability. Combined with the double-cylinder structure, the CXSM Series provides higher thrust output and enhanced load-bearing capability for demanding automation applications.

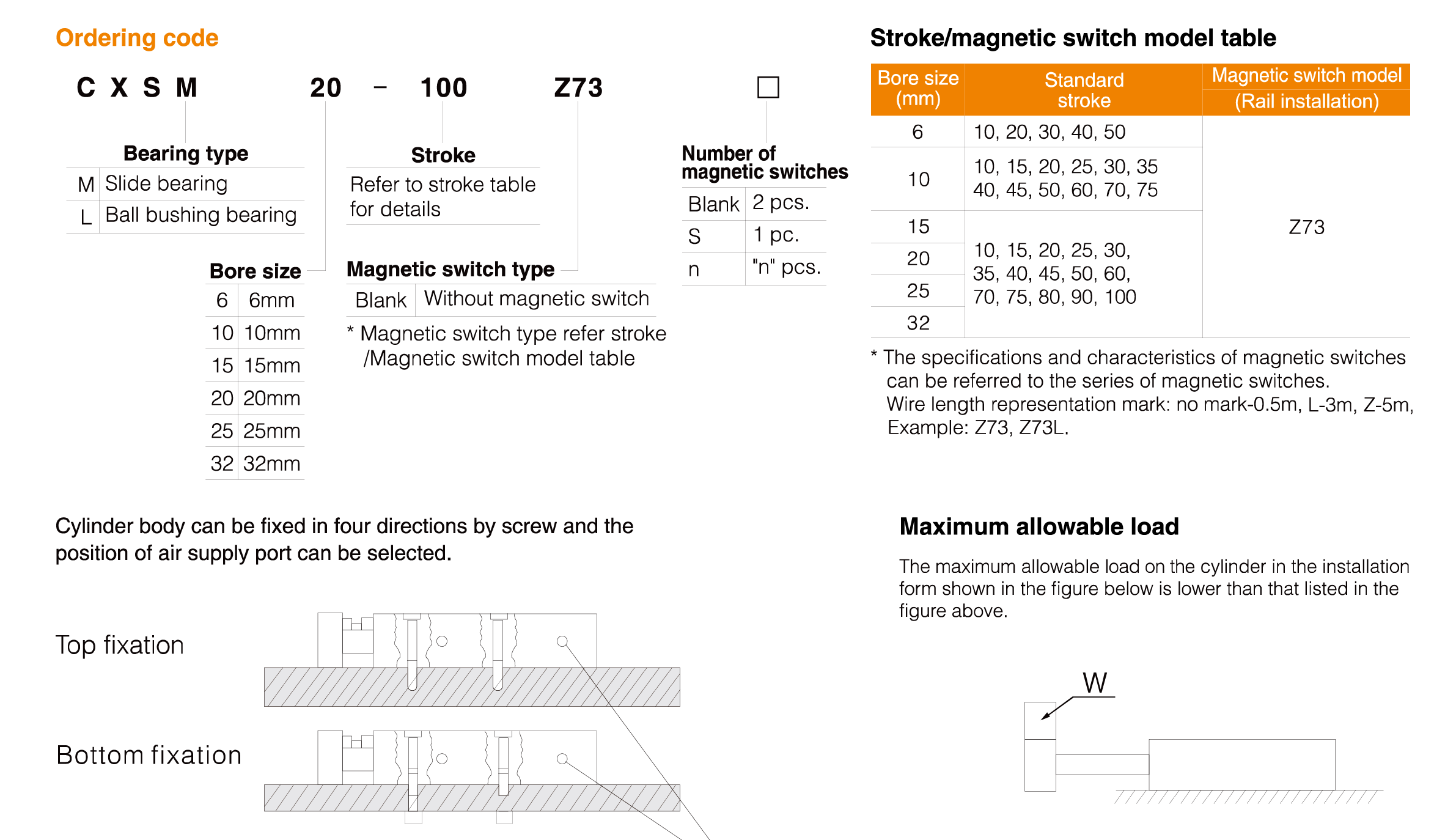

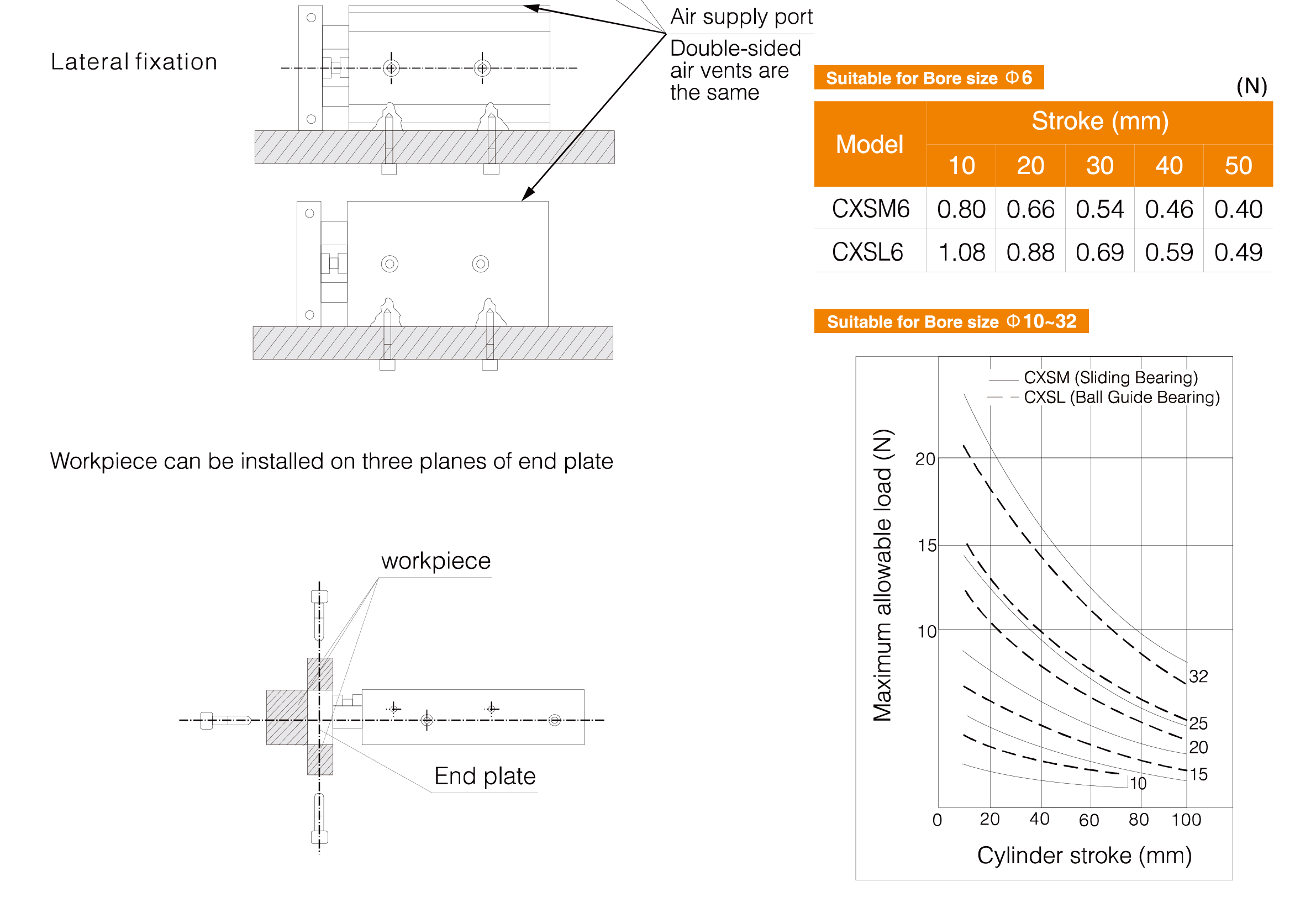

Users can choose between slide bearing and ball bushing bearing versions according to precision, speed, and load requirements.

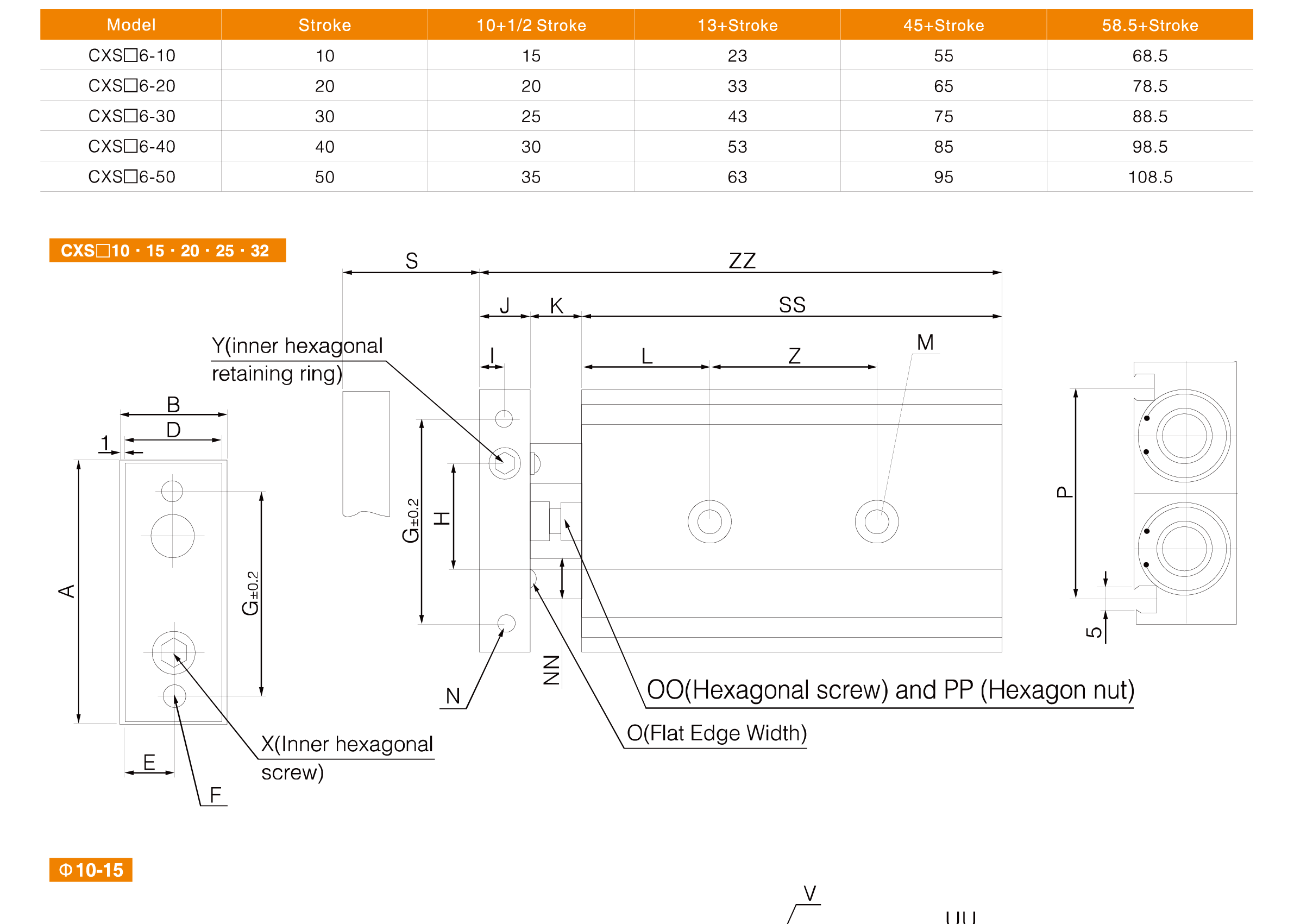

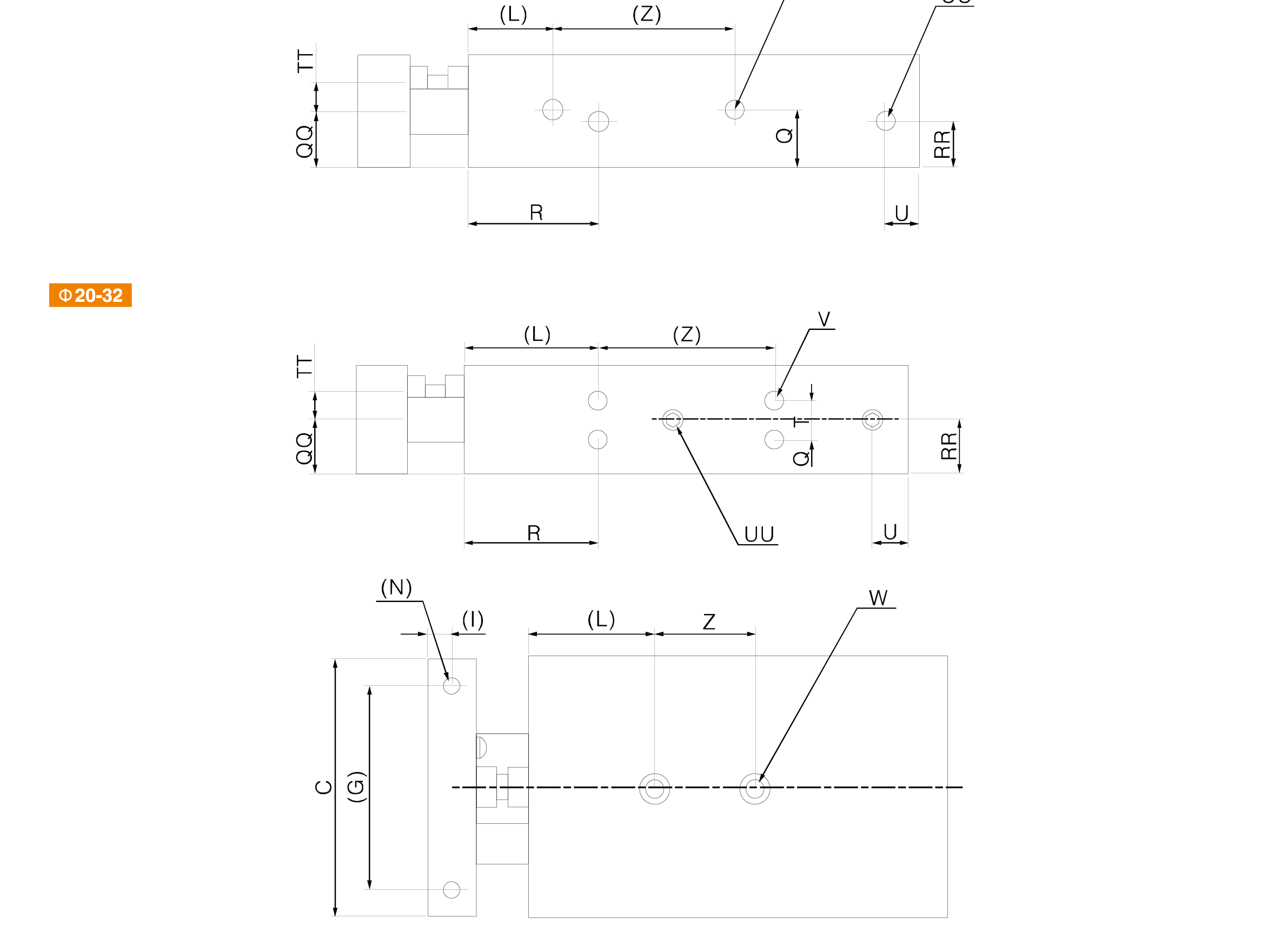

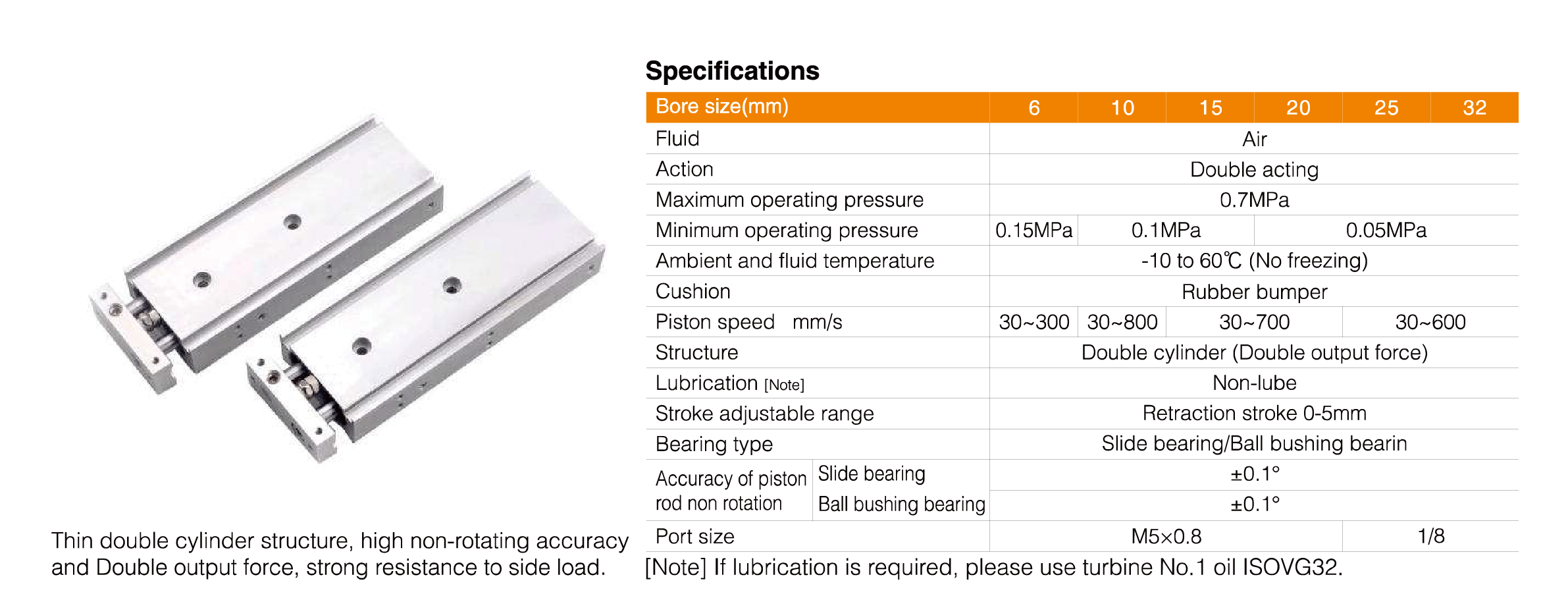

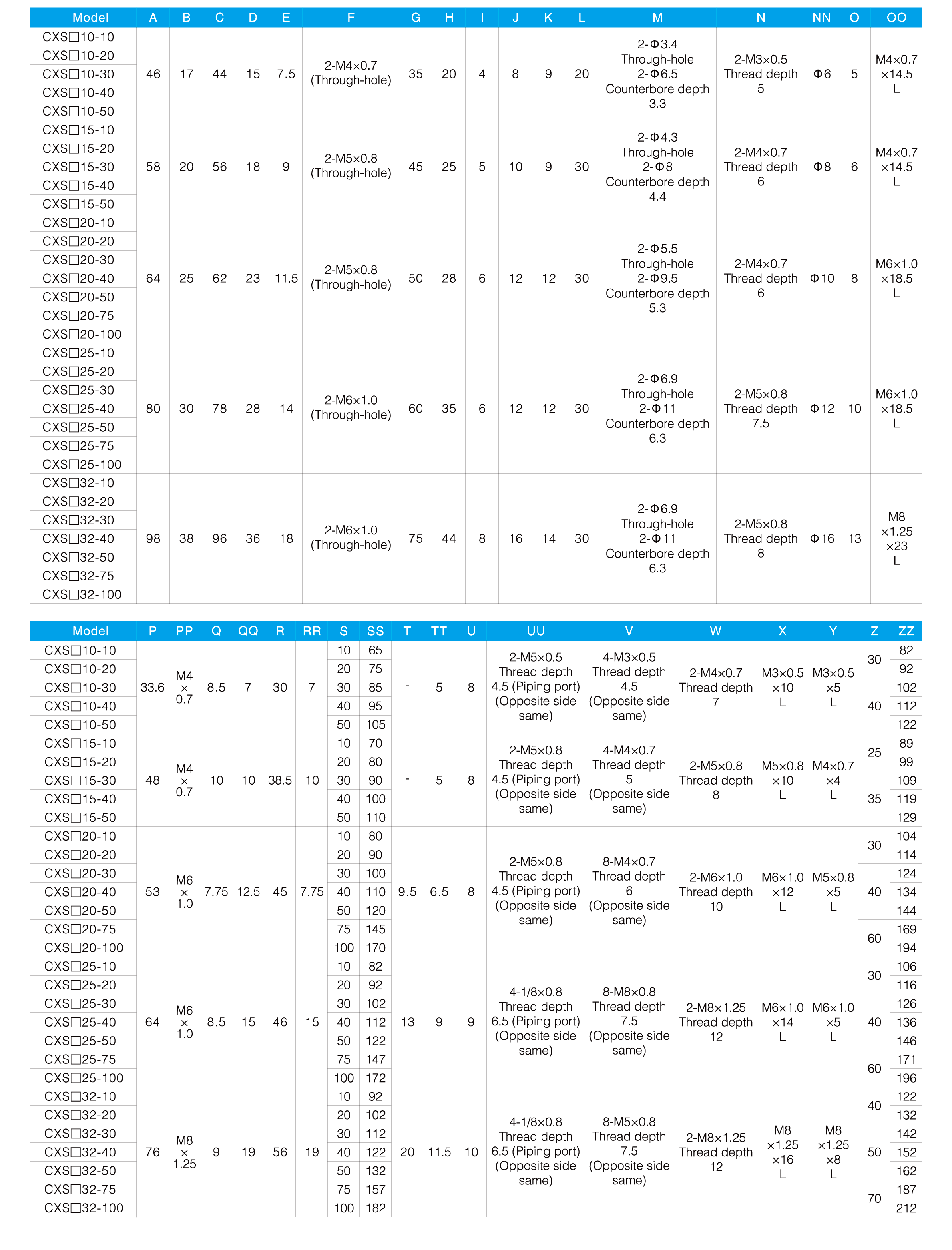

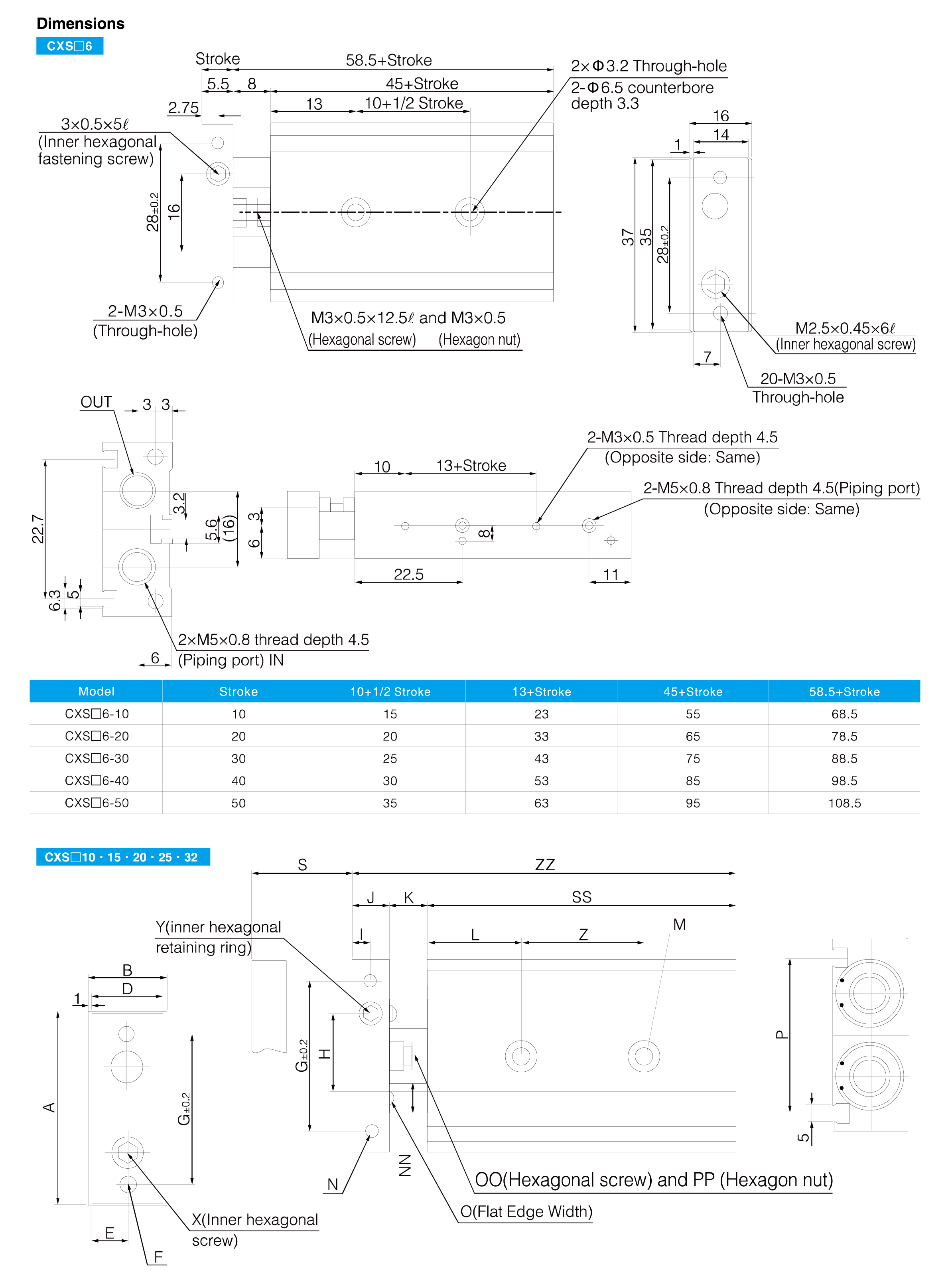

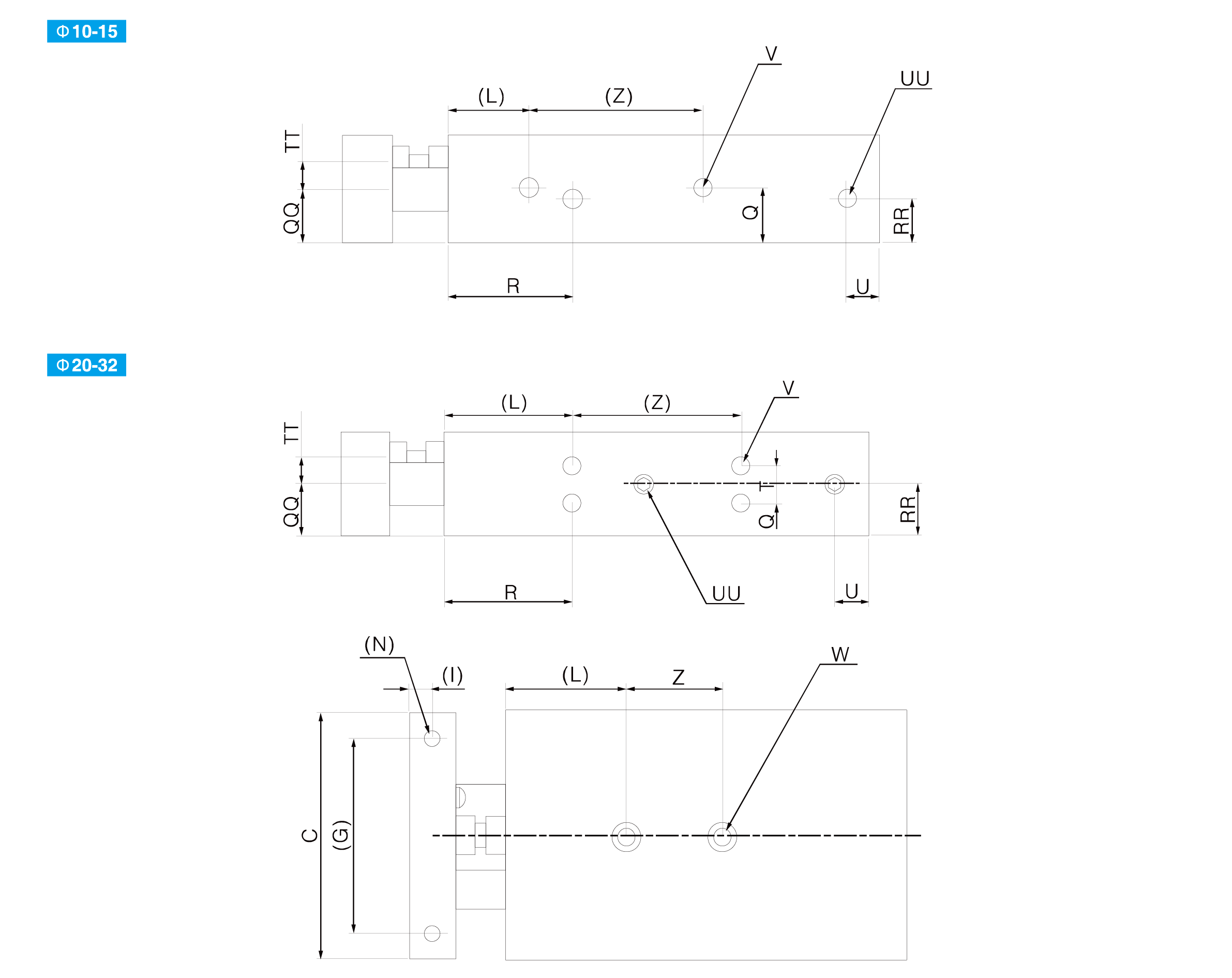

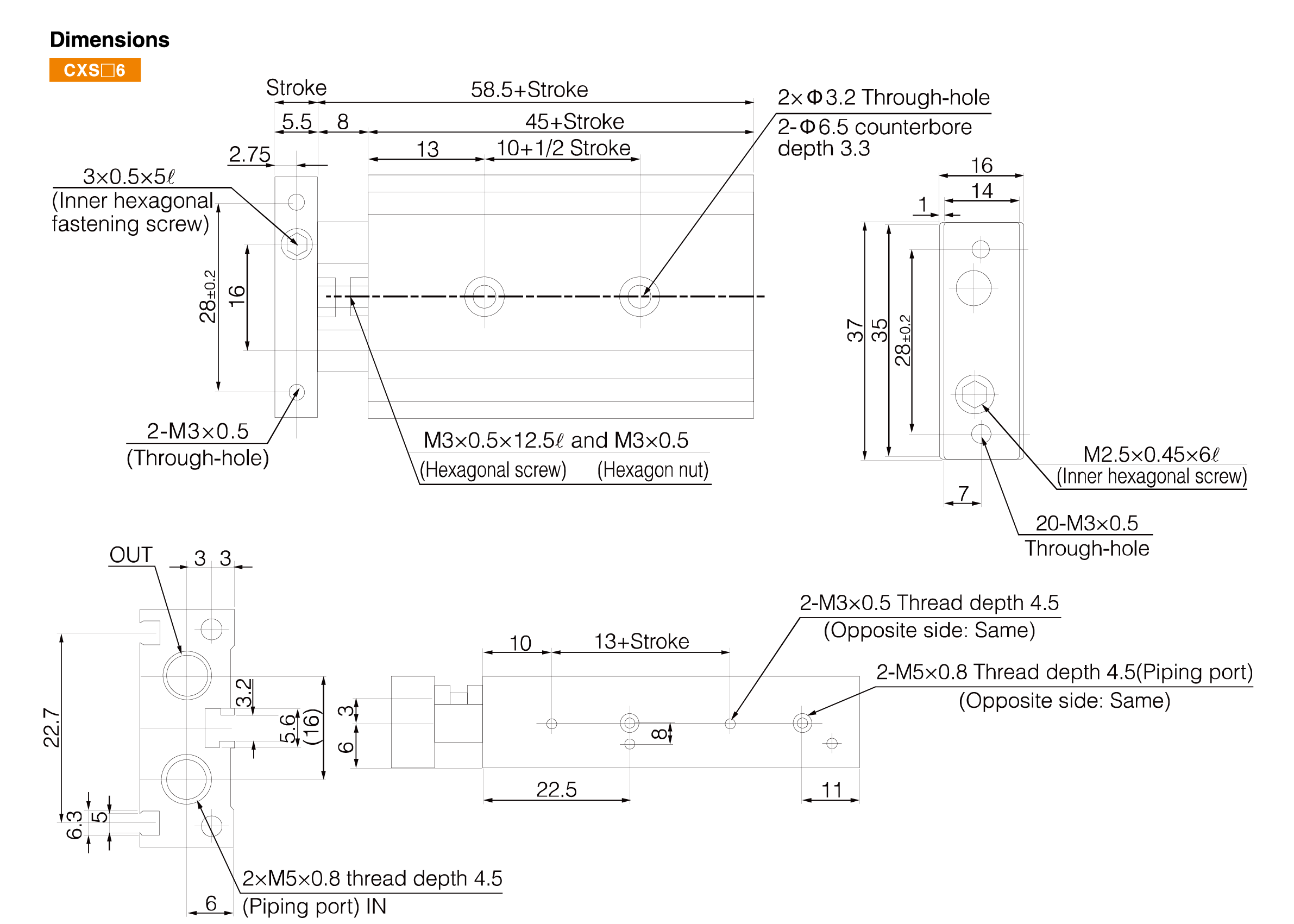

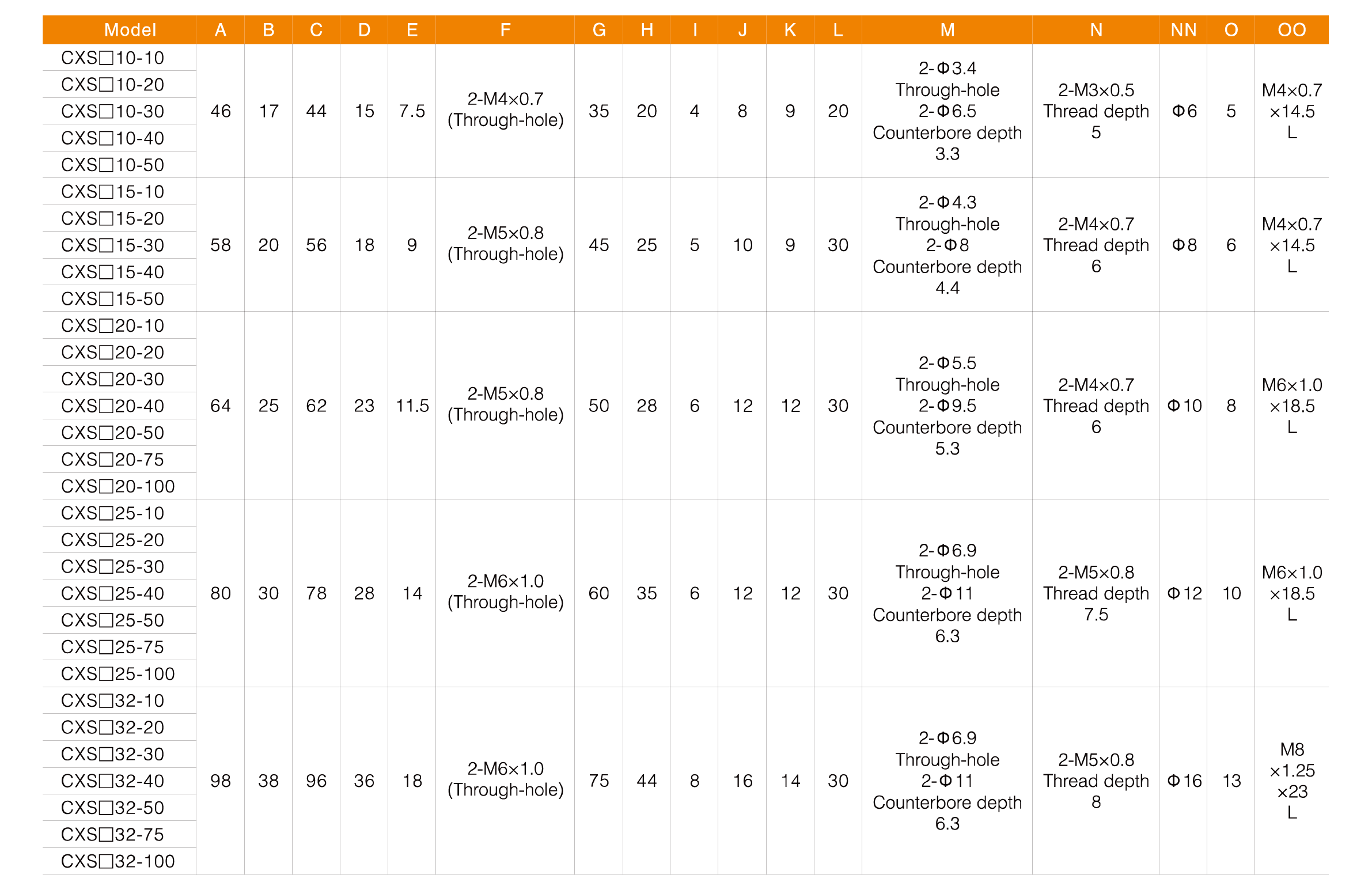

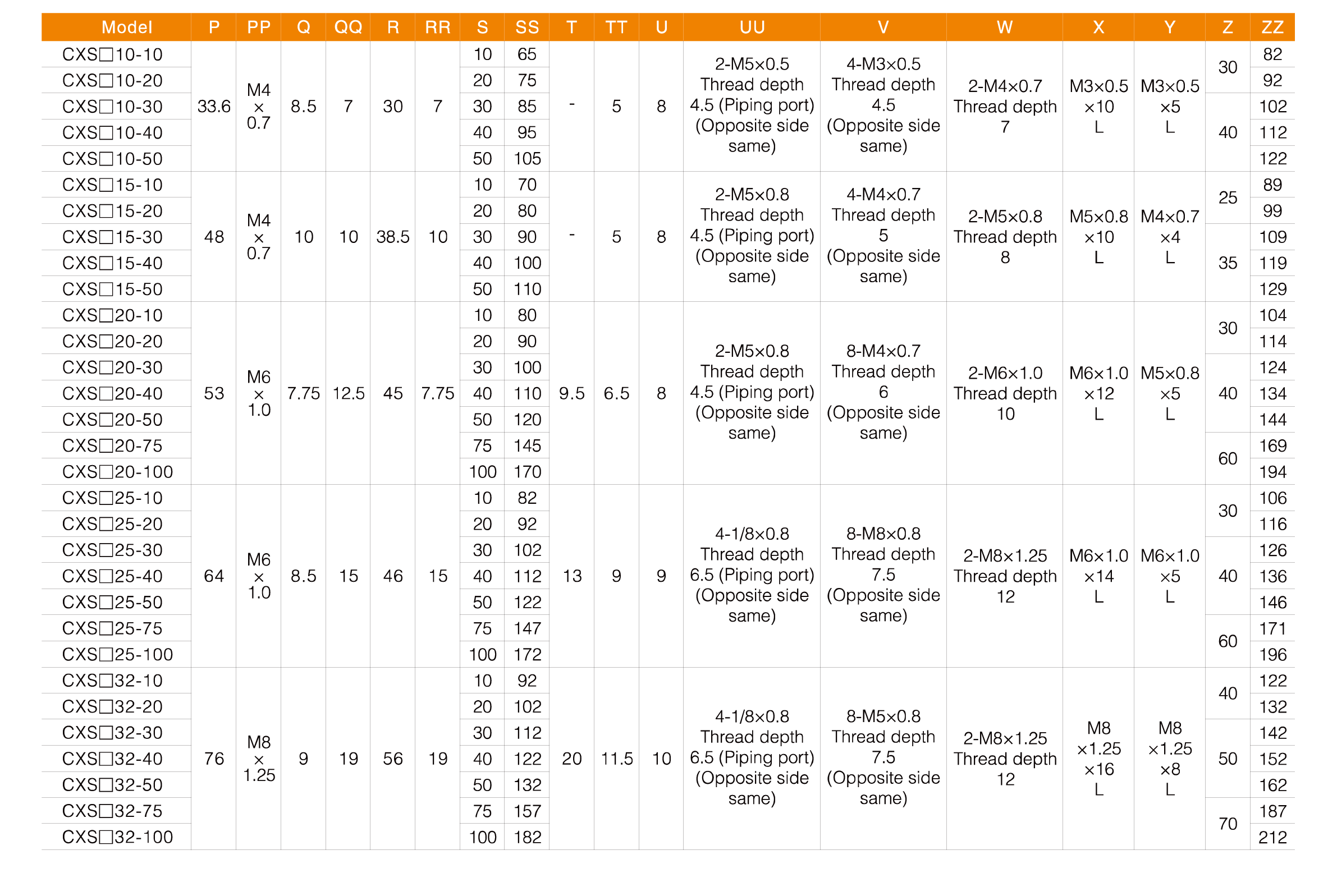

| Parameter | Specification |
| Bore Size | 6, 10, 15, 20, 25, 32 mm |
| Action Type | Double Acting |
| Working Medium | Air |
| Operating Pressure | 0.05–0.7 MPa |
| Ambient Temperature | -10°C to 60°C |
| Piston Speed | 30–800 mm/s |
| Structure | Double Cylinder (Double Output Force) |
| Cushion Type | Rubber Bumper |
| Stroke Adjustment | Retraction 0–5 mm |
| Bearing Type | Slide Bearing / Ball Bushing |
| Non-Rotation Accuracy | ±0.1° |
| Port Size | M5×0.8, 1/8" |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The CXSM Series Dual Rod Cylinder is widely used in:
● Precision assembly equipment
● Pick-and-place systems
● Electronic component handling
● Clamping and positioning devices
● Automated transfer mechanisms
● Packaging machinery
● Inspection and testing equipment
● Semiconductor production systems
● Robotic auxiliary modules
● Industrial automation equipment
Combining compact dimensions, double output force, excellent anti-rotation performance, and strong resistance to side loads, the CXSM Series Dual Rod Cylinder provides a reliable solution for precision motion control and guided automation applications.
