The CXSM Series Dual Rod Cylinder (Double Rod Type) is a high-load guided pneumatic actuator designed for demanding automation environments. With a double cylinder structure, it delivers 2–3 times higher allowable load compared to standard CXS series while maintaining excellent anti-rotation accuracy. The adjustable stroke range of 0–10mm and strong side-load resistance make it suitable for precision positioning, clamping, and heavy-duty transfer systems where stability and force output are critical.
The CXSM Series Double Rod Type Cylinder is engineered for automation systems requiring both high force output and structural stability. Compared with conventional designs, its double cylinder architecture significantly increases output force while maintaining compact installation dimensions, making it suitable for demanding mechanical environments where space and performance must be balanced.

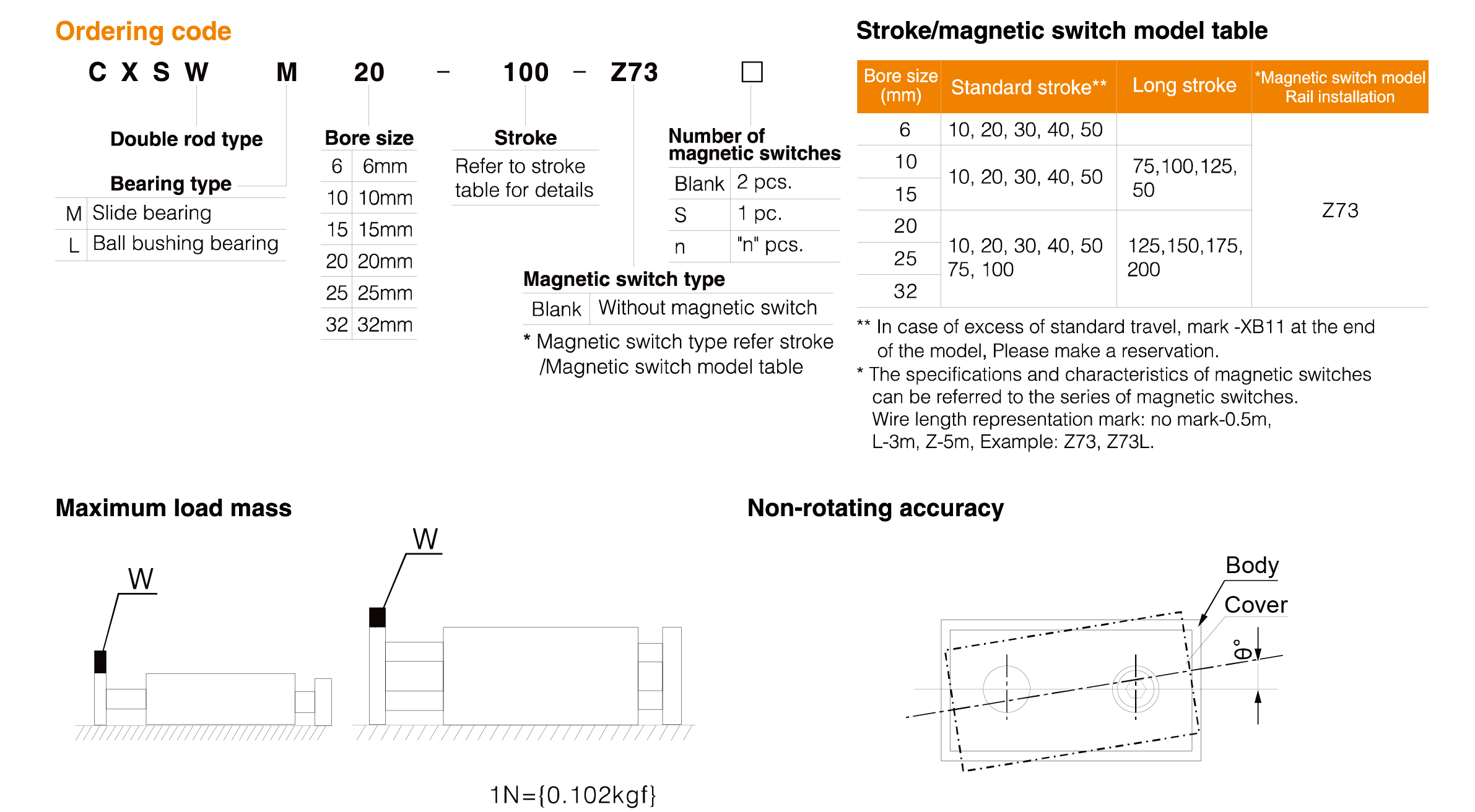

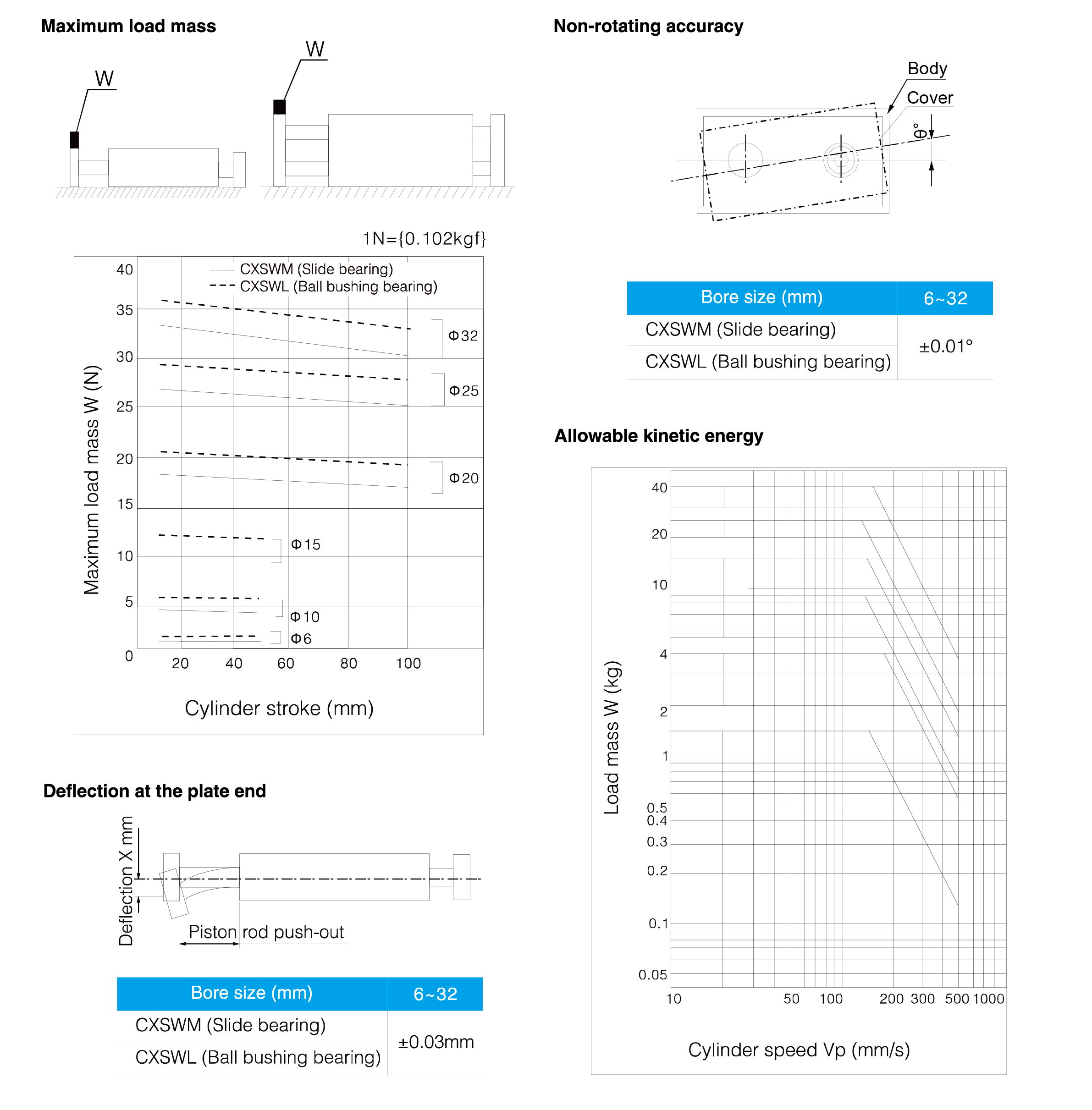

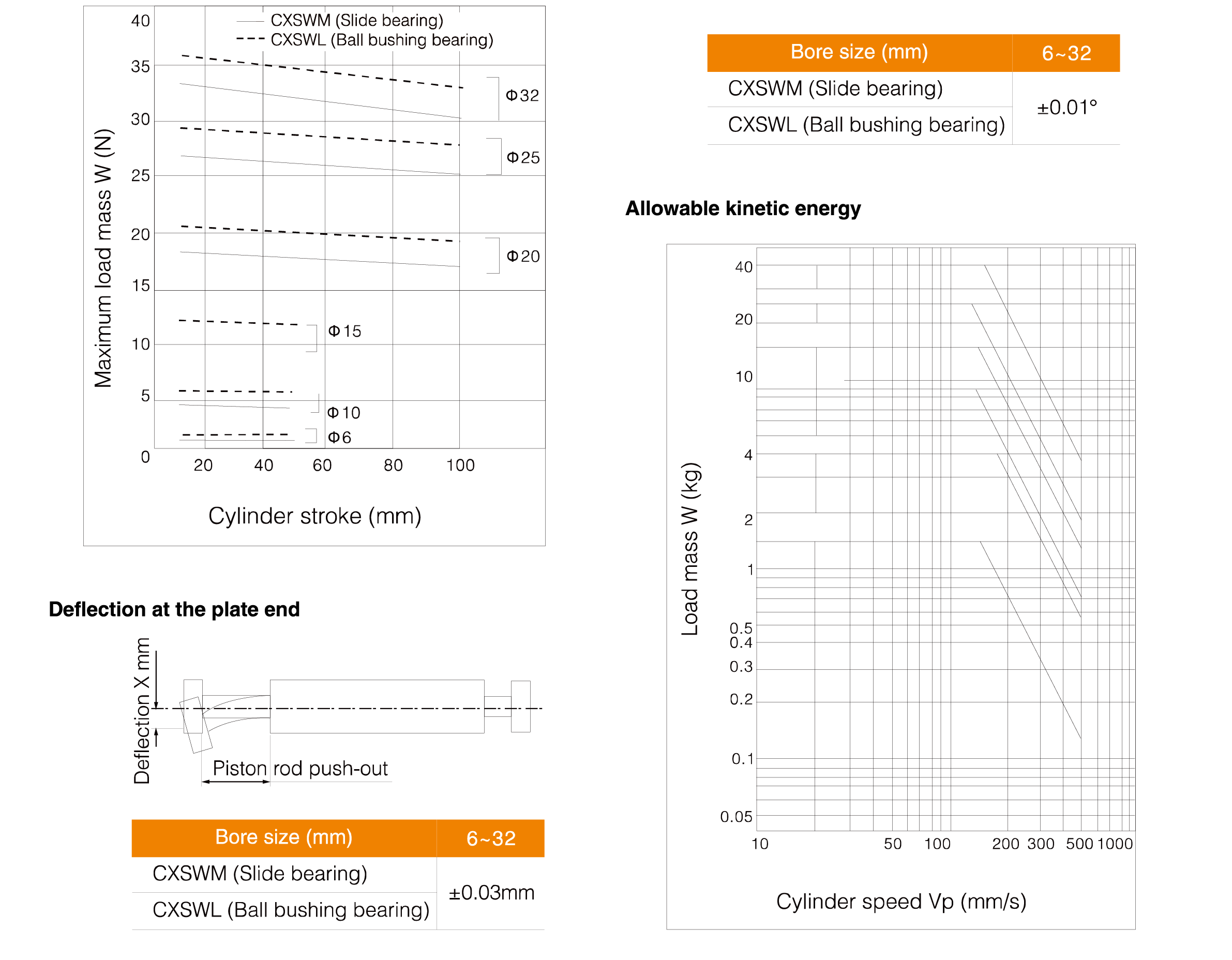

One of its key advantages is that the maximum allowable load is 2–3 times higher than the standard CXS series, allowing it to operate reliably under heavy side forces and repetitive motion cycles. The integrated dual rod structure ensures non-rotation precision and stable linear guidance, even in high-frequency applications such as clamping, pressing, and automated transfer.
The cylinder also features a stroke adjustable range of 0–10mm, enabling fine tuning during installation without redesigning the entire system layout. This flexibility is particularly valuable in OEM equipment where mechanical tolerances vary between production batches.
Main structural advantages include:
● Double cylinder design with double output force
● High accuracy without rotation during motion
● Strong resistance to side load and eccentric force
● Adjustable stroke device (0–10mm standard range)
● Compact guided structure for space-limited equipment
● Stable operation under continuous cycling conditions
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

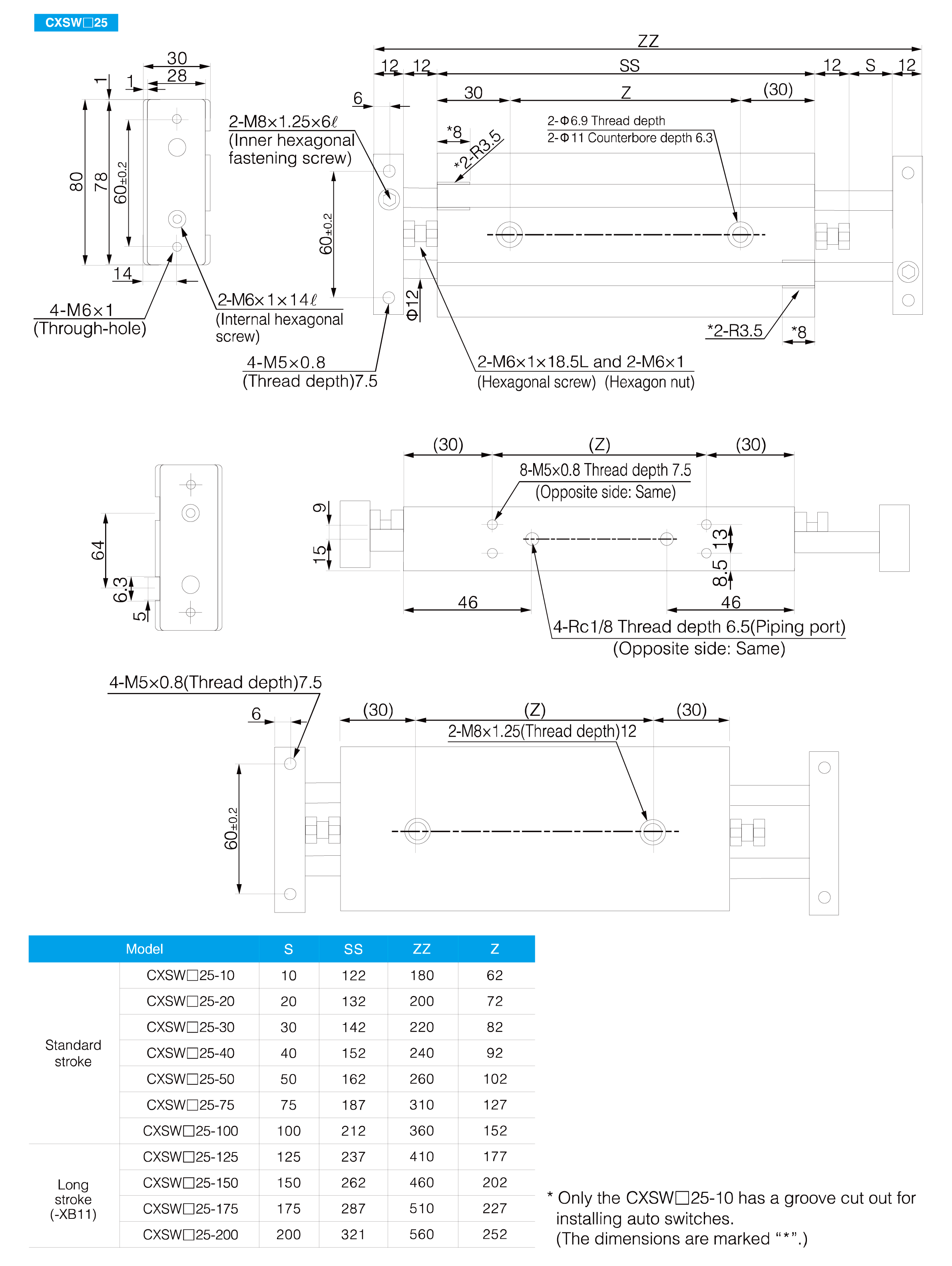

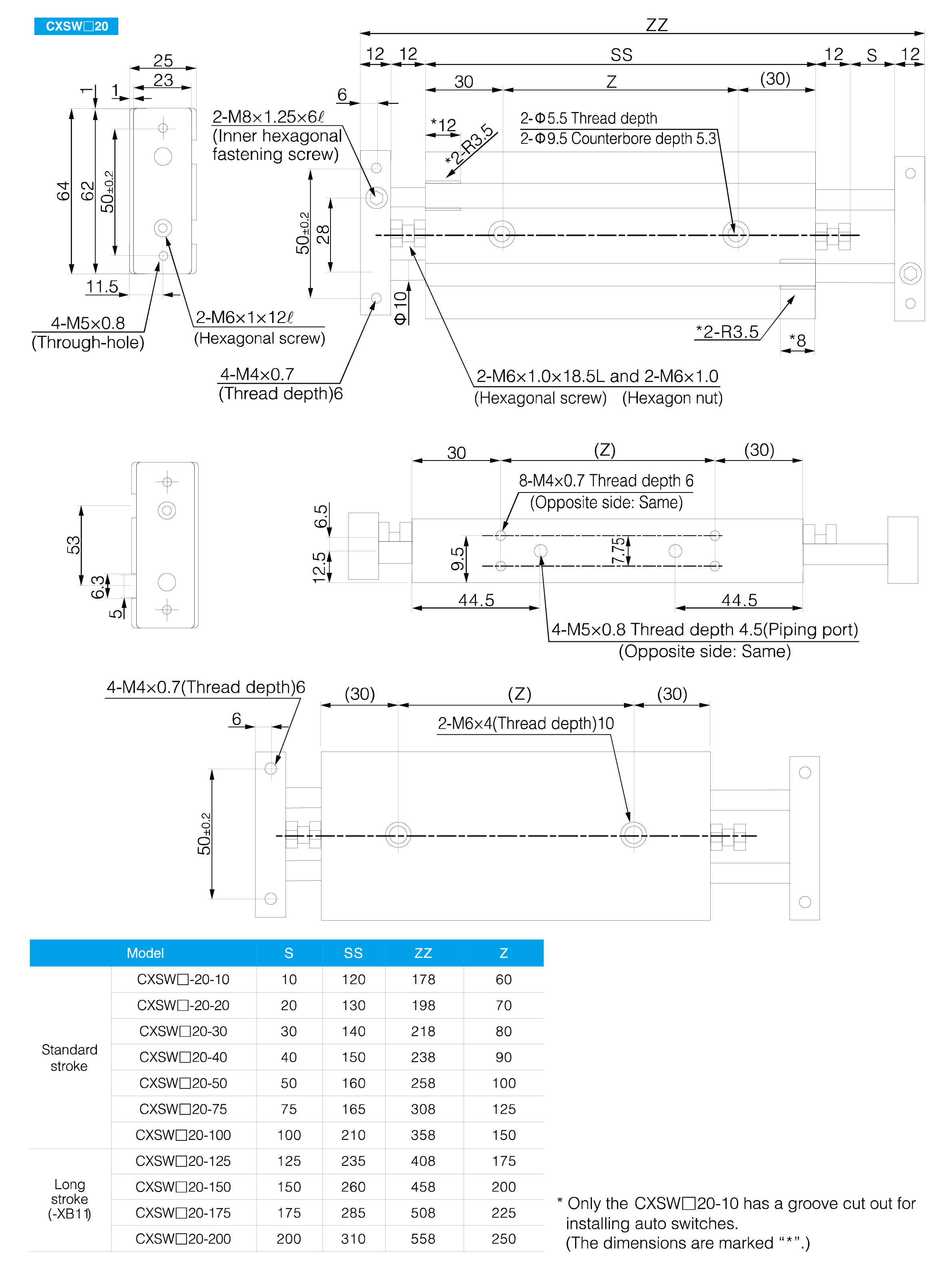

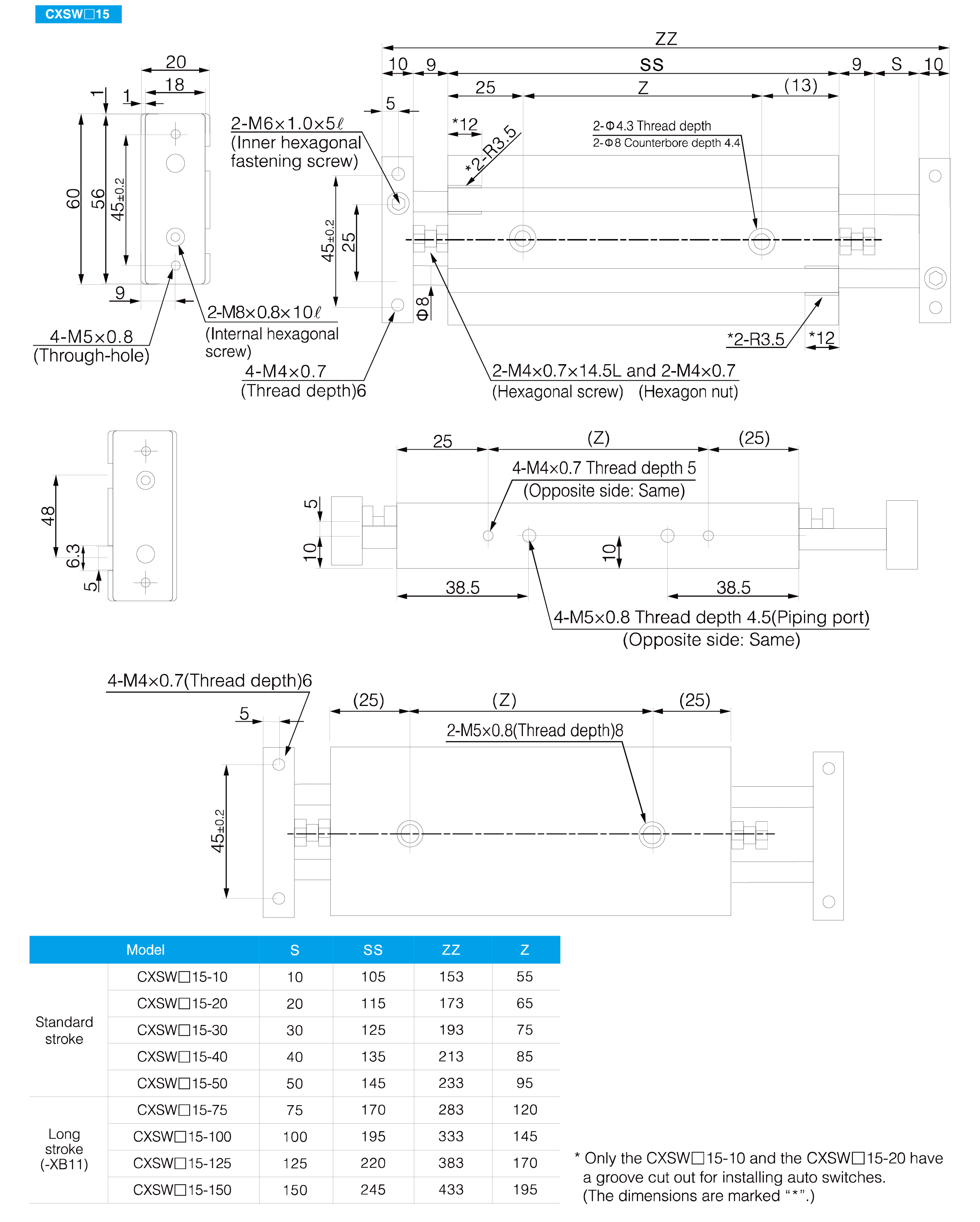

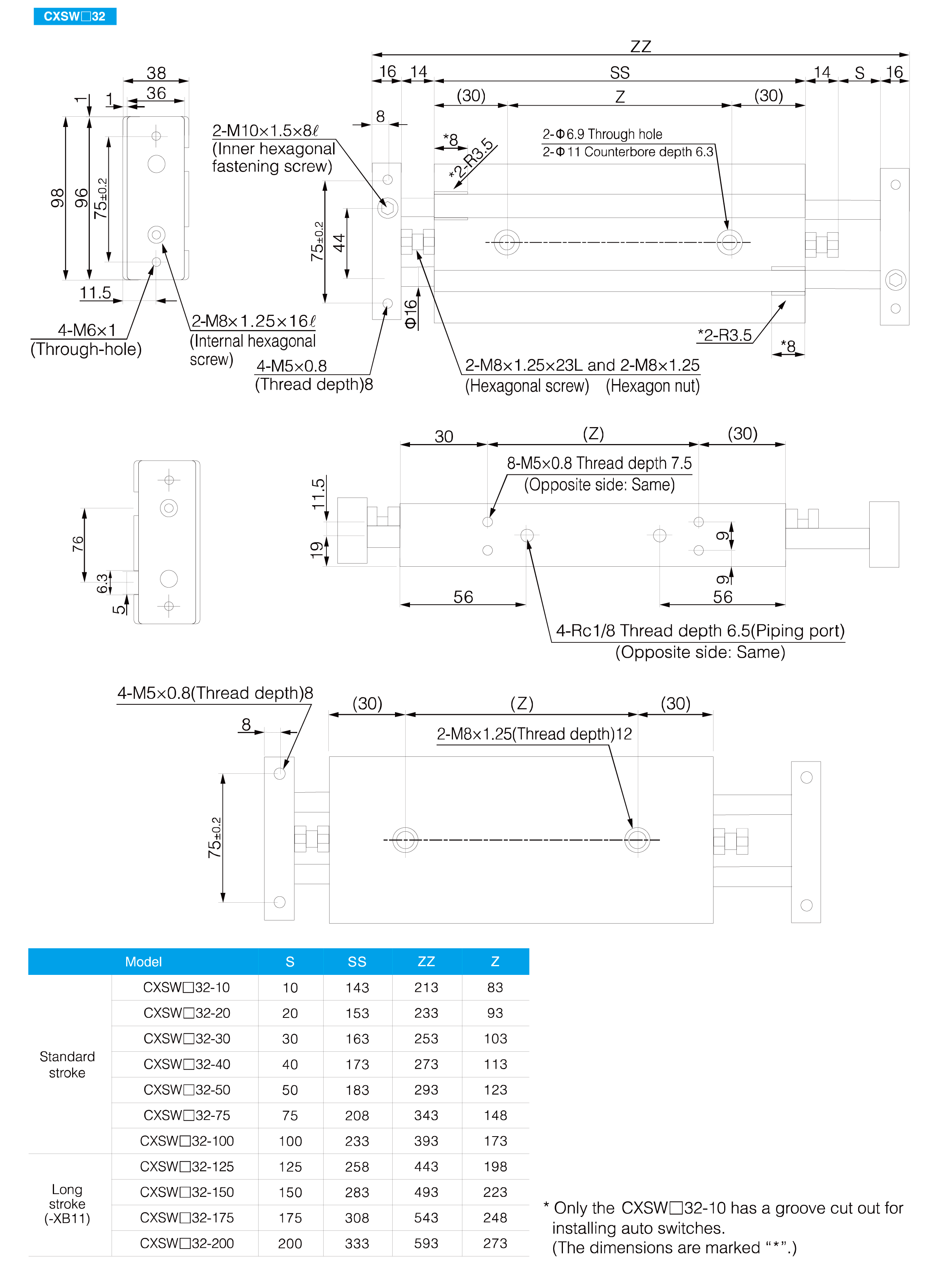

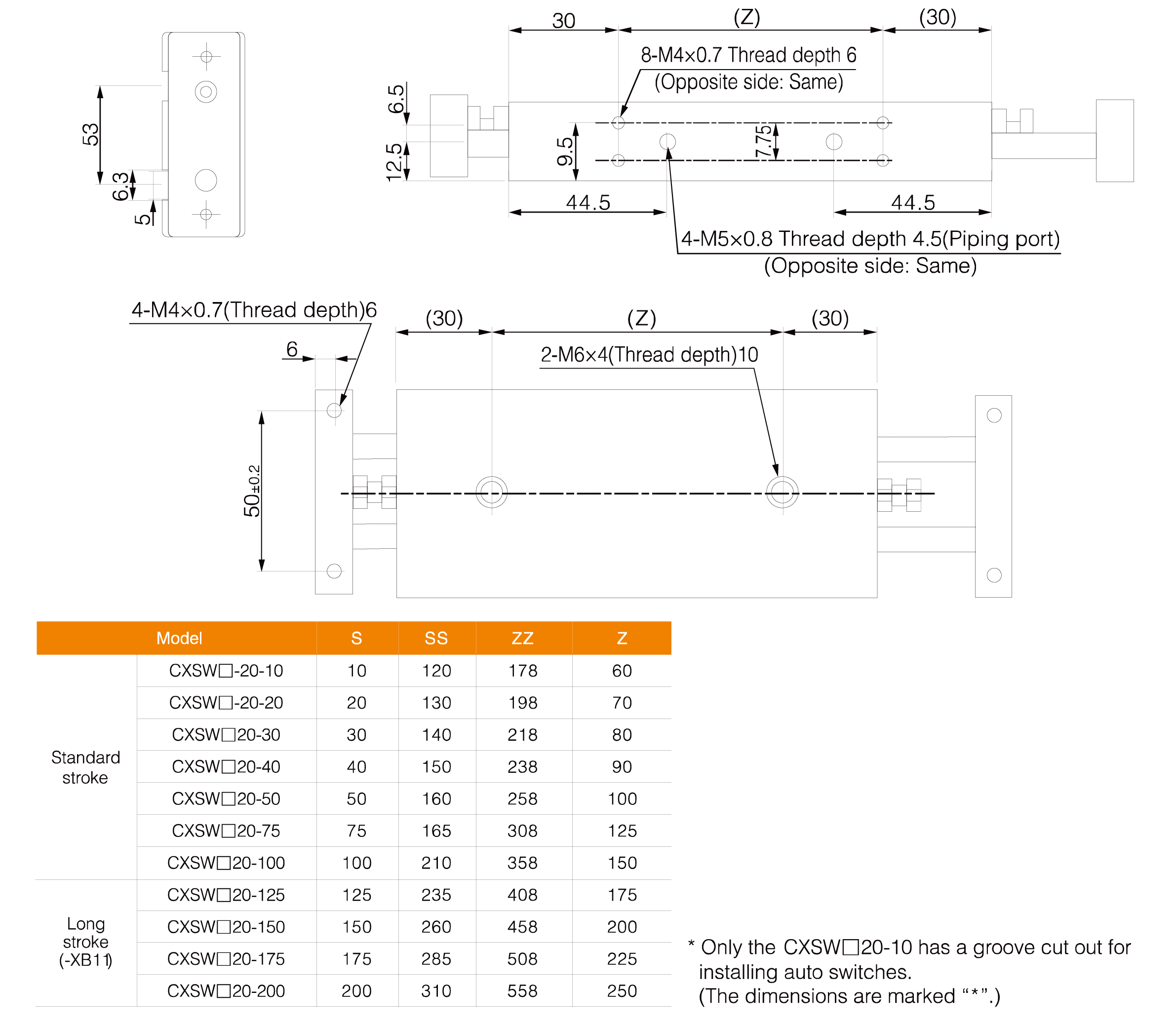

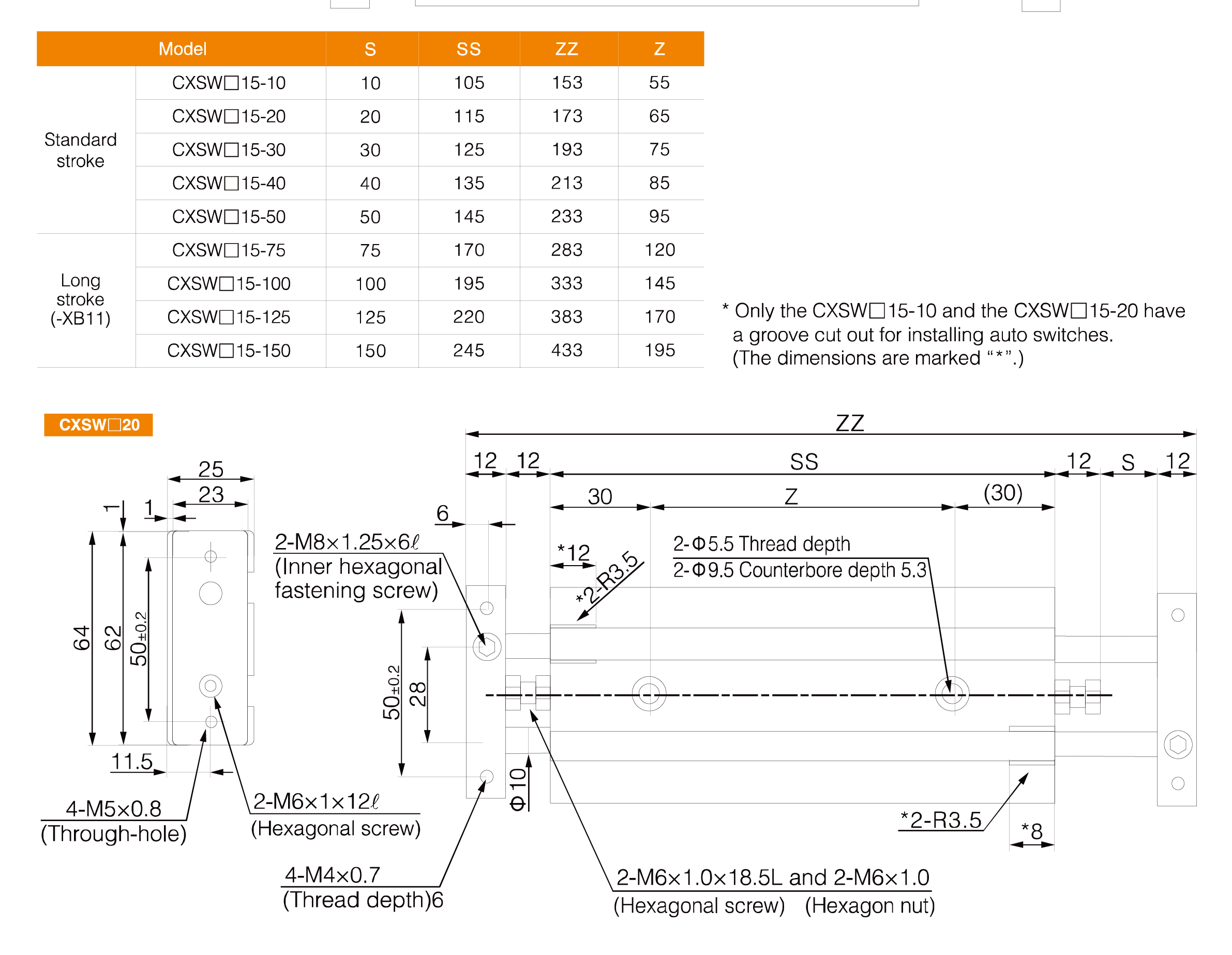

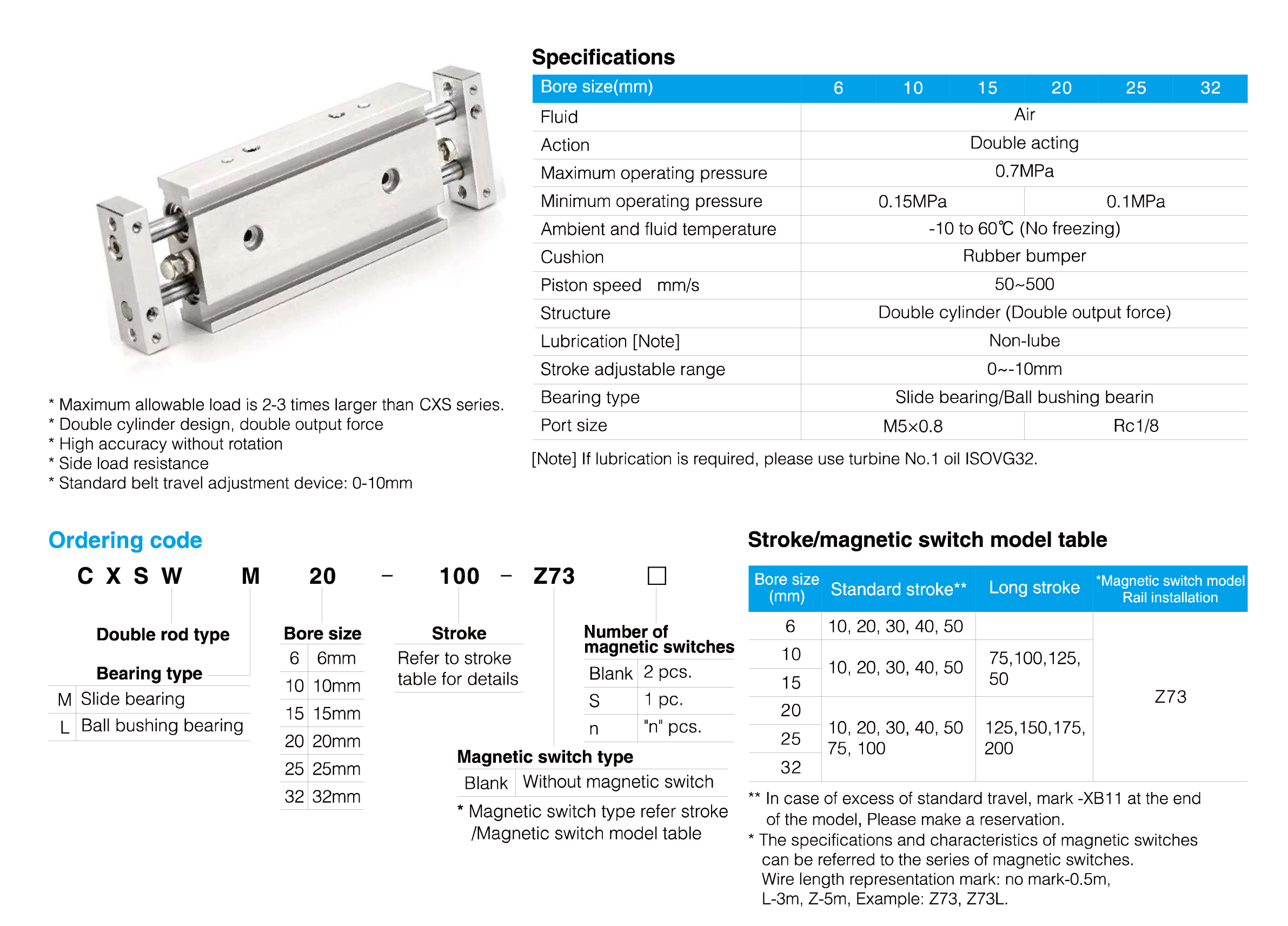

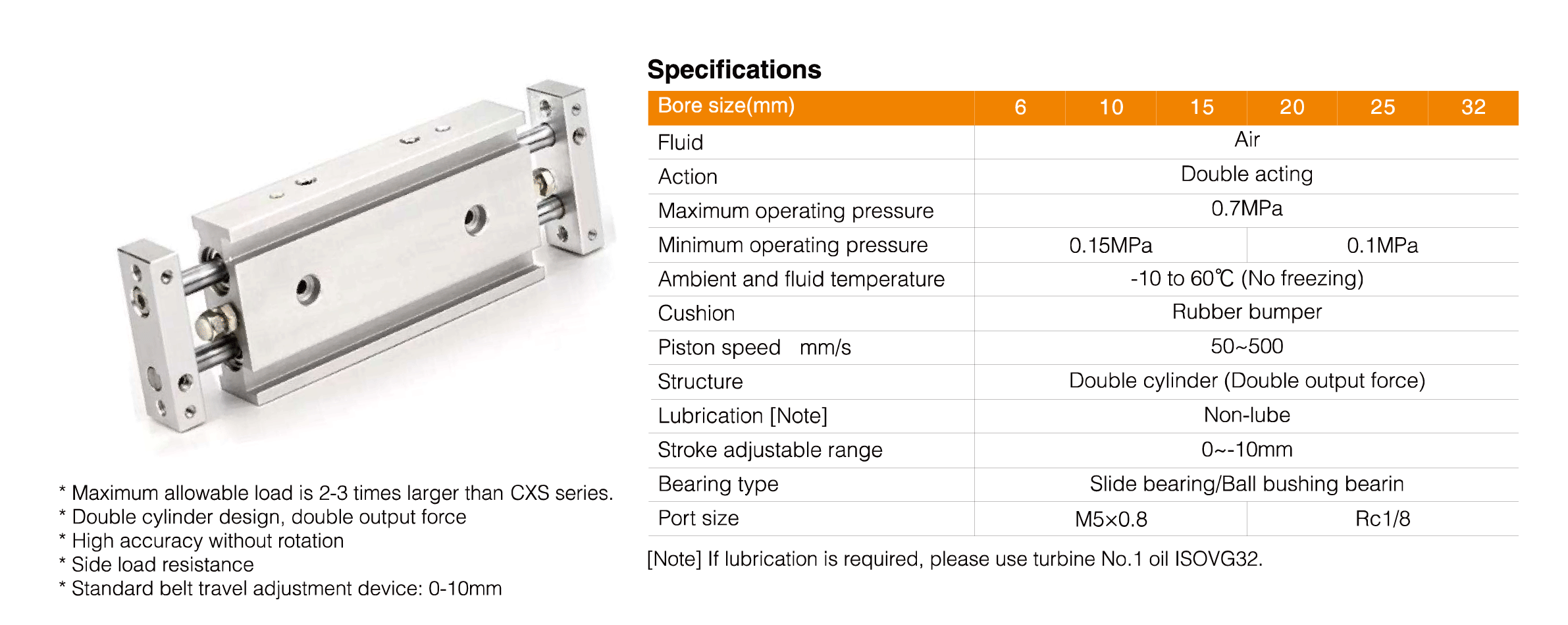

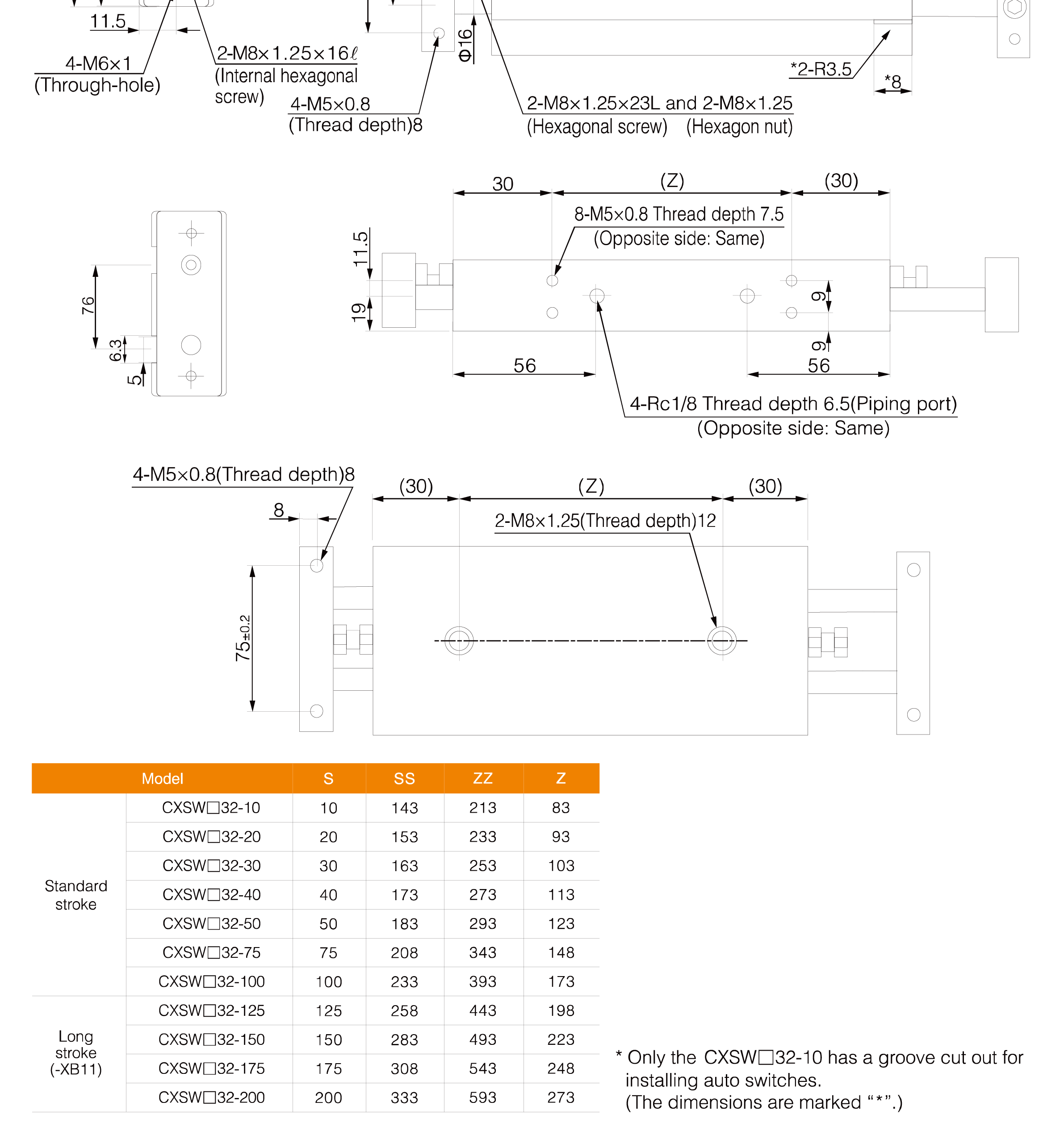

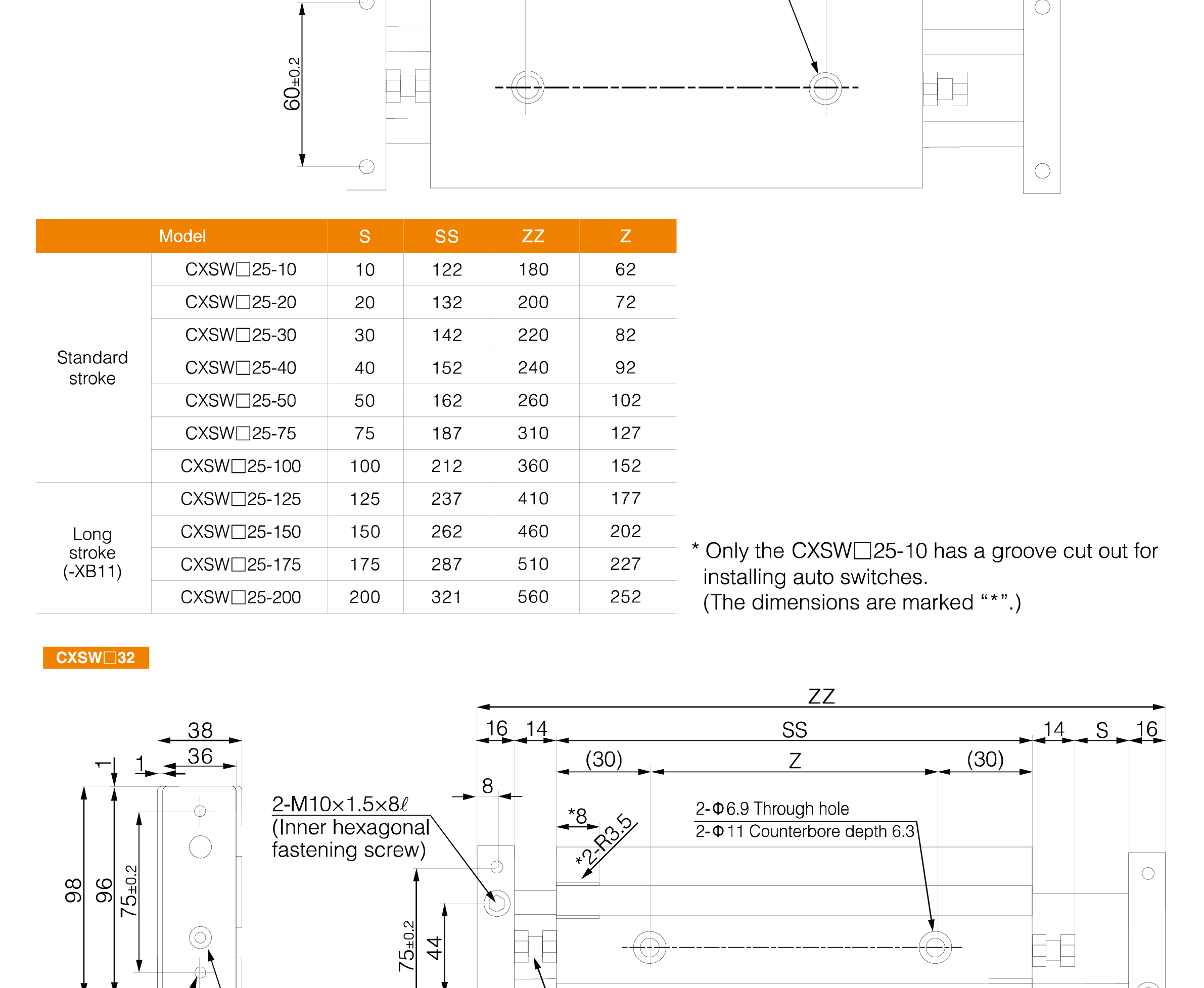

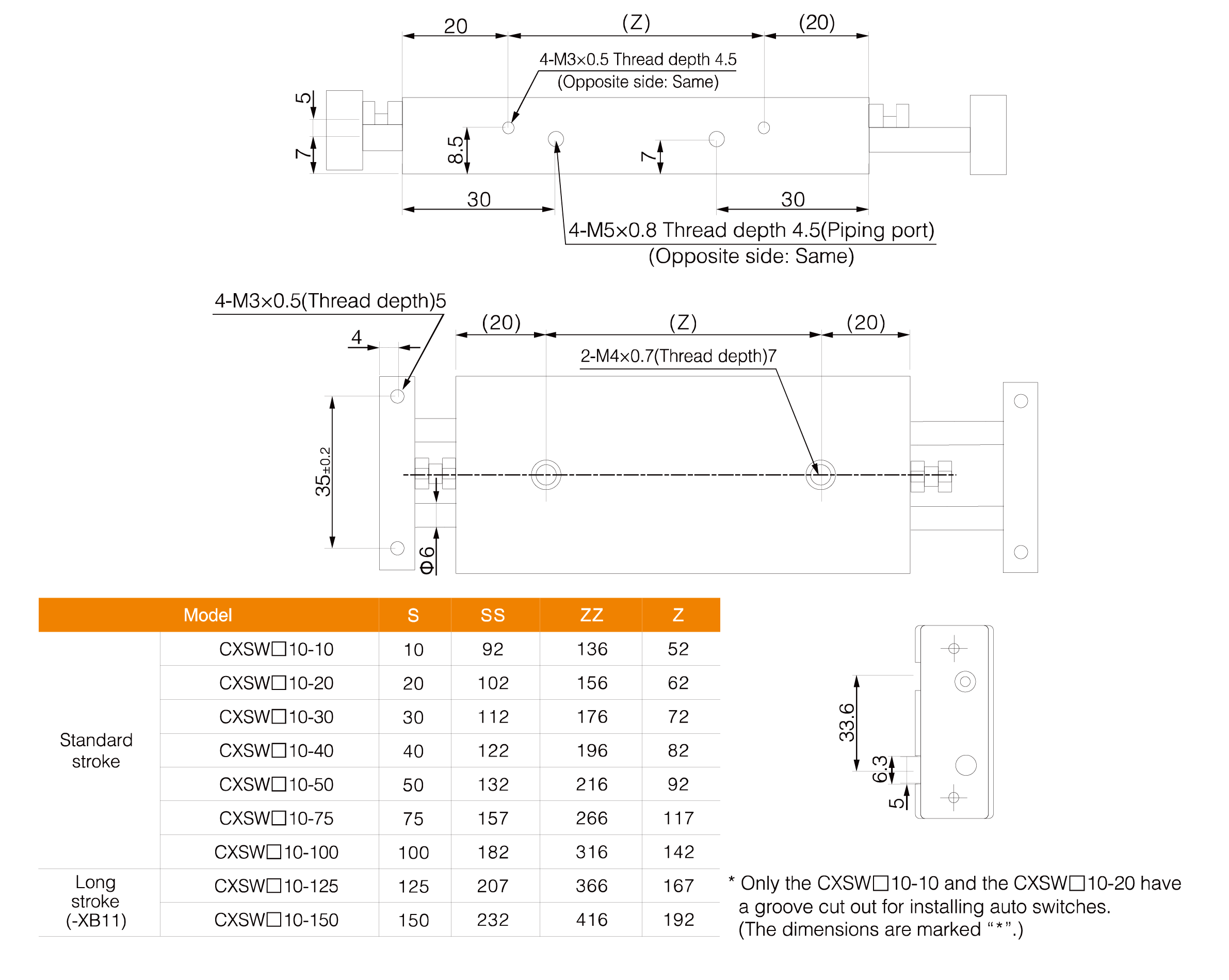

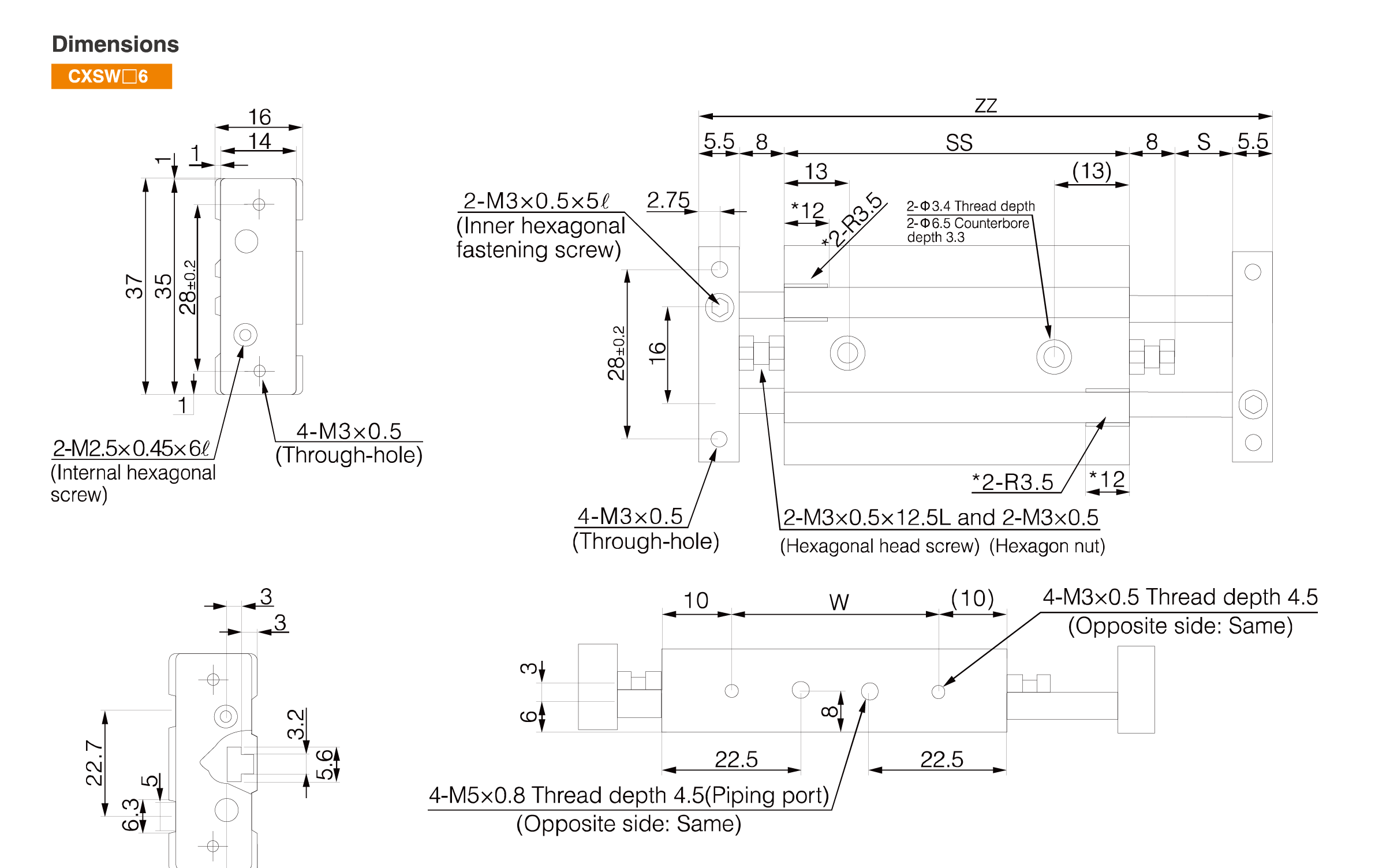

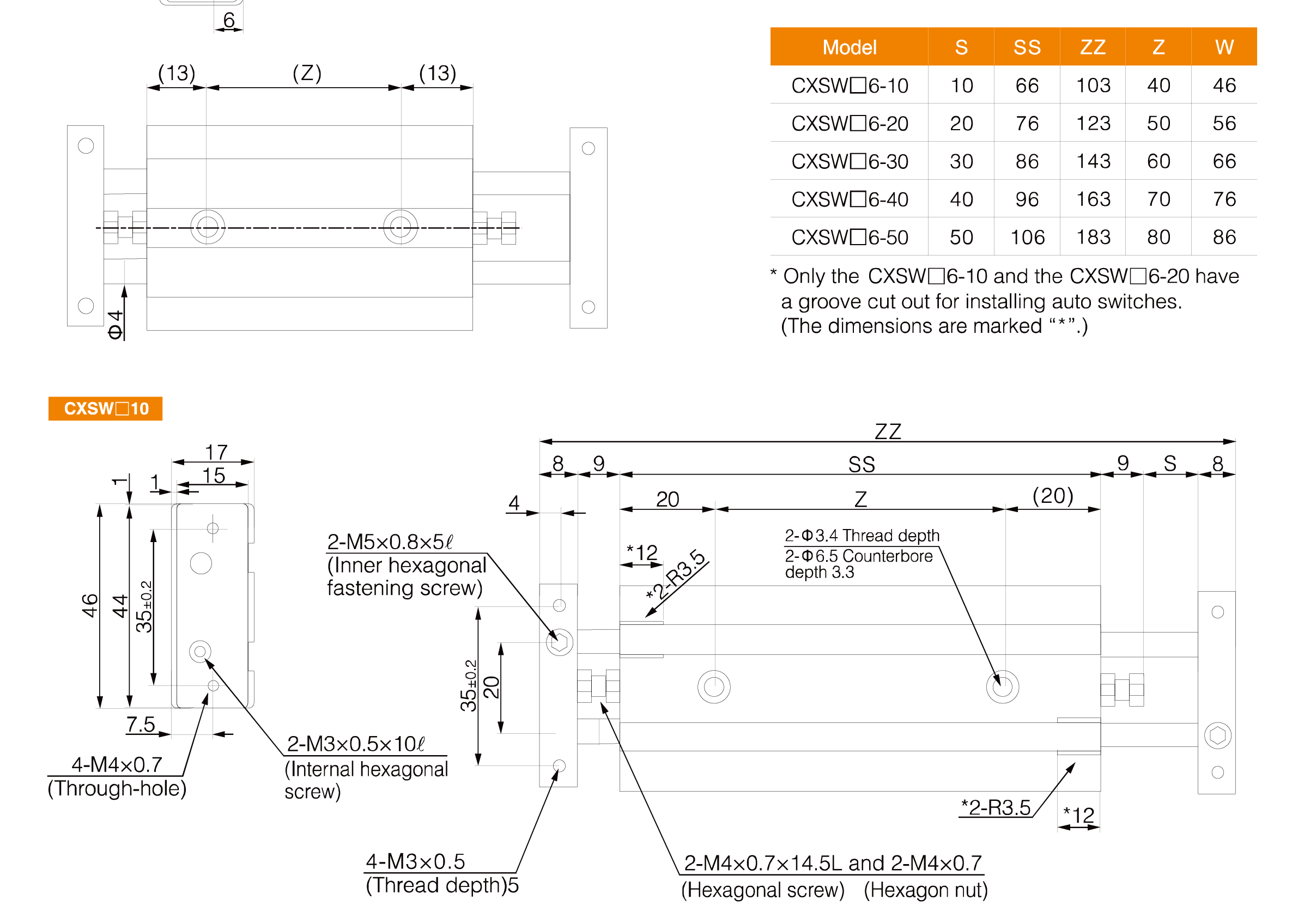

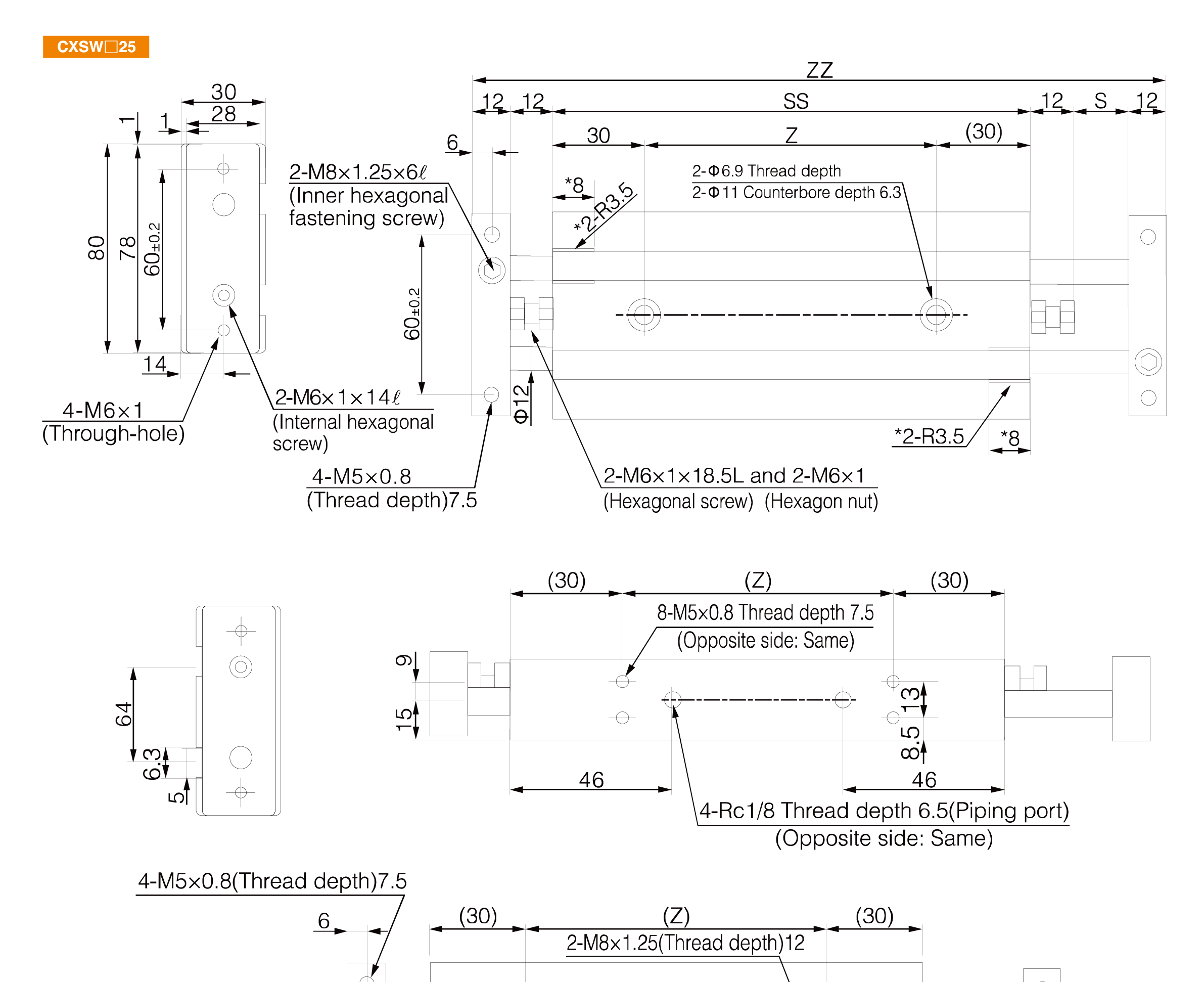

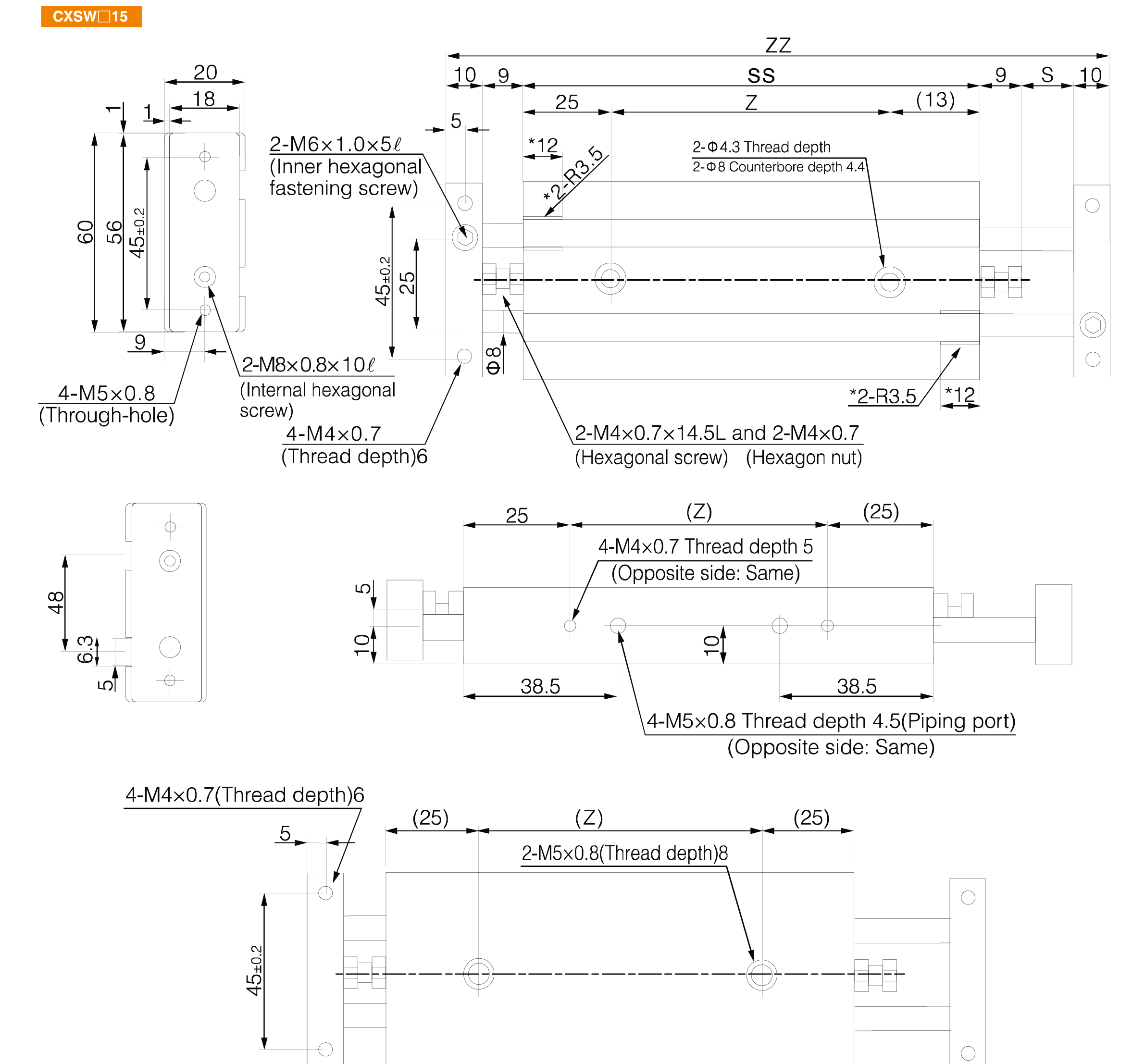

| Parameter | Specification |
| Bore Size | 6, 10, 15, 20, 25, 32 mm |
| Fluid | Air |
| Action Type | Double Acting |
| Maximum Operating Pressure | 0.7 MPa |
| Minimum Operating Pressure | 0.15 / 0.1 MPa |
| Ambient & Fluid Temperature | -10 to 60°C (No freezing) |
| Cushion | Rubber bumper |
| Piston Speed | 50–500 mm/s |
| Structure | Double cylinder (double output force) |
| Lubrication | Non-lube (turbine oil No.1 ISO VG32 if required) |
| Stroke Adjustment | 0–10 mm |
| Bearing Type | Slide bearing / Ball bushing bearing |
| Port Size | M5×0.8 / Rc1/8 |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
In practical automation systems, the CXSM Double Rod Type Cylinder is commonly selected for applications where standard cylinders cannot maintain alignment under load. Its reinforced guided structure provides consistent motion stability, making it suitable for heavy-duty positioning and repetitive actuation tasks.
Typical uses include precision clamping units, industrial pressing modules, automated feeding systems, and high-load transfer mechanisms. The combination of high load capacity and anti-rotation performance ensures stable operation even in long-cycle production environments where downtime must be minimized.
