The TD Series Dual Rod Cylinder is a precision-guided pneumatic actuator designed to provide stable linear motion and enhanced load support. Featuring a twin-rod structure, it effectively prevents rod rotation while improving movement accuracy and load-bearing capability.
With optional magnetic sensing, adjustable stroke positioning, and multiple bore size options, the TD Series is ideal for precision automation, material handling, assembly systems, and positioning applications that require reliable guided motion.
The TD Series Dual Rod Cylinder is engineered for applications requiring precise linear movement, improved stability, and resistance to rotational forces. Unlike conventional single-rod cylinders, the twin-rod design provides superior guidance and maintains accurate positioning even under side loads.
Its compact structure and built-in magnet options make it a practical solution for modern automated machinery and production systems.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Twin rod guided cylinder design
● Excellent anti-rotation performance
● Double-acting pneumatic operation
● Compact and rigid structure
● Stable movement under side loads
● Adjustable stroke range (-5 to 0 mm)
● Optional magnetic sensing function
● Compatible with multiple sensor switch types
● Wide range of bore sizes from Ø6 to Ø40 mm
● Suitable for high-cycle automation systems
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

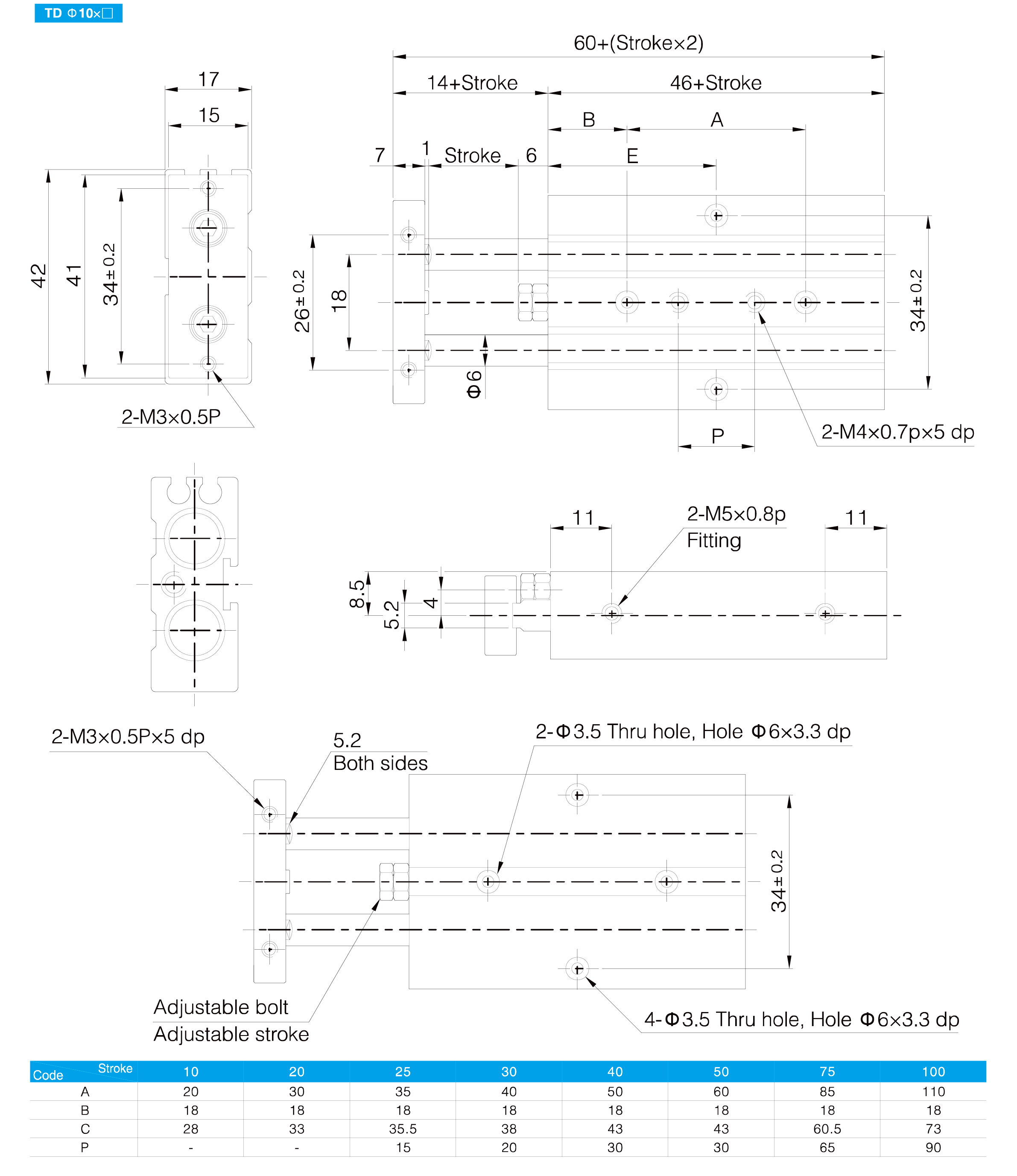

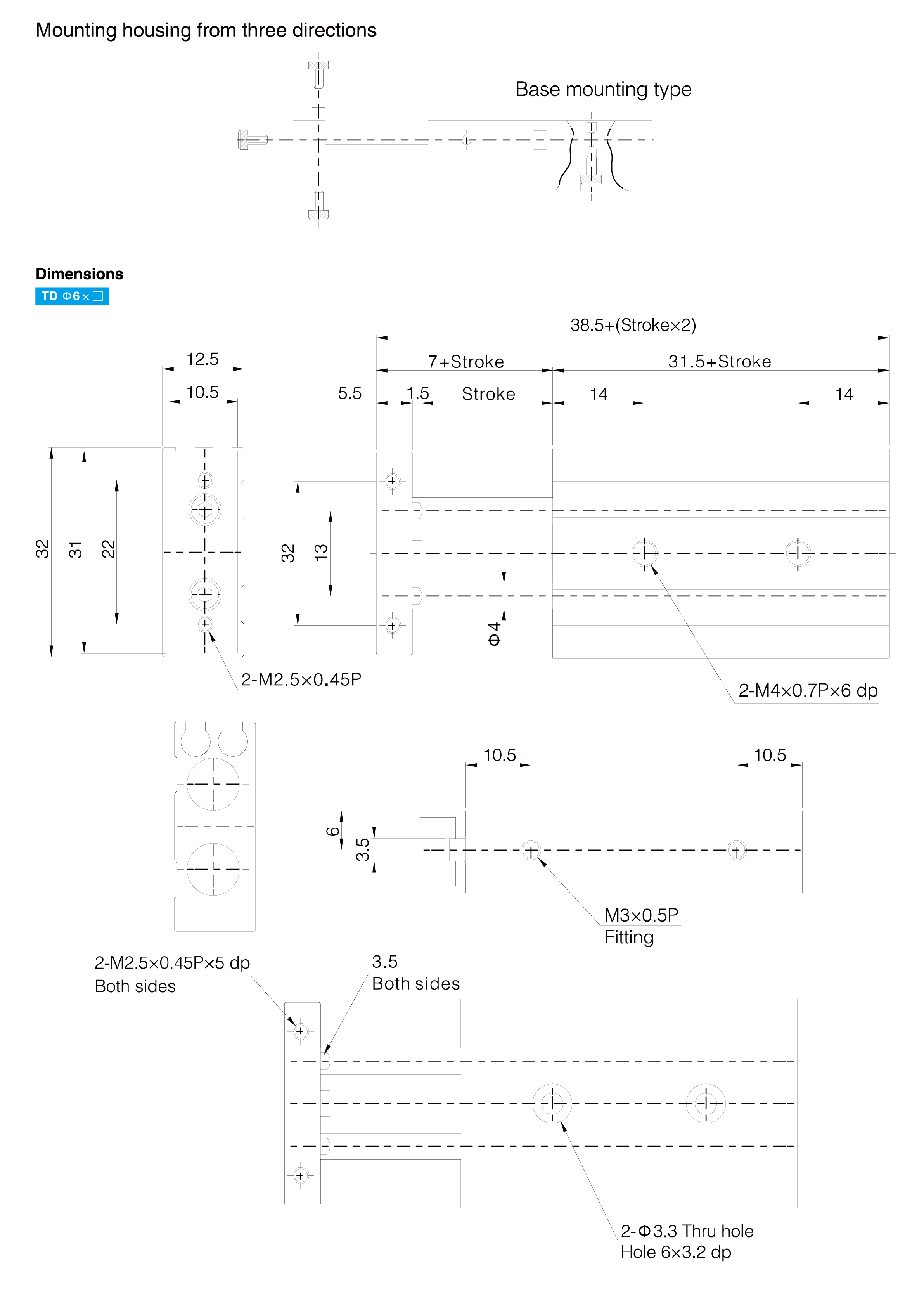

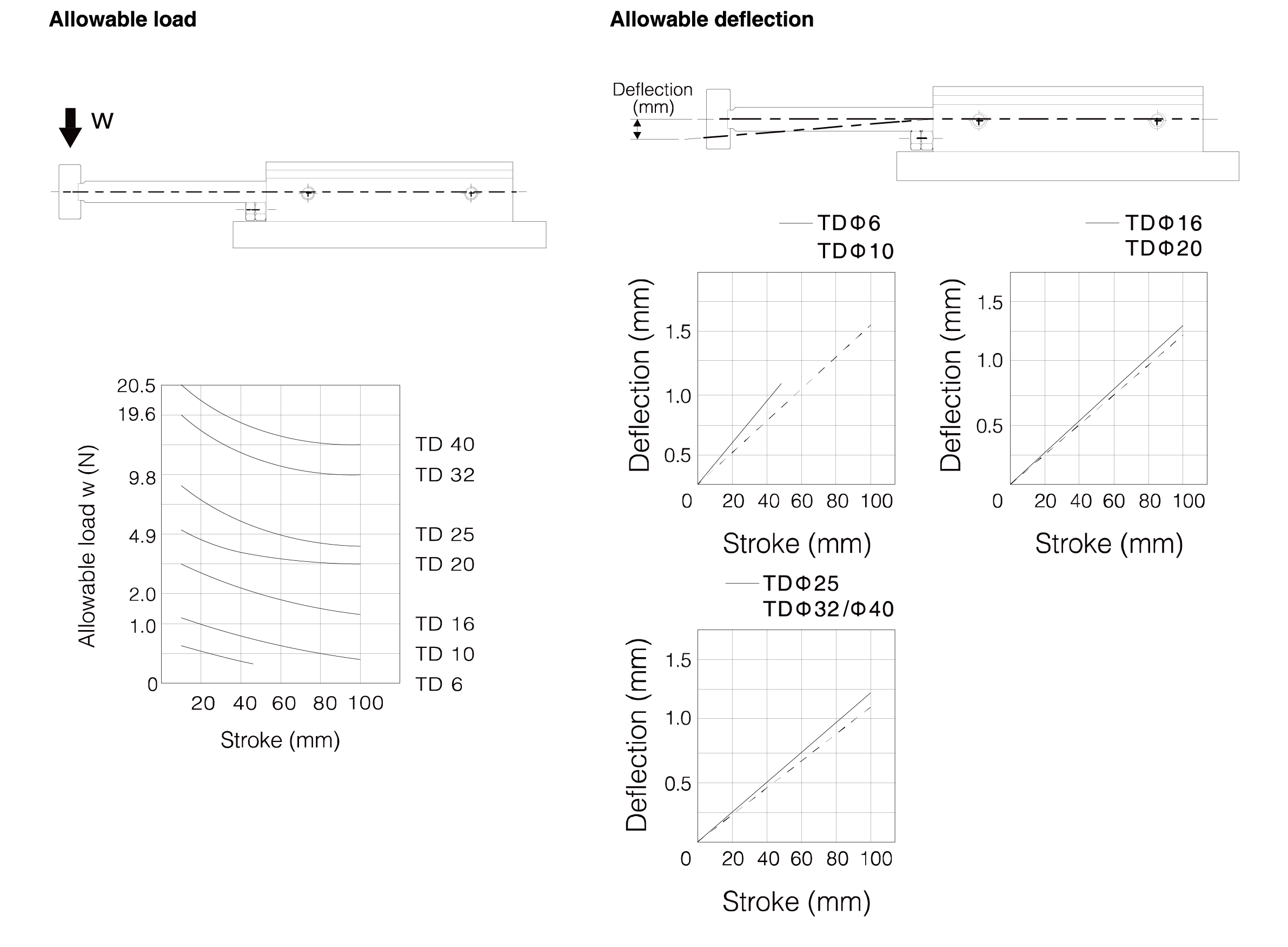

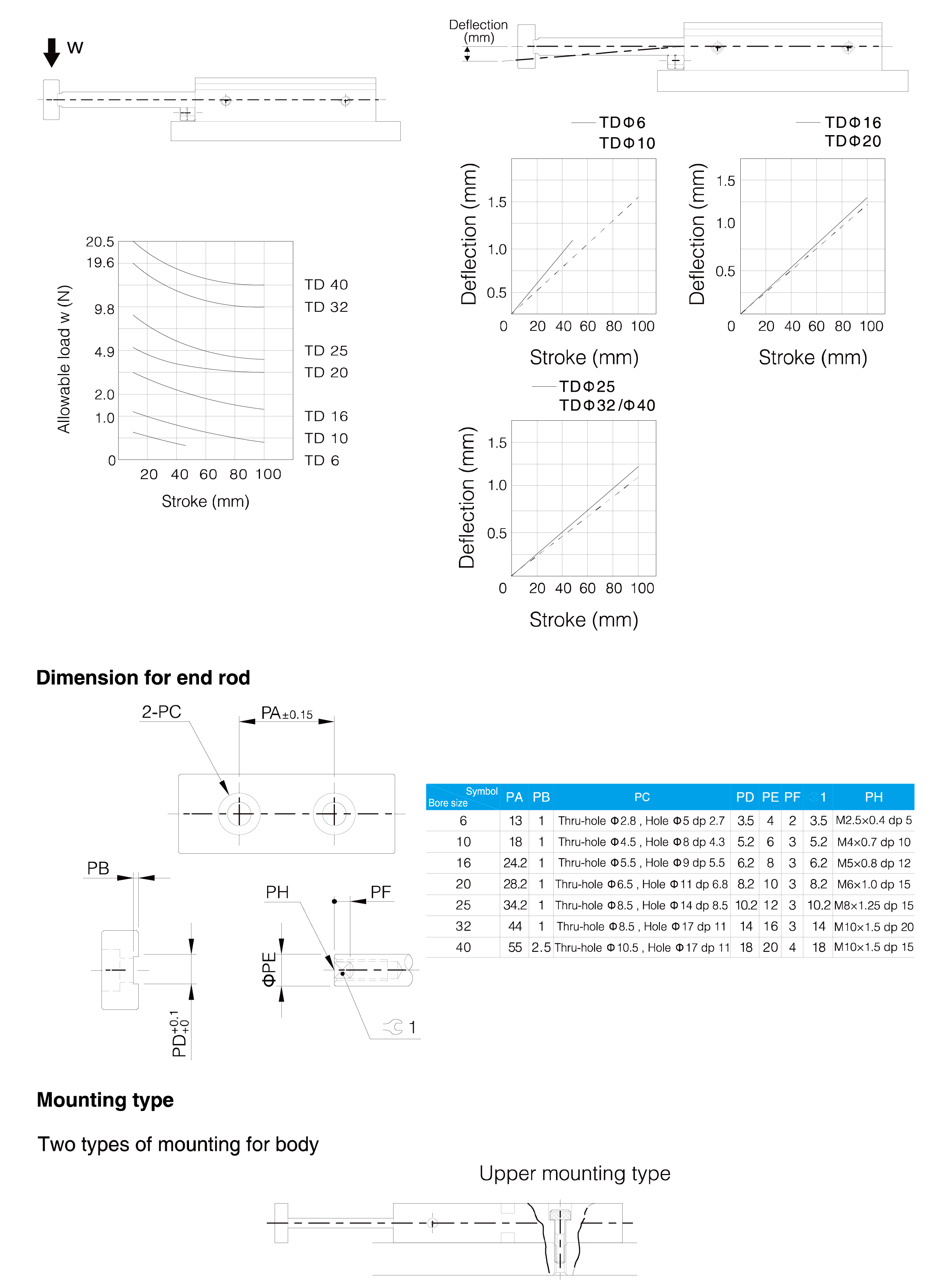

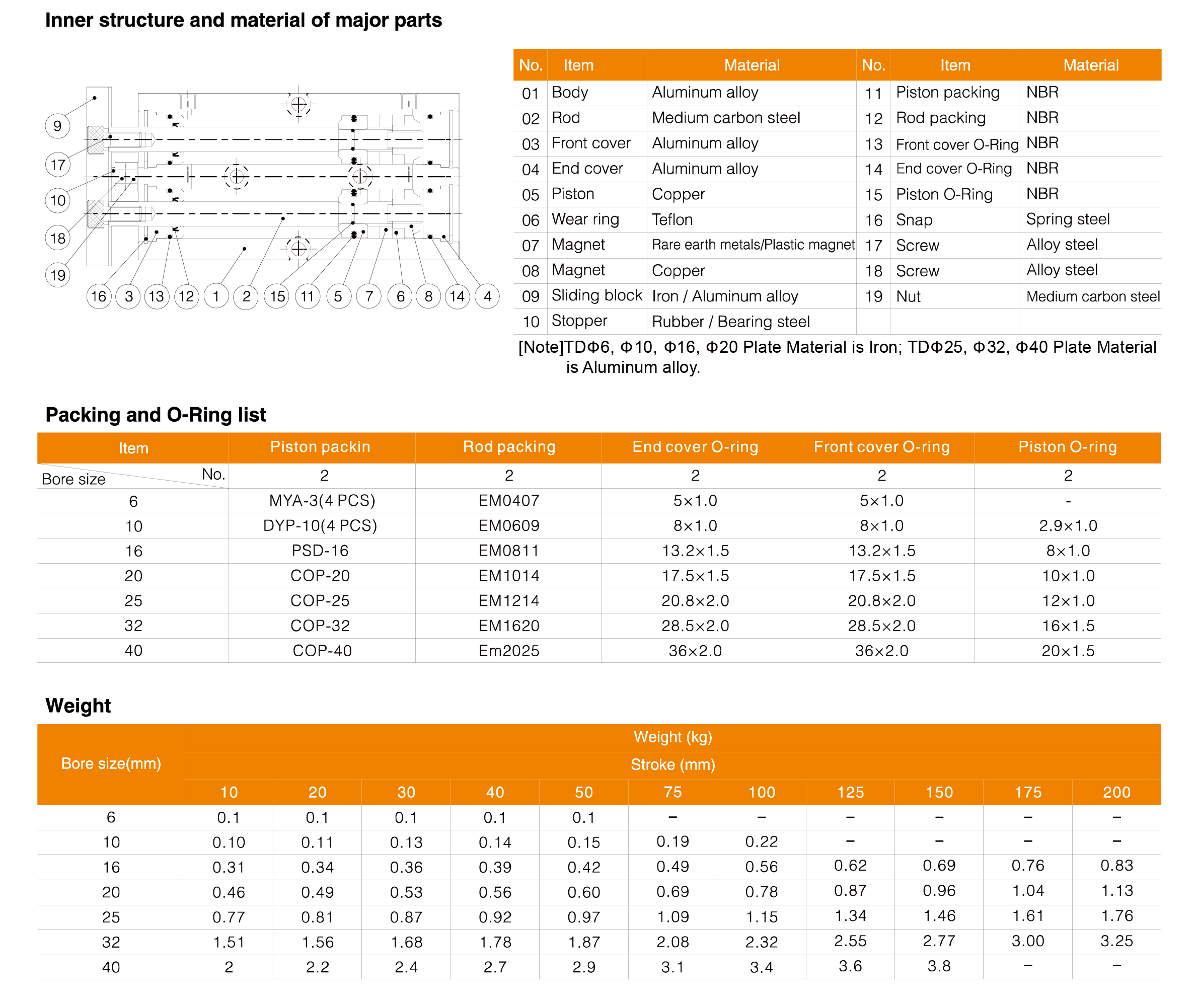

The dual rod structure significantly improves motion stability compared with standard cylinders. By distributing loads across two guide rods, the cylinder minimizes deflection and rotational movement, making it suitable for precision positioning and transfer applications.
Built-in magnetic pistons allow the installation of sensor switches for position monitoring and automation feedback.

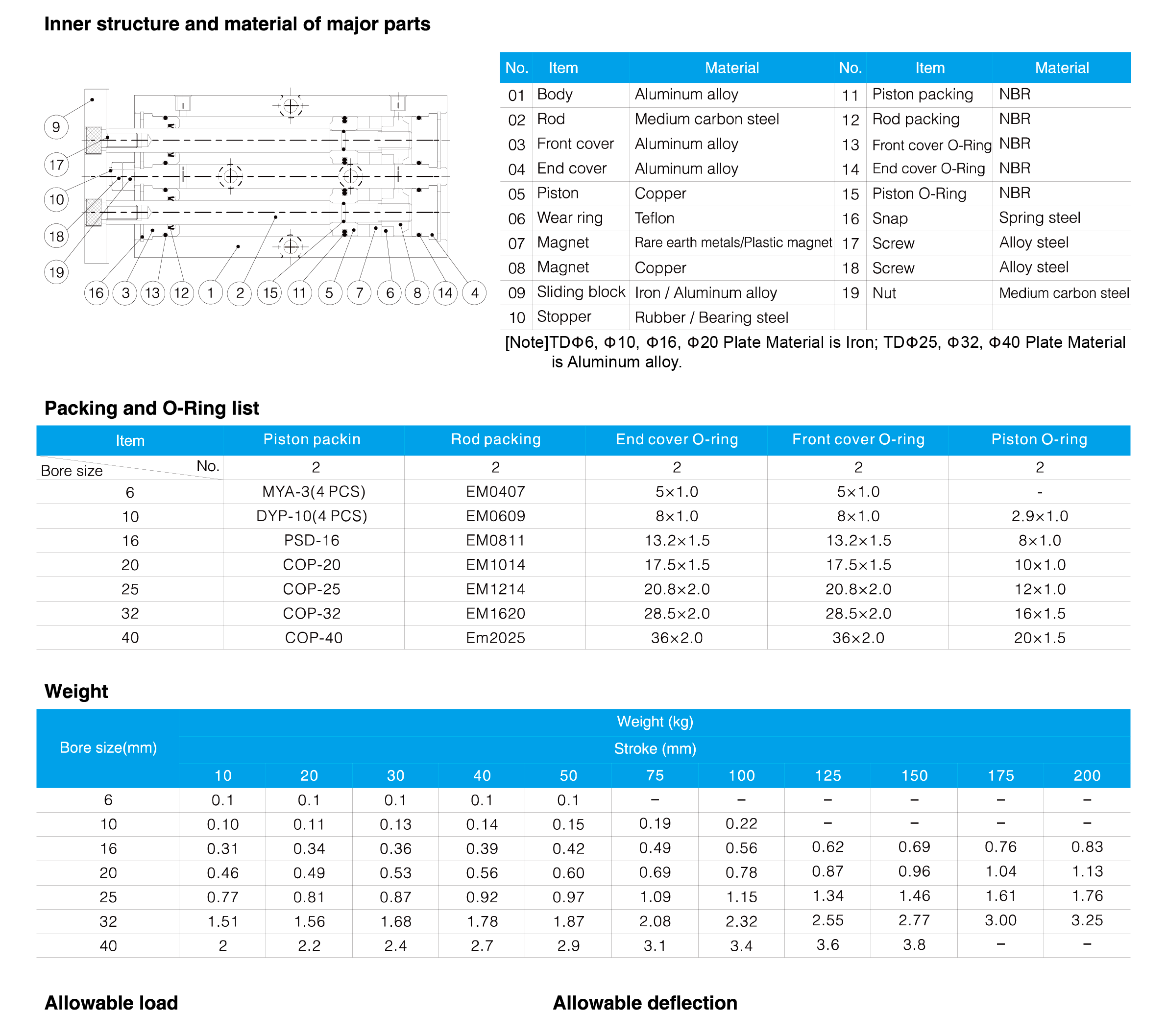

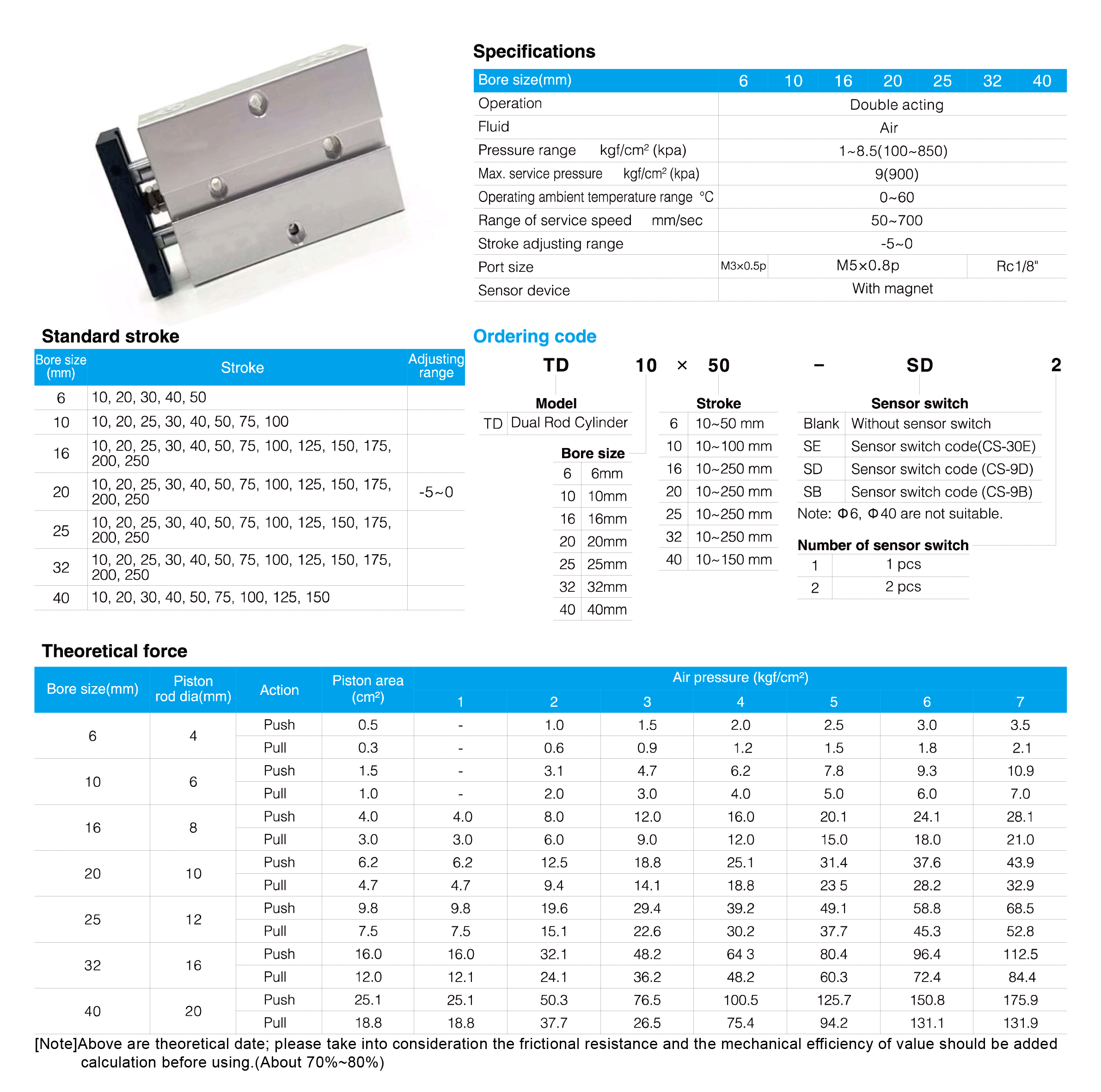

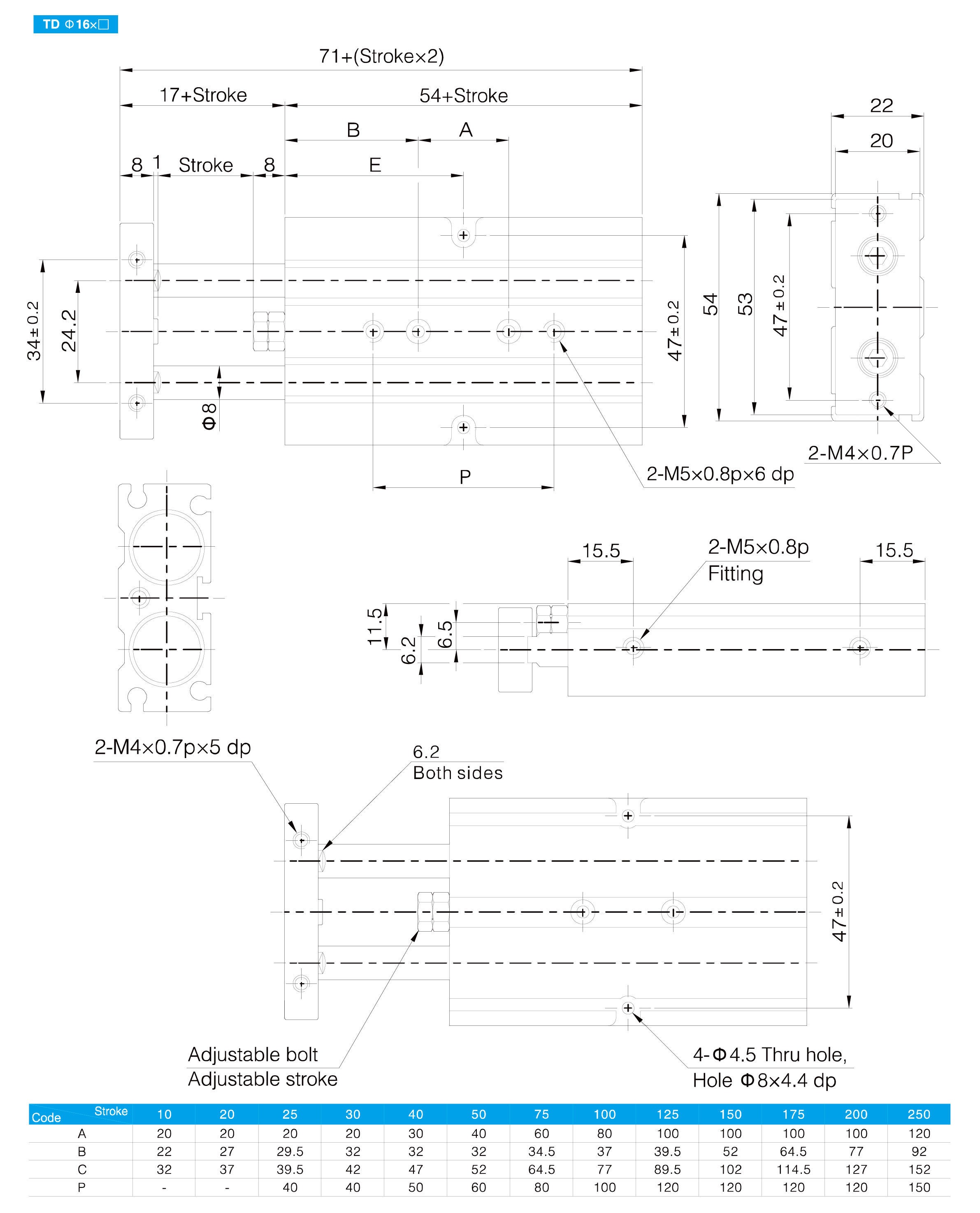

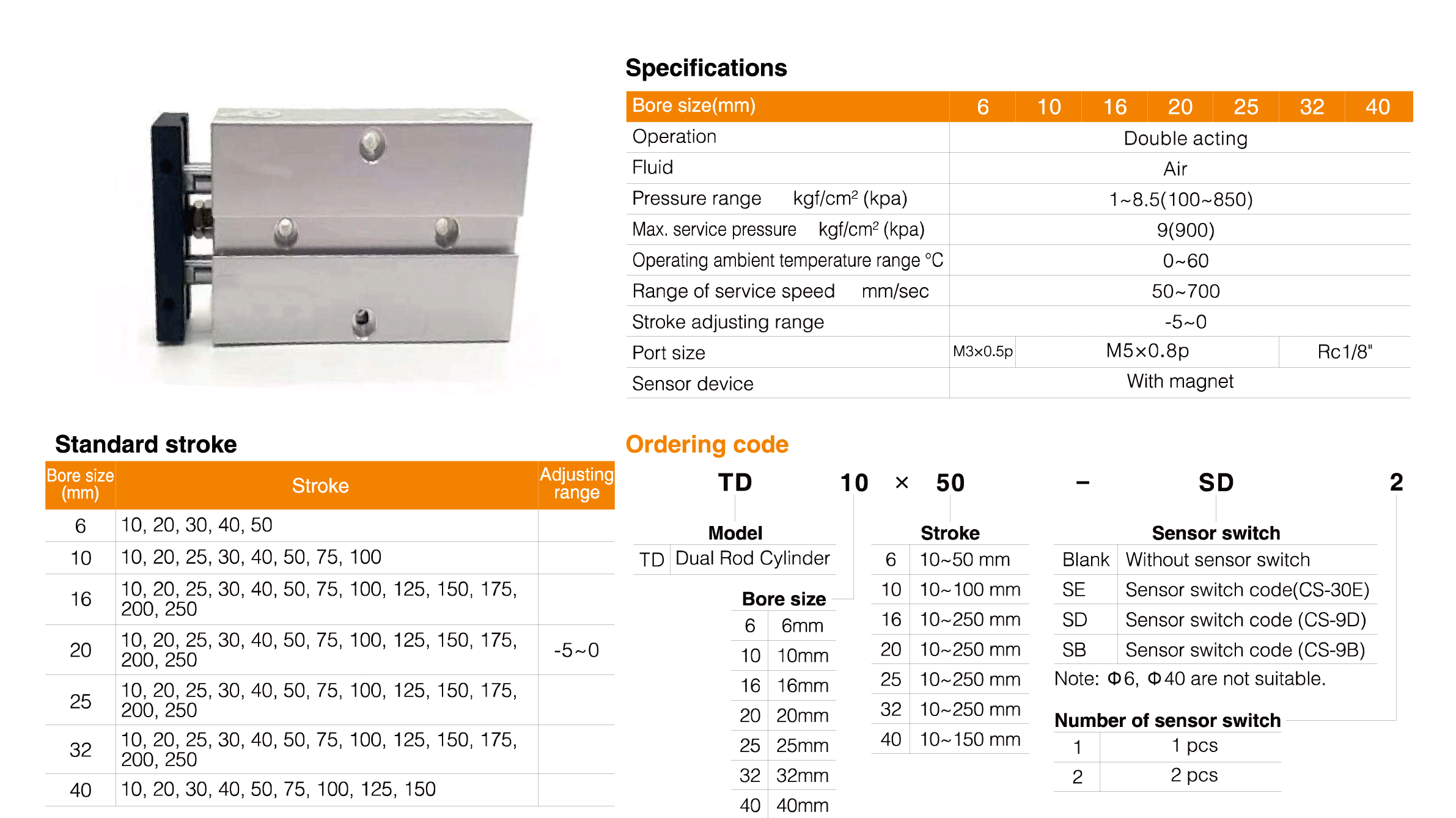

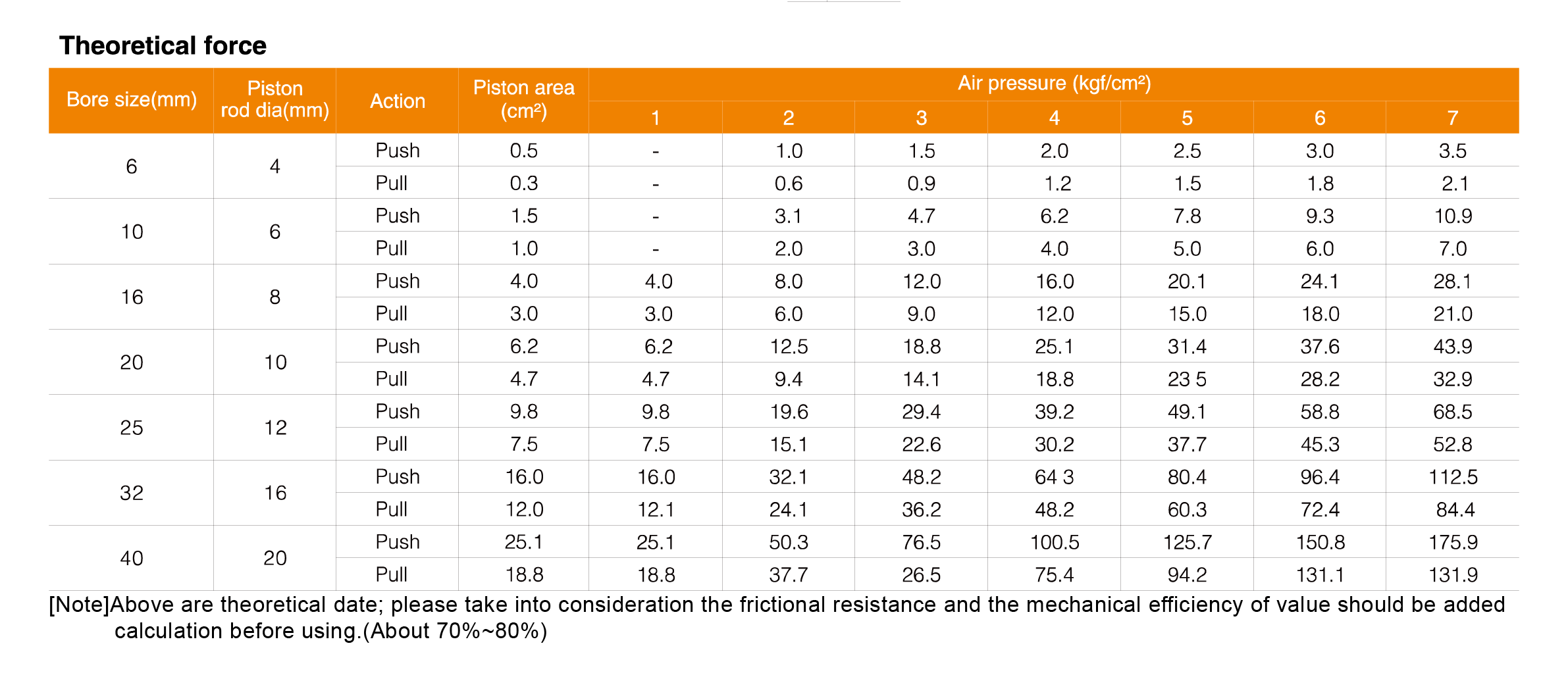

| Parameter | Specification |
| Bore Size | 6–40 mm |
| Action Type | Double Acting |
| Working Medium | Air |
| Operating Pressure | 100–850 kPa |
| Max. Pressure | 900 kPa |
| Speed Range | 50–700 mm/s |
| Ambient Temperature | 0–60°C |

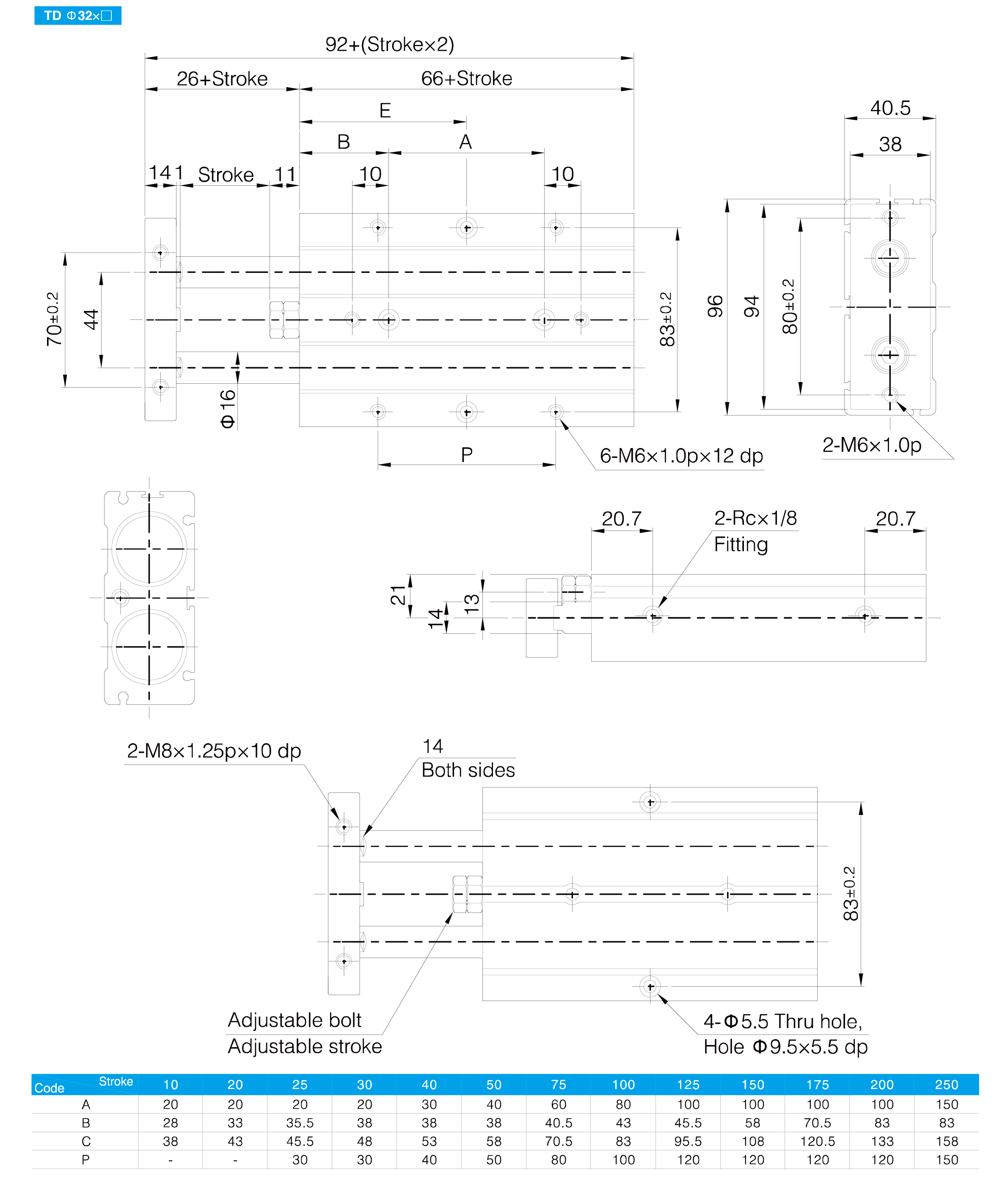

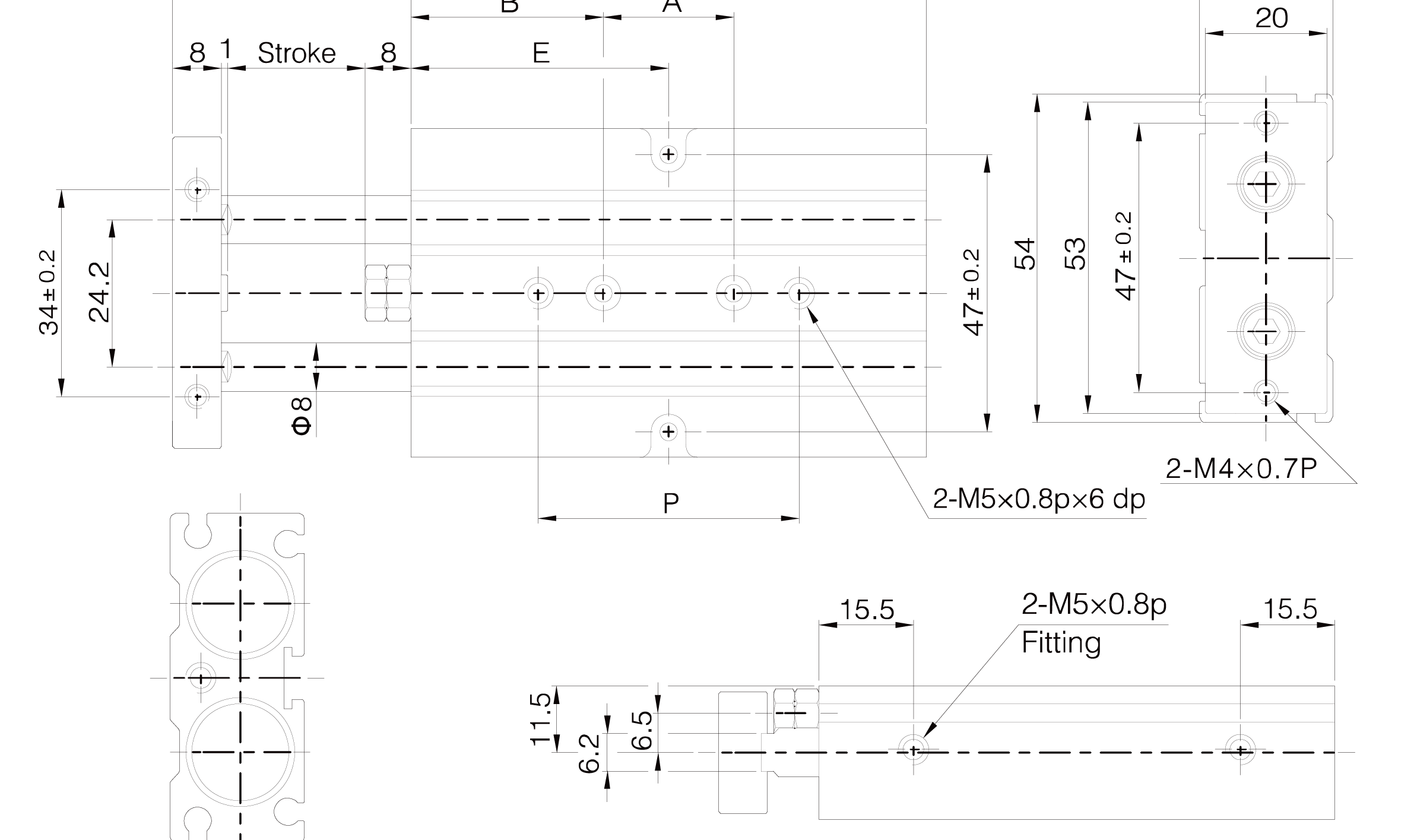

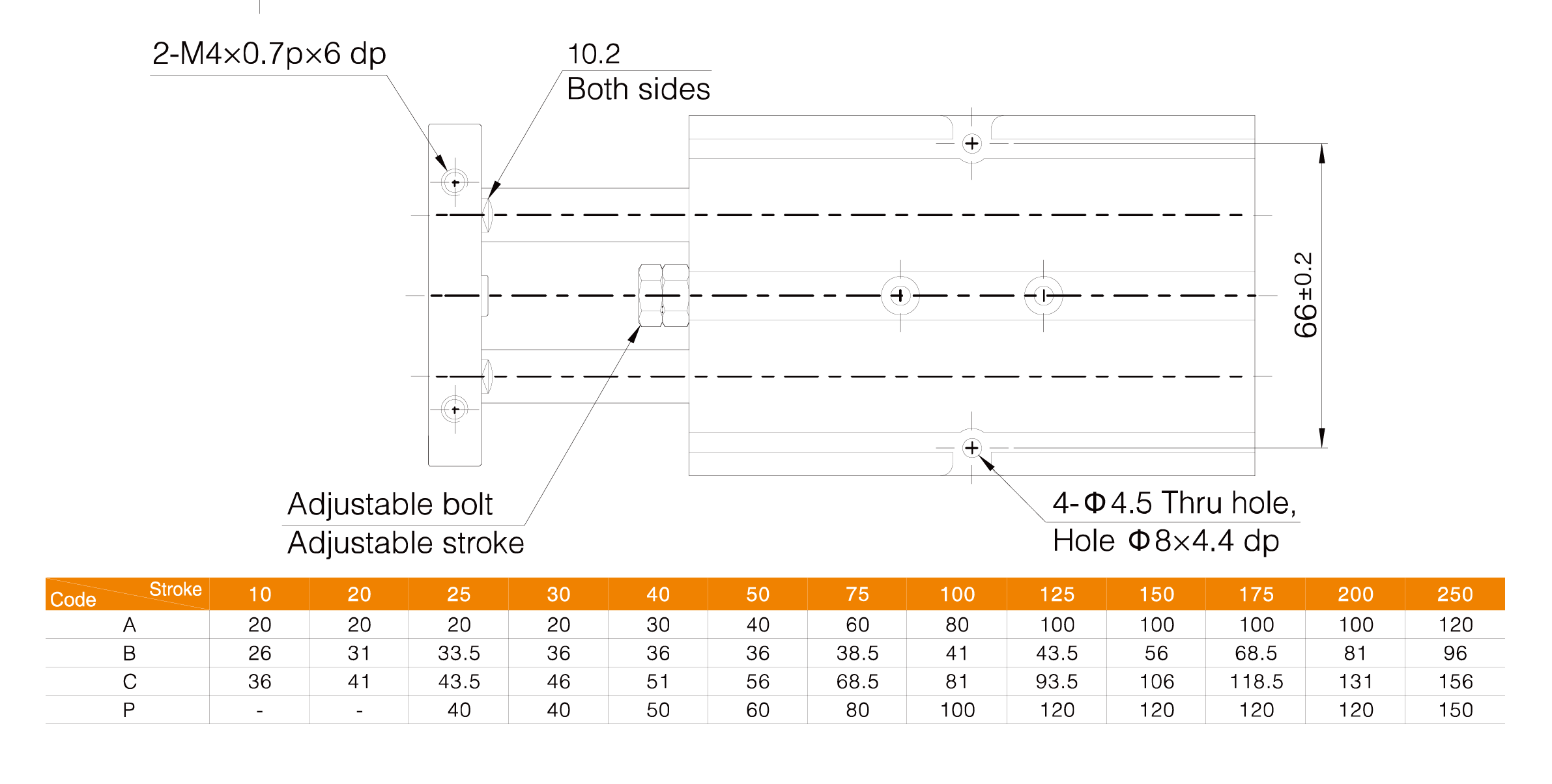

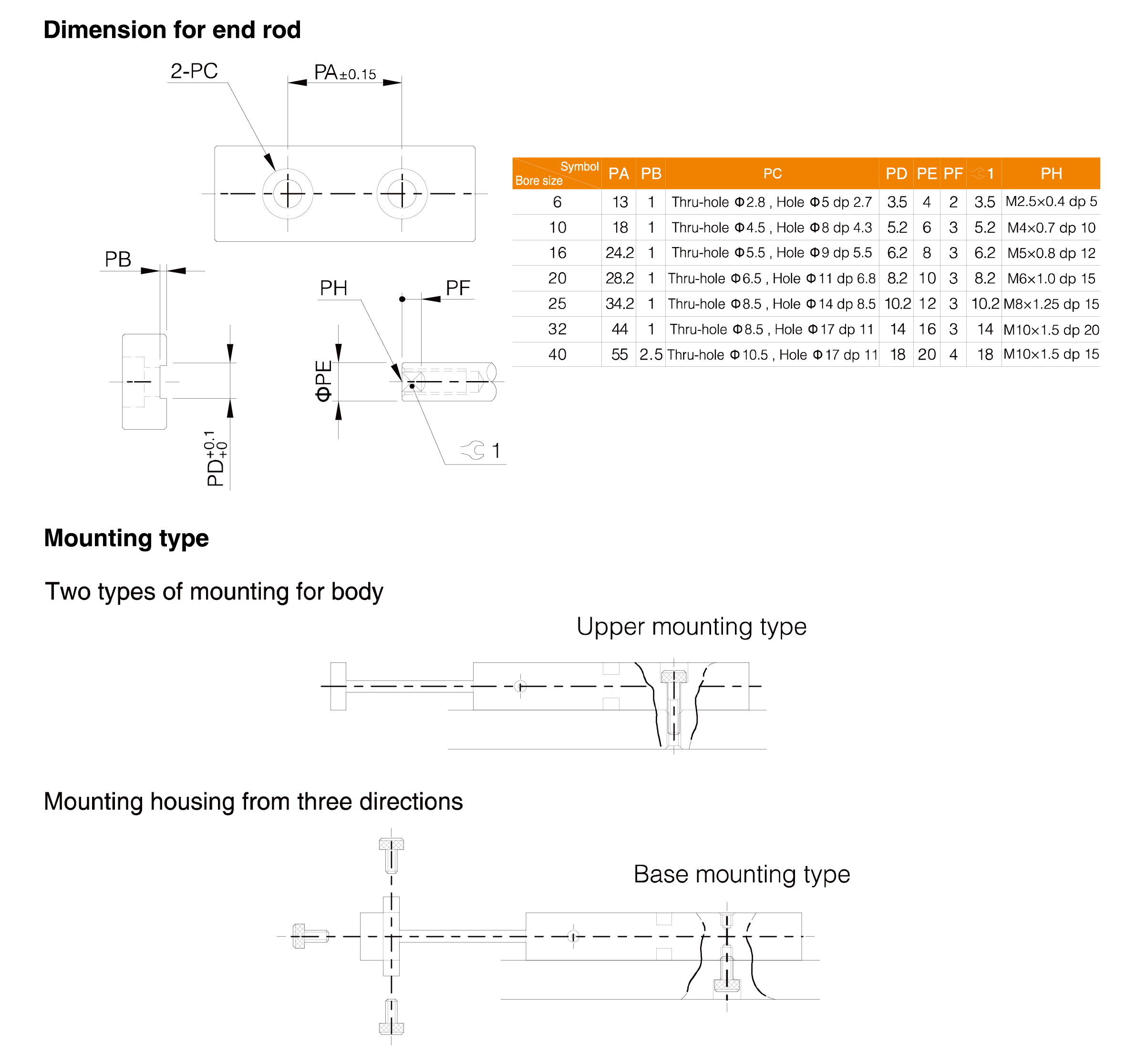

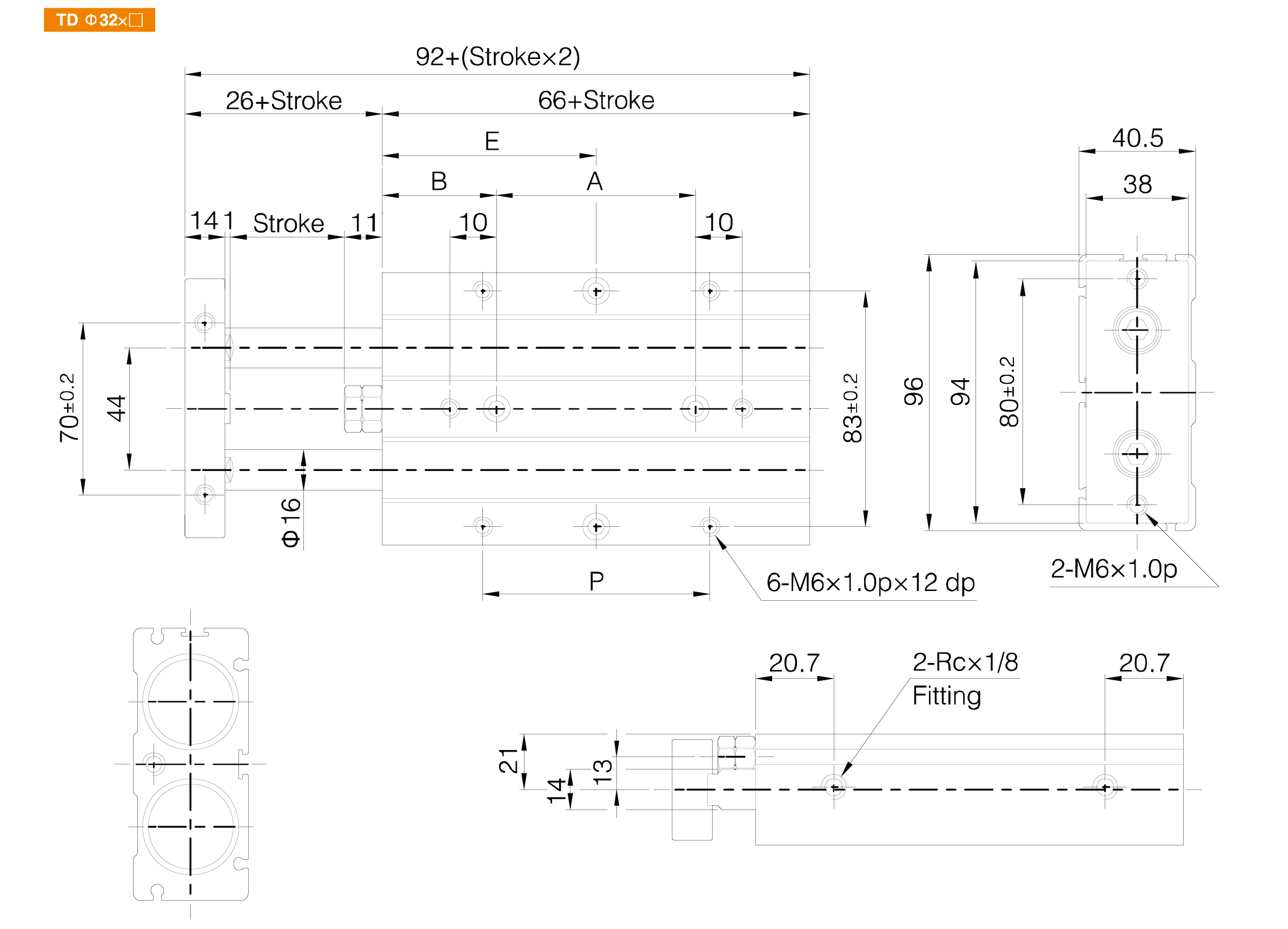

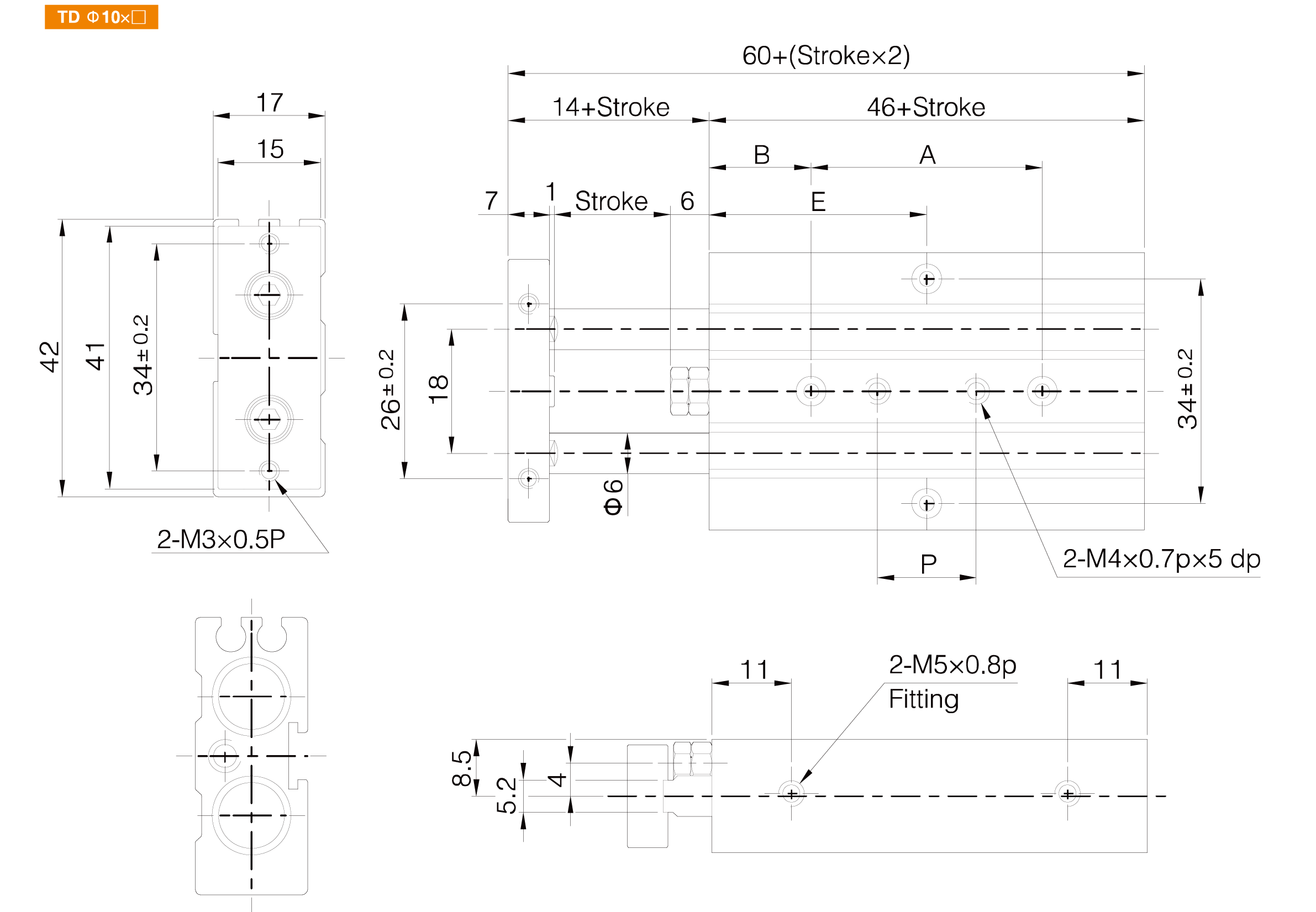

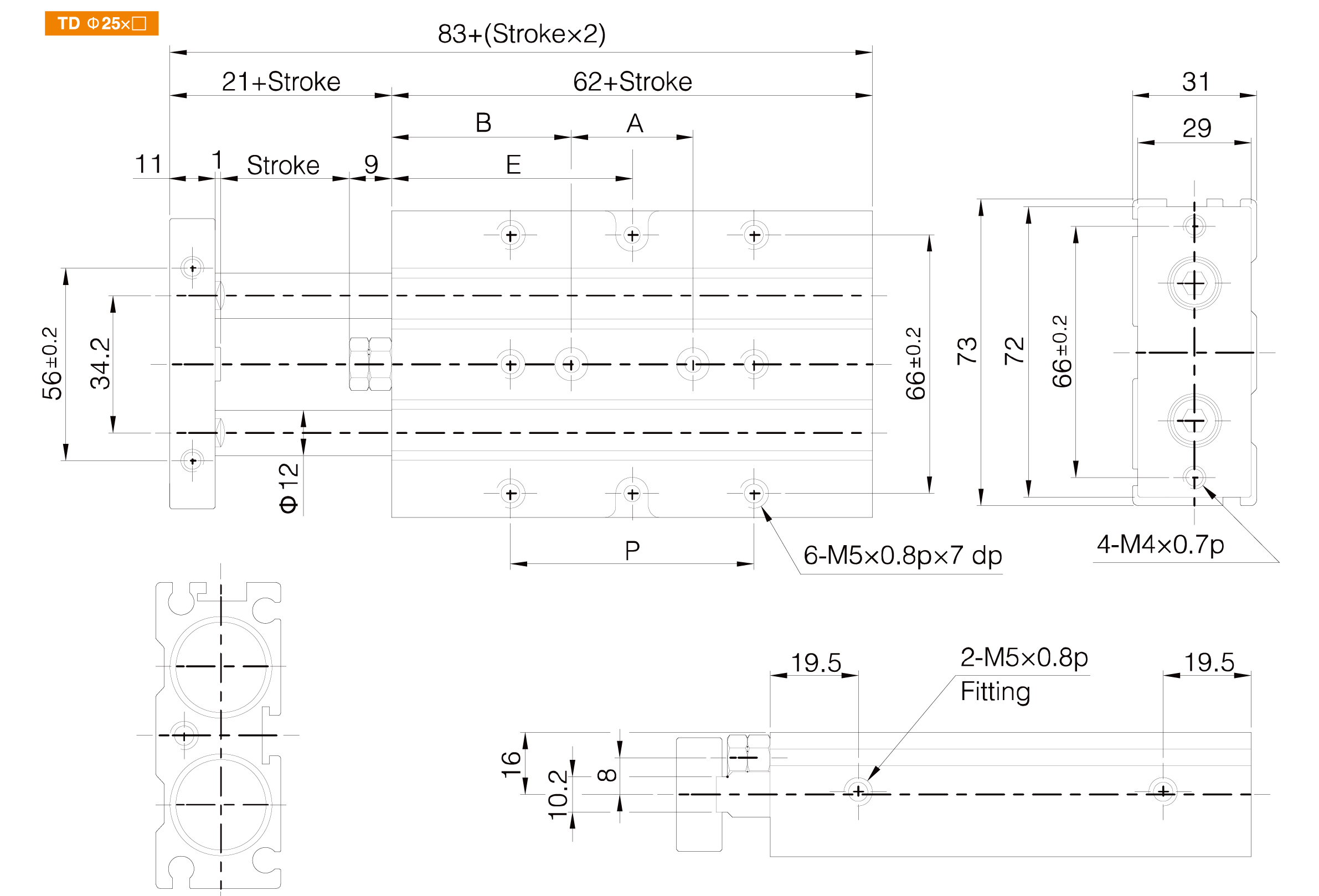

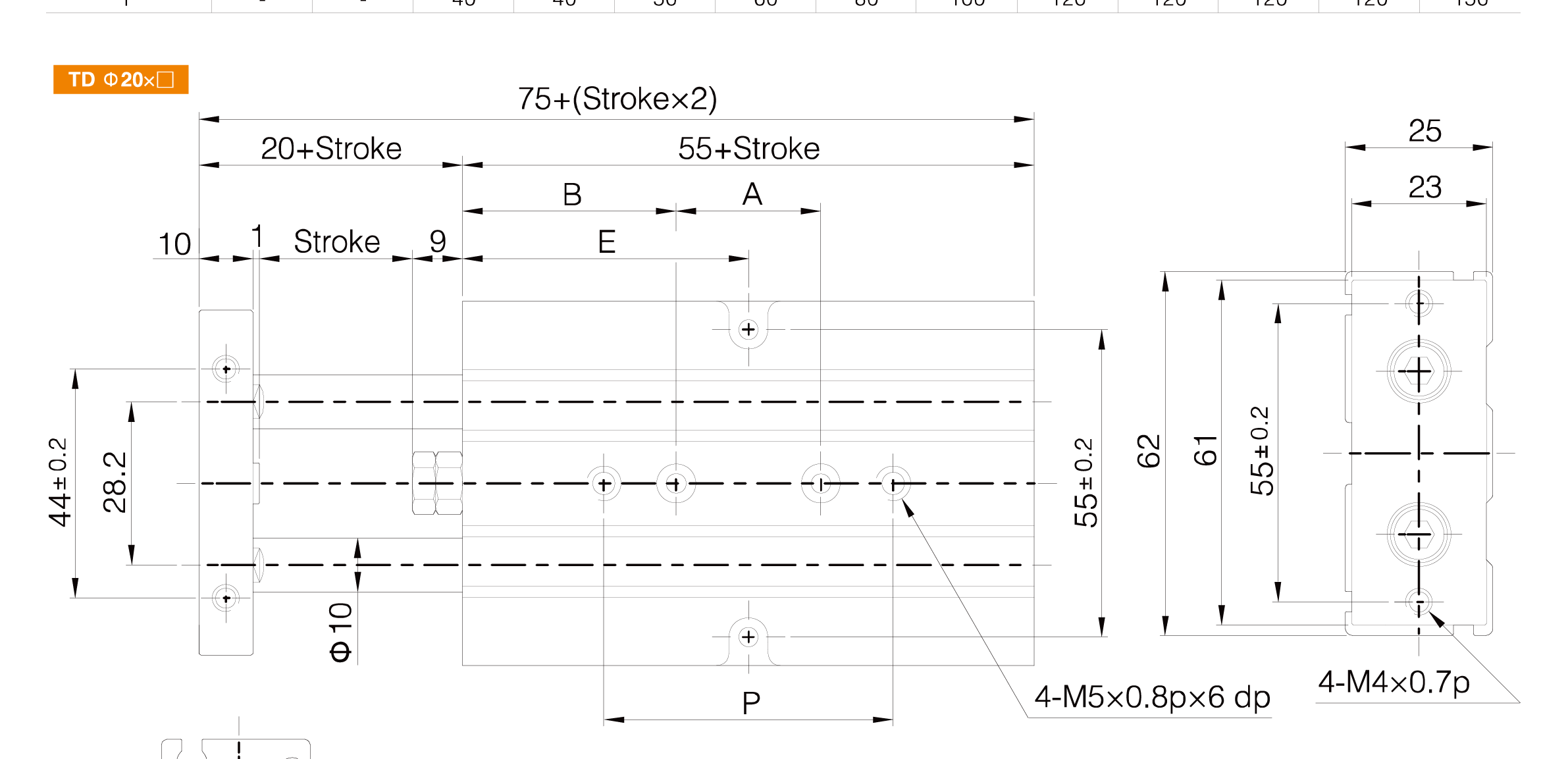

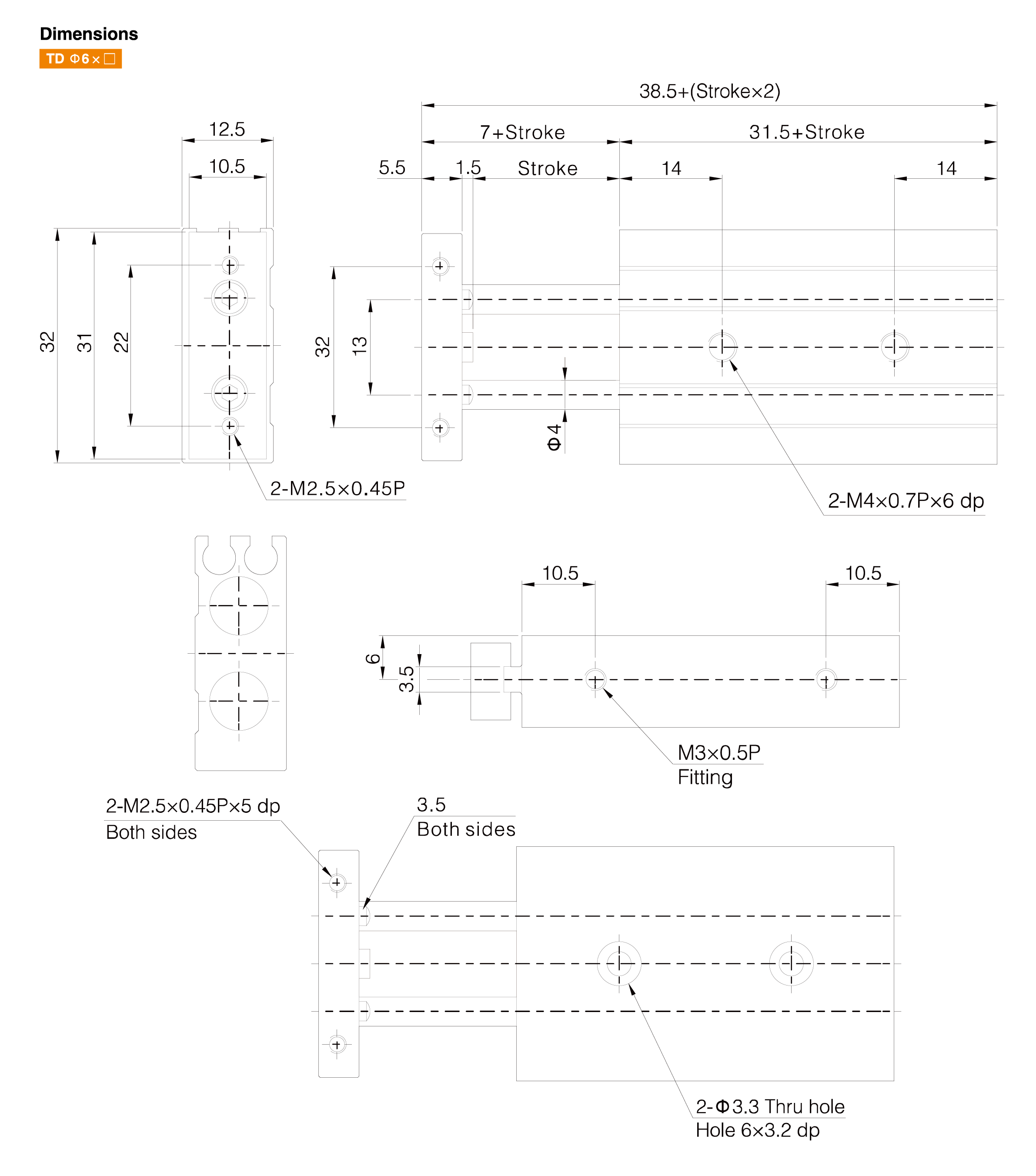

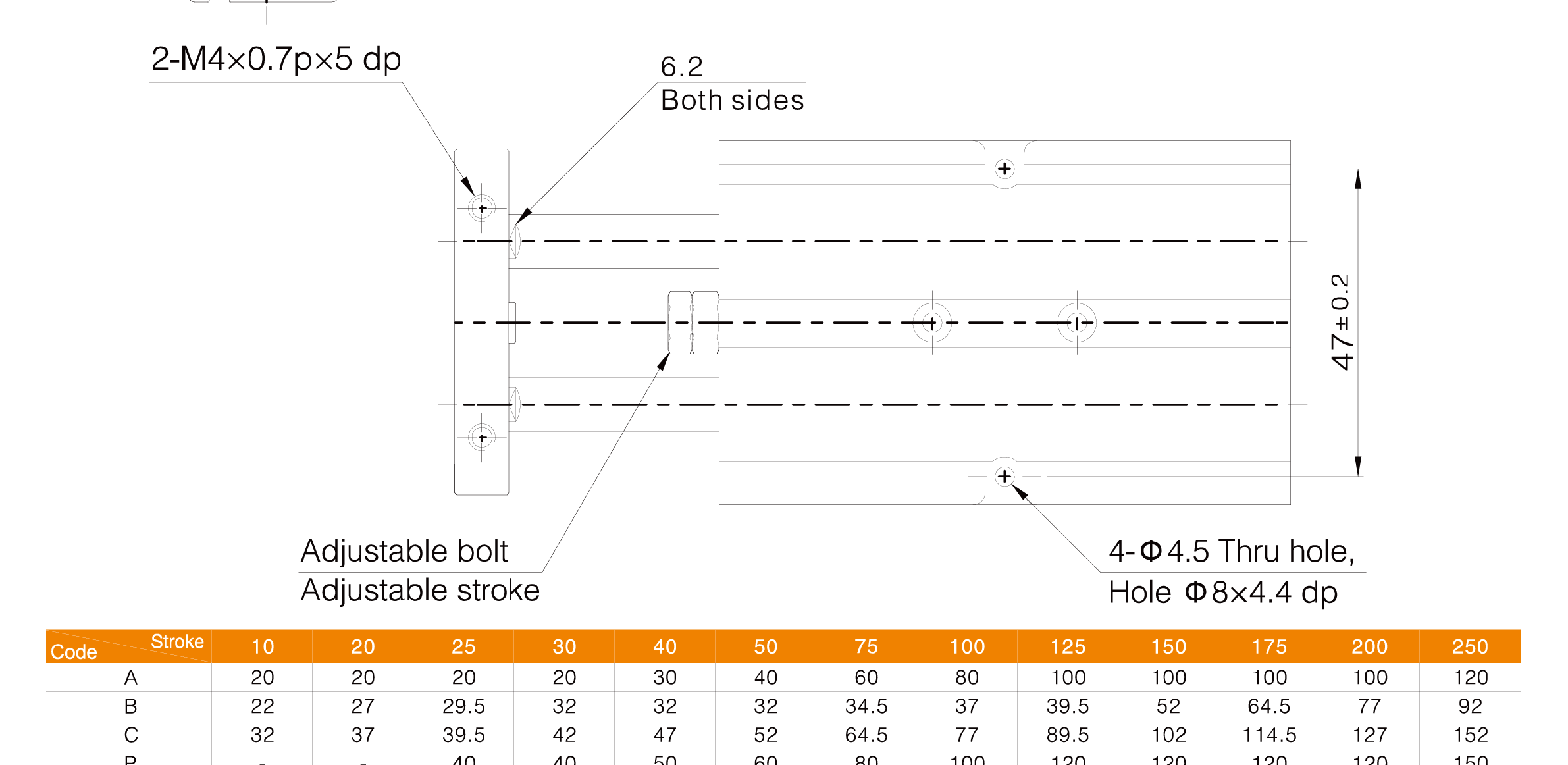

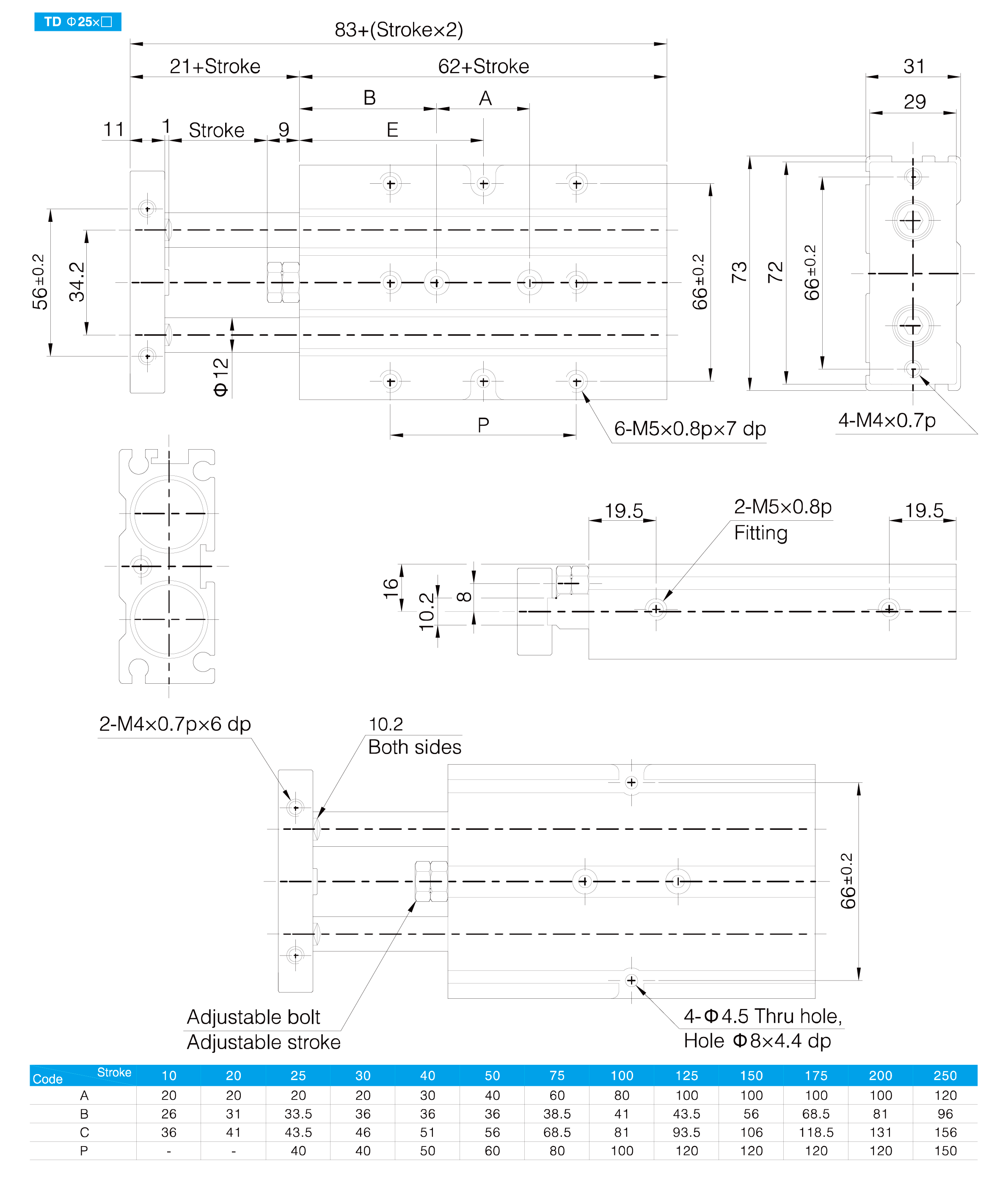

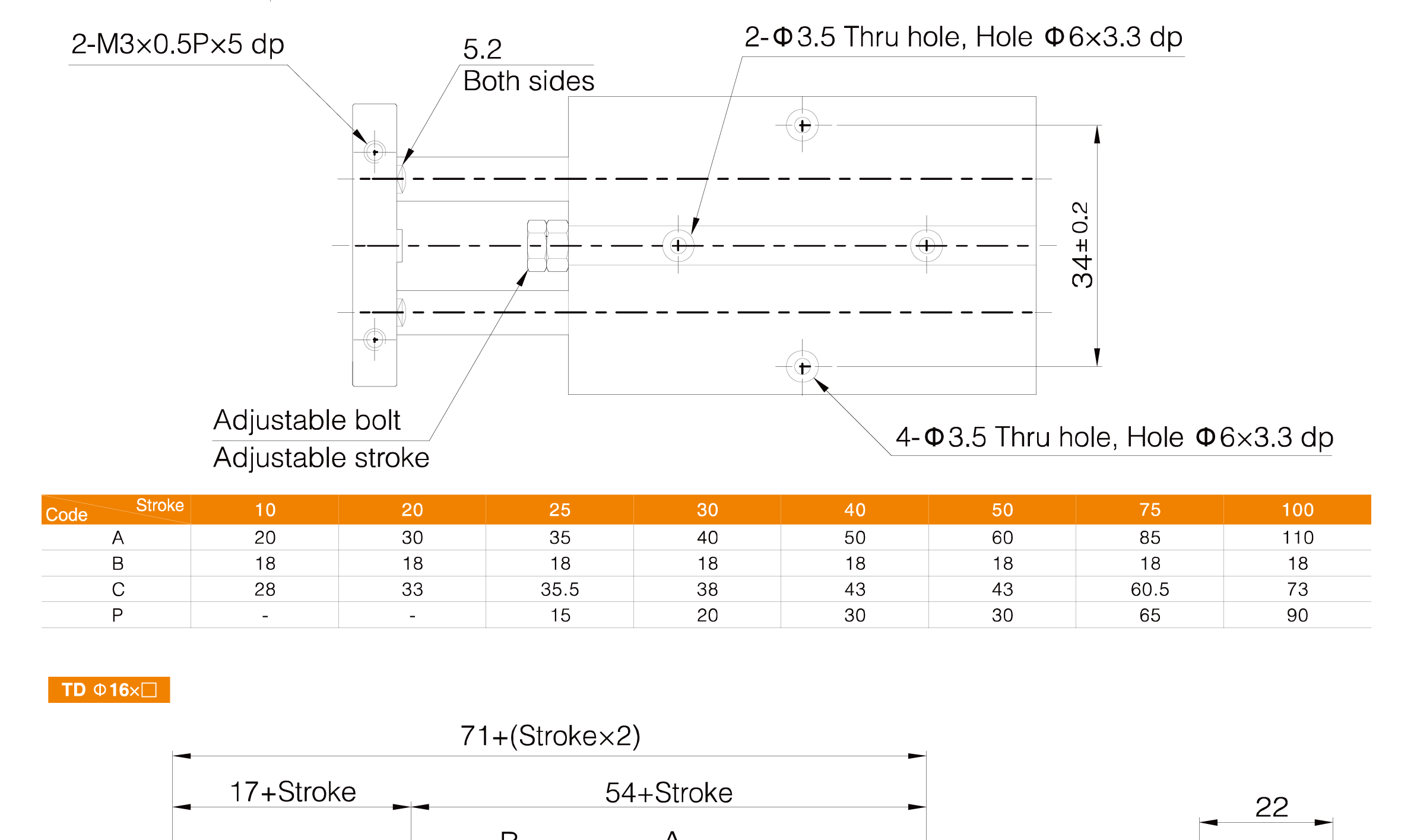

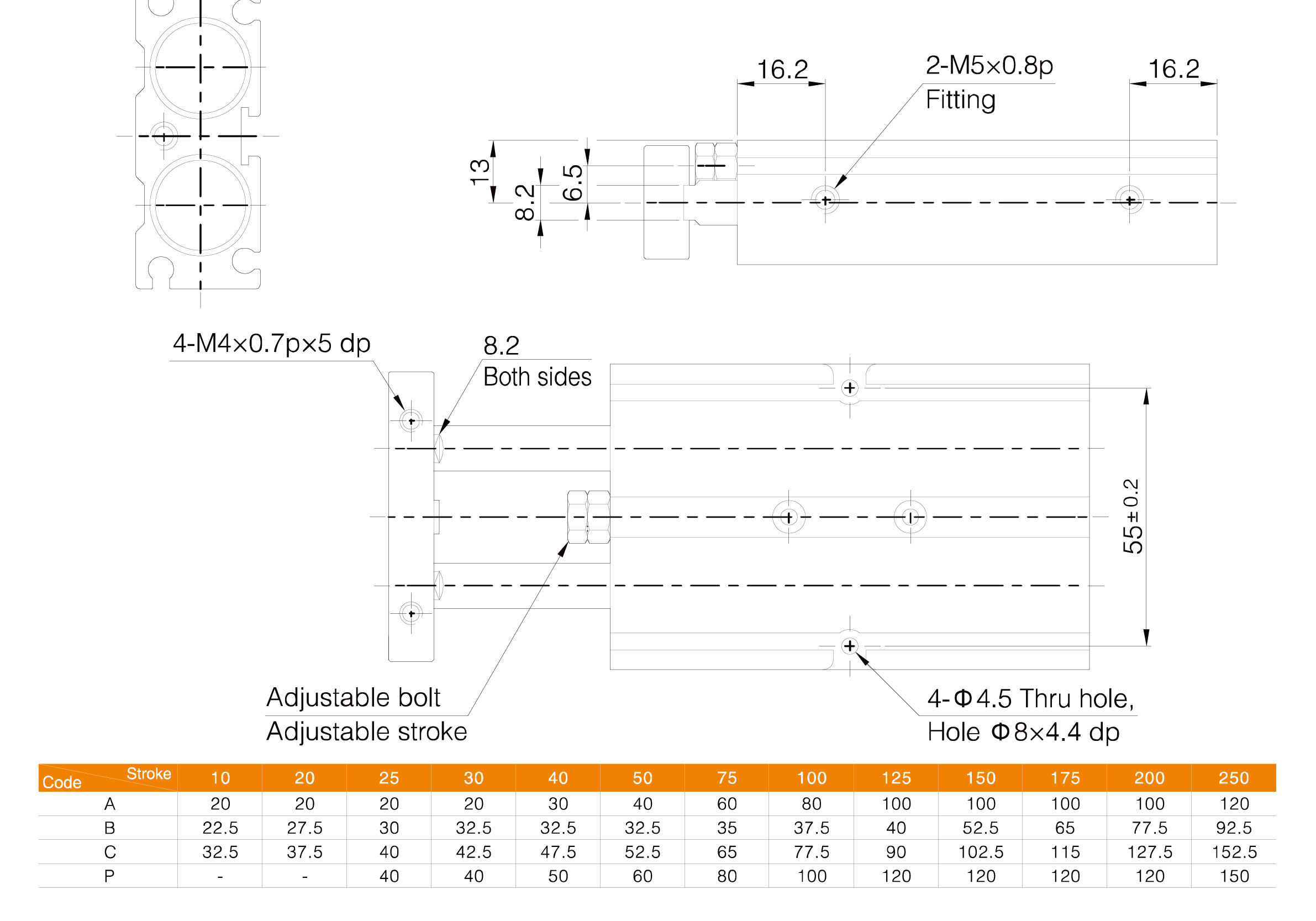

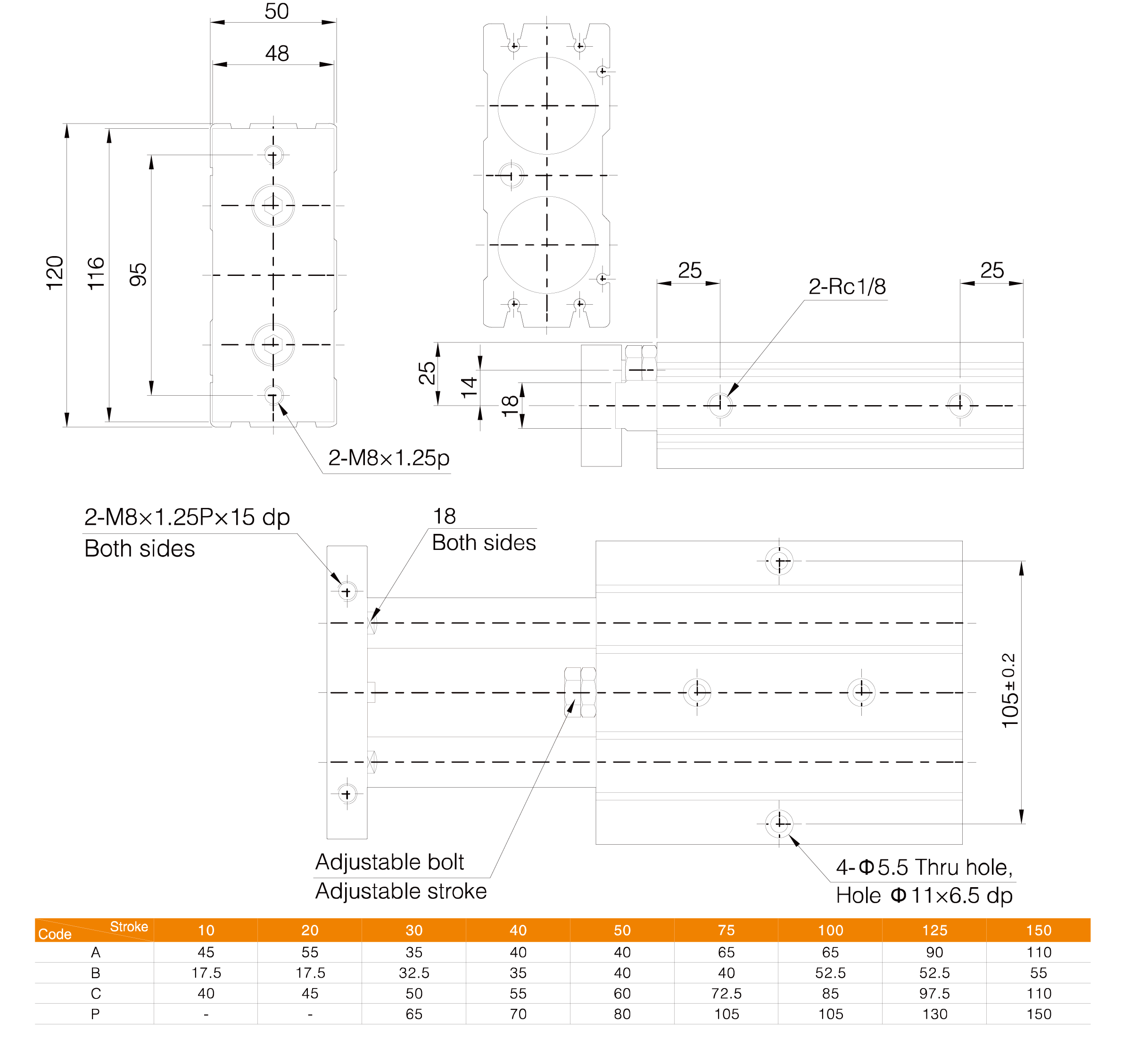

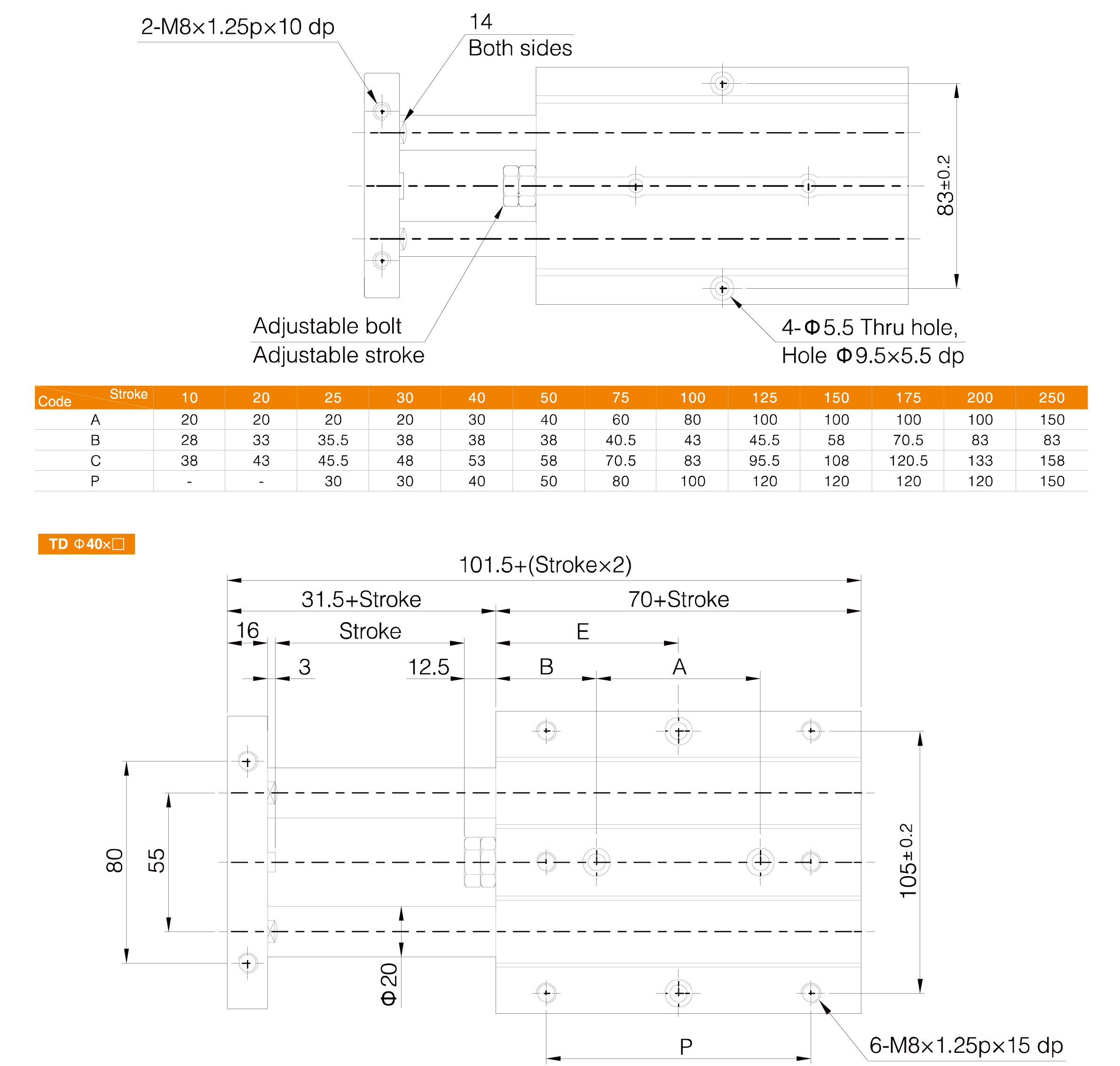

| Stroke Adjustment | -5 to 0 mm |
| Sensor Option | Built-in Magnet Available |
| Port Size | M3×0.5, M5×0.8, Rc1/8 |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The TD Series supports various magnetic switch options, including CS-30E, CS-9D, and CS-9B sensor models. Depending on application requirements, one or two sensors can be installed for accurate stroke detection and process control.
This capability improves system automation and simplifies machine monitoring.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The TD Series Dual Rod Cylinder is widely used in:
● Pick-and-place systems
● Precision positioning devices
● Assembly automation equipment
● Clamping and transfer mechanisms
● Electronics manufacturing
● Packaging machinery
● Testing and inspection systems
● Conveyor handling equipment
● Robotic auxiliary units
● OEM industrial automation machinery
Combining guided motion, anti-rotation performance, sensor compatibility, and robust structural stability, the TD Series Dual Rod Cylinder provides a reliable solution for precision pneumatic automation applications.
