STM Series Pneumatic Slide Table

STM Series Pneumatic Slide Table

The STM Series Pneumatic Slide Table combines a compact pneumatic actuator with an integrated precision slide mechanism, providing stable linear motion for automated production equipment. Unlike conventional cylinders that require external guide units, the slide table incorporates both actuation and guidance into one compact assembly, reducing installation complexity while improving overall system rigidity. This integrated design makes the STM Series particularly suitable for positioning, transfer, and precision handling applications where accuracy and repeatability are critical.

The reinforced dual piston rod structure significantly improves resistance to bending moments and torsional loads. Even when carrying eccentric or offset workpieces, the slide table maintains stable movement and reliable positioning. This enhanced rigidity allows the actuator to support larger moving loads and withstand higher lateral forces than standard pneumatic cylinders, making it well suited for continuous industrial operation.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

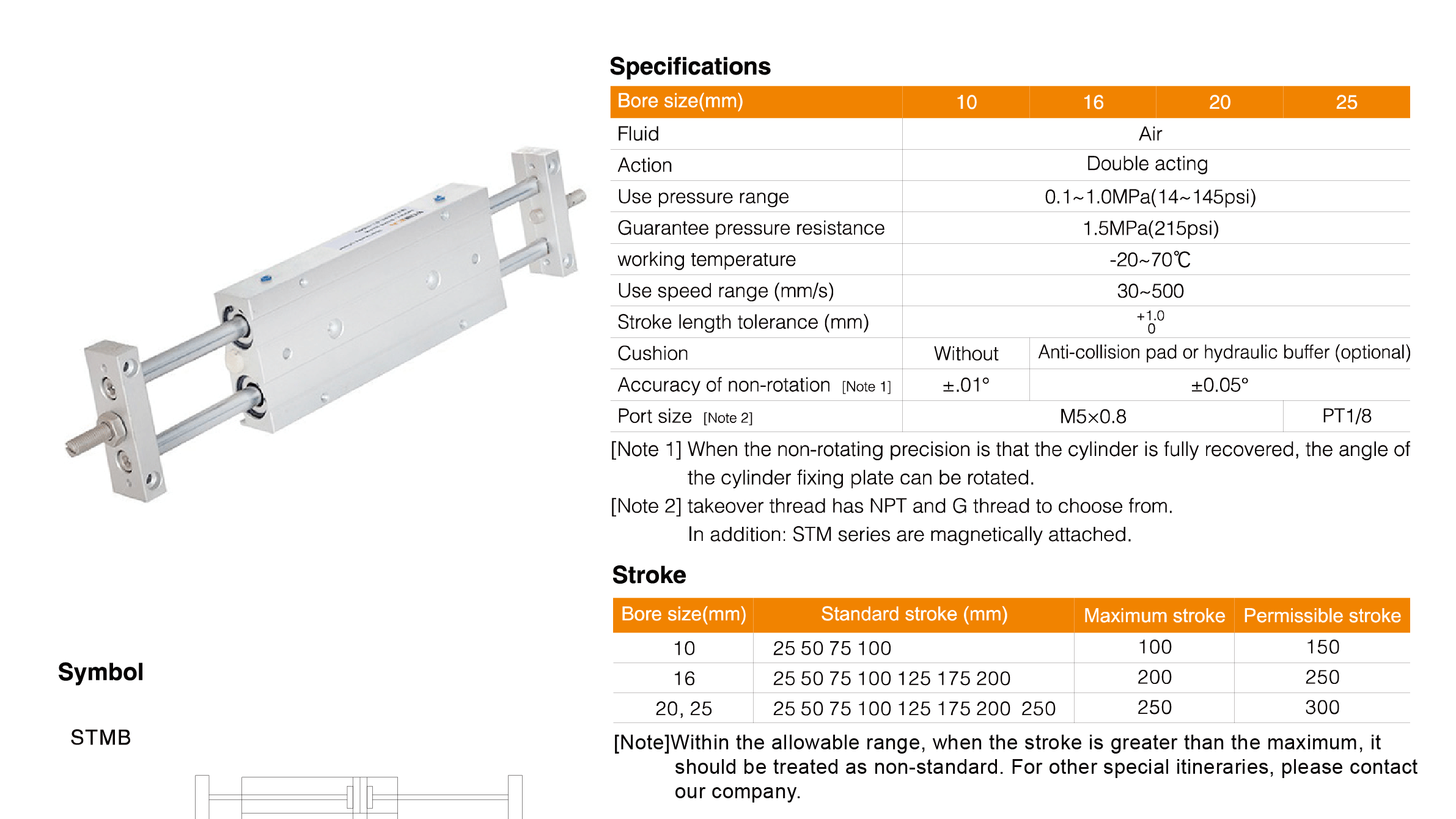

Main Features

● Integrated pneumatic actuator and precision slide table

● Dual piston rod design for superior rigidity

● Excellent resistance to bending, torsion, and side loads

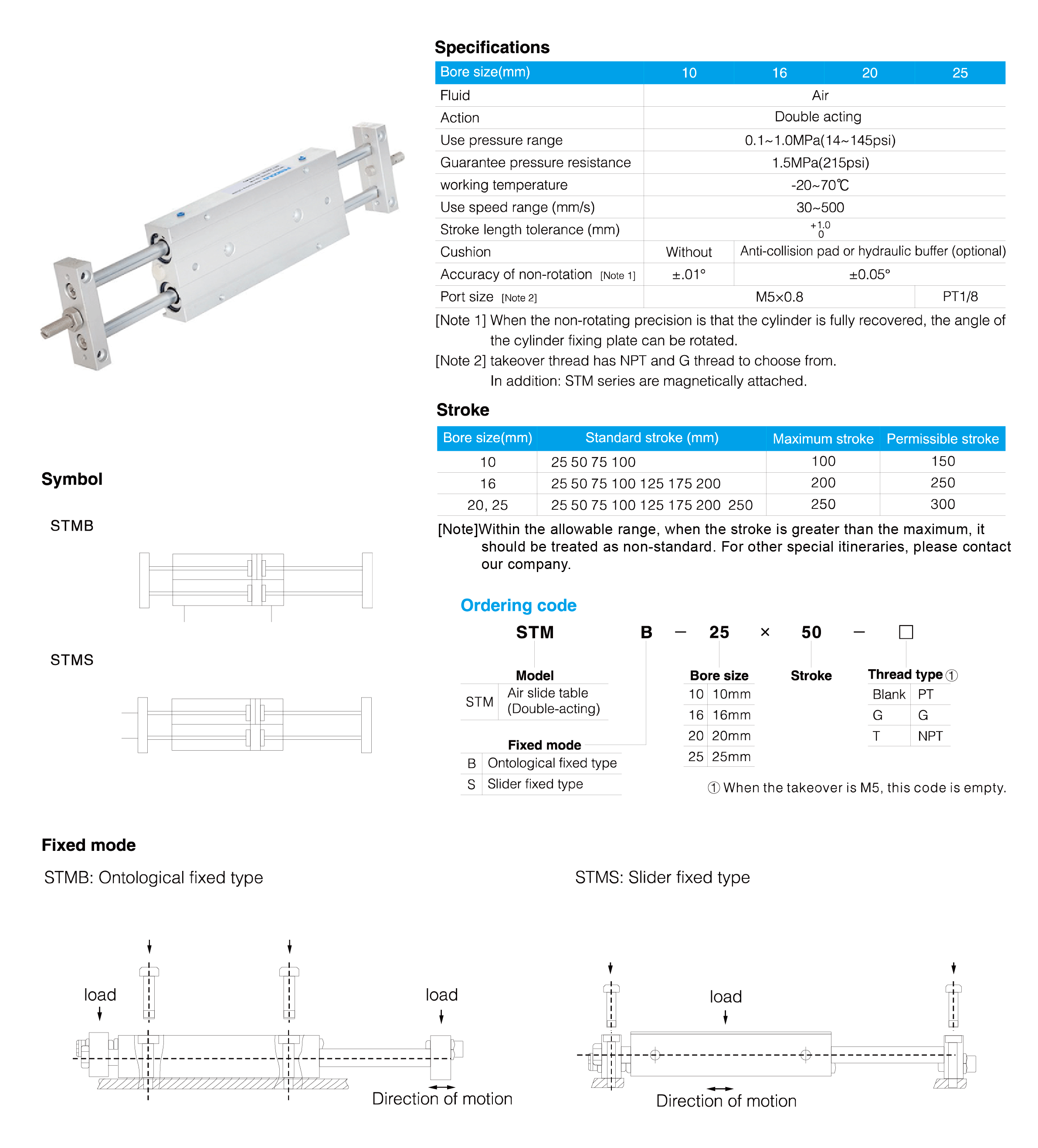

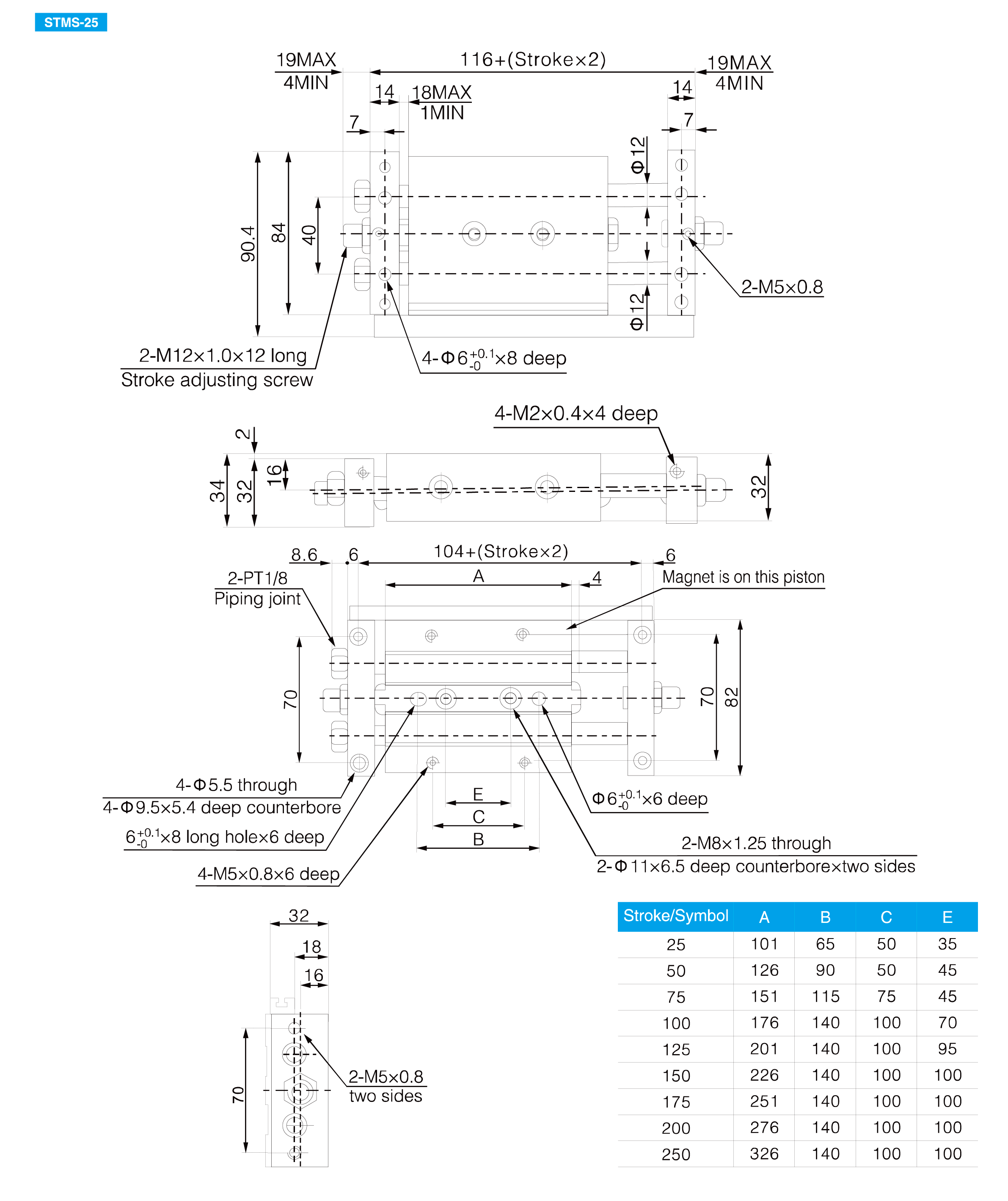

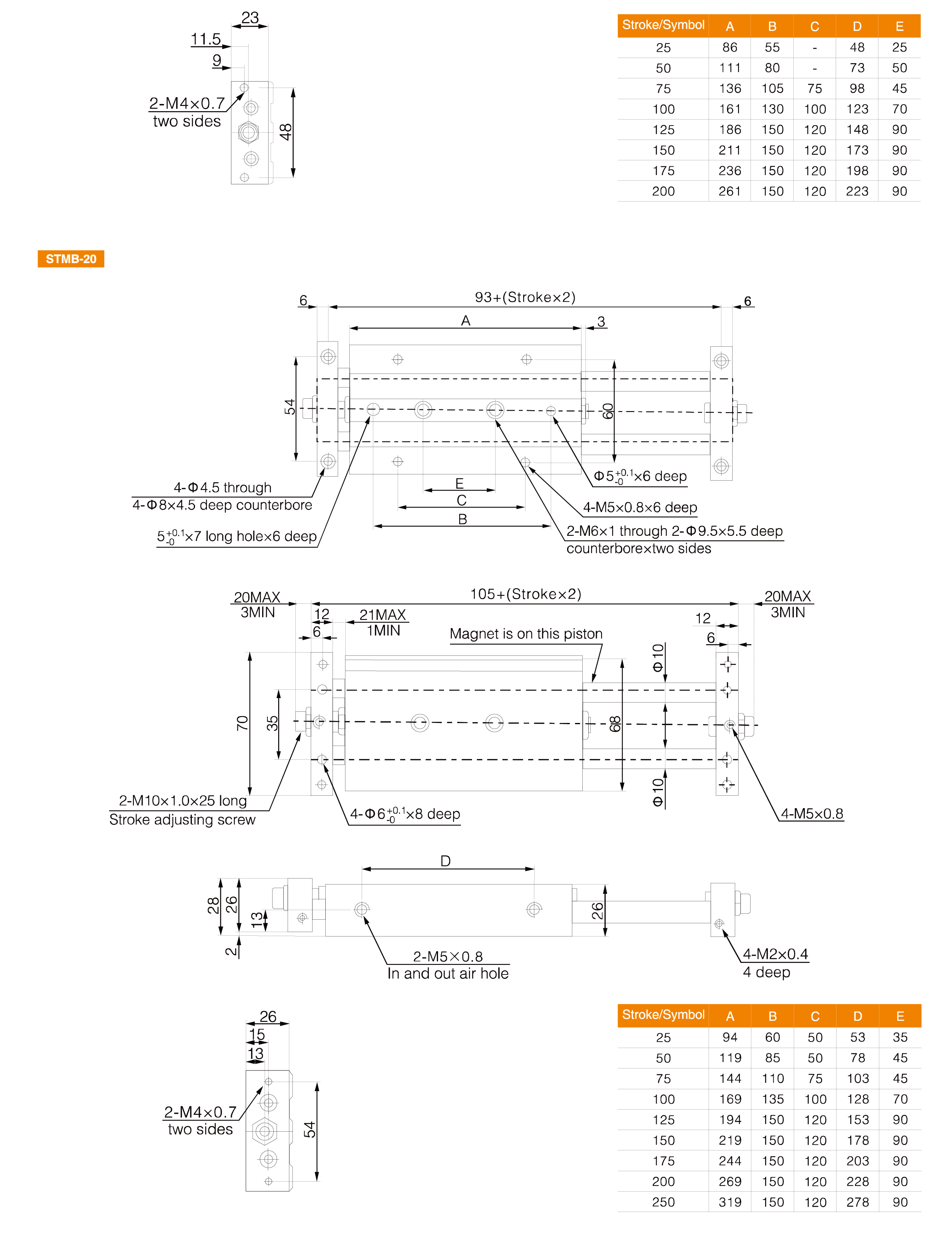

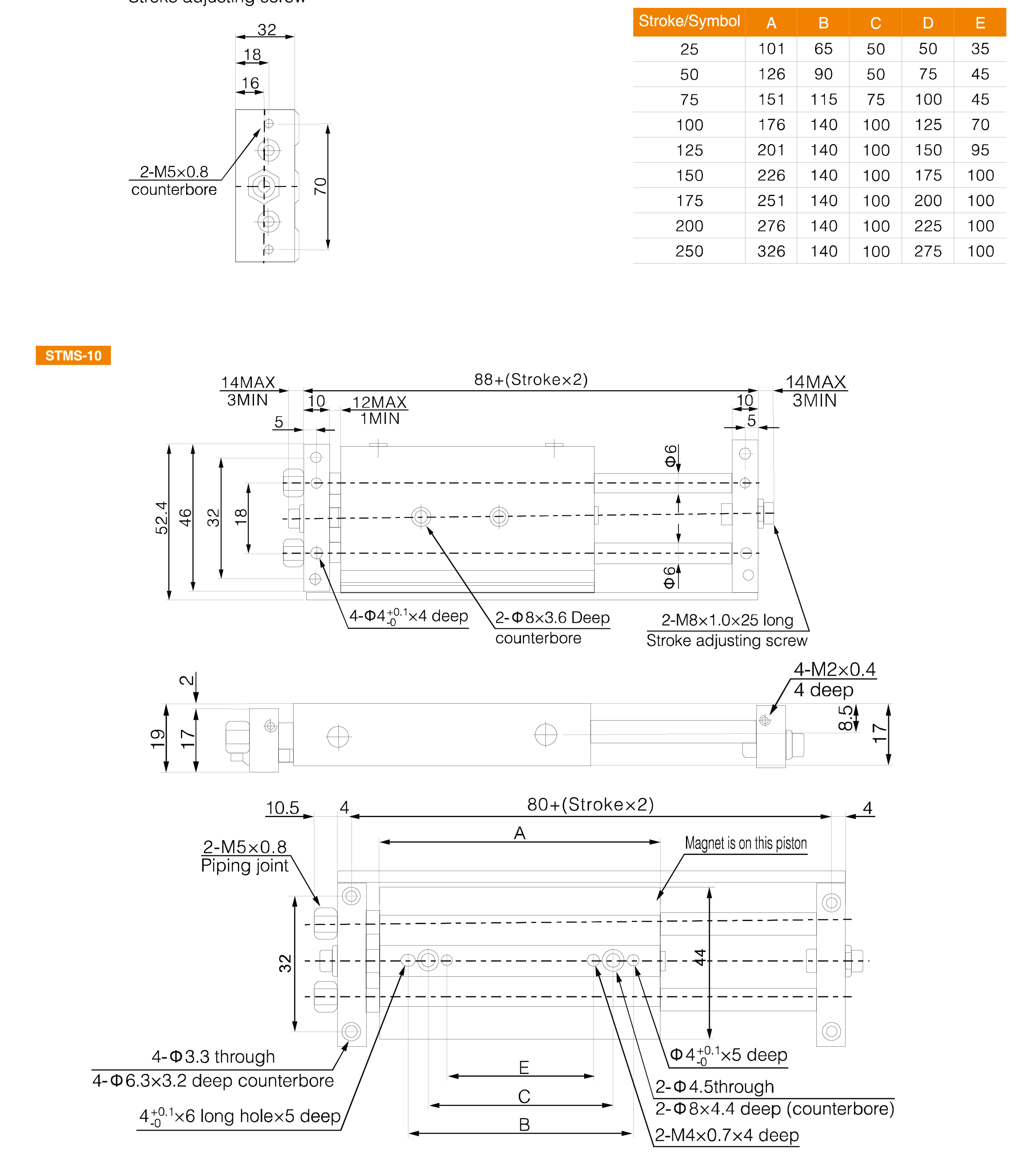

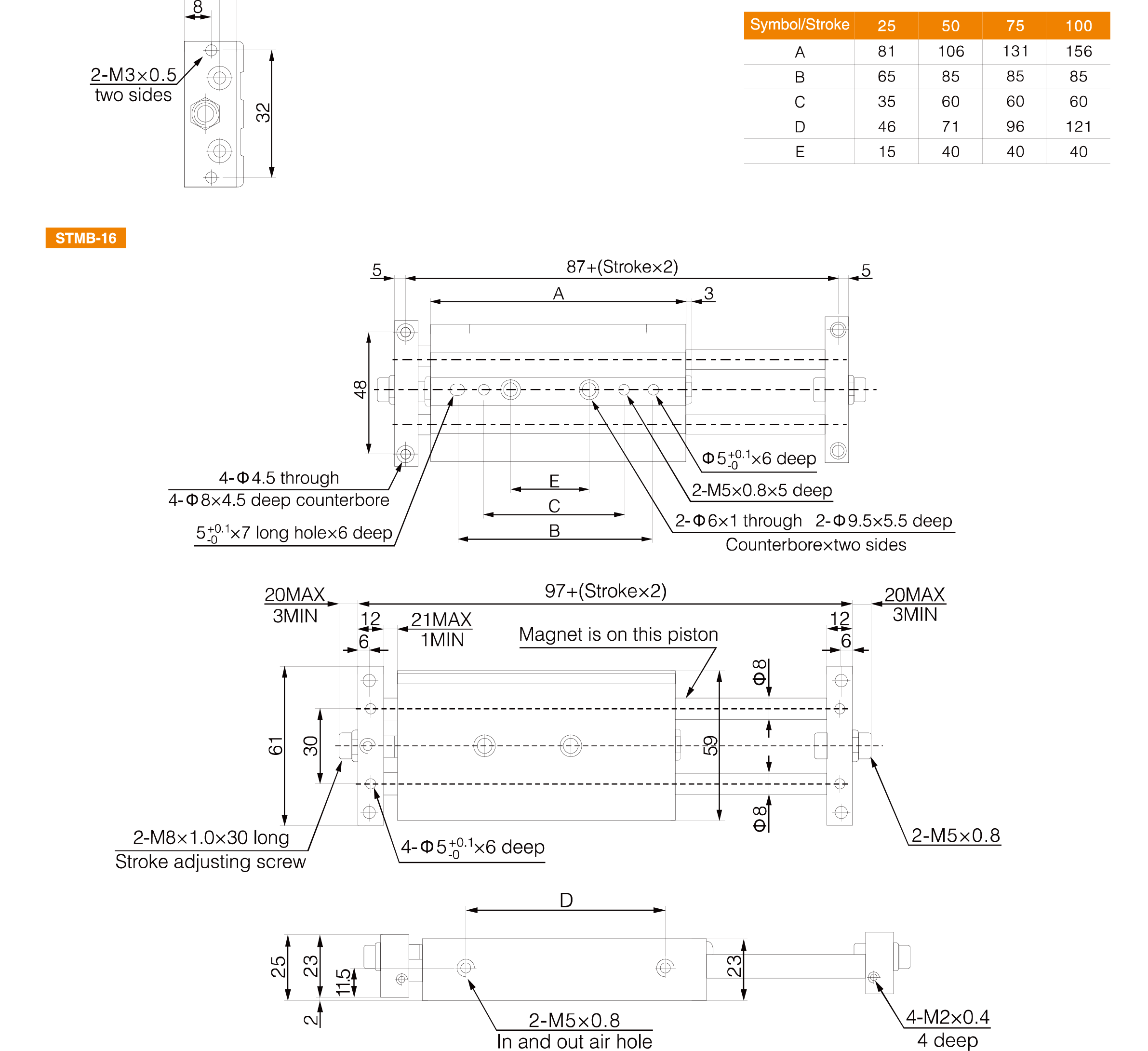

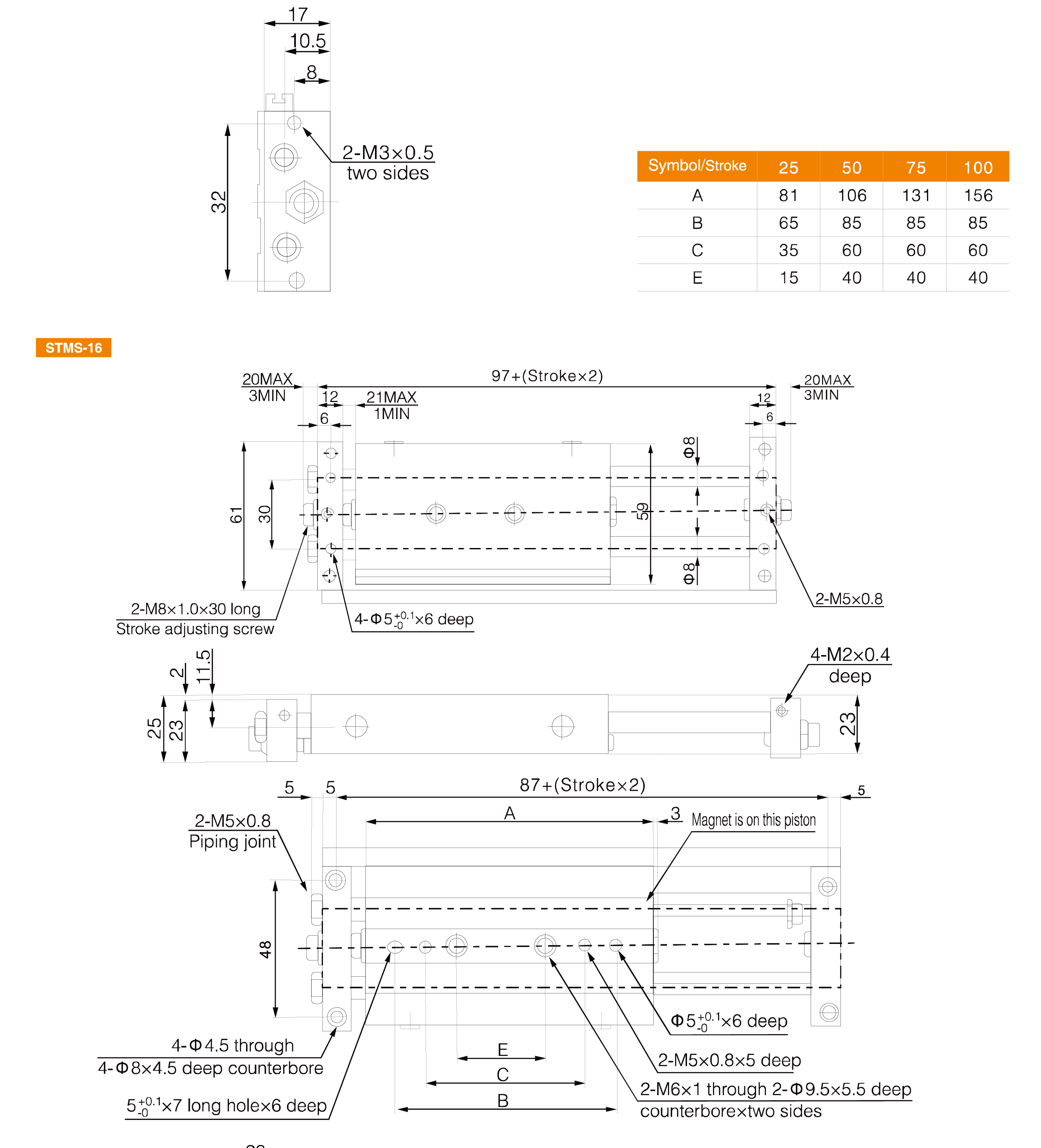

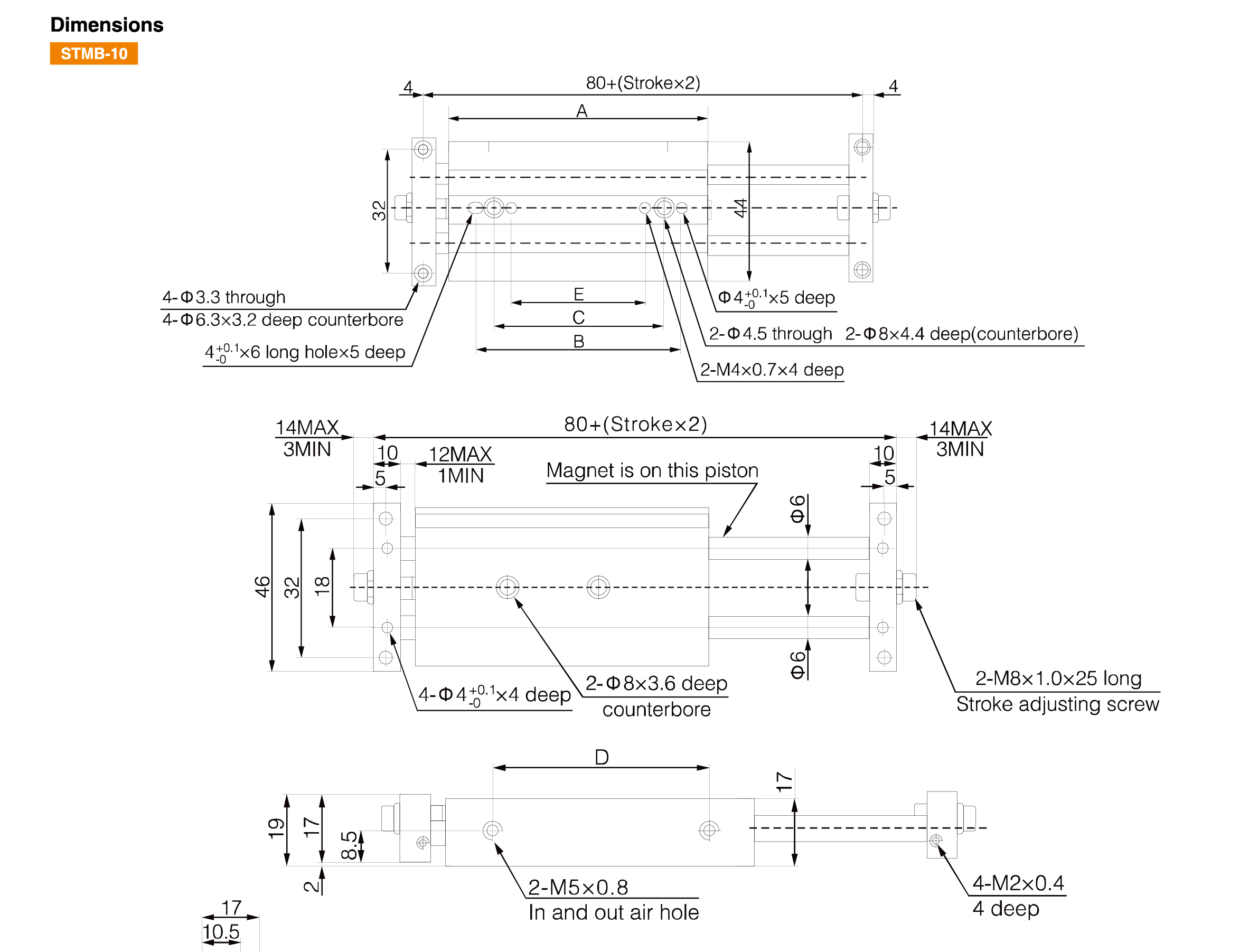

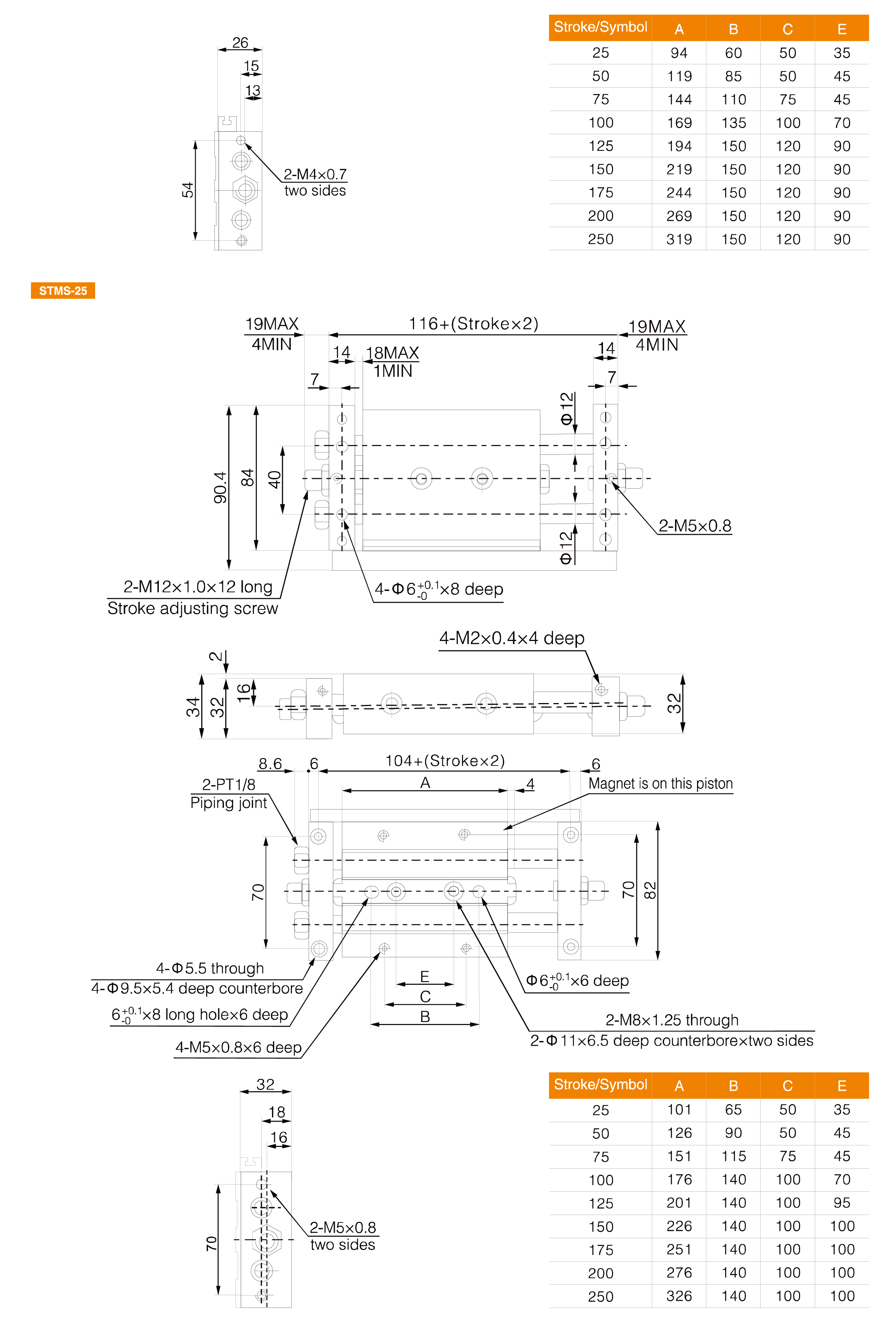

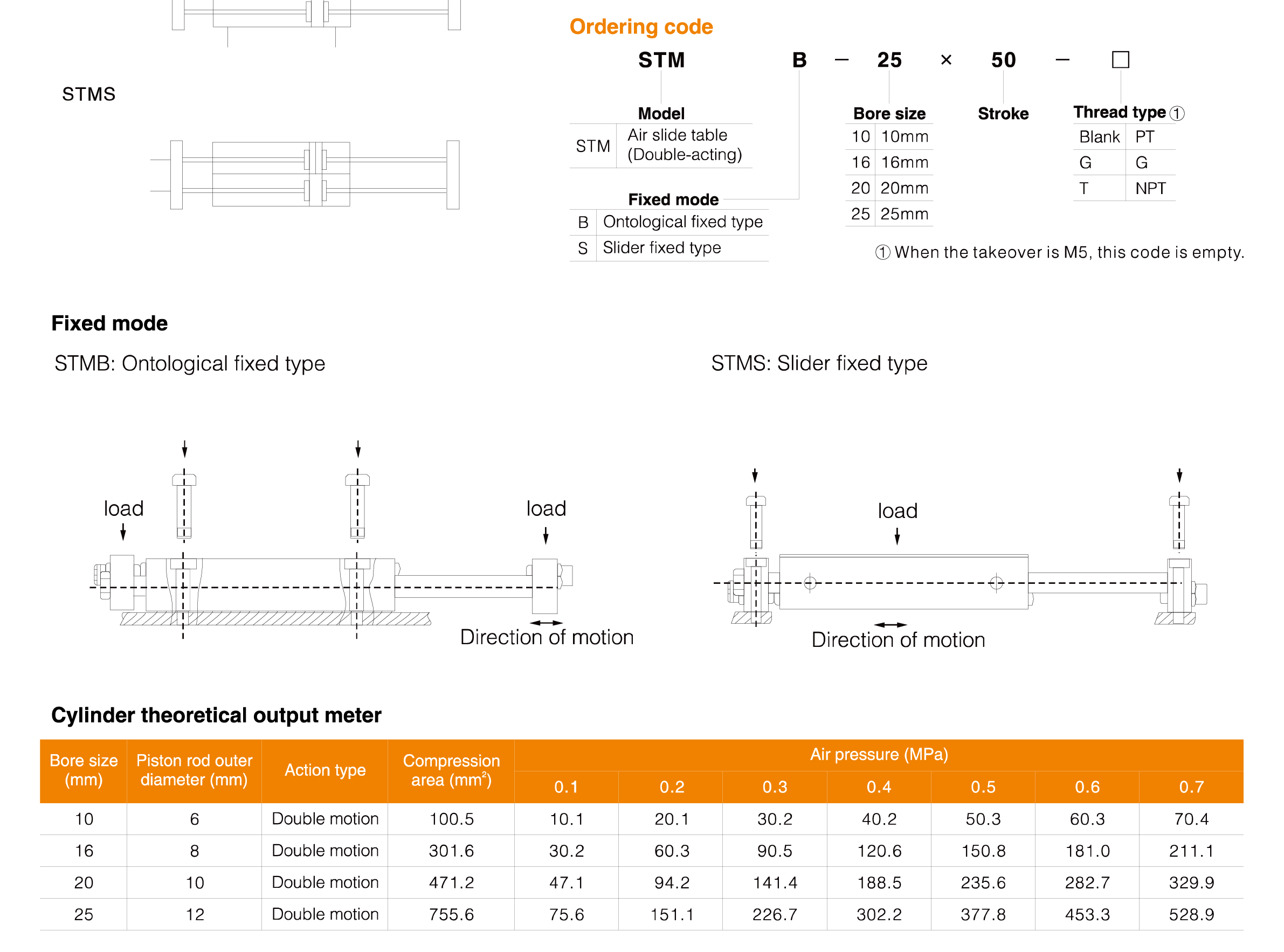

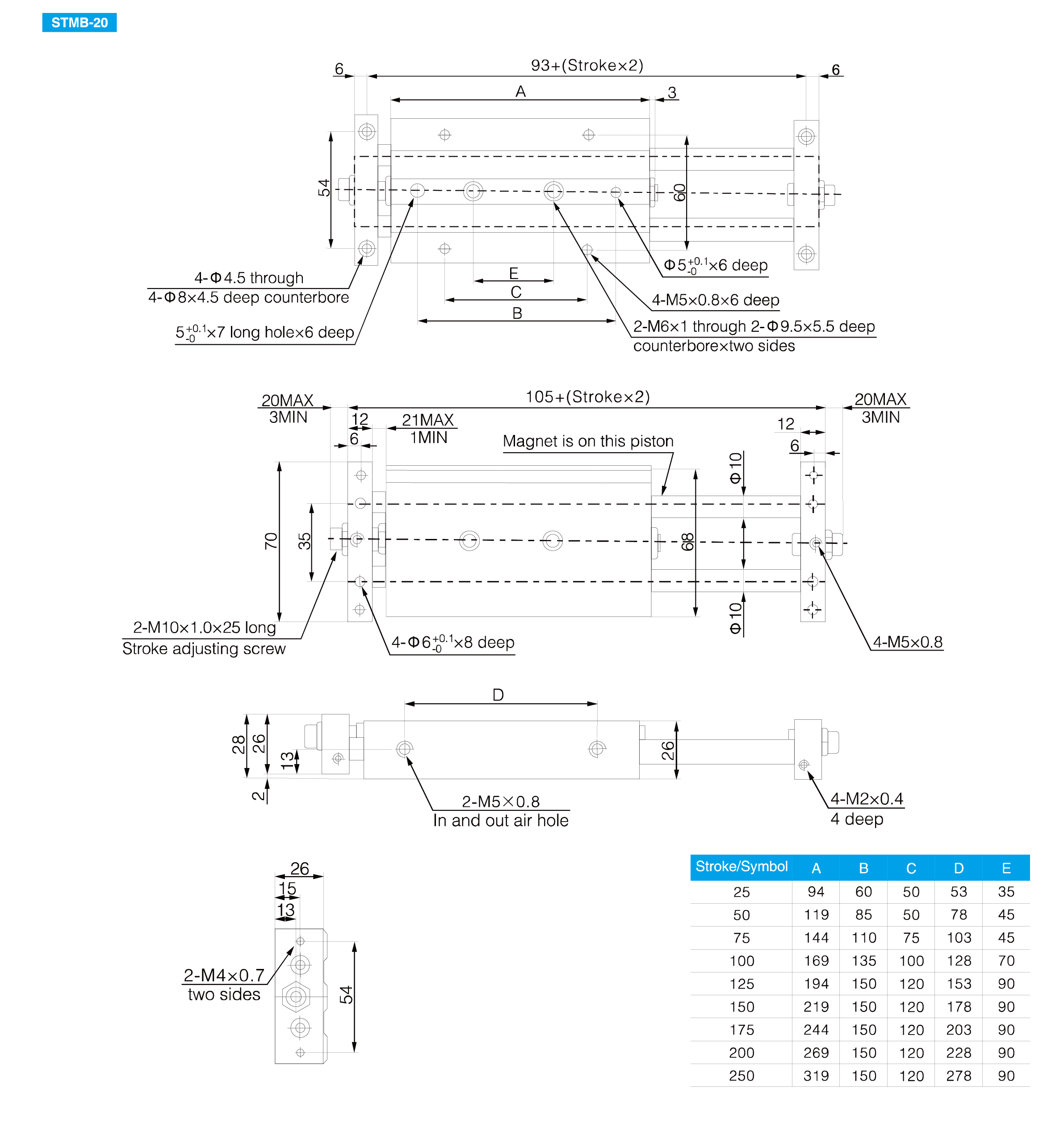

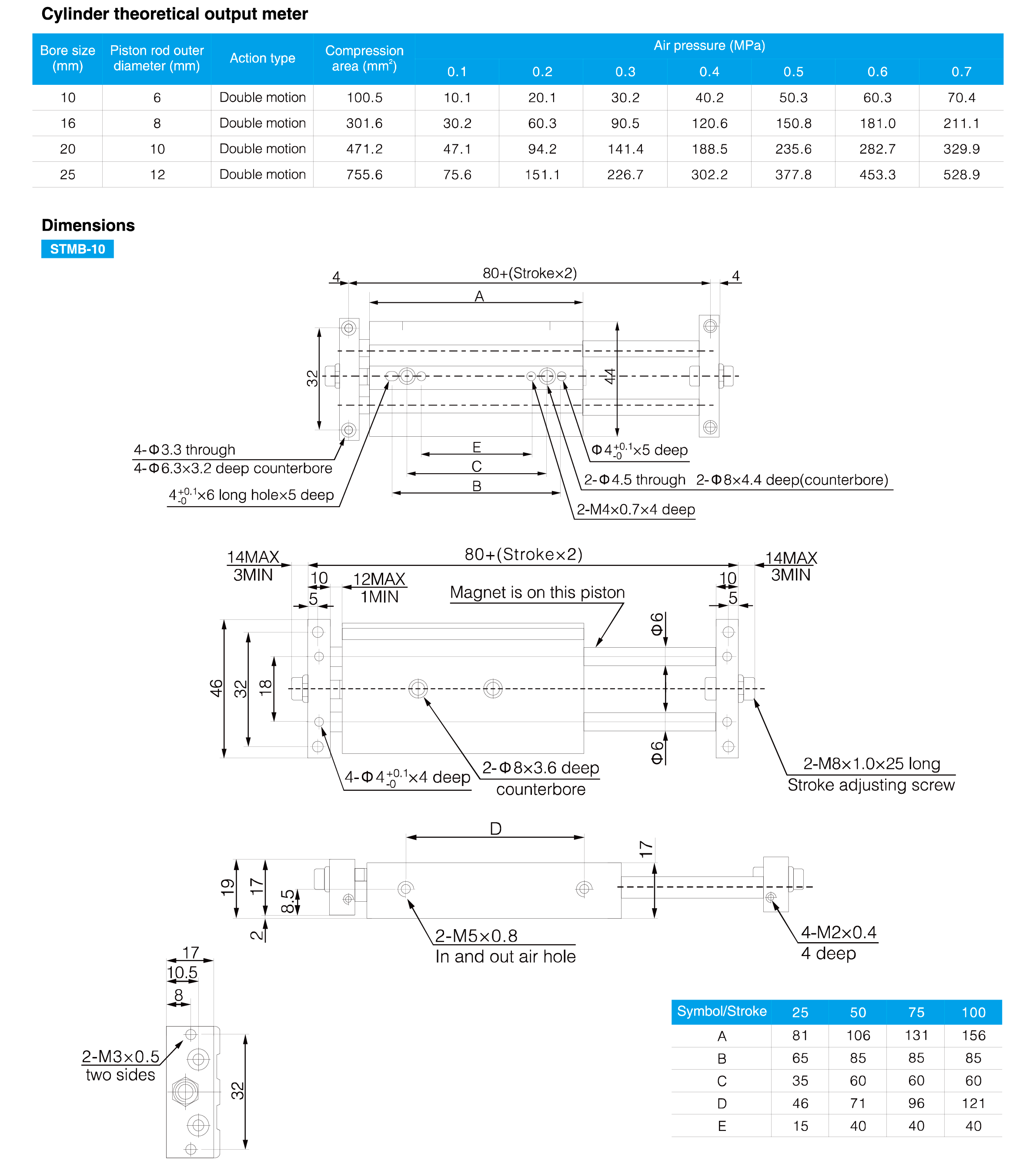

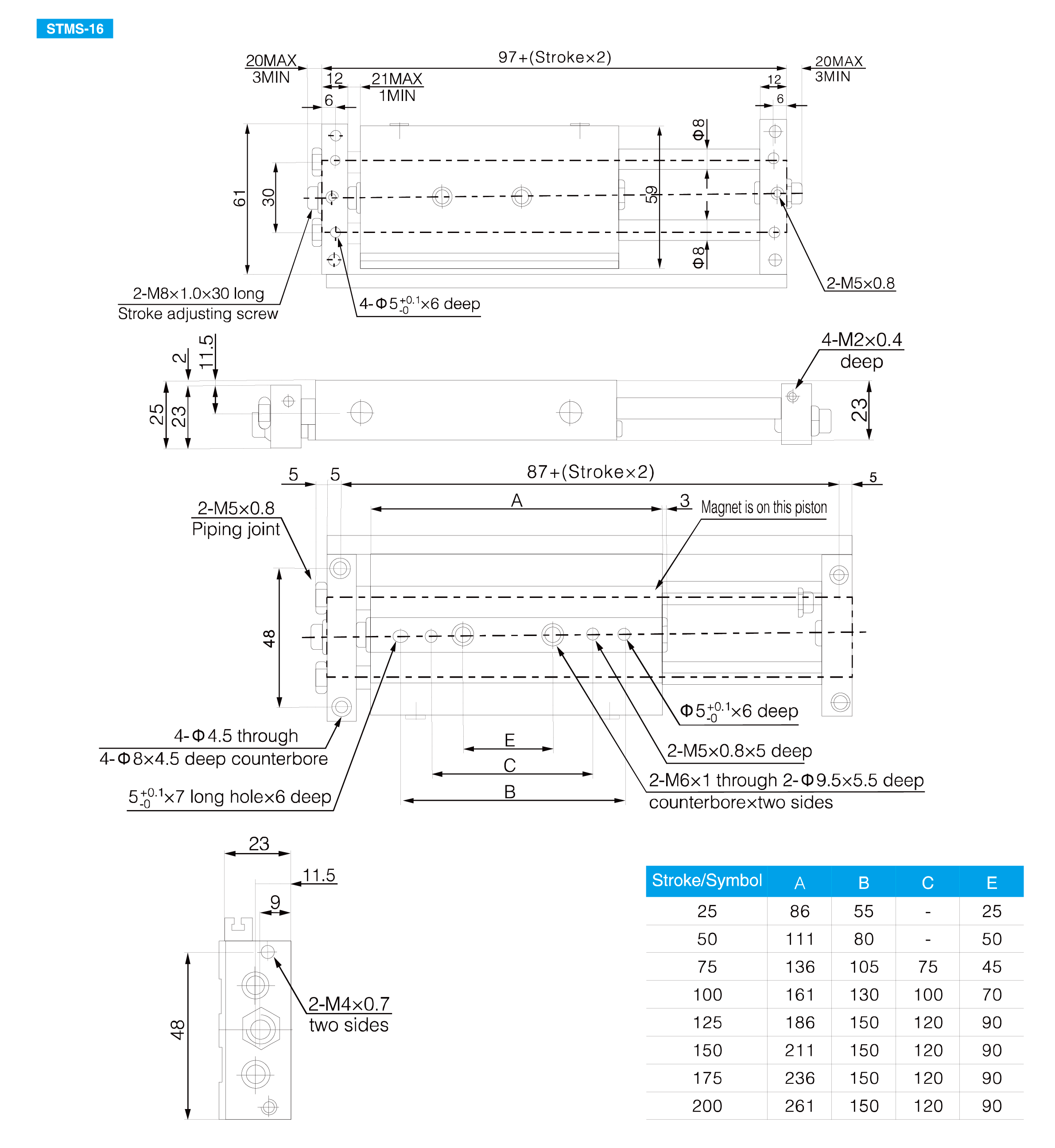

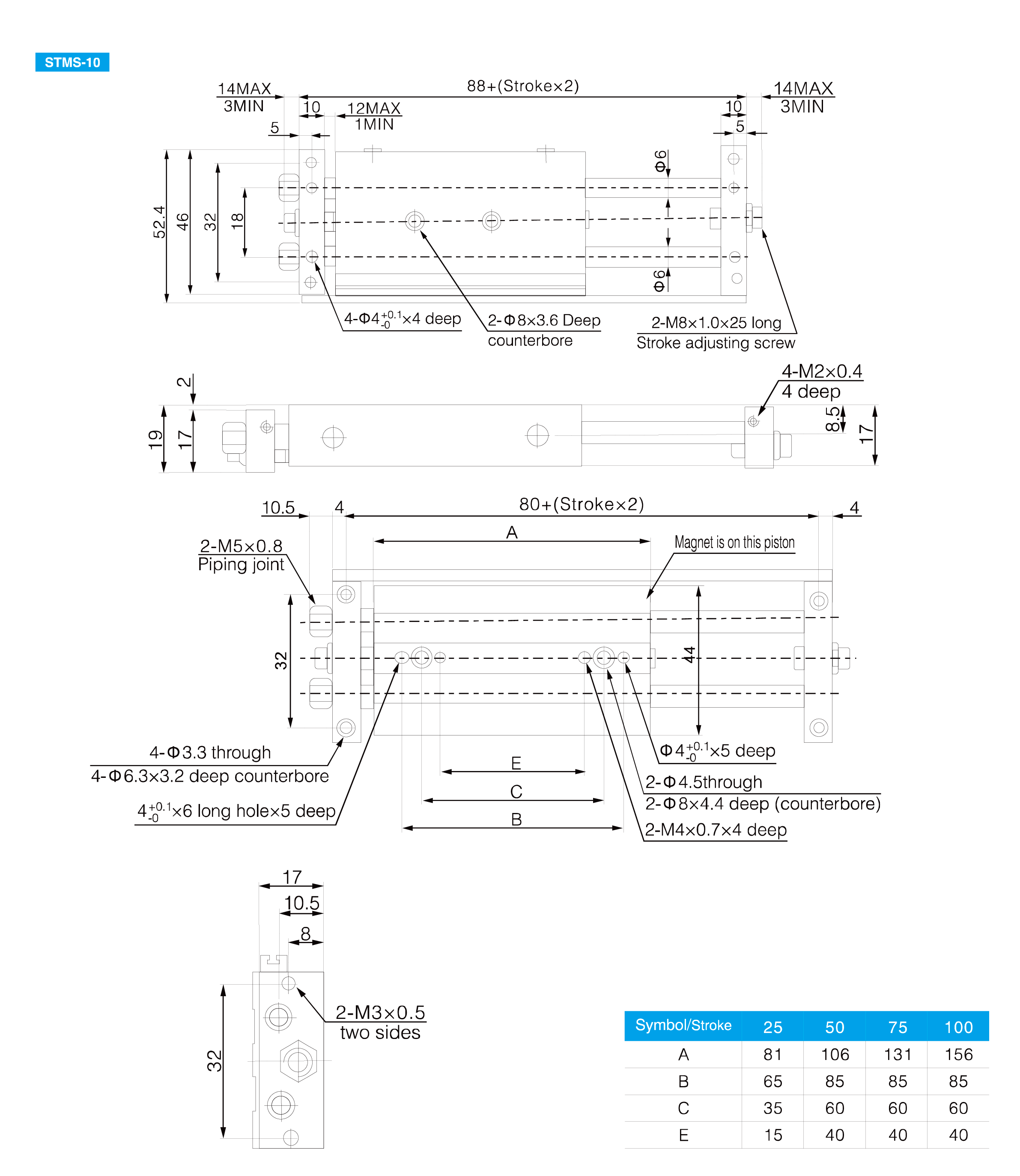

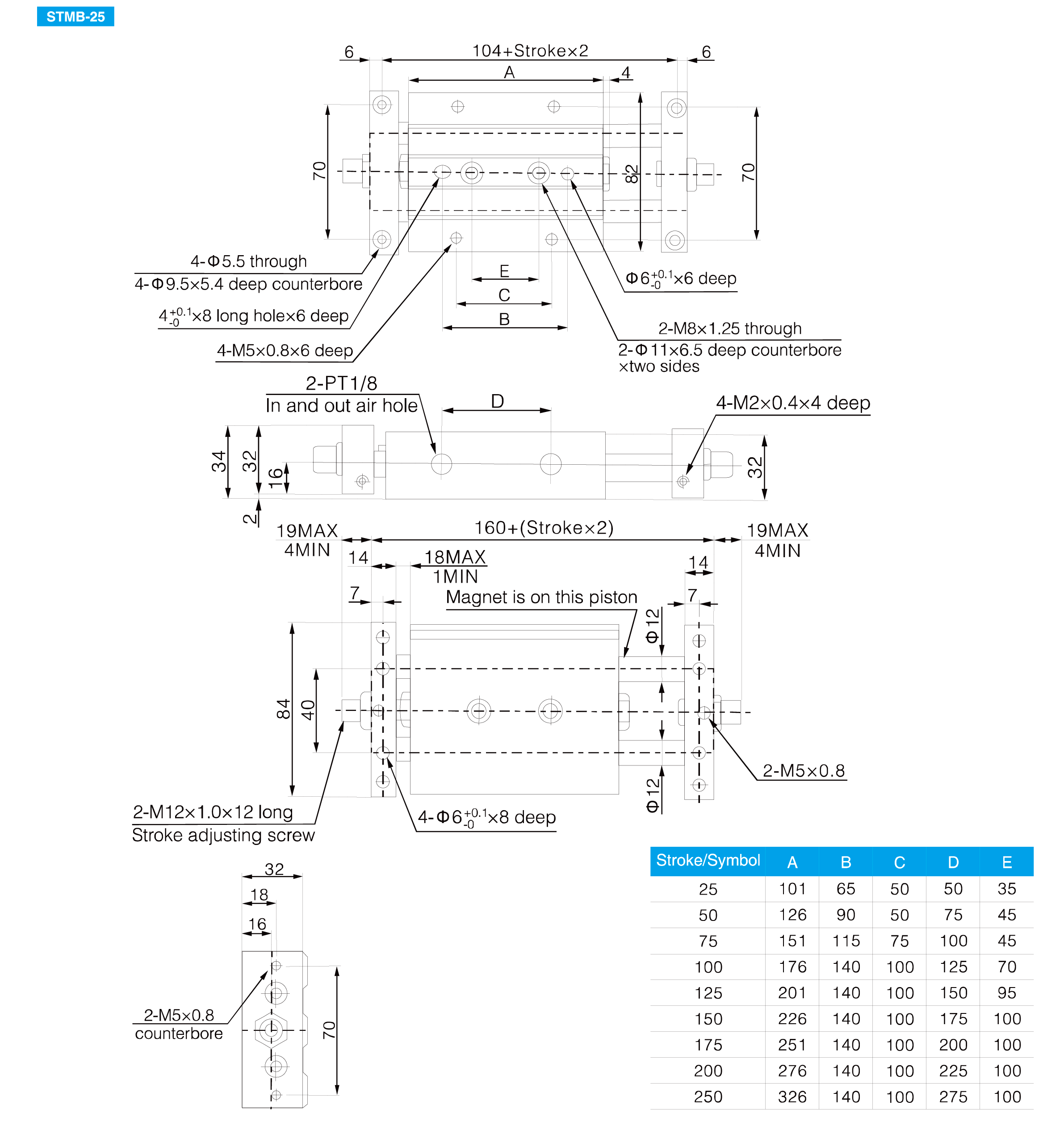

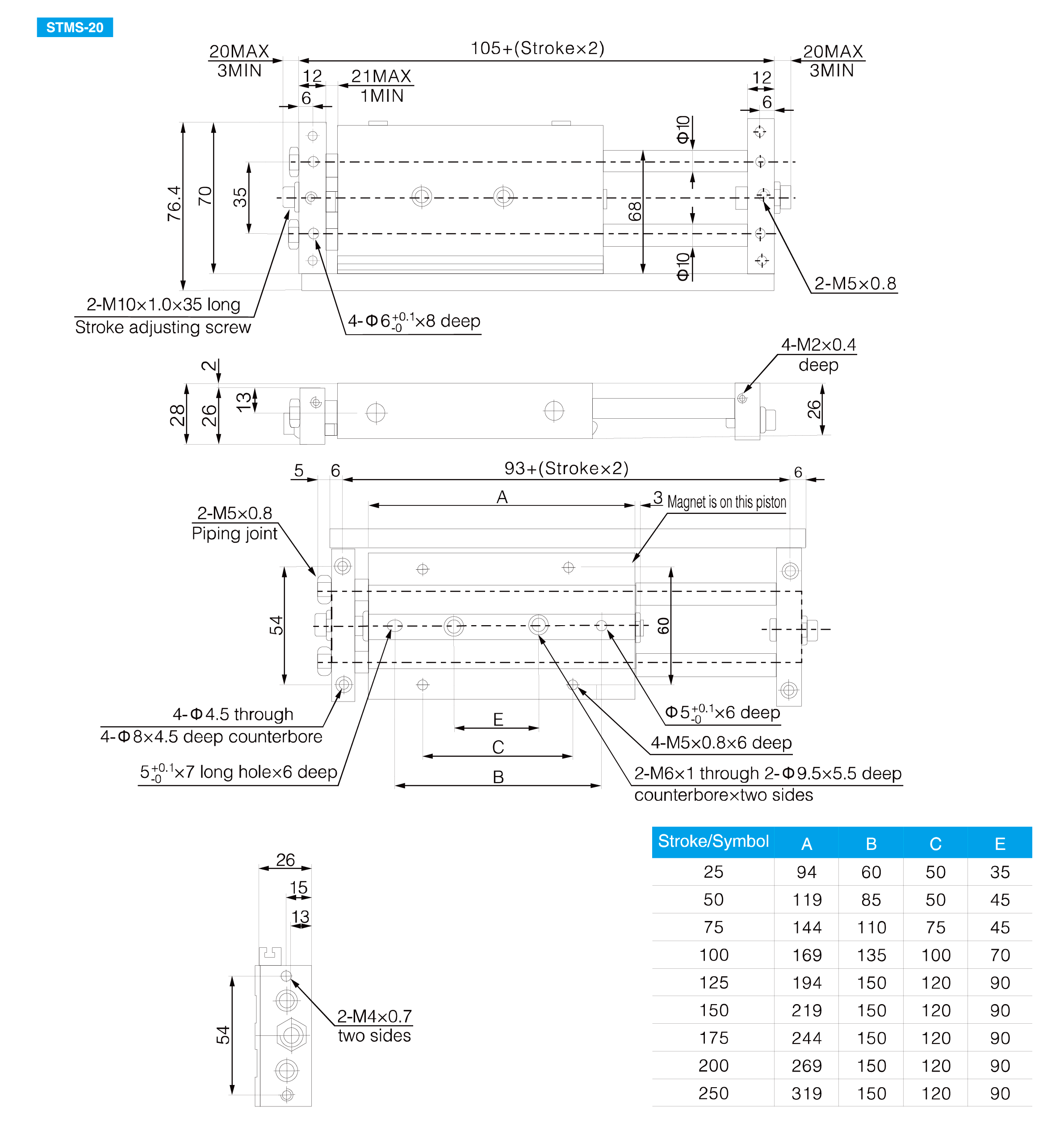

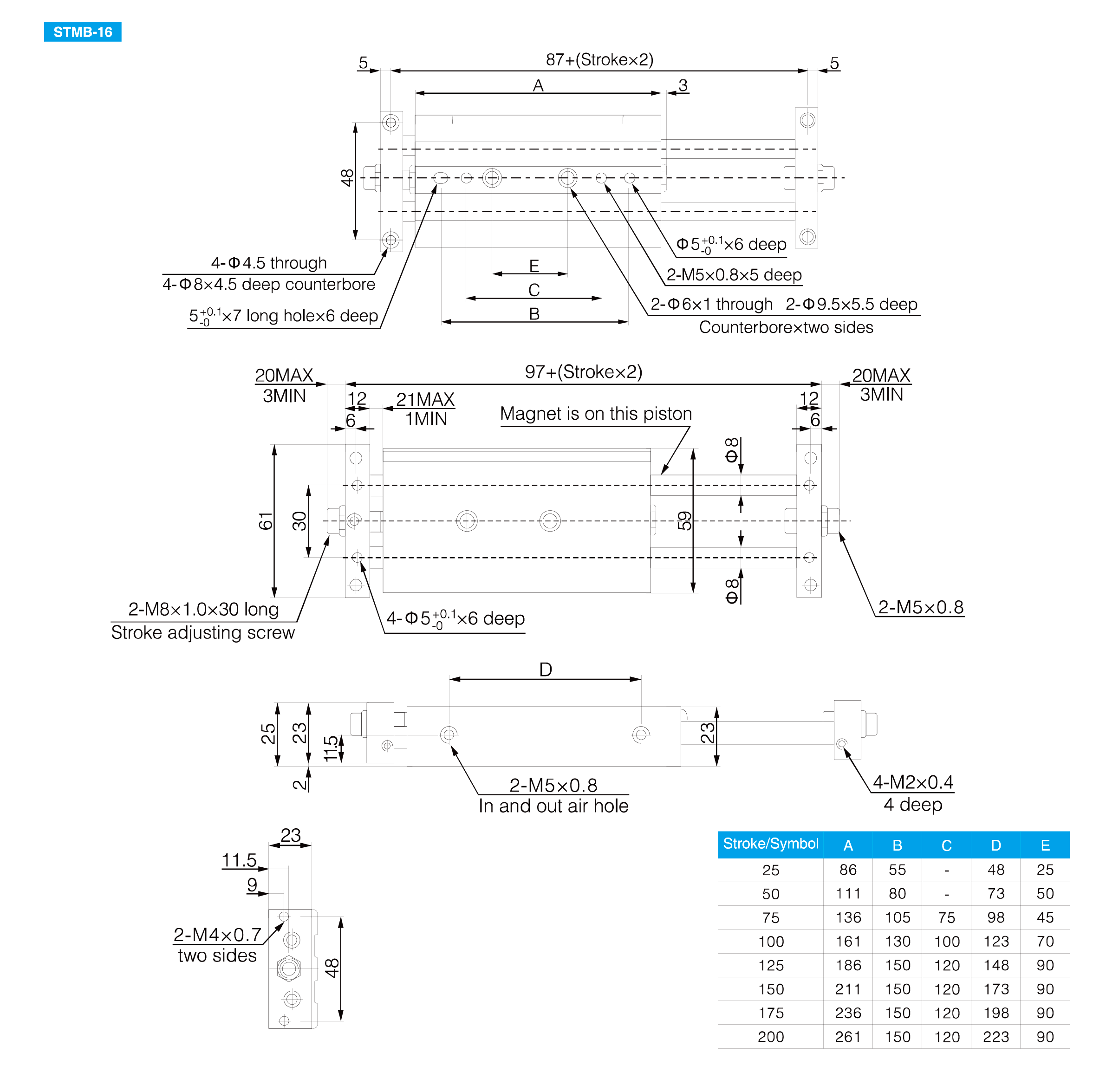

● Two mounting methods: body mounting or slide mounting

● Compact structure saves installation space

● Optional hydraulic buffer or anti-collision cushioning

● Smooth motion with reduced impact at stroke ends

● High positioning accuracy and repeatability

● Optional high-temperature seals for operation up to 150°C

● Reliable performance with low maintenance requirements

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Reliable Performance in Demanding Environments

To improve durability during high-speed operation, the STM Series can be equipped with anti-collision pads or optional hydraulic buffers that effectively reduce impact energy at both ends of the stroke. This cushioning system minimizes vibration, lowers mechanical wear, and helps extend the service life of both the cylinder and connected equipment.

For applications exposed to elevated temperatures, high-temperature sealing materials are available, enabling reliable operation in environments of up to 150°C. This makes the slide table suitable for specialized production processes where conventional pneumatic actuators may not perform consistently.

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Applications

● Precision positioning systems

● Automated assembly equipment

● Pick-and-place machinery

● Electronic component handling

● Packaging and labeling equipment

● Material transfer systems

● Robotic auxiliary axes

● Inspection and testing machines

● Semiconductor manufacturing equipment

● High-temperature industrial automation

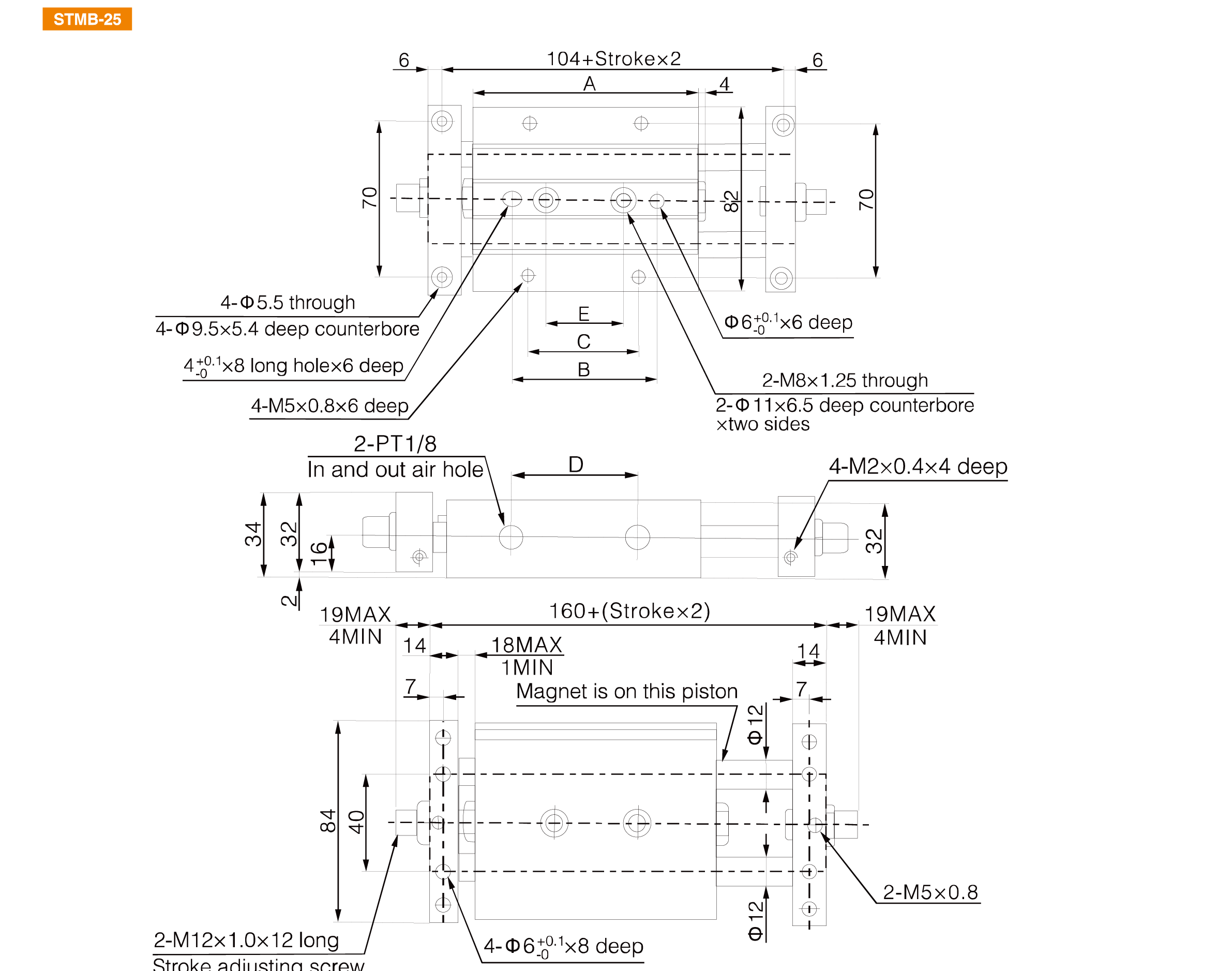

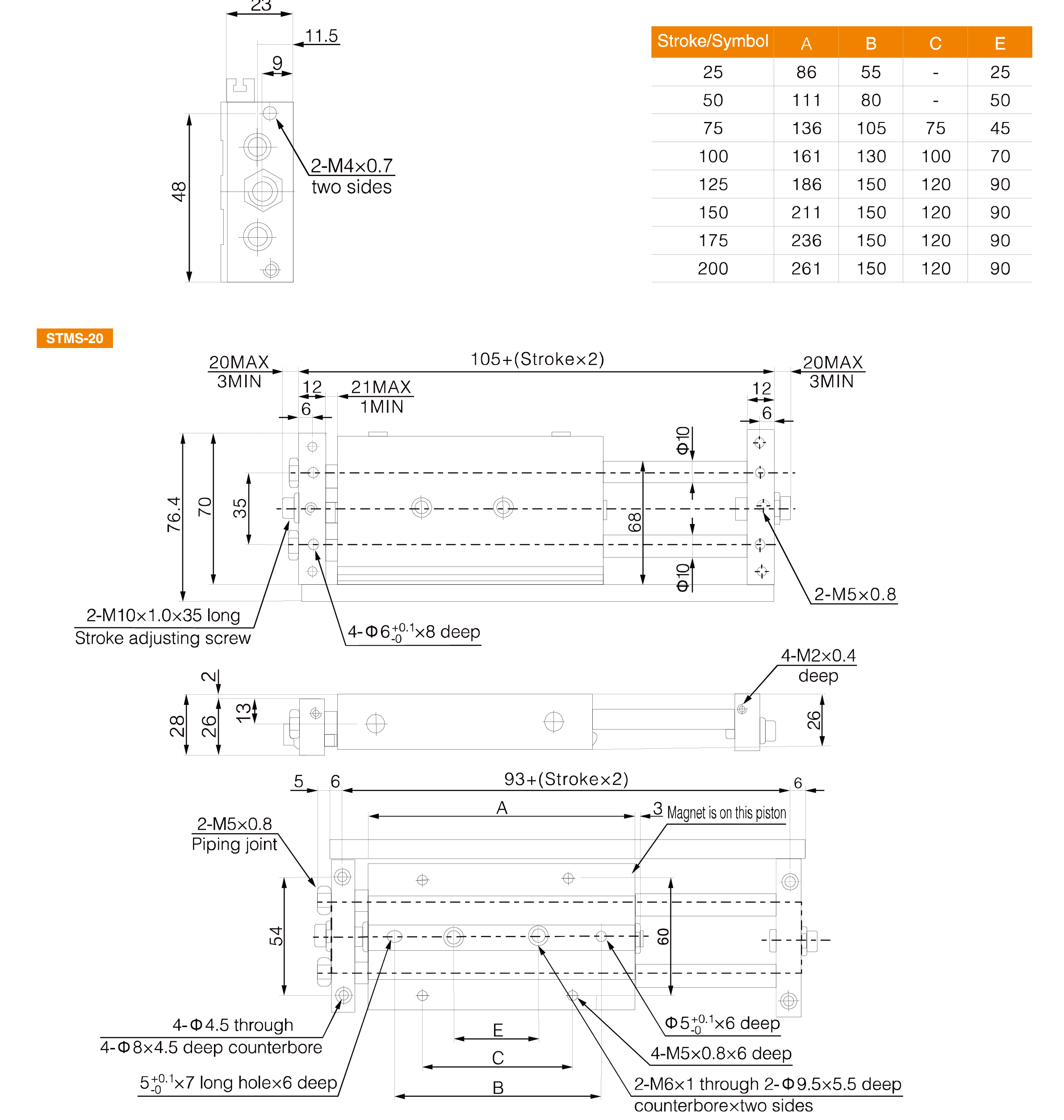

The STM Series Pneumatic Slide Table combines compact construction, exceptional structural rigidity, flexible mounting options, and smooth linear guidance to provide a dependable solution for precision automation systems requiring accurate positioning, high load capacity, and long-term operational reliability.
