The PZ/PZJ Series Dual Rod Cylinder is a guided pneumatic actuator designed for applications requiring accurate linear movement and reliable anti-rotation performance. Featuring parallel piston rods connected by a yoke structure, it provides enhanced stability, precise positioning, and improved resistance to side loads. Available with plain-bearing or recirculating ball bearing guides, the cylinder is ideal for automation equipment, transfer systems, positioning units, and industrial handling applications where smooth and repeatable motion is essential.
The PZ/PZJ Series Dual Rod Cylinder combines a parallel rod design with an integrated guide system to deliver stable and accurate linear motion. The through-type piston rod structure effectively prevents unwanted rotation while maintaining excellent rigidity during operation. Designed for modern automation equipment, the cylinder supports precise positioning and smooth movement even under offset loads and repetitive working conditions.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Parallel piston rods with yoke construction
● Excellent anti-rotation and guiding performance

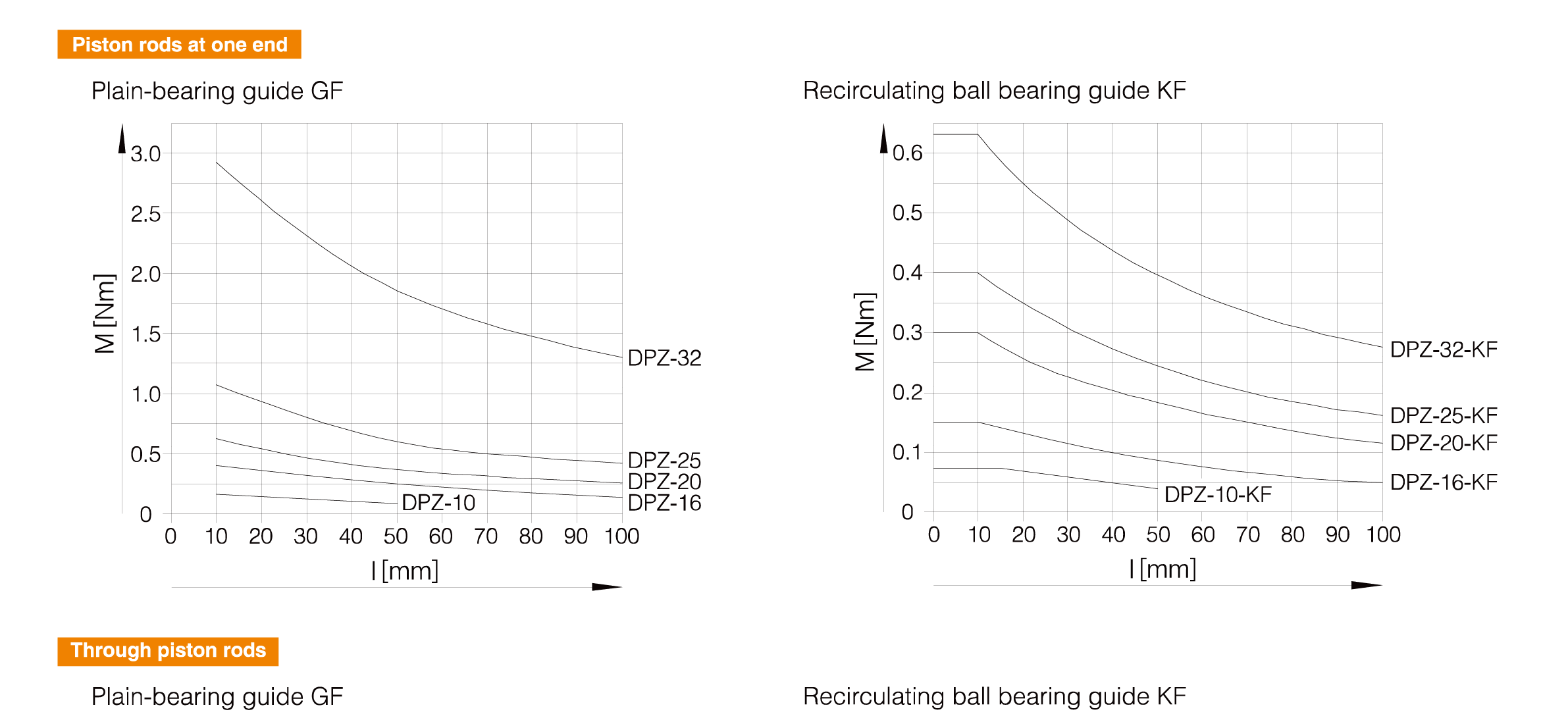

● Available with plain-bearing guide (GF) or recirculating ball bearing guide (KF)
● Flexible cushioning rings at both ends for smoother operation
● Suitable for proximity sensor integration
● Multiple mounting options including female thread and mounting plate
● Compact design with high positioning accuracy
● Supports operation with lubricated or non-lubricated compressed air
● Installation possible in any mounting position
● Reliable performance under continuous industrial operation
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

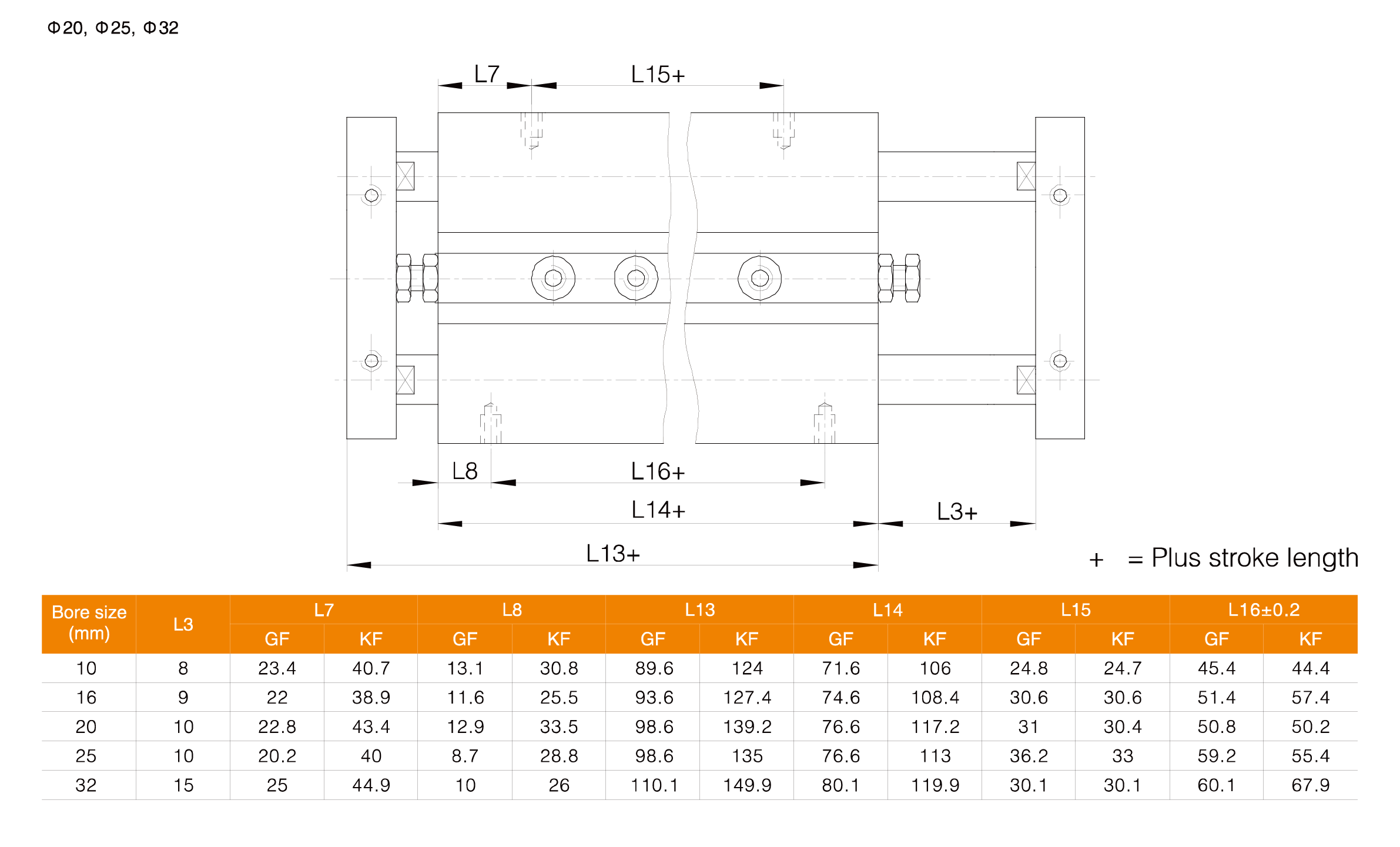

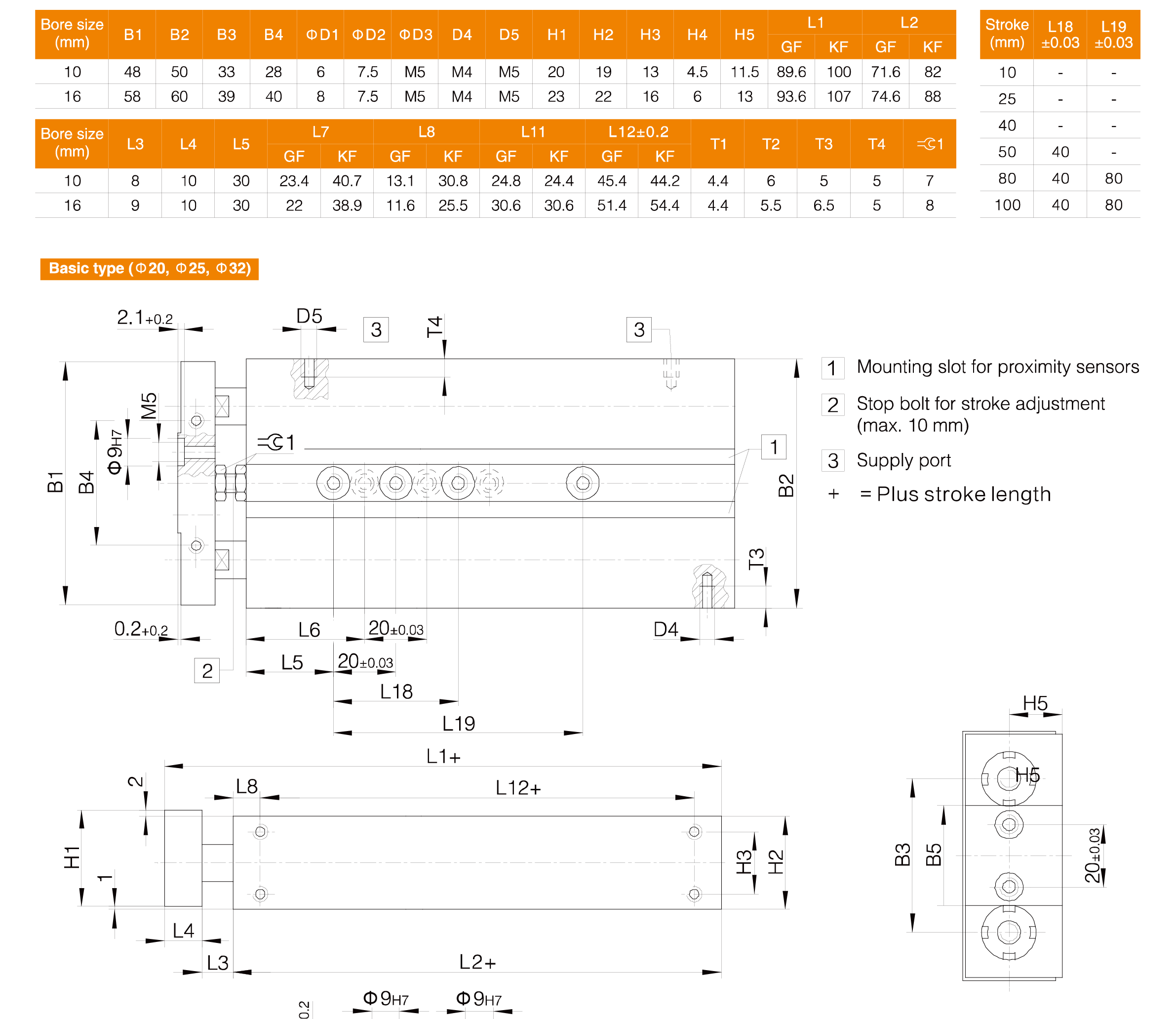

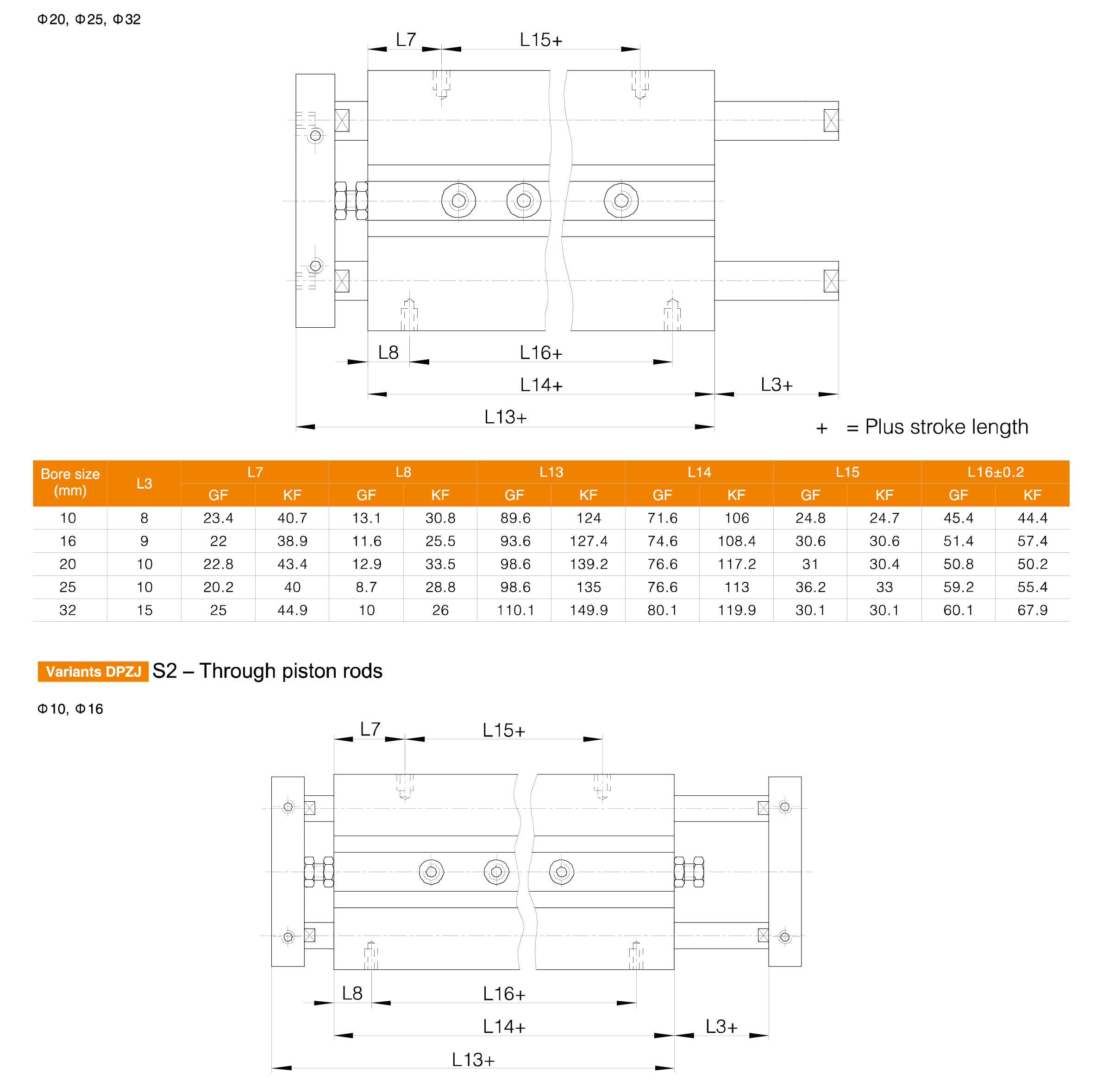

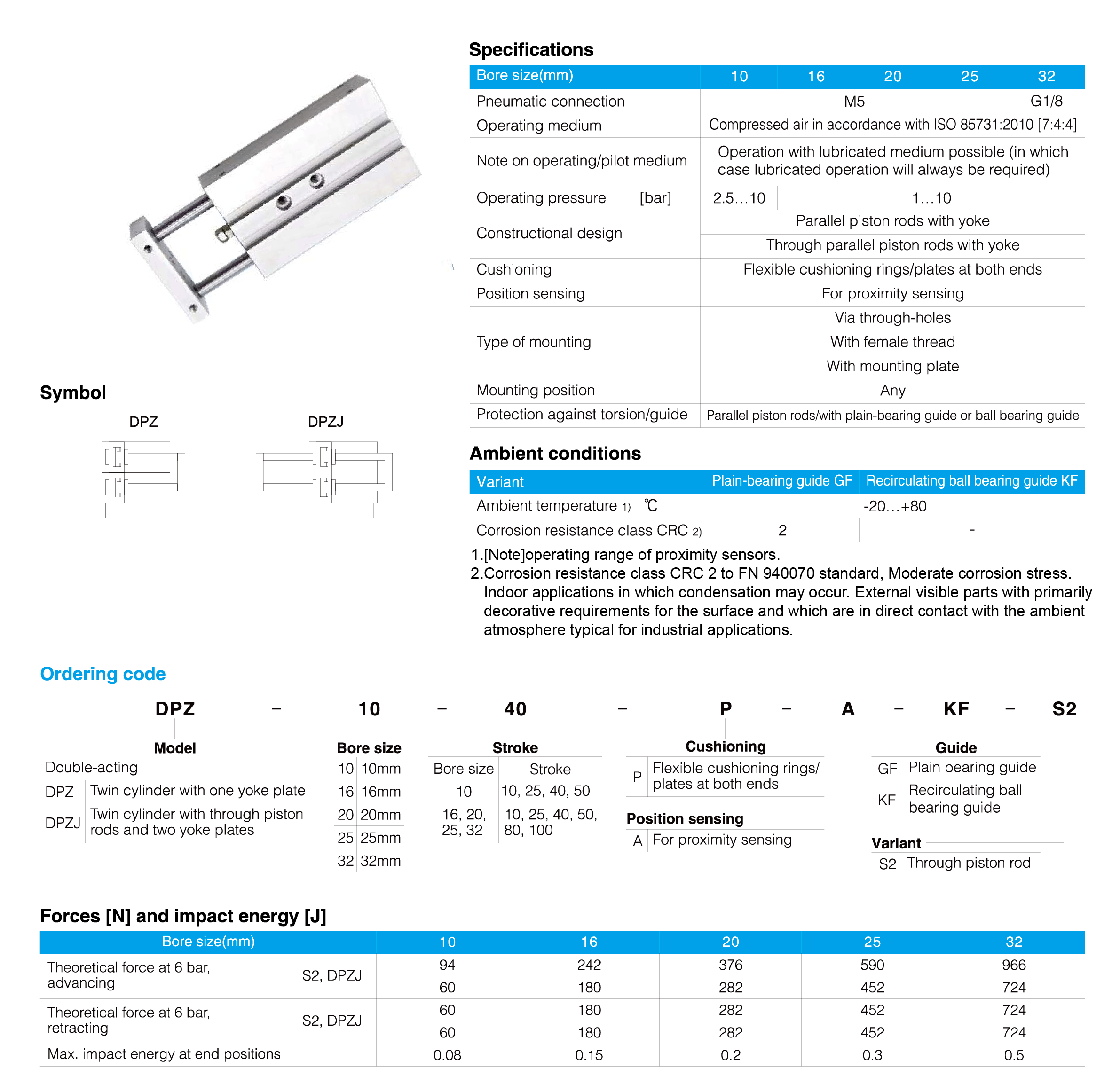

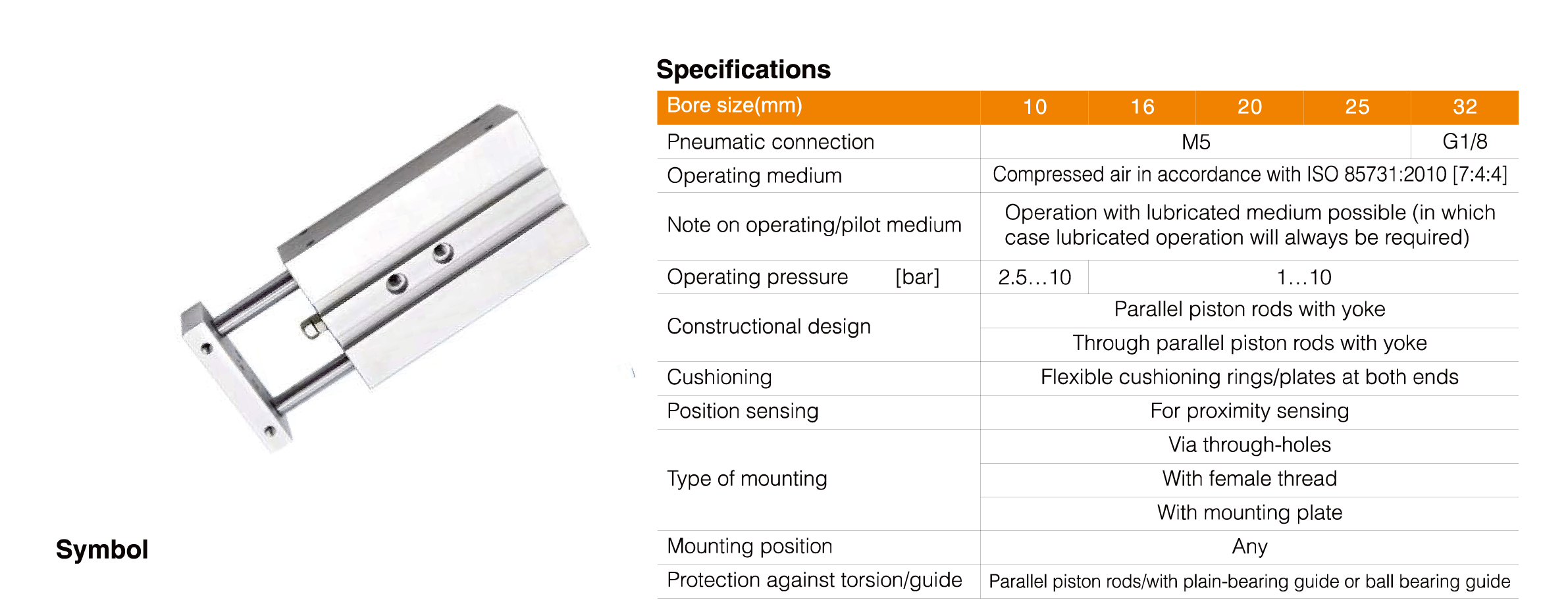

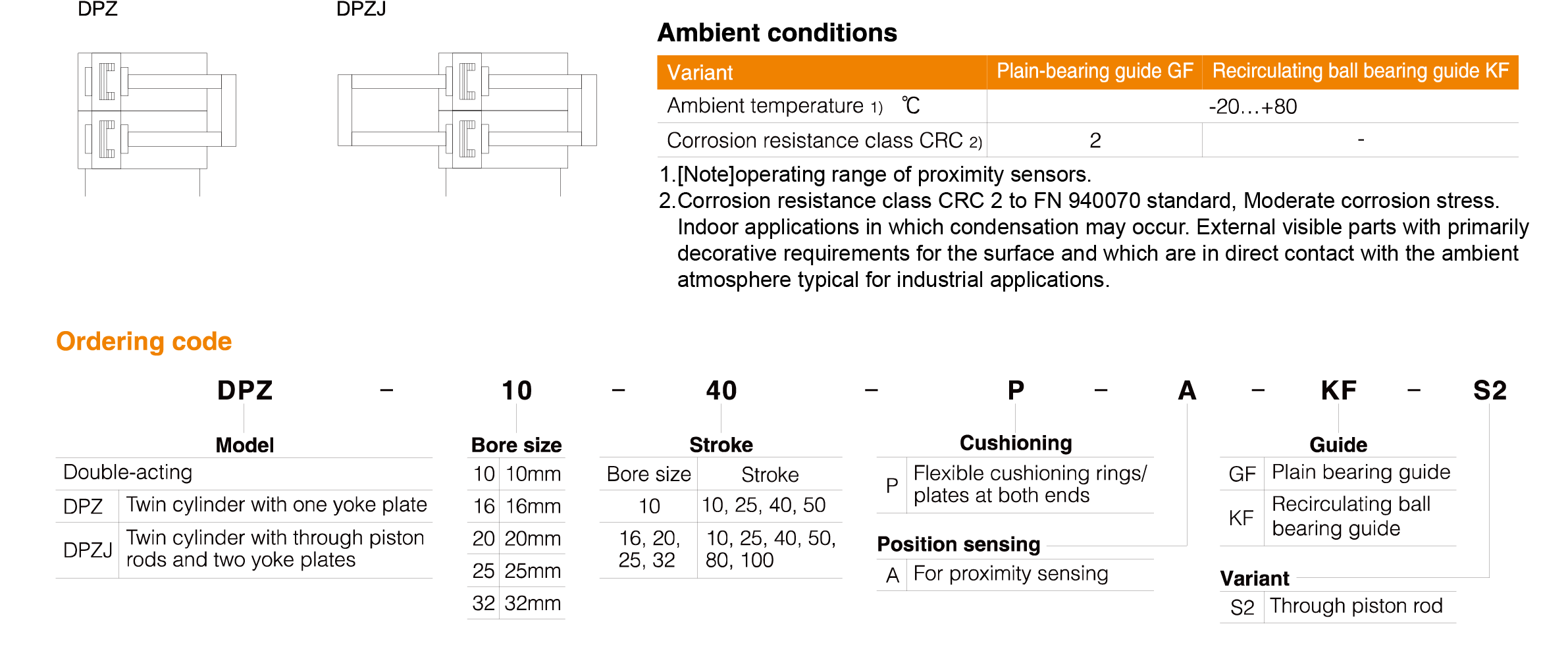

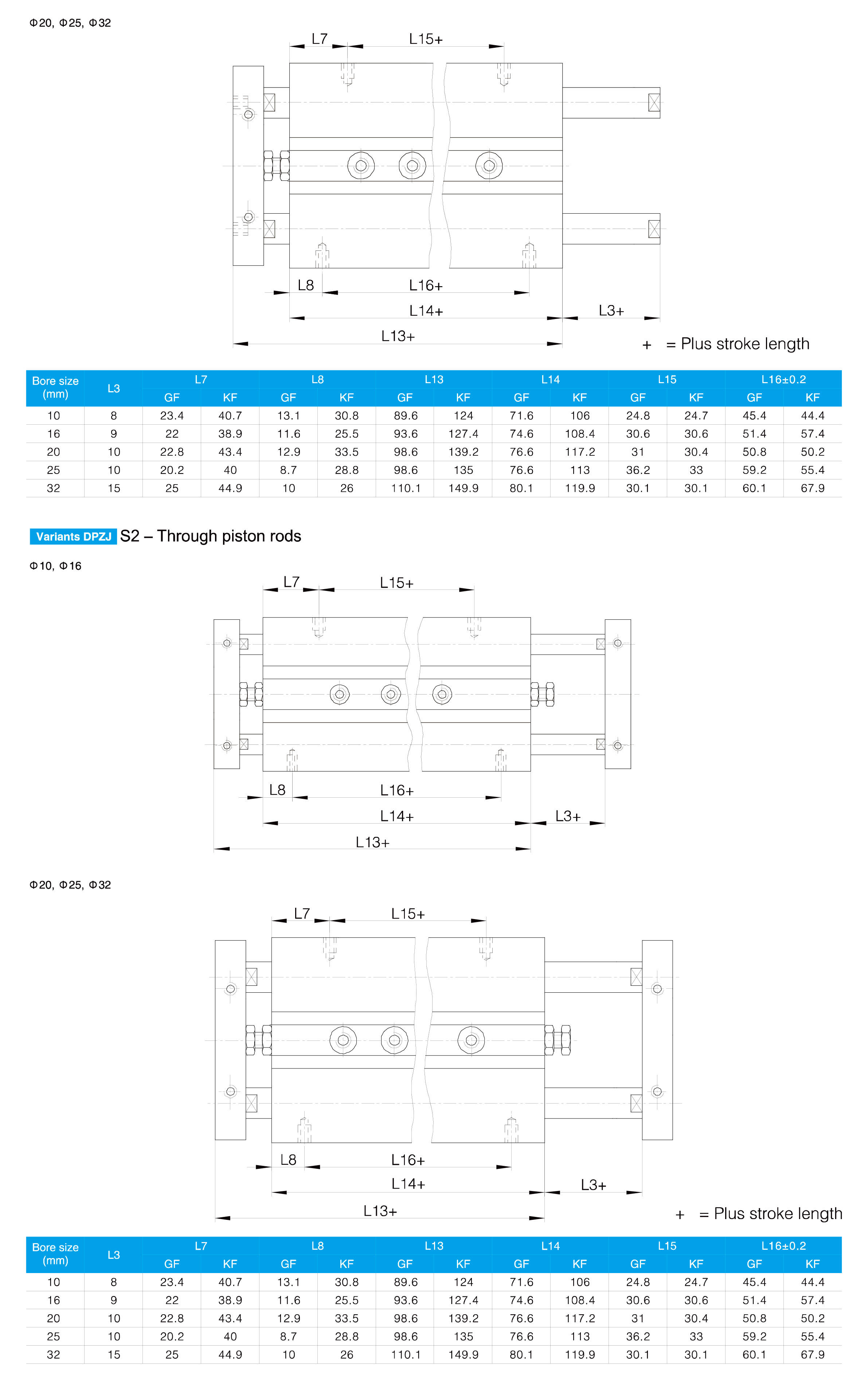

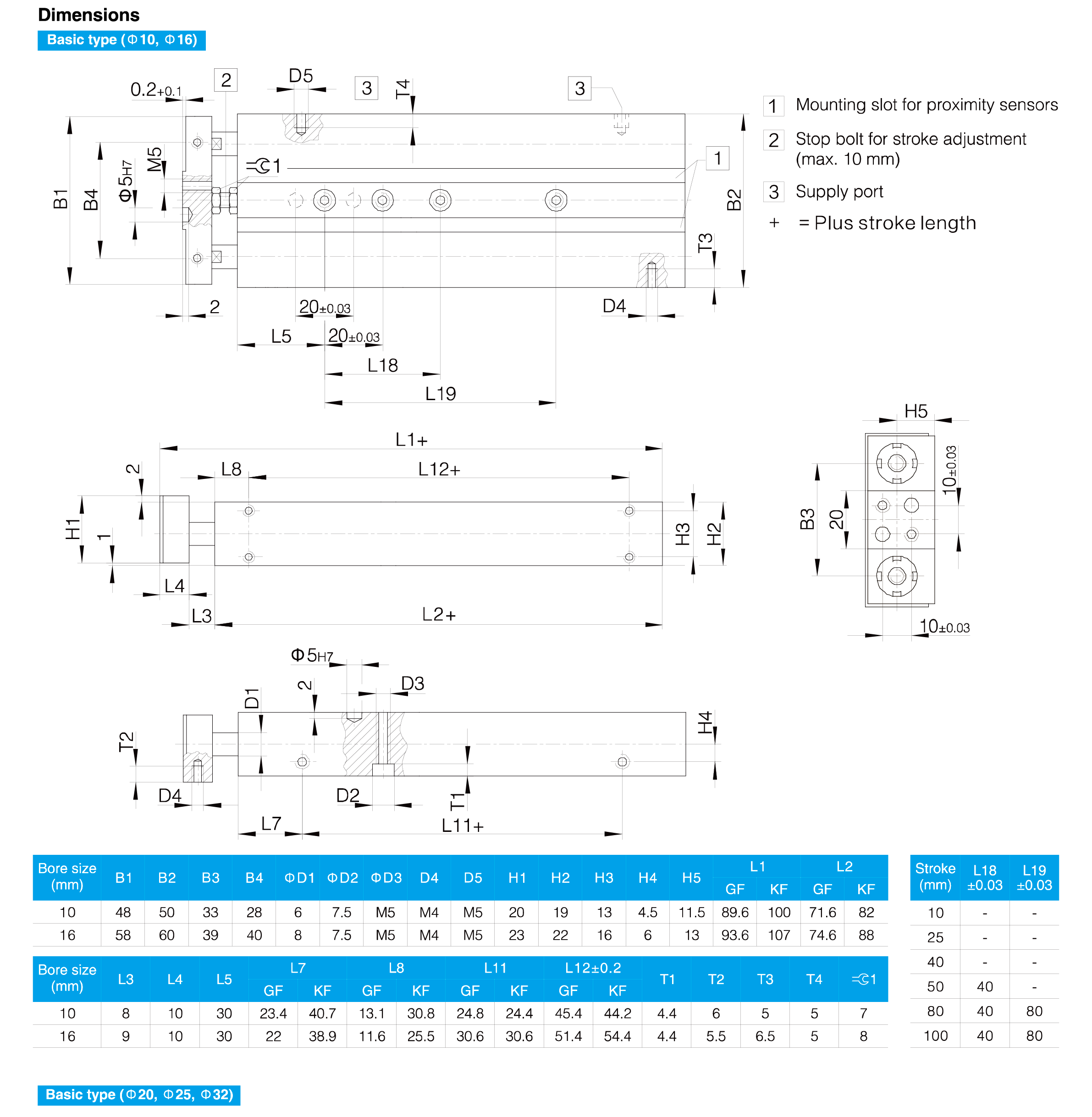

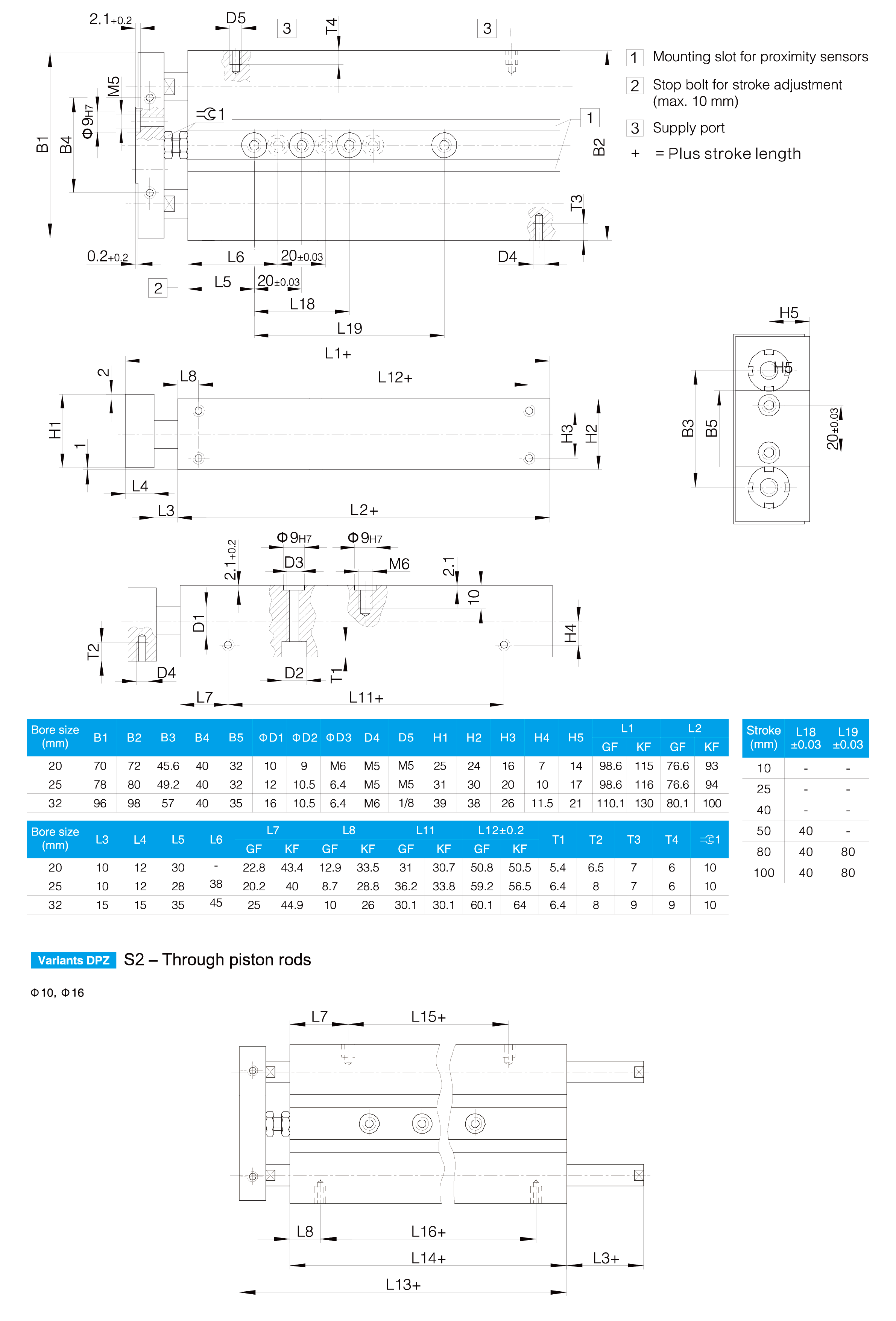

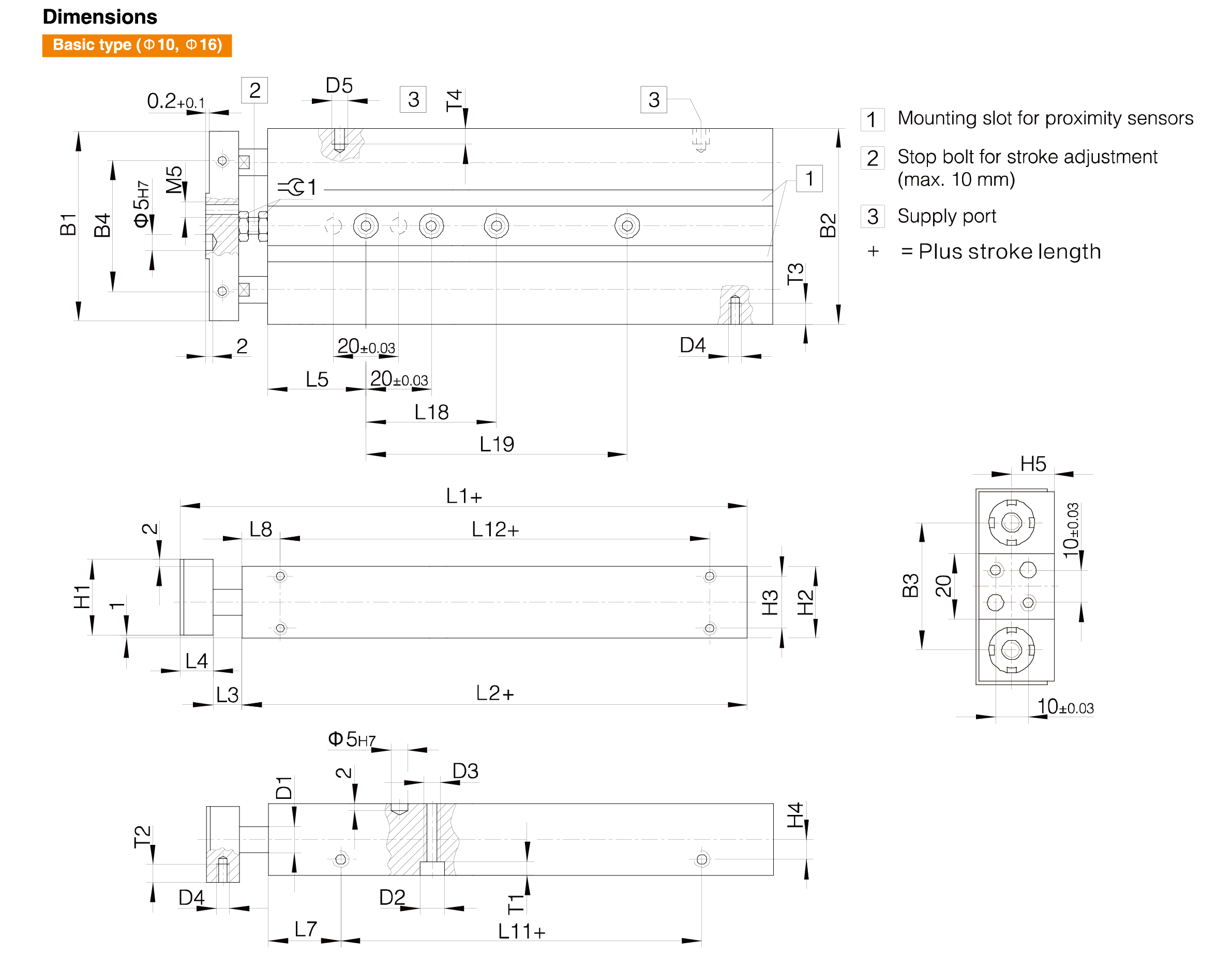

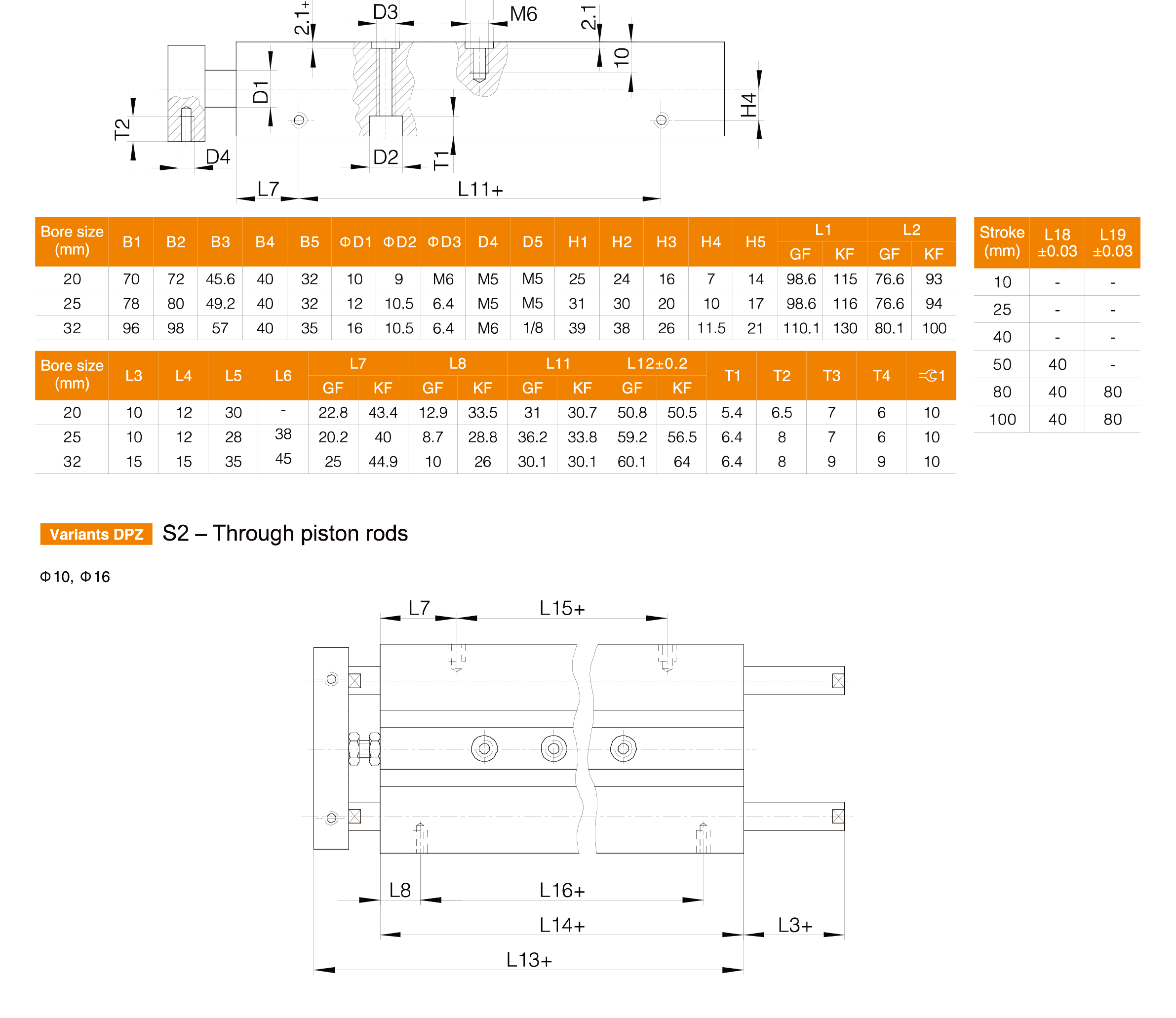

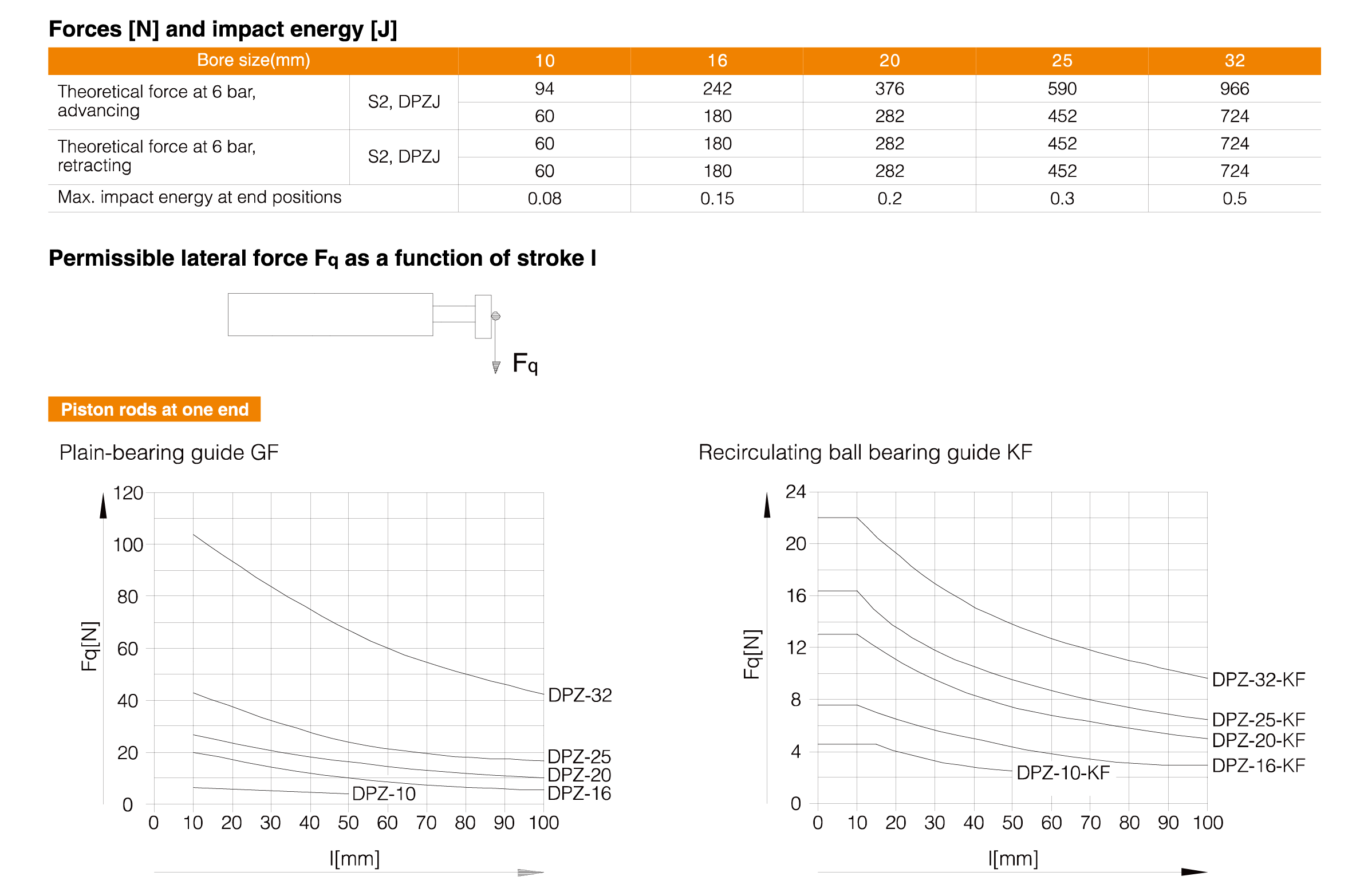

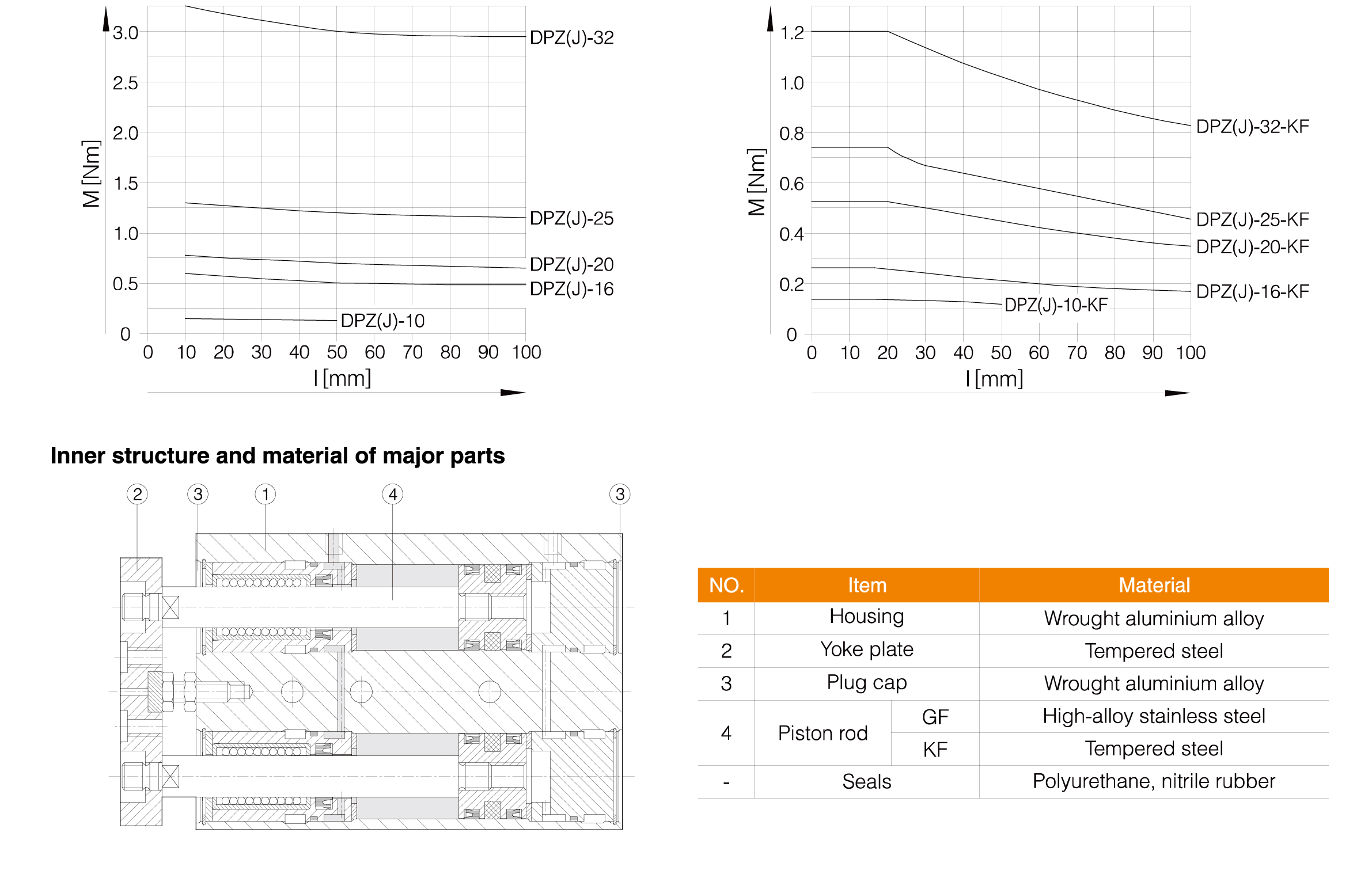

| Parameter | Specification |
| Bore Size | 10, 16, 20, 25, 32 mm |
| Pneumatic Connection | M5, G1/8 |
| Operating Medium | Compressed air according to ISO 8573-1:2010 [7:4:4] |
| Operating Pressure | 1–10 bar / 2.5–10 bar |
| Construction | Through parallel piston rod with yoke |
| Cushioning | Flexible cushioning rings/plates at both ends |
| Position Sensing | Suitable for proximity sensing |
| Mounting Type | Female thread, mounting plate |
| Mounting Position | Any |
| Guide Type | Plain-bearing guide GF / Recirculating ball bearin guide KF |
| Ambient Temperature | -20°C to +80°C |
| Corrosion Resistance Class | CRC 2 |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

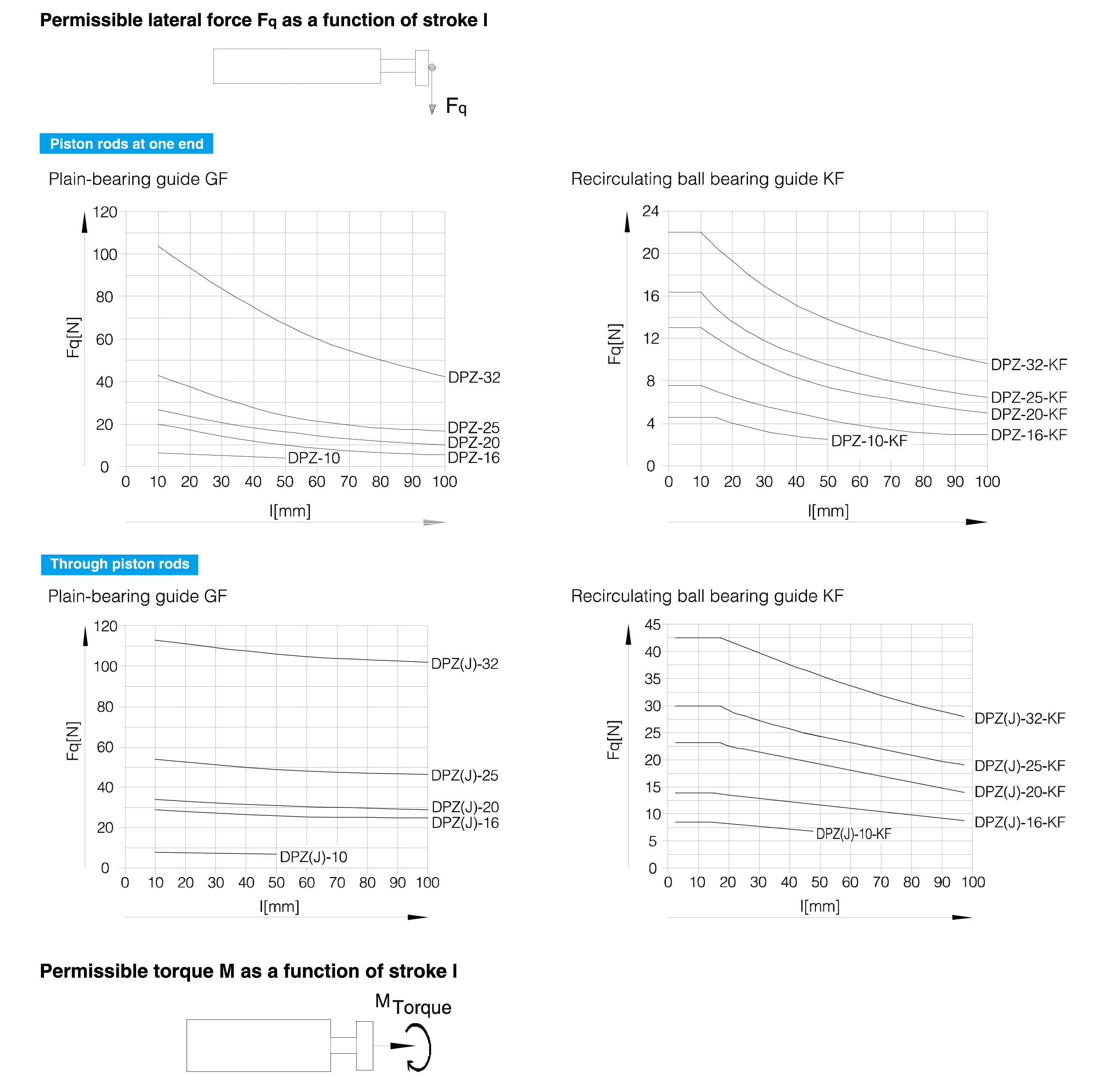

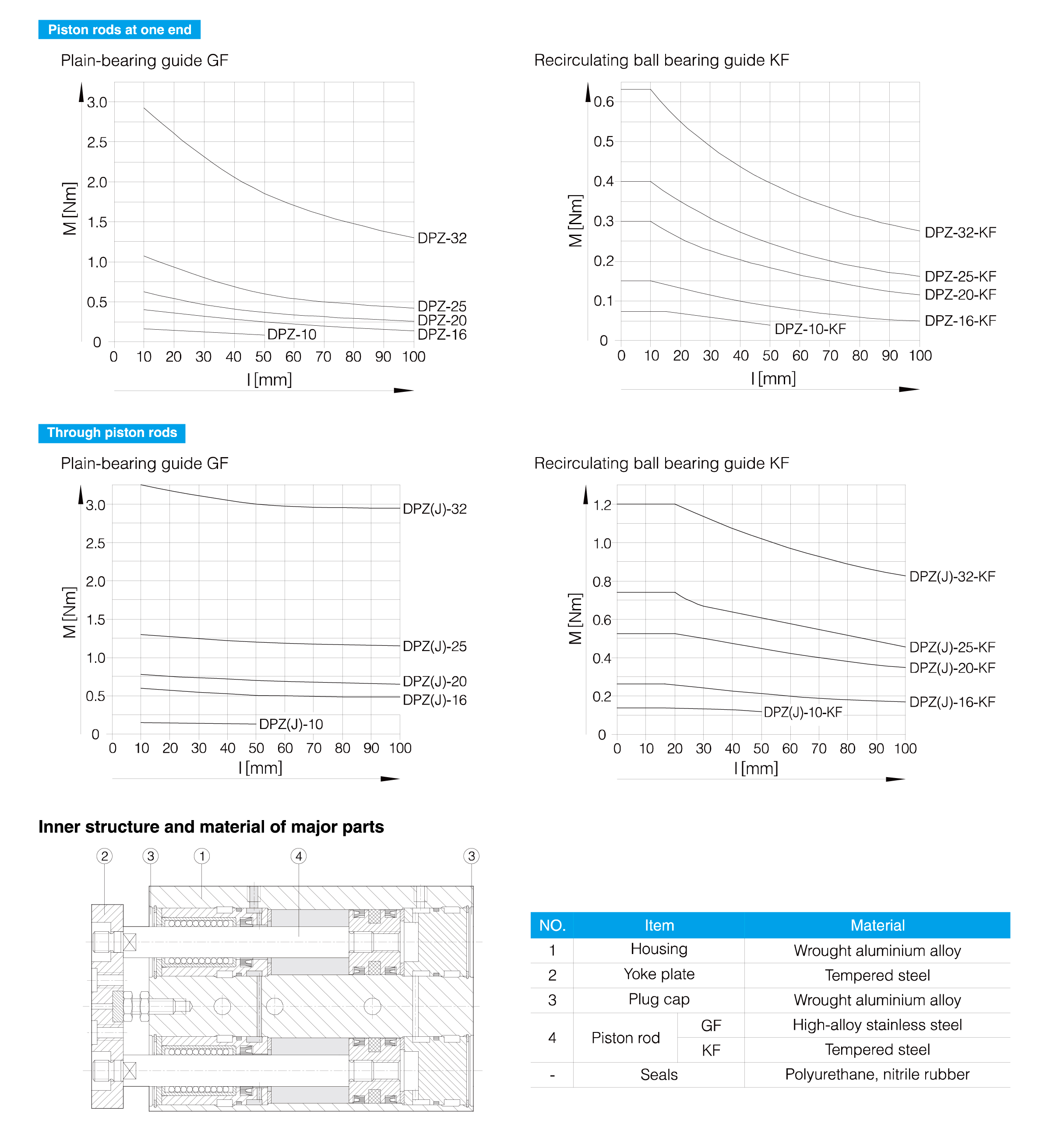

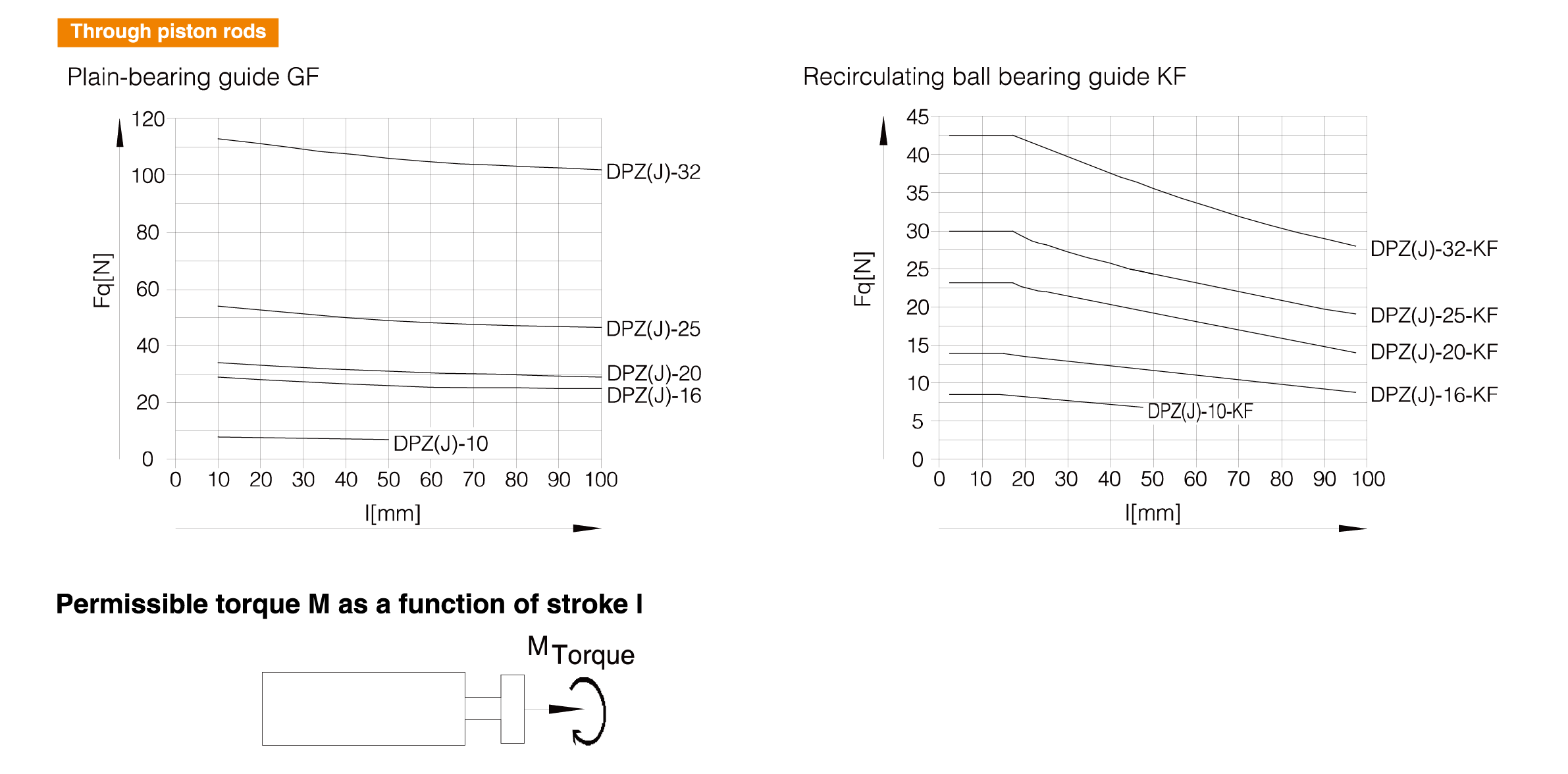

The dual rod arrangement provides enhanced rigidity compared with conventional single-rod cylinders. By distributing forces across two parallel guide rods, the cylinder maintains alignment accuracy and minimizes deflection caused by eccentric loads. This makes the PZ/PZJ Series particularly suitable for positioning, pushing, clamping, and transferring tasks where motion consistency directly affects production quality.
The availability of both plain-bearing and ball-bearing guide versions allows users to select the most suitable solution based on load, speed, and precision requirements.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Automated assembly equipment
● Pick-and-place systems
● Workpiece positioning devices
● Clamping and pressing mechanisms
● Packaging and conveying machinery
● Electronic component handling
● Inspection and testing equipment
● Material transfer systems
● Industrial automation production lines
With its guided structure, anti-rotation capability, and versatile mounting options, the PZ/PZJ Series Dual Rod Cylinder provides a dependable solution for precise linear motion control across a wide range of industrial automation applications.
