The MXS Series Air Slide Table integrates a compact pneumatic cylinder with a precision cross roller guide to provide highly accurate linear motion and excellent load stability. Its double-cylinder structure delivers greater output force while maintaining a slim profile for space-saving machine designs.
With optional stroke adjustment, built-in magnetic switch compatibility, and flexible three-side installation, the MXS Series is an ideal solution for precision assembly, positioning, and transfer applications in industrial automation.
The MXS Series Air Slide Table is engineered to provide precise linear positioning, smooth motion, and exceptional rigidity in compact automation equipment. By integrating the cylinder directly with the slide table, the overall actuator size is significantly reduced without sacrificing performance. This compact construction makes the MXS Series particularly suitable for machines where installation space is limited but positioning accuracy remains a critical requirement.
A key feature of the MXS Series is its double-cylinder configuration, which generates approximately twice the output force of a comparable single-cylinder design. Combined with a precision cross roller guide, the actuator offers minimal friction, virtually zero clearance between the cylinder and the table, and highly stable movement during repetitive operation. These characteristics make it especially effective in precision assembly, electronic manufacturing, and high-speed handling applications.
To simplify machine integration, the slide table supports installation from three different sides, allowing greater flexibility in equipment layout. An optional 0–5 mm stroke adjustment mechanism enables fine positioning during installation, while the built-in magnetic ring allows magnetic switches to be mounted for reliable position sensing and automation control.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Compact integrated cylinder and slide table design
● Double-cylinder structure with approximately double output force
● Precision cross roller guide for smooth, low-friction motion
● High rigidity and excellent positioning repeatability

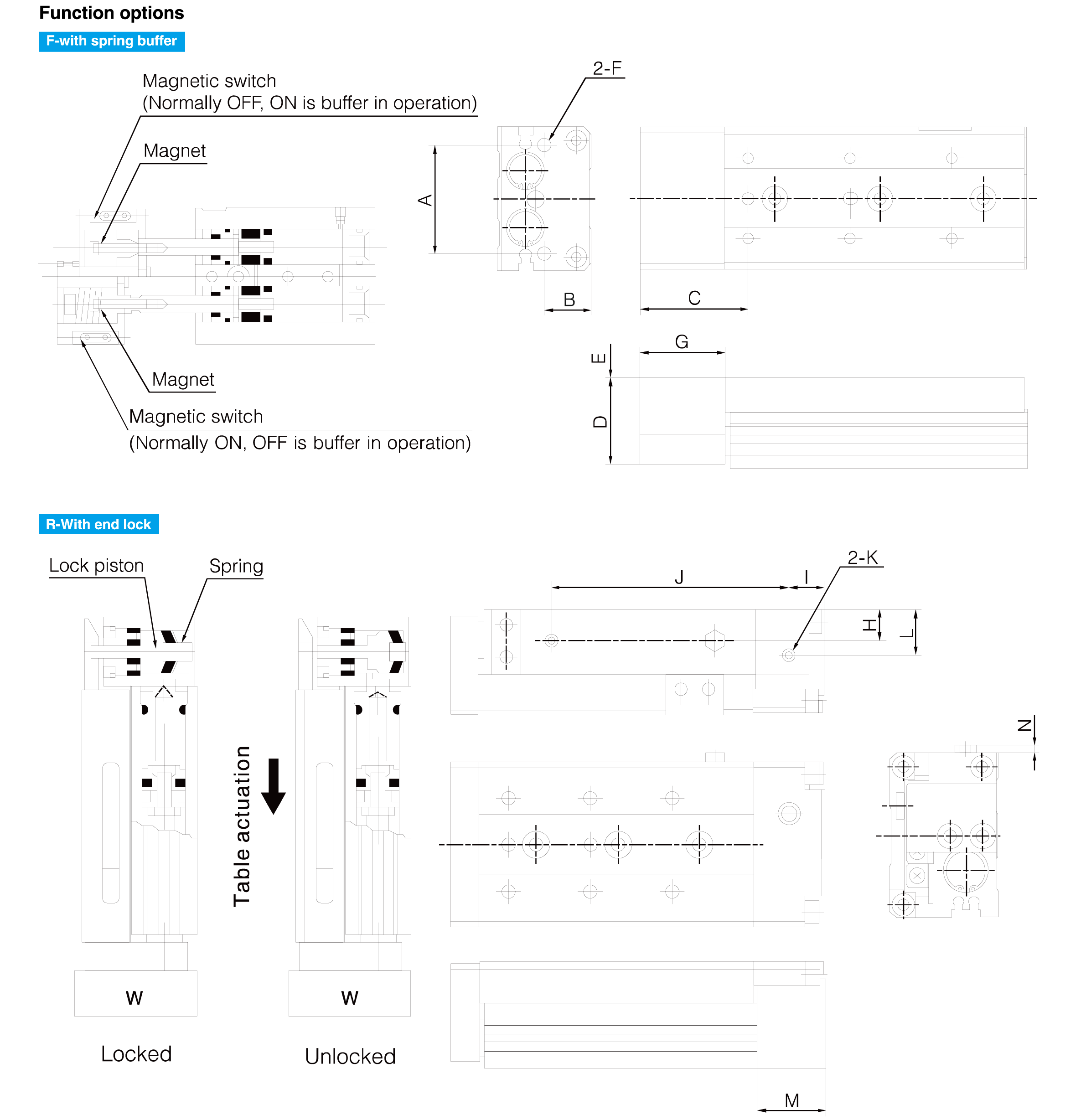

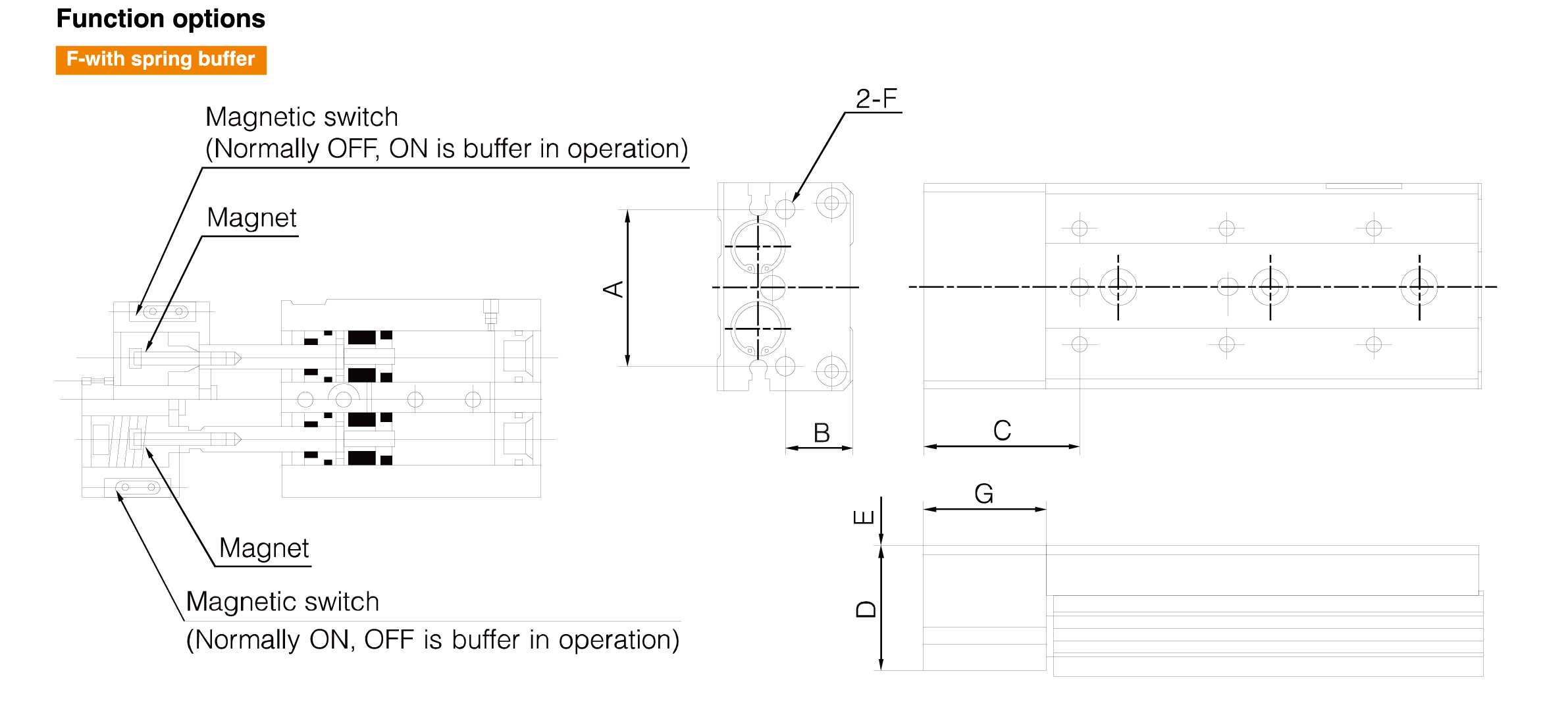

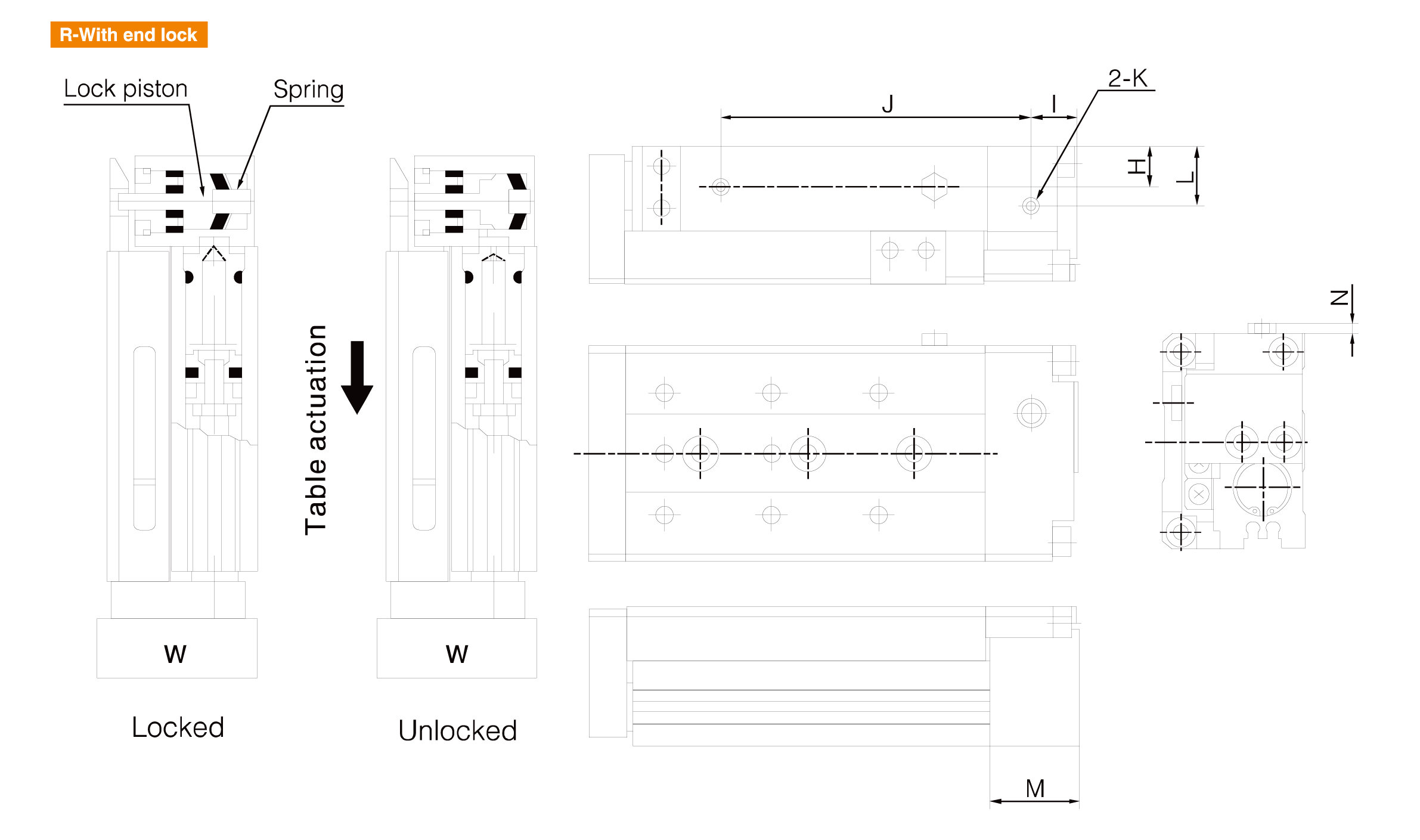

● Optional stroke adjustment (0–5 mm)
● Three-side mounting flexibility
● Built-in magnetic ring for magnetic switch installation
● Slim profile for compact automation equipment
● Maintenance-free non-lube operation
● Stable performance in continuous production environments
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

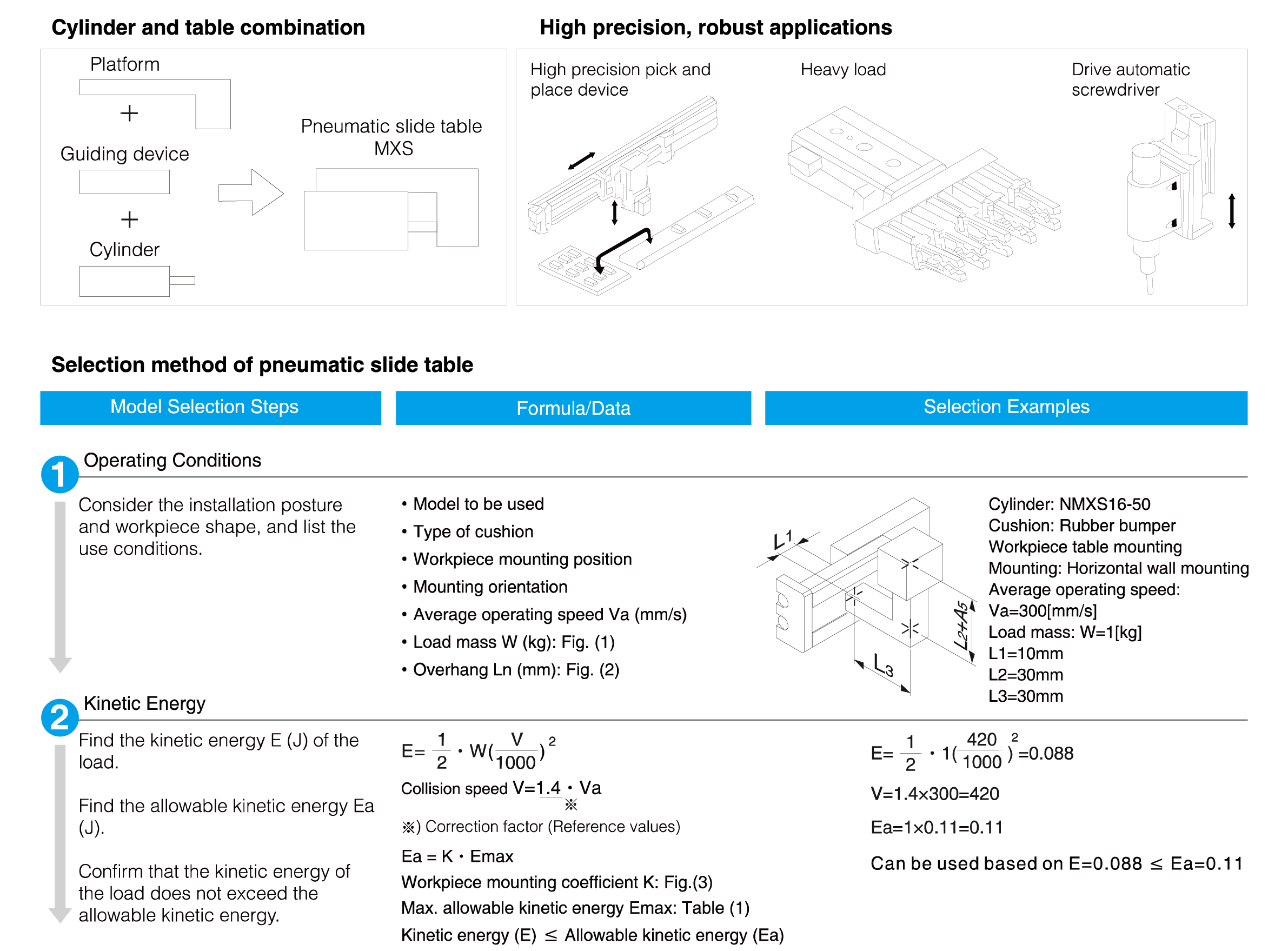

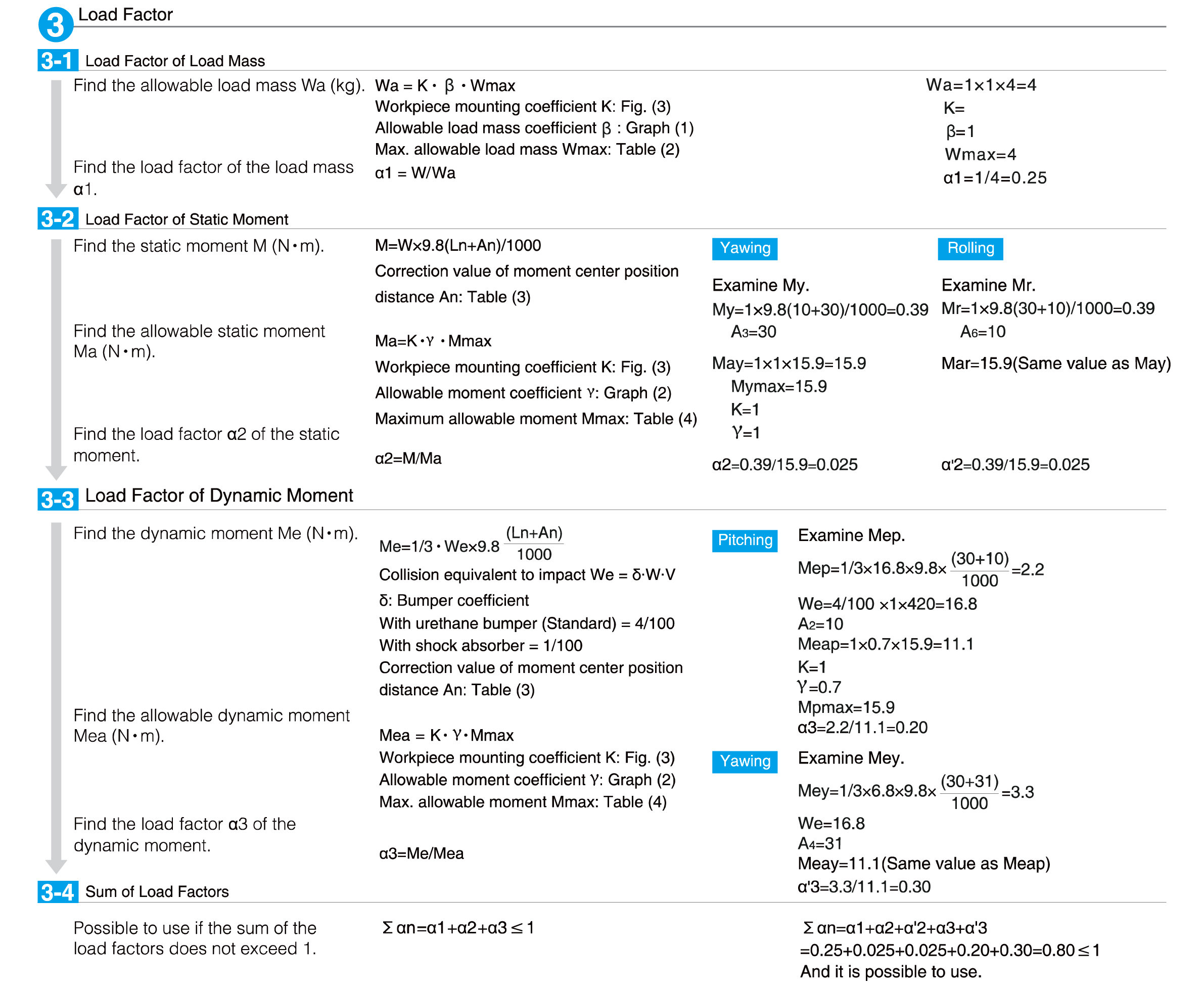

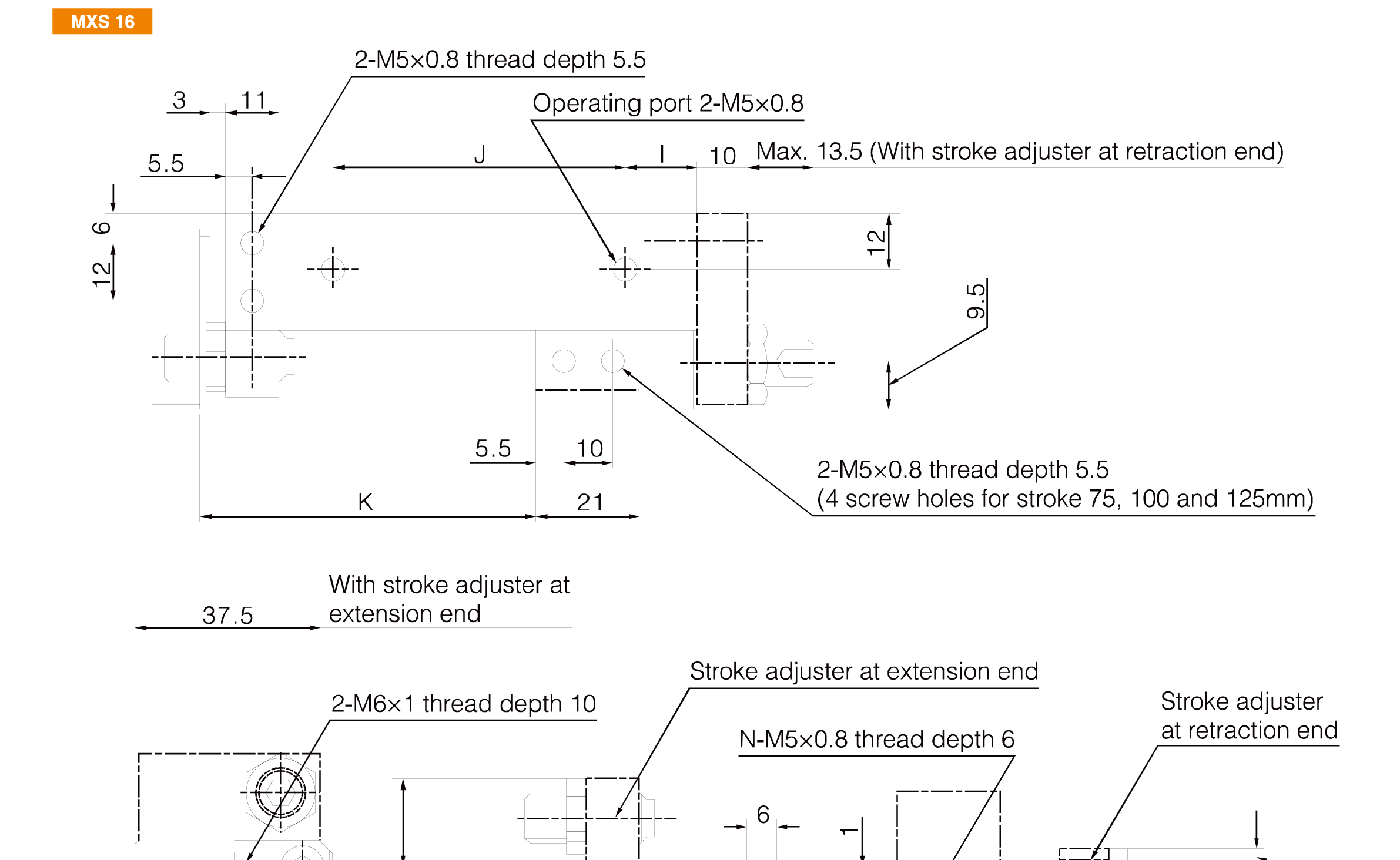

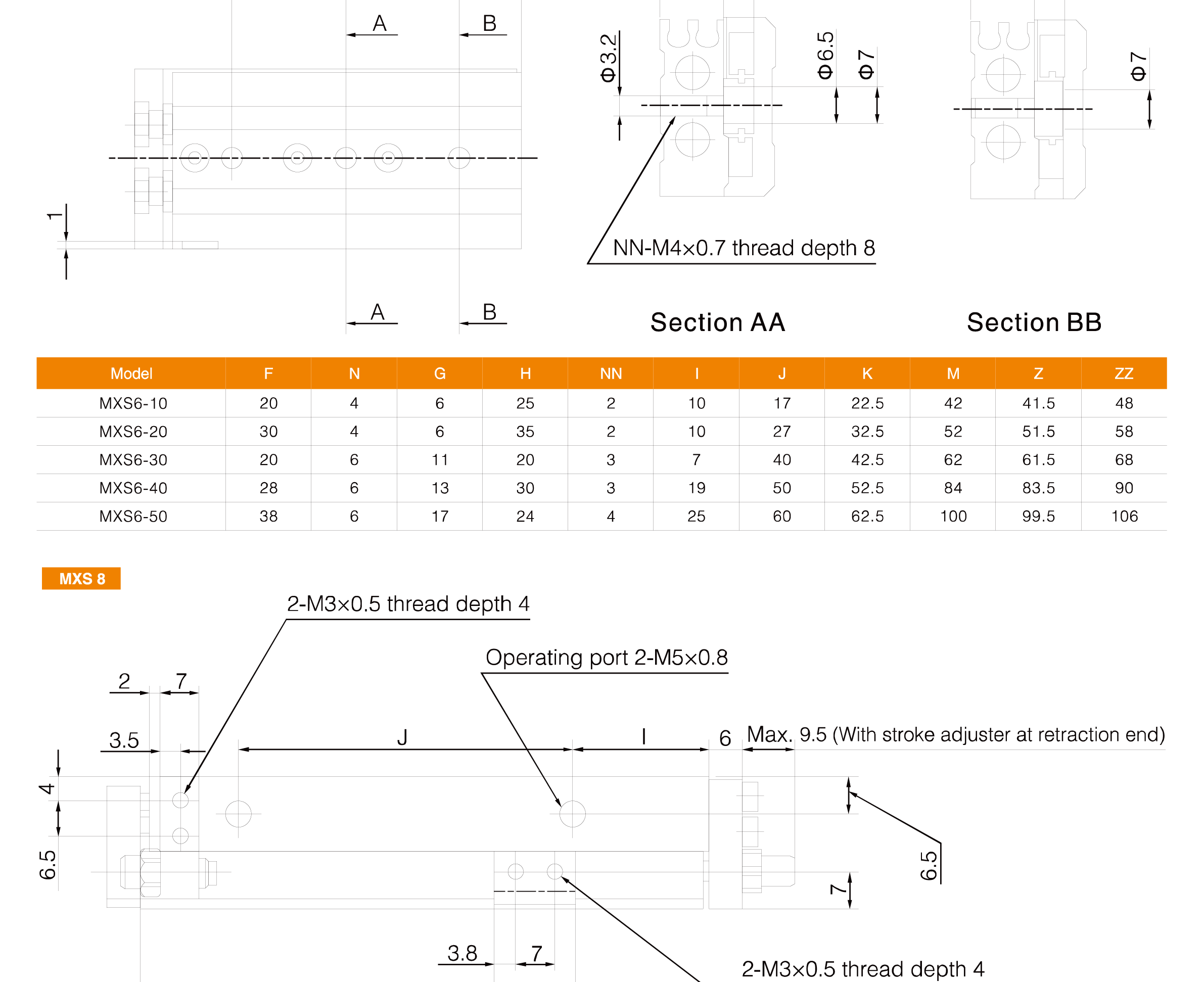

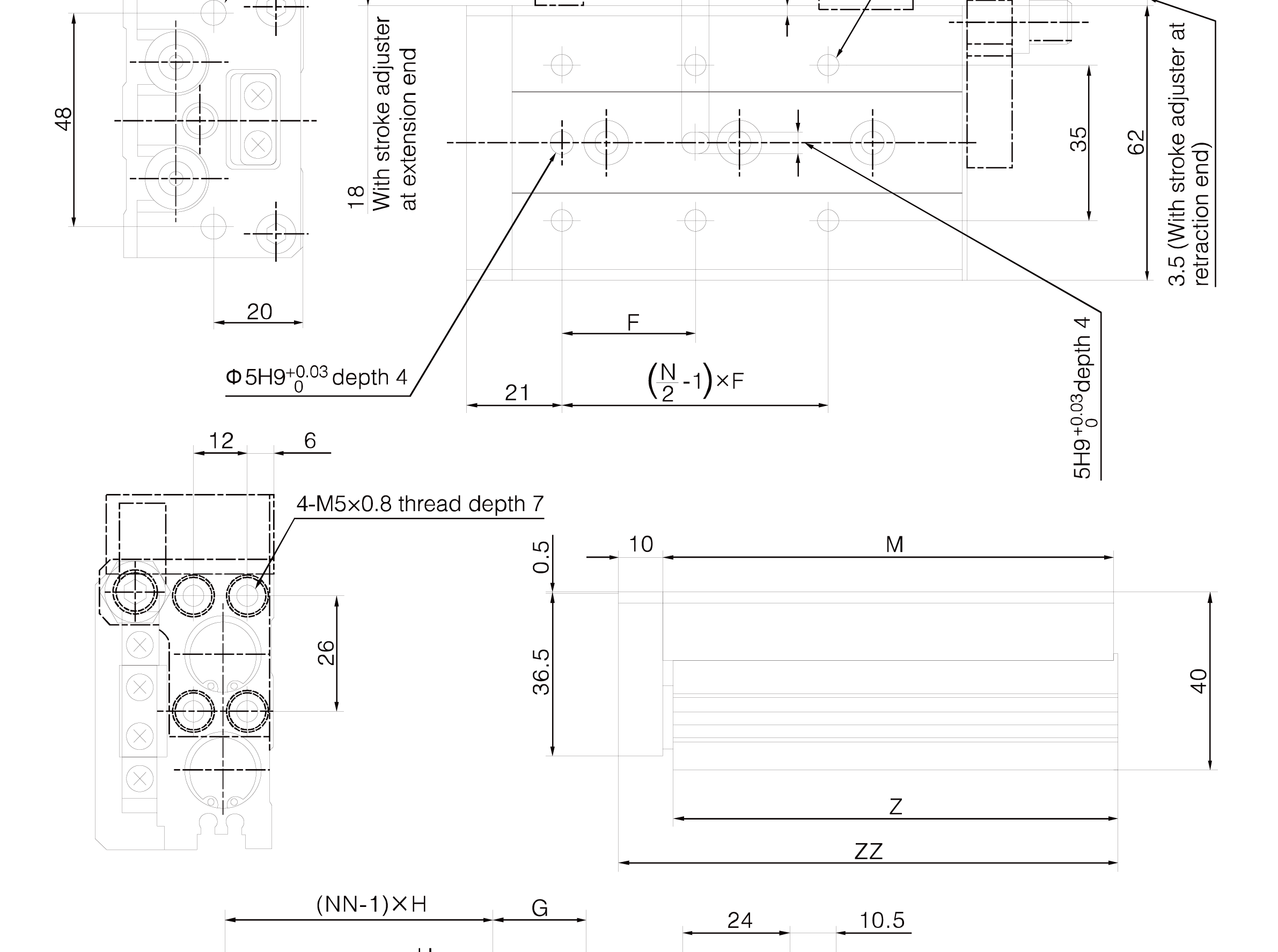

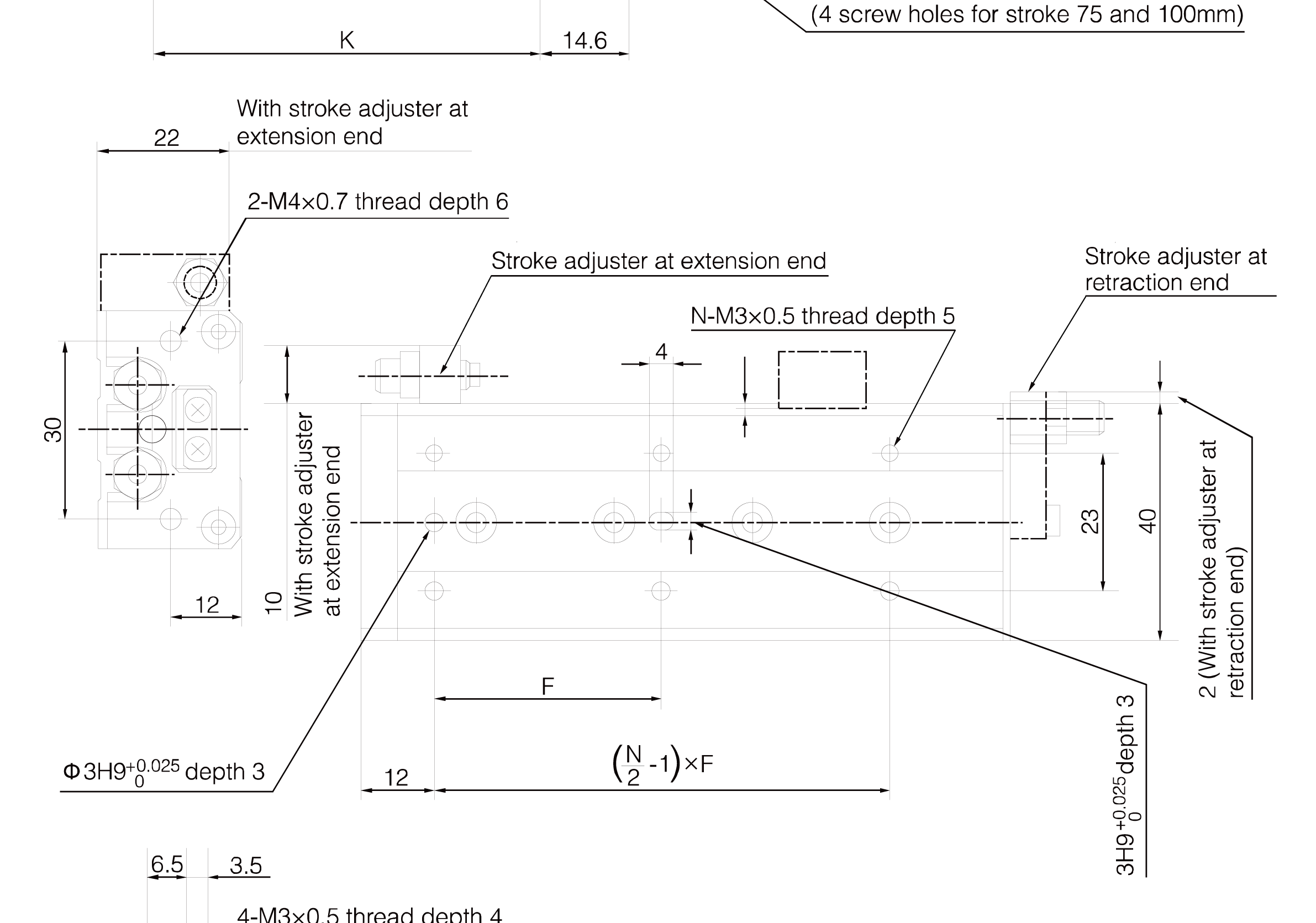

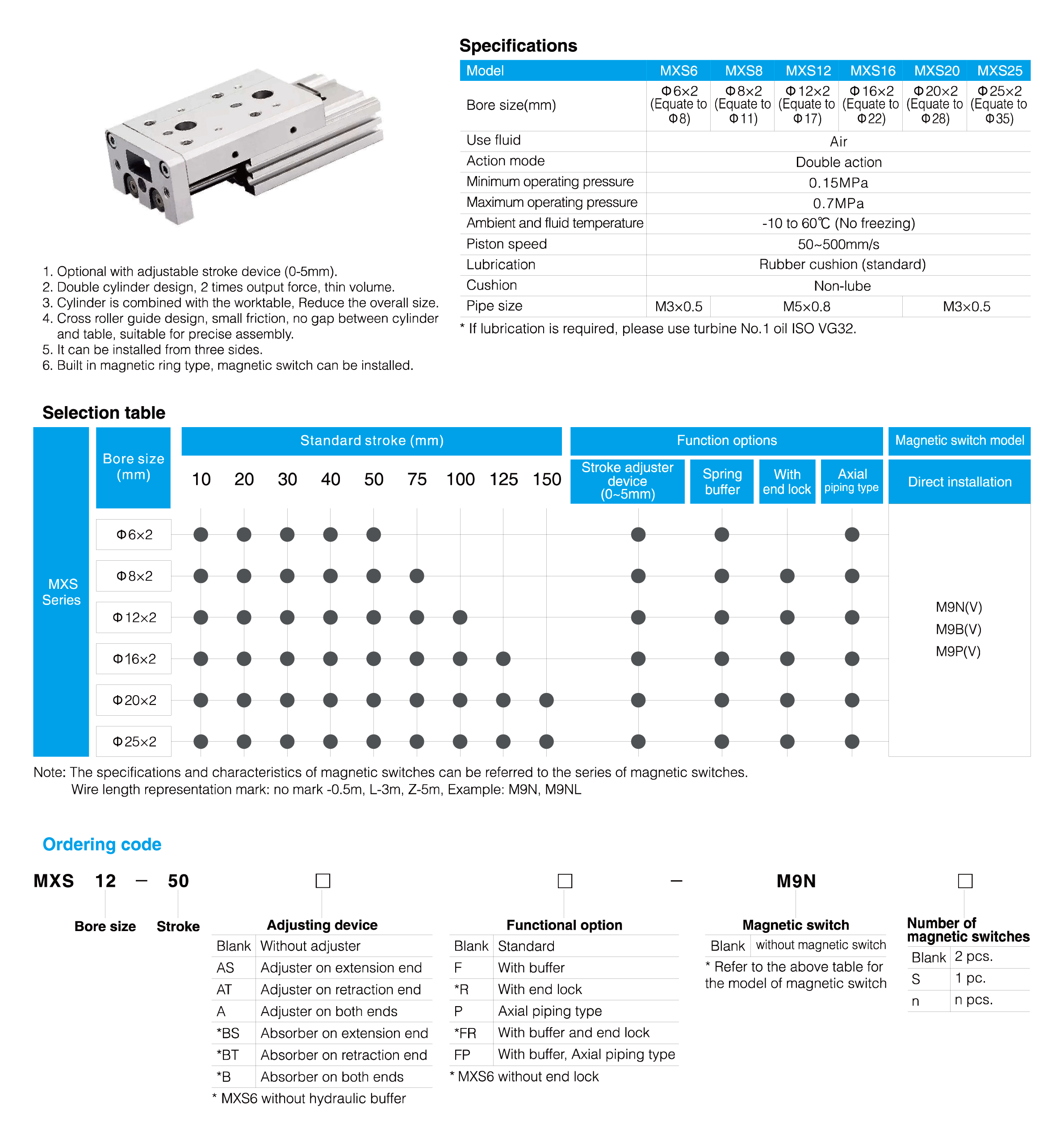

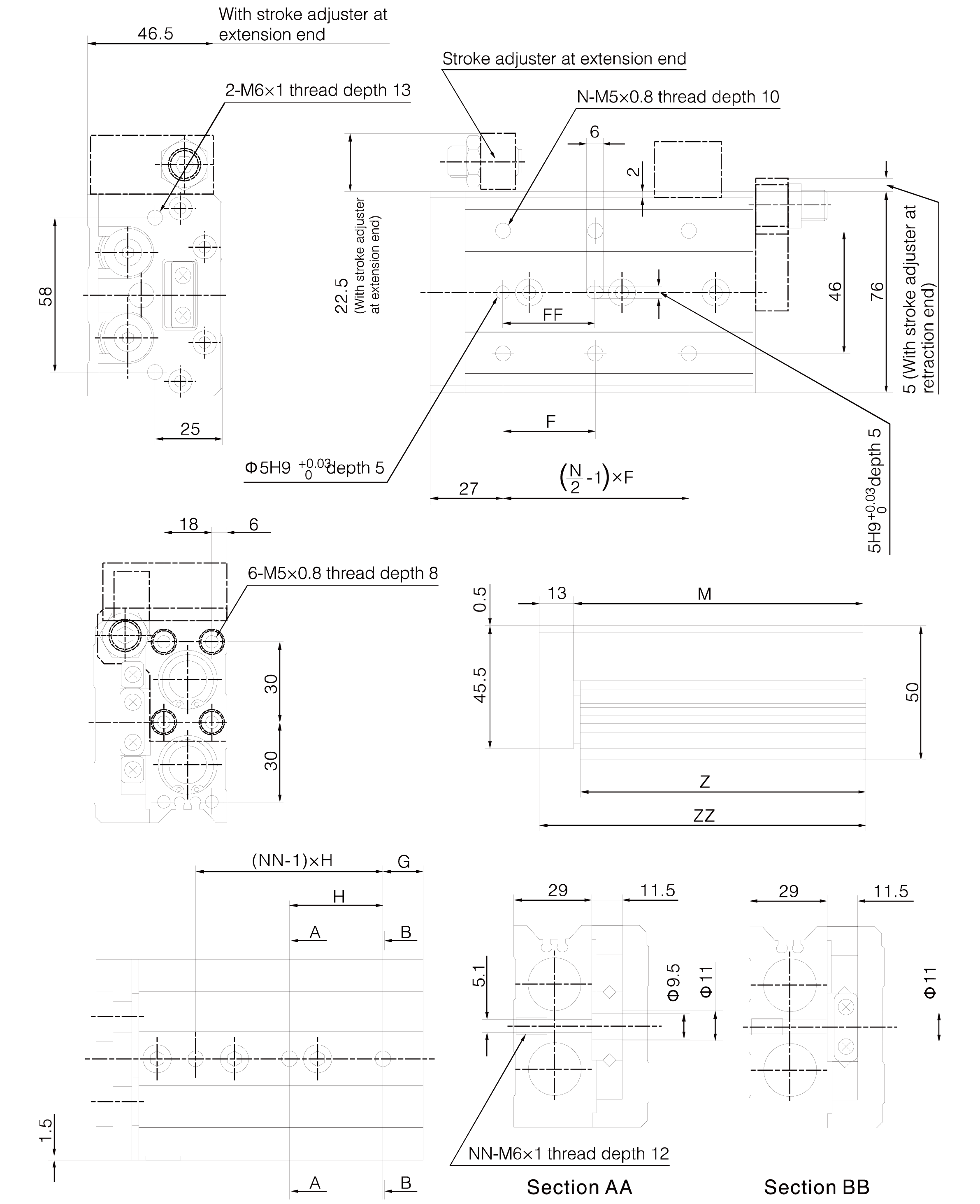

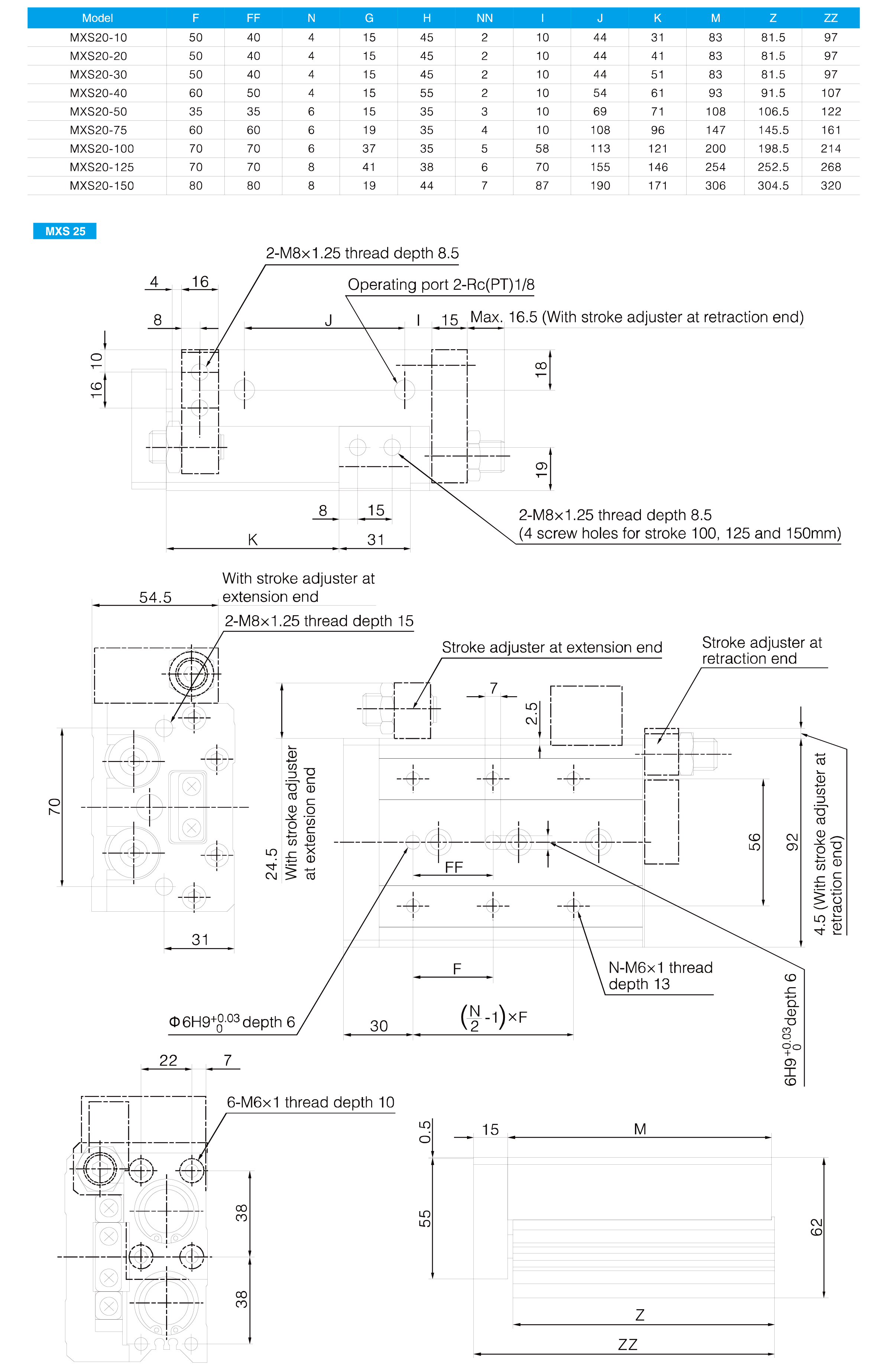

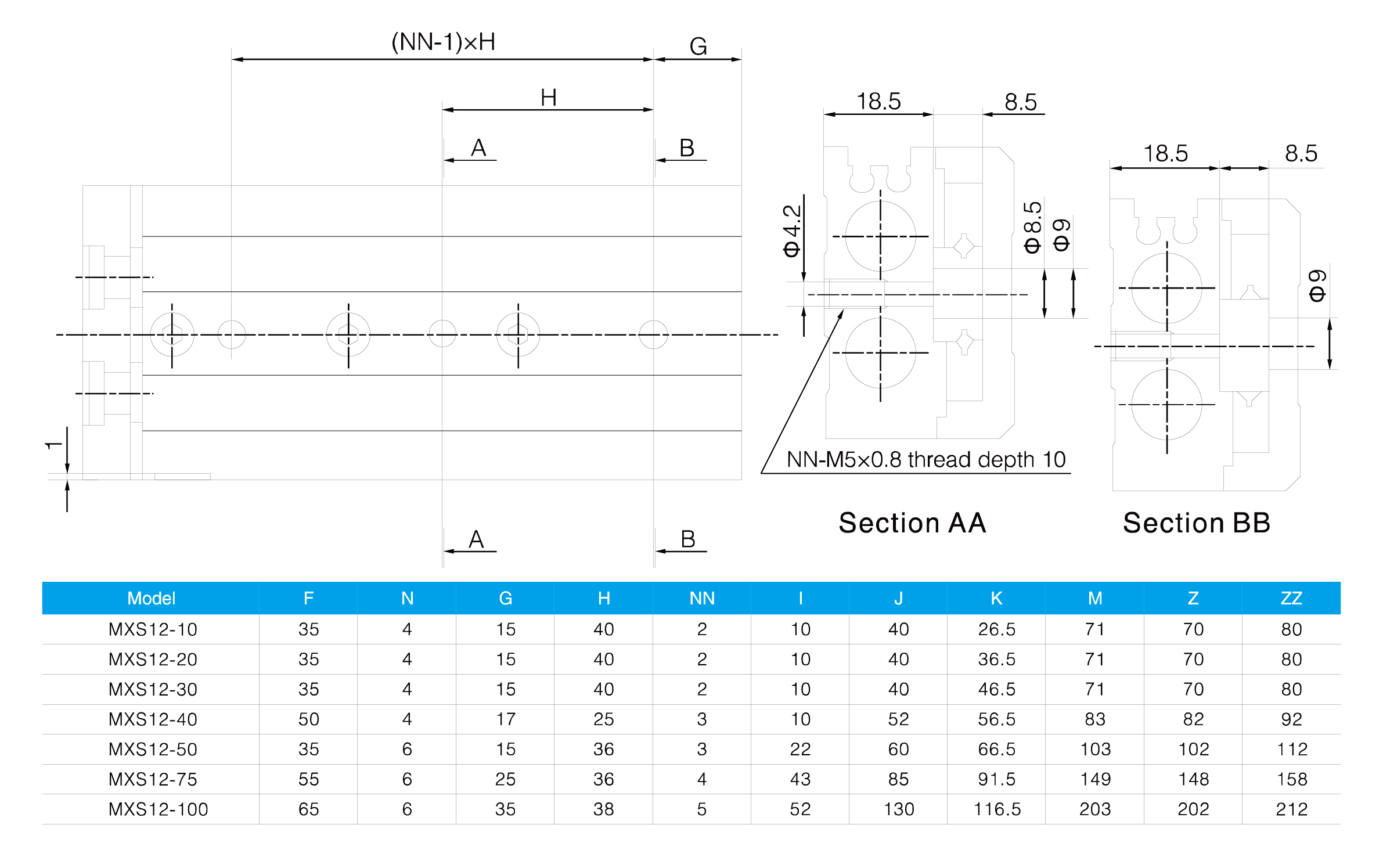

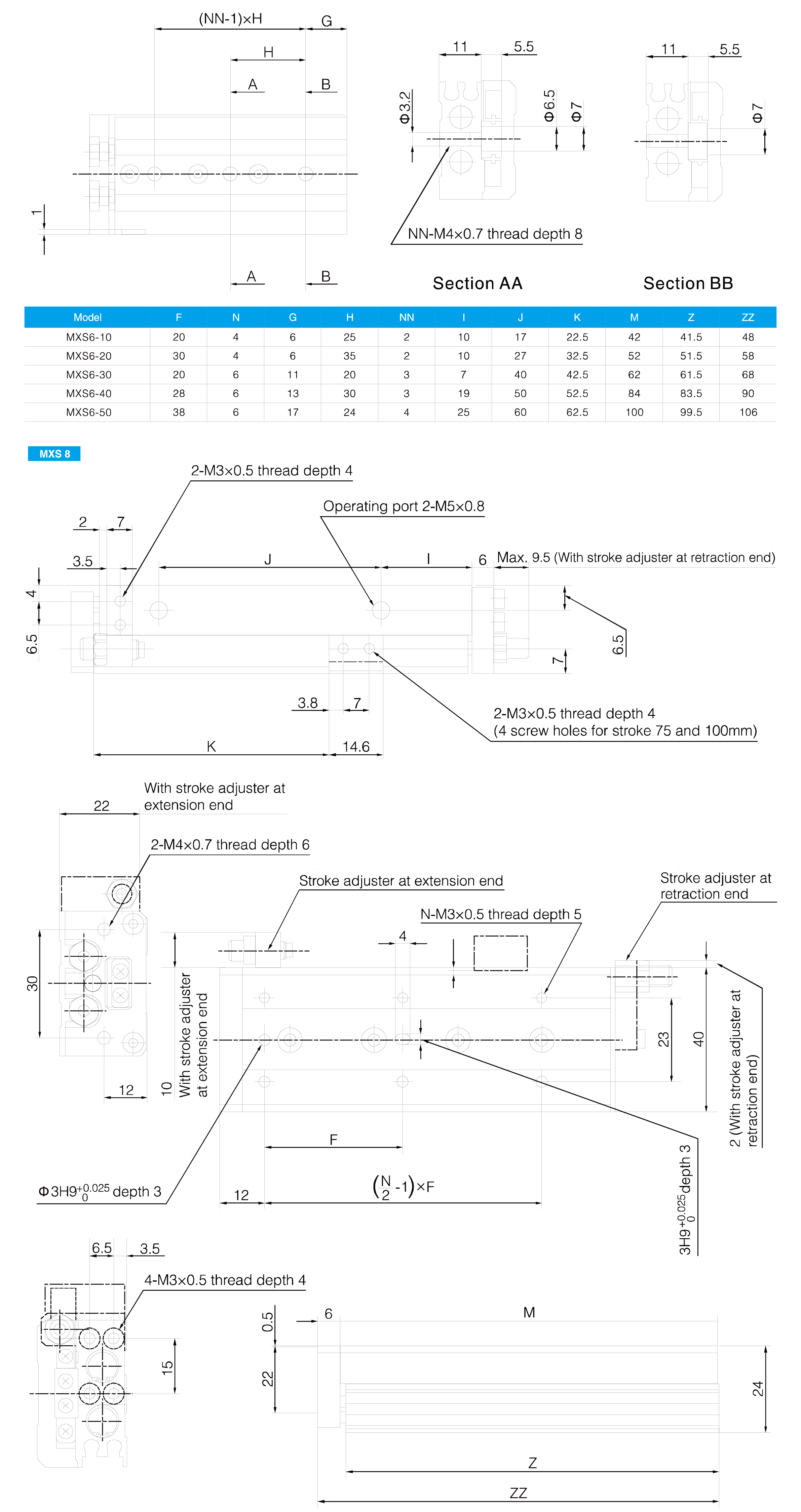

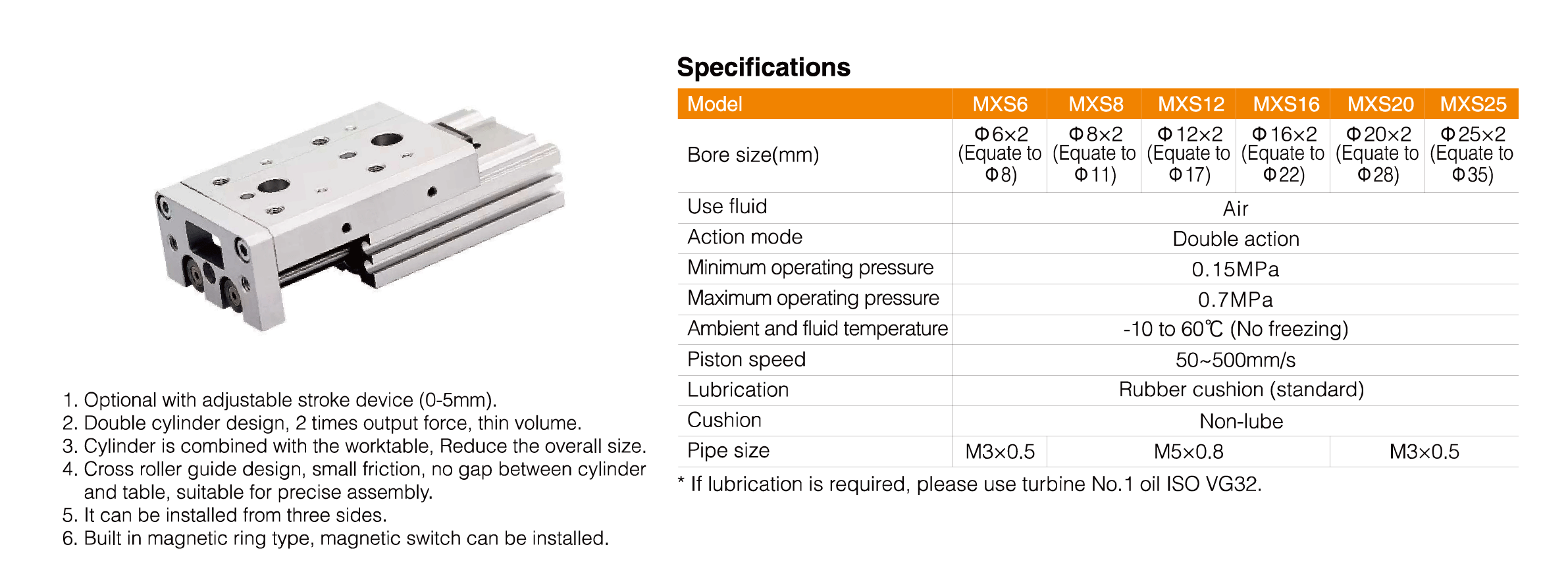

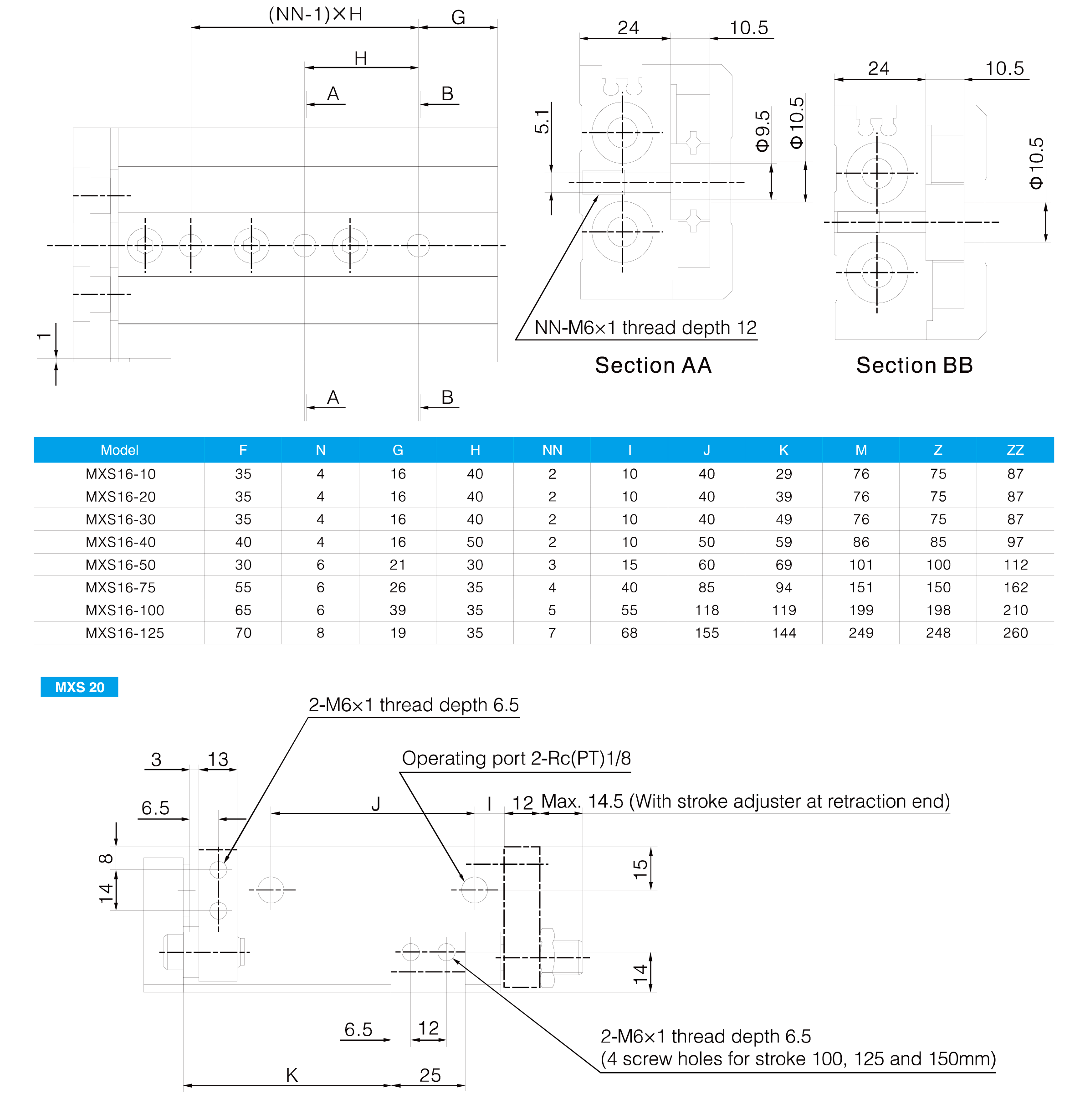

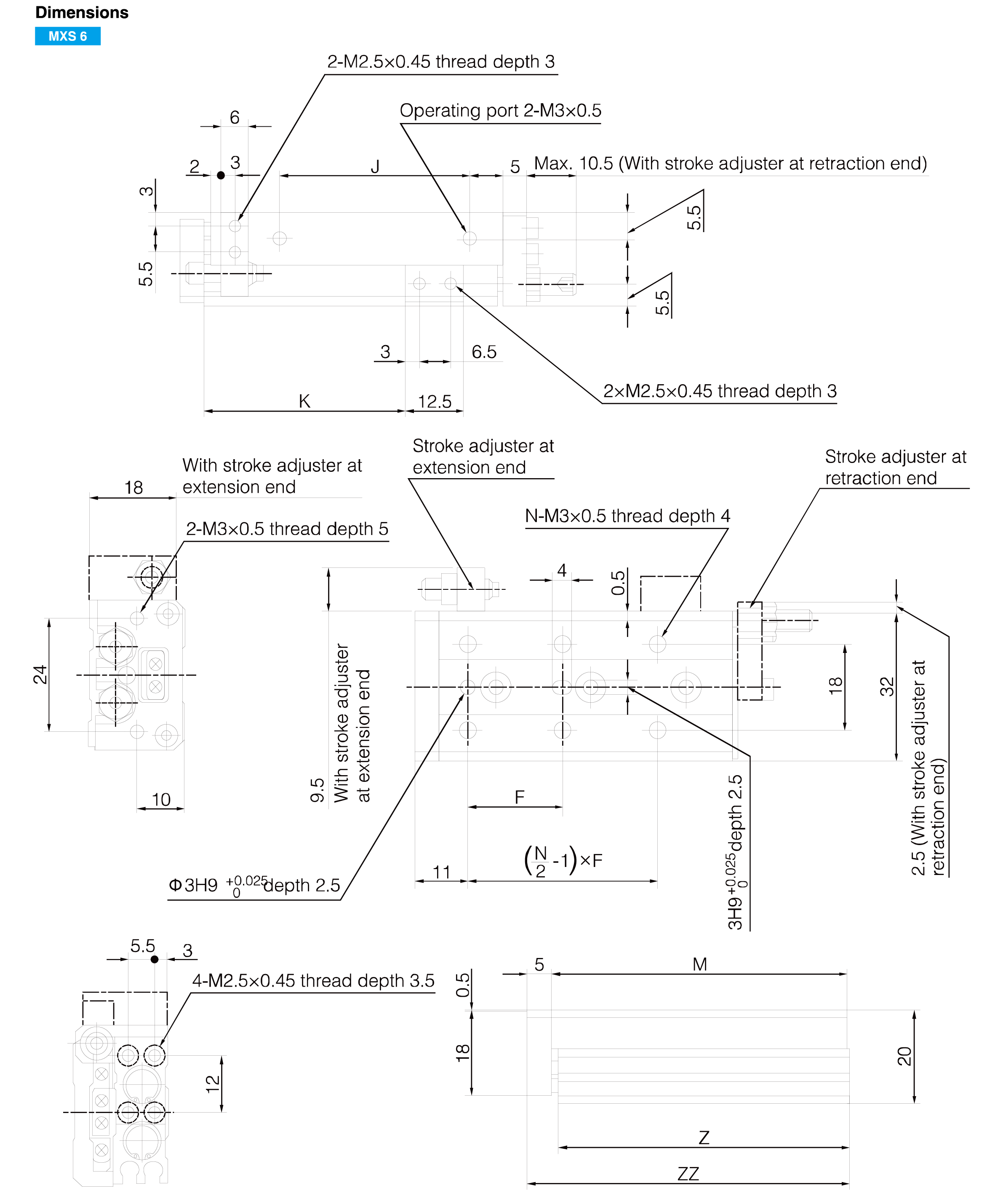

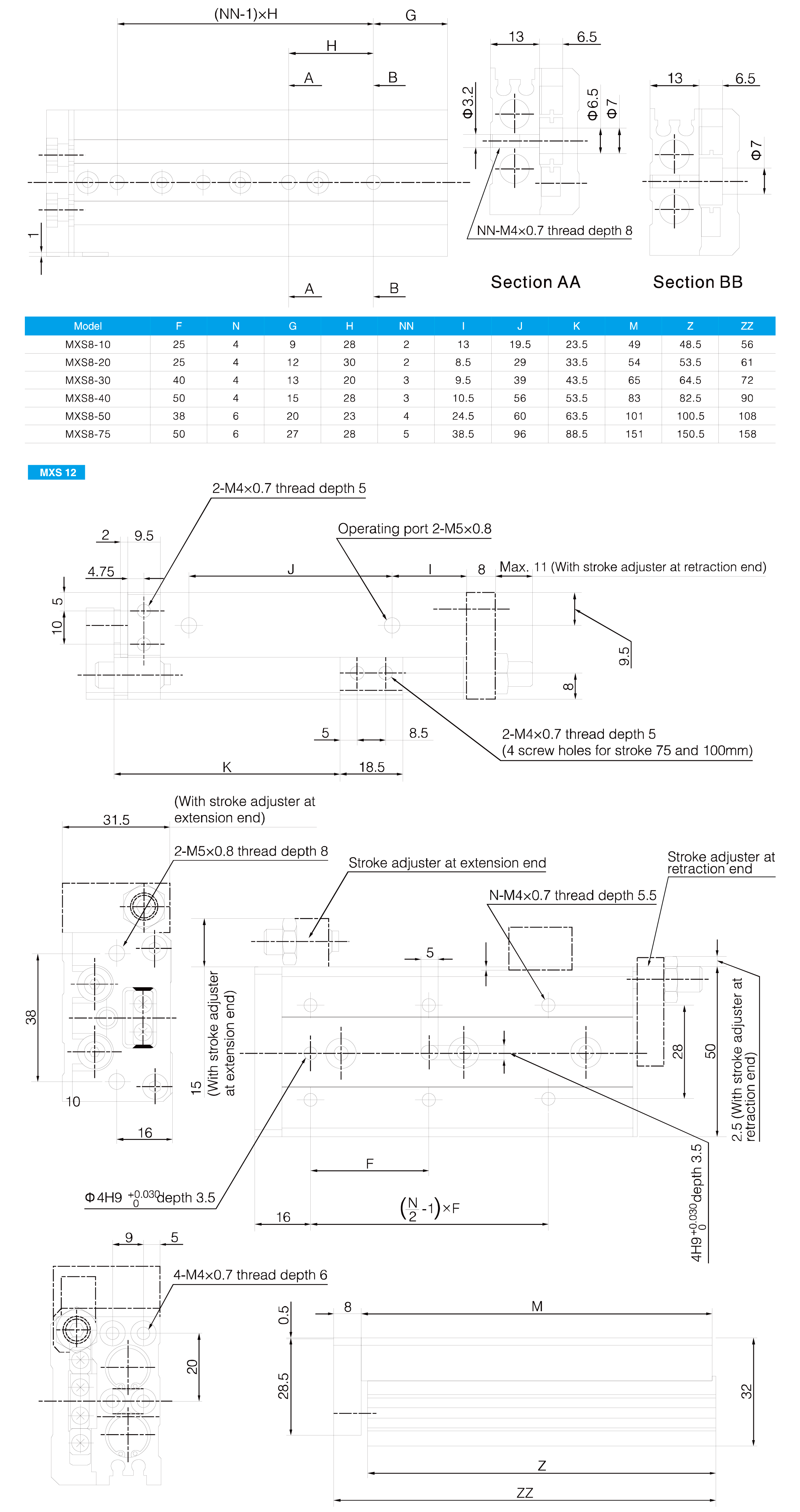

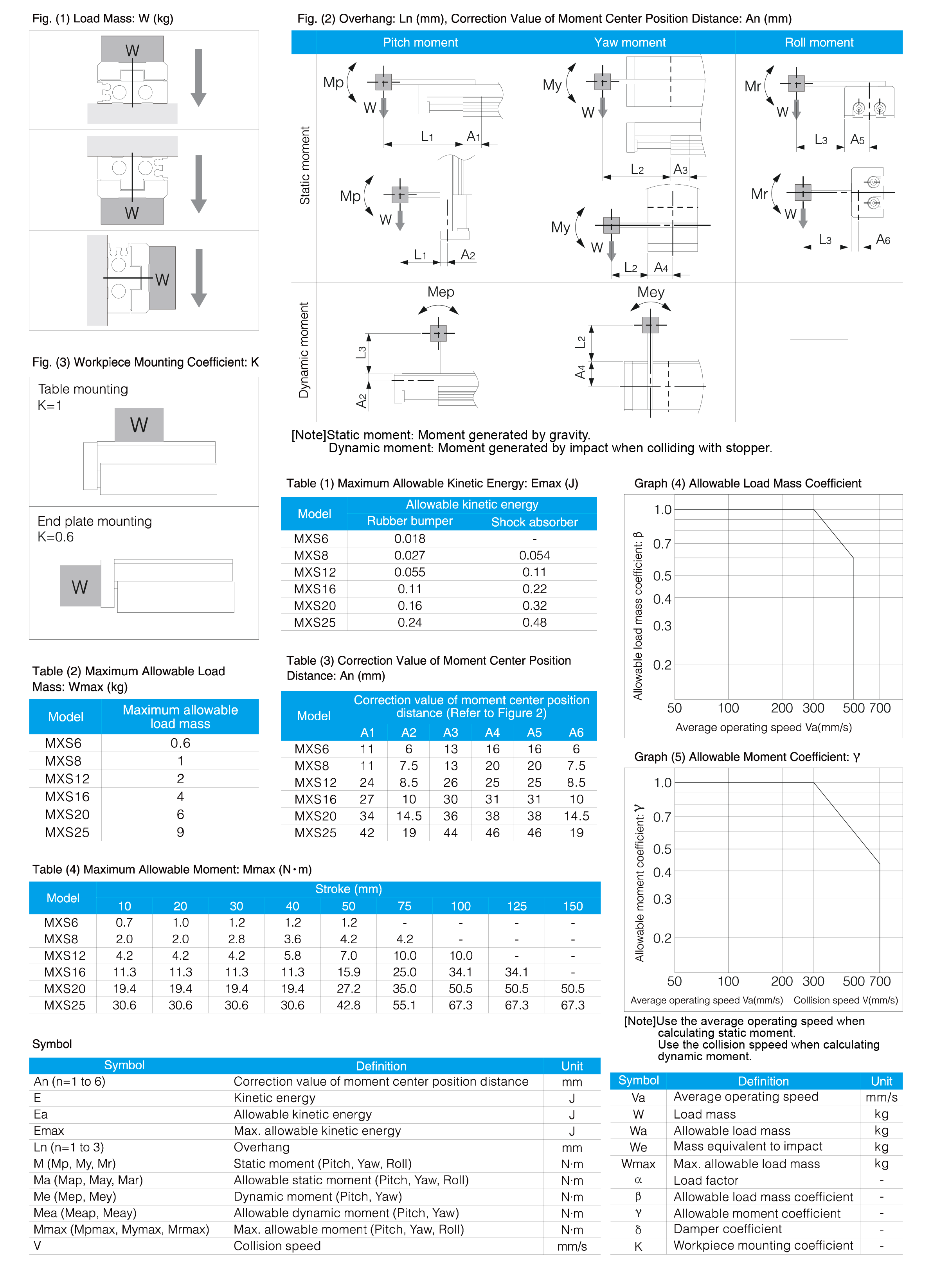

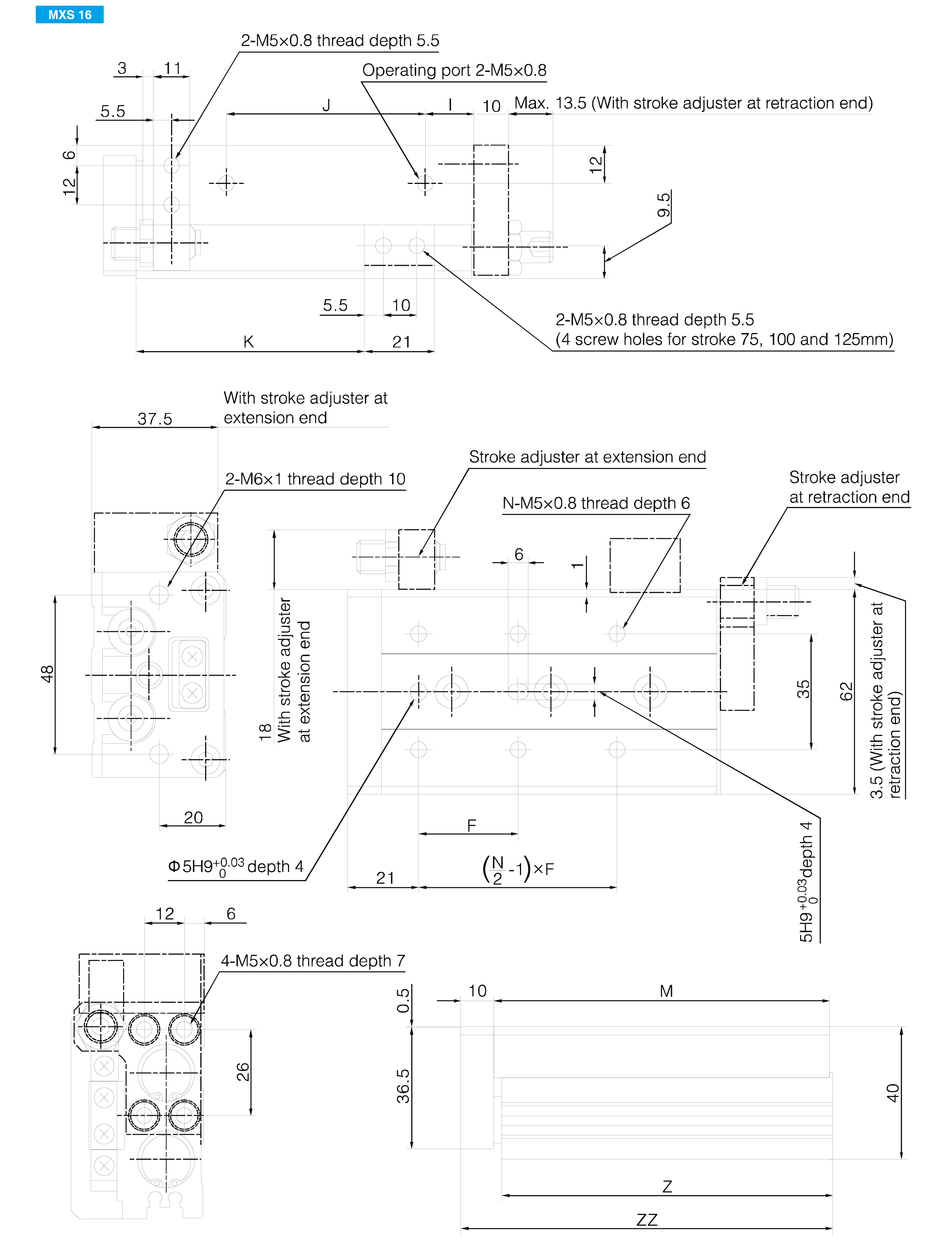

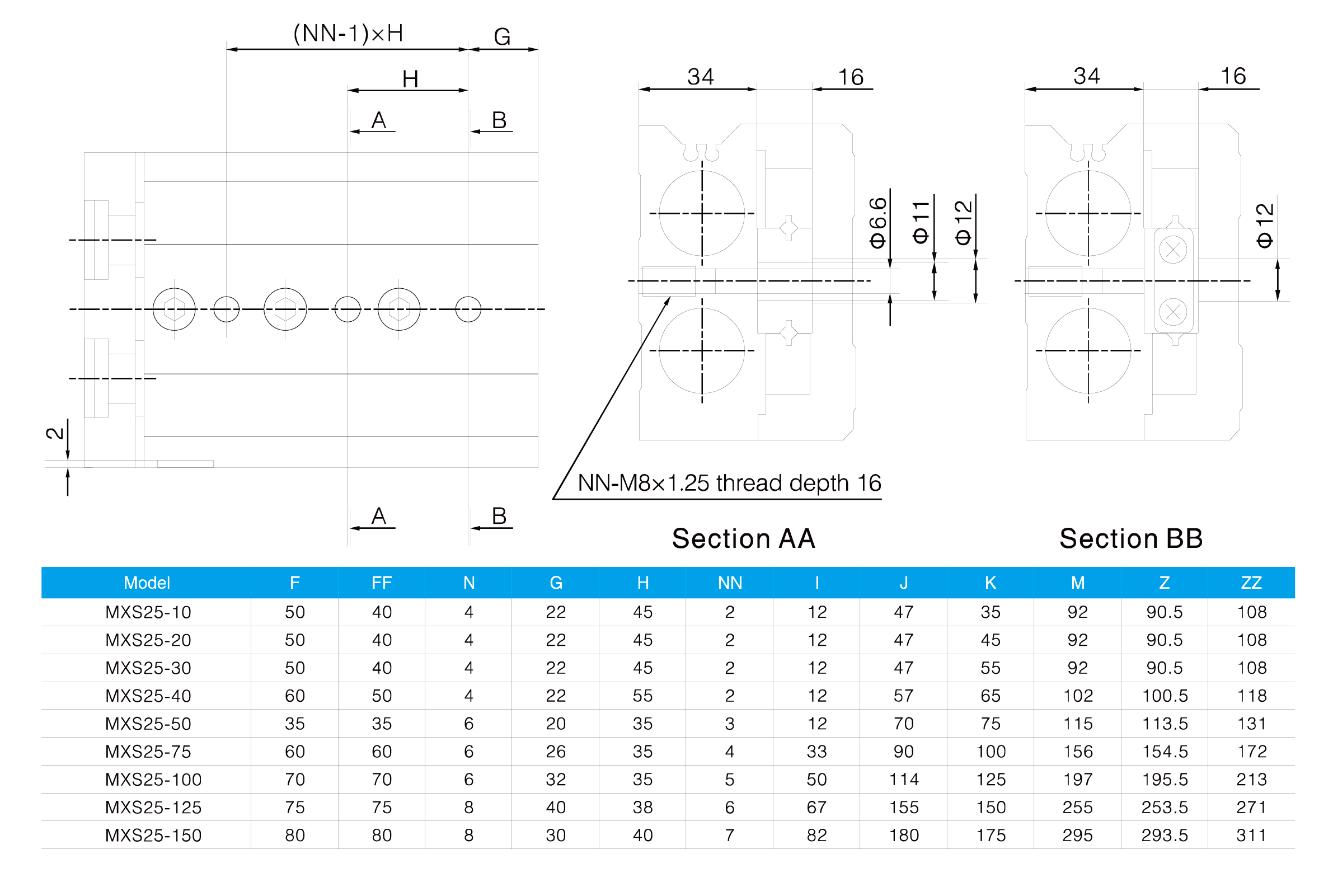

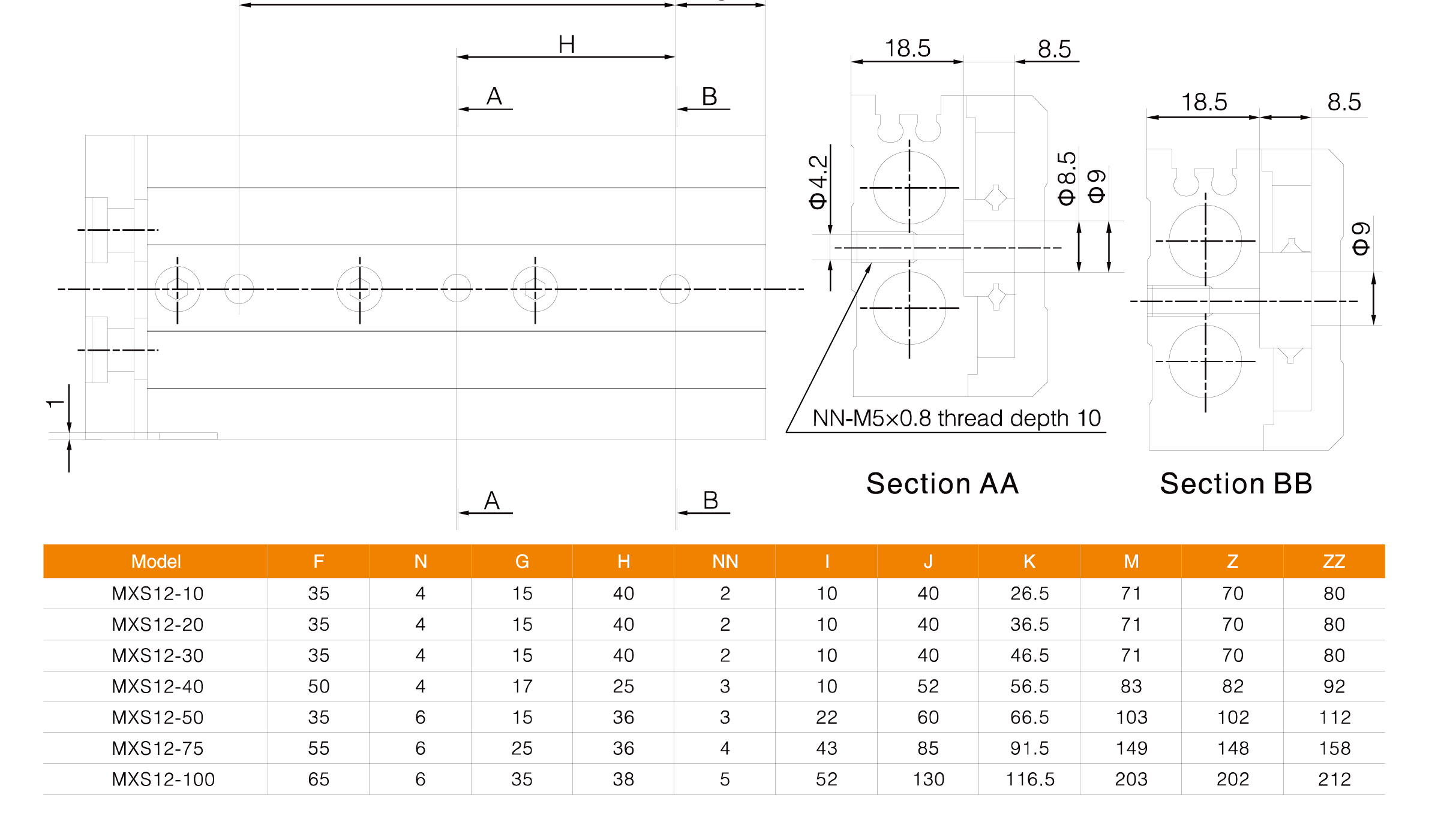

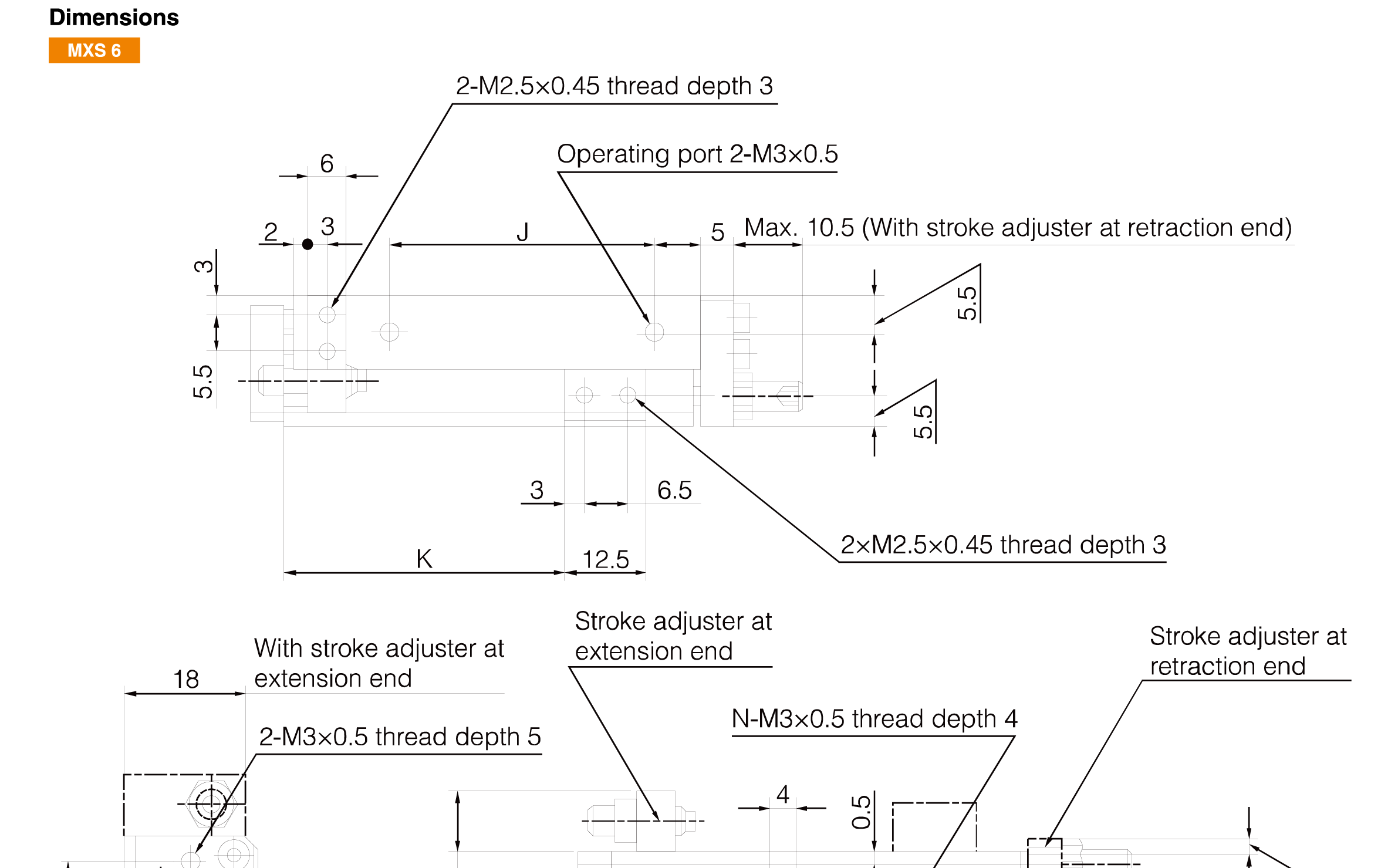

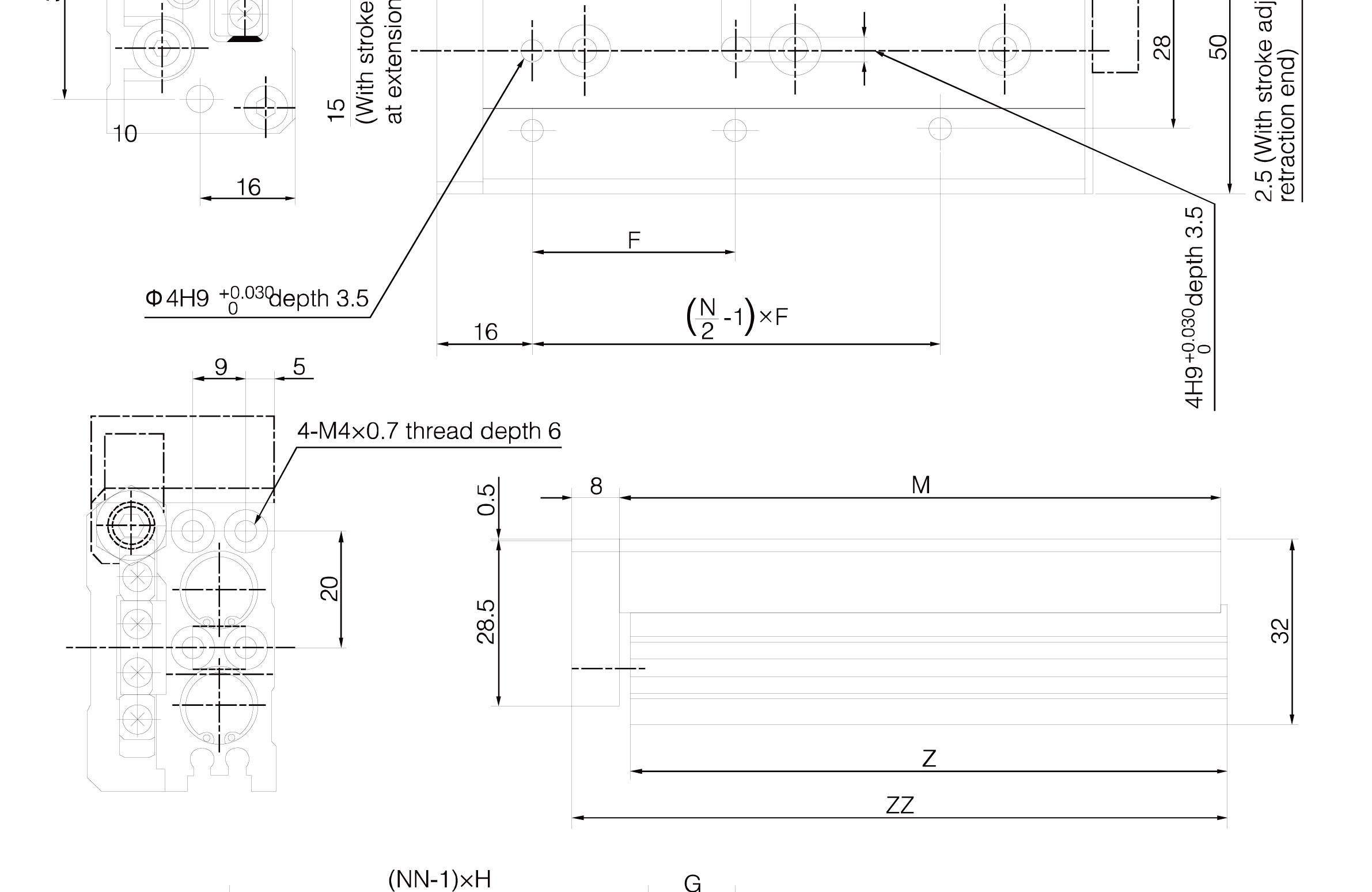

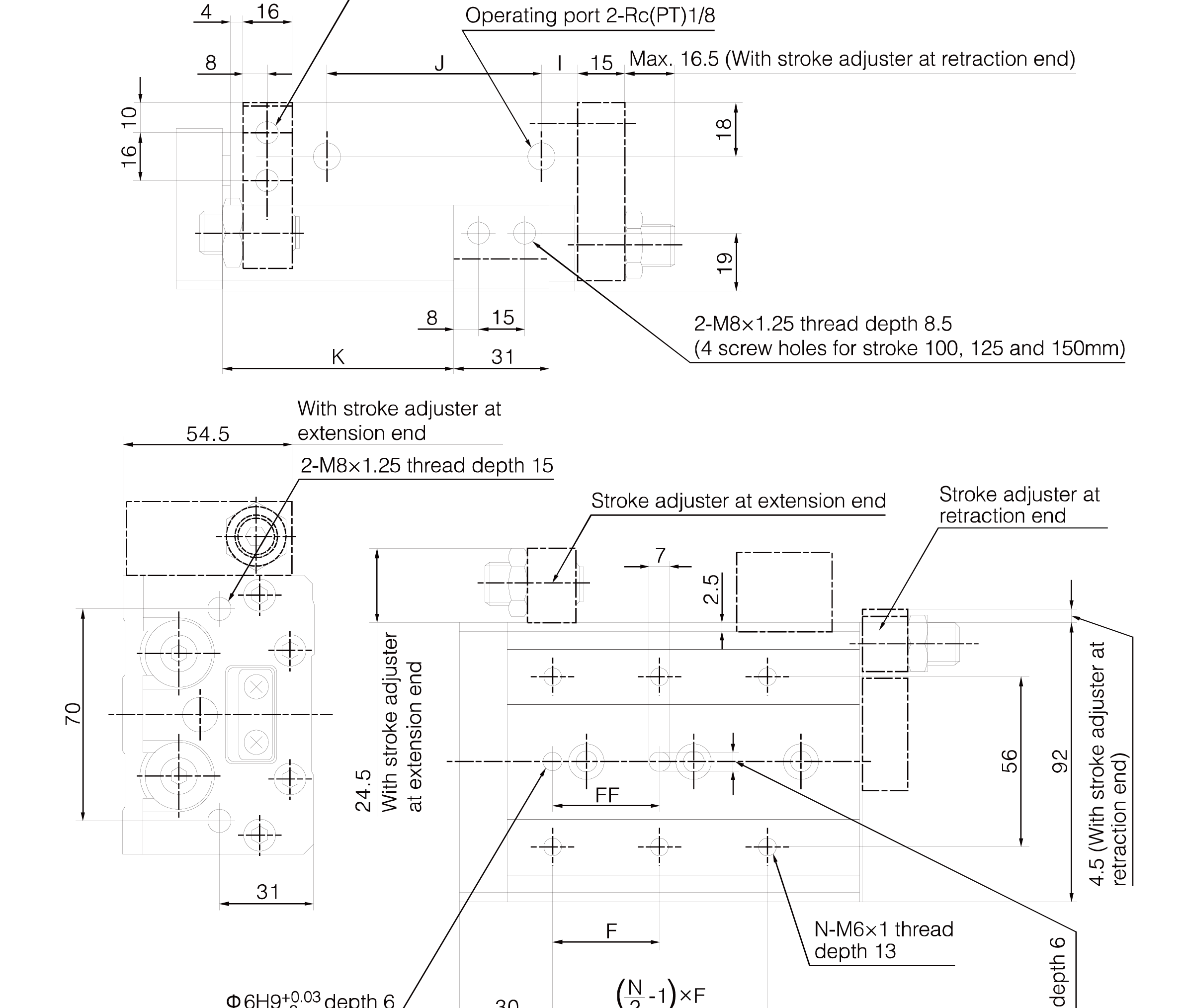

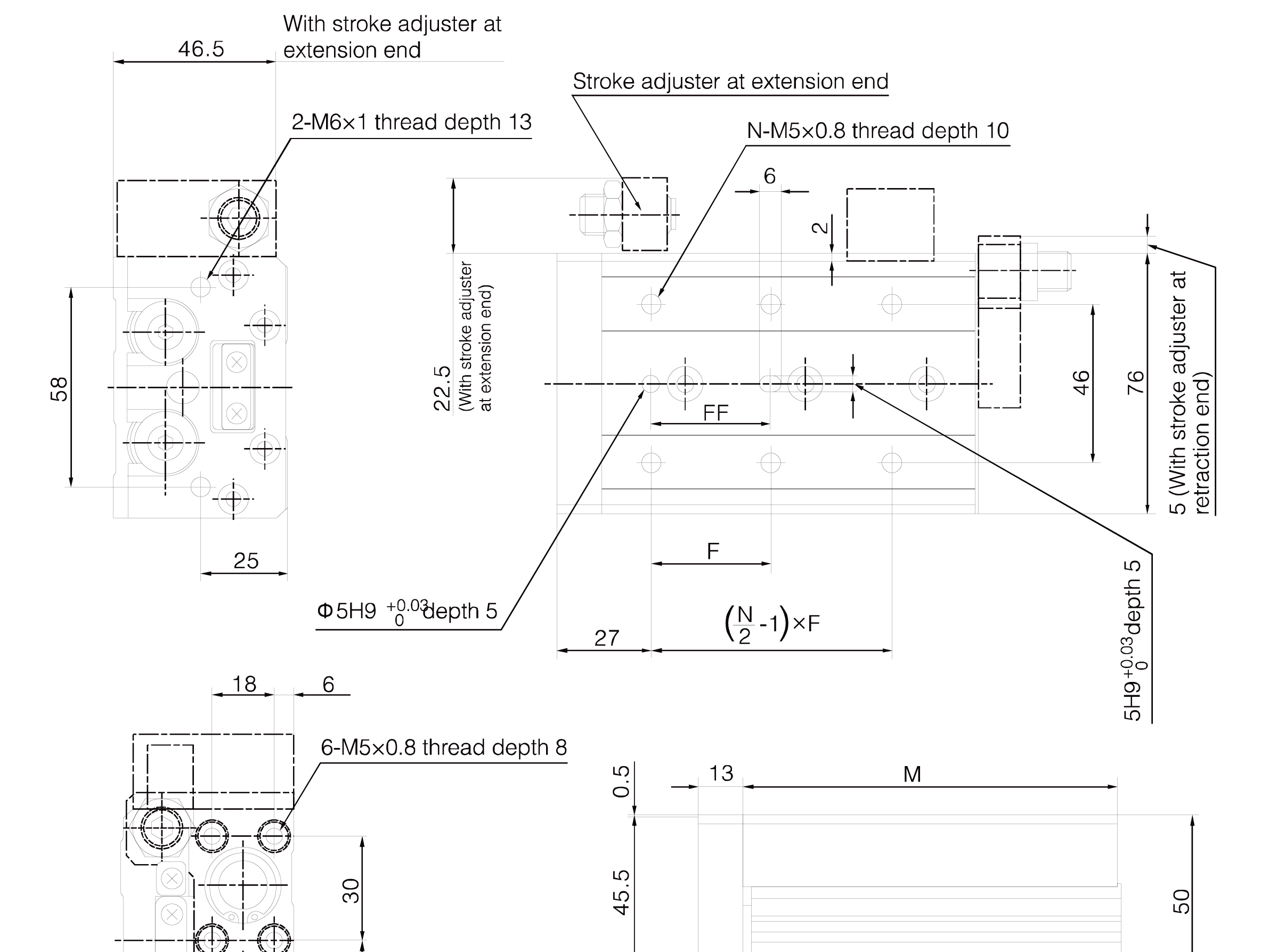

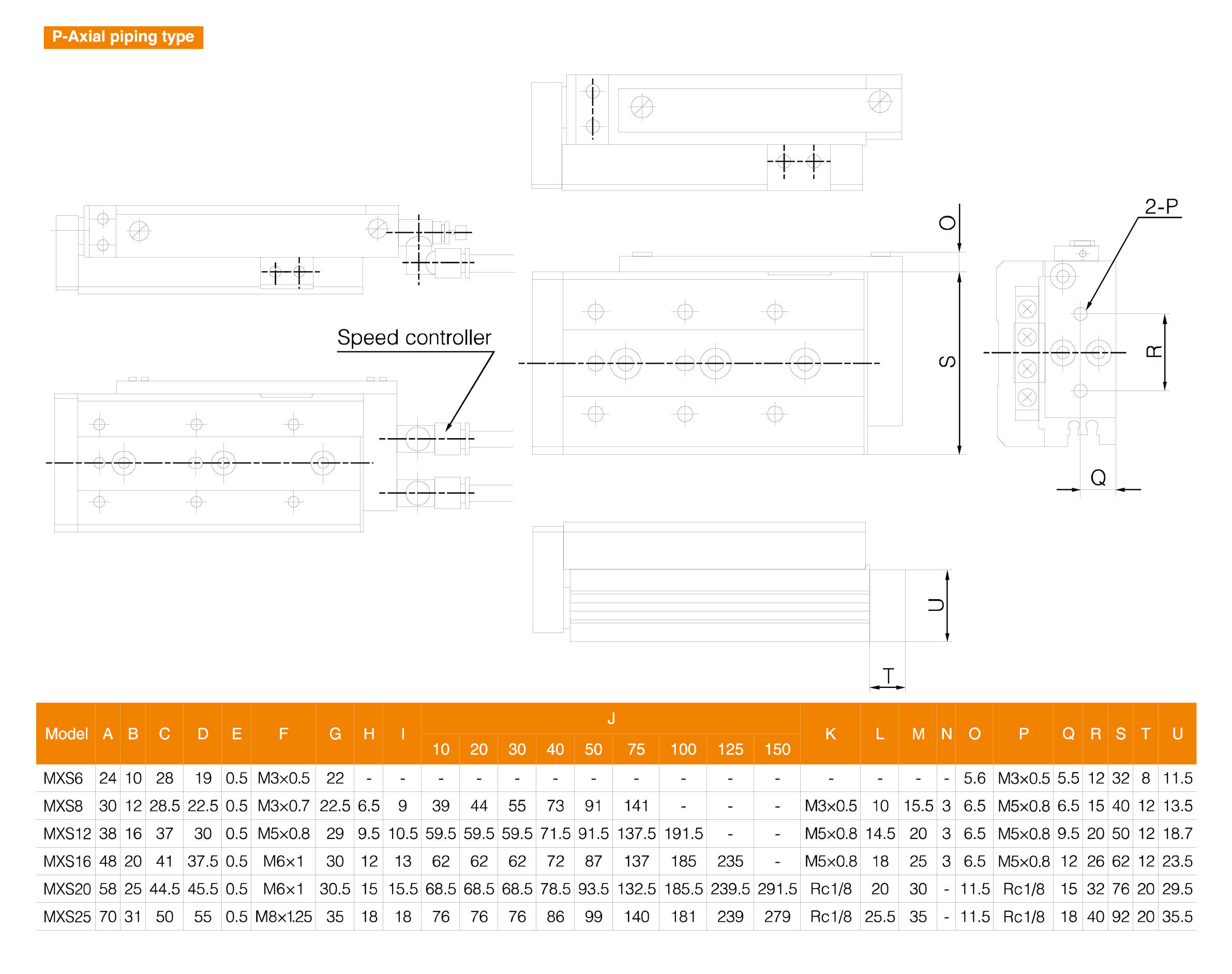

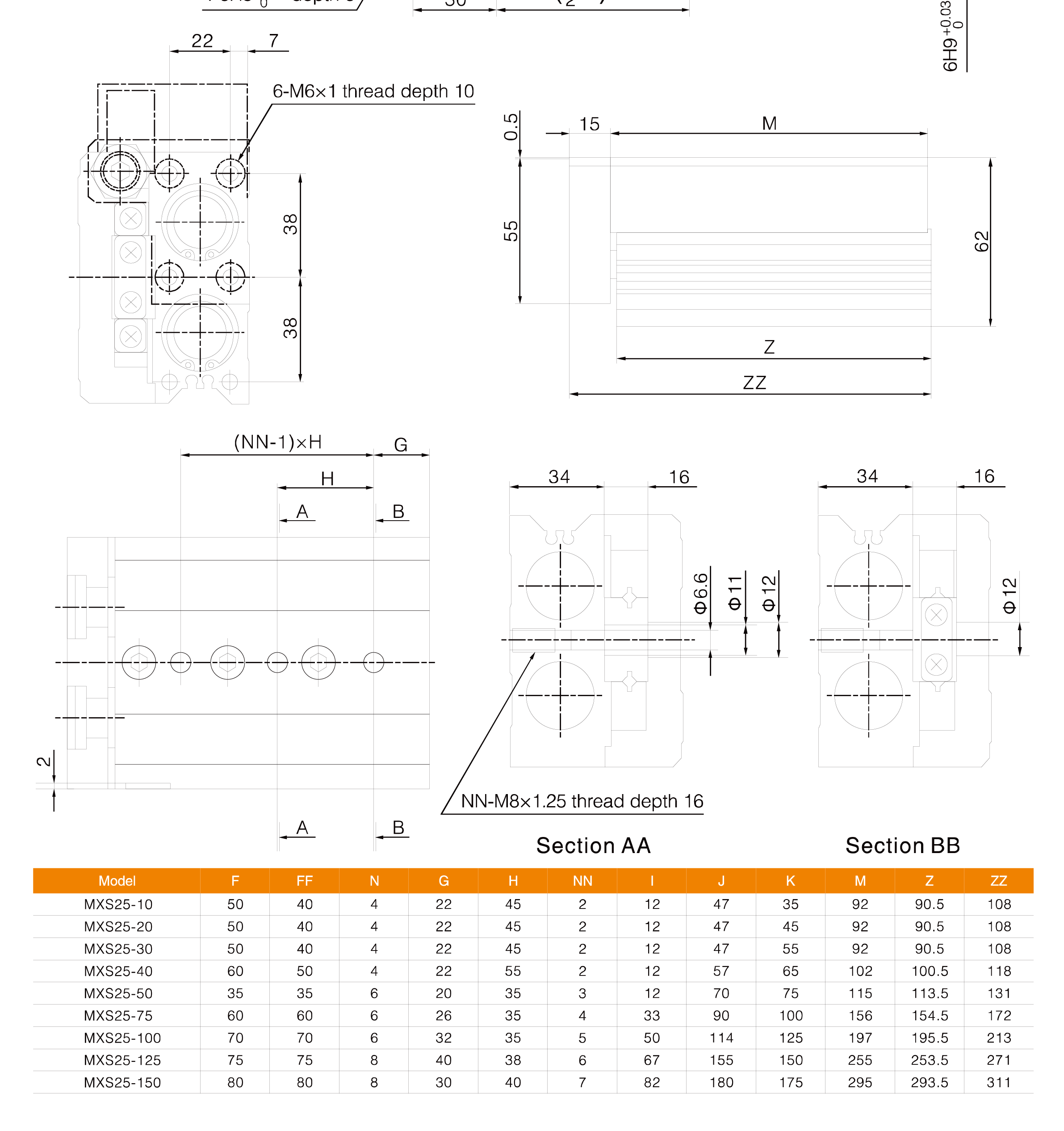

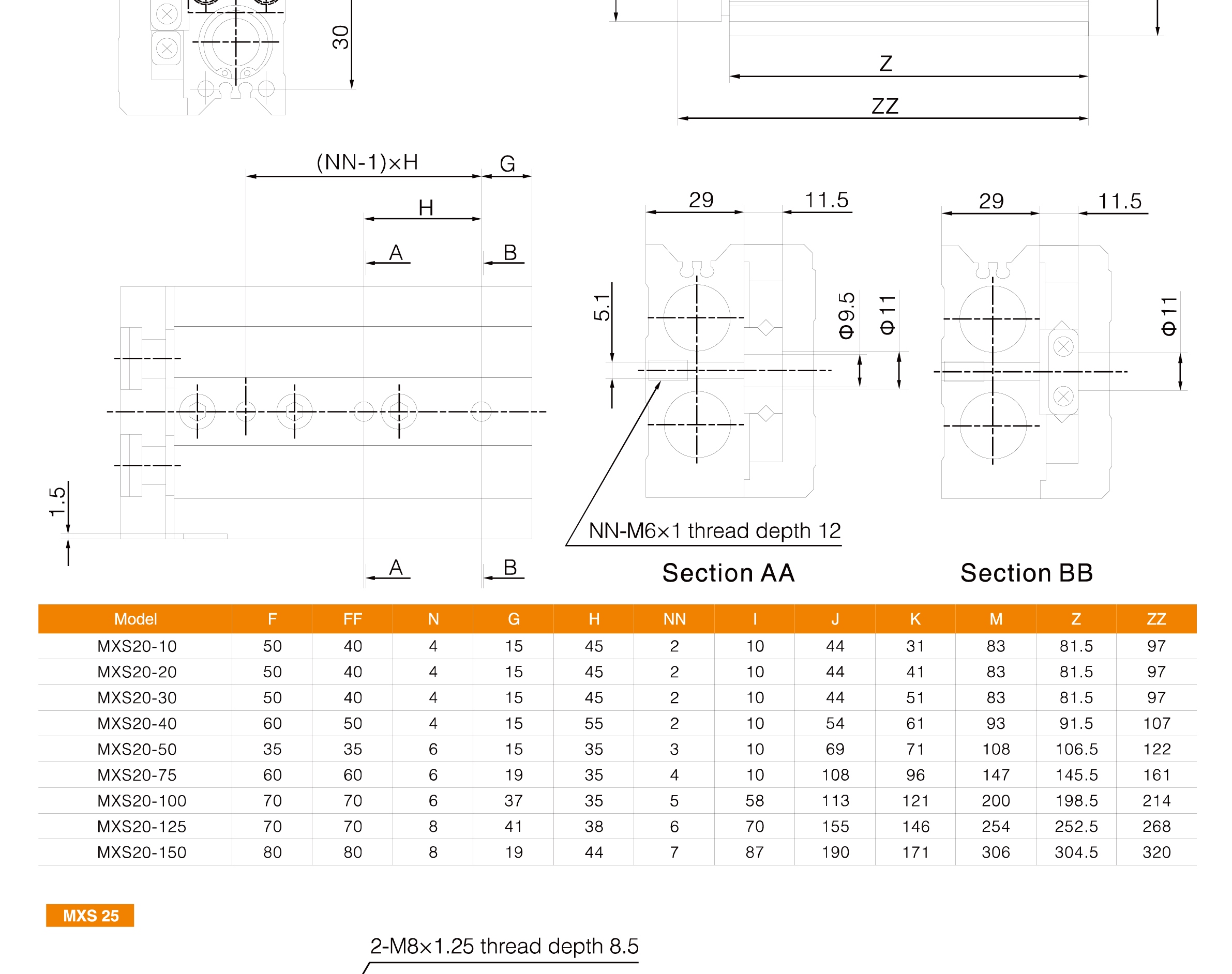

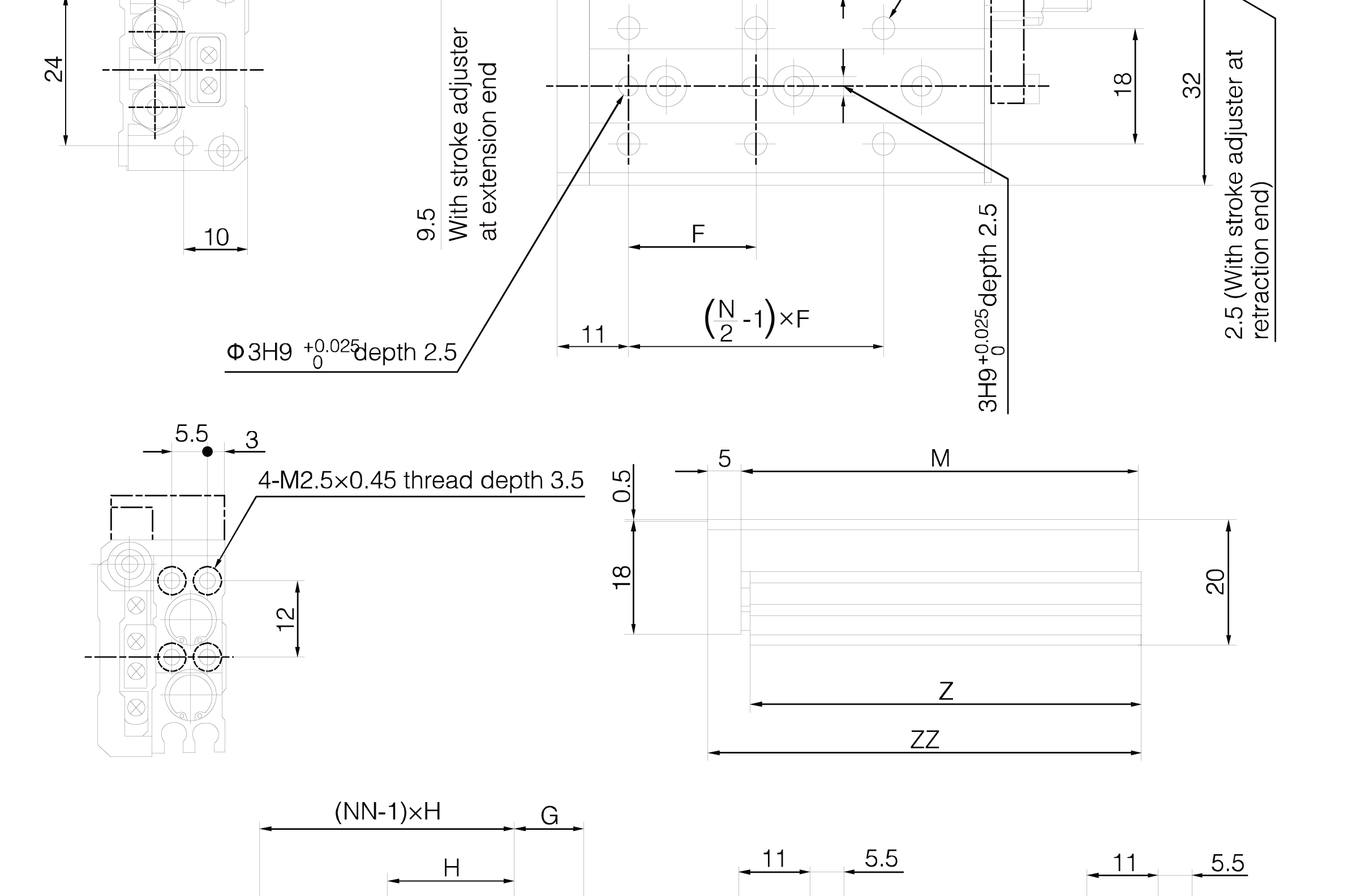

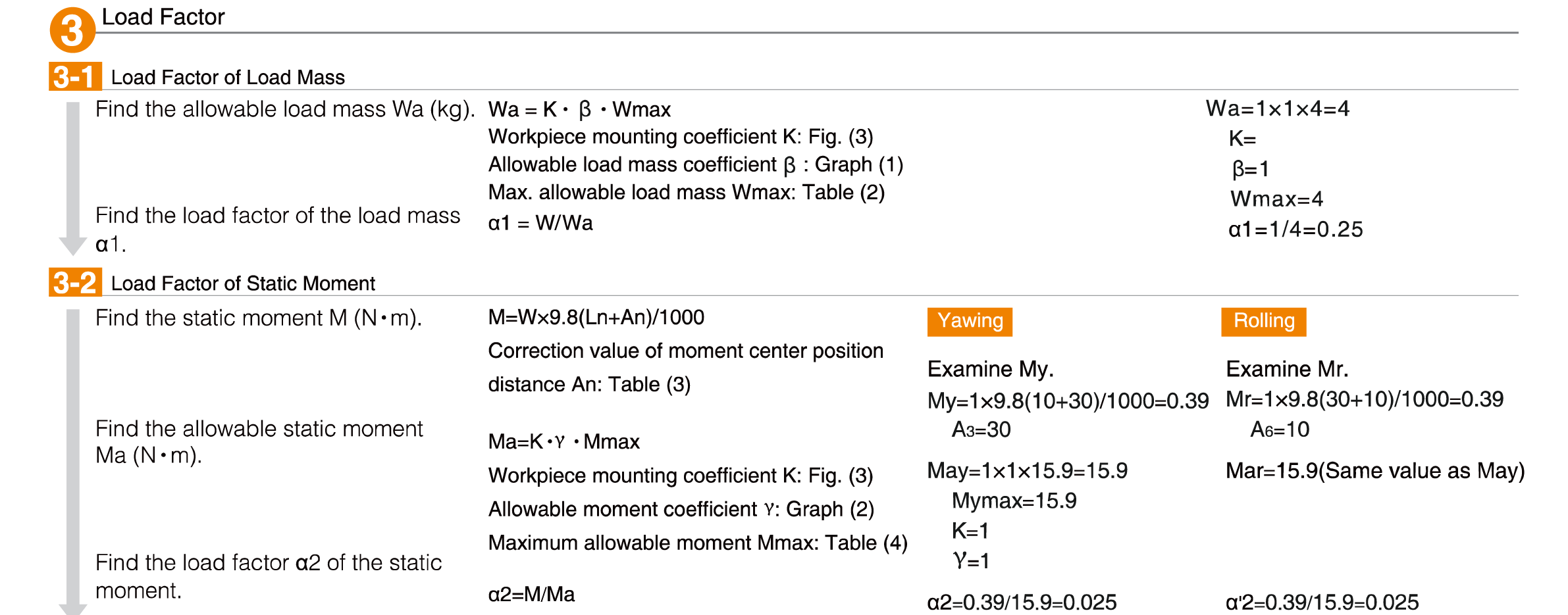

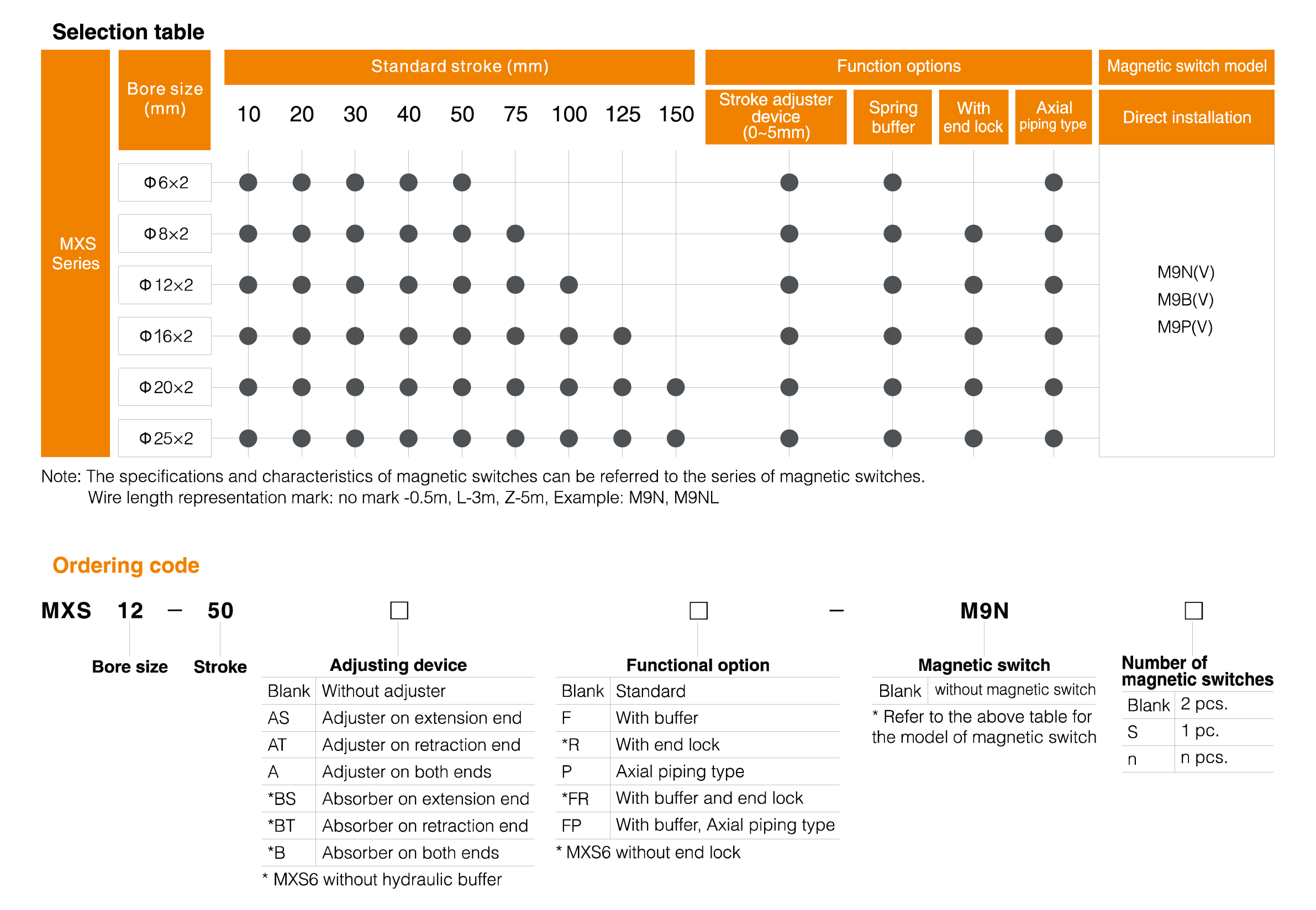

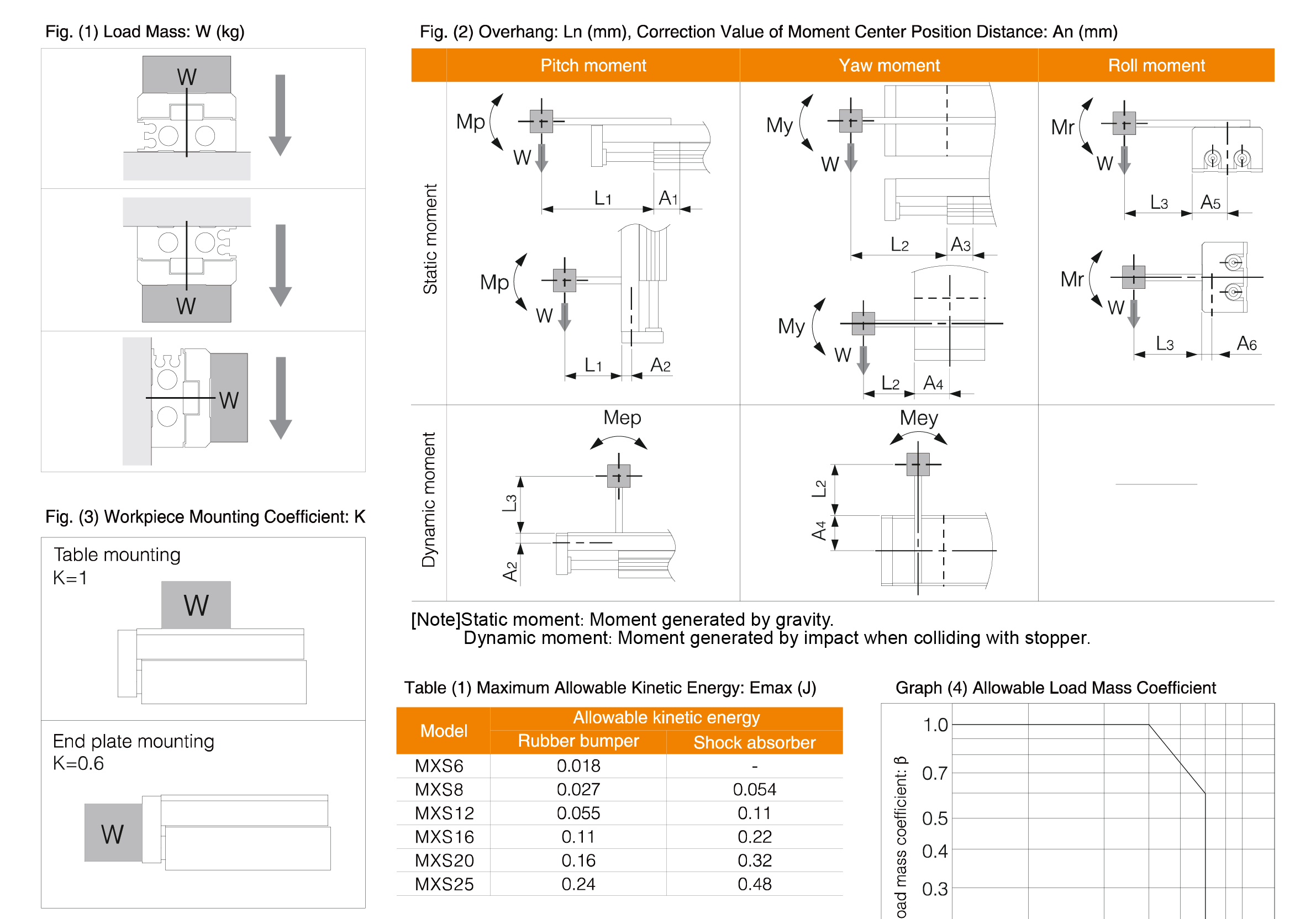

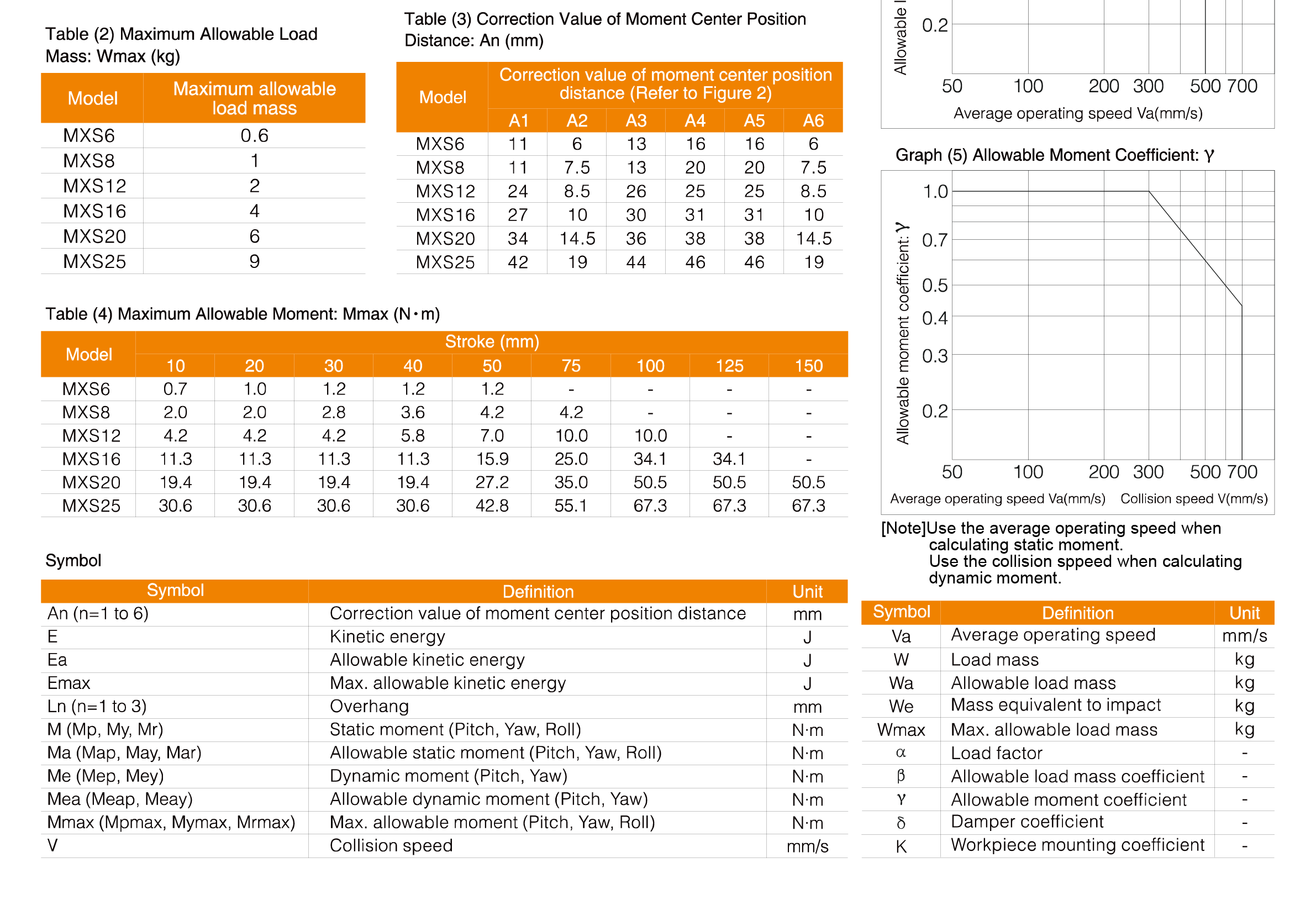

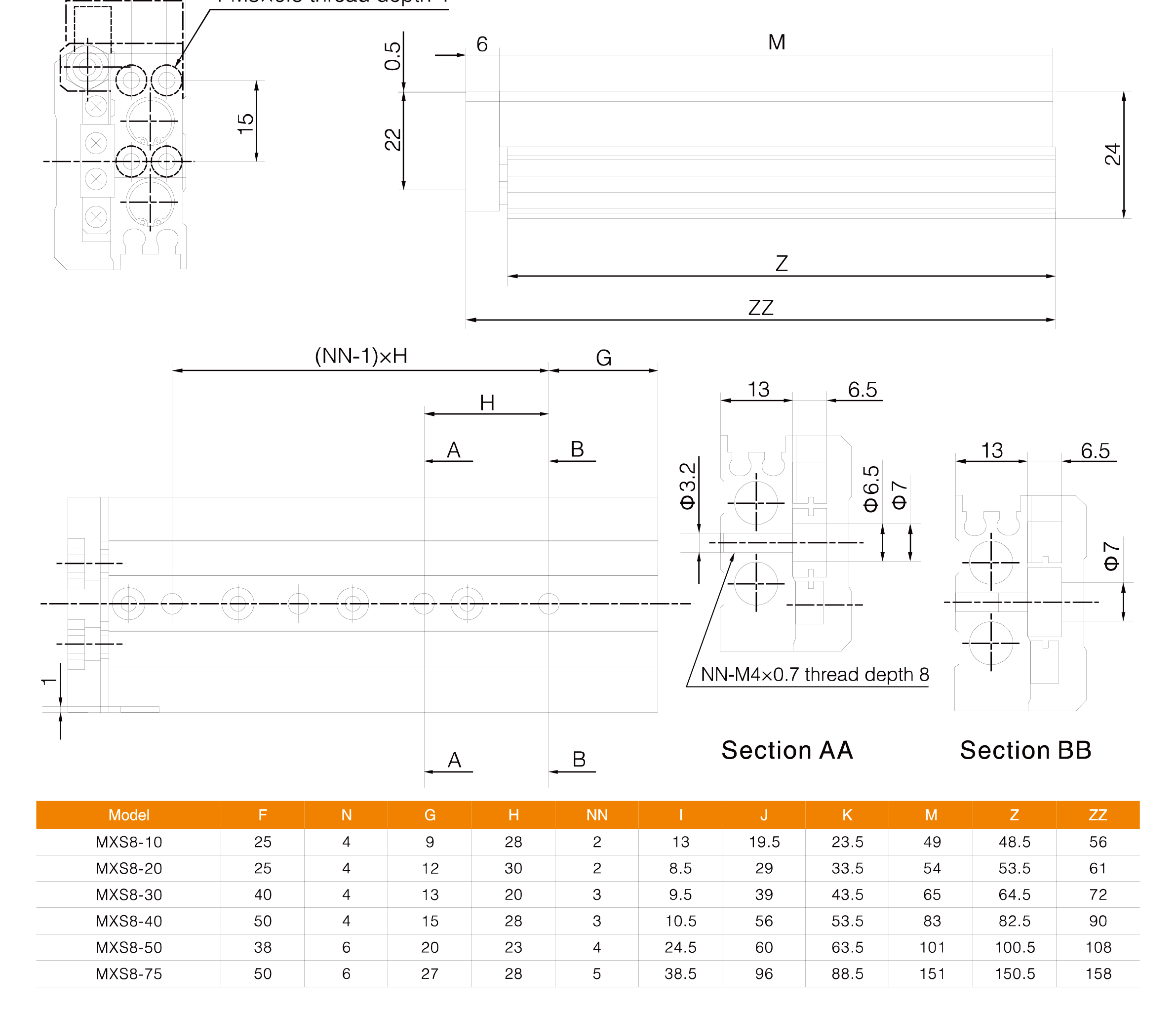

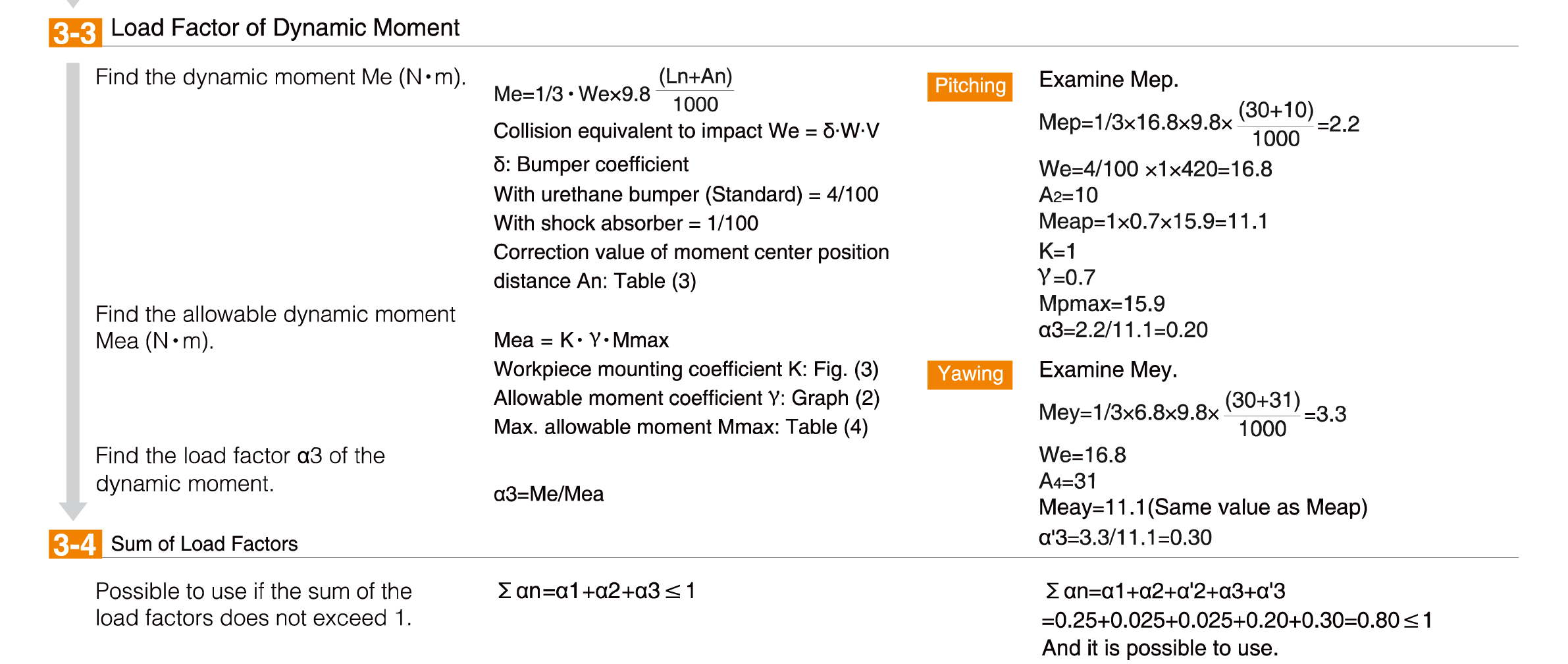

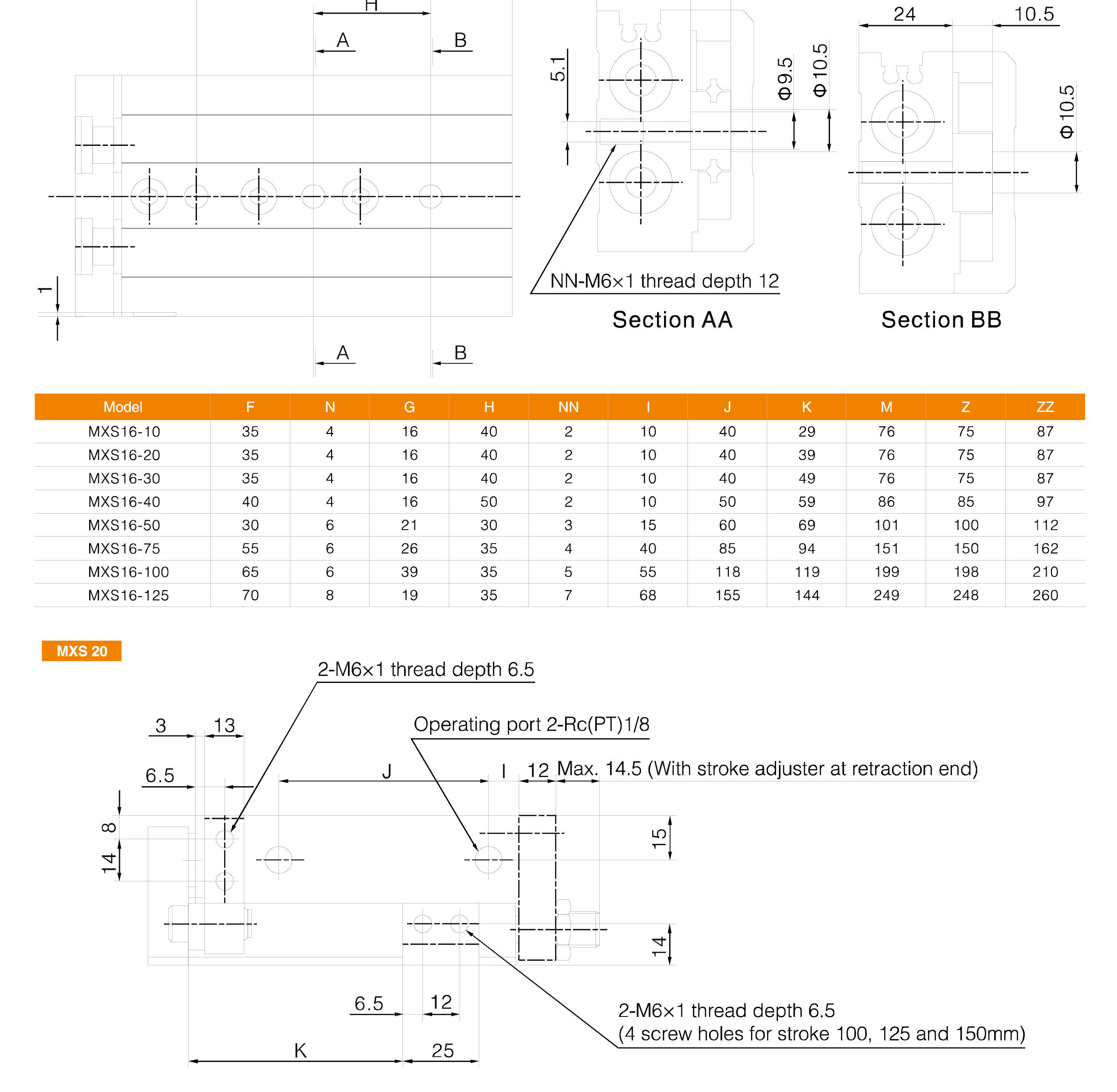

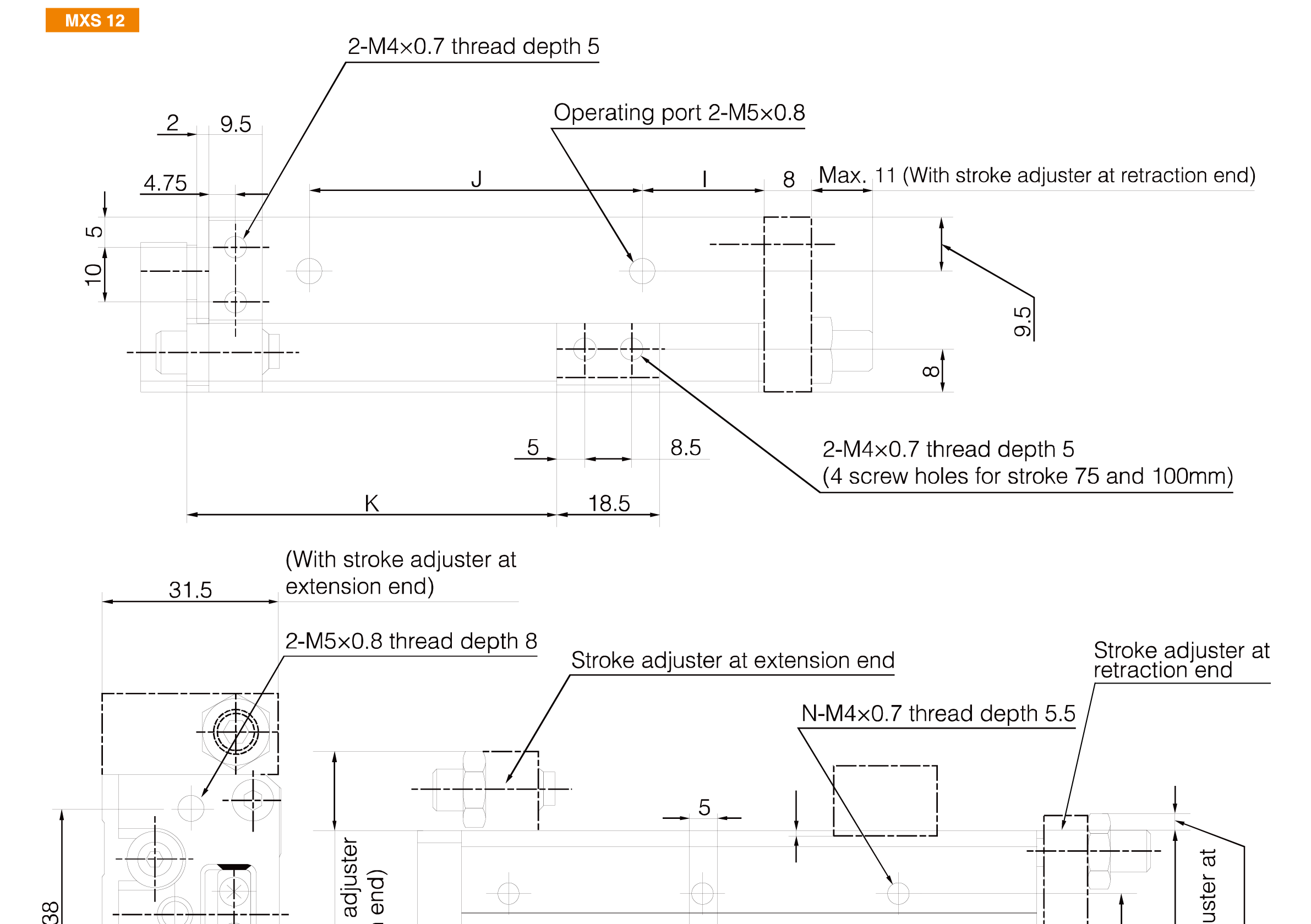

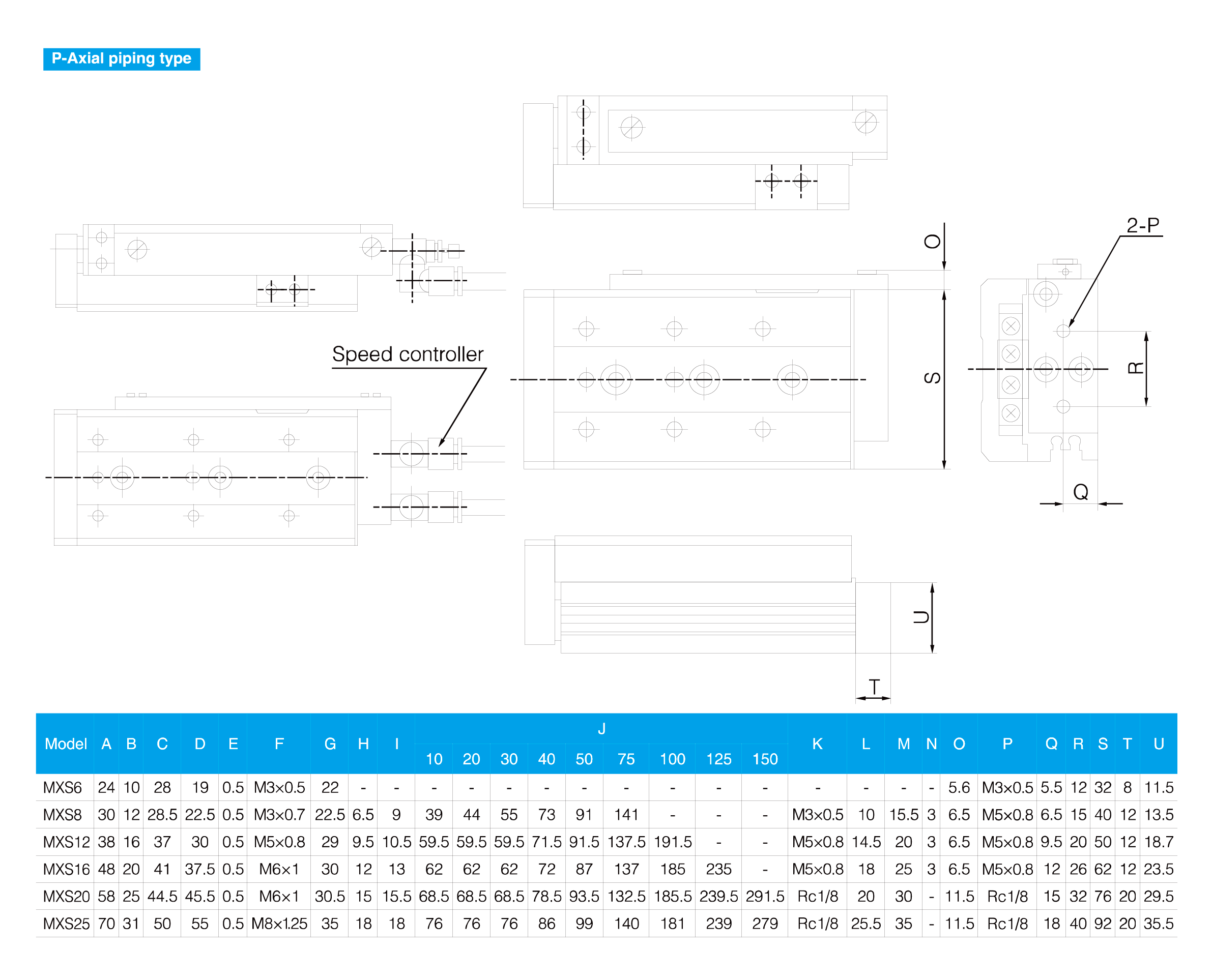

| Parameter | Specification |
| Models | MXS6, MXS8, MXS12, MXS16, MXS20, MXS25 |
| Bore Size | Φ6×2, Φ8×2, Φ12×2, Φ16×2, Φ20×2, Φ25×2 |
| Working Medium | Air |
| Action | Double Acting |
| Operating Pressure | 0.15–0.7 MPa |
| Operating Temperature | -10°C to 60°C (No freezing) |
| Piston Speed | 50–500 mm/s |
| Cushion | Rubber cushion |
| Lubrication | Non-lube |
| Port Size | M3×0.5 / M5×0.8 |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

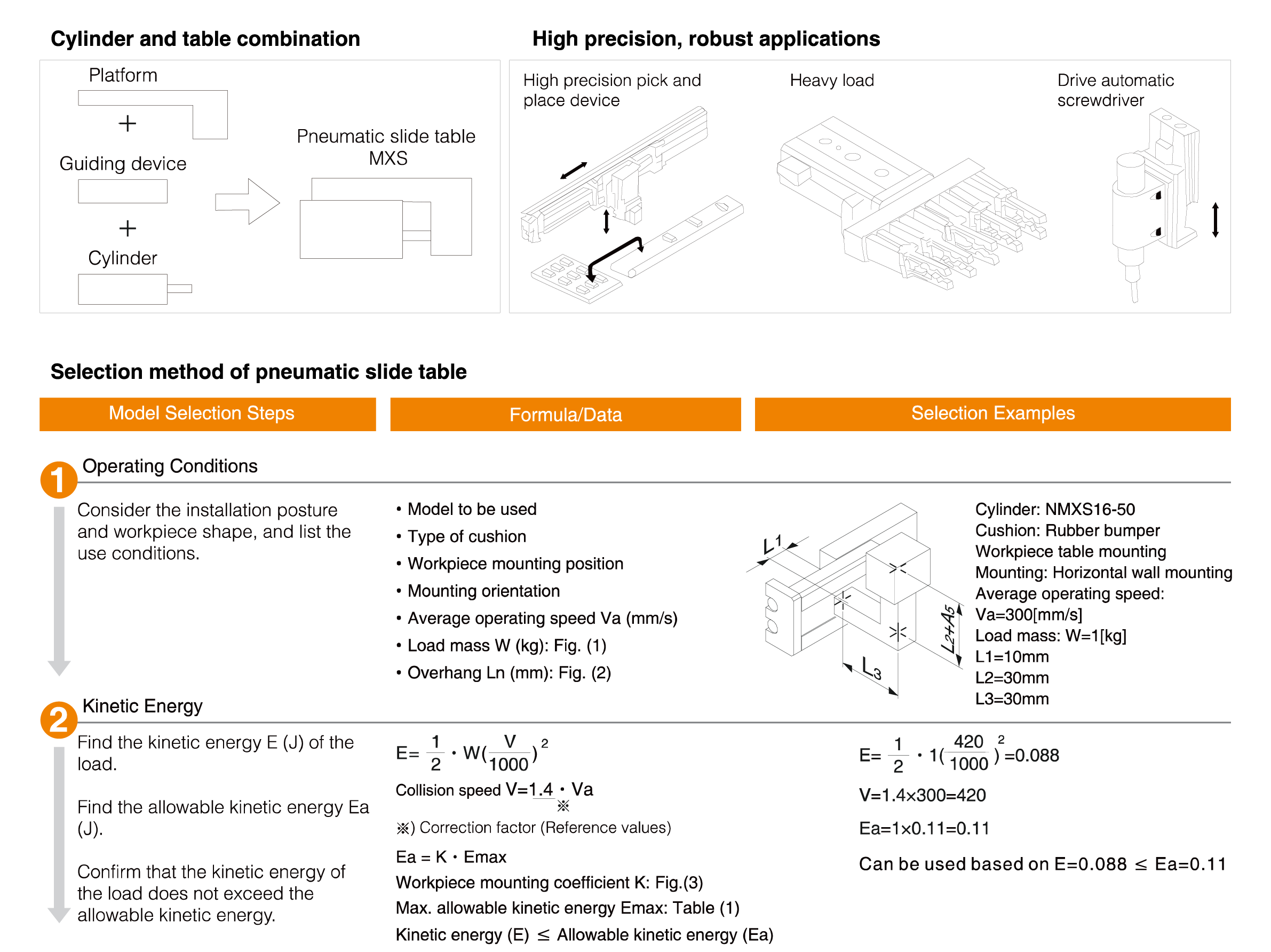

● Precision assembly equipment
● Pick-and-place systems
● Electronic component handling
● Semiconductor manufacturing
● Packaging and labeling machinery
● Precision positioning stations
● Robotic transfer modules
● Inspection and testing equipment
● Medical automation devices
● Compact industrial automation systems
The MXS Series Air Slide Table combines a compact footprint, high thrust output, precision cross roller guidance, and flexible installation options to deliver reliable linear motion for demanding automation applications. Its excellent repeatability and rigid construction make it an ideal choice for OEM equipment manufacturers seeking stable performance, efficient machine layouts, and long-term operational reliability.
