The MGG Series Guide Cylinder is a heavy-duty guided pneumatic actuator designed for applications that require smooth deceleration, high positioning accuracy, and excellent load stability.
Equipped with built-in hydraulic shock absorbers and a stroke adjustment mechanism, it effectively reduces impact at the end of travel while improving motion control. The guided structure provides strong resistance to side loads and rotational forces, making it ideal for precision handling, transfer, and positioning systems.
Available with slide bearing or ball bushing guidance, the MGG Series offers reliable performance in demanding industrial environments where accuracy and durability are equally important.
The MGG Series Guide Cylinder is developed for automation equipment that demands controlled movement, high rigidity, and long-term operational reliability. Unlike standard guided cylinders, this series incorporates built-in hydraulic shock absorbers that significantly reduce impact forces during high-speed operation. The result is smoother motion, lower vibration, and improved protection for both the cylinder and surrounding machine components.
Its reinforced guide rod structure effectively supports lateral loads while maintaining precise linear movement. Whether installed in transfer units, clamping systems, or material handling equipment, the cylinder delivers stable performance even under challenging operating conditions.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Built-in hydraulic shock absorbers for smooth deceleration
● Integrated travel adjustment mechanism
● Excellent resistance to side loads and offset forces
● High non-rotation accuracy for precision positioning
● Available with slide bearing or ball bushing guide systems
● Suitable for high-speed automation applications
● Reduced vibration and mechanical impact
● Maintenance-friendly non-lube operation
● High rigidity guided structure
● Stable performance under continuous cycling
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

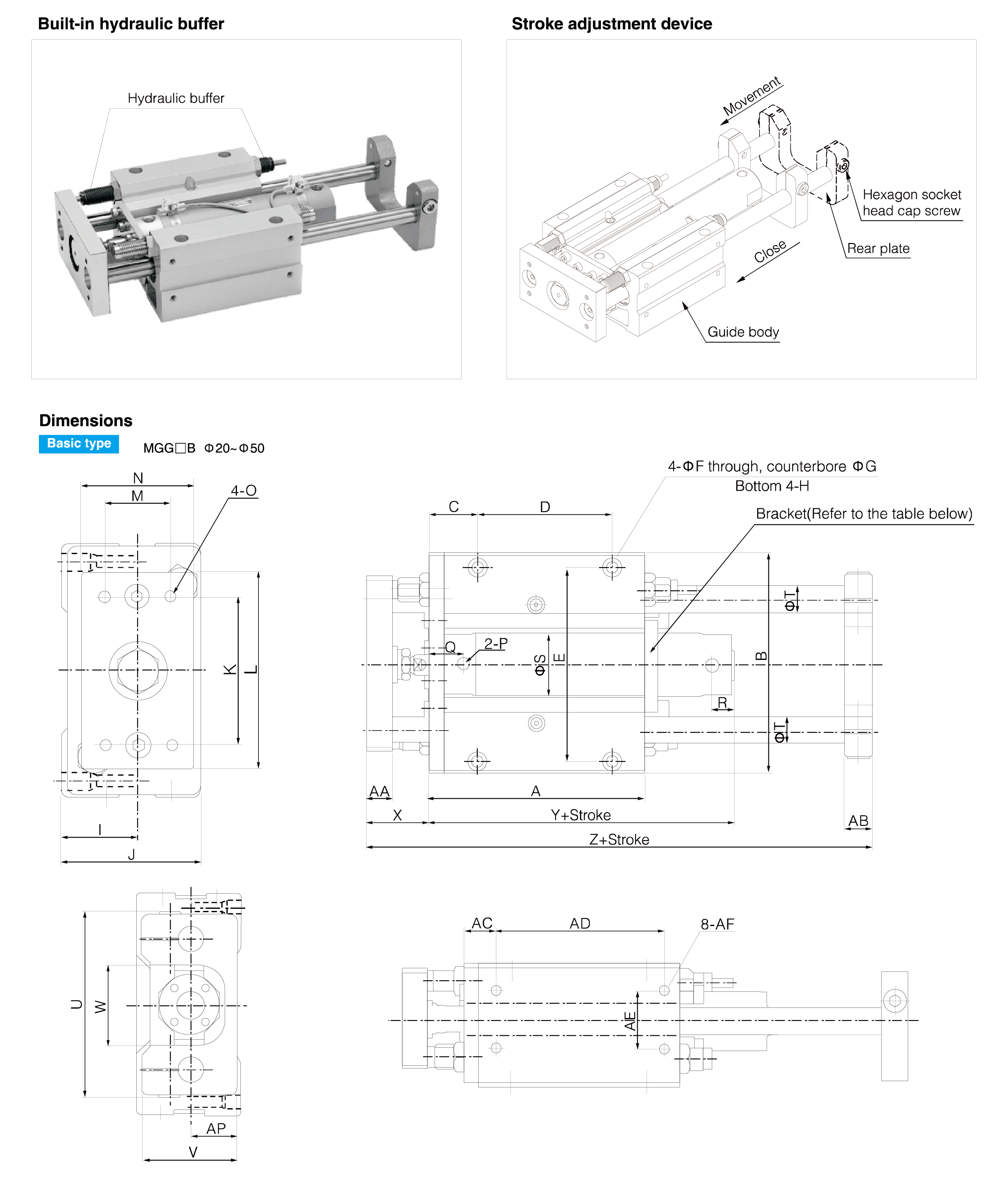

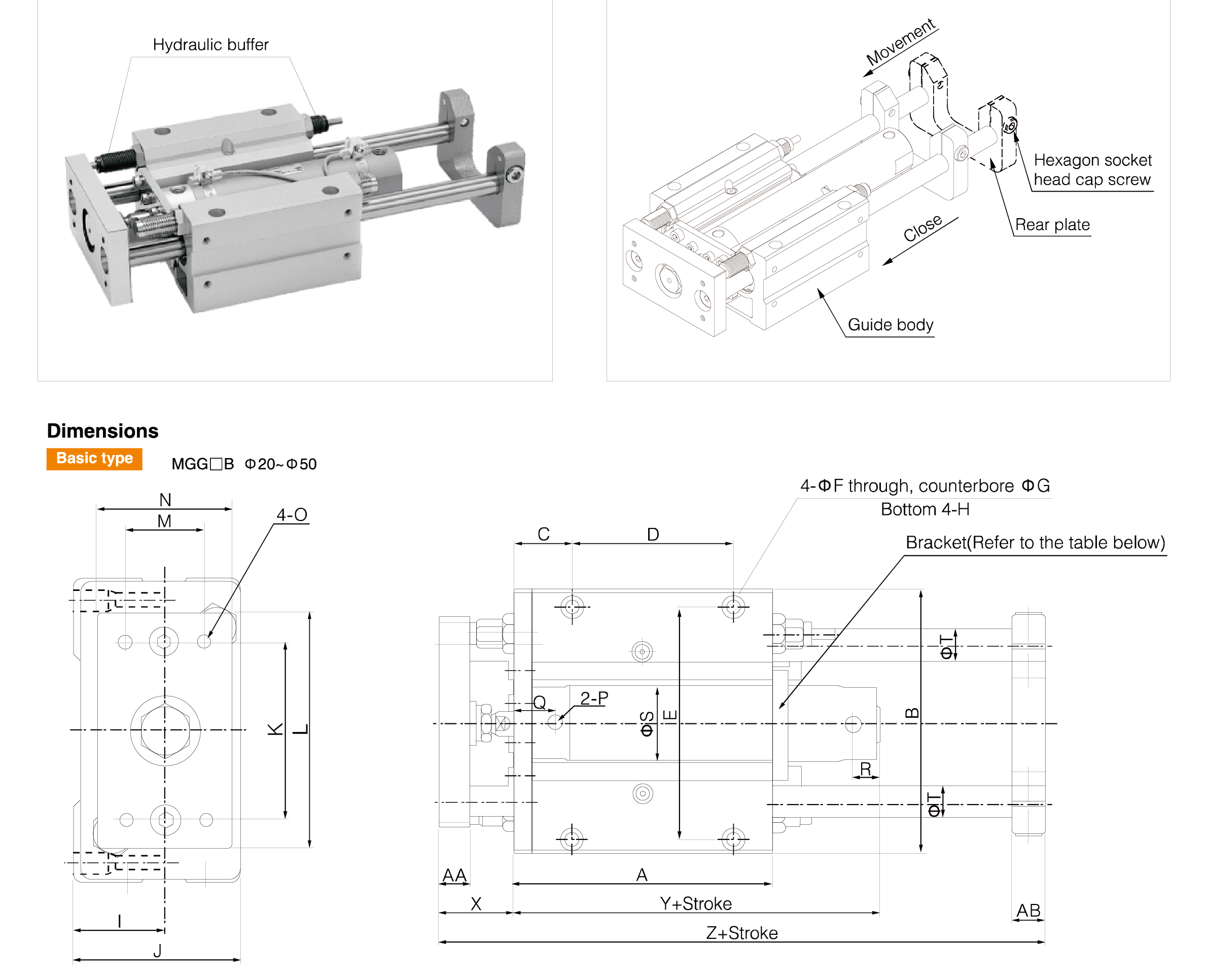

One of the key advantages of the MGG Series is its integrated hydraulic cushioning system. Unlike conventional rubber bumper designs, the built-in shock absorbers gradually absorb kinetic energy at the end of the stroke, helping to reduce mechanical stress and extend equipment life.
The adjustable stroke mechanism further improves installation flexibility by allowing fine-tuning of the stopping position. This is particularly valuable in assembly lines and automated machinery where precise positioning directly affects product quality and process efficiency.
Users can choose either slide bearing or ball bushing bearing versions according to load requirements and desired positioning accuracy.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

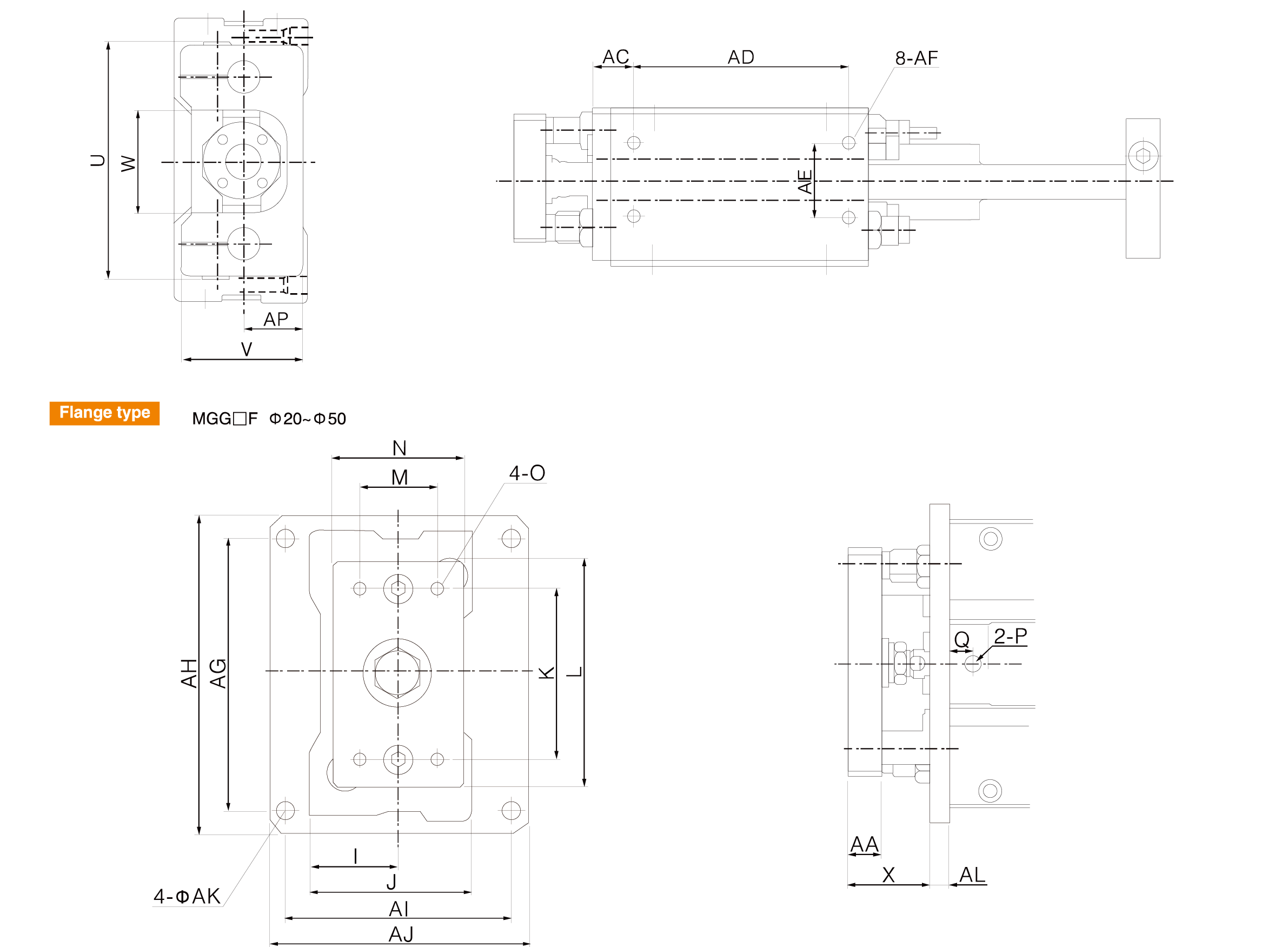

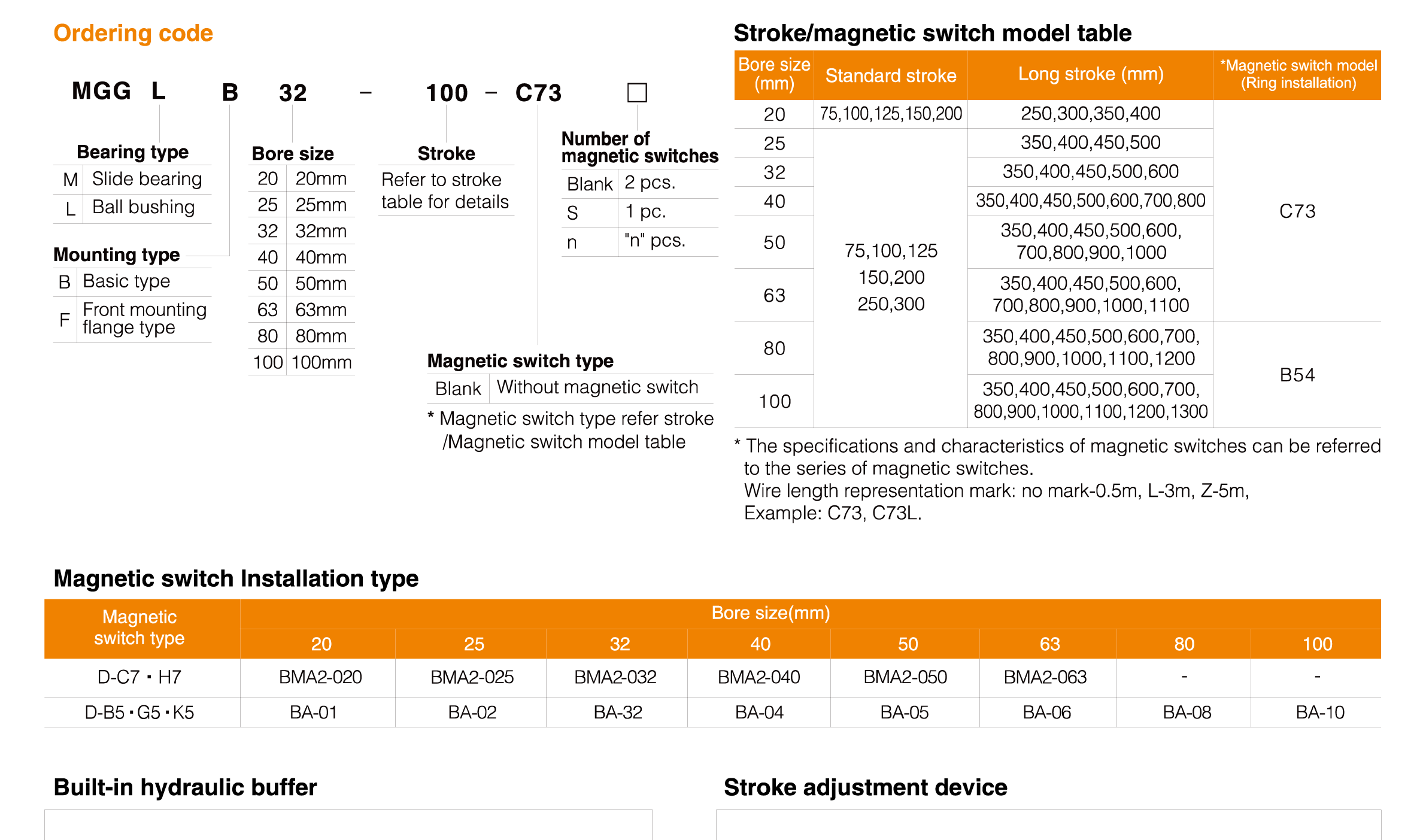

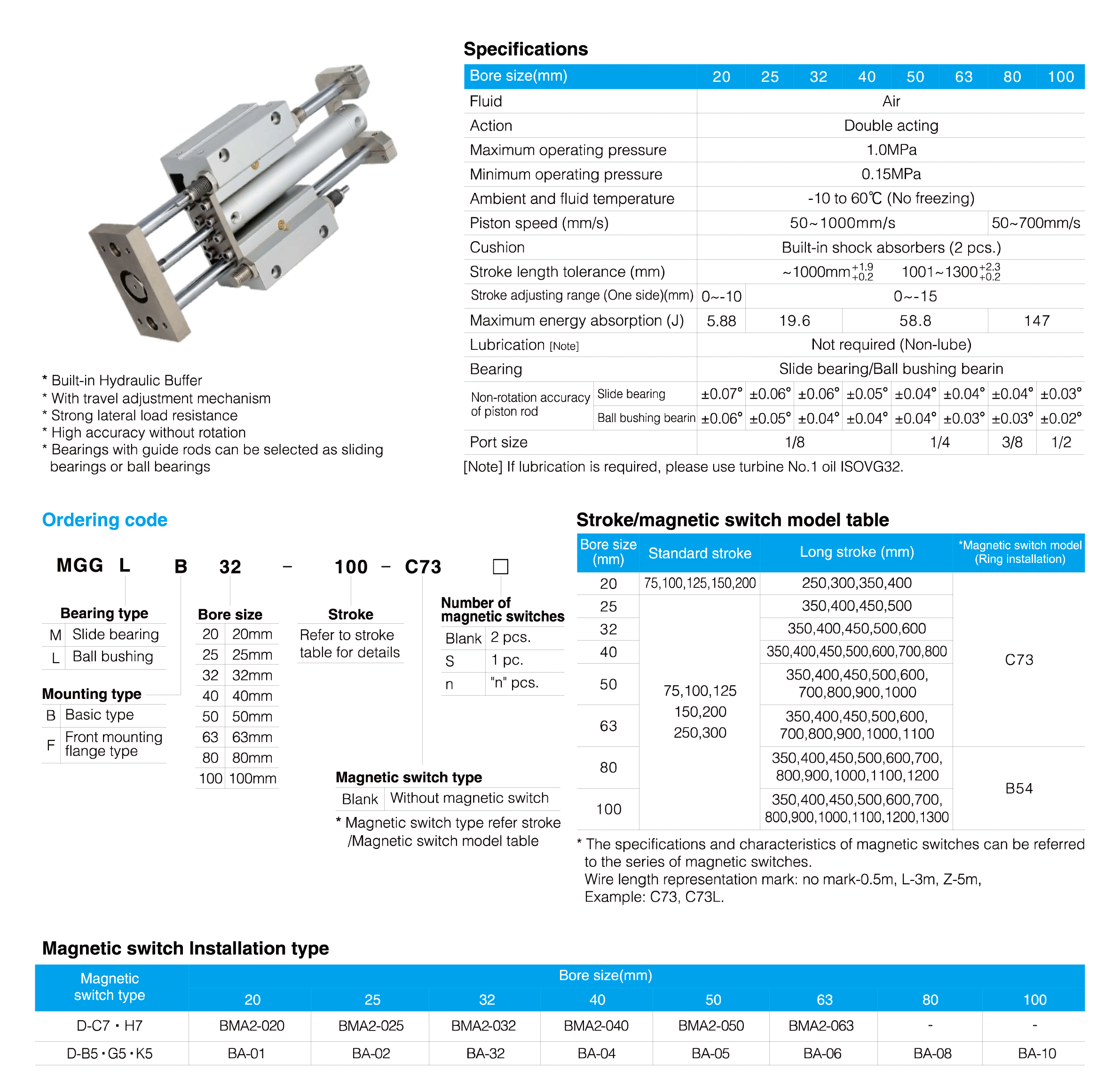

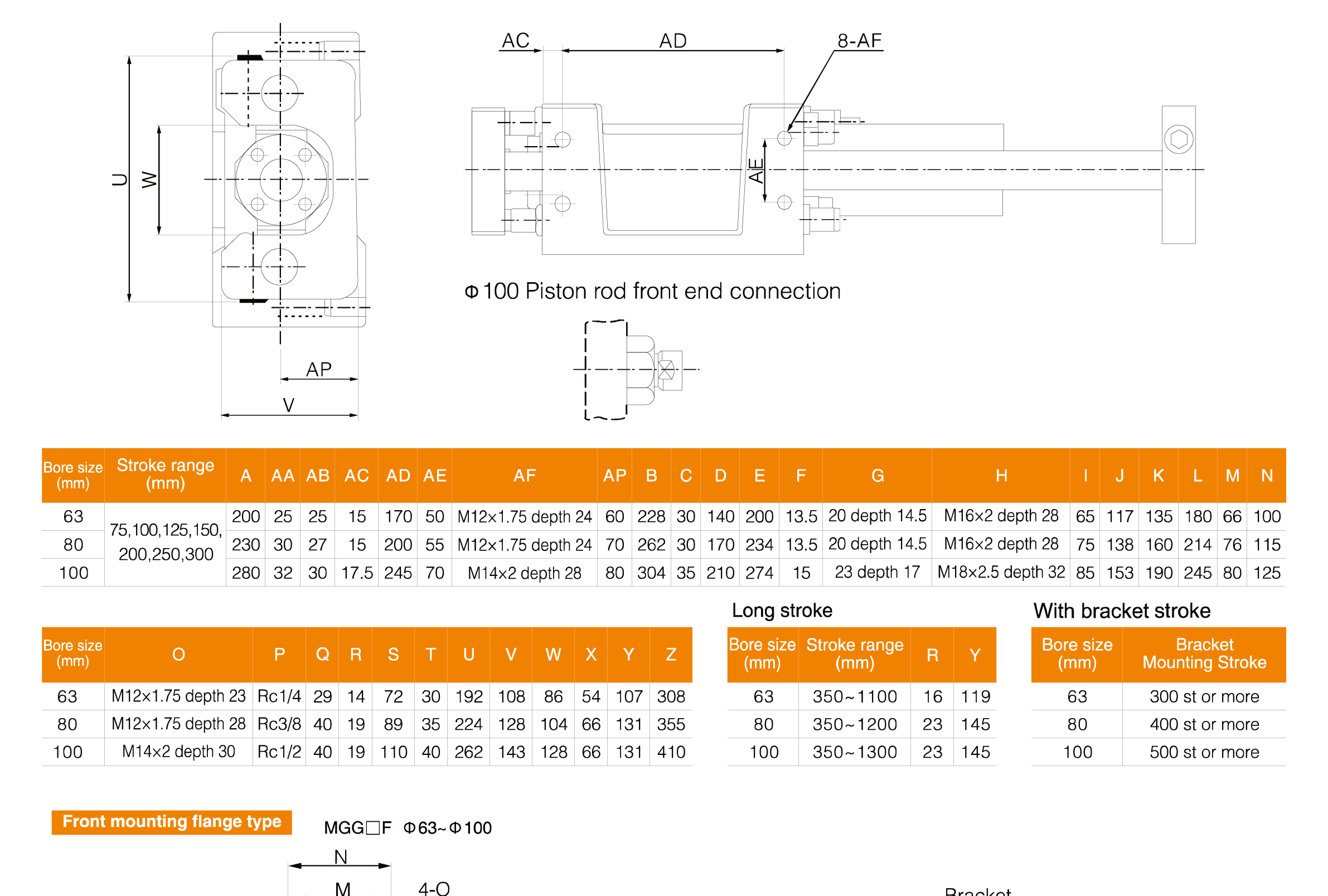

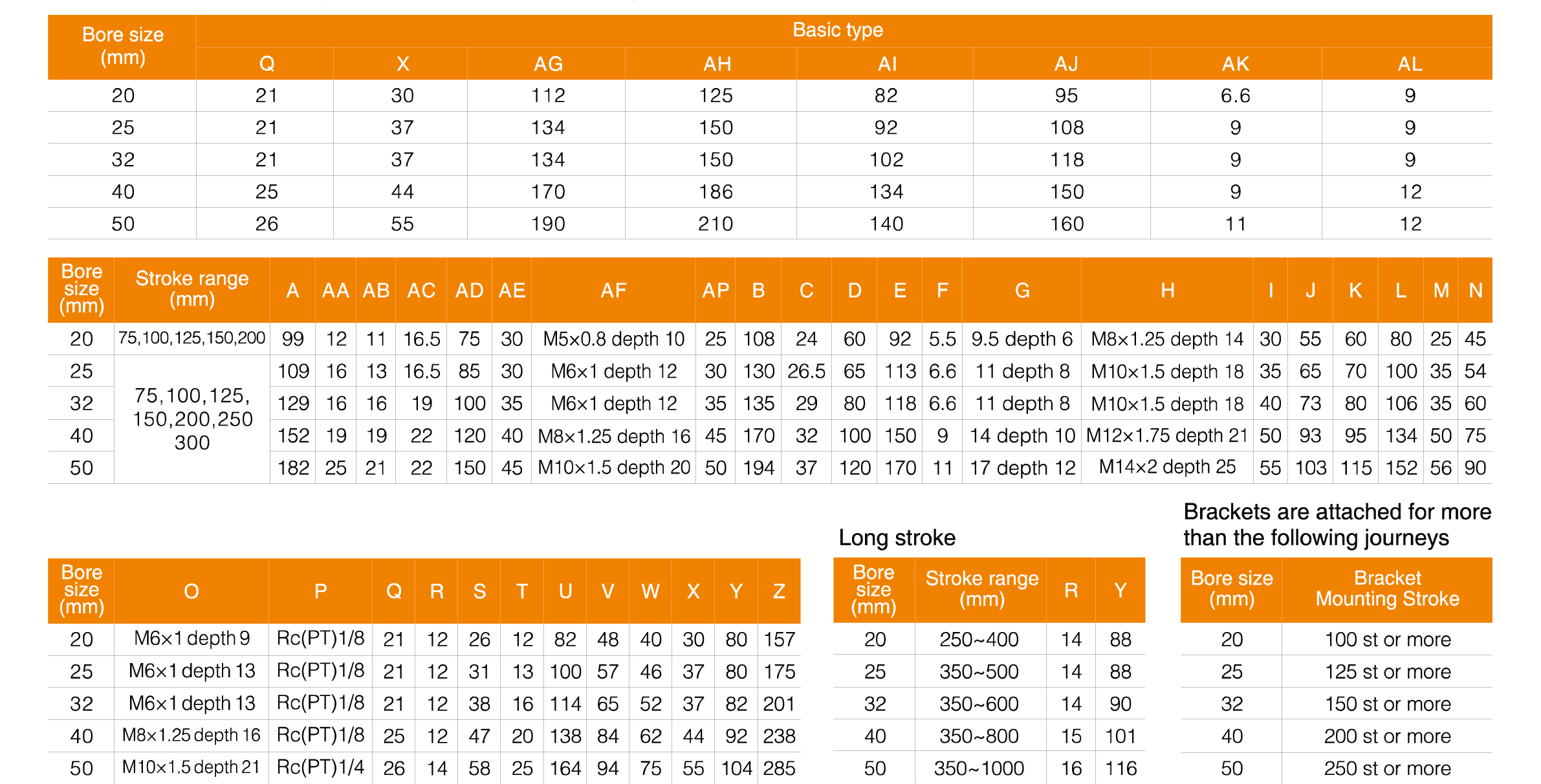

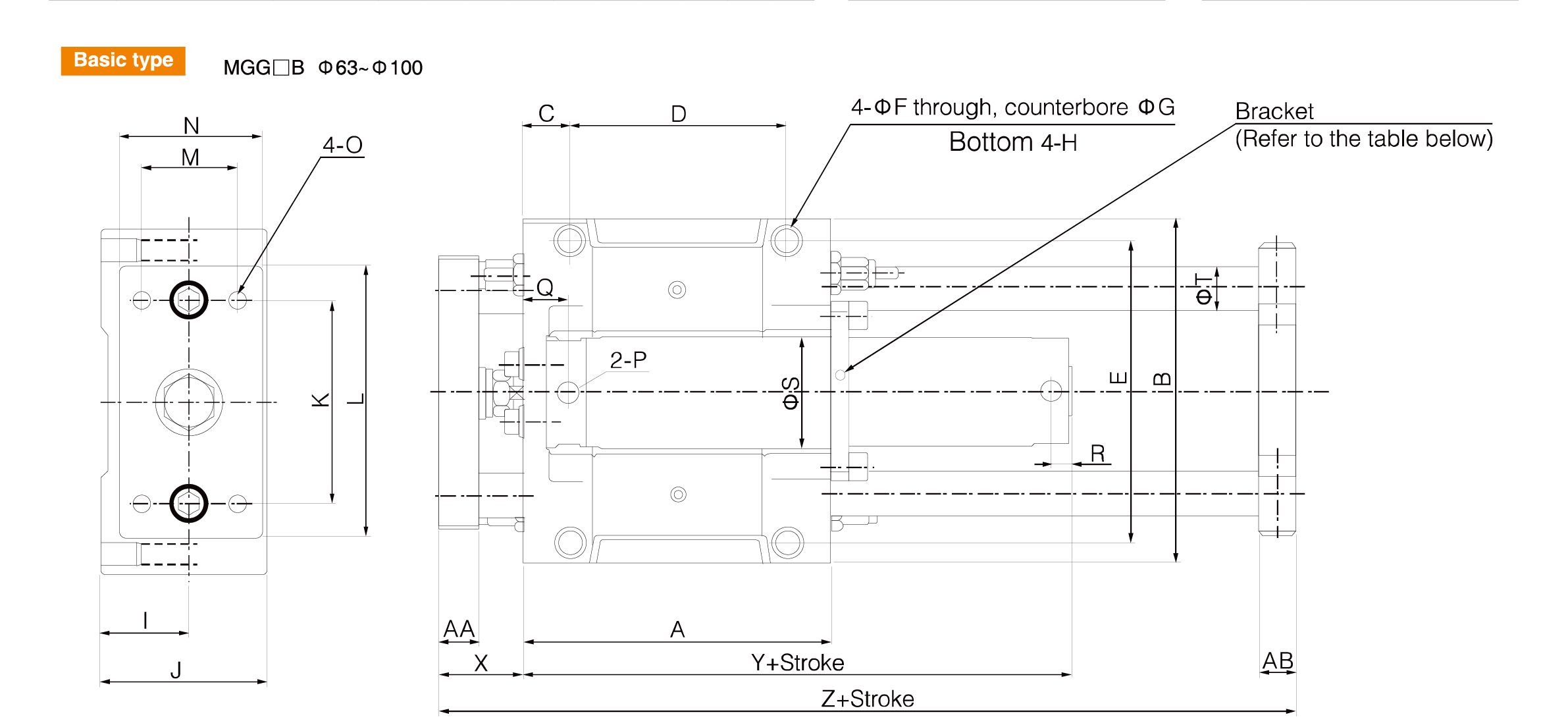

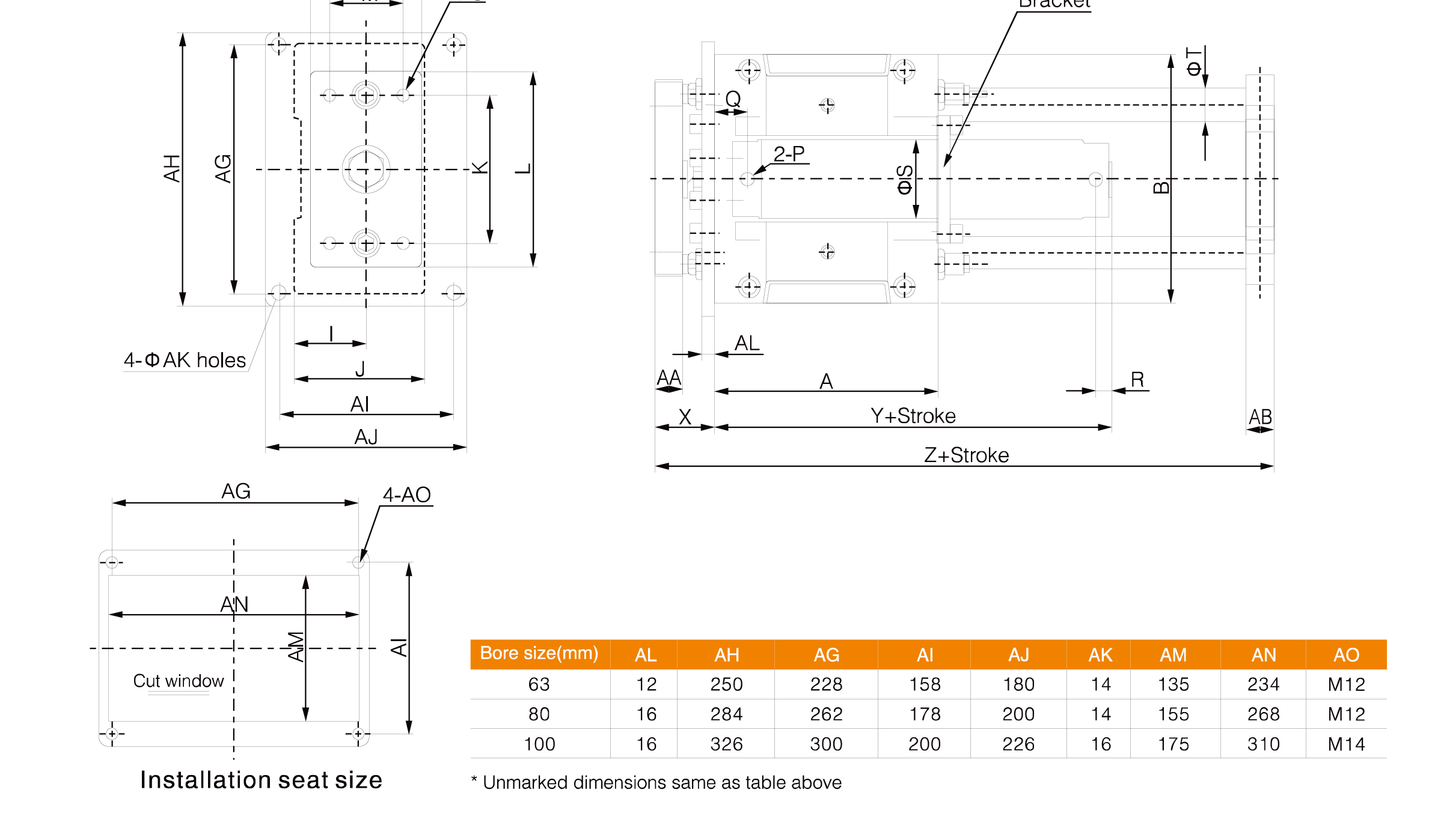

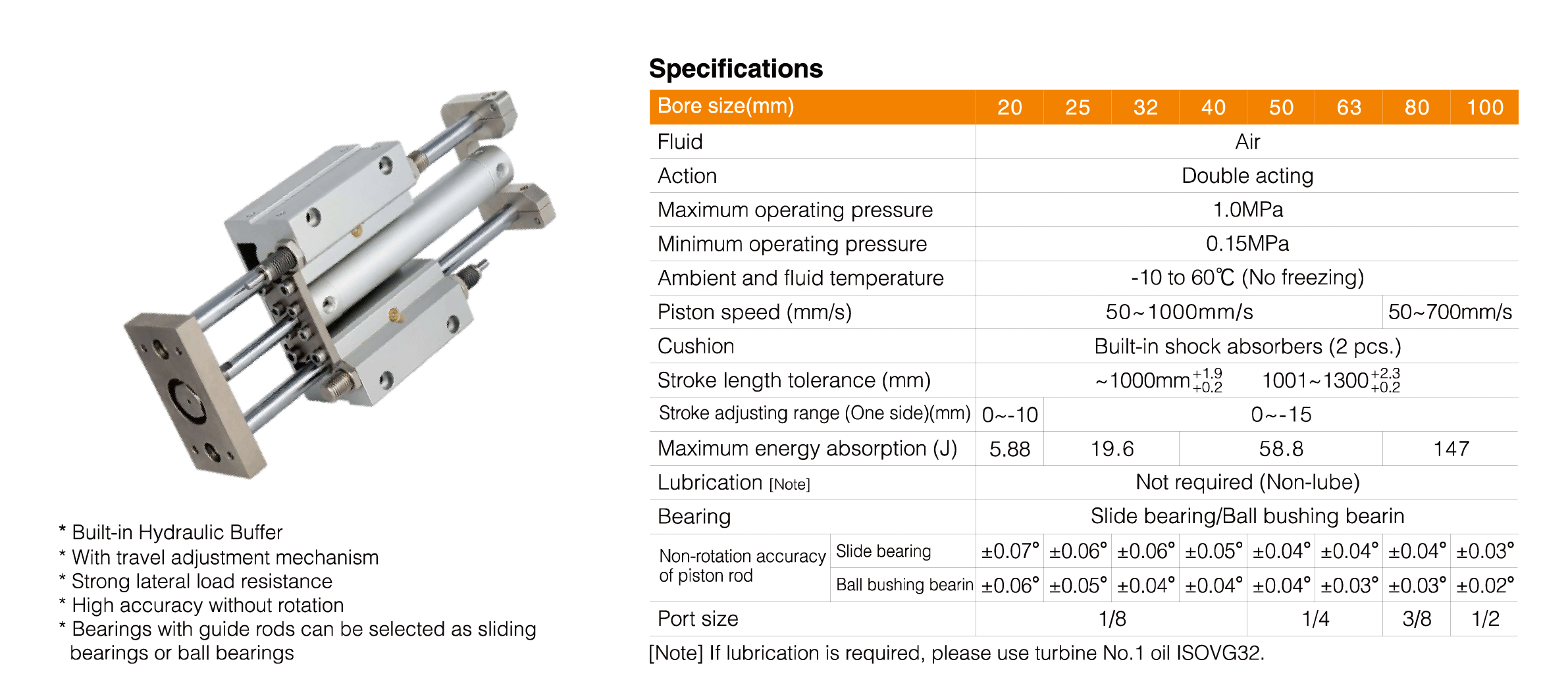

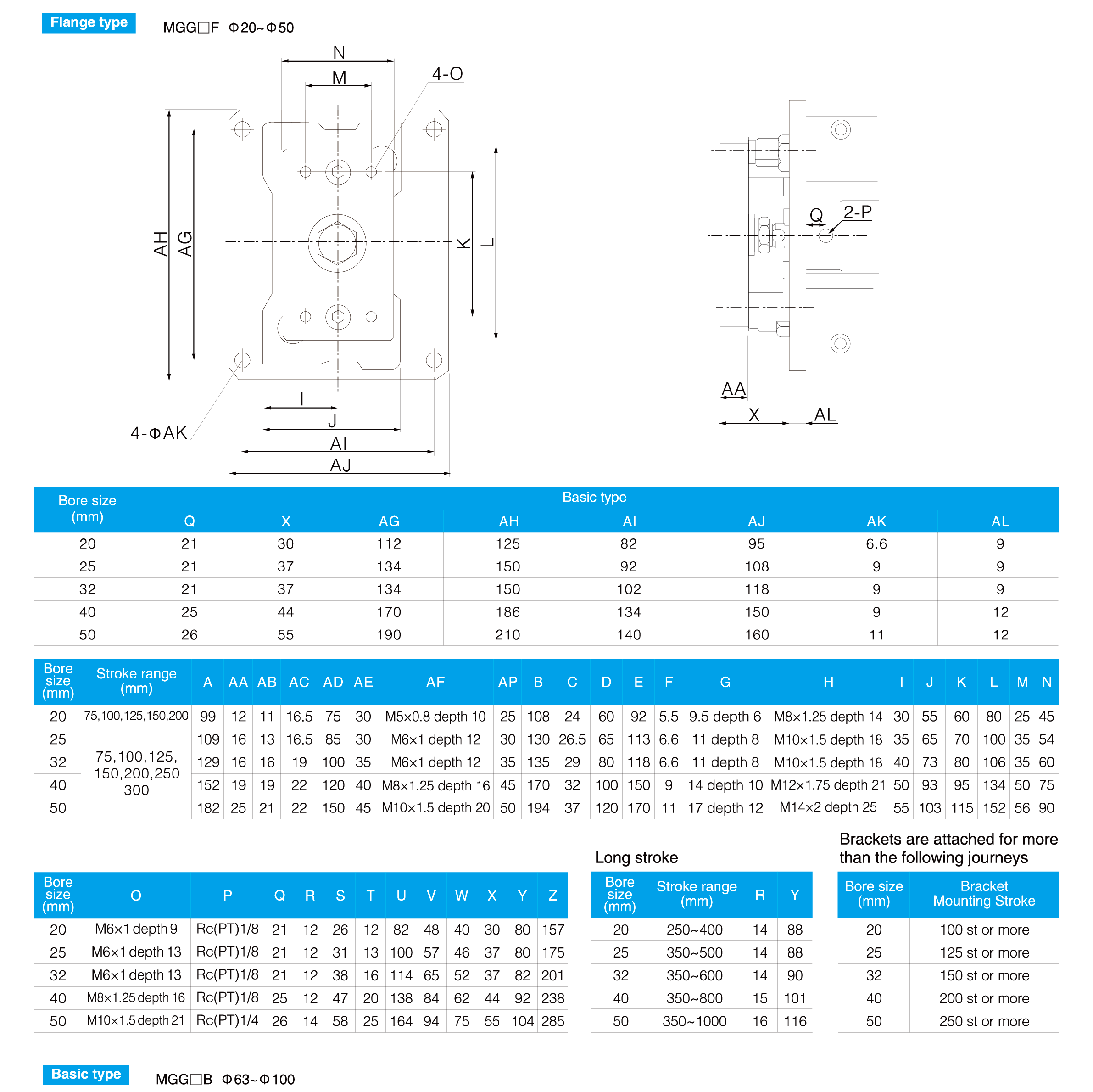

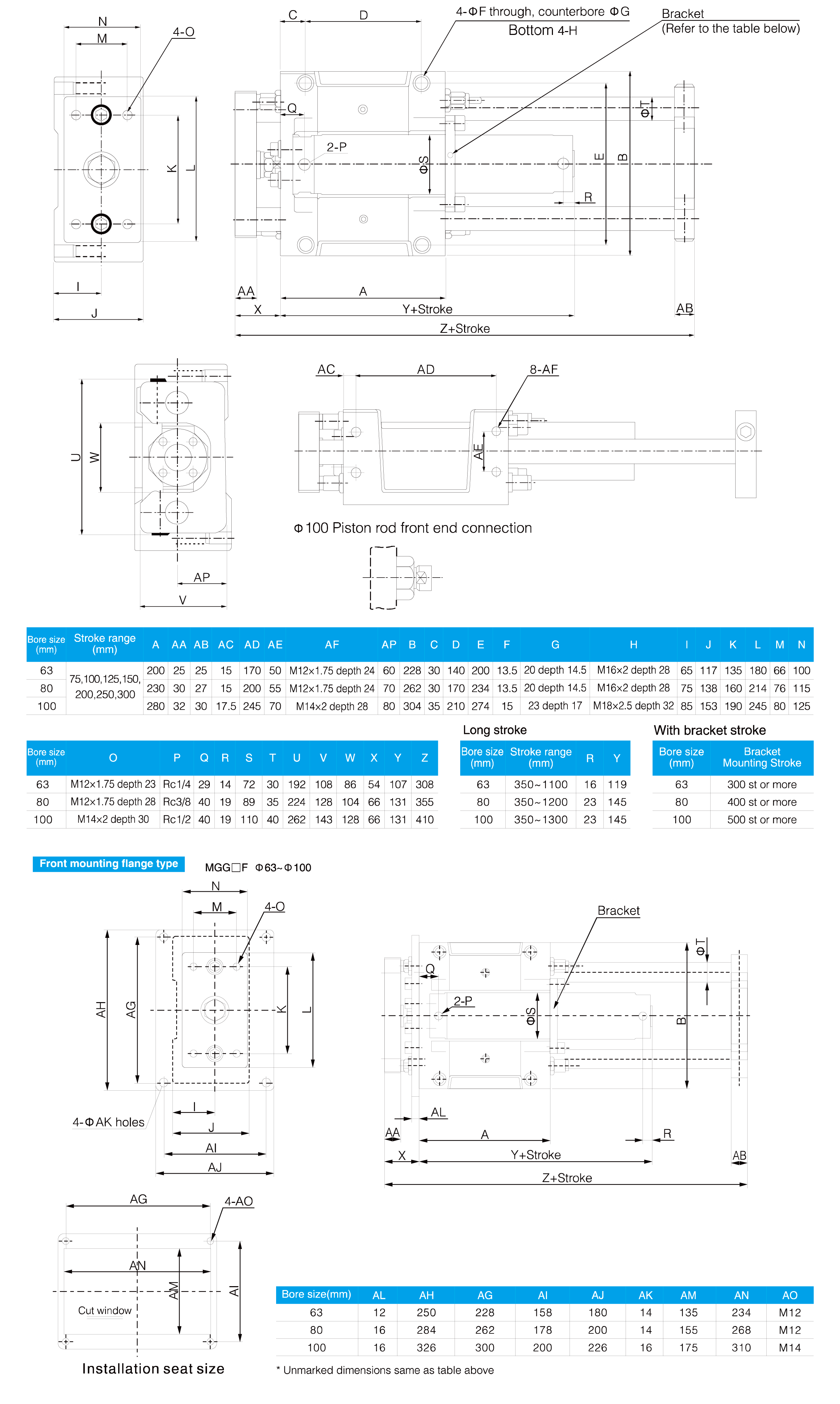

| Parameter | Specification |
| Bore Size | 20, 25, 32, 40, 50, 63, 80, 100 mm |
| Action | Double Acting |
| Working Medium | Air |
| Maximum Operating Pressure | 1.0 MPa |
| Minimum Operating Pressure | 0.15 MPa |
| Ambient Temperature | -10°C to 60°C |
| Piston Speed | 50–1000 mm/s (up to 700 mm/s for larger bores) |
| Cushion Type | Built-in Hydraulic Shock Absorbers (2 pcs.) |
| Stroke Adjustment Range | 0 to -10 mm / 0 to -15 mm |
| Bearing Type | Slide Bearing / Ball Bushing Bearing |
| Lubrication | Non-lube |
| Port Size | 1/8, 1/4, 3/8, 1/2 |
The cylinder offers maximum energy absorption values ranging from 5.88 J to 147 J, allowing it to handle higher operating loads while maintaining smooth deceleration characteristics.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Automated transfer systems
● Precision positioning equipment
● Industrial clamping devices
● Material handling machinery
● Packaging and assembly lines
● Robotic auxiliary modules
● Testing and inspection equipment
● Automotive production systems
● Heavy-duty automation equipment
● Manufacturing and processing machinery
Combining hydraulic cushioning, guided precision, and excellent load resistance, the MGG Series Guide Cylinder provides a dependable solution for industrial applications requiring controlled motion, reduced impact, and long service life.
