The MXH Series Compact Slide Table is designed for high-precision linear positioning in compact automation equipment. Integrating a pneumatic cylinder with a precision linear guide, it delivers smooth movement, high rigidity, and excellent repeatability while occupying minimal installation space.
Its linear guide bearing enhances non-rotation accuracy, while three-side air port connections and built-in magnetic switch compatibility provide greater flexibility for equipment design and automation control.
The MXH Series Compact Slide Table combines a compact pneumatic actuator with an integrated linear guide system to provide highly accurate and stable linear motion. Compared with conventional slide mechanisms, the built-in linear guide bearing significantly improves piston rod guidance and minimizes rotational deviation, making the actuator ideal for applications requiring repeatable positioning and smooth travel. Its compact profile also helps optimize machine layouts where installation space is limited.
Designed for flexible automation integration, the MXH Series supports air supply connections from three sides, allowing engineers to simplify pneumatic piping according to equipment layouts. A standard built-in magnetic ring enables easy installation of reed or solid-state magnetic switches on either side of the cylinder, providing reliable stroke detection for automated control systems.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Precision linear guide bearing for superior motion accuracy
● Excellent non-rotation performance
● Compact, space-saving slide table design

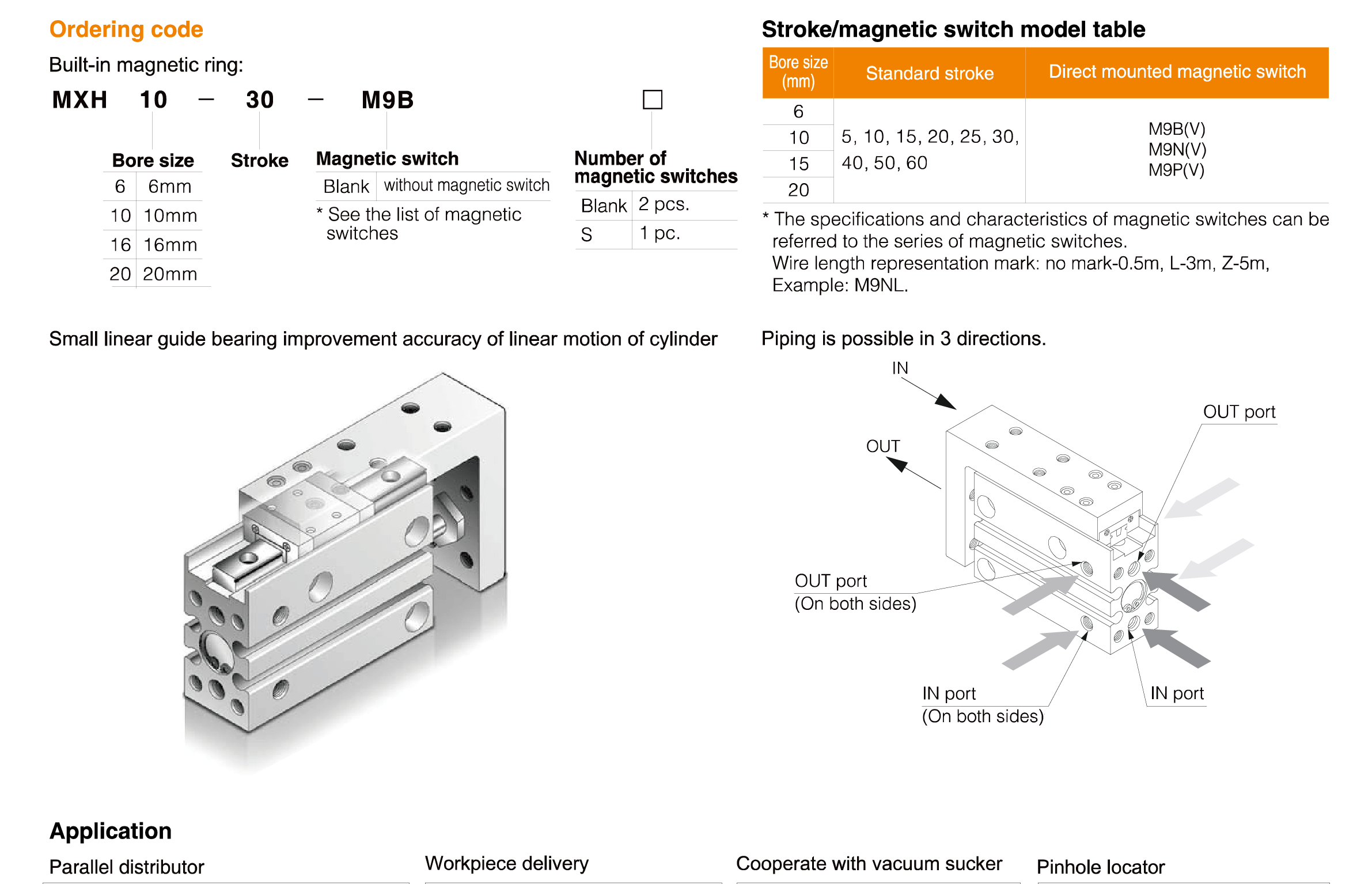

● Three-side pneumatic port configuration
● Magnetic ring included as standard
● Magnetic switches can be mounted on both sides
● Rubber bumpers at both stroke ends for smoother operation
● Maintenance-free non-lube design
● Easy installation and system integration
● Stable performance during continuous operation
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

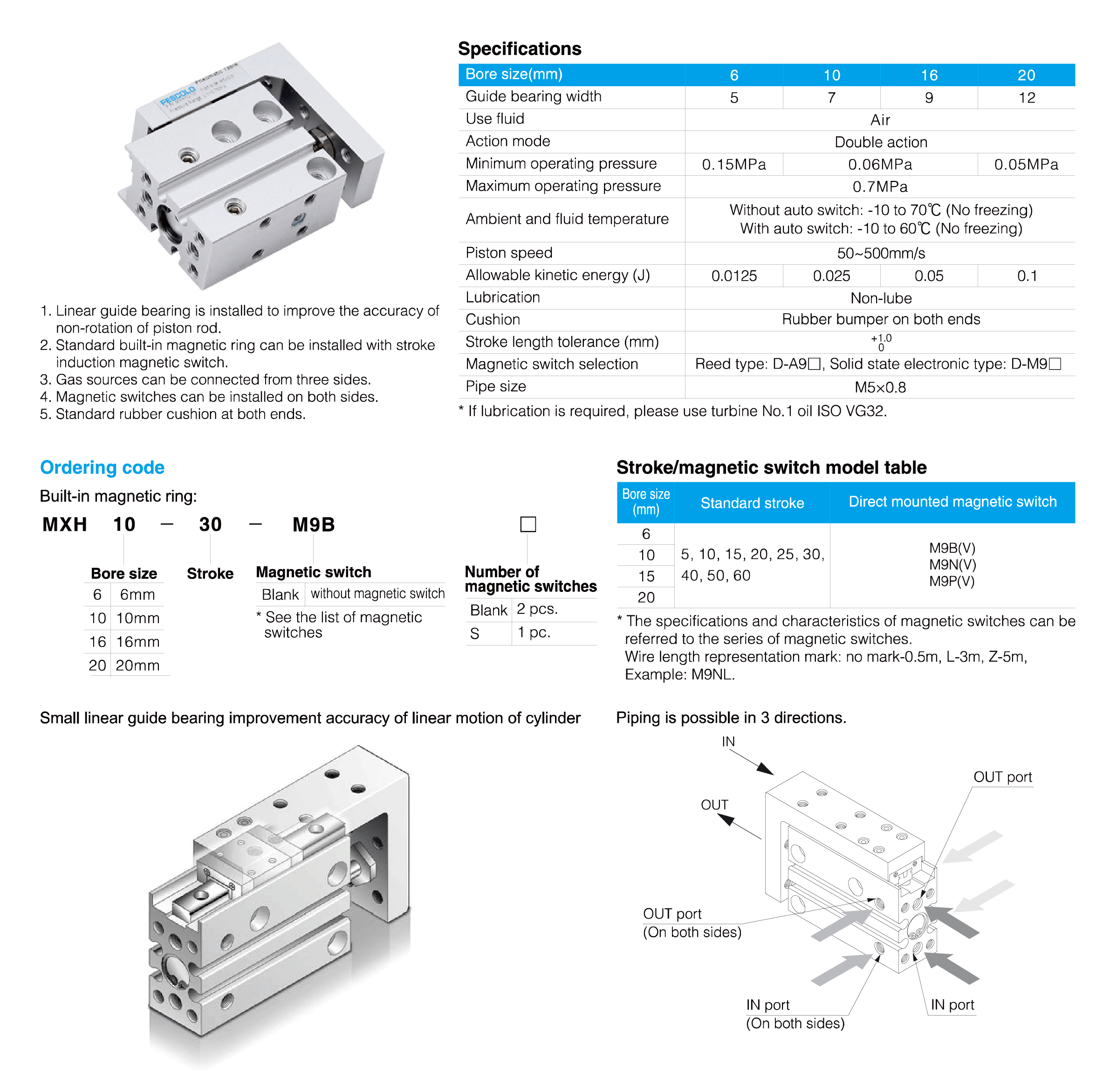

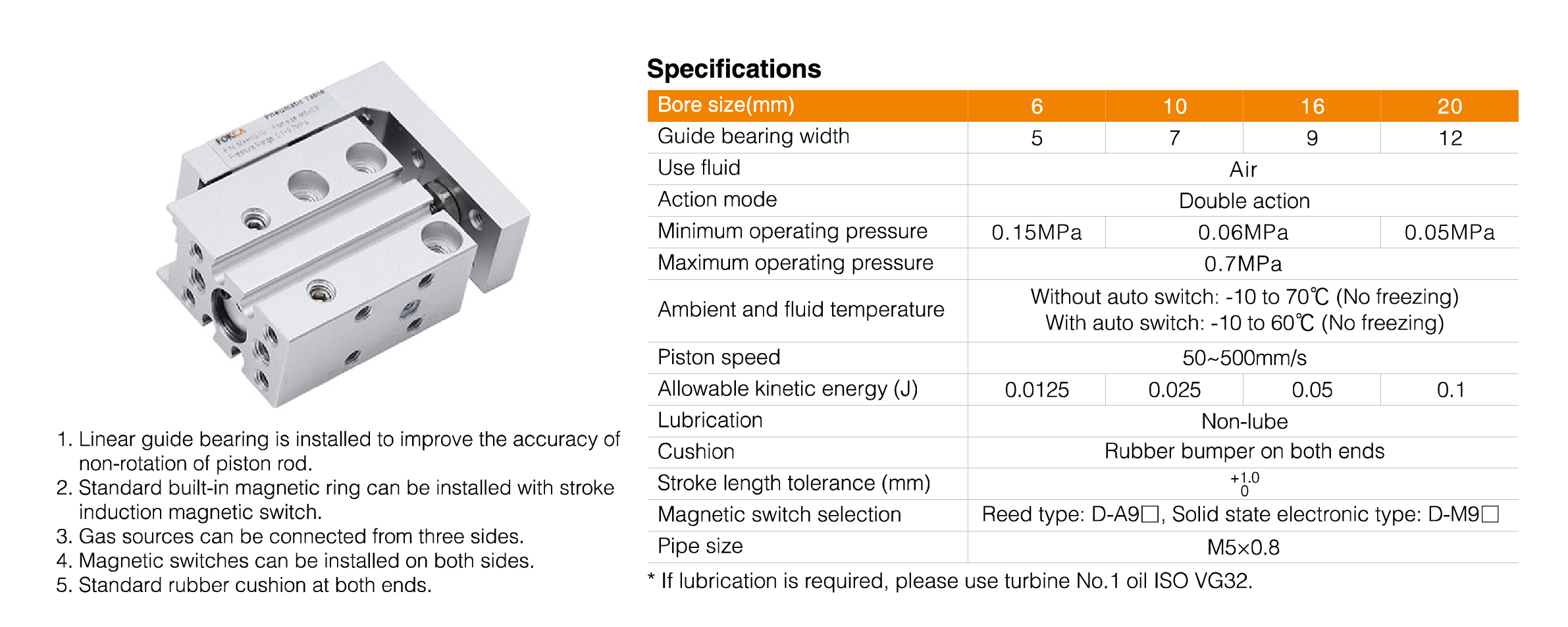

| Parameter | Specification |
| Bore Size | 6, 10, 16, 20 mm |
| Guide Bearing Width | 5, 7, 9, 12 mm |
| Working Medium | Air |
| Action | Double Acting |
| Operating Pressure | 0.05–0.7 MPa (depending on bore size) |
| Ambient Temperature | -10°C to 70°C (without switch), -10°C to 60°C (with switch) |
| Piston Speed | 50–500 mm/s |
| Cushion | Rubber bumper on both ends |
| Allowable Kinetic Energy | 0.0125–0.1 J |
| Lubrication | Non-lube |
| Magnetic Switch | Reed D-A9 / Solid State D-M9 |
| Port Size | M5×0.8 |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

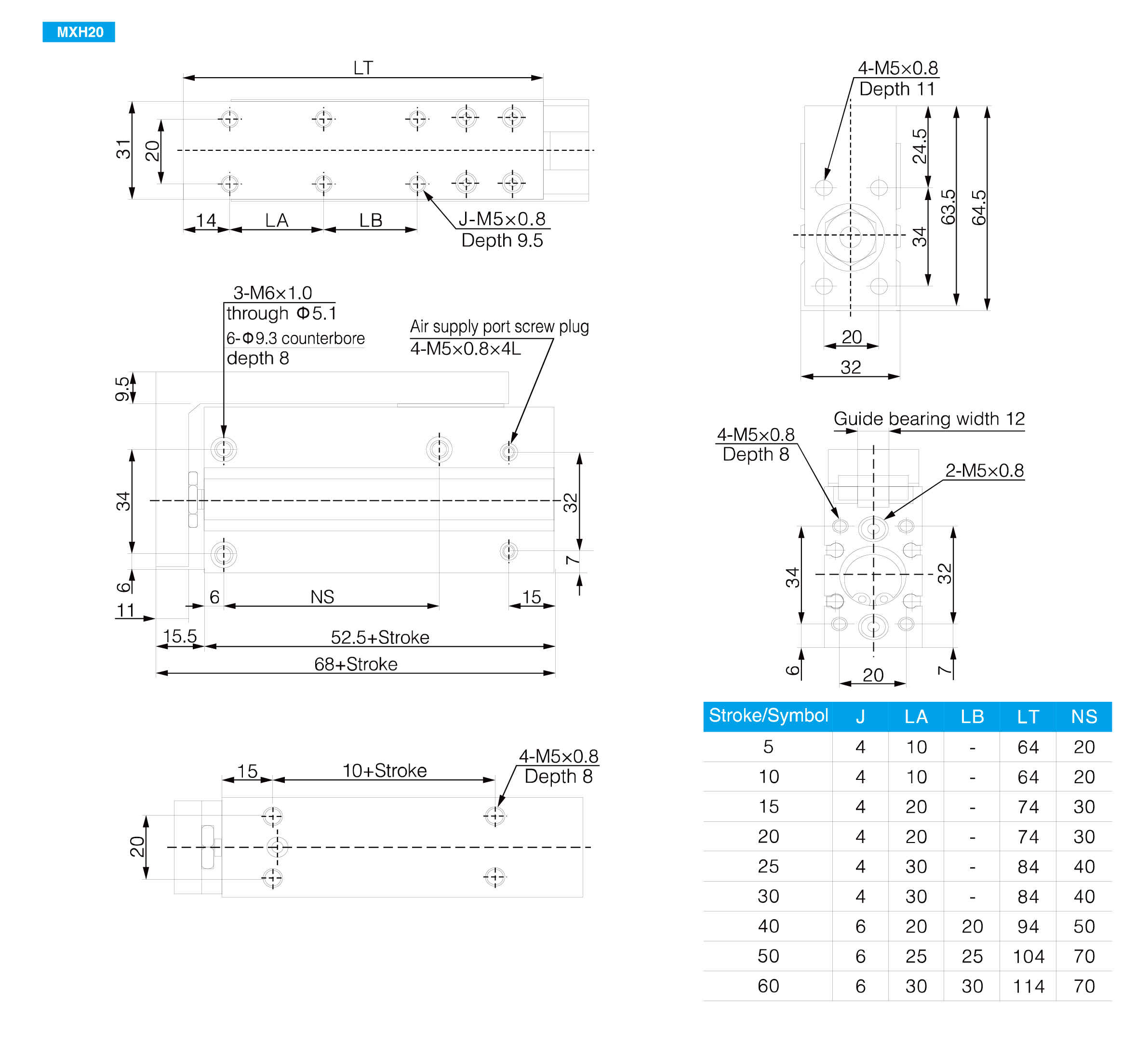

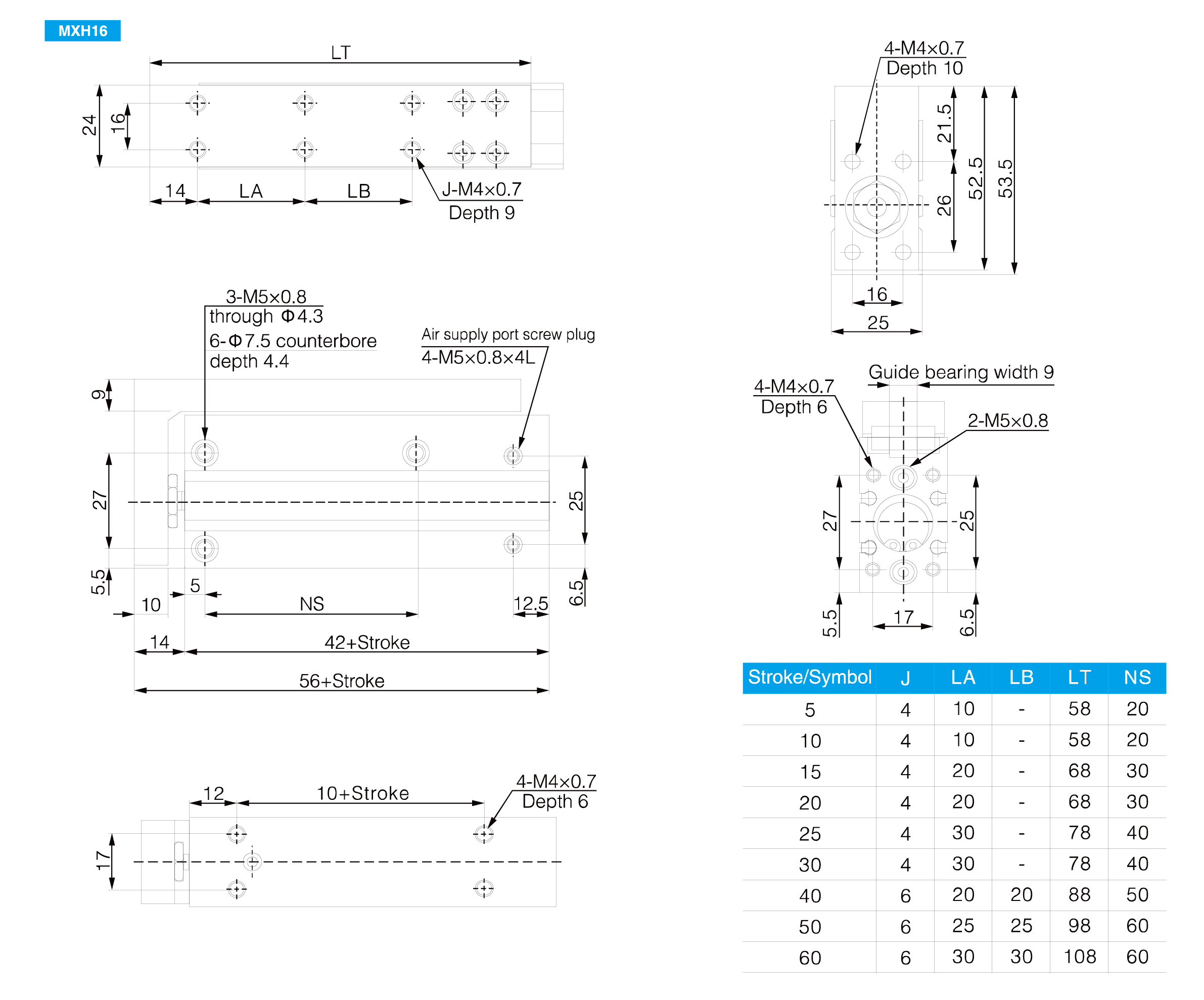

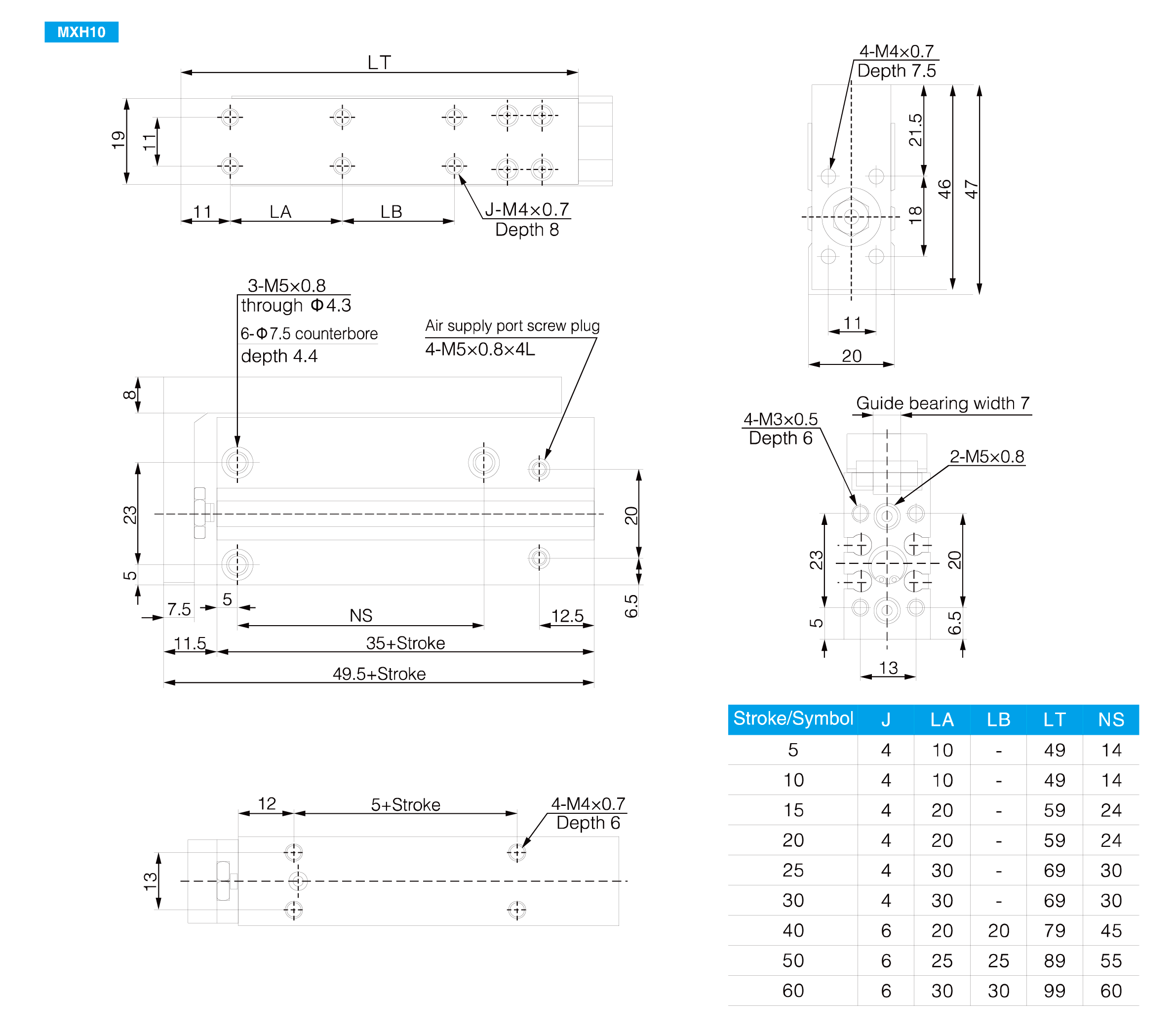

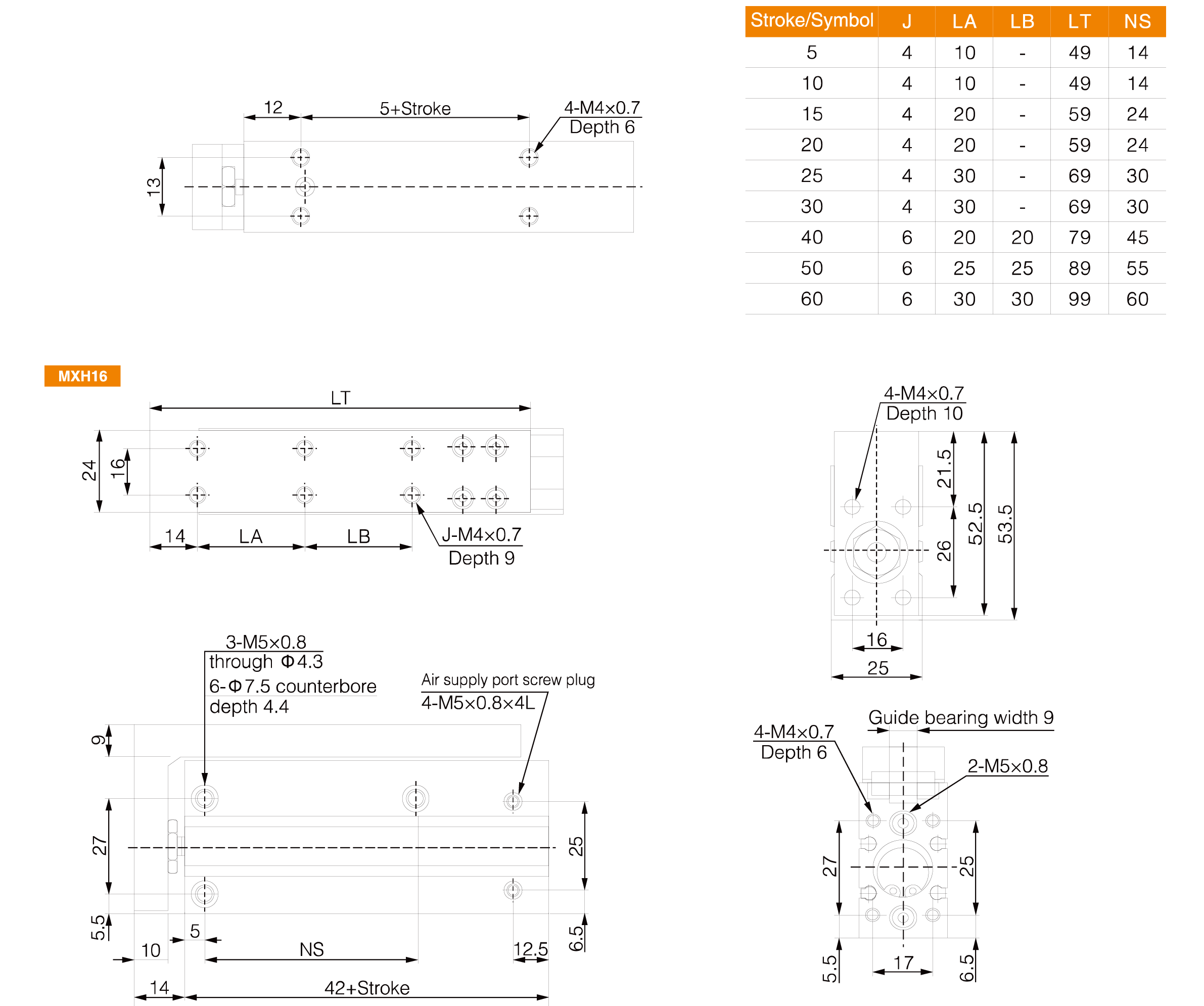

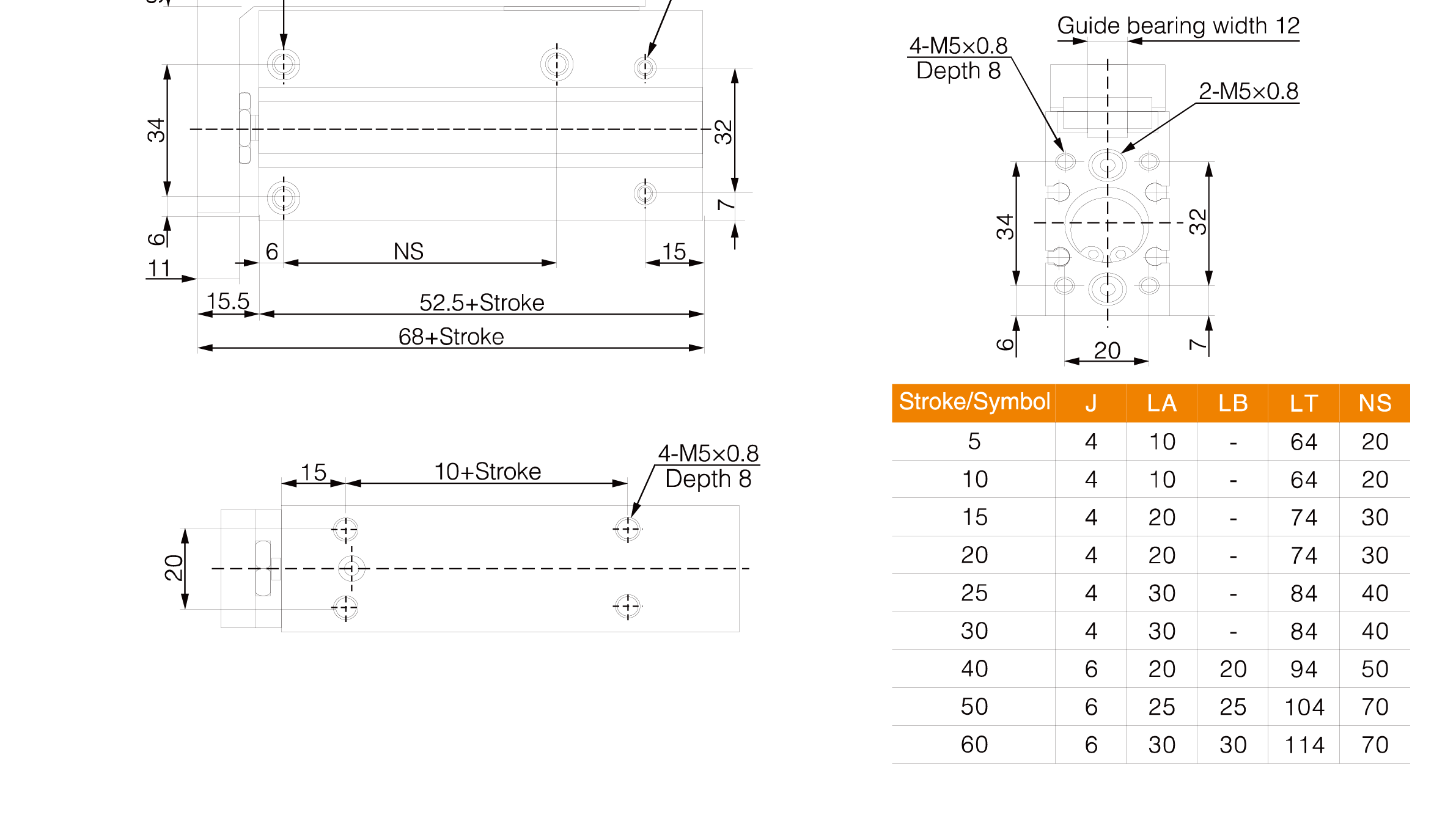

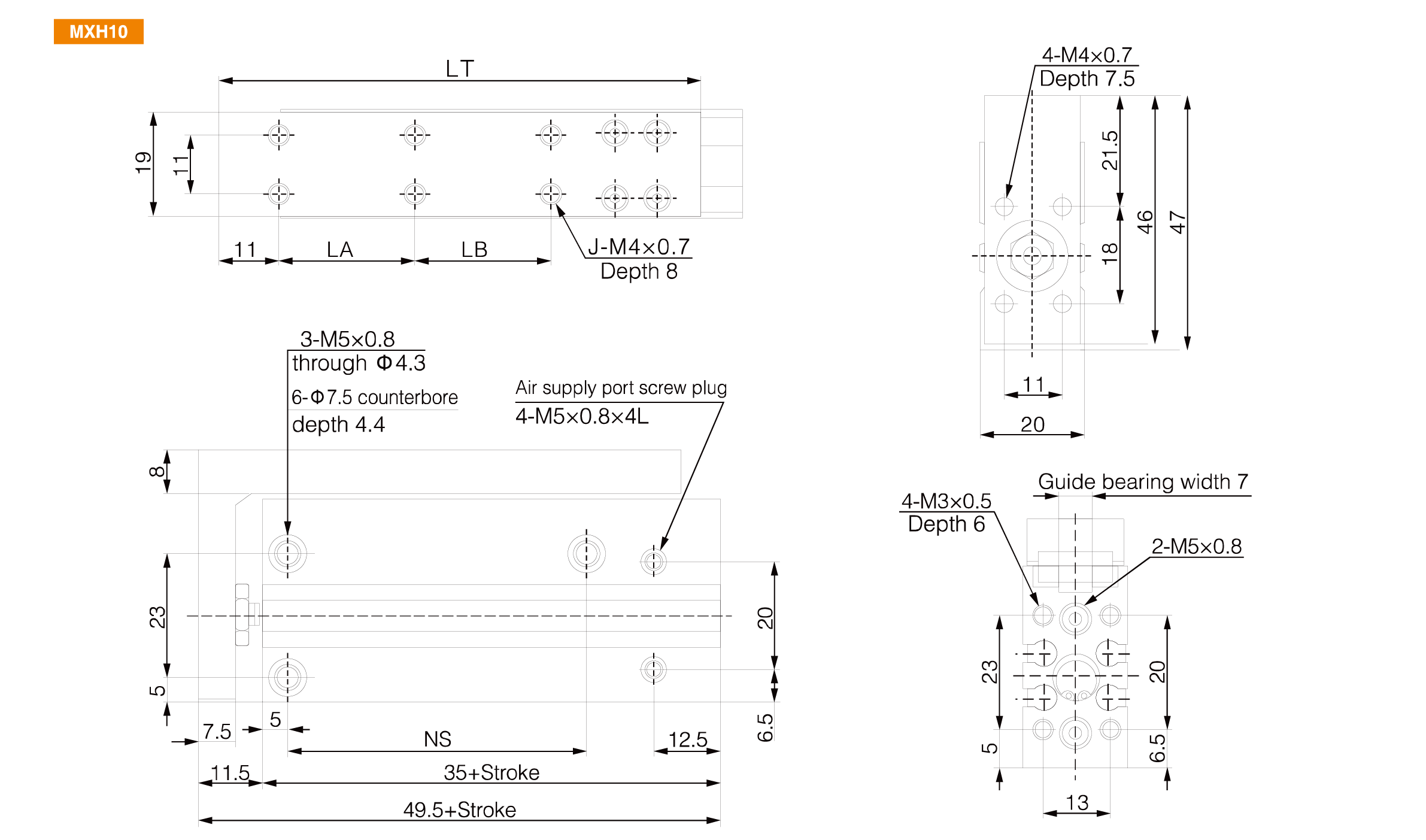

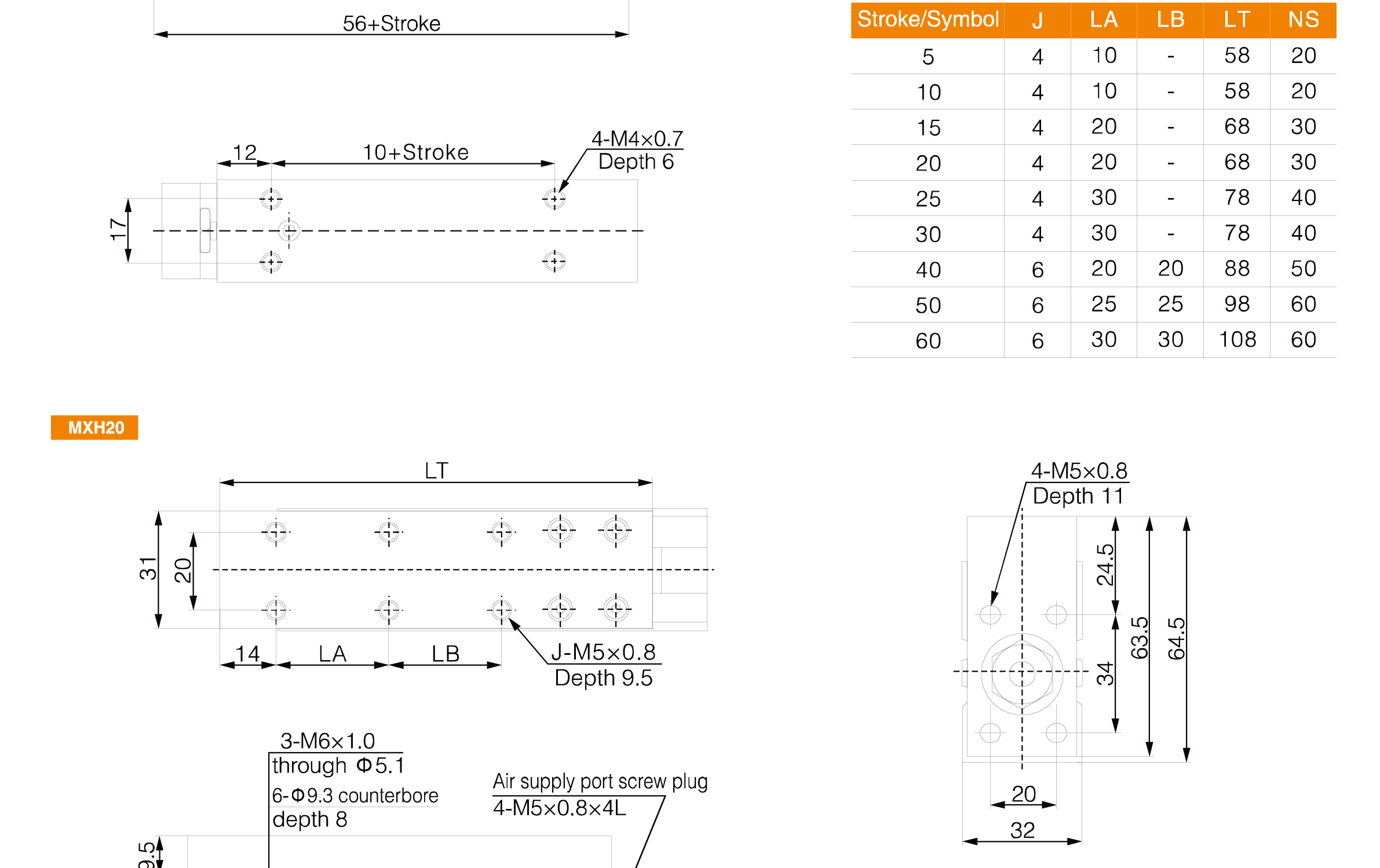

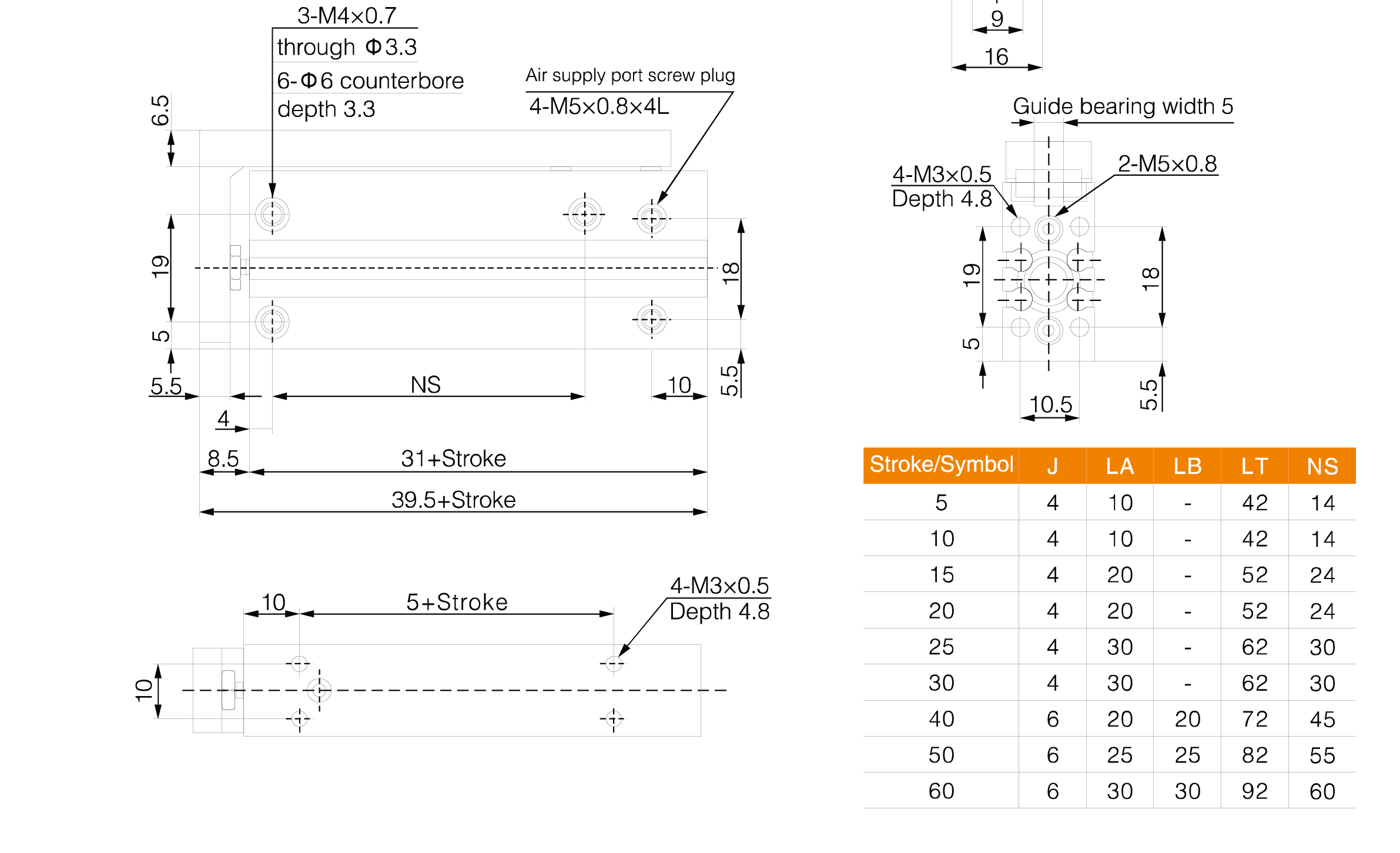

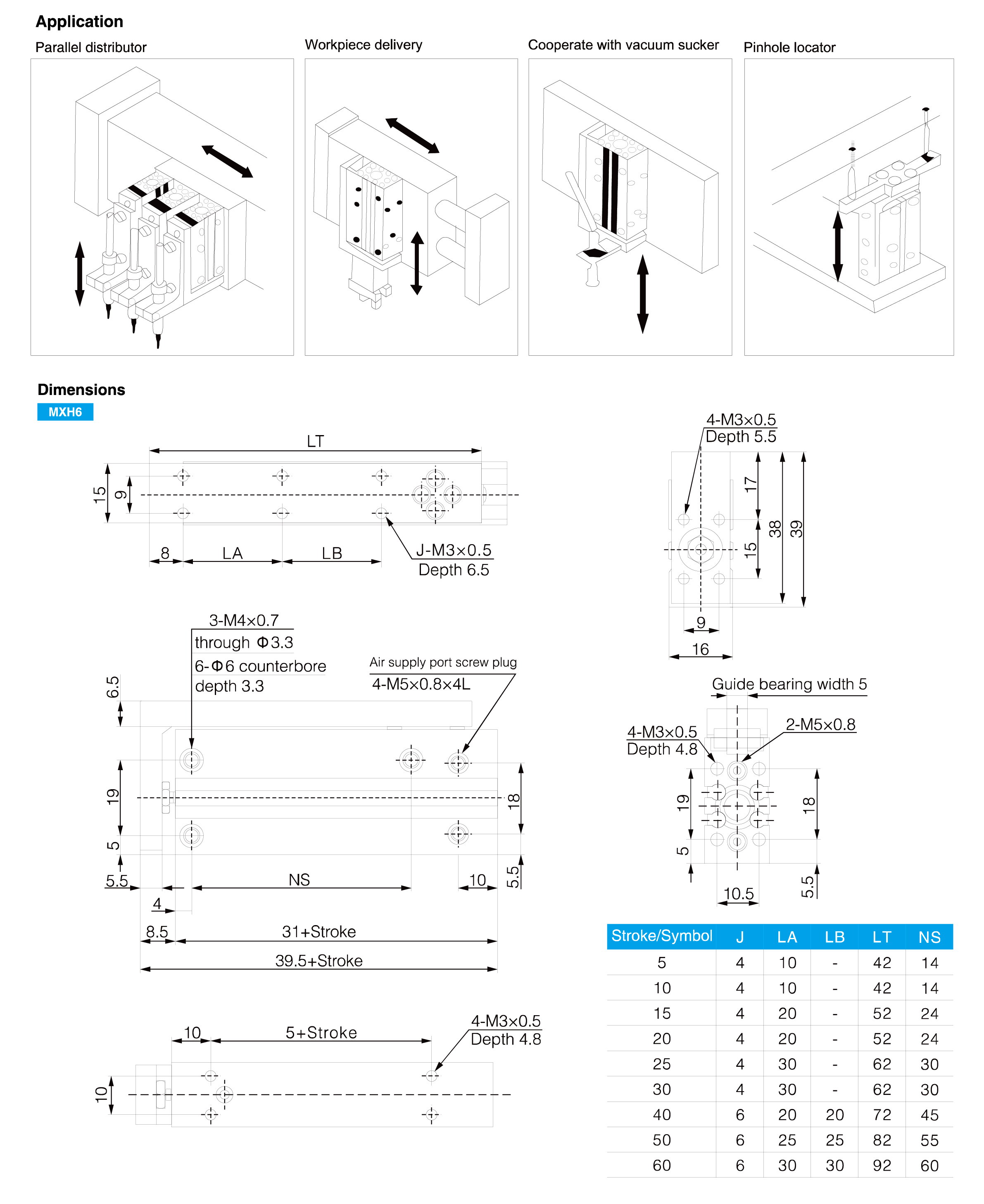

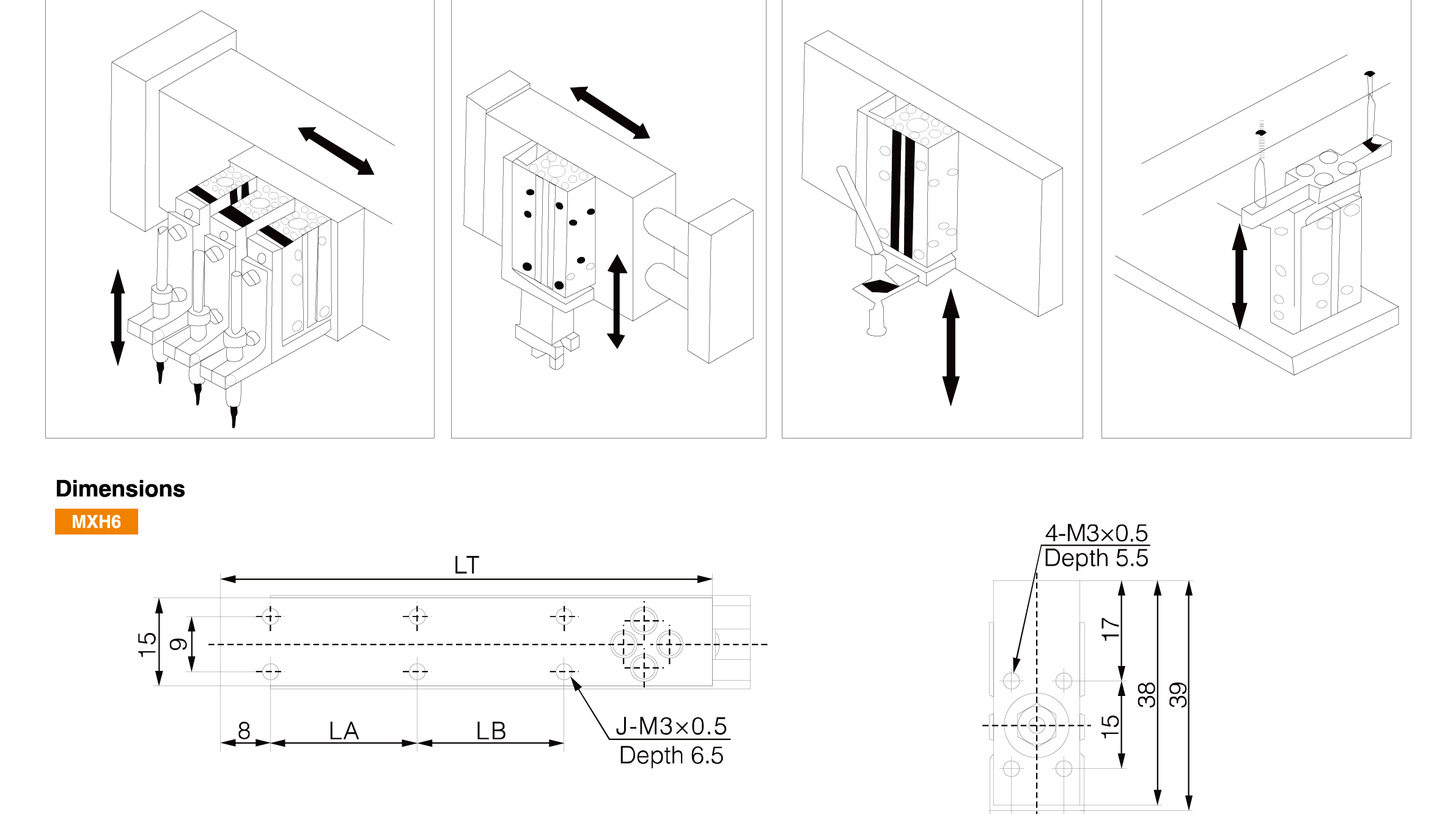

● Precision positioning equipment
● Pick-and-place automation
● Electronic assembly machinery
● Semiconductor manufacturing systems
● Packaging and labeling equipment
● Small component transfer devices
● Inspection and testing equipment
● Robotic auxiliary modules
● Medical automation equipment
● Compact industrial automation systems
The MXH Series Compact Slide Table offers an ideal combination of compact dimensions, precise linear guidance, flexible installation, and reliable pneumatic performance. Its high positioning accuracy and versatile configuration options make it an excellent choice for modern automation systems requiring stable, repeatable, and space-efficient linear motion.
