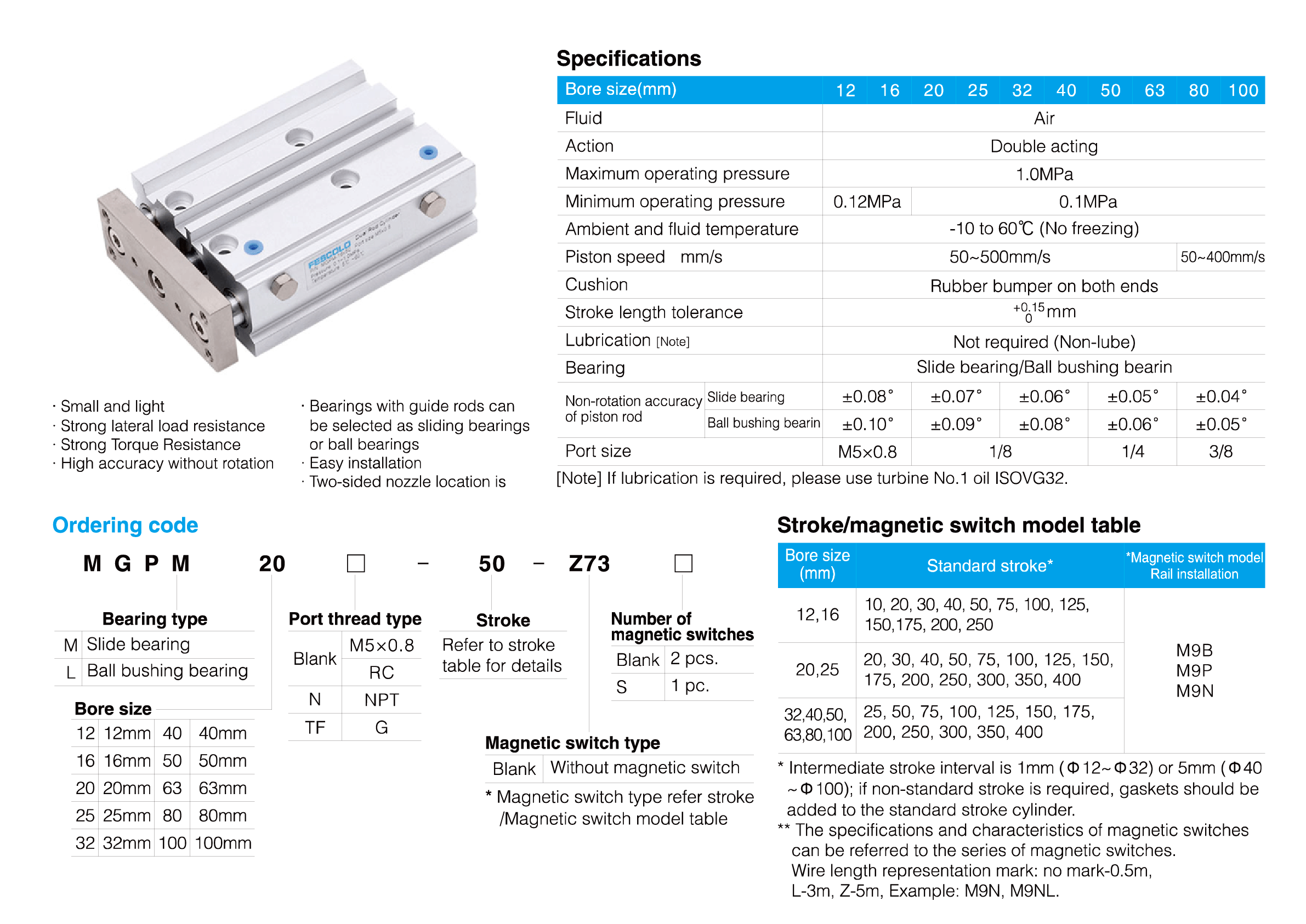

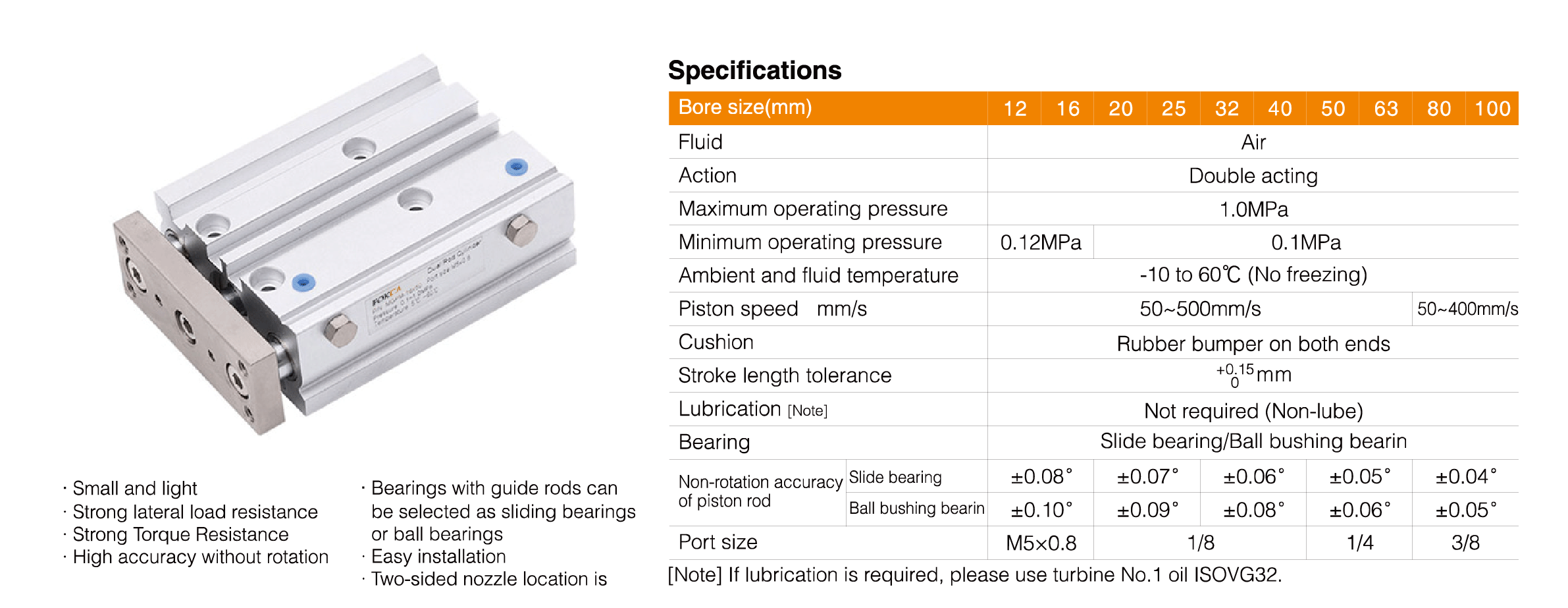

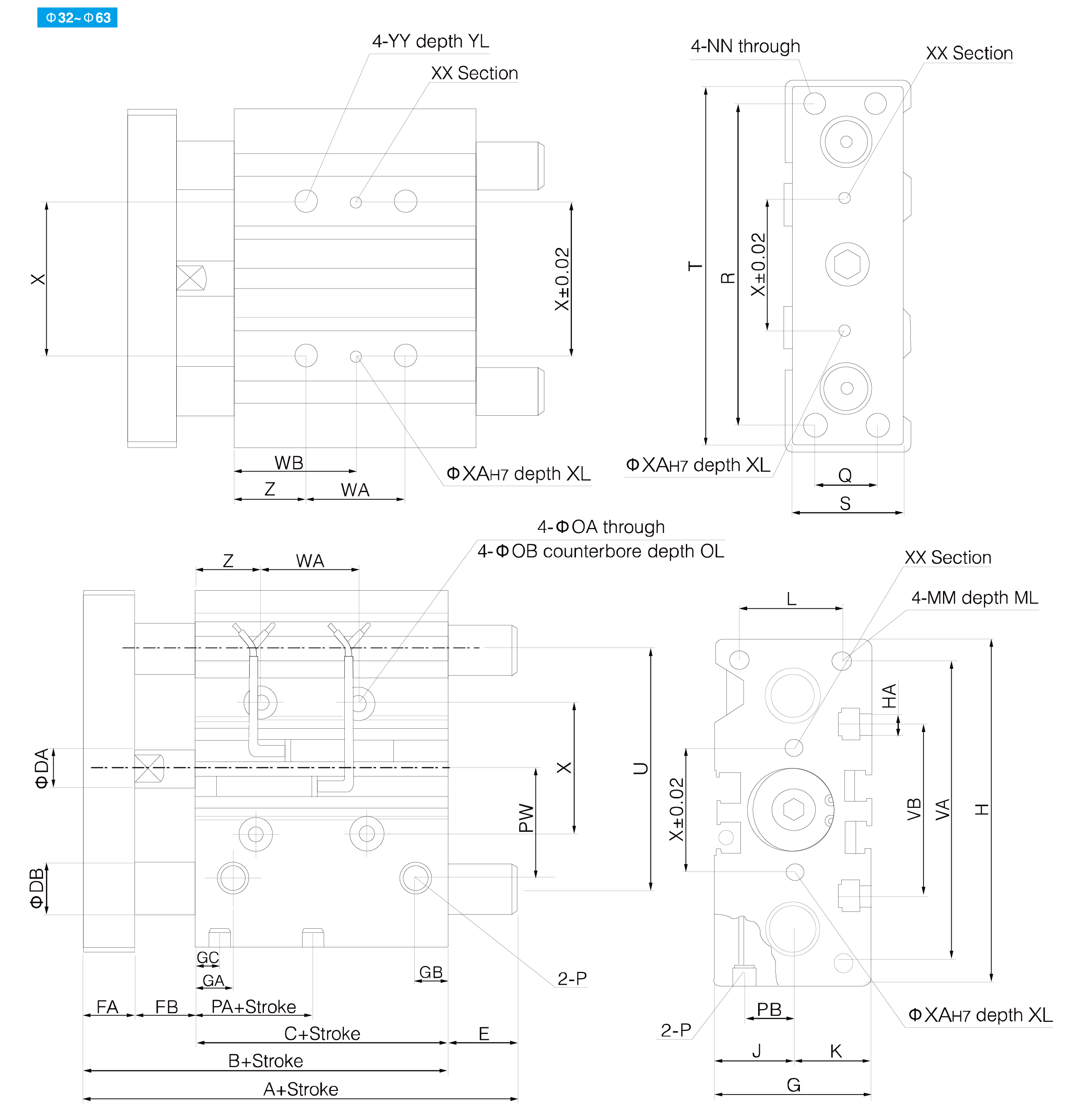

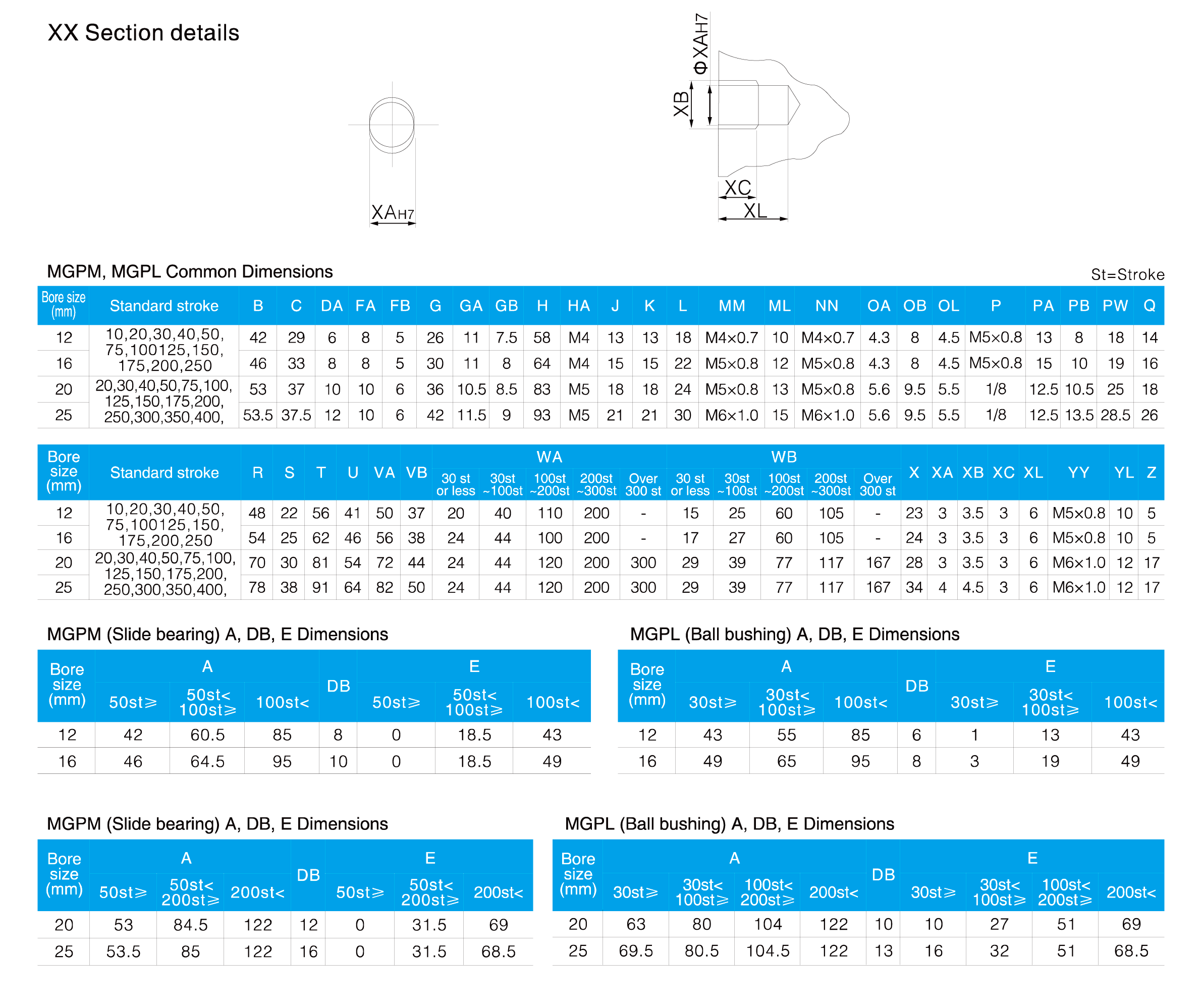

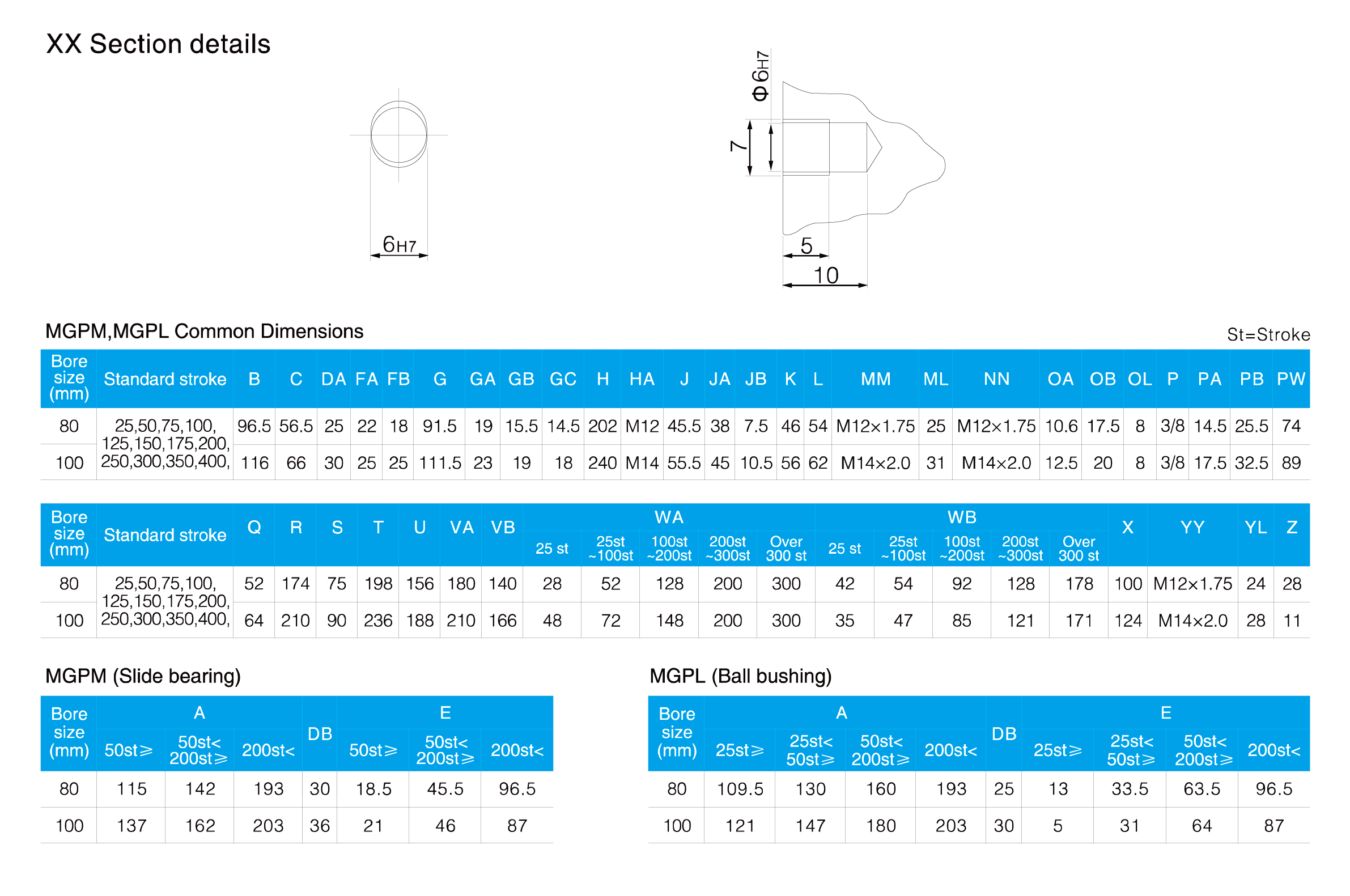

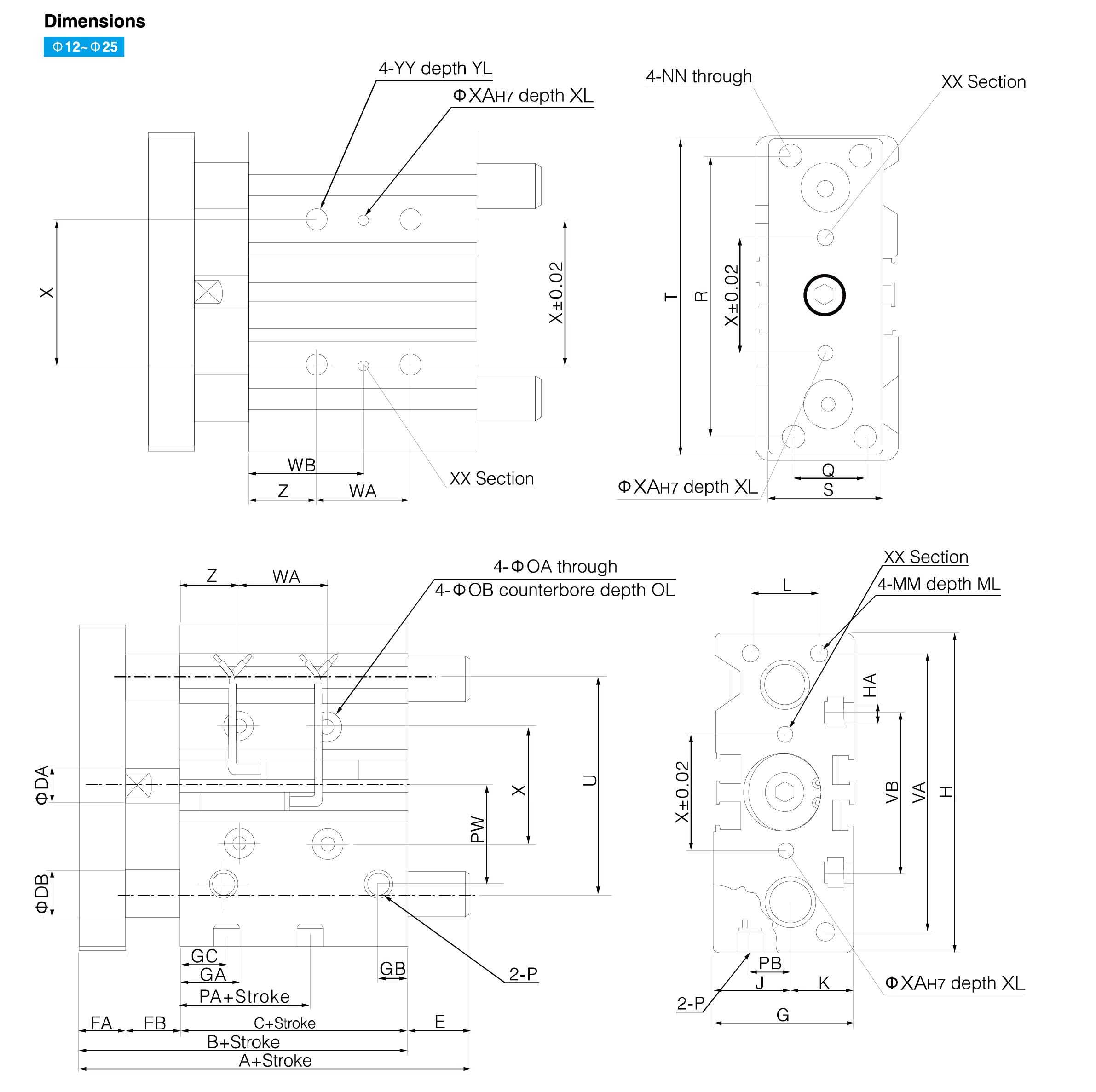

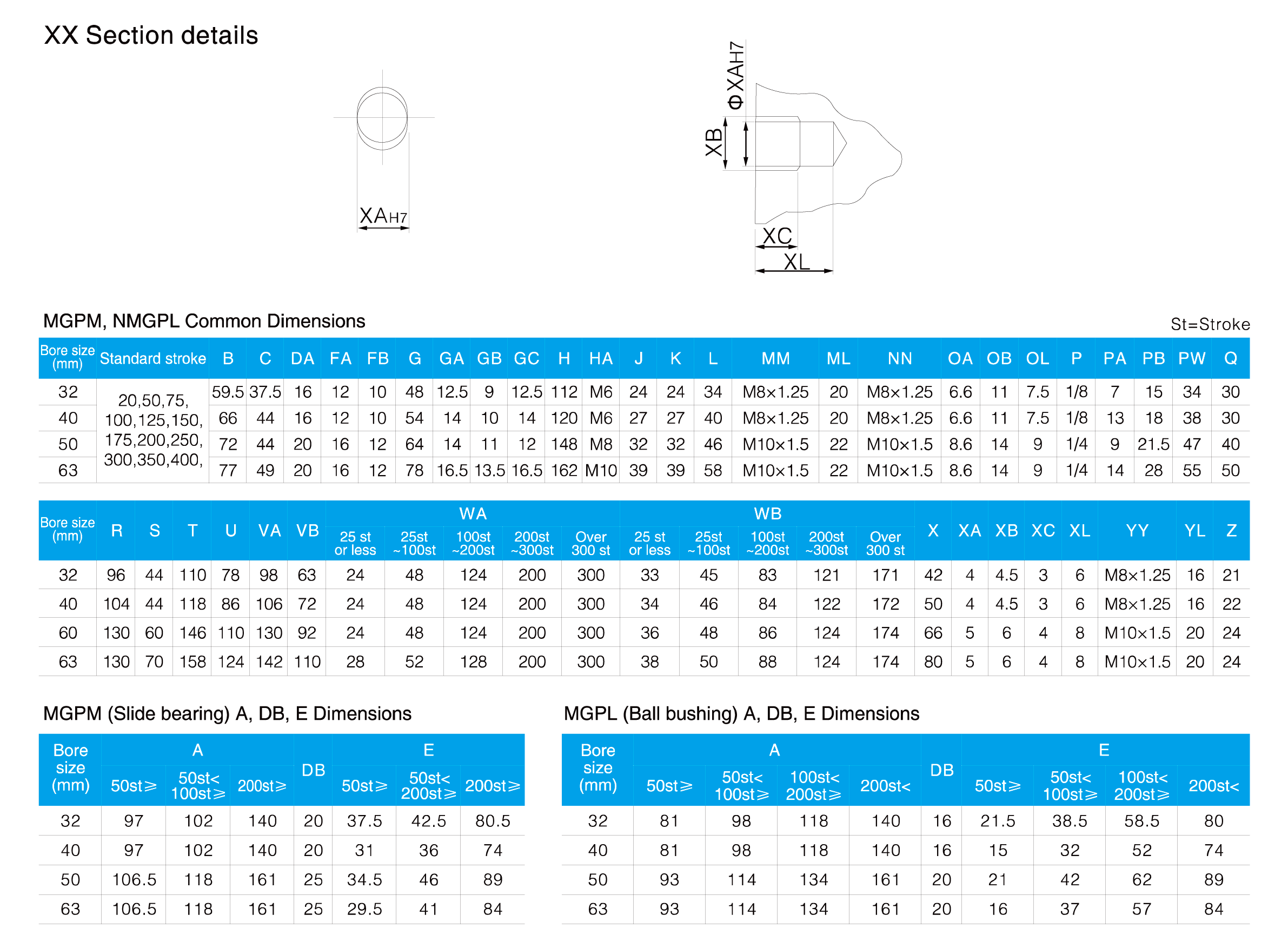

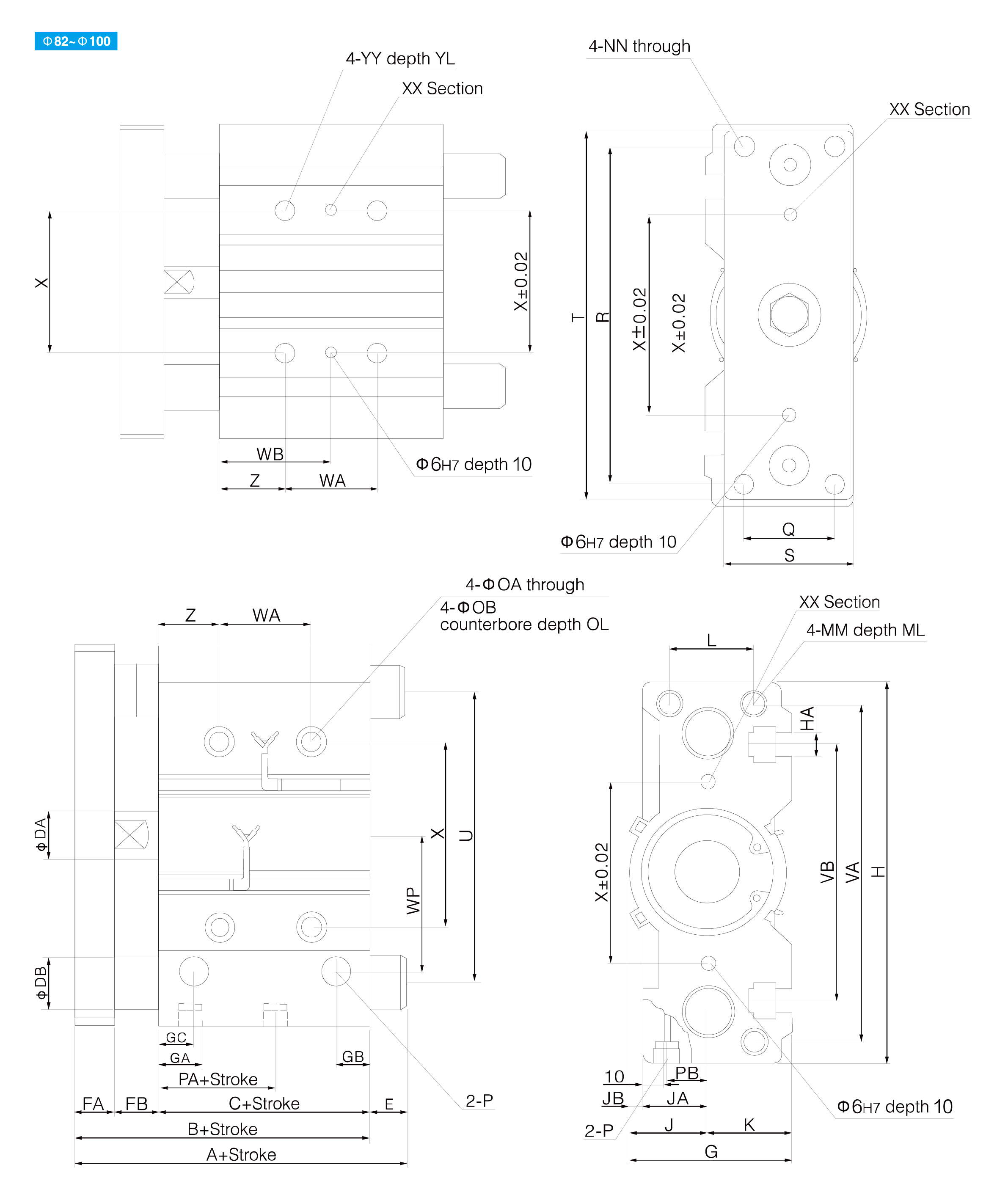

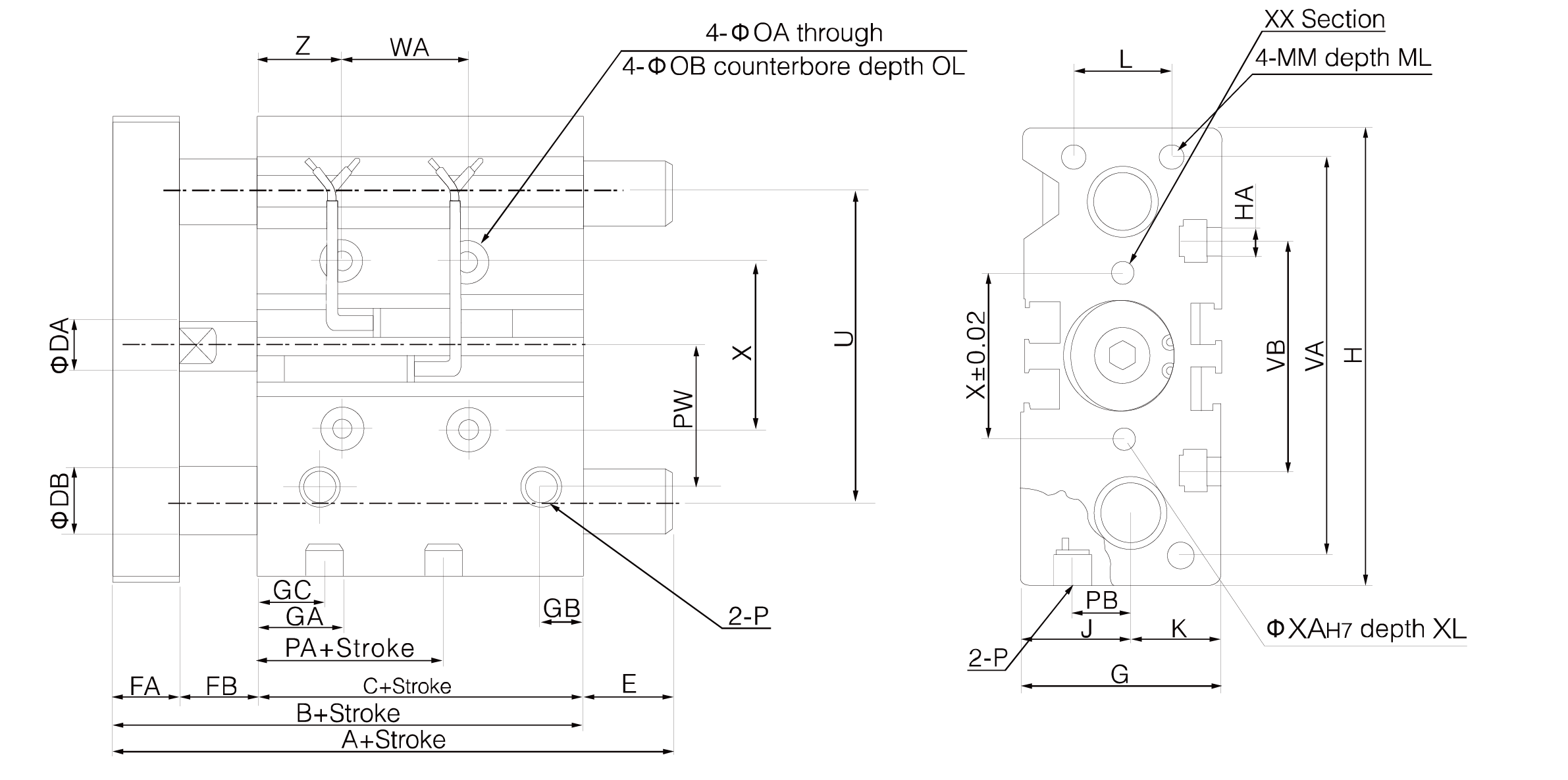

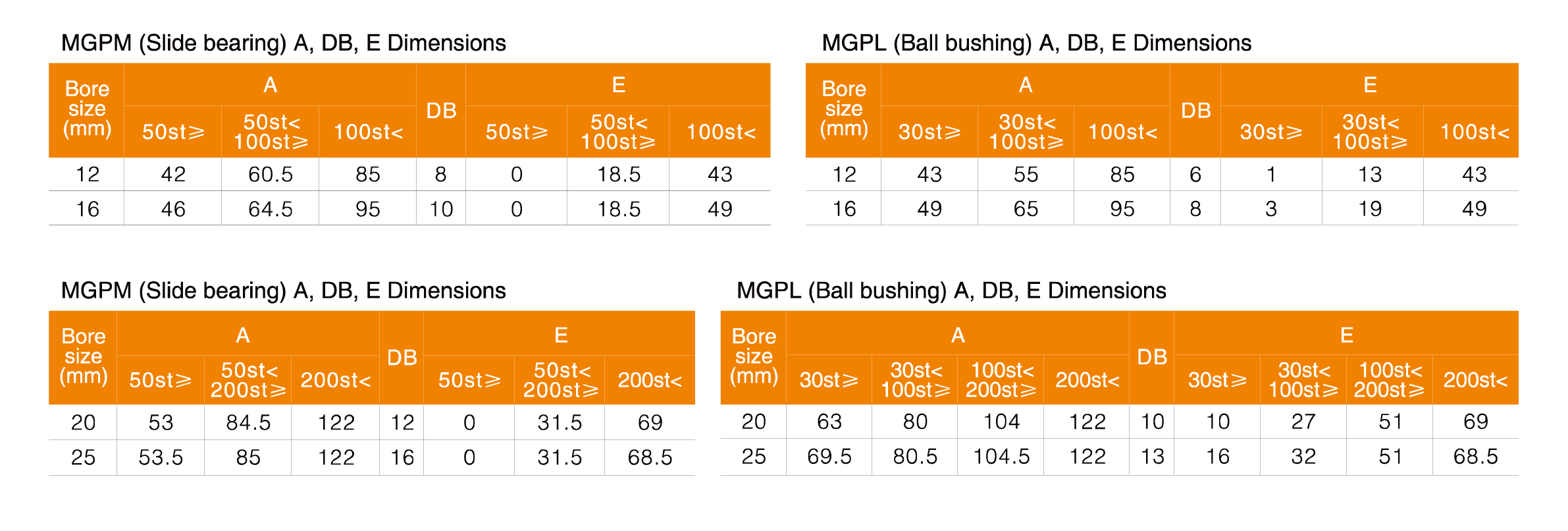

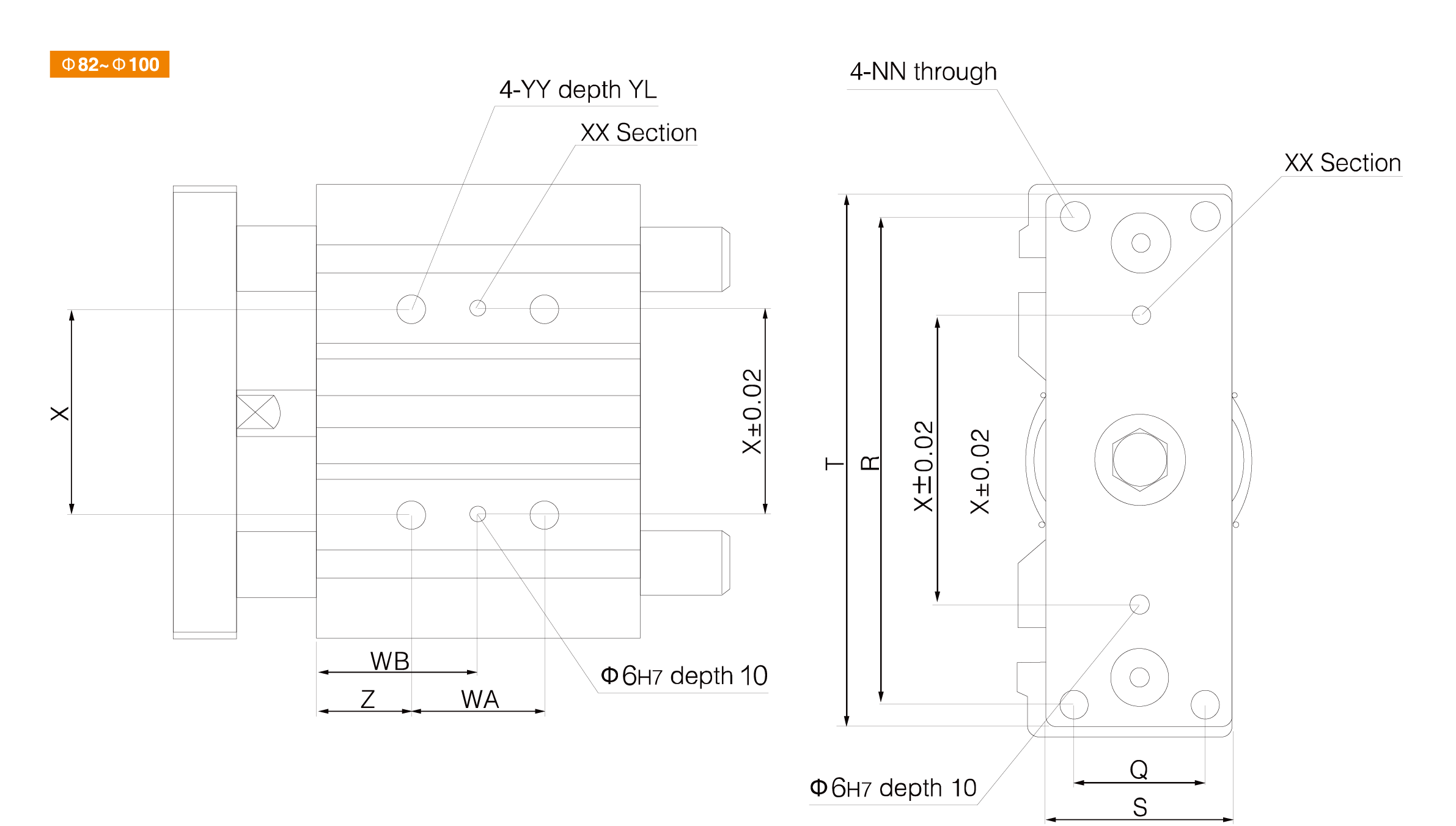

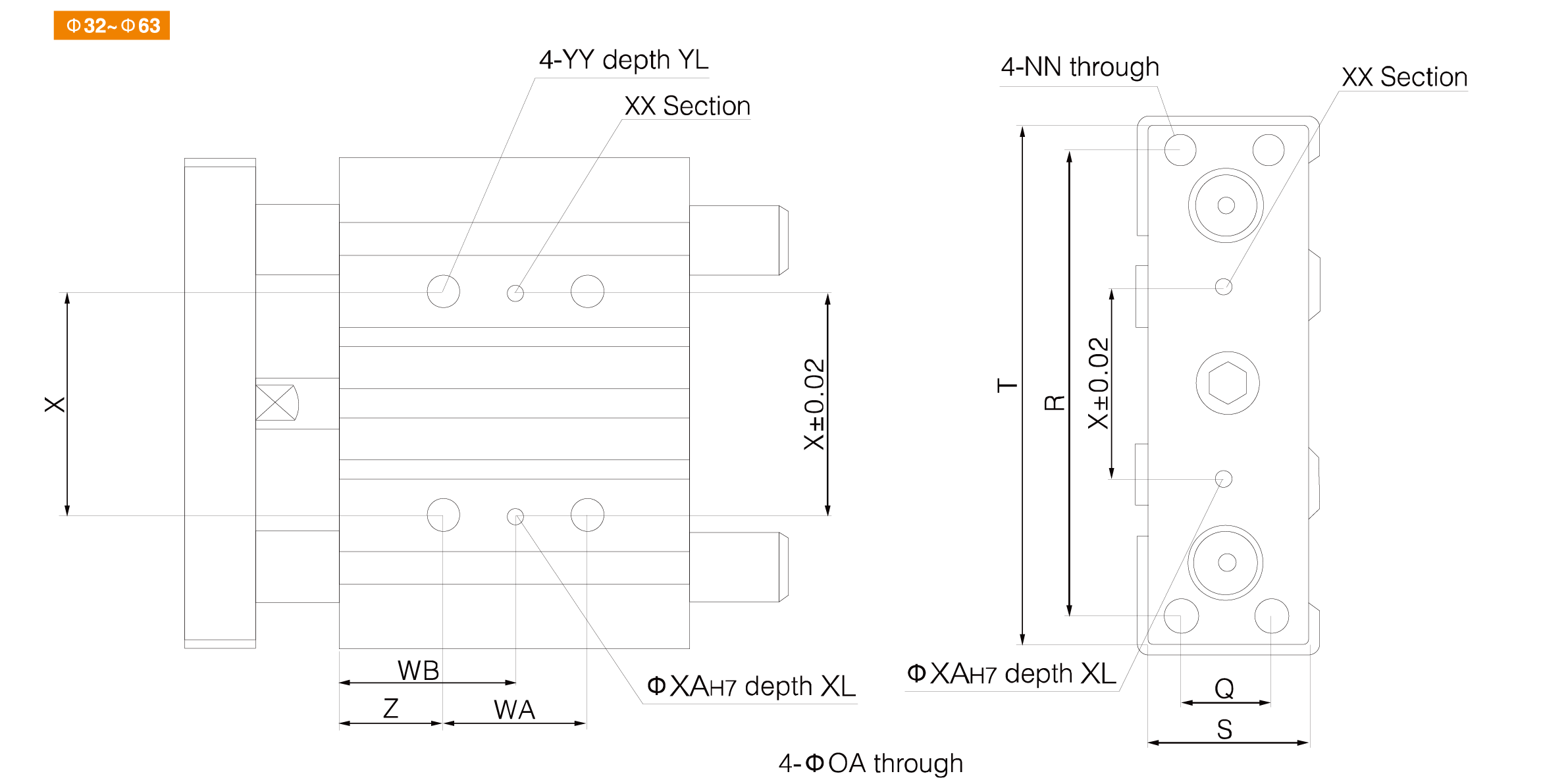

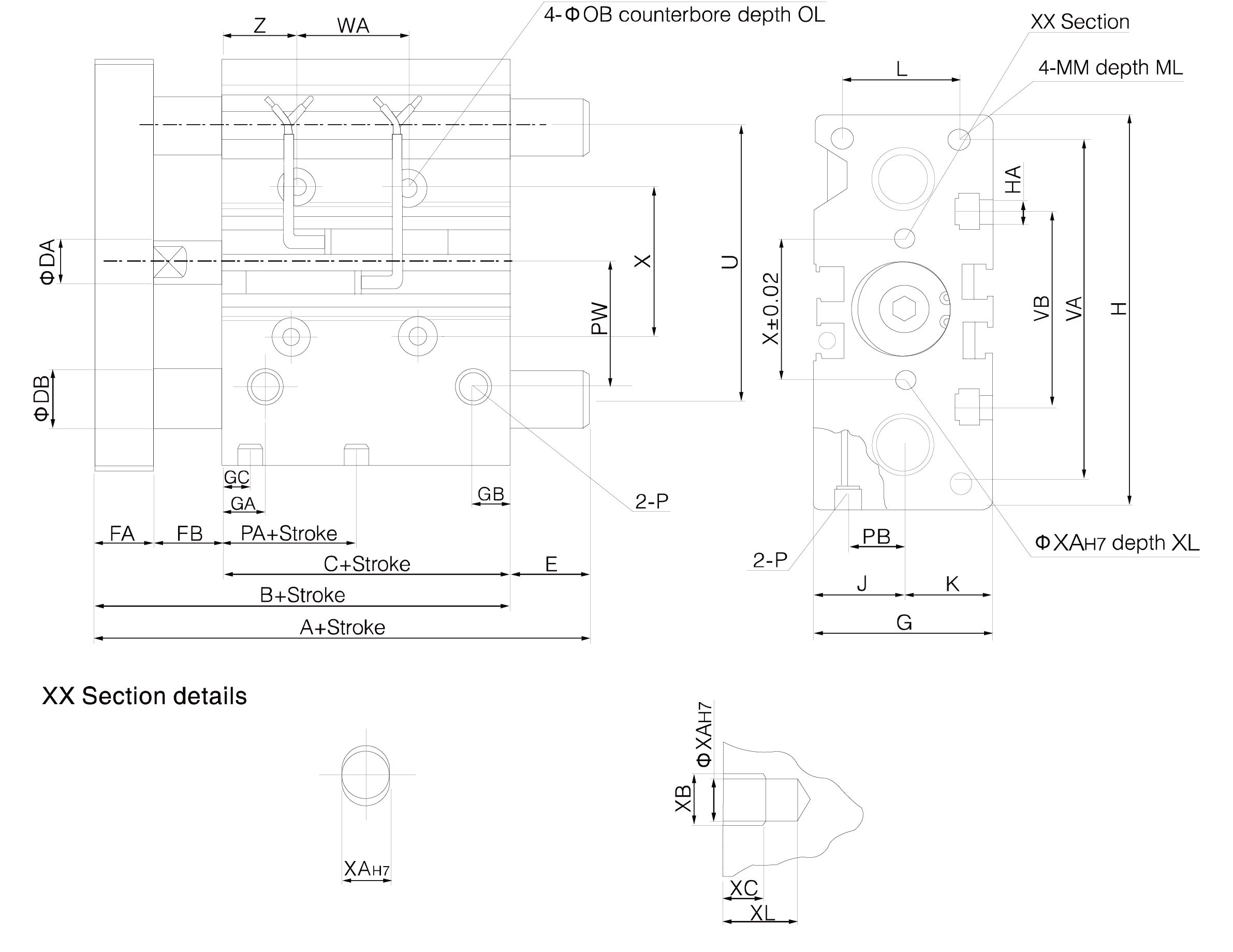

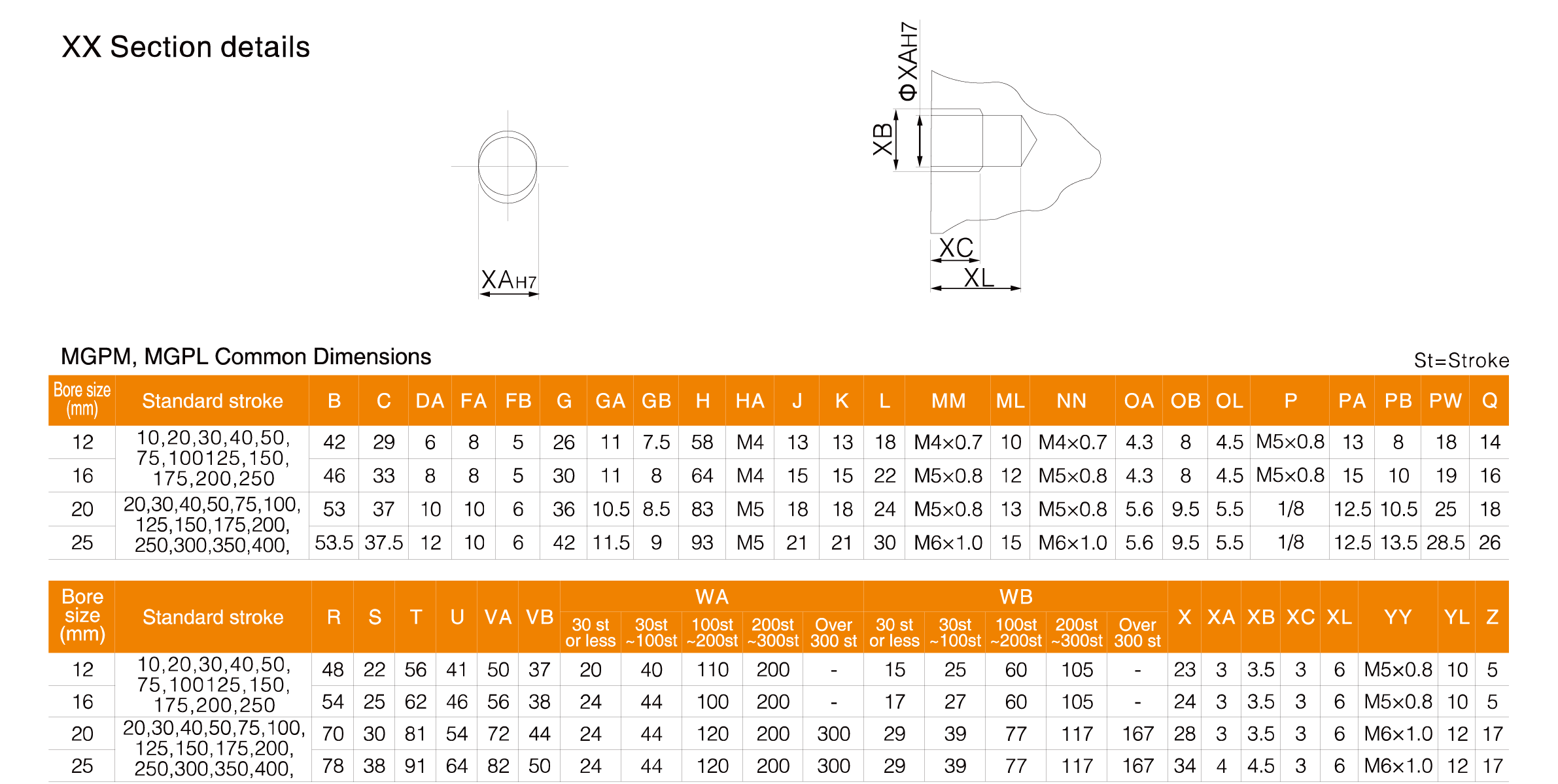

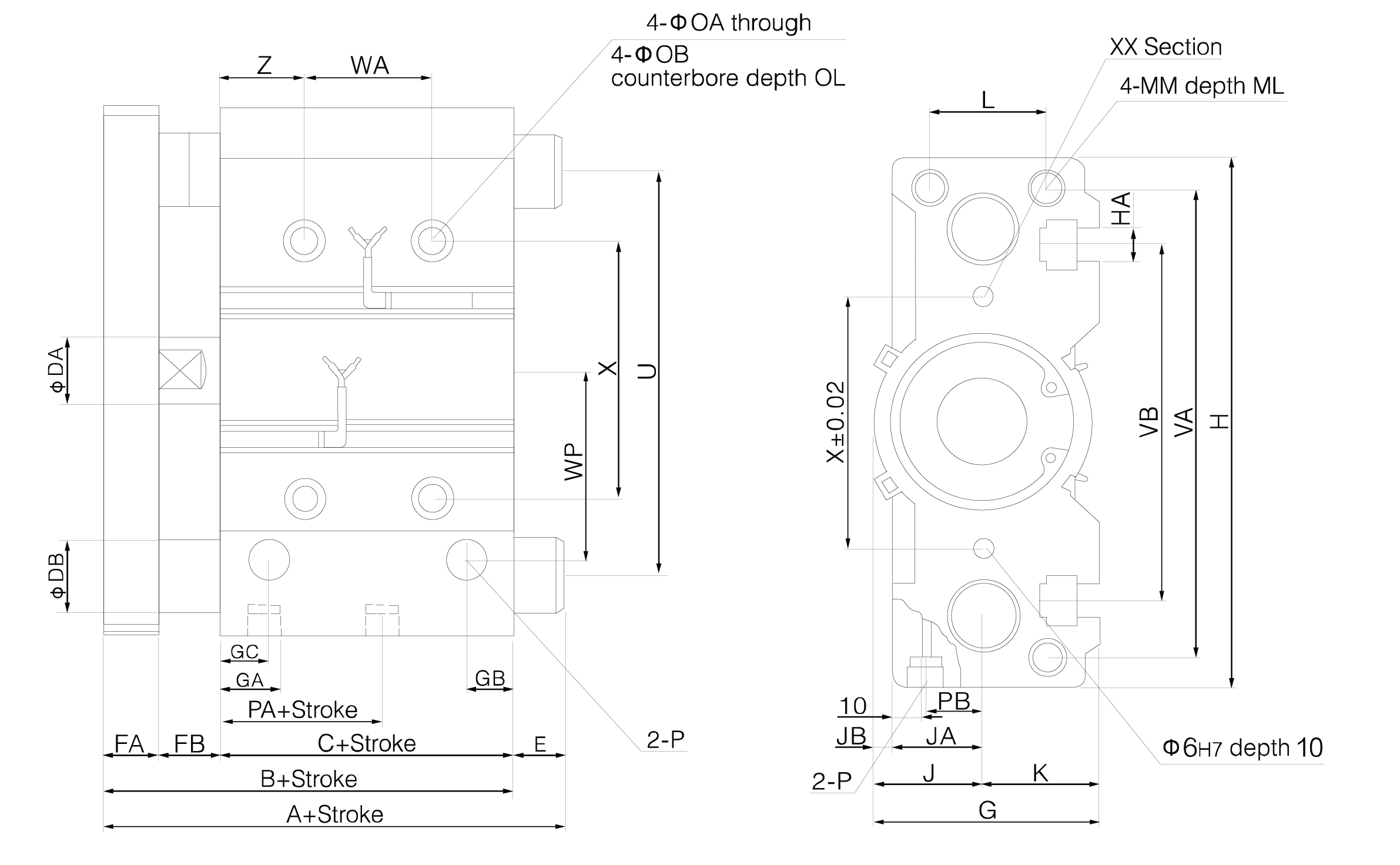

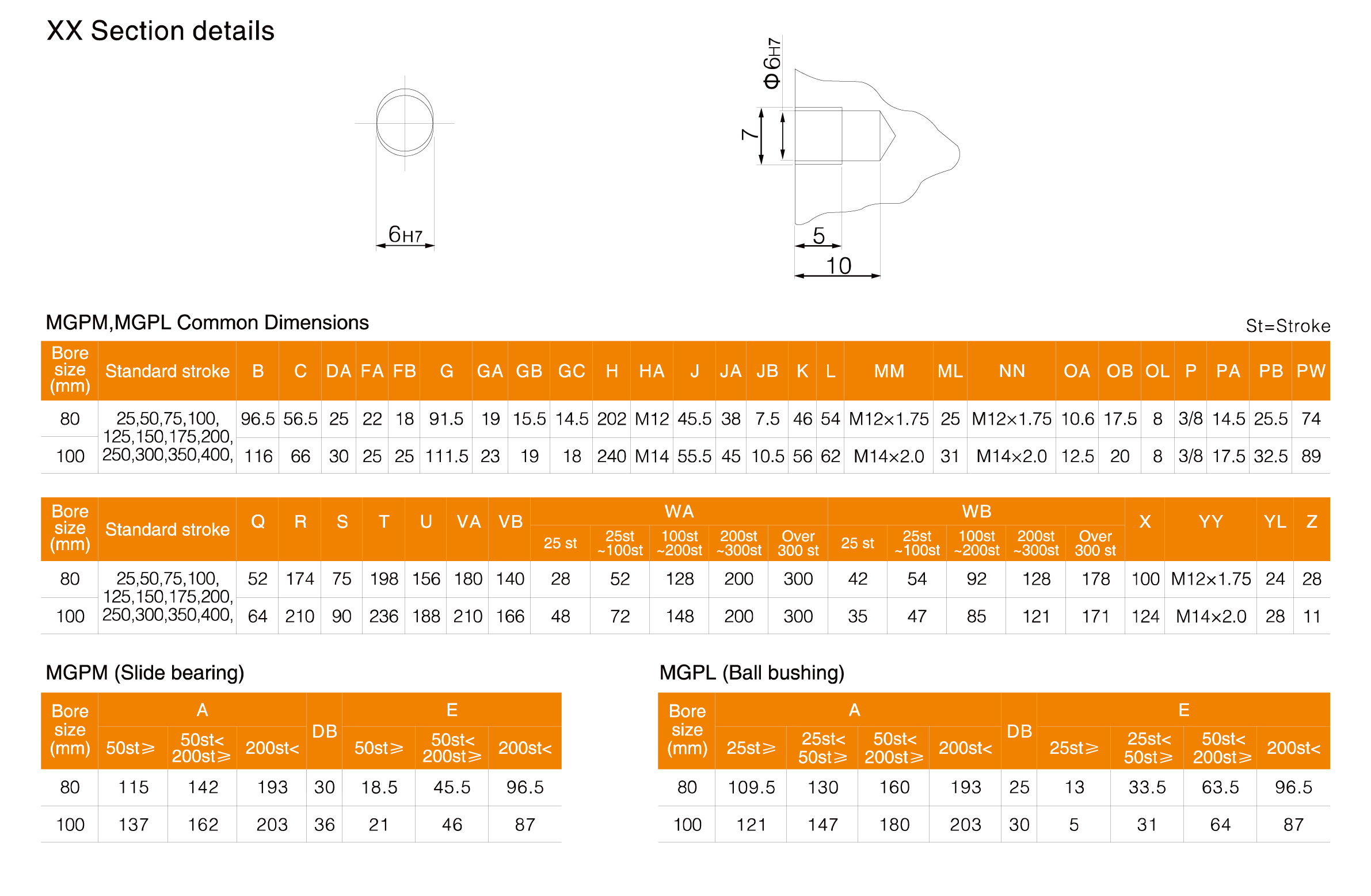

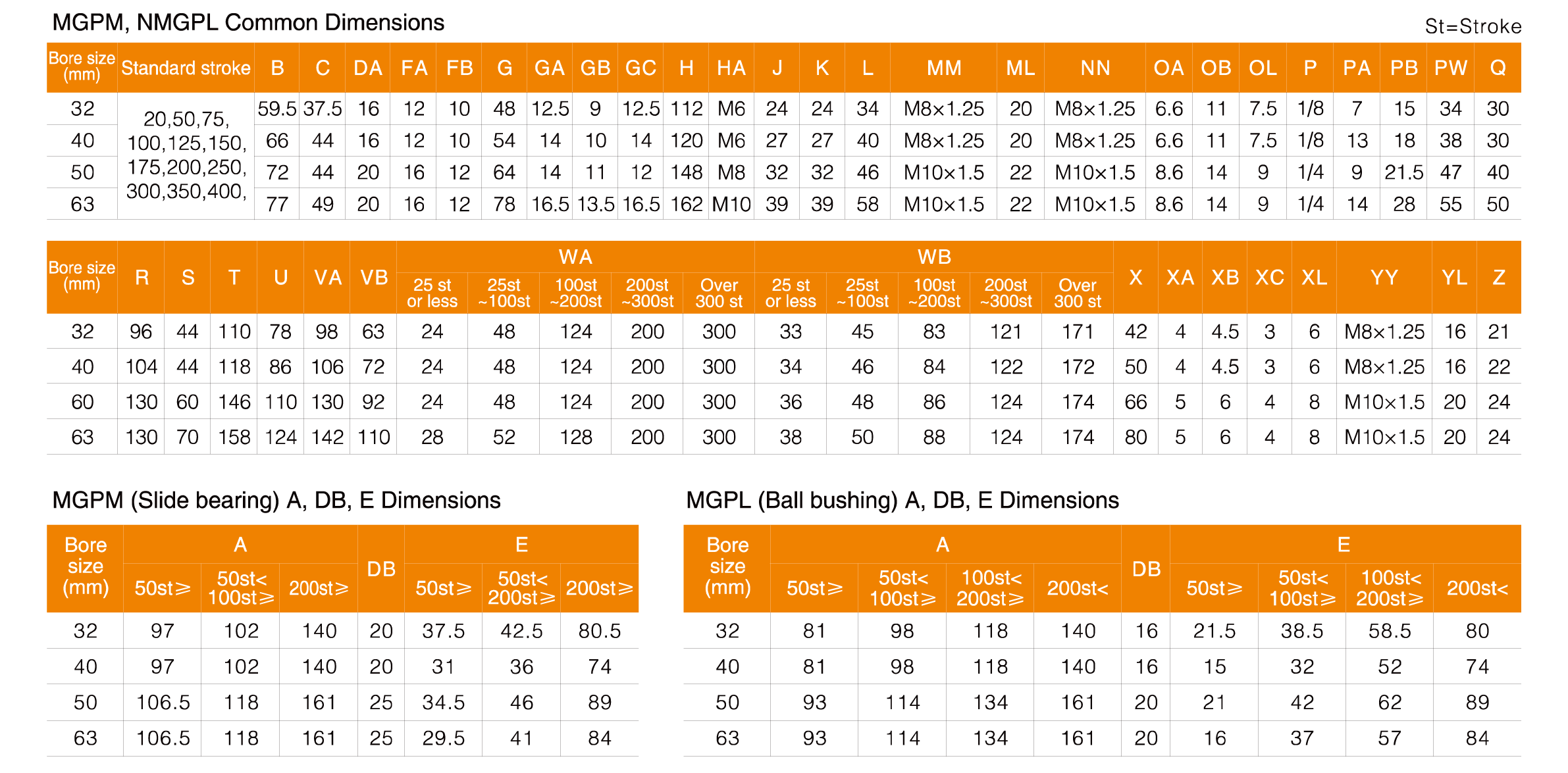

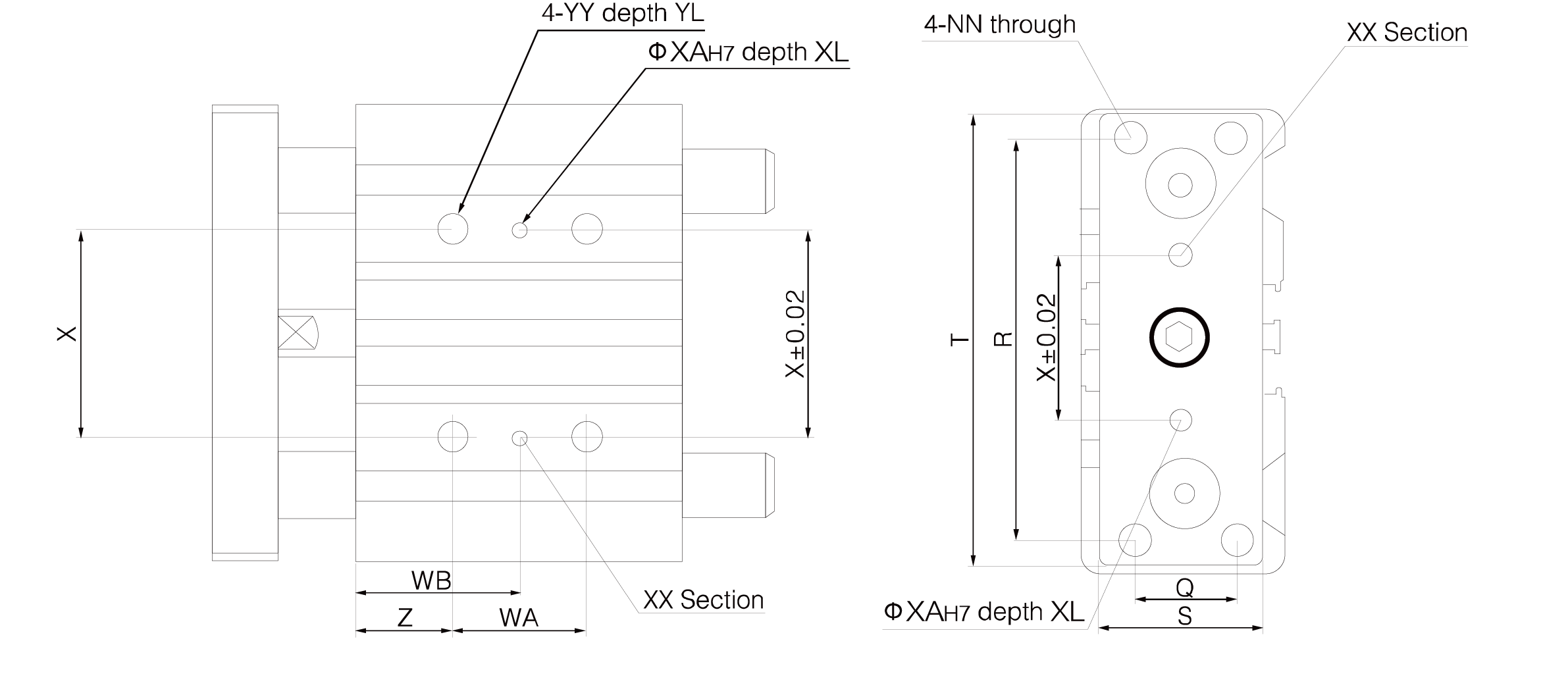

The MGP Series Compact Guide Cylinder is designed for automation systems that require precise linear movement within limited installation space. Combining a compact cylinder body with integrated guide rods, it provides excellent rigidity, accurate positioning, and reliable performance under side loads.
Available with either slide bearings or ball bushing bearings, the MGP Series allows users to select the most suitable guidance system according to speed, load, and precision requirements. Its compact footprint makes it particularly effective in machinery where installation space is restricted but motion stability remains critical.
With strong resistance to lateral forces and torque loads, the cylinder maintains smooth movement and high repeatability during continuous operation. The non-rotating guide structure helps improve positioning accuracy while reducing component wear, making the MGP Series a practical solution for modern automated equipment.
The MGP Series Compact Guide Cylinder is engineered to provide precise guided motion while minimizing installation space. By integrating a compact pneumatic cylinder with a robust guide mechanism, it delivers excellent stability and positioning performance in applications where conventional cylinders may struggle with side loads or rotational forces. Its lightweight design helps reduce machine weight while maintaining reliable operational strength for demanding industrial environments.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Compact and lightweight construction

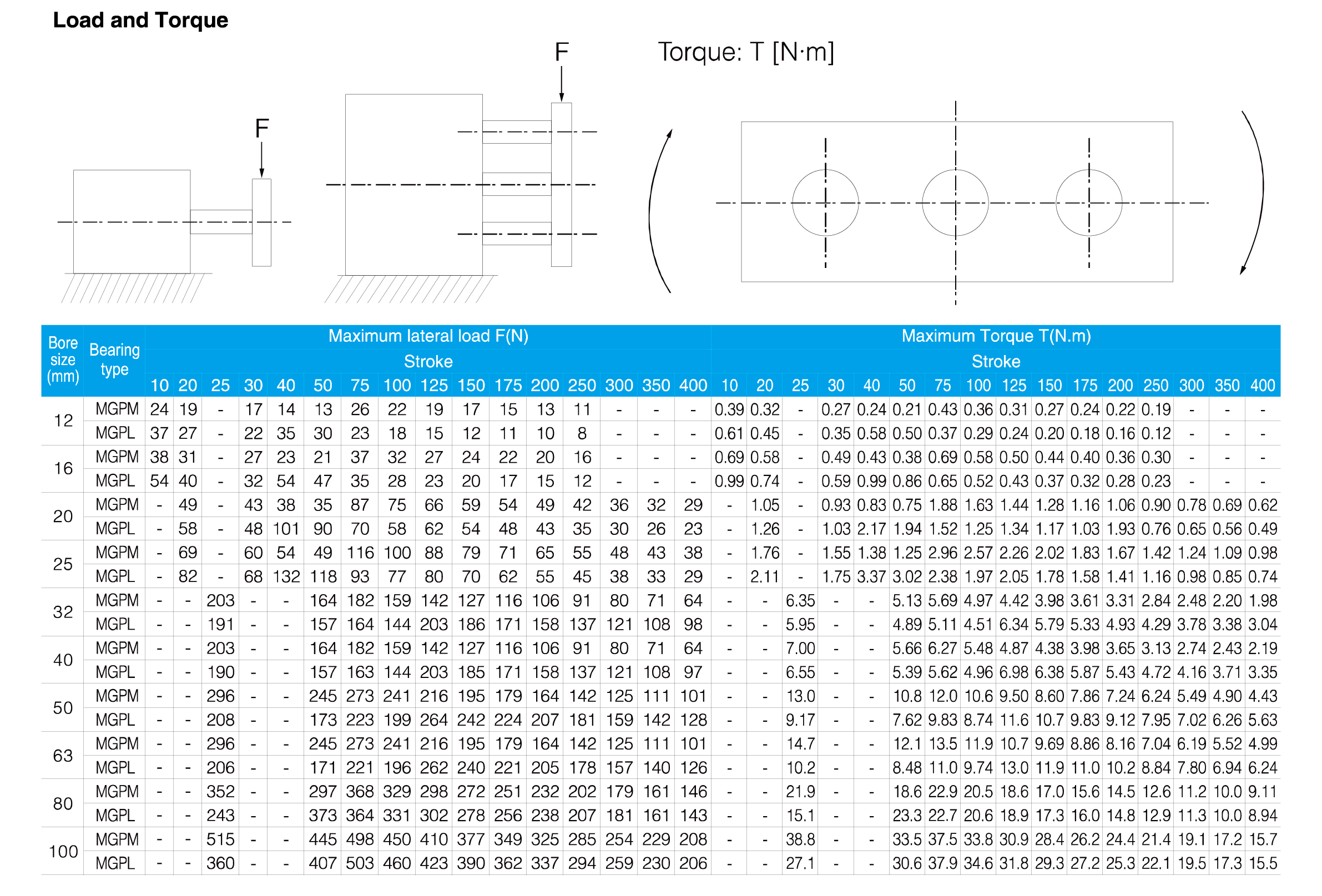

● Strong resistance to lateral loads and offset forces
● High torque resistance for improved movement stability
● Excellent non-rotation accuracy during operation

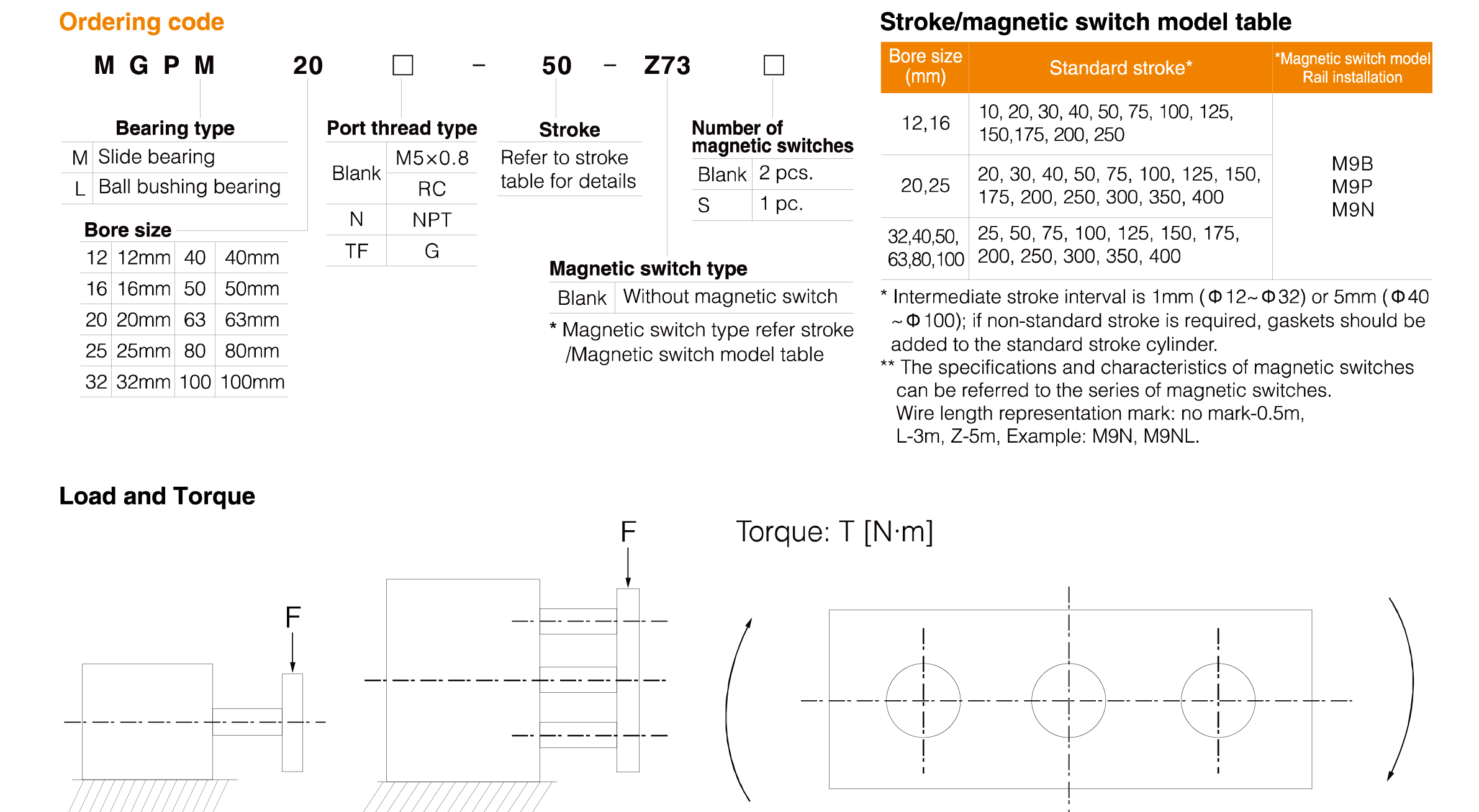

● Available with slide bearing or ball bushing bearing guides
● Easy installation and system integration
● Dual-side port configuration for flexible piping layout
● Maintenance-friendly non-lube operation
● Suitable for high-cycle automation applications
● Stable performance under continuous operation
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

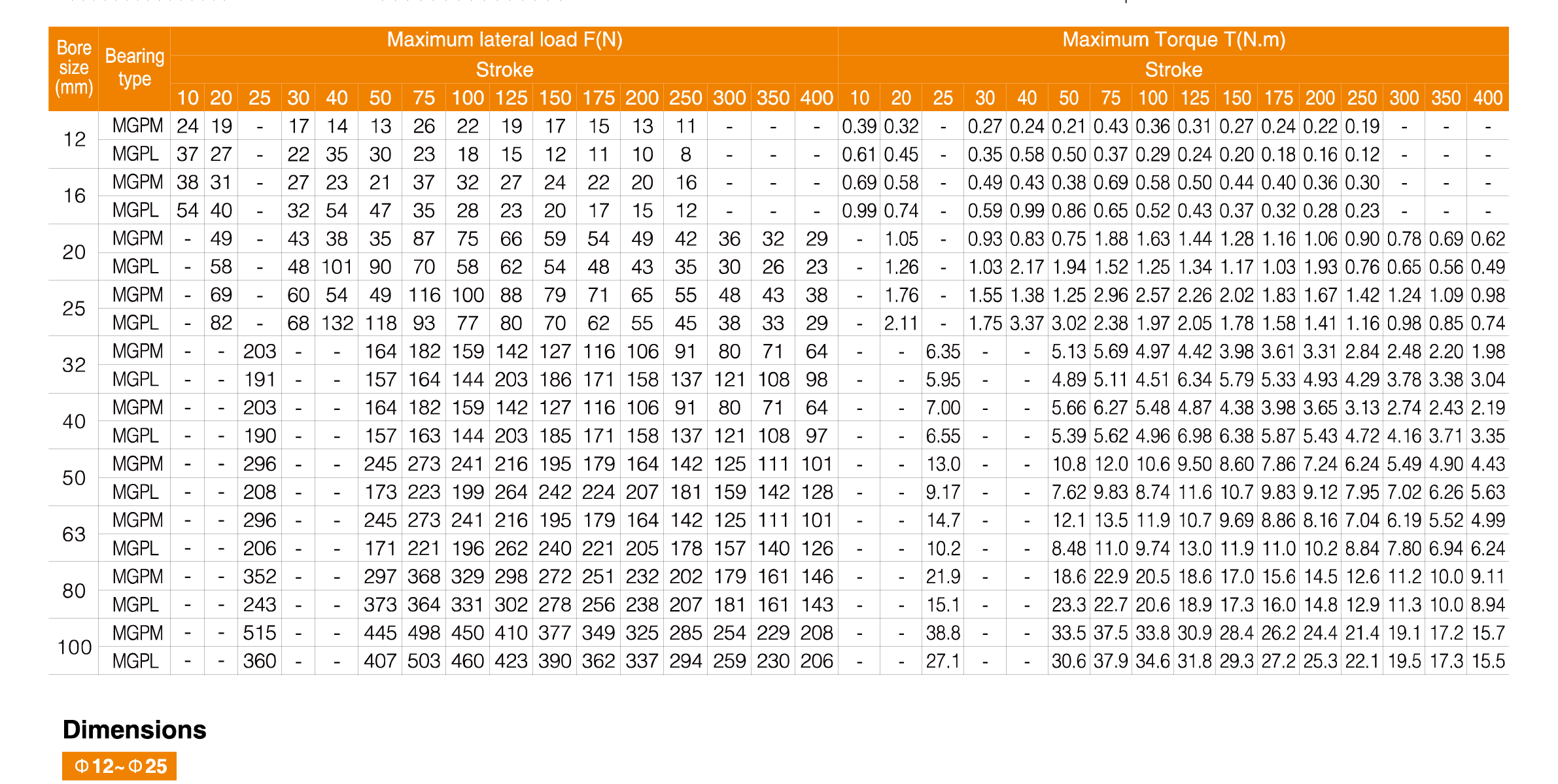

The integrated guide rods are designed to absorb side loads and maintain alignment throughout the stroke. Compared with standard compact cylinders, the MGP Series offers significantly improved rigidity, making it suitable for precision positioning and handling tasks.
Users can select between slide bearing and ball bushing bearing versions depending on application requirements. Slide bearings provide excellent durability for general industrial use, while ball bushings offer smoother movement and enhanced precision for high-accuracy automation systems.
The guide mechanism also delivers excellent anti-rotation performance, with piston rod accuracy reaching up to ±0.04° depending on bore size and bearing configuration.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Pick-and-place automation systems
● Precision positioning equipment
● Assembly and production machinery
● Electronic component handling
● Packaging and labeling machines
● Clamping and transfer units
● Robotic auxiliary mechanisms
● Inspection and testing equipment
● Semiconductor manufacturing equipment
● General industrial automation systems
Combining compact dimensions, high rigidity, strong load resistance, and accurate guided motion, the MGP Series Compact Guide Cylinder is an ideal choice for automation equipment requiring reliable linear movement within limited installation space.
