The MXQ Series Air Slide Table is a compact precision actuator that combines a double-cylinder drive with a circular linear guide to achieve exceptional positioning accuracy and smooth linear movement.
Designed for high-load and high-repeatability applications, it offers outstanding rigidity, adjustable stroke options, and magnetic switch compatibility, making it an excellent choice for precision assembly, semiconductor manufacturing, and automated handling equipment.
The MXQ Series Air Slide Table is developed for automation systems that demand compact dimensions, high rigidity, and exceptional positioning precision. By integrating a pneumatic cylinder with a circular linear guide, the actuator delivers stable linear movement while maintaining excellent resistance to vibration, offset loads, and repetitive operating cycles. Its space-saving construction allows machine builders to maximize usable workspace without sacrificing motion performance.
Unlike conventional slide cylinders, the MXQ Series adopts a double-cylinder structure, providing approximately twice the output force while maintaining a slim profile. The precision guide mechanism achieves parallelism of 30 μm and perpendicularity of 50 μm, enabling highly repeatable positioning for precision manufacturing and assembly processes. These characteristics make the actuator particularly suitable for applications where even minor positioning errors can affect production quality.

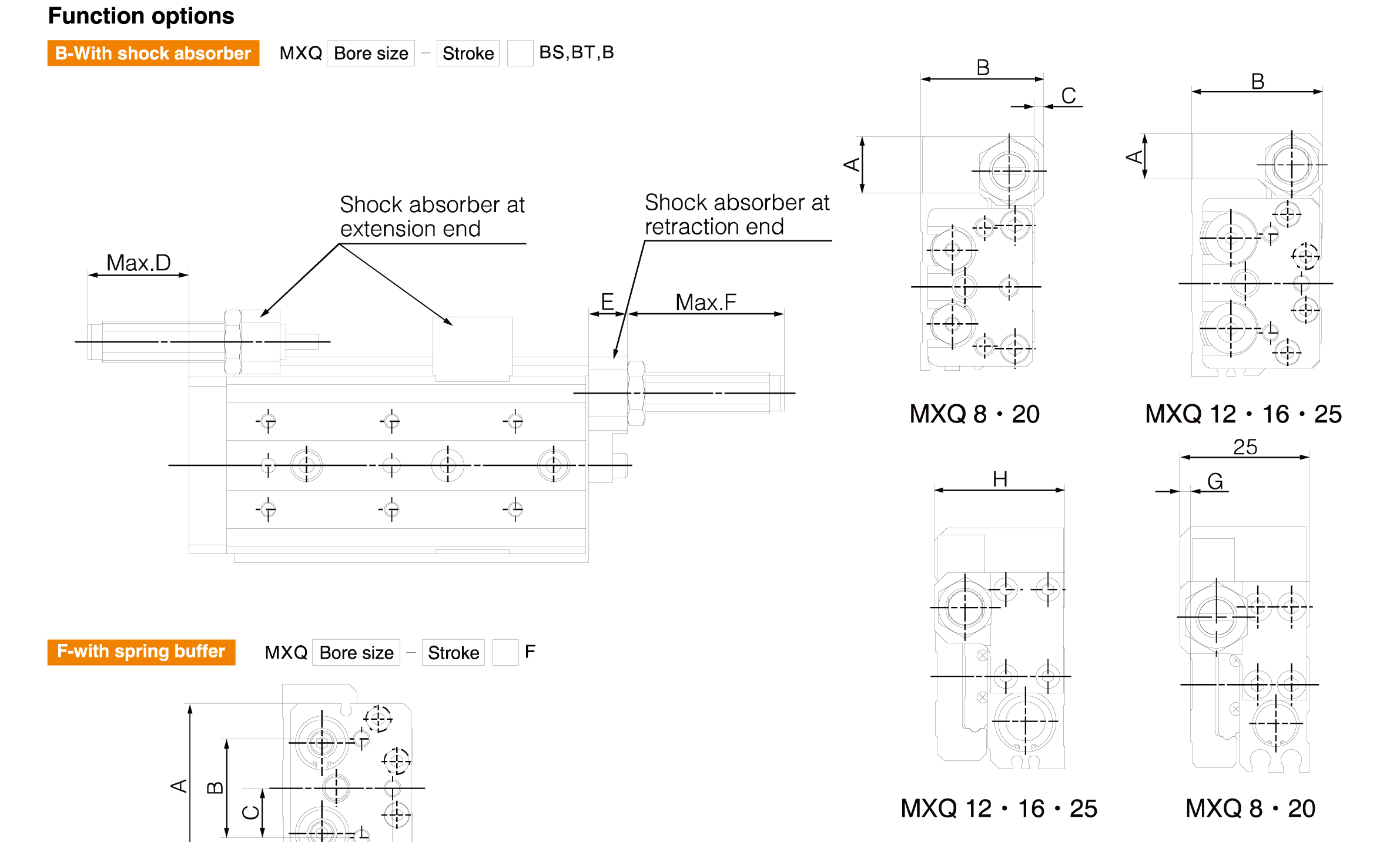

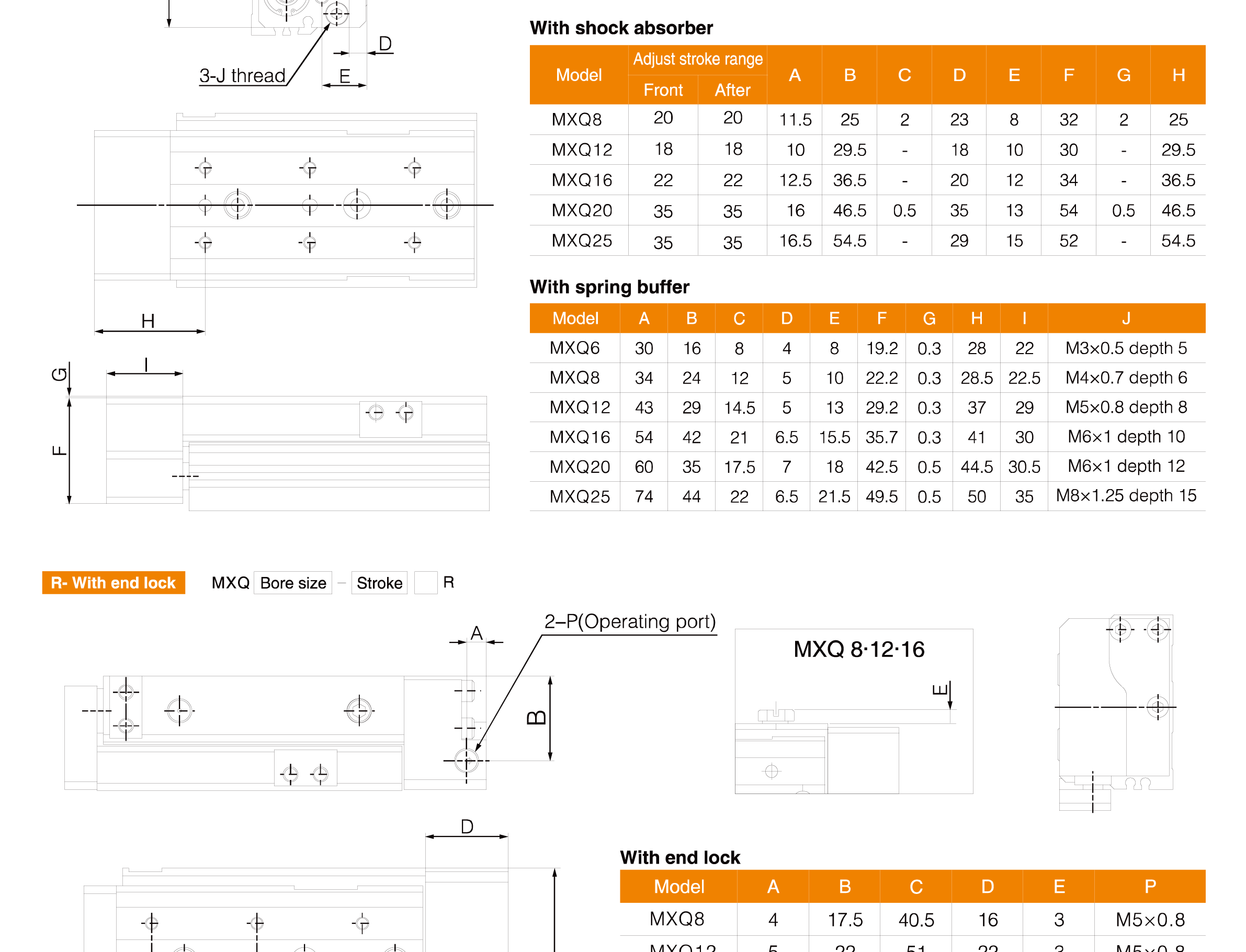

For greater installation flexibility, an optional stroke adjustment device allows fine travel adjustment during commissioning. The integrated magnetic ring also supports magnetic switch installation for accurate stroke monitoring and automated process control. Multiple cushioning options—including rubber buffer, hydraulic buffer, or shock absorber—allow users to select the most suitable configuration based on speed and load requirements.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Compact and rigid slide table construction
● Circular linear guide for high positioning accuracy

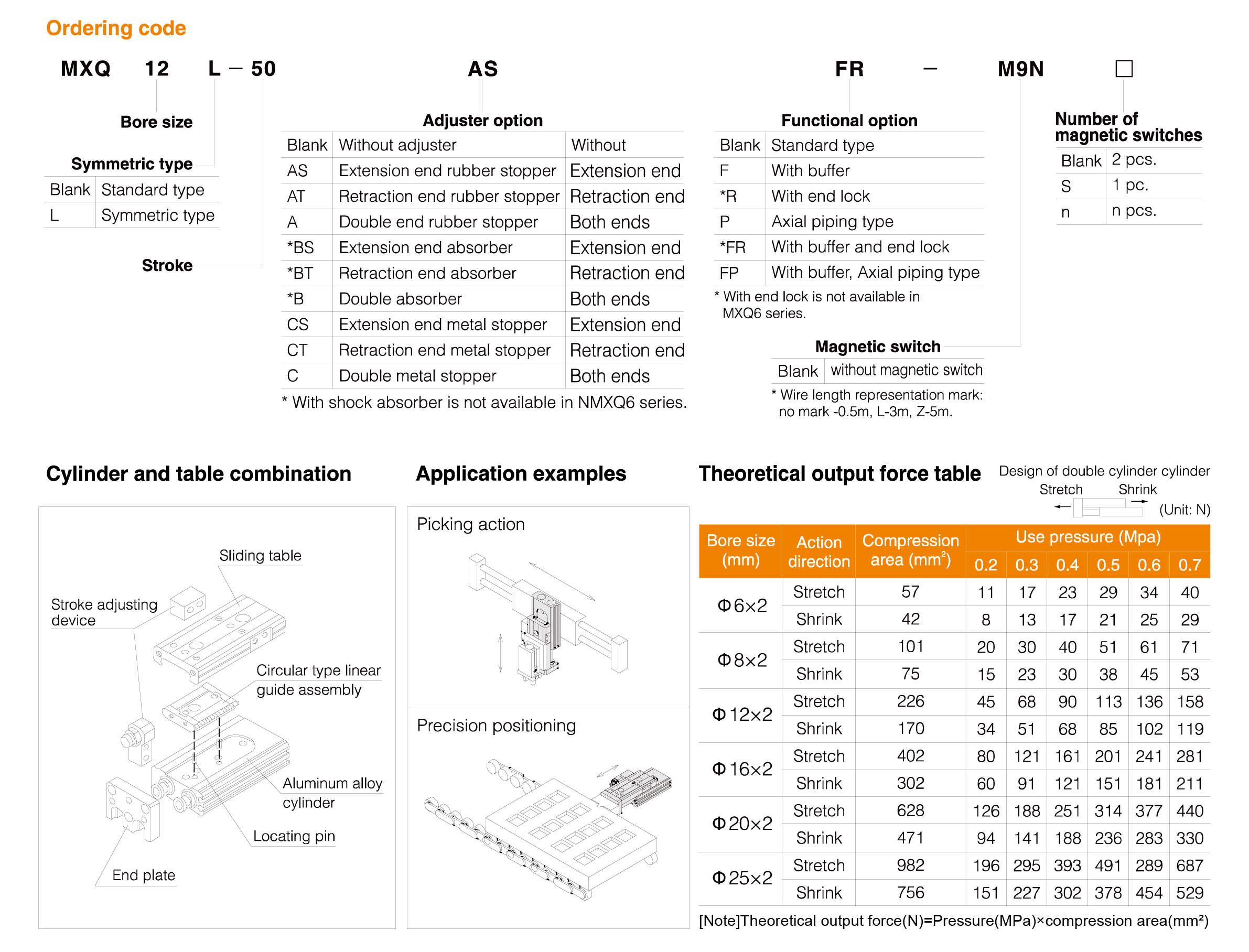

● Double-cylinder design with approximately double output force
● High parallelism (30 μm) and perpendicularity (50 μm)

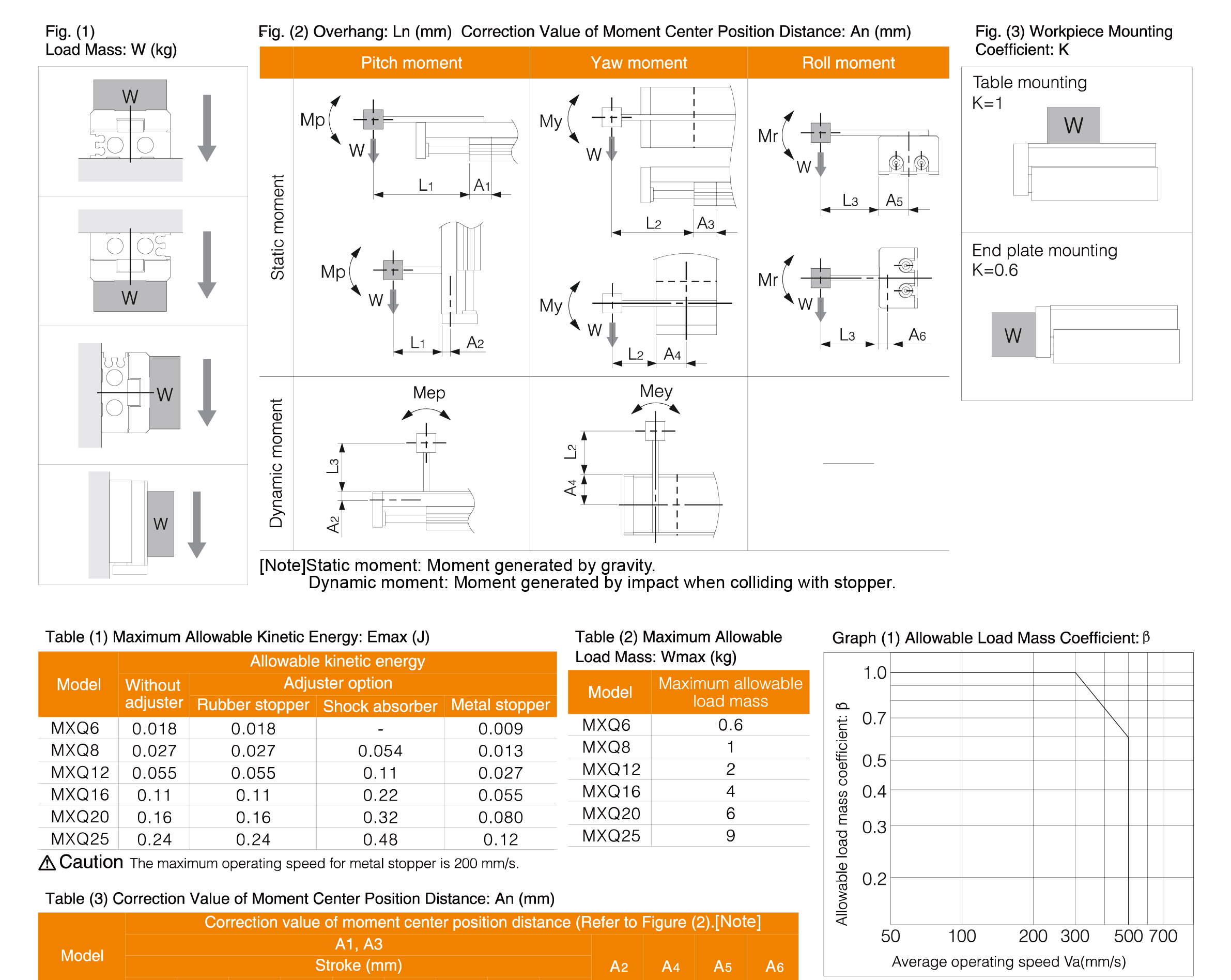

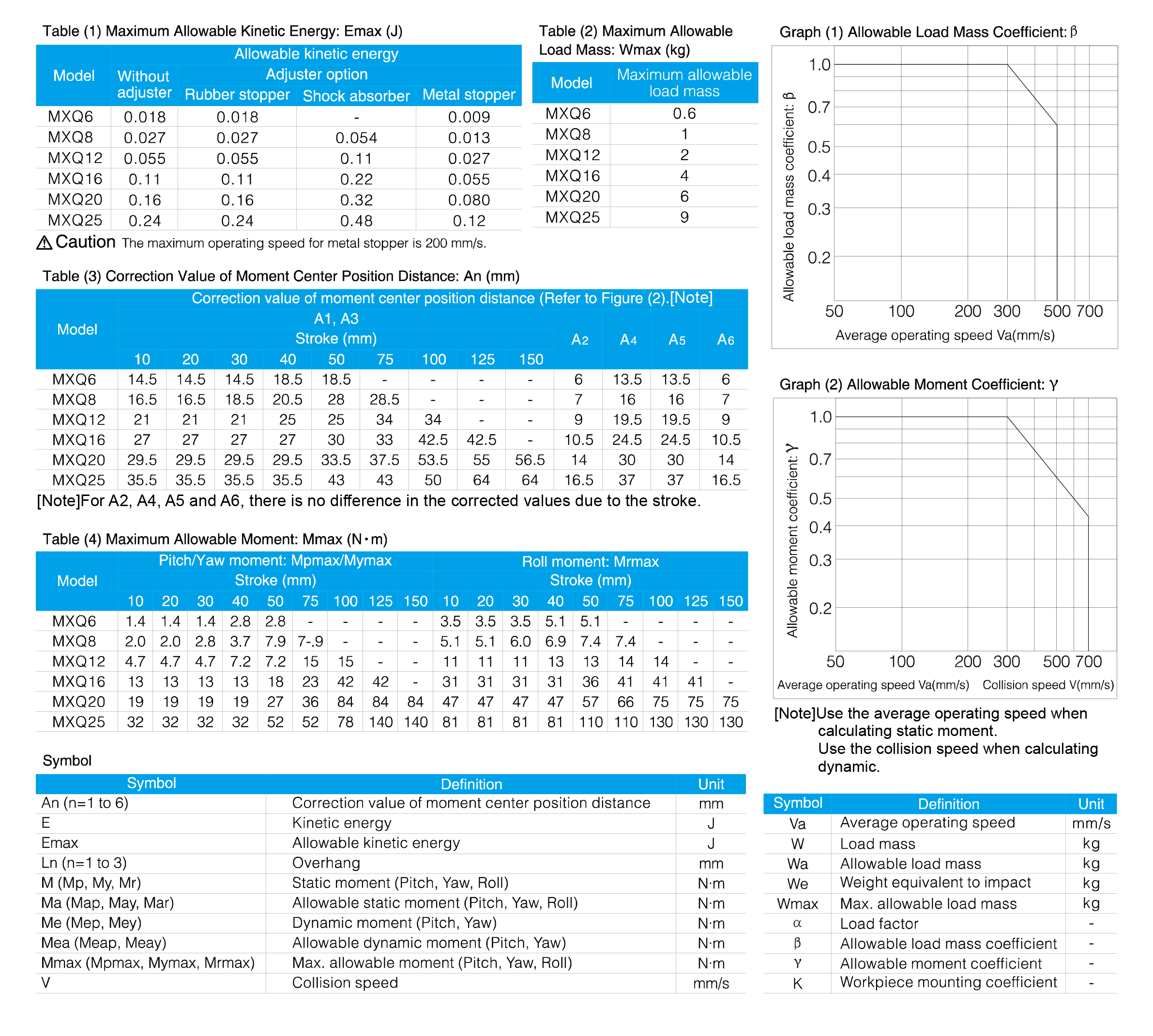

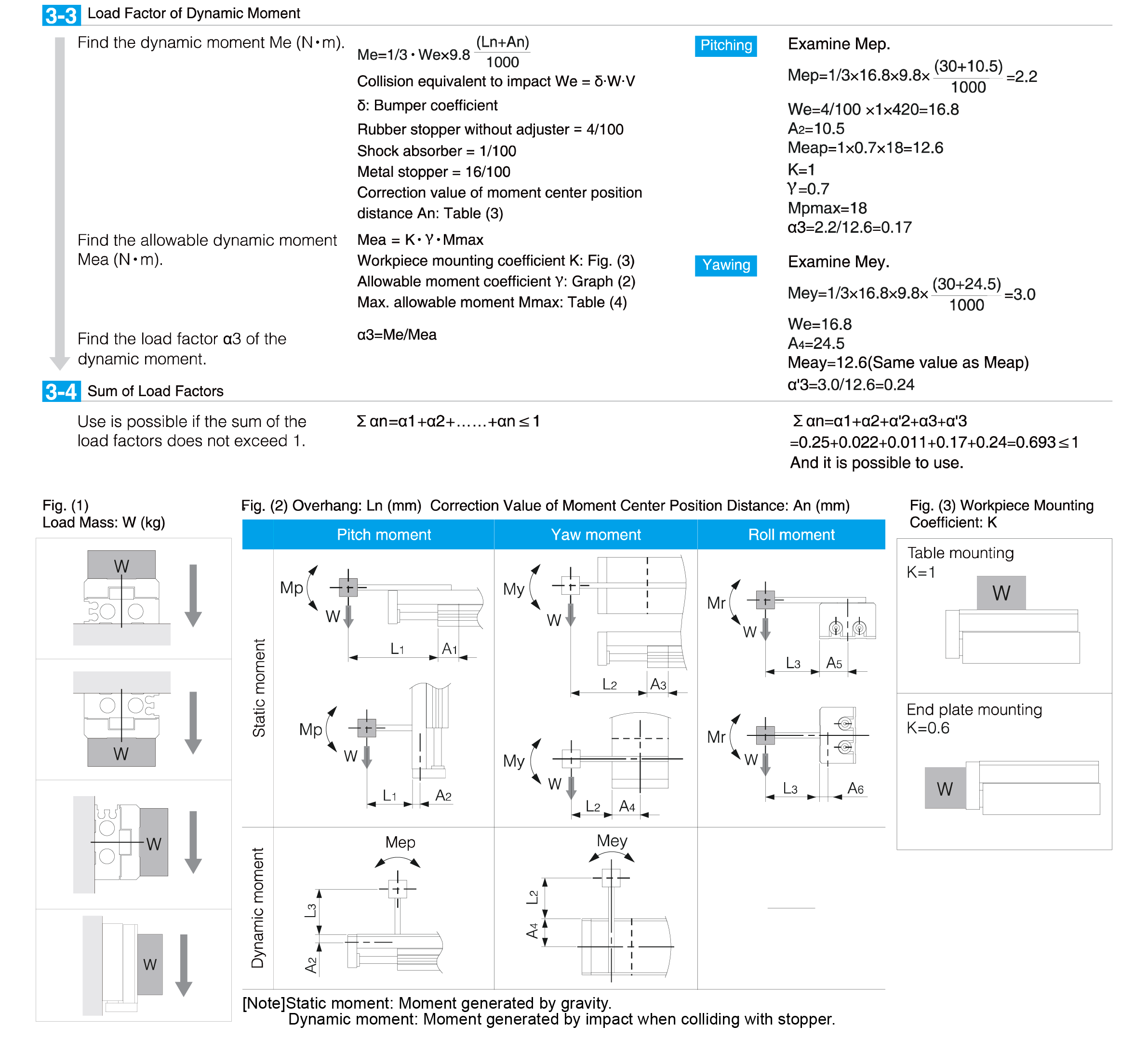

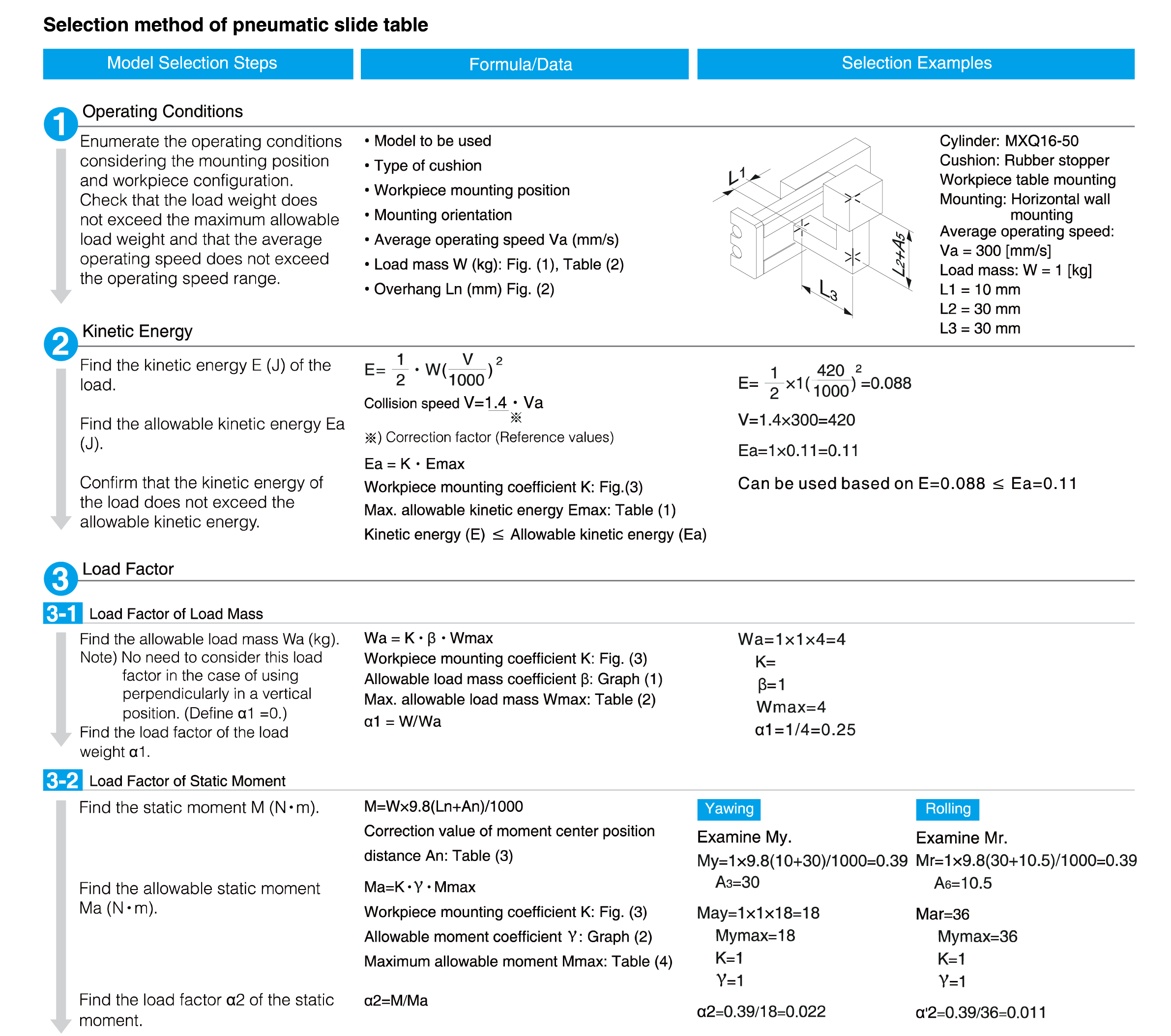

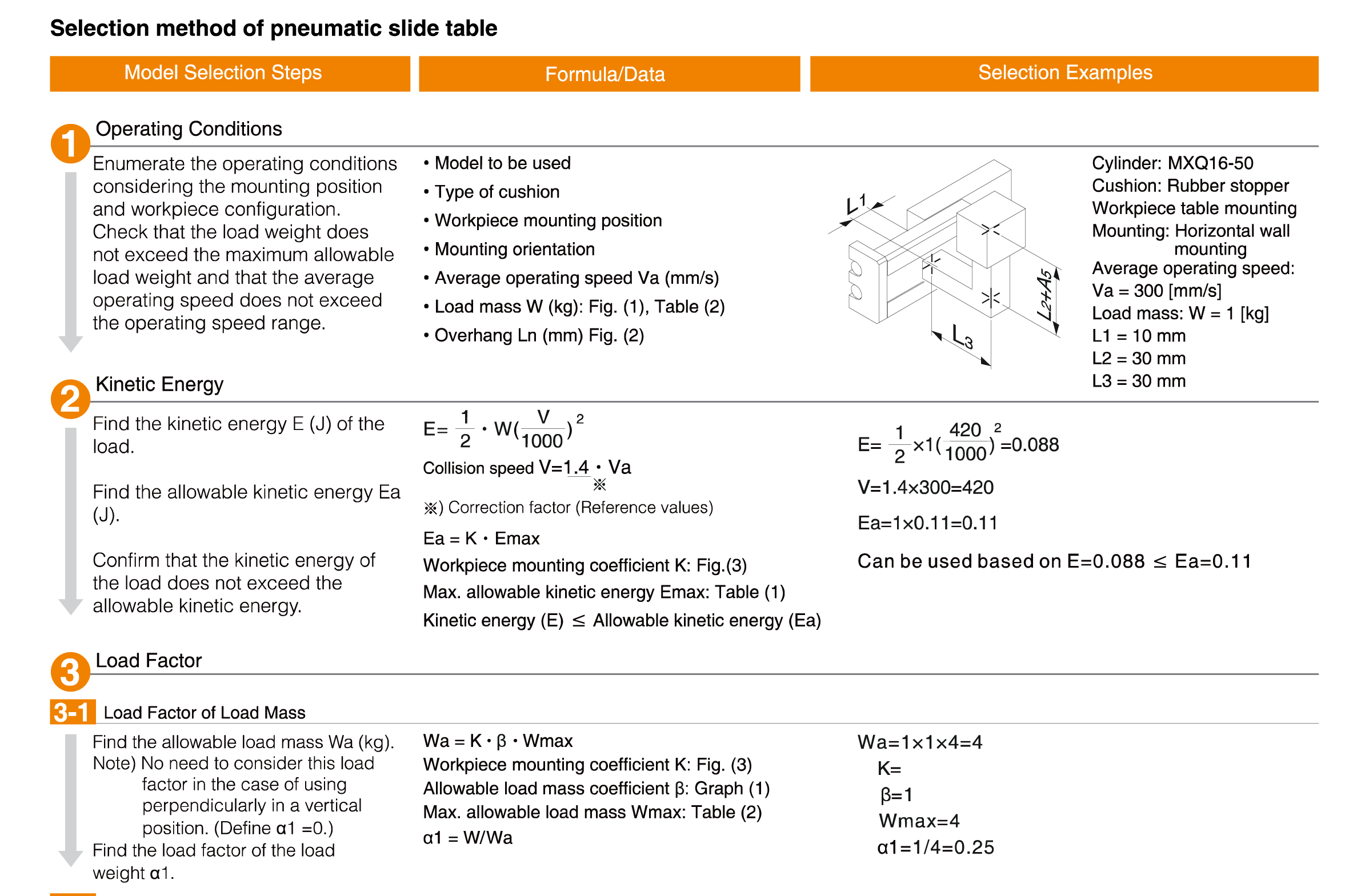

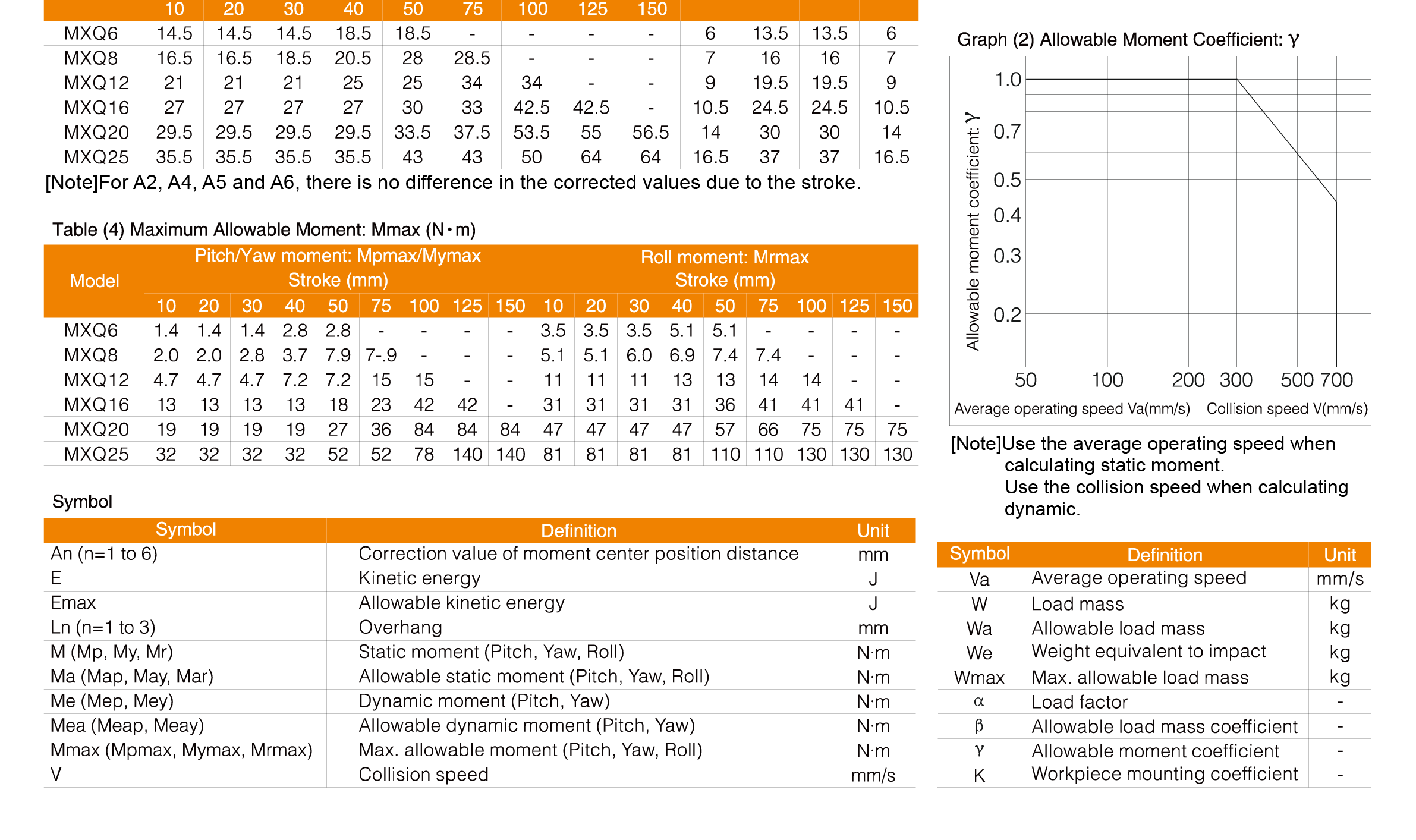

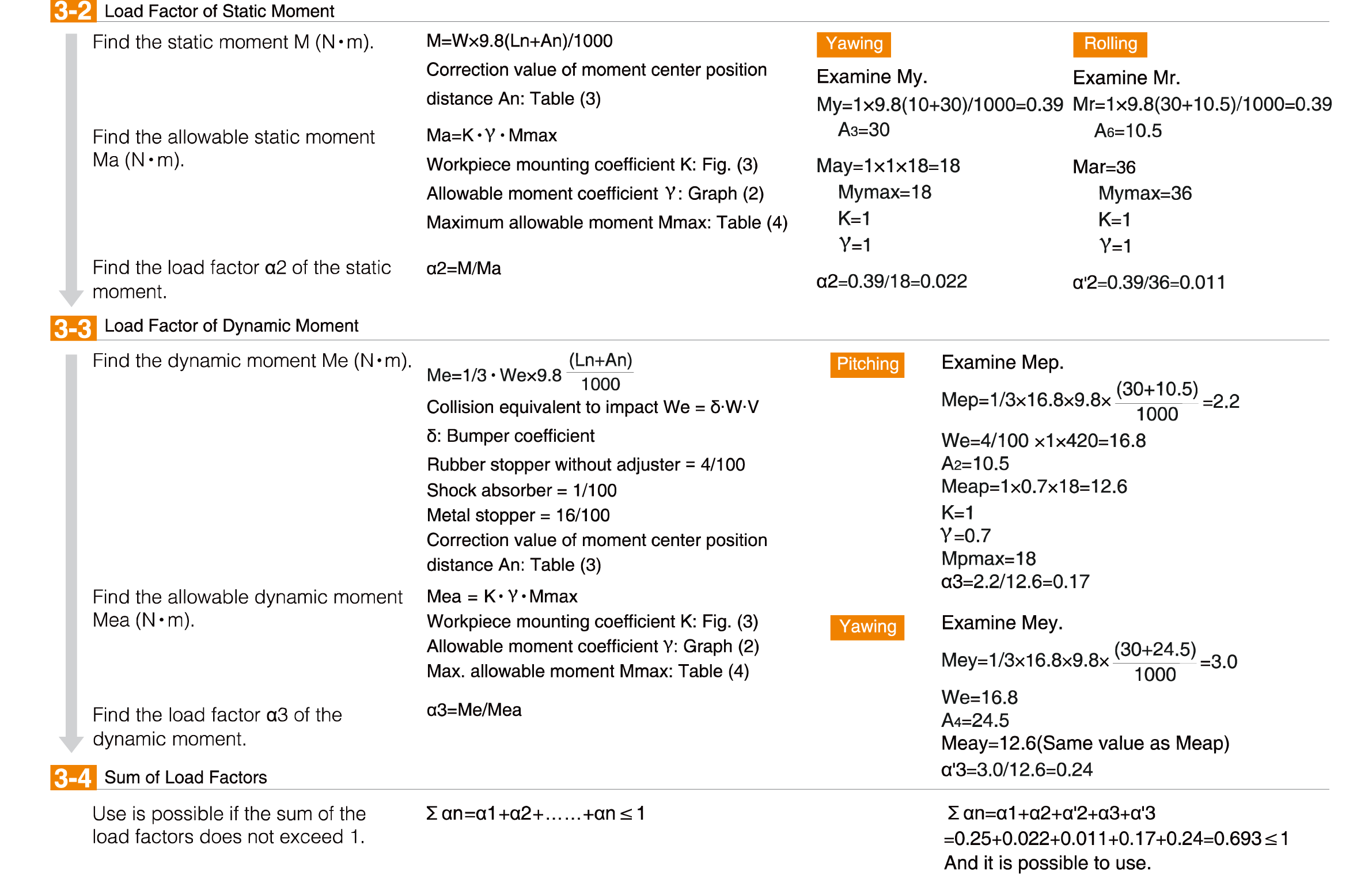

● Large allowable load moment

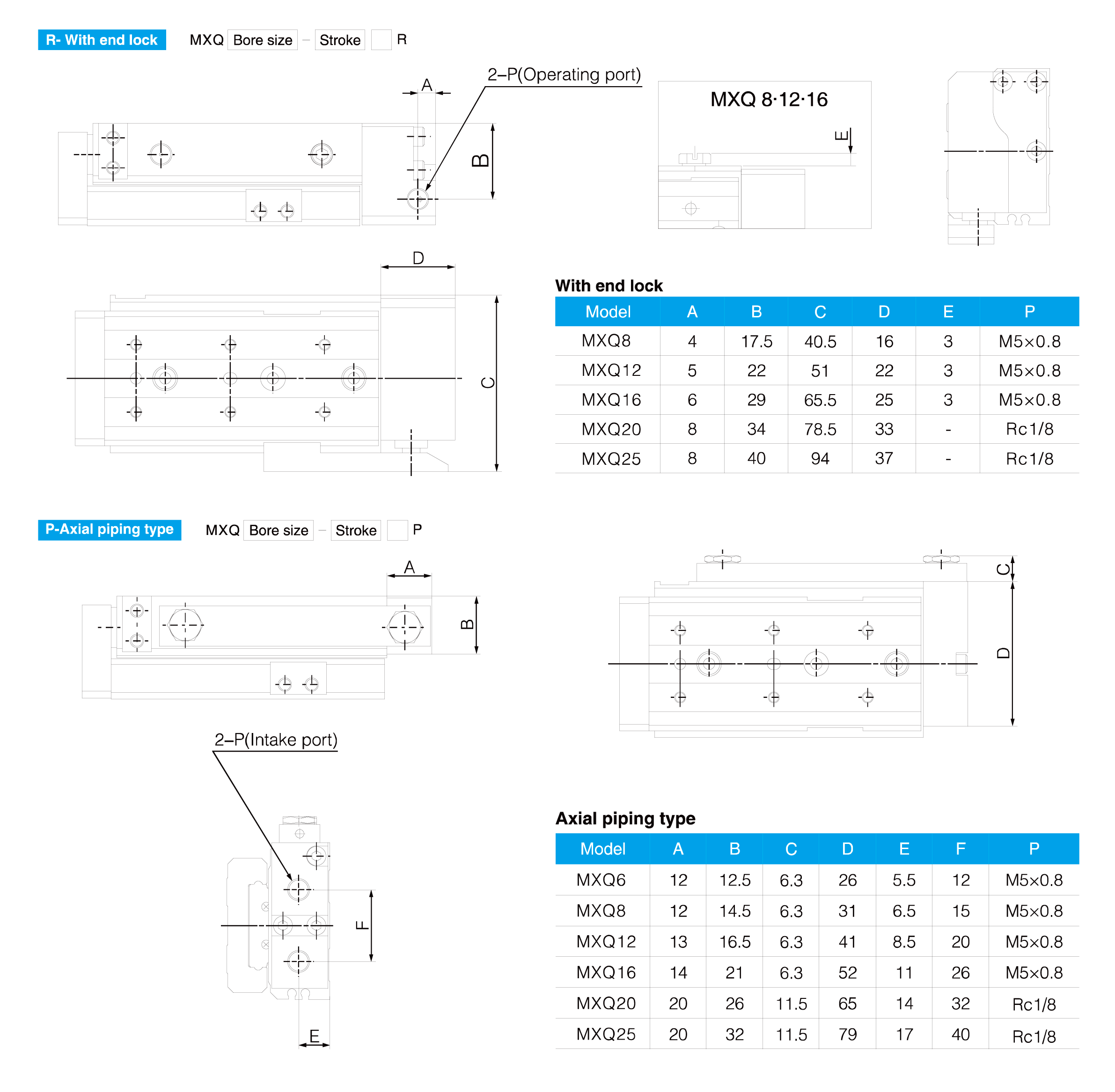

● Optional adjustable stroke mechanism
● Magnetic switch installation supported
● Multiple cushioning options available
● Maintenance-free non-lube operation
● Designed for precision automation systems
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

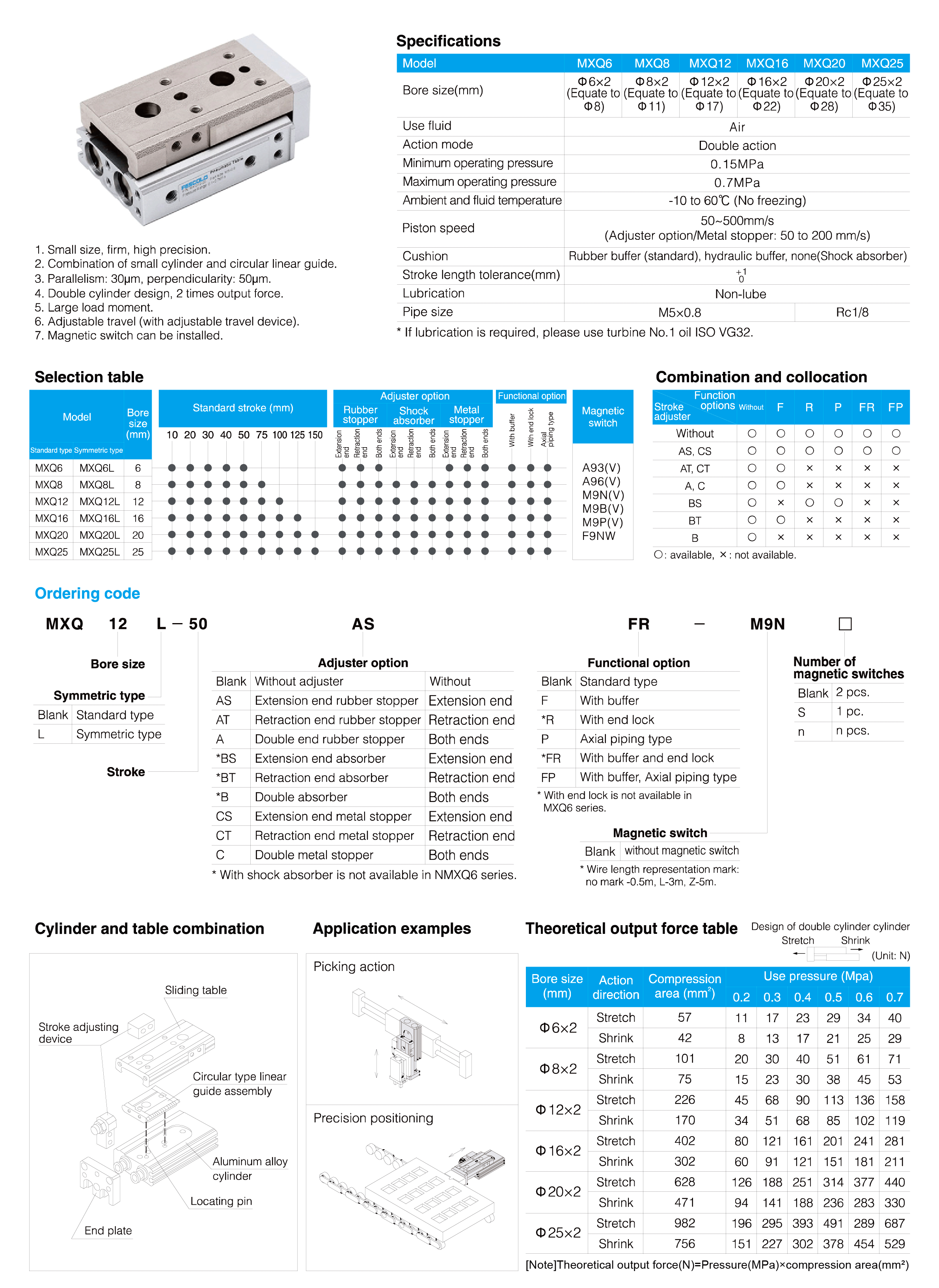

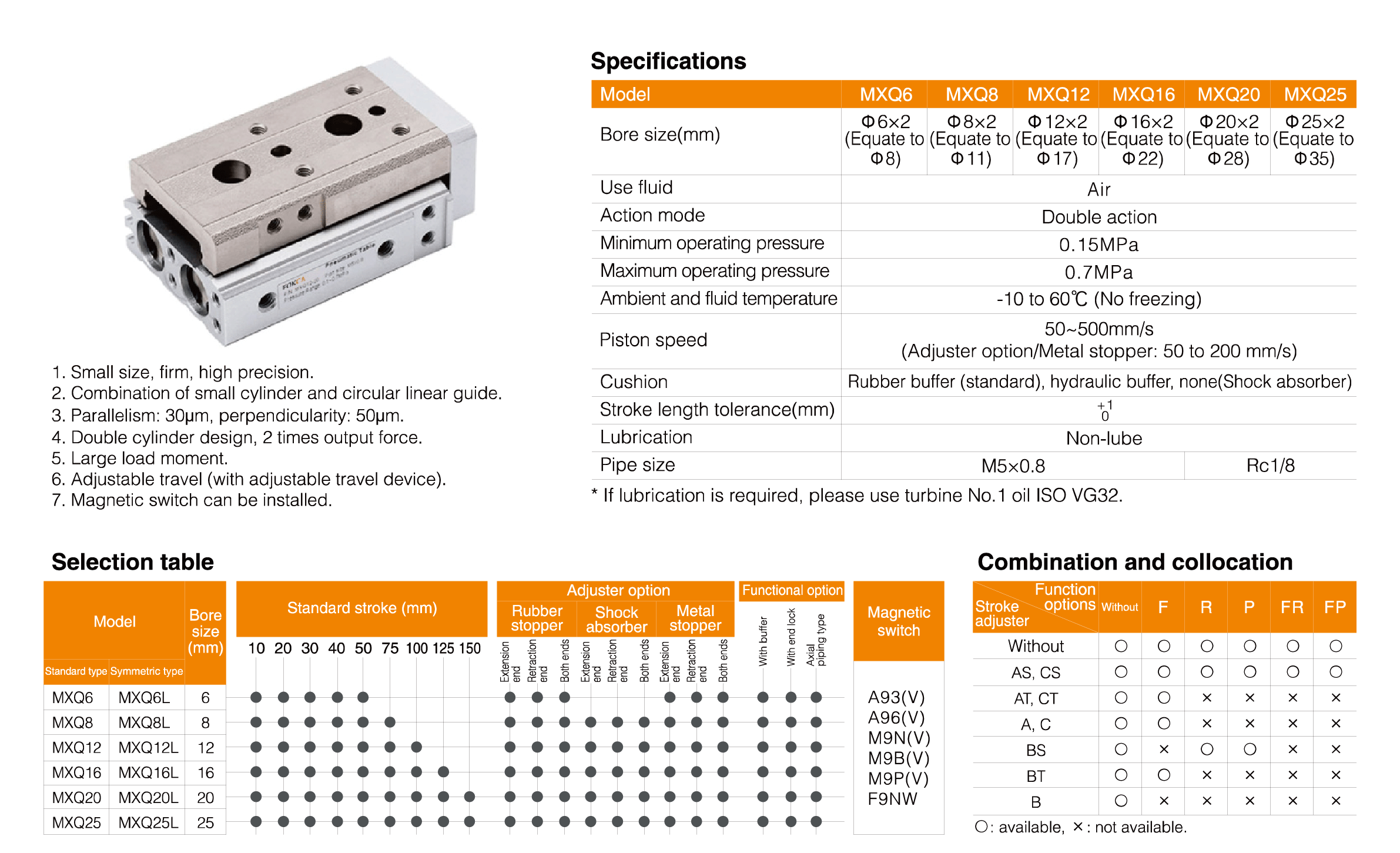

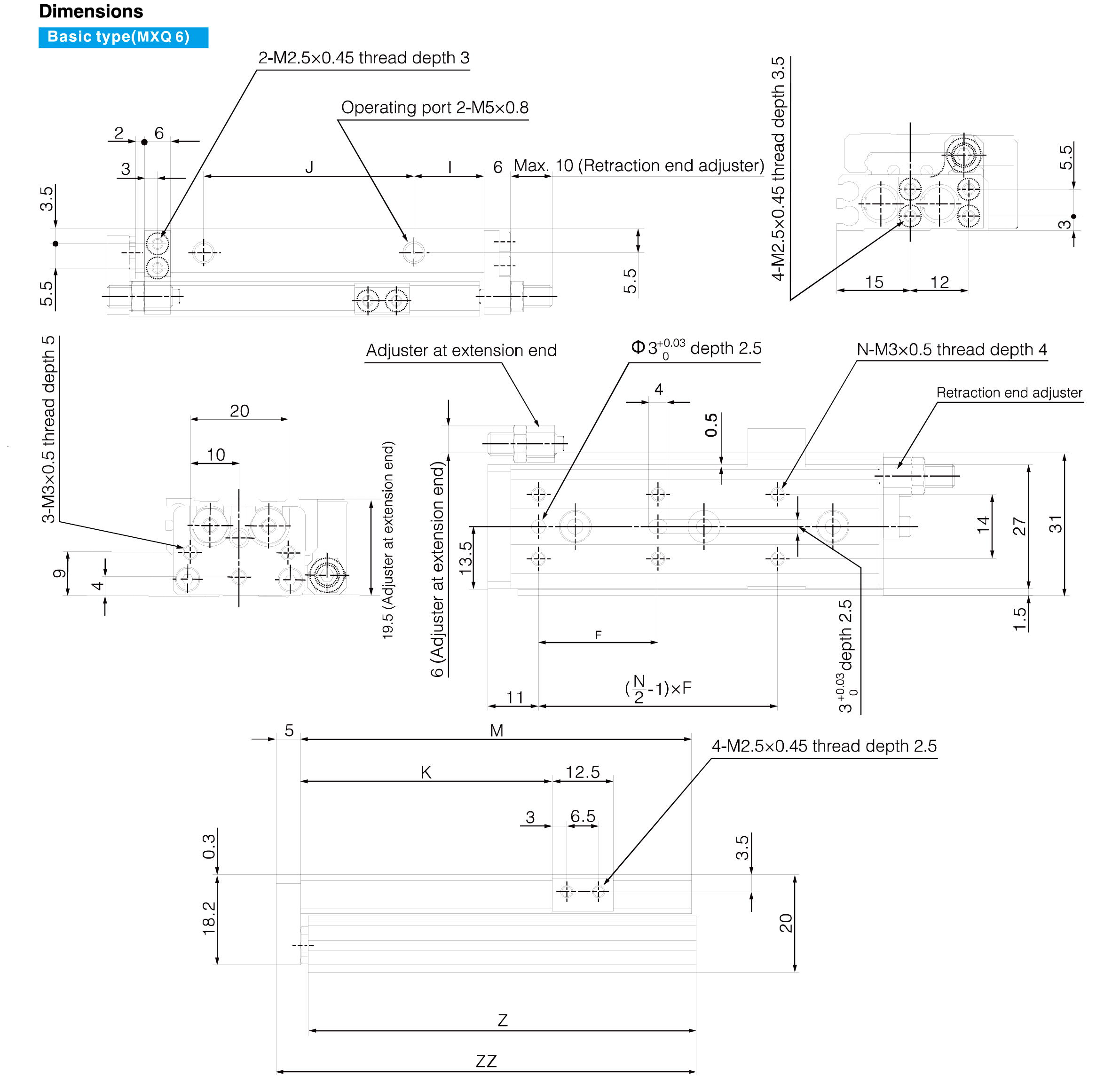

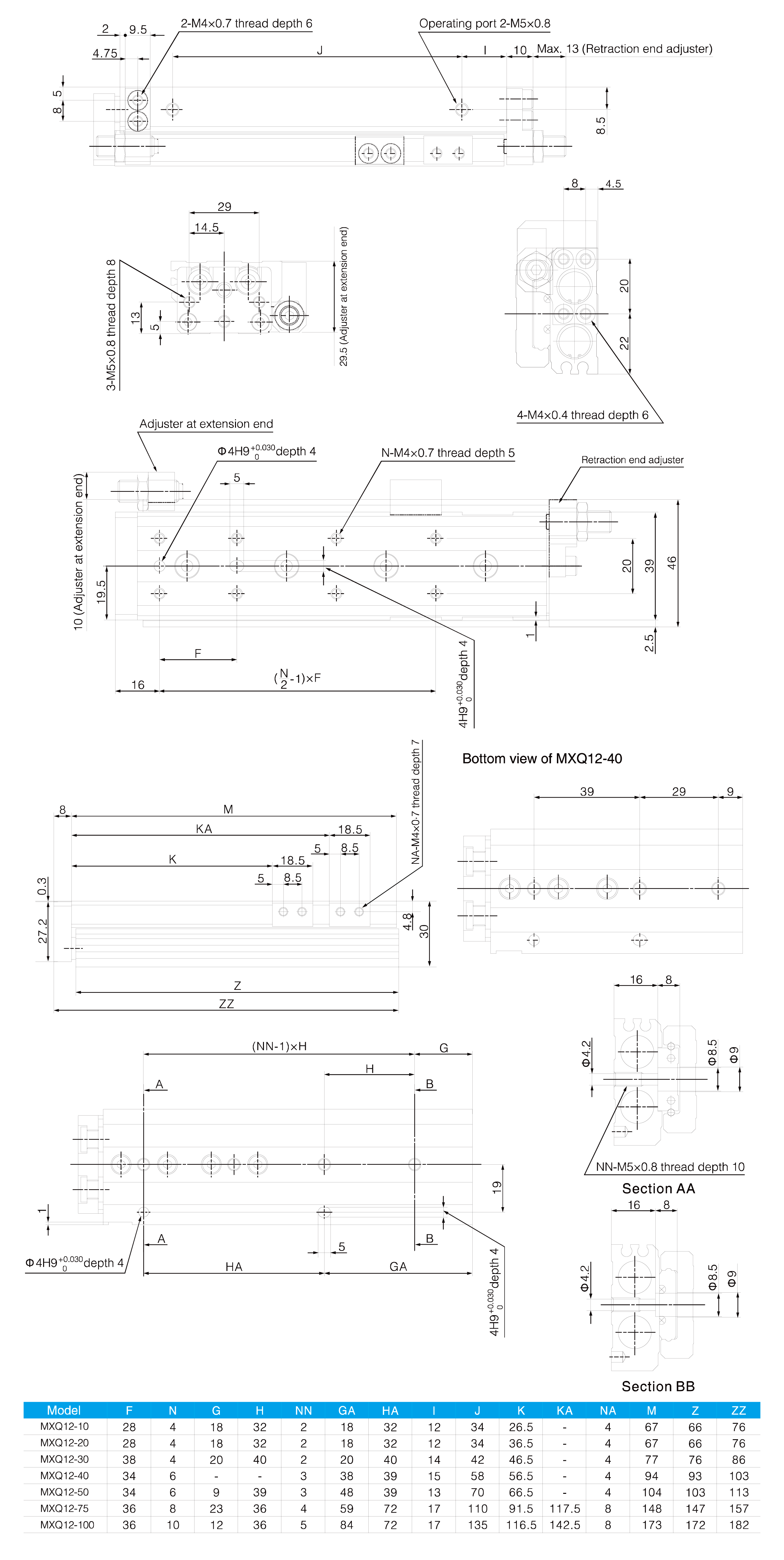

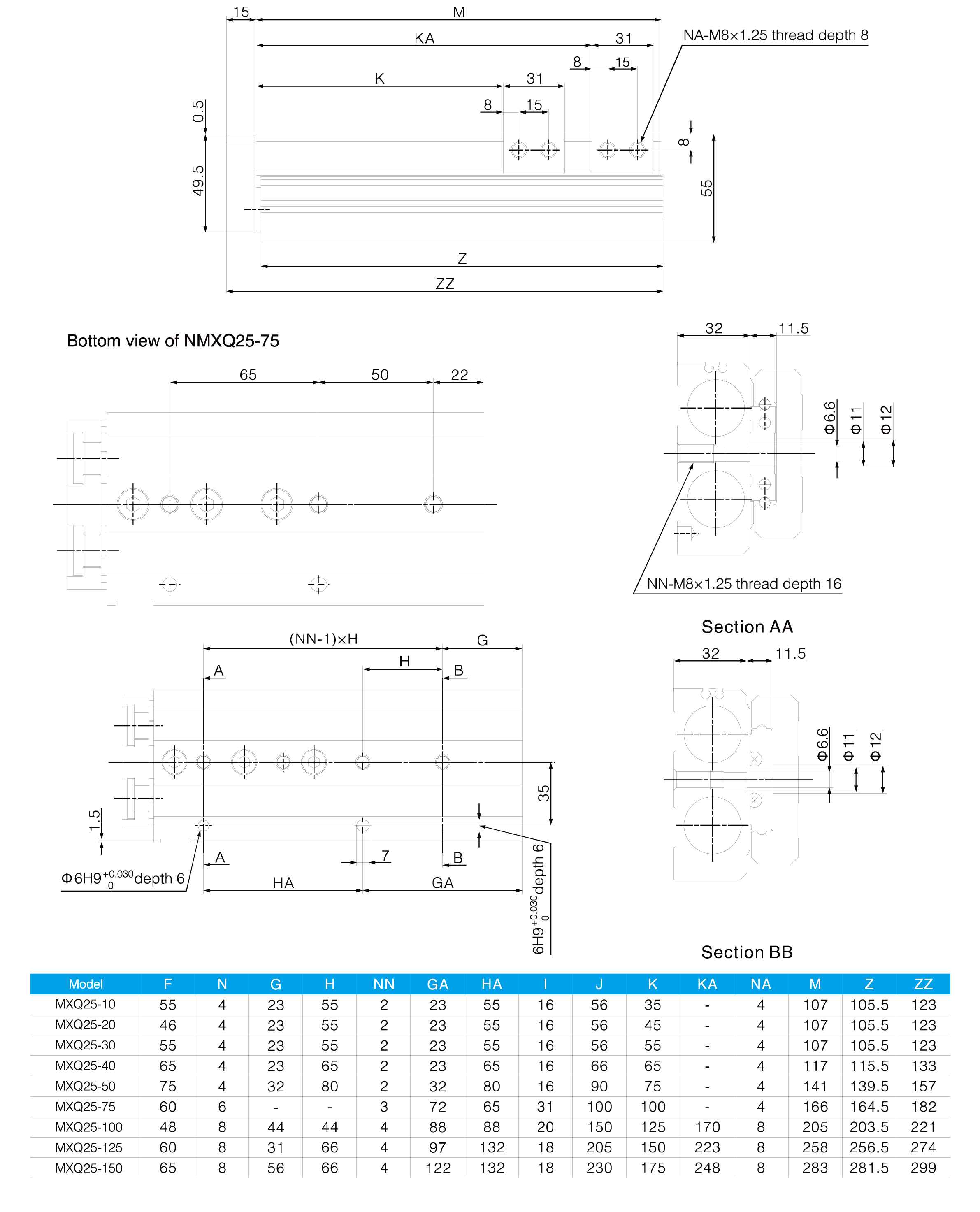

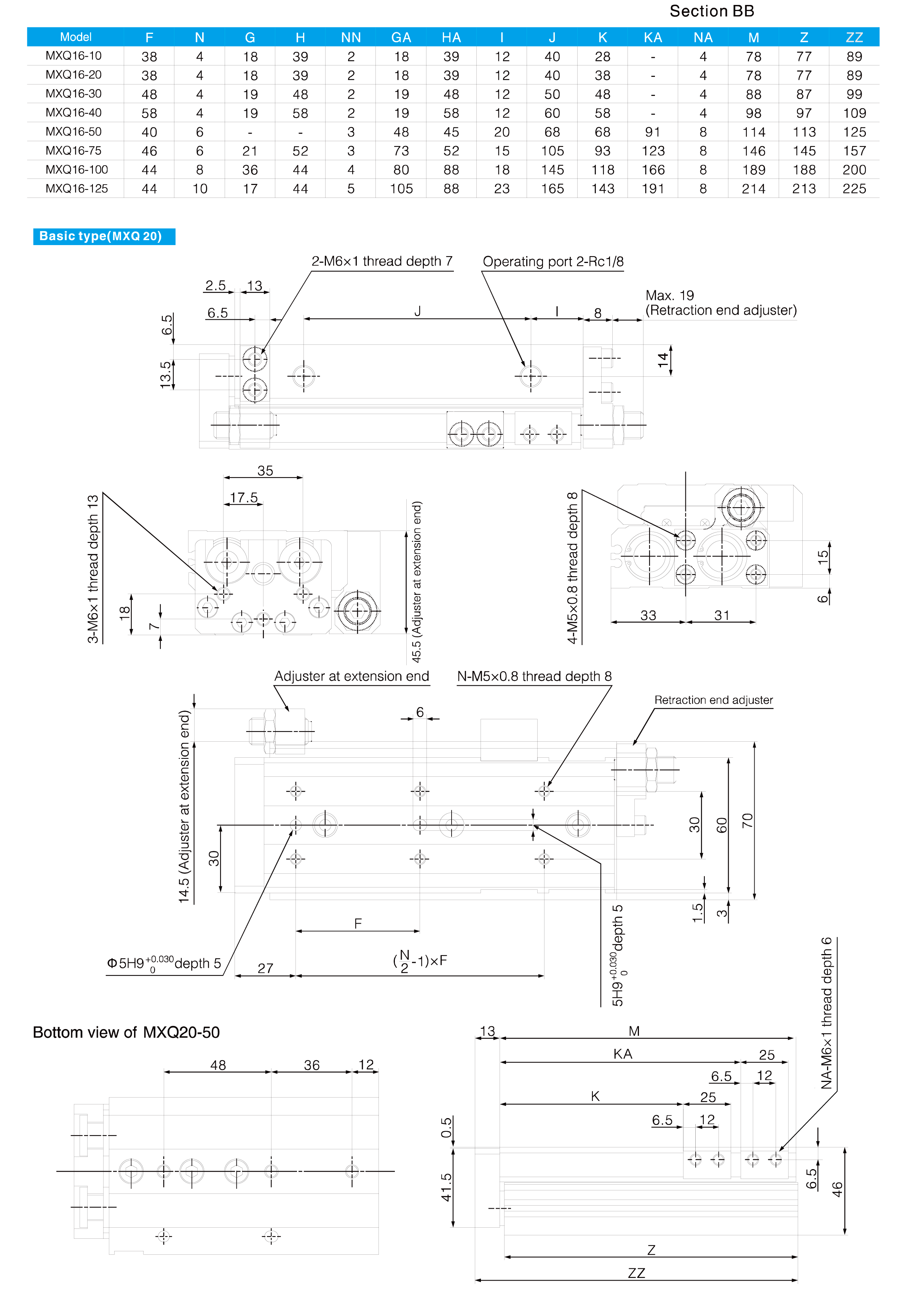

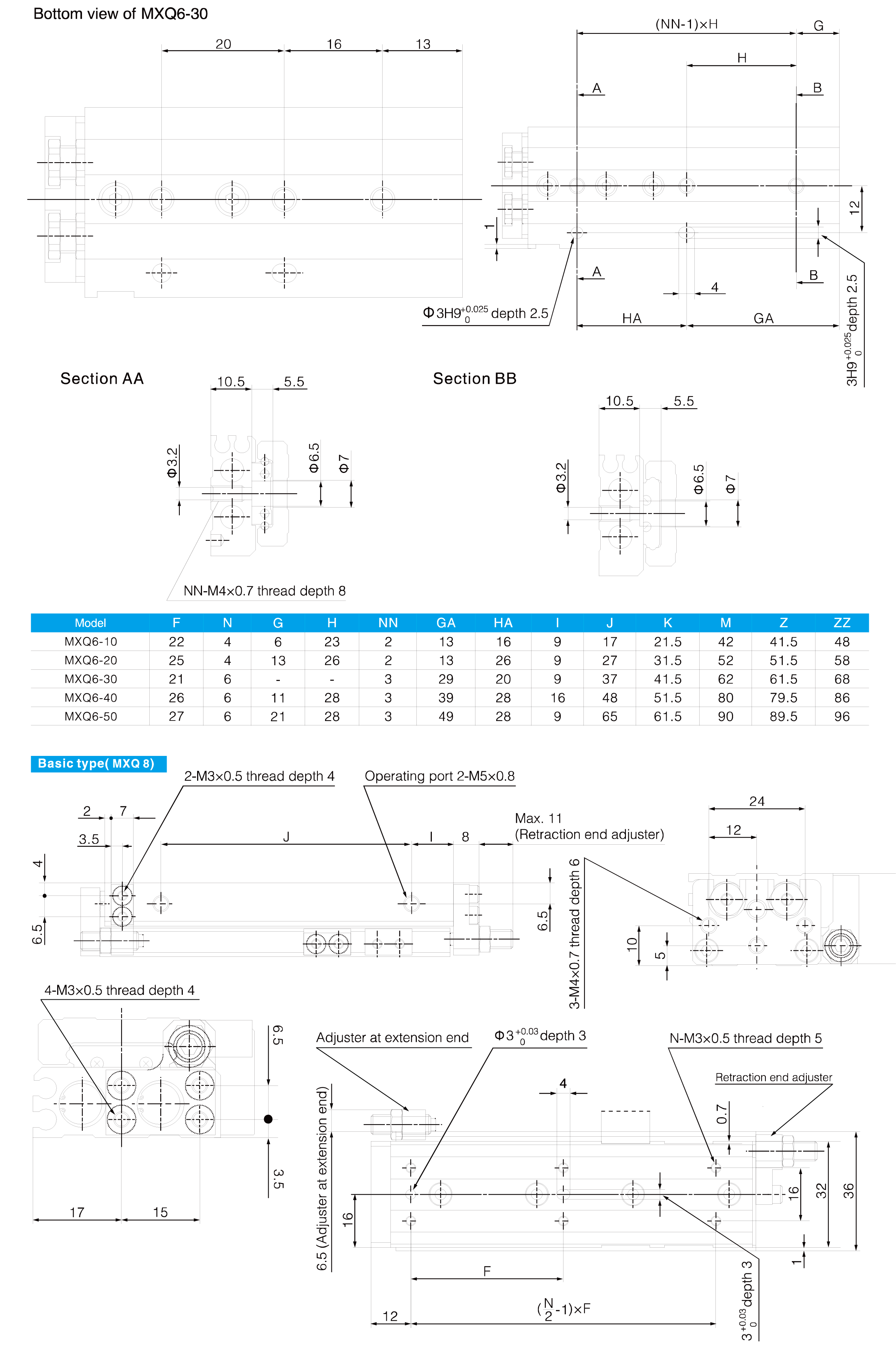

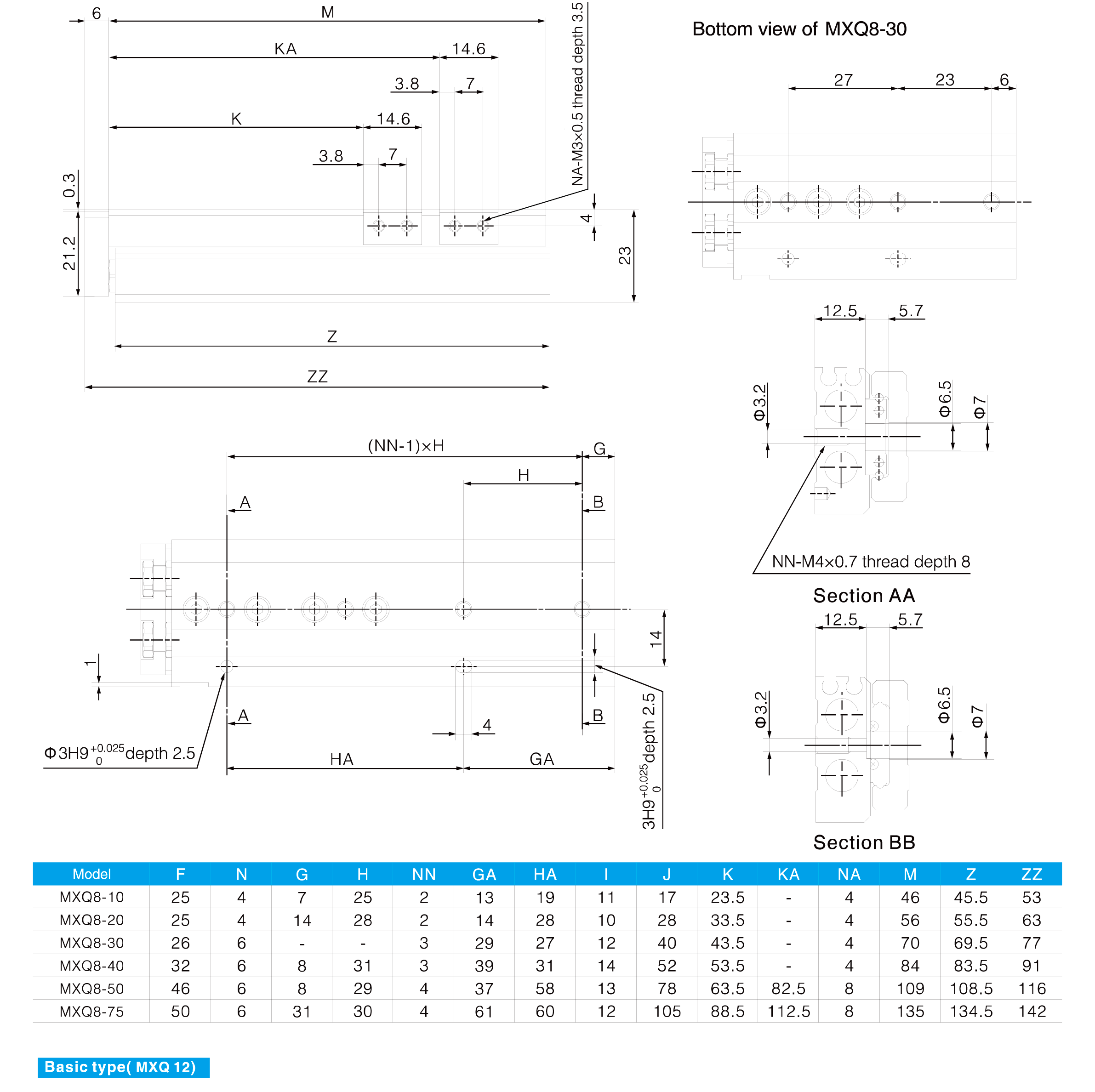

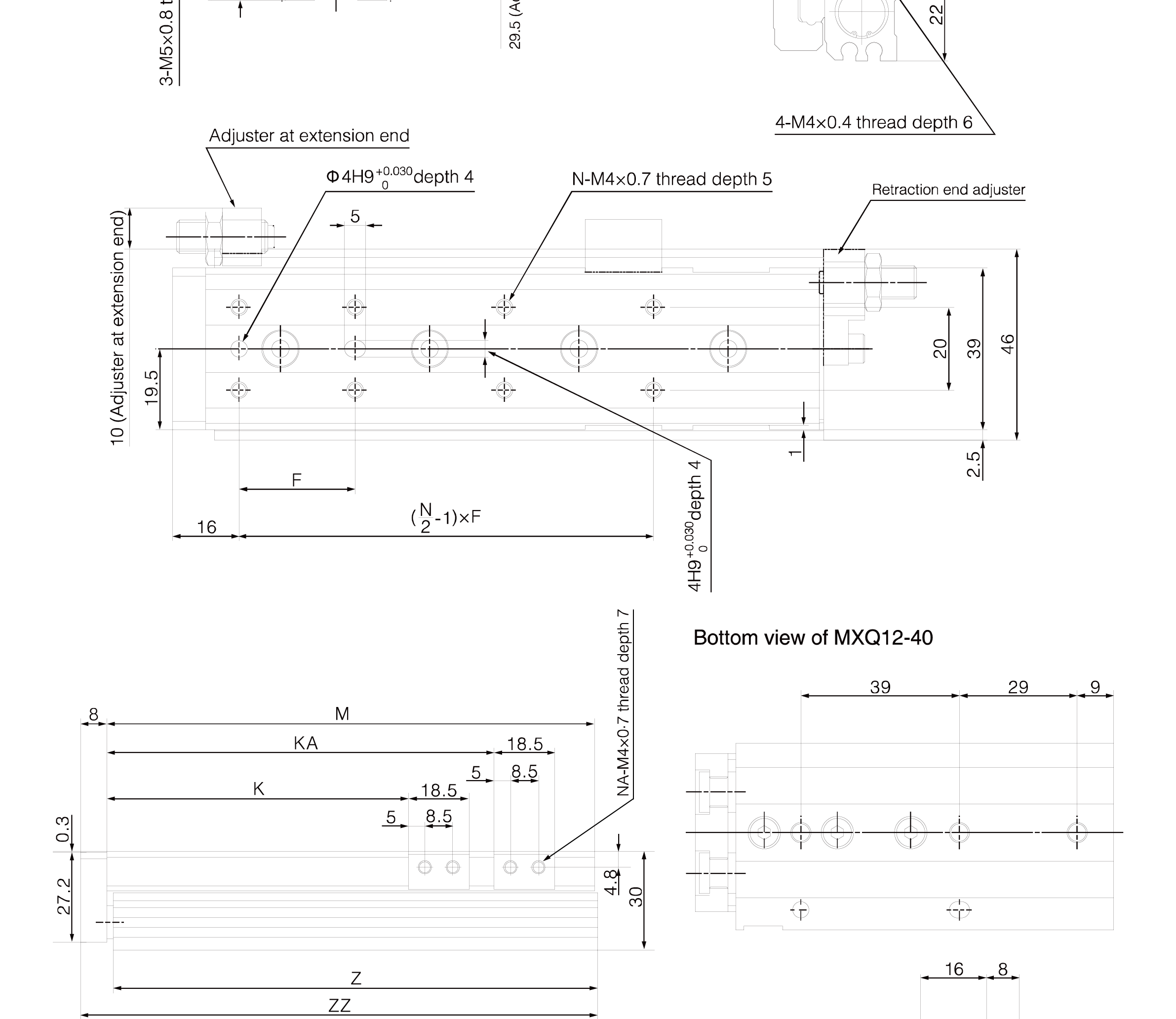

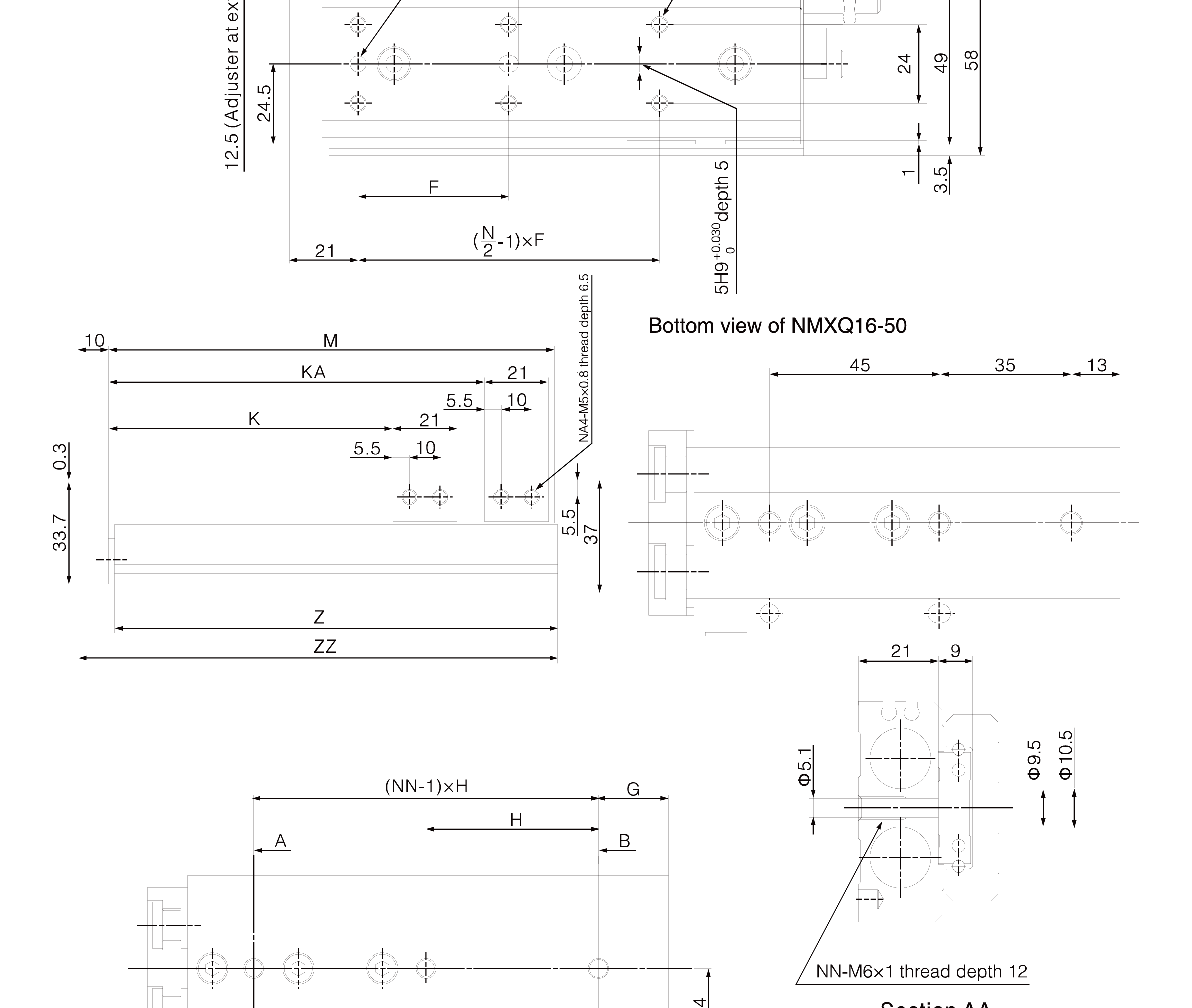

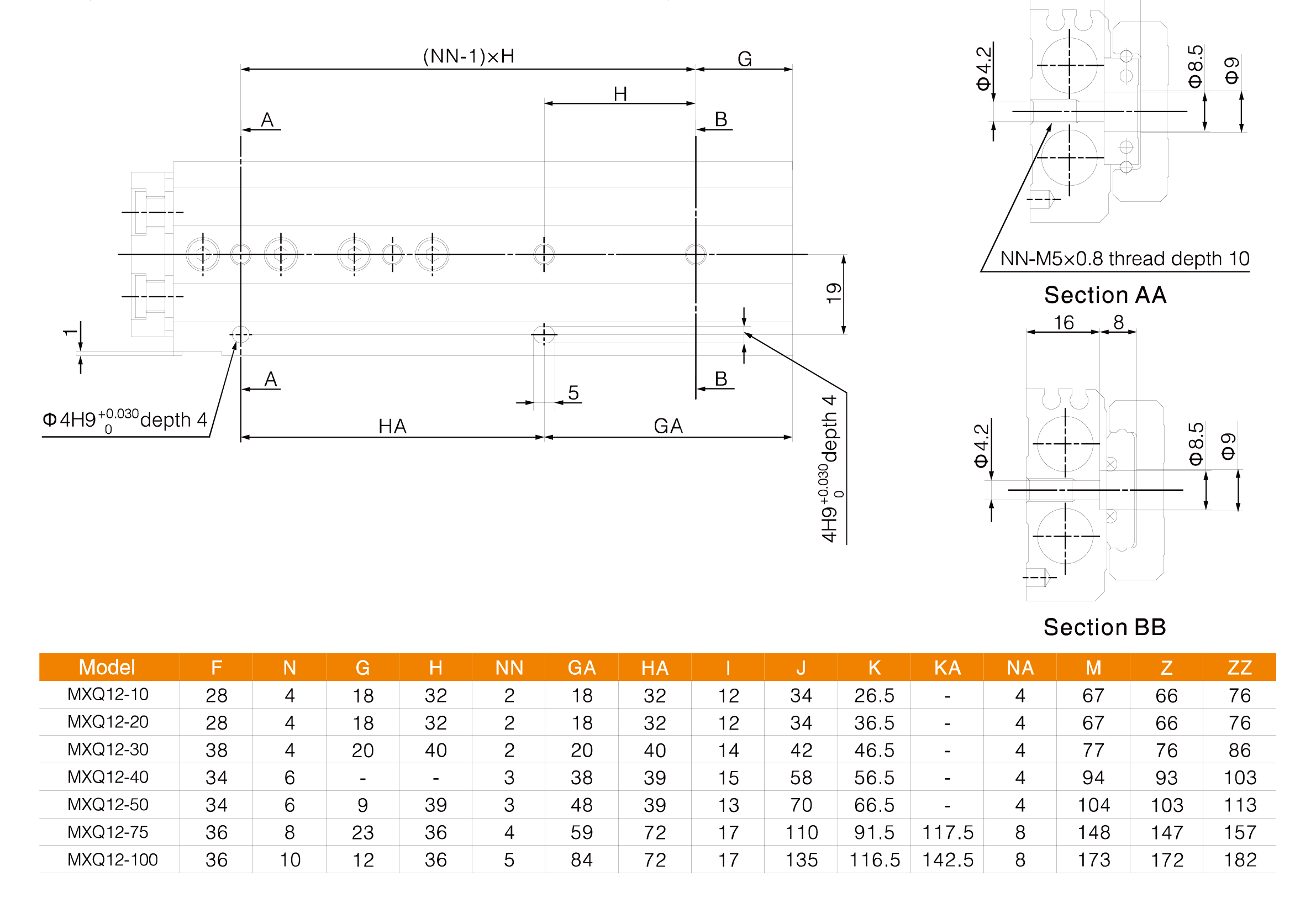

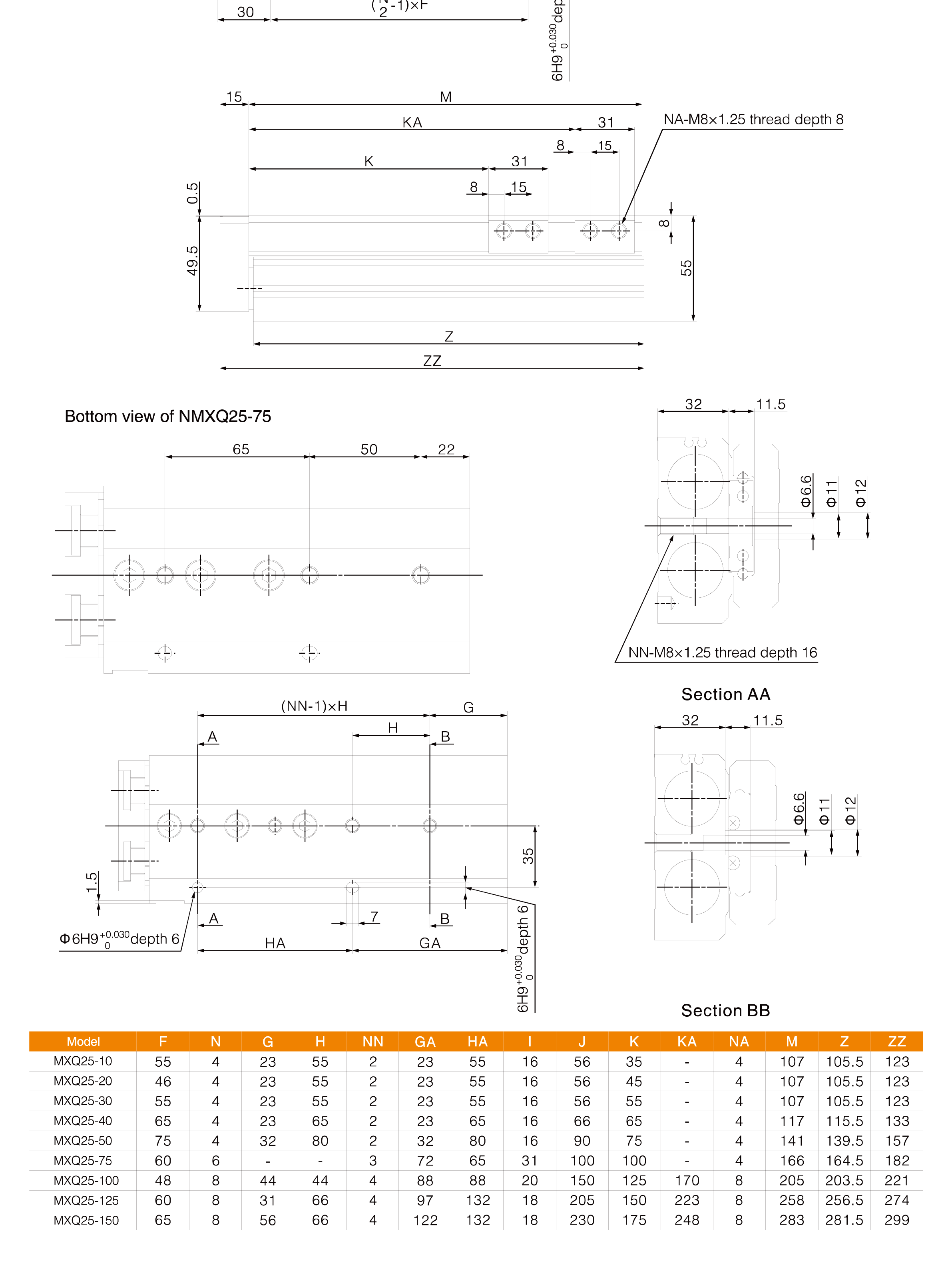

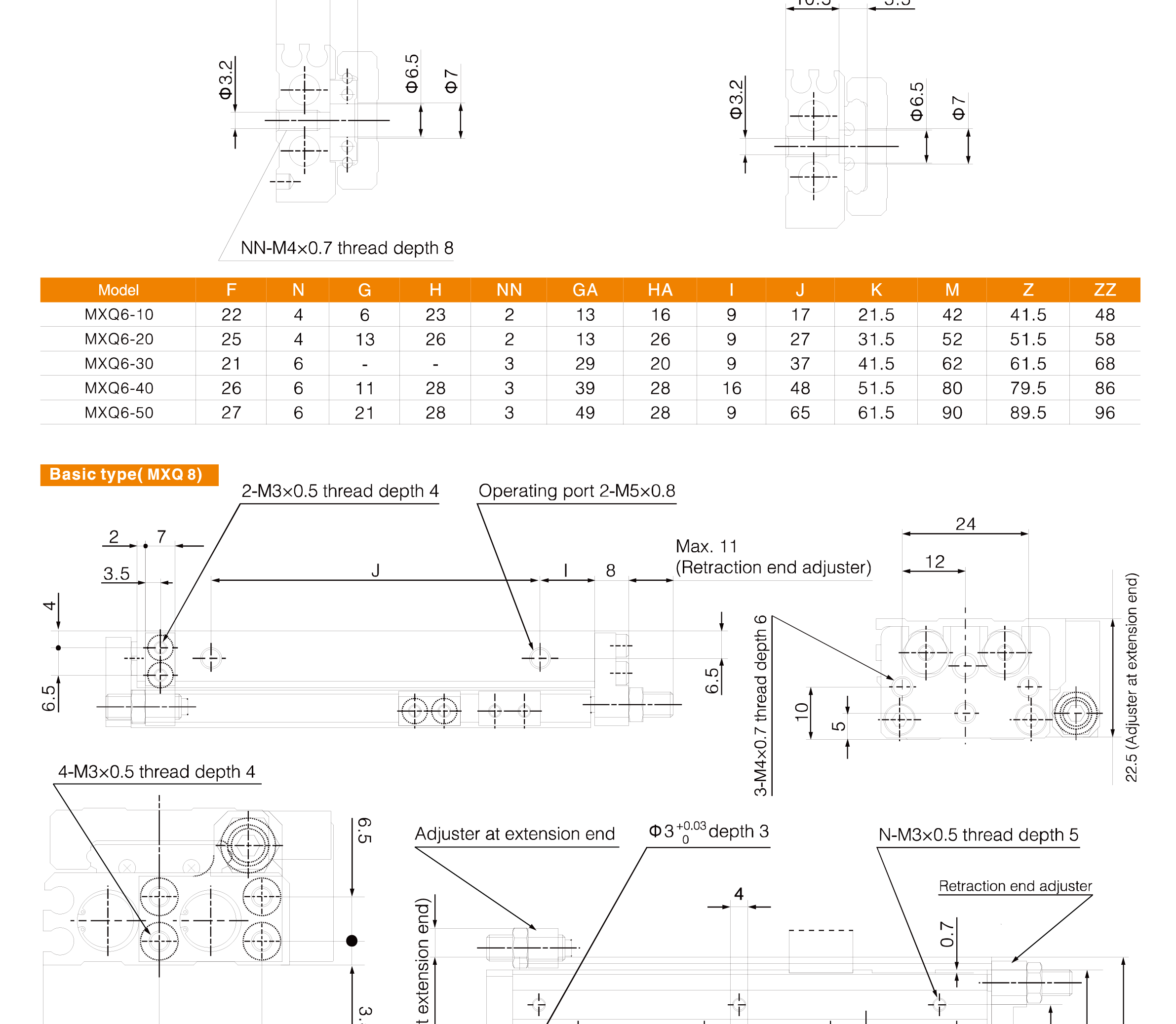

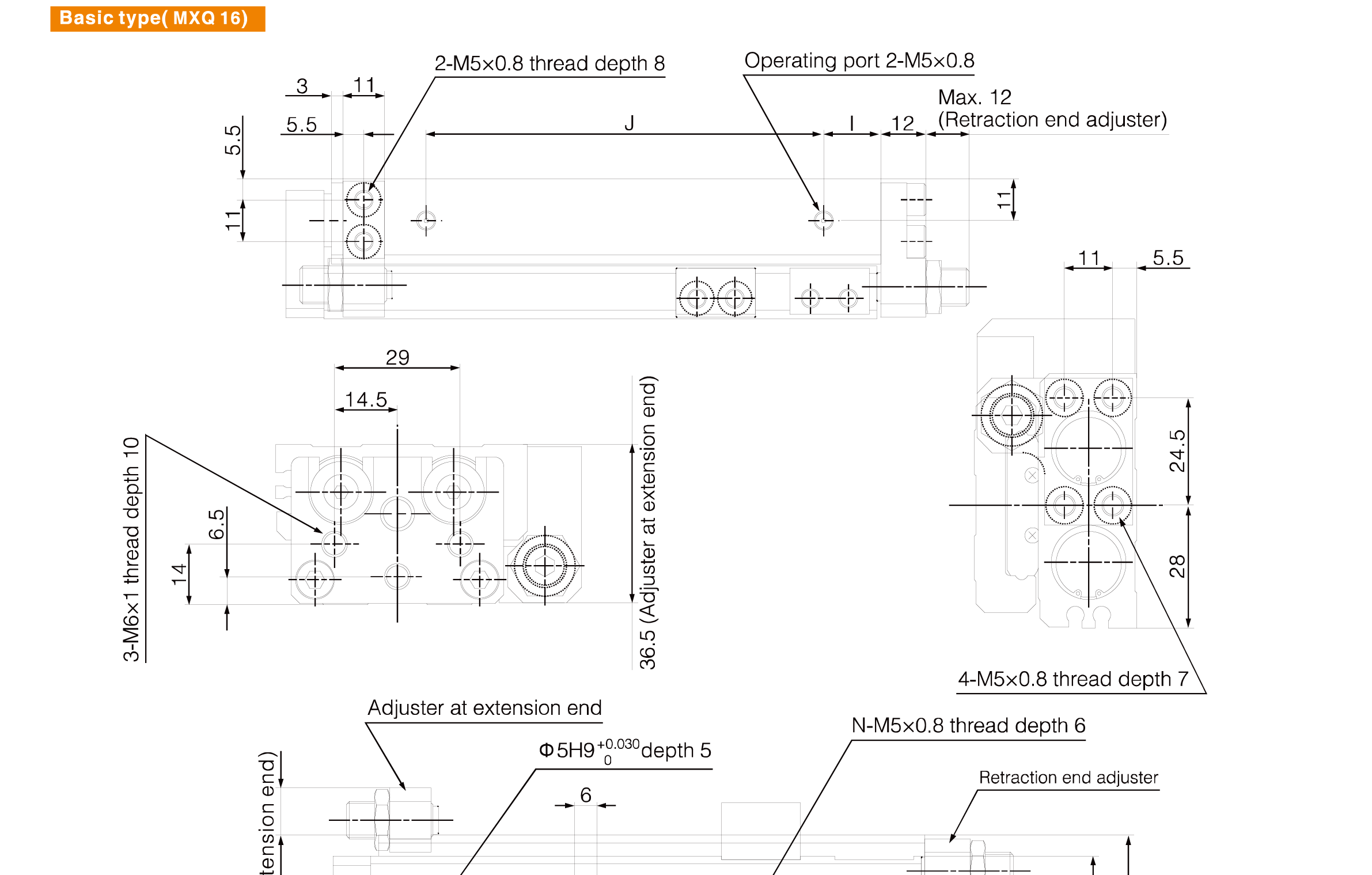

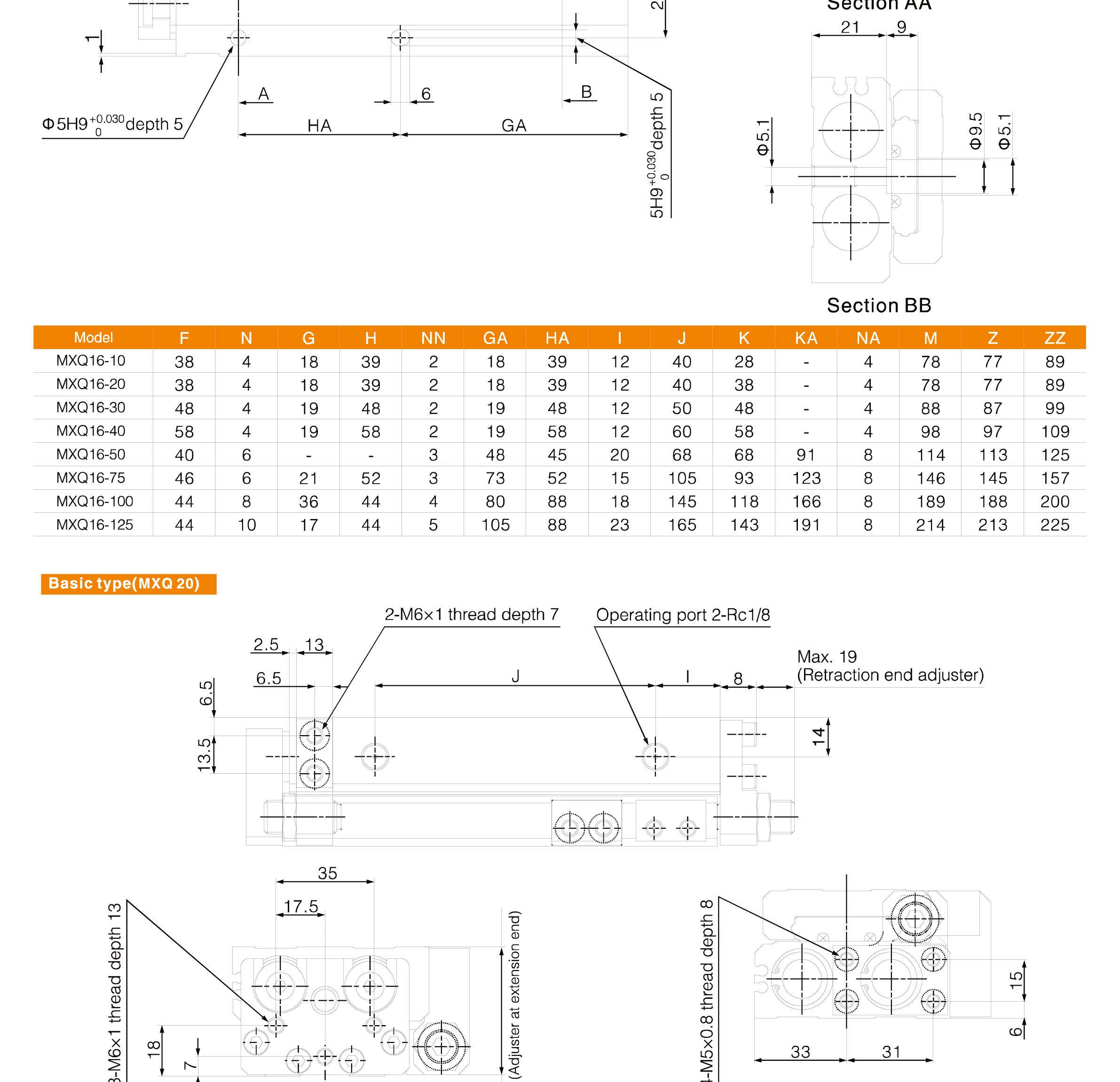

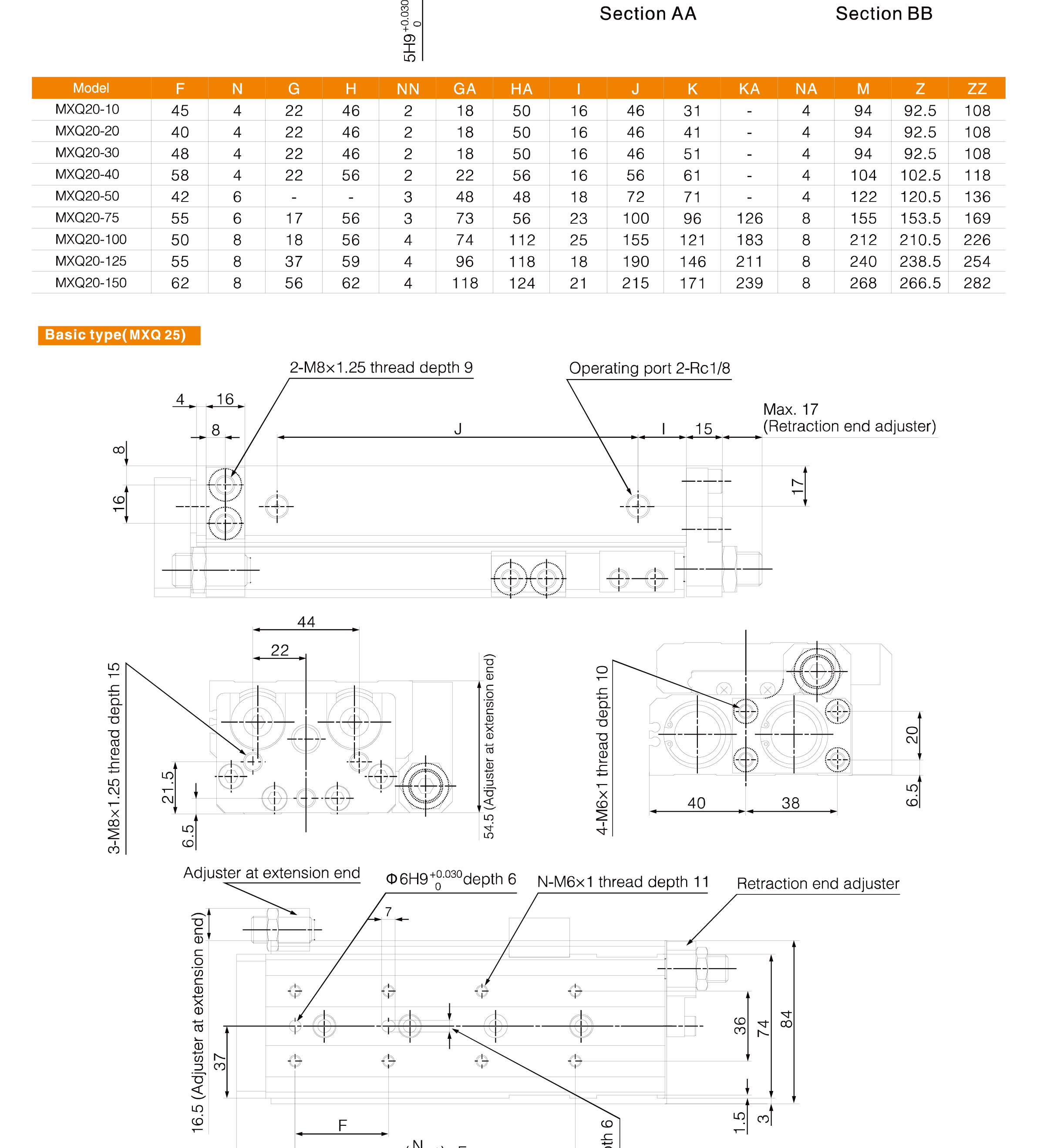

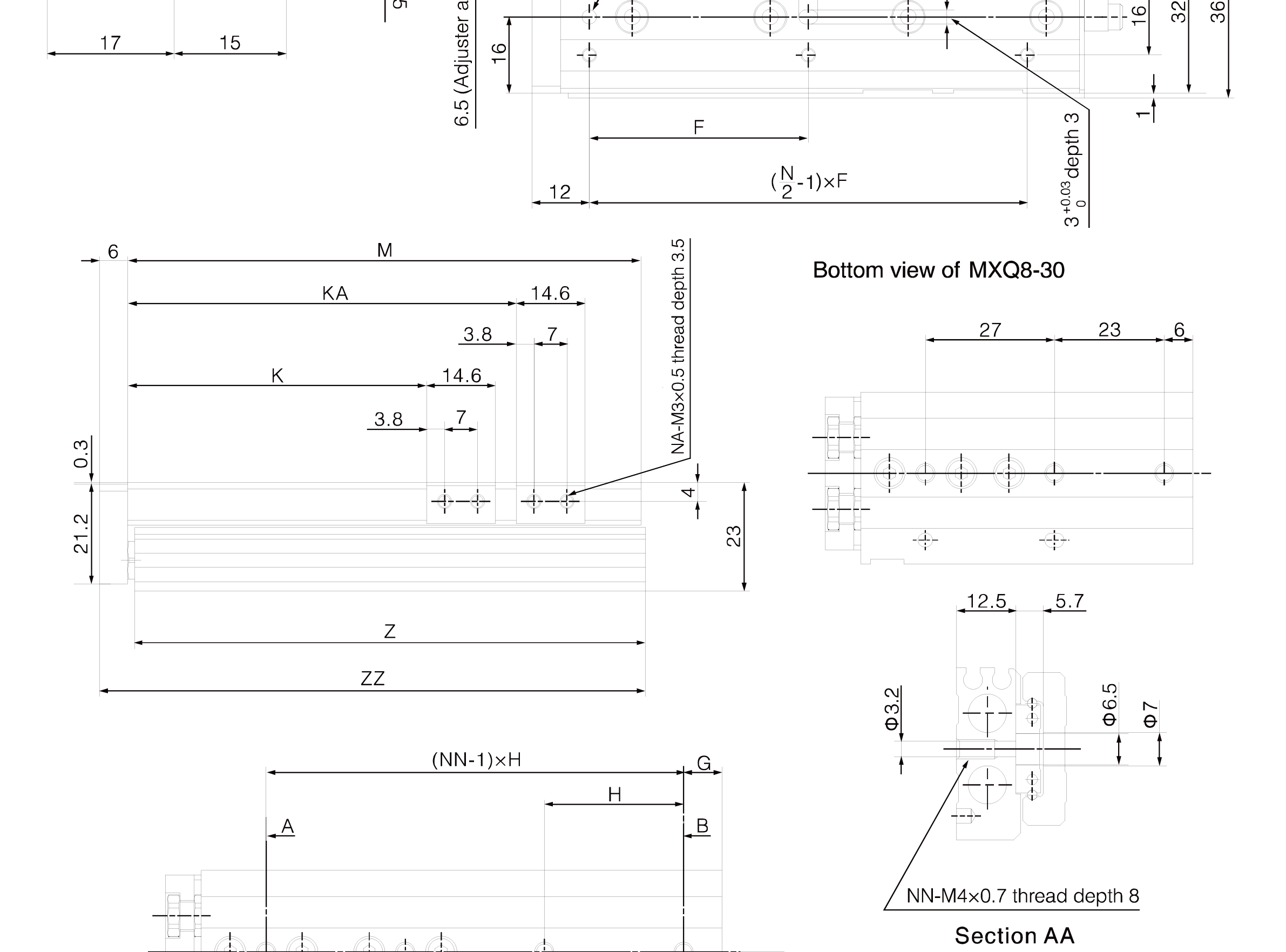

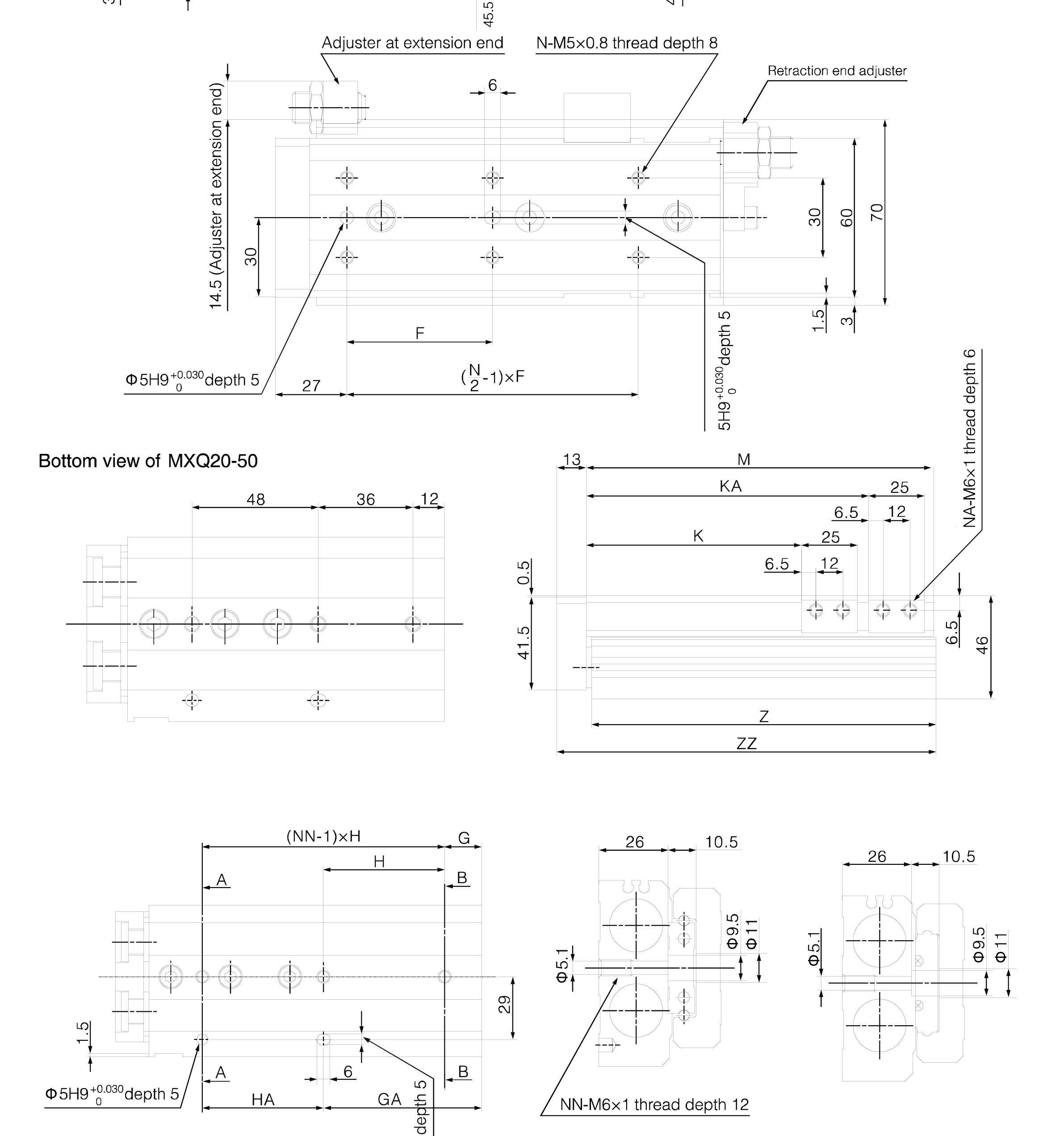

| Parameter | Specification |
| Models | MXQ6, MXQ8, MXQ12, MXQ16, MXQ20, MXQ25 |
| Bore Size | Φ6×2, Φ8×2, Φ12×2, Φ16×2, Φ20×2, Φ25×2 |
| Working Medium | Air |
| Action | Double Acting |
| Operating Pressure | 0.15–0.7 MPa |
| Operating Temperature | -10°C to 60°C (No freezing) |
| Piston Speed | 50–500 mm/s (50–200 mm/s with travel adjuster or metal stopper) |

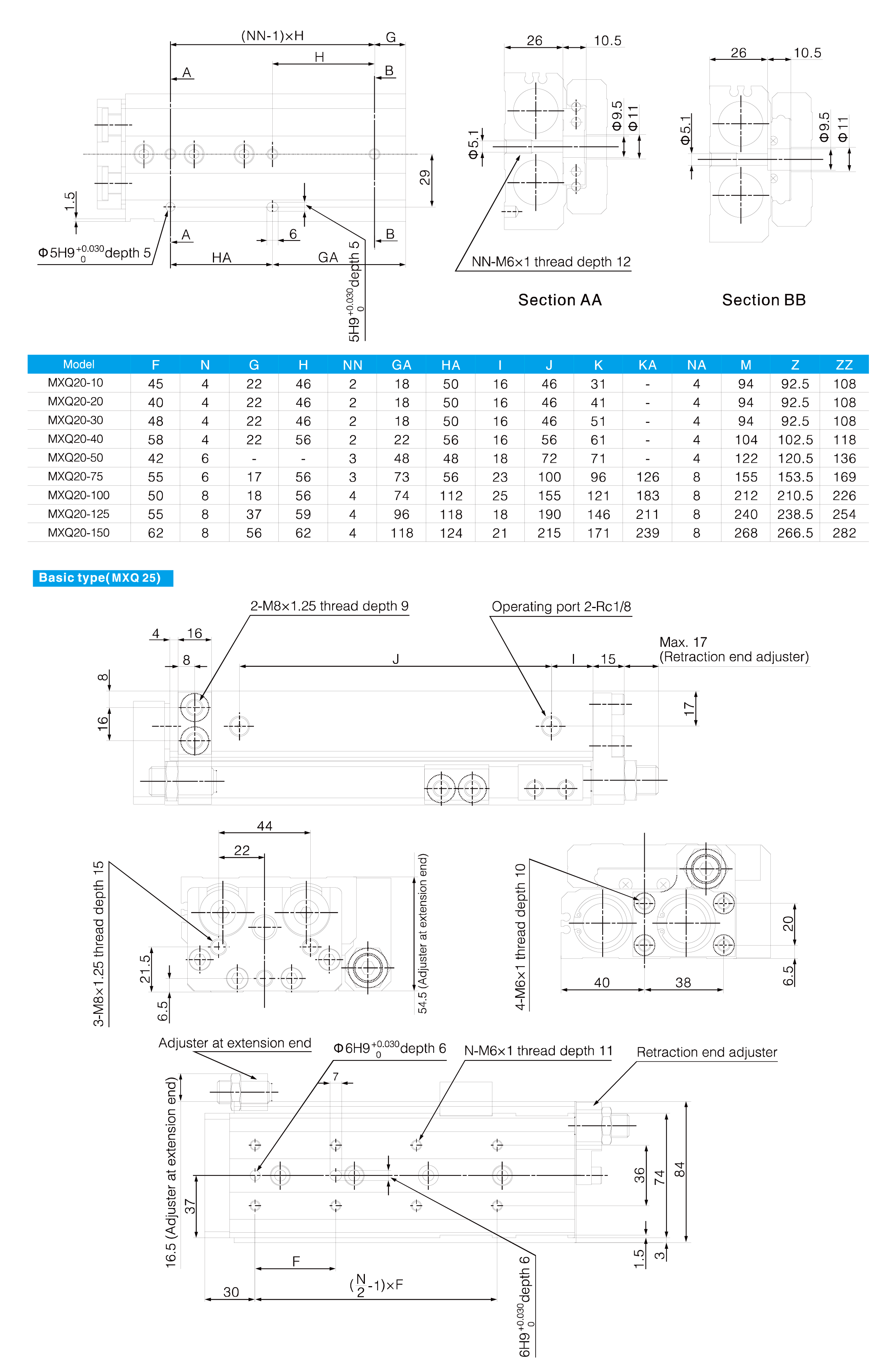

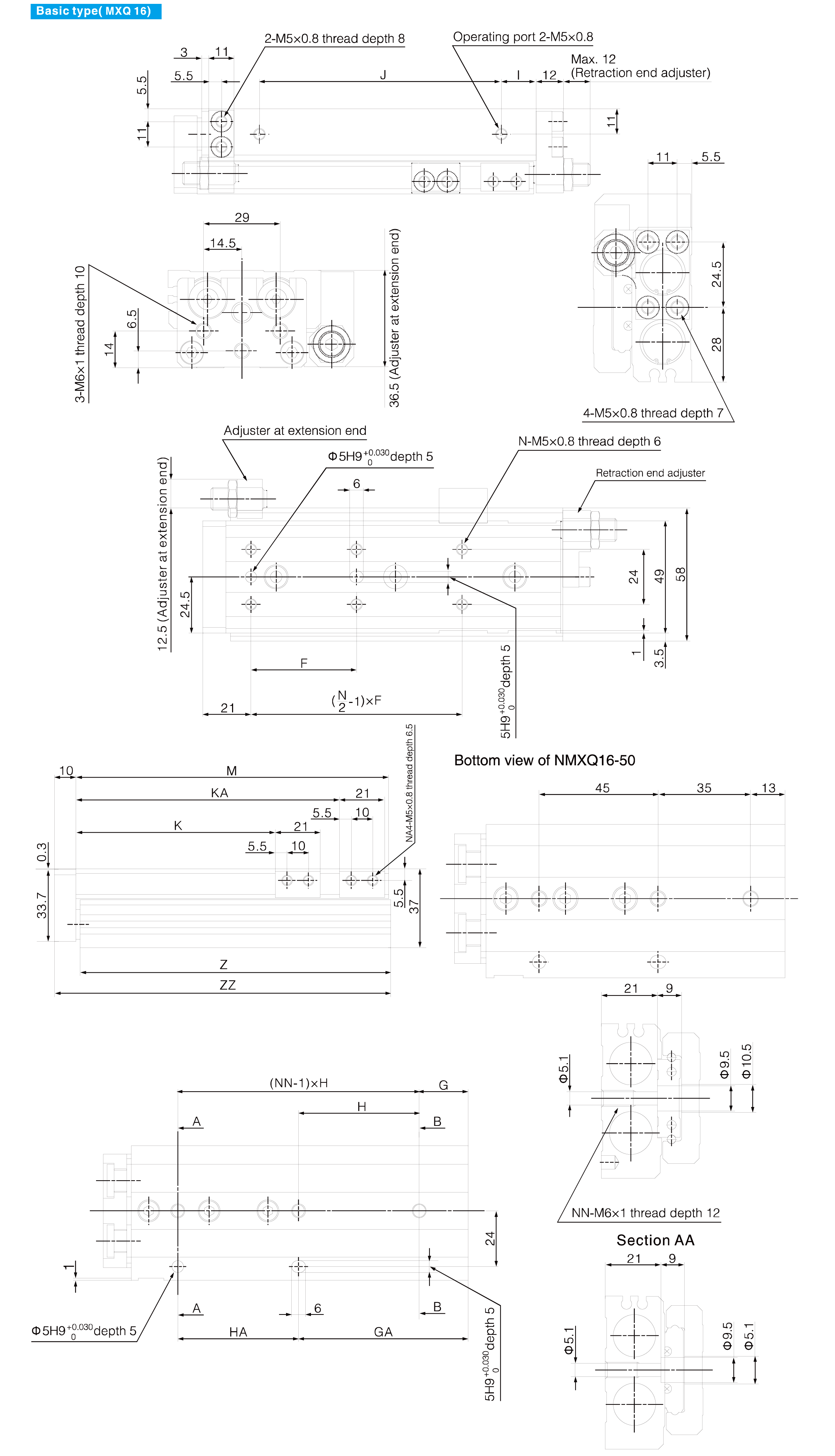

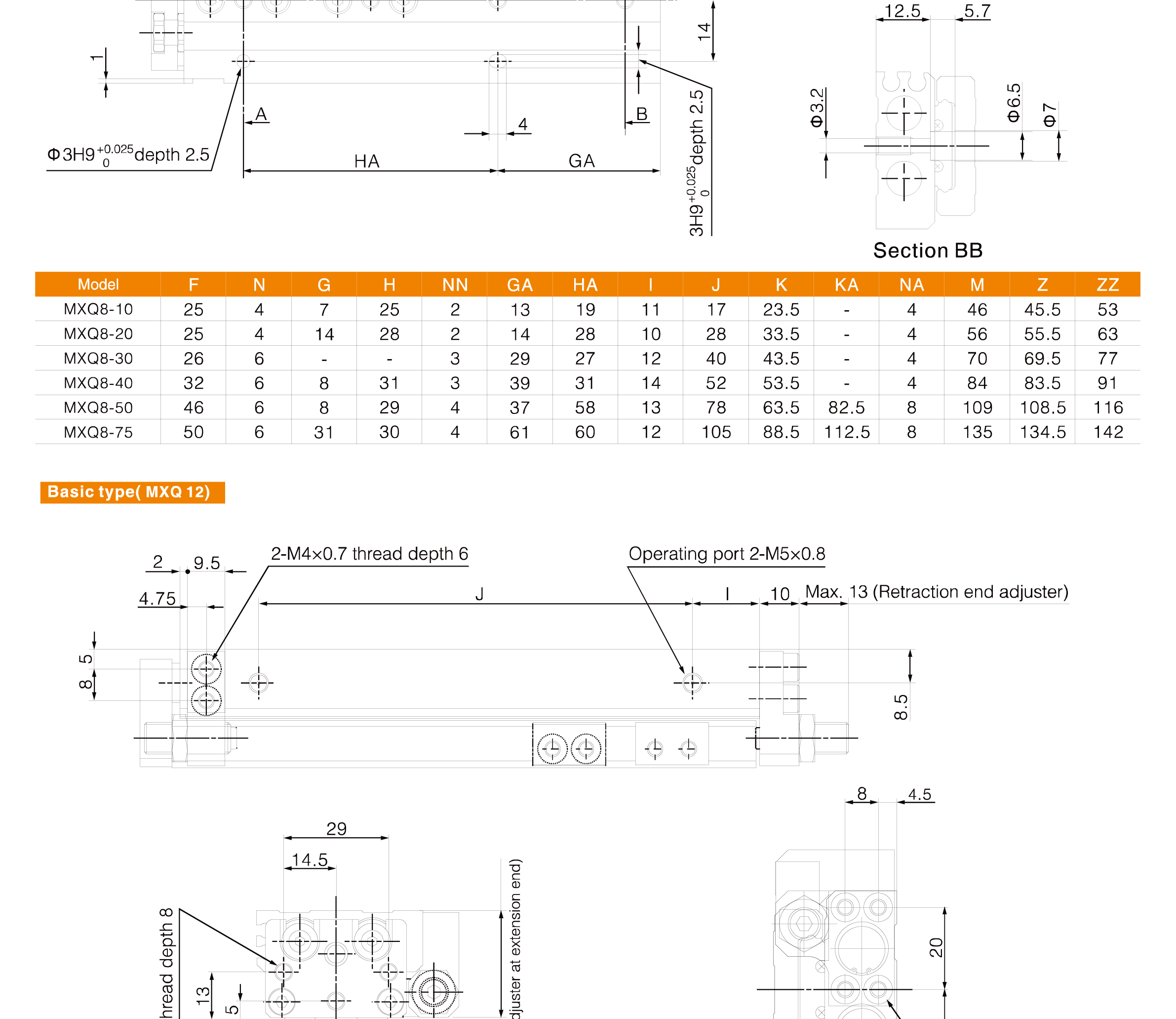

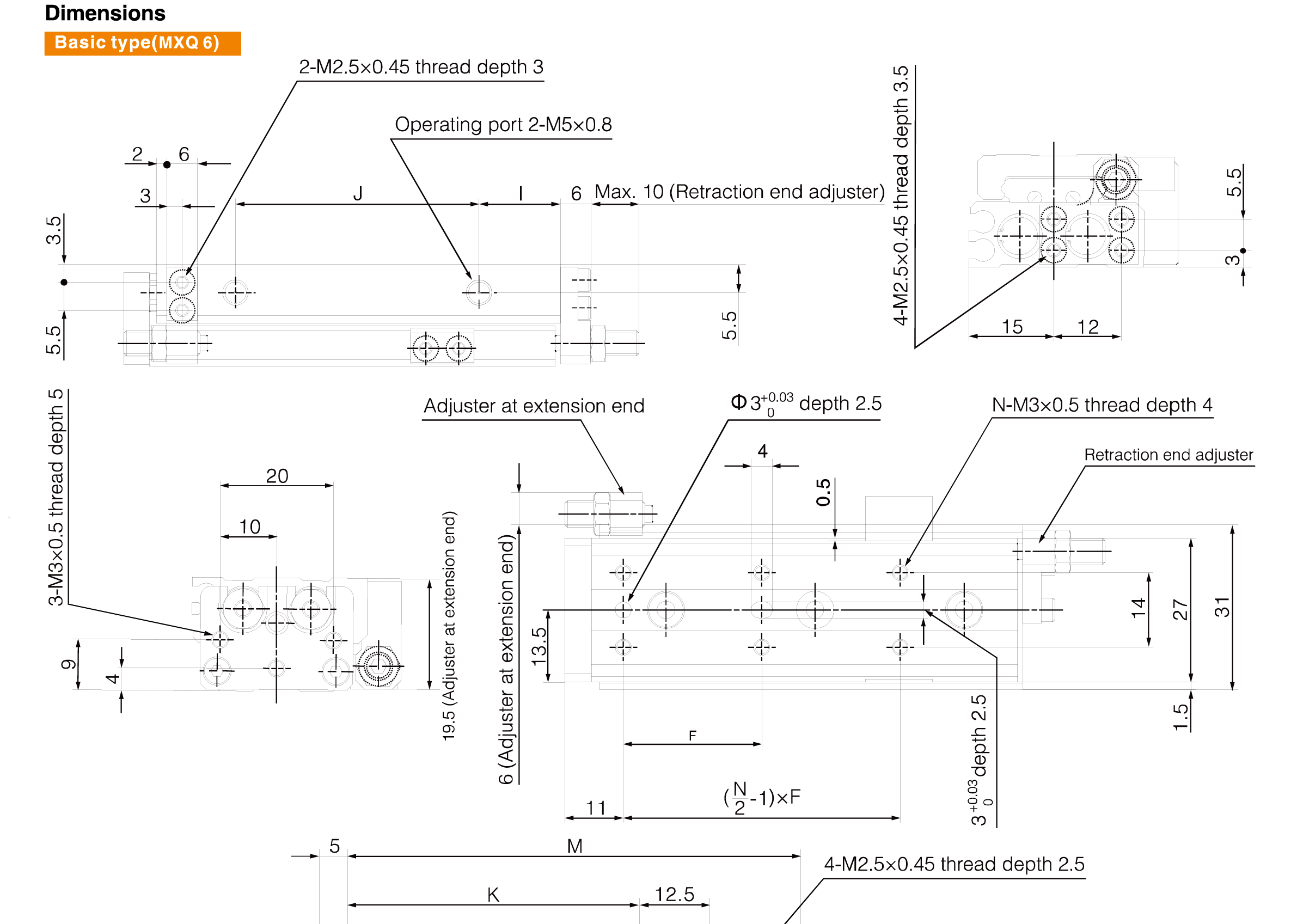

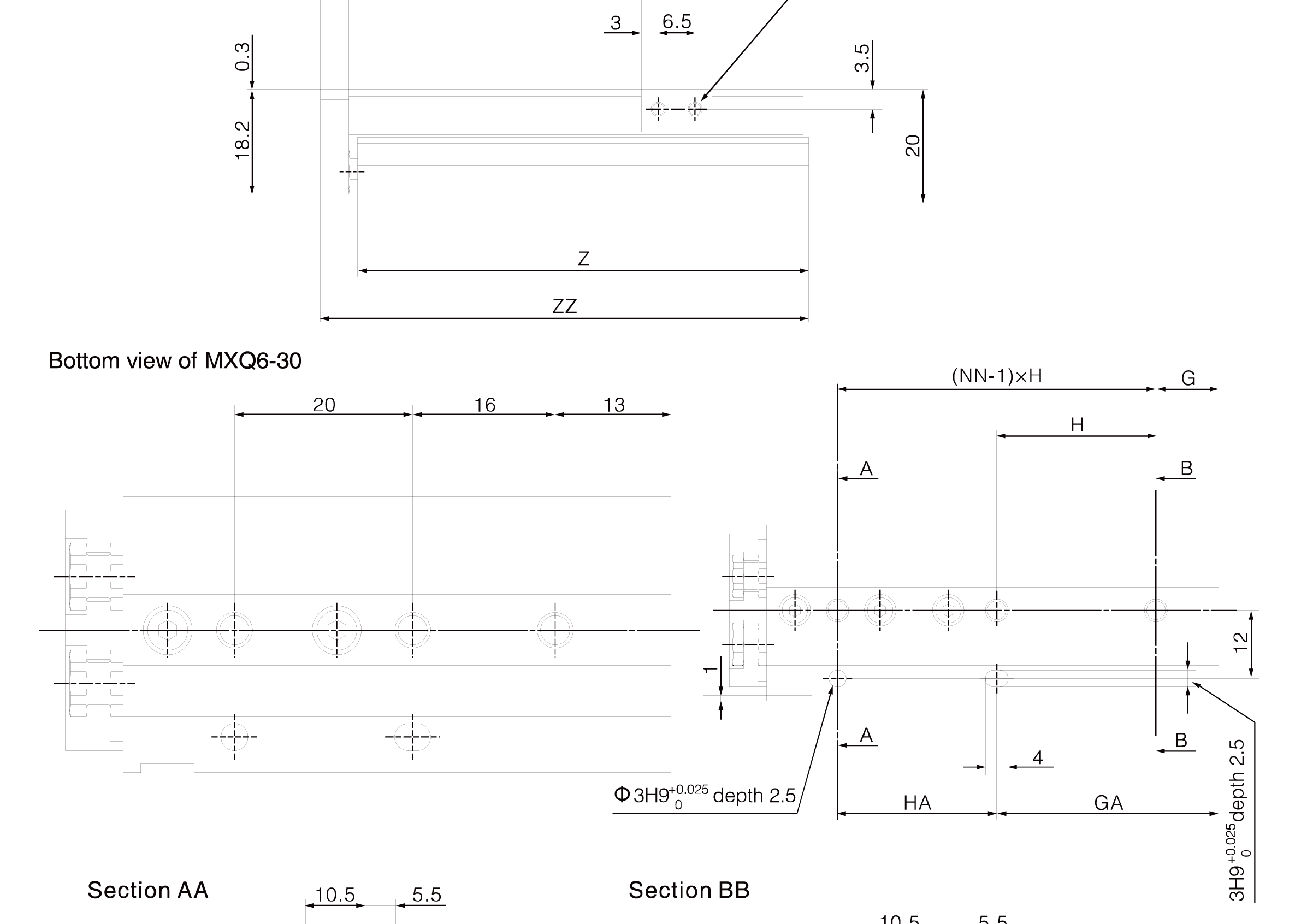

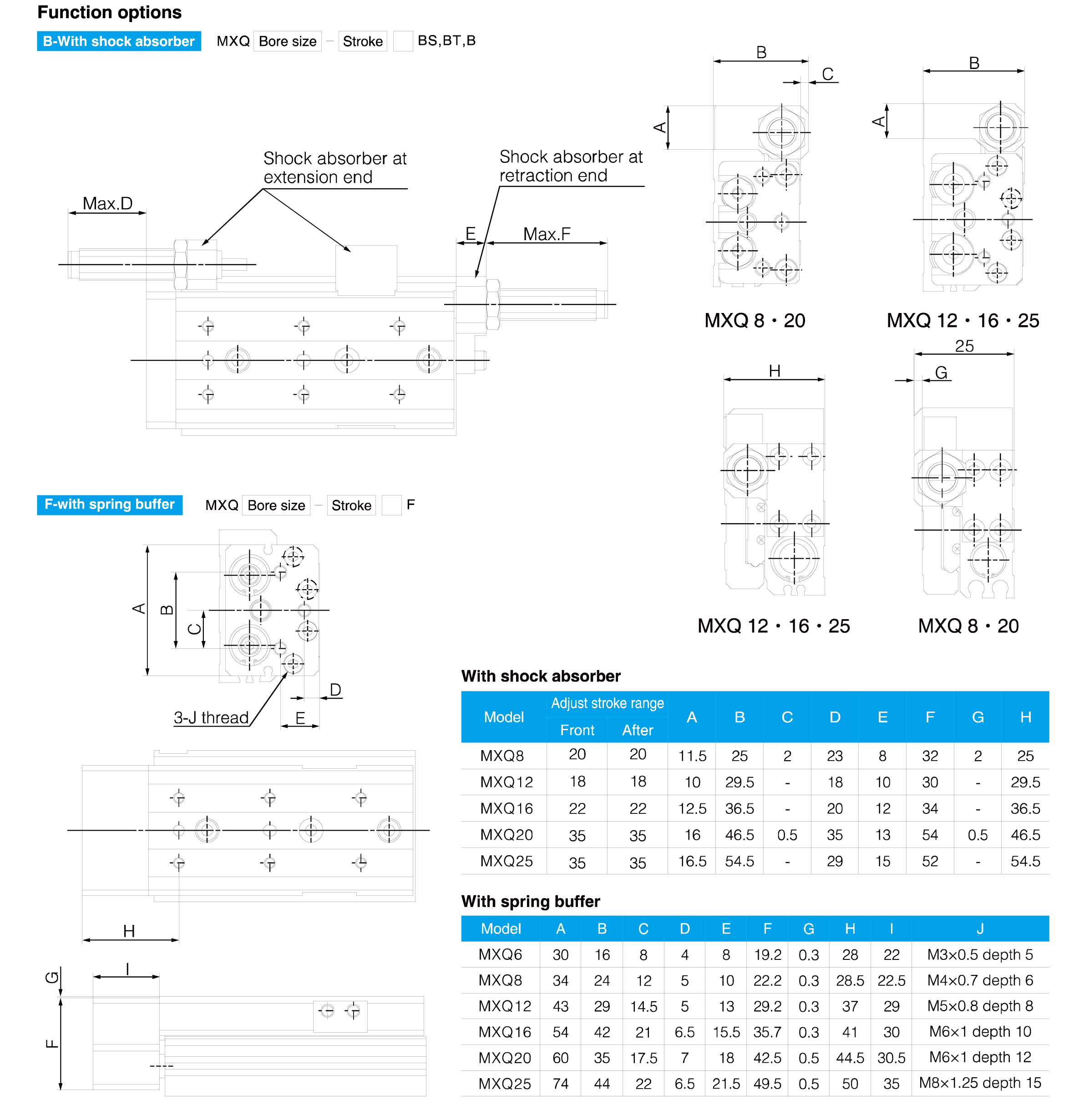

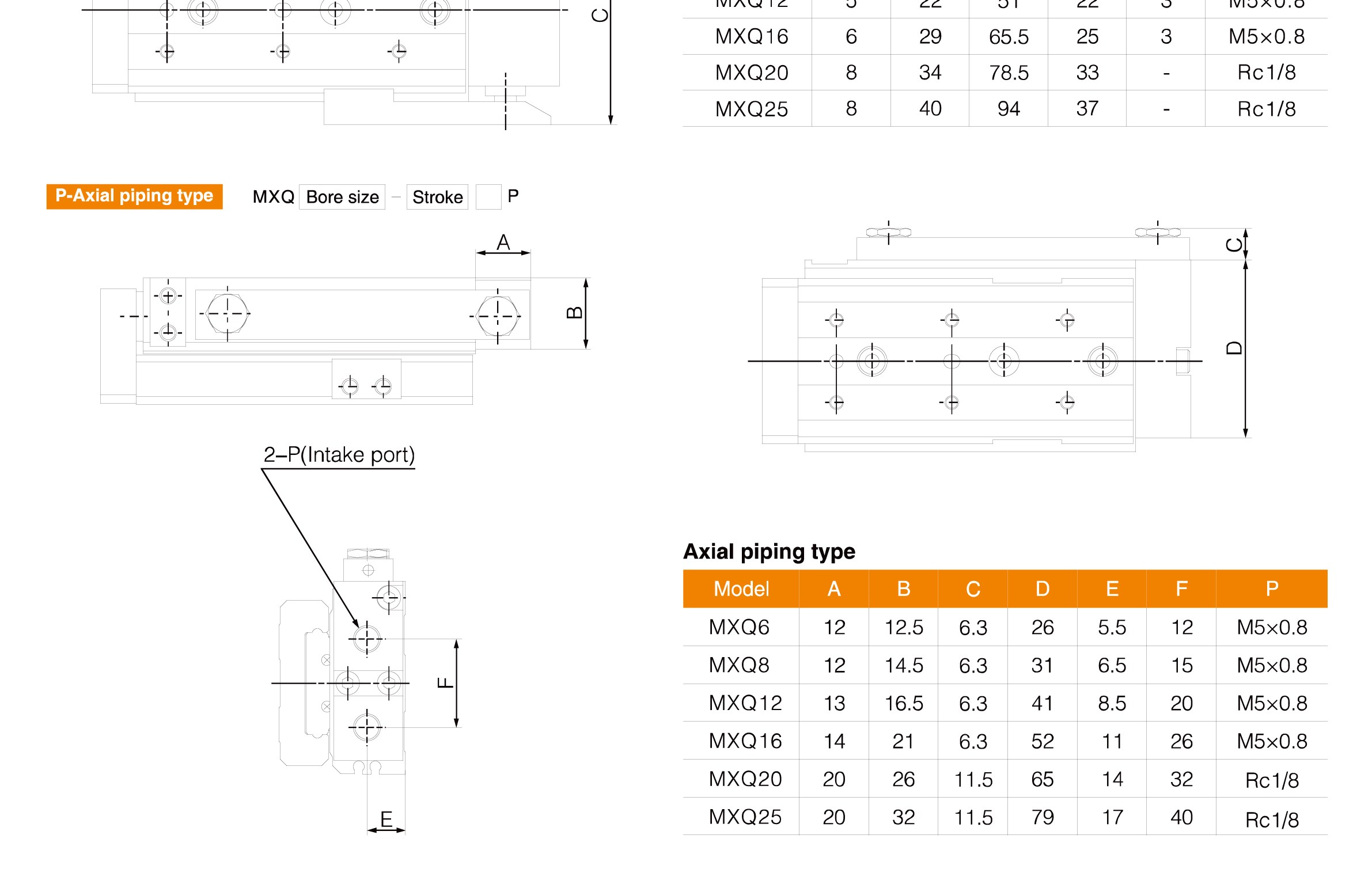

| Cushion Options | Rubber buffer, Hydraulic buffer, Shock absorber |
| Lubrication | Non-lube |
| Port Size | M5×0.8, Rc1/8 |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Precision assembly equipment
● Semiconductor manufacturing systems
● Electronic component positioning
● Automated inspection equipment
● Pick-and-place machinery
● Precision transfer stations
● Robotic end-of-arm positioning
● Medical automation devices
● Packaging and labeling systems
● High-precision industrial automation
The MXQ Series Air Slide Table combines compact dimensions, superior guide accuracy, high output force, and excellent load capacity into one integrated solution. Its precision circular guide system and flexible configuration options make it an ideal actuator for OEM equipment requiring reliable, repeatable, and highly accurate linear motion.
